Chroma-Q®
Space Force™ octo
User Manual
Part Number CQSPFV, CQSPFVW, CQSPFVLR
(Model: 650-1000, 650-1100, 650-1500)
Software Version Addressing 1.7, Engine 3.3.2
Manual P/N: 650-0901 V2.0
Space Force™ octo User Manual V2.0 1 Nov.. 2021
www.chroma-q.com
Warranty Statement
Chroma-Q® warrants to the original purchaser, with proof of purchase, that its delivered products shall
be free from defects in material and workmanship under normal use for a period of 24 months from
date of shipment.
Chroma-Q® will repair, or at its option, provide an equivalent item or replace, the defective product
during the stated warranty period. This warranty applies only to the repair or replacement of the
product and only when the product is properly handled, installed and maintained according to
Chroma-Q® instructions. This warranty excludes defects resulting from improper handling, storage,
installation, acts of God, fire, vandalism or civil disturbances. Purchaser must notify Chroma-Q® in
writing within 14 days of noticing the defect. This warranty excludes field labour or service charges
related to the repair or replacement of the product.
The warranty contained herein shall not extend to any finished goods or spare parts from which any
serial number has been removed or which have been damaged or rendered defective (a) as a result
of normal wear and tear, wilful or accidental damage, negligence, misuse or abuse; (b) due to water
or moisture, lightning, windstorm, abnormal voltage, harmonic distortion, dust, dirt, corrosion or other
external causes; (c) by operation outside the specifications contained in the user documentation; (d)
by the use of spare parts not manufactured or sold by Chroma-Q® or by the connection or integration
of other equipment or software not approved by Chroma-Q® unless the Customer provides acceptable
proof to Chroma-Q® that the defect or damage was not caused by the above; (e) by modification,
repair or service by anyone other than Chroma-Q®, who has not applied for and been approved by
Chroma-Q® to do such modification, repair or service unless the Customer provides acceptable proof
to Chroma-Q® that the defect or damage was not caused by the above; (f) due to procedures,
deviating from procedures specified by Chroma-Q® or (g) due to failure to store, install, test,
commission, maintain, operate or use finished goods and spare parts in a safe and reasonable
manner and in accordance with Chroma-Q
®
’s instructions (h) by repair or replacement of engines
without factory training.
The warranty contained herein shall not apply to finished goods or spare parts which are sold “as is”,
as “second-hand”, as used”, as “demo” or under similar qualifications or to Consumables
(“Consumables” is defined as any part(s) of goods or part(s) for use with goods, which part(s) of goods
or part(s) for use with goods are consumed during the operation of the goods and which part(s) of
goods or part(s) for use with goods require replacement from time to time by a user such as, but not
limited to, light bulbs).
The warranty contained herein shall not apply, unless the total purchase price for the defective
finished goods or spare parts has been paid by the due date for payment.
The warranty contained herein applies only to the original purchaser and are not assignable or
transferable to any subsequent purchaser or end-user.
This warranty is subject to the shipment of the goods, within the warranty period, to the Chroma-Q®
warranty returns department, by the purchaser, at the purchaser’s expense. If no fault is found,
Chroma-Q® will charge the purchaser for the subsequent return of the goods.
Chroma-Q® reserves the right to change the warranty period without prior notice and without incurring
obligation and expressly disclaims all warranties not stated in this limited warranty.
Space Force™ octo User Manual V2.0 2 Nov.. 2021
www.chroma-q.com
Disclaimer
The information contained herein is offered in good faith and is believed to be accurate. However,
because conditions and methods of use of our products are beyond our control, this information
should not be used in substitution for customer's tests to ensure that Chroma-Q® products are safe,
effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as
inducements to infringe any patent. Chroma-Q® sole warranty is that the product will meet the sales
specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty
is limited to refund of purchase price or replacement of any product shown to be other than as
warranted.
Chroma-Q® reserves the right to change or make alteration to devices and their functionality without
notice due to our ongoing research and development.
The Chroma-Q® Space Force™ range has been designed specifically for the lighting industry.
Regular maintenance should be performed to ensure that the products perform well in the
entertainment environment.
If you experience any difficulties with any Chroma-Q® products please contact your selling dealer.
If your selling dealer is unable to help, please contact support@chroma-q.com. If the selling dealer
is unable to satisfy your servicing needs, please contact the following, for full factory service:
Outside North America: North America:
Tel: +44 (0)1494 446000 Tel: 416-255-9494
Fax: +44 (0)1494 461024 Fax: 416-255-3514
support@chroma-q.com support@chroma-q.com
For further information please visit the Chroma-Q® website at www.chroma-q.com.
Chroma-Q® and Space Force™ are trademarks, for more information on this visit www.chromaq.com/trademarks.
The rights and ownership of all trademarks are recognised.
Important Notice:
As per the requirements in the Occupational Safety and Health Administration standards for product
approval, please refer to the OSHA web pages http://www.osha.gov/dts/otpca/nrtl/ for information
on the list of Nationally Recognized Testing Laboratories (NRTLs) and the scope of recognition.
Space Force™ octo User Manual V2.0 3 Nov.. 2021
www.chroma-q.com
Safety information
Warning!
Safety Hazard.
Risk of severe injury or
death.
Warning!
Fire Hazard.
Warning!
Hazardous Voltage.
Risk of severe lethal
electric shock.
Warning!
Refer to User manual.
Warning!
• Read the user manual before installing and operating the Chroma-Q® Space Force™ octo. For
future reference, keep and use the manual.
• Safety precautions given in user manual must be followed at all times and the manuals of all the
devices you connect it to. Observe all the warnings printed on devices and in manuals. Make
sure whoever is involved in working on or using the Space Force™ octo has carefully read and
understood all the safety precautions and lasted warnings.
• Install, connect, operate and service devices only as described in this manual and in connected
devices’ manuals and only in accordance with local laws and regulations. All Chroma-Q®
manuals are supplied with devices and are also available for download from www.chromaq.com.
• Space Force™ octo does not have user-serviceable parts. Refer any operation not described in
this manual to support@chroma-q.com.
If you experience difficulties with any Chroma-Q® products please contact your local dealer. If your
local dealer is unable to help then please contact support@chroma-q.com.
If you are having trouble finding what you are looking for on our website, then contact our ChromaQ® marketing department by sending an email to marketing@chroma-q.com.
WARNING!
Read the safety precautions in this section before
installing, powering, operating or servicing this
product.
Space Force™ octo User Manual V2.0 4 Nov.. 2021
www.chroma-q.com
PROTECTION FROM ELECTRIC SHOCK
• Use only the cables specified in this manual and on the Chroma-Q® website at
www.chroma-q.com to interconnect devices in the installation. If the specified cables are
not long enough for an intended cable run, consult Chroma-Q® for assistance in finding or
creating a safe alternative solution.
• Provide a means of locking out AC mains power that allows power to the installation to be
shut down and made impossible to reapply, even accidentally, during work on the
installation.
• Shut down power to the installation during service and when it is not in use.
• Before applying power to the installation, check that all power distribution equipment and
cables are in perfect condition and rated for the current requirements of all connected
devices.
• Isolate the installation from power immediately if any product, power cable or power plug is
in any way damaged, defective or wet, or if it shows signs of overheating.
• Do not immerse a Space Force™ octo fixture in water or expose it to high-pressure water
jets.
PROTECTION FROM BURNS AND FIRE
• The Space Force™ octo is cooled passively by natural air convection. Provide adequate
clearance for airflow around the fixtures.
• Do not operate the Space Force™ octo, if the ambient temperature (Ta) exceeds 40° C
(104° F).
• Do not modify the Space Force™ octo, in any way not described in this manual or install
other than genuine Chroma-Q® parts.
• Use only accessories approved by Chroma-Q®.
PROTECTION FROM INJURY
• Ensure that the installation hardware and supporting surface or structure can hold at least
10 times the weight of all the devices they support.
• Block access below the work area and work from a stable platform whenever installing,
servicing or moving the Space Force™ octo.
• As soon as work is completed, check that all hardware and components are securely
fastened to supporting structures.
• Make sure there are no flammable materials close to the product during operation.
• Avoid direct eye exposure to the light source while the product is on.
• Never try to repair the product. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized dealer or contact support@chroma-
q.com.
Keep this User Manual for future consultation. If this product is used by another
user, be sure that they also receive this document.
Space Force™ octo User Manual V2.0 5 Nov.. 2021
www.chroma-q.com
Table of Contents
1. Product overview ............................................................................................................... 6
2. Operation ............................................................................................................................ 7
2.1 Unpacking the Units ........................................................................................................... 7
2.2 Cabling .............................................................................................................................. 7
2.3 Mounting ............................................................................................................................ 8
2.4 Control ............................................................................................................................... 8
2.5 Thermal Performance ...................................................................................................... 21
3. Troubleshooting ............................................................................................................... 22
4. Specification ..................................................................................................................... 23
4.1 Technical Specification .................................................................................................... 23

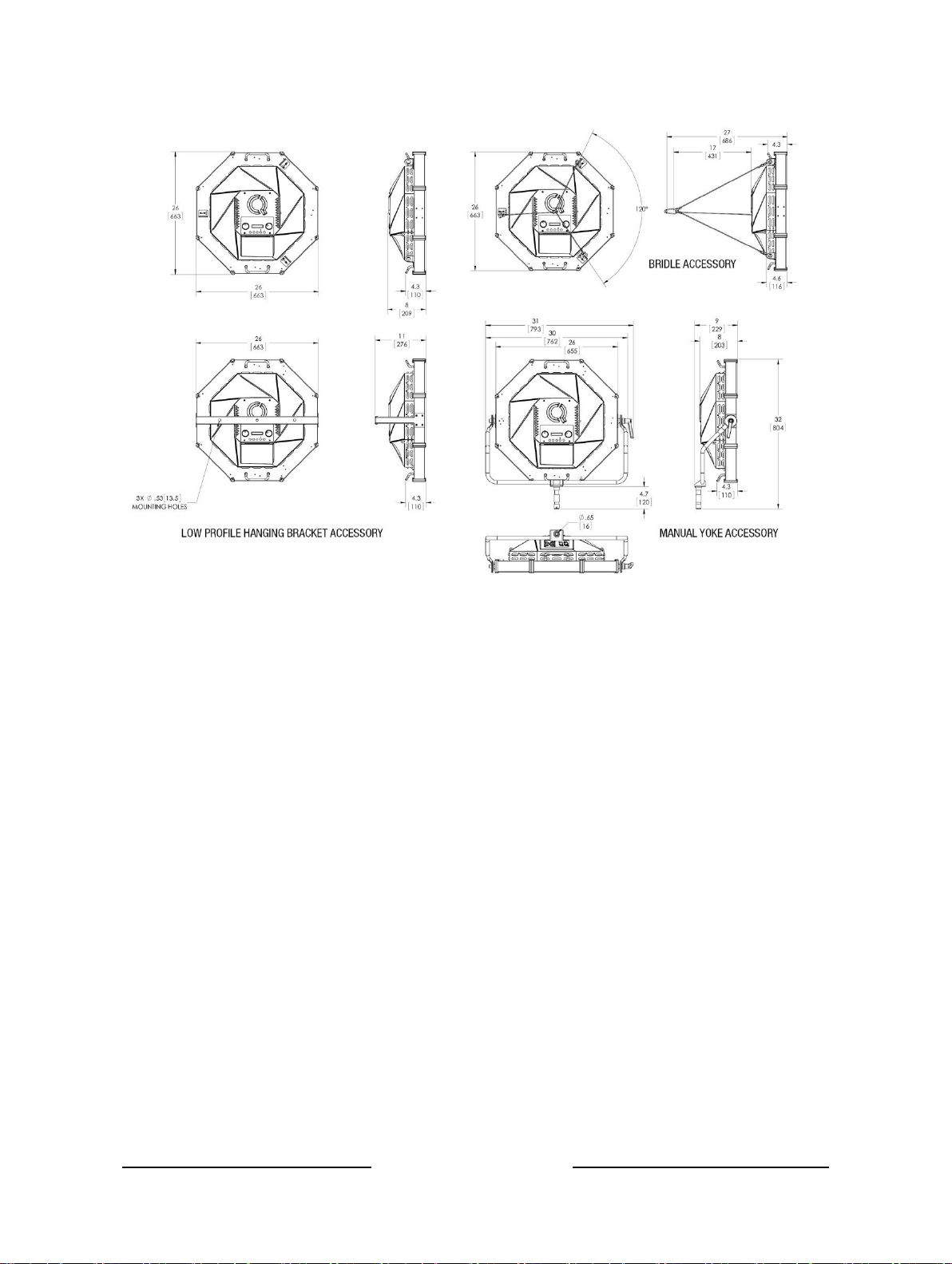

4.2 Drawings ......................................................................................................................... 25
5. Accessories ...................................................................................................................... 26
6. Maintenance ..................................................................................................................... 26
Space Force™ octo User Manual V2.0 6 Nov.. 2021
www.chroma-q.com
1. Product overview
The new Chroma-Q® Space Force™ octo is a cutting-edge variable white LED Space Light
fixture that is a true replacement for a conventional space light and soft light source commonly
used in Film and TV studios around the world. It features extensive RDM functionality through
wired or the optional wireless Lumen Radio CRMX connections. Hanging options include a
standard bridle, optional yoke and a low-profile hanging bracket.
Smooth, Soft Output
With a high degree of efficiency, the fixture is natively single source, removing the need for
skirts or silks to diffuse the light. Designed for lighting stages and studios, the Space Force™
octo provides a high-quality, variable CCT soft white light.
As a result of its low profile, lightweight and skirt-free design, the Space Force™ octo is quick
and easy to set up at any height.
Taking advantage of Chroma-Q's extensive experience and impressive track record in
developing LED lighting solutions, the Space Force™ octo utilises the very latest technologies,
high quality components and manufacturing techniques in order to deliver a reliable, premium
performance light source.
A White Light for Every Application
The Chroma-Q Space Force™ octo is available as a variable white model 2,800K – 6,300K.
Every unit is factory calibrated, to ensure consistent output and colour temperature.
Energy-Efficient
The Chroma-Q Space Force™ octo uses a fraction of the power required by conventional
fixtures, while delivering all of the performance you require. Not only is the power consumption
lower, so too is the heat produced - ensuring a cooler environment and lower air conditioning
costs.
Convection Cooled
Using the same proven convection cooling technology found in other Chroma-Q LED fixtures
- which eliminates the need for noisy cooling fans - the Space Force™ octo provides totally
silent operation.
Long Life
The Chroma-Q Space Force™ octo utilises LED technology to ensure consistent long life
performance - removing the need for costly regular maintenance associated with conventional
fixtures.
Space Force™ octo User Manual V2.0 7 Nov.. 2021
www.chroma-q.com

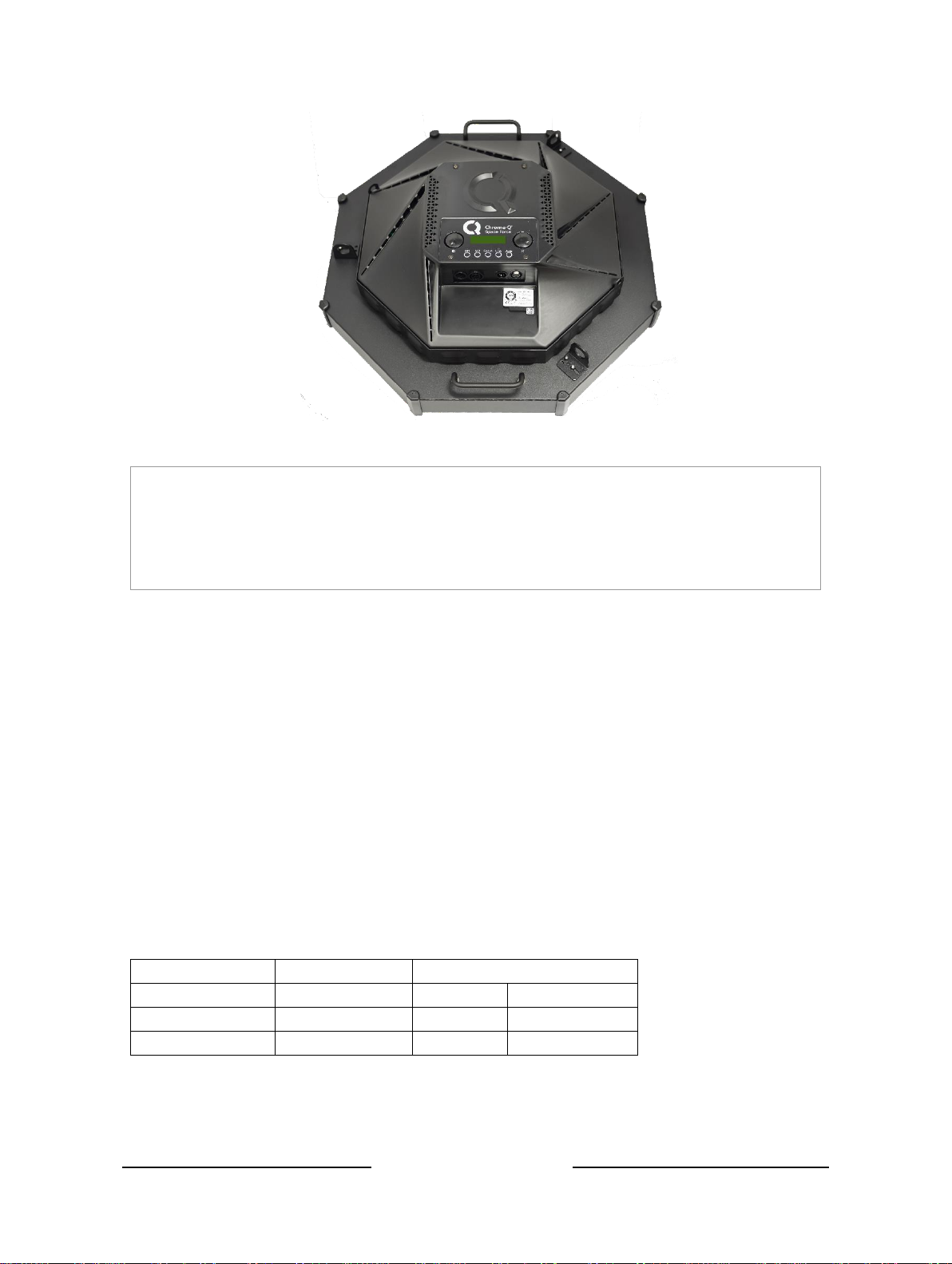

Note: HANDHELD COLOUR METERS
Most Handheld Color Meters provide a limited measuring range for LED fixtures, which often
results in inconsistent and unreliable data.
All photometric values listed in this document are based on testing and measurements
conducted by certified independent laboratories with reference to the IES standards.
2. Operation
2.1 Unpacking the Units
The package includes 1 Space Force™ octo fixture, power connector and a Quick Start Guide. We
recommend that you keep the original packaging in case the item needs to be returned.
2.2 Cabling
The fixture uses powerCon True 1 chassis connectors for power in and through. Use the provided
connector to make a power feeder cable of the desired length and input connector configuration.
The maximum number of Space Force™ octo fixtures running off a single power input cable and
using the power through connector is 5 at 120V AC or 10 at 230V AC if using a 12 AWG
(3.3mm²) wire. Please refer to ANSI and AWG standards for the maximum data and power cable
lengths.
Power cable wire colour schemes:
The fixture uses XLR 5 pin input and through chassis connectors for ANSI E1.20 - 2010 RDM and
USITT DMX512-A control. The XLR chassis are ground bonded.
EU
North American
Connections
Green and Yellow
Green
Earth (E)
Ground (Green)
Blue
White
Neutral (N)
Neutral (Silver)
Brown
Black
Live (L)
Hot (Gold)
Space Force™ octo User Manual V2.0 8 Nov.. 2021
www.chroma-q.com
XLR 5-pin Cable:
Pin#
Function
1
Common (Screen)
2
Data Minus
3
Data Plus
4
Spare Data Minus
5
Spare Data Plus
Important Notice: The use of an opto-splitter for DMX signal distribution is highly recommended
when several fixture units are not plugged into the same power source.
2.3 Mounting
The fixture is equipped with brackets for bridle hanging applications. Standard yokes and low-profile
hanging brackets are available as optional accessory items.
Secure the fixture with a safety bond. A provision for a fixing hold is built into the fixture.
2.4 Control
The Space Force™ octo can be controlled through:
Manual
Operation
The control panel at the rear of the fixture consists of the LEFT-HAND and
RIGHT-HAND KNOBS and an LCD display
Input Cable
ANSI E1.20 - 2010 RDM-Remote Device Management over USITT DMX512-A
control from an external console through an XLR-5 pin cable
INPUT RF
ANSI E1.20 - 2010 RDM-Remote Device Management over USITT DMX512-A
control from an external console through a wireless connection
The fixture can operate as a standalone unit in manual control operation or be controlled remotely via
the USITT DMX512 protocol. The control panel at the rear of the fixture consists of an LCD display,
2 rotary control knobs and 5 control buttons. The LCD display is backlit when you access the menus
and turns off when left undisturbed for 5 seconds. The fixture can be remotely configured via ANSI
E1.20-2010 RDM – Remote Device Management.
RF Module
Installed Indicator
Flash RDM
(when communicating)
Intensity
Level
Right-hand Knob
(Set Color Temp.)
DMX Indicator
Color Temperature
Indicator
Control Buttons
Link Indicator
Cable/RF Input Indicator
Left-hand Knob
(Set Intensity)
DMX Address
Space Force™ octo User Manual V2.0 9 Nov.. 2021
www.chroma-q.com
Intensity Level
Manual Control
Color Temp.
Go to Menu
+ Value
- Value
- 10
Decrement
+ Value
- Value
Pre-set
Value
Decrement
Press both Knobs
CONTROL BUTTONS
M1
Press & hold for 2
sec to save. Short
Press once to
recall
M2
Press & hold for 2
sec to save. Short
Press once to
recall
Focus
Press once to
switch ON.
Press again to
switch OFF
Link
Press & hold to
unlink (till LED
OFF)
Addr
Press & hold for 2 sec to
save. Short Press to set.
(When fixture is powered
off, press and hold to wake
up the fixture.)
Value +1
Value -1
Value +10
Value -10
Legend
Turn Clockwise LeftHand Knob
Turn Counterclockwise Left-Hand
Knob
Press Left-Hand Knob
Turn Clockwise RightHand Knob
Turn Counterclockwise Right-Hand
Knob
Press Right-Hand
Knob
Space Force™ octo User Manual V2.0 10 Nov.. 2021
www.chroma-q.com
Manual Control in Standalone Operation:
LEFT-HAND KNOB sets the Intensity Level Output
Rotate the Left-hand Knob clockwise to increase the Intensity Level from 0 – 100%
Rotate the Left-hand Knob counter-clockwise to decrease the Intensity Level from
100 - 0%
Press the Left-hand Knob to set the Intensity Level from 100% - 0% in decrements
of 10%.
RIGHT-HAND KNOB sets the Color Temperature
Rotate the Right-hand Knob clockwise to increase the Color Temperature
value from 2800K – 6500K
Rotate the Right-hand Knob counter-clockwise to decrease the Color
Temperature value from 6500 – 2800K
Press the Right-hand Knob to step through the Color Temperature preset values: 6500K, 5600K, 4300K, 3200K, 3000K, 2800K
Control Buttons
M1
Stores a look, or recalls the saved look – factory default 3000K
To save a look in M1,
1. In standalone or DMX operation, On the control panel, press and hold M1 until
“SAVED” appears on the display. To recall/playback a saved look in M1.
1. On the control panel, short press M1
2. The unit goes to the saved look in M1
M2
Stores a look, and recalls the saved look – factory default 5600K
To save a look in M2,
1. In standalone or under DMX operation.
2. On the control panel, press and hold M2 until “SAVED” appears on the display
To recall/playback a saved look in M2
1. On the control panel, short press M2
2. The unit goes to the saved look in M2
Focus
Switches the fixture ON to the maximum output level, for 30 seconds or until “Focus”
pressed again, for a quick focus check or manual re-focus
To switch Focus on,
1. Press Focus once
2. The maximum output level switches on
Link
Unlinks from the previous wireless transmitters. Go to the section on Remote Wireless
DMX Operation.
The Link Indicator light flashes slowly or stay solid ON if DMX signal is present when a
previous wireless link is active.
To unlink,
1. Press and hold Link for 2 – 5 seconds until the light is off
Space Force™ octo User Manual V2.0 11 Nov.. 2021
www.chroma-q.com
Addr
Sets the DMX start address (see section on Remote DMX Operation).
Wakes up the control panel, when power is not connected.
To wake up the unit when the power is not connected, press and hold the Addr button
for 10 seconds.
Space Force™ octo User Manual V2.0 12 Nov.. 2021
www.chroma-q.com

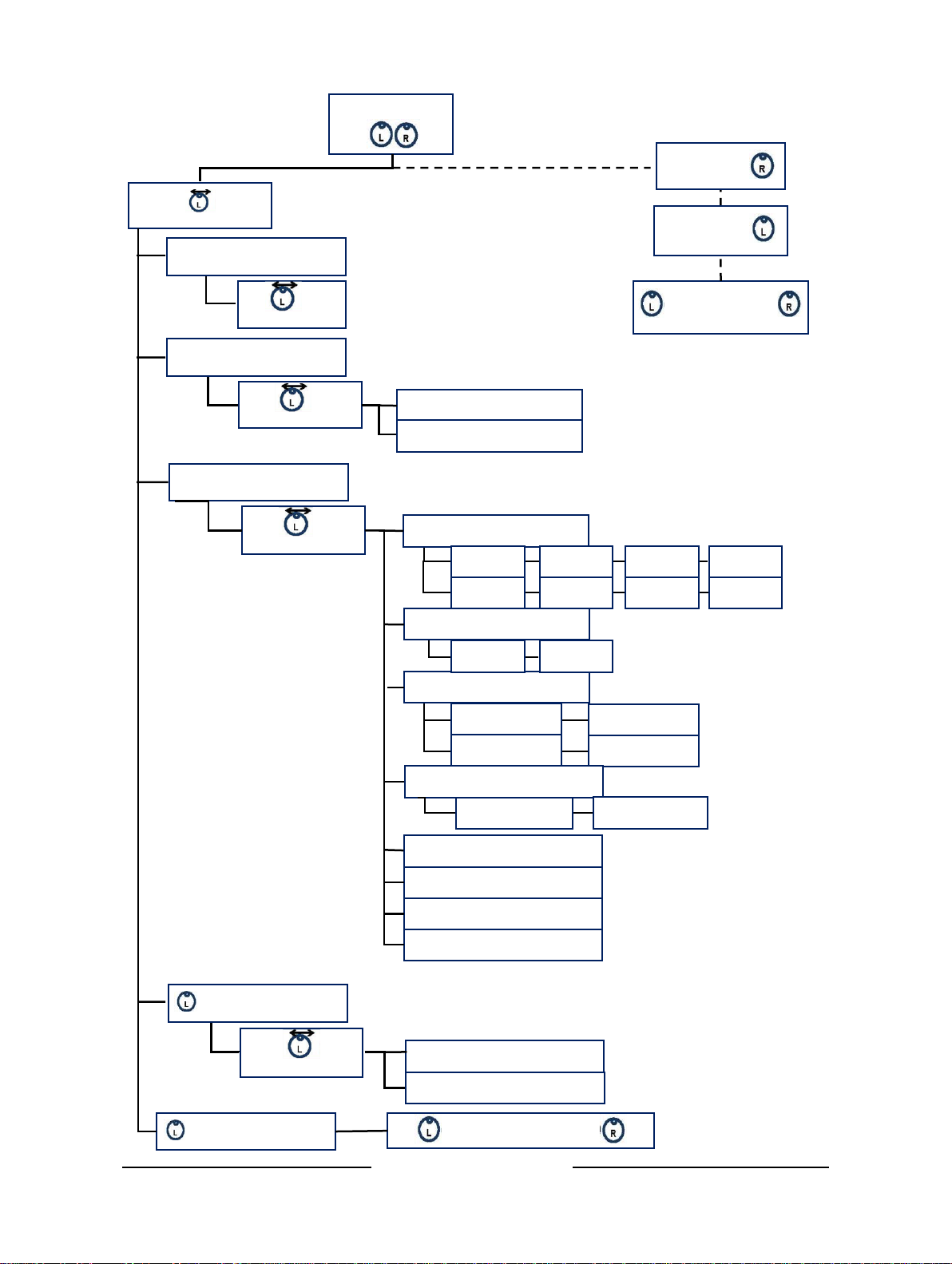

MAIN MENU
1-Address
Inc/Dec
3-Technical
Inc/Dec
4-User Defaults
5-Reset
2-Personality
Inc/Dec
1-INT-CCT 2
2-INT-CCT-EXTD 3
Press both to Reset
1-PWM Frequency
3-DMX Lost
5-DMX Input Data
750 Hz
1.5 kHz
3 kHz
6 kHz
12 kHz
24 kHz
48 kHz
96 kHz
1-Turn Black
2-Hold Last
3-Recall M1
4-Recall M2
6-Temperature
7-FMW Name & Version
8-Engine Upload
2-DMX I/P Select
Cable
Radio
Inc/Dec
1-Save
2-Restore
Press R to
Go back
Press both to
record
Press L to
Select
4-RDM
RDM Disabled
RDM Enabled
Space Force™ octo User Manual V2.0 13 Nov.. 2021
www.chroma-q.com
Main Menu
FUNCTION
ACTION
To access the Main Menu in the LCD Display
Press both LEFT-HAND and RIGHT-HAND
KNOBS at the same time
To enter/select the currently displayed menu
Press the LEFT-HAND KNOB once
To scroll through the menu items
Rotate the LEFT-HAND KNOB
clockwise/counter-clockwise
To exit back to the previous menu or the main
display
Press the RIGHT-HAND KNOB once
To save the selected menu item
Press and hold the LEFT-HAND and RIGHTHAND KNOBS for 2 seconds and the display
shows “SAVED”
1-Address
• Sets the DMX start address
2-Personality
• Personality selection, save and restore user defaults to the main menu. Two
personalities are implemented
a. INT-CCT:
i. Footprint: Two channels (Address, Address+1).
ii. First channel: Light intensity; Second channel: Light temperature
b. INT-CCT-EXTD:
i. Footprint: Three channels (address, address+1, Address+2).
ii. First two channels are similar to (a.); the third channel is the Control (CTRL)
channel. Commands (through DMX) that are placed on this channel for over
5 seconds get executed. The command list will follow in the “New Control via
DMX” section.
Space Force™ octo User Manual V2.0 14 Nov.. 2021
www.chroma-q.com
3-Technical
1– PWM Frequency
The fixture can be set to various PWM frequencies to avoid
flickering on camera:
750
Hz
1.5
kHz 3 kHz
6
kHz
12
kHz
24
kHz
48
kHz
96
kHz
Note:
Dimming will be smoother at lower PWM frequencies.
2 – DMX I/P Select
Enables the input connection:
INPUT CABLE
DMX from console via cable
INPUT RF
Wireless DMX from an external transmitter
3 – DMX Lost
If the DMX control signal from an external source is not detected,
various standalone output options can be selected:
1 – OFF
Fixture has no output
2 – Hold Last
Fixture holds the last valid DMX state
3 – M1
Fixture snaps to the saved look in M1
4 – M2
Fixture snaps to the saved look in M2
4-RDM
RDM protocol can be enabled or disabled
RDM Disabled
RDM is disabled
RDM Enabled
RDM is enabled
5 – DMX Input Data
DMX I/P channel values are displayed in decimal
6 – Temperature
Internal temperature is displayed
7 – FMW Name &
Version
Firmware Name and Version are displayed
8 – Engine upload
Set this mode to enable the upload of LED engine software
updates.
• Connect the fixture to the Uploader II
• Enable Engine LOAD from the Technical menu
• Initiate the upload from the Uploader II
(Refer to the Uploader II Quick Start Guide for details
http://www.chroma-q.com/support/downloads.asp)
4-User Defaults
• Provides two choices, Save and Restore. Save will store all the current set ups,
including Address and Personality, into a user dedicated area on flash. Restore will
bring that set up back.
Space Force™ octo User Manual V2.0 15 Nov.. 2021
www.chroma-q.com
5-Reset Setting
• Resets all the control settings to the factory default
DMX Address
1
No DMX Present
Hold Last
PWM Frequency
3000 Hz
DMX Input
Cable
Remote DMX Operation:
To set the DMX Start Address from the control button,
1. On the Control Panel, press the Addr button once,
“Adr” on the top left of the display flashes
2. Use either the Left-hand and Right-hand Knobs to set the DMX start address,
LEFT-HAND KNOB:
• Rotate the Left-hand Knob clockwise to increase the value from 1 to 512 in
increments of 1
• Rotate the Left-hand Knob counter-clockwise to decrease the value in
increments of 1
RIGHT-HAND KNOB:
• Rotate the Right-hand Knob clockwise to increase the value from 1 to 512 in
increments of 10
• Rotate the Right-hand Knob counter-clockwise to decrease the value in
increments of 10
3. Press and hold the Addr button for 2 seconds to save the new DMX setting,
“Done” and “SAVED” appears on the display.
To set the DMX Start Address from the Main Menu, see the following section Main Menu.
DMX Footprint: 2 channels
• 1st DMX Channel controls the Intensity Level adjustment
• 2nd DMX Channel controls the Color Temperature adjustment
The DMX Values for the Color Temperature are as follows:
2800K – 0, 3000K – 16, 3200K – 32, 4300K – 120, 5600K – 224, 6000K – 255
• When setting Personality to” INT-CCT-EXTD”, a third DMX channel will be established to
carry commands rather than light data from the console to the fixture.
Remote Wireless DMX:
To activate a wireless link,
1. Unlink the fixture – see instructions on page 9
2. Enable the INPUT RF from the Technical Menu
3. From the external transmitter, activate a link
4. The Link Indicator flashes fast to indicate the link in progress
5. The Link Indicator flashes slowly to indicate the link complete and active
6. The Link Indicator becomes solid ON if DMX is received over the wireless link
Note: DMX will not be sent through XLR when using Lumen Radio.
Space Force™ octo User Manual V2.0 16 Nov.. 2021
www.chroma-q.com
RDM Compliant:
The Space Force™ octo is an ANSI E1.20 - 2010 RDM-Remote Device Management compliant
device which allows bi-directional control configuration, status monitoring and management through
the wired and wireless DMX connection.
New Control via DMX
When setting Personality to” INT-CCT-EXTD”, a third DMX channel will be established to carry
commands rather than light data from the console to the fixture. A command is a binary number that
must be asserted on the third channel for at least 5 seconds to have it executed.
The changes made through DMX are not store in the fixture, this means that after a reboot the settings
will revert back to values originally set in the fixture’s menu.
However, it is possible to save these settings as new user default using the Save User Default DMX
command (244-245).
See Control Channel Commands table.
Parameter
Implemented
SET
GET
Value(s)
Description
MANUFACTURER_LABEL
X 0x5370
Chroma-Q
DEVICE_MODEL_DESCRIPTION
X
SPACEFORCE_1
DEVICE_INFO
Yes
No X
Sends the Device info
DMX_PERSONALITY
Yes
X X
DMX_START_ADDRESS
Yes
X X 1-511
DMX Start Address (
IDENTIFY_DEVICE
Yes
X
No
1/0
Flashes ON/OFF for
30S/Reset flashing
DEVICE_LABEL
Yes
X X Up to 32
Alphanumeric
Characters
RESET_DEVICE
Yes
X
No Factory Defaults
SENSOR_DEFINTION
Yes
No X
Engine Temperature
SENSOR_VALUE
Yes
No X
Temperature in oC
SOFTWARE_VERSION_LABEL
Yes
No X
PL1.65
STORE_MX
Yes
X
X
1
M1 (similar to LOOK 1)
2
M2 ( similar to LOOK 2)
RECALL_MX
Yes
X
X
1
M1 ( similar to LOOK 1)
2
M2 ( similar to LOOK 2)
UNLINK
Yes
X
SET PWM FREQUENCY
Yes
X
No
750, 1500,
3000, 6000,
12000,
24000,
48000,
96000
Set PWM frequency
GET PWM FREQUENCY
YES
No X Byte string
750 = 3735302020
1500= 3135303020
3000= 3330303020
6000= 3630303020
12000=3132303030
24000=3234303030
48000=3438303030
DEVICE_HOURS
Yes
X
Total device operation
hours
DEVICE_POWER_CYCLES
Yes
X
Total number of device
power cycles
Space Force™ octo User Manual V2.0 17 Nov.. 2021
www.chroma-q.com
RDM Functions
A. Chroma-Q Specific Functions
1. STORE MEMORY Mx
Description: Stores current light intensity and temperature to either memory (M1) or (M2) on
flash.
Function: SET
Argument: one binary byte of value: 1 for M1, or 2 for M2
2. RECALL MEMORY Mx
Description: Restores light intensity and temperature previously stored in memory M1, or
M2.
Function: SET
Argument: one binary byte of value: 1 for M1, or 2 for M2
3. UNLINK SPACEFORCE
Description: Unlinks TiMO RF module from the currently linked transmitter. This function
can be sent in BORADCAT RDM mode causing all discovered Space Force™ octo fixtures
to unlink, or to one fixture to unlink individual fixtures.
Function: SET
Argument: The string: UNLINK SPACEFORCE
4. SET PWM Freq (750,1500...96000)
Description: Sets PWM frequency.
Function: SET
Argument: String representing one of the eight set frequencies: 750, 1500, 3000, 6000,
12000, 24000, 48000, 96000.
5. GET PWM Frequency
Description: Reports current PWM frequency setting. Some of the RDM control PC
applications report back a string with hex values. In this case, the reader should convert
them to their numeric equivalents: 30=’0’, 31=’1’, 32=’2’,…, 39 = ‘9’, and 20 = ‘ ‘. For
example, “37 35 30 20 20” translates to: “750”.
48000=3438303030
Function: GET
Argument: None
B. Standard RDM functions that require pass-in values
Although Standard RDM functions are well defined in the protocol, still some have been
implemented with specific input and/or output parameters, as permitted. Following are these
functions with specific parameters:
750 = 3735302020
1500= 3135303020
3000= 3330303020
6000= 3630303020
12000=3132303030
24000=3234303030
Space Force™ octo User Manual V2.0 18 Nov.. 2021
www.chroma-q.com
1. Identify Device
Description: Sets selected device to a blinking state for visual identification.
Function: SET
Argument: ‘1’: Sets blink up to 30 seconds; ‘0’: Stops blinking immediately. Any other
argument will result in Not Acknowledged.
2. Device Label
Description: Sets and gets device label(string).
Function: SET, GET
Argument: None for GET. For SET, any alpha-numeric label up to 32 characters.
DMX Personality
Personality Mode 1 - INT-CCT
DMX Slot
Value
Function
Fade
Status
Default
Value
ADDRESS
Intensity
0 - 255
Minimum → Maximum Intensity
Fade
0
ADDRESS +1
Light Color Temperature
0 - 255
Warm → Cold
Fade
128
Personality Mode 2 - INT-CCT-EXTD
DMX Slot
Value
Function
Fade
Status
Default
Value
ADDRESS
Intensity
0 - 255
Minimum → Maximum Intensity
Fade
0
ADDRESS +1
Light Color Temperature
0 - 255
Warm → Cold
Fade
128
ADDRESS +2
Extended Controls
0 - 255
* See Control channel table for details
Snap
0
Space Force™ octo User Manual V2.0 19 Nov.. 2021
www.chroma-q.com
Control Channel Table
Function name
Default
From
To
Description
Values must be held for 5 sec before its function is activated
Control channel
No Function
0
2 Reserved
3
10
Reserved for future feature
Fade OFF
11
12
Switches light engine fade off.
Useful for pulse operation.
Fade ON
X
13
14
Restores light engine fading.
Reserved
15
70
Reserved for future feature
PWM 750
71
72
Set PWM Frequency to 750
PWM 1500
73
74
Set PWM Frequency to 1500
PWM 3000
X
75
76
Set PWM Frequency to 3000
PWM 6000
77
78
Set PWM Frequency to 6000
PWM 12000
79
80
Set PWM Frequency to 12000
PWM 24000
81
82
Set PWM Frequency to 24000
PWM 48000
83
84
Set PWM Frequency to 48000
PWM 96000
85
86
Set PWM Frequency to 96000
Reserved
87
140
Reserved for future feature
Enable RDM
X
141
142
Enable RDM function
Disable RDM
143
144
Disable RDM function
Reserved
145
150
Reserved for future feature
DMX Lost fixture stay to the last state
X
151
152
When fixture looses DMX it will
keep its last state
DMX Lost Fixture goes black
153
154
When fixture looses DMX it will
go black
Reserved
155
156
Reserved for future functions
DMX Lost fixture to selected look
157
158
When fixture looses DMX it will
Use the same look as stored in
M1
Reserved
159
243
Reserved for future feature
Save as User Defaults
244
245
Take the current settings and
save them in flash in “USER
DEFAULTS” (except DMX
address and DMX mode)
Restore User Defaults
246
247
Restore “USER DEFAULTS”
from flash (except DMX address
and DMX mode)
Restore Defaults Settings
248
249
Restore setting to factory
default (except DMX address
and DMX mode)
No Function
250
255
Space Force™ octo User Manual V2.0 20 Nov.. 2021
www.chroma-q.com
Updated Features of Control:
Fixes from V1.62 to V1.70
a. Reset: DMX input settings are not changed on Reset.
b. Focus: Activates all engines in the Space Force™ octo at the same time.
c. Accessing Menu by pressing both dials has been adjusted to become easy.
d. Adjust address pushbutton timing to work properly.
e. Eliminated LCD back light flicker.
Space Force™ octo User Manual V2.0 21 Nov.. 2021
www.chroma-q.com
2.5 Thermal Performance
The internal cooling system of the fixture is by convection. It also features automatic protection that
reduces the output when the internal temperature reaches the maximum limit due to extreme ambient
conditions. See operating temperature range in the specification below.
Space Force™ octo User Manual V2.0 22 Nov.. 2021
www.chroma-q.com
3. Troubleshooting
Troubleshooting is a process of elimination. First, rule out the other field factors (i.e. bad connections,
faulty cables and power supplies). For technical support and/or parts, please contact your selling
dealer or the offices listed in this manual.
Symptom
Possible Cause
Solution
Fixture does not respond to
DMX control.
•
Set to wrong or different DMX
address.
•
Bad cable connecting DMX
control and fixture.
•
Bad in/through connection
between adjacent fixtures.
•
If DMX via RF link, the unit is
not linked or linked to another
transmitter
•
DMX input set incorrectly.
•
Check DMX address and
Mode settings.
•
Check/replace DMX run
from the console.
•
Unlink unit, then link from
transmitter
Low LED output.
•
Internal temperature is over
the limit.
•
Check unit temperature via
RDM or on the LCD display.
•
Check area ventilation.
Flickering on camera.
•
Frequency set incorrectly.
•
Change PWM frequency.
Unit does not respond to
RDM commands.
•
Being controlled via non-RDM
compliant splitter.
•
Connect directly to RDM
controller/gateway or use
RDM enabled splitter.
Space Force™ octo User Manual V2.0 23 Nov.. 2021
www.chroma-q.com
4. Specification
4.1 Technical Specification
Product Code
CHSPFV Chroma-Q® Space Force™ octo Variable w Bridle
Black
CHSPFVW Chroma-Q® Space Force™ octo Variable w Bridle
White
CHSPFVLR Chroma-Q® Space Force™ octo Variable Bridle
LumenRadio Installed
Net Dimensions (Without
Fixings - Width x Height x
Depth
663mm x 203mm x 663mm /
26" x 8" x 26"
Net Weight (Without
Fixings)
8 kg /
17.6 lb
Shipping Dimensions Width x Height x Depth
737mm x 737mm x 254mm /
29” x 29” x 10"
Shipping Weight
11 kg / 24 lb
Construction
Powder-coated aluminum
Color
Black / White
Approvals
CISPR 22:2008/EN55022:2010 (Class A), & CISPR
24:2010/EN55024:2010, FCC Part 15 Subpart B:2015, ICES003:2012; UL 1573:2003/R:2014-01, CSA C22.2 No. 160-M1983,
IEC 60598
Power & Connections
Power Supply
Built-in
Power Input Rating
100-240V AC 50-60Hz 400VA
Power Factor
0.9
Power Consumption
333W @ 120VAC, 331W @ 230VAC
Inrush Current
56A @ 120VAC, 82A @ 230VAC
Idle Power Consumption
18W @ 120/230VAC
Residual Current (max)
0.4 mA
Typical Power & Current
Measurements done with all LEDs at max. intensity. Measurements
made at nominal voltage. Allow for deviation of +/- 10%.
Power Connectors In/Out
powerCON TRUE1
Data Connectors In/Out
XLR 5-pin
Control Protocol
ANSI E1.20 RDM over ANSI E1.11 USITT DMX 512-A,
Operating Condition
Operating Temperature
0°C to 40°C
Operating Humidity
Dry location only, non-condensing humidity
Cooling System
Convection
Space Force™ octo User Manual V2.0 24 Nov.. 2021
www.chroma-q.com
IP Rating
*IP20
Photometric
LEDs per Engine
120 x Warm White + 120 x Cold White
Total 240 LEDs
LED Engine Number
4
Total LEDs
960
Medium White Lumen
Output (combined)
up to 26,700
Optics
High efficiency diffuser
Beam Angle
60°
Beam Distribution
Symmetrical Direct Illumination
CCT
2,800 – 6,500K (+/-200K)
Sound Level
24.6 dB
Lamp Life
L70 at 50,000 hours
**For exact measurements please refer to the line drawings below
Space Force™ octo User Manual V2.0 25 Nov.. 2021
www.chroma-q.com
4.2 Drawings
Space Force™ octo User Manual V2.0 26 Nov.. 2021
www.chroma-q.com
5. Accessories
CHSPFSY
Chroma-Q® Space Force™ octo Manual Yoke
CHSPFHB
Chroma-Q® Space Force™ octo Low Profile Hanging Bracket
CHSPFMS
Chroma-Q® Space Force™ octo Black Mini skirt
CHSPFSEC
Chroma-Q® Space Force™ octo Soft Egg Crate
CHSPFCK
Chroma-Q® Space Force™ octo Cyc Skirt/Silk
CHSPFSTK
Chroma-Q® Space Force™ octo Soft Target Kit - for use with a
skirt Full, 1/2, 1/4, 1/8
CHSPFSL
Chroma-Q® Space Force™ octo Soft Lantern
CHSPFB
Chroma-Q® Space Force™ Bridle - included with fixture
CHSPFLR
Chroma-Q® Space Force™ LumenRadio Kit – User Installed
6. Maintenance
With care, the fixture requires little maintenance. However, as the unit is likely to be used in a stage
environment, we recommend periodical internal inspection and cleaning of any resulting dust and
cracked oil residue.
Do not spray liquids on the front or rear panel. If the front panel requires cleaning, wipe with a soft
cloth. Use a vacuum cleaner to remove dust.
Loading...
