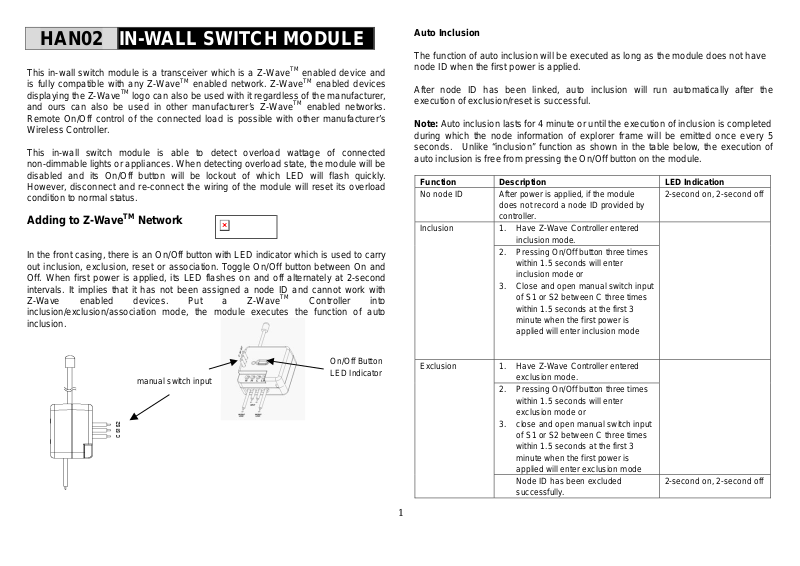

Chromagic Technologies HAN02 User Manual

HAN02 IN-WALL SWITCH MODULE

This in-wall switch module is a transceiver which is a Z-WaveTM enabled device and
is fully compatible with any Z-Wave
displaying the Z-Wave

TM

logo can also be used with it regardless of the manufacturer,
and ours can also be used in other manufacturer’s Z-Wave
Remote On/Off control of the connected load is possible with other manufacturer ’s
Wireless Controller.

This in-wall switch module is able to detect overload wattage of connected
non-dimmable lights or appliances. When detecting overlo ad state, the module will be
disabled and its On/Off button will be lockout of which LED will flash quickly.
However, disconnect and re-connect the wiring of the module will reset its overload
condition to normal status.

Adding to Z-WaveTM Network

In the front casing, there is an On/Off button with LED indicator which is used to carry
out inclusion, exclusion, reset or association. Toggle On/Off button between On and
Off. When first power is applied, its LED flashes on and off alternately at 2-second
intervals. It implies that it has not been assigned a node ID and cannot work with
Z-Wave enabled devices. Put a Z-Wave
inclusion/exclusion/association mode, the module executes the function of auto
inclusion.

manual switch input

TM

enabled network. Z-WaveTM enabled devices

TM

enabled networks.

TM

Controller into

On/Off Button
LED Indicator

Auto Inclusion

The function of auto inclusion will be executed as long as the module does not have
node ID when the first power is applied.

After node ID has been linked, auto inclusion will run automatically after the
execution of exclusion/reset is successful.

Note: Auto inclu sion lasts for 4 minute or until the execution of inclusion is completed
during which the node information of explorer frame will be emitted once every 5
seconds. Unlike “inclusion” function as shown in the table below, the execution of
auto inclusion is free from pressing the On/Off button on the module.

Function Description LED Indication

No node ID After power is applied, if the module

does not record a node ID provided by
controller.

Inclusion

1. Have Z-Wave Controller entered
inclusion mode.

2. Pressing On/Off button three times
within 1.5 seconds will enter
inclusion mode or

3. Close and open manual switch input
of S1 or S2 between C three times
within 1.5 seconds at the first 3
minute when the first power is
applied will enter inclusion mode

1. Have Z-Wave Controller entered
exclusion mode.

2. Pressing On/Off button three times
within 1.5 seconds will enter
exclusion mode or

3. close and open manual switch input
of S1 or S2 between C three times
within 1.5 seconds at the first 3
minute when the first power is
applied will enter exclusion mode
Node ID has been excluded
successfully.

2-second on, 2-second off

Exclusion

2-second on, 2-second off

1

Association

1. Pressing On/Off button three times
within 1.5 seconds will enter
inclusion mode, within 1 second,
press On/Off button again until LED
is off or

2. Close and open manual switch input
of S1 or S2 between C three times
within 1.5 seconds at the first 3
minute when the first power is
applied will enter inclusion mode,
within 1 second, Close manual
switch input of S1 or S2 to C again
until LED is off.

3. Home ID and node ID will be
cleared and reset to factory default.

1. Have Z-Wave Controller entered
association mode first.

2. Pressing On/Off button three times
within 1.5 seconds will enter
association mode or

3. close and open manual switch input
of S1 or S2 between C three times
within 1.5 seconds at the first 3
minute when the first power is
applied will enter association mode

Reset

2-second on, 2-second off

Including a node ID allocated by Z-Wave Controller means inclusion. Excluding a node

ID allocated by Z-Wave Controller means exclusion.

Failed or success in including/excluding the node ID can be viewed from the Z-Wave

Controller.

LED Indication

To distinguish what mode the module is in, view from the LED for identification.

State Type LED Indication

Normal Under normal operation, toggle On/Off button between On and

Off. When pressing On, LED lights up, whereas Off, LED is off.
And when manual switch input from open (NO) to short (NC) or
from short (NC) to open (NO) will also trigger the toggle function.

No node ID Under normal operation, when the module has not been allocated

a node ID, the LED flashes on and off alternately at 2-second
intervals. By pressing On/Off button, it will stop flashing
temporarily. However, after disconnecting and reconnecting the
wiring of the module, the LED will flash on and off alternately at
2-second intervals.

Overload When overload state occurs while the module is on, the module

will be converted to off right away of which LED flashes on and off
at 0.5-second intervals and on/off button will be lockout.
Overload state can be cleared by disconnecting and reconnecting
the wiring to the terminal block.

Choosing a Suitable Location

1. Do not locate the module facing direct sunlight, humid or dusty place.

2. The suitable ambient temperature for the module is 0°C~40°C.

3. Do not locate the module where exists combustible substances or any source of
heat, e.g. fires, radiators, boiler etc.

4. After putting it into use, the body of module will become a little bit hot of which
phenomenon is normal.

Installation

Note: Please note that it is a must to call for a licensed electrician for installation.

1. Install this module into a wall box of which wiring connection is shown hereunder:

2. After wiring connection is completed, execute inclusion and association process
between the module and remote controller.

3. There are different way to manually turn ON or OFF the module, first way is
using On/Off button, and the function behavior as below

2
