Chroma A190201 User Manual

3-Way Scanning Box

A190201/A190202

User’s Manual

3-Way Scanning Box

A190201/A190202

User’s Manual

Version 1.0

June 2013

Legal Notices

The information in this document is subject to change without notice.

Chroma ATE INC. makes no warranty of any kind with regard to this manual, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose.
Chroma ATE INC. shall not be held liable for errors contained herein or direct, indirect, special,
incidental or consequential damages in connection with the furnishing, performance, or use of
this material.

CHROMA ATE INC.

66 Hwaya 1st Rd., Kueishan Hwaya Technology Park, Taoyuan County 33383, Taiwan

Copyright Notices. Copyright 2013 Chroma ATE INC., all rights reserved. Reproduction,
adaptation, or translation of this document without prior written permission is prohibited,
except as allowed under the copyright laws.

ii

Warranty

All of Chroma’s instruments are warranted against defects in material and workmanship for a
period of one year from date of shipment. Chroma agrees to repair or replace any assembly
or component found to be defective, under normal use during this period. Chroma’s obligation
under this warranty is limited solely to repairing any such instrument, which in Chroma’s sole
opinion proves to be defective within the scope of the warranty when returned to the factory or
to an authorized service center. Purchaser is responsible for the shipping and cost of the
service item to Chroma factory or service center. Shipment should not be made without prior
authorization by Chroma.

This warranty does not apply to any products repaired or altered by persons not authorized by
Chroma, or not in accordance with instructions furnished by Chroma. If the instrument is
defective as a result of misuse, improper repair, or abnormal conditions or operations, repairs
will be billed at cost.

Chroma assumes no responsibility for its product being used in a hazardous or dangerous
manner either alone or in conjunction with other equipment. High voltage used in some
instruments may be dangerous if misused. Special disclaimers apply to these instruments.
Chroma assumes no liability for secondary charges or consequential damages and in any
event, Chroma’s liability for breach of warranty under any contract or otherwise, shall not
exceed the purchase price of the specific instrument shipped and against which a claim is
made.

Any recommendations made by Chroma regarding the use of its products are based upon
tests believed to be reliable; Chroma makes no warranty of the results to be obtained. This
warranty is in lieu of all other warranties, expressed or implied, and no representative or
person is authorized to represent or assume for Chroma any liability in connection with the
sale of our products other than set forth herein.

CHROMA ATE INC.

66 Hwaya 1st Rd., Kueishan Hwaya Technology Park,
Taoyuan County 33383, Taiwan
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]

http://www.chromaate.com

iii

Material Contents Declaration

The recycling label shown on the product indicates the Hazardous Substances contained in
the product as the table listed below.

: See <Table 1>.

: See <Table 2>.

<Table 1>

Hazardous Substances

Part Name

PCBA

CHASSIS

ACCESSORY

PACKAGE

Lead Mercury Cadmium Hexavalent

Chromium

Pb Hg Cd Cr6+ PBB PBDE

O O O O O O

O O O O O O

O O O O O O

O O O O O O

Polybrominated

Biphenyls

Polybromodiphenyl

Ethers

“O” indicates that the level of the specified chemical substance is less than the threshold level
specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

“°” indicates that the level of the specified chemical substance exceeds the threshold level
specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and
well-being. When replacing old appliances with new one, the retailer is legally obligated to
take back your old appliances for disposal at least for free of charge.

iv

<Table 2>

Hazardous Substances

Part Name

PCBA

CHASSIS

ACCESSORY

PACKAGE

Lead Mercury Cadmium Hexavalent

Chromium

Pb Hg Cd Cr6+ PBB PBDE

°

°

°

O O O O O

O O O O O

O O O O O

O O O O O O

Polybrominated

Biphenyls

Polybromodiphenyl

Ethers

“O” indicates that the level of the specified chemical substance is less than the threshold level
specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

“°” indicates that the level of the specified chemical substance exceeds the threshold level
specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

1. Chroma is not fully transitioned to lead-free solder assembly at this moment; however,
most of the components used are RoHS compliant.

2. The environment-friendly usage period of the product is assumed under the operating
environment specified in each product’s specification.

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and
well-being. When replacing old appliances with new one, the retailer is legally obligated to
take back your old appliances for disposal at least for free of charge.

v

Safety Summary

The following general safety precautions must be observed during all phases of operation,
service, and repair of this instrument. Failure to comply with these precautions or specific
WARNINGS given elsewhere in this manual will violate safety standards of design,

manufacture, and intended use of the instrument. Chroma assumes no liability for the

customer’s failure to comply with these requirements.

BEFORE APPL YING POWER

Verify that the power is set to match the rated input of this power supply.

PROTECTIVE GROUNDING

Make sure to connect the protective grounding to prevent an electric

shock before turning on the power.

NECESSITY OF PROTECTIVE GROUNDING

Never cut off the internal or external protective grounding wire, or
disconnect the wiring of protective grounding terminal. Doing so will
cause a potential shock hazard that may bring injury to a person.

WARNING

FUSES

Only fuses with the required rated current, voltage, and specified type
(normal blow, time delay, etc.) should be used. Do not use repaired
fuses or short-circuited fuse holders. To do so could cause a shock or
fire hazard.

DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE

Do not operate the instrument in the presence of flammable gases or
fumes. The instrument should be used in an environment of good
ventilation.

DO NOT REMOVE THE COVER OF THE INSTRUMENT

Operating personnel must not remove the cover of the instrument.
Component replacement and internal adjustment can be done only by
qualified service personnel.

1. Lethal voltage. The output may up to 6000V voltage.

2. Touching the output terminal on the front or rear panel or connecting
circuit to output when the power is on may result in death.

vi

Safety Symbols

DANGER – High voltage.

Explanation: To avoid injury, death of personnel, or damage to

the instrument, the operator must refer to an explanation in the

instruction manual.

High temperature: This symbol indicates the temperature is now

higher than the acceptable range of human. Do not touch it to

avoid any personal injury.

Protective grounding terminal: To protect against electrical

shock in case of a fault. This symbol indicates that the terminal

must be connected to ground before operation of equipment.

The WARNING sign denotes a hazard. It calls attention to a

procedure, practice, or the like, which, if not correctly performed or

WARNING

CAUTION

adhered to, could result in personal injury. Do not proceed

beyond a WARNING sign until the indicated conditions are fully
understood and met.

The CAUTION sign denotes a hazard. It may result in personal

injury or death if not noticed timely. It calls attention to

procedures, practices and conditions.

The Notice sign denotes important information in procedures,

applications or the areas that require special attention. Be sure
to read it carefully.

vii

Unpacking for Check & Inspection

Before shipment this instrument was inspected and found to be free of mechanical and
electrical defects. As soon as the instrument is unpacked, inspect for any damage that may
have occurred in transit. Save all packing materials in case the instrument has to be
returned. If damage is found, please file claim with carrier immediately. Do not return the

instrument to Chroma without prior approval.

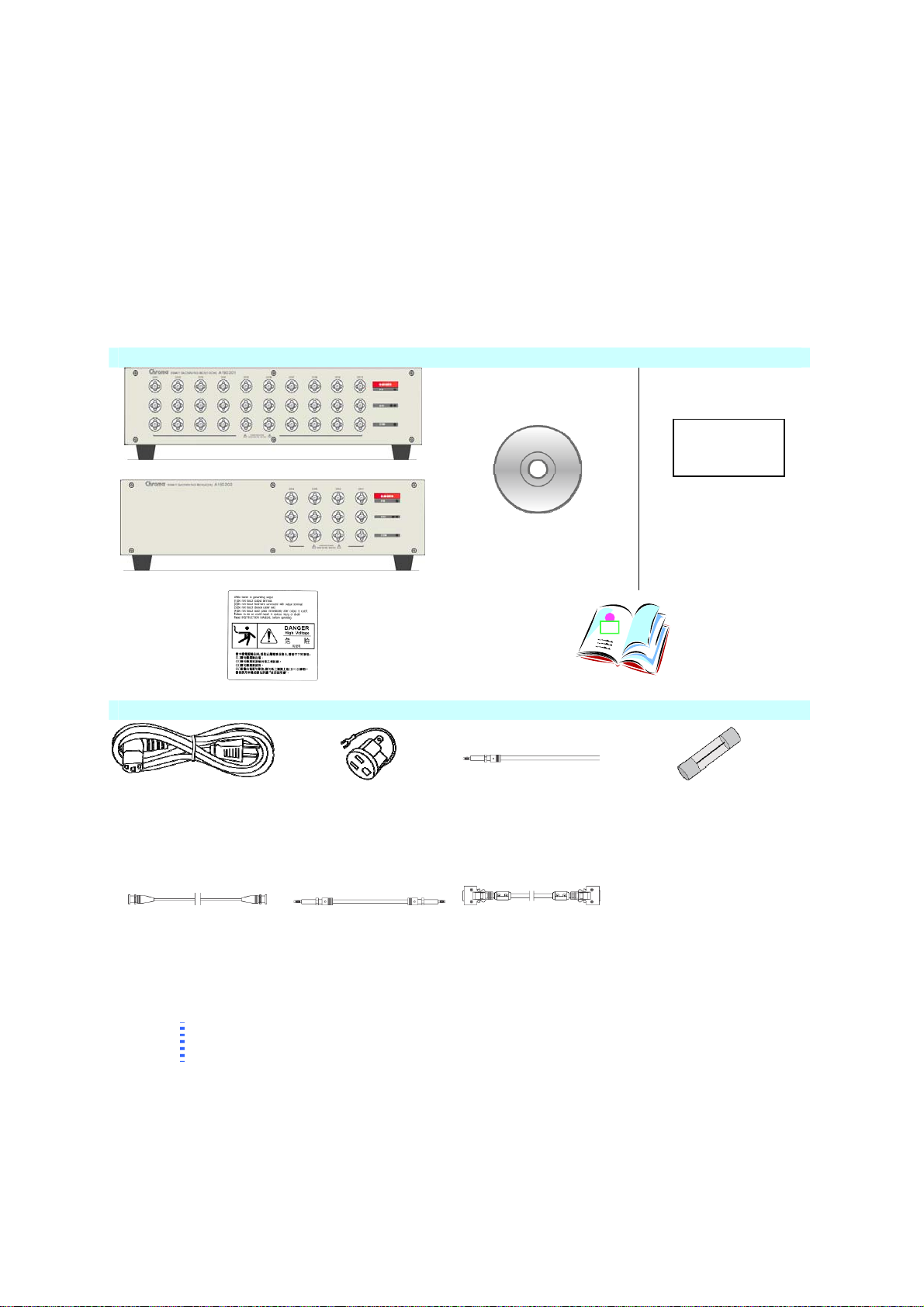

A190201/A190202 Standard Package & Accessories

Standard Equipment

TA Board

User’s Manual CD x 1

A190201 or A190202 x 1

A190201 TA Board

1 pc.

High voltage hazard label x 1

Power Cord

US Standard

90 Degree Elbow

1 pc

Cable

BNC-BNC

A190201: 10 pcs.

A190202: 4 pcs.

Note

When additional items are required, contact Chroma and provide item’s
description.

Standard Accessories (Cables)

Power Adapter

3PIN to 2PIN

Converter 1 pc

High Voltage

Head*2+ High

Voltage Cable

A190201: 10 pcs.

A190202: 4 pcs.

Quick Start Guide x 1

High Voltage
Head + High

Voltage Cable

A190201: 30 pcs.

A190202: 12 pcs.

Control Cable

1 pc.

1.6A fuse

2 pcs.

viii

Hazard Operations

This scanning box is able to output high voltage via remote control. For safety precaution, it
is necessary to follow the guidelines listed below when performing the control remotely.

y Do not output any unexpected high voltage as it may cause danger.
y Operators and other personnel are not allowed to touch the UUT, test cable and the

probe terminal when there is high voltage output.

y The remote control is usually conducted using the high voltage bar. However, it can

also use other circuit for control without using the high voltage bar. As the bar is the
switch for high voltage output, it is necessary to keep the connected control cable away
from the high voltage bar and the test cable to avoid causing any danger.

WARNING

Do not tie up the high voltage cable with RS232, Handler and GPIB
control cables or other low voltage side wires. If so, it could cause the
product or PC to be down or damaged.

ix

Storage, Freight & Maintenance

Storage

When not in use, please pack the device properly and store in a suitable environment.

Freight

Please pack the device carefully before moving it. If any of the original packing material is
missing, please use suitable alternative material and mark it “fragile” and “keep away from
water” to avoid damaging the product.

This product is a piece of precision test equipment, so please do not drop or hit it.

Maintenance

In case of any malfunction or abnormality, please refer to the manual, or contact our local
distributor for prompt service. Do not touch any parts inside the instrument to avoid any
danger to yourself or damage to the product.

x

Revision History

The following lists the additions, deletions and modifications in this manual at each revision.

Date Version Revised Sections

Jun. 2013 1.0 Complete this manual.

xi

3-Way Scanning Box A190201/A190202 User’s Manual

Table of Contents

1. Preface..........................................................................................................................1-1

1.1 Overview..............................................................................................................1-1

1.2 Feature ................................................................................................................1-1

2. Specification................................................................................................................2-1

3. Precautions before Use ..............................................................................................3-1

4. Operating......................................................................................................................4-1

4.1 Connecting Rear Panel........................................................................................4-1

4.2 Output Terminals on the Front Panel ...................................................................4-2

4.3 Using the 19020/19020-4 to Control A190201/ A190202....................................4-3

4.4 Setting Output Channel Parameter......................................................................4-4

xiii

Preface

1. Preface

1.1 Overview

The scan input of this 3-Way Scanning Box connects to the Multi-Channel Hipot Tester of
Chroma Model 19020 or 19020-4 (AC 5kV/DC 6kV) to perform multi-channel, multi-dot high
voltage scanning test for UUT’’s primary, secondary or core testing.

1.2 Feature

 Fixed test mode

The scanning box can work with the Chroma Model 19020/19020-4 to perform the built-in
scanning test. It can test 10 UUTs (A190201) or 4 UUTs (A190202) simultaneously for
Primary, Secondary or Core scanning tests.

1-1

2. Specification

Specification

 Scanner

 Indicator

 Line Input

 Operable Range

 Storage Range
 Dimension(WxHxD)

 Weight

HV INPUT: AC 5kV/ DC 6kV maximum
HV OUTPUT: P/S/C ON/OFF
INTERFACE: Link to 19020/19020-4 scan interface

CAPACITY: Maximum 1 Box

UNDER TEST LED

P: Primary, S: Secondary, C: Core
90Vac ~ 250Vac, 50 or 60 Hz
80Watt Rated Power

0°C to 40°C, Maximum relative humidity 80% for

temperature up to 31°C (88°F).Decreasing linearly to 50%

relative humidity at 40°C (104°F)

-10 to 60°C (14 to 140°F), ≤ 80% RH.
430 x 100 x 600 mm / 16.929 x 3.937 x 23.62 in.
A190201: < 20 kg / < 44lb.
A190202: <14.8kg / <33lb

2-1

Precautions before Use

3. Precautions before Use

1. The A190201/A190202 can only work with the Chroma Model 19020/19020-4 for use.
The maximum operating voltage is AC 5kV/DC 6kV and the firmware version must be

2.02 or later.

2. Whe the A190201/A190202 is working with the Chroma Model 19020/19020-4, the main
control signal has to connect to A190201 TA board.

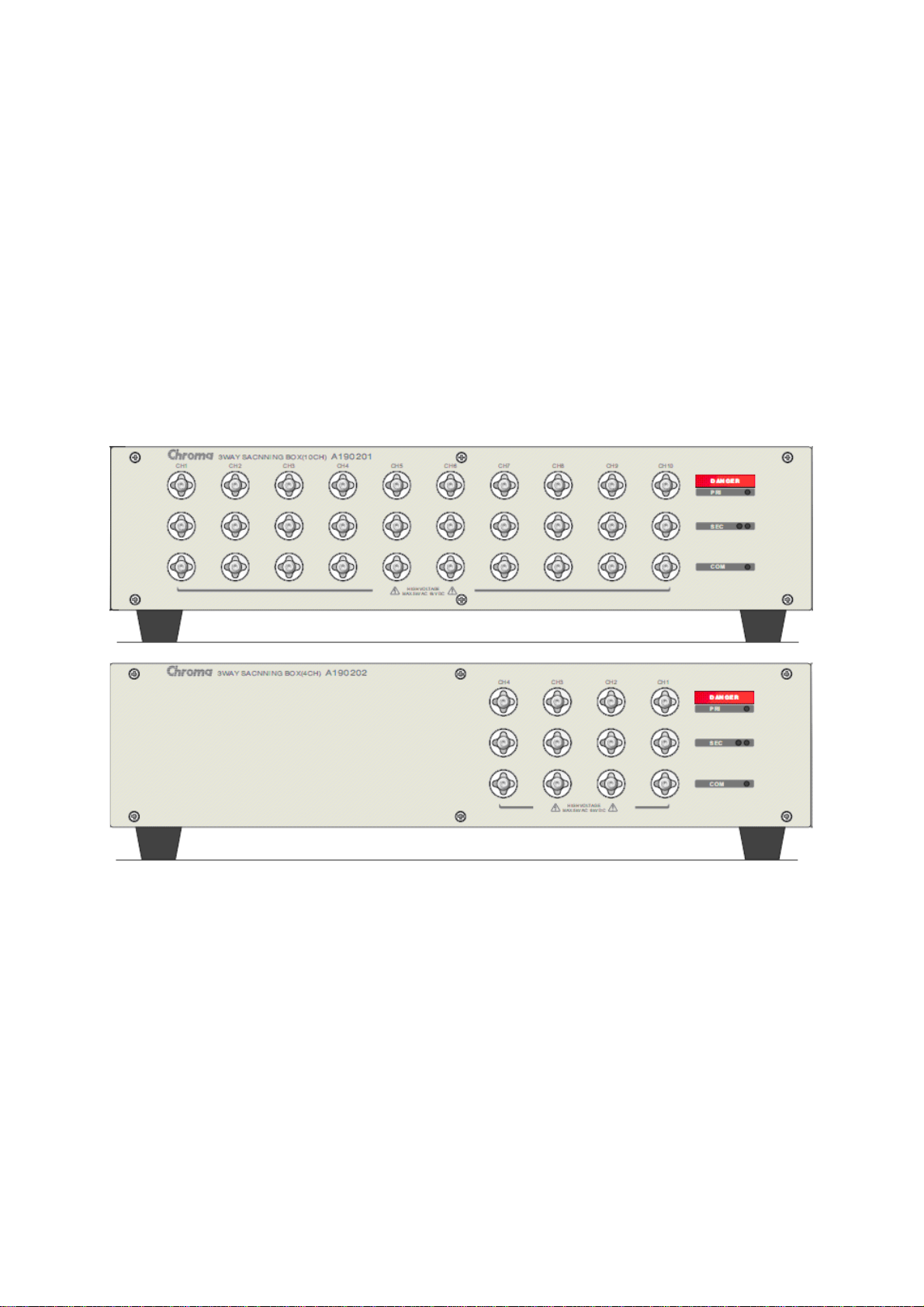

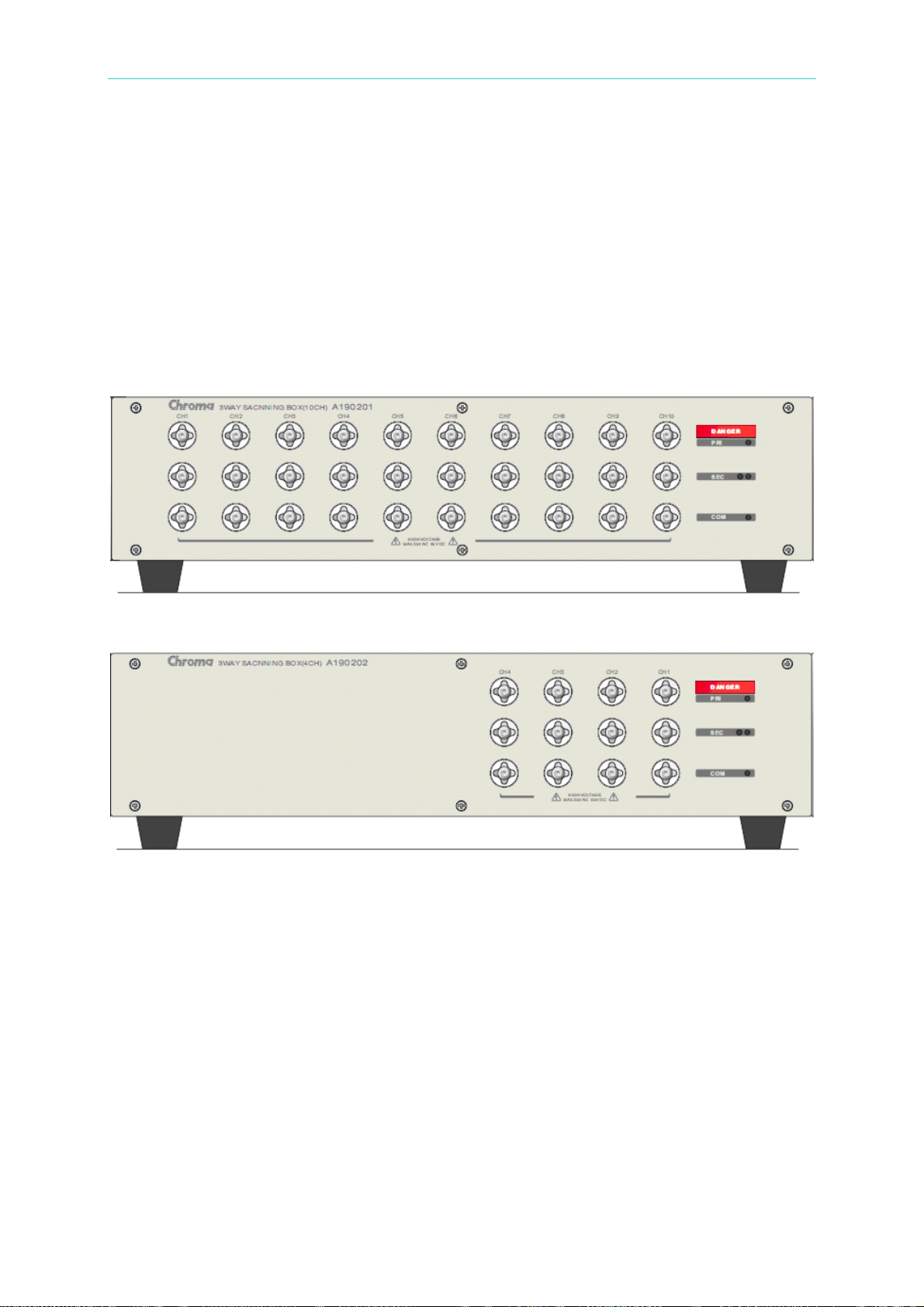

3. Front panel high voltage output terminals

A190201

Figure 3-1

A190202

Figure 3-2

4. Storage
The temperature range for storing the scanning box is -10°C~ 60°C, ≤ 80% RH. It is
suggested to pack the scanning box with its original package if it is not in use for a long
time. For proper testing and safety’s sake, do not place the scanning box in a place with
direct sunshine, high temperature, frequent oscillations, humidity and dust.

3-1

4. Operating

4.1 Connecting Rear Panel

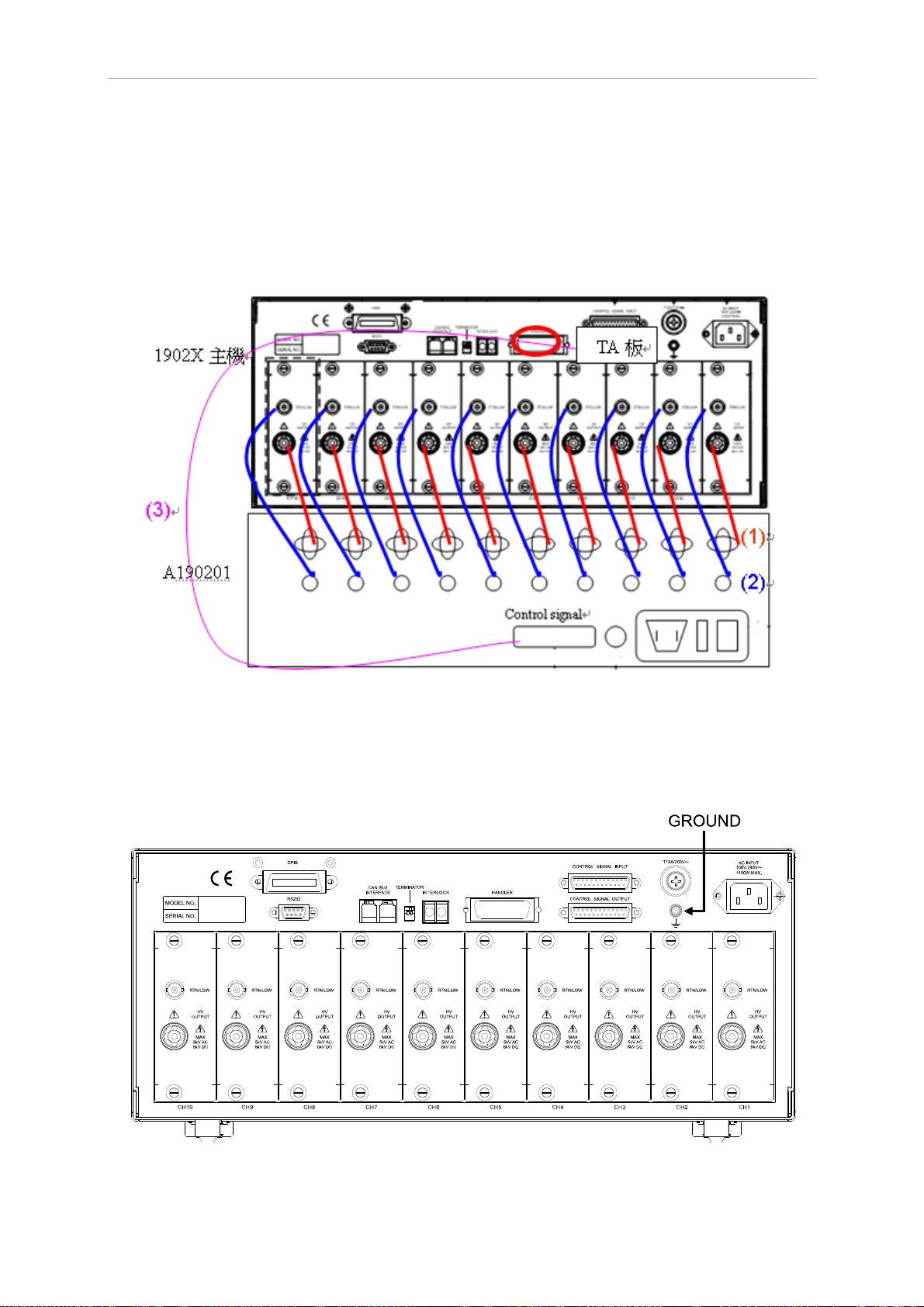

Connect the A190201/A190202 Scanning Box to the Model 19020/19020-4:

Operating

Figure 4-1

1. Use the connecting cable to connect the Handler Interface of 19020.

2. It should go through A190201 TA board before connecting to the 19020.

3. Avoid contacting the high voltage cable and the grounding wire with the control cables.

4. The main grounding wire of the A190201 and the 19020 has to be connected.

Figure 4-2

4-1

3-Way Scanning Box A190201/A190202 User’s Manual

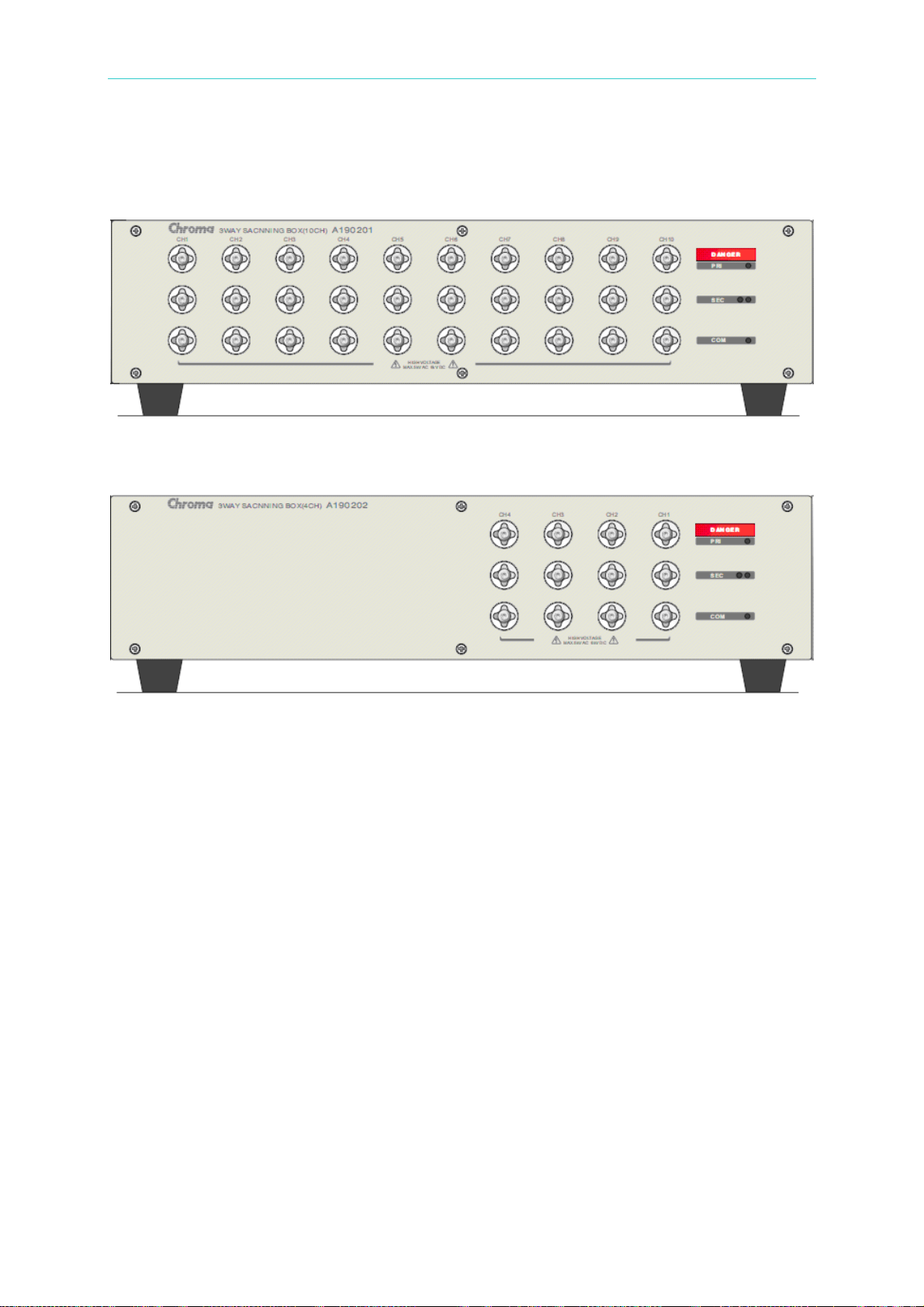

4.2 Output Terminals on the Front Panel

1. Front panel of A190201

Figure 4-3

2. Front panel of A190202

Figure 4-4

The A190201 output has 10 channels and each channel has 3 high voltage output
terminals.
The A190202 output has 4 channels and each channel has 3 high voltage output
terminals.
The indicators show the output status and all are OFF before controlled.

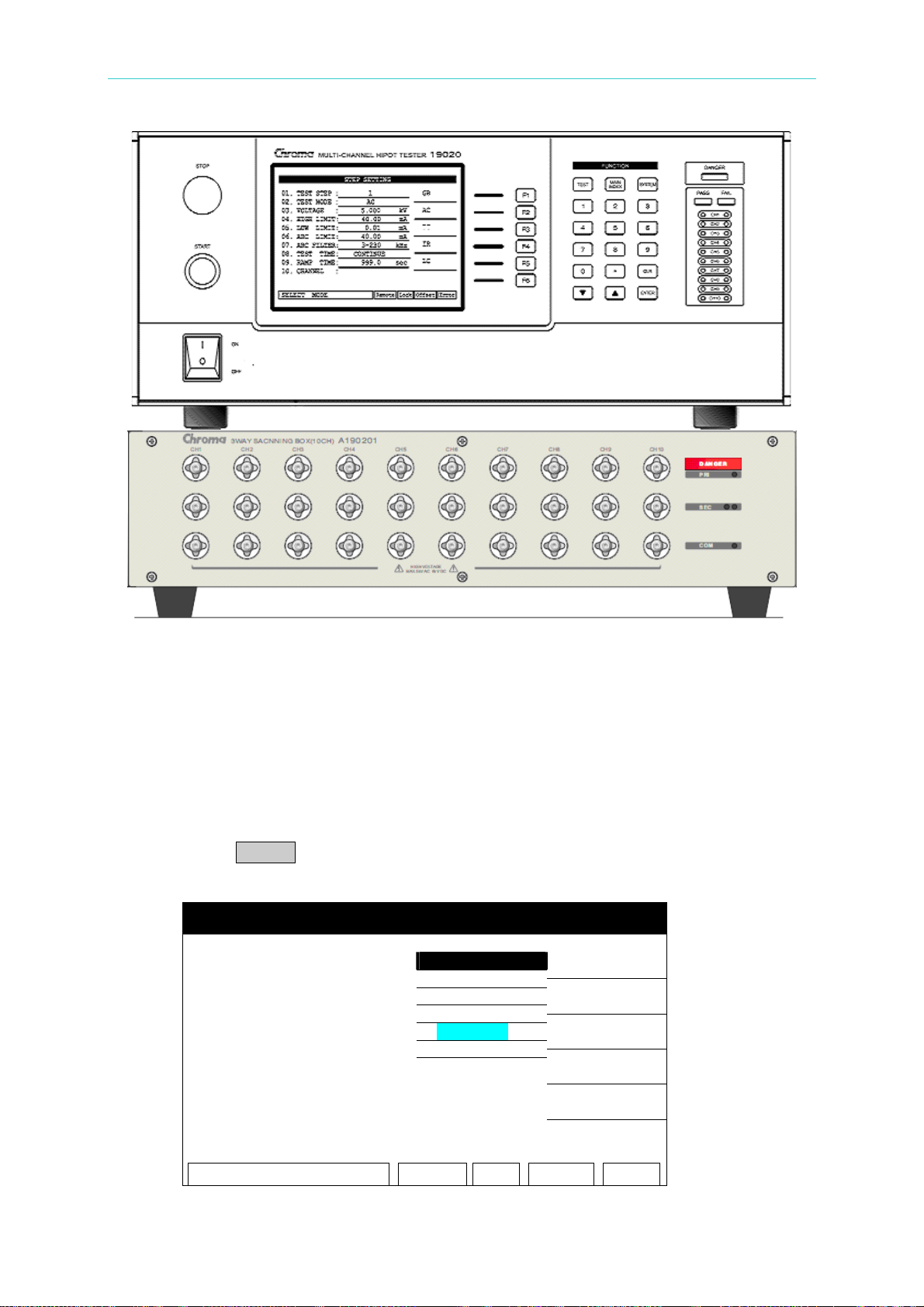

3. When the Model 19020 is working with the Model A190201, the 19020 is placed on top of
the A190201 as the figure shown below.

4-2

Operating

U

:

:

U

:

: S

:

E

Figure 4-5

4.3 Using the 19020/19020-4 to Control A190201/

A190202

Setting SYSTEM CONFIG

In SYSTEM SETUP screen, move the highlight to SYSYEM CONFIG and press the Function

Key [ENTER] or ENTER on the keyboard. It goes into the SYSYEM CONFIG setup screen

as shown below:

SYSTEM CONFIG

01. CONTRAST : 06

02. BEEPER

03. GPIB

04. RS232

05. LINK SETUP

06. LINK ADDRESS : 0

07. ACA MEAS.

1-16 REMOTE LOCK OFFSET ERROR

LOW

NINSTALLED DOWN

9600

CANNER

RMS

P

XIT

4-3

3-Way Scanning Box A190201/A190202 User’s Manual

1

U

A

OFFD

0.500m

OFFN

O

3.0secI

O

OFFD

D

E

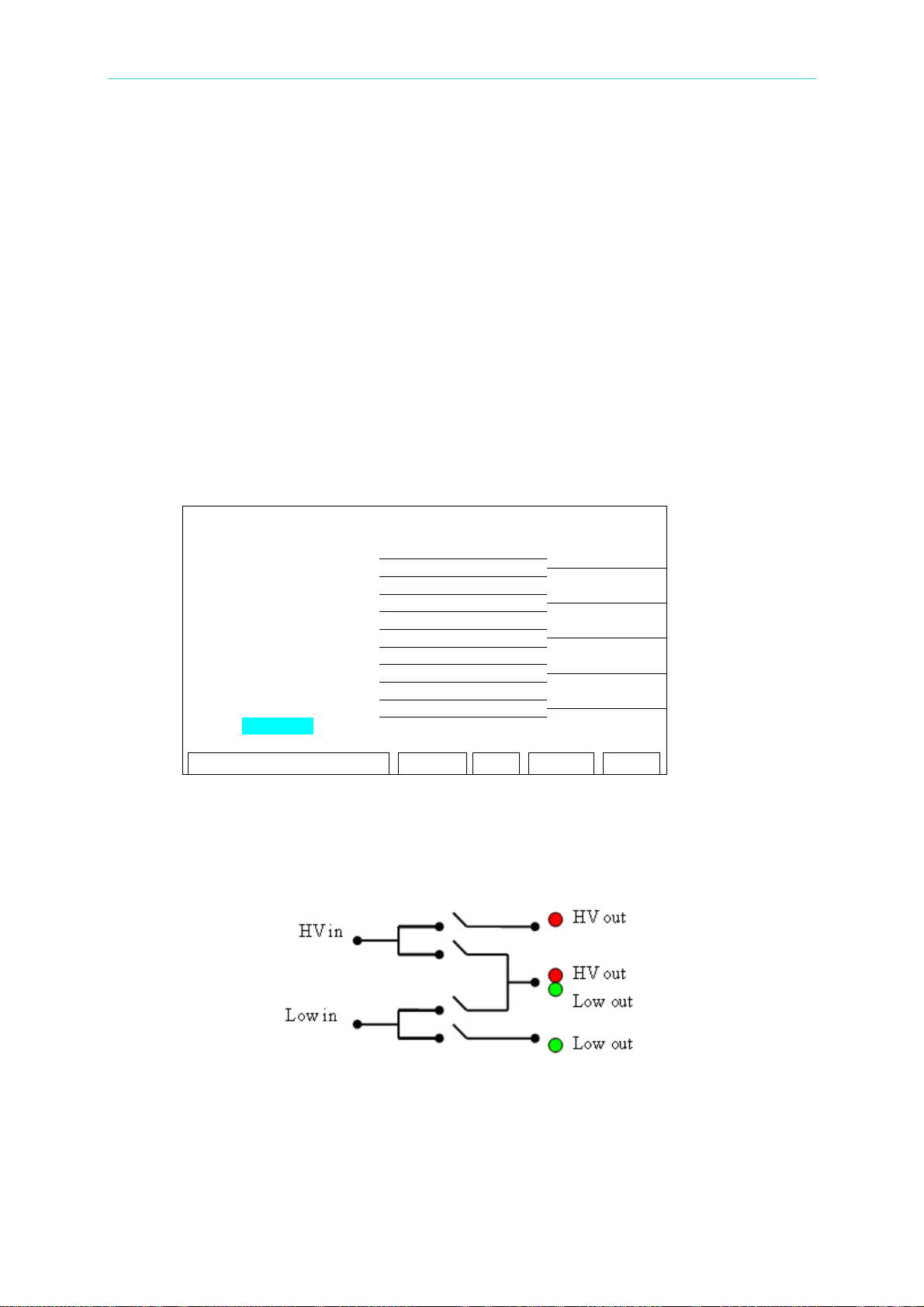

When in the SYSTEM CONFIG setup screen, move the highlight to LINK SETUP and select
SCANNER.

4.4 Setting Output Channel Parameter

1. Following is the setting of SCANNER:

AC Withstand Voltage/DC Withstand Voltage/IR Test Mode (WVAC/WVDC/IR)

Description of test mode:

P→S: Primary to Secondary
P→C: Primary to Core
S→C: Secondary to Core
P+S→C: Primary with Secondary to Core
P→S+C: Primary to Secondary with Core

PROGRAM

01. TEST STEP :

02. TEST MODE :

C

03. VOLTAGE :

04. HIGH LIMIT :

05. LOW LIMIT :

06. ARC LIMIT :

FF

07. TEST TIME :

08. RAMP TIME :

FF

09. FALL TIME :

10. CHANNELS :

EFAULT

11. SCANNER

1-10 REMOTE LOCK CORR ERROR

2. Output channel setting:
Following figure shows the switch mode that maps to the output.

Relay Output

P

OWN

A

EW

NSERT

ELETE

XIT

P

S1

S2

C

4-4

P

S

C

Operating

Mode

Output RELAY

HV RTN/Low P S1 S2 C

1 P S ON OFF ON OFF
2 P C ON OFF OFF ON
3 S C OFF ON OFF ON
4 P+S C ON ON OFF ON
5 P S+C ON OFF ON ON

4-5
