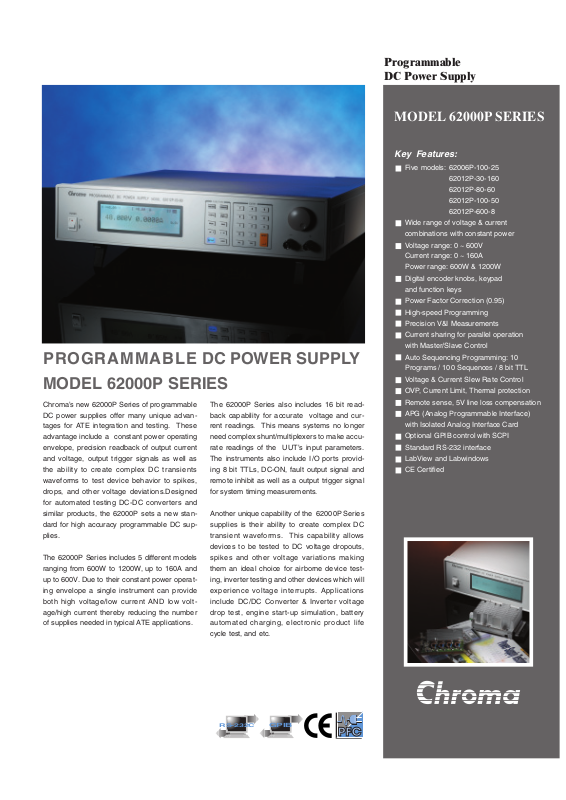

Programmable
DC Power Supply
Chroma’s new 62000P Series of programmable
DC power supplies offer many unique advan-
tages for ATE integration and testing. These
advantage include a constant power operating
envelope, precision readback of output current
and voltage, output trigger signals as well as
the ability to create complex DC transients
waveforms to test device behavior to spikes,
drops, and other voltage deviations.Designed
for automated testing DC-DC converters and
similar products, the 62000P sets a new stan-
dard for high accuracy programmable DC sup-
plies.
The 62000P Series includes 5 different models
ranging from 600W to 1200W, up to 160A and
up to 600V. Due to their constant power operat-
ing envelope a single instrument can provide
both high voltage/low current AND low volt-
age/high current thereby reducing the number
of supplies needed in typical ATE applications.
The 62000P Series also includes 16 bit read-
back capability for accurate voltage and cur-
rent readings. This means systems no longer
need complex shunt/multiplexers to make accu-
rate readings of the UUT’s input parameters.
The instruments also include I/O ports provid-
ing 8 bit TTLs, DC-ON, fault output signal and
remote inhibit as well as a output trigger signal
for system timing measurements.
Another unique capability of the 62000P Series
supplies is their ability to create complex DC
transient waveforms. This capability allows
devices to be tested to DC voltage dropouts,
spikes and other voltage variations making
them an ideal choice for airborne device test-
ing, inverter testing and other devices which will
experience voltage interrupts. Applications
include DC/DC Converter & Inverter voltage
drop test, engine start-up simulation, battery
automated charging, electronic product life
cycle test, and etc.
PROGRAMMABLE DC POWER SUPPLY
MODEL 62000P SERIES
PFCPFC
RS-232C
GPIB
MODEL 62000P SERIES
Key Features:
Five models: 62006P-100-25
62012P-30-160
62012P-80-60
62012P-100-50
62012P-600-8
Wide range of voltage & current
combinations with constant power
Voltage range: 0 ~ 600V
Current range: 0 ~ 160A
Power range: 600W & 1200W
Digital encoder knobs, keypad
and function keys
Power Factor Correction (0.95)
High-speed Programming
Precision V&I Measurements
Current sharing for parallel operation
with Master/Slave Control
Auto Sequencing Programming: 10
Programs / 100 Sequences / 8 bit TTL
Voltage & Current Slew Rate Control
OVP, Current Limit, Thermal protection
Remote sense, 5V line loss compensation
APG (Analog Programmable Interface)
with Isolated Analog Interface Card
Optional GPIB control with SCPI
Standard RS-232 interface
LabView and Labwindows
CE Certified
WIDE OPERATING REGION WITH CONSTANT POWER
MASTER/SLAVE PARALLEL & SERIAL CONTROL
PROGRAMMING SEQUENCES APPLICATIONS

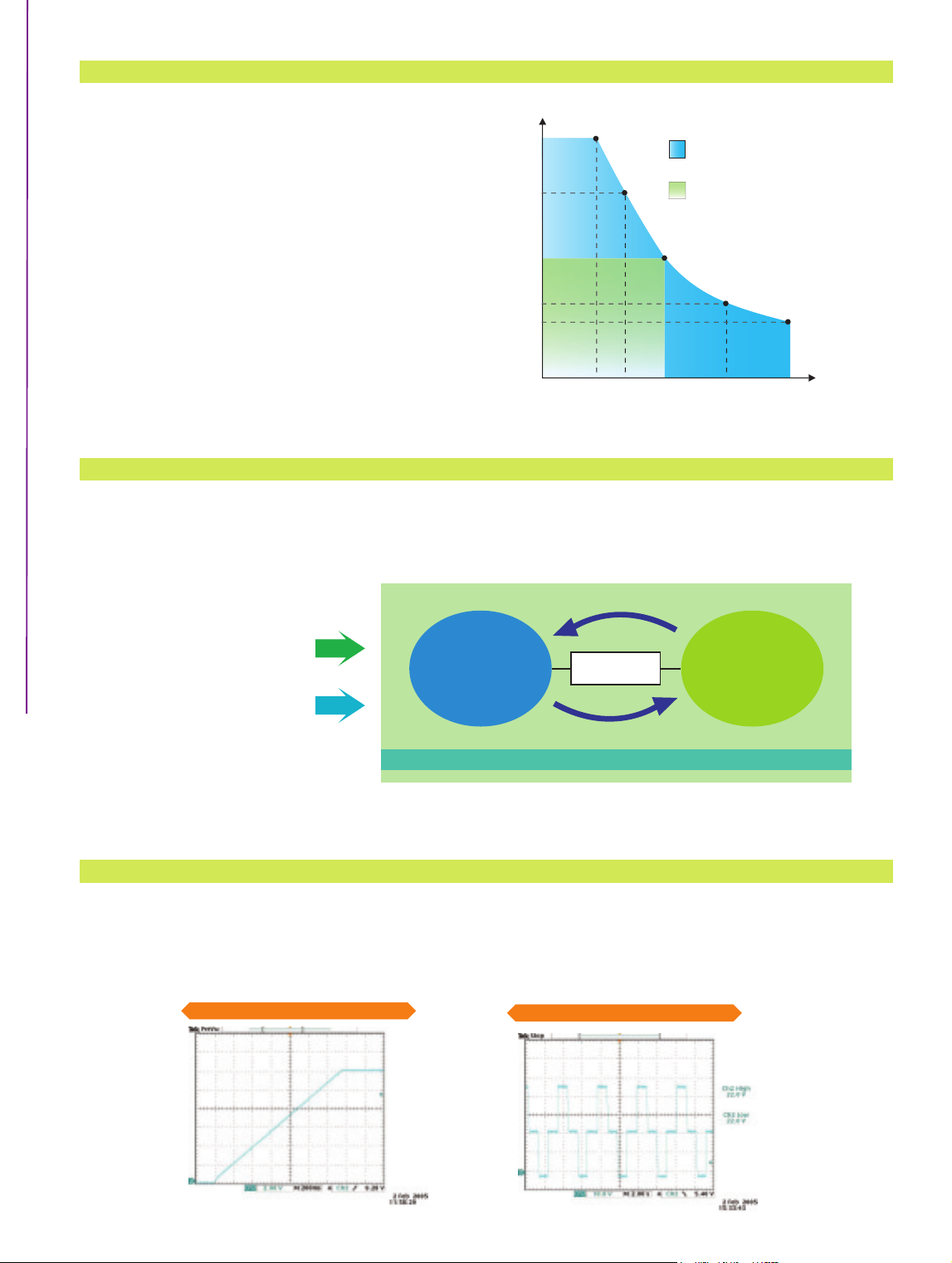

The 62000P Series supplies offer a wide operating region. For
example, the output specification for model 62012P-80-60 is
1200W/80V/60A, it allows operating flexibly in various combina-
tions as shown in the figure at the right. As shown conventional
power supplies provide the same rated current at all output volt-
ages, however, the 62000P provides greater current at lower output
voltages. This means both low voltage/high current and high volt-
age/low current UUTs can be tested using a single supply avoiding
the for multiple supplies saving cost and space within typical ATE
systems.
3
When high power is required, it is common to connect two or more power supplies in parallel or series. The 62000P Series supplies have a
smart Master / Slave control mode making series/parallel operation fast and simple. In this mode the master scales values and downloads
data to slave units so programming is simple and current sharing automatic.
The 62000P Series supplies allow for 100 user programmable sequences with time settings ranging from 10ms to 10000s, voltage /current
slew rate control and 8 bit TTL output for automated test applications. Applications include DC/DC Converter & Inverter voltage dropout
testing, engine start-up simulation, battery automated charging, product life cycle testing and airborne avionics testing.
Soft Start Testing
Voltage Step Waveform
Chroma 62012P-80-60
operating region
Conventional Power
Supply operating region
v
80
60
40
20
P1
P2
15 30 45 60
P
P4
P5
I
Front Panel
RS-485
SlaveMaster
Remote GPIB
62000P Series Power Supplies
DC Power Supply P Series

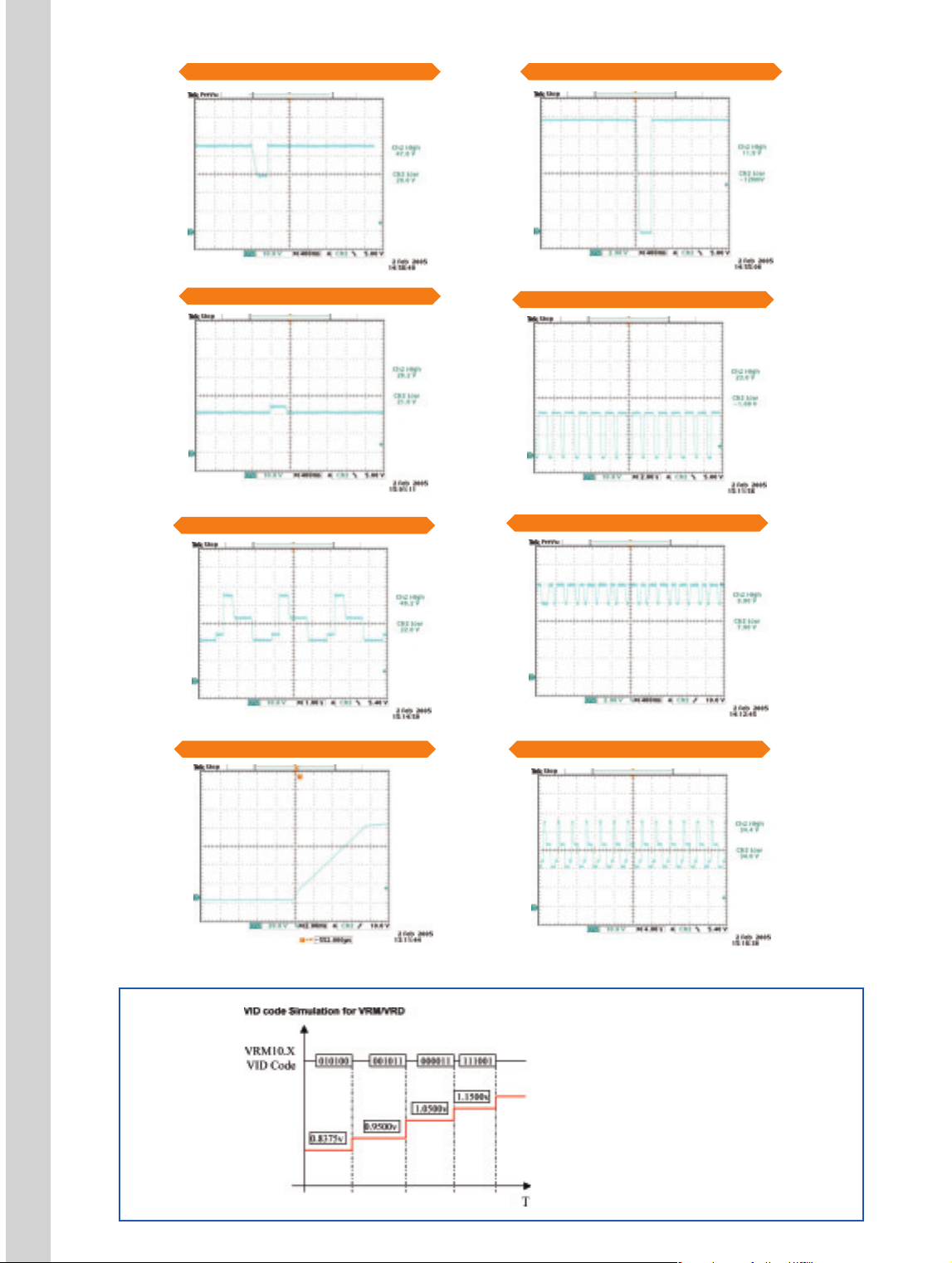

D/D Converter Sag Testing
D/D Converter Surge Testing
Pulse Charge of Battery
Life Cycle Testing
Line Regulation Testing
The 62000P Supplies provide 8 output
TTL bits with timing control. These
control lines can be used for VID con-
trol of VRMS or to control other dis-
crete signals.
Turn on Time of Setting 80V Voltage Sequence Program
D/D Converter Cycle drop Testing

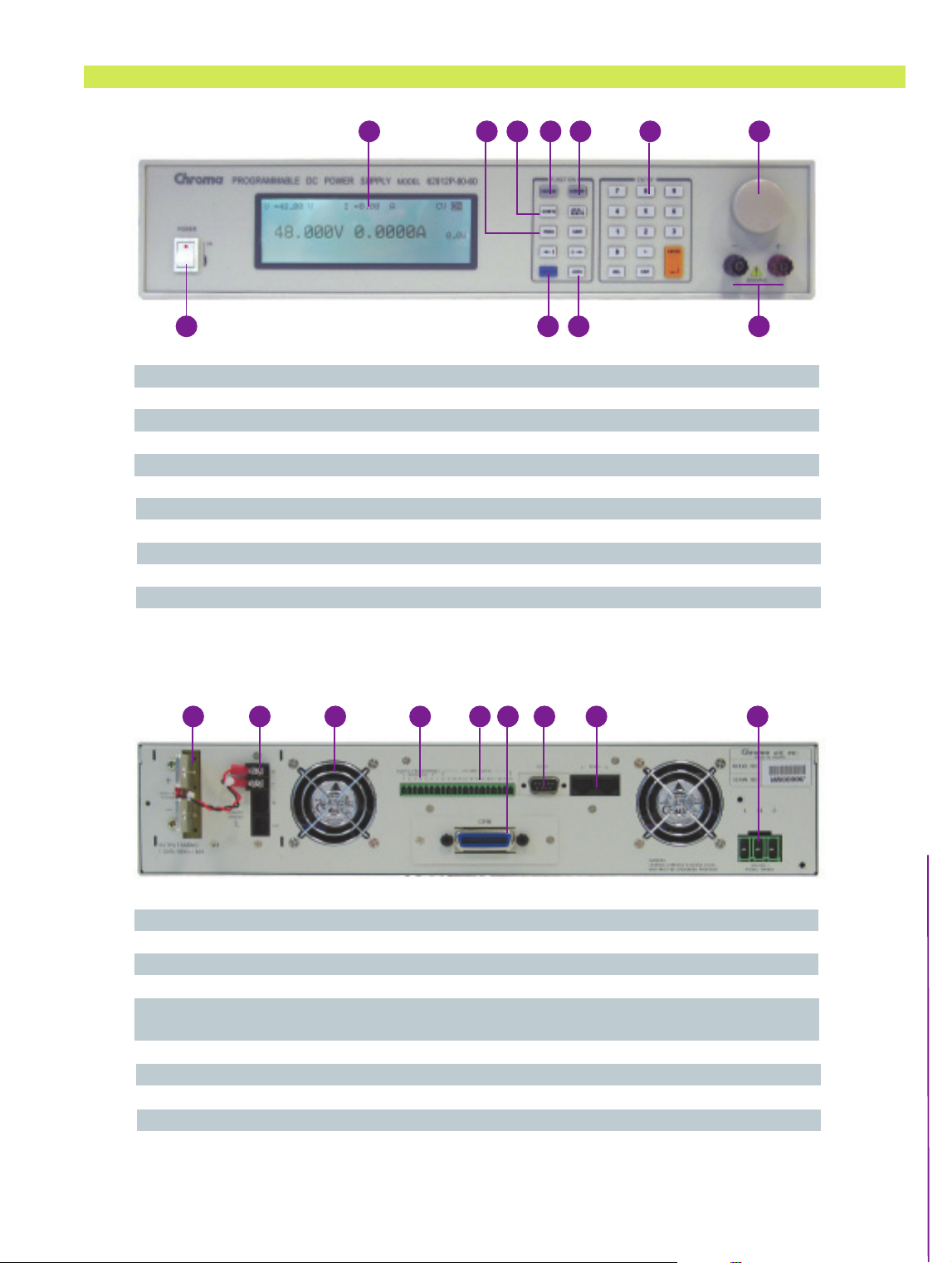

PANEL DESCRIPTION
1 2 3 7654
8 9 10
11
12 19181716151413 20
1. LCD Display Display setting, readings and operating status
2. PROG Key Program the sequence
3. CONFIG Key Set the system configuration
4. VOLTAGE Key Set the output voltage
5. CURRENT Key Set the output current limit
6. NUMERIC Key Set the data
7. ROTARY Key Adjust the V&I and set the parameter
8. POWER Switch
9. OUTPUT Key
Enable or disable the output
10. LOCK Key Lock all settings
11. OUTPUT Terminal Connect the output cable to a UUT
12. OUTPUT Terminal Connect the output cable to a UUT
13. Sense Terminal Connect the UUT for voltage compensation
14. System Fan
15. Analog programming interface
For analog level to program and monitor output voltage & current
16. System I/O port Send 8 bit TTL, DC-ON, fault output signal and remote inhibit
and trigger input signal
17. GPIB Connector(Optional)
18. RS-232 Connector
19. RS-485 Connector
20. AC Input Terminal
ORDERING INFORMATION
All specifications are subject to change without notice.

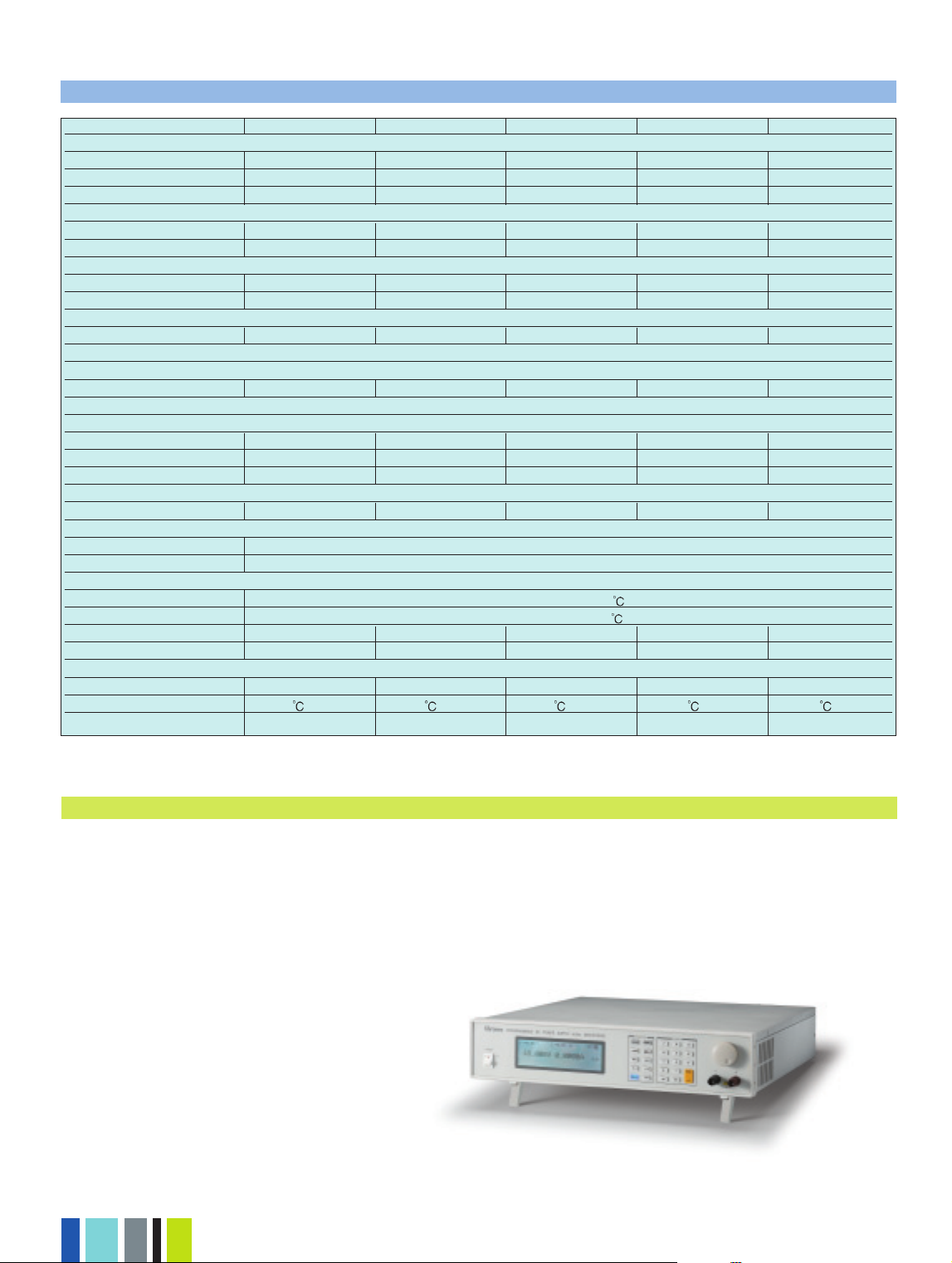

Model 62006P-100-25 62012P-30-160 62012P-80-60 62012P-100-50 62012P-600-8
Output Ratings
Output Voltage 0-100V 0-30V 0-80V 0-100V 0-600V
Output Current 0-25A 0-160A 0-60A 0-50A 0-8A
Output Power 600W 1200W 1200W 1200W 1200W
Line Regulation
Voltage 0.01%+6mV 0.01%+2mV 0.01%+8mV 0.01%+10mV 0.01%+18mV
Current 0.01%+5mA 0.01%+25mA 0.01%+10mA 0.01%+12mA 0.03%+20mA
Load Regulation
Voltage 0.01%+10mV 0.01%+3mV 0.01%+12mV 0.01%+18mA 0.01%+50mV
Current 0.01%+5mA 0.01%+10mA 0.01%+10mA 0.01%+28mA 0.03%+40mA
Voltage Measurement
Range 20V / 100V 6V / 30V 16V / 80V 20V / 100V 120V / 600V
Accuracy 0.05% + 0.05%F.S.
Current Measurement
Range 5A / 25A 32A / 160A 12A / 60A 10A / 50A 1.6A / 8A
Accuracy 0.1% + 0.1%F.S.
Output Noise (0-20MHz)
Voltage Ripple (P-P) 50 mV 50 mV 100 mV 125 mV 180 mV
Voltage Ripple (rms) 10 mV 5 mV 10 mV 15 mV 60 mV
Current Ripple (rms) 10 mA 120 mA 30 mA 20 mA 60 mA
OVP Adjustment Range 110% of Vset to 110% of Vmax
Efficiency 0.85 0.85 0.8 0.8 0.85
Drift (8 hours)
Voltage 0.02% of Vmax
Current 0.04% of Imax
Temperature Coefficient
Voltage 0.02% of Vmax/
Current 0.04% of Imax/
Transient Response Time 3 mS 3 mS 3 mS 3 mS 5 mS
10 % step change 200 mV 150 mV 250 mV 250 mV 600 mV
AC Input Voltage 95 to 250Vac
Weight 13 kg 13 kg 13 kg 13 kg 13 kg
Operating Temperature 0 ~ 40 0 ~ 40 0 ~ 40 0 ~ 40 0 ~ 40
Dimensions (HxWxD) mm 88 x 428 x 470 88 x 428 x 470 88 x 428 x 470 88 x 428 x 470 88 x 428 x 470
62006P-100-25 : Programmable DC Power Supply, 100V / 25A / 600W
62012P-30-160 : Programmable DC Power Supply, 30V / 160A / 1200W
62012P-80-60 : Programmable DC Power Supply, 80V / 60A / 1200W
62012P-100-50 : Programmable DC Power Supply, 100V / 50A / 1200W
62012P-600-8 : Programmable DC Power Supply, 600V / 8A / 1200W
A620004 : GPIB Interface for Model 62000P Series
A620006 : Rack Mounting Kit for Model 62000P Series
ELECTRICAL SPECIFICATIONS
Distributed by:
Worldwide Distribution and Service Network
62000P-200506-1000
CHINA
CHROMA ELECTRONICS
(SHENZHEN) CO., LTD.
8F, No.4, Nanyou Tian An
Industrial Estate, Shenzhen,
China Pc: 518054
Tel: +86-755-2664-4598
Fax: +86-755-2641-9620
EUROPE
CHROMA ATE EUROPE B.V.
Max Planckstraat 4, 6716 BE
Ede, The Netherlands
Tel: +31-318-648282
Fax: +31-318-648288
U.S.A.
CHROMA ATE INC. (U.S.A.)
7 Chrysler Irvine, CA 92618
Tel: +1-949-421-0355
Fax: +1-949-421-0353
Toll Free: +1-800-478-2026
CHROMA ATE INC.
HEADQUARTERS
66, Hwa-Ya 1st Rd., Hwa-Ya
Technical Park, Kuei-Shan Hsiang,
Taoyuan Hsien 333, Taiwan
Tel: +886-3-327-9999
Fax: +886-3-327-8898
http://www.chromaate.com
E-mail: chroma@chroma.com.tw
Developed and Manufactured by :
OTHER SPECIFICATIONS
Programming &Measurement Resolution
Voltage (Front Panel, Remote Interface) 0.003% of Vmax
Current (Front Panel, Remote Interface) 0.002% of Imax
Voltage (Analog Programming Interface) 0.04% of Vmax
Current (Analog Programming Interface) 0.04% of Imax
Programming Accuracy
Voltage Programming (Front Panel and Remote Interface) 0.1% of Vmax
Voltage Programming (Analog Programming Interface) 0.2% of Vmax
Current Programming (Front Panel and Remote Interface) 0.1% of Imax
Current Programming (Analog Programming Interface) 0.2% of Imax
Programming Response Time
Rise Time: For a programmed 5% to 95% step of rated voltage. (Full Load) 10 ms
Rise Time: For a programmed 5% to 95% step of rated voltage. (No Load) 10 ms
Fall Time: For a programmed 95% to 5% step of rated voltage. (Full Load) 60 ms
Fall Time: For a programmed 95% to 5% step of rated voltage. (No Load) 650 ms
Vout setting (GPIB send command to DC Power Supply receiver) 20 ms
?Volt, ? Current (under GPIB command using Fetch) 25 ms
?Volt, ? Current (under GPIB command using Measure) 70 ms
Analog Programming Interface
Voltage and Current Programming inputs 0~10Vdc or 0~5Vdc of F.S.
Voltage and Current monitor 0~10Vdc or 0~5Vdc of F.S.
Isolation: Maximum working voltage of any analog programming signal with respect
to chassis potential
70 Vdc
Auxiliary Power Supply
Output Voltage 12 Vdc
Maximum current source capability 10 mA
Remote Inhibit Function
Use to disable the output of DC Power Supply; Active Low TTL
DC-ON Output Signal
Indicate the output status, Active High TTL
Fault Output Signal
Indicate if there is a fault/protection occurred, Active Low TTL
Series & Parallel operation function with Master / Slave control By RS-485 interface
Voltage limit @ Series Mode. (Floating output) 1200 Volt
Voltage limit @ Series Mode (Refer to Ground) 240 Volt
Number of DC Power Supplies allowed @ master / slave control mode 5
Auto Sequencing Programmable Function
Number of program 10
Number of sequence 100
Time Range 10 ms ~ 10000 S
TTL signal out 8 bits
TTL source capability 7 mA
Slew Rate Control Function
Voltage slew rate range (The fall rate will be affected by the discharge rate of the
output capacitors especially under no load condition.)
0.01V ~ 10V/ms
Current slew rate range of current 0.01A ~ 1A/ms
Minimum transition time 0.5 ms
Remote Sense
Line loss compensation 5V
All specifications are subject to change without notice.
