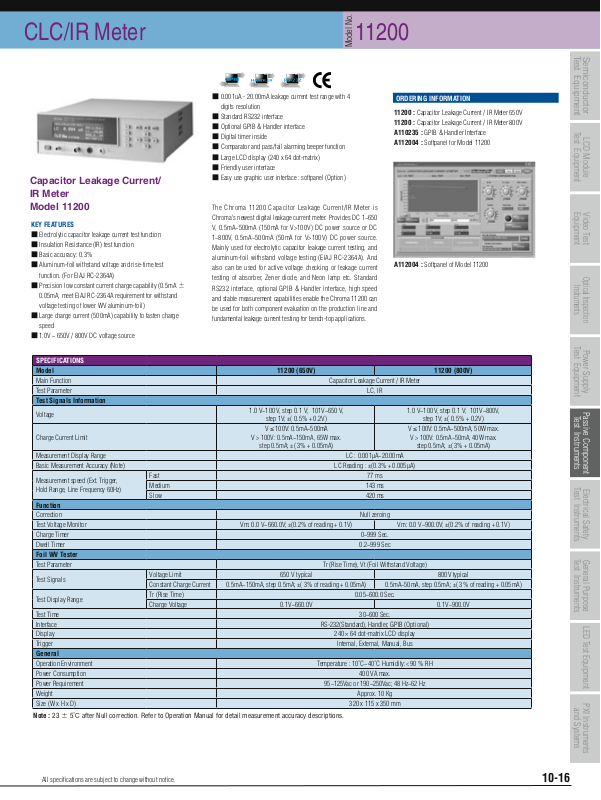

CLC/IR Meter 11200
Model No.
Test Equipment
Semiconductor
Capacitor Leakage Current/
■ 0.001uA - 20.00mA leakage current test range with 4
digits resolution
■ Standard RS232 interface
■ Optional GPIB & Handler interface
■ Digital timer inside
■ Comparator and pass/fail alarming beeper function
■ Large LCD display (240 x 64 dot-matrix)
■ Friendly user interface
■ Easy use graphic user interface : softpanel (Option)
ORDERING INFORMATION
11200 : Capacitor Leakage Current / IR Meter 650V
11200 : Capacitor Leakage Current / IR Meter 800V
A110235 : GPIB & Handler Interface
A112004 : Softpanel for Model 11200
IR Meter
Model 11200
KEY FEATURES
■ Electrolytic capacitor leakage current test function
■ Insulation Resistance (IR) test function
■ Basic accuracy: 0.3%
■ Aluminum-foil withstand voltage and rise-time test
function. (For EIAJ RC-2364A)
■ Precision low constant current charge capability (0.5mA ±
0.05mA, meet EIAJ RC-2364A requirement for withstand
voltage testing of lower WV aluminum-foil)
■ Large charge current (500mA) capability to fasten charge
speed
■ 1.0V ~ 650V / 800V DC voltage source
SPECIFICATIONS
Model 11200 (650V) 11200 (800V)
Main Function Capacitor Leakage Current / IR Meter
Test Parameter LC, IR
Test Signals Information
Voltage
Charge Current Limit
Measurement Display Range LC : 0.001μA~20.00mA
Basic Measurement Accuracy (Note) LC Reading : ±(0.3% + 0.005μA)
Measurement speed (Ext. Trigger,
Hold Range, Line Frequency 60Hz)
Function
Correction Null zeroing
Test Voltage Monitor Vm: 0.0 V~660.0V; ±(0.2% of reading + 0.1V) Vm: 0.0 V~900.0V; ±(0.2% of reading + 0.1V)
Charge Timer 0~999 Sec.
Dwell Timer 0.2~999 Sec
Foil WV Tester
Test Parameter Tr (Rise Time), Vt (Foil Withstand Voltage)
Test Signals
Test Display Range
Test Time 30~600 Sec.
Interface RS-232(Standard), Handler, GPIB (Optional)
Display 240 × 64 dot-matrix LCD display
Trigger Internal, External, Manual, Bus
General
Operation Environment Temperature : 10˚C~40˚C Humidity:< 90 % RH
Power Consumption 400 VA max.
Power Requirement 95~125Vac or 190~250Vac; 48 Hz~62 Hz
Weight Approx. 10 Kg
Size (W x H x D) 320 x 115 x 350 mm
Note : 23 ± 5℃ after Null correction. Refer to Operation Manual for detail measurement accuracy descriptions.
Fast 77 ms
Medium 143 ms
Slow 420 ms
Voltage Limit 650 V typical 800V typical
Constant Charge Current 0.5mA~150mA, step 0.5mA; ±( 3% of reading + 0.05mA) 0.5mA~50mA, step 0.5mA; ±( 3% of reading + 0.05mA)
Tr (Rise Time) 0.05~600.0 Sec.
Charge Voltage 0.1V~660.0V 0.1V~900.0V
The Chroma 11200 Capacitor Leaka ge Curr en t/IR Mete r is
Chroma's newest digital leakage current meter. Provides DC 1~650
V, 0.5mA~500mA (150mA for V>100V) DC power source or DC
1~800V, 0.5mA~500mA (50mA for V>100V) DC power source.
Mainly used for electrolytic capacitor leakage current testing, and
aluminum-foil withstand voltage testing (EIAJ RC-2364A). And
also can be used for active voltage checking or leakage current
testing of absorber, Zener diode, and Neon lamp etc. Standard
RS232 interface, optional GPIB & Handler interface, high speed
and stable measurement capabilities enable the Chroma 11200 can
be used for both component evaluation on the production line and
fundamental leakage current testing for bench-top applications.
1.0 V~100 V, step 0.1 V; 101V~650 V,
step 1V; ±( 0.5% + 0.2V)
V ≤ 100V: 0.5mA~500mA
V > 100V: 0.5mA~150mA, 65W max.
step 0.5mA; ±( 3% + 0.05mA)
A112004 : Softpanel of Model 11200
1.0 V~100 V, step 0.1 V; 101V~800V,
step 1V; ±( 0.5% + 0.2V)
V ≤ 100V: 0.5mA~500mA, 50W max.
V > 100V: 0.5mA~50mA, 40W max.
step 0.5mA; ±( 3% + 0.05mA)
