Page 1
C9 PULSOMETER LIMTED EDITION CHRONOMETER
O W N E R ’ S H A N D B O O K
Page 2
1
Your Christopher Ward watch has been designed and
engineered by highly talented craftspeople to ensure
not only accurate and precise timekeeping but also
to bring a real pride of ownership that only luxury
items of the highest quality can ever hope to deliver.
You have made an investment, a good one,
and the aim of this handbook is to help you
make the most of that investment during what
I hope will be a lifetime of ownership.
Christopher Ward
TIME ON YOUR SIDE...
INTRODUCTION
CONTENTS
C9 PULSOMETER LE CHRONOMETER 2–5
TECHNICAL INFORMATION 6
HOW TO OPERATE YOUR FORUM LE 7–14
OUR WATCH CARE PROGRAMME 15
GENERAL INFORMATION 16
Page 3
22
Page 4
3

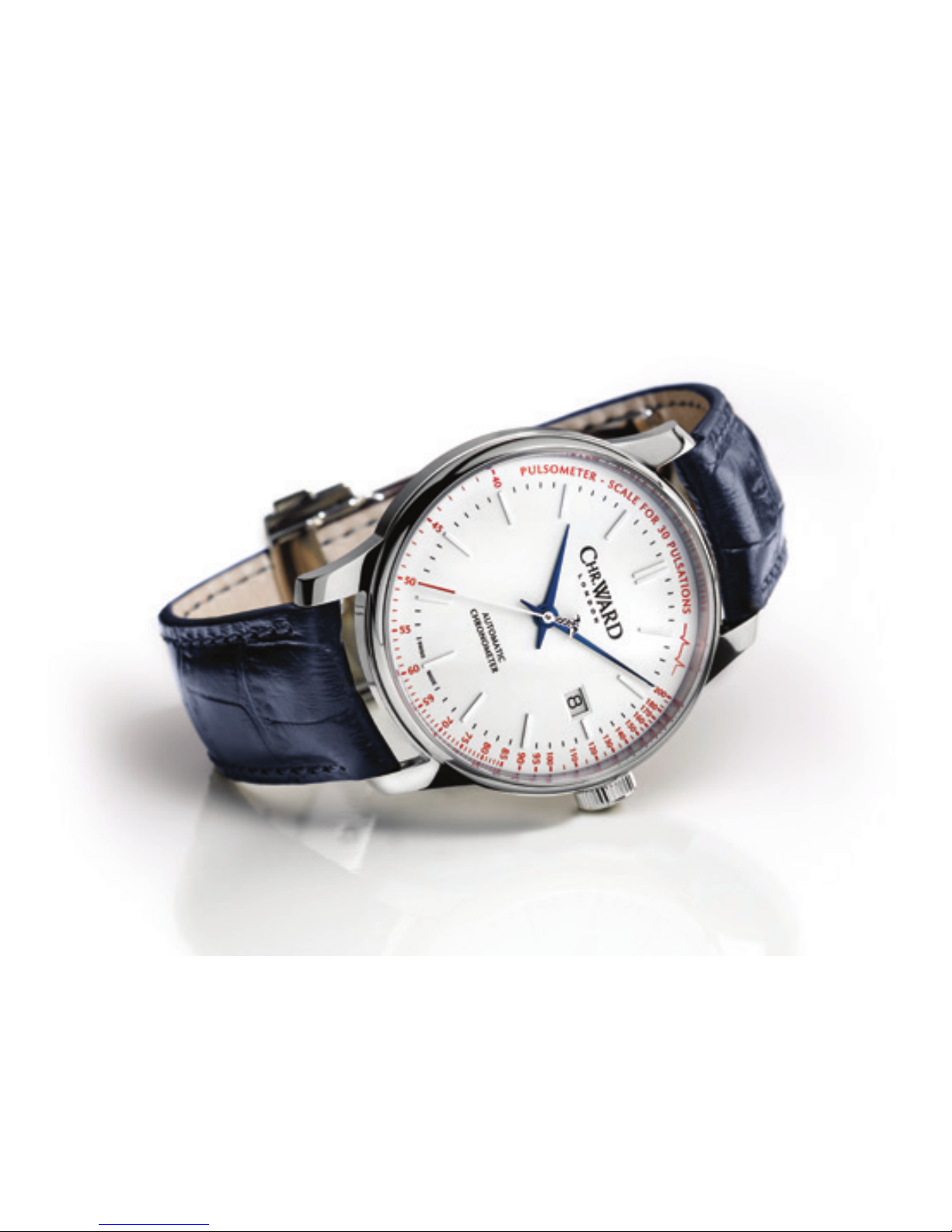

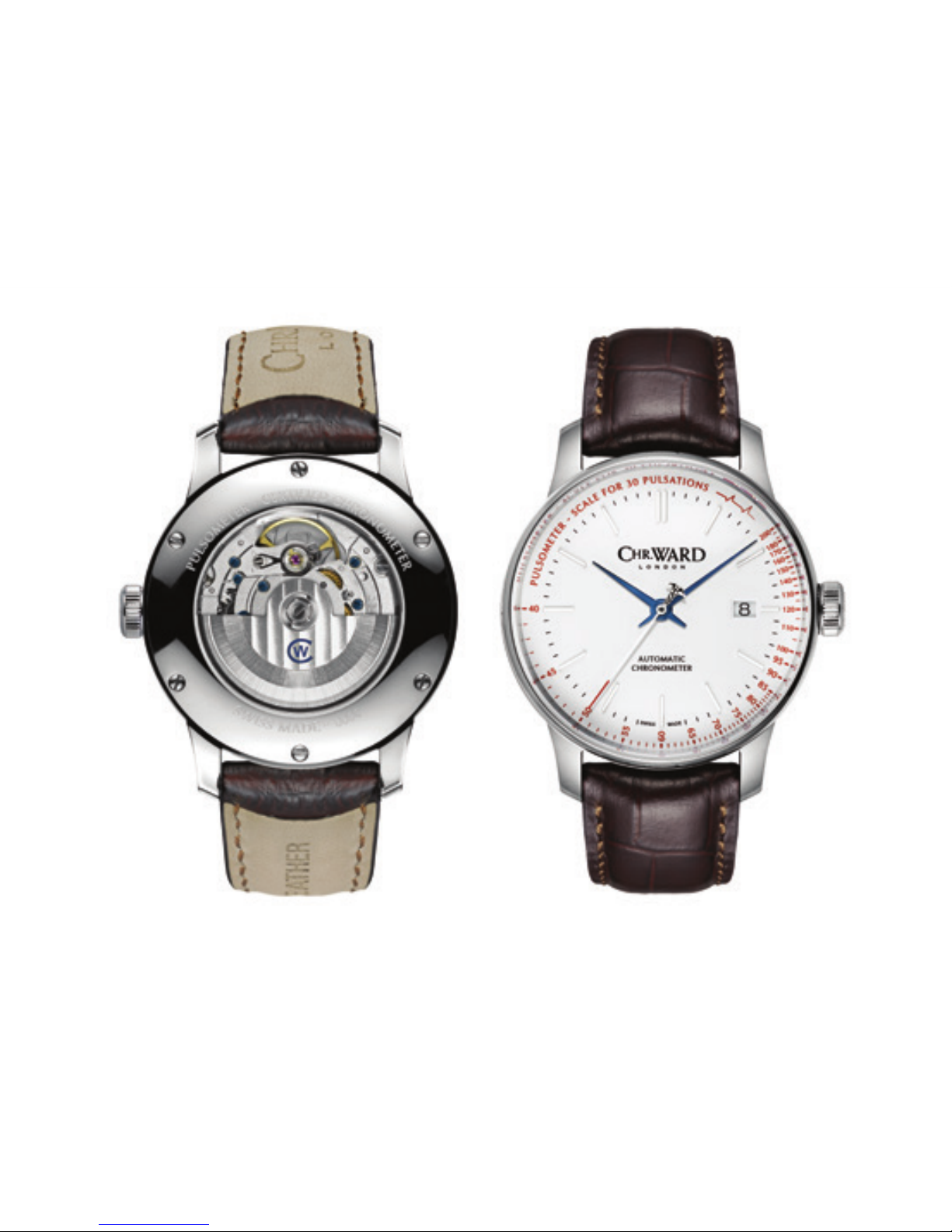

C9 PULSOMETER LIMITED EDITION CHRONOMETER
C9 PULSOMETER LIMITED EDITION CHRONOMETER
English physician, Sir John Floyer (1649-1734)
first introduced the practice of pulse rate
measurement and asked clockmaker Samuel
Watson to adapt a watch for this precise
purpose some 300 years before smart phones
and watches started to monitor our every
function.
It was the early 20th Century, however, before the
Pulsometer (sometimes called a Pulsograph) watch
became widely used by the medical profession
to measure a patient's heart beat rate and the C9
Pulsometer is the latest addition in the long tradition of
these timepieces.
We have chosen not to go down the chronograph route
for our first Pulsometer, instead choosing to use a COSC
certified version of the self-winding Sellita SW200-1 as the
movement, which guarantees accuracy to within -4 to
+6 seconds a day. The beautifully engineered, 40mm
C9 case, is constructed, rather aptly, of surgical grade
Whether you are a member of the medical profession,
or just think a fine mechanical watch that can help you
monitor your health is a great idea, the C9 Pulsometer
is a special watch made even more special as only
250 pieces will ever be released. It's enough to set one's
pulse racing!
The tachymeter style pulsometer scale of the dial is
calibrated for 30 heart beats and both its red colour
and the corresponding simplicity of the remainder of
the dial make for especially easy reading. The watch
has precision blued steel hour and minute hands
but it is the hacking second hand, with its caduceus
counter-balance design, that exemplifies the usual
Christopher Ward attention to the fine details. In Greek
mythology Asclepius represents medicine and healing,
but it's Hermes staff, caduceus, which has become
widely used as the symbol of medicine worldwide, and
especially in North America.
stainless steel and the SW200 movement can be seen
working through the screw-down transparent back-plate.
Page 5
4

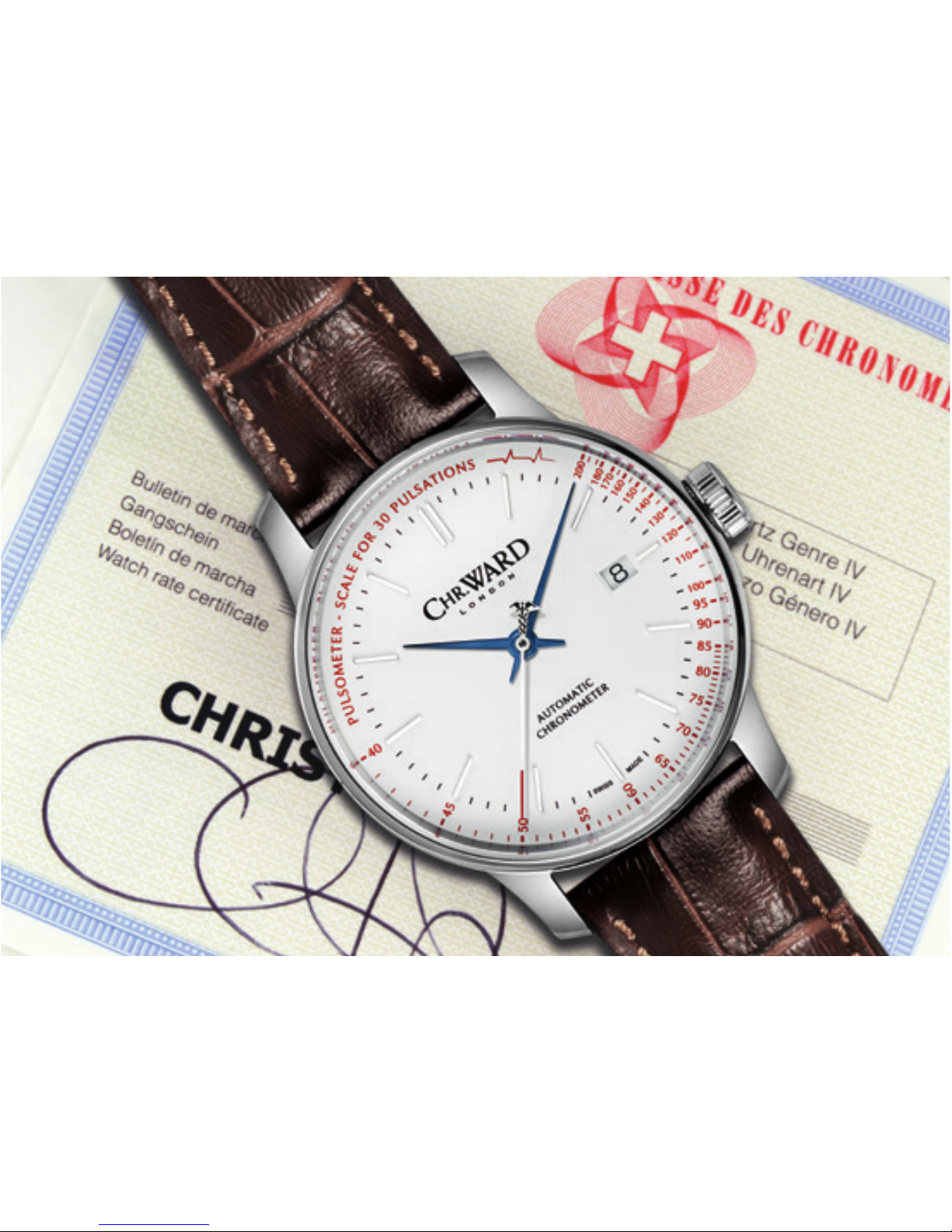

THE COSC CERTIFIED CHRONOMETER
COSC CERTIFICATION
To gain chronometer status, watchmakers
submit their Swiss movements to COSC,
an independent, non-profit making watch
accuracy verification organisation based in
Geneva, to be tested against the international
standards of ISO and DIN.
Certification follows exhaustive testing. In achieving
the coveted status of Certified Chronometer, a
movement must not only be made from the highest
quality components, but also be the object of
special care on part of the finest horologists and
technicians as it is painstakingly assembled.
Only movements which meet the precision criteria
are granted an official certificate. Each uncased
movement is individually tested for fifteen days, in
five positions, at three different temperatures.
Movements are fitted with a second hand for tests
and measurements are made daily with the aid
of cameras. Based on all of these measurements,
seven eliminatory criteria are calculated, each of
which must be met.
The exacting and rigorous nature of the COSC
certification process means that the achievement
of Certified Chronometer status is extremely rare.
In fact, of all the watches produced in Switzerland
each year, just 3% bear the coveted COSC ‘bulletin
de marche’ or certificate of watch performance.
Which is why, when you read the words ’Certified
Chronometer’ on a Swiss watch you can be
sure that the movement behind the elegant dial is
a rare example of fine Swiss watchmaking which is
accurate, precise... and extremely rare.
4
Page 6
55
Page 7
6
C9 PULSOMETER LIMITED EDITION CHRONOMETER
TECHNICAL INFORMATION
6
TECHNICAL INFORMATION
Diameter: 40mm
Height: 11.35 mm
Calibre: Sellita SW200-1(COSC)
Vibrations: 28.800 vph
Case: 316L stainless steel
Water resistance: 5 BAR (50 METRES)
Strap width: 20mm
Dial Colour: Optic White
FEATURES
– Swiss made
– Limited edition of 250 pieces
– 26 jewel self-winding movement
– 38 hour power reserve
– COSC certified chronometer
– Hand finished, surgical grade, stainless steel case
– One-piece dial with 30 pulse measurement scale
– Blued steel central hour and minute hands
– Caduceus counter-balance central second design
– Date calendar at 3 o'clock
– Anti-reflective sapphire crystal
– Screw-in transparent case back
– Stop-second hacking mechanism
Page 8
7
HOW TO OPERATE YOUR C9 PULSOMETER LIMITED EDITION CHRONOMETER
DISPLAY AND CONTROL BUTTONS
Minute hand
Hour hand
Second hand
Crown
The C9 Pulsometer Limited Edition Chronometer has a maximum power reserve of 38 hours when fully wound.
To re-power the watch after a period of non-use, simply pull out the crown and wind in approximately 20
revolutions. Normal wearing will very quickly allow the rotor to start re-powering the watch over time after
putting it on your wrist.
Page 9
8
HOW TO OPERATE YOUR C9 PULSOMETER LIMITED EDITION CHRONOMETER
SETTING THE TIME
1
2
3
• From position , pull the crown to position
and adjust the calendar display in a clockwise
direction.
• Pull the crown to position and adjust the time
setting in either a clockwise or anti-clockwise
direction.
• After adjusting to the correct time ensure that
the crown is flush with the case in order that water
resistance is maintained.
21
3
Please note: Date correction should not be carried
out between 20.00 hrs and 02.00 hrs as the watch
gearing will already be aligning itself to change the
date. The crown should always be screwed in after
adjustment, and it is best to do so from position 3 to
avoid advancing beyond the desired date.
Page 10
99
Page 11
10
HOW TO OPERATE YOUR C9 PULSOMETER LIMITED EDITION CHRONOMETER
WHAT IS A PULSOMETER?
The Pulsometer, also known as the Pulsograph is,
ordinarily, a tool used by those in the medical
profession to simplify the process of taking a pulse
through a convenient scale marked on a watch.
With tachymeter style markings, the watch dial is
graduated for a certain number of pulsations (as
shown). The scale allows the direct reading of the
rate without needing to do any multiplication in
your head.
Page 12
11
HOW TO OPERATE YOUR C9 PULSOMETER LIMITED EDITION CHRONOMETER
READING YOUR PULSOMETER
• Wait for the second hand to align with 12.00 as
shown on position .
• As the second hand sweeps clockwise start to take
a pulse reading.
• After 30 pulses take a reading, see if 30 pulses
take 22 seconds then the pulse rate is 80 beats per
minute.
1
2
1
2
Page 13
12
Page 14
13
HOW TO OPERATE YOUR C9 PULSOMETER LIMITED EDITION CHRONOMETER
1. Press to release
2. Pull open the clasp
3. Locate the opening and
thread the strap through
4. Close the clasp
LEATHER STRAP WITH BADER DEPLOYMENT
1
2 3 4
4
As you would expect, we place as much emphasis on the quality of our straps and bracelets as we
do our watches. We only use the finest leathers for our straps. Similarly, we only use the finest metals
in the construction of our bracelets, all of which are precision engineered for durability, efficiency
and comfort. The following guidelines explain how easy it is to use and adjust your Christopher Ward
strap.
STRAPS & BRACELETS
Page 15
14
HOW TO OPERATE YOUR C9 PULSOMETER LIMITED EDITION CHRONOMETER
WATER RESISTANCE
Although your watch has been through vigorous
static pressure testing, it is worth remembering that
there are many variables that can affect the water
resistance of your watch.
For instance, arm movements during swimming
and the sudden impact of diving and water sports
will drastically increase the pressure the watch is
under. Wearing your watch in the bath, shower, or
sauna can also have an effect as a rapid increase
in temperature can cause seals to expand and in
extreme cases, malfunction or create condensation.
For these reasons, the water resistance rating of your
watch (as shown) should only ever be considered
a guideline and we strongly recommend they are
always adhered to.
1 BAR (10 METRES)
Safe to wear your watch while washing
your hands with tap water.
3 BAR (30 METRES)
Washing your car and/or general
hose pipe usage.
5 BAR (50 METRES)
Water resistant to most household
shower units.
10 BAR (100 METRES)
Safe to use while snorkelling in open
water.
30 BAR (300 METRES)
Ideal for experienced divers and those
practising scuba-diving.
50 BAR (500 METRES)
Professional divers, experiencing
prolonged exposure underwater.
100 BAR (1000 METRES)
Professional deep sea diving.
Page 16
15
OUR WATCH CARE PROGRAMME
Your watch is constructed from the finest
components and materials available including
one of Switzerland’s finest mechanical
movements. As with all watches of this quality,
with the right care and attention, your new
Christopher Ward watch has the potential to
become an heirloom piece giving further joy
to future generations. It’s for this reason we
have created our industry leading approach
to after-sales care, starting with our famous
60/60 Guarantee which remains the most
comprehensive guarantee in the world of
watchmaking.
Christopher Ward’s 60/60 Guarantee is designed to deliver you complete peace
of mind and the best support possible throughout the lifetime of your ownership.
The guarantee has two key elements and sits alongside our Servicing and Repairs
Programme:
60/60 GUARANTEE
1. 60 DAY FREE RETURNS
Our success depends on you being completely happy with your new Christopher Ward
watch. You have up to 60 days to return your watch, absolutely free of charge, and
receive a replacement or full refund by return – so long as it has not been worn and is
returned in box-perfect condition.
2. 60 MONTH MOVEMENT GUARANTEE
Your watch, at its heart, has a top quality precision engineered Swiss movement – so
it’s very unlikely to give you problems with the minimum amount of care and attention,
including a regular service. We recommend you return your watch to us every 3/4
years for a service, so our expert technicians can keep your fine timepiece in the peak
of condition.
SERVICING & REPAIRS…THE CHRISTOPHER WARD WAY…
Our innovative approach to servicing and repairing your Christopher Ward watch
means that having your watch serviced or repaired doesn’t mean months of waiting
followed by an exorbitant bill – which is pretty much the experience guaranteed by
every other luxury watch brand. We have developed an easy, quick and affordable
expert service and repairs programme that doesn’t cost the earth and has your watch
back where it belongs – on your wrist – in double-quick time.
OUR WATCH CARE PROGRAMME
Visit our website for more details
about our 60/60 Guarantee and Service
and Repair Programme.
Page 17
16
From small beginnings just a few short years ago
(our first workshop was actually a refurbished chicken
shed!), Christopher Ward has won a worldwide
following for his eponymous watch brand and can
justifiably claim to manufacture the most affordable
luxury watches in the world.
For many, the philosophy behind the brand, of trying
to put luxury watches within the reach of everyone,
is as attractive as the watches themselves, as is
the very open approach of the business which
means that Chris and the team spend a lot of time
communicating personally with our customers –
many of whom have become friends.
As the owner of a Christopher Ward watch,
if ever you need to get hold of us we are at
your service. We have listed some useful contact
details on the back cover.
There is also always something new going on
at our website at www.christopherward.co.uk
and, if you haven’t already discovered the
independent forum dedicated to our brand at
www.christopherwardforum.com we would
recommend a visit. Informative and fun,
it’s a great place to hear the unexpurgated
view of Christopher Ward of London!
GENERAL INFORMATION
KEEPING IN TOUCH WITH CHRISTOPHER WARD
Page 18
HEAD OFFICE
Christopher Ward (London) Limited,
1 Park Street, Maidenhead,
Berkshire SL6 1SL United Kingdom
+44 (0)1628 763040
CUSTOMER SERVICES
UNITED KINGDOM: +44 (0)1628 763040
UNITED STATES OF AMERICA: 1.877.226.8224
WEBSITE
www.christopherward.co.uk
www.christopherward.com
Loading...
