Christie WU12, WU18 User Manual

Roadster, Matrix WU,

Mirage S+/HD/WU

USER MANUAL

020-100002-06

Roadster, Matrix WU,

Mirage S+/HD/WU

U S E R M A N U A L

020-100002-06

NOTICES

All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

REGULATORY

The product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a commercial environment. The product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of the product in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at the user’s own expense.

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

㧊 ₆₆⓪ 㠛ⶊ㣿 (A   ) 㦒⪲ 㩚㧦䕢㩗䞿❇⪳㦚䞲 ₆₆㧊㡺┞ 䕦ⰺ㧦 ⡦⓪ ㌂㣿㧦⓪ 㧊㩦㦚㭒㦮䞮㔲₆ ⹪⧒Ⳇ , Ṗ㩫㣎㦮㰖㡃㠦㍲㌂㣿䞮⓪ ộ㦚 ⳿㩗㦒⪲ 䞿┞┺ .

GENERAL

Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may not be reflected in this document. Christie reserves the right to make changes to specifications at any time without notice. Performance specifications are typical, but may vary depending on conditions beyond Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose. Christie will not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or use of this material.

The product is designed and manufactured with high-quality materials and components that can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from regular waste. Please dispose of the product appropriately and according to local regulations. In the European Union, there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

Canadian manufacturing facility is ISO 9001 and 14001 registered.

GENERAL WARRANTY STATEMENTS

For complete information about Christie’s limited warranty, please contact your Christie dealer. In addition to the other limitations that may be specified in Christie’s limited warranty, the warranty does not cover:

a. Damage occurring during shipment, in either direction. b. Projector lamps (See Christie’s separate lamp program policy). c. Damage caused by use of a projector lamp beyond the recommended lamp life, or use of a lamp supplied by a supplier other than Christie. d. Problems caused by combination of the product with non-Christie equipment, such as distribution systems, cameras, video tape recorders,

etc., or use of the product with any non-Christie interface device. e. Damage caused by misuse, improper power source, accident, fire, flood, lightening, earthquake or other natural disaster. f. Damage caused by improper installation/alignment, or by product modification, if by other than a Christie authorized repair service

provider. g. For LCD projectors, the warranty period specified applies only where the LCD projector is in “normal use.” “Normal use” means the LCD

projector is not used more than 8 hours a day, 5 days a week. For any LCD projector where “normal use” is exceeded, warranty coverage

under this warranty terminates after 6000 hours of operation. h. Failure due to normal wear and tear.

PREVENTATIVE MAINTENANCE

Preventative maintenance is an important part of the continued and proper operation of your product. Please see the Maintenance section for specific maintenance items as they relate to your product. Failure to perform maintenance as required, and in accordance with the maintenance schedule specified by Christie, will void the warranty.

Table of Contents

1: Introduction

1.1 Using this Manual........................................................................................................................1-1

1.2 Safety Warnings and Guidelines .................................................................................................1-2

1.2.1 General Precautions .............................................................................................................1-2

1.2.2 Labels and Markings............................................................................................................ 1-2

1.2.3 Typographical Notations......................................................................................................1-3

1.3 Purchase Record and Service Contacts .......................................................................................1-3

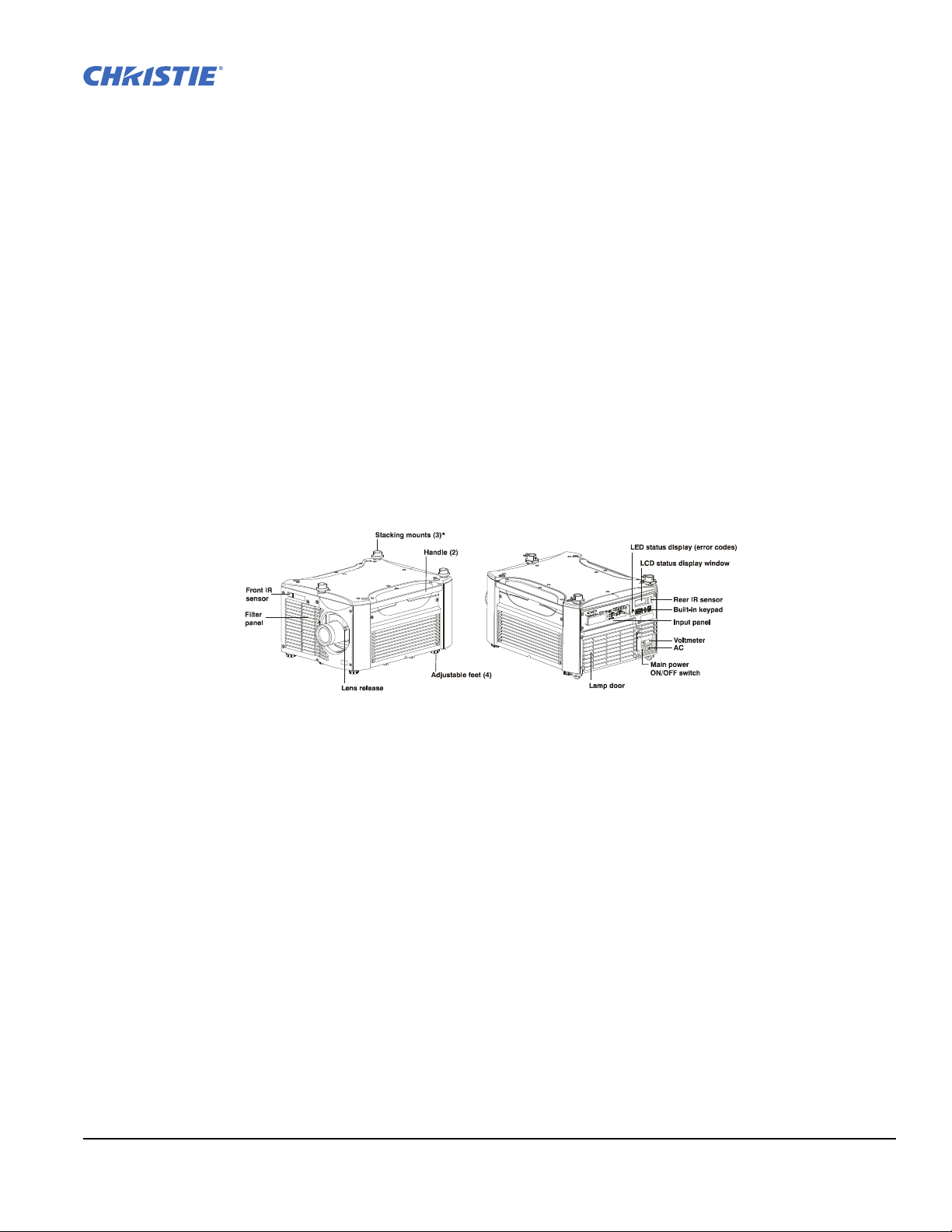

1.4 Projector Overview......................................................................................................................1-4

1.4.1 How the Projector Works ....................................................................................................1-4

1.4.2 Main Features ......................................................................................................................1-5

1.4.3 Lamps/Light Output.............................................................................................................1-5

1.4.4 Inputs ...................................................................................................................................1-5

1.5 List of Components .....................................................................................................................1-7

2: Installation and Setup

2.1 Projector Quick Setup and Installation........................................................................................2-1

2.1.1 QuickSetup...........................................................................................................................2-1

2.2 Installation Considerations ..........................................................................................................2-4

2.2.1 Lifting, Hoisting, and Stacking............................................................................................2-4

2.2.2 Hoisting Procedure ..............................................................................................................2-7

2.2.3 Stacking Procedure ..............................................................................................................2-8

2.2.4 Alignment Procedure ........................................................................................................... 2-10

2.2.5 Installation Type ..................................................................................................................2-12

2.2.6 Screen Type .........................................................................................................................2-13

2.2.7 Screen Size........................................................................................................................... 2-14

2.2.8 Screen Aspect Ratio.............................................................................................................2-14

2.2.9 Ambient Lighting.................................................................................................................2-14

2.2.10 Other Considerations .........................................................................................................2-15

2.3 Projector Position and Mounting.................................................................................................2-15

2.3.1 Throw Distance....................................................................................................................2-15

2.3.2 Vertical & Horizontal ..........................................................................................................2-16

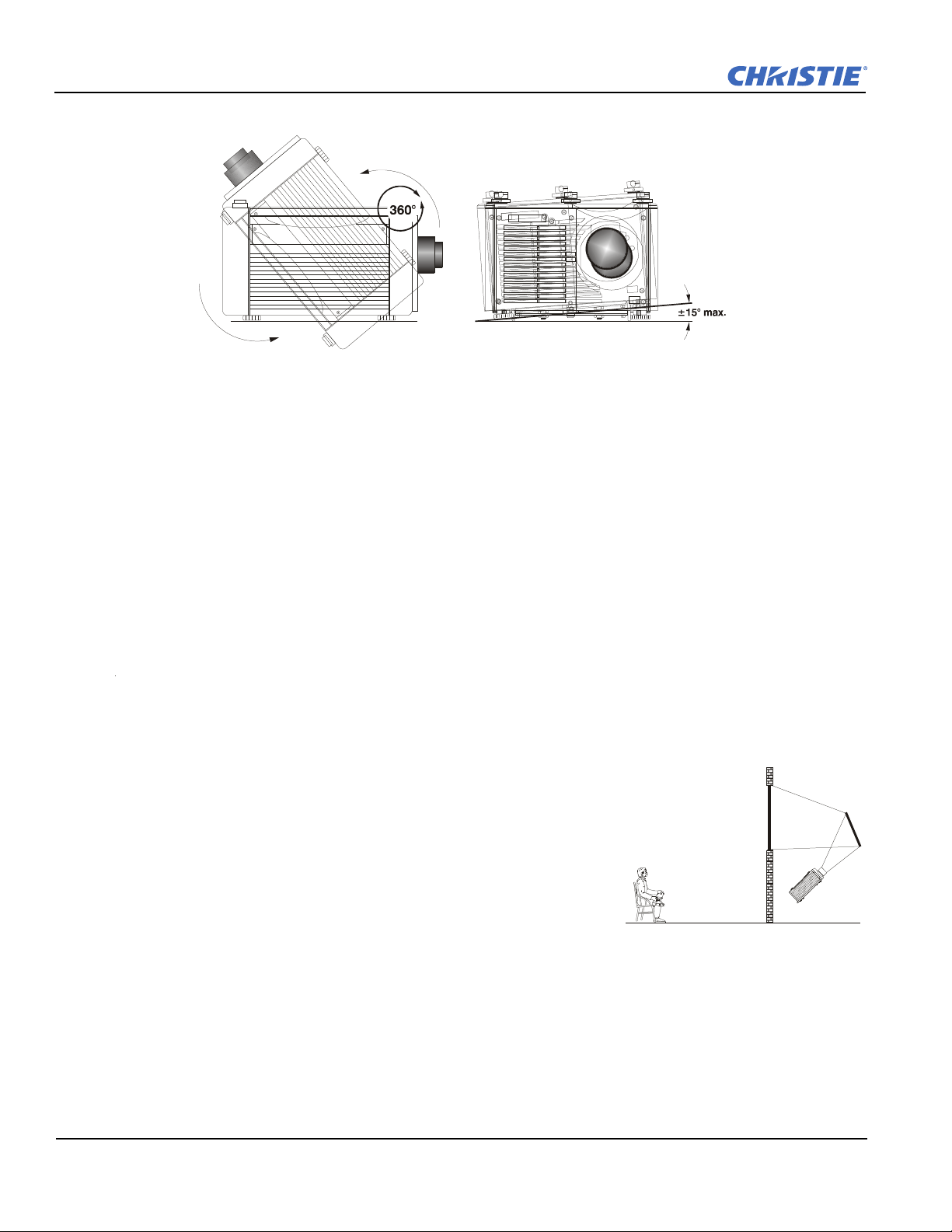

2.3.3 Tilting the Projector .............................................................................................................2-17

2.3.4 Mounting..............................................................................................................................2-18

2.3.5 Folded Optics.......................................................................................................................2-18

2.4 Connecting Sources .....................................................................................................................2-18

2.4.1 RGB Signals ........................................................................................................................2-19

2.4.2 YPbPr (Component Video).................................................................................................. 2-20

2.4.3 Composite Video .................................................................................................................2-20

2.4.4 DVI Digital Video ...............................................................................................................2-21

2.4.5 Dual SD/HD-SDI.................................................................................................................2-21

2.4.6 Other Optional Inputs ..........................................................................................................2-22

2.5 Connecting Communications ......................................................................................................2-22

2.5.1 Remote Keypads ..................................................................................................................2-22

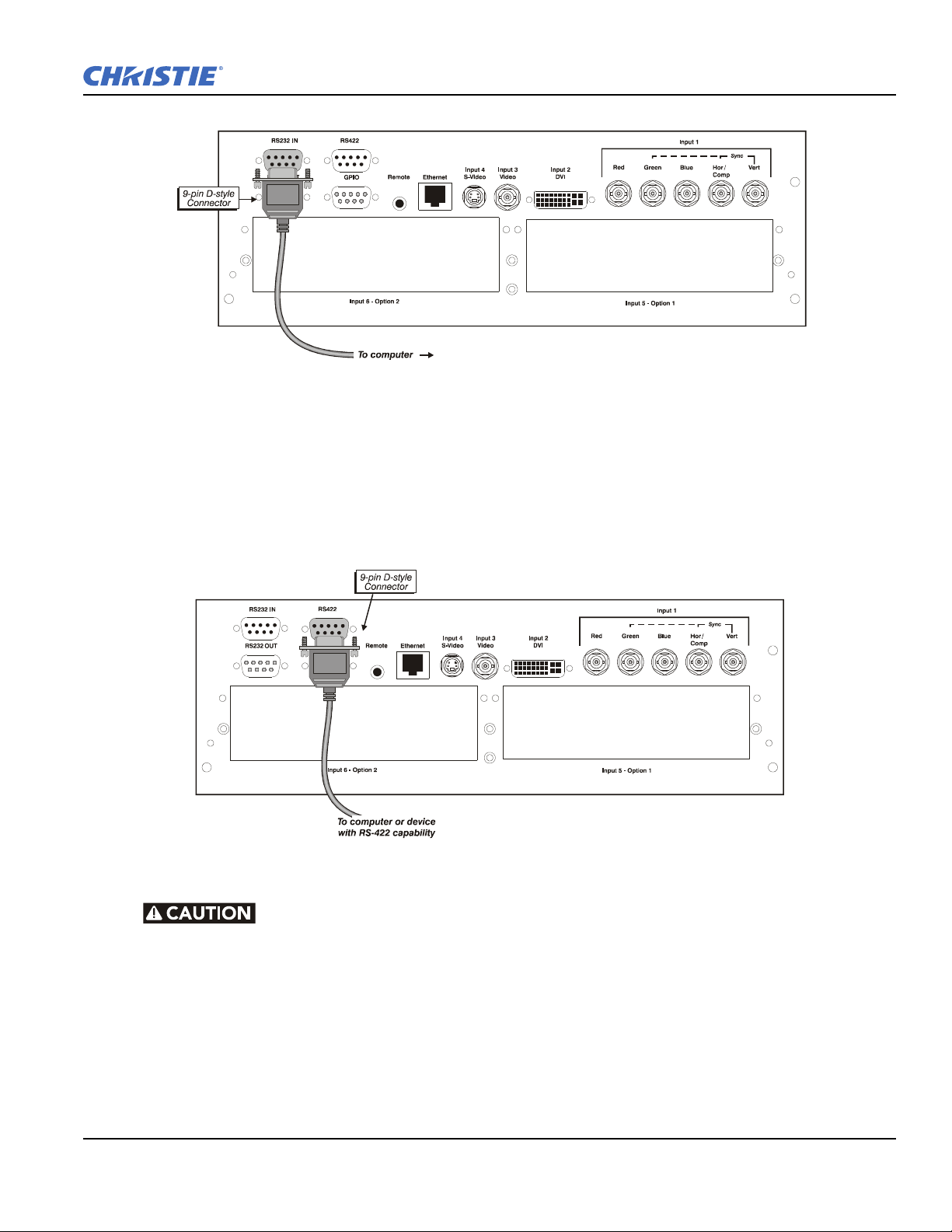

2.5.2 Serial Port Connections .......................................................................................................2-22

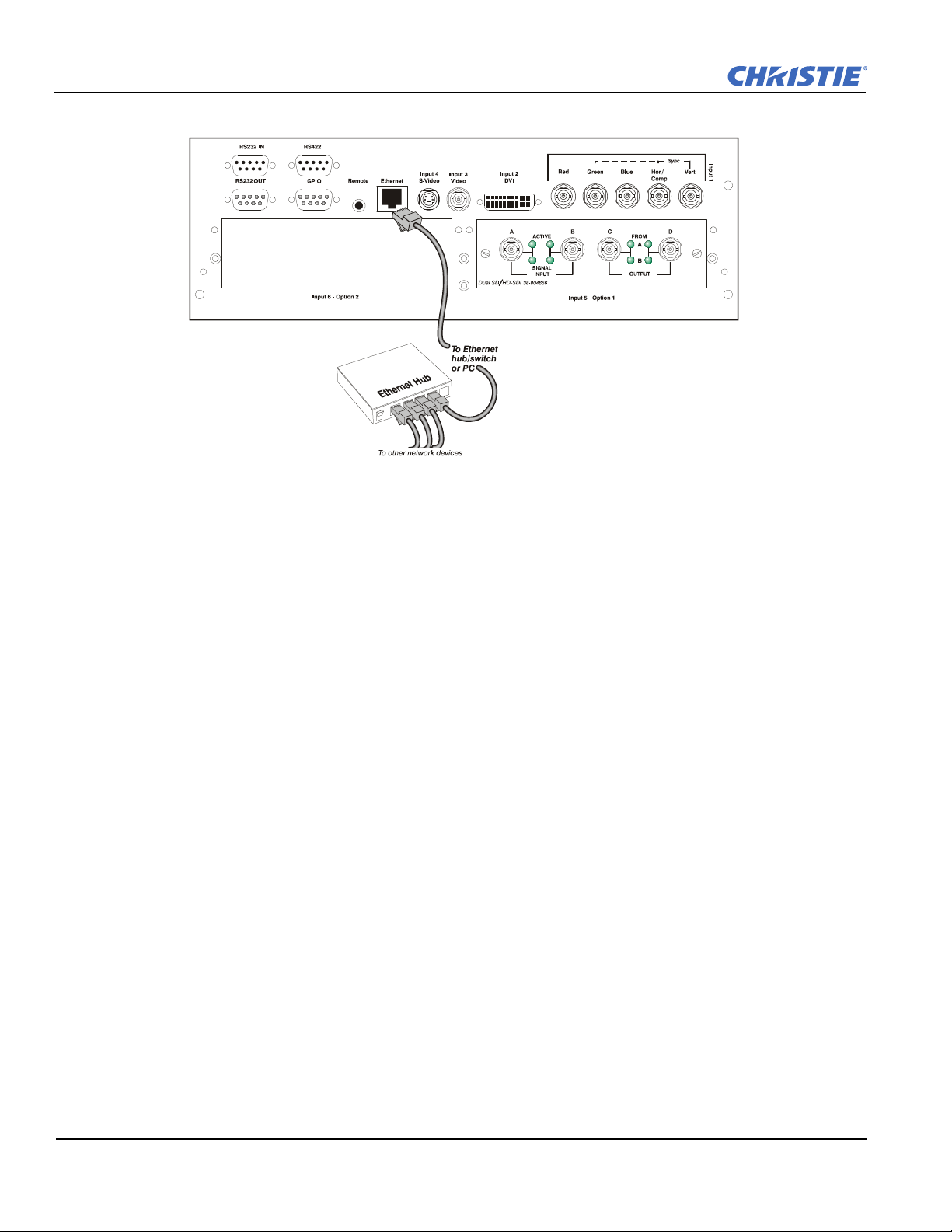

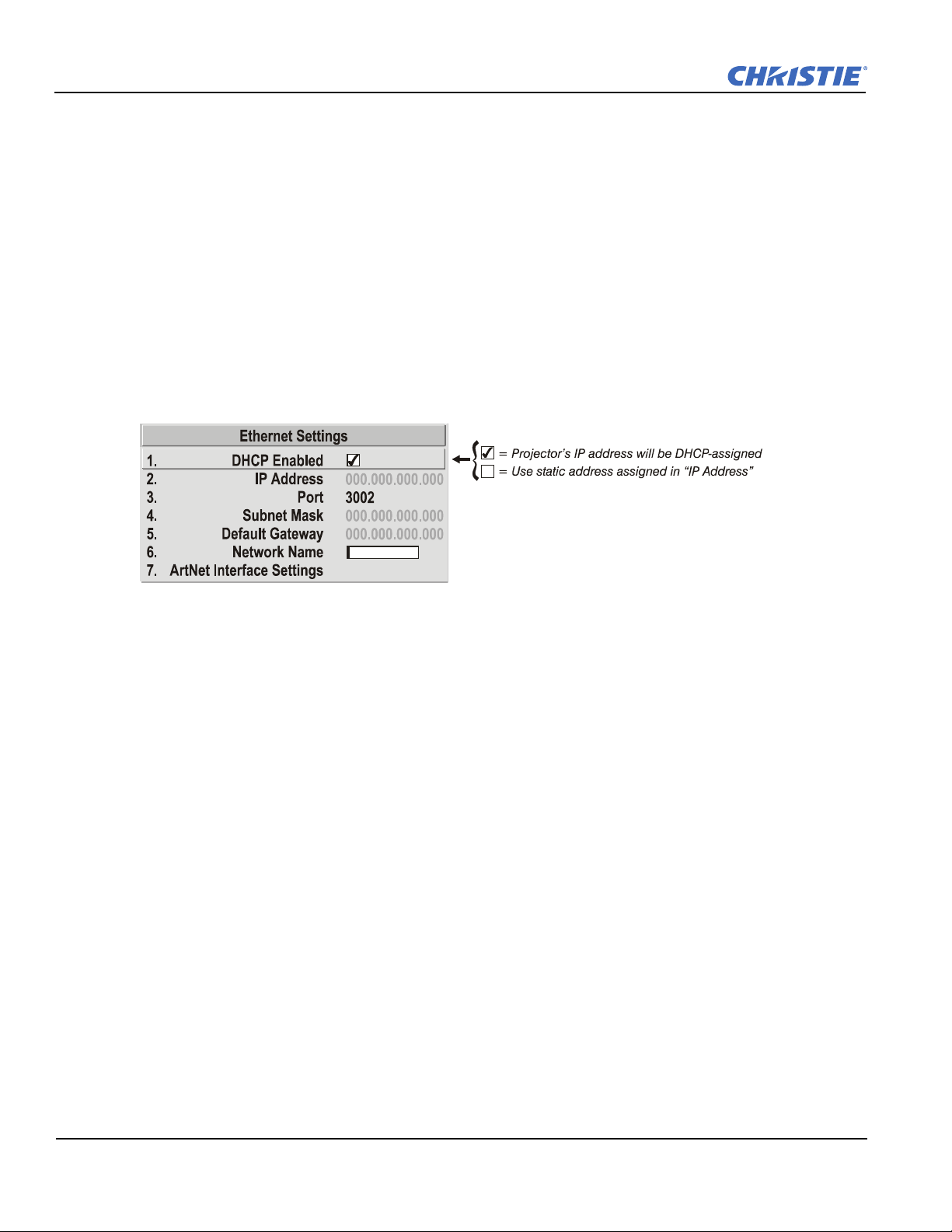

2.5.3 Ethernet Communications....................................................................................................2-23

Roadster, Matrix WU, Mirage S+/HD/WU User Manual i

020-100002-06 Rev. 1 (04-2011)

Table of Contents

2.6 Connecting Multiple Projectors ...................................................................................................2-25

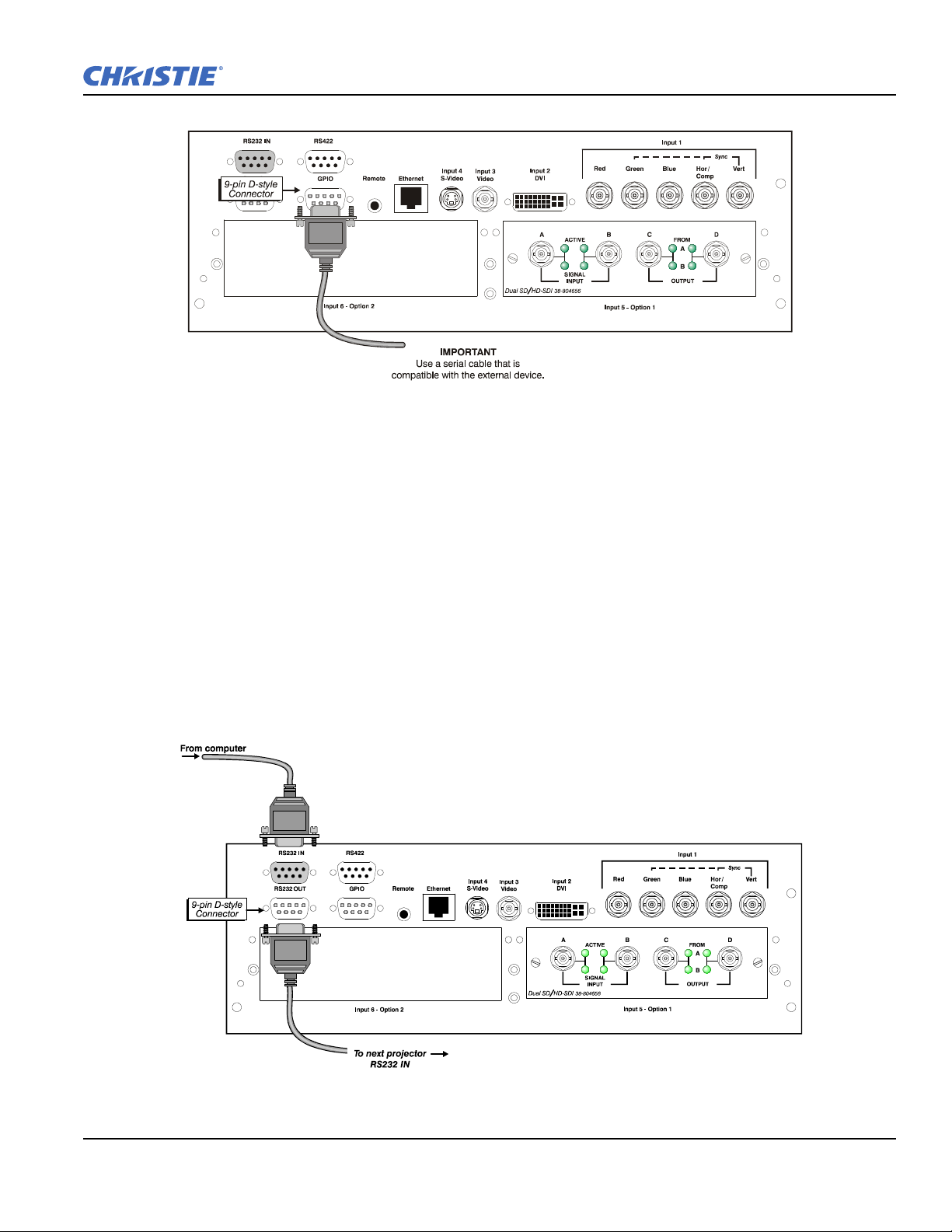

2.6.1 Serial Links ..........................................................................................................................2-25

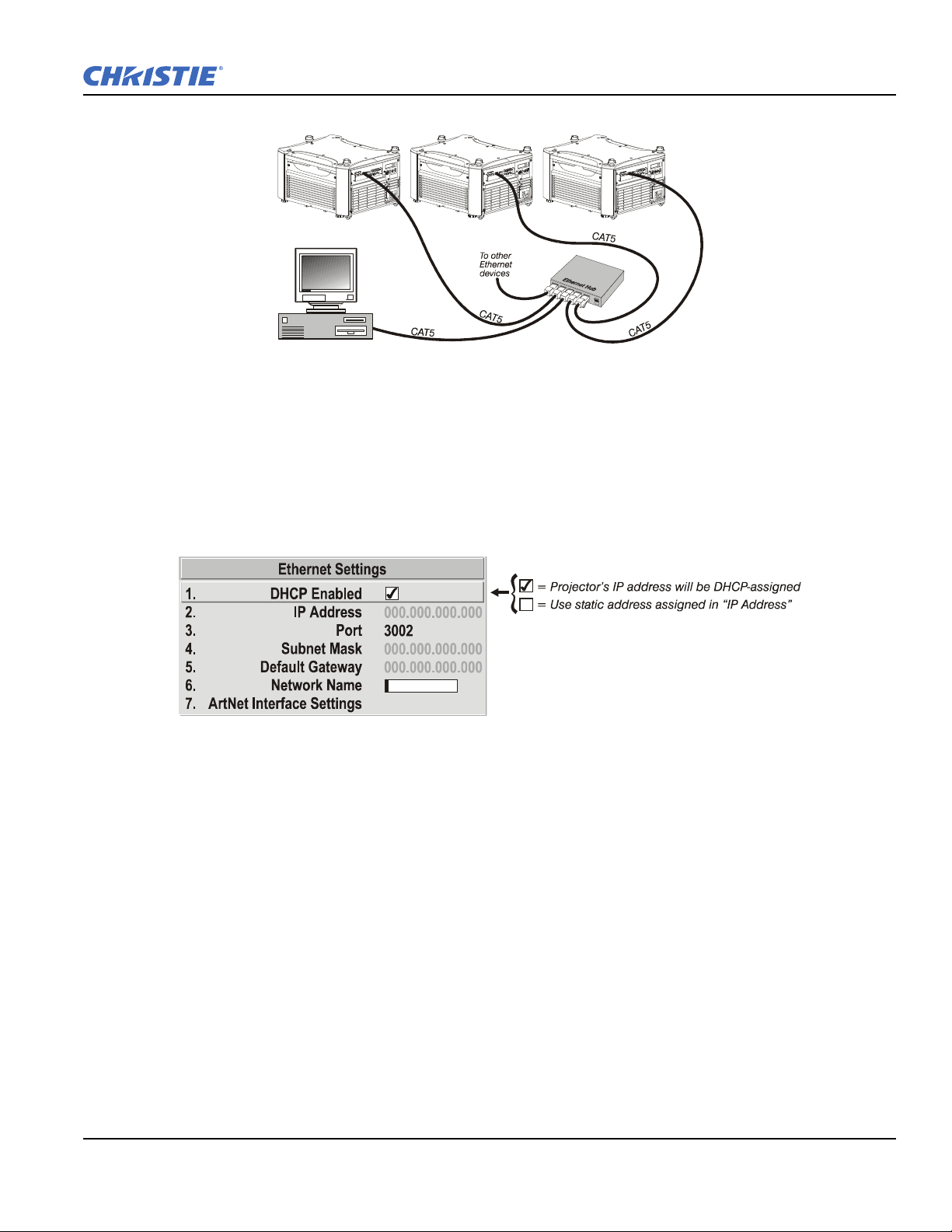

2.6.2 Ethernet Networks................................................................................................................2-26

2.6.3 Separating Networks ............................................................................................................2-28

2.6.4 Communicating to All Ports ................................................................................................2-28

2.7 Power Connection........................................................................................................................2-29

2.8 Operating Orientation ..................................................................................................................2-29

2.9 Leveling .......................................................................................................................................2-29

2.10 Zoom, Focus and Lens Offset....................................................................................................2-30

2.10.1 Lens Adjustments...............................................................................................................2-30

2.11 Keypad and Remote Protocols and Conversion.........................................................................2-31

2.11.1 Ergonomic Keypad ...........................................................................................................2-32

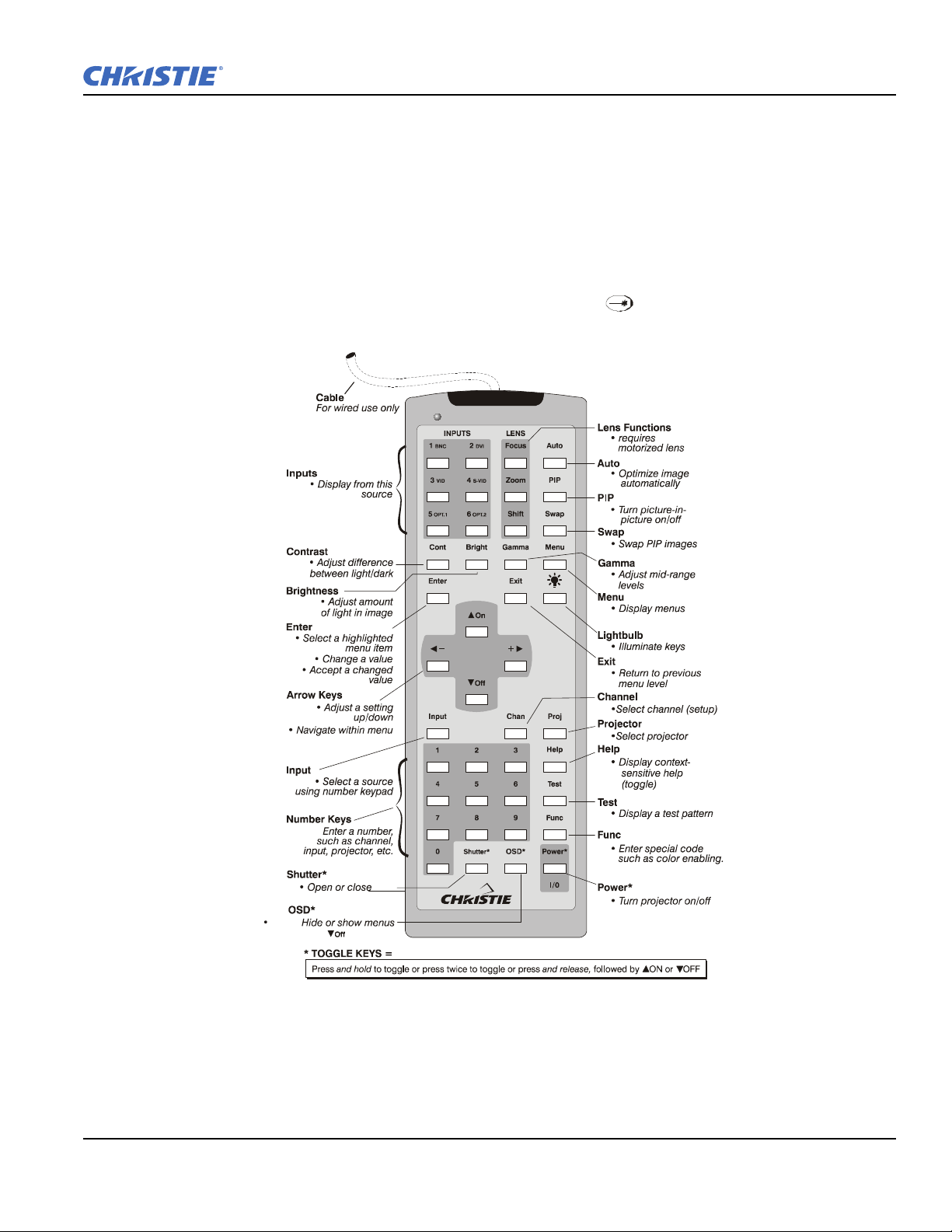

2.11.2 Standard IR Remote ...........................................................................................................2-32

2.11.3 Setting the Protocol............................................................................................................2-32

3: Operation

3.1 Projector Basics ...........................................................................................................................3-1

3.1.1 Zoom ....................................................................................................................................3-1

3.1.2 Lens Release ........................................................................................................................3-1

3.1.3 Focus ....................................................................................................................................3-1

3.1.4 Lens Offset...........................................................................................................................3-1

3.1.5 Shutter and Iris .....................................................................................................................3-2

3.1.6 Eyebolts................................................................................................................................3-2

3.1.7 Handles.................................................................................................................................3-2

3.1.8 Stacking Mounts / Stacking Legs.........................................................................................3-2

3.1.9 Adjustable Feet ....................................................................................................................3-2

3.1.10 Filter Panel .........................................................................................................................3-2

3.1.11 Lamp Door .........................................................................................................................3-2

3.1.12 Input Panel .........................................................................................................................3-2

3.1.13 AC Power Input and Monitoring .......................................................................................3-3

3.1.14 Status Display (Error Codes) and Status Display Window...............................................3-4

3.1.15 Keypads / Sensors ..............................................................................................................3-4

3.2 Using the Keypads .......................................................................................................................3-4

3.2.1 Built-in Keypad....................................................................................................................3-5

3.2.2 IR Remote ............................................................................................................................3-6

3.2.3 Wired Remote ......................................................................................................................3-7

3.2.4 Guide to Keypads.................................................................................................................3-8

3.2.5 Keypad Commands ..............................................................................................................3-8

3.3 Navigating the Menus..................................................................................................................3-13

3.3.1 On-line Help.........................................................................................................................3-14

3.3.2 Time-outs .............................................................................................................................3-15

3.3.3 Global Icons ........................................................................................................................3-15

3.3.4 PIP Icon ...............................................................................................................................3-15

3.3.5 Using Slidebars and Other Commands ................................................................................3-15

3.3.6 Editing Text..........................................................................................................................3-17

3.3.7 Editing Numerical Values....................................................................................................3-18

ii Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

Table of Contents

3.4 Using Inputs and Channels ..........................................................................................................3-18

3.4.1 Do I Select an Input or a Channel? ......................................................................................3-18

3.4.2 Creating a New Channel (Automatic) .................................................................................3-20

3.4.3 What Channels are Defined So Far?....................................................................................3-20

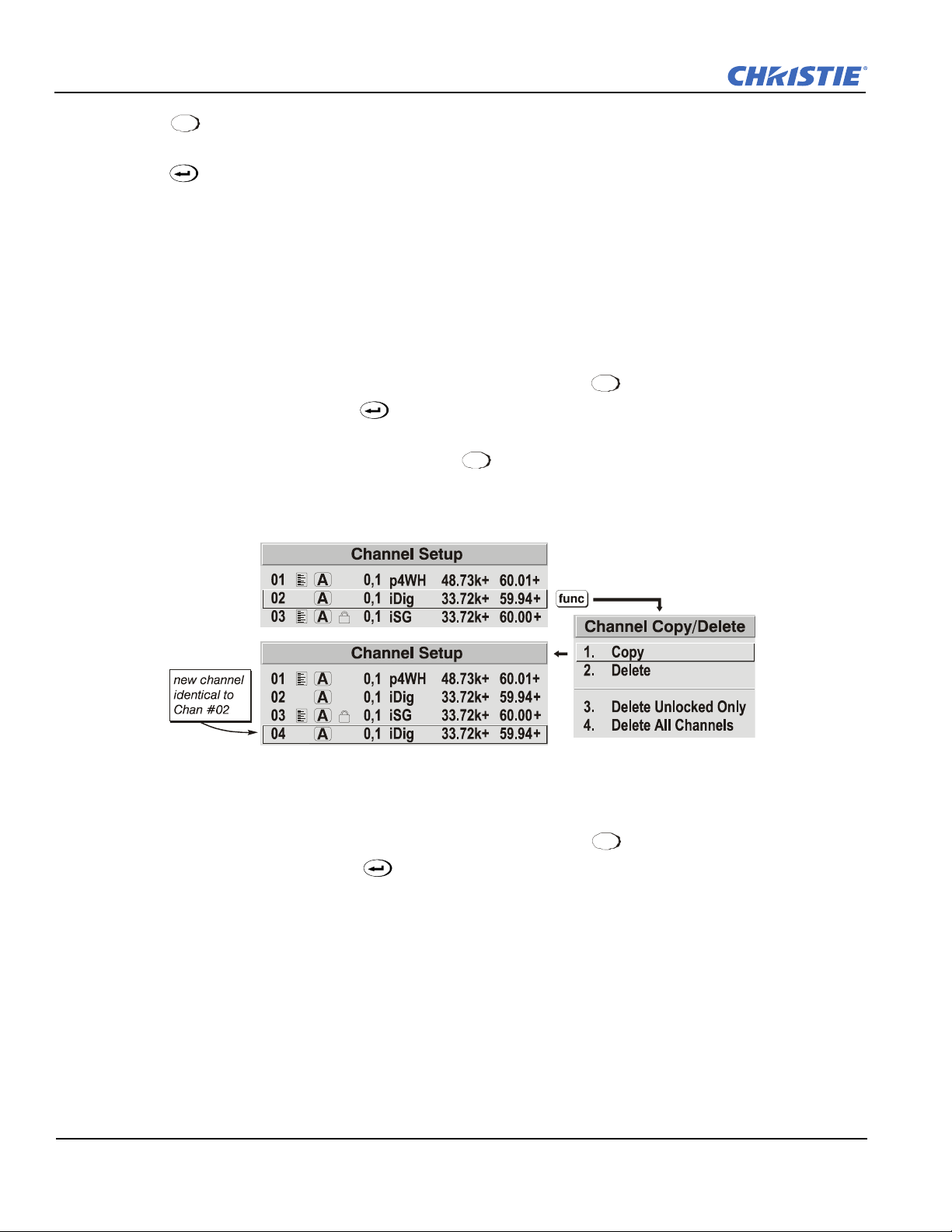

3.4.4 Copying or Deleting Channels.............................................................................................3-22

3.4.5 Editing a Channel Setup ......................................................................................................3-23

3.5 Adjusting the Image.....................................................................................................................3-24

3.5.1 Before You Begin ................................................................................................................3-25

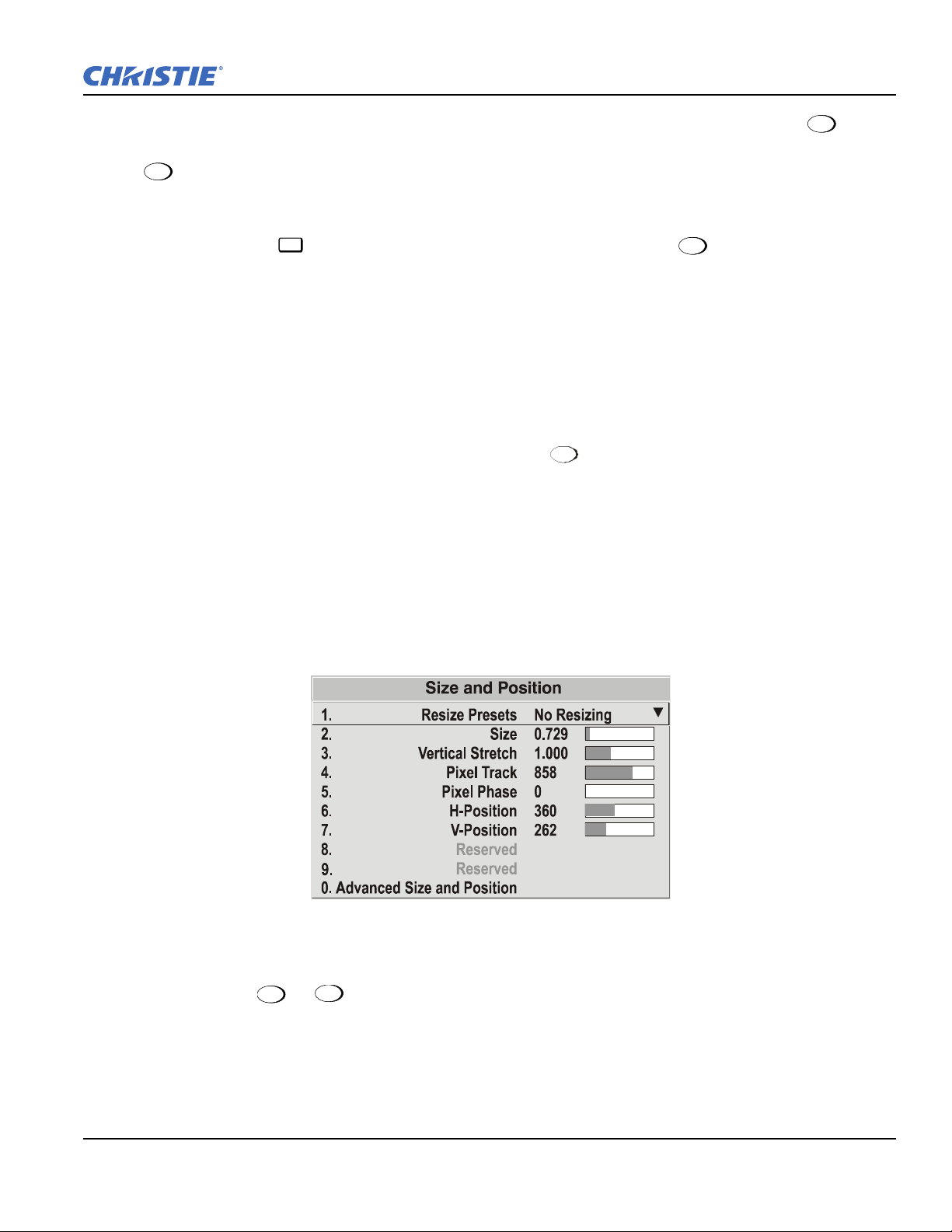

3.5.2 Size and Position Menu .......................................................................................................3-25

3.5.3 Image Settings Menu ...........................................................................................................3-30

3.6 Adjusting System Parameters and Advanced Controls ...............................................................3-44

3.6.1 System Configuration (General Settings) ............................................................................3-45

3.6.2 System Configuration (Communication)............................................................................. 3-46

3.6.3 System Configuration (Geometry & Color) Submenu ........................................................3-51

3.6.4 System Configuration (Diagnostics / Calibration)...............................................................3-56

3.6.5 System Configuration (Optional Input Modules) ................................................................ 3-59

3.7 Working with PIP or Seamless Switching..................................................................................3-59

3.7.1 Working with PIP ................................................................................................................3-60

3.7.2 Working with Seamless Switching ......................................................................................3-61

3.8 Working with the Lamp............................................................................................................... 3-62

3.8.1 Lamp Menu..........................................................................................................................3-62

3.8.2 How Old is My Lamp? ........................................................................................................3-65

3.8.3 When to Replace the Lamp..................................................................................................3-65

3.9 Status Menu .................................................................................................................................3-66

3.10 Using Multiple Projectors..........................................................................................................3-66

3.10.1 Matching Colors In Multiple Screens................................................................................3-66

3.10.2 Achieving Brightness Uniformity......................................................................................3-69

3.10.3 Edge Blending....................................................................................................................3-72

3.10.4 Black Level Blending ........................................................................................................3-77

3.11 Remote Control of the Projector................................................................................................3-78

3.12 Error Conditions ........................................................................................................................3-78

3.12.1 User Errors.........................................................................................................................3-79

3.12.2 Input Signal Errors.............................................................................................................3-79

3.12.3 System Warnings/Errors ....................................................................................................3-80

4: Maintenance

4.1 Projector Location .......................................................................................................................4-1

4.2 Lamp and Filter Replacement......................................................................................................4-1

4.3 Power Cord and Attachments ......................................................................................................4-2

4.3.1 Ventilation ...........................................................................................................................4-2

4.3.2 Servicing .............................................................................................................................. 4-2

4.4 Cleaning.......................................................................................................................................4-3

4.5 Replacing Keypad Batteries ........................................................................................................4-4

4.6 Replacing the Lamp and Filter ....................................................................................................4-4

4.6.1 How Old is My Lamp? ........................................................................................................4-5

4.7 Lamp Replacement Procedure.....................................................................................................4-5

Roadster, Matrix WU, Mirage S+/HD/WU User Manual iii

020-100002-06 Rev. 1 (04-2011)

Table of Contents

4.7.1 Filter Replacement Procedure..............................................................................................4-9

4.8 Replacing the Projection Lens .....................................................................................................4-10

5: Troubleshooting

5.1 Displays .......................................................................................................................................5-1

5.1.1 Blank screen, no display of image .......................................................................................5-1

5.1.2 Blacklevels seem too high....................................................................................................5-1

5.1.3 Image appears “squeezed” or vertically stretched into center of screen ..............................5-1

5.1.4 The projector is ON but there is no display .........................................................................5-1

5.1.5 The display is jittery or unstable ..........................................................................................5-2

5.1.6 The display is faint...............................................................................................................5-2

5.1.7 The upper portion of the display is waving, tearing or jittering ..........................................5-2

5.1.8 Portions of the display are cut off or wrap to the opposite edge..........................................5-2

5.1.9 The display appears compressed (vertically stretched)........................................................5-2

5.1.10 Data is cropped from edges................................................................................................5-2

5.1.11 Display quality appears to drift from good to bad, bad to good ........................................5-2

5.1.12 The display has suddenly frozen........................................................................................5-2

5.1.13 Colors in the display are inaccurate ...................................................................................5-3

5.1.14 Values in Color Saturation slidebars vary over time .........................................................5-3

5.1.15 The display is not rectangular ............................................................................................5-3

5.1.16 The display is “noisy” ........................................................................................................5-3

5.2 Lamp ............................................................................................................................................5-3

5.2.1 Lamp does not ignite............................................................................................................5-3

5.2.2 Lamp suddenly turns OFF....................................................................................................5-3

5.2.3 Flicker, shadows or dimness ................................................................................................5-4

5.2.4 LiteLOC™ does not seem to work ......................................................................................5-4

5.3 Ethernet........................................................................................................................................5-4

5.4 3D Sync Input ..............................................................................................................................5-4

5.4.1 System Error Code 1E..........................................................................................................5-4

5.4.2 System Error Code 1F..........................................................................................................5-4

6: Specifications

6.1 Display .........................................................................................................................................6-1

6.1.1 Panel Resolution and Refresh Rate......................................................................................6-1

6.1.2 Brightness (ANSI 9 Point Measurement, with Fully Open Optical Aperture) ....................6-1

6.1.3 Achievable Contrast Ratio ...................................................................................................6-2

6.1.4 Colors and Gray Scale..........................................................................................................6-2

6.1.5 Lens Offsets .........................................................................................................................6-2

6.2 Inputs ...........................................................................................................................................6-3

6.2.1 Analog: RGB/YPbPr (5 BNCs at INPUT 1)........................................................................6-3

6.2.2 Analog: Video (INPUTS 3 and 4)........................................................................................6-3

6.2.3 Analog: Sync (INTERLACED or PROGRESSIVE SCAN Format)...................................6-4

6.2.4 DVI-I (INPUT 2, Standard with MIRAGE HD Model) ......................................................6-4

6.2.5 Dual SD/HD-SDI (INPUT Standard with ROADSTER Models) .......................................6-4

6.3 Control .........................................................................................................................................6-5

iv Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

Table of Contents

6.3.1 Remote Keypad....................................................................................................................6-5

6.3.2 IR Remote Sensors...............................................................................................................6-5

6.3.3 Ethernet................................................................................................................................6-5

6.3.4 RS-232 Serieal Input............................................................................................................6-5

6.3.5 RS-422 Serial Input .............................................................................................................6-6

6.3.6 GPIO Input........................................................................................................................... 6-6

6.4 Power ...........................................................................................................................................6-6

6.4.1 General.................................................................................................................................6-6

6.4.2 Lamp (DC)...........................................................................................................................6-10

6.5 Audible Noise ..............................................................................................................................6-11

6.6 Safety ...........................................................................................................................................6-11

6.7 EMC Emissions ...........................................................................................................................6-11

6.7.1 EMC Immunity ....................................................................................................................6-11

6.8 Operating Environment .......................................................6-12

6.8.1 Non-Operating Environment ...............................................6-12

6.9 Size & Weight .............................................................................................................................6-12

6.10 Standard Components and Optional Components.....................................................................6-13

6.10.1 Roadster Series ..................................................................................................................6-13

6.10.2 Mirage Series .....................................................................................................................6-13

6.10.3 Mirage Series .....................................................................................................................6-13

6.10.4 Optional Accessories (Sold Separately) ............................................................................6-14

6.10.5 Lenses HD..........................................................................................................................6-14

6.10.6 Accessories ........................................................................................................................6-14

6.10.7 Optional Input Modules .....................................................................................................6-14

A: KeyPad Reference

B: Serial Communication Cables

C: System Integration

C.1 Introduction.................................................................................................................................C-1

C.1.1 Configuring the GPIO .........................................................................................................C-1

C.1.2 Query Command ................................................................................................................. C-2

C.1.3 Real Time Event..................................................................................................................C-2

D: Optional Input Modules

D.1 Dual SD/HD-SDI Module (38-804656-xx) ................................................................................D-1

D.2 RGB500 Input Module 38-804606-xx........................................................................................D-2

D.3 RGB400BA Input Module (38-804610-xx) ...............................................................................D-2

D.4 RGB400 Active Loop-Thru (Input Module 38-804607-xx)....................................................... D-3

D.5 PC250 Analog (Input Module 38-804609-xx) ...........................................................................D-3

D.6 DVI Input Module (38-804635-xx) ............................................................................................D-4

D.7 Serial Digital Input Module (38-804602-xx).............................................................................. D-4

Roadster, Matrix WU, Mirage S+/HD/WU User Manual v

020-100002-06 Rev. 1 (04-2011)

Table of Contents

E: Menu Tree

E.1 Menu Tree ...................................................................................................................................E-1

vi Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

1 Introduction

Every effort has been made to ensure the information in this document is accurate and reliable; however, due to constant research the information in this document is subject to change without notice.

1.1 Using this Manual

USERS/OPERATORS: This manual is intended for trained users authorized to operate professional high-

brightness projection systems, located in restricted areas, such as projection rooms in theatres. Such users may also be trained to replace the lamp and air filter, but cannot install the projector or perform any other functions inside the projector. NOTE: Only personnel trained specifically by Christie on lamp replacement and lamp

safety may handle the lamp.

SERVICE: Only qualified Christie trained service technicians knowledgeable about all potential hazards associated with high voltage, ultraviolet exposure and high temperatures generated by the lamp and associated circuits are authorized to 1) assemble/install the projector and 2) perform service functions inside the projector.

This manual contains the following sections:

• Section 1 Introduction

• Section 2 Installation and Setup

• Section 3 Operation

• Section 4 Maintenance

• Section 5 Troubleshooting

• Section 6 Specifications

• Appendix A: KeyPad Reference

• Appendix B: Serial Communication Cables

• Appendix C: System Integration

• Appendix D: Optional Input Modules

Disclaimer: Every effort has been made to ensure the information in this document is accurate and reliable.

However, due to constant research, the information in this document is subject to change without notice. Christie Digital Systems assumes no responsibility for omissions or inaccuracies. Updates to this document are published regularly, as required. Please contact Christie Digital Systems for availability.

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 1-1

020-100002-06 Rev. 1 (04-2011)

Section 1: Introduction

1.2 Safety Warnings and Guidelines

1.2.1 General Precautions

Never look directly into the projector lens or at the lamp. The extremely high brightness can cause permanent eye damage. For protection from ultraviolet radiation, keep all projector housings intact during operation. Protective safety clothing and safety goggles are recommended when servicing. Keep hands, clothes and all combustible material away from the concentrated light beam of the lamp. Position all cables where they cannot contact hot surfaces or be pulled or tripped over.

NOTES: 1) The American Conference of Governmental Industrial Hygienists (ACGIH) recommends

occupational UV exposure for an 8-hour day to be less than 0.1 microwatts per square centimeters of effective UV radiation. An evaluation of your workplace is advised to assure employees are not exposed to cumulative radiation levels exceeding the government guidelines for your area. 2) Be aware that some medications are known to increase sensitivity to UV radiation.

This projector must be operated in an environment that meets the operating range specification, as listed in

Section 6 Specifications.

Always power down the projector using appropriate procedure and disconnect all

power sources before cleaning or servicing.

Always remove the lens when shipping the projector.

NEVER look directly into the projector lens. The high brightness of this projectorcould

cause permanent eye damage.

For protection from ultraviolet radiation, keep all projector shielding intact during

operation.

Installation should be performed by qualified personnel ONLY.

1.2.2 Labels and Markings

Observe and follow any warnings and instructions marked on the projector.

Danger symbols are used to alert situations where the user will become seriously injured if they do not follow the advice in this section.

Warning symbols are used to alert situations where there is a situation where a user

may be injured.

Caution symbols are used to convey information where equipment damage will occur.

1-2 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

1.2.3 Typographical Notations

The following notations are used throughout this manual:

Section 1: Introduction

• Keypad commands and PC keystrokes appear in bold small caps, such as

• References to specific areas of the document appear italicized and underlined. When viewed online the text appears in blue indicating a direct link to that section. For example, Section 2 Installation and Setup.

• References to other documents appear italicized and bold, such as Service Manual.

• References to software menus and available options appear bold, such as Main menu, Preferences.

• User input or messages that appear on screen, in status display units or other control modules appear in Courier font. For example. “No Signal Present”, Login: christiedigital.

• Error codes, LED status appear in bold, e.g.

LP, A1, etc.

• Operational states of modules appear capitalized, such as power ON/OFF.

1.3 Purchase Record and Service Contacts

Whether the projector is under warranty or the warranty has expired, Christie’s highly trained and extensive factory and dealer service network is always available to quickly diagnose and correct projector malfunctions. Complete service manuals and updates are available for all projectors. Should a problem be encountered with any part of the projector, contact your dealer. In most cases, servicing is performed on site. If you have purchased the projector, fill out the information below and keep with your records for future reference.

Dealer:

POWER, INPUT, ENTER etc.

Dealer or Christie Sales/Service Contact Phone Number:

Projector Serial Number*:

Purchase Date:

Installation Date:

* The serial number can be found on the license label located on the back of the projector.

Table 1.1 Ethernet Settings

Default Gateway

DNS Server

Projector DLP Address

Projector Mgmt IP Address

Subnet Mask

You can also register your product on-line by visiting www.christiedigital.com > Service and Support >

Product Registration. This will keep you in touch with all the latest product information, such as updates,

technical bulletins, downloads, and Christie newsletters.

For complete details on the warranty of your Christie product, please contact your Christie dealer.

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 1-3

020-100002-06 Rev. 1(04-2011)

Section 1: Introduction

Figure 1-1 Roadster Series

1.4 Projector Overview

The Roadster, Matrix WU, and Mirage S+/HD/WU Series User Manual supports software v1.6g or higher. The Roadster and Mirage S+/HD/WU Series of projectors are innovative, high brightness DMD™ projectors that use next generation Digital Light Processing™ (DLP™) technology from Texas Instruments. All models feature compact size, rugged construction, and integral rigging hardware, with the Roadster Series ideal for difficult rental/staging installations of multiple projectors, and the Mirage Series featuring amazing stereo 3D output. A quick-change lamp module, notool lens replacement, and intuitive user interface means the ultimate in versatility and ease-of-use. These projectors provide brilliant images with 1400 x 1050 (SXGA+) and 1920 x 1200 (WUXGA) or 1920 x 1080 (HD) clarity and perfect color saturation in a wide variety of applications.

The Roadster, Matrix, and Mirage Series each have features for your distinct needs. The stereoscopic Mirage projectors provide 3D solutions for power walls, simulation, and entertainment venues. Roadster models include an additional input module, as well as integral hardware for stacking, and flying up to 3 projectors. Matrix model, with its purpose built simulation features, such as RGB color matching and gamma controls, can be used to simulate any application.

This guide applies to the following projector models. See Table 1.2.

Table 1.2 Projector Models

ROADSTER S+12K MIRAGE S+12K MIRAGE HD18

OADSTER S+16K MIRAGE S+14K MIRAGE WU12

OADSTER S+20K MIRAGE S+16K MIRAGE WU18

OADSTER HD12K MIRAGE S+20K MATRIX WU12

OADSTER HD18K MIRAGE HD12

1.4.1 How the Projector Works

The projectors accept data/graphics and video input signals for projection on to front or rear flat screens. High brightness light is generated by an internal Bubble lamp, and then modulated by 3 Digital Micromirror Device (DMD) panels that provide digitized red, green or blue color information. Light from the “ON” pixels of each panel is reflected, converged, and then projected to the screen through the front lens, where all pixels are superimposed as a sharp full-color image.

Models

1-4 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

1.4.2 Main Features

General

• DLP™ 3-chip electronics with true 1400 x 1050 (SXGA+) or 1920 x 1200 (WUXGA), and 1920 x 1080 (HD) native resolution

• Ten-bit digital video processing

• Single-lens design with field-interchangeable, fast-change lens – no tools needed

• Modular design for easy servicing

• Intelligent Lens System (ILS

• Built-in handles and multiple rigging points

• Motorized lens

1.4.3 Lamps/Light Output

Brightness (ANSI lumens)

• Roadster S+12K/HD12K or Mirage S+12K/HD12/WU12 = 12000

• Roadster S+16K or Mirage S+14K/S+16K = 16000

• Roadster HD18K = 18000

• Matrix WU12= 12000

• Mirage HD18 = 18000

• Mirage WU18= 18000

• Roadster S+20K or Mirage S+20K = 20000

™

) to save and restore lens settings

Section 1: Introduction

Contrast Ratio (ANSI lumens)

• 450:1 ANSI

• 1600-2000:1 Full Field

• LiteLOC™ for automatic constant-brightness control

• Quick change bubble-style lamp module

1.4.4 Inputs

There are 2 different types of Input faceplate configurations (model dependant). Refer to Figure 1-2 and

Figure 1-3. These configurations may include the following inputs:

• One analog RGBHV/YPbPr input with 5 BNCs

• One DVI-I input for either digital RGB/YCrCb or analog RGB/YPbPr signals

• One analog composite-video input

• One analog S-video input

• Built-in multi-standard video decoder (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60 AND SECAM)

• One Dual SD/HD-SDI module (standard on Roadster models only)

• Compatible with all currently used HDTV formats

For simplicity, this manual refers to the configuration in Figure 1-2 only.

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 1-5

020-100002-06 Rev. 1(04-2011)

Section 1: Introduction

Figure 1-2

Figure 1-3

Special Display Functions

• Auto setup with seamless cut-and-fade source switching

• Electronic brightness uniformity

• Screen-to-screen matching and blending for smooth multiple-projector displays

Communications and Diagnostics

• Two standard keypads: built-in and remote (for IR or wired control)

• Front and rear dual IR sensors

• Ethernet, RS-232, RS-422, and GPIO control ports

• Easy-view LED for error codes and LCD for status and error messages

• LED for two-digit error codes, plus LCD for text-based status display

• Voltmeter for monitoring AC

1-6 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

1.5 List of Components

Ensure the following components were received with the projector:

•Projector

• Infrared (IR) remote keypad and conversion cable

•Power cord

NOTE: Non-detachable on Roadster S+ 20K/HD18K/Mirage HD18/Mirage S+20K

• Using 3D in Mirage Manual

NOTE: For Mirage Series only

• 3D Stereo Sync Cable

Table 1.3 Differences Between Models

Section 1: Introduction

Model Name Lamp

Roadster S+12K

Roadster HD12K

Roadster S+16K

Roadster HD18K

Roadster S+20K

Matrix WU12

Mirage HD12

Mirage WU12

Mirage S+12K

Mirage S+14K

Mirage S+16K

Mirage HD18

Mirage WU18

Mirage S+20K

Type

2.0 KW

2.4 KW

3.0 KW

2.0 KW

2.4 KW

3.0 KW

Dual SD/

HD-SDI Module



3D Adjustable

Not Available

Optional Not Available

Optional



Iris

Stacking

Mounts

4 Top

Eyebolts

Integral Rig-

ging Hard-

ware





Optional Optional



Roadster, Matrix WU, Mirage S+/HD/WU User Manual 1-7

020-100002-06 Rev. 1(04-2011)

2 Installation and Setup

This section explains how to install, connect and optimize the projector for delivery of superior image quality. Illustrations are graphical representations only and are provided to enhance the understanding of the written material.

2.1 Projector Quick Setup and Installation

The instructions provided here are for those that are familiar with the projector and wish to quickly set it up and use it temporarily. Refer to the remaining subsections of this manual for a more complete setup.

Always power down the projector and disconnect all power sources before servicing or

cleaning.

2.1.1 QuickSetup

1. Install a Projection Lens.

The projection lens is shipped separately from the projector and must be installed prior to setting up the projector. Install the projection lens as described in Section 4.8 Replacing the Projection Lens.

Remove the lens plug from the lens opening in the projector before installing the lens.

Remove the lens when shipping the projector and reuse the lens plug to prevent dust and

debris from entering and settling on the projector’s optical components.

2. Position the Projector.

Place the projector on a sturdy, level surface and position it so that it is perpendicular to the screen at a suitable distance. In general, the further back the projector is positioned from the screen, the larger the image will be.

If required, you can level the projector by adjusting its 3 feet. With the projector positioned perpendicular to the screen the image will appear rectangular instead of keystoned.

For more detailed instructions on positioning the projector, refer to Section 2.3 Projector Position and

Mounting later in this section.

3. Connect a Source.

Located at the back of the projector is the input panel where all source connections are made. Each input is clearly labeled for easy identification.

Using the appropriate cable(s), connect your source. Connect RGB and YPbPr sources to in the upper right corner of the input panel. Use the DVI-I connector at display signals. Connect composite video to

NOTE: One of the available optional input modules can be installed at

connections.

Refer to Section 2.4 Connecting Sources for more details on connecting a specific source.

INPUT 3 and S-video to INPUT 4.

INPUT 2 to connect analog or digital

INPUT 5 or INPUT 6 for additional

INPUT 1 located

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 2-1

020-100002-06 Rev. 1 (04-2011)

Section 2: Installation and Setup

Figure 2-1 Power ON

Ver :

Type :

Ver : Ver :

S/W LCD PCB Iss

Power Off

Powering On

Power On

1.0.00 0 1 3

Breaker ON

(15 sec.)

(Lamp is

ignited)

4. Connect the Line Cord

The North American-rated line cord is provided with each projector. Ensure that you are

using a line cord, socket and power plug that meets the appropriate local rating standards.

Connect the projector’s line cord to the AC receptacle (Roadster S+20K/HD18K/Mirage HD18/Mirage S+20K have non-detachable line cords) at the lower corner on the rear of the projector, and to proper AC.

NOTE: The outlet must be near the equipment and easily accessible.

Use only the line cord provided with the projector or a power cord of appropriate ratings that comply with regional standards. (See below and refer to Section 6 Specifications for complete details on all power requirements).

The line cord replacement must be performed by qualified service personnel in accordance

with specific national electrical safety regulations. For details, refer to the Service Manual and contact your dealer.

• The Roadster S+12K/HD12K, Matrix WU12, and the Mirage HD12/WU12/S+12K require 200-240 VAC, 50-60 Hz, 12 amps @ 200 VAC.

• The Roadster S+16K and the Mirage S+14K/S+16K require 200-240 VAC, 50-60 Hz, 16 amps @ 200 VAC.

• The Roadster S+20K/HD18K/Mirage HD18/WU18/S+20K require 200-240 VAC, 50-60 Hz, 20 amps @ 200 VAC.

Do not attempt operation if the AC supply and cord are not within the specified voltage and

power range. Refer to Section 6 Specifications.

5. Turn ON the Projector and Lamp.

a. On the projector, turn the power breaker/switch ON. The

LCD Status Display Window displays the initializing window for 15 seconds, and then indicates (Figure 2-1).

b. Using the keypad, do one of the following:

• Press and hold briefly to toggle the lamp on.

• Press and release followed immediately by

•Press twice to toggle from the ON/OFF state.

The LCD Status Display Window will display Powering Up and then, Power On (Figure 2-1) while the two-digit Status/Error Code window will display ON.

POWER OFF

2-2 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

6. Select a Source.

Zoom

Figure 2-2

Focus

Figure 2-3

Figure 2-4 Arrow Key-

pad

Lens

Shift

Figure 2-5

Lens

Section 2: Installation and Setup

Inp ut 1 Input 2

Using either keypad, press , , , , , or to select and display the

Input 3

Input 4

Input 5

Input 6

image for the source you connected to in Step 2. The display will resize as needed, producing an image as large as possible for the type of source present.

NOTE: Refer to Appendix E: Menu Tree to quickly navigate to a specific menu, and associated options/

secondary menus.

7. Optimize the Display

Press AUTO SETUP on the built-in keypad or

AUTO

process in which the projector optimizes critical display parameters such as size, position, pixel tracking, etc., for the current source. AUTO SETUP can save time in perfecting a display. You can modify the adjustments later as desired. Refer to Section 3 Operation.

on the standard IR remote to initiate an automated

8. Lens Adjustments

Zoom

With the input image displayed:

• If standard IR remote: Press ZOOM + or

• If built-in keypad: Press ZOOM + or

Hold the ZOOM key down to see the effect – arrows in the display indicate the direction of the zoom. See Figure 2-2.

Focus

With the input image displayed:

• If remote keypad: Press FOCUS + or

• If built-in keypad: Press FOCUS + or

Hold the FOCUS key down to see the effect. Arrows in the display indicate the direction of the focus. See

Figure 2-3 .

Lens Offset

To move the image:

• If standard IR remote: Press either Lens H + or or Lens V

+ or

See Figure 2-4.

Shift

• If built-in keypad: Press + the Arrow keys. See Figure 2-5

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 2-3

020-100002-06 Rev. 1(04-2011)

Section 2: Installation and Setup

2.2 Installation Considerations

Although this projector delivers a high-brightness, high-quality output, the final display quality could be compromised if the projector is not properly installed. This subsection discusses issues you should consider before proceeding with a final installation. Even if you do not intend to use the projectors in a fixed and permanent installation, the following information will help you to better understand what you can do to enhance display performance.

2.2.1 Lifting, Hoisting, and Stacking

For any new installation, you will likely have to safey lift or hoist the projector into place. Keep in mind the following guidelines for safety.

Lifting

All models include handles for convenient hand transport only

, such as when a projector is lifted from a

shipping container to a table.

Note the following:

• The handles are intended to support the weight of 1 projector only.

• The handles are intended to support a projector for a brief

• The handles are not

extended time periods. or hoist the projector.

safety points, nor points from which to hoist or suspend the projector.

1) The handles cannot support more than 1 projector. 2) Do not use handles for

3) Do not use the handles as safety points, or as points from which to suspend

time only.

Hoisting

There are 4 integral rigging points on the top of the projector (Figure 2-6) and 8 on the bottom (Figure 2-7) enable either upright or inverted hoisting. For either orientation, hoist an individual projector, or up to 3 projectors in a stack.

2-4 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

RULES FOR ALL HOISTING

Figure 2-6 Top Rigging Points

Figure 2-7 Bottom Rigging

Points

Section 2: Installation and Setup

• Use at least 4 rigging points for hoisting up to 3 projectors.

• Connect safety cables, and rigging equipment to the designated locations on the projector.

• Use hoisting and rigging equipment suitable to your application such as clamps, cables, eyebolts, or straps, and which accommodate the load rating. All integral, metric hardware on the projector accepts an M12 thread only.

• Never hoist a projector by its feet, handles, or any other component (Figure 2-8).

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 2-5

020-100002-06 Rev. 1(04-2011)

Section 2: Installation and Setup

Figure 2-8 NEVER Use Handles for Hoisting or as Safety

Points

Use metric hardware only.

Never force incompatible threads.

Never hoist a projector by its feet,handles, or any other component.

IMPORTANT! Remove the lens before hoisting a projector.

2-6 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

2.2.2 Hoisting Procedure

Figure 2-9 Attach Safety Cables

Figure 2-10 Using the Rigging Hardware

This procedure applies to one or more projectors. To hoist a stack, first stack 2 or 3 projectors according to the stacking procedure included in this manual. Never stack or hoist more than 3 projectors together.

1. Remove lens.

Remove the projection lens to prevent possible damage during hoisting. Refer to Section 4.8 Replacing the Projection Lens.

2. Retract feet.

If the projector is inverted, retract the adjustable feet to prevent the hoisting hardware from getting caught.

3. Attach safety cables.

Attach a safety cable to each of the 2 eyebolts mounted on the bottom of the projector. See Figure 2-9.

NOTE: Add eyebolts (2) if non-inverted.

Section 2: Installation and Setup

Always use at least 2 safety cables for any

hoisting.

Attach safety cables to the 2 eyebolts.

NOTE: When hoisting a non-inverted projector or stack, add 2 safety eyebolts in the front and rear threaded

holes provided on the top of the projector. Ensure the eyebolts have an adequate rating for the load. Secure safety cabling to both eyebolts.

4. Attach rigging hardware.

Attach the rigging hardware by securing your rigging components to the appropriate rigging points. There are 8 sliding points provided on the bottom. Tighten the nut at each required location (Figure 2-10) to prevent sliding.

NOTES: 1) Use at least 4 rigging points for all hoisting.

2) Use straps, clamps or cabling with load

capacity adequate for the total projector weight. Refer to Section 6 Specifications. 3) Do not join the rigging straps or cables to a common point, keep separated as shown.

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 2-7

020-100002-06 Rev. 1(04-2011)

Section 2: Installation and Setup

Figure 2-11 Adjust the Feet

• Maximum stack = 3 projectors

• Stack first, then hoist

2.2.3 Stacking Procedure

NOTES: 1) Requires stacking hardware provided standard with Roadsters only. Available separately for

Matrix and Mirage Series. 2) Installation requires at least 2 people.

Roadster, Matrix, and Mirage projectors can be stacked in either the upright or inverted position. Do not mix orientations (i.e., inverted with upright) in a stack. Secure a maximum of 3 projectors with the stacking mounts as described below.

Do not stack more than 3 projectors.

Christie stacking hardware required. The top projector could slide off and cause injury

or death.

Never carry a stack.

1. Position the projectors.

• Place each projector to be stacked on a secure table or cart.

• Place 1 projector on its side to access its adjustable feet, and stacking legs (Figure 2-11).

• Orient the other projector in either upright or inverted position as required (remember, each projector in a stack must be in the same orientation).

2. Fully retract the 4 adjustable feet.

Fully retract each foot (4) as far as possible by turning them clockwise.

• If upright, retract the feet on top projector.

• If inverted, retract the feet on bottom projector

2-8 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

3. Extend the 3 stacking legs.

Figure 2-12 Extend 3 Stacking Legs

(UPRIGHT STACK SHOWN)

Figure 2-13 Loosen 2 Nuts

Figure 2-14 Remove Safety Pins

Extend the stacking legs (3) by turning them so that at least 1 inch of thread is visible on each. This clearance accommodates the up-or-down movement for aligning the images from the stacked projectors. Ensure that you extend all 3 legs equally (see Figure 2-12) so they are level.

• If upright, extend legs on top projector (shown)

• If inverted, extend legs on bottom projector

IMPORTANT!

Extend the stacking legs equally by at least

1 inch.

4. Loosen the rear stacking leg nuts

On the rear stacking legs (Figure 2-13), loosen the nuts so the legs have some lateral movement for easier alignment with the stacking mounts on the other projector.

Section 2: Installation and Setup

• If upright, release on top projector

• If inverted, release on bottom projector

5. Release and remove three safety pins.

The 3 safety pins must be removed from the stacking mounts so that the stacking legs can fit into the mounts (Figure 2-14).

• If upright, remove the pins from the mounts on the bottom projector

• If inverted, remove the 3 safety pins from the mounts on the top projector

6. Place top projector on bottom projector.

With 1 person on each side, lift the top projector on to the bottom projector, aligning all 3 stacking points between projectors. The legs (4) should fit inside the stacking mounts.

Minimum of 2 people required.

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 2-9

020-100002-06 Rev. 1(04-2011)

Section 2: Installation and Setup

Figure 2-15 Align Holes in Mounts and Legs, and LOCK with Pin

7. Align the holes in the 3 stacking mounts and 3 stacking legs.

On each stacking mount, turn the adjusting wheel slightly until the hole in the top portion of the mount lines up with the hole in the stacking leg (Figure

2-15).

NOTE: You can increase leverage

by using a screwdriver in the holes.

8. Insert 3 safety pins and LOCK all.

Critical Safety Procedure.

At each of the 3 stacking points, insert the safety pin fully through the holes in the stacking mounts and stacking legs (Figure 2-15). Ensure that each pin is fully inserted to engage the safety lock and secure the projectors together. Failure to engage the safety lock could cause the projectors to separate and result in injury or death.

Failure to engage the safety lock could cause the projectors to separate and result in injury

or death.

9. Leg Nuts.

Before hoisting, firmly tighten the nuts on the 2 rear stacking legs (Figure 2-15). If you are ready to align the projectors to one another, leave these nuts slightly loose until after the alignment.

10. Repeat steps 1–9 if stacking a third projector.

Never stack more than 3 projectors.

2.2.4 Alignment Procedure

Stacked projectors must be correctly aligned to one another so that the resulting display is optimized and as sharp as possible. If you are also hoisting the stack, hoist the stack into place first and then align. Lock all stacking hardware into place to maintain your alignment.

IMPORTANT! Ensure the stacking legs are extended at least 1 inch and are slightly loosened. Refer to

Figure 2-12.

Before You Begin

• Always align to the fixed projector. In floor-mount or table-mount (i.e., non-hoisted) stacks, you will align to the bottom projector as shown in drawings below. In hoisted stacks, align to the top projector.

• Leg nuts must be loosened before alignment; otherwise the stacking mounts will not turn and allow movement of the projector.

2-10 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

020-100002-06 Rev. 1 (04-2011)

Section 2: Installation and Setup

Figure 2-16 Adjustment Directions

(Tilt)

Figure 2-17 Misaligned

Alignment Procedure:

1. Position the first image (fixed projector).

Position the fixed projector’s (first) image as desired and align the other image(s) to it as described below.

2. Display the grid test pattern.

Display the Grid Test Pattern. To distinguish each image, enable “Red” for 1 display and “Green” for the other. Refer to Section 3.2 Using the Keypads if you need help enabling colors.

3. Adjust Zoom and Focus.

Minimize each projector's zoom and images are in focus.

4. Try aligning the two grid patterns.

Adjust the Zoom and Offset on the top projector to precisely move its test pattern display on to the bottom test pattern. When properly aligned, all red/green grid lines in the combined image will turn yellow.

• If all lines are well aligned, skip to Step 6. b. to lock all stacking mounts.

• If alignment needs improvement, proceed with the next step.

5. Align the centerlines of the grid.

Turn the 2 rear stacking mount wheels to move the top projector as necessary to achieve well-aligned centerlines. Use a screwdriver in the holes around the rim of each adjusting wheel for better leverage and control.

How to move the image. Turn independently; each stacking mount acts as a pivot point for the opposite edge of the display (Figure 2-16).

For example:

• Turn the right mount to tilt the left portion of the image up or down

• Turn the left mount to tilt the right portion of the image up or down

• Turn the mounts together to raise or lower the top image like an offset adjustment, or turn the front stacker

If the center lines form an

“X”. This indicates that the

projectors (and images) are slightly tilted in relation to one another. Turn 1 mount to raise 1 side, and/or turn the other mount to lower the other side. See Figure 2-16.

If the center lines are parallel, but misaligned:

• If centerlines are out by the same amount from top and bottom, use offsets (on top projector) to bring the centerlines into alignment.

Roadster, Matrix WU, Mirage S+/HD/WU User Manual 2-11

020-100002-06 Rev. 1(04-2011)

Section 2: Installation and Setup

Figure 2-18 Adjust Front Wheel

Figure 2-19 Secure All Hardware

• If centerlines are parallel, but others are not, turn the front stacking mount wheel to bring the centerlines into alignment.

6. Align the edges of the grid with centerlines aligned:

a. Adjust zoom (top projector) to align the edges of its

image with the other image.

b. Adjust focus. When aligned, all lines from the

combined red/green grids will be yellow.

7. Secure all stacking wheels and leg nuts

Critical Safety Procedure.

• Turn all 3 stacking wheels until they are firmly secure against the rest of the stacking mount. See Figure 2-19.

• Secure both 2 rear leg nuts against the bottom of the projector.

8. Repeat Steps 1 to 7 if stacking a third projector.

2.2.5 Installation Type

Choose the installation type that suits your needs: front or rear screen, floor mount, or inverted mount.

•Easy to set up

• Can be moved or changed quickly

• Easy to access

Front Screen, Inverted Mount (ceiling) Installation

• Does not take up audience space

• Projector is unobtrusive

• Projector cannot be accidentally moved

ADVANTAGES CONSIDERATIONS

• Shares floor space with audience

ADVANTAGES CONSIDERATIONS

• Installation is more permanent

• It is more difficult to access the projector

Rear Screen, Floor Mount Installation

• Projector is completely hidden

• Projector is easily accessed

• Usually good ambient light rejection

2-12 Roadster, Matrix WU, Mirage S+/HD/WU User Manual

ADVANTAGES CONSIDERATIONS

• Requires separate room

• Installation cost is usually higher

020-100002-06 Rev. 1 (04-2011)

+ 152 hidden pages
