Christie DW3K User Manual

Download

Page 1

1 INTRODUCTION

2 INSTALLATION &

SETUP

3 OPERATION

4 MAINTENANCE

5 TROUBLESHOOTING

6 SPECIFICATIONS

APPENDICES

User’s Manual

Table of Contents

1.1 Projector Overview......................................................................................... 1-1

1.2 Components.....................................................................................................1-2

1.3 Purchase Record and Servicing.......................................................................1-3

2.1 Quick Setup..................................................................................................... 2-1

2.2 Installation Considerations.............................................................................. 2-3

2.3 Connecting Sources....................................................................................... 2-12

2.4 Connecting Communications........................................................................ 2-15

2.5 System Integration – GPIO Connector.......................................................... 2-20

2.6 Power Connection.........................................................................................2-20

3.1 About the Projector ....................................................................................... 3-1

3.2 Using the Remote or Built-in Keypad............................................................. 3-3

3.3 Navigating the Menus...................................................................................3-10

3.4 Using Inputs and Channels............................................................................3-14

3.5 Adjusting the Image...................................................................................... 3-19

3.6 Adjusting System Parameters and Advanced Controls................................. 3-35

3.7 Working with PIP and Seamless Switching.................................................. 3-45

3.8 Working with the Lamp ............................................................................... 3-48

3.9 Status Menu ................................................................................................. 3-52

3.10 Using Multiple Projectors ............................................................................. 3-52

3.11 Remote Control of the Projector .................................................................. 3-62

3.12 Error Conditions............................................................................................ 3-63

4.1 Warnings and Safety Guidelines..................................................................... 4-1

4.2 Cleaning and Maintenance Guide................................................................... 4-4

4.3 Replacing Remote Batteries............................................................................ 4-5

4.4 Lamp and Filter Replacement......................................................................... 4-5

4.5 Replacing the Projection Lens......................................................................... 4-9

5.1 Displays........................................................................................................... 5-1

5.2 Lamp .............................................................................................................. 5-3

5.3 Ethernet...........................................................................................................5-3

6.1 Specifications.................................................................................................. 6-1

Appendix A: Glossary...............................................................................................A-1

Appendix B: Keypad Reference.................................................................................B-1

Appendix C: Serial Communications.........................................................................C-1

Appendix D: Throw Distance.................................................................................... D-1

Appendix E: System Integration ................................................................................E-1

Appendix F: Optional Input Modules.........................................................................F-1

NOTE: Due to continuing research, all information in this manual is subject to change without notice.

013-100199 (08/05) Software v1.1, Rev 1.

User’s Manual

Page 2

Page 3

1.1 Projector Overview

Section 1

Introduction

Christie DS+5K/5Kc/8K, Mirage S+2K/4K/8K, DW3K/6K, Matrix 4000 and DLV1400-DX are all professional 3-chip projectors based on next-generation Digital

Light Processing (DLP) technology by Texas Instruments to deliver high quality, crisp, clean images.

Mirage S+2K/4K/8K projectors provide a powerful combination of SXGA+ resolution, high brightness and high contrast ratios to produce flawless, realistic threedimensional graphic images for simulation, virtual reality and other stereographic related applications.

The DW3K and DW6K provide exceptional image quality in a native widescreen format, HD2 resolution and superior color accuracy.

Also a reliable and compact SXGA+ projector is the Matrix 4000. With its purpose built simulation features such as RGB color matching, and gamma controls, it can be used to simulate any application.

The DLV1400-DX is designed for the demands of 24/7 control room applications and provides long-term reliability and performance.

Main Features '

• Native SXGA+ or HD2 resolution (model dependant) with all others fully

scaleable

• Internal scaling of stereo signals (Mirage models)

• 10-bit video processing

• Built-in multi-standard video decoder

• Display of NTSC, PAL and SECAM video input

• User replaceable Cermax

• LiteLOC

• Motorized lens mount for all models except DLV1400-DX

• Auto-setup feature

• Integrated ChristieNET

• Networking ability through RS232 and RS422 connectors

• Status LED display on built-in keypad for easy projector status monitoring

• Control with IR, wired or built-in keypad

Refer to Section 6 for a complete list of Specifications including Brightness and Contrast.



for constant brightness



Xenon lamp

User’s Manual 1-1

Page 4

Section 1: Introduction

How the projector works '

1.2 Components

Lamp Type Model Name Resolution ChristieTWIST 3D Motorized Lens

500W Models

1000W Models

1200W Models

NOTE: Kc models include the same features, but are color corrected to film color standards.

The projector accepts data/graphics and video input signals for projection onto front or rear flat screens. High brightness light is generated by an internal Xenon lamp then modulated by three DMD (digital micromirror device) panels that provide digitized red, green or blue color information. Light from the “on” pixels of each panel is reflected, converged and then projected to the screen through a single front lens, where all pixels are perfectly superimposed as a sharp full-color image (2D or 3D for Mirage models only).

The following listed items are shipped with your projector. Ensure you have received all these items before using your projector.

‘ User’s Manual ‘ IR remote keypad (includes two, 1.5V AA batteries and a mini-stereo cable for

conversion to wired)

‘ Line cord ‘ Stereo 3D Cable (Mirage only) ‘ Warranty Card

Mount

DLV1400-DX SXGA+ Optional Mirage S+2K SXGA+ Optional DW3K, DW3Kc HD2 Optional Christie DS+5K-5Kc SXGA+ Optional Mirage S+4K SXGA+ Optional Matrix 4000 SXGA+ DW6K, DW6Kc HD2 Optional Christie DS+8K SXGA+ Optional Mirage S+8K SXGA+ Optional

✔

 

✔ ✔

 

✔ ✔

  

✔ ✔

✔ ✔ ✔

1-2

User’s Manual

Page 5

Dealer:

Dealer Phone Number:

Projector Serial Number:

Purchase Date:

Installation Date, if appli

cable:

1.3 Purchase Record and Servicing

Section 1: Introduction

Whether the projector is under warranty or the warranty has expired, Christie’s highly trained and extensive factory and dealer service network is always available to quickly diagnose and correct projector malfunctions. Service manuals and updates are available to service technicians for all projectors.

If you encounter any problems with the projector and require assistance, contact your dealer or Christie Digital Systems. Fill out the information in the table below and keep with your records for future reference.

Purchase Record

NOTE: The serial number can be found on the license label, which is located at the back of the projector.

You can also register your product on-line by visiting www.christiedigital.com ⇒ Service and Support ⇒ Product Registration. This will keep you in touch with all

the latest product information, such as updates, technical bulletins, downloads and Christie newsletters.

User’s Manual 1-3.

Page 6

Page 7

2.1 Quick Setup

Section 2

Installation & Setup

The instructions provided here are for those that are familiar with the projector and wish to quickly set it up and use it temporarily. Refer to the remaining subsections of this manual for a more complete setup.

Step 1 '

Step 2 '

Install a Projection Lens

The projection lens is shipped separately from the projector and must be installed prior to setting up the projector. Install the projection lens as described in 4.5 Replacing the Projection Lens.

Remove the lens plug from the lens opening in the projector before installing the

lens.

Remove the lens when shipping the projector and reuse the lens plug to prevent

dust and debris from entering and settling on the projector’s optical components.

Position the Projector

Place the projector on a sturdy, level surface and position it so that it is perpendicular to the screen at a suitable distance. In general, the further back the projector is positioned from the screen, the larger the image will be.

If required, you can level the projector by adjusting its three feet. With the projector positioned perpendicular to the screen the image will appear rectangular instead of keystoned.

For more detailed instructions on positioning the projector refer to Projector Position and Mounting later in this section.

Step 3 '

Connect a Source

Located at the back of the projector is the input panel where all source connections are made. Each input is clearly labeled for easy identification.

Using the appropriate cable(s), connect your source. Connect RGB and YPbPr sources to

INPUT 1 located in the upper right corner of the input panel. Use the DVI-I

connector at video to

modules can be installed at Refer to 2.3 Connecting Sources for more details on connecting a specific source.

INPUT 2 to connect analog or digital display signals. Connect composite

INPUT 3 and S-video to INPUT 4. NOTE: One of the available optional input

INPUT 5 or INPUT 6 for additional connections.

User’s Manual 2-1

Page 8

Section 2: Installation and Setup

Ste

4 '

Step 5 '

Step 6 '

Connect the Line Cord

The North American rated line cord is provided with each projector.

Plug the line cord to the AC receptacle located on the right hand side of the projector and the 3-pronged end into a grounded AC outlet. The input voltage to the projector must be capable of 100 – 240 VAC in 500W and 1000W models and 200-240VAC in

1200W models. (See also Section 6 – Specifications for complete details on all power requirements.)

Use the approved North American-rated line cord supplied with the projector. If you are connecting to an area outside of North America make sure you are using an appropriately rated line cord.

Turn the Projector ON

Press the

POWER button on either the remote or built-in keypad to turn the projector on. Wait a few minutes to allow the projector to warm up. The LED status window displays an active pattern of segments to indicate the projector is changing its state from powered down to powered up. The message “On” appears in the display when the projector has completed its initialization and is ready for use.

Select a Source

Press one of the input keys on the remote or built-in keypad to select and display the image for the source you connected in Step 3.

Step 7 '

Adjust Image

Adjust the more common image settings, such as Brightness, Contrast, Gamma, Focus, Zoom etc. using the direct keys on the IR remote.

You can also access the menu system and adjust these and other image settings by pressing

on the remote.

2-2

User’s Manual

Page 9

2.2 Installation

Considerations

Section 2: Installation and Setup

Proper installation of your projector will ensure the quality of your display. Whether you are installing a projector temporarily or permanently you should take the following into account to ensure your projector performs optimally.

Installation type '

Choose the installation type that best suits your needs: front or rear screen, floor mount or inverted mount.

Front Screen, Floor Mount Installation

ADVANTAGES CONSIDERATIONS

• Easy to set up

• Can be moved or changed quickly

• Easy to access

• Shares floor space with audience

Front Screen, Inverted Mount (ceiling) Installation

ADVANTAGES CONSIDERATIONS

• Does not take up audience space

• Projector is unobtrusive

• Projector cannot be accidentally moved

• Installation is more permanent

• It is more difficult to access the projector

Rear Screen, Floor Mount Installation

ADVANTAGES CONSIDERATIONS

• Projector is completely hidden

• Projector is easily accessed

• Usually good ambient light rejection

• Requires separate room

• Installatio n cost is usuall y higher

Screen Type

Rear Screen, Inverted Mount (ceiling) Installation

ADVANTAGES CONSIDERATIONS

• Projector is completely hidden

• Usually good ambient light rejection

• Requires separate room

• Installatio n cost is usuall y higher

Rear Screen, Floor Mount with Mirror

ADVANTAGES CONSIDERATIONS

• Projector is completely hidden

• Usually good ambient light rejection

• Requires less space behind screen than

other rear screen installations

• Requires separate room

• Installatio n cost is usuall y higher

Front Screen Installations

In front screen installations the projector and audience are positioned in front of the screen, which can be flat or curved.

Flat screens are most recommended with this projector. They offer a gain of about 1 with a viewing angle just less than 180°. This type of screen reflects incident light equally in all directions so the audience can see the display from various angles.

Curved screens have a gain greater than 1 with a viewing angle much less than 180°. This type of screen does not reflect incident light equally in all directions instead it is

User’s Manual 2-3.

Page 10

Section 2: Installation and Setup

concentrated in a viewing cone. The audience sitting within the viewing cone area will see a brighter image than those sitting just outside this area.

Rear screen installations

There are two basic types of rear screens: diffused and optical. A diffused screen has a surface, which spreads the light striking it. Purely diffused

screens have a gain of less than 1. The main advantage of the diffused screen is its wide viewing angle, similar to that of a flat screen for front screen projection. This type of screen is suitable when a wide viewing angle is required but there is low ambient room lighting.

Optical screens take light from the projector and redirect it to increase the light intensity at the front of the screen. This reduces it in other areas. A viewing cone, similar to that of a curved front screen installation is created. This type of screen is better suited for brightly lit rooms where the audience is situated within the viewing cone.

Screen size

Choose a screen size, which is appropriate for your lens and application. Keep in mind that if the projector will be used to display text information, the image size must allow the audience to recognize all text clearly. The eye usually sees a letter clearly if eyeto-text distance is less than 150 times the height of the letter. Small text located too far from the eye will likely be illegible at a distance no matter how sharply and clearly it is displayed.

2-4

To fill a screen with an image, the aspect ratio of the screen should be equal to the aspect ratio of the image (expressed as the ratio of its width to its height). Standard video from a VCR has a 4:3 or 1.33:1 aspect ratio. For example, to display a VCR

User’s Manual

Page 11

Section 2: Installation and Setup

output with a 4:3 aspect ratio onto a 10-foot (3m) high screen, the width of the screen must be at least 13.3feet (4m).

mbient Lighting '

Other Considerations '

Projector Position and Mounting '

The high brightness of this projector is well suited for locations where ambient lighting might be considered less than ideal for projection. A typical room with ceiling lights and windows rarely requires special attention. Contrast ratio in your images will be noticeably reduced only if light directly strikes the screen, such as when a shaft of light from a window or floodlight falls on the image. Images may then appear washed out and less vibrant.

In general, avoid or eliminate light sources directed at the screen. Other considerations and tips that can help improve your installation:

• Keep the ambient temperature constant and below 35°C (95°F). Keep the

projector away from heating and/or air conditioning vents. Changes in temperature may cause drifts in the projector circuitry, which may affect performance.

• Keep the projector away from devices, which radiate electromagnetic energy

such as motors and transformers. Common sources of these include slide projectors, speakers, power amplifiers, elevators, etc.

Choose the best screen size for the application. Since more magnification reduces brightness, use a screen size appropriate for the venue but not larger than required. Installing a large screen in a small room is similar to watching television at a close range; too large a screen can overpower a room and interfere with the overall effect. A good rule of thumb is to be no closer than 1.5 times the width of the screen.

Throw distance

Throw distance is the distance measured from your projector’s front feet to the screen. This is an important calculation in any project or ins ta llati on as it determ ines whether or not you have enough room to install your projector with a desired screen size and if your image will be of the right size for your screen.

You can quickly estimate the throw distance by taking the horizontal width of the screen and multiplying it by the lens throw ratio. The result of this calculation tells you roughly how far back the projector should be positioned from the screen in order to project a focused image large enough to fill the screen. For example, using a 0.73:1 lens, throw distance would roughly be 0.73 x screen width.

IMPORTANT: Once you determine the type of lens and screen size you’re going to use, calculate the precise throw distance using the formula or graphs located in Appendix D. Due to lens manufacturing tolerances for lens focal length, actual

throw distance can vary

5% between lenses described as having the same throw

ratio.

User’s Manual 2-5.

Page 12

Section 2: Installation and Setup

Figure 2.1. Estimating Throw Distance

Vertical and horizontal position

The correct vertical and horizontal position of the projector in relation to the screen depends on the lens type and the screen size. Ideally, the projector should be positioned perpendicular to the screen. This way, the image will appear rectangular instead of keystoned (trapezoidal).

The vertical position of the image can be offset – that is moved above or below the optical axis (lens center) by adjusting the fully motorized lens mount with the keypad. The amount of vertical offset available depends directly on the lens installed in the projector and can be slightly limited if horizontal offset has been applied. Vertical offset can also be expressed as the percent of half the image height OR the number of pixels of shift from lens center. Refer to Figure 2.2 for some illustrated examples of vertical offset.

Table 2.1 along with Figure 2.3 show the maximum vertical offset of a lens or alternatively, how much of your projected image will appear above or below lens center if the maximum vertical offset is applied using that lens.

Table 2.1. Lens Offsets

Lens Type

0.73:1 fixed 37% +/-196 69% +/-721 22% +/-153 61% +/-853

1.2:1 fixed (1m-3m)

1.2:1 fixed (3m-15m) 100% +/-525 100% +/-1050 50% +/-350 75% +/-1050

1.45-1.8:1 zoom 100% +/-525 100% +/-1050 50% +/-350 75% +/-1050

1.8-2.5:1 zoom 100% +/-525 100% +/-1050 50% +/-350 75% +/-1050

2.5-4.5:1 zoom 100% +/-525 100% +/-1050 50% +/-350 75% +/-1050

4.5-7.3:1 zoom 100% +/-525 100% +/-1050 50% +/-350 75% +/-1050

ertical Offset

(% of Half Height)

% Pixels % Pixels % Pix els % Pixels

Info not yet available

Maximum amount of

projected image above or

below lens center

Horizontal Offset (% of Half Width)

NOTES: 1) Offsets are subject to ±7% centering tolerance 2) % Offset = # pixels of offset / half panel resolution x

100.

Maximum amount of

projected image to one side

of lens center

2-6

User’s Manual

Page 13

Section 2: Installation and Setup

Figure 2.2. Vertical Offset Examples

User’s Manual 2-7.

Page 14

Section 2: Installation and Setup

2-8

Figure 2.3. Lens Vertical Offsets

User’s Manual

Page 15

Section 2: Installation and Setup

The horizontal position of the image can be offset – that is moved to the left or right of lens center, by adjusting the fully motorized lens mount through software. The amount of horizontal offset available depends on the lens installed and if the image has already been vertically offset. Horizontal offset can also be expressed as the percent of half the image width – the number of pixels of shift to one side of lens center. Refer to Figure 2.4 for some illustrated examples of horizontal offset.

See also Table 2.1 along with Figure 2.5 which shows the maximum horizontal offset of a lens or alternatively, how much of your projected image will appear to one side of lens center if the maximum horizontal offset is applied using that lens.

Figure 2.4. Horizontal Offset Examples

User’s Manual 2-9.

Page 16

Section 2: Installation and Setup

2-10

Figure 2.5. Lens Horizontal Offsets

User’s Manual

Page 17

Section 2: Installation and Setup

Mounting

There are several methods for mounting the projector. Depending on your chosen installation, one method may be more suitable than another. In typical front and rear screen installations the projector can be mounted to a secure and level surface, such as a table or cart. Carts are useful when the projector has to be moved during a presentation or from site to site. It is recommended you lock the wheels on a cart, when it’s in position, to prevent someone from accidentally moving it during a presentation.

CEILING MOUNT - The projector can also be inverted and suspended from the ceiling

using a specially designed ceiling mount fixture. This type of mounting is recommended for fixed installations and for those that want the projector out of plain view or have a limited amount of space for projector and audience. (Available 2005)

Use only the CHRISTIE approved ceiling mount kit designed for

your projector.

SPECIAL MOUNTING – The projector can be rotated (front-to-back) up to 360 degrees

and mounted without it affecting performance. However, the side-to-side tilt limit of the projector must not exceed ±15 degrees. This tilt limit is required to ensure optimal performance of the projector.

Adjusting projector height

You can modify the height of the projector to remedy a slightly unlevel mounting surface by adjusting the two feet threaded into the bottom chassis. Turn each foot clock-wise or counter-clockwise until the project is level on all sides.

Folded Optics

In rear screen applications where space behind the projector is limited, a mirror may be used to fold the optical path. See Figure 2.6. The position of the projector and mirror must be accurately set – if considering this type of installation call your dealer for assistance.

Figure 2.6.

User’s Manual 2-11.

Page 18

Section 2: Installation and Setup

2.3 Connecting Sources

Sources connect to the Input Panel located at the back of the projector. See Figure 2.7. The upper right corner (

INPUT 1) typically accepts an RGB signal from an external

analog RGB source, or it can also be used for YPbPr signals or additional video sources. Just beside these BNCs, the DVI-I connector ( analog display signals from a computer. Connect analog composite video at or S-video at

INPUT 4 from devices such as VCRs, laser disc players or DVD players.

INPUT 2) accepts digital or

INPUT 3

There are also several optional inter face s avai lab le for connec ting other sources— these interfaces slide into the remaining unused option slot, and can be done while the projector is running.

RGB Signals

Figure 2.7. Input Panel

NOTES: 1) See Section 6, Specifications for details regarding compatible inputs. 2) Use high quality shielded cables only for all connections.

INPUT 1consists of 5 BNCs (connectors) for linking to a variety of sources. The

typical connection would be to an RGB source such as a PC, Mac, DEC, Sun, SGI and others. This projector supports multiple sync types with RGB signals: sync-on-green, composite sync, and separate H & V syncs.

NOTE: Depending on your source, you may need a custom adapter cable with BNC connectors at the projector end and a different type of connector at the other (such as a 15-pin "D" connector for some computer sources). Contact your dealer for details.

Connect the outputs to the

SYNC BNC input(s) first. Then connect the red, green and blue source

RED, GREEN, and BLUE BNCs on the INPUT 1 panel. If the source uses

sync-on-green, only the red, green, and blue connections are required. If the source provides a composite sync output, connect it to the

SYNC input labeled HOR/COMP. If

the source provides separate horizontal and vertical sync outputs, connect horizontal sync to the labeled

SYNC input labeled HOR/COMP and connect vertical sync to SYNC input

VERT. See Figure 2.8.

2-12

User’s Manual

Page 19

Section 2: Installation and Setup

Figure 2.8. Connecting RGB and Sync

NOTES: 1) If for some reason the projector fails to recognize a signal as an RGB signal, specify this Color Space option within the Image Settings menu. See 3.5 Adjusting the Image. 2) To connect YPbPr signals–such as from DVDs or analog HDTV sources–to

INPUT 1, use the red, green and blue BNCs as described in YPbPr Signals

(below).

YPbPr Signals

(COMPONENT VIDEO)

Connect a YPbPr signal (component vid eo) to INPUT 1 or INPUT 2 as shown in Figure

2.9.

NOTES: 1) If, for some reason, the projector fails to recognize a YPbPr signal, specify this Color Space op tion w ithin the Image Settings menu. See 3.5, Adjusting the Image. 2) Do not connect digital

. Install an appropriate optional module in INPUT 5 or INPUT 6 for this.

component signals (known as YCbCr) to INPUT

Figure 2.9. Connecting YPbPr sources

User’s Manual 2-13.

Page 20

Section 2: Installation and Setup

Com

osite and S-Video '

DVI Digital Video '

INPUT 3 and INPUT 4 provide simultaneous connection of both a composite video

source (

INPUT 3) and an S-Video source (INPUT 4). See Figure 2.10.

Figure 2.10.Connecting Composite or S-Video sources

Use the DVI-I connector at INPUT 2 to connect either analog or digital video devices to the projector. When connecting devices that transmit an analog video signal such as VCRs, laptops, and PCs use the DVI cable provided with the projector. Plug the DVI-I (single link) connector end to the projector and the 15-pin VGA connector to the device.

Use a cable with DVI-I connectors at both ends to connect devices that transmit digital and analog video signals such as high-quality DVD players, satellite receiver and digital cable TVs.

tional Inputs '

NOTE: 1) To ensure true digital output from devices that transmit digital signals, connect to the DVI-I connector. 2) DVI loop through is not available unless you have the optional DVI Input Module installed at

INPUT 5 or INPUT 6.

Optional modules allow you to increase your total number of inputs and/or accommodate different signal types, whether analog or digital. Install in the areas labeled

INPUT 5 or INPUT 6. Options include:

• RGB 500 Input Module

• RGB 400 Active Loop Thru Input Module

• RGB 400 Buffered Amplifier Input Module

• PC250 Analog Input Module

• Serial Digital Input Module

• DVI Input Module

• Dual SD/HD-SDI Module (available 2005)

NOTES: See Appendix F, Optional Input Modules for a brief description of each interface.

2-14

User’s Manual

Page 21

2.4 Connecting Communications

Section 2: Installation and Setup

As an alternative to the projector’s keypad or remote, you may wish to communicate with the projector using a PC or other controller. Such a device sends commands and receives feedback via serial links (RS232 and RS422), Ethernet or GPIO communications to the projector, all described below.

Remote Keypads '

Serial Port Connections '

As desired, direct the projector’s IR remote keypad towards the display screen or the projector’s IR sensors. Alternatively, connect a wired (tethered) version of the remote to the 3.5mm RCA jack labeled as

REMOTE on the projector’s input panel. Note that

response to a wired keypad must also be enabled in the Communications menu—see

3.6, Adjusting System Parameters and Advanced Controls for more information.

There are two types of serial ports available on the projector: RS232 and RS422. You can connect a device with a serial interface, such as a computer to either of these connectors (not both) and control the projector remotely by entering specific serial communication commands.

Connecting RS-232

The two 9-pin DIN connectors labeled RS232 IN and RS232 OUT on the input panel are dedicated to serial communication. Using the appropriate serial communication cables (see Appendix C) connect the controlling source, such as a personal computer to the RS232 IN connector. Then set the baud rate to match that of the computer. Refer to Section 3 for details on changing the projector’s baud rate.

Figure 2.11. Connecting RS232

Connecting RS-422

If you wish to control the projector with a computer and or other controlling device with RS-422 capability, connect a RS-422 serial comm unicatio n cable betwe en t he computer and the RS-422 port on the projector. RS-422 is better suited for serial communication over long distances then is RS-232 communication.

Use the RS-422 port only if your device had RS-422 capability – always consult the literature provided with your equipment before connecting. Connecting to the RS422 port with incompatible equipment could damage your projector.

User’s Manual 2-15.

Page 22

Section 2: Installation and Setup

Ethernet Communications

Connect a RS422

device only.

Figure 2.12. Connecting RS422

Ethernet Communications

To add the projector to an existing Ethernet network with other equipment such as controllers and other projectors, connect standard CAT5 Ethernet cable between your Ethernet controller (or hub) and the Ethernet port on the side of the projector.

Upon connection to an Ethernet network, the projector’s factory default IP address of

0.0.0.0.0 will automatically enable the DHCP function (if available on the network) to assign a new IP address that is valid and unique for that network. Or, if there is no DHCP function available on the network (or if a specific static IP address for the projector is preferred or required), you can set the address in the Ethernet Settings menu or via an ASCII serial command.

Regardless of how it is assigned, once a projector has a valid and unique address it will respond to commands sent to this address. To determine the projector’s current IP address, consult the Status or Communications menus.

Refer to Section 3 for further information about setting up and using a projector connected via Ethernet.

Connecting Multiple ' Projectors

2-16

Log on to www.christiedigital.com for detailed information on ChristieNET.

RS-232 NETWORK: If you want to connect multiple projectors in a network with serial

communication, connect the controlling source to the RS232 IN connector of the first projector in the network. Then take another serial communication cable and connect one end to the RS232 OUT connector and the other end to the RS232 IN connector of the next projector. Continue this pattern of connection with all projectors in the network. The last projector in the network will only have a connection to the RS232 IN connector. See Figure 2.13.

User’s Manual

Page 23

Section 2: Installation and Setup

Figure 2.13.

MIXED NETWORK: To control multiple projectors with a computer/controller having an

RS422 interface, first set them all to the same baud rate as your RS422 controller.

NOTE: You must enable this combination of RS422 and RS232 in the Communications menu. Set the “Network Routing” option to “RS232 and RS422 Joined”. See Section 3 for details.

Then chain the projectors together by connecting an (already connected to the computer/controller through the

RS232 port of the first projec tor

RS422 port) to an RS232

port on the next projector in the chain. Continue connecting projectors in this manner until you’ve reached the last projector in the chain, so that only the last projector has one unused

RS232 port. See Figure 2.14.

Figure 2.14.

Note that communication parameters such as baud rate must be set to match the particular controlling device before connecting as a network—refer to the documentation that came with your controlling device in order to determine the proper baud rate. See 3.6, Adjusting System Parameters and Advanced Controls if you need help changing the projector baud rate. In addition, set the Network Routing to “RS232 and RS422 Joined” if you want to reach all projectors.

NOTES: 1) To avoid damage, connect only properly wired serial communication cables. See Appendix C for details. 2) It is recommended that each RS232 communication cable be no more than 25 feet in length. Use high quality cables.

User’s Manual 2-17.

Page 24

Section 2: Installation and Setup

ETHERNET NETWORK SETUP: To add one or more projectors to an Ethernet network,

use standard CAT5 cable to connect each projector’s Ethernet port to a hub belonging to the network. A controller or PC must also be connected to the hub. See Figure 2.15.

Figure 2.15.

SETTING THE PROJECTOR’S IP ADDRESS: Upon connection to most Ethernet

networks, each projector’s factory default IP address of 0.0.0.0 triggers the network’s DHCP (Dynamic Host Configuration Protocol) server function to automatically assign an IP address that is valid and unique for use on that network. Depending on the network, this DHCP-assigned IP address usually remains stable for a single session, but may change with subsequent power-ups and logins. On some networks, the address will remain stable from session to session. In all cases, the projector’s IP address and port appear in the Status menu as well as the Ethernet Settings submenu. See Figure 2.16

2-18

Figure 2.16. Setting the Projector’s IP Address

Note that if a projector’s IP address is anything other than 0.0.0.0 (shown as

000.000.000.000 in the Ethernet Settings menu) upon connection to an Ethernet network, or if DHCP is not available on the network, the automatic DHCP server function for supplying a valid and unique IP address to the projector is disabled. Instead, a specific and static IP address must be defined in projector memory—enter the new address in the E the rnet Setti ngs submenu, or send to the projector via a serial command. The IP address will be in effect until it is changed again, or until the DHCP checkbox is re-enabled for use with a DHCP server on the network.

NOTES: Only the port and IP address of the projector can be changed. The subnet mask is fixed (255.255.255.0).

CHANGING THE PORT#: On some Ethernet networks, firewall restrictions may require

that the port number of the projector be changed from its default of 3002. If so, enter a new port number in the Ethernet Settings menu or include the new port# in an XIP serial command sent to the projector.

User’s Manual

Page 25

arating Networks '

Section 2: Installation and Setup

By default, communications originating from one type of serial controller—RS232 vs. RS422 vs. Ethernet—stay on the corresponding network path. This separation is indicated by a “Separate” setting for “Network Routing” in the Communications menu. If you are using an RS422 controller, for example, it will communicate only with the projector to which it is connected unless you change this setting to either “RS232 and RS422 Joined” or “All Joined”.

Communicating to '

ll Ports

To relay all messages to all ports—RS232, RS422, and Ethernet—set the “Network Routing” option in the Communications menu for each projector to “All Joined”. This configuration is useful if you are using a non-RS232 controller with the RS232 linking available between these projectors. For example, you may want to use both an RS422compatible controller and an Ethernet-connected PC for working with a network of projectors linked via their RS232 in/out ports (Figure 2.16).

Figure 2.17.

To isolate just RS422 communications, select “RS232 and Ethernet Joined”. In Figure

2.17. only projector #3 will respond to the RS422 controller. To isolate just Ethernet communications, select “RS232 and RS422 Joined”—only projector #1 will respond via Ethernet.

2.5 System Integration GPIO Connector

2.6 Power Connection

The GPIO connector on the input panel can be used to provide a method of interfacing a wide range of external I/O devices to the projector.

Refer to Appendix E: System Integration for complete details on pin configuration and how to program the various pins on the connector.

Plug the line cord to the AC receptacle located at the back of the projector, below the input panel, and the 3-pronged end into a grounded AC outlet. The input voltage to the projector must be capable of 100 – 240 VAC in 500W and 1000W models and 200- 240VAC in 1200W models. (See also Section 6 – Specifications for complet e details on all power requirements.)

Use the approved North American-rated line cord supplied with the projector. If you are connecting to an area outside of North America make sure you are using an appropriately rated line cord.

User’s Manual 2-19.

Page 26

Section 2: Installation and Setup

Always power down the projector before unplugging the AC line cord. Wait 5-10 minutes for the main exhaust fan to turn off and for the lamp to cool sufficiently before unplugging the projector.

WARNINGS

Do not attempt operation if the AC supply and cord are

not within the specified voltage and power range.

Wait for the cooling fans to turn off before unplugging the

projector.

2-20

User’s Manual

Page 27

3.1 About the

Adj

Projector

Section 3

Operation

This section explains how to effectively operate the projector once it has been installed. It is recommended that you read this section and familiarize yourself with the components and the available menu options before you begin using your projector for the first time.

Built-in Keypad '

C Receptacle '

ustable Feet '

Figure 3.1. Projector Basics

The built-in keypad is located at the back of the projector, beside the input panel. Use it similarly to the IR remote to control the projector. A status LED display is also included on this keypad for monitoring projector status.

The AC receptacle is located at the back of the projector just below the input panel. Use this outlet to plug in an appropriately rated line cord. Refer to Section 6 – Specifications for details.

Located on the underside of the projector are two fully adjustable feet. Raise or lower these feet when positioning the projector to ensure it is level on all sides so the displayed image will appear rectangular without any keystone. NOTE: The third foot, located at the rear of the projector (underside) is not adjustable.

Refer to Section 2 - Projector Position and Mounting for instructions on how to adjust the projector’s feet.

User’s Manual 3-1

Page 28

Section 3: Operation

Lens Mount & Pro

ection Lenses '

The projector is built with a motorized lens mount that allows for easy lens control and adjustment. This includes such functions as adjusting vertical and horizontal offsets, zoom and focus. The lens mount can be fitted with any one of the available optional lenses – see Section 6 - Specifications.

• Zoom and Focus – There are two internal lens motors that allow for quick

motorized adjustment of zoom and focus. Adjust zoom to fit the displayed image on the screen and adjust focus to improve the clarity of the image.

NOTE: You can manually override zoom and focus adjustments set with the remote. Turn the outer ring on the projection lens to adjust focus and the inner ring to adjust zoom.

• Lens Offset – Vertical and horizontal offset is performed on the lens mount

through the use of DC motors.

• Shutter – Standard on all models the shutter allows you to turn the screen

absolutely black when in the “on” state.

• Optical Aperture – Enables adjustment of light output and contrast ratio.

NOTES: 1) The projection lens is shipped separately from the projector. 2) Use the lens cap when transporting the projector to avoid scratching and damaging the lens, which could affect your displayed image.

Input Panel '

Cooling and Air Vents '

Front & Rear IR Sensors '

Lamp Door '

All source connections are made to the input panel located at the back of the projector. Connect RGB or YPbPr sources to

, composite video to INPUT 3, and S-video to INPUT 4. Any of the available optional

modules can be installed in

INPUT 5 and/or INPUT 6.

INPUT 1, analog or digital display signals to INPUT

There is no status display on the input panel. The only status display is part of the built-in keypad located at the rear of the projector.

There are numerous air vents located around the projector. It is important these vents remain unobstructed. Adequate airflow through the projector will prevent it from overheating.

The two IR sensors located on the projector receive transmissions from the IR remote from up to 100 feet away. It is important to keep the transmission path to these sensors unobstructed for uninterrupted communications with the projector. The front IR sensor is located next to the projector’s nameplate and the rear IR sensor is located at the back of the projector just above the status LED display.

The lamp door is located at the back of the projector, which provides easy access to the lamp module for replacement. See Section 4 for lamp replacement procedures.

3-2

User’s Manual

Page 29

3.2 Using the Remote or Built-In Keypad

Section 3: Operation

Laser radiation is emitted from the laser diode in the remote. Do not look

directly into the beam of the remote.

Keypad Commands '

Built-in '

The projector is typically controlled using one of the following keypads:

• Built-in Keypad located at the back of the projector

• Remote Keypad for tethered or tetherless control up to 100 feet away

(includes cable for use as a wired remote)

While each of the keypads provides complete con tro l of the pro jecto r, they differ slightly in their arrangement of keys and in what functions can be accessed directly with a key press rather than requiring use of the menu system. You may find one keypad more convenient than another for your specific installation and application.

NOTE: This keypad has a single IR protocol and can be converted to a wired remote by connecting the cable provided with the projector to the RCA jack labeled as

REMOTE on the input panel.

To control the projector when signals from a remote keypad cannot reach the projector, use the projector’s built-in keypad. The nearby LED display provides feedback indicating current status and activities of the projector. Because the built-in keypad has fewer keys than the remote keypad, certain projector functions are accessible only through the menu

Figure 3.2. Built-in Keypad

system rather than via a direct key.

IR Remote '

Refer to the key descriptions provided for the IR remote – see Figure 3.3. The IR remote keypad controls the projector by way of wireless communications from

a battery-powered infrared (IR) transmitter. Use the IR remote keypad the same way you would use a remote keypad supplied with a TV or VCR. When making key presses, direct the keypad either toward the screen or toward the front or rear of the projector. One of the two IR sensors on the projector will detect the signals and relay the commands for internal processing.

User’s Manual 3-3.

Page 30

Section 3: Operation

3-4

* These are toggle keys, which require you to press and hold or press twice or press and use the up/down arrow keys. NOTE: To turn the OSD off you must

press

OSD

and .

Figure 3.3. Remote Keypad

User’s Manual

Page 31

Wired Remote

You can convert the IR remote into a wired remote keypad using the cable provided

with the projector. Connect one end into the remote and the other to the mini stereo connector on the input panel labeled as when:

• the built-in keypad is inaccessible

• the lighting conditions are unsuitab le for prop er I R transmission

NOTE: Leave the batteries in the wired remote for the laser key (

Guide to Keypads '

Keep in mind the following guidelines:

• Press keys one-at-a-time; there are no simultaneous key combinations required.

• Note that three keys—Power

hold” keys that do not function with a typical quick press-and-release key press.

• Hold arrow keys down for continuous adjustment/movement in one direction. In

serial networks, pause briefly between adjustments to ensure that more distant projectors can “keep up” with the commands.

• If you press a key while the projector is still responding to the previous action,

such as during power-up, the second key press may not take effect.

Section 3: Operation

REMOTE. The wired remote is recommended

) to work.

, Shutter

Shutter

and OSD

OSD

—are “press-and-

Keypad Commands '

Test

Auto

Specific keypad commands are explained below:

Power ON/OFF

Press and hold or off with a single keystroke. Or press and release

(on) or

for two seconds or press twice quickly to toggle the projector on

followed immediately by

(off) to guarantee the correct toggle (useful if you are unsure of the

present state).

NOTES: 1) After powering down, the lamp cooling fan remains on for approximately 5 minutes to cool the lamp. 2) It is a good idea to avoid turning a projector back on until it has been off for a few minutes. Hot re-strikes of the lamp may reduce lamp life.

Test

Press input. If you press

to step forward through all internal test patterns and eventually the current

Test

and then cycle by using the and right arrow keys,

you’ll be cycling in either direction through the test patterns only, no input.

Auto

Press

Auto

to initiate an automated process in which the projector optimizes critical display parameters such as size, position, pixel tracking, etc., for the current source. These parameters are listed in

Table 3.1. An Auto Setup can save time in perfecting a display and you can modify the adjustments as desired.

User’s Manual 3-5.

Page 32

Section 3: Operation

Table 3.1. Auto Setup

What an “Auto Setup” Does

OPTIMIZES: SETS TO DEFAULT:

Pixel Tracking Contrast

Pixel Phase Brightness

Size and Blanking Auto Input Level (off)

Vertical Stretch Detail (if video source)

Position Filter

Input Levels Luma Delay

NOTE: You must have an unlocked channel present to use Auto Setup.

Chan nel

Channel

Chan nel

Press

to select a specific source setup (channel) defined and stored in projector memory. Once you enter a 2-digit channel number (or, if there is a list displayed, highlight it and press

), the display will automatically change and update according to the numerous setup parameters defined for that channel. Note that a new channel is automatically created if you adjust an image from a new source.

NOTE: Channel (

Chan nel

) key behavior during a presentation depends on whether or not

the Display Channel List o ptio n is enabled in the Menu Preferences menu. You can

Chan nel

choose to use a scrollable list of channels when you press

, or you may prefer to

enter the desired channel number “blind”, i.e., without on-screen feedback. See Menu Preferences later in this section.

Input 1

Input 2

Input 3

Input 1

Press

Input 2

Press

Input 3

Press

to display from the data input source connected to BNCs labeled

to display from the DVI source connected to INPUT 2.

to display from the composite video source connected to INPUT 3.

INPUT 1.

Input 4

Input 5

Input 4

Press

Input 5

Press

to display from the S-video source connected to INPUT 4.

to display from the INPUT 5 interface module installed in the Option 1 slot. NOTE: If you have the optional Dual SD/HD-SDI Module installed and there are tw o inputs connected here, the second input (B) is considered built-in keypad or the remote keypad, press

• While displaying from

INPUT 5, press

INPUT 5 to access INPUT 7 as follows:

Input 5

again. This switches to INPUT 7.

INPUT 7. If you are using the

• While displaying from any input other than the Dual SD/HD-SDI Module,

Input 5

press the Dual SD/HD-SDI Module inputs (A or B) was last used. Press

, this switches to either INPUT 5 or INPUT 7, depending on which of

Input 5

again to

display from the other Dual SD/HD-SDI Module input.

3-6

User’s Manual

Page 33

Section 3: Operation

Input 6

Press

to display from the INPUT 6 interface module installed in the Option 2 slot. NOTE: If you have the optional Dual SD/HD-SDI Module installed and there are tw o inputs connected here, the second input (B) is considered built-in keypad or the remote keypad, press

INPUT 6 to access INPUT 8 as follows:

INPUT 8. If you are using the

• While displaying from

INPUT 6, press

Input 5

again. This switches to INPUT 8.

• While displaying from any input other than the Dual SD/HD-SDI Module,

Input 5

press the Dual SD/HD-SDI Module inputs (A or B) was last used. Press

, this switches to either INPUT 5 or INPUT 8, depending on which of

Input 5

again

to display from the other Dual SD/HD-SDI Module input.

Contrast

Press

to change the amount of white in your images. Use keys until you reach the desired level of contrast—for best results, start low and increase so that whites remain bright but are not distorted or tinted and that light areas do not become white (i.e., “crushed”). Conversely, low contrast causes dim images. See 3.5, Adjusting the Image (Image Settings subsection).

Bright

Brightness

Press

Bright

to increase or decrease the amount of black in the image. Use keys until you reach the desired level of contrast—for best results, start high and decrease so that dark areas do not become black (i.e., “crushed”). Conversely, overly high brightness changes black to dark gray, causing washed-out images. See 3.5, Adjusting the Image (Image Settings subsection).

Gamma

“Gamma” determines how gray shades are displayed between minimum input (black) and maximum input (white) for a given amount of signal. Th e prop er se tting helps maintain optimized blacks and whites while ensuring a smooth transition for the “inbetween” values utilized in grays. Unlike brightness and contrast controls, the overall tone of an image can be lightened or darkened without changing the two extremes and your images will be more vibrant yet with good detail in dark areas when using the Gamma control.

The normal gamma setting of 2.2 is correct for most signals and conditions. If excess ambient light washes out the image and it becomes difficult or impossible to see details in dark areas, lower the gamma setting to compensate. This will improve contrast ratio while maintaining good details for blacks and whites

Press

to enter or exit the projector’s menu system.

User’s Manual 3-7.

Page 34

Section 3: Operation

OSD

OSD (On-screen display)

Press

OSD

to hide the projector’s menu system during use. To see the menus

again, do one of the following:

• Press and hold

• Press and release

• Press

OSD OSD

OSD

for two seconds

OSD

followed immediately by

Invisible menus are fully functional, enabling “hidden” access to numbered features and image adjustments by entering the corresponding sequence of keypresses on the keypad.

NOTES: 1) With OSD “on”, you can still hide error messages and slidebars by disabling these options in the Menu Preferences menu.

Shutter

Press and hold

Shutter

for two seconds to toggle the internal mechanical shutter blade

closed or open with a single keystroke. Or press and release immediately by you are unsure of the present state). Alternatively, press

(closed) or

(open) to guarantee the correct toggle (useful if

Shutter Shutter

Shutter

followed

to toggle from the present on/off state. A closed shutter blanks the display (turns it to black). Close the shutter to mute all display while maintaining access to projector functions. Opening the shutter restores the image.

NOTES: 1) The status display shows “5H”, when the shutter is closed. 2) The shutter is open upon power-up.

Func

Function Key

IF WITHIN A MENU: Using the

Func

for special tasks within the menu system is noted

with the appropriate topic elsewhere in Section 3. For example, press

Func

in the

Channel Setup menu to enable deletion or copying of a channel.

IF WITHIN A PRESENTATION: Press

Func

followed by a 2-

digit number to enable a specific color or colors in the display (see right). For example,

Func

only red and green data,

will display all color

will display

Func

data. Eliminating one or more colors can help with certain diagnostics and setups, such as when accurately overlaying one image on top of another from stacked projectors.

NOTE: Color enabling can also be implemen te d from numerous locations within the menu system.

Proj

Projector

Press

Proj

to access a specific projector within a group of projectors or to confirm if the local projector is listening. The number in the “Enter Number” window indicates which projector is currently listening to commands, and will match the projector number that has been defined in the Menu Preferences menu.

The “Projector” checkbox (read-only) shows whether or not the projector physically connected to a keypad is listening to commands from that keypad. A checkmark

3-8

User’s Manual

Page 35

Section 3: Operation

means that connected projector is listening; if there is no checkmark, you are communicating with a different projector.

Proj

To control a specific projector with the keypad, press

and then enter the 3-digit number assigned to the projector you want to use. If you switch to a projector other than the one you are currently using, the checkmark will disappear.

To broadcast to multiple projectors, press

Proj

and then

Proj

again without entering a

projector number. Keypad commands will then affect all projectors present. Note that there is no method of controlling a group of projectors within the same wired configuration using the wired keypad exclusively, since there is only one wired protocol available.

NOTES: 1) The "Broadcast Keys" option in the Communications menu must be selected for only one (any) projector in a serial network. The keypad in use must be OFF (disabled) for the remaining projectors. See 3.6, Adjusting System Parameters

and Advanced Controls.

Exi t

Focus,Zoom,Lens H,Lens V

Enter

Press

to select a highlighted item, to toggle a checkbox, or to accept a parameter

adjustment and return to the previous menu or image.

Exit

Press

NOTE:

Exi t

to return to the previous level, such as the previous menu.

Exi t

does not save changes within text editing boxes (including number editing of a slidebar value) or within pull-down lists. It acts as a “cancel” in these cases.

Arrow Keys

Use the

keys to change a slidebar value or to select a different option within a pull-down list without having to first scroll through options. See also Editing Text later in Section 3.

Use the

Lens Focus, Zoom and Lens H, Lens V

keys to navigate within a menu, pull-down list or text box.

When adjusting the image for focus, zoom, horizontal and vertical positioning, use the specific arrow keys (

/ or / ) related to each function. A small

window will appear to indicate the type of adjustment taking place. For example,

• Use the “Focus”

• Use the “Zoom” ”

• Use the “Lens H” ”

still keeping it rectangular.

• Use the “Lens V”

keeping it rectangular.

Press

Exi t

to return to presentation level.

or keys to improve image clarity as desired.

or keys to achieve a desired image size.

or keys to position the image horizontally while

or keys to position the image vertically while still

User’s Manual 3-9.

Page 36

Section 3: Operation

Lens

NOTE: Use the

Shift

key (built-in keypad) with the general keys to get the same effect as if using the arrow keys related to “Lens V” or “Lens H” on the IR remote.

Laser

Press to activate the laser pointer on the remote. This feature is useful when making presentations - just point the remote at the screen to highlight an area of your presentation. The closer you are to the screen the brighter the laser beam appears. The laser pointer works best in an environment where ambient lighting can be controlled.

CAUTION

LASER RADIATION DO NOT STARE INTO BEAM

LASER DIODE

Wavelength 670nm Max Output 1mW

CLASS II LASER PRODUCT

3.3 Navigating the Menus

NOTE: Leave batteries in the wired remote keypad for the

key to work.

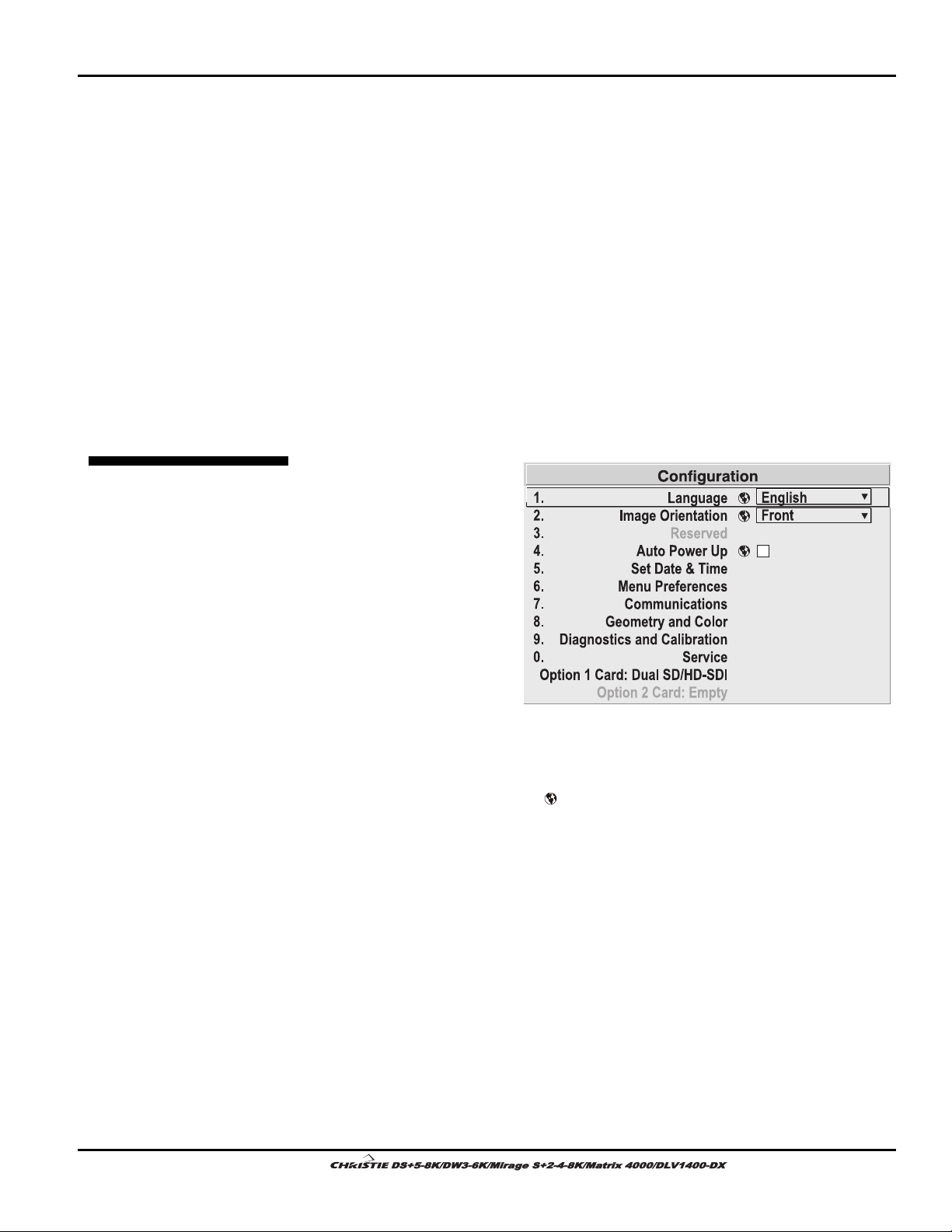

Most of the controls for the projector are accessed from within the projector ’s menu system. There are several groups of related functions, with each group selectable from the

Main menu as shown at right. Press

any time to display this Main menu. On the remote keypad, either enter the number

corresponding to the function menu you wish to access, such as menu, or use the

for the Image Settings

keys on any keypad to highlight the desired option, then press or pull-down list of further options will then

. The corresponding function menu

Figure 3.4. Entering the Menu Syste

appear. With a function menu displayed, navigate in a similar manner—enter a menu option

number for any numbered option, or use the option, then press

(Enter). Extra long menus have a scroll bar on the right—use

keys to highlight the desired

the arrow keys to access the remainder of the menu. Locked items or items that do not pertain to the current action or condition appear dimmed and cannot be selected.

On-line Help '

3-10

NOTES: 1) If there is no signal present, all source-dependent adjustments are disabled. 2) After 15 minutes of inactivity, the projector leaves the menu system and returns to the presentation. 3) The Status menu is read-only.

When finished with a function menu, do one of the following:

• Press

If at any time you are uncertain what to do next, press information about the current menu or highlighted option. Press

Exi t

to return to the previous screen

to leave the menu system and return to the presentation

Help

to display summary

Help

again to exit. In

addition, a line of “hint” text is included at the bottom of some menus.

User’s Manual

Page 37

Figure 3.5. Context-sensitive Help

From presentation level, press

Help

within a topic. Press

Section 3: Operation

Help

to access general Help Topics. Scroll as necessary

Exi t

to return to your presentation.

If a slidebar, menu, or message is displayed, you have limited time in which to make a

Time-outs

keypad entry before the projector returns to presentation level disappears. These time-outs may vary depending on what is displayed.

The Global Icon '

Menu options that include this icon apply universally to any incoming signal.

Using Slidebars and ' Other Controls

Most of the function menus allow you to change settings by using slidebars, checkboxes, and pull-down lists. To select a slidebar, toggle a checkbox status, or view a pull-down list, do one of the following within the function menu:

• Enter the menu option number corresponding to the setting you wish to change

(for example, press Position menu).

• Or move the highlight to the option desired and press

immediately.

• Or bypass the menus entirely and use a single key to immediately access an

adjustment during your presentation (NOTE: applies only to options having their own key, such as Contrast, Brightness, Gamma, etc.).

• For “blind” access, hide the entire menu system (see OSD key, above) and/or

direct slidebars activated by their own key (such as Contrast, Brightness, etc.). Control by using the proper keypress or numerical sequence of key presses.

Figure 3.6. Accessing General Help Topics

Help

to select “Vertical Stretch” in the Size &

and the graphic

(Enter).

to adjust

User’s Manual 3-11.

Page 38

Section 3: Operation

Once selected, change the setting as desired (see below) and press to save and return to the current function menu.

Slidebars in menus – The current value for a given parameter,

such as size or vertical stretch, appears to the left of its slidebar icon (adjustment window). This number often expresses a percentage, or it may have units associated with it (such as pixels, degrees Kelvin, etc.), depending on the specific option. Press to gradually adjust the setting up or down—both the number and the length of the bar change accordingly. Hold for continuous adjustment. Or press then press

“Direct” slidebars - For quick access, you can access Gamma, Brightness, and

Contrast slidebars without traveling the menu system. For example, simply press

to activate a slidebar text box for specific number entry via the keypad,

to save (or press

Exi t

to cancel).

Cont

to immediately display the same contrast slidebar accessed with the Contrast option in the Image Settings menu.

Use the arrow keys to adjust a direct slidebar, or press number from the keypad , then you are done, press

Exi t

to save and return to your presentation.

to save (or

and enter a specific

Exi t

to cancel). When

NOTES: 1) You can still adjust a direct slidebar as usual if the display is turned off

OSD

(see

or Menu Preferences menu) — the slidebar just won’t be visible. 2) A direct

slidebar disappears if it is not used within 5 seconds.

Checkboxes - Conditions are present if its adjacent

checkbox contains a checkmark. To toggle the checkbox, simply highlight and press to check and

to uncheck. If a checkbox is numbered, simply enter its number to

, or highlight and use

immediately toggle the checkbox.

Pull-down lists – To see a pull-down list of options available for a given parameter

labeled with a

▼, you can:

• Highlight it and press

(Enter)

• Or enter the menu option number.

Use noted with a small

keys to navigate up and down within the list (the current choice is

'). Press to choose an option from the list, if desired.

Figure 3.7. Example of Pull-Down List

3-12

User’s Manual

Page 39

Section 3: Operation

If you prefer to quickly scroll through a list without first pulling it down, highlight the option and use

. Press

when the desired choice appears.

Editin

Text '

NOTES: 1) Press

Exi t

2) Press

ACTIVATE THE EDIT WINDOW: To enter or edit text, highlight the desired parameter

while in a pull-down list to cancel any change.

(such as a channel name) and press

to jump between pages in an extra long pull-down list.

to activate its adjacent edit window. Any previously entered text is displayed with its first character highlighted in a square cursor, signifying that this character is ready for editing.

NAVIGATE WITHIN THE EDIT WINDOW: Press to move the cursor forward or

to move the cursor backwards as desired.

EDIT A CHARACTER: To edit a highlighted

character, use

and

to scroll through the alphabet, numbers, spaces and punctuation available. When the character you need appears, press

to select it— the cursor will move to the next character of current text, if present. Note that you can also enter a number directly from the

Figure 3.8. Entering Text

keypad—it will be accepted and the cursor will move on.

ADD OR DELETE A CHARACTER OR SPACE: To insert a space at the cursor location,

press

Func

. To delete a highlighted character (or space), press

Func

Editing Numerical Values '

PRESS (ENTER) WHEN FINISHED: To accept edits and leave the edit window,

press

NOTE: Press

(Enter).

Exi t

at any time to cancel changes and return to the previously-defined text.

Enter numbers directly from the keypad in order to specify numbers representing projectors, channels (source setups), or slots. As each digit is entered, it is displayed and the cursor moves on. Note that channel numbers are defined with 2 digits—for example, if you enter only a single digit (such as “7”) for a channel number, the channel will automatically be defined as “07”. Enter “07” to utilize this channel.

NOTES: 1) Once you enter the first digit, this digit replaces all old dig its. 2) If you press any non-numbered key, the number entered up to that point is accepted and

Exi t

updated as the new value. 3) Press

to cancel editing of numerical values.

User’s Manual 3-13.

Page 40

Section 3: Operation

3.4 Using Inputs and Channels

NOTE: See Section 2, Installation and Setup, for a full explanation of how to connect sources to the projector.

The projector stores and automatically recalls up to 50 different channels (source setups) for a variety of inputs. This memory feature allows you to define and conveniently use a wide variety of customized setups rather than having to repeatedly re-configure the projector for different presentations. Depending on what you have defined, each physical source connection (i.e., input at the projector) can have several different channels associated with it.

Do I Select an Input ' Or a Channel?

Input

INPUT – An input is a source physically connected at the projector.

describes the

source signal according to which input slot it is connected.

SWITCHING INPUTS – Press the appropriate direct key —

Input 6

to quickly display from one of the six inputs connected to the projector. The

Input 1, Input 2

Input 3, Input 4, Input 5

image will be displayed according to the following:

If it is the first time you have used the source/input (or if you used the input but did not define a channel by adjusting anything), the projector will recognize the new input signal based on its frequencies and polarities, and will automatically display an image according to default settings for such a signal. In general, the image from the new source will be as large as possible without losing its aspect ratio. This and other default image settings depend on the incoming source.

If you used the source once before and changed a display parameter such as contrast, V-Position, etc., then a channel was automatically created and still exists

Input

in projector memory (see below). Using one of the

keys will automatically recall this channel—and all its setup parameters—and update the display accordingly.

If more than one channel exists for the input, the image will be displayed according to the setup parameters for the first channel with matching characteristics.

3-14

NOTE: Inputs 7 and 8 require the Dual SD/HD-SDI module in either of the projector’s option slots. For their selection, see also 3.2 Using the Remote or Built- In Keypad.

CHANNEL - A channel is a collection of measurements, locations and settings that

tailor the display of a signal to your specific needs. Since source types and applications can vary greatly, you will likely want to adjust and define a wide variety of parameters, such as brightness, contrast, size, etc., in order to customize and optimize the display from or for a particular source. For example, the display settings you choose for a VCR source may be very different from those you choose for a high resolution computer source, or one signal may simply vary from another signal used previously through the same input location. Once you have adjusted a display parameter, such as pixel tracking or contrast, all current settings are collectively stored

in the projector's memory as a unique 2-digit channel, such as

. You can have numerous distinct channels available for the same input, any of which can be selected by using the

Shown at right is a sample channel list as would be available from

Chan nel

key on the keypad followed by the 2-digit channel number.

Chan nel

. This is

typically called the channel list.

User’s Manual

Page 41

NOTE: The

Chan nel

key may display a channel list or not, depending on what you have defined for “Display Channel List” (see Menu Preferences later in this section).

Section 3: Operation

In order to access channels by using the keypad, you must first create the channels. See below.

Creating a New ' Channel

– AUTOMATIC –

To use a new source with the projector, a new channel must be added to projector memory so that the projector will respond properly to an input signal from that source in the future. A new channel can be created automatically, as described here, or it can be copied from an existing channel and then edited as necessary (see Copying or Deleting Channels later in this section).

When you select a direct input ( channels in the projector are searched for matching input and signal parameters – this only occurs if Auto Source is enabled on these channels. If no match to the incoming input signal is found in currently-defined channels, a new channel is temporarily created based on factory-defined defaults for this type of signal. The channel number assigned is the lowest available number from 01-50.

NOTES: 1) An automatic channel will be discarded unless one or more of its parameters are changed and will not appear in the channel list (see below). 2) If two channels have the same distinguishing source characteristics except for the reversal of sync connectors (i.e., H-sync and V-sync, are switched), they are still defined as distinct channels. 3) You cannot define a new channel without an incoming signal.

Chan nel

Input 1, Input 2

Input 3, Input 4, Input 5

Channel List

Input 6

), any existing

If the incoming signal does match an existing channel, the image will be set up and displayed as usual according to the parameters currently defined for that channel.

USING A CHANNEL: You can normally select a channel at any time by pressing

Chan nel

(see right). If you want to prevent a channel from appearing in this list, you must edit the channel as described in Channel Edit later in this section. Such a channel can still be selected by entering its number as shown at right.

NOTES: 1) The current channel is highlighted upon entering the channel list, or, if this channel is not displayed here, the first channel in the list is highlighted. 2) Channels created automatically do not appear in the channel list unless a parameter for the channel has been changed.

User’s Manual 3-15.

Page 42

Section 3: Operation

What Channels '

re Defined So Far?

All available channels are listed in the Channel Setup menu, which describes how each channel can be accessed and which serves as the gateway for editing, copying and deleting channels.

From the presentation

level press

to display the Main menu. To display the Channel Setup

menu, press move the highlight to the Channel Setup option and press Setup menu will appear

, or

. The Channel

Figure 3.9. All Channels Appear in the

Channel Setup Menu

(see sample at right), with the active channel highlighted.

WHAT APPEARS IN CHANNEL SETUP MENU? This menu

lists all channels defined so far and indicates where they are connected on the input panel. The far left column lists channel numbers currently defined. Th e value s in the far right columns indicate horizontal and vertical frequencies—if someone has defined a name for this channel, it appears here instead. Remaining columns contain details pertaining to each channel setup, such as its switcher number (always 0 = projector), slot location, a variety of icons indicating access to each channel, and an abbreviated description of each signal type. See Editing

a Channel Setup for details.

NOTE: If you have more than a handful of channels, use

and to see the

remaining channels not visible in the initial disp lay of channe ls.

SIGNAL TYPE — Either channel list, whether the

Chan nel

key list or the Channel Setup menu, identifies signal types in a shortened form as defined below. These descriptors indicate what signal information the projector uses to identify a match for a given channel, and are preceded by either an “i” (interlaced signals) or “p” (progressive signal“). See Table 3.2.

Table 3.2. Abbreviations for Signal Type

Abbrev. Signal Type

4WH Composite (4 wire) on HC input 4WV Composite (4 wire) on V input SG Sync-on-green 5W Separate H,V 5WR Separate H,V swapped SVid S-Vid CVid Composite Video Dig Digital

3-16

User’s Manual

Page 43

Section 3: Operation

FUNCTIONS WITHIN THE CHANNEL SETUP MENU —To copy, delete or edit a channel,

highlight the desired channel in the Channel Setup menu and do one of two things:

Copying or ' Deleting Channels

• Press

Func

if you want to copy the selected channel or delete this or

other channels. See Copying or Deleting a Channel below.

• Press

if you want to edit channel setups (i.e., non-image related parameters) for the selected channel. See Editing a Channel Setup, below.

TO COPY A CHANNEL, highlight the desired channel in the Channel Setup menu, then

Func

press

to go to the Channel Copy/Delete submenu. Select “Copy” and press

—a new channel will be created. It is identical to original, which still remains,

but it is identified with the next available number from 01-50. If you change your

Exi t

mind and do not want to copy the current channel, press

to cancel and return to the previous menu. Copying channels is a quick method for creating numerous channels, each of which can then be edited and adjusted for a variety of presentations in the future.

Figure 3.10. Copying A Channel

TO DELETE A CHANNEL

then press press

Func

to activate the Channel Copy/Delete submenu. Select “Delete” and

—a confirmation window will appear to make sure that you really want to

delete this channel.

, highlight the desired channel in the Channel Setup menu,

Figure 3.11. Deleting a Channel

User’s Manual 3-17.

Page 44

Section 3: Operation

TO DELETE MULTIPLE CHANNELS, highlight any channel in the Channel Set up menu

and press Only” and press

Func

to go to the Channel Copy/Delete submenu. Select “Delete Unlocked

to delete all unlocked channels. Or select “Delete All Channels” to delete all channels, even those that are locked. In either case, the current channel will remain but will be redefined from projector defaults.

NOTE: For any deletion, a confirmation box appears to make sure that you really want to delete. Select “Cancel” (default) if you don’t want to delete after all.

Editin

a Channel Setup '

CHANNEL EDIT — STEP 1

CHANNEL EDIT — STEP 2

The basic setups that describe how and where a channel can be accessed are listed in the Channel Setup menu. These channel setups can be edited at any time in the Channel Edit submenu.

From the presentation level press

to display the main menu. To display the

Channel Setup menu, press3, or move the highlight to the Channel Setup option and press

. The Channel Setup menu will appear.

To edit parameters shown in the Channel Setup menu, select the relevant channel and press

. The Channel Edit menu will appear similar to the sample shown in Figure

3.12.

Figure 3.12. Channel Edit Menu (SAMPLE)

CHANNEL EDIT — STEP 3

3-18

If desired, review and/or edit the following channel setups in the Channel Edit menu:

•

CHANNEL NAME: An alpha-numeric label can be defined and/or changed here.

Channel names can be up to 12 characters in length.

CHANNEL NUMBER: A 2-digit channel number can be changed here. NOTES:

•

1) If you enter a channel number that already exists, a dialog message appears indicating that this number is already in use–assign a different channel number.

2) You can define up to 50 channels.

INPUT: 1-8, corresponding to where on the projector’s input panel the source is

•

connected.

IN MENU: If checked (default, except for automatically defined channels with

•

unchanged parameters), this defined channel will then appear in the list available when accessed via

Chan nel

key is pressed. If unchecked, the channel must be

Chan nel

on the keypad or via the Auto Source function. NOTE: On-

screen display of the channel list is an option that must be set in the Menu

Preferences menu.

User’s Manual

Page 45

3.5 Adjusting the Image

Section 3: Operation

• AUTO SOURCE: If checked, (default), the projector can automatically locate

this channel when an incoming input signal matches. If not checked, the projector can locate the selected chan nel only when it i s direc tly selec ted via

Chan nel

on the keypad—and a change in input signal will not result in a channel

change.

•

LOCKED: If checked, all of the image settings for this channel are disabled. If

unchecked (default), all available image settings can be adjusted as desired. You cannot use Auto Setup with a locked channel.

• PREVIOUS CHANNEL: Select this option to see or change Channel Edit settings

for the previous channel in the Channel Setup list.

NEXT CHANNEL: Select this option to see or change Channel Edit settings for

•

the next channel in the Channel Setup list.

The most commonly used options for image adjustments are accessed through two menus: Size and Position (

)and Image Settings (

), both of which appear in the Main menu. From either of these two menus, you can change settings affecting the image from the current channel by working with the appropriate

Exi t

slidebars, checkboxes and pull- down lists.

will return to the previous menu (or to the presentation, if from the Main menu) and accept any changes you may have entered. Settings are saved with the current channel.

Before You Begin '

From your presentation, you can access any of the individual options in these menus by pressing

location in the menu system. For example, press

followed by the appropriate two-digit number representing their

to quickly access the

“Gamma” option in the Image Settings menu. Note that for certain options, you may prefer to use a “direct key” from presentation

level to go directly to a particular option without traveling through the menu system

Contrast

(note: available for certain display pa rame ter s only). For example, press access the “contrast” slidebar immediately. Press

Exi t

to return to your presentation.

NOTES: 1) To hide these “direct” slidebars, disable the “Display Slidebars” checkbox in the Menu Preferences menu. 2) To hide the entire menu system from

view, turn off the on-screen display by pressing

Auto

Use Auto Setup (

)

OSD

For a good and efficient first step in perfecting the image, press

Auto

. This initiates an automated process in which the projector quickly optimizes critical display parameters such as size, position, pixel tracking, etc., based on the type of incoming source data detected. An Auto Setup can save considerable setup time, and you can still modify the adjustments as desired using menu options described below.

User’s Manual 3-19.

Page 46

Section 3: Operation

Size and Position Menu

In the Size and Position menu, you

can increase or decrease the size of your image, change its proportion (aspect ratio), move the image to a specific area of the screen, and refine other related paramet ers. Use Size and Position controls to match the image precisely to the screen used at the site.

Refer to "Using Slidebars and Other Controls" (earli er in thi s section) if you need help using any of the options and controls. Changes made in the Size and Position menu are applied immediately and are saved when you exit the

menu (press

Exi t

Resize Presets

NOTE: The same resize presets are available to all “DW” widescreen models. Please note however, the graphics used to describe each preset in this section are of the SXGA+ models only.

Select a Resize Presets option to quickly display an image in its native resolution or to automatically resize an image to closely fill the projector’s native resolution or to optimize the width or height of your display. Size, Position and Blanking parameters will automatically adjust accordingly or, if Blanking is set first, which defines an Active Input Area, Resize Preset scaling will occur in this region of interest only. Resizing options are explained in detail below.

3-20

WHAT IS THE RESIZING DEFAULT? By default when displaying a new source, your

image will utilize as much of the projector’s display area as possible for the type of incoming source data, but with minimal or no changes to aspect ratio. See Select “Default” below.

WHEN “CUSTOM” APPEARS: The “Custom” re-size descriptor automatically appears in

the Size and Position menu when any of the values for Size, Vertical Stretch, H- Position, V-Position or Blanking do not correspond to those for a preset. This option is not offered in the Re si ze Prese ts pull-down list.

• Select

“DEFAULT” for most sources (factory default). The image will be centered

and displayed as large as possible depending on the type of source.

User’s Manual

Page 47

Section 3: Operation

• Select

“NO RESIZING” to display the image in its native resolution, which may or

may not match the projector’s resolution. For example, for a source with a native resolution of 800 x 600, “No Resizing” in an SXGA+ projector will use the central 800 x 600 pixels and have a black border—the black border areas are unused areas. See below.

• Select “FULL SIZE” to use all

pixels for displaying the im ag e,

regardless of source or original aspect ratio. Incoming source material having a different aspect ratio than the projector will be stretched for display.

• Select

“FULL WIDTH” to fill

the projector’s display from left-to-right without changing the original aspect ratio of the image. Depending on the source, data at the top and bottom may be discarded (cropped), or the display may have black borders at the top and bottom (called “letterboxed”).

• Select

“FULL HEIGHT” to

fill the display from topto-bottom. Depending on the source, this may create borders.

User’s Manual 3-21.

Page 48

Section 3: Operation

• Select “ANAMORPHIC” to display an anamorphic image

in its native 16:9 aspect ratio. The image will fill the screen from side-to-side and be centered between black bars at top and bottom.

Size

“Size” controls both the image width and height in tandem, maintaining the current aspect ratio (proportion) of the displayed signal data.

Vertical Stretch

“Vertical Stretch” adjusts the height of the image while keeping the width constant. Use “Vertical Stretch” to change the aspect ratio of the disp lay .

Pixel Track

Steady flickering or several soft vertical stripes or bands across the entire image indicates poor pixel tracking. Proper pixel tracking helps ensure that the image quality is consistent across the screen, that aspect ratio is maintained, and that pixel phase can be optimized (described below). Tracking determines the frequency of the pixel sampling clock, indicated by the number of incoming pixels per line, so that all pixels generated by a particular source are sampled.

NOTE: By default, the projector samples at the correct frequency for most sources.

For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white pixels, or a similar “half on, half off” graphic image, such as the Windows shutdown screen. Adjust the slidebar until the vertical stripes broaden to the point where one large stripe fills the image. If the image still exhibits some shimmer or noise, adjust Pixel Phase (below).

3-22

Pixel Phase

NOTE: Adjust “Pixel Phase” after “Pixel Tracking”.

Adjust pixel phase when the image (usually from an RGB source) still shows shimmer or “noise” after pixel tracking is optimized. Pixel phase adjusts the phase of the pixel sampling clock relative to the incoming signal.

For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white pixels, or a similar “half on, half off” graphic image, such as the Windows 2000 shutdown screen. Adjust the slidebar until the image stabilizes and each pixel is clearly defined. You may notice that you can stabilize the image at more than one point—i.e., you may find that the image appearance at “11” is identical to the image appearance at “38”, thus you can use either setting.

If some shimmer from a video or HDTV source persists, use the “Filter” control to remove high-frequency noise from the signal.

User’s Manual

Page 49

Section 3: Operation

H-Position

This option moves the image right or left within the area of available pixels.

NOTE: The value shown represents where the approximate center of the image lies in relation to the total number of pixels available horizontally. This varies widely according to the signal—watch the image while adjusting.

V-Position

This option moves the image up or down within the area of available pixels.

NOTE: The value shown represents where the approximate center of the image lies in relation to the total number of pixels available vertically. This varies widely according to the signal—watch the image while adjusting.

Advanced Size and Position

— SUBMENU

This submenu consists of the following options:

ACTIVE INPUT WINDOW: This read-

only value indicates the current size (i.e., area) of your displayed data or “region of interest” as defined by the blanking controls. By default, the projector automatically determines what portion of its full resolution to use, and pixels in the surrounding borders are turned off. You can also specify a specific active input window size by adjusting one or more “Blank” settings. For example, if you have blanked (cropped) 100 pixels from both the left and right edges of an incoming source of 1400 x 1050, the remaining active input window will be reduced to 1200 x 1050. When using SD or HD or a decoded video source at

INPUT 3 or INPUT 4, the default blanking of “0” defines an active input window of 720

x 483.

User’s Manual 3-23.

Page 50

Section 3: Operation

BLANKING (TOP, BOTTOM, LEFT, and

RIGHT): Crop the image as desired so

that unwanted edges are removed from the display (changed to black—see right). Blanking defines the size of the Active Input Window, or area of interest. Range of adjustment depends on the source resolution and other factors. After adjustment of blanking it may be necessary to perform a source switch.

NOTE: Blanking a PIP image resembles zoom (Figure 3.14). For example, left Blanking zooms the right

Figure 3.13. Blanking of a Primary

side of the PIP image; Right Blanking zooms the left side. There are no black bars.

Figure 3.14. Blanking of a PIP Image

PLUG & DISPLAY (EDID): By default, a Plug & Play

(EDID) source outputs a signal according to the EDID

information provided by the projector. To override this information and display in a different format (for example, if your Plug & Play [EDID] device does not suppo rt th e projector’s resolution and/or frequency), select the desired Plug & Play (EDID) resolution from the list.


3-24

Any daisy-chained projectors will also display according to the chosen Plug & Play (EDID) format.

EDID = Extended Display Identification Data standard.

User’s Manual

Page 51

Ima

e Settings Menu '

Section 3: Operation

Use options in the Image Settings menu to alter your main image without affecting its size or position. Changes made to the Image Settings menu are applied immediately and are saved when you exit the menu (press

Exi t

). Options not available for the projector model or source are disabled and appear dim (gray).

Contrast

SHORT CUT: Press

(

Contrast

and adjust the slidebar.)

“Contrast” increases or decreases the perceived difference between light and dark areas of your image (0-100). For best results, keep close to 50. If contrast is set too high, the light parts of the image lose detail and clarity. If set too low, the light areas will not be as bright as they could be and the overall image will be dim. For best results, start with a low value and increase so that whites remain bright but are not distorted or tinted, and that light areas do not become white (i.e., are “crushed”).

NOTE: If the environment lighting changes, an adjustment of Gamma is recommended (see below).

Brightness

SHORT CUT: Press

(

Bright

and adjust the slidebar.)

“Brightness” increases or decreases the amount of black in the image (0-100). For best results, keep close to 50. Start with a high value and decrease so that dark areas do not become black (i.e., are “crushed”). Conversely, high brightness changes black to dark gray, causing washed-out images.

Gamma

SHORT CUT: Press

(

Gamma

and adjust the slidebar.)

“Gamma” is a global setting that determines what gray shades are displayed between minimum input (black) and maximum input (white) for all signals. A good gamma setting helps to optimize blacks and whites while ensuring smooth transitions for the “in-between” values utilized in other colors. Thus, unlike “Brightness” and “Contrast” controls, the overall tone of your images can be lightened or darkened without changing the extremes, and all images will be more vibrant while still showing good detail in dark areas.

Gamma is used to fine tune the gamma table currently in use, ranging from 1 – 3 (2.5 = default). If excess ambient light washes out the image and it becomes difficult or impossible to see details in dark areas, lower the gamma setting to compensate. This will improve contrast while

User’s Manual 3-25.

Page 52

Section 3: Operation

maintaining good details for blacks. Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting. In high ambient light conditions, lower gamma may produce better results than higher gamma. Gamma of 2.5 (default) indicates the gamma table has not been adjusted. For more information, refer to Advanced Image Settings, Gamma Table submenu. Again, good gamma improves contrast while maintaining good details for blacks.

Filter

The proper filter setting is automatically set for virtually all signals, and rarely needs to be changed. It applies a low pass filter for noise reduction in the incoming input signal, particularly for HDTV or SDTV. Applied in the analog domain before sampling, this filtering removes high frequencies and thus reduces pixel phase noise (note this also reduces signal bandwidth). Override only if standard pixel tracking and phase adjustments do not adequately clear up a “noisy” video signal, or if a graphics signal appears overly “soft”. Both instances indicate that “Filter” may be set to the wrong option.

Detail

“Detail” adjusts the sharpness of a video image so that edges remain clearly defined. It can be particularly useful if a significant “Noise Reduction” adjustment has caused the image to appear too soft. Adjust until the display is as sharp as desired, keeping in mind that because “Detail” adds some high frequencies back into the image, it can also re-introduce a certain degree of noise.

Noise Reduction

“Noise Reduction” is similar to the “Filter” control, but operates in the post-sampling digital domain with a more subtle effect. Higher settings are most useful for clearing up noisy RGB images such as those from a PC. Adjust as desired, keeping in mind that reducing noise (which reduces high frequencies) may also soften the image.

Color Space

“Color Space” determines how the color components of an analog input signal are decoded for accurate color in the display. Selecting a color space option is useful only for analog signals and certain digital sources connected to or

INPUT 6. Although color space for these analog signals is

INPUT 1, INPUT 2, INPUT 5

automatically determined by the projector, in some circumstances you may wish to override this and manually set a specific color space.

NOTE: For many digital signals or for signals connected to

INPUT 3 or INPUT 4, the

color space function is entirely automatic and the pull-down list disabled.

The current color space appears in the Image Set tings m enu. Press

to select a

different option:

• Select

RGB unless you are using component video at INPUT 1, 2, 5 or 6. YPbPr (Video) with a standard definition televised signal (SDTV). YPbPr (HDTV) with a high definition televised signal (HDTV).

3-26

NOTE: When certain RGB signals are first connected, the proj ect or may not initia lly recognize them as RGB and will incorrectly decode their color information as YPbPr (video). These signals can include:

User’s Manual

Page 53

Section 3: Operation

• RGB signals in NTSC, PAL, SECAM frequency range.s

• Scan-doubled sync-on-green.

• Scan-quadrupled sync-on-green.

For these signals, change the Color Space to RGB, then define a new channel for future use.

Video Options

— SUBMENU

This submenu is used with video sources only (

ENABLE DECODER AGC: Automatic

INPUTS 3 or 4).

Gain Control (AGC) affects decoded video images only. Enter a checkmark (default) in most instances—this activates the decoder’s AGC circuit to ensure properly bright images. Delete the checkmark if a decoded video image exhibits strange color artifacts such as stripes in highly saturated colors, indicating an incompatibility between this source and the AGC.

VIDEO STANDARD: For all but the more unusual video

standards available in the world, the projector automatically detects the incoming horizontal and vertical frequencies and sets the projector’s processing of this signal to the corresponding standard. The current video standard name appears in the Video Options submenu, and includes an “A” if it has been auto-detected. Press different video standard from those available to the

to view or select a

projector—any that are disabled have frequency characteristics that differ from those of the incoming signal. Selecting a specific standard forces the projector to process the signal according to this standard.

NOTE: Best results are obtained with defined channels. Otherwise, switching from one video source to another can sometimes cause slight disturbances in the display, indicating that the Auto function is struggling. Recover by briefly selecting a different video standard, then going back.

Table 3.3. Regions and Video Standards: Summary

Standard Where Used (SUBJECT-TO-CHANGE)

NTSC N. America and Japan

NTSC 4.43 A tape-only standard for partially-translated hybrid signals

PAL Most of Europe, China, Australia, some of S. America, some of Africa

PAL-M Brazil

PAL-NC Argentina, Chile, other Latin American countries

PAL 60

SECAM France, Eastern Europe, most of Africa

NOTE: Generally, use “Auto” for all instances EXCEPT: 1) a poor quality input signal or 2) a black-and-white video signal. In order to detect and display such signals, select the relevant stand ard from the lis t.

User’s Manual 3-27.

Page 54

Section 3: Operation

INPUT VIDEO BLACK: This control

compensates for incoming elevated black levels present in certain video signals, and ensures that blacks in the display are neither crushed (i.e., where dark grays appear black) nor excessiv ely elev ated (i.e., where blacks appear dark gray). By default, the pro jecto r automatically determines the best setting according to the type of incoming video signal:

0 IRE – Used for DVD output with “enhanced black”, SECAM, most PAL

•

standards, and Japanese NTSC.

7.5 IRE – Used for most NTSC video signals.

•

For some types of video, you can override the setting. The control is disab led for o t her types of video (and all graphics sources). Generally, if black appears crushed when brightness = 50, choose “0 IRE”. If black appears excessively elev ated, use “7.5 IRE”.

COLOR: This s l i d ebar adjusts the color saturation level, i.e. the amount of color in a

video image. Lower settings produce less saturated colors — for example a setting of “0” produces a black and white image. If the color level is too high, colors will be overpowering and unrealistic.

TINT: This slidebar adjusts the red/green color hue for true color reproduction of video

and HDTV signals connected to Input 3 or 4. For best results, adjust tint while displaying an external test pattern—otherwise, it is recommended that tint remain at its default setting.

DECODER LUMA DELAY: This control affects any incoming composite or S-video

signal, delaying the luma signal (intensity) in relation to the chroma (color). In the image, increasing the luma delay will move luma (seen as a shadow where colors overlap) to the right slightly, with colors remaining in place. Decreasing this delay will move the shadow slightly to the left. If necessary for your current source, adjust so that no shadows occur with adjacent colors.

Input Levels

— SUBMENU

NOTES: 1) Because the projector automatically optimizes input levels for all but the most unusual of sources, it is recommended that only experienced users use the Input Levels submenu. 2) Before beginning, check that overall contrast and brightness settings are near 50 and that color temperature is properly set up on an internal grayscale test pattern. 3) There must be at least 2 consecutive white pixels present in the image for proper “Auto Input Level” function. Leave this control off after use.

Good RGB or input levels— that is, the drives and blacklevels for each of the three colors, red, green and blue—ensure that images from analog sources other than decoded video have maximum contrast without crushing black or white. By default (and in an “Auto Setup”), the projector automatically determines the best input levels by

3-28

User’s Manual

Page 55

Section 3: Operation

monitoring image content and adjusting the controls appropriately—further adjustment is typically not required to obtain proper blacks or whites. NOTE: This

automatic adjustment requires at leas t 6-12 consecutive white pixels in the image. Without these pixels, input levels may produce skewed colors, particularly in nonvideo images.

However, for a very unusual source exhibiting one or more overly high blacklevels (typically caused by a noisy source causing blacklevel spikes), an experienced user may prefer to use the Inpu t Level s menu (shown above). These adjustments, which together serve as a calibration process compensating for differences in sources and cabling, enable an experienced user to perfect the source image input levels and eliminate the “overshoot” and “undershoot”. Note that Input Levels are of limite d use with digital signals, but do offer some ability to tweak poorly mastered source materials.

NOTES: 1) Input levels apply for the current source only, but for any color temperature used. 2) Assuming that color temperature has been set up based on the internal test patterns, you can then set up input levels for a given source so that it matches the color temperature of the internal test patterns.

AUTO INPUT LEVEL – Temporarily enter a checkmark only if you are an experienced

user and you have an unusual source that you feel needs further color temperature and/or input level adjustment. This compensates for incoming out-of-range drives (white) and blacklevels (black) that would cause “crushing” of light and dark colors in the image. After entering a checkmark, wait for the six slidebar values to stabilize, then delete the checkmark and exit. The Auto Input Level is automatically turned off upon exit from the Input levels Menu.

BLACKLEVELS AND DRIVES - To check your image levels and adjust these controls:

1. Make sure overall “Contrast” and “Brightness” settings are both set to near 50.

NOTE: Not required for “Auto” adjustment.

Contrast

•

= 50 (approx.)

Bright

= 50 (approx.)

2. Check the color temperature setup using an internal grayscale test pattern, making

sure to obtain a neutral grayscale. NOTE: Not required for “Auto” adjustment.

3. Confirm that you are using an analog source not connected to INPUT 3 or INPUT

4, as Input Levels are not applicable for digital sources or sources going through the decoder. A grayscale is recommended.

4. If the blacks and/or whites appear OK, input levels do not need adjustment. If

black levels are too high (and/or whites are too low, which is rare), you likely have a noisy source that is producing skewed input levels. Continue with Step 5.

5. Temporarily enable “Auto” in the Input Levels submenu. Wait for all 6 values to

stabilize. Alternatively, do not use “Auto”—reduce blacklevels manually instead. Judge by eye and change one or more of the six levels as necessary to obtain proper blacks and whites. You may want to see only a certain color while adjusting—use the “Color Enable” option (described below).

6. Delete the “Auto” checkmark and leave the Input Levels menu.

IMPORTANT: Do not use Input Levels to adjust color temperature. This will distort Contrast and Brightness functions as well as color temperature.

User’s Manual 3-29.

Page 56

Section 3: Operation

AUTO COLOR ENABLE – When a checkmark is present, selecting a specific blacklevel

or drive to adjust will automatically enable the corresponding color in the display. Delete the checkmark to see all colors, or to enable a different specific color through the Color Enable Control.

CLAMP LOCATION – This option (formerly known as sync tip

clamping) can brighten the image produced from certain hig h-

resolution high-frequency graphic sources. For almo st all source s, the best clamp location is automatically selected by the projector. Use the normal Back Porch location if the im ag e is eithe r suffic iently brig ht or overly bright. Select Sync Tip if the image appears unusually dim , if there are ho riz ontal st r eak s across the image, or if there is sign ifican t color d rif t. Th i s moves the clamping pulse from the normal backporch location (which is likely too short) to the tip of the horizontal sync pulse. Tri Level is ty pically needed for an H DTV source.

COLOR ENABLE –Select which color or colors you want to see in the display, useful

while working with color temperature white levels or input levels. NOTES: 1) Input levels apply for the current source only, but for any color

temperature used. 2) Assuming that color temperature has been set up based on the internal test patterns, you can then set up input levels for a given source so that it matches the color temperature of the internal test patterns.

PEAK DETECTOR – The Peak Detector is a tool to assist with defining individual input

levels, enabling you to accurately set the Input Levels for any particular source with the appropriate image. Enabling the Peak Detector activates a special operating mode for detecting only pixels that are considered black or white—all other levels are displayed as a mid-level gray. When used with a smooth grayscale pattern in which black and white are known to be at opposite edges of the image, you can watch these isolated areas while adjusting individual blacklevels and input drives until both black and white edges are just visible and distinguished from neighboring pixels. Images from this source will then display correct blacks and whites without crushing.

See Figure 3.15. Adjusting Input Levels Using the Peak Detector

1. Display a 16 level grayscale test pattern from the desired external source, and enter a checkmark in the Peak Detector checkbox. NOTE: The “Peak

Detector” will initially render the grayscale as a uniform gray field before adjustment or extreme crushing.

2. Display one primary color. NOTE: Selecting Auto Color Enable ensures the correct color is displayed for each setting.

3. For the current color, adjust its corresponding “Blacklevel” slidebar just until a single band of black appears at one edge of the screen. This band represents the first band of the grayscale pattern, which should be 100% black. Do not adjust too far.

4. With the same color still active, adjust its corresponding “Input Drive” slidebar just until a single band of color appea rs at the oppos ite edg e of the screen. This band represents the last band of the grayscale pattern, which should be 100% white (or the current color, if a certain color is enabled). Do not adjust too far.

3-30

User’s Manual

Page 57

Section 3: Operation

5. It may be advantageous to go back and check the black band—adjust the blacklevel slidebar if nece s sary . NOTE: Readjusting blacklevels at this point

affects the gain; only readjust when absolutely necessary.

6. Repeat Steps 3-5 with the other two remaining primary colors. When each primary color shows one optimized black band and white (or colored) band, the input levels for this source are correctly set. Upon exiting the Input Levels menu, the Peak Detector checkbox will clear.

Figure 3.15. Adjusting Input Levels Using the Peak Detector

(RED EXAMPLE SHOWN)

Advanced Image Settings — SUBMENU

Use the Advanced Image Settings submenu to make the adjustments necessary for lesser used but more specialized applications on your projector.

GAMMA TABLE: This control

applies a default video or graphics gamma table or “curve” to your images, controlling the intensity of midlevel colors and producing maximum contrast, brightness and color performance. As shown at right, the graphics curve is a simple power curve while the video curve has a linear segment near black to compensate for increased blacklevels typical of video signals. Although the projector automatically applies either the graphics or video curve according to what type of incoming signal is detected, in some cases you may wish to override this default and use graphics gamma for a video source or video gamma for a graphics source. Alternatively, if neither default is ideal, you may prefer to apply a user-defined custom gamma curve that has been created externally, named, and downloaded to the projector (requires separate PC-based Arbitrary Gamma

KoRE Librarian

software applications). If any of these special user curves have been

and

installed, their names will appear in the Gamma Table pull-down list.

User’s Manual 3-31.

Page 58

Section 3: Operation

Keep in mind that any Gamma Table choice sets the related Gamma value (shown in the Image Settings menu) to a 2.5 default, where it can be fine-tuned as desired. Different values (1-3) here indicate that the original gamma table has been adjusted with either the Gamma slidebar or direct key.

SELECT COLOR ADJUSTMENT: In “Select Color Adjustment”,

choose an overall color palette for all images. The “Max Drives” factory default simply drives all 3 colors at their maximum level so that they are fully on and cannot be changed. The two other pre-defined color adjustment choices—SD Video and HD Video—apply a color gamut optimized for video sources (standard or high-definition). Alternatively, you can specify a color temperature. This enables the adjacent Color Tempera tur e slid eba r and appli es its current setting (default = 6500K). If none of the pre-defined “Select Color Adjustment” options or color temperatures suit your application, select one of four color gamuts previously defined by a user (User 1, 2, 3, 4). A “User” option applies a customized color performance in which the user has precisely set the hue and intensity of each color component in the Color Adjustment by X/Y or Color Saturation submenus. It is most often needed with multiple-projector applications. Select the color adjustment producing the best color accuracy for your application and installation.

To configure a “User” color adjustment (gamut), use either the Color Adjustment by

X/Y or Color Saturation submenu. NOTES: 1) “Color Temperature” defaults to 6500K until changed. All four “User”

options default to SD Video unless they have been redefin ed by the user. 2) Factorydefined color primaries, which ensure consistent color gamut from projecto r- toprojector, can be calibrated in the Service menu only. If you suspect alteration, the factory settings can be recovered with selection of Reset to Factory Defaults? in the Color Primary Settings submenu within the Service menu (password-protected).

COLOR TEMPERATURE — Adjust to apply a specific and accurate color temperature to

all displays. Color temperat ures are expres sed in degrees Kelv in (3200-9300K), and utilize different combinat io ns of the pro jector ’s or ig ina l nativ e color pr imaries to produce a “coloration” or cast (reddish or bluish) in images—the lower the temperature, the more reddish the cast; the higher the temperature, the more bluish the cast. Note that the slidebar is enabled only if you have a source connected and have selected “Color Temperature” in the adjacent “Select Color Adjustment” pull-down list in the Advanced Image Settings menu.

OPTICAL APERTURE - The optical aperture inside the projector controls the diameter

of the light beam passing through the system. With a fully open aperture (slidebar default of “0”), the maximum amount of light passes through for maximum brightness in your images. Increase the slidebar setting to reduce the aperture diameter and maximize contrast ratio instead. Performance of aperture depends on the lens in use.

3-32

NOTE: Optical Aperture also appears in the lamp menu.

RESERVED - No function.

User’s Manual

Page 59

Section 3: Operation

Simulation 3D — SUBMENU OF ADVANCED IMAGE SETTINGS

Use the options in the Simulation 3D menu to make the timing adjustments necessary for realistic simulation and 3D images.

NOTES: 1) Available in Mirage projectors only. 2) For complete 3D application notes, refer to the separate Using 3D in Mirage provided with the Mirage projector.

FRAME DELAY MONITOR — This slidebar monitors the latency between input and

manual

Figure 3.16.

output. For best results, the bar width and value should remain fairly constant, indicating that timing of input and output frames is locked; the Frame Delay Monitor value should stay within 5-10 lines or so of the Frame Delay setting. If a frame is lost or “dropped”, the bar will move suddenly and the values will change, indicating that the frame input is no longer equal to the output.

NOTE: See separate Using 3D in Mirage manual provided for more information.

FRAME DELAY — Set the number of lines delayed between the input signal and its

appearance on screen, keeping in mind that projector processing always adds one frame of delay to the frame delay setting. For applications such as simulation, where

the feeling of “real time” image response is a priority, a minimum setting is usually preferable. For projectors capable of 3D (stereographic) applications where alternating left-right frames must be synchronized with the corresponding L/R shutters in 3D glasses, a total frame delay setting of two (or multiple of two) may be more useful. If set too high or low, frame locking will not be possible—most sources require approximately 50 lines of delay to ensure frame locking.

NOTE: See separate Using 3D in Mirage

DARK INTERVAL — Adjust Dark Interval to artificially increase the amount of dark

manual provided for more information.

time between displayed frames for stereographic 3D images. Higher settings provide more time for shutters in 3D glasses to open/close, ensuring that each eye sees the full display intended for it. Symptoms of cross-talk and/or color artifacts can indicate need for adjustment. The Dark Interval range of adjustment depends on the vertical frequency of your source—the higher the frequency, the smaller the range.

NOTE: See separate Using 3D in Mirage

3D STEREO SYNC LOCKING — This option defines 1) whether or not the incoming

manual provided for more information.

stereographic 3D signal locks to the vertical sync output so that signals are synchronized, and 2) whether or not the 3D frames must be inverted, i.e. swapped leftwith-right. The correct setting ensures that the projector’s 3D display of left/right frames is synchronized with the rest of the 3D system components so that left/right image data is seen by the intended eye. Select the option corresponding to your 3D source connections and timing, and use only if the Mirage 3D Stereo Sync Cable is connected between the projector’s GPIO port and a server. Keep this adjustment OFF (default) when you are not using the Mirage 3D Stereo Sync Cable.

User’s Manual 3-33.

Page 60

Section 3: Operation

With your sync cable, Z-screen and, if desired, emitter connected as described in the

Using 3D in Mirage

manual, select the option suited to your 3D configuration (see

above). If Frame Delay is 2 (or 0), do not invert; if frame delay is 1 or 3, invert. Generally, an “Unlocked” setting is synchronized with the incoming L/R signal rather than the vertical sync output, and may be needed only with multi-projector installations in which the vertical sync outputs vary.

NOTE: See separate Using 3D in Mirage

3D STEREO SYNC SELECT

— Define which of the

manual provided for more information.

Mirage 3D Stereo Sync Cable’s input connecters

is routed from your server. Use only if the cable is present.

3D STEREO SYNC DELAY — Set when the L/R frames begin, defining the best

reference point for synchronizing the display with your glasses. Proper adjustment of this delay should eliminate cross-talk and odd colors caused by timing differences between the glasses and the projected display. Use this slidebar only if the Mirage 3D Stereo Sync Cable is connected between the projector’s GPIO port and a server. Slidebar values indicate the number of lines that are delayed.

FRAME LOCK ENABLE—When checked, the output image frame rate is locked to the

input signal frame rate when possible. When the images are not locked, the input and the output will run as close to the same rate as possible, but frames may occasionally be duplicated or dropped.

NOTES: 1) When enabled, the output is always locked to the primary source. 2) See separate Using 3D in Mirage

WARP LATENCY — Requires optional ChristieTWIST module. See ChristieTWIST

manual provided for a full explanation.

User’s Manual provided with the module.

Advanced Image Settings continued

MOTION FILTER —

This control is most useful for smoothing out moving images from

— SUBMENU

interlaced sources. In most cases the proper Motion Filter setting is automatically determined according to the type of incoming source signal. However, if your source is jittery and/or tearing you may wish to “force” a setting to ensure stable processing for this source—if desired, override the default “Auto” setting by selecting the appropriate motion filter:

AUTO: The projector will automatically use the correct motion filter according

1. to the incoming signal.

STILL: For static images with no motion, such as graphics from a CD.

MOTION: For video images that did not originate from film, or for moving

computer-generated im ag es.

3-34

User’s Manual

Page 61

Section 3: Operation

4. FILM: For video images that originated from film. This will optimize image quality and stability.

FILM MODE THRESHOLD — This setting determines how sensitively the projector can

detect if an incoming video signal originated from film or not. It should not require adjustment.

DETAIL THRESHOLD — Use “Detail Threshold” to define at what frequency level the

“Detail” control will begin to magnify high frequencies, which adds details back into the image. Raise the threshold to ignore more of these high frequencies, and lower the threshold to magnify more of these frequencies. A setting of “0”, for example, means no noise will be ignored and all will be magnified. An ideal detail threshold is one in which high frequencies that are causing objectionable noise are not magnified when using “Detail”, but frequencies which can help sharpen an overly-soft image are magnified.

3.6 Adjusting System Parameters and Advanced Controls

System Configuration ' — GENERAL —

Use the Configuration menu to define general operating parameters and communications with other projectors and equipment, and to access other advanced processing and image adjustments affecting overall performance. In addition, the Configuration menu provides access to diagnostics, calibration tools and the Service submenu (passwordprotected).

Keep in mind that settings in the Configuration menu (and its submenus) are typically “global” settings applied regardless of the type of source your are using. This characteristic is identif ied w ith the

(globe) icon alongside the option.

NOTE: The Configuration menu is recommended for experienced users/technicia ns only.

The first six options in the Configuration menu are explained below:

Language

Choose from available languages to use in the projector’s menus. The change will take effect immediately.

Image Orientation

Set the orientation of the image according to the orientation of your projector. If the setting is incorrect, projected images will be reversed and/or upside down.

Reserved

No function.

User’s Manual 3-35.

Page 62

Section 3: Operation

Auto Power-up

Enter a checkmark to enable the projector to automatically power up after losing power due to a power failure or due to unplugging the projector during operation. Note that unsaved display adjustments may be lost.

Set Date & Time

Enter/read the current year-month-day and hour-minute-second. Changes here reset the projector’s real-time clock.

Menu Preferences

— SUBMENU

Adjust the appearance, content and/or location of on-screen menus and messages.

LARGE MENU FONT — Enter a

checkmark to enlarge menus and their text. You may have to adjust “Menu Location” to accommodate the increased menu area.

MENU LOCATION — Use the pull-down list to choose a pre-defined default or

customized location for the display of all on-screen menus. To create a custom menu location quickly, choose a preset that is closest to the desired

location. Then adjust “Horizontal Shift” and “Vertical Shift” slidebars to move the menu to the desired location. Avoid locations too close to a corner or edge to prevent cropping of larger menus.

HORIZONTAL SHIFT AND VERTICAL SHIFT — Shift your menus as desired, creating a

customized menu location.

DISPLAY CHANNEL LIST — Enter a checkmark if you want to see a scrollable channel

list whenever you press

in the Channel Setup menu will appear here. The “Display Channel List” option

also enables on-screen feedback when using the

Chan nel

from your presentation. Channels marked with a list icon

Chan nel

key. If you prefer to hide the channel list and input dialog box while switching channels and sources during a presentation clear the checkbox.

3-36

NOTE: The Channel List and input dialog box cannot be hidden during use of the menus.

DISPLAY SLIDEBARS — Enter a checkmark to superimpose a small slidebar over the

current image whenever an adjustable parameter is selected directly with a key such as

Contrast

Bright

If “Display Slidebars” is unchecked, these slidebars can still be

accessed, but will be hidden during adjustment. This option does not affect slidebars in menus.

DISPLAY ERROR MESSAGES — Choose how you want to be notified of errors detected

in either the incoming signal or projector. Select “Screen” or “All” (default) to see brief on-screen messages. This is particularly recommended during setup or testing of the projector. Or select “RS232” to receive messages via RS232 (or RS422) serial communication only. To hide error message displays, such as during shows and presentations, select “Off” or “RS232”.

User’s Manual

Page 63

Section 3: Operation

SPLASH SCREEN SETUP —Use the Splash Screen to choose when you would like to

display a special introductory splash screen image, such as your company logo, graphic or message.

• Always Off = A splash screen never appears

• Always On = A splash screen is always on behind the current display

image, similar to wallpaper.

• Startup Only – The splash screen logo appears at projector startup only.

• Startup And No Signal – A splash screen appears at startup only if there is

no source signal.

To replace the default “Christie logo” splash screen (or other) with one of your own, use KoRE Librarian to download the desired .bmp to the projector. This will overwrite the current splash screen content in projector memory.

System Configuration ' — COMMUNICATIONS —

Settings in the Communica tions submenu define and control how single or multiple projectors are linked with each other and with a controlling device.

Baud Rates

The baud rate setting determines the speed of communication to and from the projector on the RS232 or RS422 links. The maximum rate for the RS232 is

Figure 3.17. Communications

115200; for RS422 it is 19200. Set the baud rate to match that of your controlling device, such as your PC. If you are unsure about what baud rate to choose, refer to the documentation for the controlling device. In an existing network of projectors, if you discover that a projector has a different baud rate, make sure to use the pull-down list and select the correct baud rate using the

key—do not just scroll this control with

keys. Serial

communication is always 8 data bits, no parity.

Projector

Enter a three-digit number (such as “001”) to assign or change a number to the projector currently in use. If the current projector already has a number assigned, that number will appear here (for example, “004” in Figure 3.17. above). Numerical identity for projectors enables you to communicate with a single projector within a multiple-projector application (see also make a mistake in assigning or changing the projector number, press

Proj

key in 3.2, Using the Keypads). If you

Exit

to cancel.

Network Routing

NOTES: 1) Not applicable for stand-alone projectors or simple serial networks with only one type of controller and linking.

User’s Manual 3-37.

Page 64

Section 3: Operation

SEPARATE: Select “Separate” (factory default) to keep RS232, RS422 and Ethernet

messages on their respective paths instead of being broadcast to the other types of ports. In Figure 3.18A, RS422 controls only the projector to which it is connected. In Figure 3.18B, either RS232 or RS422 will control the network.

Figure 3.18. Using the “Network Routing” Option

RS232 AND RS422 JOINED: Messages originating from an RS232 or RS422 controller

will be relayed to all RS232or RS422 ports. Any Ethernet communication, however, will not.

RS232 AND ETHERNET JOINED: Messages to and from the RS232 ports will also be

relayed to the Ethernet port, and vice versa. Any RS422 communications will be isolated.

ALL JOINED: All messages reach all ports, regardless of type.

Ethernet Settings

(SUBMENU)

NOTES: 1) Recommended for network administrators only.

DHCP: Enable this checkbox if you want a DHCP server to automatically change the

projector’s default IP address (0.0.0.0) to one that is valid and unique for use on the current Ethernet network. On networks without a DHCP server, or to simply override the automatic DHCP server function, delete the checkmark and enter the new “IP Address” settings desired. Remember that only a 0.0.0.0 address will trigger the DHCP addressing service, and only when the DHCP checkbox is enabled.

3-38

IP ADDRESS: Enter a valid and unique IP address for use on the network to which the

projector is currently connected. This address will overwrite any previous IP address such as the projector’s factory-defined default (0.0.0.0), or one that has been assigned by a DHCP server or other user. It takes approximately 10 seconds for the projector to respond at its new address.

User’s Manual

Page 65

Section 3: Operation

PORT: On some Ethernet networks, firewall restrictions may require that the port

number of the projector be changed from its default of 3002. If so, enter a new valid port number here.

Broadcast Key

Enter a checkmark if you want keypad commands sent to one projector to be relayed

Proj

to all projectors in a serial network. Note that the

key will temporarily “override” the effect of a broadcast setting and allow you to control a specific projector when necessary. Disable the setting for all but one (any) projector in a network.

Backlight

Toggle to turn the built-in keypad backlighting on and off.

Front IR / Back IR

As needed for your application, set to “on” so that the front and/or rear IR sensor locations on the projector respond to the IR keypad. Set to “off” to disable.

To disable both IR sensors, you cannot use the IR remote keypad to select the second

OFF setting. This safeguard prevents accidentally disabling an IR keypad while you

are using it. Instead, use either the built-in keypad or a wired remote (optional) to set the remaining active sensor to

OFF. The projector will no longer respond to an IR

remote keypad.

System Configuration — GEOMETRY & COLOR —

Wired Keypad

The wired keypad is ON by default to when connected to the rear of the projector. The projector will then respond to incoming commands from this port. To disable the wired keypad, you must use a different keypad—the built-in or an IR remote keypad—to select “off”. This safeguard prevents you from accidentally disabling the wired keypad during use.

In the Configuration menu, select

the Geometry and Color submenu when you need to modify overall color performance and/or image geometry for all sources.

Test Pattern

Choose the desired internal test pattern, or select OFF to turn off a test pattern. Alternatively, use the

Tes t

key for cycling through test patterns.

Keystone

NOTE: If the optional ChristieTWIST module is installed, this option is Keystone and Warping, and activates a submenu for defining custom image shapes. Please refer to

documentation included with your Christie TWIST module. Use to correct a keystoned image shape in which both sides of your image are inclined

toward the top or bottom edge. Keystone is typically caused by tilting the projector in relation to the screen, so that the lens surface and screen are no longer parallel to each other.

User’s Manual 3-39.

Page 66

Section 3: Operation

Figure 3.19. Keystone Adjustment

Brightness Uniformity — SUBMENU

Brightness Uniformity provides further refinement of displays already matched for their primary colors and overall light output. Use Brightness Uniformity to create an exceptionally smooth image in which no area appears brighter and/or more red, green or blue than another. In the Brightness Uniformity menu, enable the “Uniformity Enable” checkbox to access a multitude of adjustments for critical color light output control in specific areas throughout the image. Your settings apply as long as the “Uniformity Enable” checkbox is enabled and you are using a “User” color temperature defined by the Brightness Uniformity controls. To disable the Brightness Uniformity function, delete the “Uniformity Enable” checkmark.

NOTE: See also 3.10, Using Multiple Projectors for the complete step-by-step procedure for achieving uniform brightness in adjacent displays.

Edge Blending

— SUBMENU

The Edge Blending submenu provides a range of controls for smoothing together the overlapping bright edges of multiple adjacent projected images to create a single larger “seamless” image. These controls, which primarily affect whitelevels, are typically used in conjunction with mechanical lens blinders (optional), which are installed on the front of the projector and which primarily affect blacklevels. NOTE:

There is a center line (both horizontal and vertical) in the Edge Blending test pattern. The intersection of these lines is the true center of the projector’s display area.

NOTE: See also 3.10, Using Multiple Projectors.

Color Adjustments by X/Y, and Color Saturation —

SUBMENUS

NOTES: 1) For defining or changing a User 1, 2, 3, or 4 color performance or “gamut”. Sometimes known as Comprehensive Color Adjustment™. 2) Factorydefined primary color levels, which ensure a specific color performance from projector-to-projector, can be calibrated in the Service menu only. If you suspect alteration of these defaults, the factory settings can be recovered with selection of “Reset to Factory Defaults?” in the Color Primary Settings submenu accessed via the Service menu (password-protected).

From the factory, the projector can utilize any of the 3 pre-defined color performance settings identified at right (default=Max Drives), or colors can be driven on the basis of color temperature. For mo st applications, one of these gamuts will produce accurate and realistic colors fr om a variety of sources. They can be applied at any time in the Advanced I mage Sett ings

Figure 3.20. Color Gamut Choices

menu (“Select Color Adjustment”), and are not adjustable.

3-40

User’s Manual

Page 67

Section 3: Operation

DEFINING “USER” COLOR GAMUTS: In some cases, you may find that none of the pre-

defined “Select Color Adjustment” options exactly suit your needs. For example, you may require a unique color gamut (range) for a single projector or application, or you may need to precisely match colors across multiple adjacent displays. In such cases, use the Color Adjustments by X,Y or Color Saturation submenu to define the precise hue of each primary color component (red, green, blue, and white) used to generate the millions of colors produced in displays. You can create up to four custom color gamuts (User 1, 2, 3, or 4) with these adjustments.

Note that the two menus differ only in their user interface, so use whichever menu best suits your needs and application. A color meter can help with adjustments.

• Color Adjustments by X,Y

— Enter known x/y coordinates from the

chromaticity graph.

• Color Saturation

— Adjust color slidebars and judge image color by eye or

meter.

A user-defined color “adjustment” can be applied by selecting it in the Advanced Image Settings menu (“Select Color Adjustment”).

COLOR ADJUSTMENT BY X,Y: Use

this submenu if you want to create, alter or copy a color gamut (i.e., “color adjustment”). Controls in this menu define the precise hue of each primary color component (red, green, blue, and white) used to generate the millions of colors produced in displays. The x/y coordinates for each color define its location on the standard CIE chromaticity graph (see Figure

3.21)—changing either or both of these numbers will change the hue of the color, and relocate the “triangle” for possible colors. For

Figure 3.21. Customize Color

example, changing the x/y coordinates for red may move the color closer to orange or closer to violet, which will in turn affect all displayed colors having a red component. Adjust the slidebars or enter new specific coordinates as desired to define or change up to four “User” color gamuts needed for your environment and applications. Apply at any time in the Advanced Image Settings menu.

User’s Manual 3-41.

Page 68

Section 3: Operation

Figure 3.22. CIE 1931 Chromaticity Diagram

NOTE: Keep new x,y coordinates within the original color gamut triangle shown here.

PROCEDURE FOR X,Y ADJUSTMENTS: See 3.10, Using Multiple Projectors. COLOR SATURATION: Use this

submenu if you do not have specific color coordinates in mind and will simply judge color performance by eye or meter. Like the Color Adjustment by X,Y submenu, each color control actually defines new x/y coordinates for that color and changes its hue—it is just a different interface.

Adjust the hue of each primary color (red, green, blue, and white) by using more or less of it in

Figure 3.23. Customize Color

relation to the other colors.

NOTE: A Color Saturation adjustment defines the corresponding x/y coordinates shown in the Color Adjustment by X,Y submenu. These x/y coordinates will remain stable for this User gamut until they are changed again via either menu. Values displayed in the Color Saturation menu, however, will likely fluctuate as you use the projector, and will be different when you return to this menu at some point in the future. These floating changes do not affect the x/y coordinates or gamut.

3-42

User’s Manual

Page 69

System Configuration

DIAGNOSTICS / CALIBRATION

Section 3: Operation

Test Pattern

Choose the desired internal test pattern to display, or select OFF to turn off a test pattern. Alternatively, use the

Tes t

key

for cycling through test patterns.

NOTE: There is a center line (both horizontal and vertical) in the Edge Blending test pattern. The intersection of these lines is the true center of the projector’s display area.

Test Pattern Grey Level

Set the desired level of grey for displaying in the full gray field test pattern.

Freeze Image

Enter a check mark to freeze (stop) an image on a single frame. This diagnostic tool is useful if you need to examine in detail a still version of an incoming image that cannot be “frozen” at the source. For example, in moving images it is sometimes difficult to observe artifacts such as external deinterlacing/resizing and signal noise. Remove the checkmark to return back to normal.

Color Enable

Select which color or colors you want to see. This is useful while working with color temperature, input levels or other special setup parameters. Colors can also be enabled/disabled by entering the corresponding function code listed on the back of the standard remote keypad.

Odd Pixel Adjustment

NOTES: 1) Factory-set and rarely required by user. 2) Source must be >90 MHz.

When using certain RGB sources, you may need to adjust the normal gain or offset of odd pixels in relation to even pixels. This will smooth out very narrow (1-pixel wide) “checks” or vertical stripes that indicate adjacent “on” and “off” pixels. Using the Level Detector simplifies this process (see Figure 3.24):

1. Use an external analog native-sized continuous grayscale test pattern with at least 256-levels.

2. Turn “Level Detector” on.

3. Set “Level Value” to ~200. The image should now be black-and-white (or black-and-one color, if you use “Color Enable” function).

4. Adjust offset. Half of the pixels will move, the other half will not.

5. Adjust until the two transition regions overlap. The stripe of noise will be minimized, defined by the value in the slidebar.

6. Set “Level Value” to ~800. The image should now be black-and-white.

7. Repeat Steps 4 and 5, but adjusting gain.

8. Repeat Steps 3-7 for all remaining colors. Your RGB source should now be OK.

User’s Manual 3-43.

Page 70

Section 3: Operation

Two sets of values are automatically saved with these controls—one value for Input #1, and one for Input #2 (analog). The current set of values depends on which source is in use. This enables a source to be processed correctly via 2 different inputs.

Figure 3.24. Using “Odd Pixel Adjustment”

NOTES: 1) Adjust offset before gain, since offset affects gain. 2) A value of 128 represents no change in normal odd pixel offset or gain. 3) Odd Pixel Adjustment eliminates “1 pixel on, 1 pixel off” artifact only, not any type of larger artifacts.

Reserved

No function.

Peak Detector

The “Peak Detector” is a fast method for defining individual input levels, and can improve the accuracy of input levels set by the Auto Input Level function. Enabling the “Peak Detector” activates a special operating mode for detecting only pixels that are considered black or white—all other levels are displayed as a mid-level gray. When used with a 16-step grayscale pattern in which the two black and white bands are known to be at opposite edges of the image, you can watch these isolated areas while adjusting individual blacklevels and input drives until both bands are just visible. Images from this source will then display correct blacks and whites without crushing or washing out.

NOTE: If using Peak Detector with PIP, both images must have the same color space.

Level Detector

The “Level Detector” checkbox enables specific thresholds for blacks and whites— input levels that fall below a specified Level Value (see below) are displayed as black, and all others are displayed as white. It aids in Odd Pixel Adjustment. To use:

1. Enable “Level Detector” and display a continuous grayscale.

2. Set “Level Value” to near black (such as 200).

3. Adjust Offsets to minimize area of black stripe.

4. Set “Level Value” to near white (such as 800).

5. Adjust Gains to minimize area of white stripe.

3-44

Level Value

Level Value defines the value to be used by the Level Detector in recognizing blacks and whites. See Level Detector, above.

User’s Manual

Page 71

Section 3: Operation

LiteLOC™ Calibration

NOTES: 1) LiteLOC™ Calibration takes up to two minutes. 2) For best results, allow the projector to warm up for 15 minutes prior to calibration.

LiteLOC™ Calibration defines the range of power needed to maintain lamp brightness. Select Calibrate LiteLOC for calibration usin g your projecto r’s uniq u e specifications (recommended) rather than standard specifications. The projector will revert to the default back-up in the event of a power failure.

System Configuration '

OPTIONAL INPUT MODULES

3.7 Working with PIP or Seamless Switching

The two “Option Card” entries In the Configuration menu identify which optional input modules (a.k.a. cards) are present at

(Option 1) and

INPUT 6 (Option

INPUT

2). If either of these option slots are empty, the corresponding read-only menu entry does nothing. If there is a module installed, the corresponding menu entry may activate a submenu of further options pertaining to that module.

For example, if the Dual SD/HD-SDI module is installed at

INPUT 5 (Option 1). The

Option 1 Card submenu provides controls for configuring the various connections on this multi-input, multi-output module. As desired for your application, you can define

1) which physical input loops through to which output, and 2) which functional input (main or PIP signal) loops through to which output.

PIP (Picture-in-Picture) and Seamless Switching are independent but related projector features that both utilize two image processing paths within the projector. In the case of Picture-in-Picture, this double processing enables you to display two different images simultaneously – typically a smaller “secondary” image within a large “primary” background. In a seamless switch, the double processing essentially occurs between displays so that a full image relayed from one source can smoothly transform into a full image from another source. This change can be virtually instantaneous, or slowed as desired so that the current image appears to dissolve or “fade” into the new image.

Options for enabling and controlling PIP and Seamless Switching all reside in the same menu. Note, however, that because both features utilize the projector’s double processing capability, PIP and Seamless Switching cannot be used together. For example, fading a pair of PIP images into a new display from a different source is not possible.

For best PIP or Seamless Switching results, use two different signal types* as defined below. Do not mix two signals of the same type.

User’s Manual 3-45.

Page 72

Section 3: Operation

Signal Type Description (Input Location)

#1 5 BNCs (RGBHV or YPbPr) #2 DVI - I (analog or digital) #3 Decoded signals (Input 3, Input 4, Composite video, S-Video, or any video

signal via Input 1 BNC connectors or via an analog option card). #4 Analog Option Cards #5 Digital Option Cards #6 Digital Option Cards

* HD interlaced sources are no t recommended for the PIP window.

Other PIP or Seamless Switching tips to keep in mind include:

• When using 2 digital signals or 1 analog and 1digital, each must be ≤ 165

megapixels.

• When using two analog signals, each must be ≤ 90 megapixels.

• Avoid using an interlaced source in the PIP window

• Seamless switching may affect image quality in some cases

Workin

with PIP '

NOTE: To control the primary image, access all picture controls through the Main menu. To control the secondary (PIP) image, access picture controls through the Picture-in-Picture and Switching menu.

Use the first of six options in the PIP and Switching menu to enable and define how you want to use PIP.

Swap Main and PIP Image

Toggle the current picture-in-picture relationship so that the primary (main) image becomes secondary (PIP), and the secondary image becomes primary. Swapping is available only when PIP is enabled.

NOTE: There may be a slight delay when swapping the Primary and Secondary images.

3-46

PIP Enable

(Short cut: Press

on the Remote) if menu not present.

Toggle to display from two sources at once (Picture-inPicture) or the primary source only. This checkbox turns the secondary source on and off.

NOTE: Disable PIP and Best Switching for Interlaced sources > 35kHz.

User’s Manual

Page 73

Section 3: Operation

PIP Size and Position – SUBMENU

Most controls in the PIP Size and Position menu adjust the PIP

(secondary) image in the same fashion as their counterparts in the main Size and Position menu adjust the main image—see 3.6, Adjusting the Image for details. Exceptions are:

POSITION PRESETS –Set the

location of the PIP (secondary) image in the display.

ASPECT RATIO PRESETS – Choose the desired aspect ratio for your PIP pixels. Use

the “Default” aspect ratio when incoming format has square pixels (most common). This ensures that the resulting PIP image maintains its intended aspect ratio. Use “Anamorphic” for NTSC signals having narrower pixels--this will stretch the pixels horizontally to regain the intended aspect ratio of the PIP image. N OT E: If the ima ge

is already resized at the source it will remain that way in the PIP window. If, for example, an NTSC signal is already set to anamorphic through the Resize and Preset menu it will remain that way in the PIP window. If the NTSC signal is formatted as widescreen at the source, then the image in the PIP window will appear with black bars above and below it.

Working with Seamless ' Switching

PIP Image Settings — SUBMENU

Adjust the PIP (secondary image) without affecting the size or position. The primary image remains unchanged. See 3.6, Adjusting the Image for details

PIP Border Width

Set the desired line thickness for your PIP window border.

PIP Border Color

Select the desired color for the PIP window border.

NOTES: 1) Numbers 7 and 8 on the Picture-in-Picture and Switching submenu control switching parameters. 2) Disable PIP in order to work with Seamless Switching. 3) Disable PIP and Best Switching for Interlaced sources > 35kHz.

Seamless Switching is the ability to instantly and/or smoothly switch sources, and is controlled with options 7 and 8 in the PIP and Switching menu. To use Seamless Switching, PIP must be disabled.

Tips for best source switching:

• Make sure a channel has been configured for each source.

• Progressive digital and analog sources are recommended

• Set Image Optimization to Best Switching (see below).

• For best results, use the same frame rate and gamma setting for each.

NOTE: Avoid using two Interlaced sources.

User’s Manual 3-47.

Page 74

Section 3: Operation

Image Optimization

Choose whether to use Best Switching or whether you prefer to optimize image quality, whichever best suits your needs. When Best Switching is selected, sources are switched almost instantaneously without a dark state in between images. Eight-bit processing is used to maximize the opportunity for a seamless transition. Best Switching is recommended when only when seamless switching is necessary. Best Quality maximizes allocated resources to maintain image quality by using 10-bit processing and a single source only. If selected, there may be a brief dark state between images.

NOTE: Disable PIP and Best Switching for Interlaced sources > 35kHz.

Fade Time

Set how long (in seconds) it takes to gradually dissolve one image into another for a source switch when Image Optimization is set to Best Switching. NOTE: PIP must be

disabled for Fade Time to take effect. Also, the PIP window must be closed to activate it.

Numbers Select Main Image

Use Numbers Select Main Image to use the numeric keys #1-8 as input keys. This remapping of the keypad (see right) can be particularly useful with PIP displays, providing a convenient shortcut for changing the primary (background) image without first having to return to the Main menu. To use the keys in this manner all of the time, even with single displays, select Always. For normal keypad function, select Never (default). Set to PIP Only to use activate number keys only when PIP is in use.

3.8 Working with the Lamp

3-48

NOTE: Numbers Select Main Image keypad functionality works only when menus are closed.

Whenever you install a new lamp in the projector, access the Lamp menu to record the lamp serial number in the projecto r’s memory. You can also choose a lamp mode for regulating power and light output, change optical aperture size, and access other read-only information pertaining to past and present lamps.

LAMP HOURS shows the number of hours

logged on the current lamp. Whenever you record a new lamp serial number this value automatically resets to “0”, where it begins to log time for the new lamp. NOTE: Read-only. This information also appears in the Status menu.

User’s Manual

Page 75

Section 3: Operation

LAMP S/N is the serial number recorded for the current lamp. When you install a new

lamp and enter its serial number, the number will appear here. NOTE: Read-only. Enter a checkmark for

LAMP MESSAGE to enable a warning message that will appear

upon power-up when the lamp has reached the specified lamp limit and should be replaced. Delete the checkmark to prevent display of this message—instead, when your lamp expires, only the status display messages on the back of the projector will provide the visual warning to replace the lamp.

NOTES: 1) It is recommended that the Lamp Message checkbox remain enabled. 2)

Exi t

When a lamp warning message appears, press

to temporarily cancel the message. The message will continue to appear upon power-up until you install a new lamp.

LAMP LIMIT to the number of hours you expect to log on the current lamp before

Set replacing it. This will trigger a lamp message on-screen (if enabled).

NOTES: 1) If you change modes over the life of a lamp, the lamp limit you originally expected may no longer be possible. 2) Turning the lamp on and off reduces lamp life significantly, as do other factors. 3) It is recommended that Lamp Limit not exceed the expected lamp life, otherwise a lamp could become dangerously fragile with overuse.

Set which

LAMP MODE you want to use in order to control the

light output. You can choose to run the lamp as bright as possible (i.e., always using maximum power—this is the default upon power up) or you can power the lamp with a specific wattage appropriate for the installed lamp or you can

Figure 3.25.

set a specific intensity (brightness) to maintain. Although there are exceptions, generally higher light output or higher power settings can shorten lamp life.

Use the lamp mode that best suits your brightness needs. For example, in a tiled application you may want to precisely match brightness levels between adjacent images—judge by eye and set each individual you want images to be as bright as possible—choose

Lamp Power setting as necessary. Or if

Max Brightness. Always keep in

mind that higher lamp power settings can shorten lamp life. Lamp modes are described below:

Max Brightness: The lamp will always burn as brightly as possible, driven by

•

100% of the power level rating for the installed lamp (see Section 6, Specifications). Keep in mind that the “maximum brightness” for any lamp

gradually diminishes with age—images will become dimmer over time. Its current output level appears in the “

Intensity: Brightness will remain close to a specified level for as long as

•

Intensity” option (note: not in lumens).

possible. Once you select this option, enter a number representing the intensity level (brightness) you wish to maintain—the projector will automatically adjust power as needed to maintain this intensity as closely as possible. Note that the intensity value is a correlation only and does not represent an actual lumens level. See “

Power: The power supplied to the lamp will remain at your specified wattage

•

Intensity” below.

level. Once you select this option, enter the number of watts representing the power level you wish to maintain. See “

Power” below.

User’s Manual 3-49.

Page 76

Section 3: Operation

POWER - This slidebar and number indicates how

many watts are applied to the lamp. You can apply anywhere from approximately 60-65% of the maximum power intended for the installed lamp up to 100% of the lamp rating. Set for the number of watts as desired, keeping in mind that lower power levels produce dimmer images. When in either

Power or Max Brightness modes, the power level remains constant. Specifying a

maximum power level here is the same as operating in

Max Brightness mode.

NOTES: Power level can be set only if the lamp is in P

INTENSITY – This value and slidebar represents the

ower mode.

current brightness of your lamp, decreasing over time when you are operating in you are operating in “

Max Brightness mode or at a specific Power level. When

Intensity” mode this value remains at the original “Intensity”

setting chosen and cannot be adjusted.

NOTE: The number shown for “intensity” is not the actual lumen output, but rather a correlated value only—1246 may represent 3500 lumens, for example.

To use “

Intensity” mode, judge by eye (or use a meter) and set the level as desired for

your application. Over time, the projector will automatically increase the power supplied to the lamp as needed to maintain the chosen intensity as closely as possible. This mode is known as “Brightness Tracking” or “LiteLOC”.

HOW LONG CAN I MAINTAIN BRIGHTNESS? Software can maintain your “Intensity”

setting until the required power reaches the maximum rating for the lamp. The lower the setting, the longer it will take to reach this threshold and the longer you can maintain the desired brightness. Keep in mind that once the lamp power reaches its maximum wattage (see “

Power”, above), this tracking is no longer possible. At this

point, the lamp will gradually begin to dim as usual, even though your original

Intensity” value will still appear in the menu. To resume accurate tracking, reduce the

“ intensity setting so that the resulting “

Power” value is less than its maximum— the

lower the intensity, the longer it can be maintained.

3-50

For example, a 1000 watt lamp can be driven at no more than 1000 watts. To produce desired brightness at the screen, a new lamp would likely need less than this maximum rating—perhaps 812 watts (example only). Over time, however, the lamp will require more and more current in order to generate the desired light, until eventually the lamp wattage reaches its 1000-watt maximum and the lamp power automatically levels off. At this point, the tracking function terminates (i.e., the power level stabilizes) and the lamp will begin to dim normally. Either reduce your

Intensity” setting or replace the lamp.

“ Do not lower the “

Intensity” so much that the corresponding “Power” value reaches its

minimum—the intensity setting will be inaccurate and cannot be maintained. For best results in achieving uniform intensity amongst tiled images, choose an “

Intensity”

setting that enables all lamps to operate at less than the maximum number of watts available in your projector but high enough to keep the corresponding lamp power above its minimum. See “

Power”, above.

NOTES: 1) Lamps become more stable over time, thus a specific intensity is more easily maintained as the lamp ages. 2) Intensity can be set only if the lamp is in "Intensity" mode 3) Intensity cannot exceed the output of Max Brightness mode.

User’s Manual

Page 77

Section 3: Operation

OPTICAL APERTURE - The optical aperture inside the projector controls the diameter

LAMP HISTORY - This read-only option lists the lamps most recently

installed and recorded in the projecto r. Lamp History automatically updates whenever you record a new lamp serial number—the new lamp is added to the bottom of the list.

CHANGE LAMP to record the serial number for a newly installed lamp:

Use In the Lamp S/N window, use the number text entry keys to record the new lamp

serial number and press

again to accept the change. See Using Slidebars and Other Controls if you need help entering the number. Once entered, the new lamp serial number will be added to the Lamp History menu and the Lamp Hours timer will reset to “0”. Lamp Mode and Lamp Limit remain as they were for the previous lamp and can be changed at any time.

Figure 3.26. Recording the New Lamp Serial Number

NOTE: Enter a serial number only if you have just installed a new lamp. This will help ensure that lamp timer is not reset on an old lamp and that the number of hours logged on the lamp will be accurate.

IMPORTANT

Always record the serial number of a NEW lamp.

User’s Manual 3-51.

Page 78

Section 3: Operation

How Old is M

Lamp? '

When to Replace ' the Lamp

3.9 Status Menu

When a new lamp is installed and its serial number recorded by selecting “Change Lamp” in the Lamp menu, the lamp timer resets to “0” and begins logging time for the new lamp. This tally appears in both the Lamp menu (see right) and the Status menu.

To review the number of hours logged for previous lamps, consult the Lamp History menu.

If the “Lamp Message” checkbox has been enabled in the Lamp menu (recommended), an expiry message will appear upon power-up when the lamp has reached its defined “Lamp Limit”. The lamp should be replaced.

The “Lamp Limit” setting should not exceed the expected lamp life, as an old lamp becomes increasingly fragile and more prone to sudden failure. See also 4.4, Lamp and Filter Replacement.

The read-only Status menu lists a variety of details about the standard and optional components currently detected in the projector. Refer to the Status menu for versions of hardware and software installed, the type (size) of lamp, the hours logged in total and for a specific period (such as a rental period), and for your projector model name and serial number. In addition, the Status menu identifies the current channel, its location, its frequencies and other details.

3.10 Using Multiple Projectors

Matching Colors ' In Multiple Screens

Scroll the full Status menu using

. Use for page up/down.

When an installation requires multiple projectors, you can use the RS232 serial ports to daisy-chain the units together and control the group with a single keypad or a computer/controller connected to the first projector. In such a network, you can choose to broadcast commands to the entire group, or use the

Proj

key as desired to

limit responses to an individual projector. Alternatively, you may want to add projectors to a hub on an Ethernet network. See

2.4, Connecting Communications for full routing details. NOTE: Refer back to 3.6, Adjusting System Parameters and Advanced Controls for

complete information about communicating with multiple projectors.

In a multiple-projector wall, you will likely want to precisely match color and intensity from image-to-image so that the full wall is as uniform as possible. This matching is typically done in conjunction with brightness uniformity and edge blending.

Preliminary Calibration

As a final part of the manufacturing process, all primary colors in the projector are precisely set to pre-established values to ensure that overall color performance is optimized and is as accurate as possible. Upon installation at a site , howev er, lig hting and other environmental factors may slightly change how these colors appear on your screen. While the change is negligible in most cases, you may prefer to recover the originally intended color performance before trying to match colors from several

3-52

User’s Manual

Page 79

Section 3: Operation

projectors. Or you may be renting a projector in which the colors were corrected for use at its previous site, but are not ideal for yours.

The recommended first step in achieving such consistency is to use a color meter to measure the native primary colors—red, green, blue, and white—as they appear at the screen and record these as Color Primary Settings in the Service menu (password- protected) for each projector. On the basis of these new values, which are stored in memory, each projector will then automatically calculate any necessary corrections to reproduce the original factory colors under the current environmental conditions. This essentially calibrates a projector to its surroundings, compensating for factors such as screen type, lamp and/or ambient lighting that can alter the final color characteristics on-screen, and will improve color accuracy and consistency in a group of projectors. It ensures a good starting point for further customizing and matching; however, is not critical for all installations.

To return to the factory-set color primaries, such as when a projector is moved to different site, you must access the Service menu (password-protected). Select the Reset to Factory Defaults? option in the Color Primaries submenu. Then repeat the calibration process describe above, if desired, and continue with matching of colors.

Color Adjustment Procedure

Once the Color Primary Settings are calibra ted for the sit e (see abov e), use the Color Adjustments by X,Y or Color Saturation menu to further refine each projector’s

fundamental colors so that the hue and intensity of each color appears the same from one display to another. Once matched, you will have created a single new shared range of colors or “color gamut” that all of your projectors can produce. This palette—named User 1, 2, 3 or 4—can be applied or disabled for a source at any time throughout a bank of adjacent displays, simplifying both the setup and maintenance of a “seamless” wall.

1. Set up and optimize all projector settings. You can ignore color temperature, since you will be redefining color performance in this procedure, but do optimize each projector in every other aspect. Closely align all screen edges.

2. Assign projector numbers to make communications easier. Use desired keypad.

3. Use the same lamp mode for all projectors, and do the following:

 Set Select Color Adjustment to “Max Drives”  Display a full white test pattern  Adjust lamp power and Optical Aperture until adjacent white fields appear the

same brightness.

4. Display the Color Adjustments by X,Y menus for all projectors. Each menu shows the x/y coordinates defining the “Max Drives” color gamut for this projector. Jot down the values shown in one (any) of the displays. See Figure 3.27. Or use the “Copy From” function to copy them into a “User” gamut in one projector.

User’s Manual 3-53.

Page 80

Section 3: Operation

Figure 3.27. Jot Down a Set of ”Max Drives” X/Y Values

5. In each projector, select a “User” color adjustment (1-4) to enable Color Adjustments by X,Y changes. Then enter your recorded x/y values into each menu

(Figure 3.28).

3-54

Figure 3.28. Copy X/Y Values into All Projectors

6. In each projector, judge by eye and adjust x/y coordinates slightly in the following manner:

 To match reds, decrease “Red

X” until full field red screens match.

 To match greens, decrease

“Green Y” until full field green screens match.

 To match blues, increase both

“Blue X” and “Blue Y” until full field blue screens match.

NOTE: For speed, enable the “Auto Color Enable” checkbox. Each color

User’s Manual

Page 81

Section 3: Operation

coordinate you select will then automatically trigger a full field display of the corresponding color.

Alternatively, use the Color Saturation menu for these adjustments or to fine tune.

NOTE: For speed, enable the “Auto Color Enable” checkbox. Each color coordinate you select will then automatically trigger a full field display of the corresponding color.

These coordinate adjustments m ov e the three color points closer together (see right) to establish a “shared” gamut attainable by all projectors in your group. Adjust only as necessary to ensure that the resulting colo r palette is as large as possible. When done, you may need to adjust lamp power slightly.

7. All screens should now be color-matched. Apply this new “User” gamut to a

source at any time by selecting it in the “Select Color Adjustment” list accessed in the Advanced Image Settings menu.

chieving Brightness '

Uniformity

Using the Color Saturation Menu for Color Matching

You may prefer to use the Color Saturation menu to match colors across multiple screens. In the three Color Adjustment submenus (Red, Green, Blue—see right), set all main values to 100 and the secondary values to 0. Then judge by eye and adjust the slidebars as needed. Note that adjustments here define new x/y coordinates in the Color Adjustments by X,Y menu.

For best results, use this menu after doing the color adjustment procedure.

WHAT IS BRIGHTNESS UNIFORMITY?

When used to refine screens already matched for their primary colors

Figure 3.29. Color Matching Using Color Saturation Menu

(see Matching Colors in Multiple Screens, above) and overall light output, proper adjustment of Brightness Uniformity can create an exceptionally smooth screen in which:

• no area of the screen appears more red, green or blue than another

User’s Manual 3-55.

Page 82

Section 3: Operation

• no area of the screen appears brighter than another

• color and light output from one screen closely matches adjacent screens

Although the Brightness Uniformity control can be used for a stand-alone projector, it is particularly useful for setting up and maintaining tiled images that form a cohesive display wall in which the color “cast” and light output appear uniform throughout each image as well as throughout the entire wall. The procedure provided here assumes a multiple-screen application.

Before You Begin

Read through the entire procedure before attempting to adjust Brightness Uniformity controls, and keep in mind the following checklist of prerequisites and guidelines:

 ADJUST COLORS FIRST—Always adjust the primary colors as described in

the “Matching Colors in Multiple Screens” procedure (above) before attempting to work with Brightness Uniformity. This ensures that primary colors, color temperature, and maximized light output are all well-matched from one screen to another. These matches are needed before you can achieve good Brightness Uniformity results.

 RUN LAMP FOR 100 HOURS—Light output and Brightness Uniformity can

vary significantly during the first 100 hours of lamp use. For best results with new lamps, either set up Brightness Uniformity after this period, or do an initial setup and re-check at 100 hours.

 SET LAMP POWER—Make sure each “Lamp Power” setting is as high as

possible for your application while still maintaining a good overall match of light output from screen-to-screen. By nature, achieving a uniform brightness will require a slightly reduc ed overall brightness—this reduction will help ensure that you have enough range of adjustment when examining brightness variables more closely from screen-to-screen, and will help prevent premature “maxing out” when trying to match to a certain color, zone or projector.

 USE A “USER” COLOR TEMPERATURE—Always adjust Brightness Uniformity

for a User color temperature defined when you matched primary colors, and continue to use it for all sources displayed on the wall. Your other color temperatures will not necessarily be matched from screen-to-screen.

 WHITE UNIFORMITY SLIDEBARS—White Uniformity slidebar values may not

reduce to “0”. Each slidebar adjusts overall light output in a specific screen zone, but the value shown represents the current setting for green in this zone. When other “hidden” values (red or blue) are lower than green, during adjustment in the White Uniformity menu their values will reach “0” first, causing the slidebar to stop earlier than expecte d.

 JUDGE BY EYE OR USE A METER—Good brightness uniformity can be

achieved with either.

3-56

Step 1: General Setup

1a) Adjust primary colors (see Matching Colors in Multiple Screens) to ensure

matched overall color temperatures and light output between screens.

IMPORTANT

Double-check that all WHITES and LIGHT OUTPUT are well-matched.

User’s Manual

Page 83

1b) Enable the

Brightness Uniformity

checkbox. This will enable access to the uniformity controls and will apply the settings to your image.

Section 3: Operation

1c) Select the 13 Point test pattern for display.

This pattern provides 9 screen “zones” with 13 targets.

FOR BEST RESULTS: Rather than examining the CENTER of each zone when assessing Brightness Uniformity adjustments, focus on extreme EDGES as indicated in the illustration at right.

1d) In either Color Adjustments menu, select a “User” color. Then:

• If you have created a “User 1” color gamut (recommended) for a well-matched wall,

continue to Step

• If you prefer maximum brightness rather than a particular color temperature, select “Max

Drives”.

1e.

IMPORTANT

Do not change User 1 Color Adjustment

in color-matched applications!

1e) In the White Uniformity

menu, set the “Overall” output level to 50.0 and all remaining slidebars to 0.0. This decreases the light output just enough throughout the screen so that any color level can then be increased later as necessary for matching light output from zone-to-zone. Do not exceed 50.0 for “Overall”—a higher level will likely interfere with achieving brightness uniformity and is not recommended.

Ensure that overall light output remains well-matched from one screen center to the next. Where necessary, increase or decrease Lamp Power slightly to recover center matches.

User’s Manual 3-57.

Page 84

Section 3: Operation

Step 2: Adjust Color (level of red/green/blue) in 8 Zones

NOTES: 1) At this point, ignore the brightness of individual zones. 2) Always ignore menu colors.

2a) On each screen, compare the color temperatures in the 8 target zones (4 edges

and 4 corners) to that of the color temperature of the center. Compare using a white field only, and take note of any areas that do not match the center. Also decide if any screen exhibits a more obvious color shift than other screens— begin with this screen in Step

2b) Return to the Brightness Uniformity menu. Beginning with the screen that exhibits

2b.

the most obvious color shift(s), for each edge that exhibits a noticeably different color temperature from the center, select the corresponding Uniformity adjustment menu—Left, Right, Top or Bottom. For example, if any part of the left side is too blue, too red or too green, go to the Left Uniformity menu and adjust the colors (i.e., change their light output) until all portions of the left side closely match the center color temperature. Adjust an edge first (focusing on its center), then adjust its corners. See Figure 3.30.

Figure 3.30. Match Zones to Center Color Temperature

Repeat the color adjustment of sides and corners for each edge of the screen that does not yet match the center (note that each corner is adjustable in either of its two adjacent “side” menus). When done, all areas of a given screen should match. Repeat

2a & 2b for all remaining screens.

Steps

Step 3: Adjust Light Output in 8 Zones

3a) For each screen, compare the light output of each edge and corner to that of the

center. If any of the areas differ, use the White Uniformity menu to match edges

and corners to the center as described below (see Figure 3.31). Begin with the screen exhibiting the most obvious variations in light output.

• Adjust edge White Uniformity first—note that each edge adjustment also affects the rest of

the screen slightl y. Keep all edges just slightly lower than the center light output rather than matching light output precisely. Otherwise, it may not be possible to brighten the corners (typically the dimmest areas of the screen) enough. I.e., the best uniformity is a compromise between the brightest and darkest areas of the screen.

• Adjust corner White Uniformity last—each corner adjustment affects only this quadrant.

• Repeat for each screen.

3-58

User’s Manual

Page 85

Section 3: Operation

Figure 3.31. Match Zones to Center Light Output

Step 4: Readjust Color Temperature (level of red/green/blue) in 8 Zones

4a) Return to Steps 2a & 2b and, if necessary, fine tune the zones so that they all

still exhibit a single color tem p erature .

Canceling Brightness Uniformity

If you do not want to use or apply Brightness Uniformity settings, delete the checkmark from the “Uniformity Enable” checkbox at the top of the Brightness Uniformity menu.

e Blending '

Christie Edge Blending is an innovative set of software functions that can quickly and easily blend whitelevels along the edges of multiple adjacent projected images to create a single seamless larger image.

What is a Blend?

In simple terms, a blend appears as a gradient strip along an edge of a projected image. It is darkest along the extreme edge of the image, and lightens nearer to the rest of the image (see right).

How Are Blends Used?

In multiple-projector walls, complementary blends between neighboring images can compensate for the extra “brightness” or intensity where these edges overlap. By controlling blend width and other properties, you can achieve uniformity across the group of images. Visible overlaps will disappear:

Figure 3. 32. Edge Blending Concept

For best results, use the same projector model and type throughout your display wall. In addition, avoid high-gain screens whenever possible—the optical performance of such screens demands minimal image offset, thus projectors must be located very close to one another.

User’s Manual 3-59.

Page 86

Section 3: Operation

Edge blending software controls are located in the 2-page Edge Blending submenu— access via Configuration menu, then go to the Geometry and Color menu and select Edge Blending. The More option opens the second page of the Edge Blending submenu.

Main Functions

Use edge blending controls to set the precise width, shape and midpoint you need to blend overlapping edges tog ether smoothly.

 Blend Width determines how much area is used for blending along an

overlapping edge. Slidebar values represent the number of 8-pixel steps used for the blend. For example, a setting of “3” creates a blended edge 24 pixels wide. A setting of “0” signifies no blending. For best results in most applications, use a blend width of 16-48 steps (128-384 pixels).

Ranges: 0-80 horizontal, 0-60 vertical.

 Blend Shape determines the rate of

roll-off across the blend width, i.e. how quickly the white levels across the blend change from light and dark. Increasing the Blend Shape setting accelerates the rate of change at both extremes so that less of the region appears midgray (see Figure 3. 33). Decreasing the Blend Shape setting slows the rate of change so

Figure 3. 33. “Shape” Examples

that more of the region appears mid-gray. For most applications, this subtle control is best left close to 50.

 Blend Midpoint determines the white

level at the blend midpoint (the point equidistant between the beginning and end of the blend). Increasing the Blend Midpoint setting creates a blend that appears brighter than the rest of the image. Decreasing the Blend Midpoint setting creates a blend that is darker than the rest of the image. A setting of 50 means the midpoint is approximately 50% black—for best results in most applications, keep fairly close to this default.

Figure 3. 34. “Midpoint” Examples

3-60

User’s Manual

Page 87

 Show Blending Overlap turns your

defined blend width area to solid gray so that two adjacent images can be seamlessly aligned simply by overlapping their gray bars, if needed. Toggle the Show Blending Overlap off to reactivate the blend effect. NOTE: Blending Overlap

appears as Reserved when ChristieTWIST is installed.

Other Functions

For convenience, the Edge Blending submenu also includes related options for enabling a specific color and/or test pattern, or for working with colors or the lamp. Such functions duplicate those provided elsewhere in the menu system.

Section 3: Operation

Edge Blending Procedure

NOTE: Before attempting to work with edge blending software functions, you must 1) physically align the projectors/images by correc tly ove rlapp ing the dis pla ys from your intended external source, and 2) Match colors and Brightness Uniformity.

IMPORTANT

For a shared edge, all Blend procedures and settings

should be identical on BOTH projectors.

1. Start with 2 projectors. Display full white field test pattern from both.

2. In the Edge Blending submenu, enable Edge Blending by entering a checkmark in the top checkbox.

SET STARTING POINTS FOR ADJUSTMENT:

 Set all blend widths to 0.  Go to “More” and set everything in the Edge Blending (2) menu to 50.

User’s Manual 3-61.

Page 88

Section 3: Operation

Figure 3.35. Set Starting Points for Each Projector

4. SET BLEND WIDTH: On one projector, increase the Blend Width for an overlapping edge (for example, if the projector’s image is on left, its right edge overlaps the adjacent image—adjust Right Blend Width). Use the sa me setting on the second projector for this shared edge.

5. Re-adjust width (both projectors) until the overly bright band at the midpoint of the overlapping blends disappears or just changes to very light gray. For the shared edge, use the same Blend Width setting on each projector. If the “best blend” appears to be between two settings, choose the wider setting for both projectors.

CHECK BLEND: If the blended region appears too dark or light in relation to the rest

of the image:

 Increase Blend Midpoint in both projectors to “lighten” the overall blend,

decrease to “darken” the overall blend.

 Adjust Blend Shape in both projectors to fine-tune change the amount of mid-

gray intensity (as opposed to black/white) in the blend.

7. Repeat with remaining projectors / overlaps.

8. Check completed display wall with the desired external signal.

9. Adjust mechanical alignment if necessary to maintain perfect pixel-on-pixel alignment over time.

In applications where you are projecting only white or light images, the Blend Width may be slightly higher—set according to how much overlap you have between images. Use the following as a guide (examples show overlapping width only—values for overlapping height will differ):

3.11 Remote Control of the Projector

3-62

 Recommended overlap is 12.5% - 25%

As an alternative to using a keypad, most projector functions can be controlled remotely, typically at a controller such as a PC, via 1) simple bi-directional ASCII messaging on an Ethernet or serial communication link or 2) a web interface or “ChristieNET” on an Ethernet network. Using a PC interface can also prove to be useful in instances where extreme warping is applied and the menu items become illegible and hard to navigate.

VIA ASCII MESSAGING — Connect a serial link between your controller and the RS232

or RS422 port (recommended), or open an Ethernet socket (i.e., Telnet) between your controller and the valid projector address. Valid ASCII codes and messages are documented in the Christie Serial Communications document available at the Christie website.

User’s Manual

Page 89

3.12 Error Conditions

Section 3: Operation

VIA WEB INTERFACE — Connect your PC to the projector’s Ethernet port. In your web

browser (Internet Explorer, for example), enter the IP address of the projector you wish to control. This will start a password-protected ChristieNET application—enter the factory default “

ccm7” login and password to open the program. If the projector is

powered up, you can access assorted menu options and slidebars. Repeat for remaining networked projectors as desired. Keep in mind that multiple

units can be controlled from one PC, but each unit will be in its own ChristieNET interface (web browser) at the PC. Likewise, you can make up to five separate web locations to a single projector.

The default login provides access to security settings, where you can define other users with the same or fewer rights. Use “unlimited” rights for most applications. For all logins, the Service menu is still protected with its own password.

NOTES: 1) Any proxy server settings that interfere with this type of link should be disabled for using ChristieNET. Disable through Internet Explorer’s < Tools> <Internet Options> <Connections> <LAN Settings>. 2) Your PC must be Java- enabled to v1.4.2 or higher to run ChristieNET. 3) Depending on your projector model, certain controls provided through ChristieNET are non-functional.

Occasionally the projector will encounter an error condition that can interrupt normal operation. Such a condition can be caused by a simple invalid keypad entry, an input signal error (most common) or a system error. The manner in which users are to be notified of error conditions is set in the Menu Preferences menu:

User Errors '

• To see error messages displayed on-screen, select the “

• To be notified via a serial communication only, select the “

• To receive both types of notifications, select “

All”.

Screen” or “All” option.

RS232” option.

• To disable error messages (except for “invalid user key entry”, which can’t be

hidden), select “

Off”.

Note that a two-digit error code appears in the status LED display window located beside the built-in keypad at the rear of the projector. Normal operation is indicated by the “0n”status code.

Invalid User Entry

A keypad entry not recognized by the projector triggers a short on-screen error message identifying the problem. For example, if you specify a channel number that is not available, the message “Invalid Channel will appear. Or if you try to enter the wrong password, you’ll see “Invalid Password”. Press

Exi t

to clear the

message and try again.

NOTE: On-screen display of “Invalid User Entry” messages cannot be disabled, even if Display Error Messages has been set to “Off”.

User’s Manual 3-63.

Page 90

Section 3: Operation

ut Signal Errors '

An input signal error message occurs if you are in presentation level (i.e., there are no menus present) and have selected an input on which the projector detects a problem. While menus remain operational and any key press will temporarily remove any displayed error message, you must resolve the signal problem in order to permanently eliminate the message.

No Signal

The message "No signal" occurs when there is no source signal detected at the selected input—both HSYNC and VSYNC are inactive and the screen background is black. Connect or correct the signal, or try another input.

Bad Sync

The message "Bad Sync" occurs when HSYNC or VSYNC are active but the signal cannot be displayed. Such a condition occurs when only one of the two sync signals is present or when either sync signal is unstable or of the wrong frequency. Correct the signal or select another input.

Other Signal Error Messages

In addition to the common "Bad Sync" and “No Signal” errors, you may encounter a signal error message indicating that HSYNC and/or VSYNC are either too fast or too slow. When such a message appears, check the frequencies shown in the Status menu. If they are correct, then the signal is not recognized by the projector. On some PCs you may be able to change the settings to generate a compatible signal. If the frequencies shown in the Status menu are incorrect, check the cabling to see where the problem might originate.

System Warnings / Errors '

When the projector encounters a system malfunction, either a System Warning message or a System Error message may appear. Both types of messages are accompanied by a numerical error code on the status LED display. A system malfunction can be cleared with

Exi t Exi t

from presentation level, but may indicate

the need for service by a qualified service technician.

NOTE: System messages appear on-screen only if Display Error Messages has been set to “Screen” or “All”.

System Warnings

A system warning indicates that a system malfunction has been detected (see Status LED Codes, below). A system warning message replaces any input signal message

and disappears when the input signal status changes. While the projector will remain operational, the message indicates the presence of a potentially serious problem that should be investigated. You can press

Exi t Exi t

to remove the message, but for best results you should reset the projector—power the projector down and up again with the

(power) key.

System Errors

A system error message indicates that a serious malfunction has been detected and must be investigated as soon as possible (see Status LED Codes, below). The projector will no longer operate and must be reset—power the projector down and up again

with the

(power) key.

3-64

User’s Manual

Page 91

Section 3: Operation

The Status LED Codes

If the status code display on the back of the projector shows one of the following values, you have encountered a likely system error requiring the attention of a qualified service technician (see System Warnings and System Errors, above). Acknowledge and clear the error with

Exi t Exi t

from presentation level, or try resetting the projector by powering it off and on again, cooling when necessary. Consult Table 3.5 and contact your dealer if the problem persists.

The specific code number identifies the source of the error detected, and is particularly useful in cases where the projector is far away. For example, the code “27” means the lamp could not be turned on. Error codes for this projector are listed in Table 3.5 below.

User’s Manual 3-65.

Page 92

Section 3: Operation

Table 3.5 Error Codes

Code Description

GENERAL

12 Software bug. Contact dealer/factory. 13 CRC error in flash ROM. Download new software. 14 Engineering-only programming is complete. Call Christie, replace TIPM. 15 Attempting to download code without being in boot mode 16 Invalid interrupt. Power off/on. If it persists, contact dealer/factory. 17 User forced system to stay in boot mode 18 Jumper for programming boot not installed

LAMP FAILURES

20 Lamp turned on unexpectedly (fault related to ballast) 21 Lamp airflow low, overheating imminent 23 Cannot read valid ballast ID 26 Lamp Interlock: lamp door open, lamp not installed 27 Can’t turn lamp on 28 Lamp turned off unexpectedly 29 Lamp ballast overheated

POWER AND COOLING

46 Red DMD heatsink overheated 47 Green DMD heatsink overheated 48 Blue DMD heatsink overheated

49 Prism overheated 4C Projector shutdown due to critical error C0 Lamp blower failure (lamp not turned on)

51 LVPS fan failed (Fan 1)

52 LVPS/ Red cooling fan failed (Fan 2)

53 DC lamp fan failed in 500W / 1kW models (Fan 3)

54 Red DMD heatsink fan failed on 1kW and 1.2kW models (Fan 4)

55 Green DMD heatsink fan failed on 1kW and 1.2kW models (Fan 5)

56 Blue DMD heatsink fan failed on 1kW and 1.2kW models (Fan 6)

57 TIPM fan failed (Fan 7)

58 TIPM fan failed (Fan 8)

TIPM (Image Processor)

60 Boot code CRC failed

61 Unable to program DigMux PLD

62 Unable to program Control PLD

63 Unable to program Bubks PLD

64 Unrecognized ROM type

65 Write to flash ROM failed

66 TIPM failure

67 Downloaded code will not fit

68 Scaler communication problem

BUILT-IN KEYPAD

70 Unable to access EEPROM on the built-in keypad

71 EEPROM memory re-initialization on the built-in keypad

PANEL DRIVER AND FORMATTER

80 Unrecognized Panel Driver

81 Unable to program device on Panel Driver

82 TI flash download failure

83 TI flash download failure

84 TI flash download failure

85 TI-I2C write failure

86 One or more Formatters not responding — Probable Formatter s/w fault

87 Formatter reports RDRAM failure

88 Red modular Formatter communication failure

89 Green modular Formatter communication failure 8A Blue modular Formatter communication failure

93 Modular formatter architecture error

94 Modular formatter DMD mismatch

95 Modular formatter sequence mismatch

MISCELLANEOUS

A0 Unable to program the optional module A1 Unable to power the optional module A2 Unable to program the Dual Slot Backplane Module (DSBP) A3 Unable to program the optional Post Processing Module (Warp module)

Clear system errors with again (cooling if necessary). For detailed information, monitor the RS232 IN port. Contact dealer/factory

if error persists. Codes omitted from this table should not appear in your projector.

Exi t Exi t

. If necessary, try resetting the projector by powering it off and on

3-66

User’s Manual

Page 93

4.1 Warnings and Safety Guidelines

Section 4

Maintenance

The projector is an international regulatory agency approved product designed for safe and reliable operation. To assure complete safety at all times it is important to acknowledge the following precautions while operating the projector.

WARNING

Always remove the lens when shipping the projector.

WARNING

NEVER look directly into the projector lens.

The high brightness of this projector

could cause permanent eye damage.

WARNING

For protection from ultraviolet radiation,

keep all projector shielding intact during operation.

Labels and Markings '

Instructions '

Projector Location '

Installation should be performed by qualified

personnel.

Observe and follow all warnings and instructions marked on the projector.

The exclamation point within the equilateral triangle alerts the user to important operating and maintenance (servicing) instructions in the literature accompanying the projector.

The lightning flash and arrowhead symbol within the equilateral triangle alerts the user to uninsulated “dangerous voltage” within the projector’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

Read all operating instructions prior to using the projector. Operate the projector in an environment, which meets the operating range specified in

Section 6 – Specifications.

◊ Do not operate the projector close to water, such as near a swimming pool. Do not

operate in extremely humid environments.

◊ Do not place the projector on an unstable cart, stand or table. A projector and cart

combination should be used with care. Sudden stops, excessive force and uneven surfaces may cause the projector and cart combination to overturn.

User’s Manual 4-1

Page 94

Section 4: Maintenance

◊ Only use Christie-approved ceiling mount fixture, if the projector is to be ceiling

mounted.

Lamp '

Lamp: The projector uses a Cermax Xenon lamp to deliver its high brightness. A lamp should be replaced when it has reached its end of life (1000 hrs, typical) or if a noticeable change in brightness occurs. Keep track of the number of hours the lamp has been in use (Lamp Menu) and be aware of any changes to brightness. These indicators will help you effectively maintain operation of the projector.

WARNING

Wait approximately 5 minutes after powering down the

projector to allow internal cooling fans to stop and for

the lamp to cool sufficiently before removing.

The lamp is under great pressure when hot and may

explode causing physical injury and/or property

damage. Allow a lamp to cool before handling or

unplugging the projector.

WARNING

Use lamps of the correct wattage for your projector

model when replacing.

Use only lamps supplied by CHRISTIE.

Filter: Replace the filter when you replace the lamp or sooner if required. It is important the filter be replaced regularly to ensure sufficient airflow through the projector, otherwise it could cause the projector to overheat.

Refer to 4.4 Lamp and Filter Replacement for instructions.

Power Cord ' and Attachments

Use only the attachments and/or accessories recommended by CHRISTIE. Use of others may result in the risk of fire, shock or personal injury.

◊ Do not set or rest items on the power cord. Place the projector in an area where

◊ Operate the projector at the specified voltage only. Do not overload power outlets

◊ The projector is equipped with a three-wire plug having a third grounding pin.

WARNING

Use only the AC power cord supplied. Do not attempt

operation if the AC supply is not within the specified

voltage and power range. Refer to the Specifications in

Section 6.

the projector cord cannot be abused or damaged by persons walking on it or by objects rolling over it.

and extension cords as this can result in fire or shock hazards.

This is a safety feature – if you are unable to insert the plug into an outlet contact an electrician to have the outlet replaced. Do not defeat the safety purpose of this grounding-type plug.

4-2

User’s Manual

Page 95

Ventilation '

Section 4: Maintenance

Slots and vents in the projector provide ventilation. Never block or cover these openings. This ensures reliable operation of the projector and prevents overheating.

◊ Do not place the projector over a radiator or heat register. The projector should

not be placed in an enclosure unless proper ventilation is provided.

◊ Do not insert objects into the ventilation openings of the projecto r. They m ay

touch dangerous voltages or short-out components resulting in a fire or shock hazard. Do not spill liquids of any kind into the projector. Should an accidental spill occur, immediately unplug the projector and have it serviced by a qualified service technician.

Servicing '

If any of the following conditions exist, immediately unplug the projector from the power outlet and ask a qualified service technician to look at it.

◊ The power cord has been damaged. ◊ The internal cooling fans do not turn on within two minutes when the projector is

first powered up.

◊ Liquid has been spilled into the projector. ◊ The projector has been exposed to excessive moisture. ◊ The projector is not operating normally or its performance has significantly

deteriorated in a short period of time.

◊ The projector has been dropped or the shipping case (if applicable) has been badly

damaged.

WARNING

Do not attempt to service the projector yourself. All

servicing must be performed by CHRISTIE accredited

service technicians.

Use replacement parts that are manufacturer-approved

only. Use of any other part other than the ones specified

by the manufacturer can result in fire, electric shock or

risk of personal injury and irreparable equipment

damage.

User’s Manual 4-3.

Page 96

Section 4: Maintenance

4.2 Cleaning and Maintenance Guide

WARNING

Always power down and unplug the projector before

cleaning or servicing.

Table 4.1. Maintenance Guide

Part Description Frequency Action

Lens

Lamp

Filters Whenever a lamp is

Covers (External)

As required

1000 hrs or sooner if required

replaced or sooner

if required

As required

CLEAN: Clean if absolutely necessary. A small amount of dust on the lens has very little affect on picture quality. To clean: Apply a solvent such as acetone, alcohol or vinegar sparingly to clean, lintfree lens tissue. Wipe across the surface of the lens. Do not scrub or rub tissue in circular motion, this will scratch the lens. Do not reuse tissue. Do not use cleaning tools treated with Ether. If particles still appear on the lens, try using compressed air to remove.

CLEAN: Clean if absolutely necessary. Never touch the glass surface of the lamp. Fingerprints left on the glass will seriously degrade lamp performance or cause “hotspots” which can lead to an accumulation of intense heat in the touched area and cause the lamp to shatter. To clean: Wait until lamp is cool. Moisten a clean, lint-free cotton cloth with isopropyl alcohol and gently rub the surface of the glass in a circular motion until clean.

REPLACE: Refer to 4.4 Lamp and Filter Replacement procedure later in this section.

REPLACE: Do not reuse old filters. Use the filter provided in the Christie Lamp and Filter Kit.

CLEAN: Clean dust from external covers using a clean, lint free cotton cloth as required. NOTE: Before cleaning the

modules, it is recommended that you install the lens cap. This will keep dust particles from settling on the glass surfa ce of the lens.

4-4

User’s Manual

Page 97

4.3 Replacing Remote Batteries

Section 4: Maintenance

The optional IR remote uses two AA size, 1.5V alkaline batteries. To replace the batteries simply turn the remote over and push out the cover using the finger groove, as shown in (1) Figure 4.1.

Remove and properly discard the old batteries. Insert new batteries in the proper positive/negative orientation as shown etched in the bottom of the compartment (2). Replace the cover by inserting the tabbed end into the opening and snapping the opposite end into place.

Figure 4.1. Replacing remote batteries (underside of keypad shown)

4.4 Lamp and Filter Replacement

Use the following instructions when replacing the lamp. The lamp is located at the back of the projector (below the input panel) and can be accessed by removing the lamp access panel. Use only the Christie approved Lamp and Filter Kit for your specific projector model. See chart below.

Projector Model

Mirage S+2K

DLV1400-DX

Christie DS+5K/5Kc Mirage S+4K Matrix 4000 DW3K/3Kc Christie DS+8K Mirage S+8K

DW6K/6Kc

Lamp (Watts) Lamp/Filter Kit Required

500W 03-000832-01P

1000W 03-000833-01P

1200W 03-000834-01P

A lamp should be replaced when it reaches its end of life (1000 hours, typical) or sooner if a noticeable degradation in brightness occurs (typical in aging lamps). You can set the number of hours you expect to log with the lamp before replacing it, by setting the Lamp Limit in the Lamp menu. You can also enable a warning message to appear upon powering up the projector that will indicate the lamp has reached the limit you set, by entering a checkmark beside the Lamp Message option. NOTE: The

lamp mode you choose to run the projector in may have an impact on the number of hours expected for the lamp.

Tools required: #1 Phillips screwdriver

User’s Manual 4-5.

Page 98

Section 4: Maintenance

WARNING

Handle lamp with care. Lamp may explode if dropped.

Wear protective clothing and safety goggles when

handling lamps.

Use only Christie approved lamps provided in Lamp and

Filter Service Kits for your projector.

1. Press to power down the projector. Wait at least 5 minutes to allow the internal cooling fans to stop before unplugging the projector. This wait period is also required to allow the lamp to sufficiently cool before handling.

WARNING

Always power down and unplug the projector prior to

servicing.

Allow the lamp to cool before handling.

2. Using a screwdriver, loosen the 2 screws from the lamp door located at the back of the projector, below the input panel. (Figure 4.2.)

4-6

Figure 4.2.

3. Pull (out) and turn the lamp lock lever, wh ich is loc ate d to the left of the lam p module, a quarter turn counter clockwise to the “unlock” position. (Figure

4.3.)

Figure 4.3.

4. Grasp the lamp by its housing only and pull it straight out (lamp slides along guides) until it’s free. (Figure 4.4.) Discard the lamp using safe

User’s Manual

Page 99

Section 4: Maintenance

disposal/recycling practices or contact CHRISTIE for a possible re-lamping program.

Figure 4.4.

5. Align the new lamp with the top and bottom guides on the left side of the lamp compartment. (Figure 4.5.) Slide the lamp all the way in – a slightly harder push may be required right at the end to make sure it is fully seated into the terminal block. NOTE: The projector will not power up again if the lamp is not fully connected to the terminal block.

Figure 4.5.

6. Pull (out) and turn the lamp lock lever (turned up in Step 3) a quarter turn clockwise to “lock” the lamp in place. NOTE: If you can’t turn the lamp lock

into position it is likely the lamp is not fully inserted. In this case, partially remove the lamp and try pushing it back in again. Then, try switching the lock lever to the “lock” position.

7. Replace the lamp door and tighten the 2 screws to secure.

8. The next time the projector is powered up, enter the new serial number of the newly installed lamp. Access the Lamp menu and select “Change Lamp”. Enter the serial number in the Lamp S/N text box using the number text entry keys.

User’s Manual 4-7.

Page 100

Section 4: Maintenance

Filter Replacement '

The two filters located at the front and left side of the projector should be replaced whenever the lamp is replaced. If you are working in an extremely dusty environment you may want to replace the filters sooner. Use the filters provided in the Chris tie approved Lamp and Filter Kit for your specific projector model (Table 1.)

Tools required: #1 Phillips screwdriver

1. Loosen the screw(s) from the filter access panels. The front access panel is located to the left of the projection lens – 1 screw. Left side access panel – 3 screws. See Figure 4.6.

2. Pull the filters out of the projector and discard. Do not reuse filters.

3. Insert the new filters with the wired side in. (Figure 4.7.)

4. Replace the filter access panels and tighten the screws to secure.

Figure 4.6.

4-8

Figure 4.7.

User’s Manual
