Christ Alpha 2-4 LDplus, Alpha 1-4 LDplus, Alpha 1-2 LDplus, 101521 Operating Manual

Translation of the original operating manual
sb

Freeze-dryer

Rev. 2.2 of 17/10/2016
Alpha 1-4 LDplus;Freeze-dryer;Alpha 2-4 LDplus; ;

Version 11/2006

Alpha 1-4 LDplus

Part no. 101541

Alpha 2-4 LDplus

Part no. 101542

Freeze-dryer

Operating Manual

Please retain for later use!

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

3 / 102

Translation of the original operating manual

In case of inquiries, please state the following numbers:

Order number:

Serial number:

© Copyright by
Martin Christ Gefriertrocknungsanlagen GmbH
An der Unteren Söse 50
37520 Osterode am Harz
Germany
Tel.: [phone] / 5007-0
Fax: [phone] / 5007-12
Web: www.martinchrist.de
E-mail: [email protected]

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

4 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

Table of contents

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

5 / 102

Translation of the original operating manual

1 General information ............................................................................................................. 9

1.1 Importance of the operating manual .................................................................................. 9

1.2 Intended use ..................................................................................................................... 9

1.3 Warranty and liability....................................................................................................... 10

1.4 Copyright ........................................................................................................................ 10

1.5 Explanation of symbols ................................................................ ................................... 10

1.6 Standards and regulations .............................................................................................. 10

1.7 Scope of supply .............................................................................................................. 10

2 Layout and mode of operation .......................................................................................... 11

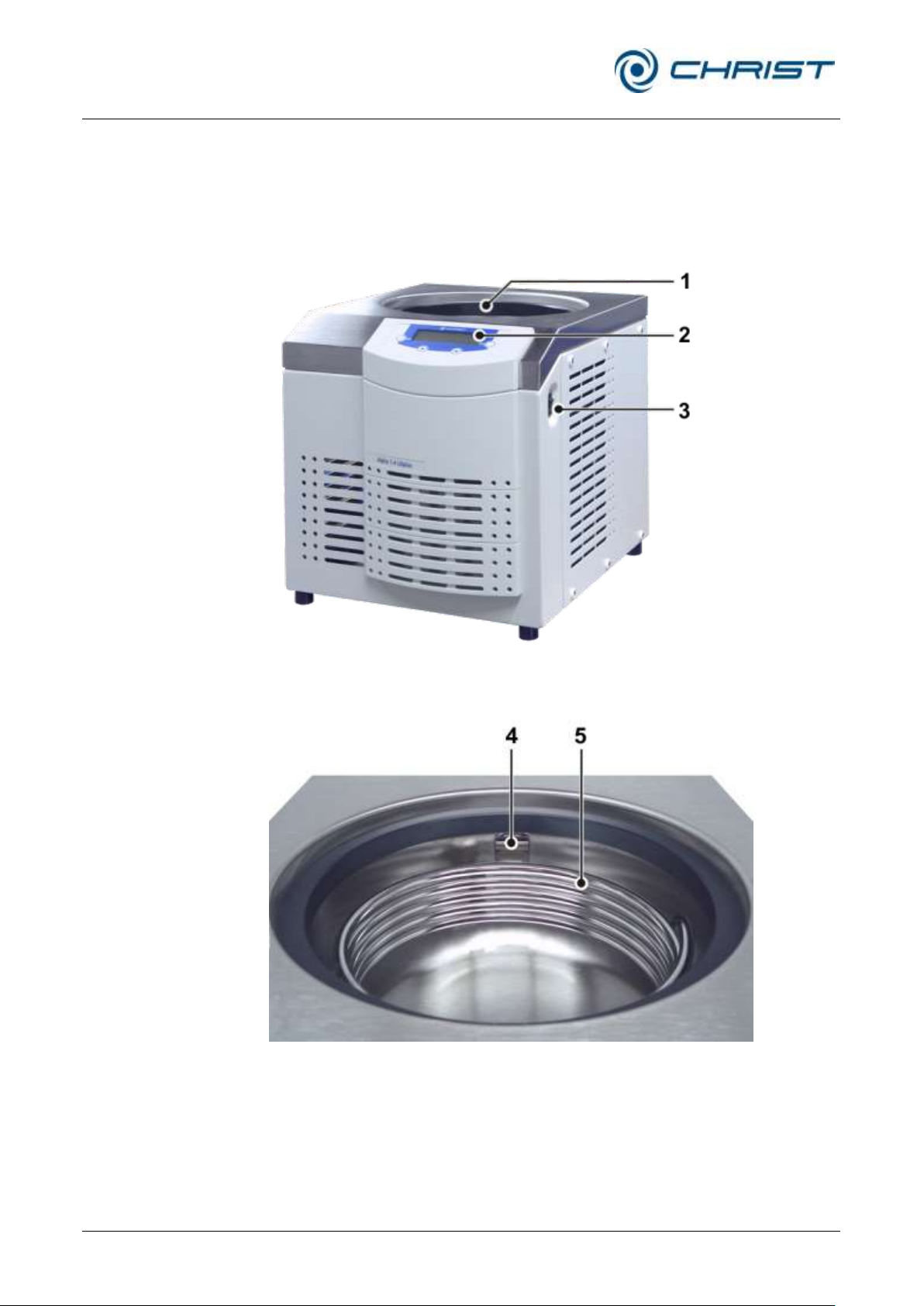

2.1 Layout of the freeze-dryer ............................................................................................... 11

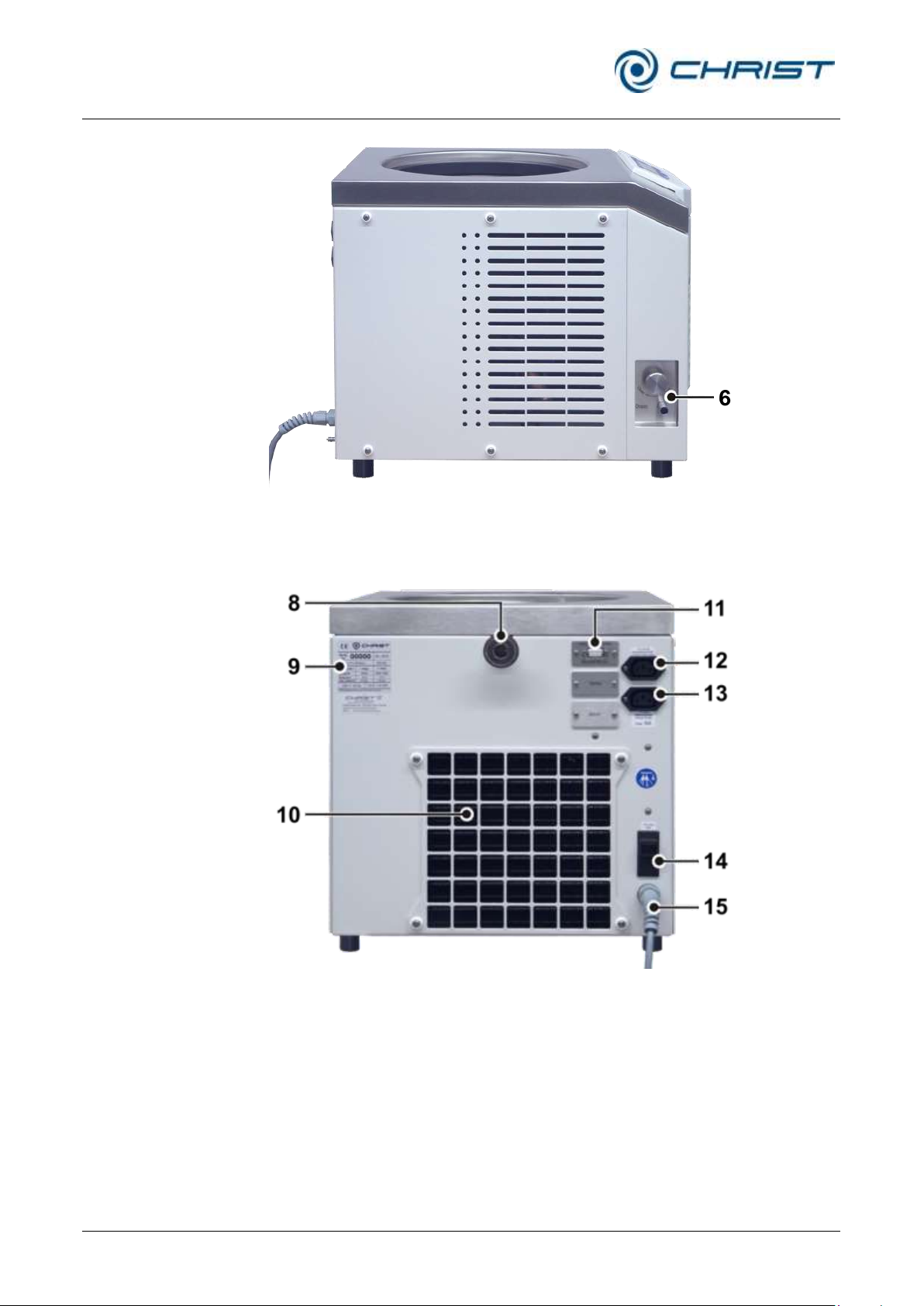

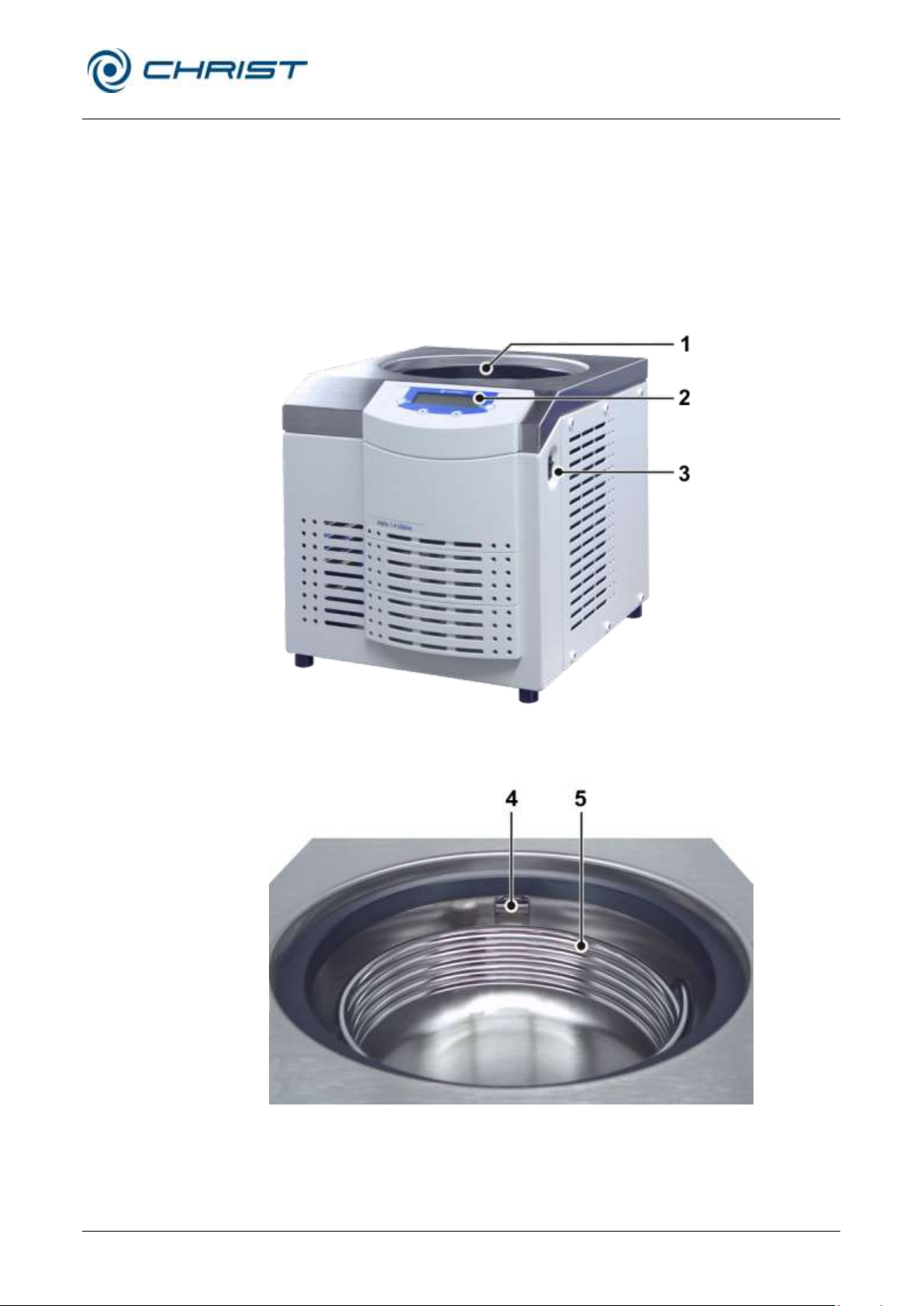

2.1.1 Functional and operating elements ............................................................................ 11

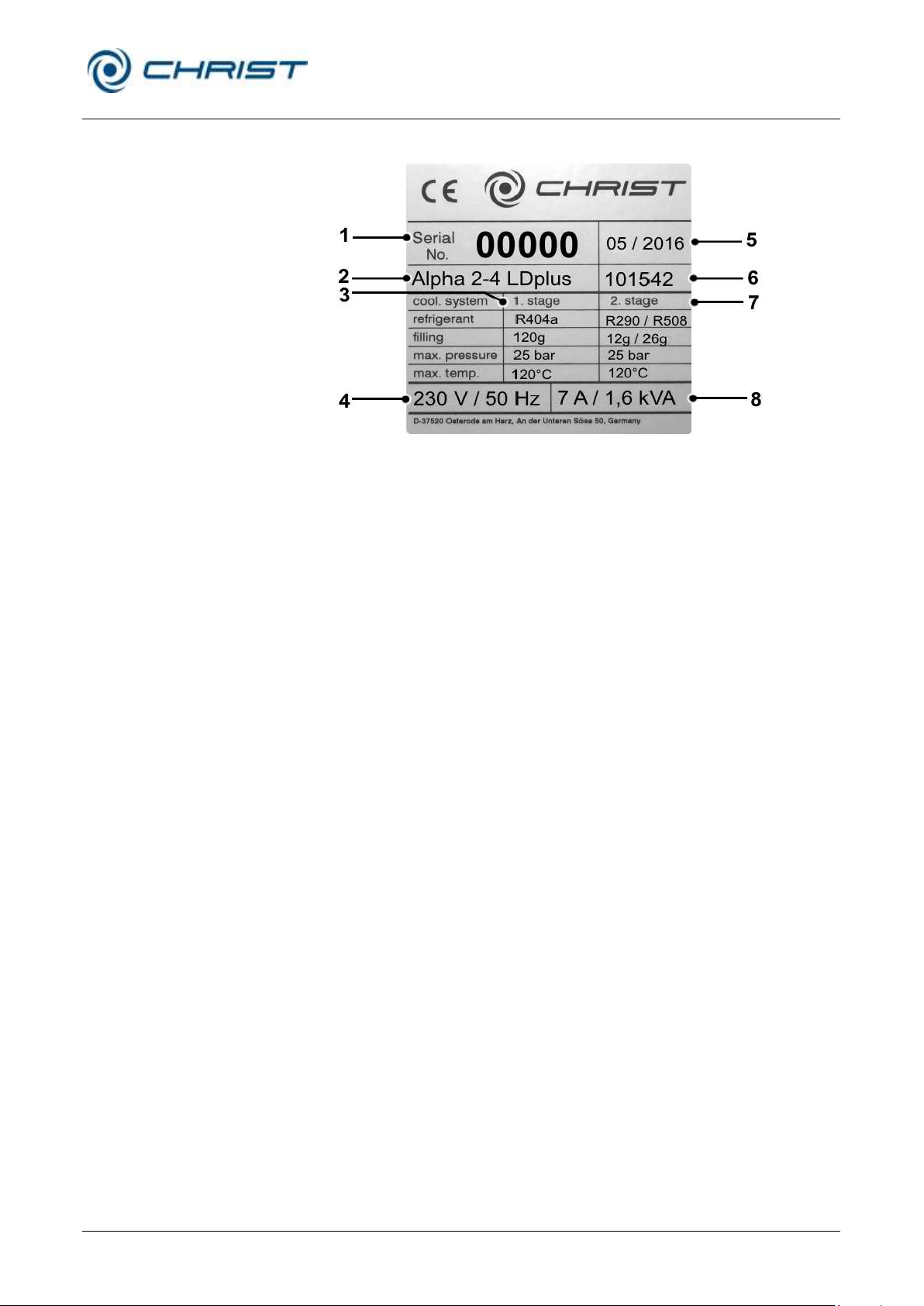

2.1.2 Name plate ................................................................................................................ 13

2.2 Mode of operation ........................................................................................................... 14

2.2.1 General information on freeze-drying ................................................................ ......... 14

2.2.2 Freeze-drying process ............................................................................................... 17

2.2.2.1 Preparation ........................................................................................................ 17

2.2.2.2 Freezing ............................................................................................................. 17

2.2.2.3 Main drying ........................................................................................................ 18

2.2.2.4 Final drying ........................................................................................................ 19

2.2.2.5 End of drying and aeration ................................................................................. 19

2.2.2.6 Defrosting .......................................................................................................... 20

3 Safety .................................................................................................................................. 21

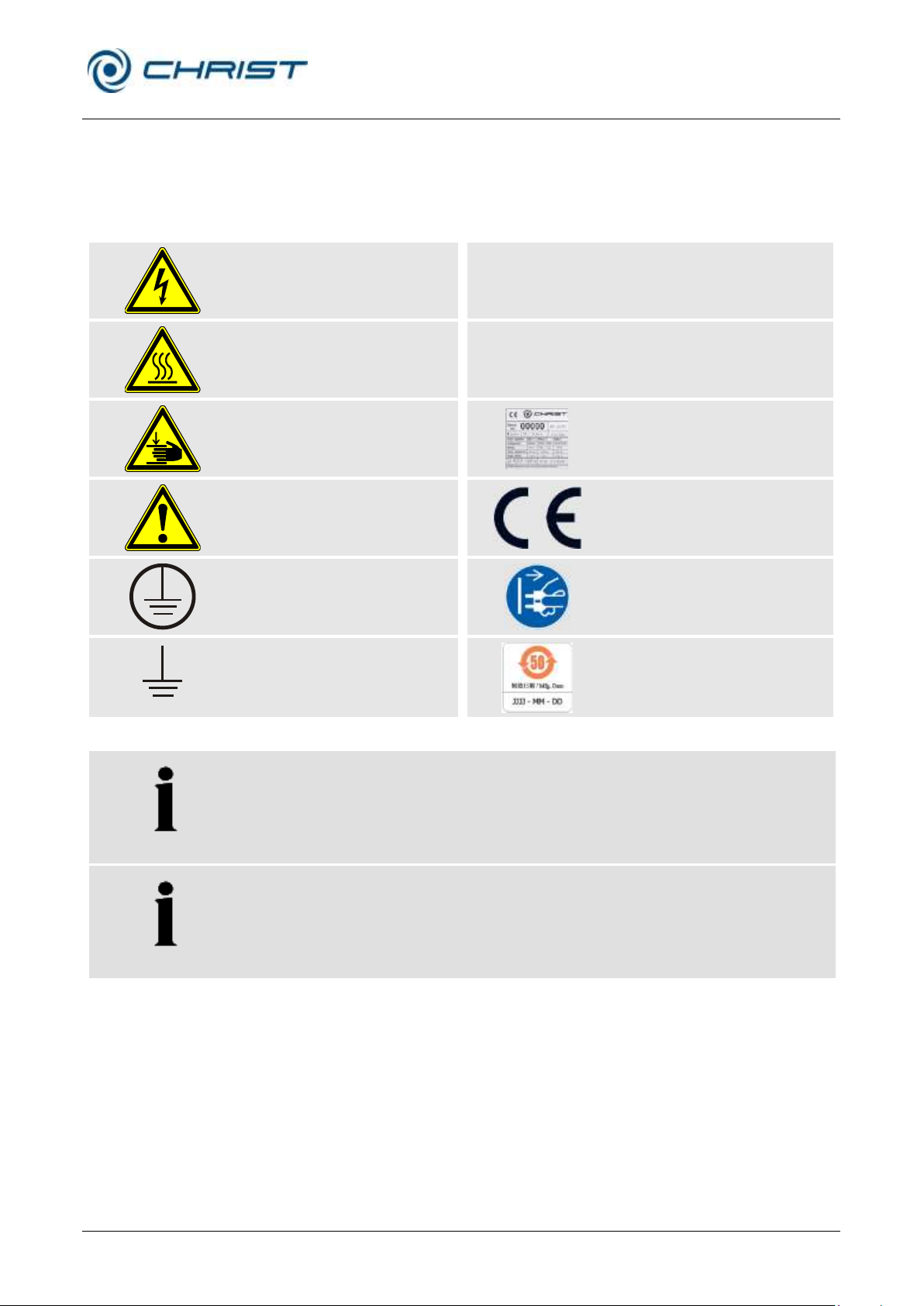

3.1 Marking of the unit .......................................................................................................... 21

3.2 Explanation of the symbols and notes ............................................................................. 22

3.3 Responsibility of the operator .......................................................................................... 23

3.4 Operating personnel ....................................................................................................... 23

3.5 Informal safety instructions ............................................................................................. 24

3.6 Safety instructions .......................................................................................................... 24

3.6.1 Electrical safety ......................................................................................................... 25

3.6.2 Mechanical safety ...................................................................................................... 25

3.6.3 Fire prevention ................................ ................................................................ ........... 26

3.6.4 Thermal safety ........................................................................................................... 26

3.6.5 Chemical and biological safety .................................................................................. 26

3.7 Safety devices ................................ ................................................................................ 27

3.7.1 System check ............................................................................................................ 27

3.7.2 Earth conductor check ............................................................................................... 27

3.8 Procedures in the event of hazards and accidents .......................................................... 27

3.9 Remaining hazards ......................................................................................................... 28

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

Table of contents

6 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

4 Storage and transport ....................................................................................................... 29

4.1 Dimensions and weight ................................................................................................... 29

4.2 Storage conditions .......................................................................................................... 29

4.3 Notes on transport .......................................................................................................... 30

4.4 Packaging ....................................................................................................................... 31

4.5 Transport safety device ................................................................................................... 31

5 Set-up and connection ...................................................................................................... 32

5.1 Installation site ................................................................................................................ 32

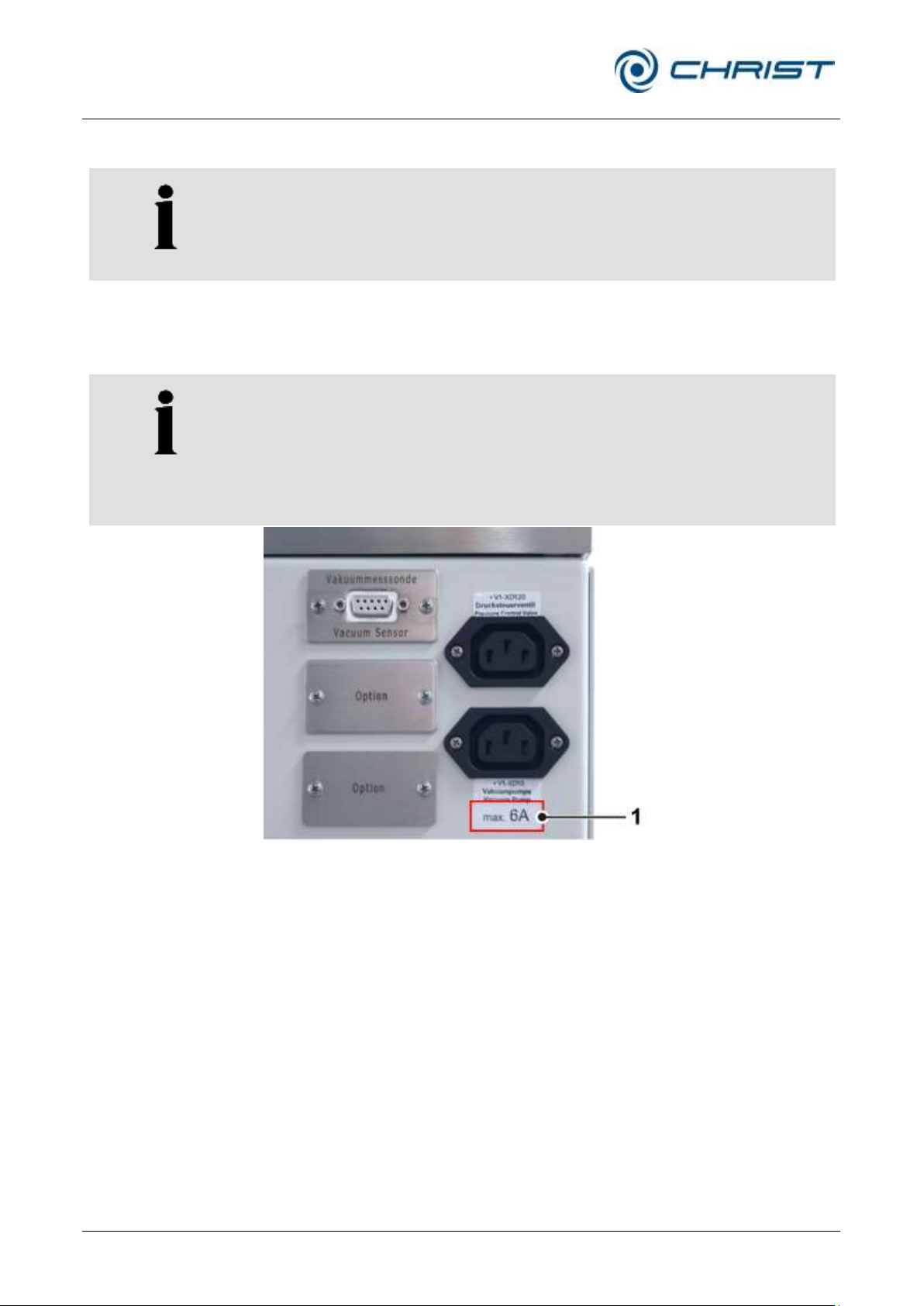

5.2 Power supply .................................................................................................................. 33

5.2.1 Connection ................................................................................................................ 33

5.2.2 Customer-provided fuses ........................................................................................... 33

5.3 Aeration and media drain valve ....................................................................................... 33

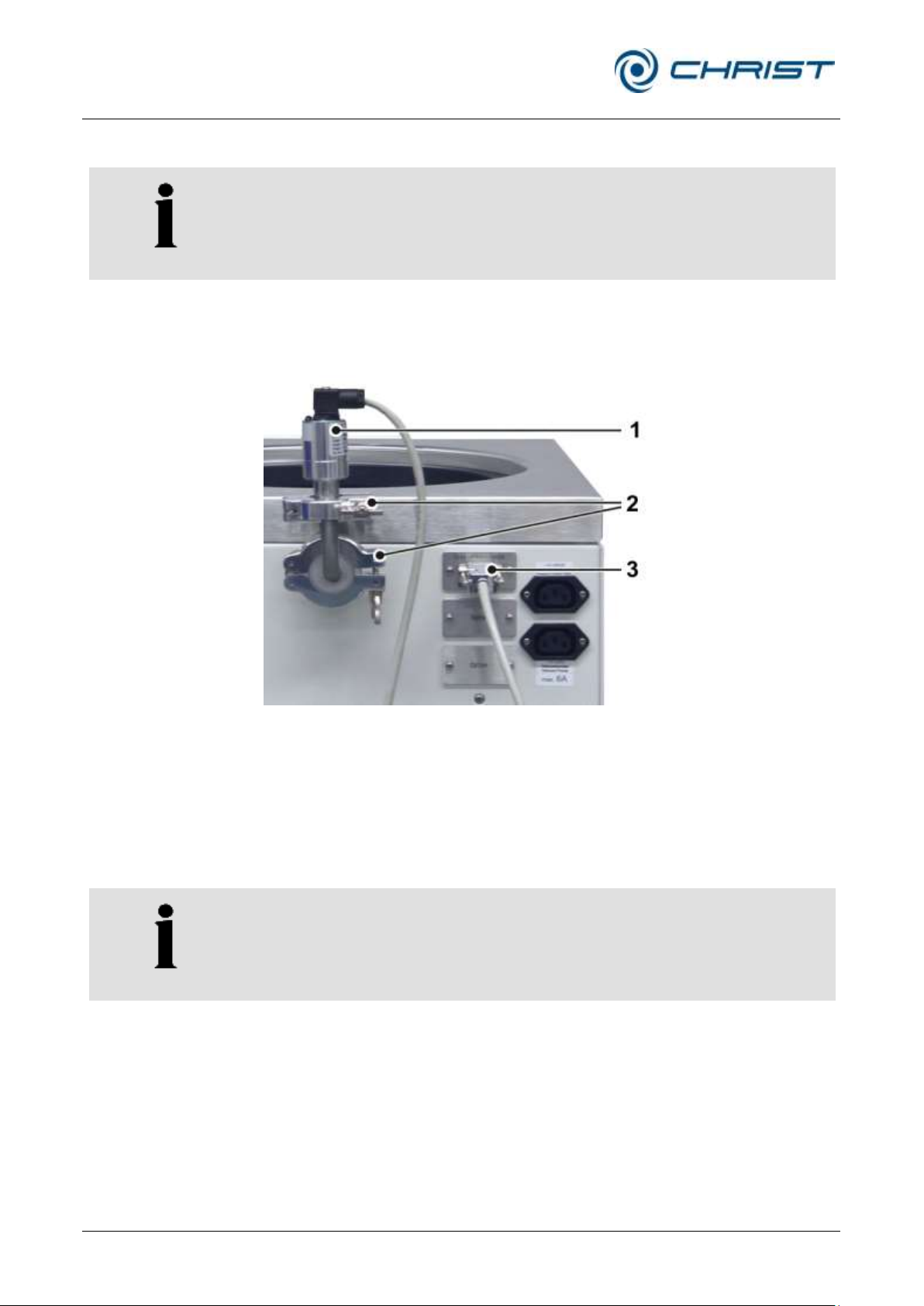

5.4 Vacuum sensor ............................................................................................................... 34

5.5 Vacuum pump................................................................................................................. 36

5.6 Pressure control valve .................................................................................................... 37

5.7 Rubber valves ................................................................................................................. 38

6 Operation ............................................................................................................................ 39

6.1 Initial start-up .................................................................................................................. 39

6.2 Installation of accessories ............................................................................................... 39

6.3 Preparation ..................................................................................................................... 39

6.4 Switching the freeze-dryer on ......................................................................................... 39

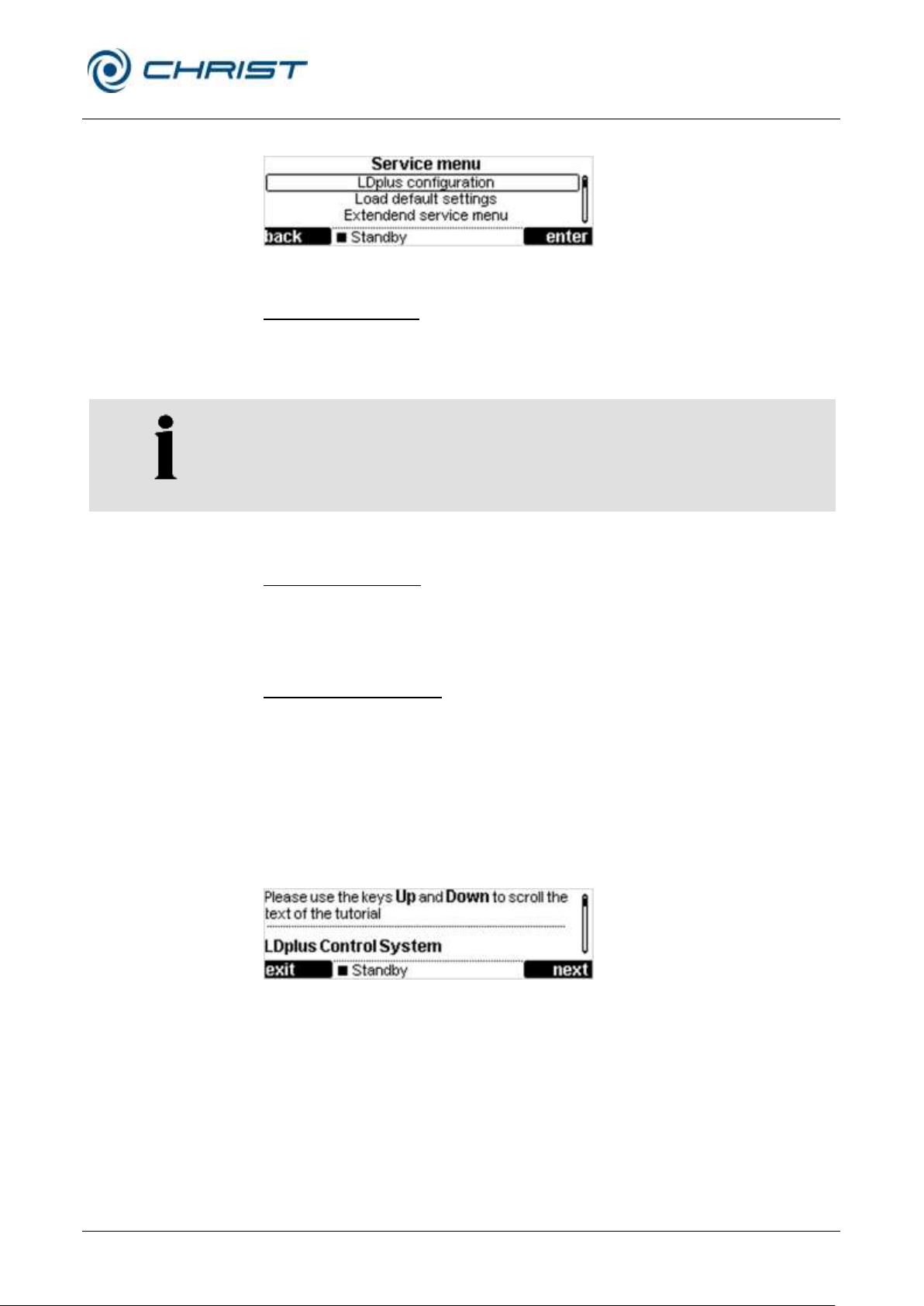

6.5 LDplus control system ..................................................................................................... 40

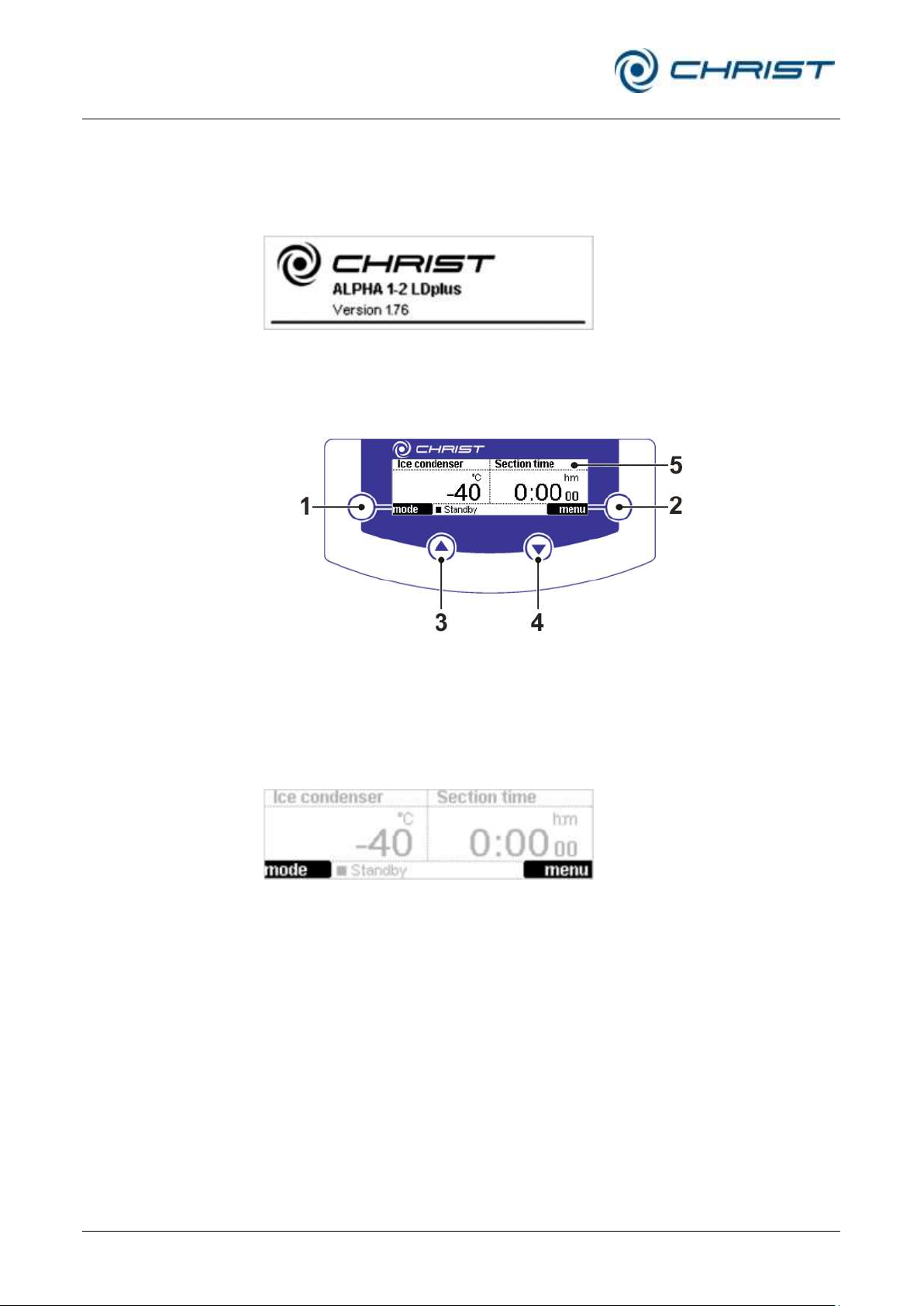

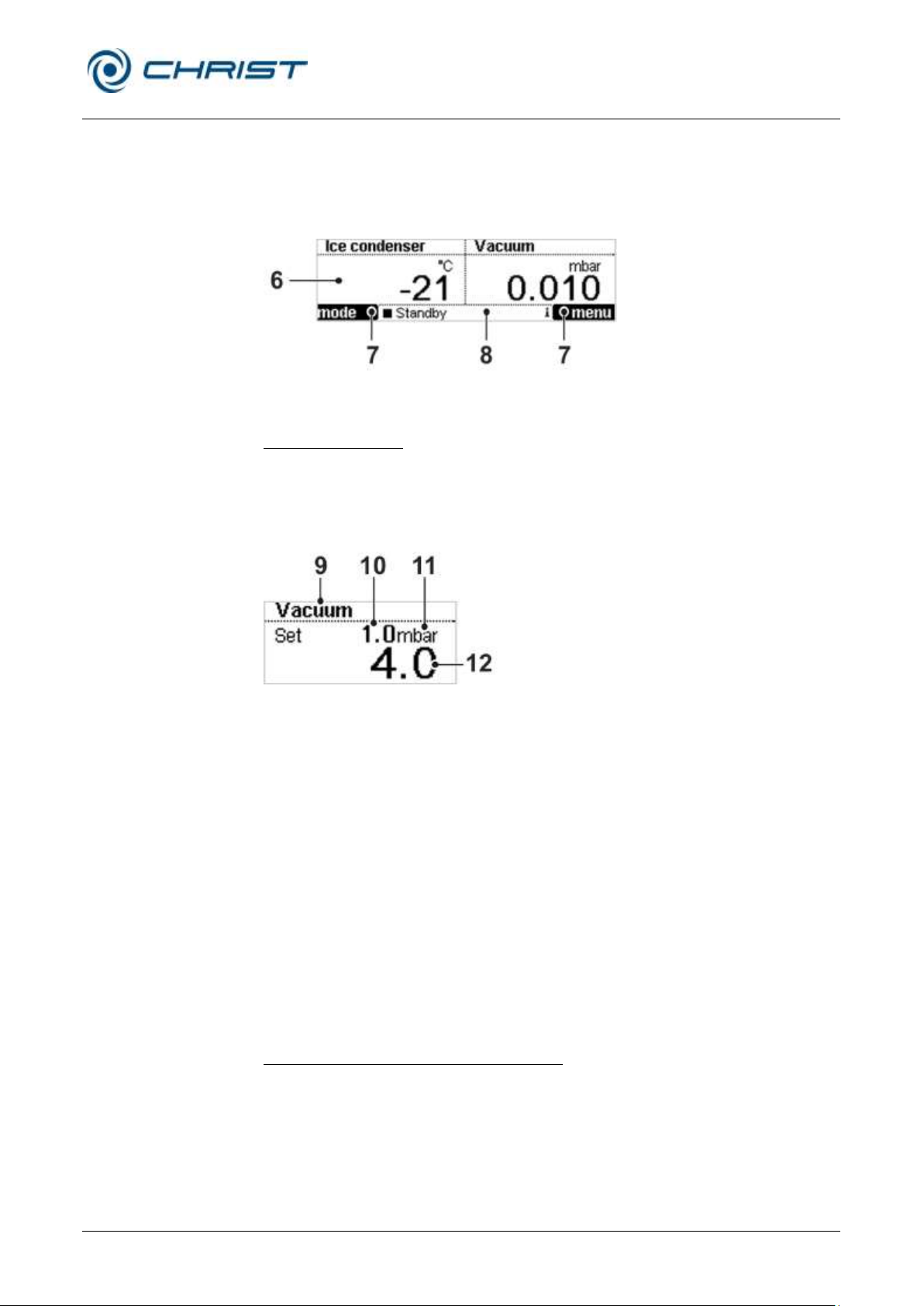

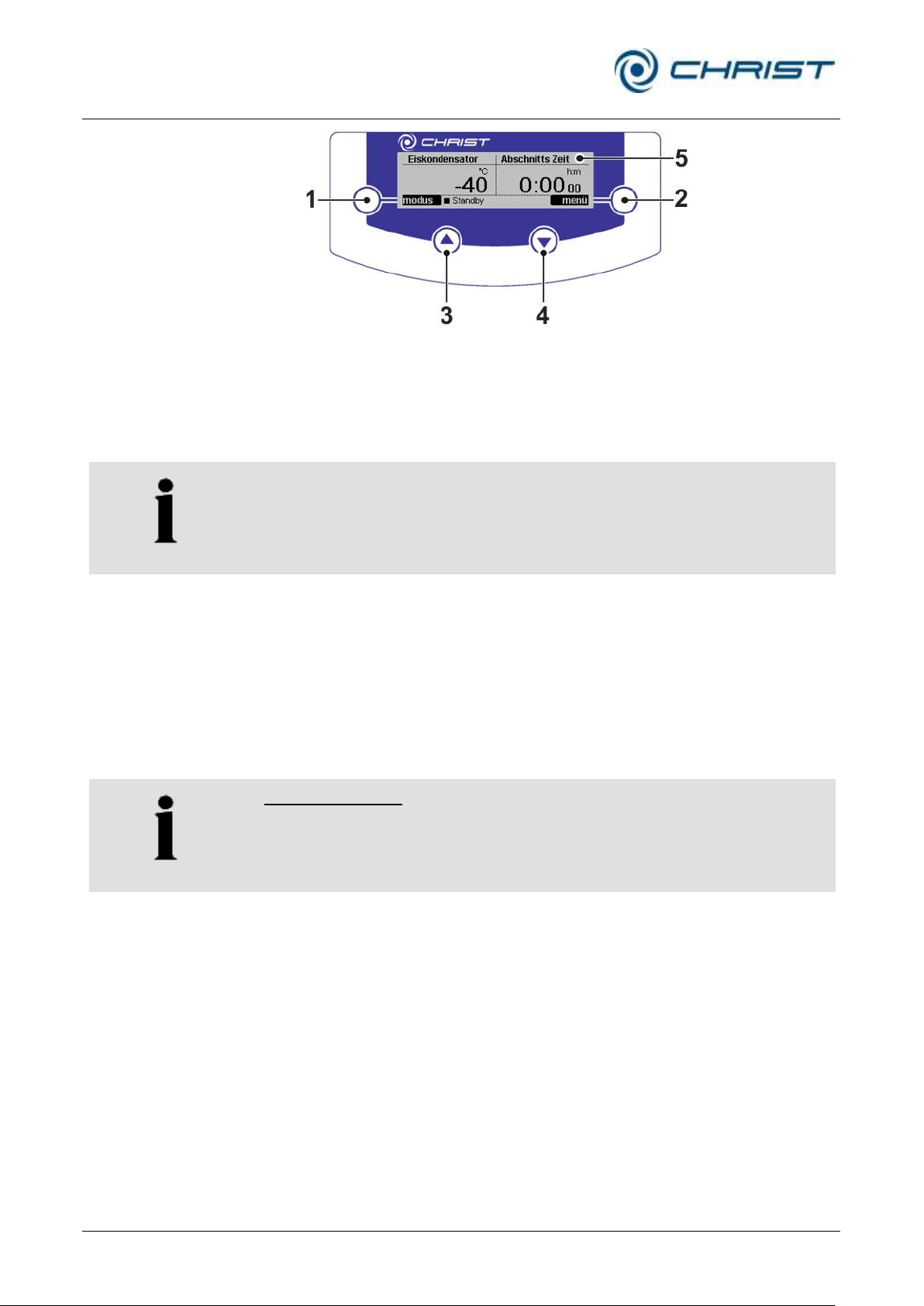

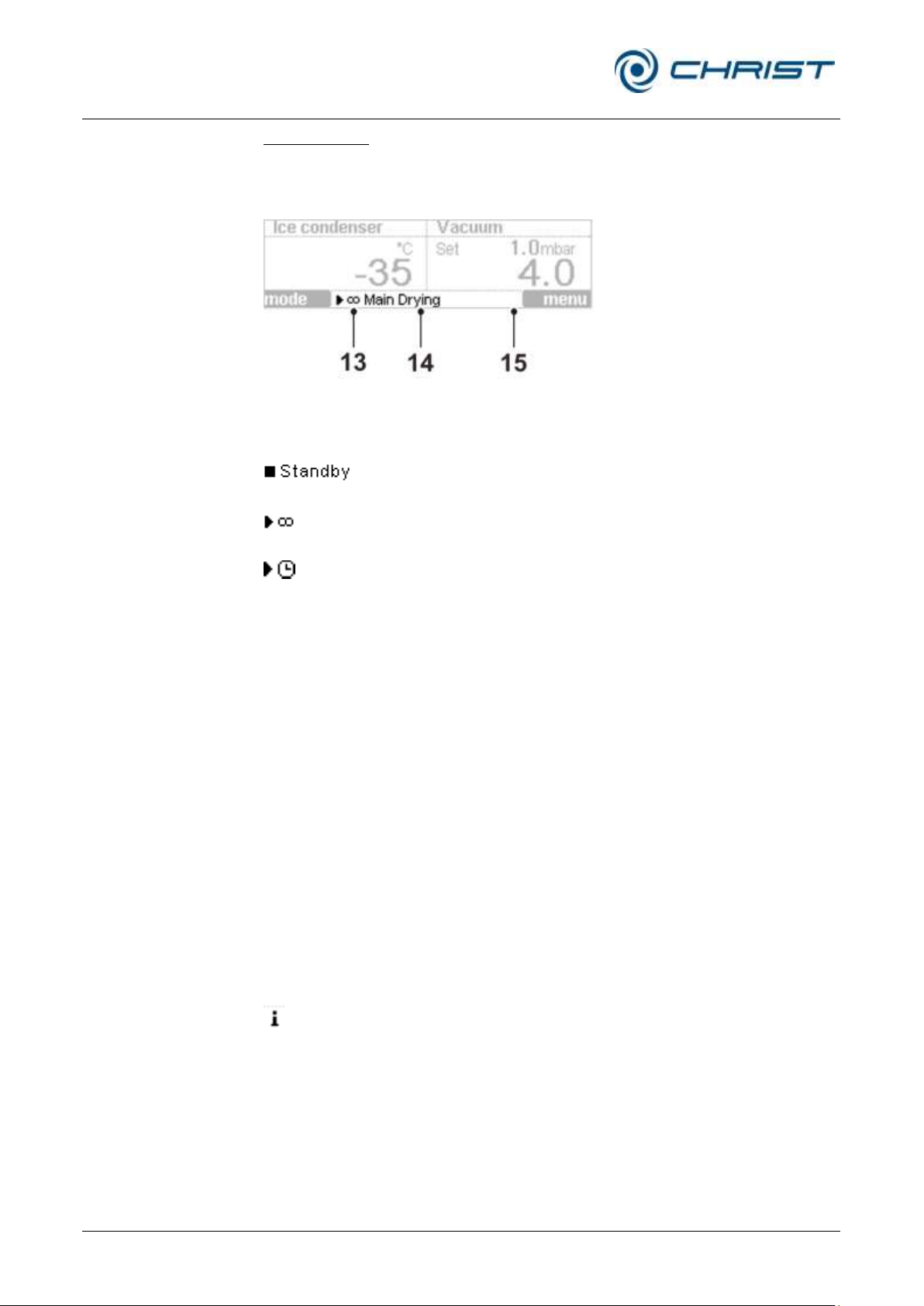

6.5.1 User interface ............................................................................................................ 40

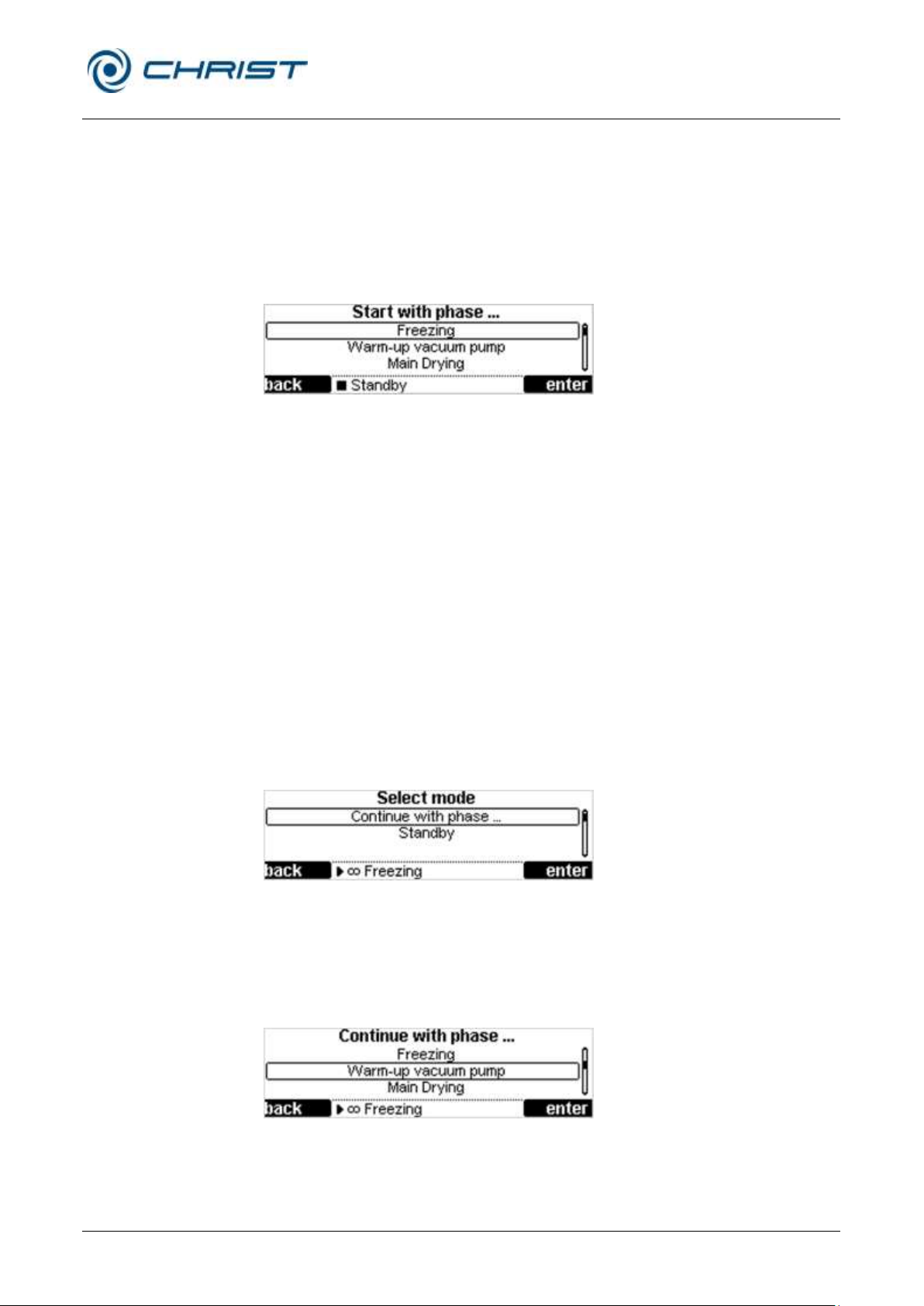

6.5.2 Mode ......................................................................................................................... 43

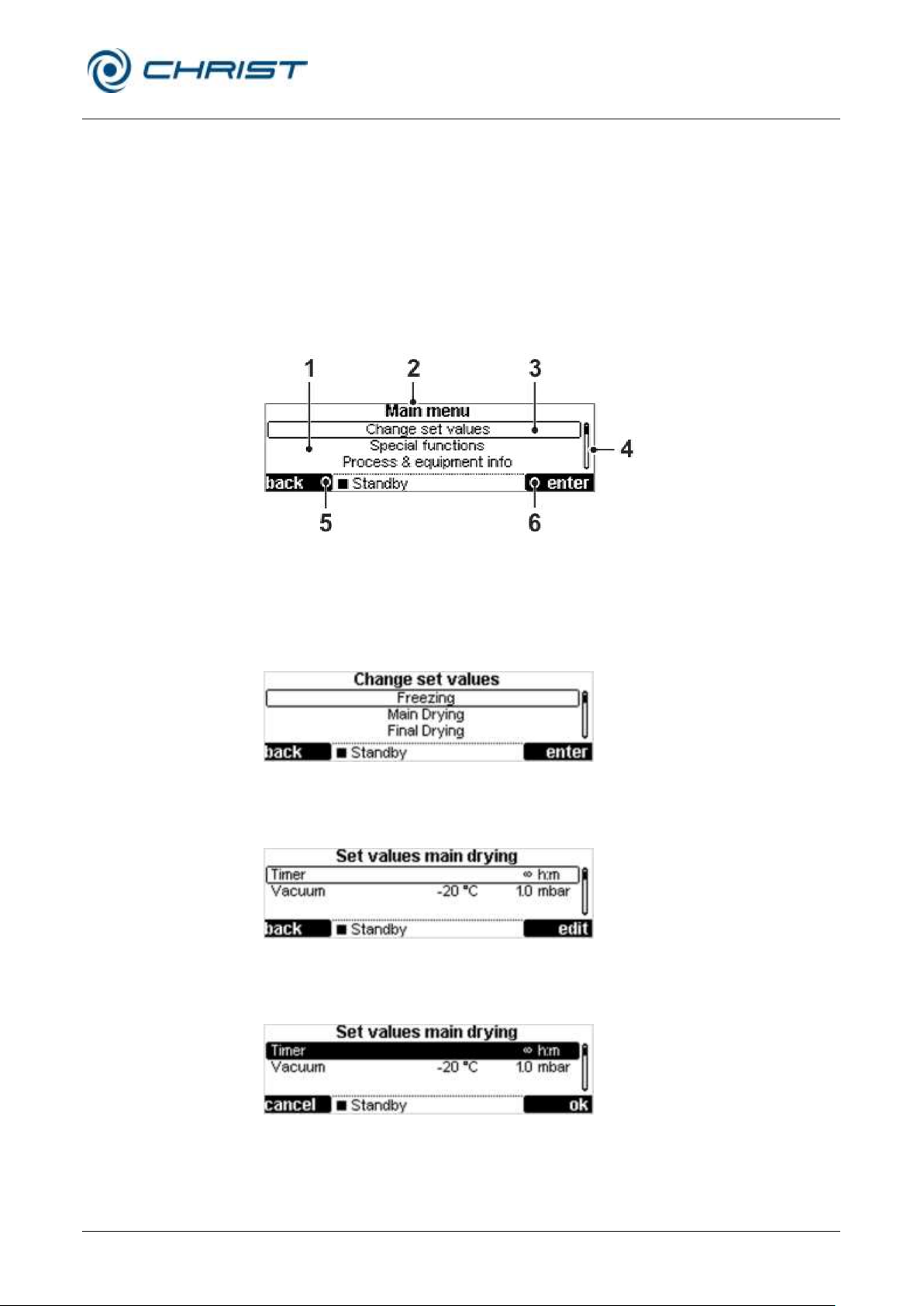

6.5.3 Main menu ................................................................................................................. 45

6.5.3.1 Changing set values .......................................................................................... 45

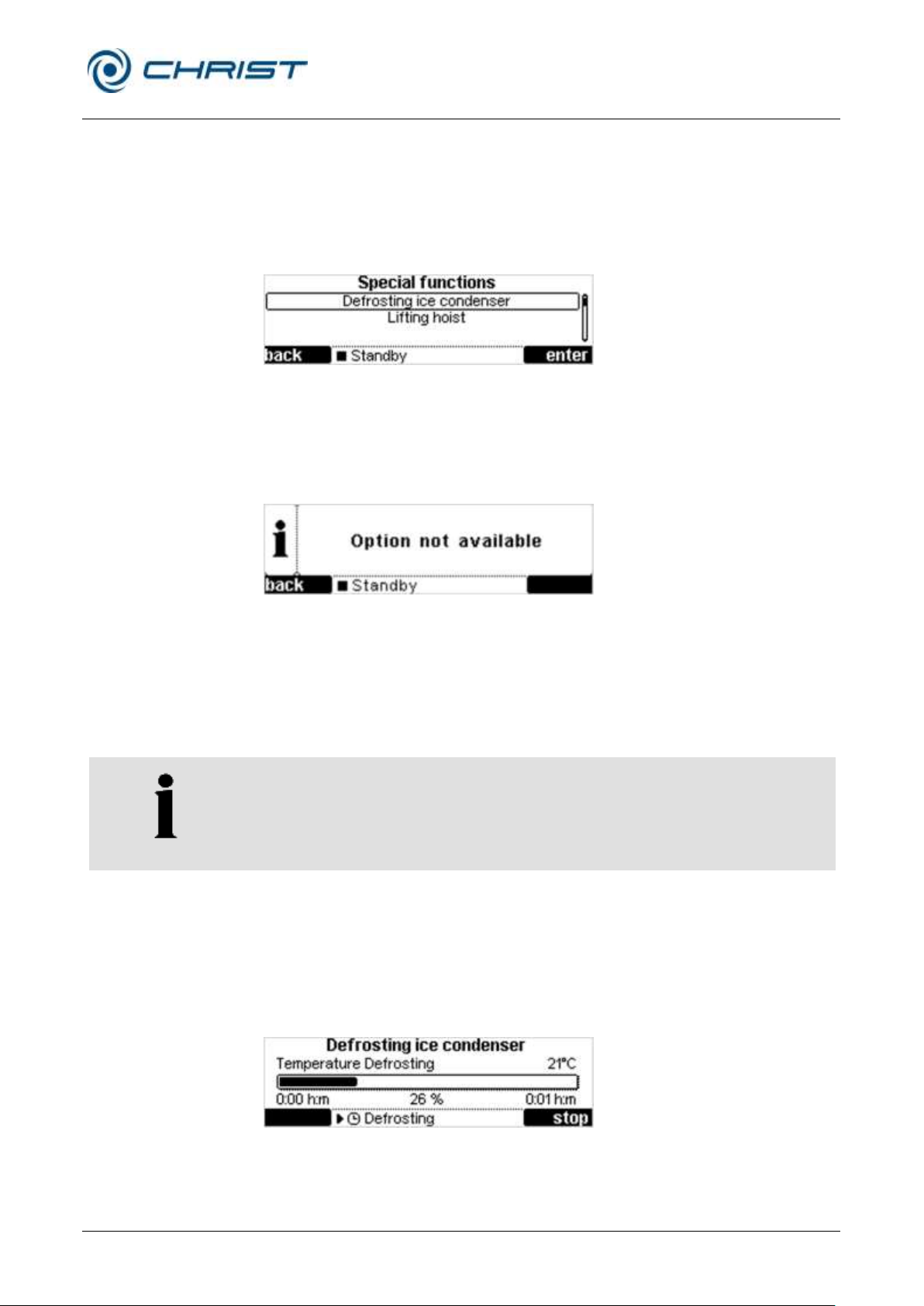

6.5.3.2 Special functions ................................................................................................ 47

6.5.3.3 Process and equipment information ................................................................... 48

6.5.3.4 Options .............................................................................................................. 49

6.5.3.5 Tutorial ............................................................................................................... 51

6.6 Switching the freeze-dryer OFF ...................................................................................... 52

7 Malfunctions and error correction .................................................................................... 53

7.1 General malfunctions ...................................................................................................... 53

7.1.1 Power failure .............................................................................................................. 53

7.1.2 Insufficient vacuum .................................................................................................... 53

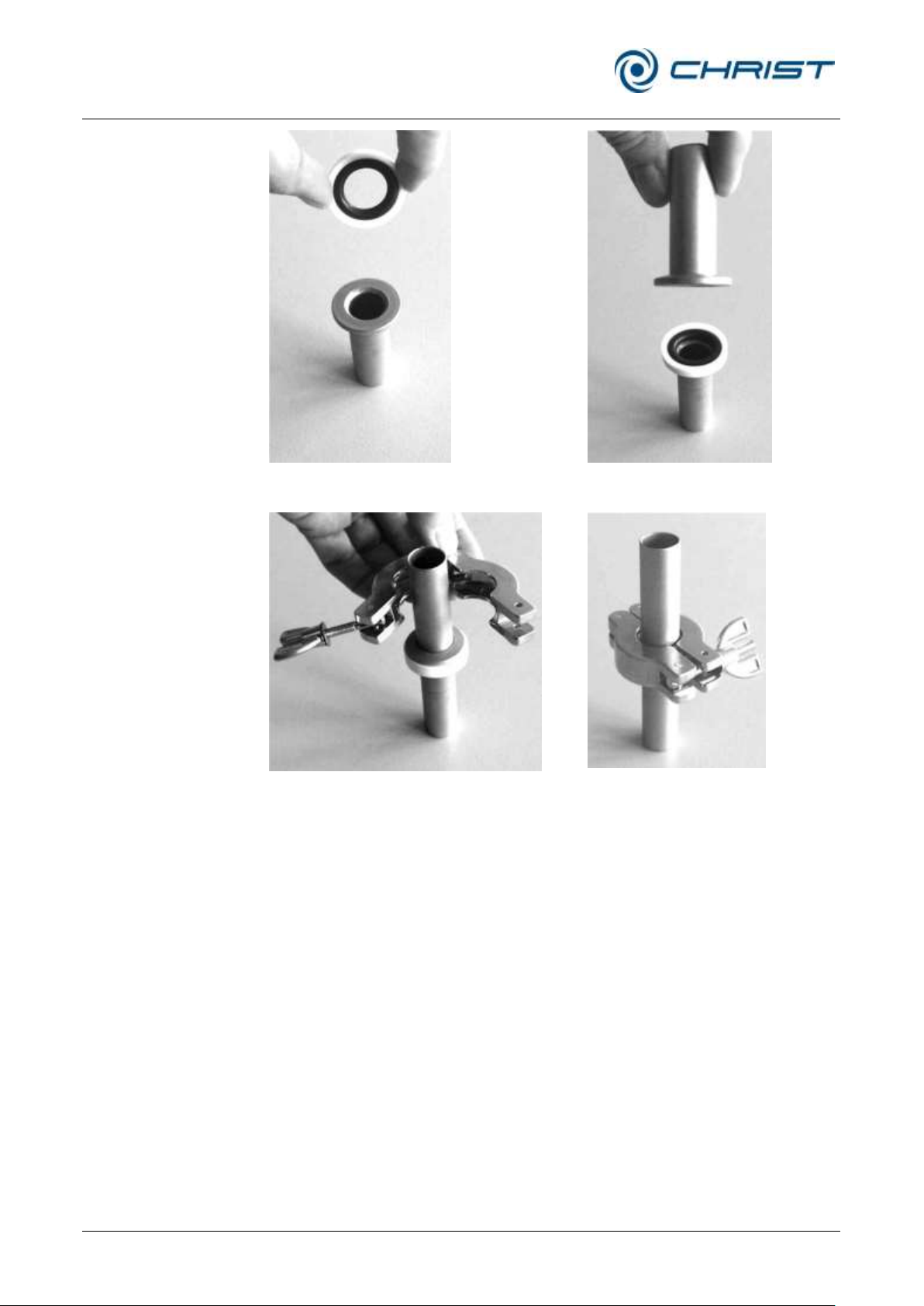

7.1.2.1 Small flange connections ................................................................................... 53

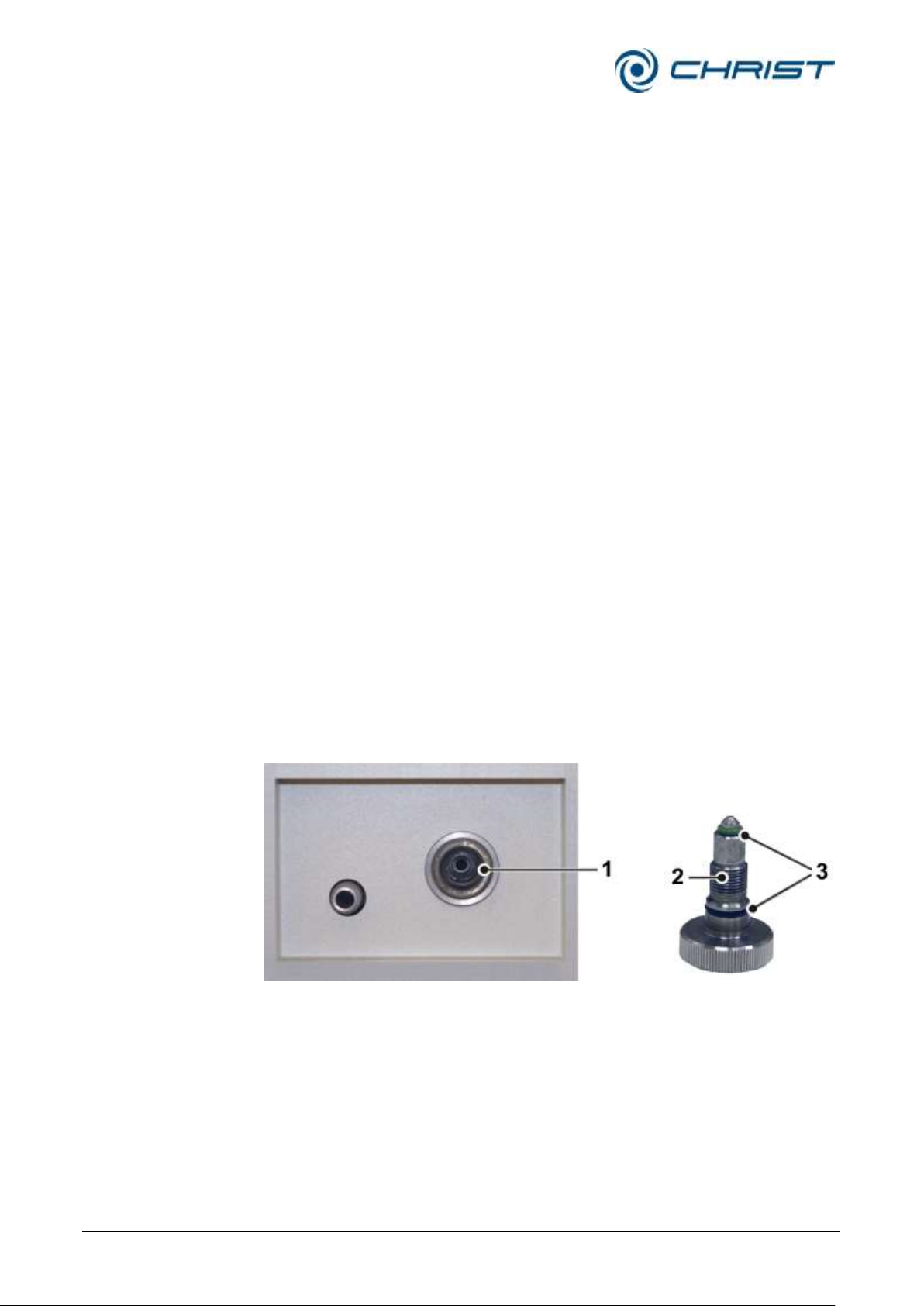

7.1.2.2 Aeration and media drain valve .......................................................................... 54

7.1.2.3 Pressure control valve ........................................................................................ 55

7.1.2.4 Rubber valves .................................................................................................... 55

7.1.2.5 Vacuum sensor ................................................................................................ .. 55

7.1.3 Insufficient ice condenser temperature ................................................................ ...... 55

7.2 Process and equipment messages ................................................................................. 56

7.3 Service contact ............................................................................................................... 58

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

Table of contents

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

7 / 102

Translation of the original operating manual

8 Maintenance and service ................................................................................................... 59

8.1 Maintenance ................................................................................................................... 59

8.1.1 General ...................................................................................................................... 59

8.1.1.1 Ice condenser chamber ...................................................................................... 60

8.1.1.2 Aeration valve, media drain valve ...................................................................... 60

8.1.1.3 Heat exchanger (only for air-cooled freeze-dryers) ............................................ 61

8.1.2 Vacuum pump ........................................................................................................... 61

8.1.3 Exhaust filter (oil mist separator) ................................................................................ 62

8.1.4 Vacuum sensor .......................................................................................................... 62

8.1.5 Accessories ............................................................................................................... 62

8.2 Disinfection of the drying chamber and accessories ....................................................... 63

8.3 Service ........................................................................................................................... 64

8.4 Return of defective parts ................................................................................................. 64

9 Disposal .............................................................................................................................. 66

9.1 Disposal of the freeze-dryer ............................................................................................ 66

9.2 Disposal of the packaging ............................................................................................... 66

10 Technical data .................................................................................................................... 67

10.1 Ambient conditions ......................................................................................................... 69

10.2 Technical documentation ................................................................................................ 69

11 Appendix ............................................................................................................................ 70

11.1 Brief operating instructions ............................................................................................. 70

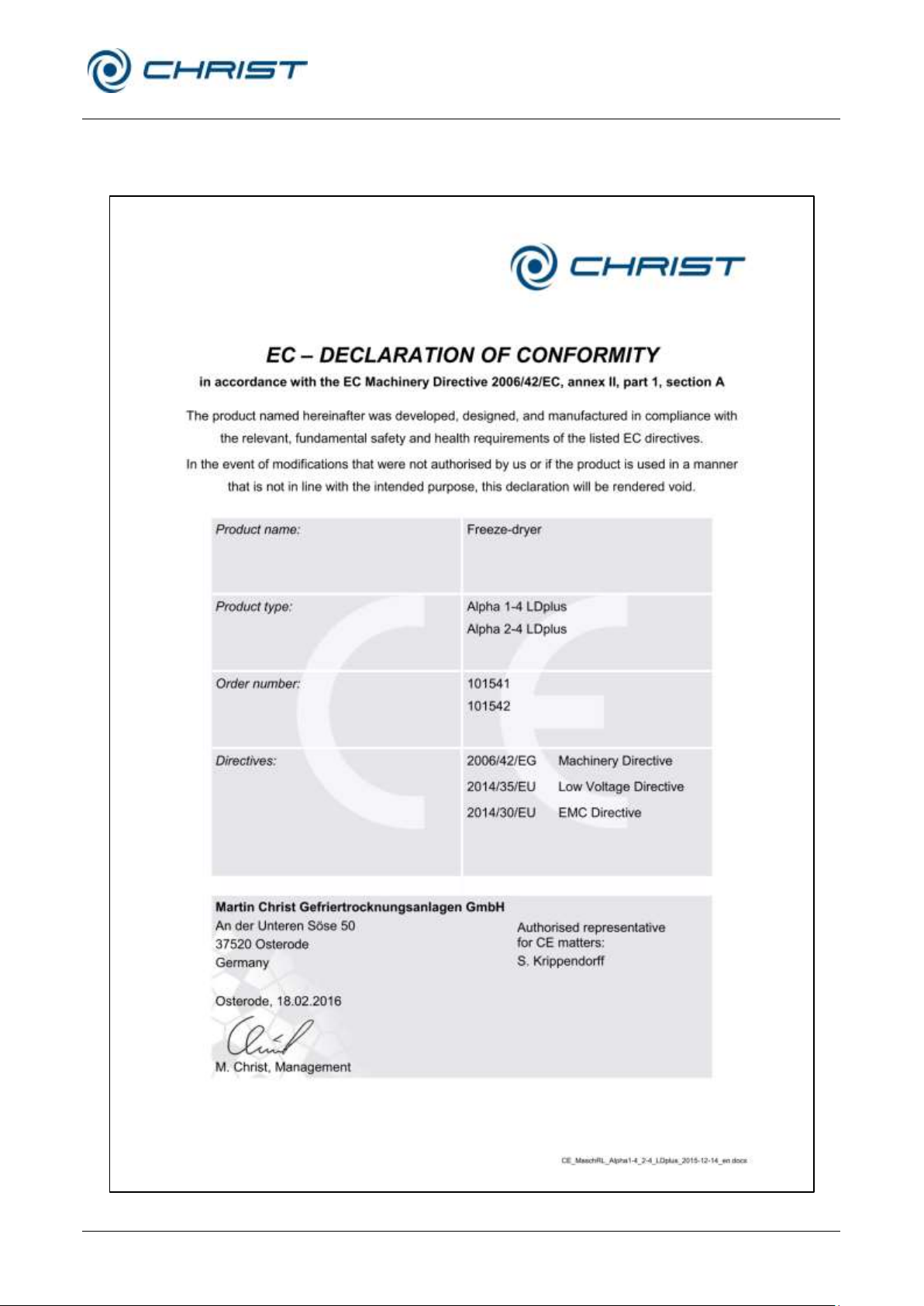

11.2 EC declaration of conformity in accordance with the EC Machinery Directive ................. 75

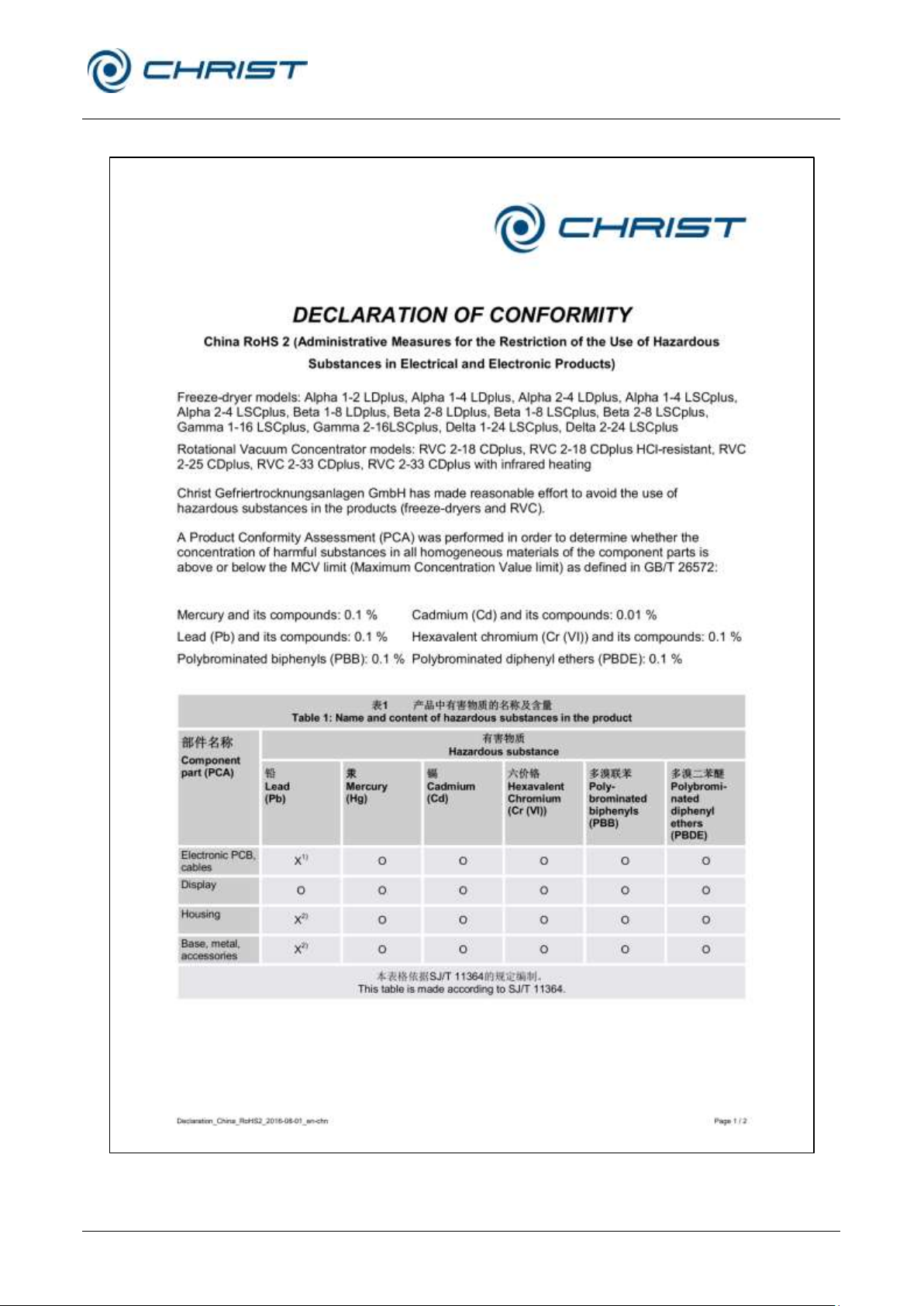

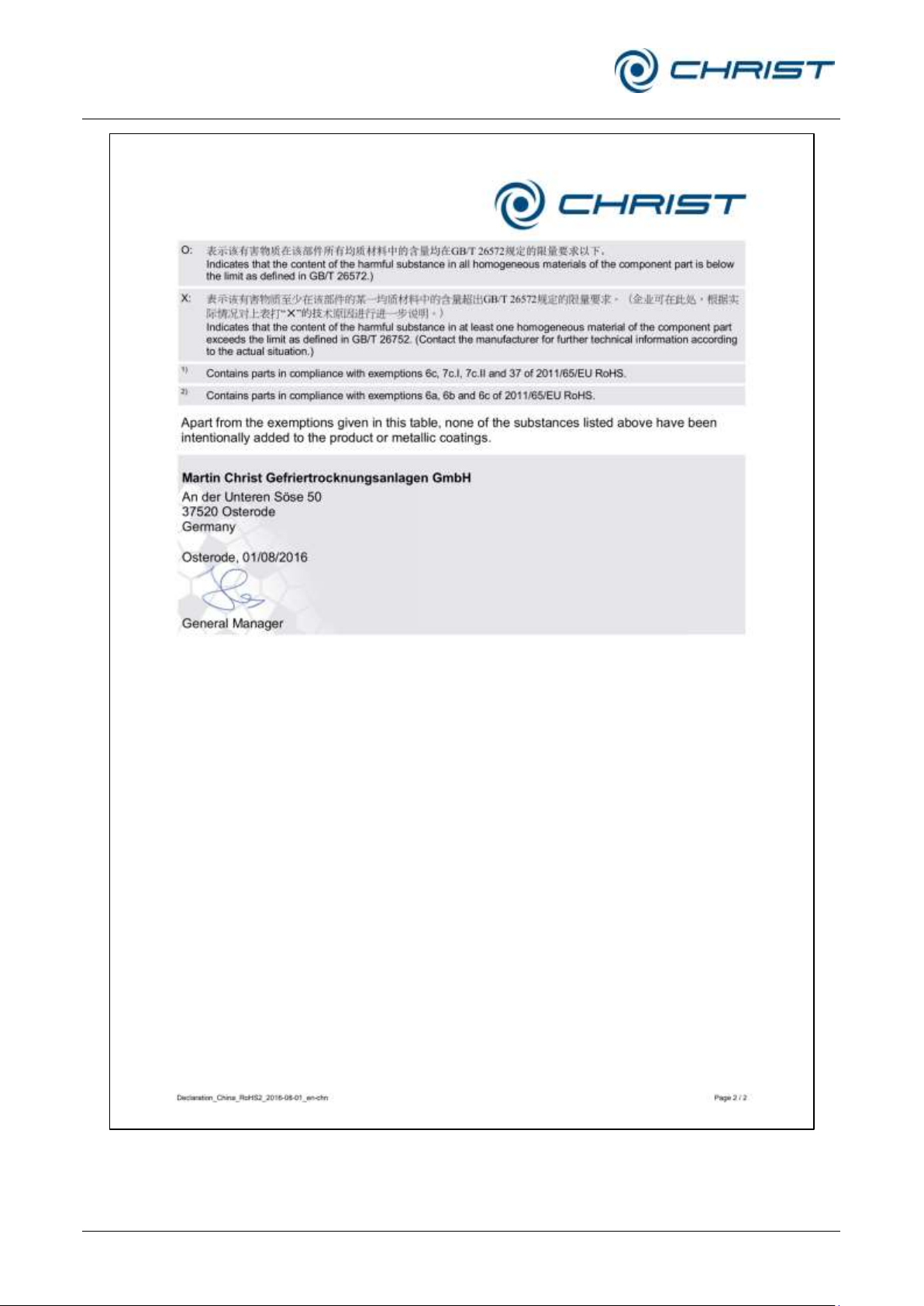

11.3 Declaration of conformity – China RoHS 2 ...................................................................... 77

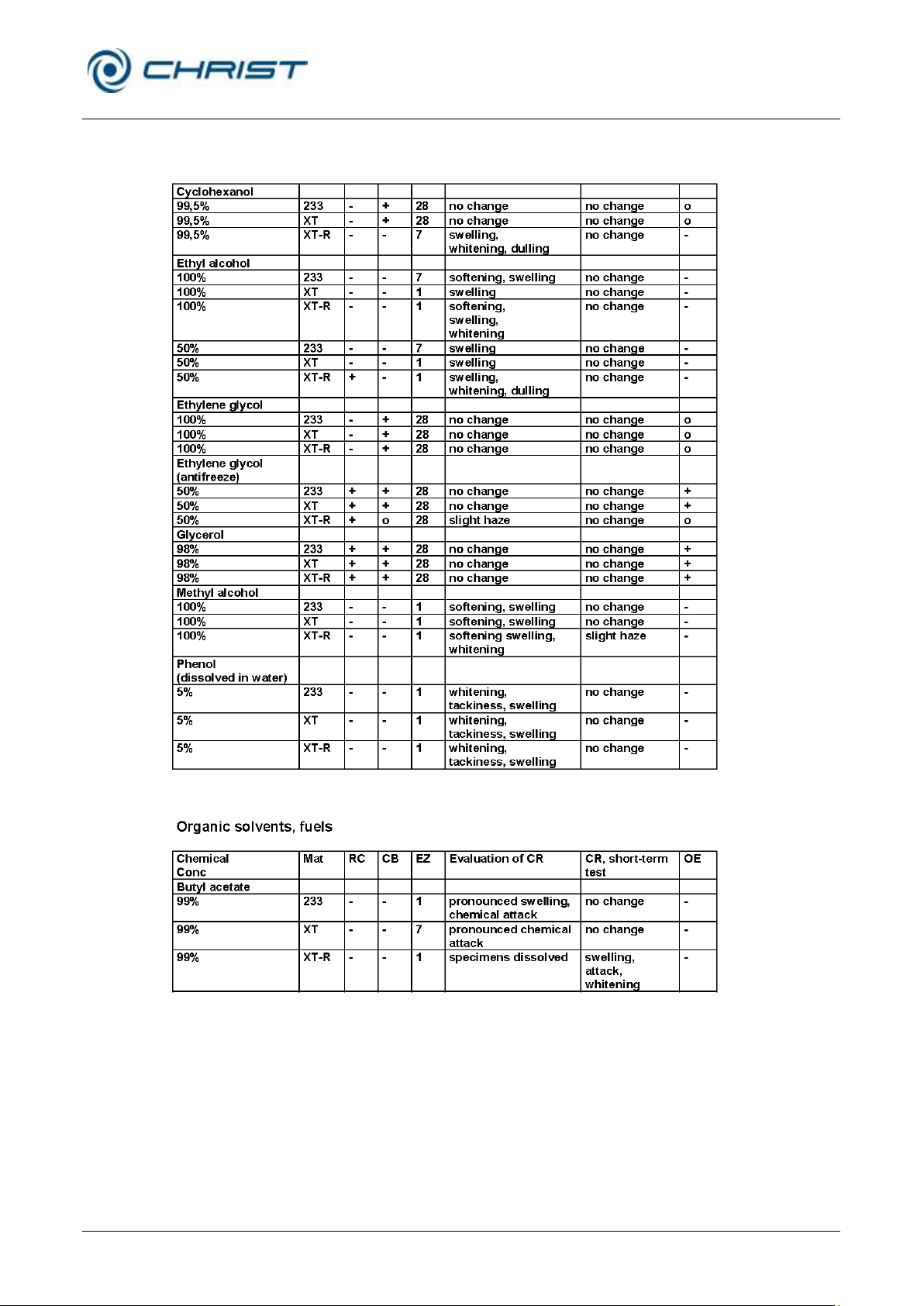

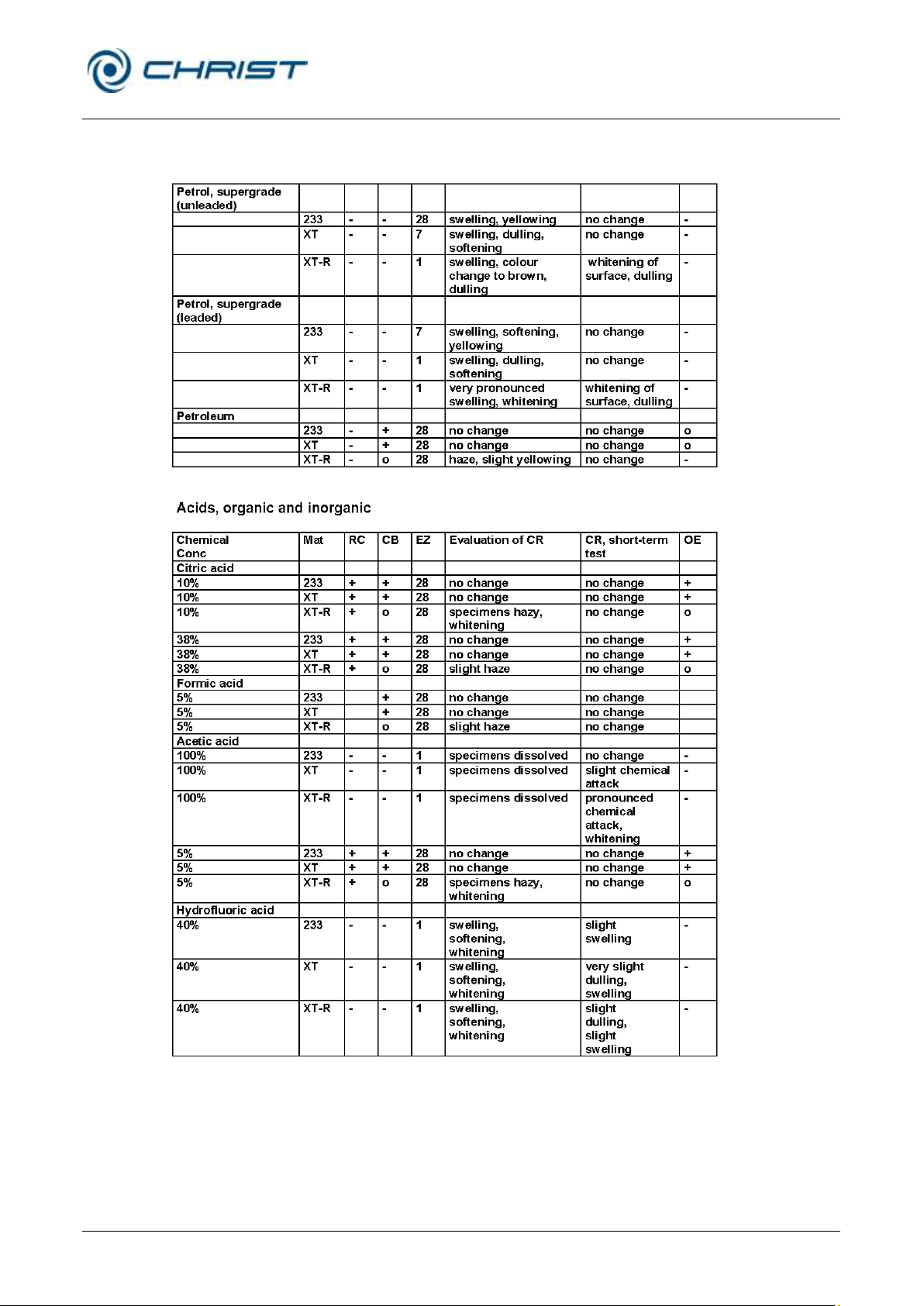

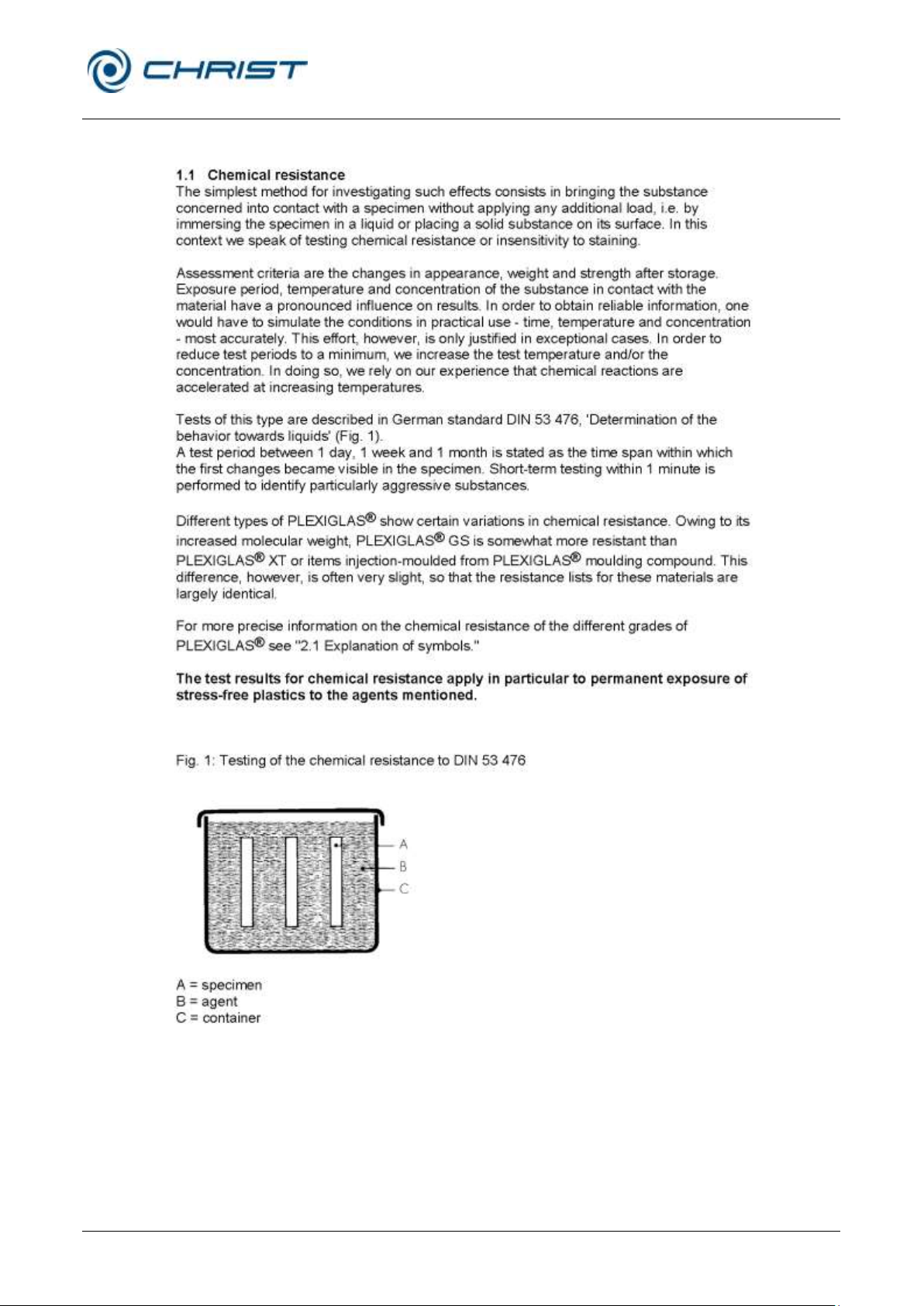

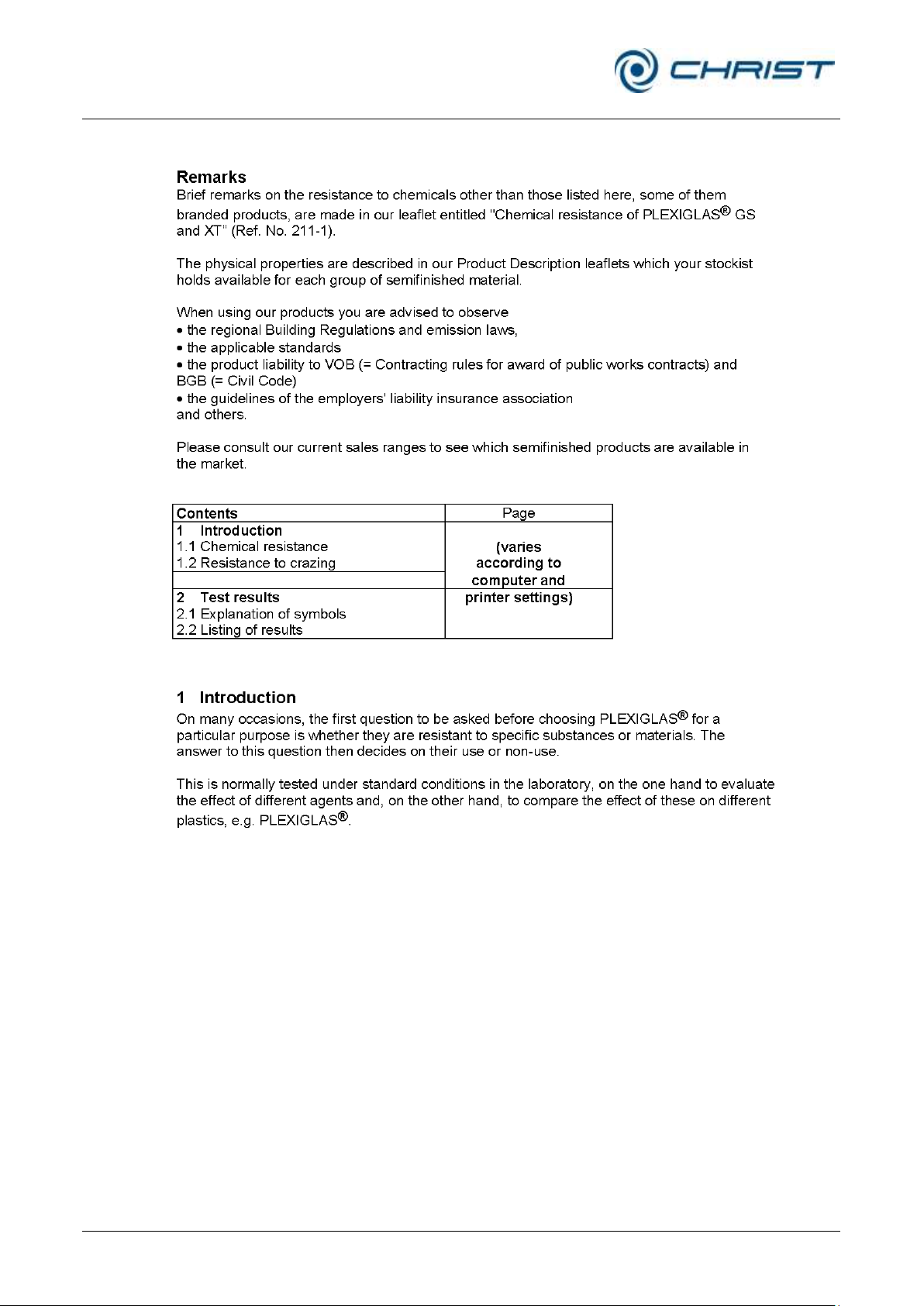

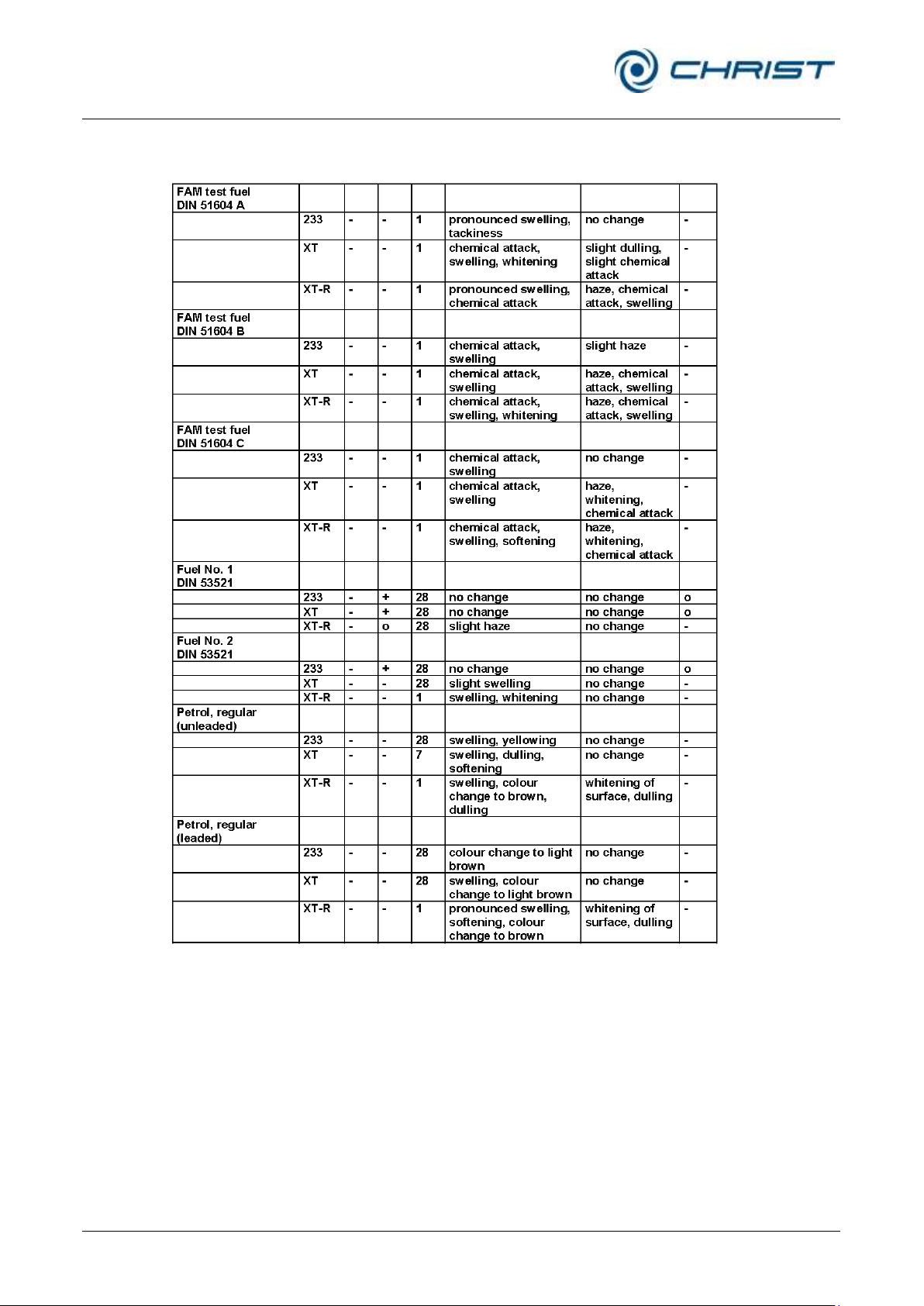

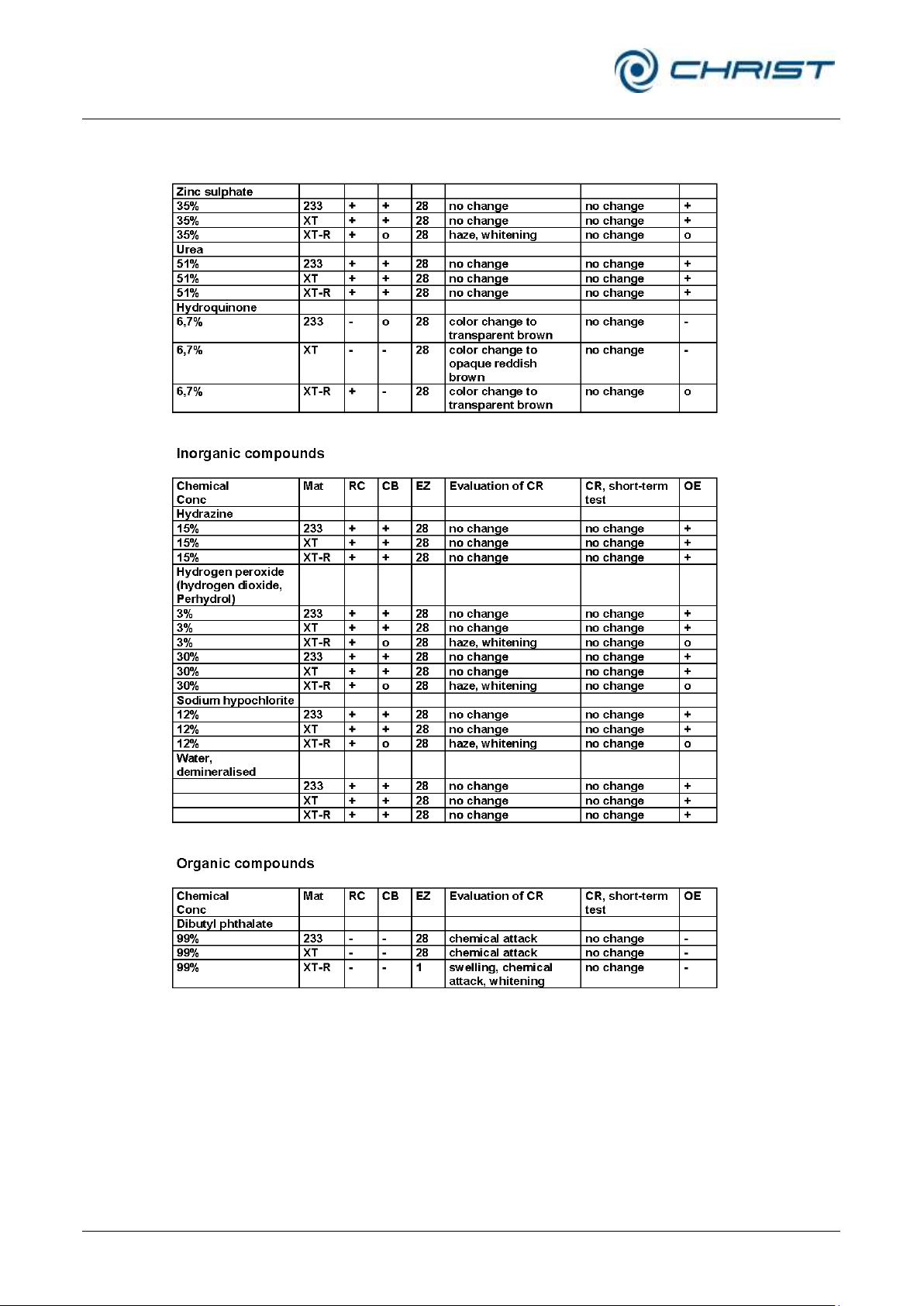

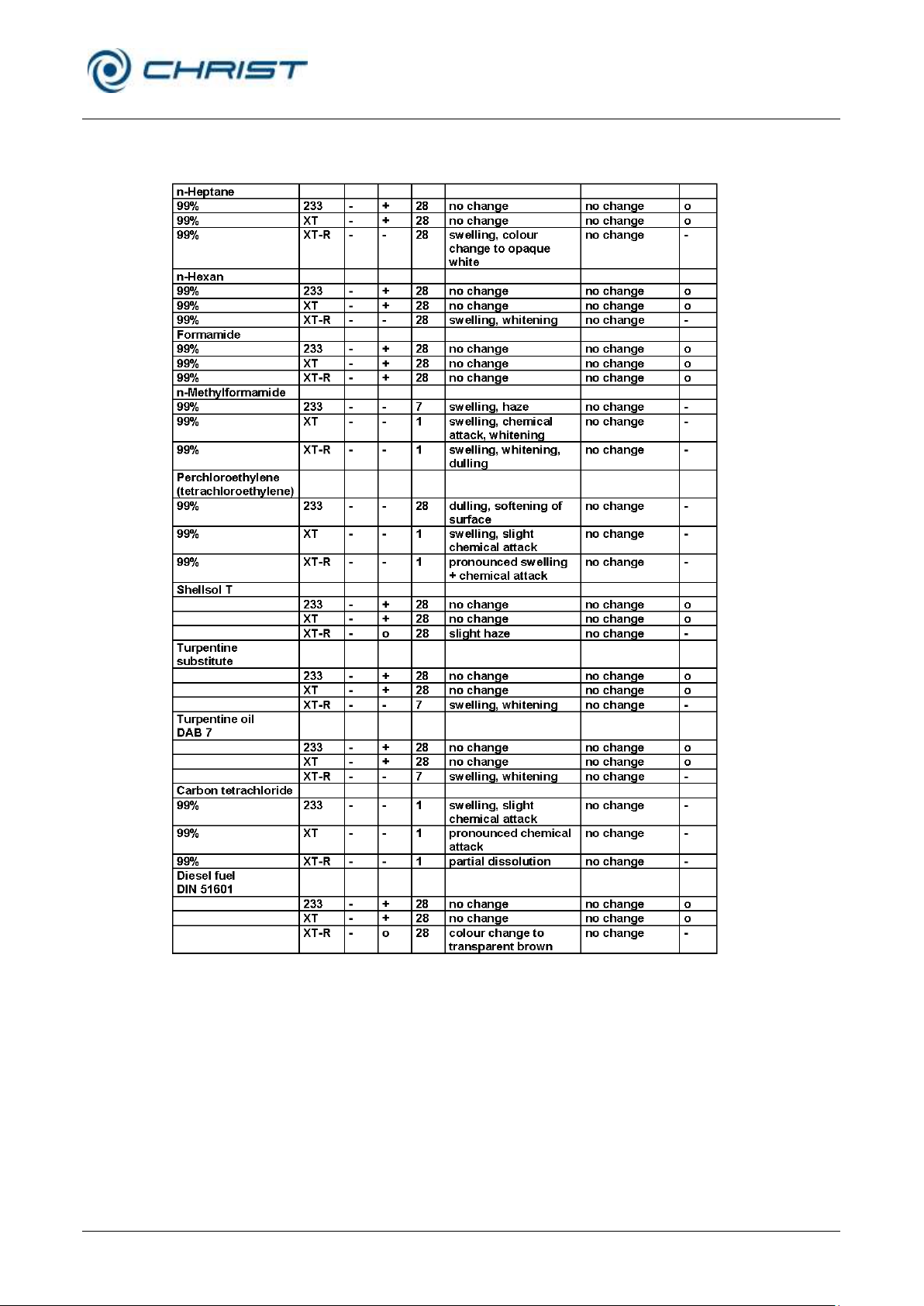

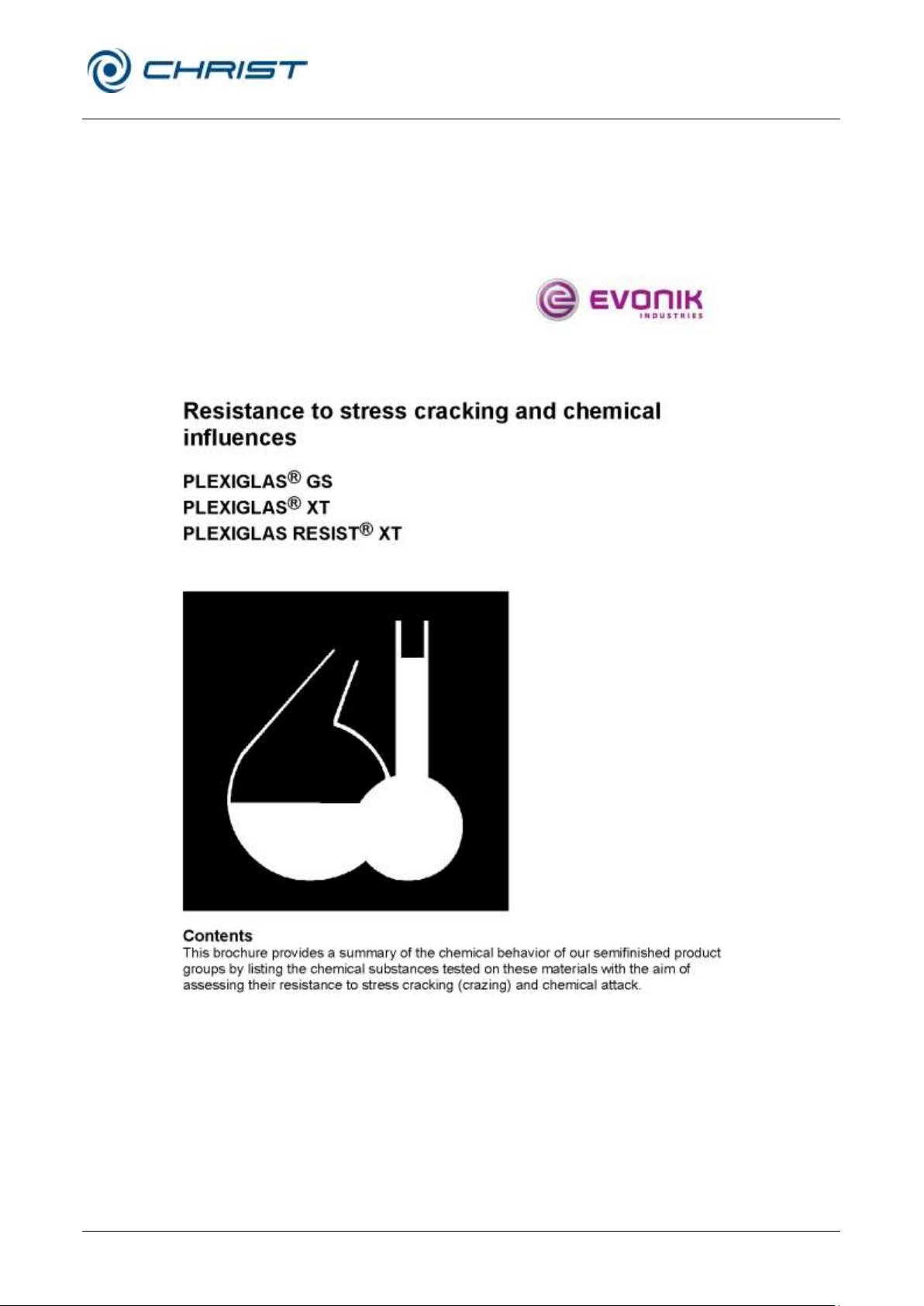

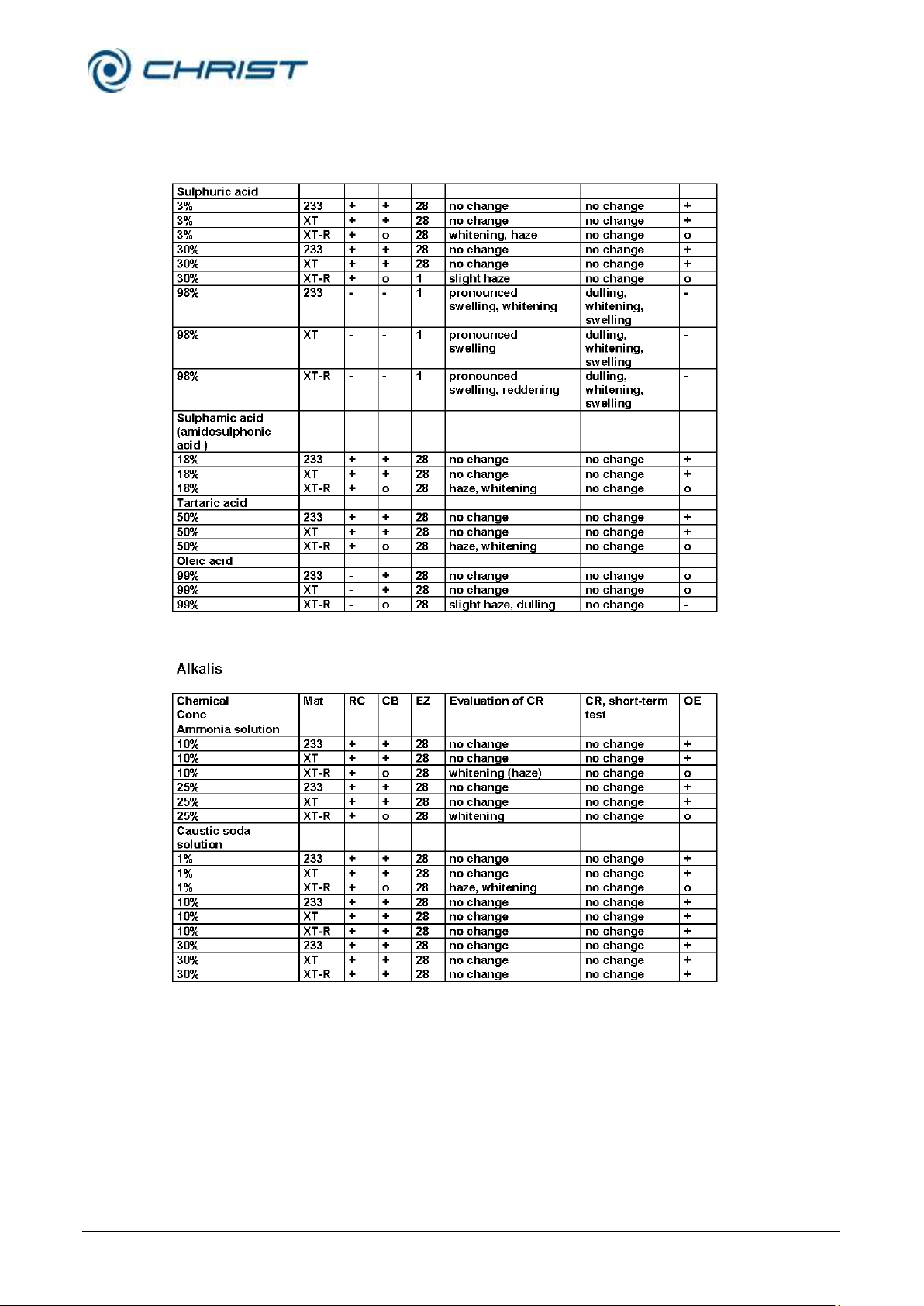

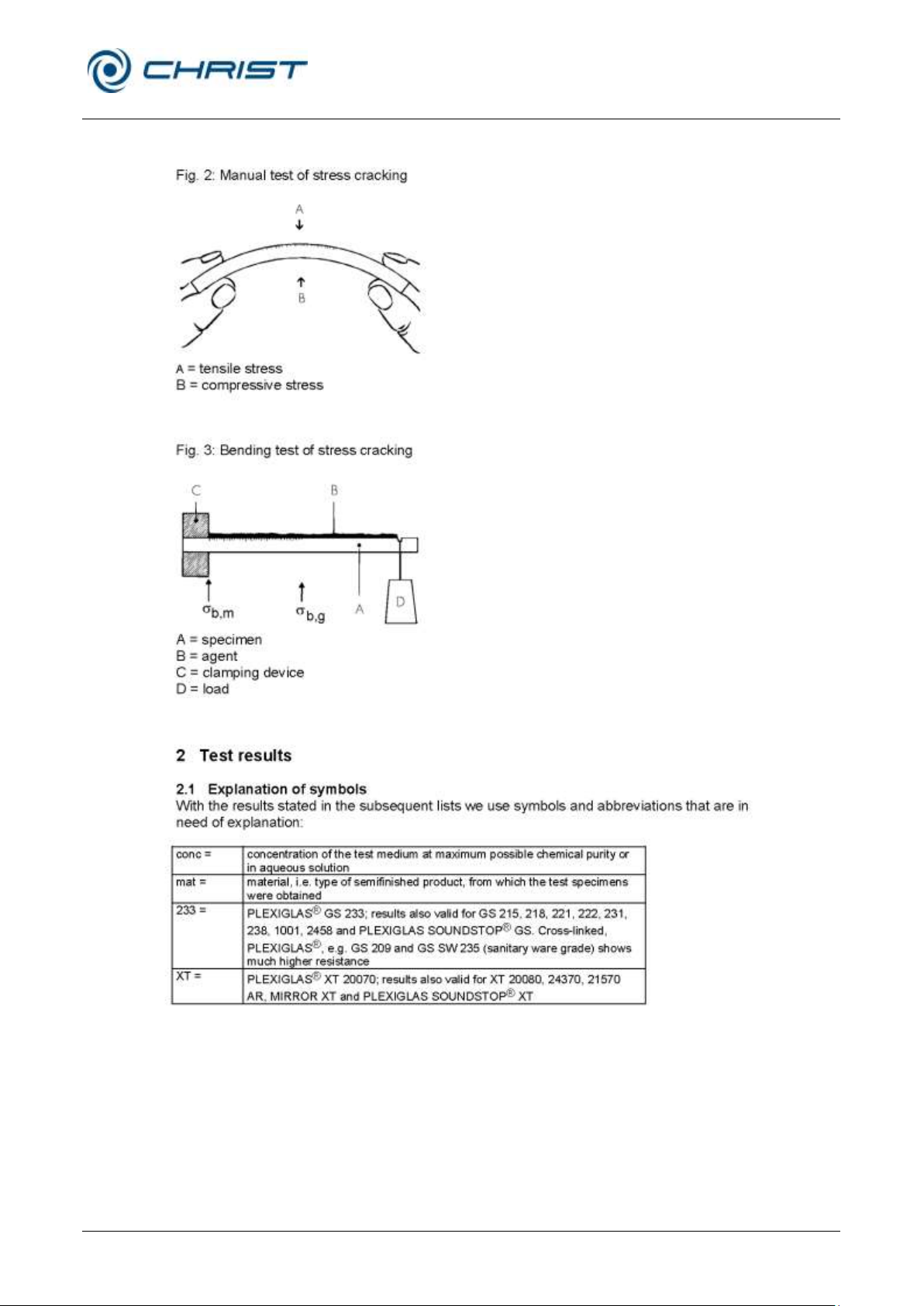

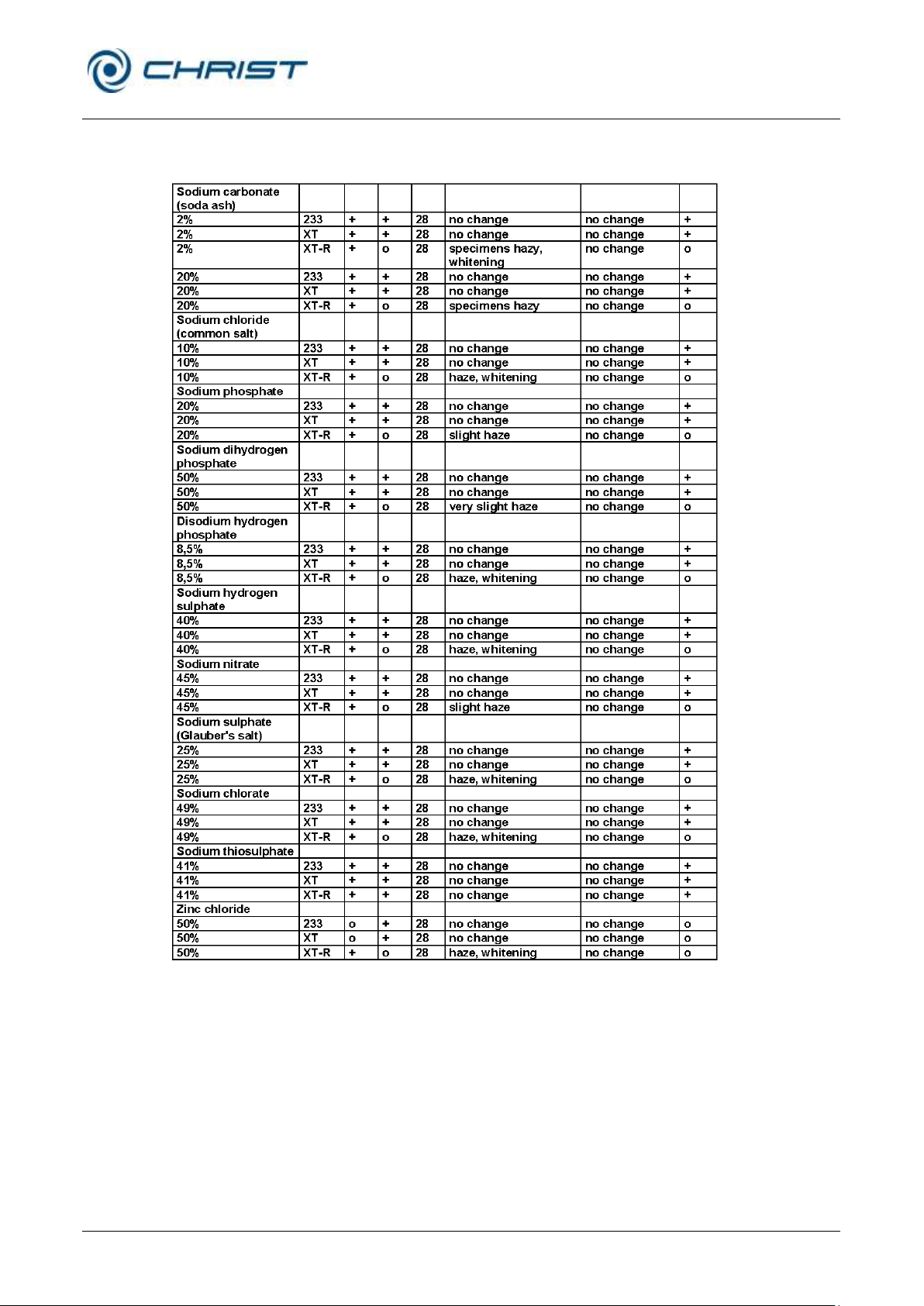

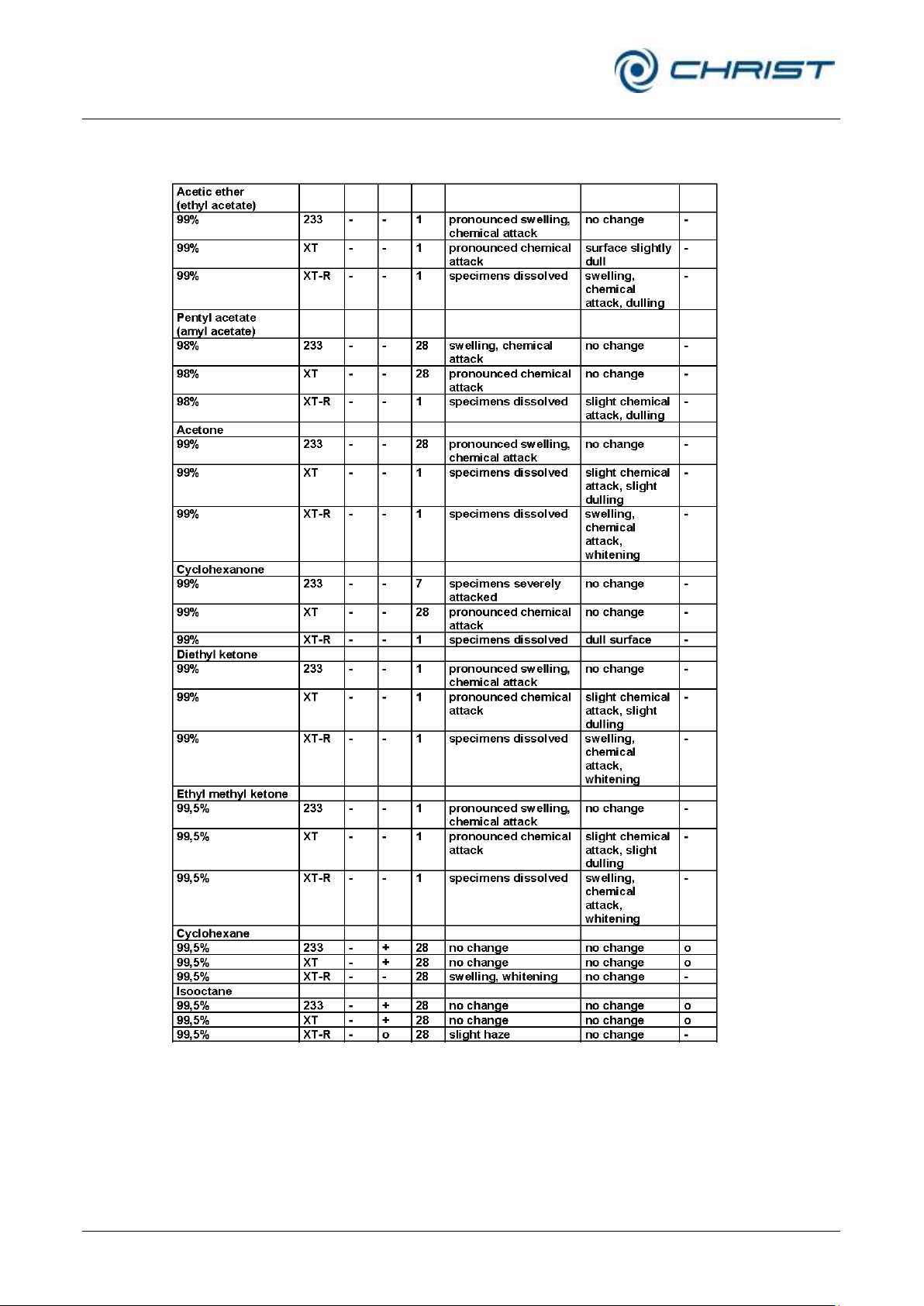

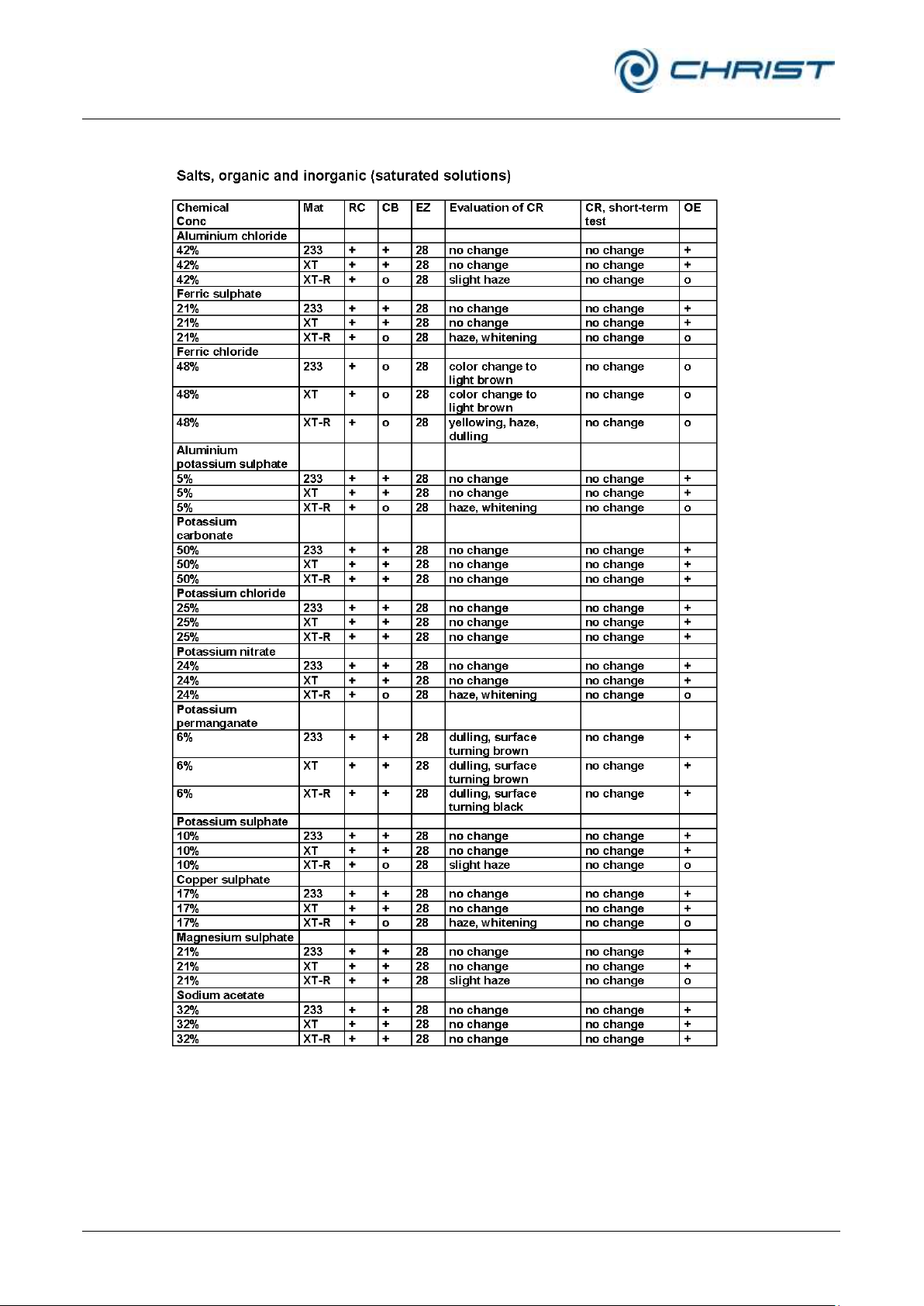

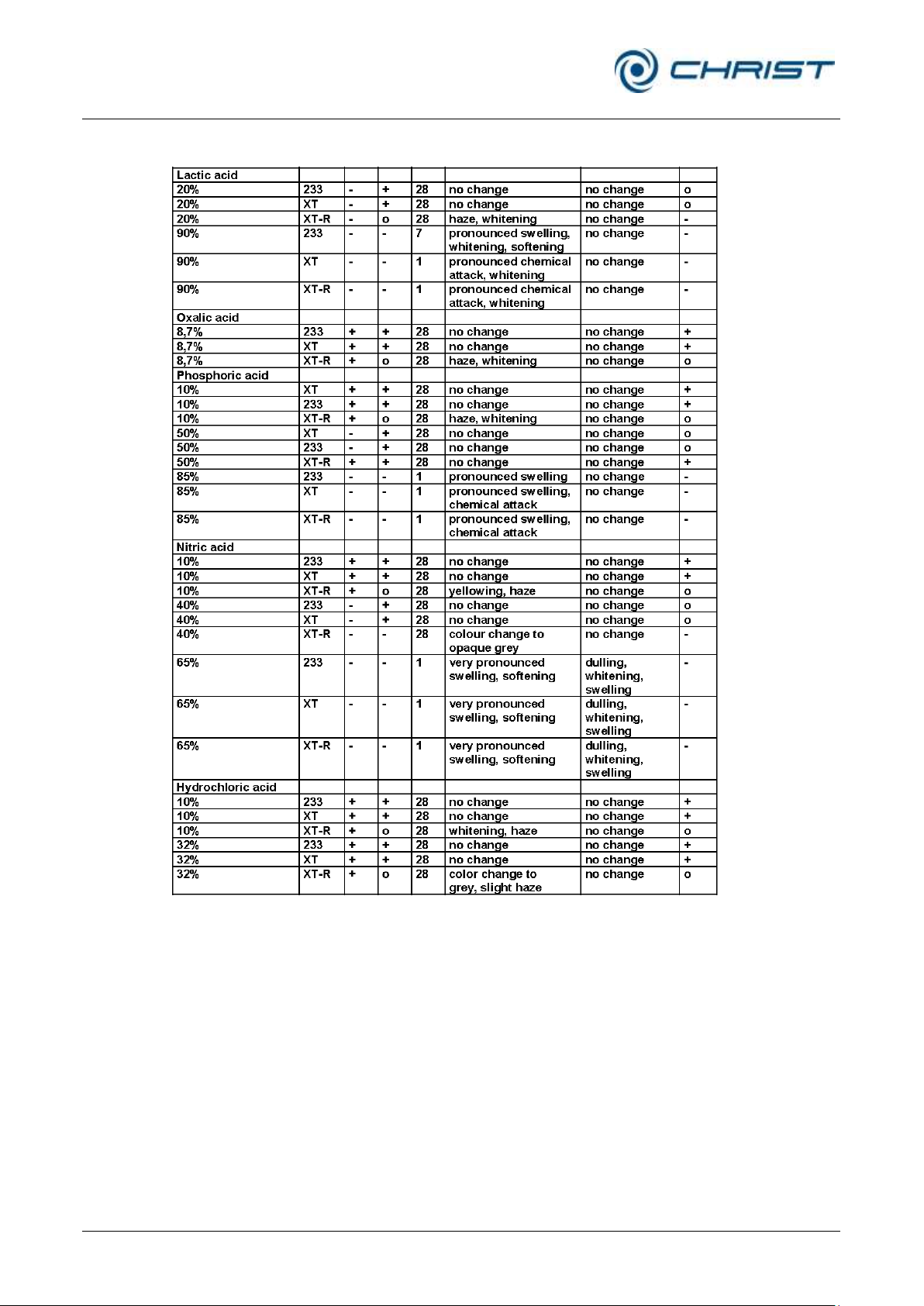

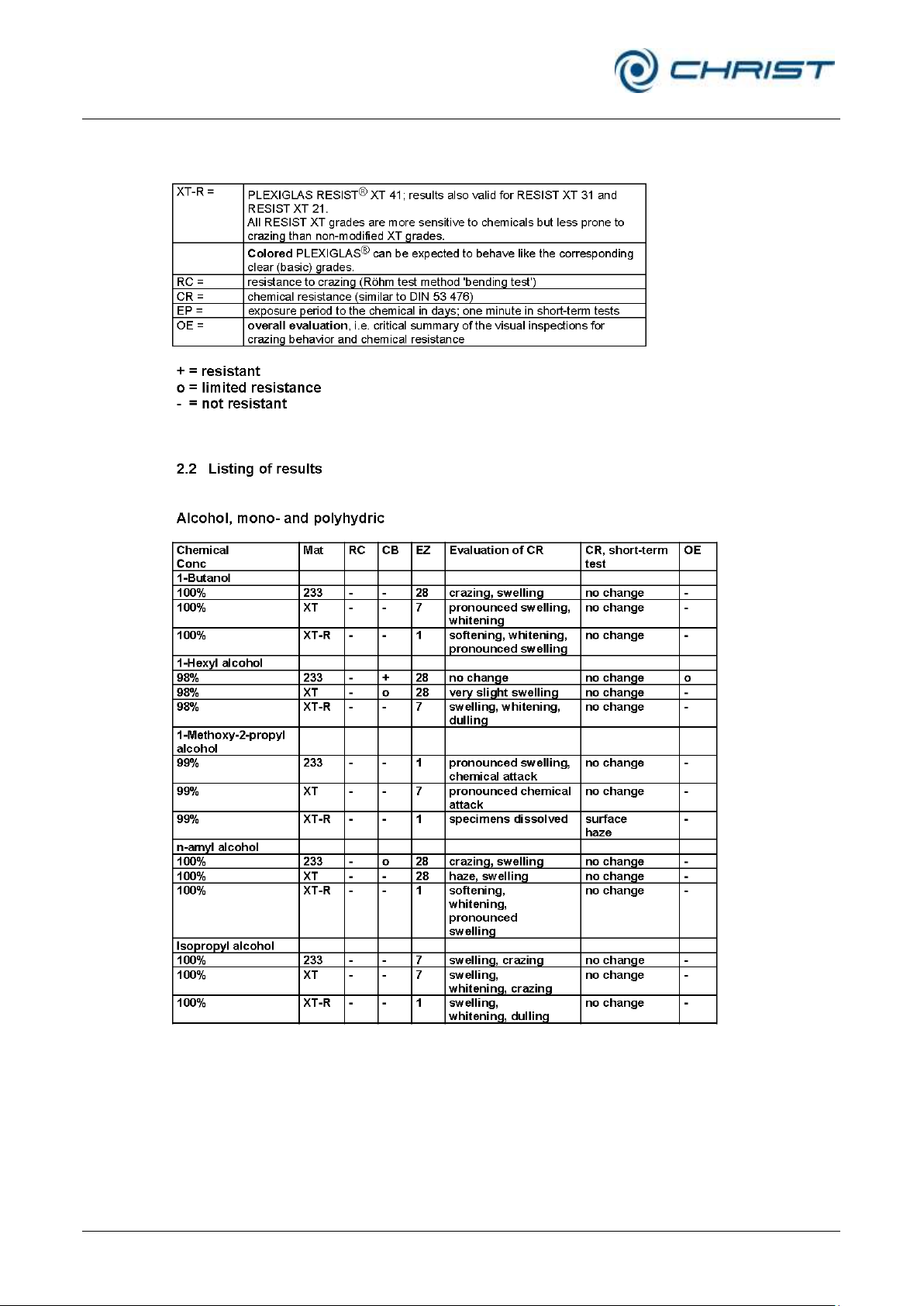

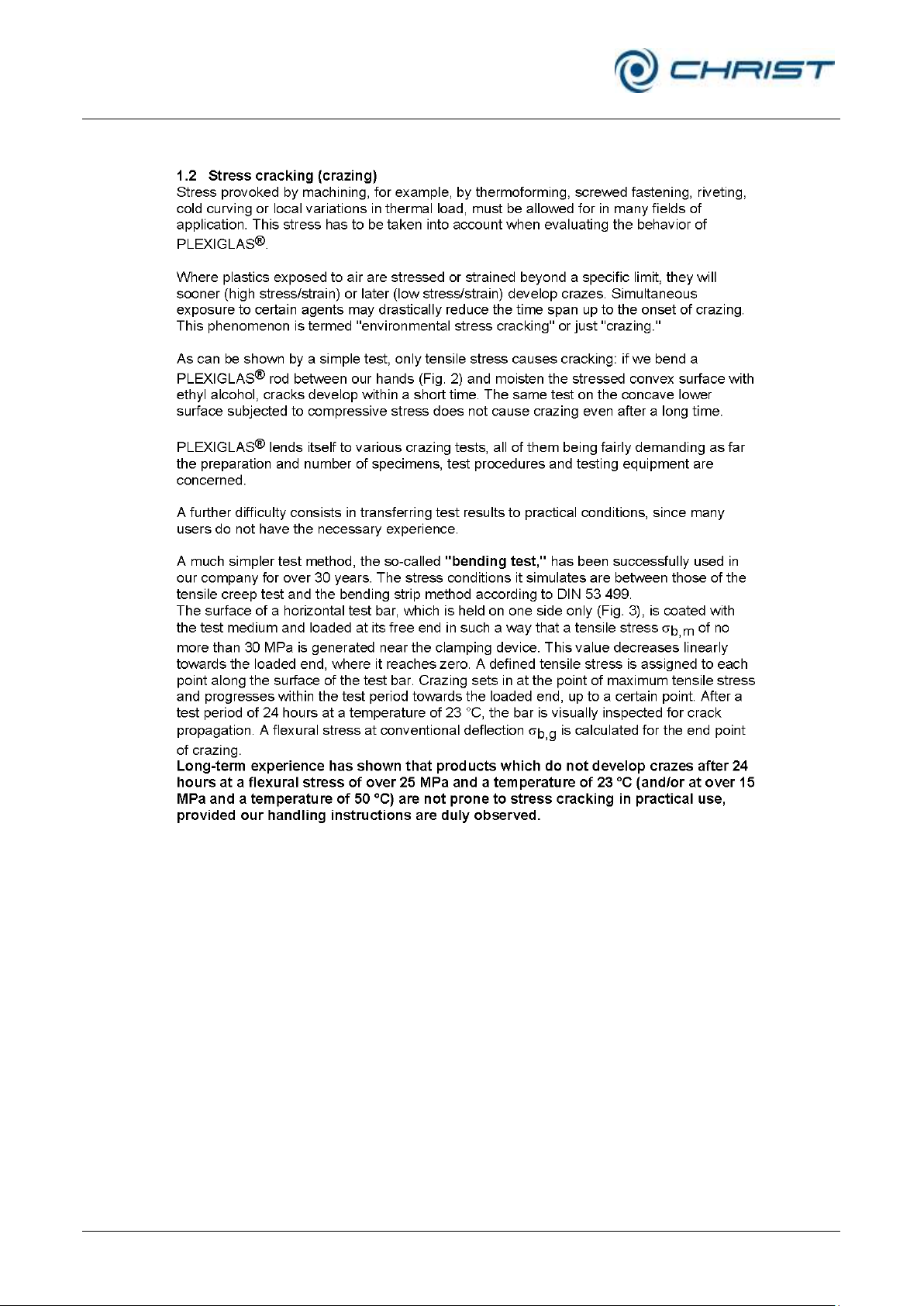

11.4 Resistance to stress cracking and chemical influences "Plexiglas" ................................. 79

12 Glossary ............................................................................................................................. 97

13 Index ................................................................................................................................... 99

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

Table of contents

8 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

1 General information

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

9 / 102

Translation of the original operating manual

Pos: 1 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/010 Allgemeine Infor mationen/010 Allgemeine Informationen===== =========================== @ 24\mo d_1404983207982_68.docx @ 182921 @ 1 @ 1


1 General information

Pos: 2 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/010 Allgemeine Infor mationen/010-0010 Stellenwert der Betriebsanl eitung @ 25\mod_1404983209248_68.docx @ 182935 @ 2 @ 1


1.1 Importance of the operating manual

A fundamental requirement for the safe and trouble-free operation of the
unit is to be familiar with the fundamental safety instructions and all
possible hazards.

The operating manual includes important information concerning the safe
operation of the freeze-dryer.

This operating manual, and in particular the notes on safety and hazards,
must be observed by all persons operating the unit.

In addition, the local rules and regulations for the prevention of accidents

Pos: 3 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 4 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/010 Allgemeine Infor mationen/010-0020 Bestimmungsgemäße Ver wendung Labor @ 25\mod_1404983210350_ 68.docx @ 182949 @ 2 @ 1


must be complied with.

1.2 Intended use

CHRIST freeze-dryers have been solely designed for the freeze-drying of
solid or liquid products in ampoules, vials or dishes. They are, therefore,
solely intended for these applications.

The freeze-dryer is suitable

• for freeze-drying materials such as bacteria and virus cultures, blood
plasma, serum fractions, antibodies, sera, vaccines, and
pharmaceutical products

• for freeze-drying plant extracts, e.g. for biochemical tests

• for freeze-drying inorganic materials, e.g. nanoparticles

• for freeze-drying numerous other products (for further information

please contact our qualified personnel)

Any other use beyond this area of application is regarded as improper use.
Martin Christ Gefriertrocknungsanlagen GmbH cannot be held liable for any
damage resulting from such improper use.

The intended use also includes:

• observation of all the notes and instructions included in the operating
manual

• compliance with the inspection and maintenance instruction

Pos: 5 /010 Universalmodule/Seitenwechs el @ 0\mod_1202116244312_0.docx @ 105 @ @ 1

• prohibition of any type of extensions to, or conversions of the unit.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

1 General information

10 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Pos: 6 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/010 Allgemeine Infor mationen/010-0030 Gewährleistung und Haftu ng @ 25\mod_1404983211377_68.docx @ 18 2963 @ 2 @ 1


1.3 Warranty and liability

The warranty and liability are subject to our "General Terms and
Conditions" that were distributed to the operator upon the conclusion of the
contract.

Warranty and liability claims are excluded if they are due to one or several
of the following reasons:

• improper use

• non-compliance with the safety instructions and hazard warnings in the

operating manual

• improper installation, start-up, operation, and maintenance of the

Pos: 7 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 8 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/010 Allgemeine Infor mationen/010-0040 Urheberrecht @ 25\mod _1404983212403_68.docx @ 182977 @ 2 @ 1


freeze-dryer.

1.4 Copyright

The copyright concerning the operating manual remains with Martin Christ
Gefriertrocknungsanlagen GmbH.

The operating manual is solely intended for the operator and their
personnel. It includes instructions and information that may not be

• duplicated,

• distributed, or

• communicated in any other way neither in full nor in parts.

Pos: 9 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 10 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/010 Allgemeine Inf ormationen/010-0050 Zeichenerklärung @ 25\mod_1404983213429_68.docx @ 182991 @ 2 @ 1


Non-compliance may be prosecuted under criminal law.

1.5 Explanation of symbols

In this operating manual, specialist terms that are explained in the glossary
(see chapter 12 - "Glossary") are marked by an arrow and printed in italics

Pos: 11 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 12 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/010 Allgemeine Inf ormationen/010-0061 Normen und Vorschriften ( ohne DruckgeräteRL) @ 40\mod_145017375 1245_68.docx @ 291724 @ 2 @ 1


(e.g.  sublimation).

1.6 Standards and regulations

EC declaration of conformity in accordance with the EC Machinery
Directive (see chapter 11.2 - "EC declaration of conformity in accordance

Pos: 13 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 14 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 010 Allgemeine Informationen/010-0070 Li eferumfang Alpha 1-4_2-4 LDplus @ 35\ mod_1430379091331_68.docx @ 258534 @ 2 @ 1


with the EC Machinery Directive")

1.7 Scope of supply

The scope of supply comprises:

• 1 tube of high-vacuum grease

• 1 litre of vacuum pump oil (only if a pump is included)

• 1 set of flange components and several small parts for service and

maintenance purposes

• 1 drain hose 0.5 m (silicone 8 x 12 mm)

• 1 operating manual

Accessories and commissioning

Pos: 15 /010 Universalmodule/Abschnitts wechsel @ 0\mod_1202124514062_0.docx @ 418 @ @ 1

According to your order, our order confirmation, and our delivery note.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

11 / 102

Translation of the original operating manual

1 Ice condenser

chamber with an
internal ice condenser

2 User interface (see

chapter 6.5.1 - "User
interface")

3 Mains power switch

4 Pipe connection of the

vacuum pump (behind
the cover plate)

5 Ice condenser

Pos: 16 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1
Pos: 17 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020 Aufbau und Wirkungsweis e=========================== @ 25\ mod_1404983235994_68.docx @ 183019 @ 1 @ 1


2 Layout and mode of operation

Pos: 18 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0010 Aufbau der Gefriertroc knungsanlage------------------------------------------------- @ 25\mod_1404983236941_68.docx @ 183033 @ 2 @ 1


2.1 Layout of the freeze-dryer

Pos: 19 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 020 Aufbau und Wirkungsweise/020-0010-00 10 Funktions- und Bedienelemente Alpha 1-4 _2-4 LDplus @ 35\mod_1430379173090_68.doc x @ 258550 @ 3 @ 1


2.1.1 Functional and operating elements

Fig. 1: Total view of the freeze-dryer

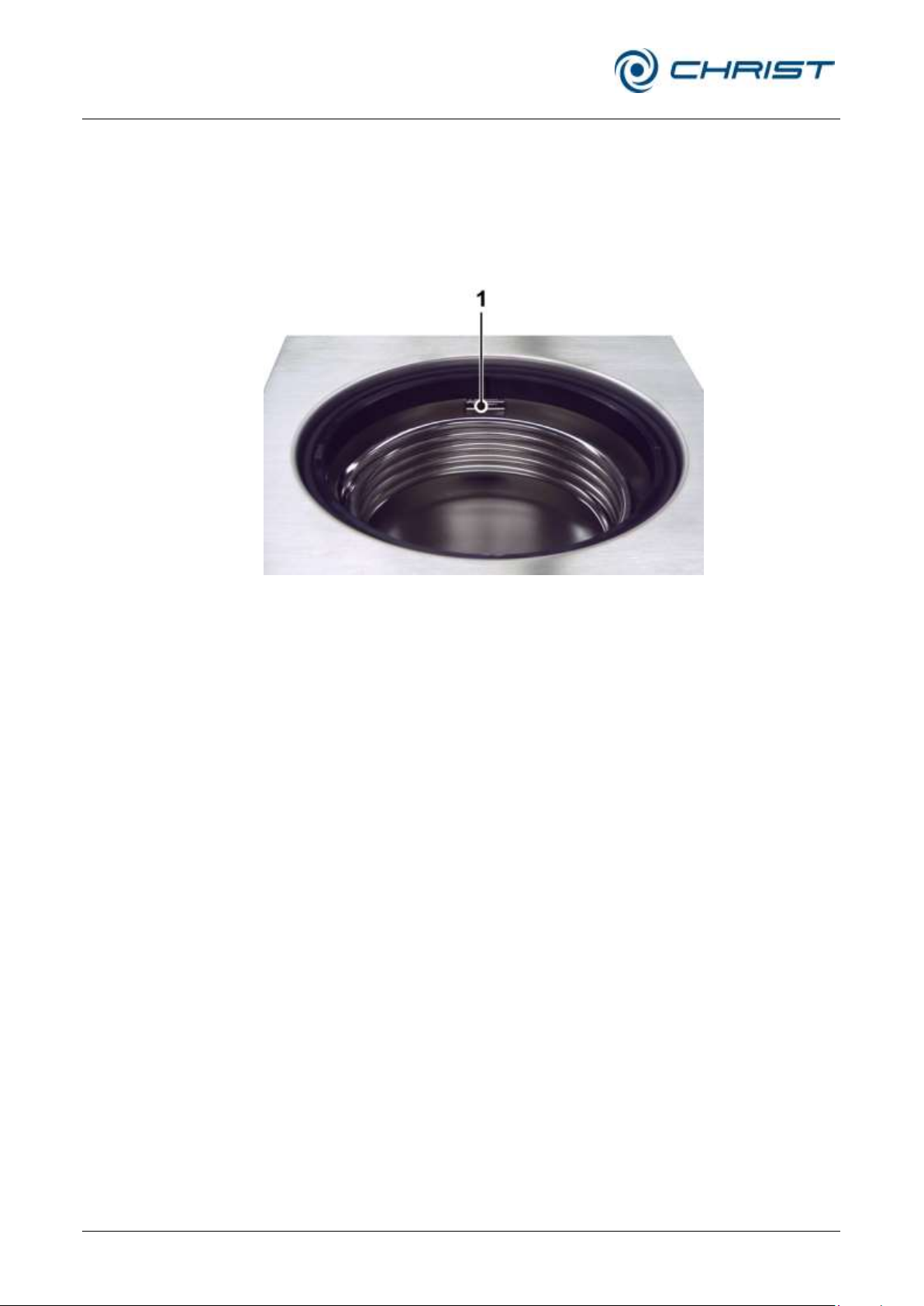

Fig. 2: Ice condenser chamber

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

12 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

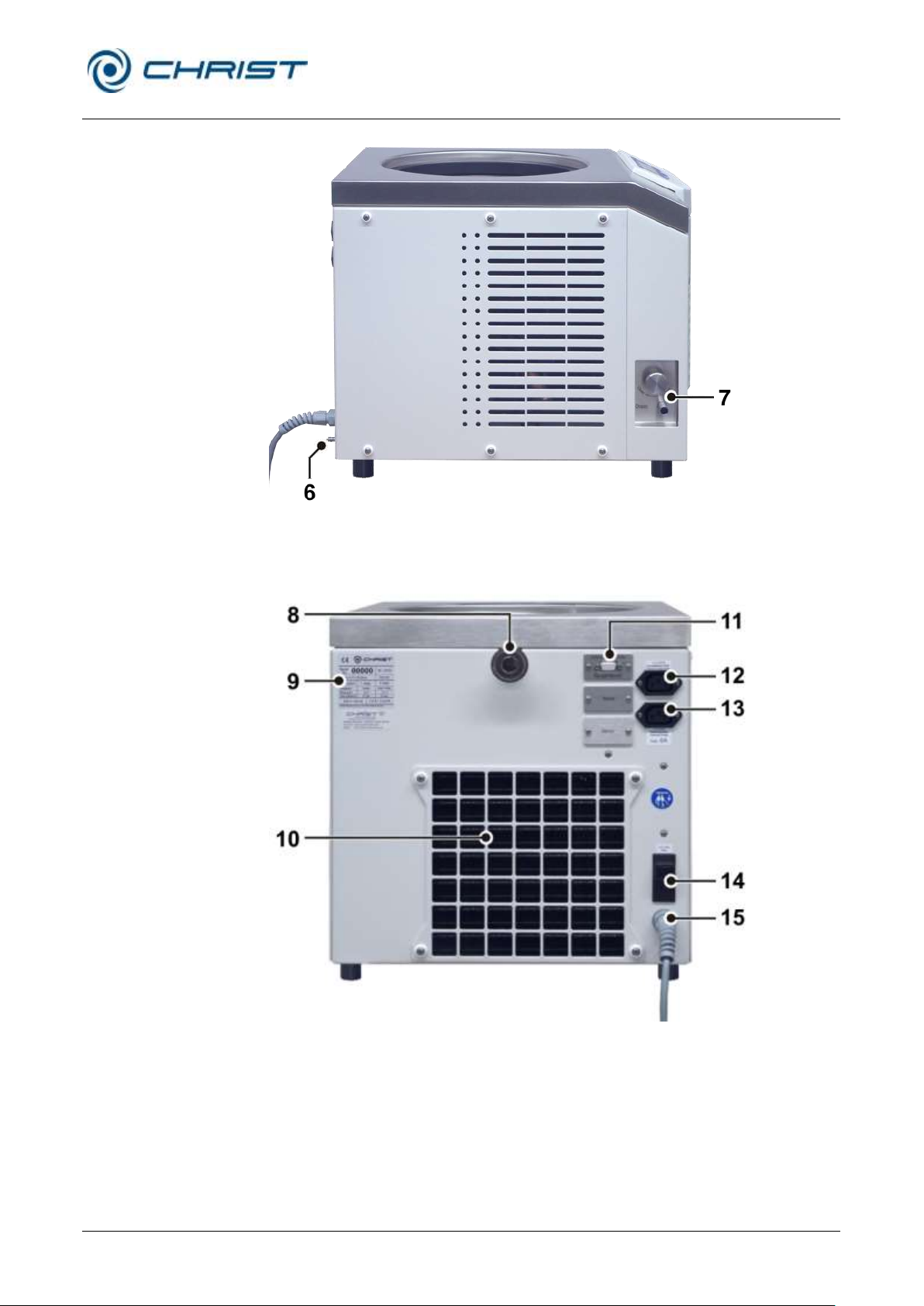

6 Equipotential bonding

screw

7 Aeration and media

drain valve

8 Vacuum connection
9 Name plate (see

chapter 2.1.2 - "Name
plate")

10 Heat exchanger of the

refrigeration unit

11 Electrical connection of

the vacuum sensor

12 Power supply of the

pressure control valve

13 Power supply of the

vacuum pump
14 Mains fuse
15 Mains cable

Fig. 3: Left side of the freeze-dryer

Pos: 20 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Fig. 4: Rear view of the freeze-dryer

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

13 / 102

Translation of the original operating manual

1 Serial number
2 Type
3 Refrigerant data of

the 1st stage
4 Nominal voltage
5 Year of manufacture

(month/year)
6 Part number
7 Refrigerant data of

the 2nd stage
8 Rated current /

apparent power

Fig. 5: Example of a name plate (here: Alpha 2-4 LDplus)

Pos: 21 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 020 Aufbau und Wirkungsweise/020-0010-00 20 Typenschild Alpha 1-4_2-4 LDplus @ 35\m od_1430379174381_68.docx @ 258565 @ 3 @ 1


2.1.2 Name plate

Pos: 22 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

14 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Pos: 23 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020 Wirkungsweise------------------------ @ 25\mod_1404983253850_68.docx @ 183 047 @ 2 @ 1


2.2 Mode of operation

Pos: 24 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0010 Gefriertroc knung allgemein @ 25\mod_1404983254815_68.d ocx @ 183061 @ 3 @ 1


2.2.1 General information on freeze-drying

What is freeze-drying?

Freeze-drying or lyophilisation is a procedure for the gentle drying of high­quality products. The product is dried by  sublimation without passing
through the liquid phase.

What are typical applications for freeze-drying?

As far as their sheer quantity is concerned, foodstuffs are the major
application for freeze-drying. One widely known example is the production
of granulated instant coffee or the drying of fruit, e.g. for breakfast cereals.
Other areas of application are the restoration of water-damaged documents
or the drying of archaeological artefacts.

Another important area of application is the drying of biotechnological and
pharmaceutical products, e.g. tissues and tissue extracts, bacteria,
vaccines, and sera. Products that would not keep well when they are
dissolved in water can be preserved by freeze-drying. During this process,
the biological properties of these sensitive substances are preserved. The
compounds remain unchanged from a qualitative and quantitative point of
view. After the addition of water, the products will have the same
characteristics as the original products.

How does freeze-drying work?

Freeze-drying is a very gentle procedure for the extraction of water from a
product in the frozen state. The drying process takes place through 
sublimation, i.e. the direct transition of a product from the solid phase to the
gas phase. This happens under vacuum.

The following section describes the process of sublimation based on the
example of water, since most products that are processed by freeze-drying
are aqueous solutions. Their behaviour is based on identical fundamental
principles.

The vapour pressure curve above ice describes the phase transition as a
function of the pressure and temperature. The higher the temperature is,
the higher the vapour pressure.

• If the vapour pressure is higher than 6.11 mbar (A), water passes
through all three phases: solid, liquid, and gas (see the illustration).

• If the vapour pressure is below 6.11 mbar (B) and energy is added, the
ice will be directly converted into water vapour once the sublimation
curve is reached. This transition is called “sublimation”. If thermal
energy is added to pure ice with a temperature of less than –30°C at a
pressure of 0.37 mbar, it will be converted into water vapour once it
reaches –30°C (see figure).

The vacuum prevents the melting of ice when energy is added. If thermal
energy is added to a frozen product under vacuum, thawing of the product
will be prevented and the water that is contained within the product will be
released in the form of water vapour.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

15 / 102

Translation of the original operating manual

6.11 mbar

0.37 mbar

-30°C

B

A

V

a

p

o

u

r

p

r

e

s

s

u

r

e

c

u

r

v

e

V

a

p

o

u

r

p

r

e

s

s

u

r

e

c

u

r

v

e

f

o

r

i

c

e

=

S

u

b

l

i

m

a

t

i

o

n

p

r

e

s

s

u

r

e

c

u

r

v

e

Melting

Sublimation

Triple point

SOLID

LIQUID

GASEOUS

Evaporation

M

e

l

t

i

n

g

p

o

i

n

t

p

r

e

s

s

u

r

e

c

u

r

v

e

Pressure
(mbar)

Temperature (°C)

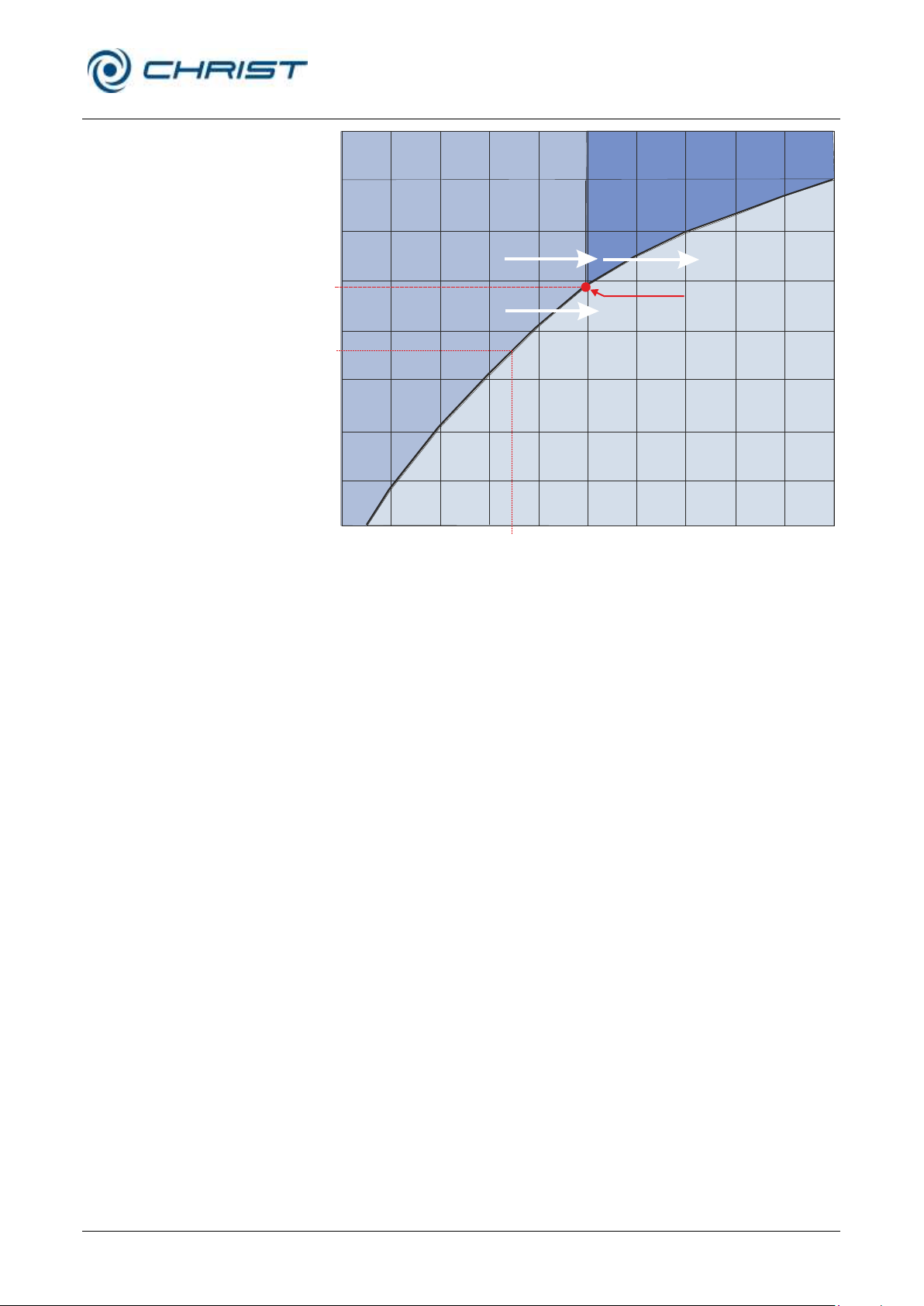

Fig. 6: Vapour pressure curve above ice

From a physical point of view, the freeze-drying process covers three
phases (see figure below):

(1) Freezing: The product to be dried is frozen under atmospheric pressure.
This can be done either directly in the freeze-dryer or in a separate deep­freeze. The freezing temperature should be approximately 10°C below the
solidification point of the product.

(2) Evacuation: When the product is sufficiently frozen, the vacuum pump is
activated. The pressure inside the drying chamber will be lowered to the
value that corresponds to the freezing temperature in accordance with the
vapour pressure curve above ice.

(3) Sublimation: Thermal energy is added to the product, thus starting the
sublimation process. Due to the added energy, the water in the product is
converted into water vapour. Since the ice condenser is much colder than
the product that is to be dried, the vapour pressure in the ice condenser is
considerably lower than above the product. As a result, the water vapour
that is released by the product streams to the ice condenser, where it
condenses on the condenser coils.

Once the free water has been extracted from the product during the main
drying phase, the last traces of bound water will also be removed at a final
pressure that is as low as possible and at higher temperatures. This takes
place by way of  desorption. This drying phase is also called final drying.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

16 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

NOTE

Please find further information about basic principles, optimum procedures
and applications in the brochure "Smart freeze-drying", which can be
downloaded at www.martinchrist.de  [Applications].

1

2

1 bar

20°C

V

a

p

o

u

r

p

r

e

s

s

u

r

e

c

u

r

v

e

V

a

p

o

u

r

p

r

e

s

s

u

r

e

c

u

r

v

e

f

o

r

i

c

e

=

s

u

b

l

i

m

a

t

i

o

n

p

r

e

s

s

u

r

e

c

u

r

v

e

Triple point

SOLID

LIQUID

GASEOUS

M

e

l

t

i

n

g

p

o

i

n

t

p

r

e

s

s

u

r

e

c

u

r

v

e

Pressure
(mbar)

Temperature (°C)

Fig. 7: Freeze-drying phases

Pos: 25 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

17 / 102

Translation of the original operating manual

Pos: 26 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020 Ablauf eines Gefri ertrocknungsprozesses @ 25\mod_140498 3255939_68.docx @ 183075 @ 3 @ 1


2.2.2 Freeze-drying process

The main components of a freeze-dryer are:

• vacuum drying chamber with a temperature control system for adding
thermal energy

• vacuum pump for generating a vacuum inside the drying chamber

• ice condenser for binding the water vapour that is released by the

Pos: 27 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 28 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020-0010 Vorbereitu ng @ 25\mod_1404983256926_68.docx @ 183089 @ 4 @ 1


2.2.2.1 Preparation

Pos: 29 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 30 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020-0020 Gefrieren @ 25\mod_1404983257955_68.docx @ 18310 3 @ 4 @ 1


2.2.2.2 Freezing

product.

The ice condenser chamber must be clean and dry. Any water residues
from a preceding drying run must be removed.

The media drain valve and the aeration valve must be closed.
In the case of units that are equipped with a pressure control valve

(standard on LSCplus units), the vacuum pump should be warmed up
(“warm-up”) for at least 15 minutes prior to the start of the main drying
phase. Do not subject the vacuum pump to condensable gases until the
operating temperature is reached. In this way, the service life of the
vacuum pump can be extended.

At the same time, the ice condenser is pre-cooled ("cool-down"). The ice
condenser temperature does not have any influence on the product
temperature. The sole purpose of the ice condenser is to bind the released
water vapour.

First, the product that is to be dried is frozen. This can be carried out either
directly in the freeze-dryer or in a separate deep-freeze. Especially in the
case of small filling quantities, we recommend pre-cooling the shelves as
well in order to prevent the product from thawing during the evacuation.

Two very different structures of the frozen material can be distinguished:

• crystalline structures with clearly distinguishable crystals

• amorphous structures with no crystal junctions at all (e.g. glass)

The majority of the freeze-drying products have a crystalline form.
When freezing these kinds of products, one must take into consideration

that too deep and too quick freezing leads to smaller ice crystals, which has
a negative effect on the duration of the drying process.

For every product to be dried, the solidification point must be determined as
a first step. This is the point at which the water that is contained in the
product has completely crystallised. In order to ensure an optimum freeze­drying process, the product temperature should be approximately 10°C
below the solidification point.

A layer thickness of the product of 1-2 cm should not be exceeded, since
otherwise the drying duration would be negatively affected. If liquids are to
be dried in bottles with a layer thickness of more than 1 cm, we recommend
freezing them in a cooling bath with the aid of a shell or spin freezing
device (see figure). Due to the centrifugal force, the liquid to be frozen will
rise on the inner wall of the bottle and freeze. This procedure reduces the
layer thickness and, thereby, the total drying time will be shortened to a
considerable extent (see figures on the right side).

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

18 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

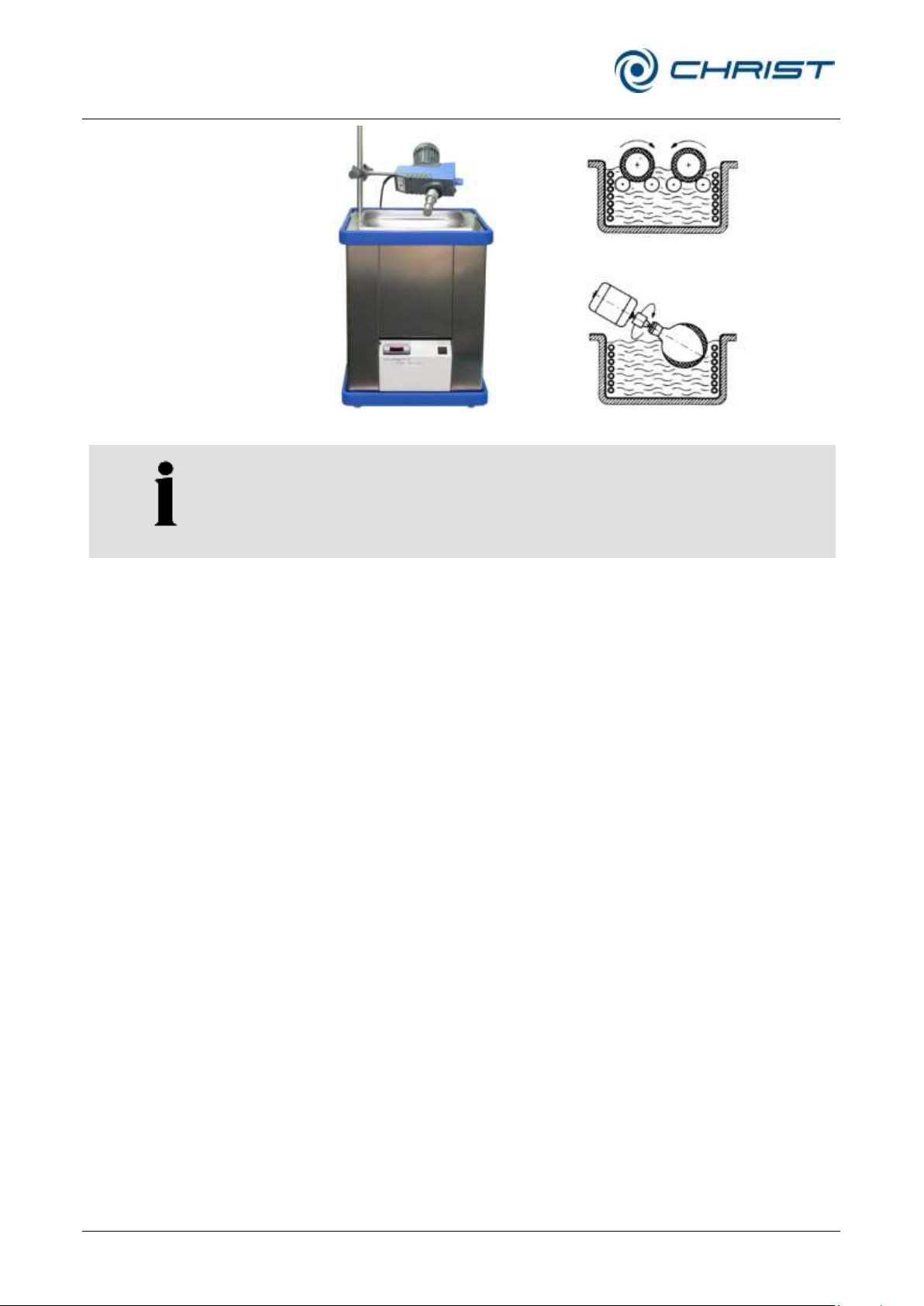

Fig. 8: Shell freezing

Fig. 9: Cooling bath with spin freezing device

Fig. 10: Spin freezing

NOTE

If the product that is to be dried contains solvents or high salt
concentrations, it may start to thaw during the drying process, which is
indicated by clearly visible foaming. In order to prevent this, the product
must be frozen as deeply as possible, e.g. with the aid of liquid nitrogen,
prior to putting it into the unit.

Pos: 31 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 32 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 33 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020-0030 Haupttroc knung @ 25\mod_1404983259260_68.docx @ 183117 @ 4 @ 1


2.2.2.3 Main drying

When the product is frozen to a sufficiently deep extent, the main drying
phase commences. The vacuum pump is switched on. The pressure inside
the drying chamber will be lowered to the value that corresponds to the
freezing temperature in accordance with the vapour pressure curve above
ice. At the same time, thermal energy will be added to the product. In the
case of products in round-bottom flasks, wide-neck bottles, etc., this is
realised through the environment that is considerably warmer (direct
contact heat), in the case of unheated shelves by way of thermal radiation
from the environment, and in the case of temperature-controlled shelves
directly via the shelves. As a result, the sublimation process starts.

At the beginning of the drying process, the maximum drying rate will be
reached. The more the sublimation area recedes into the product, the
further the produced water vapour must pass through the layers that have
already been dried.

Under certain conditions, it is possible that the vacuum inside the ice
condenser chamber increases during the main drying phase (e.g. from 0.63
mbar to 0.47 mbar) although the valve towards the vacuum pump is closed.
From a physical point of view, this is due to the pumping effect of the ice
condenser ("cryo-pumping effect").

The required drying time depends strongly on the drying vacuum. At 1.0
mbar, one gram of ice takes up a volume of 1 m3 of vapour, at 0.1 mbar a
volume of 10 m3 of vapour, and at 0.001 mbar a volume of 100 m3. The
closer the vacuum is to the solidification point, the smaller is the resulting
vapour volume. The drying rate increases and the drying time decreases.

The end of the main drying phase is reached, when the product
temperature and the shelf temperature are nearly identical. The
temperature difference between the shelf and the product should be

Pos: 34 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1
Pos: 35 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020-0040 Nachtroc knung @ 25\mod_1404983260310_68.docx @ 1 83131 @ 4 @ 1

approximately 3 K to 5 K.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

19 / 102

Translation of the original operating manual



2.2.2.4 Final drying

Final drying is an option whenever one requires a product with minimal
residual moisture. In the physical sense, this process is a desorption
process, i.e. the removal of adsorptively bound water. Final drying is
performed under the lowest possible final pressure that depends on the ice
condenser temperature in accordance with the vapour pressure curve
above ice as well as on the final vacuum of the vacuum pump that is used.

Pos: 36 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 37 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020-0050 Trocknungs ende und Belüftung @ 25\mod_1404983261 476_68.docx @ 183145 @ 4 @ 1


The process is supported by a higher shelf temperature.

2.2.2.5 End of drying and aeration

The end of the drying process is reached when both the product and shelf
temperature are clearly in the positive range (+15 to +20°C) and if their
difference is not greater than 5 K.

Another indication of the end of the drying process is the behaviour of the
vacuum and of the ice condenser temperature. The ice condenser is no
longer subject to load and reaches the final temperature of approximately ­55°C or -85°C. The pressure in the drying chamber decreases in
accordance with the ice condenser temperature.

The vacuum pump will be switched off and the drying chamber will be
aerated via a rubber valve or via the aeration valve. The aeration valve can
also be used to flood the unit with nitrogen or another inert gas instead of
ambient air.

Pos: 38 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Then, the product can be removed from the unit.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

2 Layout and mode of operation

20 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

1 Cover plate

Pos: 39 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/020 Aufbau und Wir kungsweise/020-0020-0020-0060 Abtaue n Raumtemperatur @ 25\mod_1404983262567_68. docx @ 183159 @ 4 @ 1


2.2.2.6 Defrosting

Defrosting of the ice condenser is carried out at room temperature or with
warm water.

• At a maximum, the ice condenser chamber may be half filled with water.

• Ensure that no water gets into the pipe connection of the vacuum pump

and the vacuum sensor (behind the cover plate, see figure)

Pos: 40 /010 Universalmodule/Abschnitts wechsel @ 0\mod_1202124514062_0.docx @ 418 @ @ 1

Pos: 41 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Fig. 11: Eis condenser chamber

• Drain the condensate through the media drain valve at the left side of
the freeze-dryer by attaching a hose on the nozzle (included in the
scope of supply) and placing a vessel underneath.

In order to avoid damage, the condensate must be removed directly after
the completion of the defrosting process. Then, any residual water must be
removed from the ice condenser chamber by way of a cloth.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

21 / 102

Translation of the original operating manual

Dangerous voltage

I

On (Power)

Hot surface

0

Off (Power)

Caution! Risk of bruising

Name plate (see chapter

2.1.2 - "Name plate")

Attention, consult the
operating manual

CE mark in compliance
with the directive
2006/42/EC

Protective earth (ground)

Unplug the mains plug

Earth (ground)

China RoHS 2 mark
(only for China)

NOTE

Safety indications on the freeze-dryer must be kept readable at all times.
If necessary, they must be replaced.

NOTE

Not all of the symbols/labels are used for this type of freeze-dryer.

Pos: 42 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0 Sicherheit==================== =============== @ 25\mod_1404983296098_68.doc x @ 183201 @ 1 @ 1


3 Safety

Pos: 43 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Beschilderung des Geräts GT @ 25\mo d_1404983297040_68.docx @ 183215 @ 2 @ 1


3.1 Marking of the unit

The following symbols are used for CHRIST freeze-dryers:

Pos: 44 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

22 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

DANGER

This symbol stands for a direct hazard to the life and health of persons.

Non-observance of these symbols causes serious health problems up to
life-endangering injuries.

DANGER

This symbol stands for a direct hazard to the life and health of persons
due to electrical voltage.

Non-observance of these symbols causes serious health problems up to
life-endangering injuries.

WARNING

This symbol stands for a potential hazard to the life and health of persons.

Non-observance of these symbols can cause serious health problems up
to life-endangering injuries.

CAUTION

This symbol indicates a potentially hazardous situation

Non-observance of these notes can cause minor injuries or damage to
property.

NOTE

This symbol indicates important information.

Pos: 45 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0020 Symbol- und Hinweiserklärungen @ 2 5\mod_1404983298133_68.docx @ 183229 @ 2 @ 1


3.2 Explanation of the symbols and notes

This operating manual uses the following names and symbols to indicate
hazards:

Pos: 46 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

23 / 102

Translation of the original operating manual

Pos: 47 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0030 Verantwortung des Betreibers Labor @ 40\mod_1450250715807_68.docx @ 291792 @ 2 @ 1


3.3 Responsibility of the operator

The operator is obliged to ensure that the persons working with the freeze­dryer

• are 18 years old or older,

• have been specifically ordered to operate the unit and made aware of

dangers originating from the freeze-dryer, supply media, starting and
end products by the operator,

• are familiar with the fundamental regulations concerning workplace
safety and accident prevention

• have read and understood this operating manual (and in particular the
safety sections and warning notes) and confirmed this with their
signature.

The areas of responsibility of the personnel concerning the operation,
maintenance, and care of the unit must be clearly defined.

The safety-conscious work of the personnel in compliance with the
operating manual and the relevant EC and national health and safety
regulations as well as with the accident prevention regulations must be
checked at regular intervals (e.g. every month).

The operator is responsible for performing a risk assessment in terms of
disasters (e. g. fire) in the working area and, if necessary, for taking
constructional measures.

The operator is responsible to check the chemical compatibility of all
substances to be used inside the freeze-dryer (product to be processed,
cleaning media, etc.) with the material of the chamber walls, shelves, pipes,
and gaskets. Substances that may damage the material an degrade the
mechanical strength must not be used.

The freeze-dryer has to be maintained regularly (see chapter 8 ­"Maintenance and service").

Components that are not in a perfect state must be replaced immediately.

Pos: 48 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 49 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0040 Bedienpersonal Labor + Epsilon @ 25\ mod_1404983300275_68.docx @ 183257 @ 2 @ 1


3.4 Operating personnel

It must be ensured that persons operating the unit

• are 18 years old or older,

• have been specifically ordered to operate the unit and made aware of

• be familiar with the fundamental regulations concerning workplace

• have read and understood this operating manual (and in particular the

Pos: 50 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

dangers originating from the freeze-dryer, supply media, starting and
end products by the operator,

safety and accident prevention

safety sections and warning notes) and confirmed this with their
signature.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

24 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

WARNING

• Ensure that the freeze-dryer was set up and connected properly (see
chapter 5 - "Set-up and connection").

• Connections to customer-provided pipes must be force- and torque-
free.

• Maintain a safety distance of at least 30 cm (12 inches) around the
freeze-dryer.

• Do not store any dangerous goods in the safety area of the freeze-
dryer.

• Do not stay in the safety area longer than what is absolutely necessary
for the operation of the freeze-dryer.

• Only use accessories that have been approved by the manufacturer
(except for commercial vessels made of glass or synthetic materials).
We explicitly warn against the use of equipment of poor quality.
Breaking glass or bursting vessels can cause dangerous situations.

• Observe the instructions on the installation of accessories (see the
separate document).

Pos: 51 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0050 Informelle Sicherheitshinweise @ 25\m od_1404983301284_68.docx @ 183271 @ 2 @ 1


3.5 Informal safety instructions

This operating manual is a part of the product.

• The operating manual must be kept at the location of use of the freeze-
dryer. Ensure that it is accessible at all times.

• The operating manual must be handed over to any subsequent owner
or operator of the freeze-dryer.

• Any changes made must be added to the operating manual.

• In addition to the operating manual, the general and local rules and

regulations concerning the prevention of accidents and the protection of
the environment must also be supplied.

• Safety and danger indications on the freeze-dryer must be kept

Pos: 52 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 53 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 54 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0060 Sicherheitshi nweise++++++++++++++++++++++++ +++++ @ 25\mod_1404983302361_68.docx @ 183 285 @ 2 @ 1


readable at all times. If necessary, they must be replaced.

3.6 Safety instructions

The following instructions must be observed prior to every drying process:

Pos: 55 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

25 / 102

Translation of the original operating manual

DANGER

• Ensure that the local mains voltage matches the nominal voltage that is
stated on the name plate.

• Do not place any dangerous material, e.g. glass vessels containing
liquid substances, within the safety area of 30 cm around the freeze­dryer. Spilled liquids may get into the freeze-dryer and damage the
electrical or mechanical components.

• Work on the power supply system must only be performed by certified
electricians.

• Inspect the electrical equipment of the unit regularly. Defects such as
loose or burnt cables must be eliminated immediately.

WARNING

• Do not use the freeze-dryer if it was installed incorrectly.

• Do not use the freeze-dryer without panels.

• Do not use the freeze-dryer with accessories that shows signs of

damage.

• Only use the freeze-dryer with accessories that have been approved by
the manufacturer. In case of doubt, contact the manufacturer (see
chapter 7.3 - "Service contact").

• Do not hit or move the freeze-dryer during its operation.

• Do not lean against or rest on the freeze-dryer during its operation.

• Check the freeze-dryer and the accessories before every start-up for

any visible signs of damage.

• Do not dry any substances that could damage the material of the ice
condenser chamber, drying chamber, lid, or accessories in any way,
e.g. highly corrosive substances such as hydrogen chloride (HCl).

• Stop the freeze-dryer immediately in the event of a malfunction.
Eliminate the malfunction (see chapter 7 - "Malfunctions and error
correction") or contact the after-sales service of Firma Martin Christ
Gefriertrocknungsanlagen GmbH (see chapter 7.3 - "Service contact").

• Ensure that all repairs are performed only by authorised and
specialised personnel.

Pos: 56 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0060-0010 Ele ktrische Sicherheit @ 25\mod_1404983303448_6 8.docx @ 183299 @ 3 @ 1


3.6.1 Electrical safety

CHRIST freeze-dryers are units of safety class I. Please comply with the

Pos: 57 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 58 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/0 30-0010 Sicherheit Labor/030-0060-0020 Me chanische Sicherheit @ 25\mod_14049833 04593_68.docx @ 183313 @ 3 @ 1


following points in order to preserve the safety features:

3.6.2 Mechanical safety

In order to ensure the safe operation of the freeze-dryer, please comply
with the following points:

Pos: 59 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

26 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

DANGER

• Always use fuses of the same type and rating.

• Do not dry explosive or inflammable substances.

• Do not use the freeze-dryer within hazardous locations where there is a

risk of explosion.

DANGER

• Wear suitable protective gloves when installing or removing
accessories. Do not reach into the ice condenser chamber without this
protection – your limbs may freeze onto the chamber walls!

DANGER

• Infectious, toxic, pathogenic, and radioactive substances must be dried
in suitable accessories. Take suitable precautions for your own safety!

• Do not dry products with a high solvent concentration or acidic
products without special protective measures or device-based
precautions (e.g. an additional cooling trap to protect the vacuum
pump). It is absolutely necessary to consult the manufacturer in these
cases (see chapter 7.3 - "Service contact").

• Special caution is necessary when handling azides, as a dangerous
explosive develops in combination with copper or nonferrous metals! It
is absolutely necessary to contact the manufacturer (see chapter 7.3 ­"Service contact").

WARNING

• Keep informed about local measures to avoid harmful emissions
(depending on the substances to be dried).

• As personal protective equipment, safety gloves are required for the
use of the freeze-dryer.
The materials to be dried may, however, require additional special
safety measures (e.g. drying of infectious, toxic, radioactive, or
pathogenic substances)

Pos: 60 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0060-0030 Brandsc hutz @ 25\mod_1404983305708_68. docx @ 183327 @ 3 @ 1


3.6.3 Fire prevention

Fuses protect certain electrical circuits within the freeze-dryer against over-

Pos: 61 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 62 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0060-0040 Ther mische Sicherheit @ 25\mod_1404983306816_ 68.docx @ 183341 @ 3 @ 1


current conditions.

3.6.4 Thermal safety

During the operation of the freeze-dryer, the ice condenser can reach

Pos: 63 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 64 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0060-0050 Che mische und biologische Sicherheit @ 25\mod_1 404983307949_68.docx @ 183355 @ 3 @ 1


surface temperatures of –85°C depending on the power.

3.6.5 Chemical and biological safety

If infectious, toxic, pathogenic, or radioactive substances are intended to be
dried, it is in the responsibility of the user to ensure that all necessary
safety regulations, guidelines, precautions, and practices are adhered to
accordingly.

Pos: 65 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

27 / 102

Translation of the original operating manual

Pos: 66 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0070 Sicherheitsei nrichtungen------------------------------------------------------ @ 25\mod_1404983309110_68.docx @ 183369 @ 2 @ 1


3.7 Safety devices

Pos: 67 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0070-0010 Syst emkontrolle LDplus @ 31\mod_1408515508856_68.d ocx @ 209772 @ 3 @ 1


3.7.1 System check

Pos: 68 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 69 /200 Christ/360 GT-BA Labor-Pilot (STAND ARDMODULE)/030 Sicherheit/030-0010 Sic herheit Labor/030-0070-0020 Schutzleiterprüfu ng Alpha - Gamma, Epsilon 1-4_2-4 @ 25\ mod_1404983311463_68.docx @ 183397 @ 3 @ 1


3.7.2 Earth conductor check

Pos: 70 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 71 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 72 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0010 Sicherheit Labor/030-0080 Verhalten b ei Gefahren und Unfällen Alpha-Gamma, Epsilo n 1-4_2-4 @ 25\mod_1404983312451_68.doc x @ 183411 @ 2 @ 1


An internal system check system monitors the data transfer and sensor
signals with regard to plausibility. Errors are detected by continuous self­monitoring of the system. Error messages are displayed in the main

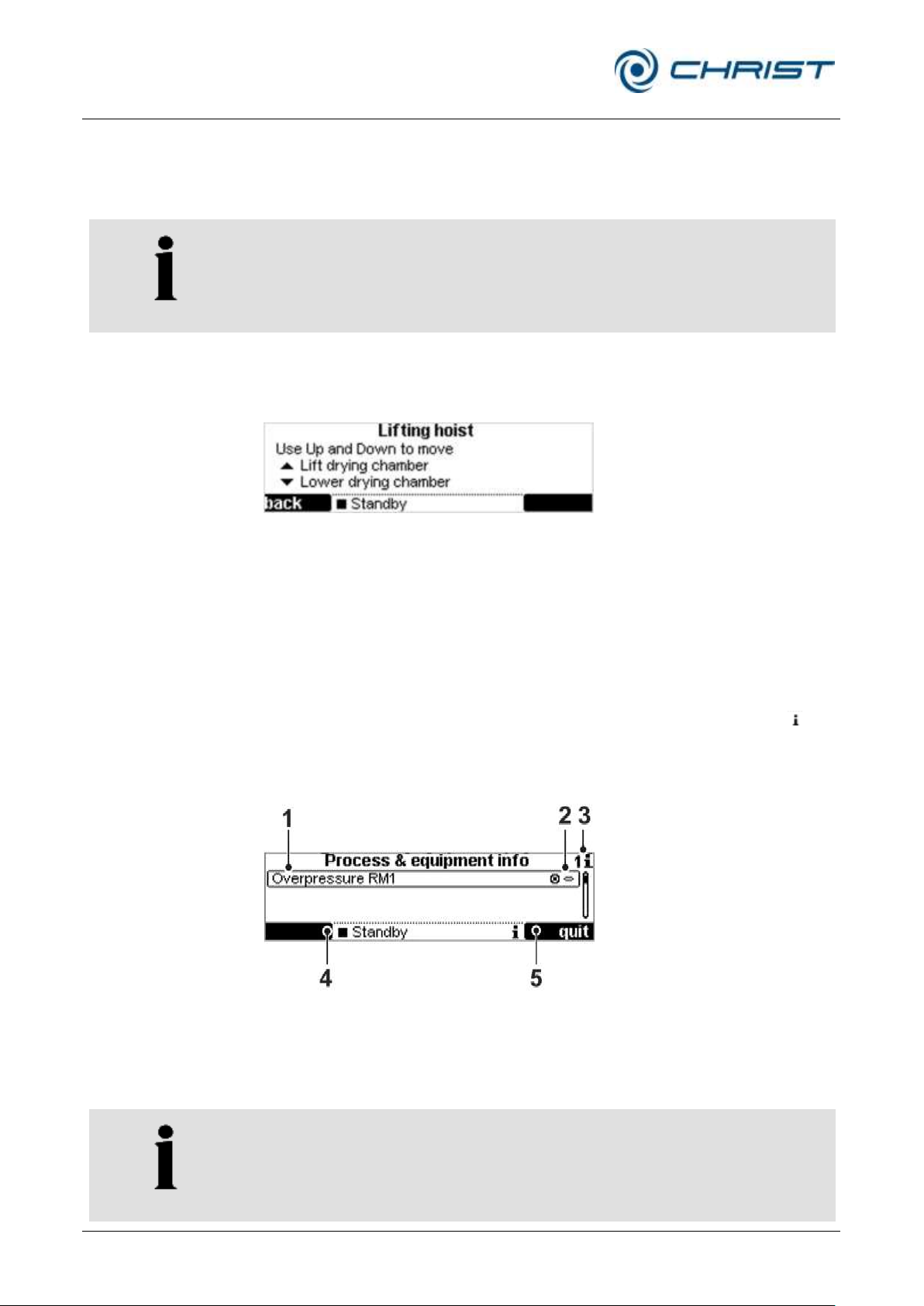

window under "Process & equipment messages" ((see chapter 7.2 ­"Process and equipment messages")).

For the earth conductor check, there is an equipotential bonding screw on
the rear panel of the freeze-dryer. An earth conductor check can be carried
out with the aid of a suitable measuring instrument.

3.8 Procedures in the event of hazards and accidents

Hazardous electrical incident:

• Set the control switch to the "0" position in order to interrupt the power
supply completely.

Fire:

• A fire in the electrical control system must be extinguished with a CO2
fire extinguisher!

• Burning oil must be extinguished with a CO2 fire extinguisher or powder
fire extinguisher!

Electric shock:

• While ensuring your own safety, interrupt the circuit as quickly as
possible (control switch). Keep the affected persons warm and calm.
Get medical attention immediately! Check consciousness and
breathing continuously. In the case of unconsciousness of lack of
normal breathing, perform cardiopulmonary resuscitation (CPR).

Burns:

• Cool small-area burns (e.g. finger) immediately with cold water for
approximately 2 minutes.

• Do not cool if larger areas of the body surface are burnt since there is a
risk of hypothermia.

• Cover the burns loosely and in a sterile manner (e.g. with sterile
dressing).

• Keep the affected persons warm and calm.

Pos: 73 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

IF IN DOUBT, CALL THE EMERGENCY PHYSICIAN (AMBULANCE)!

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

3 Safety

28 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Pos: 74 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/030 Sicherheit/03 0-0090 Restrisiken @ 25\mod_1404983315577 _68.docx @ 183453 @ 2 @ 1


3.9 Remaining hazards

All CHRIST freeze-dryers were built state-of-the-art and according to the
accepted safety rules. Danger to life and limb of the operator, or of third
parties, or impairments of the units or other material assets, however,
cannot be completely excluded when the units are being used.

Use the freeze-dryer

• only for the purpose that it was originally intended for (see chapter 1.2 -
"Intended use") and

• only if it is in a perfect running state.

Pos: 75 /010 Universalmodule/Abschnitts wechsel @ 0\mod_1202124514062_0.docx @ 418 @ @ 1

Pos: 76 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

• Immediately eliminate any problems that can affect safety.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

4 Storage and transport

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

29 / 102

Translation of the original operating manual

Alpha 1-4 LDplus

Alpha 2-4 LDplus

Height:

415 mm

415 mm

Width:

390 mm

390 mm

Depth:

520 mm + 80 mm vacuum connection

520 mm + 80 mm vacuum connection

Weight:

approx. 42 kg

approx. 55 kg

Pos: 77 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/040 Lagerung und Tr ansport/040 Lagerung und Transport======== =================== @ 25\mod_1404 983713664_68.docx @ 183467 @ 1 @ 1


4 Storage and transport

Pos: 78 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 040 Lagerung und Transport/040-0010 Abmess ungen und Gewicht Alpha 1-4_2-4 LDplus @ 35\mod_14 30379587984_68.docx @ 258641 @ 2 @ 1


4.1 Dimensions and weight

Pos: 79 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 80 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 81 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/040 Lagerung und Tr ansport/040-0020 Lagerbedingungen @ 25\mod_1404983714695_68.docx @ 183481 @ 2 @ 1


4.2 Storage conditions

Pos: 82 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Values for the freeze-dryer without a vacuum pump:

In order to ensure the protection against mechanical and climatic
influences, the guidelines of the German Federal Association for Wooden
Packages, Pallets, and Export Packaging (Bundesverband Holzpackmittel,
Paletten, Exportverpackung e.V.), the so-called HPE packaging guidelines,
must be applied when packing and storing the freeze-dryer.

The storage must be:

• dust-free

• dry

• free from excessive temperature fluctuations

• free from a mechanical load.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

4 Storage and transport

30 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

correct

incorrect

CAUTION

The freeze-dryer Alpha 1-4 LDplus weighs approx. 42 kg!
The freeze-dryer Alpha 2-4 LDplus weighs approx. 55 kg!

Pos: 83 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 040 Lagerung und Transport/040-0030 Transp orthinweise Alpha 1-4_2-4 LDplus @ 35\mod_14303795 88273_68.docx @ 258656 @ 2 @ 1


4.3 Notes on transport

• Use suitable packaging for the transport, and if at all possible, the
original packaging.

• Install all transport safety devices (see chapter 4.5 - "Transport safety
device").

• Over short distances, the freeze-dryer can be transported by a suitable
number of persons who reach under it from the sides.

• When lifting the freeze dryer, always reach under the freeze-dryer from
the side. Do not grab the unit at the plastic control panel (see figures
below).

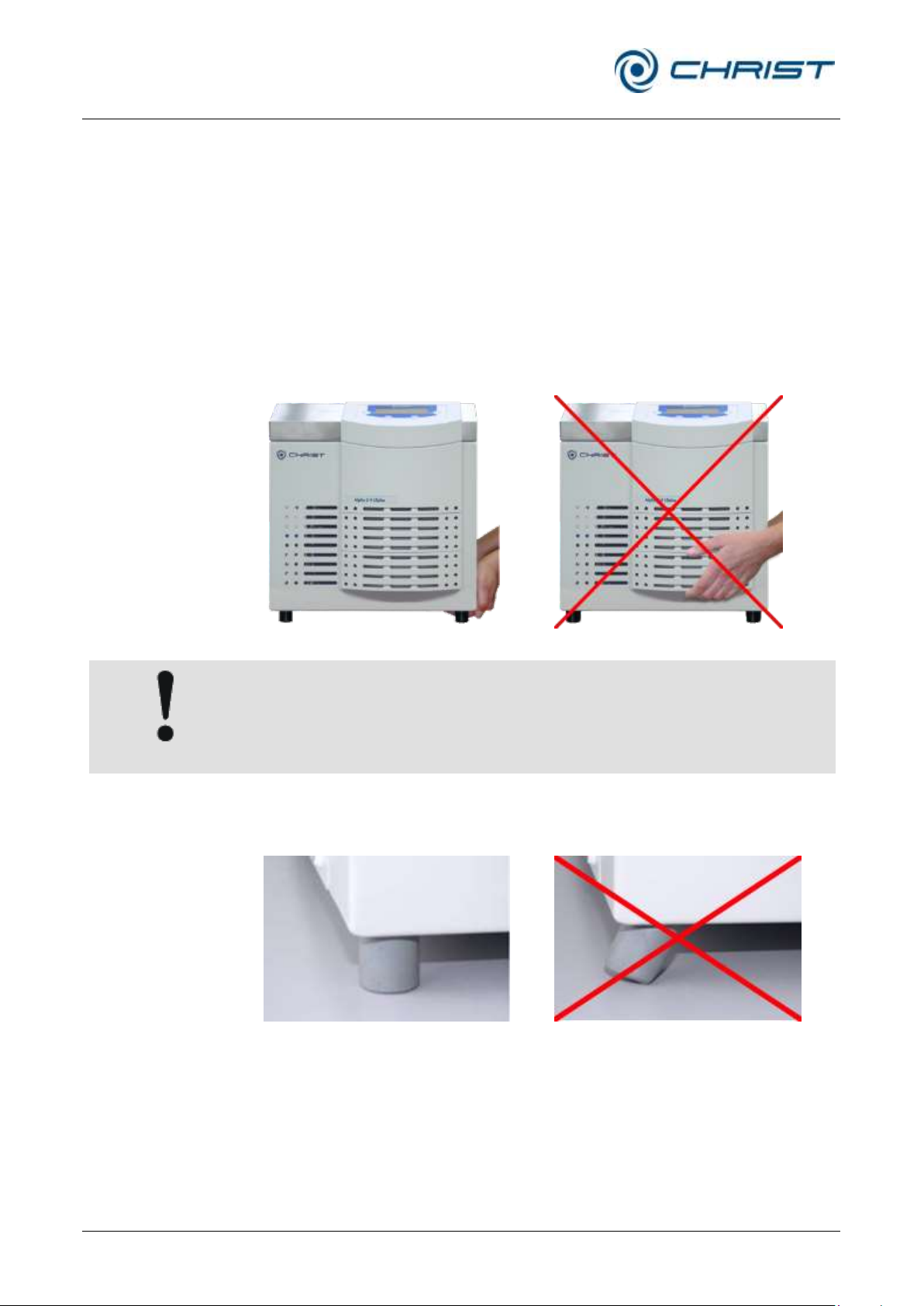

Fig. 12: Lifting the freeze-dryer

• When setting the unit down, ensure that the feet are upright (see figures

Pos: 84 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

below).

Fig. 13: Unit feet

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

4 Storage and transport

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

31 / 102

Translation of the original operating manual

CAUTION

The freeze-dryer Alpha 1-4 LDplus weighs approx. 42 kg!
The freeze-dryer Alpha 2-4 LDplus weighs approx. 55 kg!

NOTE

Prior to any transport, the vacuum sensor must be deinstalled.

Pos: 85 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 040 Lagerung und Transport/040-0040 Verp ackung Alpha 1-4_2-4 LDplus @ 35\mod_143037 9588892_68.docx @ 258671 @ 2 @ 1


4.4 Packaging

Pos: 86 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 87 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 040 Lagerung und Transport/040-0050 Transp ortsicherung Alpha 1-4_2-4 LDplus @ 35\ mod_1430379589169_68.docx @ 258686 @ 2 @ 1


The freeze-dryer is packaged in a cardboard box or in a wooden crate,
depending on the scope of supply.

• After opening the packaging, take out the box containing the
accessories.

• Remove the packaging material.

• Lift the freeze-dryer upwards and out of the crate/cardboard box. When

lifting the unit, always reach under the freeze-dryer from the side.

• Retain the packaging for any possible future transport of the freeze-
dryer.

4.5 Transport safety device

Prior to start-up, the vacuum sensor must be installed (see chapter 5.4 ­"Vacuum sensor").

Pos: 88 /010 Universalmodule/Abschnitts wechsel @ 0\mod_1202124514062_0.docx @ 418 @ @ 1

Pos: 89 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

32 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

NOTE

Refrigeration problems of the freeze-dryer are often caused by insufficient
conditions at the location of use. This is why compliance with the following
conditions is absolutely mandatory!

Pos: 90 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/050 Aufstellung und Anschluss/050 Aufstellung und Anschluss L abor ========================= = @ 25\mod_1404983737244_68.docx @ 183495 @ 1 @ 1


5 Set-up and connection

Pos: 91 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/050 Aufstellung und Anschluss/050-0010 Aufstellort (Alpha-D elta) BA @ 25\mod_1404983738197_68.docx @ 18 3509 @ 2 @ 1


5.1 Installation site

Pos: 92 /010 Universalmodule/Seitenwec hsel @ 0\mod_1202116244312_0.docx @ 10 5 @ @ 1

Operate the freeze-dryer only in closed and dry rooms.

• The table must be stable and have a solid, even tabletop.

• Ensure sufficient ventilation. Do not place any paper, cloth, or similar

material behind or under the unit, since otherwise the air circulation will
be impaired.

• Keep a safety distance of at least 30 cm around the freeze-dryer so that
the vents in the unit remain fully effective.

• The ambient temperature must be in the range of +10°C to +25°C. A
potential night-time setback of the air conditioning system must be
taken into consideration.

• Prevent the room temperature from rising, for example due to closed
doors at night.

• Do not subject the freeze-dryer to thermal stress, e.g. by positioning it
near heat generators.

• Prevent thermal overload, e.g. caused by other equipment in the direct
vicinity of the freeze-dryer.

• Do not set up the vacuum pump directly next to the heat exchanger
(condenser).

• In the case of water-cooled systems, ensure that the water circuit
provides a sufficient amount of cooling water.

• Avoid direct sunlight (UV radiation).

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

33 / 102

Translation of the original operating manual

DANGER

The operating voltage on the name plate must correspond to the local
supply voltage

NOTE

The ice condenser chamber can be flooded with nitrogen via the hose
nozzle of the aeration valve.

Pos: 93 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/050 Aufstellung un d Anschluss/050-0020 Energieversorgung--------------------------------------- @ 25\mod_1404983740008_68.docx @ 183537 @ 2 @ 1


5.2 Power supply

Pos: 94 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 050 Aufstellung und Anschluss/050-0020-0010 Anschlussart Alpha 1-4_2-4 LDplus @ 35\ mod_1430380090236_68.docx @ 258823 @ 3 @ 1


5.2.1 Connection

Pos: 95 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 96 /200 Christ/360 GT-BA Labor- Pilot (STANDARDMODULE)/050 Aufstellung un d Anschluss/050-0020-0020 Sicherungen baus eits @ 25\mod_1404983741015_68.docx @ 18 3551 @ 3 @ 1


CHRIST freeze-dryers are units of safety class I.
Alpha 1-4 LDplus and Alpha 2-4 LDplus units have a three-wire power
cord with a fixed cable(see chapter 10 - "Technical data").
An equipotential bonding screw is located on the back below the mains

power input (see chapter 2.1.1 - "Functional and operating elements"). This
equipotential bonding screw can be used to perform an earth conductor
check.

5.2.2 Customer-provided fuses

Typically, the freeze-dryer must be protected with 16 Amp G fuses that are

Pos: 97 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 98 /010 Universalmodule/ Leerzeile @ 0\mod _1202116244500_0.docx @ 114 @ @ 1

Pos: 99 /200 Christ/361 GT-BA Labor- Pilot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/ 050 Aufstellung und Anschluss/050-0030 Belü ftungs- und Medienablaufventil Alpha 1-4_2- 4 LDplus @ 35\mod_1430728044599_68.docx @ 259092 @ 2 @ 1


to be provided by the customer.

5.3 Aeration and media drain valve

The aeration and media drain valve is located on the left side of the unit
(see chapter 2.1.1 - "Functional and operating elements").

After the end of a freeze-drying process, the unit will be aerated via the
aeration valve.

Additionally, it is used to drain off the condensate and the defrosting water.

• Connect the drain hose (included in the scope of supply) to the hose
connector.

• Place a collecting vessel under the unit.

The hose must be laid with a continuous slope and the end of the hose
must always be above the liquid level in the collecting vessel. This prevents
water and dirt residues from being sucked into the ice condenser chamber
if there is negative pressure when the media drain valve is opened.

Pos: 100 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

34 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

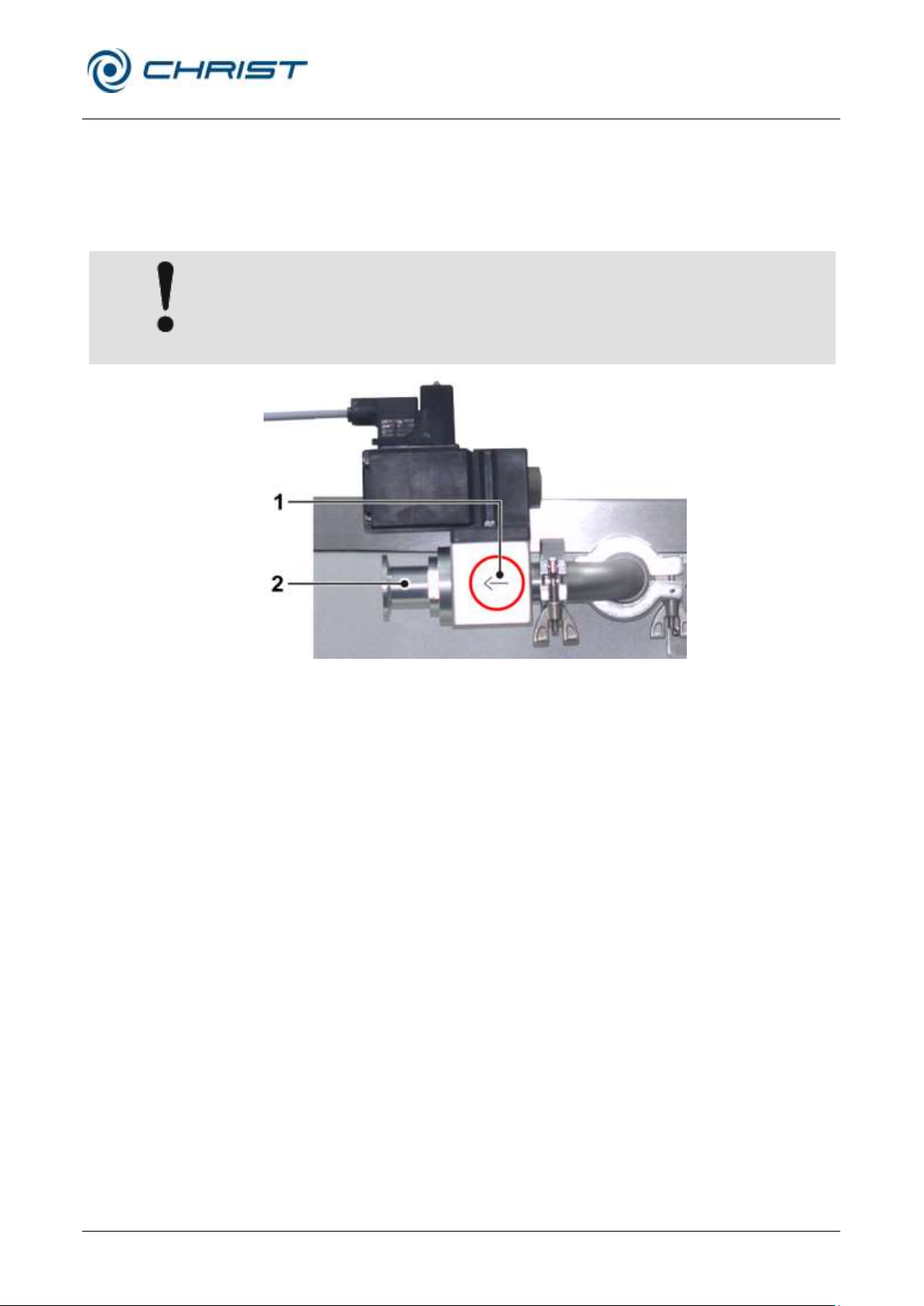

NOTE

Please refer to the separate operating manual of the vacuum sensor!

1 Vacuum sensor
2 Clamping rings
3 Connection socket

NOTE

It is absolutely essential to comply with the manufacturer’s instructions in

the separate operating manual of the vacuum sensor!

Pos: 101 /200 Christ/361 GT-BA Labor-Pil ot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/0 50 Aufstellung und Anschluss/050-0050 V akuummesssonde Alpha 1-4_2-4 LDplus @ 35\ mod_1430380091086_68.docx @ 258868 @ 2 @ 1


5.4 Vacuum sensor

In order to protect the vacuum sensor against transport damage, it comes
supplied in its original packaging. Prior to commissioning the freeze-dryer,
the sensor must be installed.

Fig. 14: Position of the vacuum sensor and the connection socket

• Switch the unit off by actuating the mains power switch.

• Take the vacuum sensor out of its original packaging and fasten it to the

connector with a bow-shaped connecting piece, two clamping rings
(DIN16KF) and two centring rings (included in the scope of supply).

• Plug the connector to the connection socket and hand-tighten the
screws on the connector.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

35 / 102

Translation of the original operating manual

Thyracont VCP63

MKS 722B

NOTE

The vacuum sensor comes supplied in a calibrated state.

Fig. 15: Installed vacuum sensors of different manufacturers

Pos: 102 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

After the freeze-dryer has been switched on, the vacuum sensor needs
several minutes until it is ready for operation.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

36 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

NOTE

It is absolutely essential to refer to the separate instruction manual of the
vacuum pump and exhaust filter (if applicable)!

NOTE

The vacuum pump is supplied with power by the unit, but the maximum
current for the vacuum pump is limited. It is absolutely essential to refer to
the label of the electrical outlet for the vacuum pump (see the following
picture)!

If the current requirement of the vacuum pump is higher than the value that
is stated on the label, the pump must be supplied separately via an on-site
power socket.

1 Label indicating the

maximum current

Pos: 103 /200 Christ/361 GT-BA Labor-Pil ot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/0 50 Aufstellung und Anschluss/050-0060 V akuumpumpe Alpha 1-4_2-4 LDplus @ 35\mod_14303800 91629_68.docx @ 258883 @ 2 @ 1

5.4.6 Vakuumpumpe 

5.5 Vacuum pump

The vacuum pump must be connected to the vacuum connection of the unit
and to the electrical socket at the back of the unit, which is marked
accordingly (see chapter 2.1.1 - "Functional and operating elements").

Fig. 16: Indication of the maximum current for the vacuum pump (example)

The oil mist that escapes from the pump during operation must be retained
or discharged via an exhaust filter (oil mist separator).

• We strongly recommend using an oil mist separator. The filter prevents
the contamination of the air with oil mist.

• For discharging the oil mist, connect a suitable hose (RZ-2.5 and RC-6:
½", DUO 5 or DUO 10 ¾") to the exhaust connector of the vacuum
pump.

• The hose line must be laid in such a manner that any condensation
water cannot flow back into the pump. In the case of a rising hose line,

Pos: 104 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

we recommend using a condensate trap (Woulff bottle or wash bottle).

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

37 / 102

Translation of the original operating manual

CAUTION

Observe the installation direction of the pressure control valve!

1 Pressure control valve
2 Vacuum pump

connection

Pos: 105 /200 Christ/361 GT-BA Labor-Pil ot (PROJEKTE)/Alpha/Alpha 1-4_2-4 LDplus/0 50 Aufstellung und Anschluss/050-0070 Dr ucksteuerventil Alpha 1-4_2-4 LDplus @ 35\m od_1430380091910_68.docx @ 258898 @ 2 @ 1


5.6 Pressure control valve

The pressure control valve is integrated in the suction pipe between the
vacuum pump and ice condenser chamber. During certain, specified
process phases, it interrupts the volume flow to the vacuum pump (see
chapter 2.2.1 - "General information on freeze-drying").

Pos: 106 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

Fig. 17: Installation of the pressure control valve

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

5 Set-up and connection

38 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

1 Locking handle
2 Aeration connection
3 Vessel connection
4 Rubber plug
5 Connection to freeze-

dryer (e.g. via a
manifold)

NOTE

The rubber valves come supplied in an ungreased state. This is why a thin
layer of vacuum grease must be applied to the connector of the freeze­dryer as well as to the vessel connector prior to start-up in order to ensure
trouble-free operation.

Pos: 107 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/050 Aufstellung u nd Anschluss/050-0100 Gummiventile @ 25\ mod_1404983741840_68.docx @ 183565 @ 2 @ 1


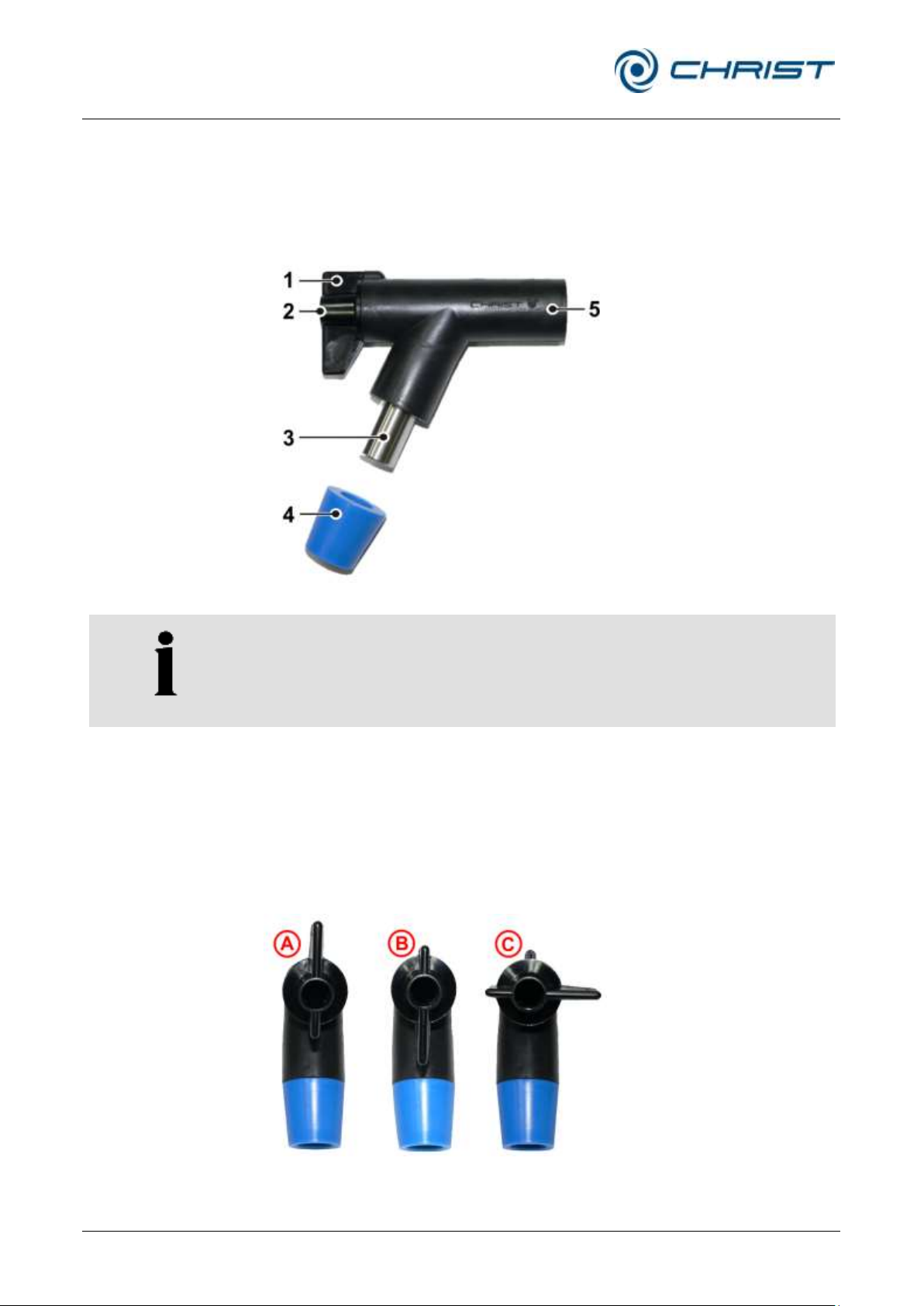

5.7 Rubber valves

The rubber valves (part no. 121860) enable the connection of round-bottom
flasks, wide-neck filter bottles, or distributors for ampoules to a manifold or
drying chamber. Depending on the connector of the components, the blue
plug can be removed.

Fig. 18: Rubber valve

In position A (see figure below), the aeration connector is open and the
vessel connector is closed. The accessory will be aerated while the vacuum
inside the drying chamber is maintained. As a result, vessels can be
exchanged without any interruption of the drying process.

In position B, the aeration connector is closed and the vessel connector is
open. The connected accessory is connected to the freeze-dryer.

In position C, the aeration connector and the vessel connector are closed.

Pos: 108 /010 Universalmodule/Abschnitt swechsel @ 0\mod_1202124514062_0.doc x @ 418 @ @ 1

Pos: 109 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

Fig. 19: Possible positions of the locking handle

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

39 / 102

Translation of the original operating manual

WARNING

Before the initial start-up, please ensure that your freeze-dryer is properly
set up and installed (see chapter 5 - "Set-up and connection")

Pos: 110 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/060 Betrieb========================== ============== @ 25\mod_1404983759758_68. docx @ 183578 @ 1 @ 1

6 Operation

Pos: 111 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/060-0 010 Erste Inbetriebnahme Labor+++++++++ +++++++++++++++++ @ 25\mod_140498 3760674_68.docx @ 183592 @ 2 @ 1

6.1 Initial start-up

Pos: 112 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 113 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 114 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/060-0 020 Installation von Zubehörkomponenten+++++ +++++++++++++++++ @ 25\mod_14049837 61840_68.docx @ 183607 @ 2 @ 1


6.2 Installation of accessories

The accessories must be completed in accordance with the drying method
that is applied as well as in accordance with the scope of supply.

Pos: 115 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 116 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 117 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/060-0 030 Vorbereitung der Gefriertrocknungsanlag e +++++++++++++++++++++++++++++ ++++ @ 25\mod_1404983762863_68.docx @ 183620 @ 2 @ 1

Please contact our sales department if you have any queries.

6.3 Preparation

The ice condenser chamber must be clean and dry.

• Remove any water residues from the preceding run.

• Close the media drain valve and the aeration valve.

• Ensure that all of the valves of the accessories are closed.

Pos: 118 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 119 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 120 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/060-0 040 Einschalten (nur Netzschalter) +++++++ +++++++++++++++++++++++++++++++ @ 25\mod_1404983764944_68.docx @ 183648 @ 2 @ 1

• Switch the vacuum pump on.

6.4 Switching the freeze-dryer on

• Actuate the mains switch.

The control unit performs a self-test and an initialisation. This may take
several seconds.

• Follow the safety instructions and hazard warnings (see chapter 3 -

Pos: 121 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

"Safety")!

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

40 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

1 Left function key
2 Right function key
3 "Up" key
4 "Down" key
5 Display

Pos: 122 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050 LDplus Anlagensteuerung--------------------------------------------- @ 31\mod_1408352501246_68.docx @ 209535 @ 2 @ 1

6.5 LDplus control system

The control system LDplus ("Lyo Display plus") was specifically developed
for the control of freeze-drying processes. The clear user interface enables
the intuitive operation of the unit.

Pos: 123 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 124 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0010 Bedienoberfläche LDplus @ 31\mod_1408352501580_68.docx @ 209549 @ 3 @ 1

6.5.1 User interface

Fig. 20: Start screen of the LDplus control system

Fig. 21: User interface of the LDplus control system

Function keys (1+2)

Function keys are keys whose function depends on the menu and
operating state of the unit. The current function is displayed directly next to
the key in the field with a black background.

Fig. 22: Indication of the current functions of the function keys; here, on the left, the "mode"
function and on the right the "menu" function.

"Up" and "down" keys (3+4)

These keys are used to select the functions and values that are available in
the menu or to change the selected parameters.

In addition, these keys also control the indication of the measurement value
channels in the value windows. The "up" key is assigned to the left value
window, whereas the "down" key controls the right value window.

• For a selection, press the "up" or "down" key repeatedly until the
desired measurement value channel is indicated in the respective value
window.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

41 / 102

Translation of the original operating manual

6 Value window
7 Current function of the

function keys

8 Status line

9 Measurement value

channel

10 Set value (only in the

run mode)

11 Unit of the

measurement value

12 Actual value

Display (5)

The main window of the display is divided into the value windows, an area
indicating the current function of the function keys, and a status line. The
main window displays all of the relevant process data, such as set and
actual values, menus, and process information (see the illustration).

Fig. 23: Layout of the LDplus control system display

Value windows (6)
The value windows are displayed after the initialisation of the control

system. There are two value windows with an identical layout. The
indication of the measurement value channels is controlled by way of the
"up" and "down" keys (see above).

Fig. 24: Value windows

The available measurement values can be displayed in the left as well as in
the right value window so that a combination of the following values can be
selected:

• Total time (indicates the total runtime of the process)

• Section time (indicates the runtime of an individual phase, e.g. freezing,

warm-up of the vacuum pump, or main drying)

• Ice condenser temperature

• Vacuum in mbar (indicates the vacuum in the drying chamber; only

possible if a vacuum sensor is installed)

• Vacuum converted into °C (indicates the vacuum inside the drying
chamber, converted based on the vapour pressure curve for ice and
water, see chapter 2.2.1 - "General information on freeze-drying"; only
possible if a vacuum sensor is installed)

Current function of the function keys (7)
See function keys (1+2)

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

42 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

13 Symbol of the

operating state
14 Active phase
15 Symbol of pending

information

The freeze-dryer is in the standby mode. All of the various
units are switched off.

The freeze-dryer is in the run mode. The unit performs a
continuous run.

The freeze-dryer is in the run mode. The timer is activated.

Freezing

The ice condenser is cooled.

Warm-up
VP

The ice condenser is cooled and the vacuum pump is
activated while the pressure control valve is closed. If no
pressure control valve is integrated, the drying chamber
must be separated from the vacuum pump by way of a
manual valve or similar.

Main drying

The drying chamber is evacuated while the ice condenser is
cooled. If a vacuum control system is included, the vacuum
is controlled based on the corresponding set value for the
main drying phase.

Final drying

The final drying phase is only available if a vacuum control
system is included. It is possible to define different control
parameters (set vacuum, timer) for the main drying and final
drying phases.

The symbol flashes every second if there is pending
information concerning the process or the freeze-dryer (error
messages, process messages, or general information).

The information can be viewed under "Process & equipment
info" (see chapter 6.5.3.3 - "Process and equipment
information")

Status line (8)
The status line at the bottom of the screen indicates the current operating

state, active phase, and any pending information. The status line is visible
at all times.

Fig. 25: Status line

Operating state (13)

Active phases (14)

Pending information (15)

Pos: 125 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

43 / 102

Translation of the original operating manual

Pos: 126 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0020 Modus @ 31\mod_14083525 01978_68.docx @ 209563 @ 3 @ 1

6.5.2 Mode

The mode can be called up with the left function key if a value window is
active. The individual phases can be selected as follows:

• Press the left function key "mode". The menu "Start with phase..." will
be displayed (see the illustration).

• Select the desired menu item by way of the up/down keys.

• Confirm with the right function key "enter".

Fig. 26: Selecting a mode

Starting the freeze-drying process

The freeze-drying process comprises four phases:

• Freezing

• Warm-up vacuum pump

• Main drying

• Final drying

If "main drying" or "final drying" is selected, the system enquires as to
whether the vacuum pump shall warm up beforehand.

Changing the phase

The freeze-dryer is in the run mode. In order to switch over to the next
phase or to stop the process by way of "standby":

• Press the left function key "mode". The menu "Select mode" will be
displayed (see the illustration).

Fig. 27: Selecting a mode

• Select the menu item "Continue with phase..." by way of the up/down

• Select the desired phase by way of the up/down keys and confirm the

Fig. 28: Continuing the freeze-drying process

keys and confirm the selection with the right function key "enter".

selection with the right function key "enter".

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

44 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Warm-up vacuum pump

Prior to a freeze-drying process, the vacuum pump usually needs to warm
up in order to reach its operating temperature.

For this purpose, the warm-up phase can be started. The desired duration
can be preselected (see chapter 6.5.3.4 - "Options").

The following processes take place during the warm-up phase.

• The ice condenser is cooled.

• The vacuum pump is activated while the pressure control valve is

closed. If no pressure control valve is integrated, the drying chamber
must be separated from the vacuum pump by way of a manual valve or
similar.

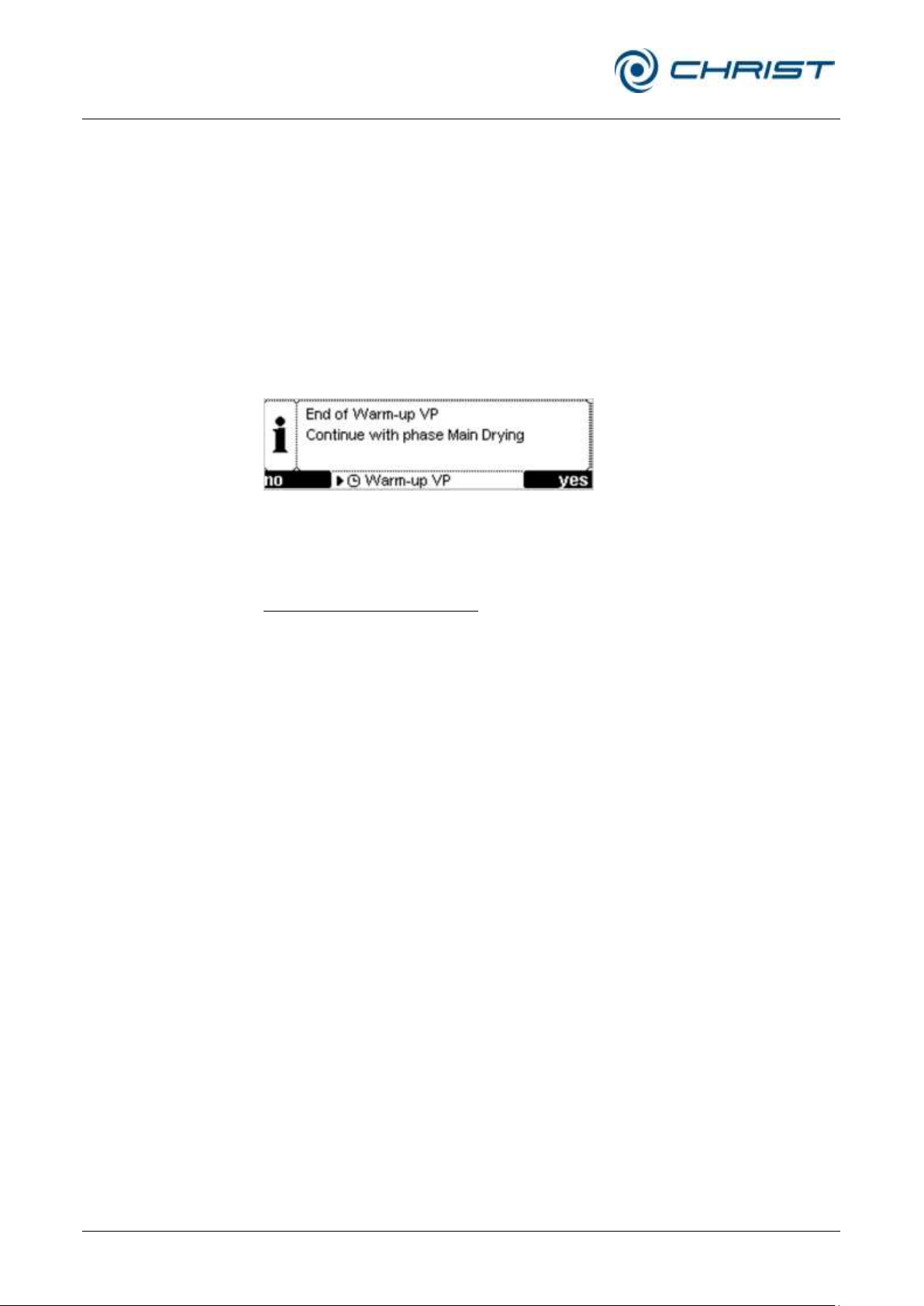

After the preset warm-up time, the following information will be displayed:

Fig. 29: Message at the end of the warm-up phase

• Confirm the message and continue the process with the desired phase.

Aborting the warm-up phase
During the warm-up phase, the functions "Continue with phase" or

"Standby" can be selected by way of the left function key "mode".

Pos: 127 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 105 @ @ 1

Selecting one of these functions will abort the warm-up phase.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

45 / 102

Translation of the original operating manual

1 Menu bar
2 Menu title
3 Selection frame
4 Scroll bar
5 Function key "exit

menu"

6 Function key "open

menu item"

Pos: 128 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0030 Hauptmenü @ 31\mod_140 8352502506_68.docx @ 209578 @ 3 @ 1


6.5.3 Main menu

The main menu can be selected from the main window by way of the right
function key "menu". It includes the following submenus:

• Change set values (see chapter 6.5.3.1 - "Changing set values")

• Special functions (see chapter 6.5.3.2 - "Special functions")

• Process & equipment info (see chapter 6.5.3.3 - "Process and

equipment information")

• Options (see chapter 6.5.3.4 - "Options")

Pos: 129 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 130 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0030-0010 Sollwerte ändern @ 3 1\mod_1408352502811_68.docx @ 209591 @ 4 @ 1

6.5.3.1 Changing set values

• Tutorial (see chapter 6.5.3.5 - "Tutorial")

Fig. 30: Layout of the main menu

• Select the "Change set values" function in the main menu.

Fig. 31: Menu "Change set values"

• Select the set value by way of the up/down keys. The selected value will
be displayed in a selection frame.

Fig. 32: Manual mode – set value selection

• Confirm with the right function key "edit". The selected value will be
displayed in inverted form.

Fig. 33: Inverted indication of the selected set value

• Change the set value by way of the up/down keys.

• Confirm with the right function key "ok".

The modification of the set value is now complete.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

46 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

NOTE

It is possible to specify an automatic phase change from "Freezing" to
"Warm-up vacuum pump" (seechapter 6.5.3.4 - "Options" / Settings /
Automatic phase change).

NOTE

The set values for the "Final Drying" phase are only available if the
optional pressure control system is installed.

NOTE

It is possible to specify an automatic phase change from "Main drying" to
"Final drying" (seechapter 6.5.3.4 - "Options" / Settings / Automatic phase
change).

NOTE

For this set value, the optional vacuum control system must be installed.

Set values for the "freezing" phase

Timer
The timer is used to define the duration of the phase. Settings between one

minute and 200 hours are possible. If, when starting at 00:00 h:m, the
"down" key is pressed, the symbol  will appear. It indicates that the timer
is deactivated and that the freeze-dryer is in the continuous mode.

After the preselected time has elapsed, the system enquires as to whether
the next phase is to be started.

Set values for the phases "Main drying" and "Final drying"

Timer
The timer is used to define the duration of the phase. Settings between one

minute and 200 hours are possible. If, when starting at 00:00 h:m, the
"down" key is pressed, the symbol  will appear. It indicates that the timer
is deactivated and that the freeze-dryer is in the continuous mode.

Vacuum

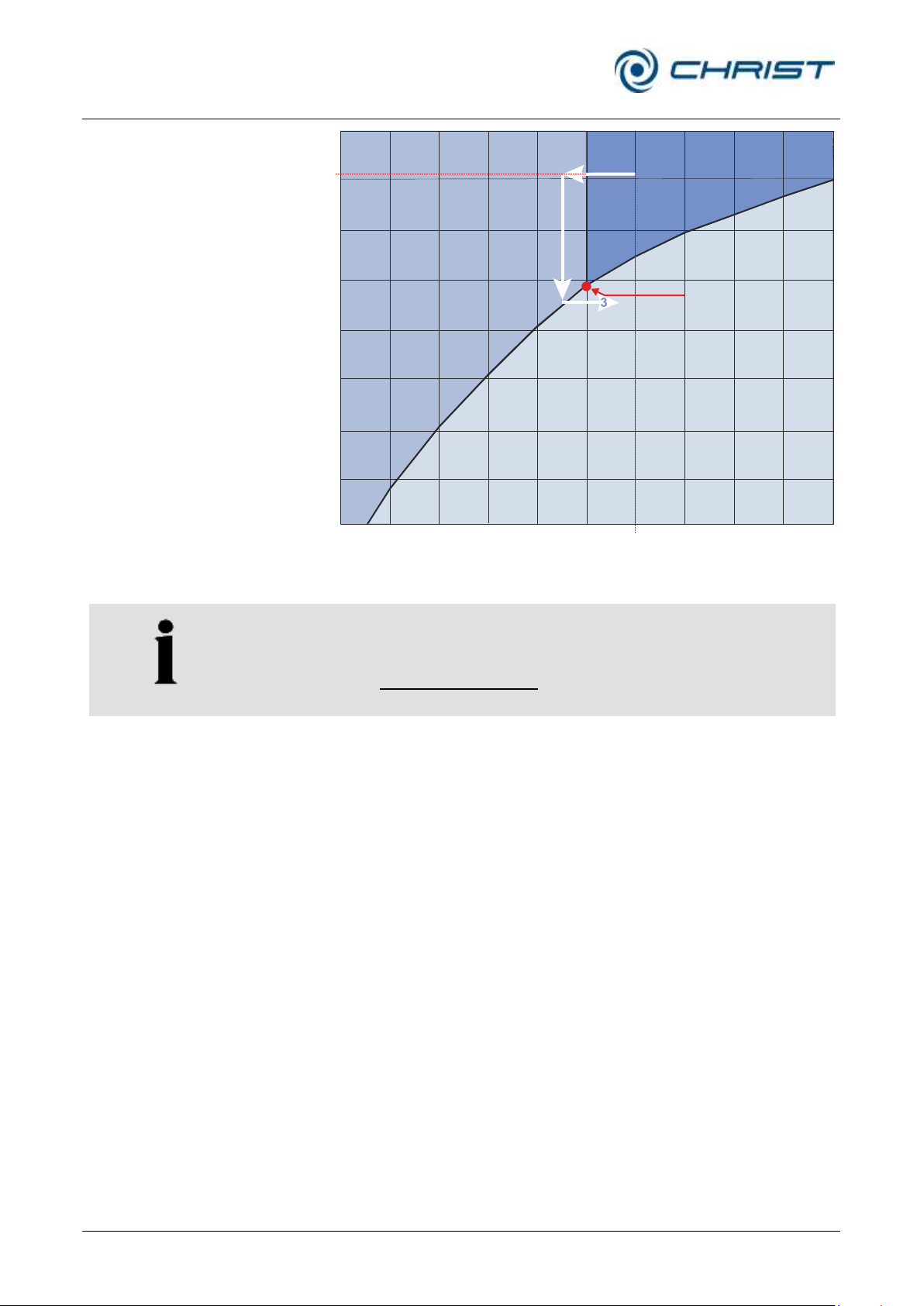

The range of possible values goes from 6.1 mbar to 0.0010 mbar,
converted into steps of 1°C in accordance with the vapour pressure curve
for ice and water (see chapter 2.2.1 - "General information on freeze-

Pos: 131 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 105 @ @ 1

drying").

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

47 / 102

Translation of the original operating manual

NOTE

During the defrosting process, the chamber should not be covered in order
to prevent the deactivation of the system due to overheating.

Pos: 132 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0030-0020 Sonderfunktionen @ 31\mod_1408352503612_68.docx @ 209620 @ 4 @ 1


6.5.3.2 Special functions

The freeze-dryer is equipped with one or several optional accessories. The
components can be controlled by way of this function.

• Select the "Special functions" function in the main menu.

• Select the option by way of the up/down keys. The selected value will

be displayed in a selection frame.

Fig. 34: "Special functions" menu

• Confirm with the right function key "enter". The possible functions will be
displayed.

• If an option is selected that is not installed, a corresponding message
will be displayed:

Fig. 35: Message if an option is not available

Defrosting the ice condenser

As standard, the freeze-dryer is equipped with a defrosting system. The ice
condenser chamber is supplied with heat that melts the ice off the ice
condenser.

The freeze-dryer must be in the standby mode and completely aerated.

• The defrosting time and temperature can be set in the main menu under
"Options" (see chapter 6.5.3.4 - "Options").

• Select the function "Defrosting ice condenser" under "Special functions"
in the main menu (see above).

• Start the defrosting process by way of the right function key "start".

The progress of the defrosting process will be displayed in a dialogue box.

Fig. 36: Progress bar of the defrosting process

When the specified defrosting time has elapsed, the defrosting process will
be stopped. The dialogue box disappears automatically.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

48 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

NOTE

The drying chamber cannot be moved in the "Main drying" and "Final
drying" phases.

1 Message
2 Status of the

information

3 Number of active

messages

4 Function key "exit

menu"

5 Function key

"acknowledge
message"

NOTE

The error messages are listed in detail under chapter 7 - "Malfunctions and
error correction".

Option: Electrical lifting hoist

The freeze-dryer can be retrofitted with an electrical lifting hoist that
facilitates the attachment and removal of drying chambers.

The freeze-dryer must be in the standby mode and completely aerated.

• Select the function "Lifting hoist" under "Special functions" in the main
menu (see above).

• Move the drying chamber by way of the up/down keys.

Fig. 37: Operation of the electrical lifting hoist

• After the completion of the process, exit the menu via the left function

Pos: 133 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 134 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0030-0030 Prozess- und Anlage n-Informationen @ 31\mod_1408352503867_ 68.docx @ 209634 @ 4 @ 1


key "back".

6.5.3.3 Process and equipment information

The menu "Process & equipment info" provides the user with information
concerning error, process, and system messages.

In the event of a message, a sound signal will be issued, the symbol " "
will appear on the status line, and the process and equipment information
window will be displayed. If the user is currently in a menu, the window will
not be displayed until the user exits the main menu.

Fig. 38: Structure of the "Process & equipment info" menu

Regardless of the presence of a message, the menu can be activated at all
times in order to view any messages that are present.

• Select the "Process & equipment info" function in the main menu.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

49 / 102

Translation of the original operating manual

Information present, not acknowledged

Information present, acknowledged

Cause of the message no longer present, information not
acknowledged

Pos: 135 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 136 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0030-0040 Optionen @ 31\mo d_1408352504170_68.docx @ 209648 @ 4 @ 1


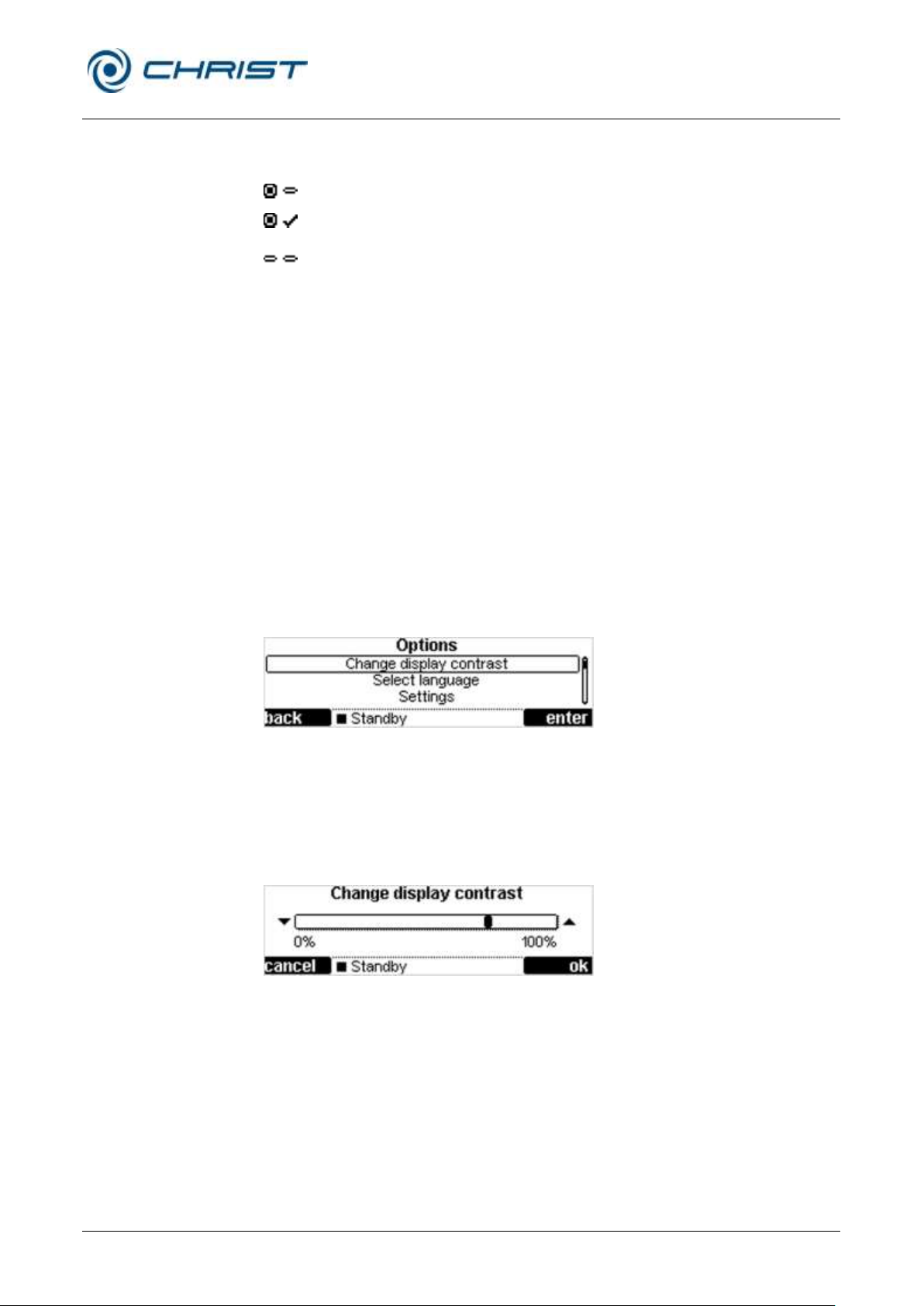

6.5.3.4 Options

Status of the information

All of the information that is displayed receives a certain status:

The sound signal is issued until all of the information has been
acknowledged.

If the cause of the message is no longer present and if the information has
been acknowledged it will be removed from the process and equipment
information window.

The menu cannot be exited by way of the left function key "back" until all of
the information has been acknowledged.

The following values can be adjusted in the "Options" menu:

• Display contrast

• Language

• Settings

• Service menu

Fig. 39: "Options" menu

Changing the display contrast

• Select the menu "Change display contrast".

• Adjust the contrast by way of the up/down keys.

• Confirm the entry with the right function key "ok".

Fig. 40: Menu for changing the display contrast

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

50 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

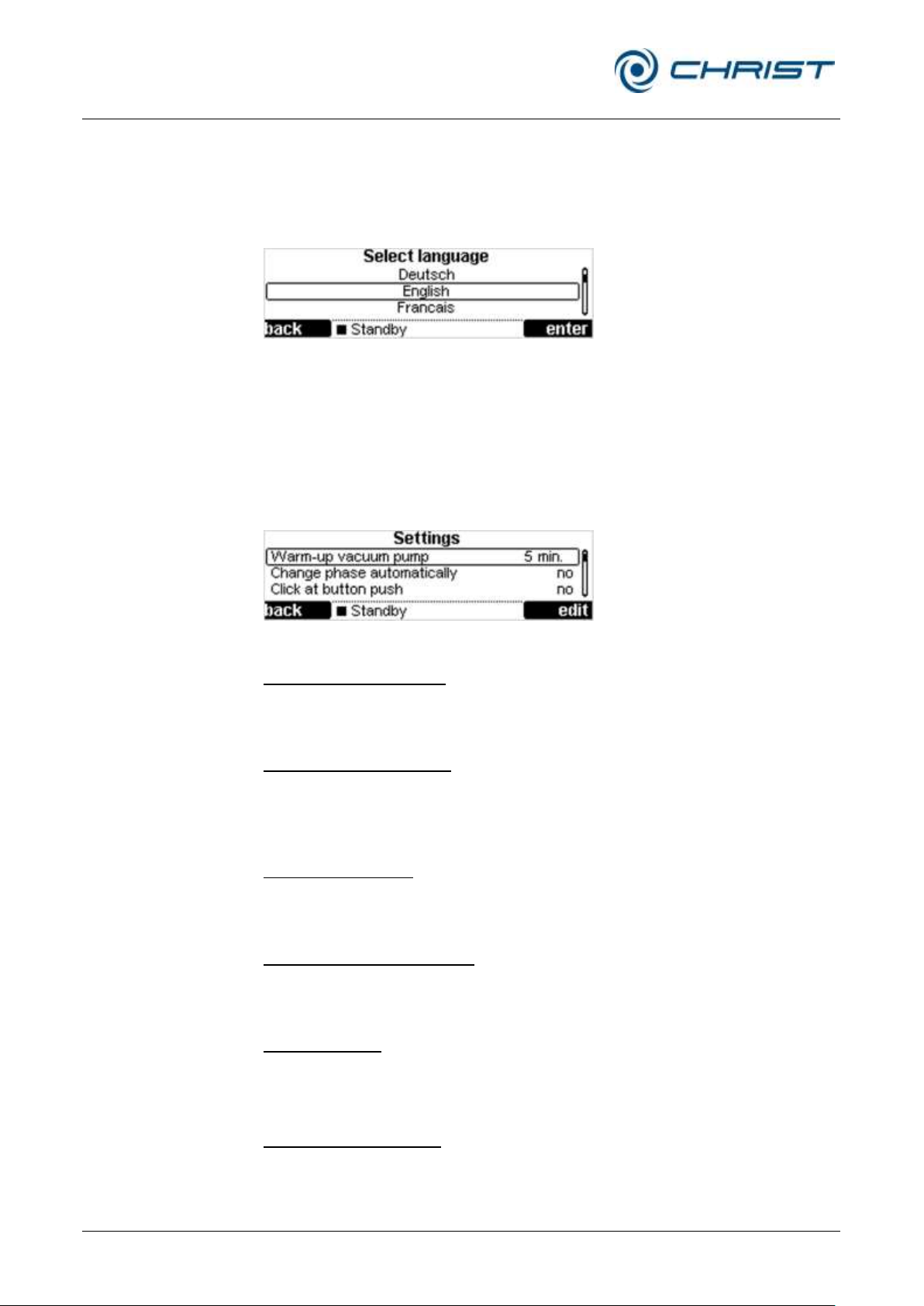

Selecting a language

The LDplus control system can be used in various language versions.

• Select the menu "Select language".

• Select the desired language by way of the up/down keys.

• Confirm the entry with the right function key "enter".

Fig. 41: Menu for selecting a language

Settings

This menu can be used to adapt the operation and process control of the
freeze-dryer's control system to your specific requirements.

• Select the desired menu.

• Change the value by way of the up/down keys.

• Confirm the entry with the right function key "ok".

Fig. 42: "Settings" menu

Warm-up vacuum pump
This item is used to adjust the duration of the warm-up phase. Values

between 5 and 60 minutes are possible.

Automatic phase change
If the "Change phase automatically" option is selected, the system will

automatically switch over to the next phase after a preset time (see chapter

6.5.3.1 - "Changing set values" / Timer).

Click at button push
If this setting is active, a confirmatory sound signal will be issued whenever

a key/button is pressed.

High temperature resolution
If this setting is active, temperatures will be displayed in the value window

with a resolution of 1/10°C (instead of 1°C).

Time defrosting
Here, the time that is needed for defrosting the ice condenser can be

preselected. Settings between one minute and 200 hours are possible.

Temperature defrosting
This value defines the maximum temperature of the ice condenser chamber

or ice condenser during the defrosting process. Values between 10 and
60°C are possible.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

51 / 102

Translation of the original operating manual

NOTE

• Installed options must be activated with "yes".

• Options that are not installed must be deactivated with "no".

Pos: 137 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 138 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/LDpl us/060-0050-0030-0050 Tutorial @ 31\mod_ 1408435279586_68.docx @ 209690 @ 4 @ 1

6.5.3.5 Tutorial

Service menu

Fig. 43: Service menu

LDplus configuration
Here, the following accessory components (options) can be configured:

• Vacuum sensor

• Vacuum control system

Load default settings
This menu item is used to reset all of the set values and parameters to the

delivery state of the freeze-dryer. The system will issue a corresponding
enquiry prior to performing this step.

Extended service menu
The extended service menu is reserved for service technicians. This area is

protected by a password and is not accessible to the user.

The tutorial provides information concerning the most important functions of
the LDplus control system.

The tutorial is available in German, English, and French.

Fig. 44: Tutorial

• Select the "Tutorial" function in the main menu.

• Browse the tutorial by way of the up/down keys.

Pos: 139 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

• Click the left function key repeatedly in order to exit the tutorial.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

6 Operation

52 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Pos: 140 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/060 Betrieb/060-0 070 Ausschalten (nur Netzschalter) ++++++++ +++++++++++++++++++ @ 25\mod_140498 3766690_68.docx @ 183677 @ 2 @ 1


6.6 Switching the freeze-dryer OFF

The freeze-dryer must be in the standby status.

Pos: 141 /010 Universalmodule/Abschnitt swechsel @ 0\mod_1202124514062_0.doc x @ 418 @ @ 1

Pos: 142 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

• Switch the freeze-dryer off by pressing the mains switch.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

7 Malfunctions and error correction

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

53 / 102

Translation of the original operating manual

NOTE

The vacuum checks must be carried out when the ice condenser is frozen.

Pos: 143 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070 Störungen und Fehlersuche== ========================= @ 25\ mod_1404984056039_68.docx @ 184111 @ 1 @ 1


7 Malfunctions and error correction

Malfunctions are displayed in the dialog box "Process & equipment
messages" (see chapter 6.5.3.3 - "Process and equipment information").
An acoustic signal sounds when an error message is generated.

• Eliminate the source of the problem (see the following chapter).

Pos: 144 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 145 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010 Allgemeine Störung en LDplus @ 31\mod_1408438256415_68.doc x @ 209704 @ 2 @ 1


7.1 General malfunctions

Pos: 146 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 147 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0010 Netzausfall @ 25\mod_1404984058964_68.docx @ 184153 @ 3 @ 1


7.1.1 Power failure

Pos: 148 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 149 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0020 Kein ausreich endes Vakuum @ 25\mod_1404984060039_68.d ocx @ 184167 @ 3 @ 1


• Acknowledge the error message.

The control system continues with the process after a power failure. The
preselected conditions remain saved even during a process run.

In the event of a power failure in the drying phase, the batch may become
unusable. Whether the batch can be saved or not depends on the drying
phase in which the product was when the power failure occurred.

• In the final drying phase, the product has reached a residual moisture
content of approx. 5%. Below this value, the product is generally not
damaged even if the power failure lasts for a longer period of time.

• If the product is in the main drying phase, we recommend aerating the
unit, removing the product, and storing it in a deep-freeze. The
defrosted condensate must be drained off prior to the next start.

7.1.2 Insufficient vacuum

Pos: 150 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 151 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0020-0010 Kleinflansc hverbindungen @ 25\mod_1404984061086 _68.docx @ 184181 @ 4 @ 1


7.1.2.1 Small flange connections

Leakages are often due to improper small flange connections between the
various components and hose connections or to leakages in the valves.

• Loosen the connection and place the centring ring (with sealing ring
inside) in a centred manner between the flange connections.

• Seal the connection with the clamping ring by tightening the wing nut.

• Ensure that the centring ring neither slips out of place nor gets jammed.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

7 Malfunctions and error correction

54 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Fig. 45: Small flange and centring ring

Fig. 46: Small flange with centring ring
and small flange

Fig. 47: Attaching the clamping ring

Fig. 48: Tightened clamping ring

Pos: 152 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 153 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0020-0020 Belüftu ngs- und Medienablaufventil LDplus @ 31\mod_ 1408438639112_68.docx @ 209718 @ 4 @ 1


7.1.2.2 Aeration and media drain valve

A malfunction of the aeration and media drain valve may have several
causes. One potential source are contaminants such as product residues
within the valve.

• Switch the freeze-dryer off and disconnect the mains plug.

• Clean the valve (see chapter 8.1.1.2 - "Aeration valve, media drain

valve").

• Put the freeze-dryer into operation again.

If there is still a leakage, the freeze-dryer must be checked by qualified

Pos: 154 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 155 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0020-0025 Druc ksteuerventil @ 25\mod_1404984063525_68.doc x @ 184209 @ 4 @ 1


specialist personnel (see chapter 7.3 - "Service contact").

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

7 Malfunctions and error correction

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

55 / 102

Translation of the original operating manual

NOTE

The inspection of the valve must be carried out by qualified specialist
personnel (see chapter 7.3 - "Service contact").

CAUTION

Ensure sufficient ventilation. Do not place any paper, cloth, or similar
material behind or under the unit, since otherwise the air circulation will be
impaired.

7.1.2.3 Pressure control valve

Pos: 156 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1
Pos: 157 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0020-0030 Gummi ventile @ 25\mod_1404984064588_68.docx @ 1 84223 @ 4 @ 1


A malfunction of the pressure control valve may have several causes.

7.1.2.4 Rubber valves

In order to identify a leaking rubber valve, the valves must be checked
individually:

• Remove the rubber valve and seal the connection at the drying
chamber with a rubber stopper.

• Check the tightness under vacuum until the leaking valve has been
localised.

Pos: 158 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 159 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0020-0040 Vakuu mmesssonde @ 25\mod_1404984065691_68.doc x @ 184237 @ 4 @ 1


• Clean the valve or replace it if necessary.

7.1.2.5 Vacuum sensor

Vacuum sensors have a limited service life and can be ordered as spare
parts (e.g. VCP 63, order no. 312011).

Functional test:

• Connect the vacuum sensor directly to the suction side connector of the
vacuum pump.

If a final pressure of at least 0.011 mbar is reached (with a vacuum pump
that has reached its operating temperature), the sensor and the vacuum

Pos: 160 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 161 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0010-0030 Eiskondensatort emperatur Alpha bis Delta @ 25\mod_140498 4066757_68.docx @ 184251 @ 3 @ 1


pump are OK.

7.1.3 Insufficient ice condenser temperature

The refrigeration unit is equipped with a protective device against
overpressure in the refrigeration system and with a thermal motor
protection switch.

The protective devices trip

• when the ambient temperature is too high

• when the air circulation of the heat exchanger of the refrigeration

system is insufficient

• when the refrigeration system is overloaded.

In these cases, the refrigeration unit will be switched off automatically. If the
permissible operating conditions are re-established after a cool-down

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

7 Malfunctions and error correction

56 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

Error message

Possible cause

Remedy

Vacuum 6.11 mbar not reached

The value of 6.11 mbar is not reached
within 15 minutes with an open pressure
control valve. The pressure control valve
will be closed and the vacuum pump will
be switched off.

• The aeration and media drain
valves are soiled.

• The small flange connections
are not properly connected.

• A seal is soiled or damaged.

• The cover or drying chamber is

not properly attached.

• The ground-in stopper is not
inserted correctly or it is
missing.

• The vacuum pump is switched
off or defective.

• Clean the valve (see chapter

8.1.1.2 - "Aeration valve, media
drain valve") and replace it if
necessary.

• Loosen the connection. Place
the centring ring with the inner
sealing ring in a centred manner
between the flange connections
and connect it with the clamping
ring. Ensure that the centring
ring neither slips out of place nor
gets jammed.

• Clean the seal and replace it if
necessary.

• Check the cover and drying
chamber.

• Grease the ground-in stopper
evenly and over the entire
sealing surface with vacuum
grease and install it.

• Switch the vacuum pump on.
Refer to the separate instruction
manual of the vacuum pump.

Defective vacuum sensor

The control system registers an invalid
measurement value.

• The vacuum sensor is not
connected correctly.

• The calibration is faulty.

• The vacuum sensor is soiled

(e.g. due to water residues).

• The vacuum sensor is
defective.

• Check the vacuum sensor
connectors.

• Calibrate the vacuum sensor
(see the separate operating
instructions of the vacuum
sensor).

• Clean the vacuum sensor.

• Check the vacuum display with

the aid of a reference device (if
available).

• See chapter 7.1.2.5 - "Vacuum
sensor".

Overpressure of refrigeration unit 1

• The overpressure switch of the
refrigeration unit has tripped.

• Let the freeze-dryer cool down.

• Ensure sufficient air circulation

(see chapter 7.1.3 - "Insufficient
ice condenser temperature").

phase of several minutes, the refrigeration unit will be switched on again
automatically.

The malfunctions are displayed in the process and equipment information
window.

The minimum ice condenser temperature of approx. -55°C or approx. –
85°C (depending on the type of freeze-dryer) is reached when the ice
condenser is not loaded and the ice condenser chamber is evacuated.

Pos: 162 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1
Pos: 163 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0020 Prozess und Anlage nmeldungen LDplus @ 31\mod_1408438 838199_68.docx @ 209732 @ 2 @ 1


7.2 Process and equipment messages

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

7 Malfunctions and error correction

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

57 / 102

Translation of the original operating manual

Error message

Possible cause

Remedy

Overpressure of refrigeration unit 2

• The overpressure switch of the
refrigeration unit has tripped.

• Let the freeze-dryer cool down.

• Ensure sufficient air circulation

(see chapter 7.1.3 - "Insufficient
ice condenser temperature").

Ice condenser overtemperature

Ice condenser temperature > +65°C. All
of the units will be switched off and the
freeze-dryer will be automatically set to
standby.

• The defrosting process has
been performed with the cover
closed.

• Remove the cover and let the
freeze-dryer cool down.

Ice condenser temperature > 20°C

The ice condenser temperature rises to
a non-permissible value during the
freeze-drying process. The pressure
control valve will close automatically in
order to prevent the vacuum pump from
being damaged.

• Insufficient cooling.

• Observe the behaviour of the

refrigeration system. If
necessary, inform the service
department (see chapter 7.3 ­"Service contact").

Defective ice condenser temperature
sensor

• The temperature sensor is not
connected or it is defective.

• Inform the service department
(see chapter 7.3 - "Service
contact").

Defective temperature sensor of the
defrosting heater

• The temperature sensor is not
connected or it is defective.

• Inform the service department
(see chapter 7.3 - "Service
contact").

Mains power failure (see chapter 7.1.1

- "Power failure")

• The power supply has been
interrupted.

• The mains power connector is
not connected.

• The fuses have tripped.

• The mains power switch has

been switched off.

• Check the mains fuse.

• Connect the mains power

connector firmly.

• Check the customer-provided
fuses.

• Switch the mains power switch
on.

Default settings loaded

All of the settings have been reset to the
delivery state of the freeze-dryer.

• Error in the parameter memory.

• Manual execution in the service

menu.

• No measure required.

IO communication error (0x20)

• Error in the LDplus IO module.

• Inform the service department

(see chapter 7.3 - "Service
contact").

Pos: 164 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 165 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 166 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/070 Störungen un d Fehlersuche/070-0030 Kontakt im Servicef all_Labor-RVC @ 25\mod_1404984068758_68.d ocx @ 184279 @ 2 @ 1


Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

7 Malfunctions and error correction

58 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

NOTE

If you would like to utilise our after-sales-service, please state the type of
your freeze-dryer and its serial number.

7.3 Service contact

In the event of queries, malfunctions, or spare part enquiries:

From Germany:

Contact
Martin Christ Gefriertrocknungsanlagen GmbH

An der Unteren Söse 50
37520 Osterode (Germany)
Tel. [phone]
E-mail: [email protected]

Outside Germany:

Contact our agency in your country. All agencies are listed at
www.martinchrist.de  [Sales Partners]

Pos: 167 /010 Universalmodule/Abschnitt swechsel @ 0\mod_1202124514062_0.doc x @ 418 @ @ 1

Pos: 168 /010 Universalmodule/Seiten wechsel @ 0\mod_1202116244312_0.docx @ 1 05 @ @ 1

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

8 Maintenance and service

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

59 / 102

Translation of the original operating manual

CAUTION

If corrosion or other damage occurs due to improper care, the
manufacturer cannot be held liable or subject to any warranty claims.

Pos: 169 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/080 Wartung un d Instandhaltung/080 Wartung und Instandhaltung =========================== @ 25\ mod_1404984095704_68.docx @ 184307 @ 1 @ 1


8 Maintenance and service

The freeze-dryer and the accessories are subject to high mechanical
stress. Thorough maintenance performed by the user extends the service

Pos: 170 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 171 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 172 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/080 Wartung und I nstandhaltung/080-0010 Wartungsarbeiten------------------------------------------------------------------------- @ 25\mod_1404984096680_68.docx @ 184321 @ 2 @ 1


life and prevents premature failure.

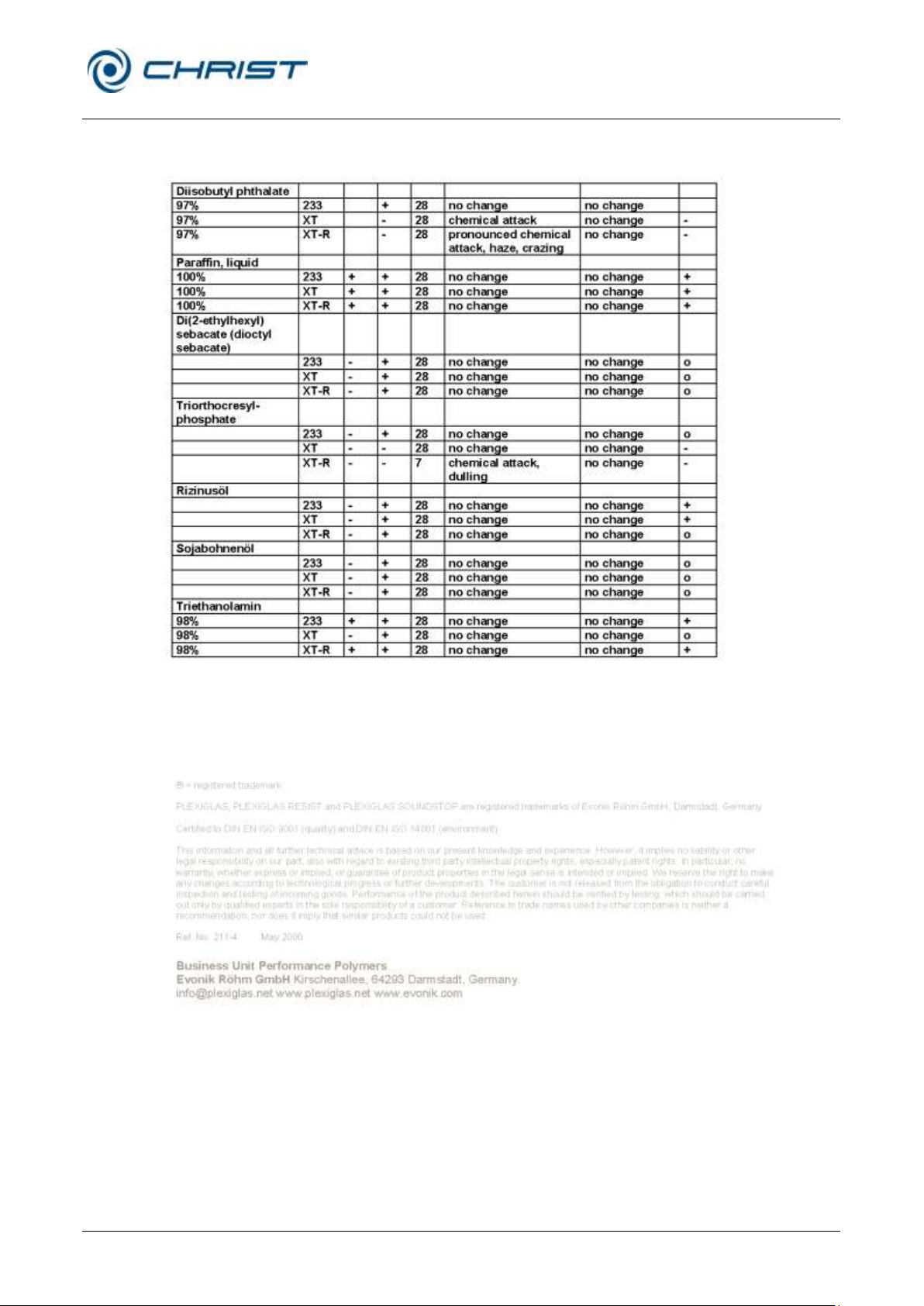

• Use soap water or other water-soluble, mild cleaning agents for
cleaning the freeze-dryer and the accessories.

• Do not use corrosive and aggressive substances.

• Do not use solvents.

• Do not use agents with abrasive particles.

• Do not expose the freeze-dryer or its accessories to intensive UV

radiation (e.g. sunlight) or thermal stress (e.g. by heat generators).

• Do not turn the unit upside down in order to clean it.

8.1 Maintenance

Pos: 173 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/080 Wartung und I nstandhaltung/080-0010-0010 Allgemeines L abor @ 25\mod_1404984097832_68.docx @ 1 84335 @ 3 @ 1


8.1.1 General

The general state of the freeze-dryer must be checked at regular intervals.
Any defects must be eliminated immediately! The following points are of
particular importance:

• dirt

• leaks

• corrosion

• bent system components

• loose screw and flange connections

• higher noise levels

• loose cables

• open cable ducts

• missing or illegible safety notes and hazard warnings

• missing or illegible inscriptions on components, pipes (direction of flow)

and cables

• etc.

Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus

8 Maintenance and service

60 / 102

Version 11/2006, Rev. 2.2 of 17/10/2016 • sb

Translation of the original operating manual

1 Valve opening
2 Valve core
3 O-rings

Cleaning of the freeze-dryer

• Switch the freeze-dryer off by actuating the mains power switch and
disconnect the power cord from the wall outlet before cleaning.

• If the freeze-dryer has been contaminated with toxic, radioactive, or
pathogenic substances, clean the inside immediately with a suitable
decontamination agent (depending on the type of contamination, see
chapter 8.2 - "Disinfection of the drying chamber and accessories").

• Remove product residues thoroughly with a cloth.

• Open the lid/drying chamber when the freeze-dryer is not in use so

Pos: 174 /010 Universalmodule/ Leerzeile @ 0\ mod_1202116244500_0.docx @ 114 @ @ 1

Pos: 175 /200 Christ/360 GT-BA Labor-Pil ot (STANDARDMODULE)/080 Wartung und I nstandhaltung/080-0010-0020 Eiskondensator kammer Labor @ 40\mod_1450251422550_ 68.docx @ 291807 @ 3 @ 1


8.1.1.1 Ice condenser chamber

moisture can evaporate.

Before each start-up, ensure that the ice condenser chamber is free from
water residues.

• Open the media drain valve to drain off any liquid. Then, close the
valve.

• If necessary, wipe the ice condenser chamber dry with a cloth.
