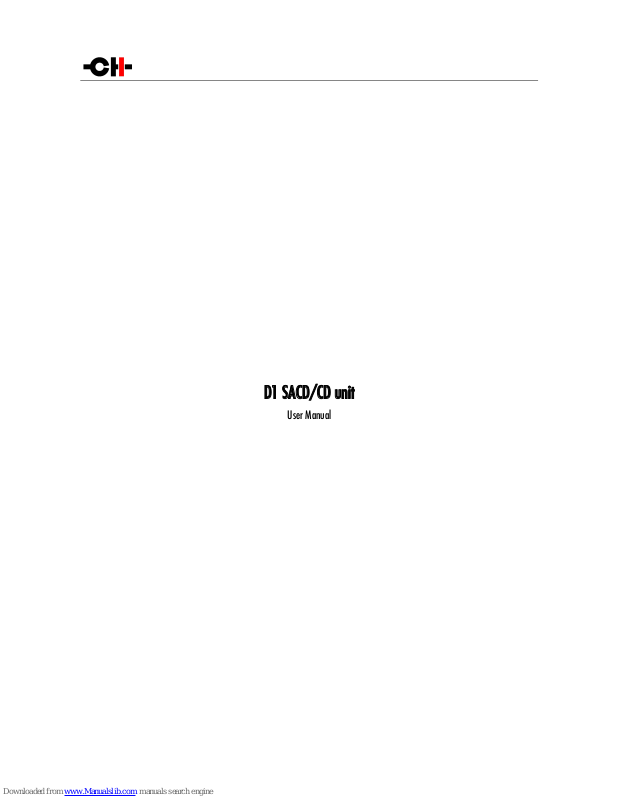

CH Precision D1 SACD/CD User Manual

D1 SACD/CD unit

User Manual

Dear Client,

We are honored that you have chosen the CH D1 SACD/CD unit. Our team has put all his efforts into designing and manufacturing this outstanding product and is proud to present it to you. We hope your D1 will bring you uncountable hours of musical emotion from your SACD and CD collection.

But before starting your musical journey, we kindly ask you to pay attention to the information contained in this manual. The D1, as you will discover in the following pages, is a Swiss precision product designed for ultimate performance and flexibility. However, reaching sonic excellence requires your unit to be setup and operated correctly and this what this manual is all about. If you have any questions or require assistance, please don't hesitate to contact your authorized dealer.

We hope you will enjoy your D1 SACD/CD unit for many years.

The Concert has just begun...

Cossy F.

Heeb T.

Table of contents

1 Technical highlights.............................................................................................................................................................. 7

1.1 SACD/CD drive (VMK-5).............................................................................................................................................. 8

1.2 Mechanical construction............................................................................................................................................... 8

1.3 Modular architecture and slot-in boards........................................................................................................................ 8

1.3.1 Multi-channel support......................................................................................................................................... 9

1.3.2 Digital outputs and CH Link: DIGITAL_OUT board................................................................................................ 10

1.3.3 Stereo analog outputs: ANALOG_OUT board option............................................................................................. 10

1.3.4 Monaural analog outputs: Mono ANALOG_OUT board option...............................................................................10

1.3.5 External clock synchronization: SYNC_IO board option........................................................................................ 10

1.4 Power supply............................................................................................................................................................ 11

1.4.1 Optional external power supply......................................................................................................................... 11

2 Before use......................................................................................................................................................................... 12

2.1 Package content........................................................................................................................................................ 12

2.2 Safety notice............................................................................................................................................................. 12

2.3 User manual............................................................................................................................................................. 13

2.4 Mains supply............................................................................................................................................................. 13

2.5 Transport and packaging............................................................................................................................................ 13

2.6 Cleaning................................................................................................................................................................... 14

2.7 Maintenance and service............................................................................................................................................ 14

3 Installation........................................................................................................................................................................ 15

3.1 Unpacking................................................................................................................................................................ 15

3.1.1 Removing the security screw.............................................................................................................................. 15

3.2 Unit positioning......................................................................................................................................................... 15

3.3 Connections............................................................................................................................................................... 17

3.3.1 CONTROL board................................................................................................................................................ 18

3.3.1.1 USB port.................................................................................................................................................. 19

3.3.1.2 Ethernet port........................................................................................................................................... 19

3.3.2 DIGITAL_OUT boards........................................................................................................................................ 19

3.3.2.1 Standard digital outputs........................................................................................................................... 20

3.3.2.2 CH Link digital audio interface.................................................................................................................. 20

3.3.3 Stereo ANALOG_OUT boards............................................................................................................................. 20

3.3.4 Monaural main ANALOG_OUT boards................................................................................................................ 20

3.3.5 SYNC_IO board................................................................................................................................................ 21

3.3.5.1 BNC clock input........................................................................................................................................ 21

3.3.5.2 BNC clock outputs..................................................................................................................................... 21

3.3.6 Power cord receptacle and voltage selection....................................................................................................... 22

3.3.7 External power supply connector....................................................................................................................... 22

4 Operation.......................................................................................................................................................................... 23

4.1 Front panel controls................................................................................................................................................... 23

4.1.1 Front panel...................................................................................................................................................... 23

4.1.2 User control knob............................................................................................................................................. 23

4.2 Operating modes....................................................................................................................................................... 24

4.2.1 Normal mode................................................................................................................................................... 25

4.2.2 Shortcuts.......................................................................................................................................................... 26

4.2.3 Menu mode...................................................................................................................................................... 28

Rev 3.0 D1 User Manual 5

4.3 Configuration............................................................................................................................................................ 31

4.3.1 D1 configuration menu items............................................................................................................................ 32

4.3.1.1 AUDIO SETTINGS...................................................................................................................................... 32

4.3.1.2 DISPLAY SETTINGS.................................................................................................................................... 34

4.3.1.3 SHORTCUTS.............................................................................................................................................. 36

4.3.1.4 FACTORY SETTINGS................................................................................................................................... 37

4.3.1.5 INSTALLED OPTIONS................................................................................................................................. 38

4.3.1.6 NETWORK................................................................................................................................................ 38

4.4 Remote control.......................................................................................................................................................... 39

4.4.1 Remote control operation.................................................................................................................................. 39

4.4.2 Changing the remote control batteries................................................................................................................ 40

4.5 Advanced clocking..................................................................................................................................................... 41

4.5.1 General clocking considerations......................................................................................................................... 41

4.5.2 Without SYNC_IO board.................................................................................................................................... 41

4.5.3 D1 SACD/CD drive (with SYNC_IO board) + C1 D/A controller (with SYNC_IO board)..........................................42

4.5.4 Multichannel D1 drive + 3x C1 D/A controllers (all with SYNC_IO board)............................................................43

4.5.5 D1 (with SYNC_IO board) + C1 (with SYNC_IO board) + T1 time reference.........................................................45

4.6 Returning to factory defaults...................................................................................................................................... 46

5 Firmware update............................................................................................................................................................... 47

5.1 Preparing the USB stick............................................................................................................................................. 47

5.2 Updating the unit's firmware..................................................................................................................................... 47

5.3 Emergency firmware update procedure....................................................................................................................... 48

6 Troubleshooting................................................................................................................................................................. 49

7 Specifications..................................................................................................................................................................... 50

6 D1 User Manual Rev 3.0

1 Technical highlights

CH products are proudly designed and manufactured in Switzerland by CH Precision Sàrl. Our engineers have put all their knowhow into bringing you the D1, a highest quality modular SACD/CD unit based on slot-in boards and USB flash-drive firmware update. In its base version the D1 is a pure digital two channel SACD/CD drive to be used with a high quality external Digital to Analog Converter (DAC). It includes a DIGITAL_OUT board and a CONTROL board. Highest quality playback is ensured when the D1 is paired to the matching CH C1 Digital to Analog Controller using the proprietary high definition CH Link interface.

Optional boards allow to extend the functionality of the base version of the D1 SACD/CD drive. By adding two monaural ANALOG_OUT boards or a stereo ANALOG_OUT board the D1 becomes an integrated stereo SACD/CD player. Seamless migration to multi-channel is achieved by adding further output boards for the additional surround channels. Up to four output boards can be placed in the D1. Any combination of stereo (L/R, Ls/Rs or C/Sub) digital (DIGITAL_OUT), main channels monaural (L + R) analog or stereo (L/R, Ls/Rs or C/Sub) analog (ANALOG_OUT) output boards are allowed. Finally, the SYNC_IO optional board provides advanced clock synchronization capabilities for use with external clock generators or to enslave the D1 to the C1's master clock for zero-jitter connection.

D1 main components

(1) External power supply input. For X1 optional external power supply only (2) Mains switch and power cord receptacle (on back panel) (3) Adjustment shafts and screws (4) Power supply section

Rev 3.0 D1 User Manual 7

(2)

(1)

(3)

(4)

(5)

(6)

(7)

(3)

(8)

(9)

(10)

(3)

(11)

(13)

(3)

(14)

(12)

(5) Main power transformer (6) Standby power transformer (ensures green mode Standby) (7) Esoteric VMK-5 SACD/CD drive mounted on steel support (8) SACD/CD drawer and AMOLED display (on front panel) (9) Audio, clock, USB (firmware update) and RJ-45 (control) connectors (from slot-in boards). Analog ground to Earth jumper (10) Slot-in boards (SYNC_IO, CONTROL, DIGITAL_OUT, stereo ANALOG_OUT or monaural ANALOG_OUT) (11) Main board (12) Power supply regulation board (13) SACD/CD mechanism control section (14) Concentric push control knob

1.1 SACD/CD drive (VMK-5)

The D1 SACD/CD unit is built around the high-quality Esoteric VMK-5 SACD/CD mechanism featuring VRDS-Neo disc clamping. The VRDS disc clamp covers the whole disc (not only its central part) ensuring vibration and error free digital data reading. CH has further improved the vibration immunity of the SACD/CD mechanism by mounting it on a heavy steel rails directly assembled to a massive steel base plate weighting over 15kg.

1.2 Mechanical construction

The D1 SACD/CD unit is assembled from high-quality aluminum and steel elements with no visible screws on the front, top and side panels. The base of the unit is made of a heavy steel plate whereas the front panel, the side panels and the top cover are machined from aluminum. The power supply is isolated from the audio section in its own compartment to avoid any contamination of the audio circuits by noise radiated from the supply. Pin assembly of all chassis elements provides smooth joints between elements while screws every 6cm ensures protection against electromagnetic interferences. First class mechanical and chemical surface treatments provide the luxury finish of the D1.

Four steel feet support the unit. Each feet ends with a elastomer ring to sit on delicate surfaces but is also equipped with a height adjustable steel spike to fine tune unit positioning. Horizontal adjustment is done with the provided screwdriver through the four adjustment shafts accessible from the top of the unit. In addition to providing convenient horizontal adjustment from the top of the unit, the shafts also serve as vibration evacuation channels for any stacked unit. Special shaft covers are provided to interface with the spikes of the stacked unit. Any vibration from the upper unit is transmitted by the shaft cover to the shaft and from the shaft to the lower unit feet or spike, forming a privileged path for vibrations evacuation.

1.3 Modular architecture and slot-in boards

The D1 benefits from a fully modular architecture. It features separated sections for power-supply, disc mechanism and related control, front panel, central host processor and slot-in boards. This modular architecture combined to the USB plug for all firmwares (MCU, DSP, and FPGA) update allows for easy servicing and upgrade should one section become faulty or obsolete.

The slot-in boards section consists in a vertically mounted mother board with optional boards plugged into it. Optional boards provide audio functionality and connectivity to other equipment. There are five types of slot-in boards:

• CONTROL board: provides a USB port for software upgrade and an Ethernet port for command

8 D1 User Manual Rev 3.0

• DIGITAL_OUT: provides two channels of digital audio output. Specific back panels for L/R, Ls/Rs or C/Sub channels

• Stereo ANALOG_OUT: provides two channels of analog audio output. Specific back panels for L/R, Ls/Rs or C/Sub

channels

• Monaural ANALOG_OUT: provides one fully balanced channel of analog audio output. Specific back panels for Left or Right channel

• SYNC_IO: provides advanced clock synchronization options (1 clock in, 2 clock out)

There are 6 slots in the D1. A CONTROL board is always installed inside the D1, leaving space for 5 optional boards. One of these slots is reserved for the SYNC_IO board. Note that optional boards MUST be installed by a qualified technician. Failure to do so will void any warranty. Following table shows the typical recommended configurations for D1:

Configuration

DIGITAL_OUT L/R

DIGITAL_OUT Ls/Rs

DIGITAL_OUT C/Sub

Mono ANALOG_OUT L

Mono ANALOG_OUT R

ANALOG_OUT L/R

ANALOG_OUT Ls/Rs

ANALOG_OUT C/Sub

Description

Stereo SACD/CD drive (Base configuration). To be used with 1 external stereo DAC.

Stereo SACD/CD player.

DMP

9 9

Dual-Mono SACD/CD player.

9 9 9

Multi-channel SACD/CD drive. To be used with 3 external stereo DACs.

9 9 9

Multi-channel SACD/CD player.

DM-MP

9 9 9 9

Dual-Mono (for L+R) Multi-channel SACD/CD player.

9 9 9

Multi-channel SACD/CD hybrid drive/player. To be used with 1 external DAC.

D1 recommended configurations (CONTROL board is included in all configurations and SYNC_IO board can be

added in any configuration)

1.3.1 Multi-channel support

True multi-channel SACD playback is achieved by means of optional boards. The Stereo versions of D1 are delivered with a single DIGITAL_OUT board and/or a single ANALOG_OUT board configured for L/R channels. They can be extended to multi-channel by simple addition of DIGITAL_OUT or ANALOG_OUT boards for the Ls/Rs and C/Sub channels. No other action is required as the D1 firmware will automatically sense the presence of the additional boards and enable true multi-channel reproduction.

When a D1 has multi-channel capability (either digital, analog or hybrid outputs), it will always select multi-channel DSD layer on SACDs whenever available. User can then manually change to another available layer (stereo DSD and/or CD layer) from a given disc.

Rev 3.0 D1 User Manual 9

When a D1 is purely stereo (either drive or player), it will first select stereo DSD layer on SACDs whenever available. User can then manually change to another available layer from a given disc, including a down-mixed version of the multichannel DSD layer if this layer exists.

Four channel configurations are not supported. Multiple output boards of the same type (DIGITAL_OUT or ANALOG_OUT) on any channel pair (L/R, Ls/Rs or C/Sub) are not supported.

1.3.2 Digital outputs and CH Link: DIGITAL_OUT board

The DIGITAL_OUT board provides digital output for an audio channel pair. Three different DIGITAL_OUT boards are available, corresponding to L/R, Ls/Rs and C/Sub channel pairs. Each DIGITAL_OUT board provides standard digital outputs in AES-EBU, Coaxial RCA (S/PDIF) and Optical TOSLINK (S/PDIF) formats as well as in the CH Link high-definition proprietary format. CH Link uses a dedicated connector to carry high resolution audio and control data over a single link between CH units. It supports both PCM (up to 768kHz, 32bits) and DSD. To comply with high definition digital content protection, DSD signals are cyphered when transported over CH Link from the D1. Standard digital outputs down-convert DSD signals to 16bits/44.1kHz PCM audio.

1.3.3 Stereo analog outputs: ANALOG_OUT board option

The ANALOG_OUT board provides analog line level output for two audio channels. Three different ANALOG_OUT boards are available, corresponding to L/R, Ls/Rs and C/Sub channel pairs. Each ANALOG_OUT board provides both balanced (on XLR connectors) and single-ended (on RCA connectors) outputs. Digital to analog conversion is handled by two WM8742 DACs (one per channel) combined with a discrete dual mono output stage. A choice of digital filters is available to the user. Filters for PCM and DSD audio can be selected independently.

1.3.4 Monaural analog outputs: Mono ANALOG_OUT board option

The monaural ANALOG_OUT board pair provides analog line level output for the two main audio channels (Left and Right). Each monaural ANALOG_OUT board provides both true balanced (on XLR connectors, with a dedicated analog output stage on each – warm and cold – point) and single-ended (on RCA connectors) outputs. Each board (i.e. each channel) has its own dedicated voltage regulators. Digital to analog conversion is handled by one WM8742 DAC on each board combined with a discrete dual mono output stage. A choice of digital filters is available to the user. Filters for PCM and DSD audio can be selected independently.

1.3.5 External clock synchronization: SYNC_IO board option

The SYNC_IO board provides advanced clock synchronization options for D1 when used with an external clock generator such as the CH Precision T1 10MHz time reference or matching CH DAC (C1). It includes a clock input on BNC connector with selectable 75 Ohm or high input impedance. Supported input frequencies on this connector are all standard audio Wordclocks (44.1, 48, 88.2, 96, 176.4, 196, 352.8 and 384 kHz), audio Masterclocks (22.5792 and 24.576 MHz), DSD bitclock (2.8224 MHz) and atomicclock multiples (100 kHz and 10 MHz). When fed with an audio Wordclock, the D1's internal clock will lock its VCXO internal clock in frequency and in phase (phase accuracy of +/- 2.5 us), tracking below 0.1 Hz with 0.1 PPM corrections for optimal jitter rejection.

Two 75 Ohm Wordclock outputs completes the input/output capabilities of the SYNC_IO board.

When a T1 time reference clock generator is available, ultimate result is achieved when connecting both the C1 and the D1's clock input to two different clock outputs of the T1, and setting both C1 and D1's clock source to SYNCHRO BNC 75. If no ultra-high

10 D1 User Manual Rev 3.0

stability external clock source is available but both C1 and D1 are equipped with a SYNC_IO board, the optimal configuration is to set the C1 as the clock master (C1 clock source: INTERNAL), and D1 as the clock slave (D1 clock source: SYNCHRO BNC 75). In that case, connect one of C1's BNC clock out to D1's clock in configured as a 75 Ohm input with a 75 Ohm BNC-terminated cable.

1.4 Power supply

The power supply of the D1 is a linear supply with multiple independent local regulations. It is based on an oversized magnetically shielded toroidal mains transformer and includes a mains filter. A secondary (also toroidal) transformer is used as Standby transformer to ensure green Standby mode, meeting the latest energy saving regulations. Both transformers have static shields between primaries and secondaries. They are mounted on a separate steel plate which is isolated from the main base steel plate by silent blocks.

Discrete (power-transistor and op-amp based) ultra low noise regulators are used throughout the power supply and special care has been paid to the master clock power supply. The master clock benefits from its own dedicated supply, completely decoupled from the noisy digital and motor sections. This ensures an ultra-low jitter clock source for the whole system.

Input AC voltage to the power supply can be set to 100V, 115V or 230V AC depending on your local mains voltage.

1.4.1 Optional external power supply

The D1 is equipped with an external power supply input. This input is dedicated to the CH X1 external power supply. When the external power supply is connected, the internal power supply of the D1 is turned off (only the Standby transformer remains active). Turning the main internal transformer off ensures that no power supply induced noise or radiations are generated inside the D1 unit, thus permitting optimal operating conditions for the circuits. Moreover, the D1's internal voltage regulation stage are still active, cascaded with the X1's regulation stages, significantly lowering the noise floor.

Rev 3.0 D1 User Manual 11

2 Before use

Please read this manual carefully before making connections or operating your D1. After reading this manual, please store it in an accessible place for future reference. If after reading this manual you feel unsure about how to make connections or how to operate the unit, please contact your authorized dealer for assistance.

2.1 Package content

Make sure that the package content is complete. If not, please contact your authorized dealer. Your package should contain:

• D1 SACD/CD unit

• A power cord

• Four adjustment steel spikes

• A suction cup (used to unscrew the top covers)

• An accessory box containing:

◦ an infrared remote control

◦ a spike adjustment screwdriver

◦ an Allen key

◦ a Torx 10 screwdriver

◦ four stacking covers

◦ a USB stick containing the latest CH Precision firmwares.

◦ a set of four CH Support Discs

Please store the packaging for future use. Check your D1 for any apparent damage. In case of a damage, immediately contact your authorized dealer. If your D1 is cold due to transport, please let it warm up to room temperature before powering it up.

2.2 Safety notice

Make sure to observe the following rules:

• Install your D1 SACD/CD player on a stable base

• Do not install your D1 SACD/CD unit near water

• Always handle with care. The D1 SACD/CD unit is very heavy, so have someone help you when moving it around

12 D1 User Manual Rev 3.0

• Do not expose the unit to any kind of liquid

• Do not install in direct sun light or near any heat source such as radiators or other apparatus generating heat

• Do not install in a confined space and make sure sufficient air can flow around the unit

• Do not operate under high ambient temperature (>40C) or with extremely high humidity such as in humid cellars

• Only use options and accessories specified or recommended by the manufacturer

• Do not open the unit nor try to service it by yourself. Do not try to install any option board by yourself. Always refer to a

qualified technician for service, maintenance or upgrades. Failure to do so will void the unit's warranty

2.3 User manual

Please read this manual carefully before making connections or operating your D1 SACD/CD unit. After reading, store the manual in an accessible place for future reference. If, after reading this manual, you feel unsure about how to make connections or how to operate the unit, please contact your authorized dealer.

2.4 Mains supply

Make sure to use 3 terminals (phase, neutral and earth) power cords with ground conductor. Make sure that the mains voltage selection of the unit matches your mains voltage.

Make sure your D1 SACD/CD unit is disconnected from AC wall power in the following cases:

• When making connections (it is also recommended to disconnect the rest of the system from AC wall power)

• When cleaning

• During thunder storms

• When unused for a long period

2.5 Transport and packaging

The D1 SACD/CD unit must always be stored in its original packaging for transportation. Doing so will ensure optimal level of protection of your unit. Therefore, keep all the packaging material in a dry and clean place for future use.

To avoid any damage to the SACD/CD mechanism, an optical disc must be inserted into the drawer for transportation. We recommend a blank CD-R.

In addition, the transformer base plate must be secured for transportation to avoid excessive constraints on the silent blocks isolating the chassis from transformer vibrations. This is done by the insertion of a security screw on the bottom of the unit. Do not forget to install this screw for transportation and to remove it at installation of the unit in its new location.

Rev 3.0 D1 User Manual 13

Finally we recommend to remove the adjustment spikes and to put them into the D1 box for transportation. Indeed, vibrations during transport may cause the adjustment spikes to move from their fully retracted position. There is risk of scratching the installation base if the spikes are not fully retracted when installing the unit.

2.6 Cleaning

Use a soft, dry towel or cloth for cleaning. Never use any solvent or liquids as they may damage the surface treatment or penetrate inside the unit.

2.7 Maintenance and service

The D1 SACD/CD unit contains no user serviceable parts. Do not try to open, modify or repair your D1 by yourself. This will void any warranty. Your D1 SACD/CD player must be checked by a qualified technician in any of the following cases:

• The unit is not functioning properly

• The mains cable or the power cord receptacle is damaged

• The unit has been dropped to the floor or presents external damage

• The D1 SACD/CD player has been exposed to liquids (such as rain) or unknown substances

14 D1 User Manual Rev 3.0

3 Installation

3.1 Unpacking

Unpack the D1 SACD/CD unit and store the packaging for future transportation. Be careful when lifting the D1 as the unit is heavy (over 30kg). Get someone to help you if necessary. When unpacking and installing the D1, take care not to damage the high quality surface treatments.

3.1.1 Removing the security screw

The transformer base plate must be secured during transportation to avoid damage to the isolating silent blocks. The security screw is located at the bottom of the unit. To remove the security screw, tilt the unit on its side and unscrew. Do not tilt the unit on the front or back panels as this may damage the user control knob or the connectors.

Security screw location

(1) Security screw. Must be mounted for transport and removed at installation

3.2 Unit positioning

When delivered from factory, the D1 SACD/CD unit's four feet sit on elastomer rings, ensuring both scratch-protection for the base on which the unit sits, as well as safe anti-slipping unit positioning.

But a more advanced vibration-channeling mechanical coupling can be implemented, thanks to the steel spikes and the polymer support discs provided with the D1. To use this optimal coupling, simply go through the following steps:

1. Place the D1 unit on a stable base at its approximate final position, for instance in your preferred audio rack. Make sure

cooling air is able to freely flow around the unit.

2. Gently lift the unit's corners and insert a support disc under each foot. The foot's elastomer ring should disappear in the

support disc's groove when properly placed. Carefully check all four feet perfectly fit in each support disc before pursuing any further. The unit should stably rest on its feet at that point.

Rev 3.0 D1 User Manual 15

(1)

3. Unscrew the four top covers from the D1's shafts with the provided suction cup. Be careful not to scratch their delicate

finish.

4. Insert the adjustment spikes into each adjustment shaft.

5. Softly screw clockwise each adjustment spikes into the shaft with the provided screwdriver, until any resistance is felt (just

before the unit's corner starts to lift).

6. Then screw clockwise each spike by the same amount (for instance two full turns).

7. If the base is flat, the unit should be stable and horizontal. If not, correct the unit's stability and horizontality by turning

clockwise or anti-clockwise the required spikes.

8. If no CH Precision unit is to be stacked on top of the D1, screw the four top covers back. Otherwise, screw the four

polymer stacking caps instead, and gently lay down the unit to be stacked on top of it. Be very careful that both units are perfectly aligned in order not to scratch the D1's top plate with the other unit's feet. Repeat steps 3 to 8.

Adjustment shafts, feet and spikes

(1) Adjustment shafts. Insert adjustment spikes and use screwdriver to secure and adjust individual feet spikes (2) Feet (3) Adjustment spike heads (when inserted into adjustment shafts) (4) Adjustment spike

Never stack any component other than CH's on your D1. Never use the aluminum shaft covers (top covers) when another CH component is to be stacked on top of your D1.

16 D1 User Manual Rev 3.0

(1)

(2)

(3) (3)

(2) (2)

(2)

(4)

Shaft covers (left: stacking cover, right: top cover)

3.3 Connections

This section provides information about how to connect your D1 SACD/CD unit to your system. As the D1 is a modular design with different optional boards, the description applies to the example configuration presented below. If your options do not match the example or you don't feel secure with the connections to be applied to your configuration, please contact your authorized dealer for assistance.

The example configuration is a full featured multi-channel configuration with 3x DIGITAL_OUT boards (L/R, Ls/Rs, C/Sub), 1x ANALOG_OUT (L/R) board and clock synchronization option (SYNC_IO board). This is one of the most complete configurations of D1. If your configuration does not include some of the presented options, just discard the corresponding connections.

Rear panel connections

(1) Ethernet port for command interface. Unused for now. [CONTROL board] (2) BNC clock input. Provides 75 Ohm or Hi-Z input. [optional SNYC_IO board] (3) TOSLINK (S/PDIF) digital output for L/R channels [DIGITAL_OUT board for L/R channels] (4) AES-EBU digital output for L/R channels [DIGITAL_OUT board for L/R channels] (5) TOSLINK (S/PDIF) digital output for Ls/Rs channels. [optional DIGITAL_OUT board for Ls/Rs channels] (6) AES-EBU digital output for Ls/Rs channels. [optional DIGITAL_OUT board for Ls/Rs channels] (7) TOSLINK (S/PDIF) digital output for C/Sub channels. [optional DIGITAL_OUT board for C/Sub channels] (8) AES-EBU digital output for C/Sub channels. [optional DIGITAL_OUT board for C/Sub channels]

Rev 3.0 D1 User Manual 17

(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (12) (13)

(14) (15) (16) (17) (18) (19) (20) (21) (22) (23) (24) (27) (28)

(11)

(25) (26)

(9) Balanced analog output for L channel. [optional ANALOG_OUT board for L/R channels] (10) Single-ended analog output for L channel. [optional ANALOG_OUT board for L/R channels] (11) Earth connector. Internally connected to digital ground (12) External power supply connector for X1 power supply option (13) Power on/off switch (14) USB port for software upgrades. [CONTROL board] (15) BNC 75 Ohm clock output 2. [optional SYNC_IO board] (16) BNC 75 Ohm clock output 1. [optional SYNC_IO board] (17) CH Link digital output for L/R channels. [DIGITAL_OUT board for L/R channels] (18) Coaxial (S/PDIF) digital output for L/R channels. [DIGITAL_OUT board for L/R channels] (19) CH Link digital output for Ls/Rs channels. [optional DIGITAL_OUT board for Ls/Rs channels] (20) Coaxial (S/PDIF) digital output for Ls/Rs channels. [optional DIGITAL_OUT board for Ls/Rs channels] (21) CH Link digital output for C/Sub channels. [optional DIGITAL_OUT board for C/Sub channels] (22) Coaxial (S/PDIF) digital output for C/Sub channels. [optional DIGITAL_OUT board for C/Sub channels] (23) Balanced analog output for R channel. [optional ANALOG_OUT board for L/R channels] (24) Unbalanced analog output for R channel. [optional ANALOG_OUT board for L/R channels] (25) Analog ground connector 2 (26) Analog ground connector 1.Can be connected to digital ground (Earth) using provided jumper (27) Power fuse and voltage selection (28) Power cord receptacle

The CONTROL board is mandatory in any D1 SACD/CD unit configuration and is always factory installed. Depending on optional boards and their arrangement in the D1's expansion slots, connector arrangement may differ on your unit. Each D1 unit provides 5 expansion slots supporting any combination of the following optional boards (note that one slot is dedicated to the SYNC_IO board):

• Stereo DIGITAL_OUT boards for L/R, Ls/Rs or C/Sub channels

• Stereo ANALOG_OUT boards for L/R, Ls/Rs or C/Sub channels

• Monaural ANALOG_OUT Left and Right boards (must be used together as a pair)

• SYNC_IO board for external clock synchronization

Note that only one SYNC_IO board is allowed. Each pair of channels (L/R, Ls/Rs or C/Sub) can support a DIGITAL_OUT and/or an ANALOG_OUT board. Optional output boards can be placed in any slot. Installation of optional boards must be done by a qualified technician only. Do not attempt to install any optional board by yourself as this would void the unit's warranty.

3.3.1 CONTROL board

The CONTROL board is factory installed into the D1. It provides a USB port for software updates and an Ethernet port for controlling the unit over a network. Following drawing shows the layout of the back panel of the CONTROL board:

18 D1 User Manual Rev 3.0

CONTROL board back panel layout

3.3.1.1 USB port

The USB port on the CONTROL board is dedicated to the firmware update of the D1 unit. Do not use it for any other purpose. For more information on unit firmware update, please refer to the corresponding section of this manual.

3.3.1.2 Ethernet port

The Ethernet port on the CONTROL board is dedicated to network based control of the unit. This functionality is currently not implemented, thus leave the Ethernet port unconnected. A future D1 firmware release will provide this functionality.

3.3.2 DIGITAL_OUT boards

DIGITAL_OUT boards provide digital audio output capabilities. Additional DIGITAL_OUT boards for Ls/Rs and C/Sub channels can be added to the default factory installed DIGITAL_OUT L/R into D1 for full digital high-definition multi-channel support. DIGITAL_OUT boards provide both standard (AES-EBU, Coaxial and Optical) digital audio outputs and a proprietary (CH Link) highdefinition digital audio interface. Following drawing shows the layout of the DIGITAL_OUT board connectors and naming for the different channel pairs:

DIGITAL_OUT boards back panel layout for L/R, Ls/Rs and C/Sub channels

Rev 3.0 D1 User Manual 19

3.3.2.1 Standard digital outputs

Each DIGITAL_OUT board provides three standard digital outputs: AES-EBU (carrying consumer encoding), Coaxial (S/PDIF) and Optical (TOSLINK). Digital output is fixed at 16bits/44.1kHz on all standard outputs. If an SACD is played in the D1, the DSD stream is down converted to 16bits/44.1kHz on the standard digital outputs. When a CD is played, the data from the disc is directly transferred to the standard digital outputs.

3.3.2.2 CH Link digital audio interface

Each DIGITAL_OUT board includes a CH Link proprietary digital audio interface. This interface carries both complete audio stream and control information. Use this link as the preferred interface when connecting your D1 to other CH units such as C1 converters.

The proprietary CH Link digital audio interface allows for high definition uncompressed digital audio transfer and supports both DSD and PCM (up to 705.6 / 768 kHz). For digital content protection reasons, the CH Link interface cyphers the native DSD stream from SACD when transferring such data.

3.3.3 Stereo ANALOG_OUT boards

ANALOG_OUT boards provide analog audio output capabilities. ANALOG_OUT boards for L/R, Ls/Rs and C/Sub channel pairs can be installed into D1 for analog stereo or multi-channel support. DIGITAL_OUT, stereo ANALOG_OUT and monaural ANALOG_OUT boards can be combined, providing for instance digital output on the main (L/R) channels and analog out on Ls/Rs and C/Sub channels. Stereo ANALOG_OUT boards provide both balanced (XLR) and single-ended (RCA) analog audio outputs. Following drawing shows the layout of the Stereo ANALOG_OUT board connectors and naming for the different channel pairs:

Stereo ANALOG_OUT boards back panel layout for L/R, Ls/Rs and C/Sub channels

3.3.4 Monaural main ANALOG_OUT boards

ANALOG_OUT boards provide analog audio output capabilities. Monaural ANALOG_OUT board pairs for Left and Right channels can be installed into D1 for analog support on main channels. DIGITAL_OUT, stereo ANALOG_OUT and monaural ANALOG_OUT boards can be combined, providing for instance monaural analog output on Left and on Right channels, and stereo analog output on Ls/Rs and C/Sub channels. Monaural ANALOG_OUT boards provide true fully-balanced (XLR), single-ended 75 Ohm (RCA) and single-ended 50 Ohm (BNC) analog audio outputs. Following drawing shows the layout of the Monaural ANALOG_OUT board connectors and naming:

20 D1 User Manual Rev 3.0

Monaural ANALOG_OUT board pair

3.3.5 SYNC_IO board

The SYNC_IO board is an optional clock synchronization board to be used with an external clock generator or together with other CH products, such as the C1 Digital to Analog Controller. The board provides one clock input and two clock output on BNC connectors. The VCXO digital PLL of the D1 is capable of frequency and phase locking. The frequency is tracked below 0.1 Hz with

0.1 PPM adjustments for optimal jitter rejection. When fed with an audio Wordclock, the D1's internal clock will always keep a phase accuracy below 2.5 us (equivalent to sub-millimeter position accuracy), thus enabling phase perfect match in a multichannel configuration. Following diagram shows the layout of the back panel of the SYNC_IO board:

SYNC_IO board back panel layout

3.3.5.1 BNC clock input

The SYNC_IO board provides a BNC clock input that can be configured as 75 Ohm input impedance or high input impedance through the D1's menu. Supported input frequencies on this connector are all standard audio Wordclocks (44.1, 48, 88.2, 96,

176.4 and 196 kHz), audio Masterclocks (22.5792 and 24.576 MHz), DSD bitclock (2.8224 MHz) and atomic-clock multiples (100 kHz and 10 MHz). Use this connector to synchronize your D1 unit to an external clock source (atomic clock generator or external DAC such as CH C1).

3.3.5.2 BNC clock outputs

Two 75 Ohm output clock connectors are also provided on the SYNC_IO board. Use one of these connectors to synchronize an external device to your D1. Output clock is either a buffered version of input clock (if D1 is synchronized to it input clock), or

Rev 3.0 D1 User Manual 21

current audio Wordclock (if D1 is clocked by its internal high precision oscillator).

3.3.6 Power cord receptacle and voltage selection

Make sure that the voltage selection is set to the correct value with respect to the AC voltage in your location. Connect the power cord to the power cord receptacle and plug the power plug to an AC wall outlet only after all other connections have been made.

3.3.7 External power supply connector

The external power supply connector allows you to connect the X1 optional external power supply from CH. When the X1 is used, it completely replaces the D1's internal power supply, resulting in minimized noise and enhanced audio quality. Note that only the (small) standby transformer of the D1 remains active in this case to ensure the D1's wake up functionality.

22 D1 User Manual Rev 3.0

4 Operation

The D1 SACD/CD unit is operated either from the front panel or from the IR remote control. Feedback to the user is provided by a high-definition AMOLED display with customizable colors. Setup operations are exclusively handled from the front panel.

4.1 Front panel controls

4.1.1 Front panel

Front panel elements

(1) Standby LED (2) SACD/CD drawer (3) User control knob (dual concentric rotatory knob with push function) (4) IR remote control receiver (5) Display area (high-definition AMOLED display

The standby LED lights up when the unit is in standby. It is normally turned-off during operation and shortly lights up whenever it receives a valid IR remote control command. The LED can also be programmed to remain on during operation. The display is a high-definition AMOLED panel with very wide viewing angle, high contrast and high brightness ensuring optimal reading comfort. The color and brightness of the display can be configured according to user's taste and different colors can be chosen for CD or SACD playback.

4.1.2 User control knob

The user control knob is the main user input device. It is build around a dual concentric rotatory knob with push function, mounted on a Teflon guide. Both the central and the external part of the knob can be moved to the left or the right independently, giving four movements: rotate External Rotate Left/Right [<<E]/[E>>] and Central Rotate Left/Right [<<C]/[C>>]. The central part of the knob also supports a push functionality. There are two types of push: Normal Push [NP] and Long Push [LP]. For a Normal

Rev 3.0 D1 User Manual 23

(1) (2) (3)

(5)(4)

Push, just press the central part of the knob and release it immediately. For a Long Push, press and hold the central part of the knob for 2s or more.

User control knob movements

(1) External ring rotate Left [<<E] (2) Central knob rotate Left [<<C] (3) Central knob push. There are two types of push: Normal Push [NP] and Long Push [LP] (4) External ring rotate Right [E>>] (5) Central knob rotate Right [C>>]

User Action Code Description [<<C] Central Left: Rotate central knob to the left [C>>] Central Right: Rotate central knob to the right [<<E] External Left: Rotate external ring to the left [E>>] External Right: Rotate external ring to the right [NP] Normal Push: push and release central knob [LP] Long Push: push central knob and maintain for 2s before release

User Action Codes

4.2 Operating modes

The D1 SACD/CD unit has two main operating modes: Normal mode and Menu mode. Normal mode is used to access standard playback controls whereas Menu mode is used to configure the unit. The D1 also includes Shortcuts for quick access to selected Menu mode items. Shortcuts are user programmable and most Menu mode items can be selected as Shortcuts.

24 D1 User Manual Rev 3.0

(1)

(2)

(3)

(4)

(5)

4.2.1 Normal mode

Normal mode is used for SACD/CD playback control. When powered-on, the D1 SACD/CD unit starts in Normal mode. The display looks as follows:

Normal mode display elements

(1) Disc layer selection for SACD (indicates 6ch if multi-channel layer is selected and player is equipped for multi-channel or DM if the multi-channel

layer is read but the player output is stereo only)

(2) Time display mode. Indicates TOTAL if time information is relative to the whole disc (3) Mute indication. If the 7 symbol is present, the output is muted (4) Repeat indication. If the symbol : is present, repeat mode is engaged (5) Repeat type. If repeat is for the whole disc, the indication ALL is activated (6) Current time. Negative time indicates remaining time (either for track or for disc) (7) Polarity (phase) indication. If the H symbol is present, polarity is reversed (8) External power supply indication. When an external power supply is connected and engaged, < symbol is displayed and internal power supply is

turned off

(9) Clock source indication (10) Playing status indication (11) Lock indication (J or K). Tells if the unit is locked to a clock source or not (12) Track number (13) Disc type (CD or SACD)

Displayed elements depend on the type of disc, installed optional boards and user settings. In the example above, the 7th track of a multi-channel SACD is played back on a unit supporting multi-channel output. Total elapsed time is 28min 34s, phase is inverted and the whole disc is repeated. The D1 powered through an external power supply and is locked to its internal clock but its outputs are muted. Displayed elements for other configurations and settings or when playing back a CD are similar.

Rev 3.0 D1 User Manual 25

Following table shows the actions of the user control knob in Normal mode.

User Control Knob Action Unit State Unit Action [NP] Normal Push OPEN

Any other state

Closes the drawer and reads the disc's TOC (STOP) Enter Shortcuts mode

[LP] Long Push OPEN

Any other state

Closes the drawer and goes to STANDBY Go to STANDBY

[C>>] Center Rotate Right OPEN

STOP PLAY PAUSE

Closes the drawer and reads the disc's TOC (STOP) Start playback (PLAY) Go into pause (PAUSE) Resume playback (PLAY)

[<<C] Center Rotate Left OPEN

STOP PLAY PAUSE

Do nothing Open the drawer (OPEN) Stop playback (STOP) Resume playback (PLAY)

[E>>] External Rotate Right OPEN

STOP PLAY PAUSE

Do nothing Skip through tracks forward and starts playback (PLAY) Skip to next track Skip through tracks forward

[<<E] External Rotate Left OPEN

STOP PLAY/PAUSE

Do nothing Skip through tracks backward and starts playback (PLAY) Skip to track begin, then to previous tracks on subsequent [<<E]

User control knob actions in Normal mode

To wake the unit up from STANDBY, apply a Normal Push [NP].

4.2.2 Shortcuts

The D1 SACD/CD unit is configured by a set of menus as described in the next sections. To allow quick access to the most frequently used configuration menu items, the D1 offers the concept of Shortcuts. Shortcuts are fully programmable and the user may choose any configuration parameter as a Shortcut. There are up to 6 user programmable Shortcuts. To learn how to program individual Shortcuts, please refer to the SHORTCUTS menu item in the next section.

Shortcuts are accessed from Normal mode by a Normal Push [NP]. Additional Normal Push [NP] skips to the next Shortcut. The last Shortcut is always dedicated to entering the Menu mode (SETUP). On this last Shortcut, a Normal Push [NP] will return to Normal Mode and an External Rotate Right [E>>] (or Central Rotate Right [C>>]) will enter the Menu mode. The individual parameter for a given Shortcut is modified using External Rotate Left [<<E] (or Central Rotate Left [<<C]) and/or External Rotate Right [E>>] (or Central Rotate Right [C>>]). If there is no user action for 10s the unit will revert to Normal mode. Note that Shortcuts are dynamically loaded depending on the unit's state. For instance, the Shortcut for SEARCH will not appear if the unit is in STOP state as searching requires the disc to be playing.

26 D1 User Manual Rev 3.0

Following table shows the actions of the user control knob for Shortcuts.

User Control Knob Action Unit State Unit Action [NP] Normal Push Shortcut (except last)

Last Shortcut (SETUP) or after current Shortcut has been modified

Skip to next Shortcut Exit Shortcuts mode (Normal mode)

[LP] Long Push Any state As in Normal mode [C>>] Central Rotate Right Shortcuts (except last)

Last Shortcut (SETUP)

Modify parameter up

Enter Menu mode [<<C] Central Rotate Left Shortcuts Modify parameter down (when available) [E>>] External Rotate Right Shortcuts (except last)

Last Shortcut (SETUP)

Modify parameter up

Enter Menu mode [<<E] External Rotate Left Shortcuts Modify parameter down (when available)

User control knob actions for Shortcuts

The DISC LAYER Shortcut gives a good illustration of how to navigate a Shortcut screen. Navigating other Shortcuts is similar.

DISC LAYER Shortcut display elements

(1) Shortcut title (Parameter, for other Shortcuts, title changes accordingly) (2) Arrow indicating External Rotate Right [E>>] if applies. The item below indicates the next parameter value (up direction) (3) Next Parameter Value if External Rotate Right [E>>] is applied (parameter up) (4) Current Parameter Value (for other Shortcuts the current Value of the Parameter is displayed on this line) (5) Next parameter value if External Rotate Left [<<E] is applied (parameter down) (6) Arrow indicating External Rotate Left [<<E] if applies. The item below indicates the next parameter value (down direction)

Rev 3.0 D1 User Manual 27

CURRENT DISC LAYER

STEREO SACD

(1)

(3)

(4)

(5)

(2)

6CH SACD

(6)

The last Shortcut (SETUP) is always the same and cannot be removed or altered. It gives access the Menu mode to access the detailed setup of the unit.

SETUP Shortcut display elements

(1) Shortcut title. It indicates that Detailed Setup (Menu mode) can be entered at this stage (2) Current value of the parameter. Default action is to exit (go back to Normal mode) (3) Arrow indicating External Rotate Right [E>>] (or Central Rotate Right [C>>]) (4) Next parameter value. If External Rotate Right [E>>] is applied, the unit enters into Menu mode

4.2.3 Menu mode

The Menu mode allows for Configuration and Setup of the D1 SACD/CD unit through a set of menus. Menu mode is entered from the last Shortcut item (see above). From Normal mode, enter the Shortcut mode by applying a Normal Push [NP]. By successive Normal Pushes [NP], step to the last Shortcut item (DETAILED SETUP) and apply an External Rotate Right [E>>] to enter the Menu mode.

Navigation in Menu mode is based on Central Rotate Left/Right [<<C]/[C>>] to select a given menu item and External Rotate Left/Right [<<E]/[E>>] to change menu level.

User Control Knob Action Unit Action [NP] Normal Push Enter next menu level or Validate choice (save setting) [LP] Long Push Puts the unit into Standby [C>>] Center Rotate Right Move to next menu item downward [<<C] Center Rotate Left Move to next menu item upward [E>>] External Rotate Right Enter next menu level [<<E] External Rotate Left Return to previous menu level without saving

User control knob actions in Menu mode

28 D1 User Manual Rev 3.0

DETAILED SETUP

EXIT

(1)

(4)

(2)

ENTER

(3)

Following illustration shows the elements of a the D1 SETUP Menu page, the entry point to the D1 menu structure.

D1 SETUP menu display elements

(1) Menu title. When entering a menu item, the title also shows the parent menu. If the AUDIO SETTINGS menu is entered, the title line would display

D1 SETUP >> AUDIO SETTINGS.

(2) Shows the accessible parameters when entering the currently highlighted menu item. In this example, AUDIO SETTINGS is highlighted and the

second column shows the parameters accessible in the AUDIO SETTINGS menu.

(3) List of items in the current menu. Navigate from one item to the other using Central Rotate Left/Right [<<C]/[C>>]. To enter the highlighted

menu item, use External Rotate Right [E>>] (or a Normal Push [NP]). To go to the previous menu level use External Rotate Left [<<E]. In this example, External Rotate Left [<<E] exists the Menu mode and sets the unit back to Normal mode.

Once a menu item is selected by External Rotate Right [E>>], parameters for the corresponding menu item can be navigated and accessed. As an example, the following drawing shows the display elements of the D1 SETUP >> AUDIO SETTINGS sub-menu.

D1 SETUP >> AUDIO SETTINGS menu display elements

(1) Menu title. D1 SETUP >> AUDIO SETTINGS shows that the parent menu is D1 SETUP. By applying External Rotate Left [<<E], the unit returns to

Rev 3.0 D1 User Manual 29

the parent menu.

(2) A Parameter Value of '...' indicates that the menu items gives access to one or more further sub-menu(s). Further sub-menus have the same

structure as this example.

(3) This is the Parameter Value column. For each item in the Parameter column, the Parameter Value item on the same line indicates the current

value of the Parameter.

(4) This is the Parameter column. The currently active Parameter is highlighted. Use Central Rotate Left/Right [<<C]/[C>>] to navigate from

Parameter to Parameter.

(5) If the first or last item in the Parameter column is indicated by '...' it means that there are additional Parameters not displayed currently on-

screen. Use Central Rotate Left/Right [<<C]/[C>>] to navigate towards the '...' to make the corresponding Parameters appear on screen.

Once a terminal Parameter (e.g. a Parameter not giving access to a further sub-menu) is selected by External Rotate Right [E>>], the D1 displays the corresponding Parameter adjustment screen. Following example shows the AUDIO SETTINGS >> PHASE POLARITY Parameter adjustment screen. Other Parameters are similar but may show more (or less) choices for Parameter value. Once a Parameter is set to the desired value, a Normal Push [NP] saves the new Parameter Value and gets back to the parent level (save and exit). On the other hand, an External Rotate Left [<<E] gets back to the parent menu (in the case of this example: AUDIO SETTINGS), but possible modifications of the Parameter Value are discarded (exit without saving).

AUDIO SETTINGS >> PHASE POLARITY menu display elements

(1) Menu title. AUDIO SETTINGS >> PHASE POLARITY shows that the parent menu is AUDIO SETTINGS. To access the parent menu, use External

Rotate Left [<<E] (2) The current Parameter Value is highlighted. Use Central Rotate Left/Right [<<C]/[C>>] to navigate through Parameter Values (3) Other possible Parameter Value(s). Number of other Parameter Value(s) depends on Parameter (4) Parameter for which the Parameter Value can be modified in the current menu.

The following section gives detailed information about the menu structure and the various Parameters. Note that certain Parameter may or may not appear in the menu depending on installed options. For instance if no ANALOG_OUT board is installed, menu items related to the DAC (Digital to Analog Converter) digital filters do not appear in the menu.

30 D1 User Manual Rev 3.0

4.3 Configuration

Configuration of your D1 SACD/CD unit is accomplished by setting parameters in the Menu mode (see previous section for how to access Menu mode and how to navigate menu items). Following diagram shows the complete menu structure (terminal items not show). Grayed menu items are items which depend on installed optional slot-in boards.

D1 CD/SACSD unit menu structure

Rev 3.0 D1 User Manual 31

There are six main menus used for configuration of the D1:

• AUDIO SETTINGS: Allows to adjust audio related parameters

• DISPLAY SETTINGS: Allows to adjust display related parameters

• SHORTCUTS: Allows to assign and modify Shortcuts for user interface customization

• FACTORY SETTINGS: Indicates the software version and allows to update it. Also allows to return to factory settings

• INSTALLED OPTIONS: Provides information about the installed optional slot-in boards

• NETWORK: Provides information about the network setup and enables its configuration.

4.3.1 D1 configuration menu items

4.3.1.1 AUDIO SETTINGS

The D1 SETUP >> AUDIO SETTINGS menu allows configuration of the audio related Parameters of the unit. Accessible Parameters are:

- MUTE:

- PHASE POLARITY:

- CURRENT DISC LAYER:

- DEFAULT DISC LAYER:

- REPEAT MODE:

- CLOCK SOURCE:

- ACTIVE OUTPUT:

- DAC PCM FILTER:

- DAC DSD FILTER:

- ANALOG OUTPUT:

Mutes or unmutes the audio output Allows to revert the phase of the audio output Selects the disc layer to be read for current SACD Selects default layer used upon disc loading Selects the repeat mode Allows to select the clock source Selects active outputs (DIGITAL_OUT boards only) Digital filter selection for PCM audio (ANALOG_OUT only) Digital filter selection for DSD audio (ANALOG_OUT only) Selects if the D1 outputs analog signal at full level or not

The following table details the Parameters of the AUDIO SETTINGS menu:

PARAMETER PARAMETER VALUES REQUIRED OPTIONS REMARKS MUTE Muted

Unmuted

None None

PHASE POLARITY In phase

Out of phase

None None

CURRENT DISC LAYER Multichannel SACD

Stereo SACD Stereo CD

When an SACD is stopped, the user can force the D1 to read another layer by changing the CURRENT DISC LAYER parameter.

32 D1 User Manual Rev 3.0

If Multichannel layer is selected in pure Stereo D1 unit, the output will be a L/R downmix of the multichannel information. For pure stereo D1 applications, it is recommended to use Stereo SACD as SACD layer (default behavior).

DEFAULT DISC LAYER Multichannel SACD

Stereo SACD

Multi-channel capability (Output boards (DIGITAL_OUT or ANALOG_OUT) for L/R, Ls/Rs and C/Sub)

Chose if the stereo or the multichannel layer of an SACD should be selected by default upon loading (whenever these layer are available on a given SACD).

REPEAT MODE Normal

Repeat track Repeat all

None This setting is only valid while a disc is playing.

Returns to default (Normal) upon disc stop.

CLOCK SOURCE Internal Clock

Synchro BNC (75 Ohm) Synchro BNC (Hi-Z)

SYNC_IO board to choose another clock source than Internal

Internal clock source is available in all cases

Synchro BNC (75 Ohm) and Synchro (Hi-Z) are only available when the SYNC_IO board is installed.

SYNC_IO offers choice of 75 Ohm or highimpedance on its BNC clock input.

ACTIVE OUTPUT CH-LINK L/R

AES-EBU L/R RCA S/PDIF L/R TOSLINK S/PDIF L/R CH-LINK Ls/Rs AES-EBU Ls/Rs RCA S/PDIF Ls/Rs TOSLINK S/PDIF Ls/Rs CH-LINK C/Sub AES-EBU C/Sub RCA S/PDIF C/Sub TOSLINK S/PDIF C/Sub

At least 1x DIGITAL_OUT Used to individually enable/disable digital outputs.

Note: AES-EBU outputs support consumer encoding.

Options for Ls/Rs channels are only displayed if a DIGITAL_OUT board is installed for Ls/Rs channels.

Options for C/Sub channels are only displayed if a DIGITAL_OUT board is installed for C/Sub channels.

DAC PCM FILTER Min P. low ringing

Min P. apodising Min P. sharp Linear P. apodising Linear P. sharp

At least 1x ANALOG_OUT

Choice of different filter types for PCM audio (CD or CD layer of an SACD).

Min P. indicates minimal phase and Linear P. indicates linear phase.

Low ringing corresponds to a soft-knee filter and Sharp corresponds to a steep cut-off. Apodising filters reach full attenuation at half the sampling frequency to minimize transition band aliasing.

Rev 3.0 D1 User Manual 33

DAC DSD FILTER Min P.

Linear P. low ringing Linear P. trade-off Linear P. sharp

At least 1x ANALOG_OUT

Choice of different filter types for DSD audio (DSD layer of an SACD).

Min P. indicates minimal phase and Linear P. indicates linear phase.

Low ringing corresponds to a soft-knee filter and Sharp corresponds to a steep cut-off. Trade-off, as the name suggests, is an intermediary between Low ringing and Sharp filters.

ANALOG OUTPUT To preamp

To power amp

At least 1x ANALOG_OUT

If D1's analog output is connected directly to a power amp, it can be attenuated by the volume set in the master C1 or L1 (command is sent from C1/L1 to D1 through TCP/IP command on the network)

Details of AUDIO SETTINGS menu Parameters

4.3.1.2 DISPLAY SETTINGS

The D1 SETUP >> DISPLAY SETTINGS menu allows configuration of the display related Parameters of the unit. Accessible Parameters are:

- TIME INFO:

- DISPLAY MODE:

- LED ON/OFF:

- BRIGHTNESS NORMAL:

- BRIGHTNESS DIMMED:

- COLOR CD:

- COLOR SACD:

- GAMMA:

Selects time display mode Allows to turn the display off Selects if the LED remains on when D1 is on Sets the normal display brightness Sets the dimmed display brightness Selects the display color for CD playback Selects the display color for SACD playback Fine tunes the AMOLED's display RGB gamma curve

The following table details the Parameters of the DISPLAY SETTINGS menu:

PARAMETER PARAMETER VALUES REQUIRED OPTIONS REMARKS TIME INFO Track

Track remain Disc Disc remain

None Remaining times are indicated with a minus sign in

front of the time value display.

DISPLAY MODE Status

Off

None Selects if the screen will display status information

with reduced brightness (dimmed) or be turned completely off when the unit is idle for several seconds

34 D1 User Manual Rev 3.0

LED ON/OFF On

Off

None Allows to keep the LED on when the unit is on.

BRIGHTNESS NORMAL 10%

20% 30% ... 90% 100%

None Sets the display brightness when the unit is

operated.

BRIGHTNESS DIMMED 10%

20% 30%

None Sets the display brightness when the unit is left idle

for several seconds.

COLOR CD

Predefined colors

Custom color Edit custom color

None Selects the display color for CD playback

Predefined colors

represents a set of factory defined

colors

Custom color is a user definable color. To Edit the custom color select the Edit custom color Value. Submenus allow to individually configure Red, Green and Blue components (RGB) of the custom color.

COLOR SACD

Predefined colors

Custom color Edit custom color

None Selects the display color for SACD playback

Predefined colors

represents a set of factory defined

colors

Custom color is a user definable color. To Edit the custom color select the Edit custom color Value. Submenus allow to individually configure Red, Green and Blue components (RGB) of the custom color.

GAMMA -RBG and global

brightness gamma curve correction, +/-30%

None Fine adjustment the gamma scale of the RGB

components of the display. Allows to have perfectly dark background and to match other CH Precision unit's display color, even at low brightness.

Details of DISPLAY SETTINGS menu Parameters

Rev 3.0 D1 User Manual 35

4.3.1.3 SHORTCUTS

The D1 SETUP >> SHORTCUTS menu allows configuration of the Shortcuts. Accessible Parameters are:

- SHORTCUT1:

- SHORTCUT2:

- SHORTCUT3:

- SHORTCUT4:

- SHORTCUT5:

- SHORTCUT6:

Defines action for Shortcut #1 Defines action for Shortcut #2 Defines action for Shortcut #3 Defines action for Shortcut #4 Defines action for Shortcut #5

Defines action for Shortcut #6 Note that unused Shortcuts are not displayed. The first available (e.g. non defined) Shortcut has a Parameter Value of 'None' (the example on the left has 4 defined Shortcuts, hence Shortcut #5 has a Parameter Value of 'None')

The following table details the Parameters of the SHORTCUTS menu:

PARAMETER PARAMETER VALUES REQUIRED OPTIONS REMARKS SHORTCUT 1 Most Parameter of the AUDIO
