USER MANUAL
TOP MOUNT REFRIGERATOR
Customer Service 1300 796 688
www.chiq.com.au
MODEL
CTM348NW2
CTM347NB2

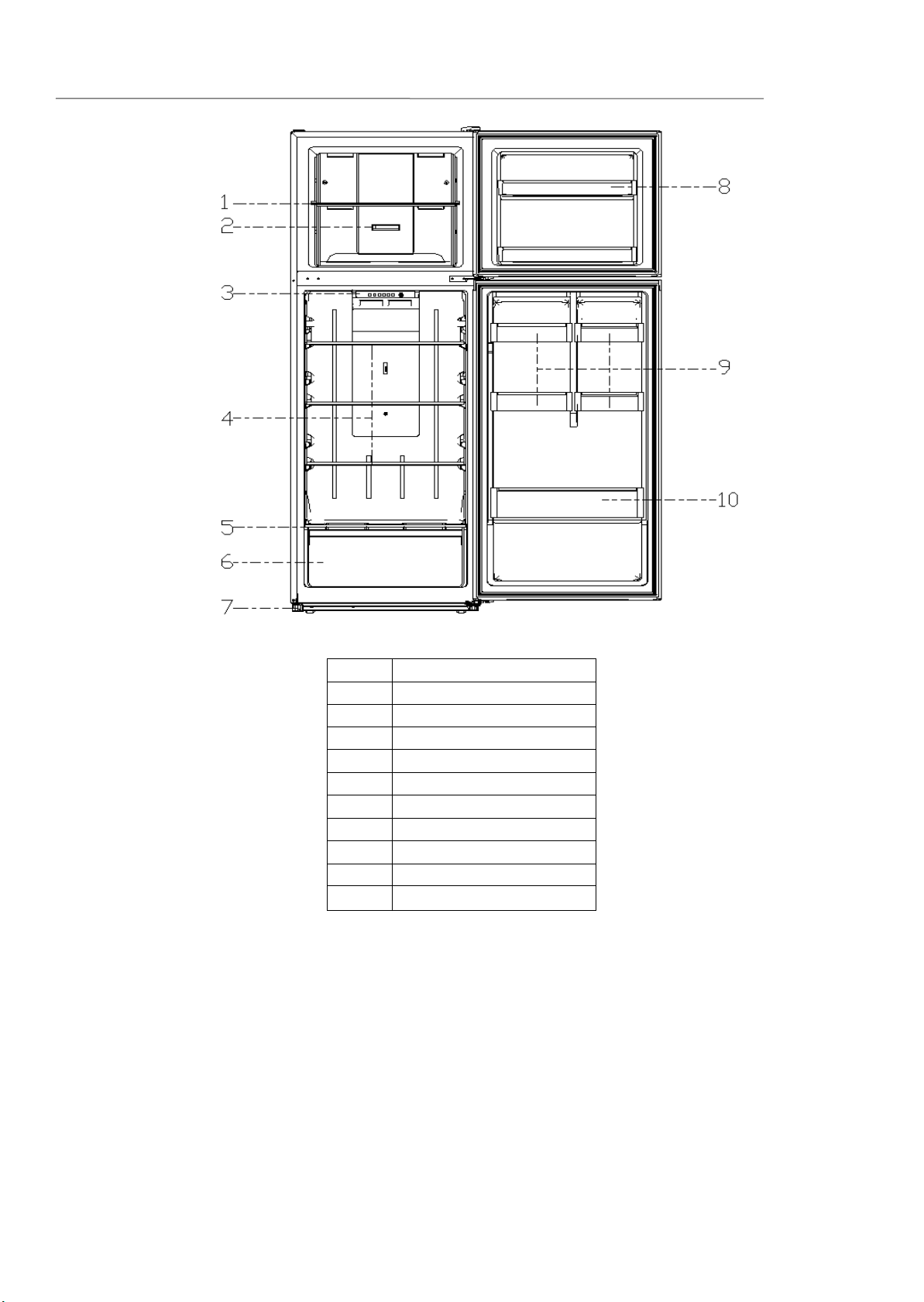

PART NAMES AND LOCATIONS
No Description
1 Freezer shelf
2 air flow adjustment knob
3 Temp setting panel
4 Fridge glass shelf
5 Crisper cover
6 Salad crisper
7 Leveling foot
8 Bottle rack
9 Little bottle rack
10 Bottom bottle rack
IN ACCESSORY BAG: USER MANUAL, WARRANTY
As the manufacturer holds the authority to redesign or modify its products without notice:
Any modifications or upgrades of our products will result in this refrigerator varying
slightly from this manual but the functionality will remain the same to that as set out
within this manual.
1
IMPORTANT SAFETY INSTRUCTIONS
Follow these basic precautions to reduce the risk of fire,
WARNING
electrical shock hazards or injury when operating the
refrigerator:
• This product has been designed for using in a normal domestic environment. It is
not intended for commercial use which will avoid warranty, such as supermarket,
food shop, pharmacy, commercial kitchen & etc.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
• It is critical use this appliance safely. Read all instructions before operating the
refrigerator and do not attempt to repair or modify this unit in any way as it can cause
harm or void the warranty.
• Please ensure all persons using this appliance are also informed and comply with the
details set out within this manual and the product Terms and Conditions.
• When unpacking the appliance for the first time, keep all cardboard and plastic
packaging out of reach from children.
• Report any notable defects with the appliance to CHiQ or retailer as soon as it is noted.
Failure to do so can result in a non-warranty claim. Keep all packaging materials in a
safe location until the unit has been installed properly.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard. It is recommended the
power cord is situated in a safe location when operating or transporting the appliance
to prevent any damage that may cause electrical shock or fire hazards.
• This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
• DANGER or WARNING:
Service of this unit
The installation or any service of the appliance is recommended by a qualified technician
or service company.
Ventilation Hazards
Never clean the refrigerator or refrigerator parts with flammable fluids, or store gasoline
or any other flammable vapors and liquids in the vicinity of this or any other
2
refrigerator as the gas and/or vapour can cause a fire hazard, explosion or inhalation.
Electrical Connection
Make certain, when installing or moving the unit that the power outlet has been
connected to, has been fitted by a qualified electrician and the ground wire has been
connected properly to meet the Australian Electrical Standards.
R600a WARNINGS
NOTE: This model uses R600a flammable refrigerant in its sealed system.
The following must be observed for your safety:
R600a Refrigerant Warning
• This appliance contains 0.043kg R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone
layer, nor does it increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the
refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and
any device which creates a spark. Disconnect the appliance from the
mains power.
• Thoroughly ventilate the room in which the appliance is located for
several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per
8 grams of refrigerant. The refrigerant quantity contained in this
appliance is listed above in grams; it is also noted on the Rating Plate of
the appliance.
* Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Warning: Risk of fire/ Flammable materials
It is hazardous for anyone other than an Authorised Service Person to carry out
servicing or repairs to this appliance. In Queensland the authorized person must
hold a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out
servicing or repairs which involve the removal of covers.
1. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
2. Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Do not damage the refrigerant circuit.
4. Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
3
5. Do not store explosive substances such as aerosol cans with a flammable propellant
in the appliance.
6. WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
7. WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance
Disposal
The environment and personal safety must be considered when disposing of this
appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO
NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained
in these appliances are flammable.

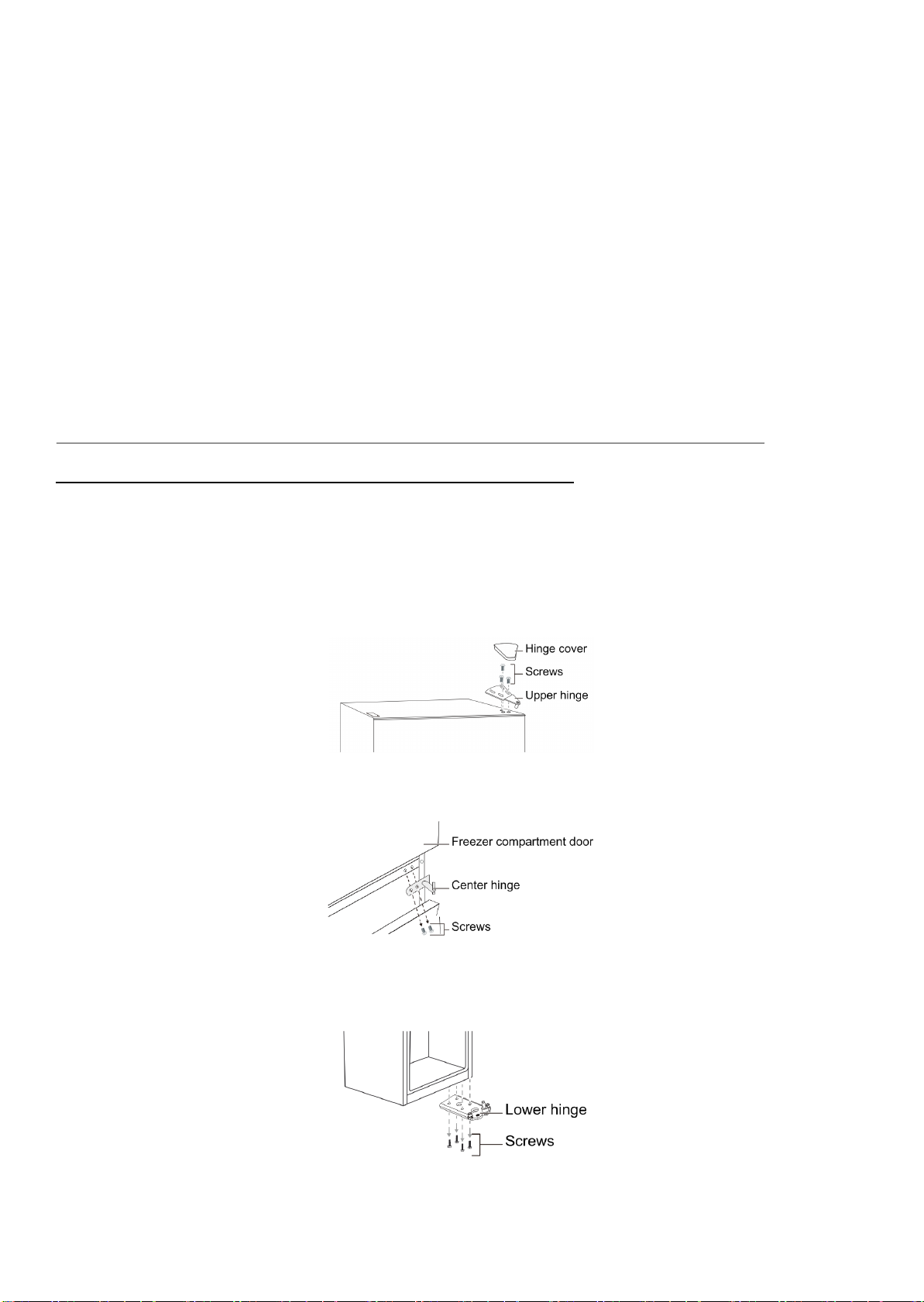

Door reversal instruction
There is no spare parts required for door reversal job.
The following tool is required, flat screwdriver, phillips screwdriver, adjustable spanner,
socket wrench and 8mm socket.
1. Make sure that your refrigerator is unplugged.
2. Use a flat screwdriver to remove the hinge cover, remove the three screws that secure
the upper hinge, then remove the upper hinge.
3.Remove the freezer door from the cabinet.
4. Remove the two screws that secure the center hinge.
5.Remove the refrigerator compartment door.
6. Remove the four screws that secure the lower hinge to the right side of the cabinet,
then remove the hinge.
7. Remove the washer and nut that secure the pin shaft to the right hole on the lower
