CHiQ CSH430B User Manual
ENGLISH

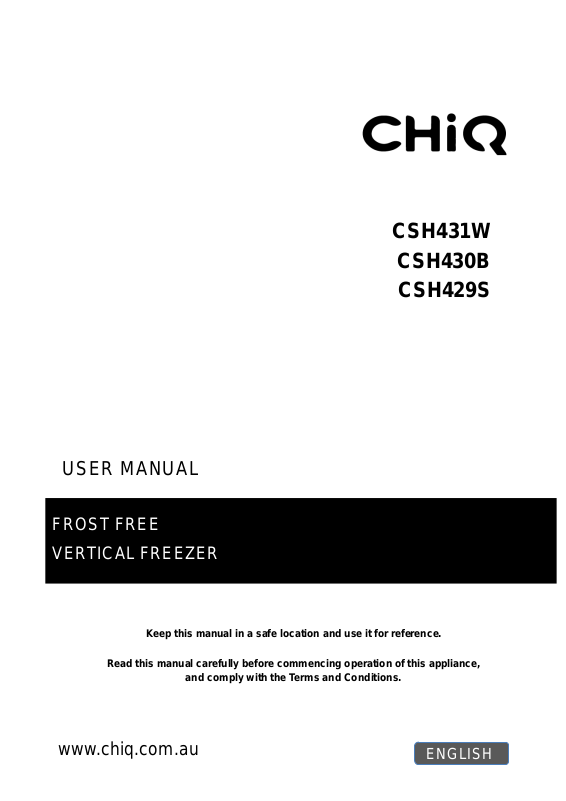

USER MANUAL
FROST FREE
VERTICAL FREEZER
Keep this manual in a safe location and use it for reference.
Read this manual carefully before commencing operation of this appliance,
and comply with the Terms and Conditions.
www.chiq.com.au
ENGLISH
CSH431W
CSH430B
CSH429S
SAFETY
WARNING!
It is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the
removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yourself.
WARNING!
Risk of fire / flammable materials.
Safety tips
Do not use electrical appliances such as a hair dryer or heater to defrost your Freezer.
Containers with flammable gases or liquids can leak at low temperatures.
Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the
Freezer.
Do not place carbonated or fizzy drinks in the Freezer compartment. Ice lollies can cause “Frost/Freeze burns”if
consumed straight from the Freezer.
Do not remove items from the Freezer compartment if your hands are damp/wet, as this could cause skin abrasions or
“Frost/Freezer burns”. Bottles and cans must not be placed in the Freezer compartment as they can burst when the
contents freeze.
Manufacturer’s recommended storage times should be adhered to. Refer to relevant instructions.
Do not allow children to tamper with the controls or play with the Freezer. The Freezer is heavy. Care should be taken
when moving it. It is dangerous to alter the specification or attempt to modify this product in any way.
Do not store inflammable gases or liquids inside your Freezer.
If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
This appliance is intended to be used in household and similar applications such as
·staff kitchen areas in shops, offices and other working environments;
·farm houses and by clients in hotels, motels and other residential type environments;
·bed and breakfast type environments;
·catering and similar non-retail applications.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by
the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of type
recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
– WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
– WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
– WARNING: Do not damage the refrigerant circuit.
– WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
– WARNING: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate consistently
(possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an
extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;
– WARNING: The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children
and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.
– WARNING: The refrigerant used in your appliance and insulation materials requires special disposal procedures.
– WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
– WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
To avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the compartments of the
appliance.
–Clean regularly surfaces that can come in contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has
not been drawn for 5 days.
– Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice
cubes.
– One-, two- and three-star compartments are not suitable for the freezing of fresh food.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to
prevent mould developing within the appliance.
Electrical Connection
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it
replaced by an authorized service center.
This appliance should be properly grounded for your safety. This refrigerator appliance requires a standard 220-240VAC
50/60Hz electrical outlet with three-prong ground.
The power cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle.
Climate Range
The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient
temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal
(proper).
Climate range
Permissible ambient temperature
SN
from +10°C to +32°C
N
from +16°C to +32°C
ST
from +16°C to +38°C
T
from +16°C to +43°C
Note：Given the limit values of the ambient temperature range for the climate classes for which the refrigerating appliance
is designed and the fact that the internal temperatures could be affected by such factors as location of the refrigerating
appliance, ambient temperature and the frequency of door opening, the setting of any temperature control device might
have to be varied to allow for these factors, if appropriate.
If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Locks
If your Refrigerator is fitted with a lock, keep the key out of reach and not in the vicinity of the appliance to prevent children
being entrapped. When disposing of an old Refrigerator, break off any old locks or latches as a safeguard.
Freon-free
The freon-free refrigerant (R600a:0.082kg) and the foaming insulation material (cyclopentane) that is environmentally
friendly are used for the refrigerator, causing no damage to the ozone layer and having a very small impact on the global
warming. R600a is flammable, and sealed in a refrigeration system, without leakage during normal use. But, in case of
refrigerant leakage due to the refrigerant circuit being damaged, be sure to keep the appliance away from open flames
and open the windows for ventilation as quickly as possible.
Product Features
This is an upright single-door inverter refrigerator with electronic control. It features switchover between the fridge mode
and the freezer mode; under the freezer mode, it can be used for the preservation of fish, meat, etc. that need be frozen
for the long-term storage; and under the fridge mode, it can be used for fresh food storage, such as fruits, vegetables,
eggs, milk, etc.
★Computer control
Adopting the electronic temperature control mode, the refrigerator is designed with a LED display screen, by which the
temperature and working parameters can be managed and set.
★Inverter technology
Integrated with precise frequency conversion, noise reduction, energy saving, precise temperature control and other
technologies, the refrigerator boasts of superior performances. Furthermore, working efficiency of the inverter compressor
can be automatically adjusted according to the ambient temperature and the set temperature, so as to keep the
refrigerator operating in its optimal state.
★Green technology
The freon-free refrigerant and foaming insulation material are used for the refrigerator, causing no damage to the ozone
layer and having a very small impact on the global warming, so it is the environmentally friendly product.
★More user-friendly designs
Such functions as wide working voltage range, automatic temperature control, power-cut memory, power-on delay,
automatic alarm, fast freezing, and quick cooling, etc. are available.
Due to technological innovations, the product descriptions in this manual may not be completely consistent with your
refrigerator. Detailed information is in accordance with the final product.
Preparations for use
Installation location:
1. Ventilation condition
The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the
refrigerator near a heat source such as cooker, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect
while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from
rusting and leaking electricity. The result of the total space of the room in which the refrigerator is installed being divided
by the refrigerant charge amount of the refrigerator shall not be less than 8 g/ M3.
Note: The amount of refrigerant charged for the refrigerator can be found on the nameplate.
2. Heat dissipation space
When working, the refrigerator gives off heat to surroundings. Therefore, at least 300mm of free space should be spared
at the top side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator.
Dimensions in mm:
W D H A B
C(°) E F
710
770
1855
1197
1357
130
50
100
No.
Description
1
Freezer drawer pannel
2
Freezer drawers
3
Leveling feet
