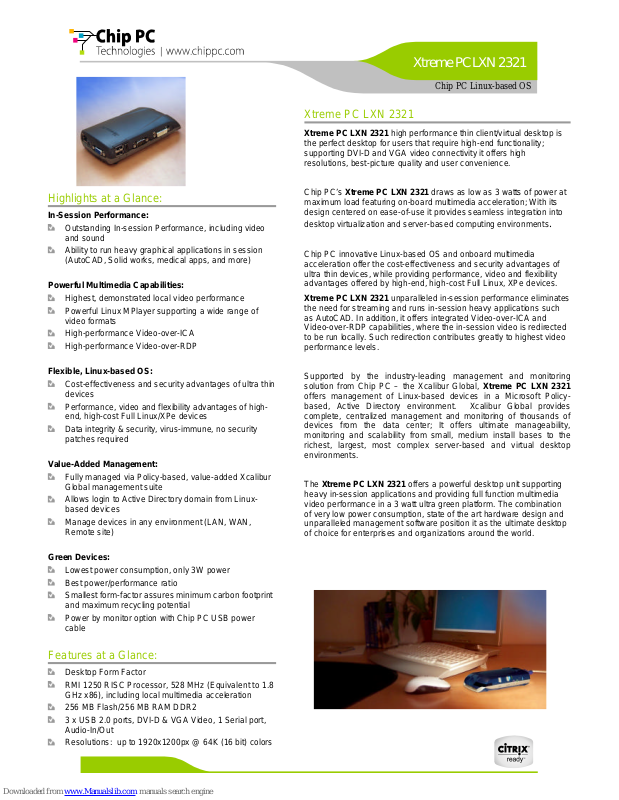

Chip PC Xtreme PC LXN2321 Specifications

Xtreme PC LXN 2321

Chip PC Linux

-

based OS

Xtreme PC LXN 2321

Xtreme PC LXN 2321 high performance thin client/virtual desktop is
the perfect desktop for users that require high-end functionality;
supporting DVI-D and VGA video connectivity it offers high
resolutions, best-picture quality and user convenience.

Chip PC’s Xtreme PC LXN 2321 draws as low as 3 watts of power at
maximum load featuring on-board multimedia acceleration; With its
design centered on ease-of-use it provides seamless integration into

desktop virtualization and server-based computing environments.

Chip PC innovative Linux-based OS and onboard multimedia
acceleration offer the cost-effectiveness and security advantages of
ultra thin devices, while providing performance, video and flexibility
advantages offered by high-end, high-cost Full Linux, XPe devices.

Xtreme PC LXN 2321 unparalleled in-session performance

eliminates

the need for streaming and runs in-session heavy applications such
as AutoCAD. In addition, it offers integrated Video-over-ICA and
Video-over-RDP capabilities, where the in-session video is redirected
to be run locally. Such redirection contributes greatly to highest video
performance levels.

Supported by the industry-

leading management and monitoring

solution from Chip PC – the Xcalibur Global, Xtreme PC LXN 2321
offers management of Linux-based devices in a Microsoft Policy­based, Active Directory environment.

Xcalibur Global provides

complete, centralized management and monitoring of thousands of

devices

from the data center; It offers ultimate manageability,

monitoring and scalability from small, m

edium install bases to the

richest, largest, most complex server-

based and virtual desktop

environments.

The Xtreme PC LXN 2321 offers a powerful desktop unit supporting
heavy in-session applications and providing full function multimedia
video performance in a 3 watt ultra green platform. The combination
of very low power consumption, state of the art hardware design and
unparalleled management software position it as the ultimate desktop
of choice for enterprises and organizations around the world.

Highlights at a Glance:

In-Session Performance:

Outstanding In-session Performance, including video

and sound

Ability to run heavy graphical applications in session

(AutoCAD, Solid works, medical apps, and more)

Powerful Multimedia Capabilities:

Highest, demonstrated local video performance
Powerful Linux MPlayer supporting a wide range of

video formats
High-performance Video-over-ICA
High-performance Video-over-RDP

Flexible, Linux-based OS:

Cost-effectiveness and security advantages of ultra

thin

devices
Performance, video and flexibility advantages of high-

end, high-cost Full Linux/XPe devices
Data integrity & security, virus-immune, no security

patches required

Value-Added Management:

Fully managed via Policy-based, value-added Xcalibur

Global management suite
Allows login to Active Directory domain from Linux-

based devices
Manage devices in any environment (LAN, WAN,

Remote site)

Green Devices:

Lowest power consumption, only 3W power
Best power/performance ratio
Smallest form-factor assures minimum carbon footprint

and maximum recycling potential
Power by monitor option with Chip PC USB power

cable

Features at a Glance:

Desktop Form Factor
RMI 1250 RISC Processor, 528 MHz (Equivalent to 1.8

GHz x86), including local multimedia acceleration
256 MB Flash/256 MB RAM DDR2
3 x USB 2.0 ports, DVI-D & VGA Video, 1 Serial port,

Audio-In/Out
Resolutions: up to 1920x1200px @ 64K (16 bit) colors

Xtreme PC LXN 2321

Chip PC Linux

-

based OS

Product Specifications Xtreme PC LXN 2321

CPU

• RMI Au 1250, 528 MHz RISC, equivalent to x86 1.8 GHz

Memory

• 256 MB DDR2

Mass Storage

• 256 MB Disk-On-Chip with FFS

• 10 years data retention

Display Support

• Digital video DVI-D connector

• VGA –type video (DB-15)

Resolutions

• Up to 1920x1200 Pixels @ 64k (16 bit)

Video Player

• DivX HD CODEC (hardware accelerated)

• MPEG4 (hardware accelerated)

Audio Support

• Stereo Audio Output - 3 mm (1/8 inch) Audio-Out Jack; 16-bit Stereo

• Microphone Input - 3 mm (1/8 inch) Audio-In Jack

• Software volume / mute control

Input/Output

• 3 x USB 2.0 ports; 1 Serial port

Operating System

• Linux-based kernel

Firmware

• ICA 10 client

• RDP (RDesktop 1.6)

• MPlayer

• X-Windows 7.2 server

Network

• 10/100 Fast Ethernet, twisted pair (RJ-45) with Auto-

negotiate TCP/IP with DNS and

DHCP

• Wake On LAN support

Warranty

•

1 year automatic Warranty, additional 2 years pending on product registration

http://www.chippc.com/support/

Power

• Device input: 5V DC 2A max.

• Normal power consumption:3W

• Power consumption (sleep mode): 0.35W

• Wall-mount power supply input: Universal 90 – 240V AC 50-60 Hz input (included)

• Optional USB power (no AC/DC is required)

Xtreme PC LXN 2321

Chip PC Linux

-

based OS

Product Specifications Xtreme PC LXN 2321

Physical Characteristics

• Dimensions: 8(W )x15.8(D)x3.4(H) cm / 3.15(W )x6.22(D)x1.34(H) inch

• Device weight: 180 gr. (6 oz.)

• Shipping Weight: 0.65 Kg. (1.43 lbs.)

Environmental

• Temperature range: Operating - 32ºF to 104ºF (0ºC to 40ºC)

• Storage: -46ºF to 163ºF (-20ºC to 70ºC)

• Humidity: Operating - 20 to 80% non condensing; Storage - 0 to 90% non condensing

• Altitude: 0 to 42,000 ft

Regulatory Compliance

• Safety: UL 1950, cUL, EN/IEC60950-1

• EMI/EMC: FCC Class B, CE Mark, EN61000-6-3, EN61000-6-1, VCCI

• EPA ENERGY STAR

Optional Software Plug-

Ins (for an additional

cost)

• Visit www.chippc.com to download /purchase

Optional Accessories
(for an additional cost)

• Visit www.chippc.com for an updated list

Enclosure Color Midnight Gray and Silver

§ Monitor, keyboard and mouse - to be purchased separately

§ Xcalibur Global & Plugin licenses - to be purchased separately

§ Above features are supported in latest firmware image version released

§ Actual display support is dependent on display hardware and cable quality; some of the resolutions and display modes described

above may not be supported by certain displays or cables

§ Specifications are subjected to change without prior notice

Xtreme PC LXN 2321

Chip PC Linux

-

based OS

The Company

Chip PC Technologies drives innovation into reality as a
global technology leader in desktop virtualization and
server-centric computing. A public company with
branches in Europe and the U.S., Chip PC develops and
markets top notch, thin client technology and
management systems.

Chip PC’s team of dedicated researchers and developers
have combined their years of experience to yield novel
ideas and deliver an outstandingly innovative family of
thin client/virtual desktop products.

With the award winning Xcalibur Global management
system and innovative devices, Chip PC maintains a
leading market position with its end-to-end solution.

The End-to-End Solution

Targeted at solving the thorny problems of management, security, reliability, maintenance and costs of
desktop computers, the company’s technology constructs a ground-up solution of innovative clients
orchestrated by intelligent management of users and devices, scalable to tens of thousands of clients.

Chip PC’s unique solution constructs a ground-up thin client network from the revolutionary Jack PC that fits
into a standard wall jack, through the Xtreme PC & Plug PC Series, state-of-the art, powerful, desktop units.

These server-centric, revolutionarily
designed, units are
comprehensively managed by Chip
PC’s Xcalibur Global. The Xcalibur
Global Management System
simulates an Active Directory
environment with intelligent usage
of its management principles of
policies and tools and offers flexible
management that applies down to
the specific needs of every
particular client unit or user.
