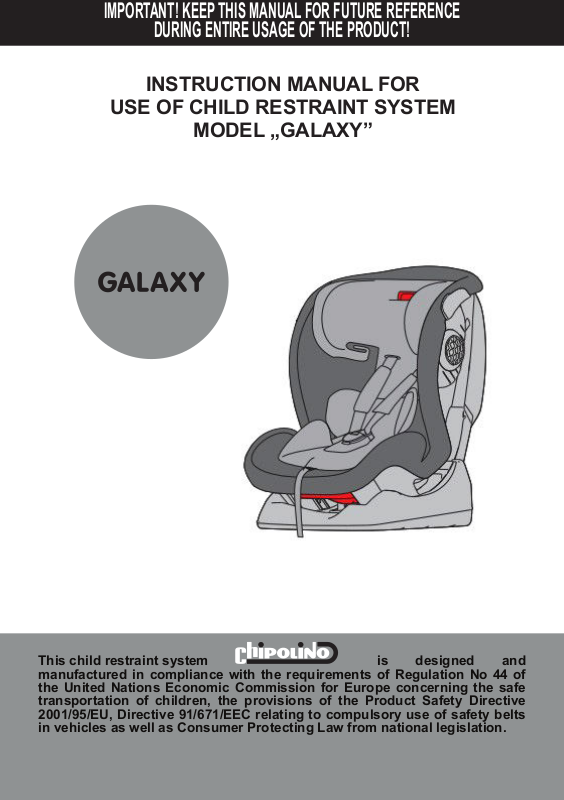

Page 1
IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE
DURING ENTIRE USAGE OF THE PRODUCT!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
MODEL „GALAXY”
This child restraint system is designed and
manufactured in compliance with the requirements of Regulation No 44 of
the United Nations Economic Commission for Europe concerning the safe
transportation of children, the provisions of the Product Safety Directive
2001/95/ЕU, Directive 91/671/EEC relating to compulsory use of safety belts
in vehicles as well as Consumer Protecting Law from national legislation.
Page 2
NOTICE
GROUPS 0+, I, II and III
1. This is a “UNIVERSAL” CHILD RESTRAINT. It is approved to Regulation No 44, 04 series of
amendments, for general use in vehicles and it will t most, but not all, car seats.
2. A correct t is likely if the vehicle manufacturer has declared in the vehicle handbook that the
vehicle is capable of accepting a “universal” child restraint for these age groups.
3. This child restraint has been classied as “universal” under more stringent conditions than
those which applied to earlier designs which do not carry this notice.
4. If in doubt, consult either the child restraint manufacturer or the retailer.
DO NOT FORGET THAT NO RESTRAINT SYSTEM CAN PROVIDE AB-
SOLUTE PROTECTION IN CASE OF A CRASH OR A ROAD ACCIDENT!
DRIVE WITH CARE WHEN THERE IS A CHILD IN YOU VEHICLE!
IN ORDER TO ENSURE THE SAFETY OF YOUR CHILD
FOLLOW EXACTLY THE INSTRUCTIONS AND SAFETY
RECOMMENDATIONS IN THIS MANUAL!
MISUSE OF THE CAR SEAT WILL CONTRIBUTE TO REDUCING ITS
SECURITY AND SAFETY FEATURES! FAILURE OF THE GUIDELINES OF THIS
INSTRUCTION INCREASES IN THE RISK OF SERIOUS INGURY OR DEATH!
CAUTION!
NEVER INSTALL THE CAR SEAT IN DIRECTION OF CAR MOTION AND WITH CHILD
“FORWARD FACING” BEFORE CHILD REACHES WEIGHT AT LEAST 9 kg!

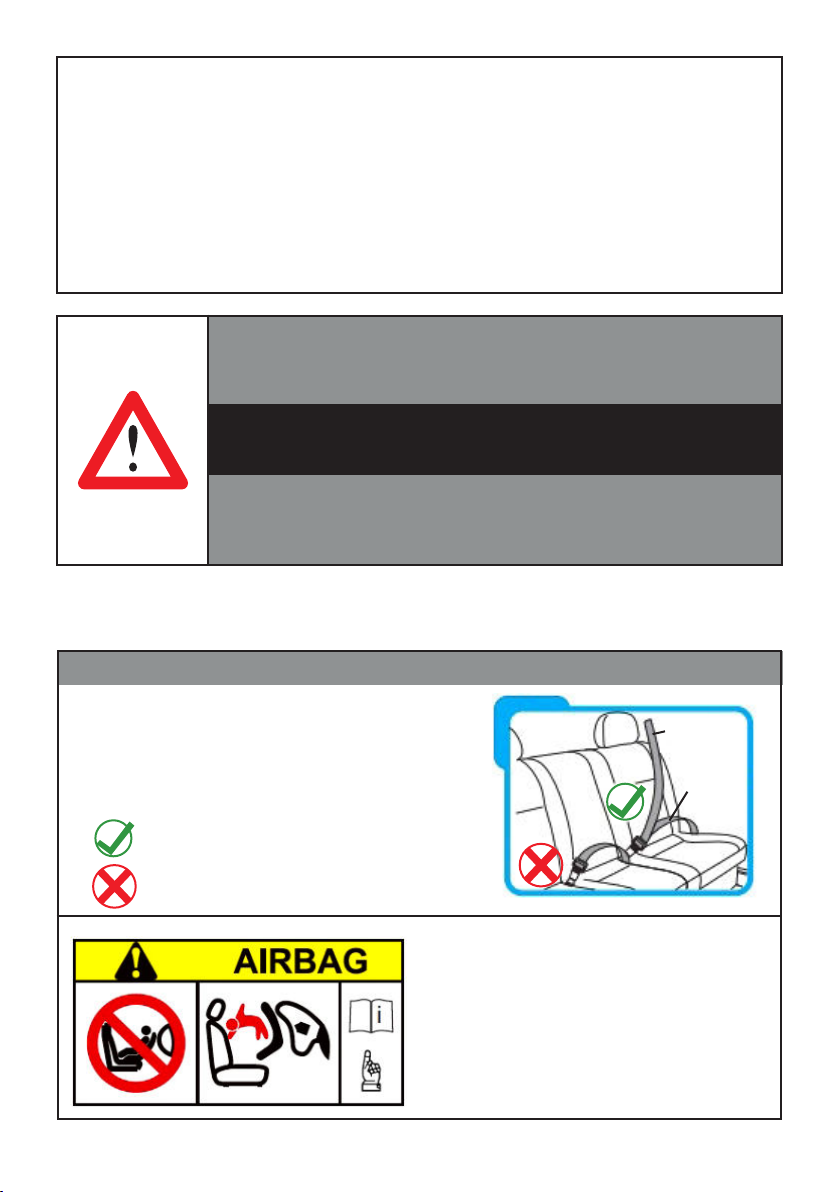

PLACE OF THE CAR SEAT IN THE VEHICLE
This car seat must be used only in vehicles tted
with APPROVED LAP/ 3-POINT/ STATIC / WITH
RETRACTOR CAR SAFETY BELTS, approved
according to rule № 16 of UNECE and the relevant
national laws!
CORRECT FITTING / SUITABLE
INCORRECT FITTING/NOT SUITABLE
Never install and use the car seat in a
REARWARD POSITION on a seat equipped
with an airbag which cannot be deactivated!
This may lead to death or serious injury!
Review the instructions of the car seat for information about airbags and conditions of transportation of children.
1

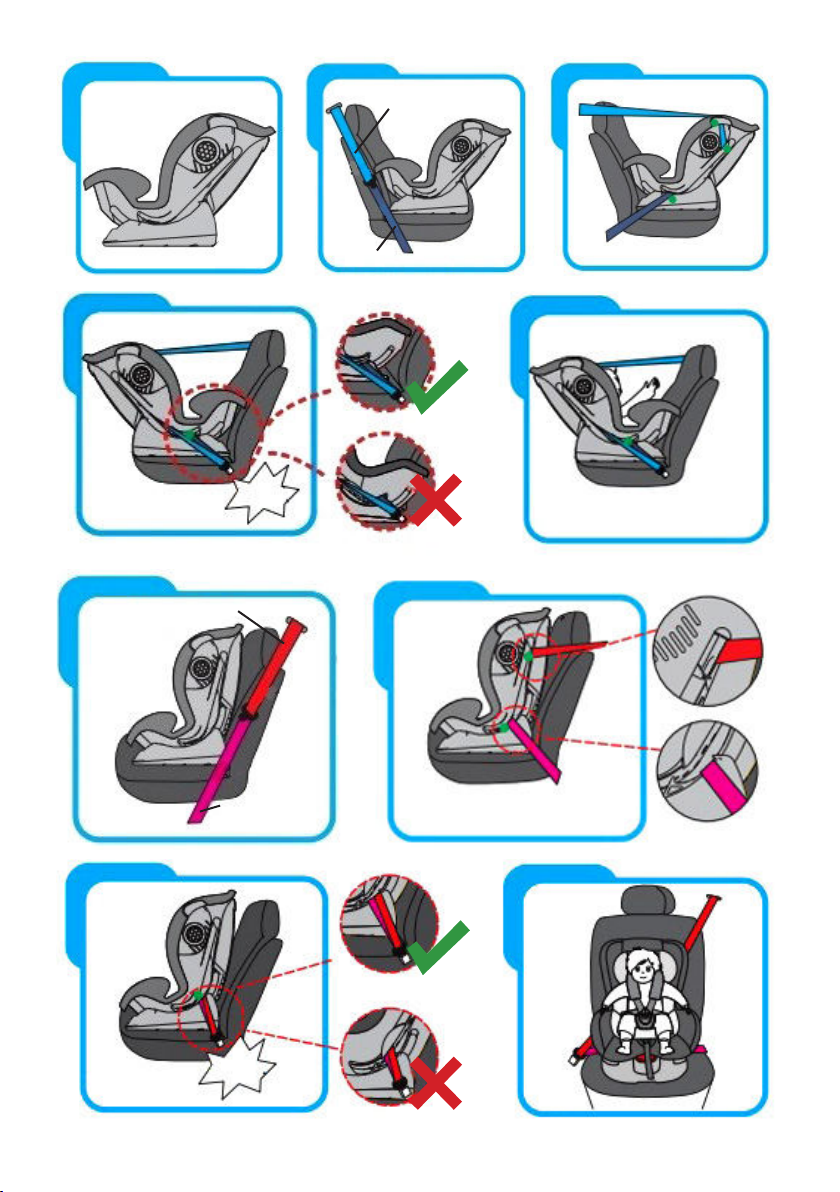

diagonal
belt
lap
belt
Page 3
?
1

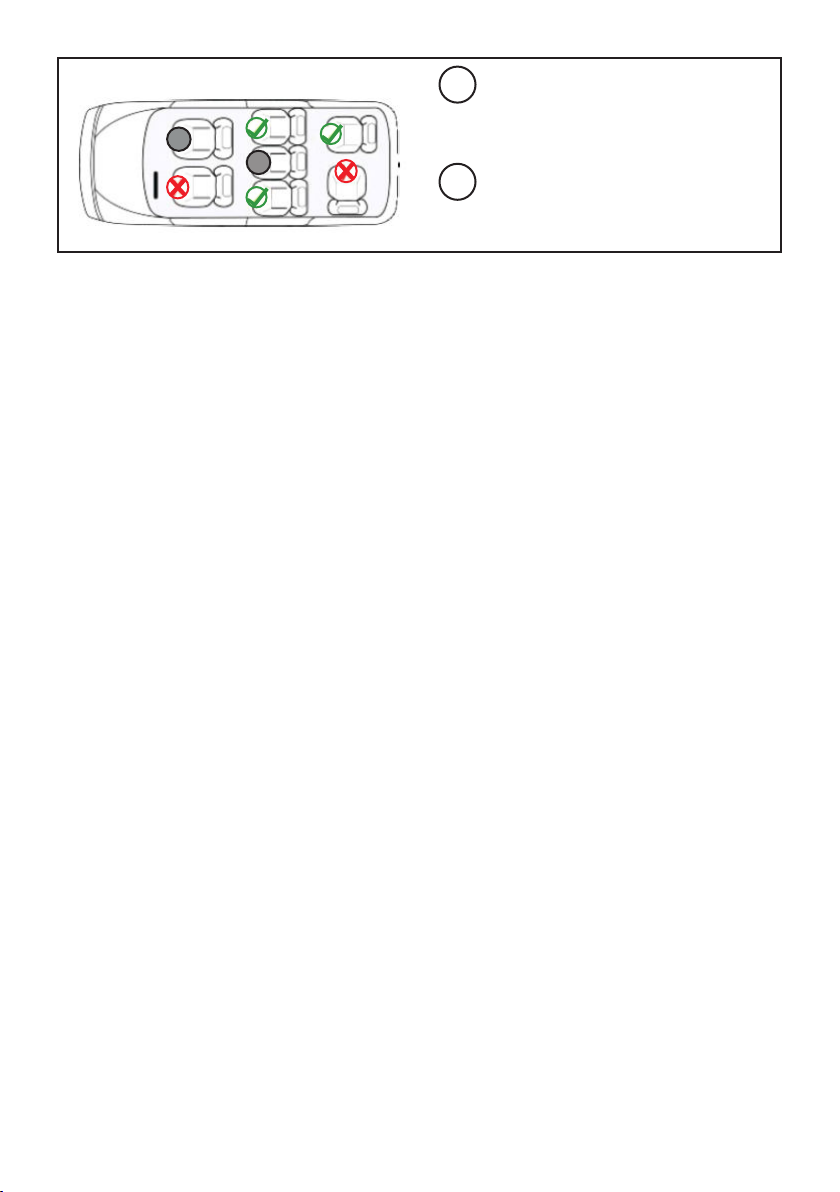

If there is an activated air bag in front of
the seat, do NOT install the child car seat on it.
?
1
CAUTION! NEVER LEAVE THE CHILD UNATTENDED!
CAUTION! DO NOT USE ANY LOAD BEARING CONTACT POINTS OTHER THAN THOSE
DESCRIBED IN THE INSTRUCTIONS AND MARKED IN THE CHILD RESTRAINT!
CAUTION! THE CAR SEAT SAFETY HARNESS AND THE VEHICLE SAFETY-BELTS MUST BE
PROPERLY ADJUSTED ACCORDING TO THE CHILD’S HEIGHT, NOT TWISTED AND SNUG
WELL AGAINST THE CHILD’S BODY!
CAUTION! DO NOT MAKE ANY ALTERATIONS, ADDITIONS OR MODIFICATIONS TO THE
DEVICE WITHOUT THE APPROVAL OF THE TYPE APPROVAL AUTHORITY!
CAUTION! KEEP AWAY FROM FIRE!
Do not remove stickers and warnings that are permanently xed on car seat! They are important for
everybody, who uses the car seat!
Car seats installation in the vehicle and securing the child in the car seat must be done only by adult!
The rigid items and plastic parts of a child restraint shall be so located and installed that they are
not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of
the vehicle.
The vehicle safety-belt must be tightened and fastened, not pinched in the door, twisted on the seat
or other part of the vehicle, or to rub against sharp edges or parts.
The car seat safety belt must be well snug and xed and adjusted according to child’s size.
Do not allow the car seat safety-belts and the vehicle safety-belts to be twisted, frayed or torn,
the latches and the locks (the buckles) must be always in good order and rmly xed.
If you nd uncertainty or defect in the construction, latches straps or locking mechanisms of the car
seat, discontinue usage until removal of the damaged parts and replacement with new ones.
The car seat should be changed when it has been subject to violent stresses in an accident.
Never use a second hand child restraint. It may have suered structural damage which may make
the child restraint extremely dangerous.
The child restraint shall not be used without the cover! The seat cover should not be replaced with
any other than the one recommended by the manufacturer, because the cover constitutes an
integral part of the restraint performance.
Any luggage or other objects liable to cause injuries in the event of a collision shall be properly
secured.
Do not put any additional pads except the ones supplied from the manufacturer! Placing additional
pads may obscure the safety of your child!
Do not use spare parts and other components not supplied by the manufacturer. The manufacturer
assumes no responsibility for safety in the event that is used spare parts other than original.
The car seat should be kept away from sunlight to prevent the child from burning and any
deformation of the seat, especially of the plastic parts.
The car seat does not replace the child’s cot or bed. When a child needs a sleep, you have to place
him in a suitable baby stroller, baby crib or bed.
Do not attach additional cords and strings on the car seat to avoid the risk of suocation!
Never place the child seat on beds, couches or similar soft surfaces!
Do not allow children to play with the product!
Keep the plastic bag away from babies and children to avoid danger of suocation!
?
2
?
2
Install the child car seat only if there is
3-point safety belt.
2
Page 4
PRODUCT FEATURES
A Child Restraint System designed for children weighing from 0 to 36 kg., classied in mass groups:
• 0+ : 0-13 kg (from birth up to 18 months),
• I : 9-18 kg (from 9 months up to 4 years),
• II : 15-25 kg (from 3 years up to 6 years),
• III : 22-36 kg (from 6 years up to 12 years);
Car seat must be installed in direction opposite to the car motion, child is “rearward facing” for mass
group 0+;
Car seat must be installed in direction to the car motion, child is “forward facing” for mass groups
I, II and III;
5-points safety-belt;
The headrest height can be adjusted;
The height of shoulder belts can be adjusted;

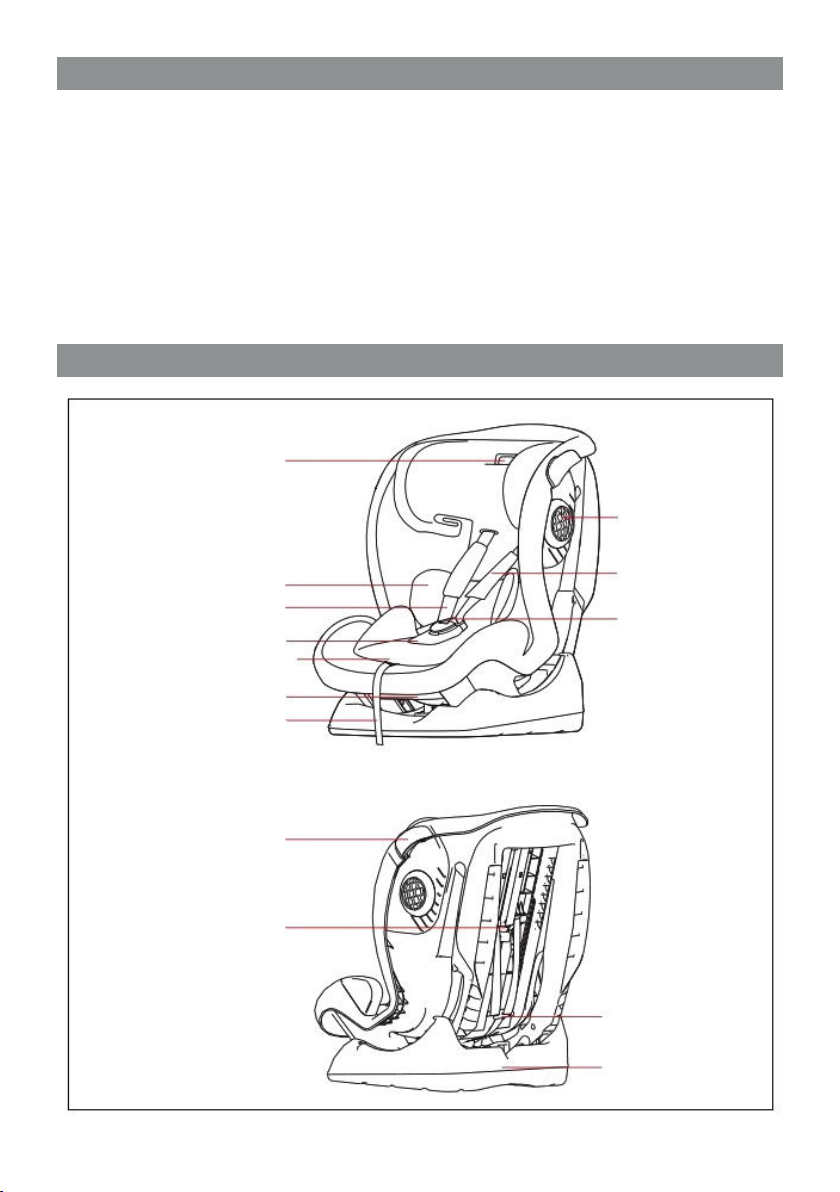

MAIN PARTS DIAGRAM
Mechanism to adjust the
headrest height
Side impact
support
Soft pad
Shoulder belts
Crotch belt
Button for belts
length adjustment
adjust the backrest
length adjustment
Diagonal belt guide
Shoulder belt connector
Lever to
Strap for belts
Soft shoulder pads
Central buckle
Belts metal buckle
Base
3
Page 5
IMPORTANT!
• Follow exactly the instructions and the sequence for installing and using the product from the text
and illustrations enclosed in the manual.
• Check the security of xing after each operation!
• ALWAYS CHECK THE SECURITY OF FIXING OF THE SAFETY-BELTS!
SAFETY HARNESS OF CAR SEAT
1 – Shoulder belts can be height adjusted in 4 positions.
IMPORTANT! The shoulder belts must be at child’s shoulders level. Insert the belt through the slots at
child’s shoulder level or a little higher.
2 – CENTRAL BUCKLE OF CAR SEAT
3 – LOOSING AND TIGHTING OF CAR SEAT SAFETY BELTS
3-1 – Press the button and pull the belts towards you.
IMPORTANT! Pull the belts, not the soft shoulder pads!
3-2 – Pull the strap of belt’s length adjustment. Tighten the shoulder belts so that they t the child’s body
well without bringing pressure or discomfort to the child.
BACKREST RECLINE
4 – Press the lever for backrest adjustment and set to required position according mass group of child:
Group 0+ (0-13 kg): Installation “REARWARD facing” and in Position 4.
Group I (9-18 kg): Installation “FORWARD facing” and in Positions 1, 2, 3.
Group II (15-25 kg): Installation “FORWARD facing” and in Position 1.
Group III (22-36 kg): Installation “FORWARD facing” and in Position 1.
HEIGHT ADJUSTMENT OF SHOULDER BELTS
5-1 – Turn the car seat with back towards you. Split the shoulder belts from connector and the metal
joint as gure shows (1, 2, 3)
5-2 – Pull the belts through the required height slots at front.
5-3 – Insert the belts through the required height slots and place them to the connector and metal joint
following the opposite order according to gure 5-1 (3, 2, 1). Make sure belts are not twisted.
REMOVAL OF SHOULDER SAFETY BELTS AND SOFT PADS
6 – Pull the shoulder belts at front as described in gure 5-1 and 5-2. Insert the metal part at crotch belt
through the slot and after that remove the safety belts and the soft pads.
HEADREST HEIGHT ADUSTMENT
7 – Pull the handle for headrest adjustment and move the headrest until you reach the required position
and after that release the handle. Fixing is accompanied with click sound.
4
Page 6
GROUP 0+ (0-13 kg, from birth up to 18 months)
INSTALLATION OF CAR SEAT WITH 3-POINT VEHICLE BELT
Car seat position „REARWARD” FACING
CAUTION!
ALWAYS SECURE THE CHILD WITH 5-POINT SAFETY BELTS OF CAR SEAT.
8-1 – Pull the recline lever and set the car seat in position 4.
8-2 – Place the car seat in position „REARWARD” FACING, so that its front part touches tight the back-
rest of the vehicle seat.
8-3 – Thread the diagonal belt through the diagonal belt guide in upper part of car seat and the lap belt
through the lap belt guide in down part.
8-4 – Fasten the vehicle belt in the vehicle belt buckle. Pull the belt to make sure it is xed.
Note: Make sure the 3-point vehicle belt is not twisted and is in correct position (view 1 and view 2).
8-5 – Place the child in the car seat and fasten the 5-point safety belt (g. 2). Tighten the belt (g. 3-2).
Note: Tighten the belts so that they t the child’s body well without bringing pressure or discomfort to
the child.
GROUP I (9-18 kg, from 9 months up to 4 years)
INSTALLATION OF CAR SEAT WITH 3-POINT VEHICLE BELT
Car seat position „FORWARD” FACING
CAUTION!
ALWAYS SECURE THE CHILD WITH 5-POINT SAFETY BELTS OF CAR SEAT.
9-1 – Place the car seat in position „FORWARD” FACING, so that its backrest touches tight the backrest
of the vehicle seat.
9-2 – Fix the diagonal belt with the metal bracket. Insert the vehicle 3-point diagonal and lap belts
through the slots as gure shows.
9-3 – Fasten the vehicle belt in the vehicle belt buckle. Pull the belt to make sure it is xed. Make sure
the 3-point vehicle belt is not twisted and is in correct position (view 1 and view 2).
9-4 – Place the child in the car seat and fasten the 5-point safety belt (g. 2). Tighten the belt (g. 3-2).
GROUP II and GROUP III (15-36 kg, from 3 years up to 12 years)
INSTALLATION OF CAR SEAT WITH 3-POINT VEHICLE BELT
Car seat position „FORWARD” FACING
10-1 – Remove the shoulder belts and the soft pad (g. 6). Place the car seat in position „FORWARD”
FACING, so that its backrest touches tight the backrest of the vehicle seat.
10-2 – Place the child in the car seat as gure shows.
10-3 – Insert the diagonal belt through the head support guide. Insert the lap belt above the armrest and
fasten the belt in the buckle. Pull the belt to make sure it is xed. Make sure the 3-point vehicle belt is
not twisted and is in correct position (view 1 and view 2).
5
Page 7
REMOVING AND PLACING THE UPHOLSTERY
To remove the child car seat upholstery:
1. Remove the crotch belt and central buckle.
2. Remove the shoulder belts and soft pads.
3. Remove the upholstery.
To place back the upholstery, so the same in opposite order.

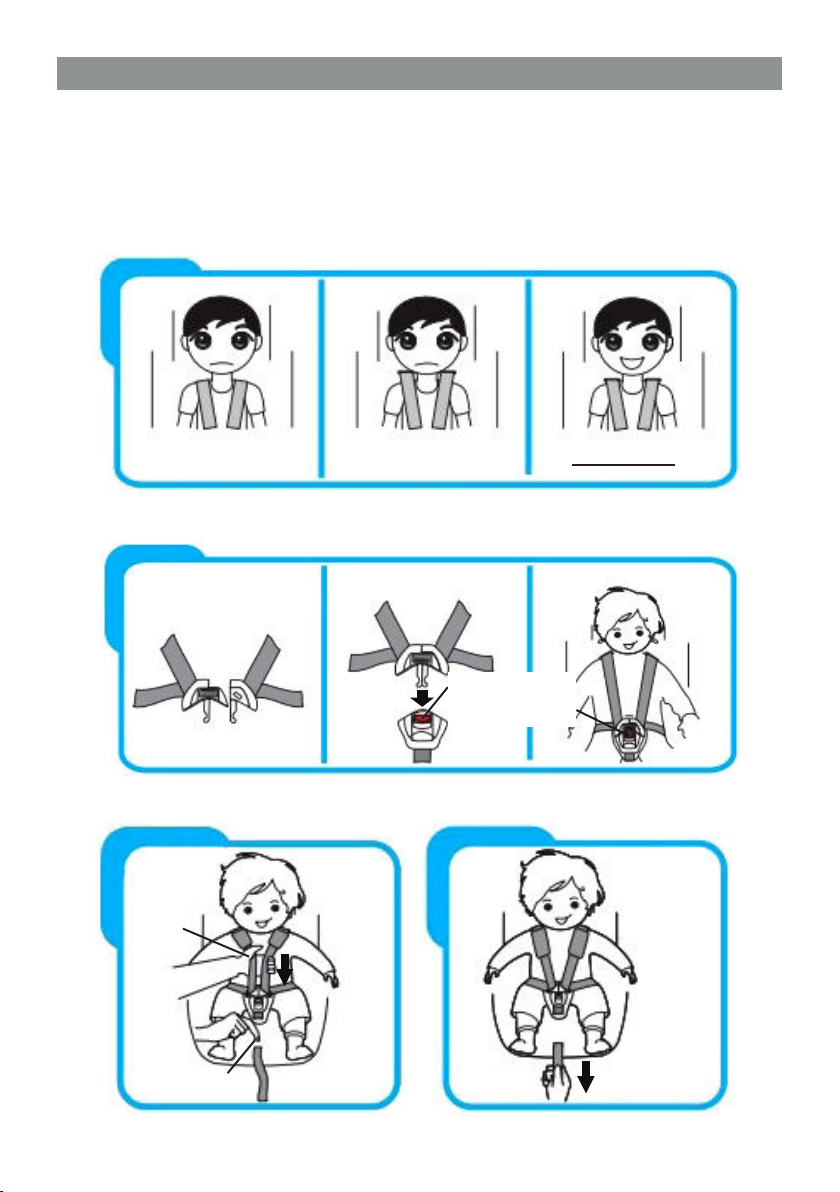

1
Step 1
2
Loosing
2
pull
NO,
Too low
Step 2
“click”
NO,
Too high
Button to
unlock the belts
CORRECT
Step 3
1 - press
3-1 3-2
6
Tighten
Page 8
click
1 2 3 4
. . . .
4
1 2 3 4

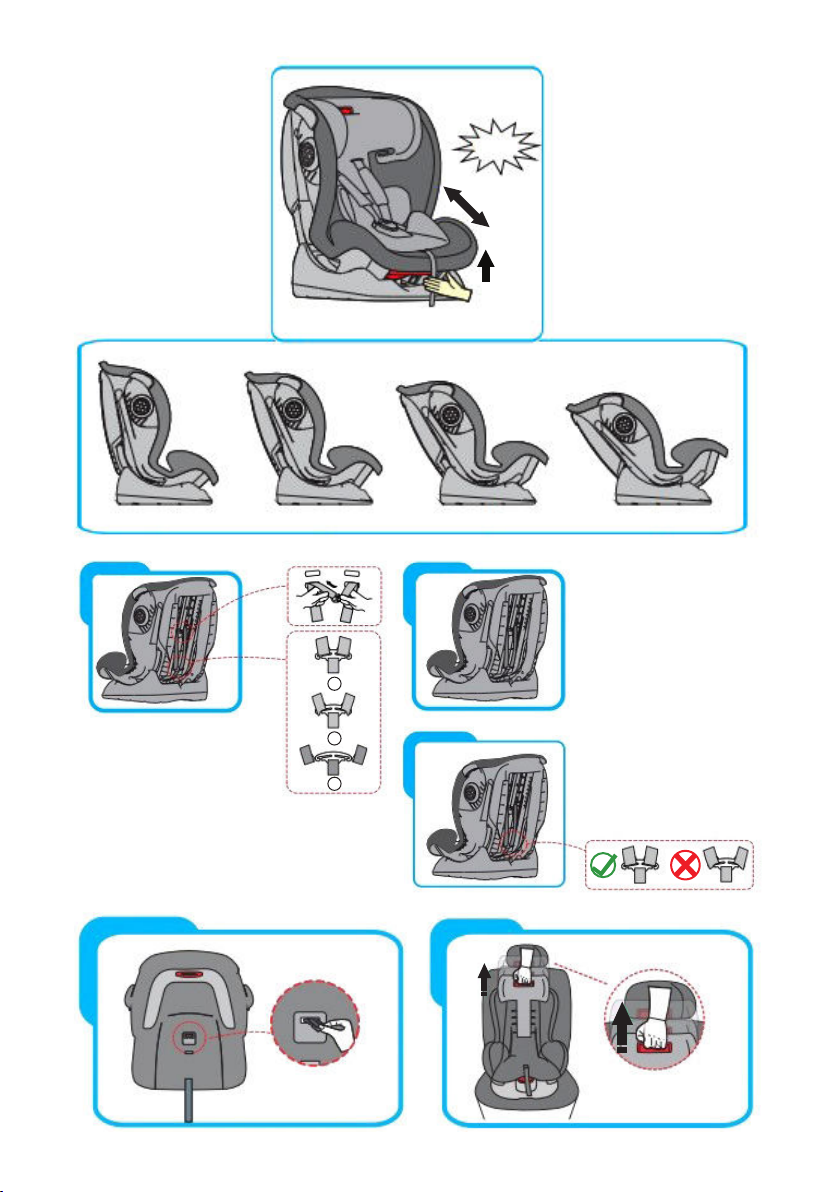

5-1 5-2
1
2
5-3
3
6 7
7
Page 9
diagonal
belt
8-1 8-2 8-3
lap belt
view 1
click
8-4 8-5
view 2
diagonal
belt
9-1 9-2
lap belt
view 1
click
9-3 9-4
view 2
8
Page 10

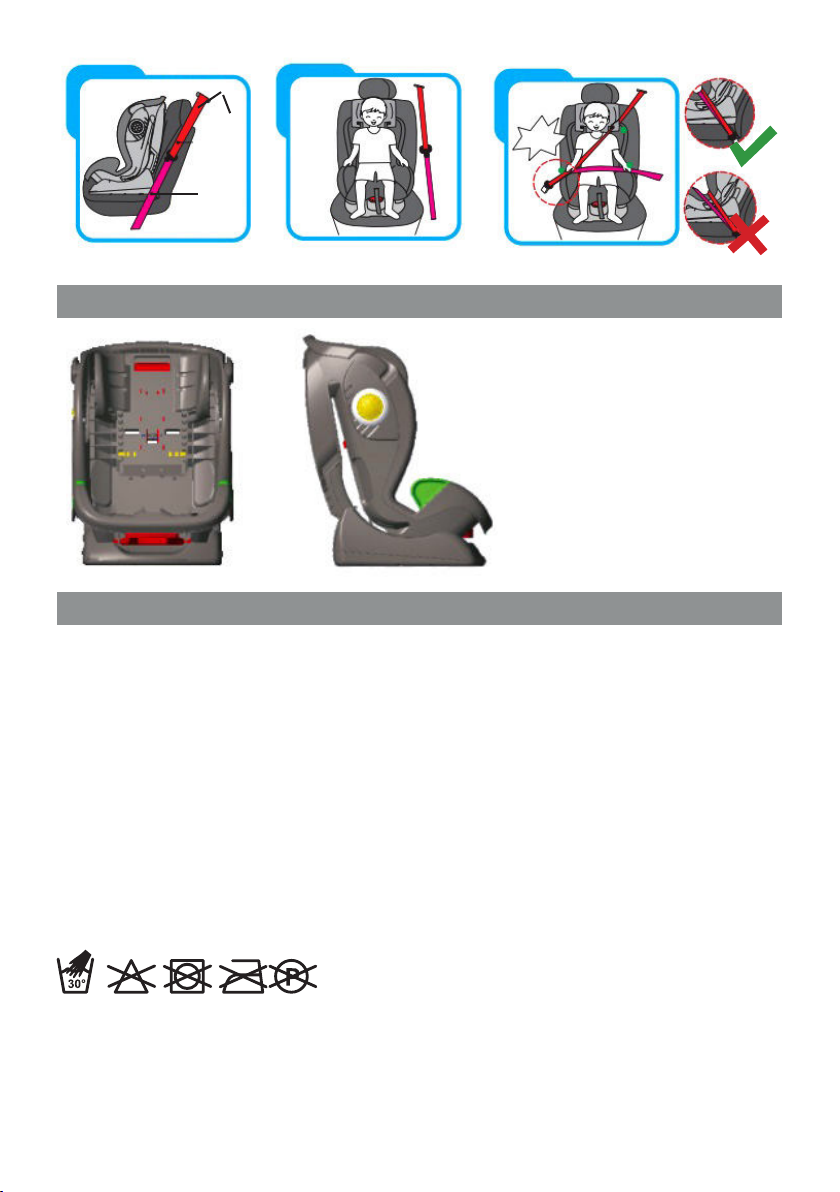

diagonal
10-1
belt
lap
belt
10-2
click
view 1
10-3
view 2
SIZES OF CAR SEAT
Depth: 505 mm
Width: 440 mm
Height: 610 mm
CLEANING AND MAINTENANCE INSTRUCTIONS
Clean the fabrics, plastic parts and metal parts with a damp cotton cloth or a sponge and a mild
soap.
The soft pads may be hand washed at 300 C using a mild detergent!
Do not bleach! Do not tumble dry! Do not dry in a machine! Do not iron!
Do not use abrasive, bleach or other aggressive detergents.
Always after cleaning leave the car seat fully dry and after that use it or store it.
The harnesses must be cleaned with a damp cloth and a mild soap!
Do not wet or remove the stickers! They contain important information!
Always store your car seat indoors – on a dry and a clean place.
Do not expose to direct environment inuence – sun, rain, moisture and high temperature intervals!
Please, contact your authorized dealer for problems connected with the use of repair.
Fabric composing:
Outer: 100 % polyester
Filling: 100 % polyester
Used materials: metal, plastic, textile.
STKGAL022xxxx
9
Page 11
Bulgaria, Plovdiv, Str. Golyamokonarsko shosse No 1
www.chipolino.com
Loading...
