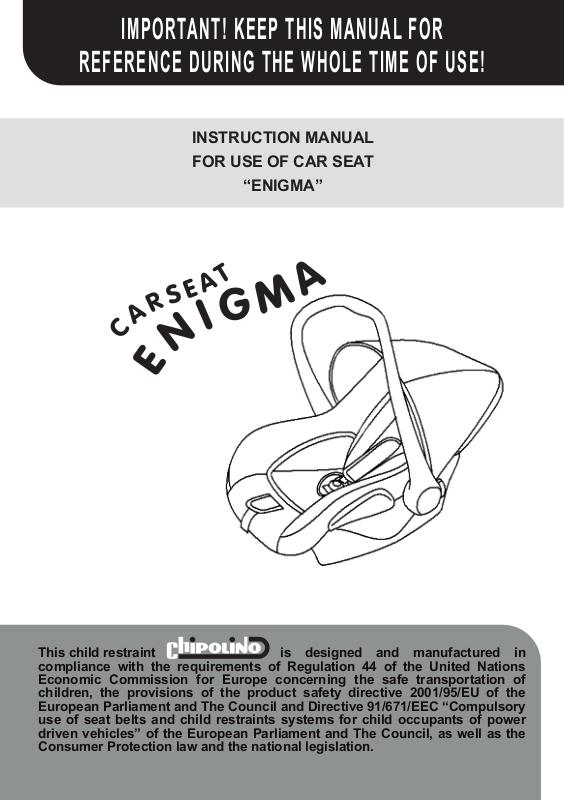

Page 1
IMPORTANT! KEEP THIS MANUAL FOR
REFERENCE DURING THE WHOLE TIME OF USE!
INSTRUCTION MANUAL
FOR USE OF CAR SEAT
“ENIGMA”
This child restraint is designed and manufactured in
compliance with the requirements of Regulation 44 of the United Nations
Economic Commission for Europe concerning the safe transportation of
children, the provisions of the product safety directive 2001/95/EU of the
European Parliament and The Council and Directive 91/671/EEC “Compulsory
use of seat belts and child restraints systems for child occupants of power
driven vehicles” of the European Parliament and The Council, as well as the
Consumer Protection law and the national legislation.
Page 2
NOTICE
FOR GROUP 0+ (0-13kg)
1. This is a “UNIVERSAL” INTEGRAL CHILD RESTRAINT SYSTEM. It is approved to Regulation
No 44, for general use in vehicles and it will t most, but not all, car seats.
2. A correct t is likely if the vehicle manufacturer has declared in the vehicle handbook that the
vehicle is capable of accepting a “Universal” child restraint for this age group.
3. This child restraint has been classied as “Universal” under more stringent conditions than those
which applied to earlier designs which do not carry this notice.
4. If in doubt, consult either the child restraint manufacturer or the retailer.
NO RESTRAINT SYSTEM CAN PROVIDE ABSOLUTE
PROTECTION IN CASE OF A CRASH OR ROAD ACCIDENT!
DRIVE WITH CARE WHEN THERE IS A CHILD IN YOUR VEHICLE!
IN ORDER TO ENSURE THE SAFETY OF YOUR CHILD
FOLLOW EXACTLY THE INSTRUCTIONS AND SAFETY
RECOMMENDATIONS IN THIS MANUAL!
PLACE OF CAR SEAT IN VEHICLE
Diagonal
belt
This restraint system is suitable for used
only in vehicles with approved lap/3-point/
static/retractable safety belts approved to
Regulation ECE R16 of UN ECE!
Lap belt
CORRECT/ SUITABLE
INCORRECT/ NOT SUITABLE
Never install the car seat on passenger
seat equipped with airbag which cannot be
deactivated! This could lead to serious injury
or death!
Child car seat must be installed in car only
in direction opposite to motion, so child is
“rearwards facing”!
2
Page 3
?
1
?
2
Can be installed on this seat.
Cannot be installed on this seat.
Do not use the car seat REARWARD FACING on vehicle seat that is equipped with air bag
?
that cannot be deactivated!
1
Car seat must be used only if vehicle is equipped with diagonal and lap belt.
?
2
NEVER LEAVE THE CHILD IN THE CAR SEAT UNATTENDED!
DO NOT INSTALL THE CAR SEAT IN A WAY DIFFERENT FROM THE ONE SHOWN IN THE
INSTRUCTION. IT IS DANGEROUS TO USE BEARING CONTACT POINTS OTHER THAN
THOSE DESCRIBED IN THIS MANUAL AND MARKED ON THE CAR SEAT!
IT IS VERY IMPORTANT THAT THE LAP BELT IS LAYING LOW AND THE CHILD’S HIPS
ARE SNUG!
DO NOT MAKE CHANGES, ADDITIONS OR MODIFICATIONS ON THE CAR STRUCTURE
WITHOUT THE APPROVAL OF THE NOTIFIED BODY! If necessary, contact the supplier or an
authorized service center for advice or repair.
IMPROPER USE OF THE CAR SEAT WILL CONTRIBUTE TO REDUCING ITS SAFETY AND
SECURITY CAPABILITY! Failure to comply with the directions for use in this manual increases the
risk of serious injury or death!
KEEP AWAY FROM FIRE!
Use this car seat for newborn babies and children up to 13 kg. (recommended age 0-15 months).
This car seat must be installed and handled only by adult!
Hard parts and the parts of the restraint system, made of plastic, must be located and installed
so that when the vehicle is in normal operation, they cannot be trapped by a sliding seat or in
vehicle door.
The three-point belt for adults, which attaches the child seat to the vehicle seat, must be well
stretched, not pinched by the door, wrapped on the seat or any other part of the vehicle. It should
not rub against sharp edges or parts.
The belts of the car seat should not be twisted, they should be properly fastened and adjusted to the
child's body.
The belts - of the car seat and the vehicle - should not be twisted, frayed or torn, latches and locks
(buckles) must be in order. Make sure that they are rmly xed.
If you nd uncertainty or failure in the structure, latches, straps or locking mechanisms, discontinue
usage until removal of the damaged parts and replacement with new ones.
If the car seat has been subject to destructive loads during violent impact or accident, replace it
with new.
Never use a second-hand car seat or second-hand spare parts! The car seat may have been in a
violent impact or car crash.
Do not use this car seat without its seat cover and do not replace it with a new one, unless supplied
by the manufacturer.
Do not use the car seat if the child's head is above the upper edge of the car seat!
Any luggage or other items that are liable to cause injury in case of sudden stop, collision or accident
when travelling must be removed or securely fastened to a safe distance from the car seat and child.
1
Page 4
Do not place additional pads in the car seat than those provided by the manufacturer!
Do not use spare parts and other components not supplied by the manufacturer! The manufacturer
takes no responsibility for safety in case spare parts are used other than the original.
Do not expose this car seat to direct sunlight to avoid injuries of the child, deformation of the car seat
and especially of the plastic parts.
The car seat does not replace a carrycot or a bed. Should your child need to sleep, then he should
be placed in a suitable cot or bed.
Strings can cause strangulation! Do not place additional strings to the product to avoid injuries or
strangulation!
Do not place the car seat on soft surface like beds or sofas! The car seat may tip over and injure or
suocate your child!
Do not allow children play with this product!
The packaging of the product must be kept out of the reach of children to avoid the risk of
strangulation!
MAIN FEATURES
Suitable for babies aged 0+ months and weighing not more than 13 kg;
Adjustable carry handle;
3 – point Y –shaped safety harness;
Canopy;
Belts adjustable in height;
Additional supporting pads for new born baby.
IMPORTANT! The car seat can be installed on the frame of certain baby stroller. Compatibility between
stroller and car seat is conrmed and explicitly declared by the stroller’s manufacturer.
PARTS DIAGRAM
Carry handle
Soft shoulder pads
Central buckle
Soft pad
Soft crotch pad
Button to adjust the
length of shoulder belts
Strap to adjust the length of
shoulder belts
Carry handle
Body
Button to adjust
the carry handle
Lap belt guide
Canopy
Diagonal belt guide
Slot for the belt
2
Page 5
CAUTION! When using the car seat for a child younger than 7 months do not take out the additional
seat pad – at this age the child needs additional support.
1 – POSITIONS OF HANDLE
Handle can be set in 3 positions.
Press simultaneously both buttons for handle adjustment and move it in required position. When handle
xes you will hear a click sound.
2 – BUCKLE OF SAFETY BELT
2-1 – Join the metal endings of shoulder belts together.
2-2 – Insert the joined endings into the buckle.
2-3 – You will hear a click when xing is done.
To unfasten the belt press the button of central buckle and split the belts.
3 – ADJUSTING THE HEIGHT OF THE SHOULDER BELTS
The shoulder belts must be at the child’s shoulder level in 2 positions.
To adjust the belts, follow the steps:
Step 1: Press the buttons for shoulder belts adjusting with one hand and pull with the other hand the
shoulder belts to loosen them. Take out the buckle at the end of shoulder belt thorough the slot at the
back.
Step 2: Choose the suitable height and thread the shoulder belts through the slot. Pull at front.
IMPORTANT! Shoulder belts must be at the child’s shoulders level (see gure)!
If the height is not appropriate, adjust again.
Note: Make sure that shoulder belts are threaded through the same height slots!
4 – INSTALLATION OF THE CAR SEAT INTO THE VEHICLE
Place the child car seat on vehicle seat.
ATTENTION! Handle must be set in position shown in gure and car seat well snug into backrest of
seat of the car!
Thread the lap belt of the vehicle through the diagonal belt guides on both sides of child car seat
(1 and 2) and the diagonal belt through the guide at the back of car seat (3). Buckle the 3-point vehicle
belt it in the vehicle belt buckle. You must hear a click sound by xing.
CAUTION! The vehicle belt (lap and diagonal) must be well stretched and tight after the car seat is
installed!
CAUTION! Make sure the vehicle belt and buckle are not twisted and are in correct position (See gure).
To remove the car seat, perform the same actions in reverse order.
5 – TIGHTENING AND LOOSING THE CAR SEAT BELTS
Loosening - Press the button to adjust the shoulder belts and pull them towards you.
Tightening - Pull the strap for length adjustment of belts.
ATTENTION! Shoulder belts must snug well the child and lab belt must lay low so the child’s hips
are snug!
ATTENTION! Maximum distance between shoulder belts and child’s body must be around 1.5-2 cm.
3
Page 6
“click”
“click”
1 2
Button to adjust the handle position
Body
Shoulder belts slots
Too high Too low
3
1 2 3
Diagonal belt guide
Shoulder belt
CORRECT
ATTENTION! MAKE SURE THE
Diagonal
belt
VEHICLE BELT AND BUCKLE
ARE NOT TWISTED AND ARE IN
CORRECT POSITION!
ATTENTION!
click
Lap belt
4
4
Page 7
Loosening Tightening
2
1
pull
5
CARE AND MAINTENANCE
Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Fabric seat cover may be hand washed at 300С!
Do not bleach! Do not dry clean! Do not tumble dry! Do not iron!
Do not use abrasive, bleach or other aggressive detergents.
Always after cleaning leave the car seat fully dry and after that use it or store it. If you keep it moist,
mold may appear to your car seat.
Harnesses must be cleaned with damp cloth and mild soap!
Do not wet or remove the stickers. They contain important information!
Always store your car seat indoors – on dry and clean place. Do not expose to direct environment
inuence - sun, rain, moisture and high temperature intervals.
Please, contact your authorized dealer for problems connected with the use or repair of this car seat.
Materials used: plastic, textle, metal
STKEN022xxxx
5
Page 8
Bulgaria, Plovdiv, str. Golyamokonarskoshosse 1
www.chipolino.com
