ChipER Technology HLC-84BD/P User Manual

1/46

User Manual

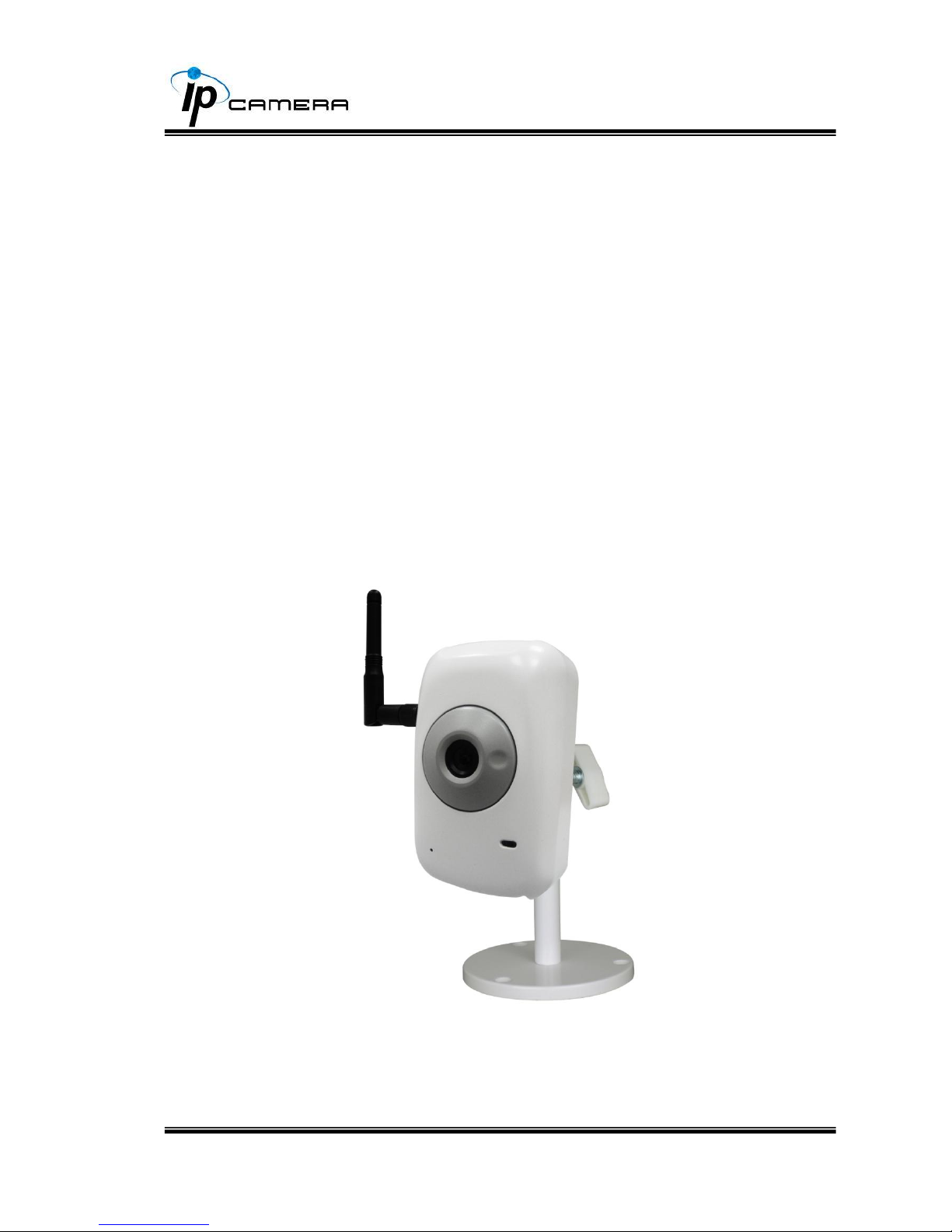

IP CAMERA

2/46

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3/46

Content

I. PREFACE ....................................................................................................................................... 4

II. PRODUCT SPECIFICATIONS ....................................................................................................... 4

III. PRODUCT INSTALLATION ........................................................................................................... 7

A. MONITOR SETTING ..................................................................................................................................... 7

B. HARDWARE INSTALLATION ASSIGNMENT ................................................................................................... 8

C. IP ASSIGNMENT ....................................................................................................................................... 10

D. INSTALL ACTIVEX CONTROL: ................................................................................................................... 12

IV. LIVE VIDEO .................................................................................................................................. 14

V. CONFIGURATION ........................................................................................................................ 16

A. SYSTEM.................................................................................................................................................... 17

B. NETWORK ................................................................................................................................................ 20

C. A/V SETTING ........................................................................................................................................... 32

D. EVENT LIST .............................................................................................................................................. 38

VI. NETWORK CONFIGURATION .................................................................................................... 43

VII. FACTORY DEFAULT.................................................................................................................... 45

VIII. PACKAGE CONTENTS ............................................................................................................... 45

IX. MICRO SD CARD ........................................................................................................................ 46

V1.1_120515

4/46

I. Preface

This is a 1/2.7’’ 2M CMOS IP camera with the web server built in. User can view
real-time video via IE browser. It supports H.264, JPEG and MPEG4 video
compression which provides smooth and high video quality. The video can be
stored in the Micro SD card and playback remotely.
With user friendly interface, it is an easy-to-use IP camera which is designed for
security application.

II. Product Specifications

 1/2.7” 2M CMOS Sensor
 Digital Noise Reduction
 Digital Wide Dynamic Range
 Shutter Speed adjustion
 Sense Up adjustion
 Power over Ethernet available (Option)
 H.264/ JPEG / MPEG4 compression
 Micro SD card backup
 DI/DO
 Support iPhone/ Android/ Symbian /Blackberry/Mac
 Triple Streaming
 SDK for Software Integration
 Free Bundle 36 Channel Recording Software

Specifications

Hardware

CPU

ARM 9 ,32 bit RISC

RAM

256MB

Flash

16MB

Image sensor

1/2.7” 2M CMOS sensor

Lens Type

4.2mm @ F1.6

Sensitivity

1.0 Lux @ 25fps

5/46

Shutter Time

1 / 5 ~ 1 / 10,000 sec

Audio

G.711(64K) and G.726(32K,24K) audio
compression
Input : Mic built-in
Output : 3.5mm phone jack, Support 2-way
audio

IO

DI / DO

Power over Ethernet

Optional

Operating Temperature

0℃~40℃

Dimensions

59mm x 93.7(mm)x 45.5(mm)

Weight

240g

Network

Ethernet

10/ 100 Base-T

Network Protocol

HTTP, HTTPS, SNMP, QoS/DSCP, Access list,
IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP,
PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP,
SAMBA

Wireless (Optional)

Wireless

802.11 n/b/g

Security

WEP,WPA-PSK,WPA2-PSK

System

Video Resolution

1920x1080@25fps,
1280x720@25fps, ,640x480@30fps,
320x240@30fps, 176x144@30fps

Triple Streaming

Yes

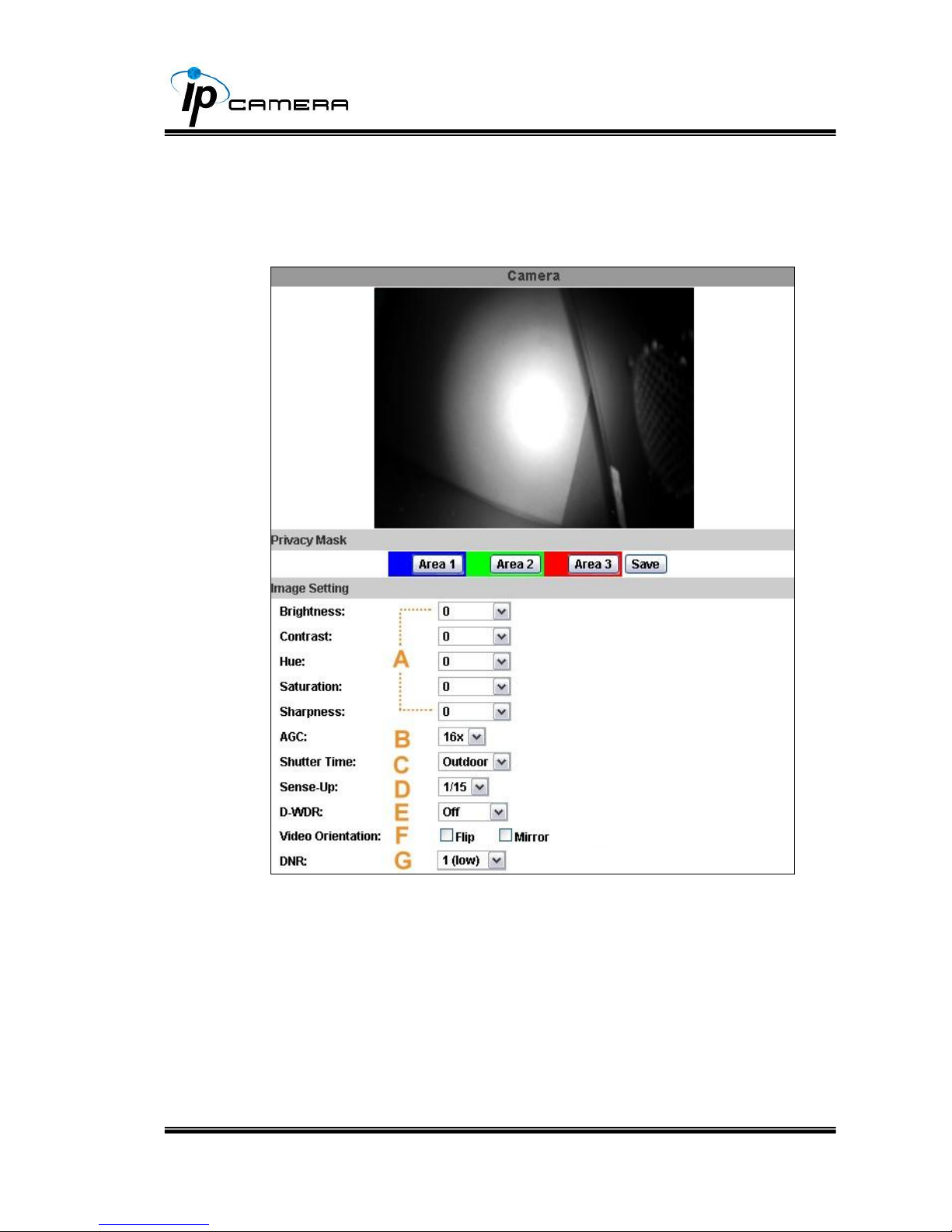

CMOS setting

Brightness, Contrast, Hue, Saturation,
Sharpness, AGC, Shutter Speed adjustment,
Sense-Up, D-WDR, Flip, Mirror, Noise reduction

Image snapshot

Yes

Full screen monitoring

Yes

Zoom

Yes

Privacy Mask

Yes, 3 different areas

Compression format

H.264/ M-JPEG/ MPEG4

Video bitrates adjust

CBR, VBR

Motion Detection

Yes, 3 different areas

Triggered action

Mail, FTP, Save to SD card, DO, SAMBA

6/46

Pre/ Post alarm

Yes, configurable

Security

Password protection, IP address filtering,
HTTPS encrypted data transmission, 802.1X
port-based authentication for network protection,
QoS/DSCP

Firmware upgrade

HTTP mode, can be upgraded remotely

Simultaneous connection

Up to 10

Micro SD card management

Recording trigger

Motion Detection, IP check, Network break down
(wire only),schedule, DI

Video format

AVI, JPEG

Video playback

Yes

Delete files

Yes

Web browsing requirement

OS

Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or
above

Hardware

Suggested

Intel Dual Core 2.53G,RAM: 1024MB, Graphic
card: 128MB

Minimum

Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB

7/46

III. Product Installation

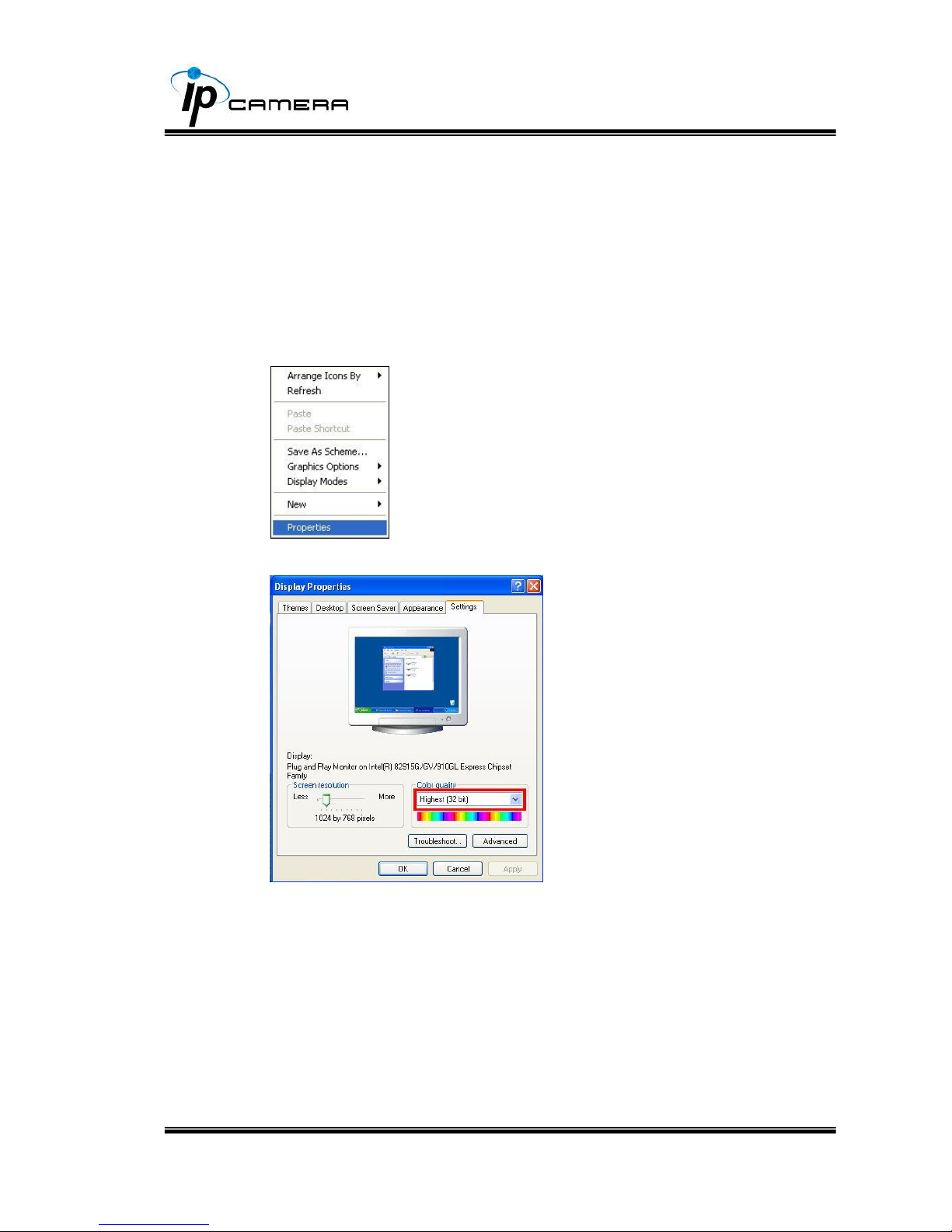

A. Monitor Setting

i. Right-Click on the desktop. Select “ Properties”

ii. Change color quality to highest (32bit).

8/46

B. Hardware Installation Assignment

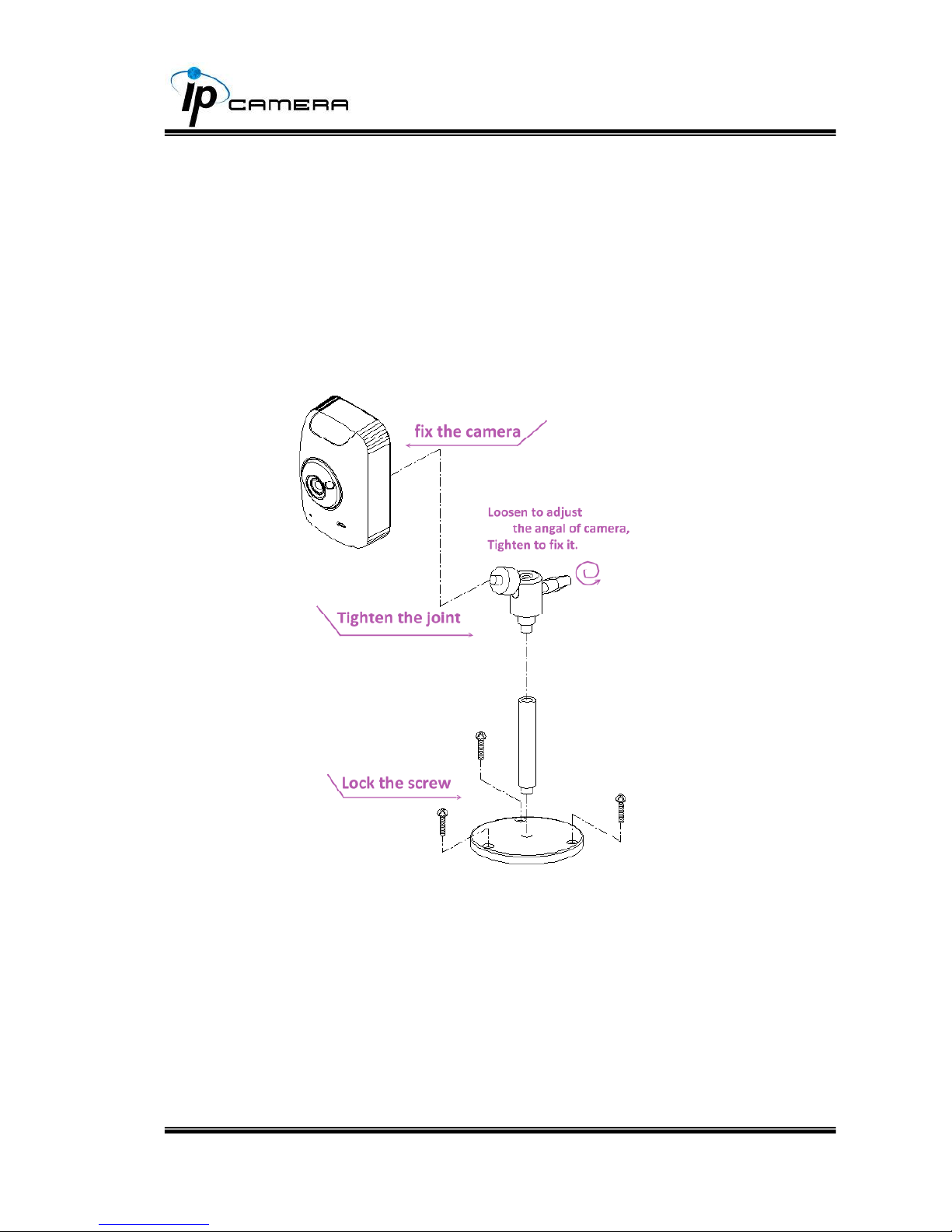

i. Camera Construction

Please refer to the picture for camera installation. Use the screws to
lock the bracket to the wall or ceiling, and then connect the camera to
the bracket. There’s a knob on the back of the bracket. Loosen the
knob and you can adjust the angle of camera. Tighten it to fix the
angle.

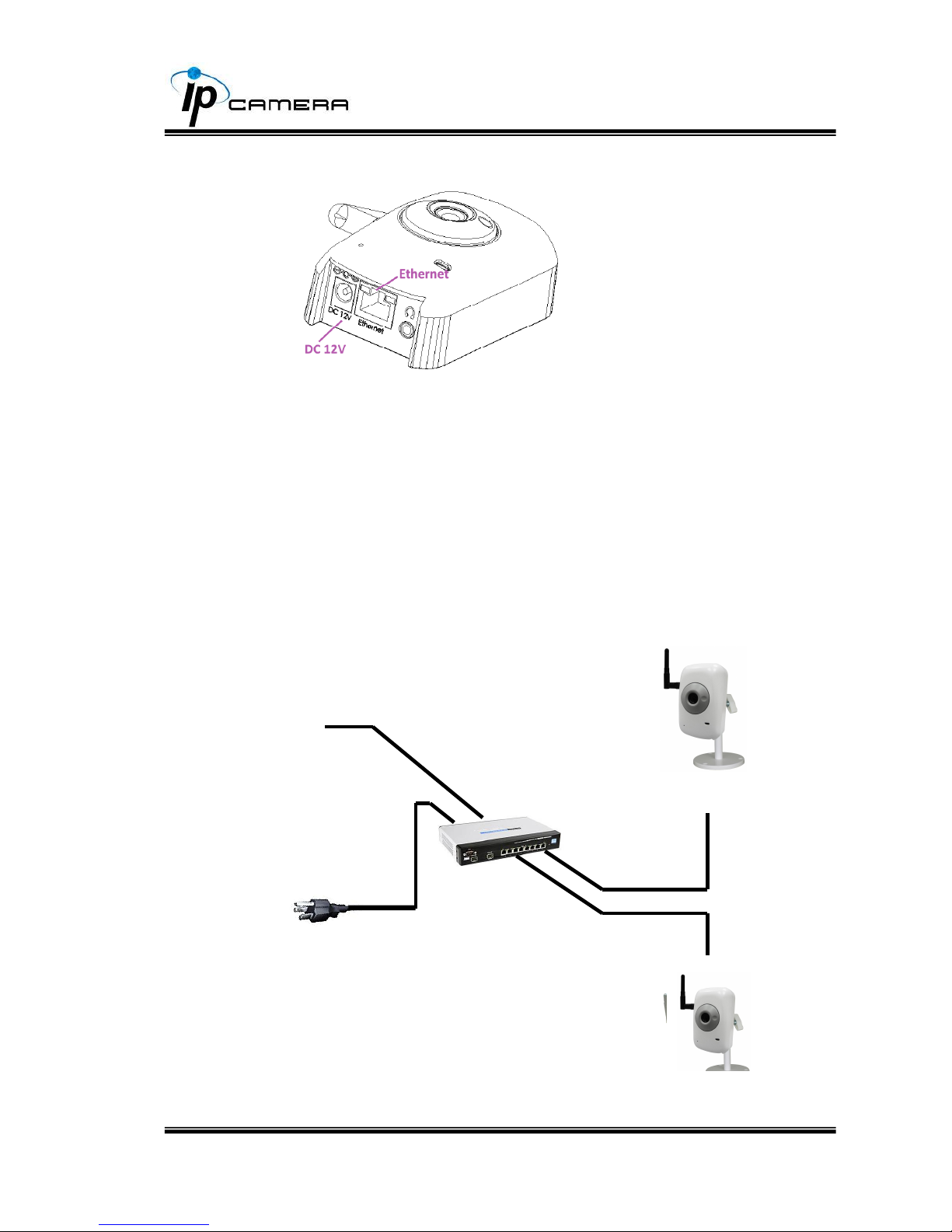

ii. Connect power adaptor.

Connect IP Cam to PC or network with Ethernet cable.
Set up the network configurations according to the network
environment. For further explanation, please refer to chapter VI,
“Network Configuration for IP CAMERA”.

9/46

iii. PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the
network device, such as an IP phone or a network camera, using the
same cable as that used for network connection. It eliminates the need
for power outlets at the camera locations and enables easier application
of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days
a week operation.

Ethernet

PoE Switch

PoE IP Camera

PoE IP Camera

Ethernet Cable

Ethernet Cable

10/46

C. IP Assignment

i. Use the software, “IP Installer” to assign the IP address of IP CAMERA.

The software is in the attached software CD.

ii. IP installer supports two languages

a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version

iii. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)

iv. Execute IP Installer

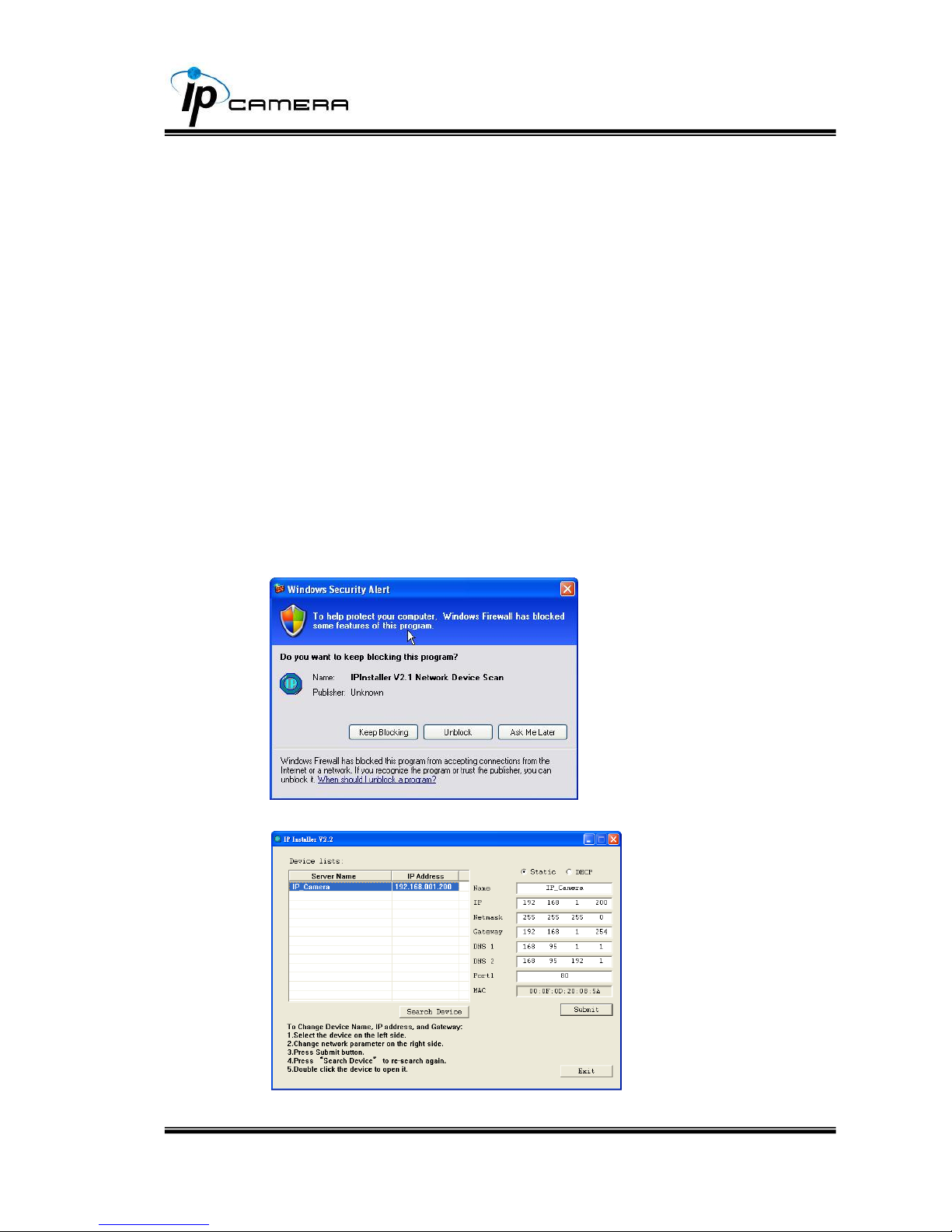

v. For Windows XP SP2 user, it may popup the following message box.

Please click “Unblock”.

vi. IP Installer configuration:

vii. IP Installer will search all IP Cameras connected on Lan. The user can

11/46

click “Search Device” to search again.

viii. Click one of the IP Camera listed on the left side. The network

configuration of this IP camera will show on the right side. You may
change the “name” of the IP Camera to your preference (eg: Office,

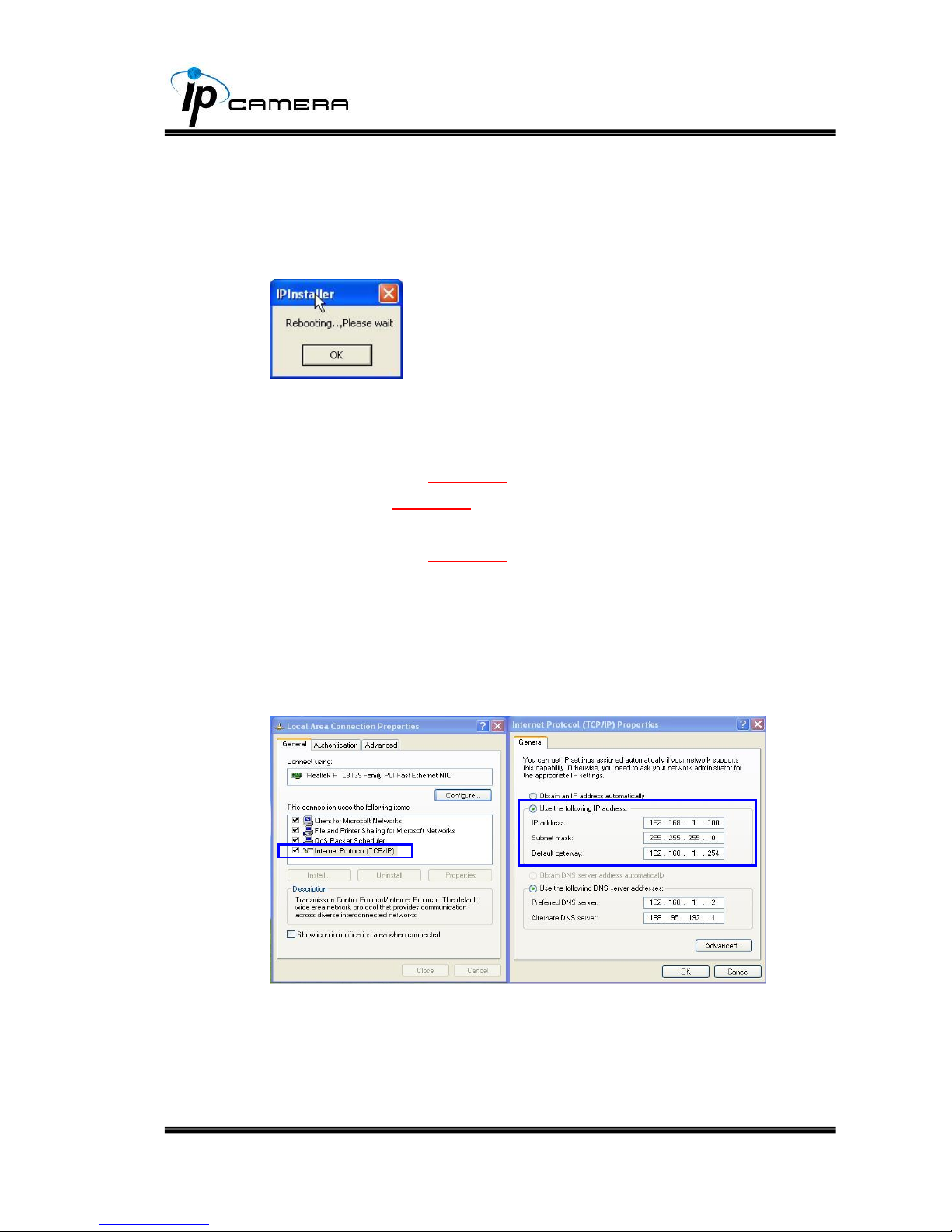

warehouse). Change the parameter and click “Submit” then click “OK”. It
will apply the change and reboot the Device.

ix. Please make sure the subnet of PC IP address and IP CAM IP address

are the same.

The same Subnet:

IP CAM IP address: 192.168.1.200
PC IP address: 192.168.1.100

Different Subnets:

IP CAM IP address: 192.168.2.200
PC IP address: 192.168.1.100

To Change PC IP address:

Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties

Please make sure your IP Camera and PC have the same Subnet. If not,
please change IP Camera subnet or PC IP subnet accordingly.

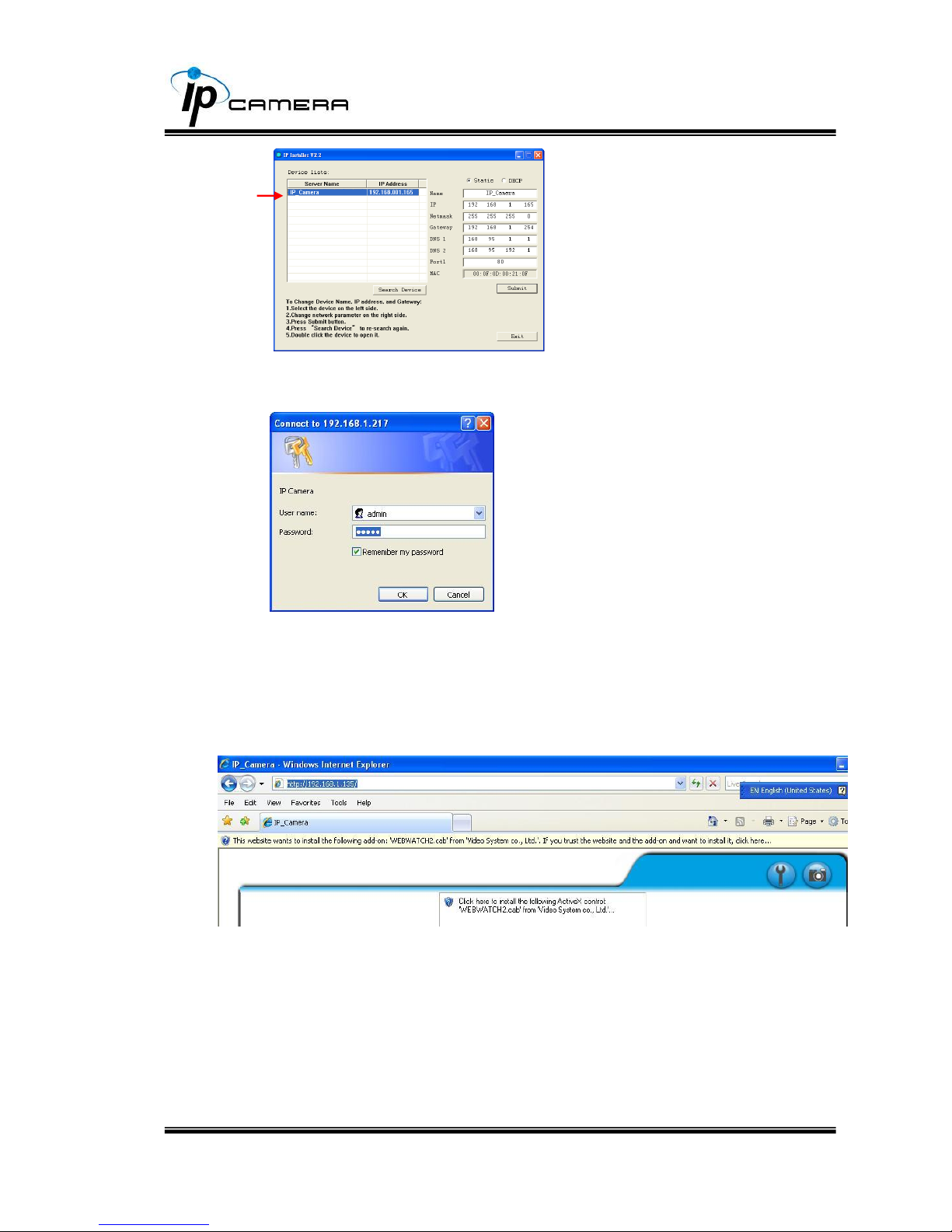

x. A quick way to access remote monitoring is to left-click the mouse twice

on a selected IP Camera listed on “Device list” of IP Installer. An IE
browser will be opened.

12/46

xi. Then, please key in the default “user name: admin” and “password:

admin”.

D. Install ActiveX control:

For the first time to view the camera video via IE, it will ask you to install the
ActiveX component.

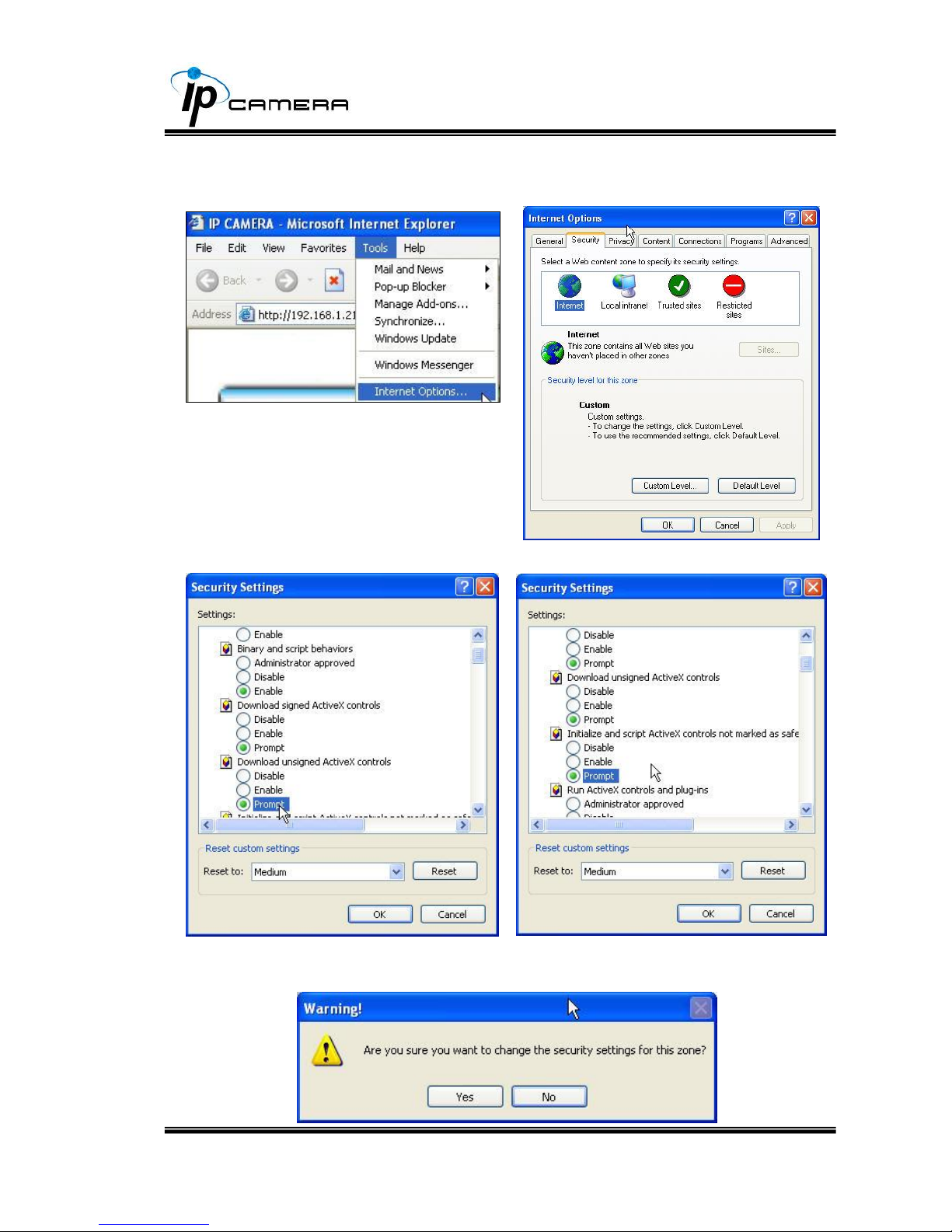

If the installation failed, please check the security setting for the IE browser.

i. IE  Tools  Internet Options…  Security Tab  Custom Level… 

Security Settings  Download unsigned ActiveX controls Select
“Enable” or Prompt.

ii. IE  Tools  Internet Options…  Security Tab  Custom Level…

Initialize and script ActiveX controls not marked as safe  Select
“Enable” or Prompt.

13/46

1

2

3

4

5

When popup the following dialogue box, click “Yes”.

14/46

IV. Live Video

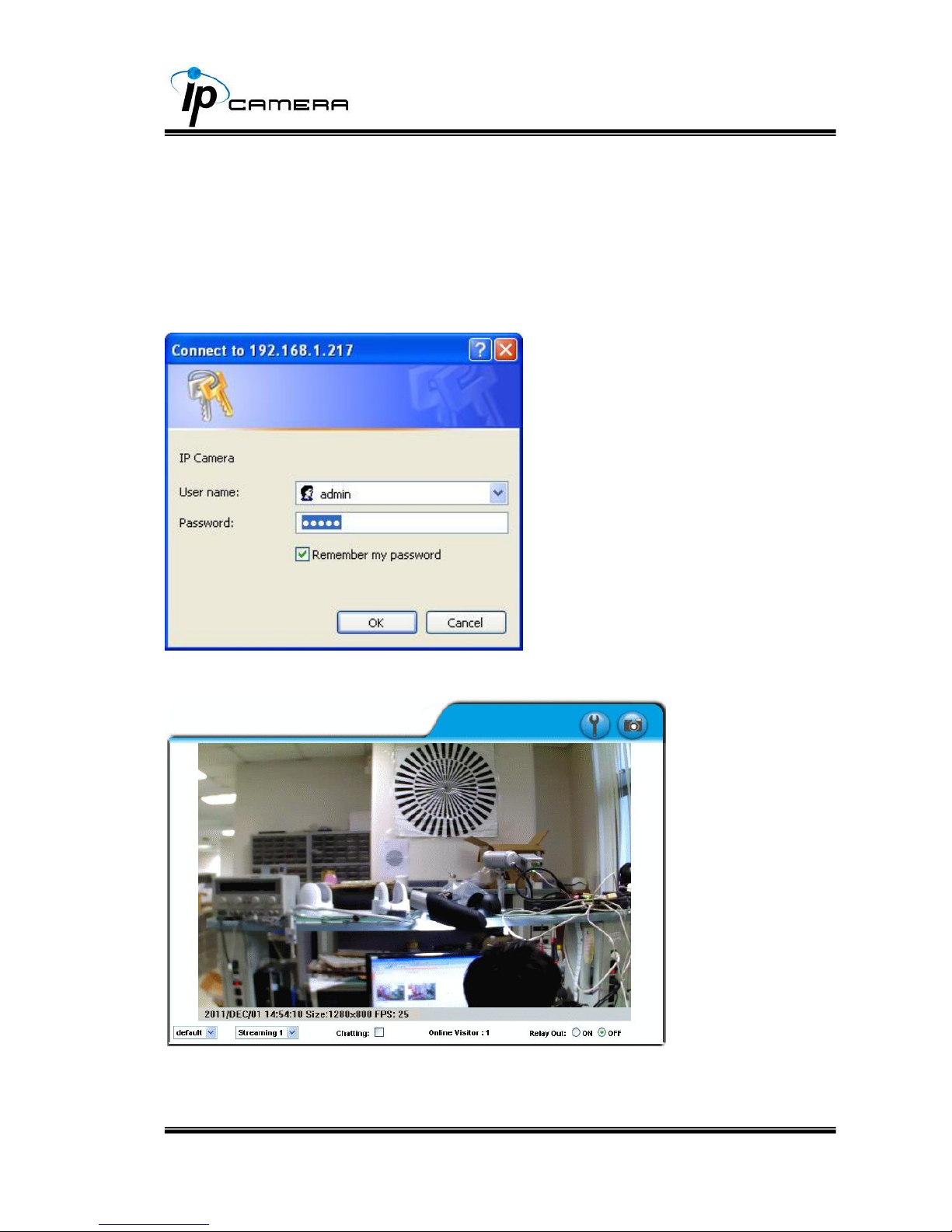

Start a IE browser, type the IP address of the IP camera in the address field. It will
show the following dialogue box. Key-in the user name and password. The default
user name and password are “admin” and “admin”.

When connect to the IP CAMERA。The following program interface shows.

1 2 3 4 5 6 7

15/46

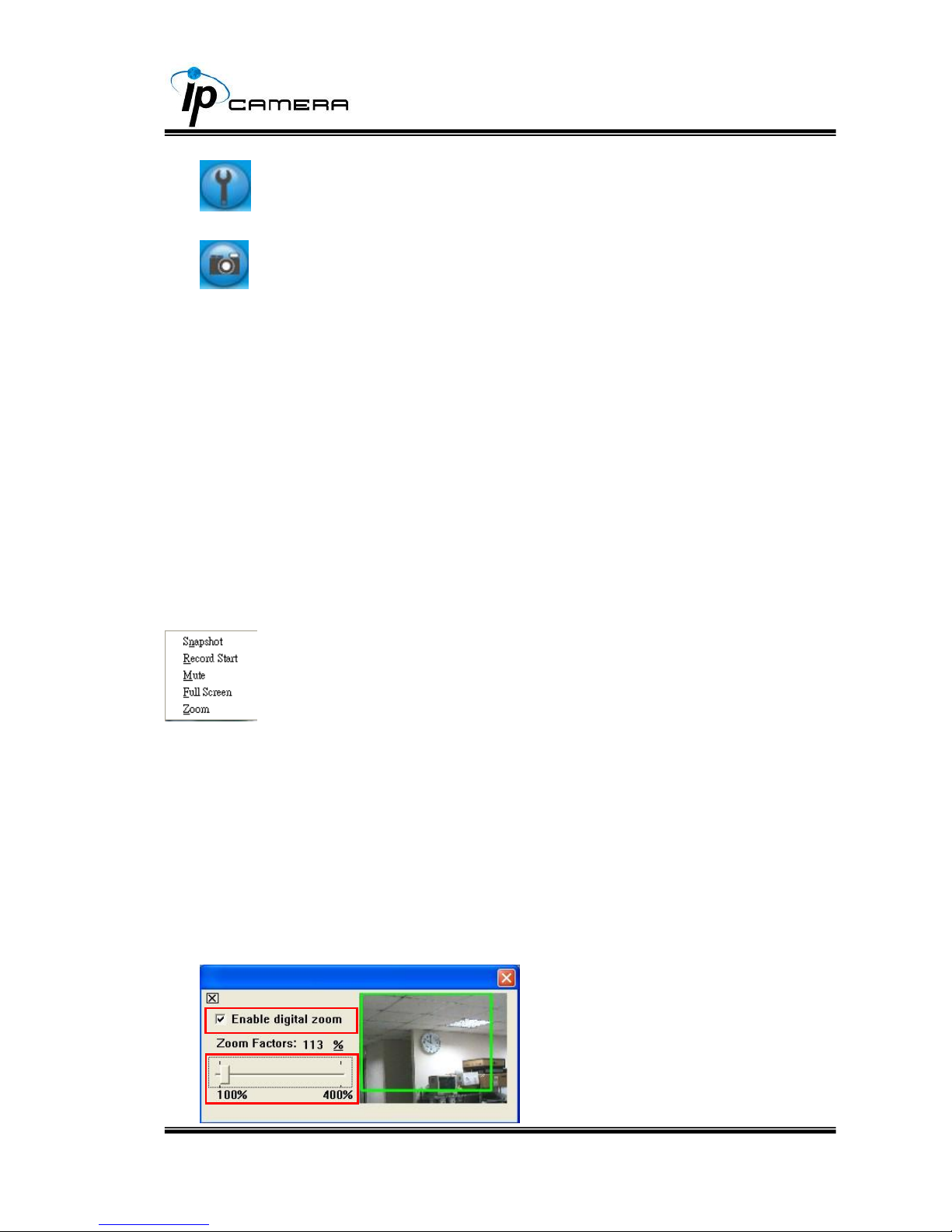

1. ：Get into the administration page

2. ：Video Snapshot

3. Show system time, video resolution, and video refreshing rate

4. Select video streaming source (When streaming 2 setting in『Video Setting』 is closed, this

function will not display)

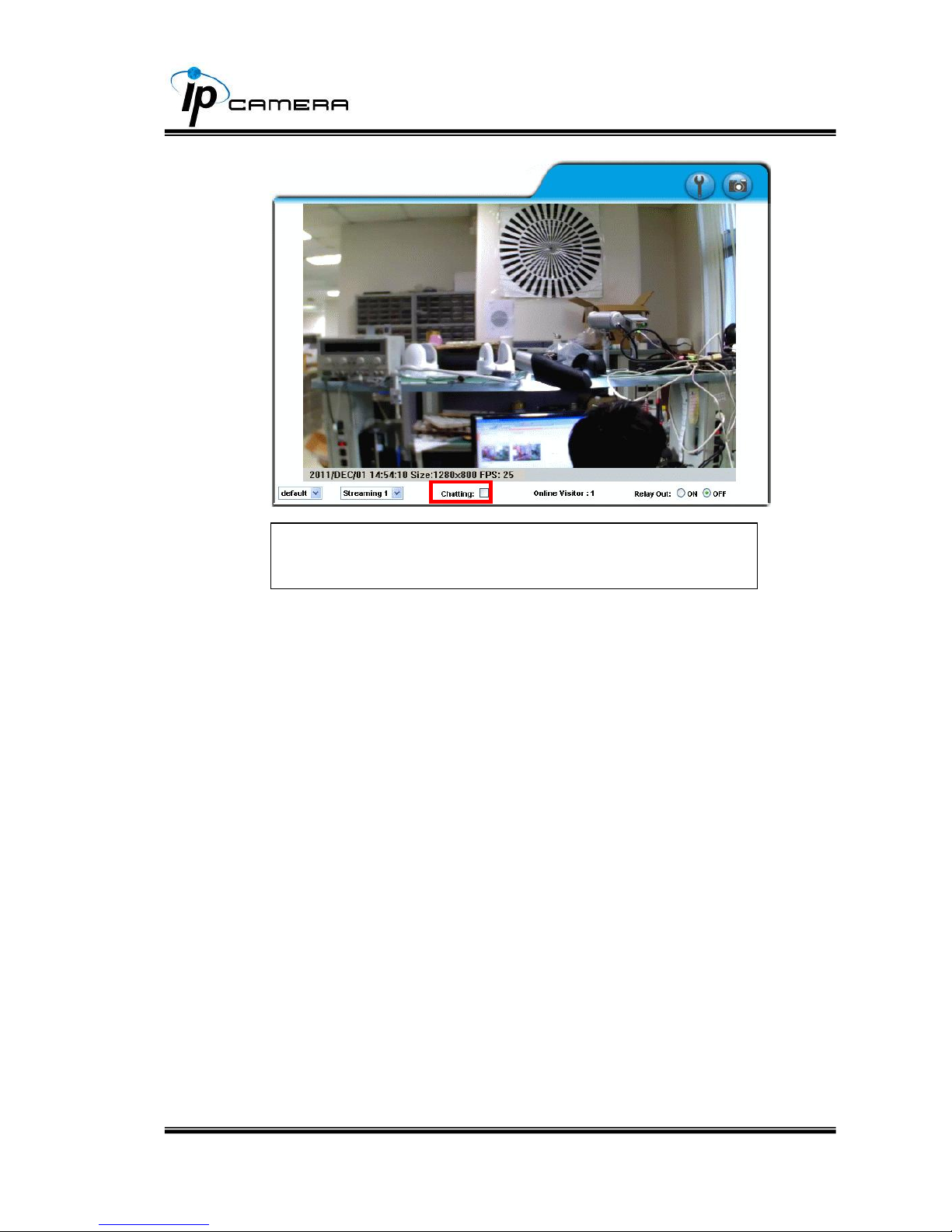

5. IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can
use microphone which connects to the PC to talk to server side, which is IP
Camera side

6. Shows how many people connect to this IP camera

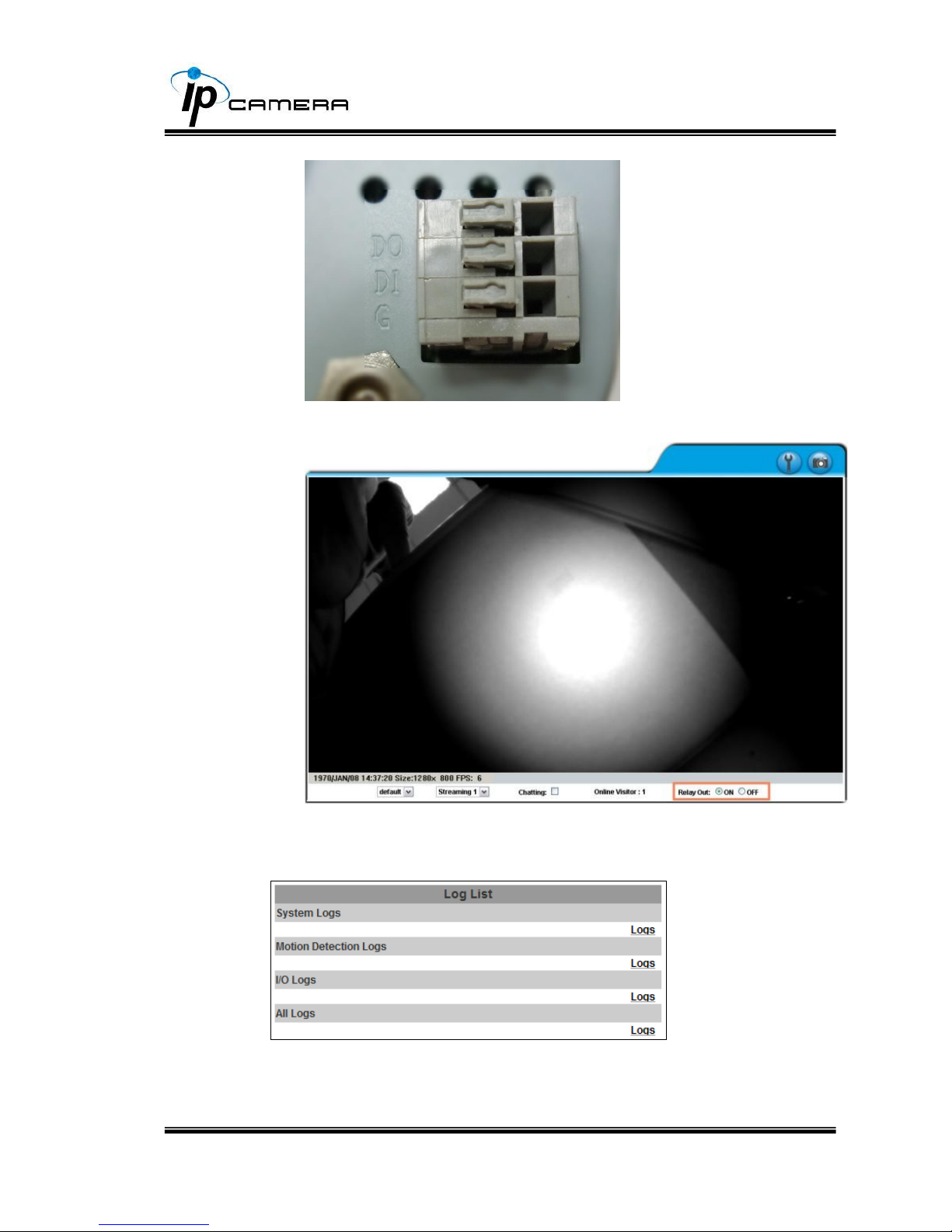

7. Select to enable or disable the relay.

Double-click the video, it will change to full screen mode. Press “Esc” or double-click
the video again, it will change back to normal mode.
Right-Click the mouse on the video, it will show a pop-up menu.

1. Snapshot：Save a JPEG picture

2. Record Start：Record the video in the local PC. It will ask you where to save the
video. To stop recording, right-click the mouse again. Select “Record Stop”. The
video format is AVI. Use Microsoft Media Player to play the recorded file.

3. Mute：Turn of the audio. Click again to turn on it.

4. Full Screen：Full-screen mode.

5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”
option first within the pop-up dialogue box and then drag and drop the bar to
adjust the zoom factors.

16/46

V. Configuration

Click to get into the administration page. Click to go back to the live
video page.

17/46

A.System

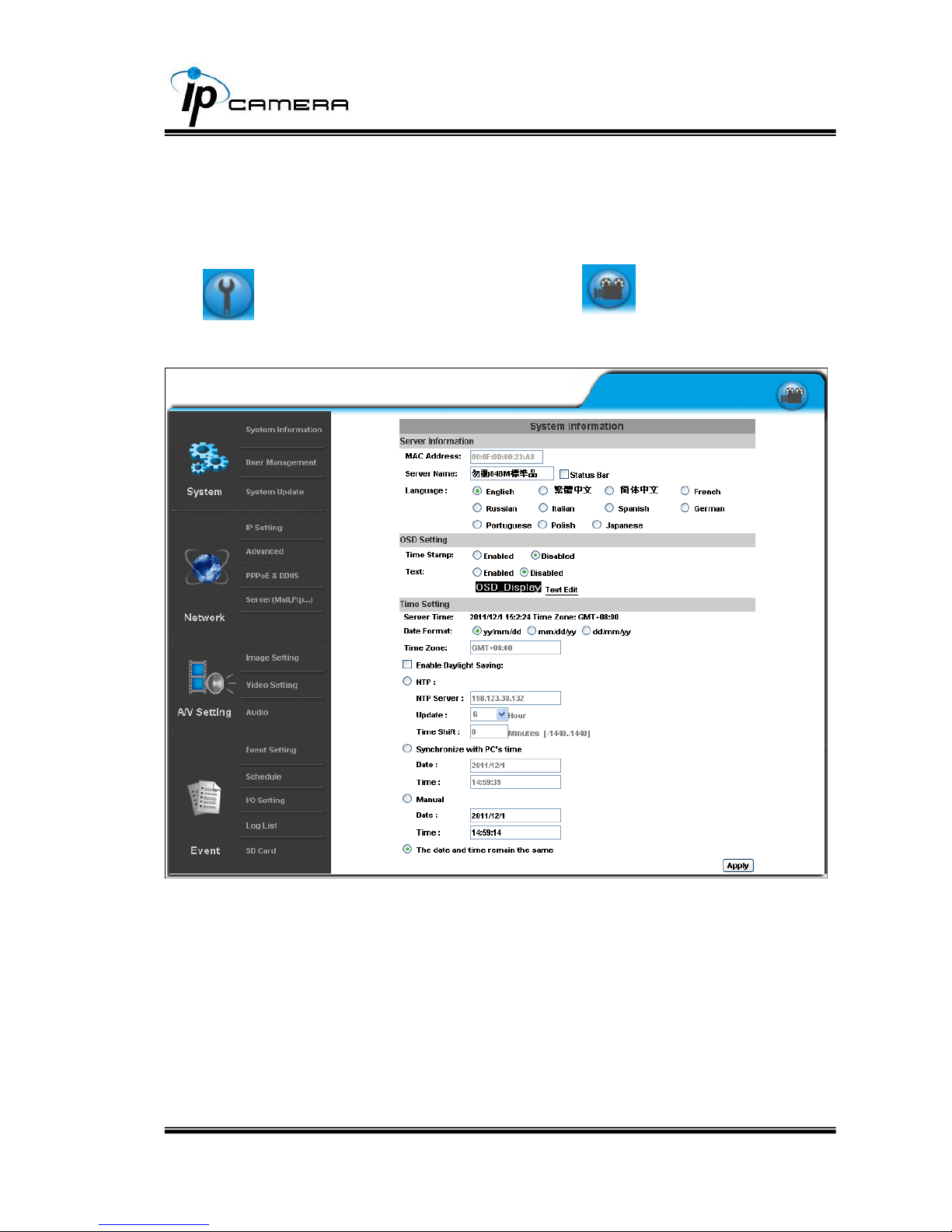

i、 System Information

a. Server Information: Set up the camera name, select language, and

set up the camera time.

1. Server Name：This is the Camera name. This name will show
on the IP Installer.

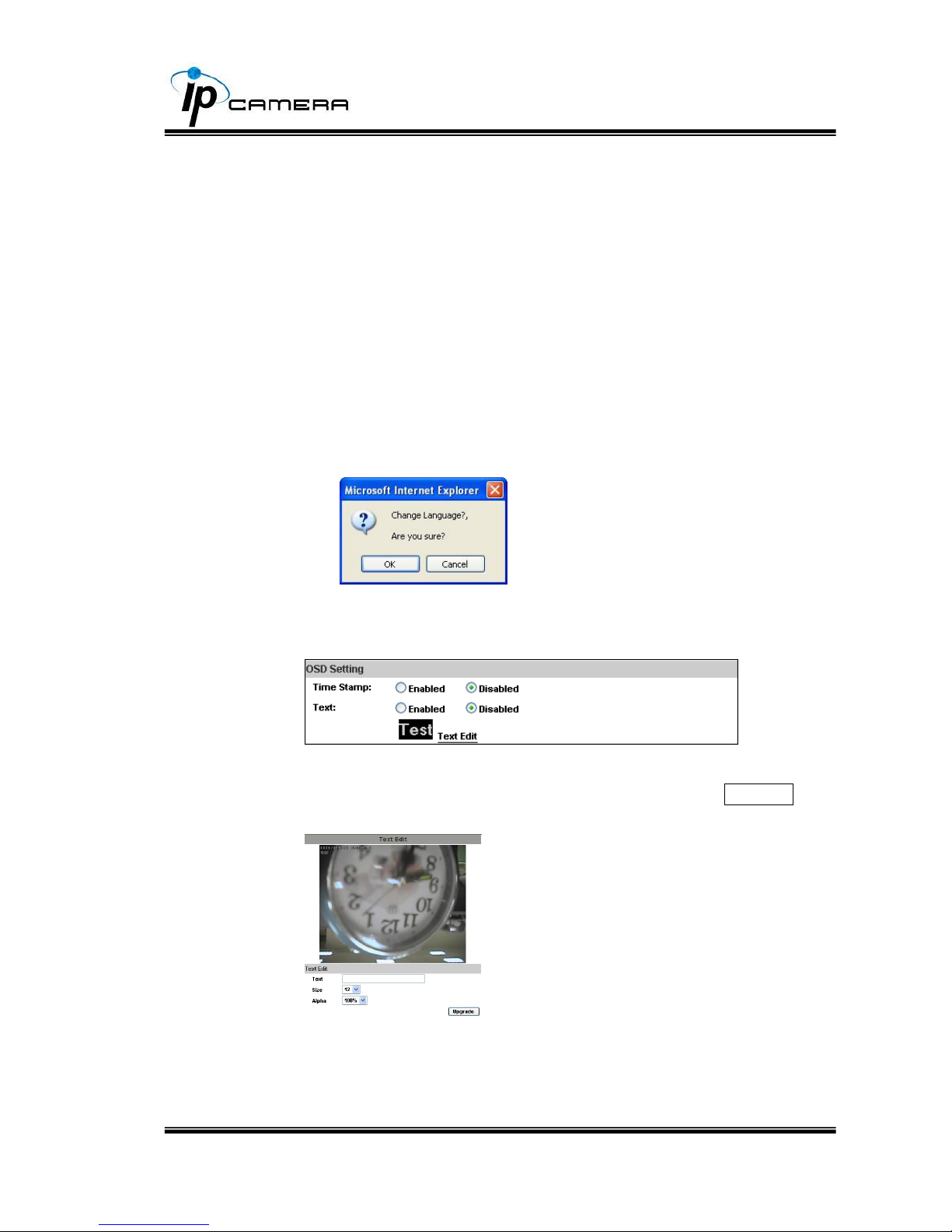

2. Select language：There are English, Traditional Chinese, and
Simplified Chinese to select. When change, it will show the
following dialogue box for the confirmation of changing
language.

b. OSD Setting: Select a position where date & time stamp / text

showing on screen.

Moreover, click Text Edit can entry to adjust the OSD contents
which is including Size and Alpha of text. Finally, click Upgrade
button to reserve the setting.

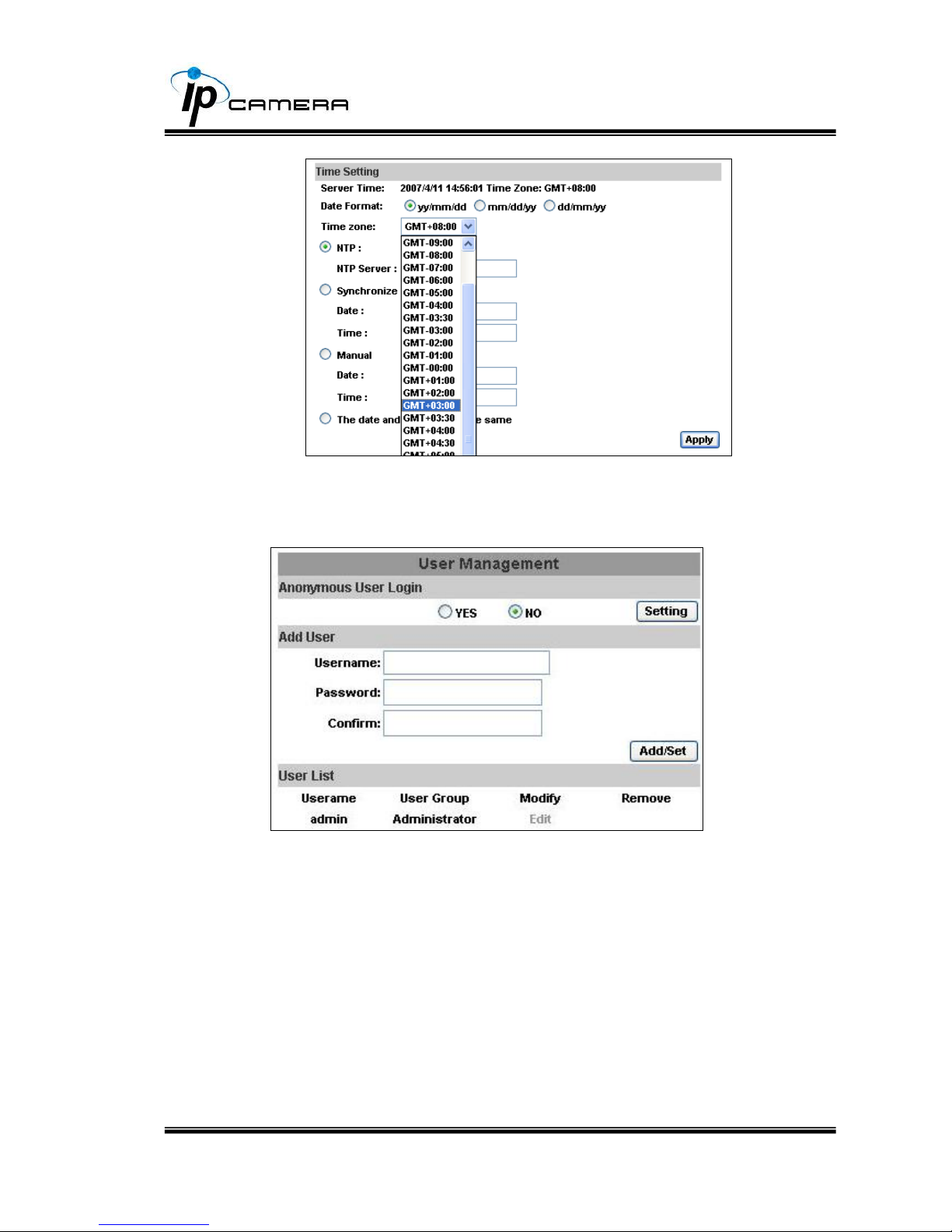

c. Server time setting：Select options to set up time - “NTP”,

“Synchronize with PC’s time”, “Manual”, “The date and time remain
the same”.

18/46

ii、 User Management

IP CAMERA supports three different users, administrator, general user,
and anonymous user.

a. Anonymous User Login：

Yes：Allow anonymous login
No：Need user name & password to access this IP camera

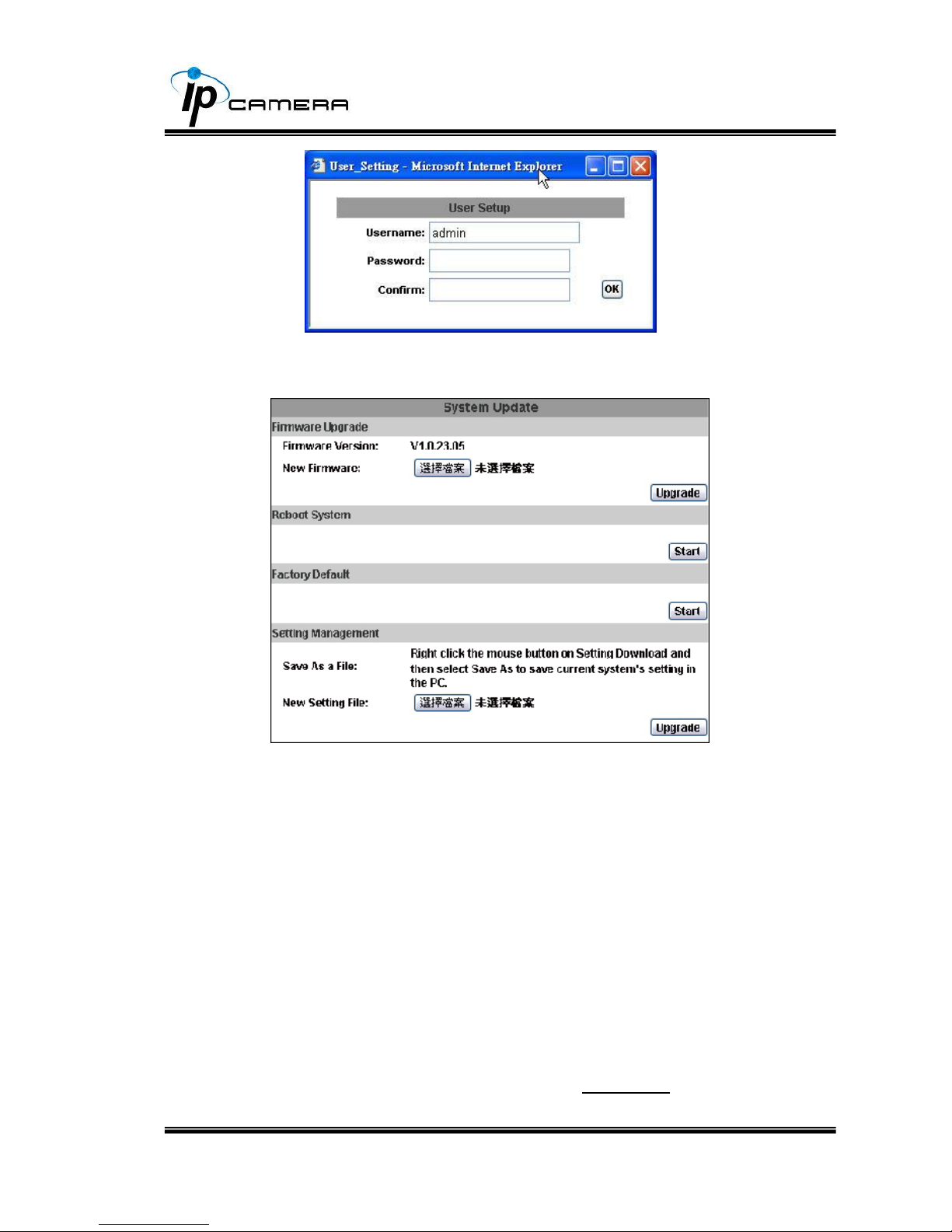

b. Add user：

Type the user name and password, then click “Add/Set”.

c. Click “edit” or “delete” to modify the user.

19/46

iii、 System update：

a. To update the firmware online, click “Browse…” to select the

firmware. Then click “Upgrade” to proceed.
b. Reboot system：re-start the IP camera
c. Factory default：delete all the settings in this IP camera.
d. Setting Management：User may download the current setting to PC,

or upgrade from previous saved setting.

1. Setting download:
Right-click the mouse button on Setting Download  Select
“Save AS…” to save current IP CAM setting in PC  Select
saving directory  Save

2. Upgrade from previous setting
Browse  search previous setting  open  upgrade 
Setting update confirm  click index.html. to return to main
page

20/46

B.Network

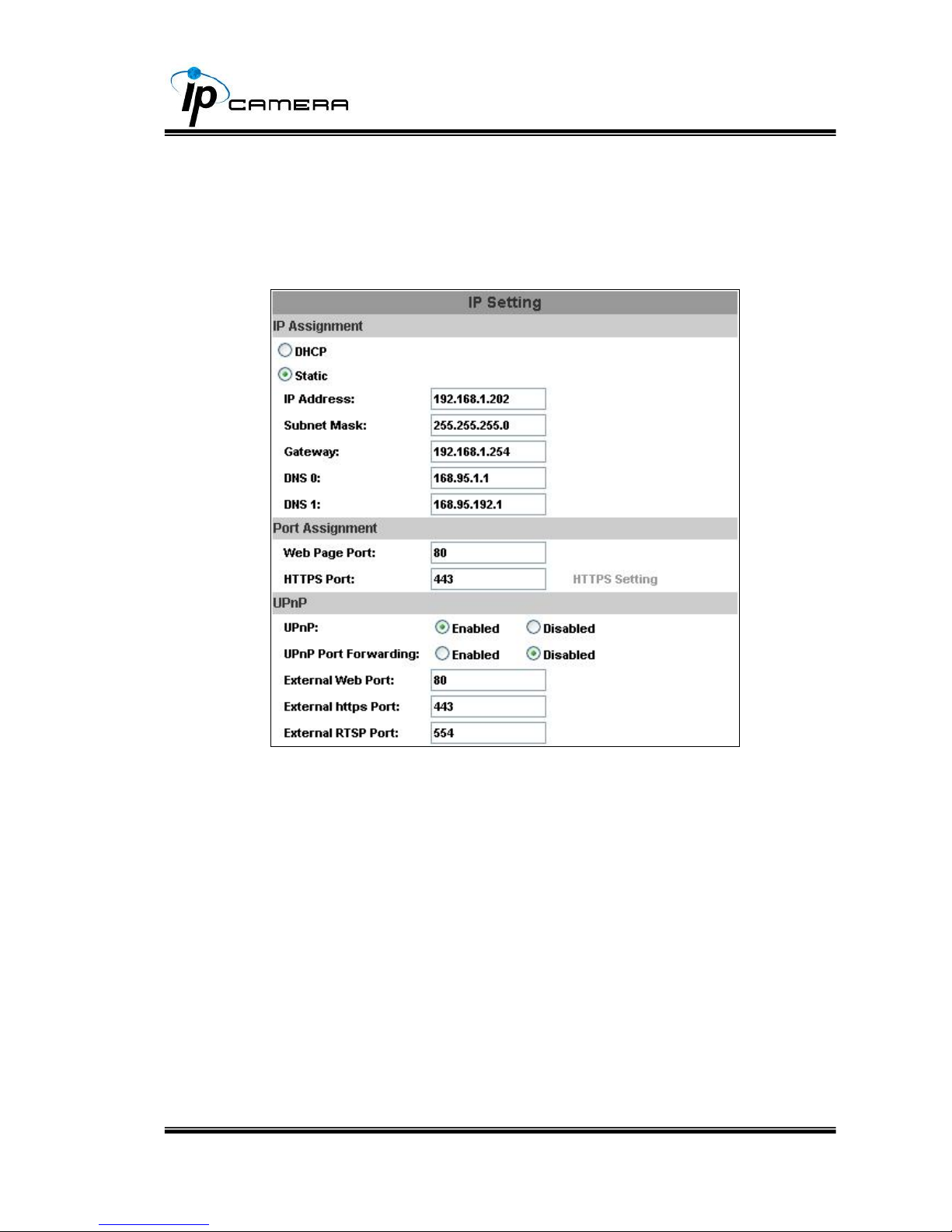

i、 IP Setting

IP Camera supports DHCP and static IP.

a. DHCP：Using DHCP, IP Camera will get all the network parameters

automatically.

b. Static IP：Please type in IP address, subnet mask, gateway, and

DNS manually.

c. Port Assignment: user may need to assign different port to avoid

conflict when setting up IP assignment.

1. Web Page Port: setup web page connecting port and video
transmitting port (Default: 80)

2. HTTPS Port: setup port for HTTPS transmitting (Default: 443)

21/46

d. UPnP

This IP camera supports UPnP, If this service is enabled on your computer,
the camera will automatically be detected and a new icon will be added to

“My Network Places.”

Note: UPnP must be enabled on your computer.
Please follow the procedure to activate UPnP

1. open the Control Panel from the Start Menu

2. select Add/Remove Programs

3. Select Add/Remove Windows Components and open
Networking Services section

4. Click Details and select UPnP to setup the service

5. The IP device icon will be added to “MY Network Places”

6. User may double click the IP device icon to access IE browser

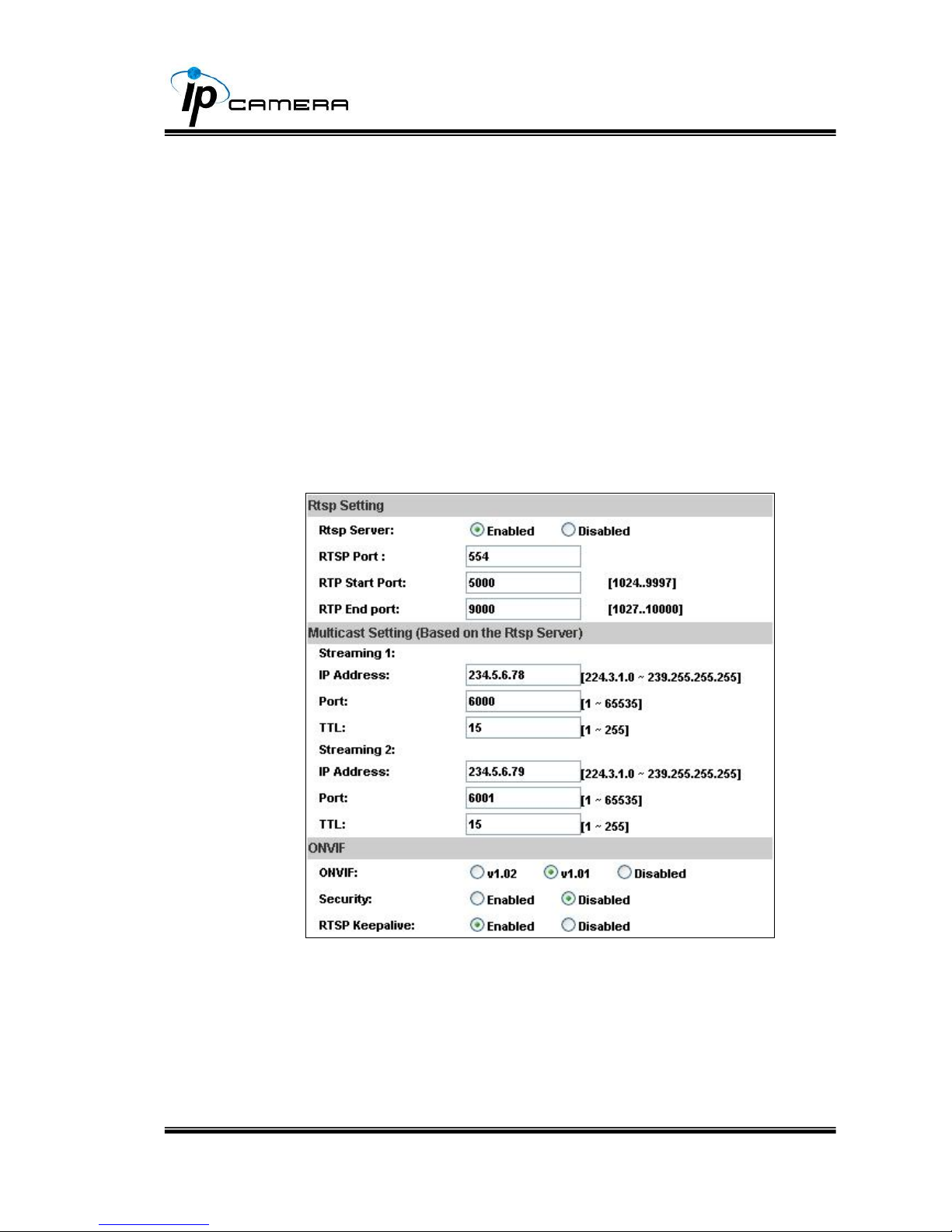

e. RTSP setting

1. RTSP Server: enable or disable

2. RTSP Port: setup port for RTSP transmitting (Default: 554)

3. RTSP Start and End Port: in RTSP mode, you may use TCP
and UDP for connecting. TCP connection uses RTSP Port
(554). UDP connection uses RTSP Start and End Port.

f. Multicast Setting (Based on the RTSP Server)

22/46

Multicast is a bandwidth conservation technology. This function
allow several user to share the same packet sent from IP camera.
To use Multicast, appoint IP Address and port here. TTL means the
life time of packet, The larger the value is, the more user can
receive the packet.

To use Multicast, be sure to enable the function "Receive
Multicast" in your media player.

g. ONVIF

Choose your ONVIF version and settings.

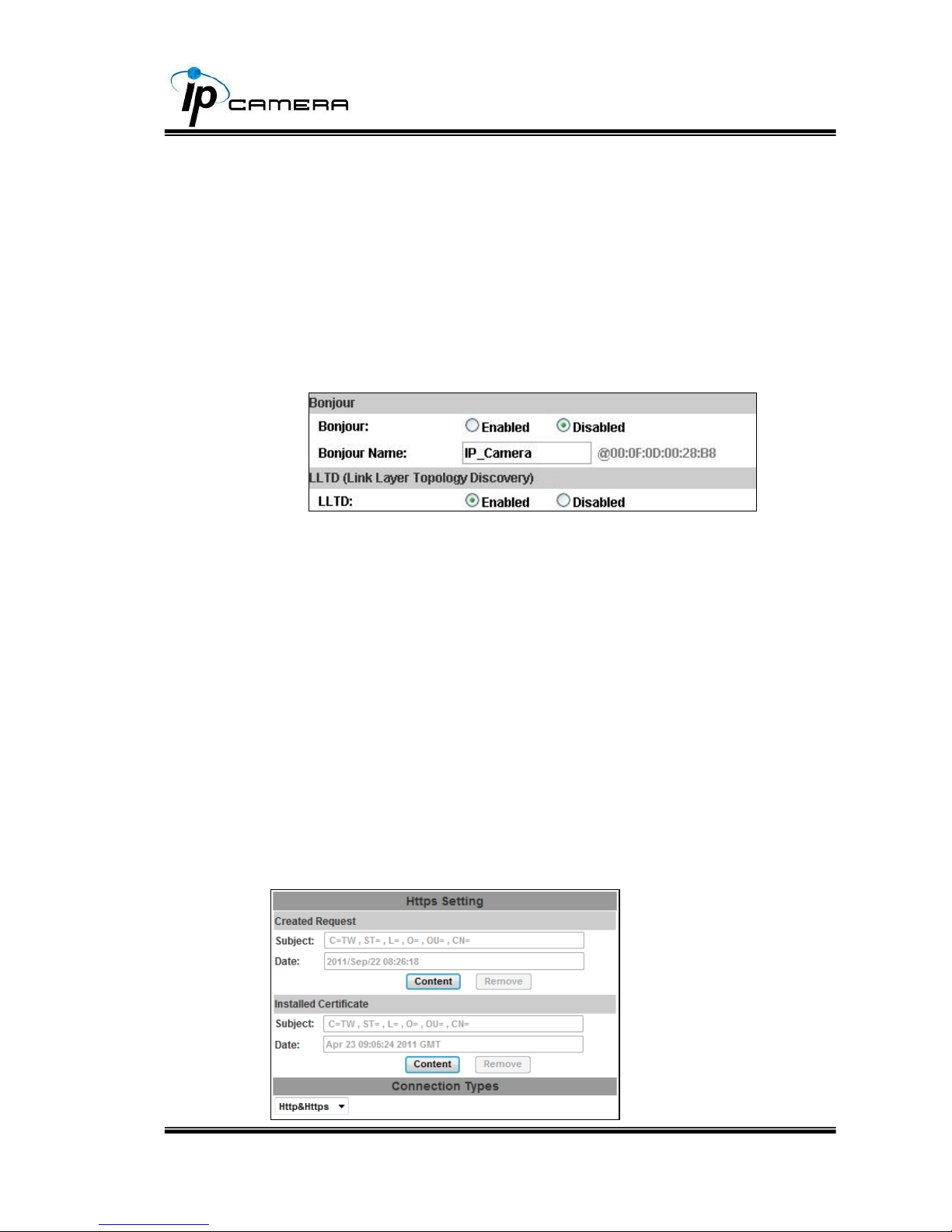

h. Bonjour

This function enable MAC systems to link to this IP camera. Key in
the name here.

i. LLTD

If your PC supports LLTD, enable this function then you can check
the connection status, properties, and device position(like IP
address) of this IP Camera in the network map.
Enable or disable RTSP server first and can setup RTSP port and
the start and end port of RTP

ii、 Advanced：

a. Https (Hypertext Transfer Protocol Secure)：Https can help protect

streaming data transmission over the internal on the higher security
level.

23/46

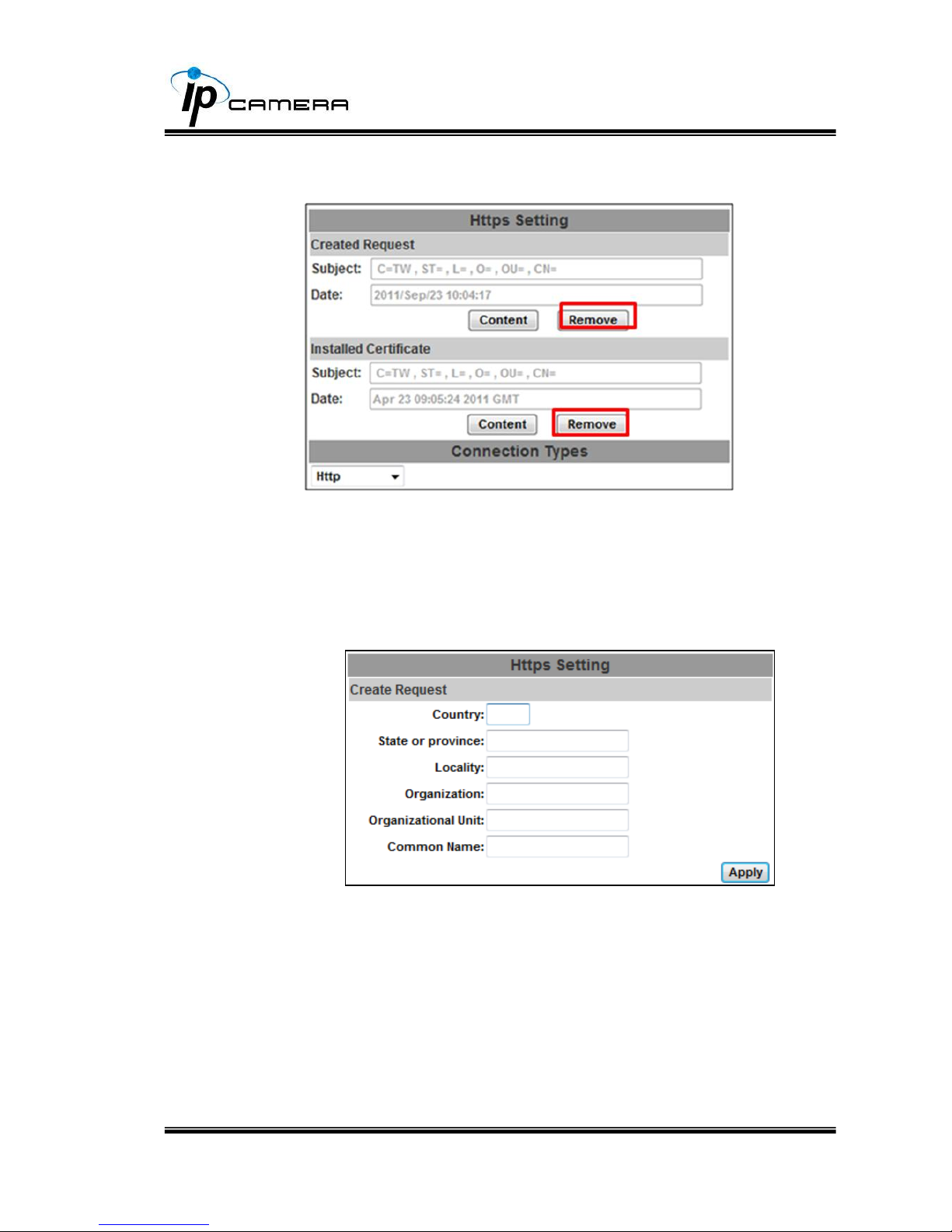

Https setting：Before setting new request, please remove old secure
identification identification at Http connection type.

1. Created Request: remove secure identification in Created
request mode. There is a warning message showing. Please
set “Yes” to remove secure identification.

2. Setting the secure identification and apply it.

3. Installed Certificate: remove Certificate in .Installed Certificate
mode. There will be a warning message to check again.

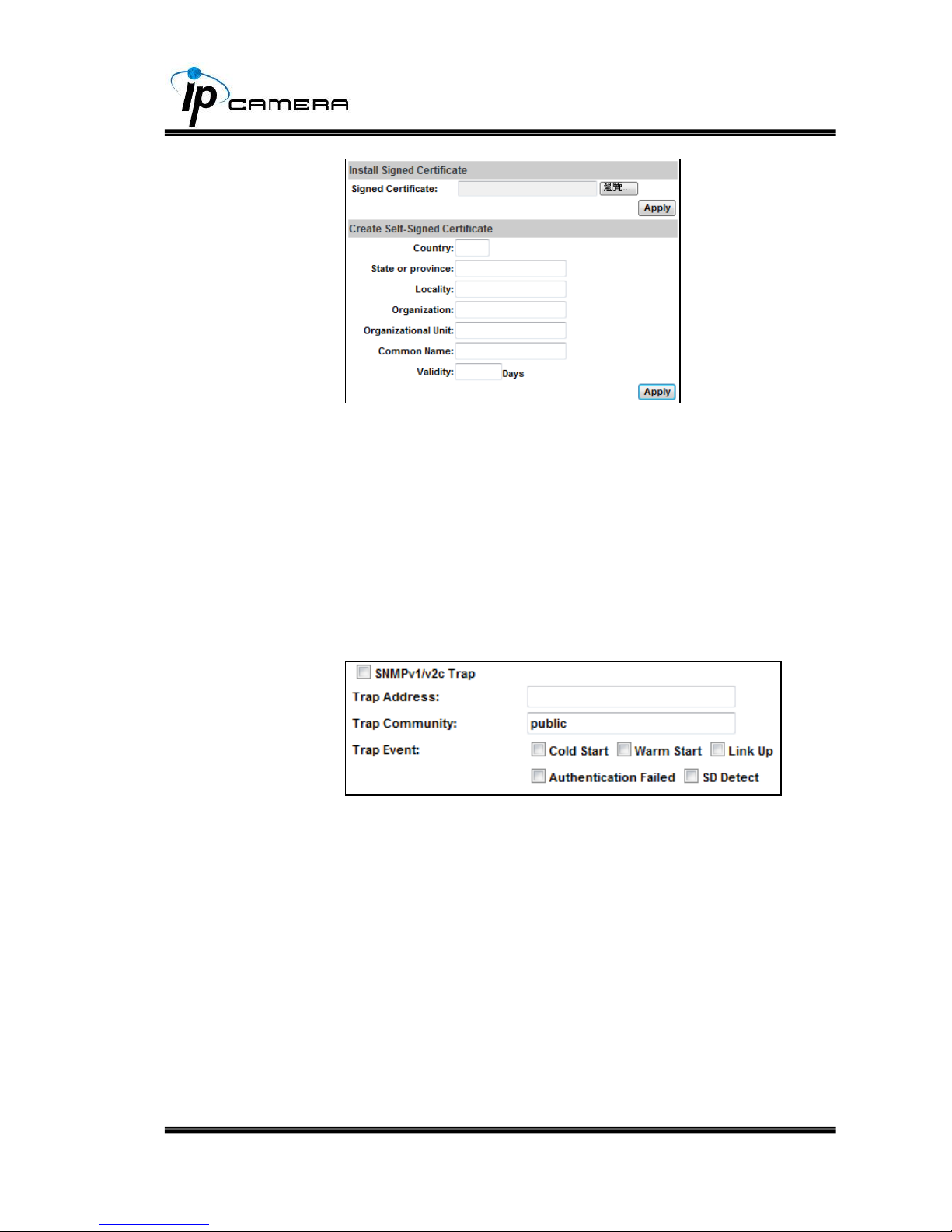

4. There are two ways to set Certificate- Install Signed Certificate
and Create Self-Signed Certificate.

24/46

b. SNMP(Simple Network Management Protocol)：

1. Enable SNMPv1 or SNMPv2 and write the name of Write
Community and Read Community.

2. Enable SNMPv3, please set Security Name, Authentication
Type, Authentication Password, Encryption Type, Encryption
Password of Write mode and Read mode.

3. Enable SNMPv1/SNMPv2 Trap can detect the Trap server.
Please set what event need to detect.

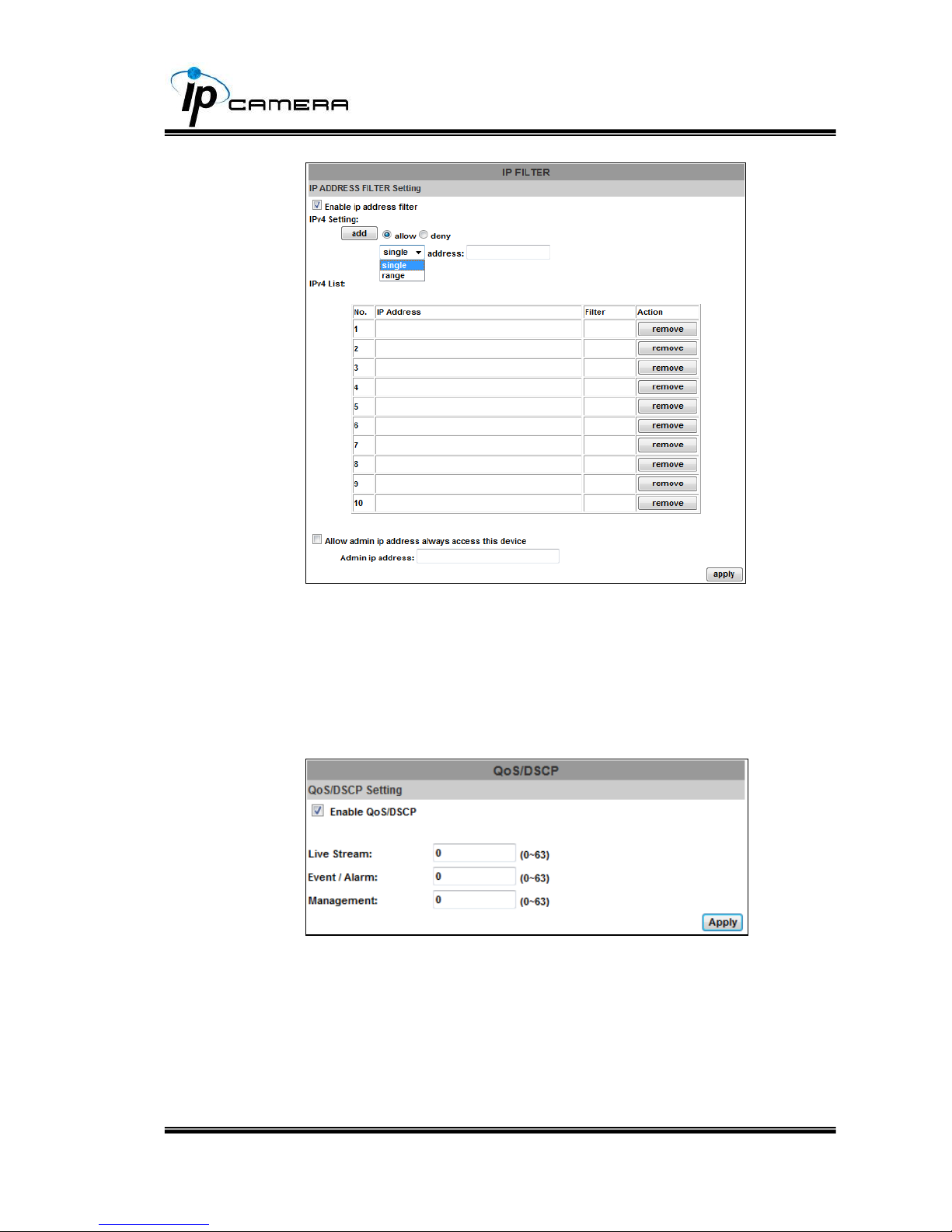

c. Access list：”Enable IP address filter” can set IP address which can

allow or deny to this camera. There are two options, single and
range, for user to set the IP address.

25/46

d. QoS/DSCP(Quality of Server/Differentiated Services Code-point)：

DSCP specifies a simple mechanism for classifying and managing
network traffic and provide QoS on IP networks. DSCP is a 6-bit in
the IP header for packet classification purpose. Please define the
reserve for Live Stream, Event / Alarm and Management.

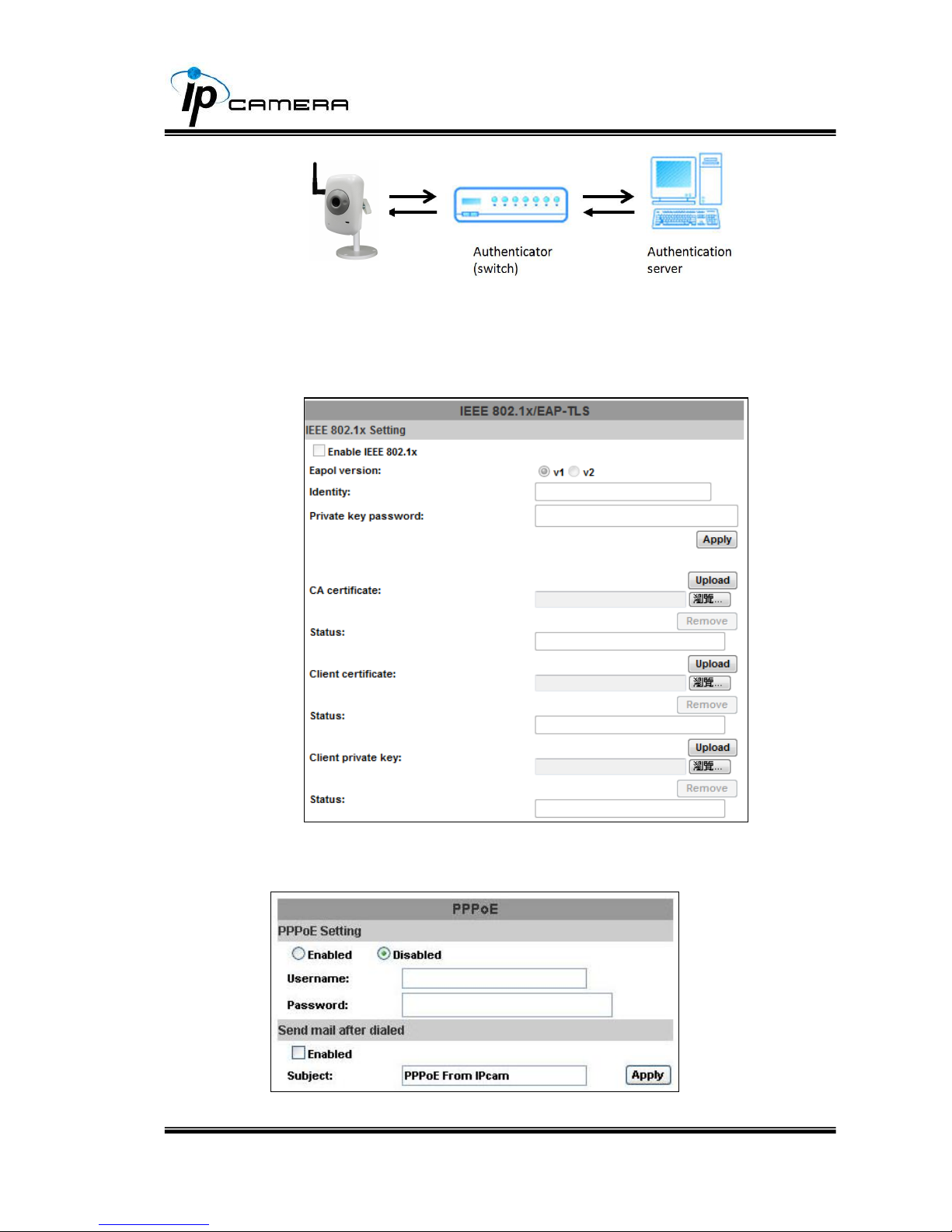

e. IEEE 802.1x：

IEEE 802.1x is an IEEE standard for port-based Network Access
Control. It provides an authentication mechanism to device wishing
to attach to a LAN or WLAN.
The EAPOL protocol support service identification and optional
point to point encryption over the local LAN segment.

26/46

Please check what version of the authenticator and authentication
server support. This camera supports EAP-TLS method. Please
enter ID, passwoard issued by the CA, then upload related
certificates.

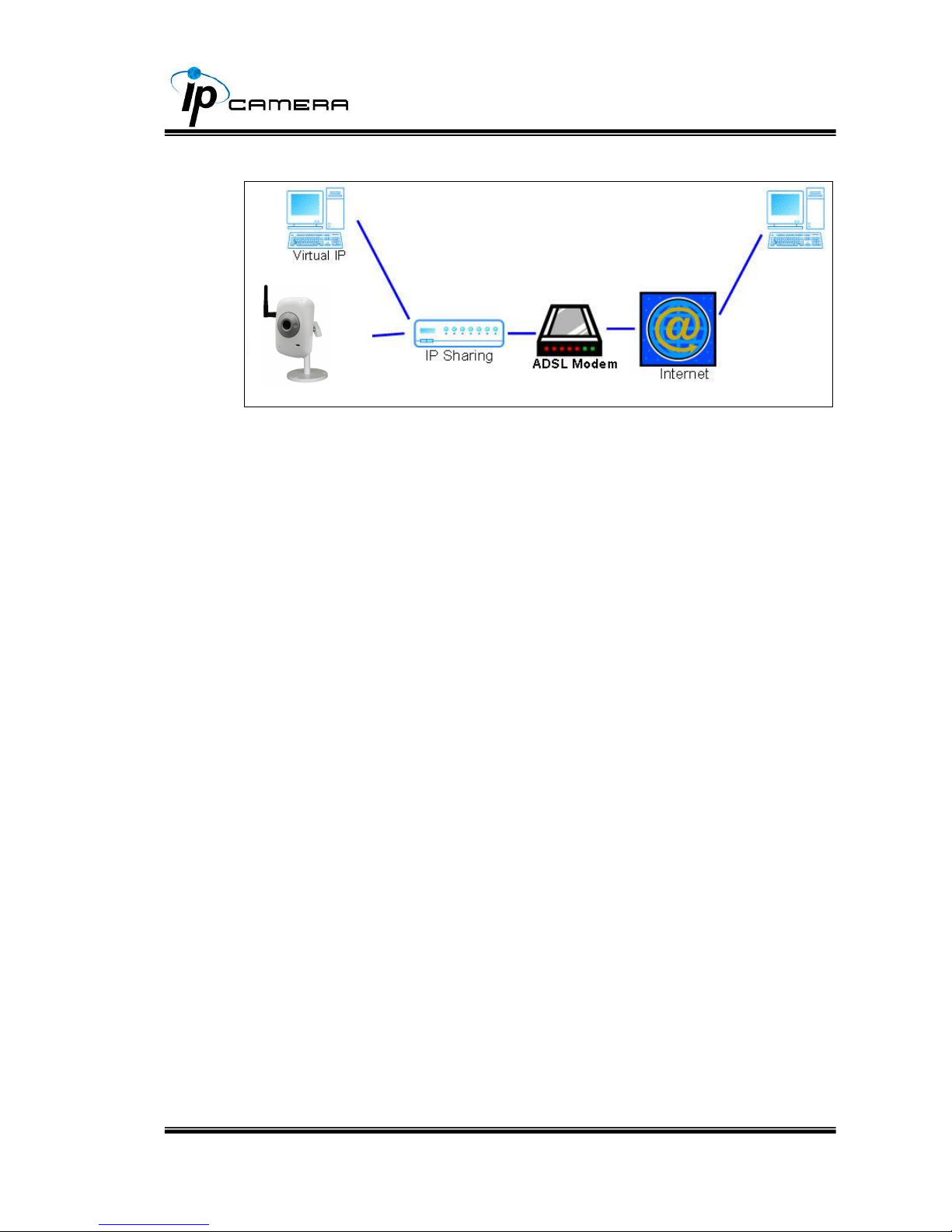

iii、 PPPoE：

Select “Enabled” to use PPPoE.

27/46

Key-in Username and password for the ADSL connection.
Send mail after dialed：When connect to the internet, it will send a mail

to a specific mail account. For the mail setting, please refer to “Mail and

FTP” settings.

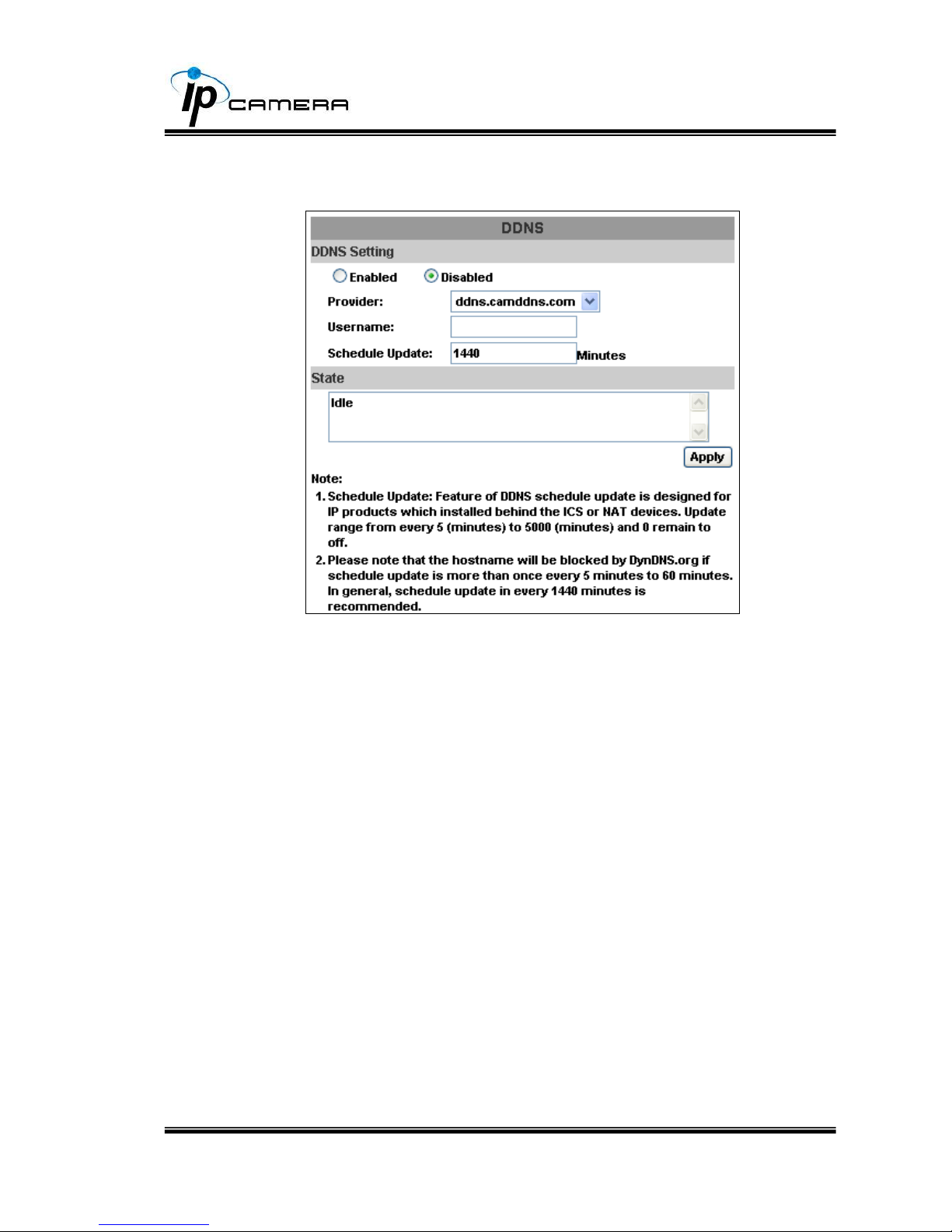

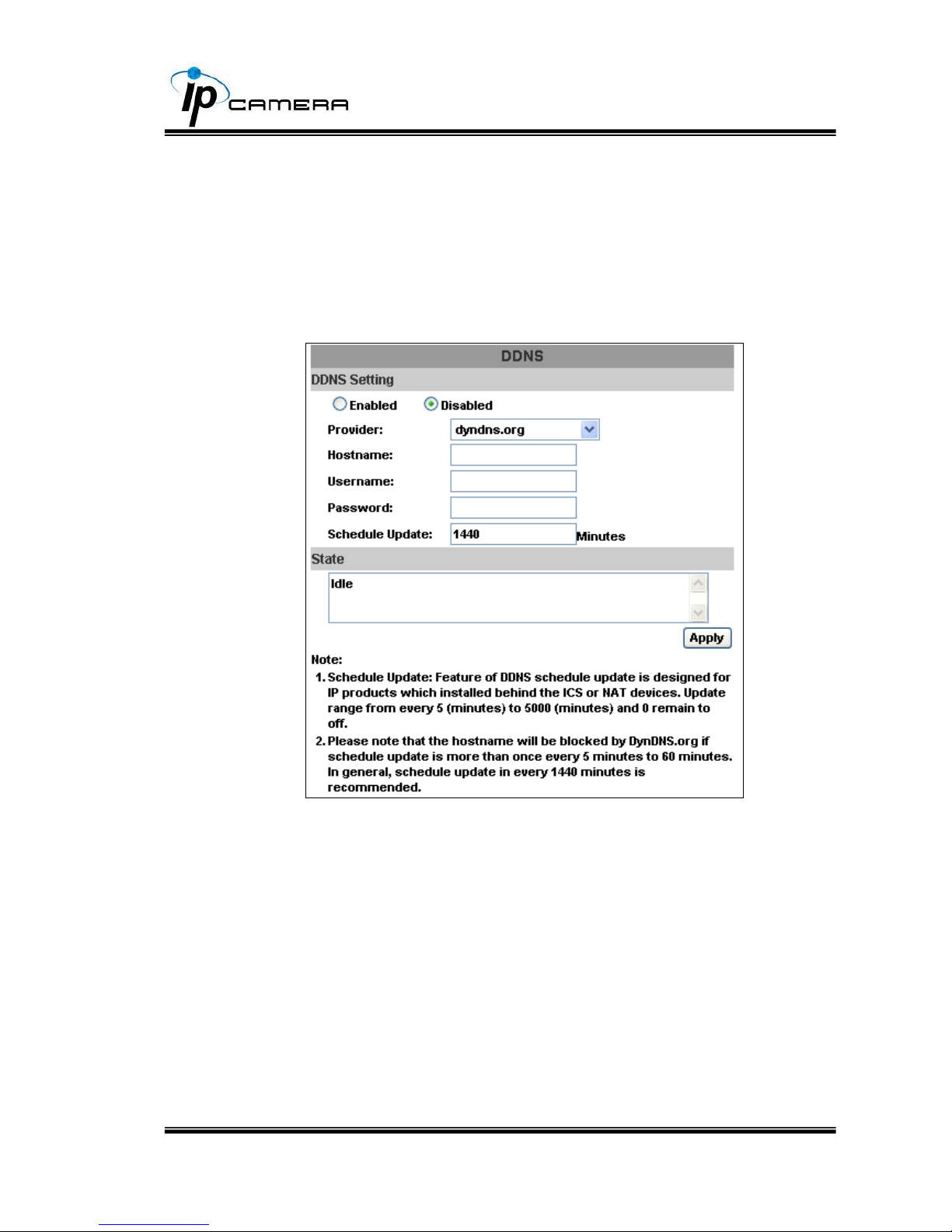

iv、 DDNS：

It supports DDNS (Dynamic DNS) service.

a. DynDNS：

1. Enable this service

2. Key-in the DynDNS server name, user name, and password.

3. Set up the IP Schedule update refreshing rate.

4. Click “Apply”

5. If setting up IP schedule update too frequently, the IP may be
blocked. In general, schedule update every day (1440 minutes)
is recommended.

28/46

b. Camddns service：

1. Please enable this service

2. Key-in user name.

3. IP Schedule update is default at 5 minutes

4. Click “Apply”.

c. DDNS Status

1. Updating：Information update

2. Idle：Stop service

3. DDNS registration successful, can now log by
http://<username>.ddns.camddns.com：Register successfully.

4. Update Failed, the name is already registered：The user name
has already been used. Please change it.

5. Update Failed, please check your internet connection：Network
connection failed.

6. Update Failed, please check the account information you
provide：The server, user name, and password may be wrong.

29/46

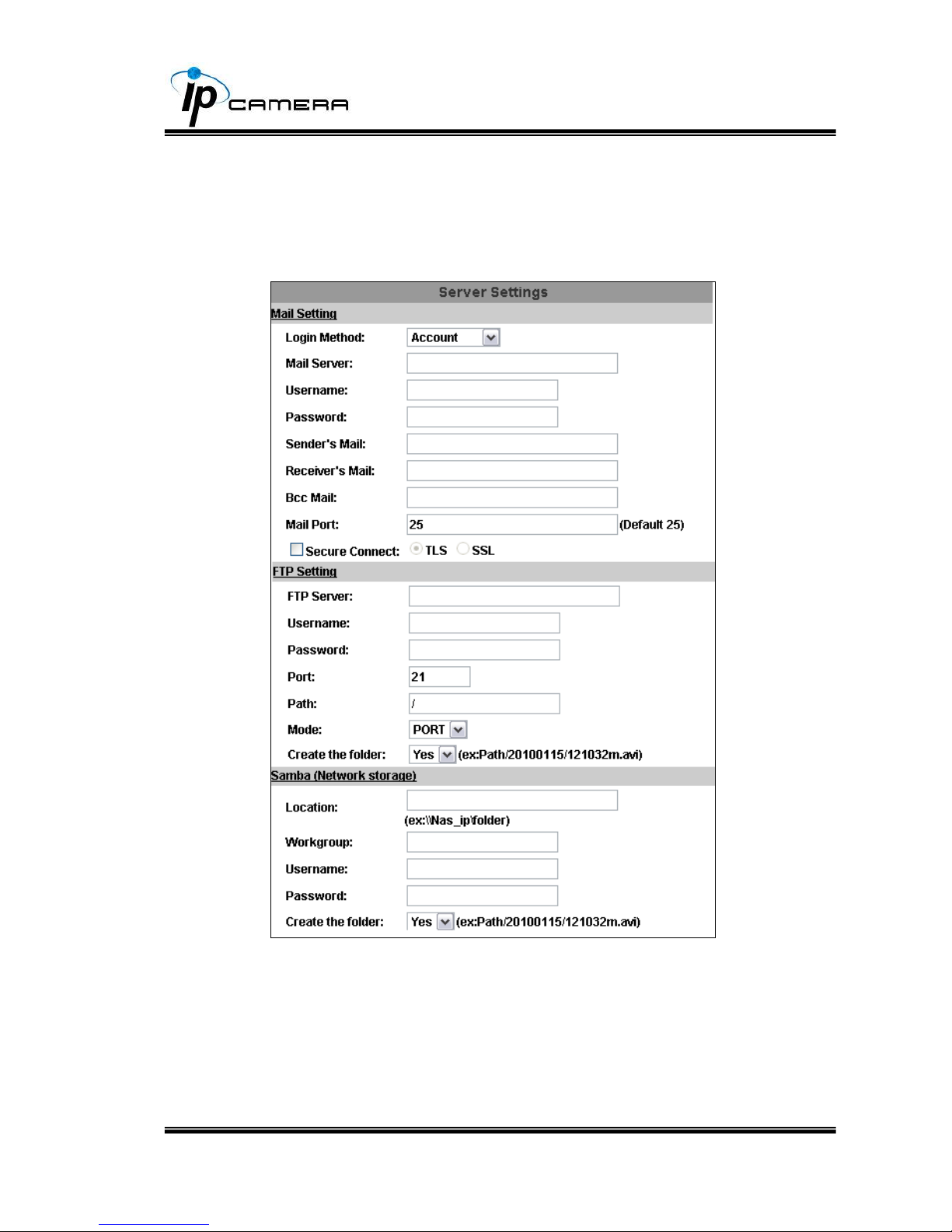

v、 Server Setting

There are three choices of server types available: Email, FTP and
SAMBA. Select the item to display the detailed configuration options.
You can configure either one or all of them.

vi、 Wireless Setting (Wireless Network Optional)

Supports 802.11 b/g wireless connection.

Notice：Wireless network and Ethernet network use the same IP, the
user has to unplug Ethernet cable, if Ethernet cable is not unplug,
wireless setting can not be executed.

30/46

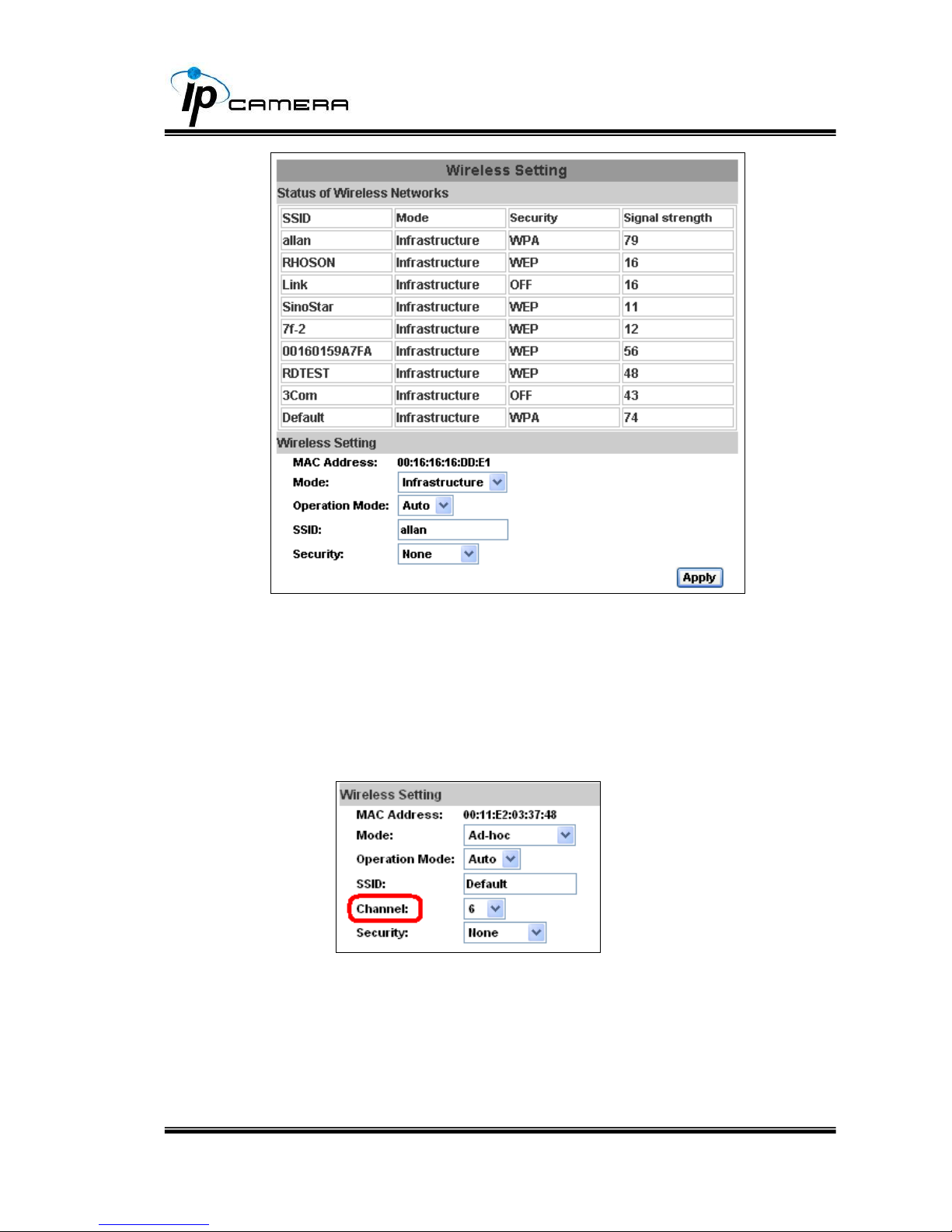

a. Status of Wireless Networks；

scan all wireless services.

b. Wireless Setting：

1. Mode：There are Infrastructure and Ad-hoc. Infrastructure is for
connecting with the router. Ad-hoc is for connecting with PC.
There is “Channel” to select only when user uses Ad-hoc
mode.

2. SSID：Based on AP setting.

3. Channel：This is only be used when the user selects Ad-hoc
mode in order to avoid conflict.

4. Security：It supports “None”, “WEP”, “WPA-PSK” security
encryption based on the setting of the Router.

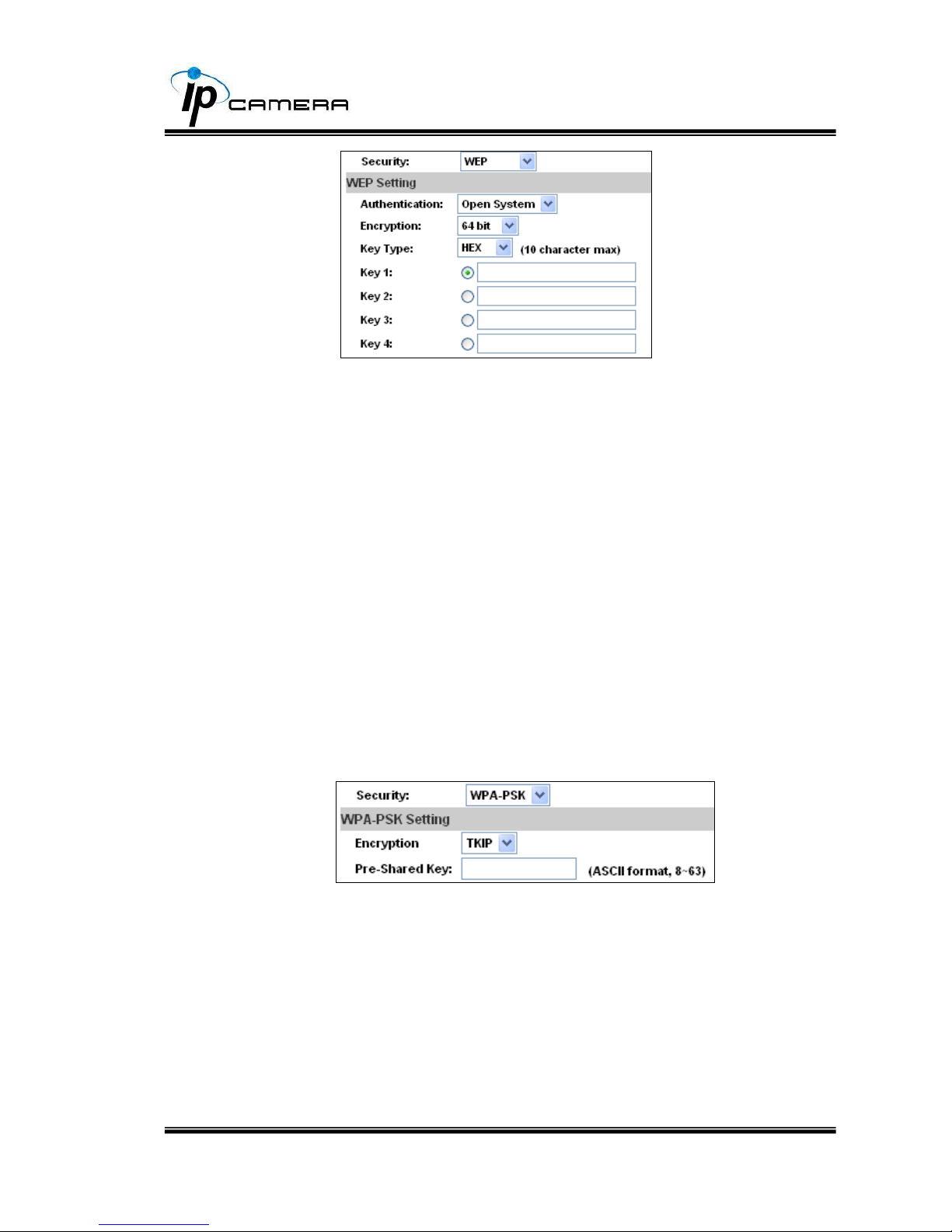

5. WEP：

31/46

 Authentication：There are Open System and Shared Keys,

it is based on different encryptions. This has to be the
same as the Router’s setting.

 Encryption：The length of key is decided here. In the 64bit

encryption, the HEX key should include 10 characters
while ASCII key includes 5 characters. In the 128bit
encryption, the HEX key should include 26 characters
while ASCII key includes 13 characters.

 Key Type：There are HEX and ASCII. When HEX is

selected, user only can key in hexadecimal characters(0~9,
A~F, a~f). If ASCII is selected, user can key in any
alphabet letter and number as the key.

 Key 1~4: Type the key here. The length and type of the

key have to match your settings above.

6. WPA-PSK：

 Encryption：There are TKIP and AES.
 Pre-Shared Key：Allow any characters .(Case sensitive)

32/46

C.A/V Setting

i、 Image Setting

For the security purpose, there are three areas can be setup for privacy

mask. Click Area button first and pull an area on the above image.
Finally, click Save button to reserve the setting.

Please refer to the details below for Image setting:

a. Brightness, Contrast, Hue, Saturation, Sharpness can be adjusted

here.

b. AGC: The sensitivity of camera can adjusts with the environmental

light in order to avoid the images too light or too dark.

c. Shutter Time: You can use "Outdoor" or "Indoor" option, or fix it from

33/46

1/30 to 1/1000.

d. Sense-Up: incerase the sensitivity of camera to get brighter image at

night.

e. D-WDR : Enable the function to reduce the contrast of background

with foreground(ex. people).

f. Video Orientation: Flip, mirror, or rotate the image as your

requirement.

g. DNR: Adjust this option to reduce the noise.

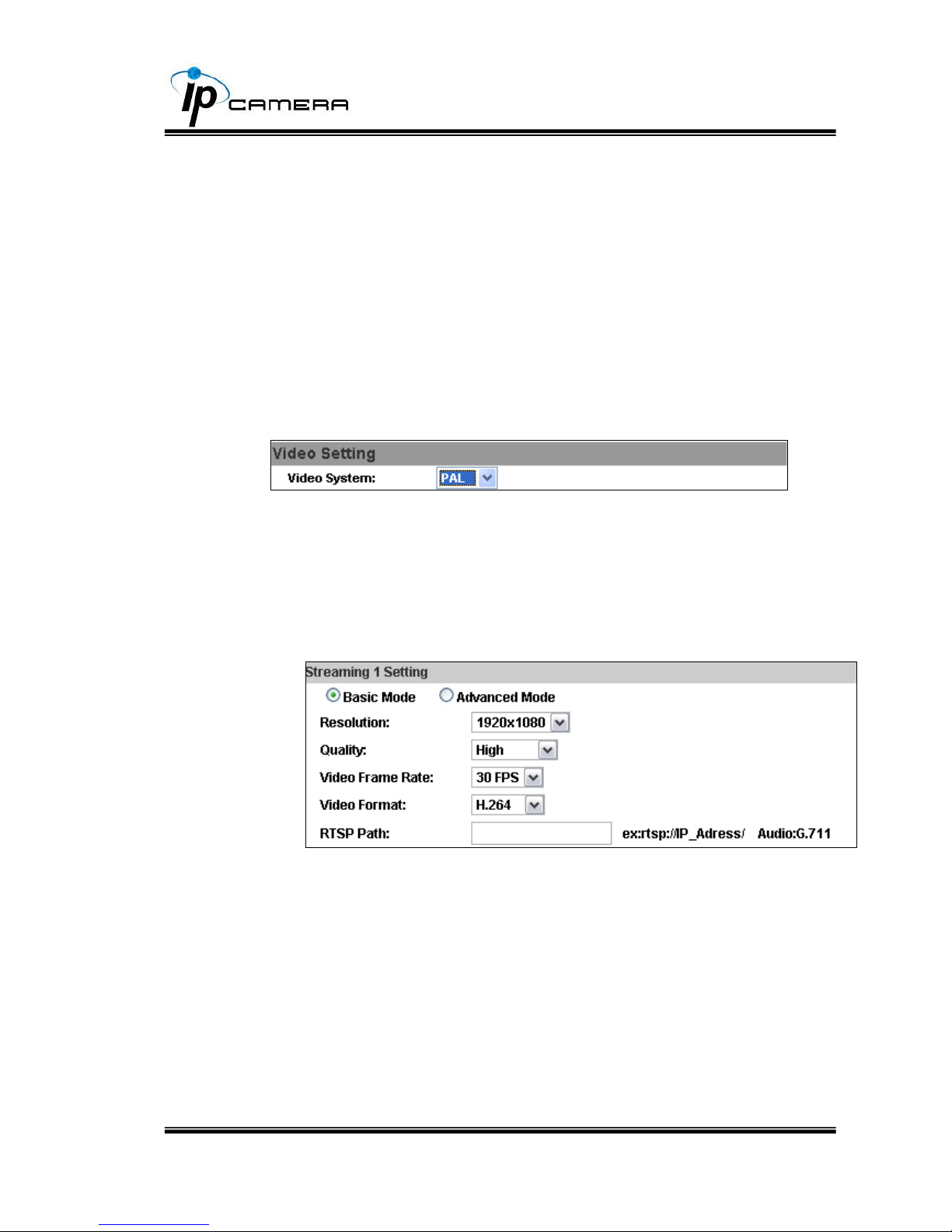

ii、 Video Setting

User may select the camera system type,

Streaming 1 Setting: Basic mode and Advanced mode
Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode

(Max Video Frame Rate for both streaming combined is 30 FPS)

a. Streaming 1 Basic Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1920x1080, 1280x720, 640x480, 320x240, 176x144

2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264, MPEG4 or M-JPEG

34/46

5. RTSP Path: RTSP output name

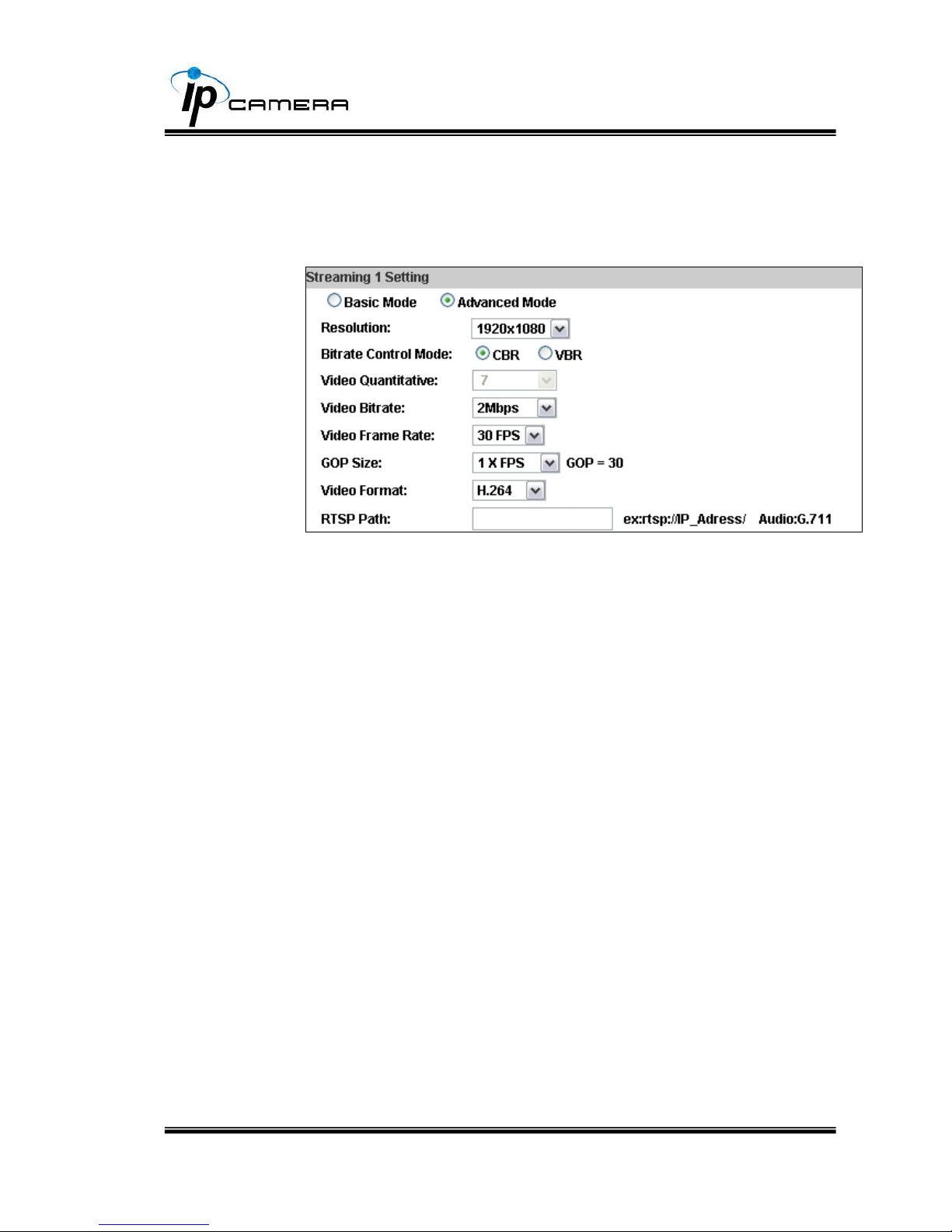

b. Streaming 1 Advanced Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1920x1080, 1280x720, 640x480, 320x240, 176x144

2. Bitrate Control Mode
There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：32Kbps~4Mbps (the higher the CBR is, the better the

video quality is)
VBR：1(Low)~10(High) – Compression rate, the higher the

compression rate, the lower the picture quality is; vise versa.
The balance between VBR and network bandwidth will affect
picture quality. Please carefully select the VBR rate to avoid
picture breaking up or lagging.

3. Video Frame Rate
The video refreshing rate per second.
NTSC: Max 30 frames/second PAL: Max 25 frames/second

4. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.

5. Video Format：H.264, MPEG4 or M-JPEG

6. RTSP Path: RTSP output connecting route

35/46

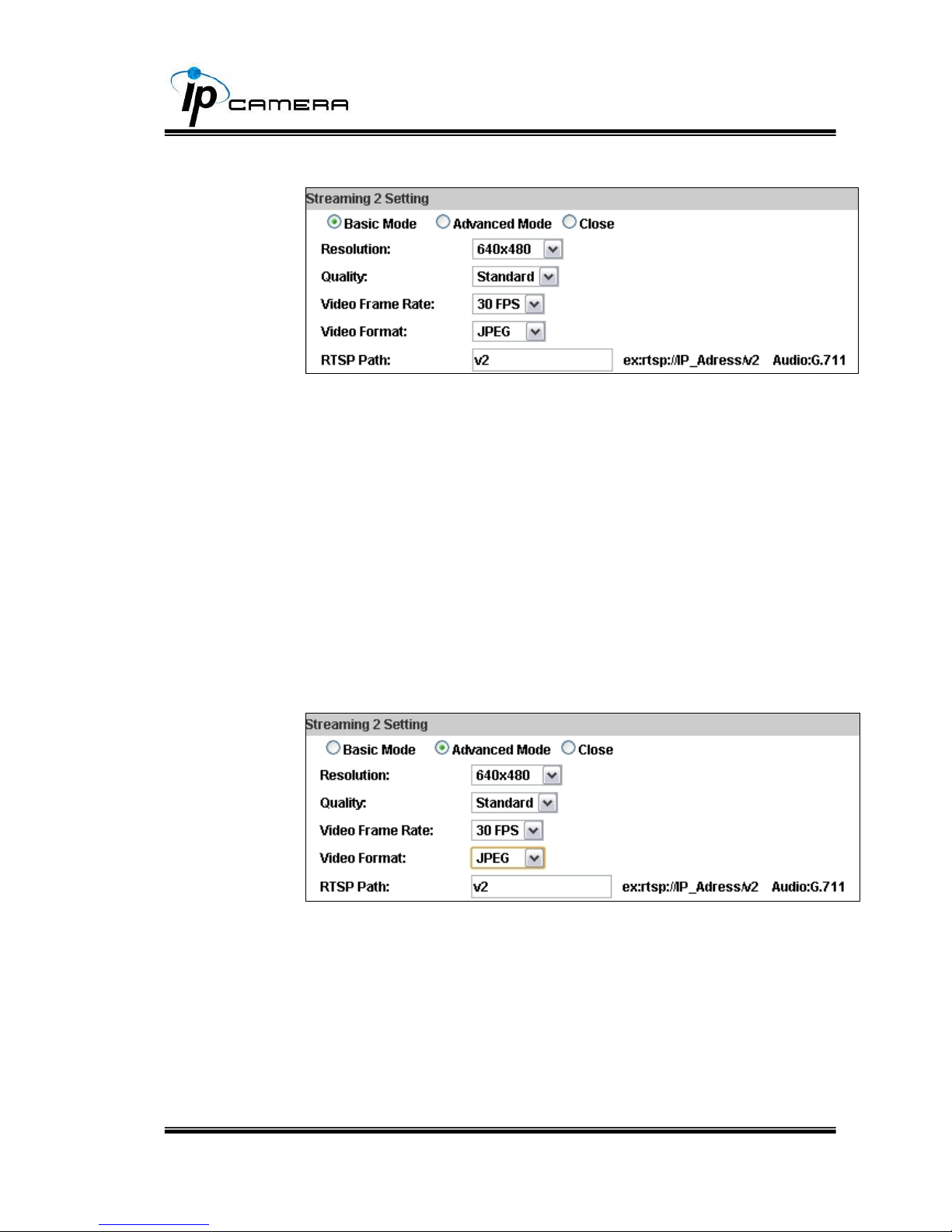

c. Streaming 2 Basic Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1920x1080, 1280x720, 640x480, 320x240, 176x144

2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264, MPEG4 or M-JPEG

5. RTSP Path: RTSP output connecting route

d. Streaming 2 Advanced Mode：

1. Resolution：
There are 5 resolutions can be chosen.
1920x1080, 1280x720, 640x480, 320x240, 176x144

2. Quality：
There are 5 levels to adjust:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. Also not
good for internet transmitting

36/46

3. Video Frame Rate：The video refreshing rate per second.

4. Video Format：H.264, MPEG4 or M-JPEG

5. RTSP Path: RTSP output connecting route

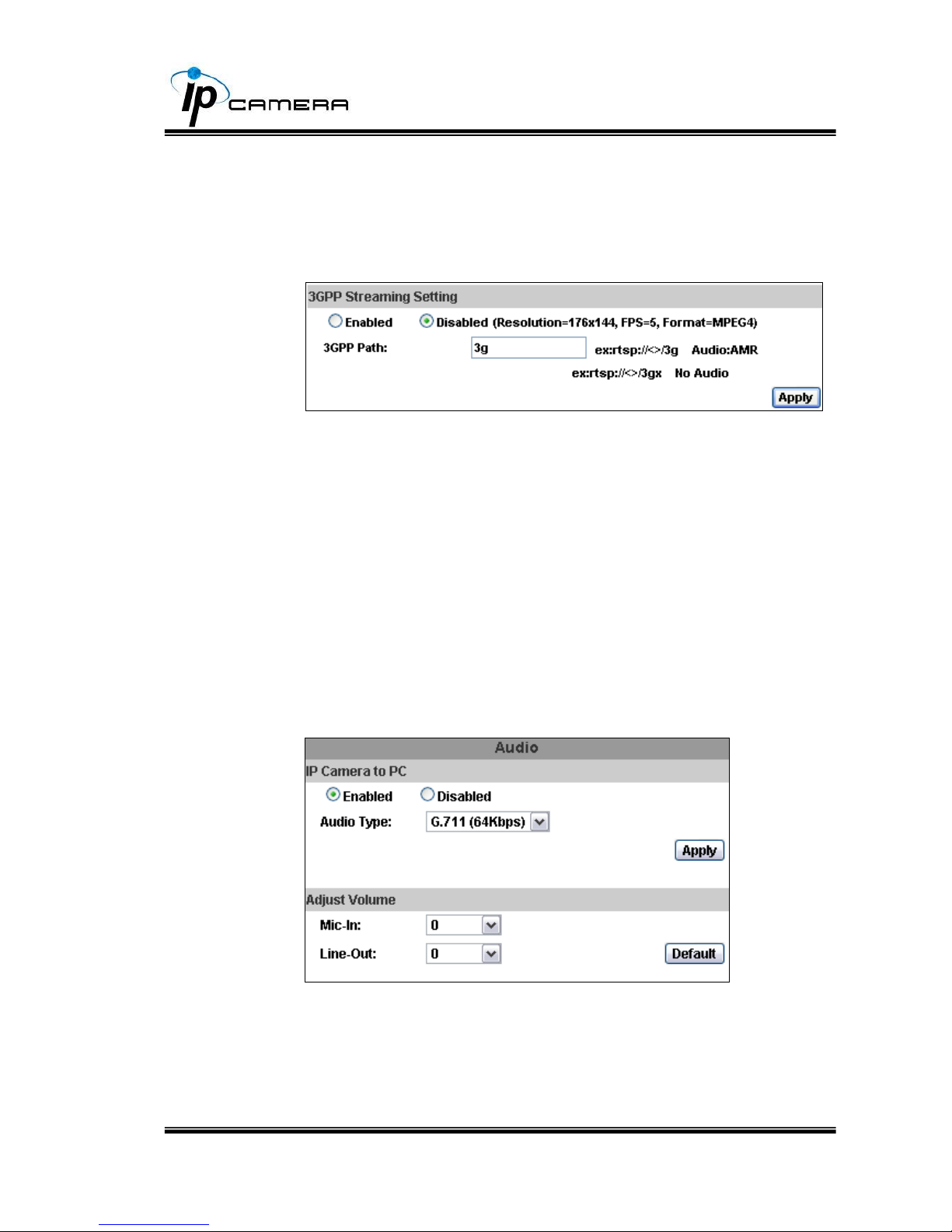

e. 3GPP Streaming mode:

3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format

1. Enable or Disable 3GPP Streaming

2. 3GPP: 3GPP output name

iii、 Audio：

IP CAMERA supports 2-way audio. User can send audio from IP
Camera Built-in mic to remote PC; User can also send audio from
remote PC to IP Camera’s external speaker.

a. Audio from IP camera built-in mic to local PC: select “Enable” to

start this function and also can select the audio type.

b. Adjust Volume
c. Audio from local PC to IP Camera: Check “chatting” in the browsing

page.

37/46

The Audio will not be smooth when enable SD card

recording function simultaneously.

38/46

D.Event List

IP CAMERA provides multiple event settings.

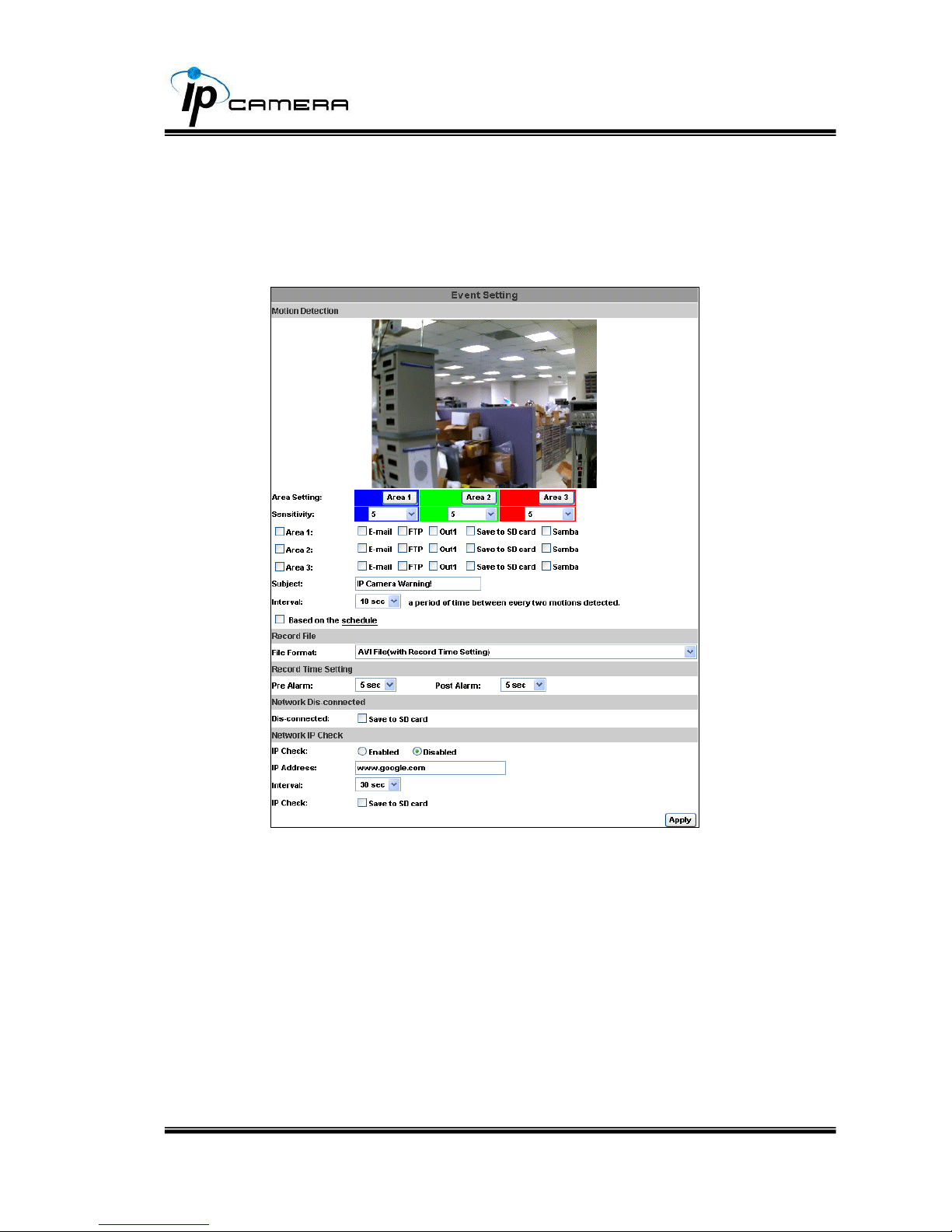

i、 Event Setting

a. Motion Detection：

IP CAMERA allows 3 areas motion detection. When motion is
triggered, it can send the video to some specific mail addresses,
transmit the video to remote ftp server, trigger the relay, and save
video to local Micro SD card. To set up the motion area, click “Area
Setting”. Using mouse to drag and draw the area. The same
operation for area 2 and 3.

b. Record File Setting: IP CAMERA allows 3 different types of

recording file to change its record size.

When motion/alarm is triggered, there are 3 different types of
record mode.

39/46

1. AVI File (With Record File Setting )

2. Multi-JPEG (With Record File Setting), only with JPEG
compression format.

3. Single JPEG (Single File with Interval Setting)

c. Record Time Setting：

Pre Alarm and Post Alarm setups for video start and end time when
motion detected, I/O, or other devices got triggered.

Note: Pre/Post Alarm record time is base on record time setting and IP Cam
built-in Ram memory. Limited by IP Cam built-in Ram Memory, When information
is too much or video quality set too high, it will cause recording frame drop or
decrease on post alarm recording time.

d. Network Dis-connected

When the network is down, it will save the video to local SD card.

This function is only enabled under wire connection.

e. Network IP check:

Whenever the connection is down, it records the video to SD card.
Make sure the video recording is continuous. To use this function,
key in the IP address of the PC which has recording software
installed. Enable the function of “Save to SD card”, then click
“Apply”.

The interval of two video files recorded on SD card is fixed with 30

seconds.

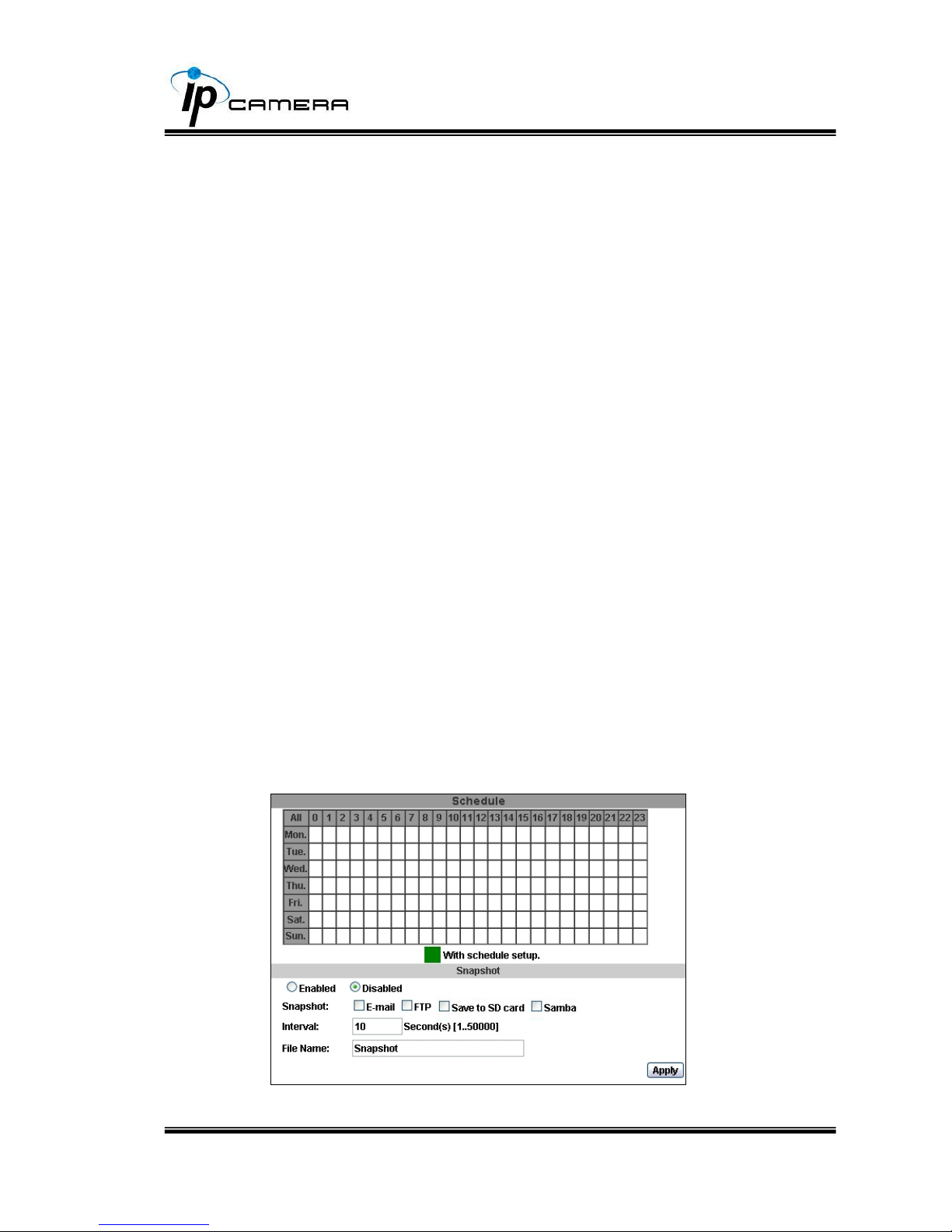

ii、 Schedule

a. Schedule: After complete the schedule setup, the camera data will

40/46

be recorded according to the schedule setup.

b. Snapshot: After enable the snapshot function, user can select the

storage position of snapshot file, the interval time of snapshot and
the reserved file name of snapshot.

c. Interval: The interval between two snapshots.

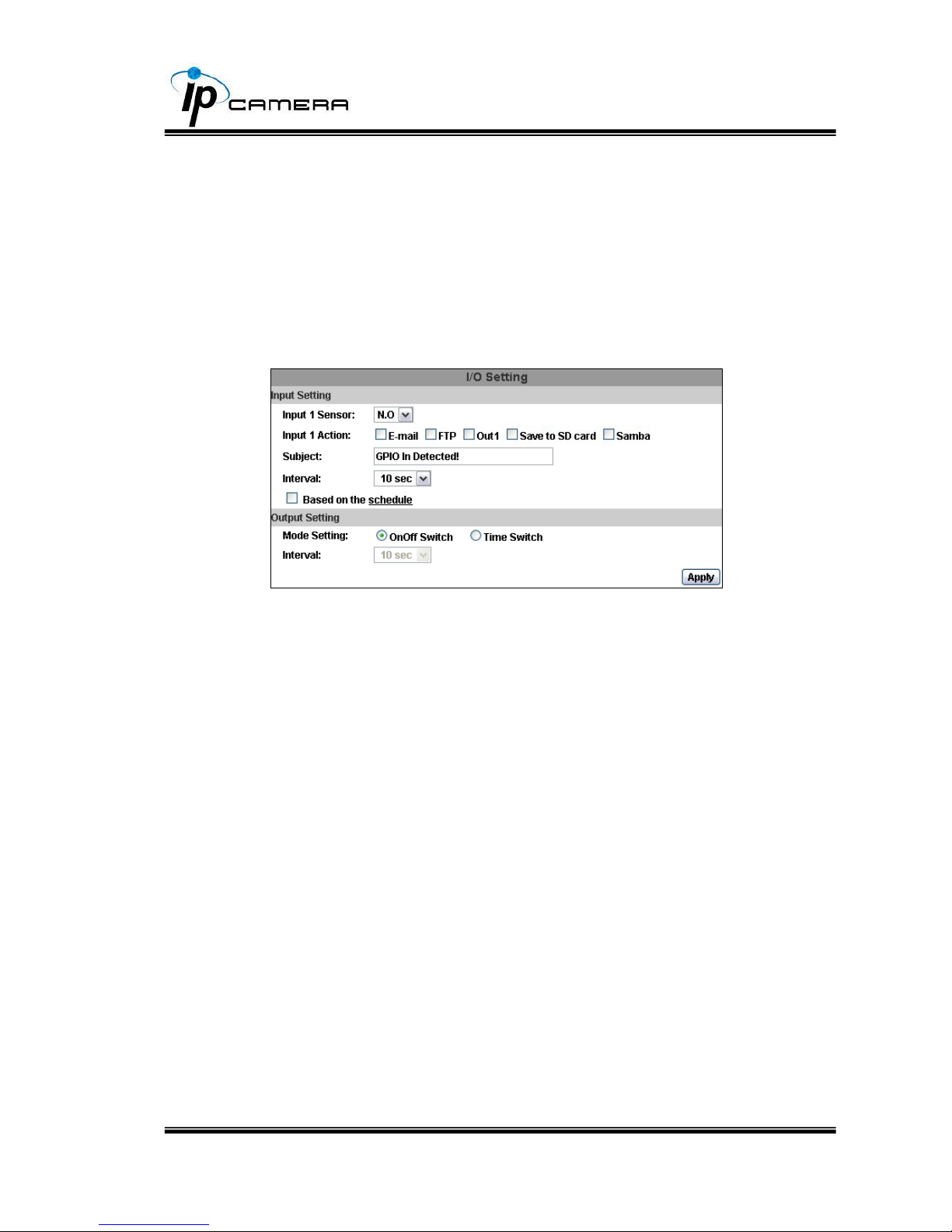

iii、 I/O Setting

a. Input Setting:

IP Camera supports input and output. When the input condition is
triggered, it can send the video to some specific mail addresses,
transmit the video to remote FTP server, trigger the relay, save
video to local SD card or to SAMBA.

b. Output Setting:

"OnOff Switch" means the camera executes the action when
triggered.
"Time Switch" means the camera executes the action according to
the interval you choose after triggered.

c. Use the terminal block on the back of camera for I/O connection.

Connect the external input devise to DI and G(Ground), and
connect the external output devise to DO and G(Ground).

41/46

d. The relay out can be switch on and off on the live video page.

iv、 Log List

Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,
System Logs and I/O Logs won’t lose data due to power failure.

42/46

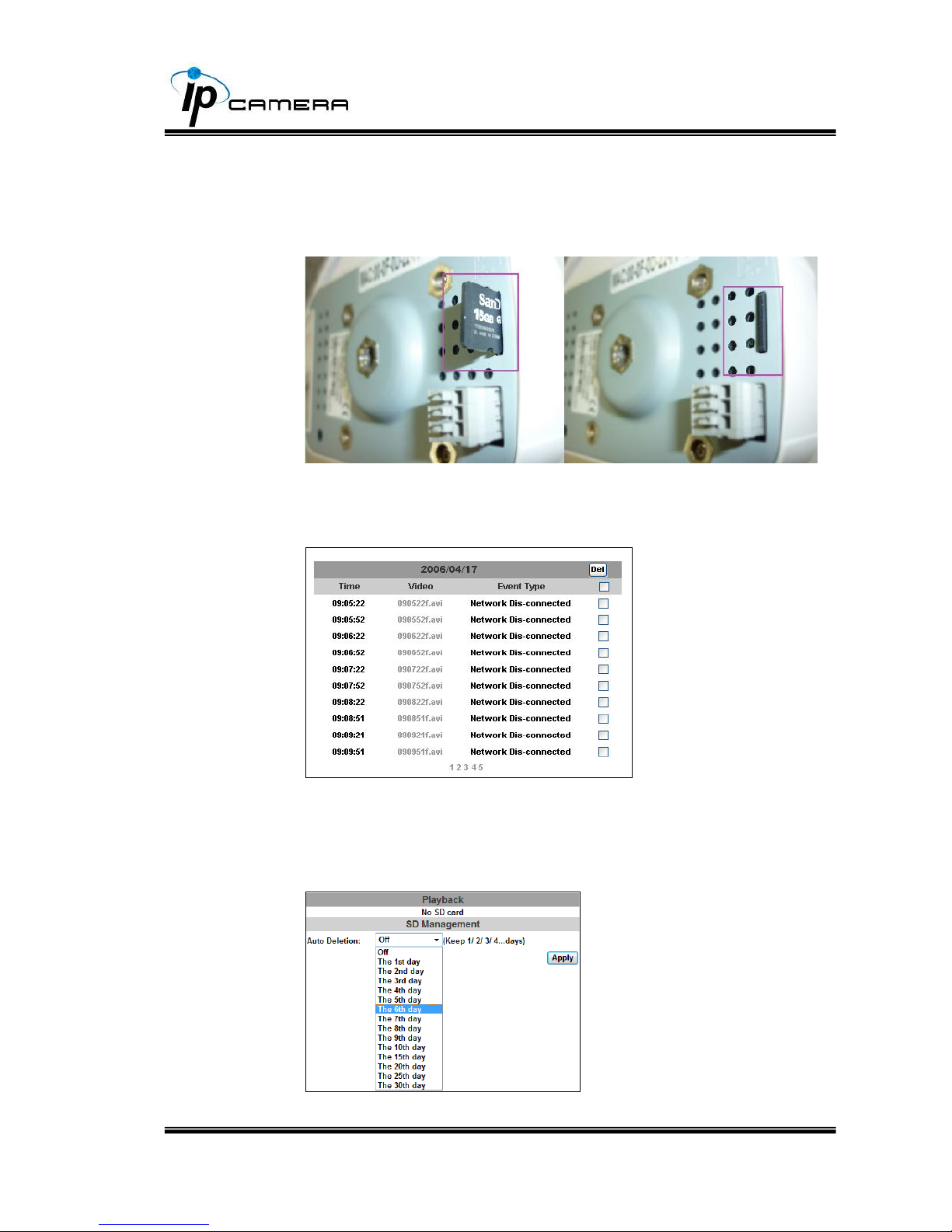

V、 Micro SD card

a. Playback

Please Insert Micro SD card before use it. Make sure pushing Micro
SD card into the slot completely.

Click the date listed on this page, and it shows the list of the video.
The video format is AVI. Click the video to start Microsoft Media
Player to play it. To delete the video, check it, then click "Del".

b. SD Management

Choose “The 1st day” means the recoding file will be keep one day.

Example: It is five o’clock now. Choose “The 1st day”. The files will

be kept from five o’clock yesterday to five o’clock today.

43/46

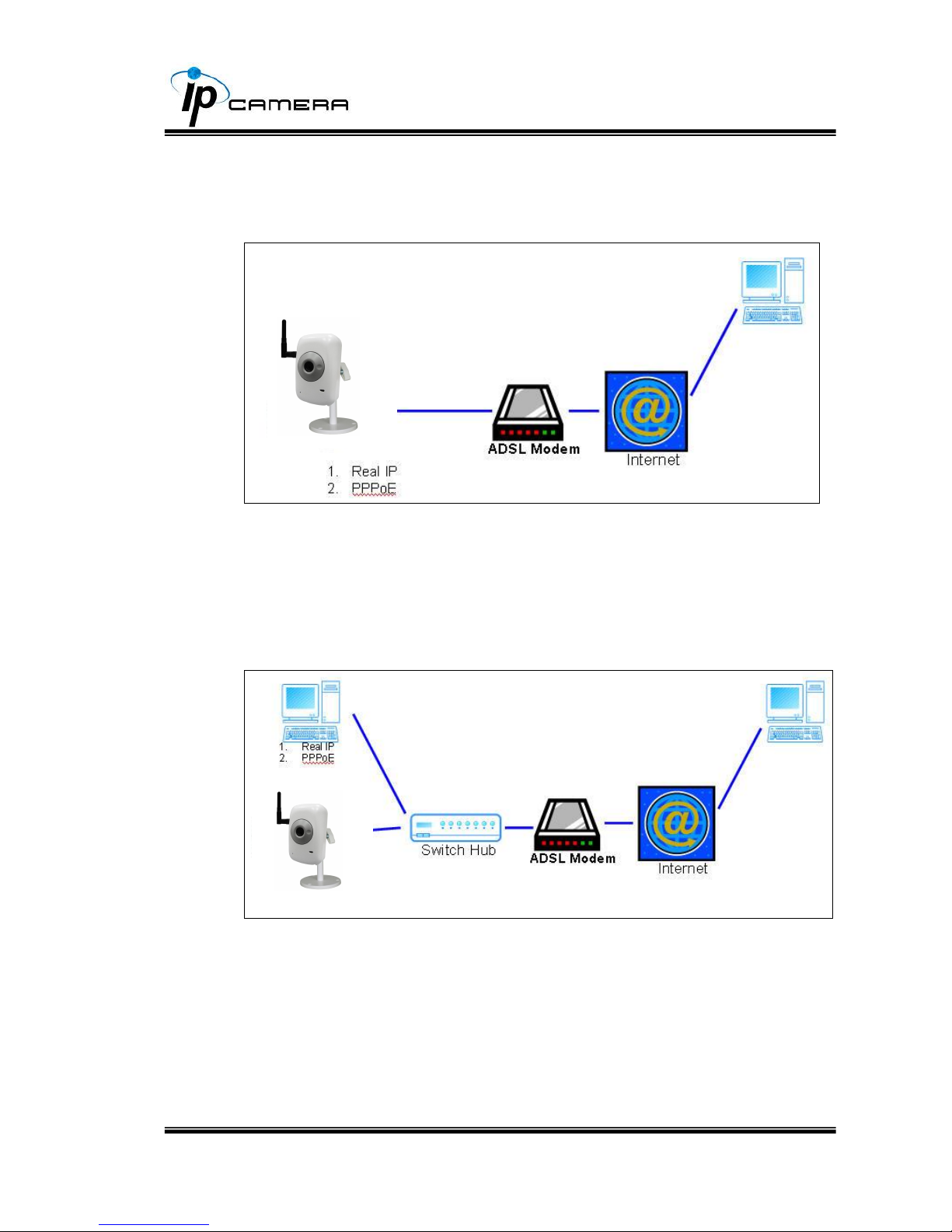

VI. Network Configuration

i、 Configuration 1：

a. Internet Access：ADSL or Cable Modem
b. IP address：One real IP or one dynamic IP
c. Only IP CAMERA connects to the internet
d. For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start

PPPoE.

ii、 Configuration 2：

a. Internet Access：ADSL or Cable Modem
b. IP address：More than one real IP or one dynamic IP
c. IP CAMERA and PC connect to the internet
d. Device needed：Switch Hub
e. For fixed real IP, set up the IP into IP CAMERA and PC. For dynamic IP,

start PPPoE.

44/46

iii、 Configuration 3：

a. Internet Access：ADSL or Cable Modem
b. IP address：one real IP or one dynamic IP
c. IP CAMERA and PC connect to the internet
d. Device needed：IP sharing
e. Use virtual IP, set up port forwarding in IP sharing.

45/46

VII. Factory Default

i、 To recover the default IP address and password, please follow the following

steps.

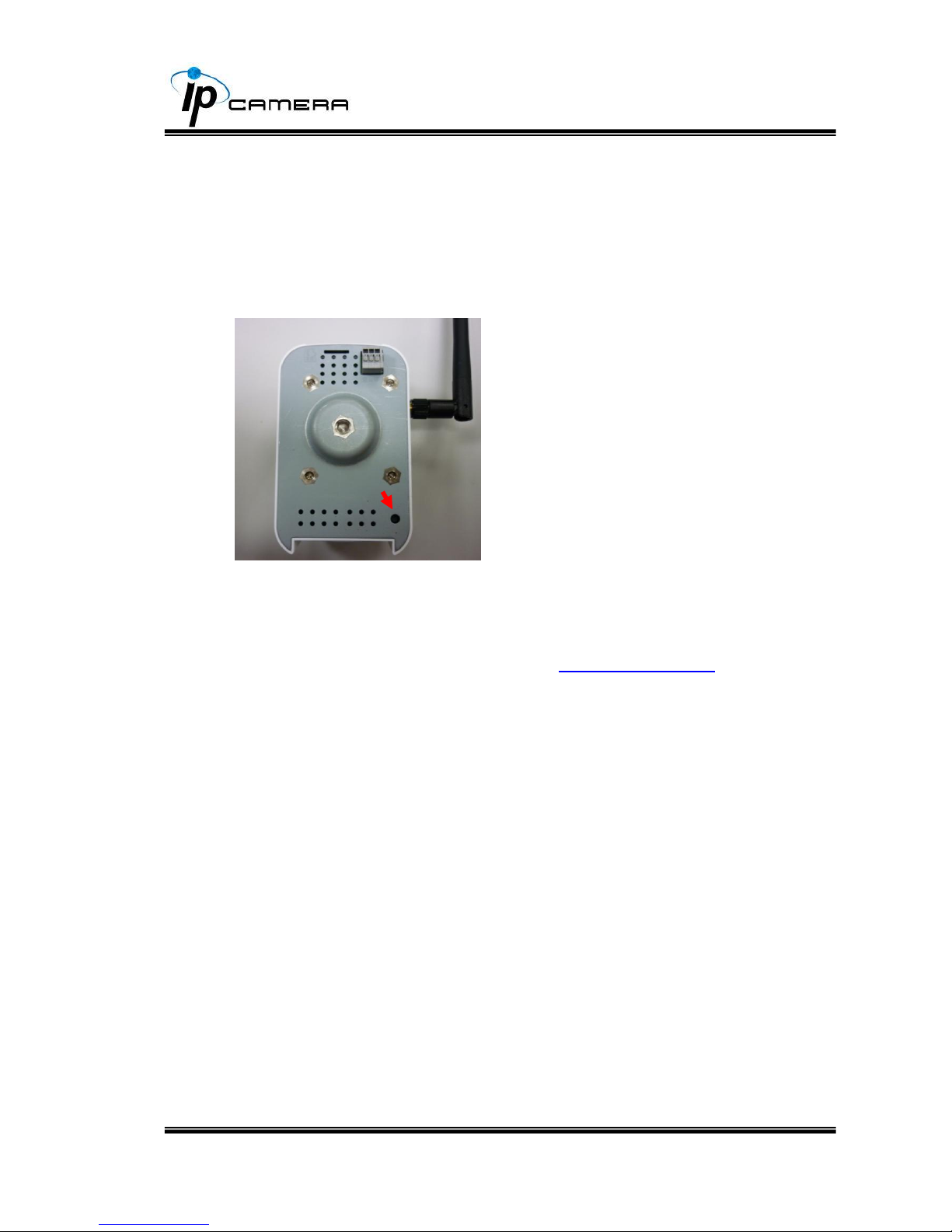

ii、 Remove power, and press and hold the button in the back of IP CAMERA.

iii、 Power on the camera. Don’t release the button during the system booting.
iv、 It will take around 30 seconds to boot the camera.
v、 Release the button when camera finishes proceed.
vi、 Re-login the camera using the default IP (http://192.168.1.200), and user

name (admin), password (admin).

VIII. Package contents

i、 IP CAMERA Network Camera
ii、 Adaptor
iii、 CD title (User manual, IP installation Utility)

Factory Default

46/46

IX. Micro SD Card

The following is the Micro SD Card recommended:

Transcend

SDHC class4 16GB
SDHC class4 32GB
SD class4 16GB
SD class4 32GB
SDHC class6 4GB
SDHC class6 8GB
SDHC class6 16GB
SD class6 4GB
SD class6 8GB
SD class6 16GB

SanDisk

SDHC class4 4GB
SDHC class4 8GB
SDHC class4 16GB
