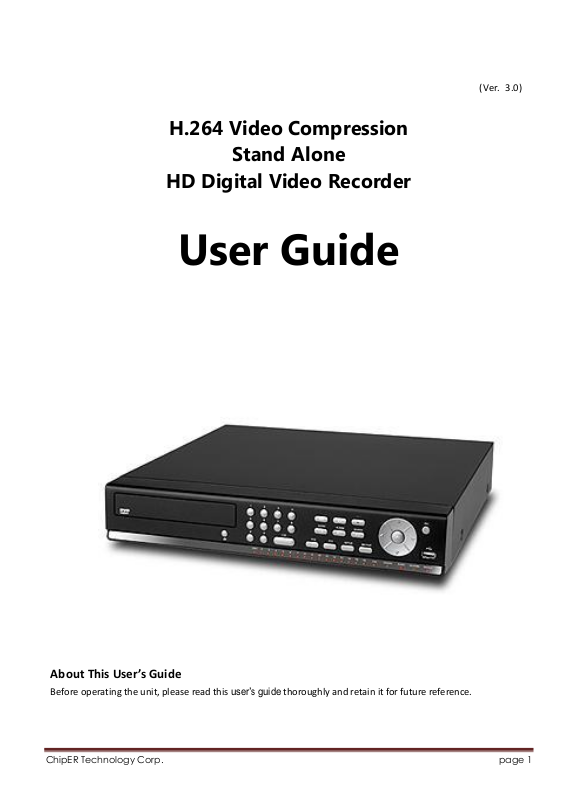

H.264 Video Compression
Stand Alone
HD Digital Video Recorder
User Guide
About This User’s Guide
Before operating the unit, please read this user’s guide
ChipER Technology Corp. page 1
thoroughly and retain it for future reference.
Page 2

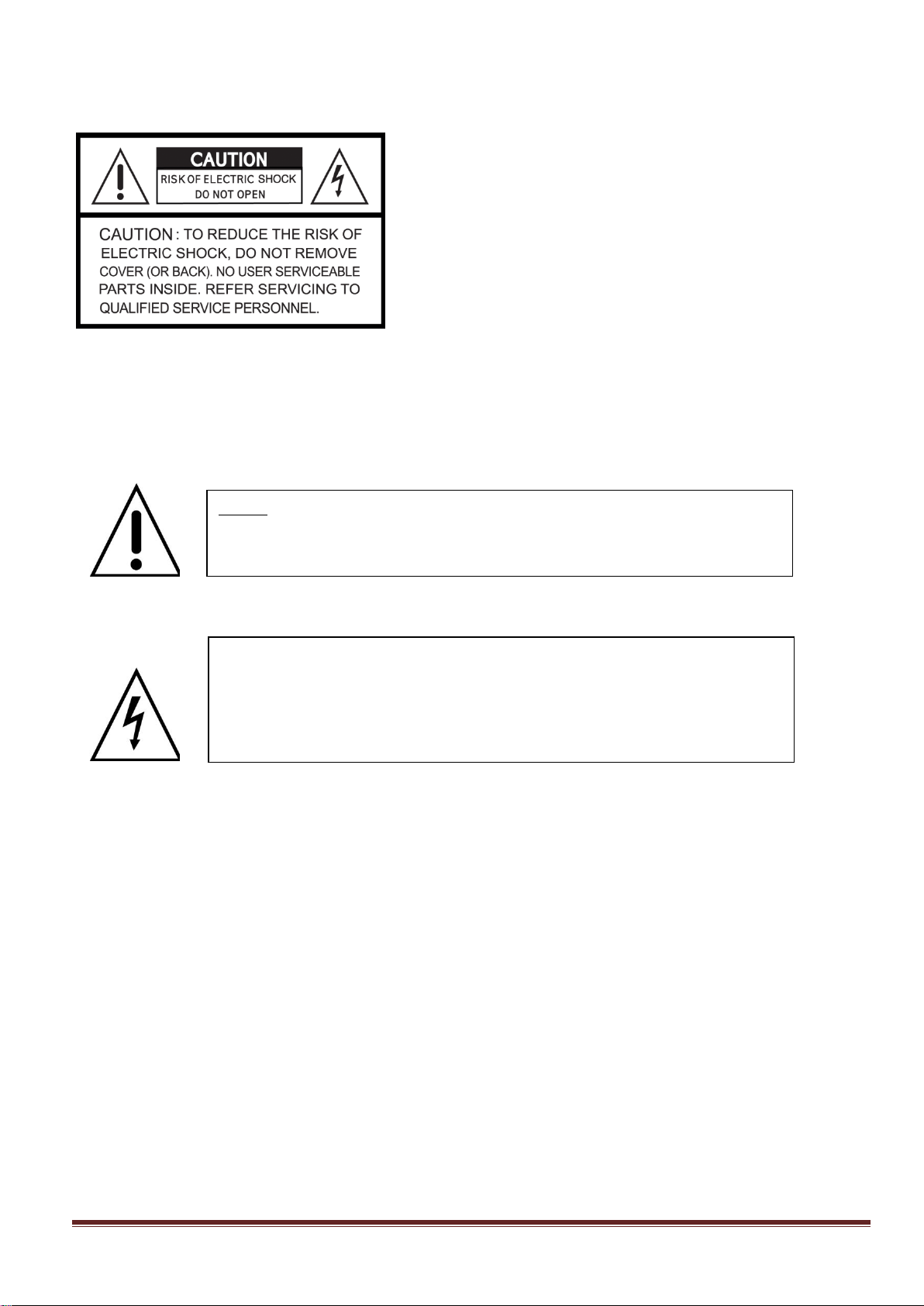

Cautions
This symbol indicates the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
This symbol indicates the presence of “dang
erous
voltage”
within the pr
oduct’
s
enclosure that may be of sufficient magnitude to constitute a risk of electric
shock, property damage, personal injury, or death.
Explanation of Graphical Symbols
.
WARNING
To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.
CAUTION
Changes or modifications not approved by the manufacture will void the warranty of the
product. Using an incompatible battery may increase the risk of fire or explosion.
Replace only with the same or equivalent type battery recommended by the manufacture.
Discard used batte
ries
according
to
manufacturer’s instr
uctions.
ChipER Technology Corp. page 2
Page 3
These precautions must be followed for safety reasons.
Warning
Do not use if the unit emits smoke.
Do not disassemble the unit.
Do not place any heavy or sharp objects on the unit.
Do not place on uneven surface.
Do not expose to shock or vibration.
Do not move the unit when the unit is powered on.
Do not block, and allow dust to accumulate in the air vents.
Do not restrict airflow of the unit; doing so can damage the unit.
Installation and servicing should be performed only by qualified and
experienced personnel.
Turn off the power of the DVR when connecting Cameras, Audio or Sensor
Cables.
The manufacture is not responsible for any damage caused by improper use
of the product or failure to follow instructions for the product.
The manufacture is not responsible for any problems caused by or resulting
from the user physically opening the DVR for examination or attempting to
repair the unit.
The manufacture may not be held liable for any issues with the unit if the
warranty seal is removed.
ChipER Technology Corp. page 3
Page 4
Table of Contents
Product Components ........................................................................................................ 7
Features............................................................................................................................. 8
Specifications: SDR-SDR550-04, SDR550-08, SDR550-16…………………………..….… 11
1. Name, Function and Connection .................................................................................. 13
1-1. Front Panel................................................................................................................. 13
1-2. Rear Panel ................................................................................................................. 15
1-3. Remote Control ........................................................................................................... 17
2. Preparation .................................................................................................................. 18
2-1. DVD-RW Installation .................................................................................................. 18
2-2. Hard Drive Installation ................................................................................................ 19
2-3. Compatible HDD Models ............................................................................................ 20
2-4. Setting Daylight Saving Time ..................................................................................... 22
2-5. Setting NTP (Network Time Protocol)........................................................................ 23
3. Setting up the DVR ..................................................................................................... 26
3-1. Setup – Main screen and Menu Tree ......................................................................... .26
3-2. Setup – Display Mode ................................................................................................ 30
3-3. Setup – Record Mode ................................................................................................ 31
3-3-1. Recording Schedules .............................................................................................. 34
3-4. Setup – Device Mode ................................................................................................. 35
3-4-1. ALARM-OUT ........................................................................................................... 36
3-4-2 SPOT-OUT Setup ................................................................................................... 36
3-4-3 CONTROLLER & PTZ Setup .................................................................................. 37
3-4-4. Motion Zone Setup ................................................................................................. 38
3-5. Setup – Storage Mode............................................................................................... 39
3-6. Setup – System Mode ............................................................................................... 40
3-7. Setup – Security Mode .............................................................................................. 41
3-8. Setup – Network Mode .............................................................................................. 45
3-8-1. DDNS ..................................................................................................................... 46
3-8-2. Network Ports......................................................................................................... 47
3-8-3. Network Stream....................................................................................................... 48
ChipER Technology Corp. page 4
Page 5
3-9. Setup - CONFIG Mode ............................................................................................... 49
3-10. Quick Setup.............................................................................................................. 50
4. Live, Search and Playback ......................................................................................... 51
4-1. Live Viewing Screen ................................................................................................... 51
4-2. SEARCH Screen ........................................................................................................ 53
4-2-1. TIME-LINE Search .................................................................................................. 54
4-2-2. Event Search........................................................................................................... 55
4-2-3. Go To First Time ...................................................................................................... 55
4-2-4. Go To Last Time ...................................................................................................... 55
4-2-5. Go To Specific Time ................................................................................................ 56
4-2-6. Archive Search ........................................................................................................ 56
4-2-7. Log Search.............................................................................................................. 57
4-3. Play Mode .................................................................................................................. 58
5. PTZ Control ................................................................................................................ 59
6. Back Up ...................................................................................................................... 60
6-1. Still Image Backup onto USB Flash Drive .................................................................. 60
6-2. Video Backup onto USB Flash Drive .......................................................................... 60
6-3. Transferring Still Images or Video from the ARCHIVE List ......................................... 61
6-4. Playback of Backup Video.......................................................................................... 62
7. Network Access Using the Single Site Network Viewer ............................................... 63
7-1. PC Requirements ........................................................................................................ 64
7-2. Installing the Network Viewer ...................................................................................... 64
7-3. Live Monitoring Mode and Functions........................................................................... 65
7-4. Bi-directional Audio...................................................................................................... 67
7-5. Remote Search Mode and Functions .......................................................................... 67
7-6. PC System Configuration ................................................... ........................................ 69
8. Network Access Using the Multi-Sites Network Viewer................................................ 74
8-1. Overview ..................................................................................................................... 74
8-2. Minimum PC Requirements ........................................................................................ 74
8-3. Installation of the Program .......................................................................................... 74
8-4. Live Window ................................................................................................................ 76
8-4-1. Main User Interface .................................................................................................. 78
8-4-2. Control Buttons ........................................................................................................ 78
8-5. Search and Playback Window..................................................................................... 78
8-5-1. Main User Interface .................................................................................................. 78
8-5-2. Main Control Panel................................................................................................... 79
ChipER Technology Corp. page 5
Page 6
8-6. Setup of UMS Multi Client ........................................................................................... 81
8-6-1. General .................................................................................................................... 81
8-6-2. Event ........................................................................................................................ 81
8-6-3. Record ..................................................................................................................... 81
8-6-4. OSD ......................................................................................................................... 81
8-6-5. Language ................................................................................................................. 85
8-7. Remote Setup ............................................................................................................ 86
8-7-1. Setting the Display .................................................................................................. 86
8-7-2. Record .................................................................................................................... 86
8-7-3. Storage.................................................................................................................... 87
8-7-4. Device ..................................................................................................................... 87
8-7-5.Upgrade ................................................................................................................... 87
8-7-6. System ................................................................................................................... 88
8-7-7.Network .................................................................................................................... 88
8-8. Operation ................................................................................................................... 89
8-8-1. Addition, Delete, and Modify of DVR Sites .............................................................. 90
8-8-2. Connect and Disconnect ......................................................................................... 91
8-8-4. Recording Video on Local PC during Live .............................................................. 93
8-8-5. Local Playback and Remote Playback ................................................................... 96
9-8-6. AVI Backup During Playback .................................................................................. 97
9. Network – By a Web-Browser Viewer ......................................................................... 99
10. Network Access Using the Mobile Viewer .............. .................................................. 102
10-1. Installing the Viewer ................................................................................................. 102
10-2. iUMS for Android Live Monitoring and PTZ Control .................................................. 102
10-2-1. Live ........................................................................................................................ 102
10-2-2.PTZ Control............................................................................................................. 102
10-3. iUMS for Apple iPhone .............................................................................................. 103
10-3-1. Live ........................................................................................................................ 103
10-3-2.PTZ Control............................................................................................................. 103
10-3-3. Playback ................................................................................................................ 103
APPENDIX: How to Connect the Network ......................................................................... 106
A. How to set the IP address of the DVR and open TCP port of the router? .................... 106
B. How to access DVR from a Remote PC? .................................................................... 109
LAN Connection – Using a Switching Hub……................................................................ 109
Internet Connection Using DDNS ...................................................................................... 111
ChipER Technology Corp. page 6
Page 7
Product Components

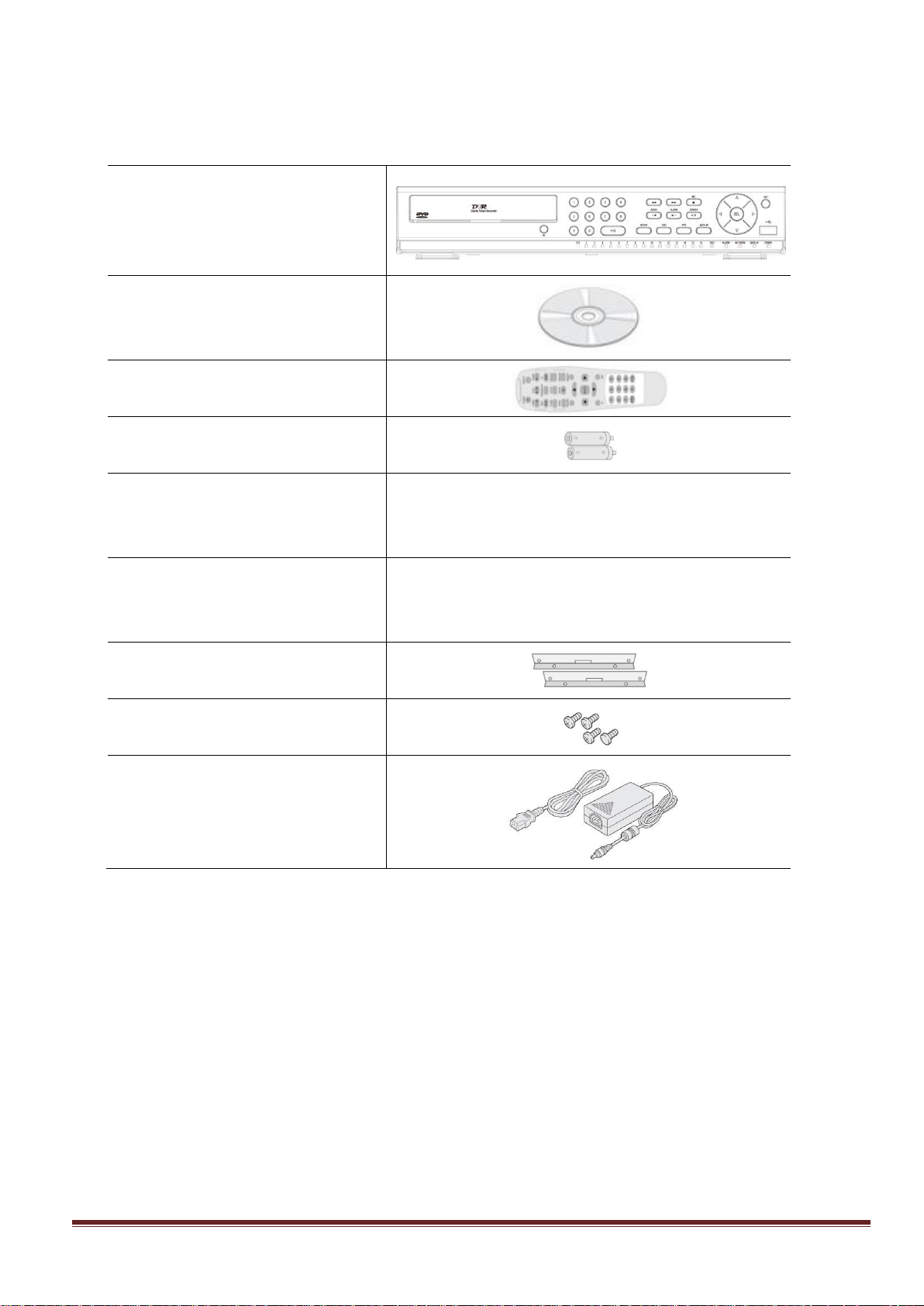

DVR Unit
Client Software CD
Remote Control
Battery1.5V (AAA x 2EA)
User Guide
(as PDF on Client Software CD)
Data Power Cable (x2 EA)
Mounting Bracket & Screws
(x2 EA)
HDD Mounting Screws
Power Adaptor (DC12V 5A )
& Power Cable (110V or 220V)
Please make sure the following components are included as specified below.
ChipER Technology Corp. page 7
Page 8

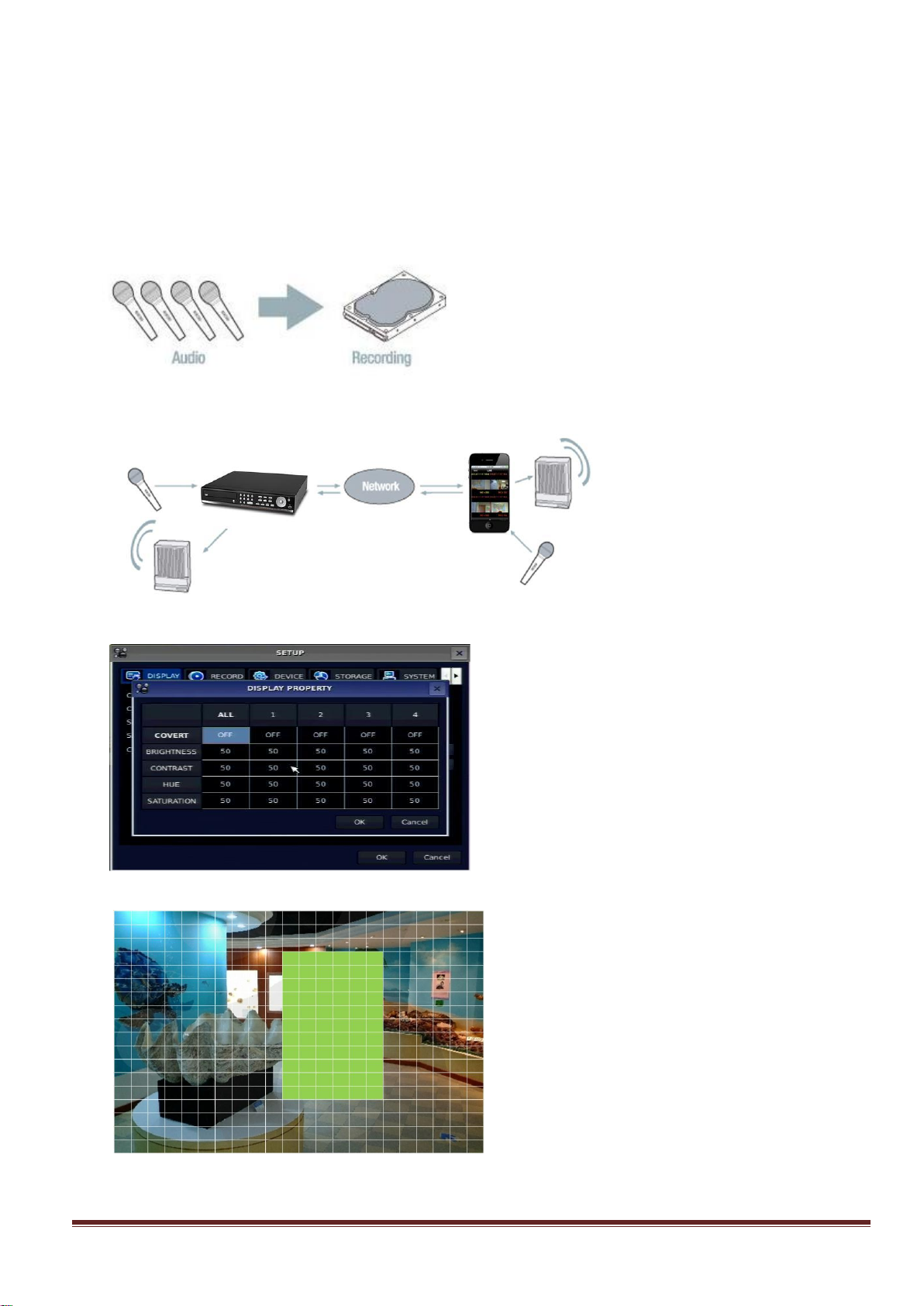

Features
H.264 V ideo compression
HDcctv/HD-SDI Compatible
HDMI 1080P V ideo Output
Reliable File System
4 Channel Audio Recording: Perfect audio sync. for court evidence.
Bi-directional Audio over network via Network Client Software, Web-Viewer, CMS, and
Mobile Viewer
Individual Channel Operation
Motion Detection
ChipER Technology Corp. page 8
Page 9

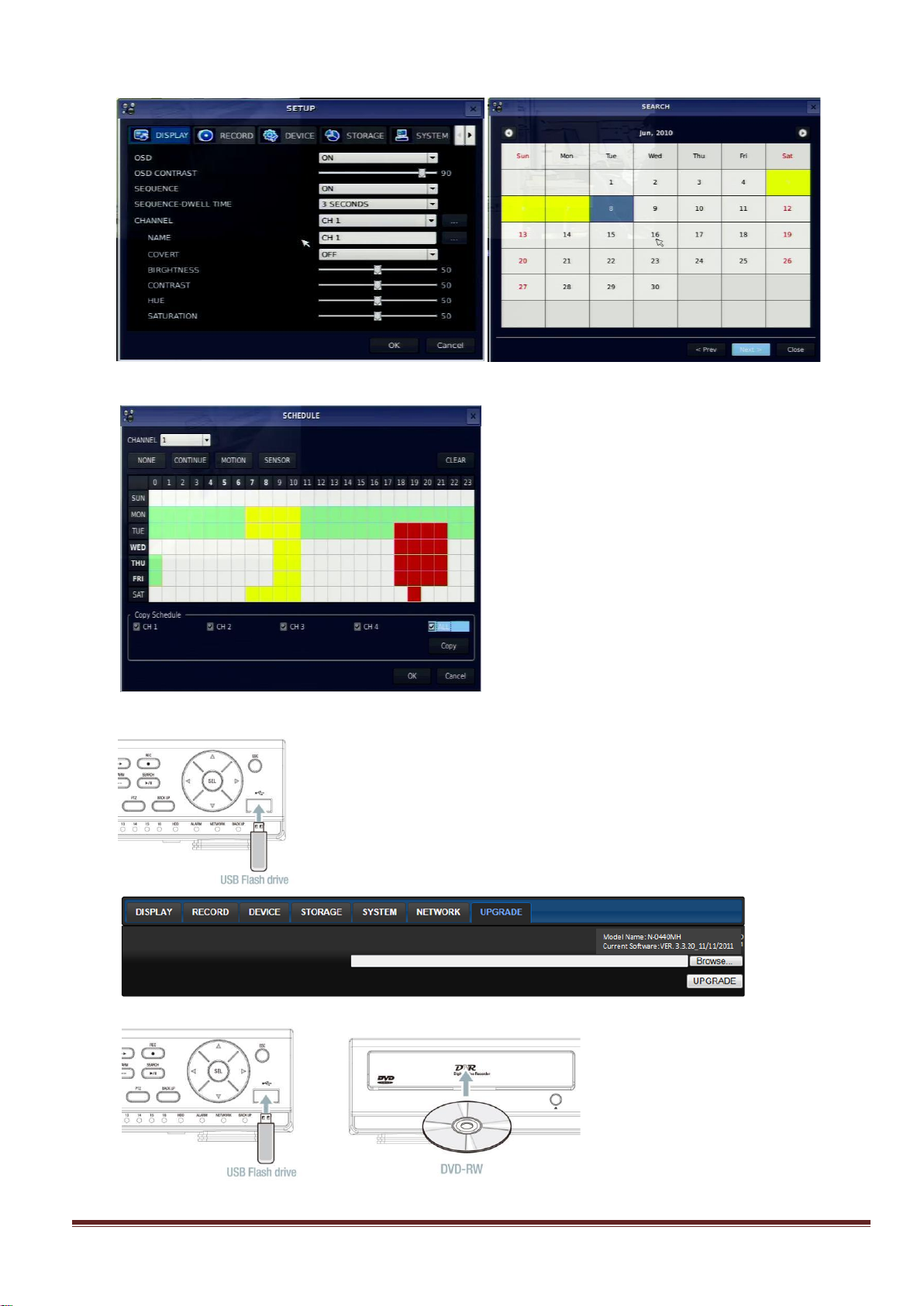

Easy and Simple Graphic User Interface
Simple Scheduler
Easy Software Upgrade via USB flash drive or Network software.
Instant and Convenient Backup via USB Flash Drive, Network or DVD-RW
ChipER Technology Corp. page 9
Page 10
Exclusive File Format and AVI Backup
Time stamp over AVI backup data for court evidence
S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology for HDD)
Automatic Video Input and Video Loss Detection
Covert Camera Operation (Provides Enhanced Security)
Built-in PTZ Camera Control

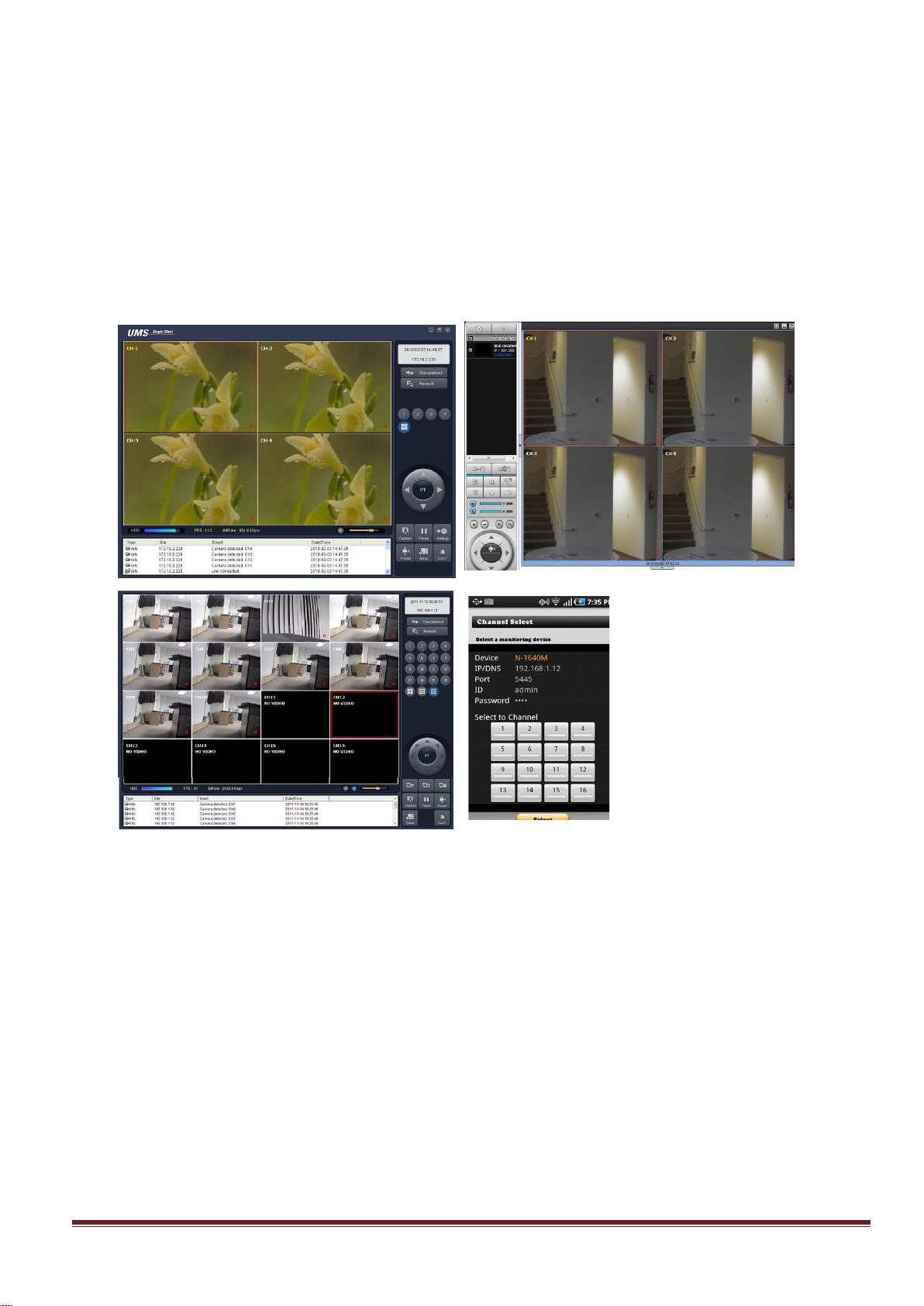

Variety of Ways Network Access via Network Client Software, Web-Viewer, CMS, and
Mobile Viewer
ChipER Technology Corp. page 10
Page 11
Specifications:SDI-SDR550-04, SDI-SDR550-08, SDI-SDR550-16
ITEM
SDR550-04
SDR550-08
SDR550-16
Recording Performance
720p x 48FPS/
720p x 120FPS/
1080P X 40FPS
720p x 192FPS/
1080P X 80FPS
Video
Input
Channel
4 Channels
8 Channels
16 Channels
Input Level
HDcctv/HD-SDI
Output
VGA
VGA (Max. 1080p)
HDMI
1 HDMI (Max. 1080p)
HD-SDI
1 Channel
Audio
Input & Output
4 Line input &
1 Line output
8 Line input & 1
Line output
4 Line input &
1 Line output
1CH Line and HDMI Output
Audio Codec
G.711 (ADPCM)
Alarm
Sensor Input
4/8/16CH, NC/NO Selectable
Alarm
Out
1/2/4CH out by Sensor, Motion and Video Loss
Operation
Multi-operation
QuadPlex: Playback/Record/Backup/Network
Recording
Compression
H.264
HD
1280 x1080
48fps
96fps
192fps
Full HD
1920 x1080
20fps
40fps
80fps
Recoding Quality Grade
5
Grades
Recording Mode
Continuous, Schedule, Motion, Sensor, Manual
Motion Detection
Setup by
Grid
Pre Recording
Min. 15 seconds and Max. 20 minutes
Post Recording
Min. 10 seconds and Max. 60 minutes
Display
Frame Rate
Real Time
Playback
Multi-Decoding
1,4
1,4,8
1,4,8,4,16
Playback speed
X1/4~x32
X1/4~x16
X1/4~x8
Search Mode
Timeline, Event, Archive, Log, Specific Time
Backup
File
Format
JPEG/Proprietary Format
Media
USB/External HDD/DVD/Network
Built-in Viewer
Yes
Network
Web viewer (1:1)
Live, Search, Backup, PTZF, Remote Setup, Remote
Upgrade, Two Way Audio
3G Mobile Viewer (1:1)
Live, Search, Backup, PTZF, Two Way Audio
Multi-sites Monitoring
SW (1:n)
(Live, Search, Backup, PTZF, Remote Setup, Remote
Upgrade, Two Way Audio
Storage
HDD
Interface
SATA,
e-SATA
Capacity of 1 HDD
2TB
Internal HDD
Number
1EA (2EA without DVD-RW), 2EA (4EA without DVD-RW)
ChipER Technology Corp. page 11
Page 12
ITEM SDR550-04
SDR550-08
SDR550-16
User
Interface
Menu Display
Graphic User Interface
Input Method
Front Buttons, IR Remote control,
Mouse, Keyboard controller
Serial
POS
1
RS-232C
PTZ & Controller 1 RS-485
2 RS-485
Network
Ethernet RJ-45,
10/100/1000Base-T,
Auto MDI/MDIX
Network
Access
Web Viewer
Live, Search/Playback, Backup, PTZF, Remote
Setup/Upgrade
Single-site monitoring software
Live, Search/Playback, Backup, PTZF, Remote
Setup/Upgrade
Multi-sites monitoring software
Live, Search/Playback, Backup, PTZF, Remote
Setup/Upgrade
Features
DST (Daylight Saving Time)
Yes
Internal Beep
By Alarm, Motion, Video Loss, HDD error
Multi Language
Yes (more than 20 languages)
Software Upgrade
By USB, Network Remote Upgrade
NTP
Yes
Watermarking
Yes
3G
Mobile iPhone, Android, Blackberry
General
Operation Condition
5°C - 40°C, During storage: -10°C -
+50°C
Power
DC 12V 5A
AC100~120V/200~240V,
50/60Hz, 280W
Net Weight (Gross Weight)
9 Lbs. (13.6 Lbs.) / 15 Lbs. (19.8 Lbs.)
Unit Dimension (W x D x H)
14.96” x 13.38”mm x 2.83”mm
17.00” x 16.92”mm x
3.86”mm
Please note that specifications and unit exterior design are subject to change without notification.
ChipER Technology Corp. page 12
Page 13

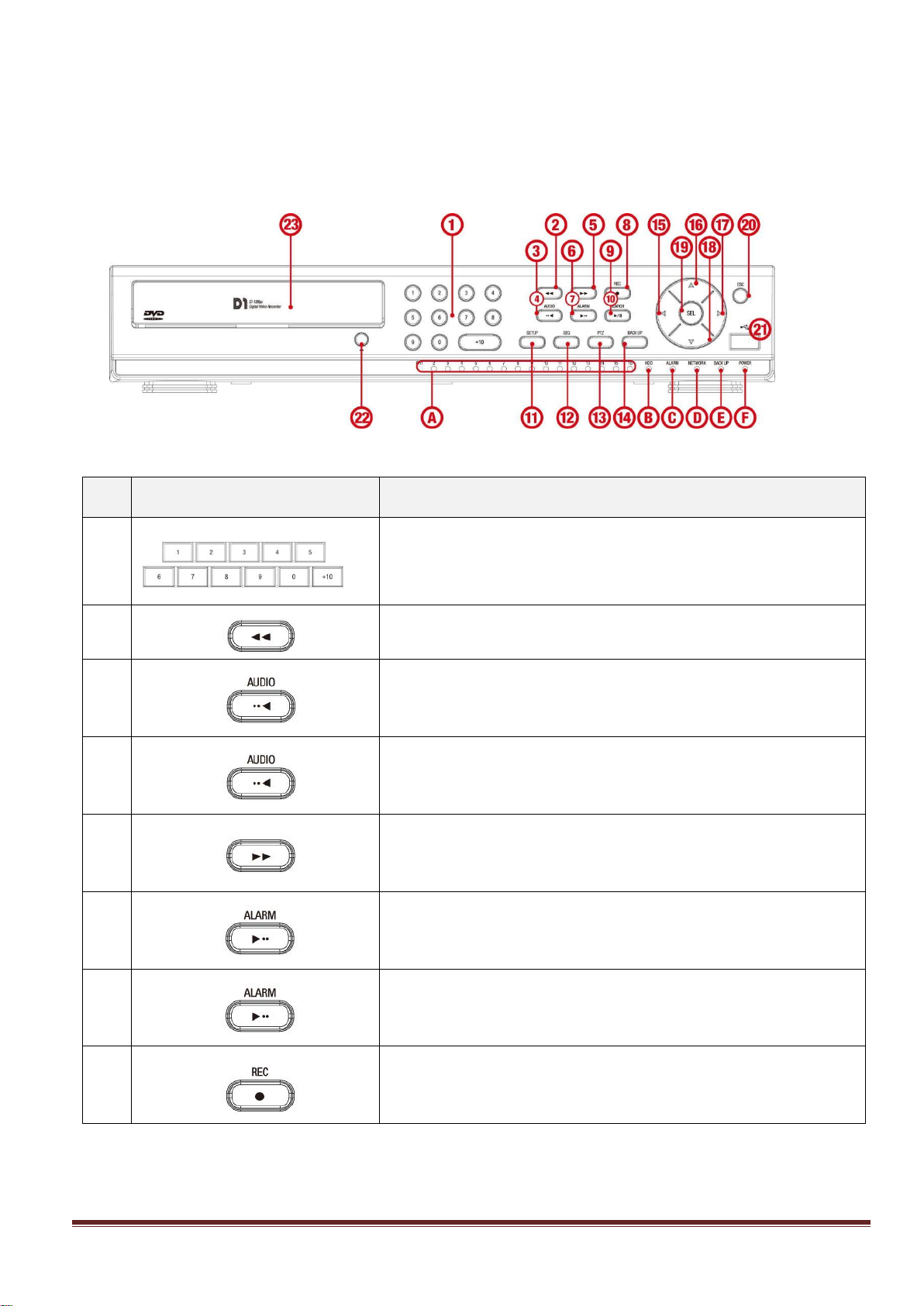

1. Name, Function and Connection
NO
Name
Description
1
Channel keys. For channel 10, press the 0 key. For
channel 11, press the +10 and 1 key. For channel 16,
press the +10 and 6 key.
2
In playback mode, press to rewind the recording.
3
Press to select an audio mode: MUTE –Mute all 4 channels.
SINGLE- Highlighted channel only. MIX- Mix all 4 channels
4
Jump/step backward. In playback mode, the playback
position moves 60 seconds backward.
5
In playback mode, press to fast forward the recording.
6
Press to enable/disable ALARM operation.
7
Jump/step forward. In playback mode, the playback
position
moves 60 seconds forward.
8
Press to start or stop manual recording.
1-1. Front Panel
The following information will help you to operate the front panel controls.
ChipER Technology Corp. page 13
Page 14

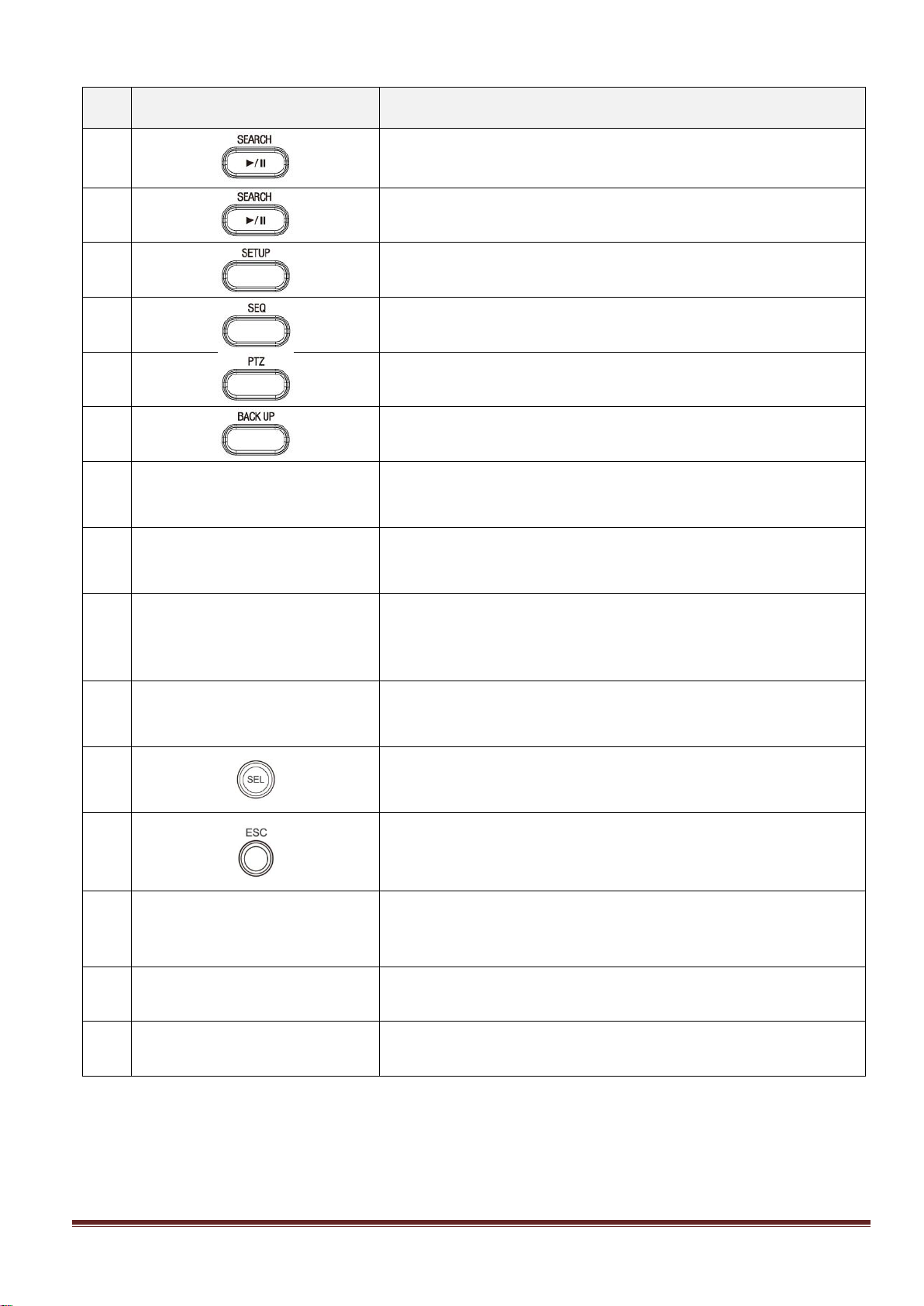

NO
Name
Description
9
In live display mode, press to open the SEARCH menu.
10
In playback mode, press to play/pause the footage.
11
Press to open the SETUP menu.
12
Enable/disable the automatic sequence of display of
channels
13
Press to control Pan/T ilt/Zoom operations.
14
Press to capture video in jpeg format in live or playback
mode.
15
(LEFT)
Press to move left or to change the values in Setup mode.
It is also used as the number 4 when entering password.
16
(UP)
Press to move up the menu in Setup mode.
It is also used as the number 1 when entering password.
17
(RIGHT)
Press to move right or to change the values in Setup
mode.
It is also used as the number 2 when entering password.
18
(DOWN)
Press to move down the menu in Setup mode.
It is also used as the number 3 when entering password.
19
Press to select desired menu item or to store the setup
value.
20
Press for temporary storage of the changed value or to
return
to the previous menu screen.
21
USB Port
To archive still-image or video into a USB flash drive or
upgrade
the firmware with USB flash drive.
22
OPEN/CLOSE
To open and close the insert tray, press the button.
23
DVD Drive
To save video, insert a CD-R/DVD-R.
ChipER Technology Corp. page 14
Page 15
NO
Name
Description
A
CH1~16
Indicates that the channel is being recorded.
B
HDD
Indicates that the system is accessing the hard disk.
C
ALARM
Indicates that sensor(s) is/are triggered or motion is
detected.
D
NETWORK
Indicates that a network client is connected
E
BACKUP
Indicates that a USB or DVD-RW device contains stored
data
F
POWER
Indicating that the system is powered on.

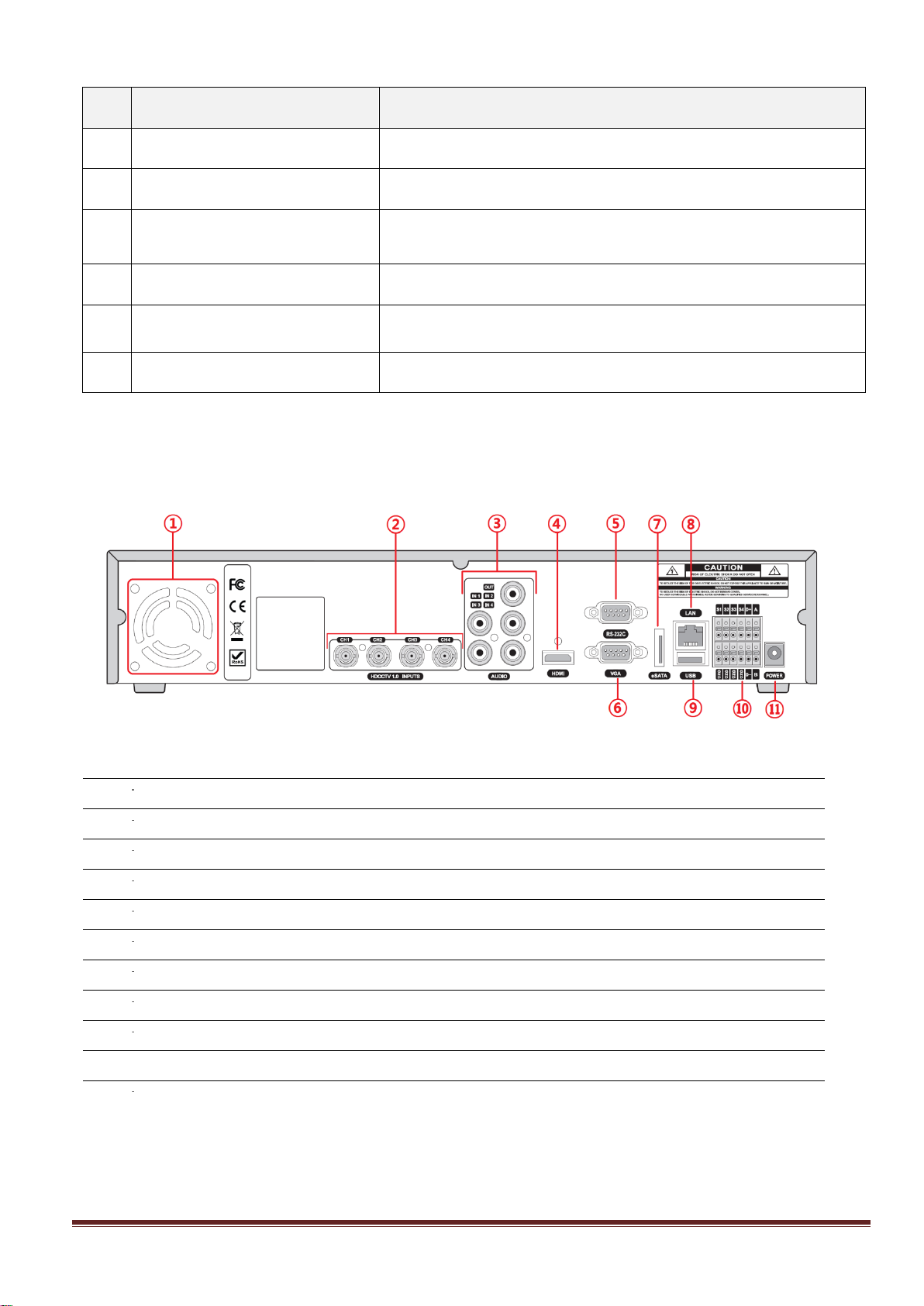

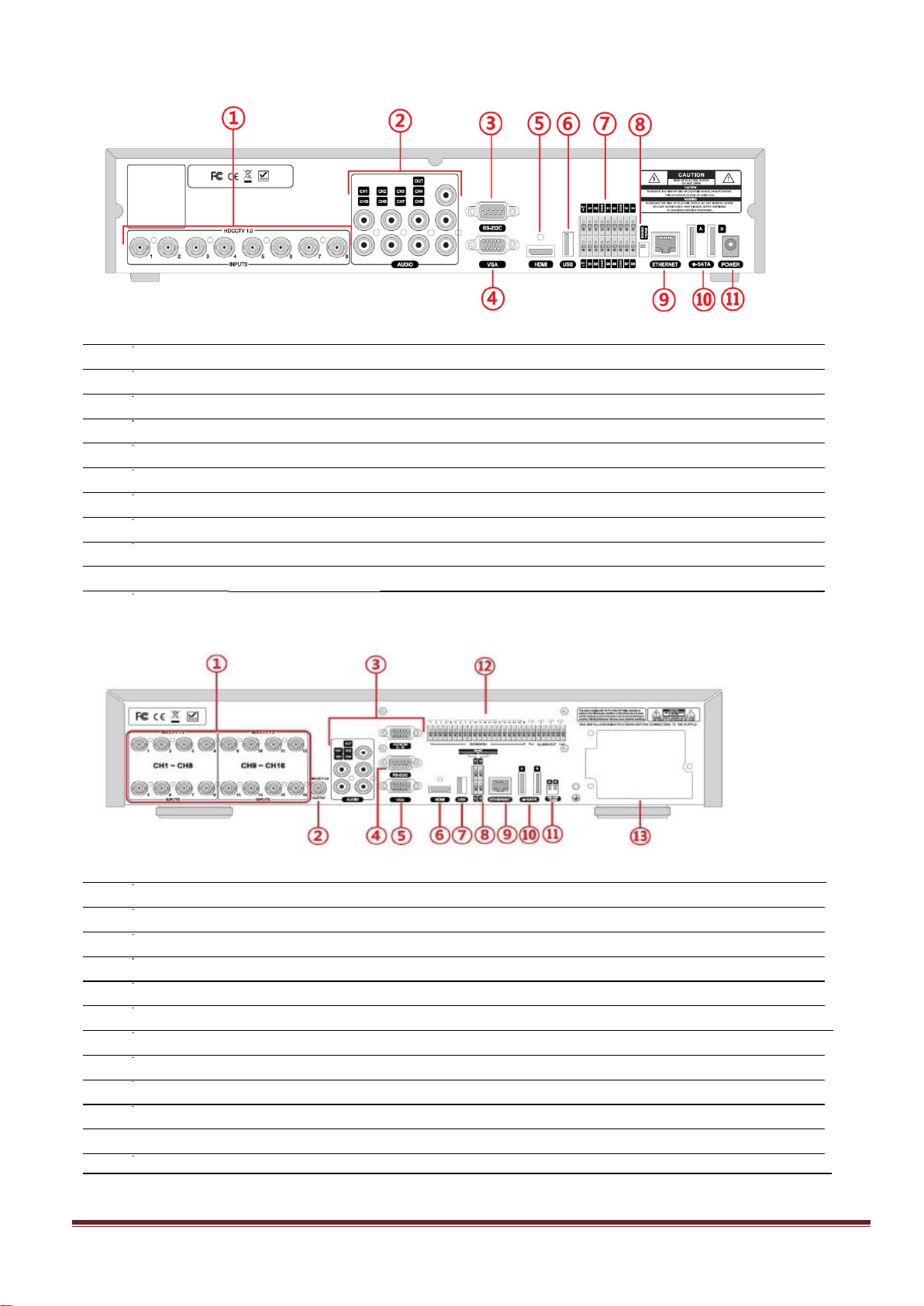

1-2. Rear Panel
1-2-1. SDI-SDR550-04
1
Cooling Fan
2
3
4
5
6
7
8
9
10
HD-SDI Video Input
Audio Input
HDMI Video Output
RS 232 Terminal (For testing purposes)
VGA Output
eSATA Port
Network RS-45 Ethernet Port
USB Port
RS-485 PTZ Camera control terminal
11 DC12V Power Input
ChipER Technology Corp. page 15
Page 16
1-2-2. SDI-SDR550-008
1
2
3
4
5
6
7
8
9
10
11
1-2-3. SDI-SDR550-016
HD-SDI Video Input
Audio Input
RS 232 Terminal (For testing purposes)
VGA Output
HDMI Video Output RS 232 Terminal (For testing purposes)
USB Port
RS-485 PTZ Camera control terminal
RS-485 Termination
Network RS-45 Ethernet Port
eSATA Port RS-485
DC12V Power Input
1
2
3
4
5
6
7
8
9
10
11
12
13
HD-SDI Video Input
Video output
Audio Input
RS 232 Terminal (For testing purposes)
VGA Output
HDMI Video Output
USB Port
RS-485 PTZ Camera control terminal
Network RS-45 Ethernet Port
eSATA Port
RS-485 Termination
Sensor in Terminal
DC12V Power Input ____________________________________________________
ChipER Technology Corp. page 16
Page 17

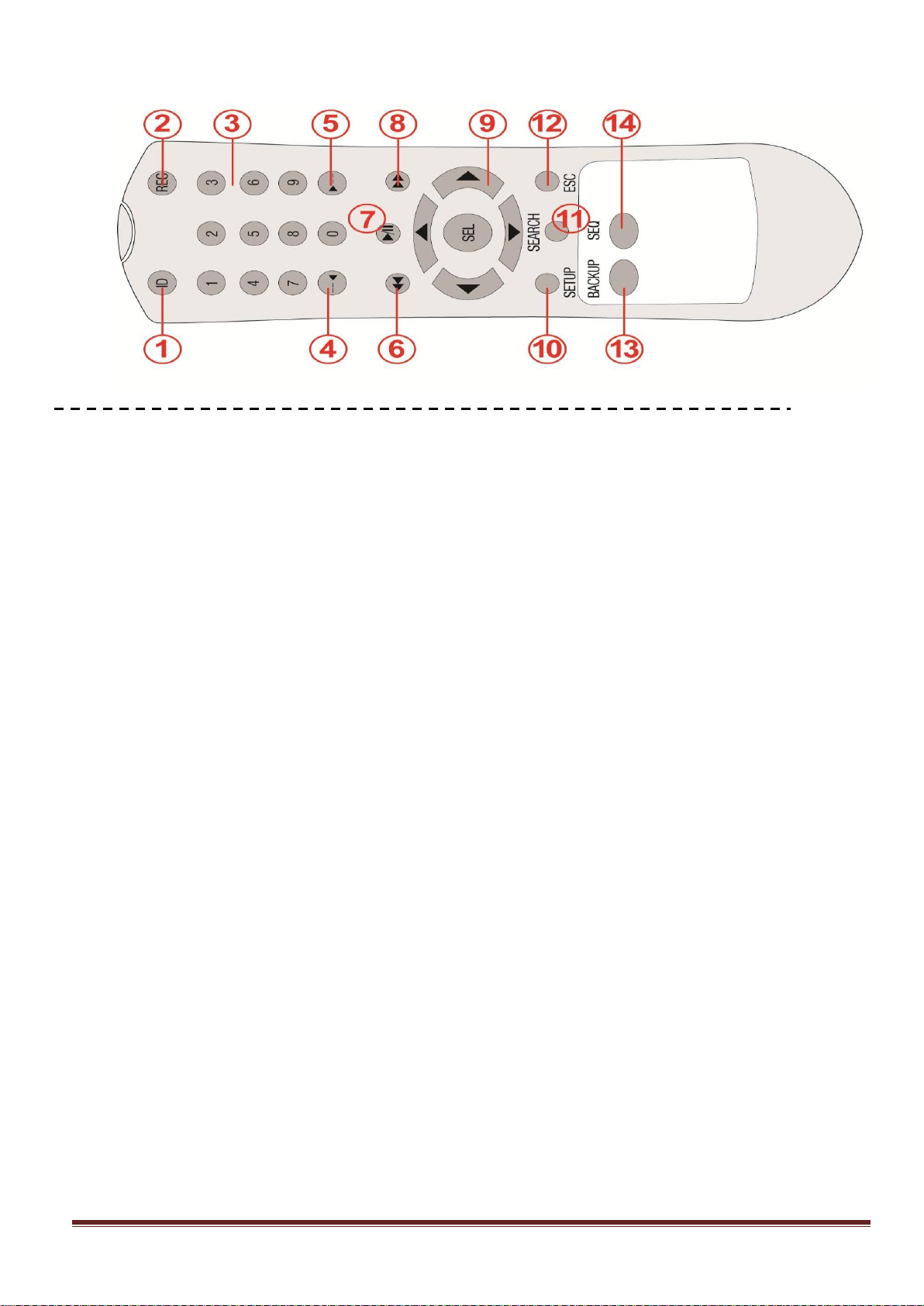

1-3. Remote Control
① ID: When a remote
② REC:
③ Number: To
④ F/REW:
To st
art
and stop
select
During playback
control ID number is set
manual
recording.
channel (1, 2, 3, & 4)
in the DVR, input the DVR ID number.
or to enter
DVR ID
number.
- To move the playback position 60 seconds backward.
During pause - To move the playback position 1 frame backward.
⑤ F/ADV: During playback
- To move the playback position 60 seconds forward. During pause - To
move the playback position moves 1 frame forward.
⑥ REW: To
⑦ PLAY/PAUSE:
⑧ FF: To fast forward
rewind
To play
the footage at 1x, 2x, and 4x speed during playback.
or to
the footage at
⑨ Control button: Press
⑩ SETUP:
⑪ SEARCH: To go
⑫ ESC:
To launch SETUP menu.
to the
During set
ting - To return to previous menu screen. During playback - To exit from playback
pause
to
move
search
the footage in
1x, 2x,
the
menu items
menu.
playback
mode.
and 4x speeds during playback.
or
select channel.
System Lock – To lock a system when pressing ESC button for 5 seconds. System Unlock – To unlock
a system when pressing ESC button for 5 seconds.
⑬ BACKUP: To start operations
CAPTURE
on the
front panel of DVR)
⑭ SEQ: To start auto sequencing
of
backup
of the
in live or
screen
playback mode. (The same
in full
screen mode. (Toggle
function button
)
as
ChipER Technology Corp. page 17
Page 18
2. Preparation
2-1. DVD-RW Installation

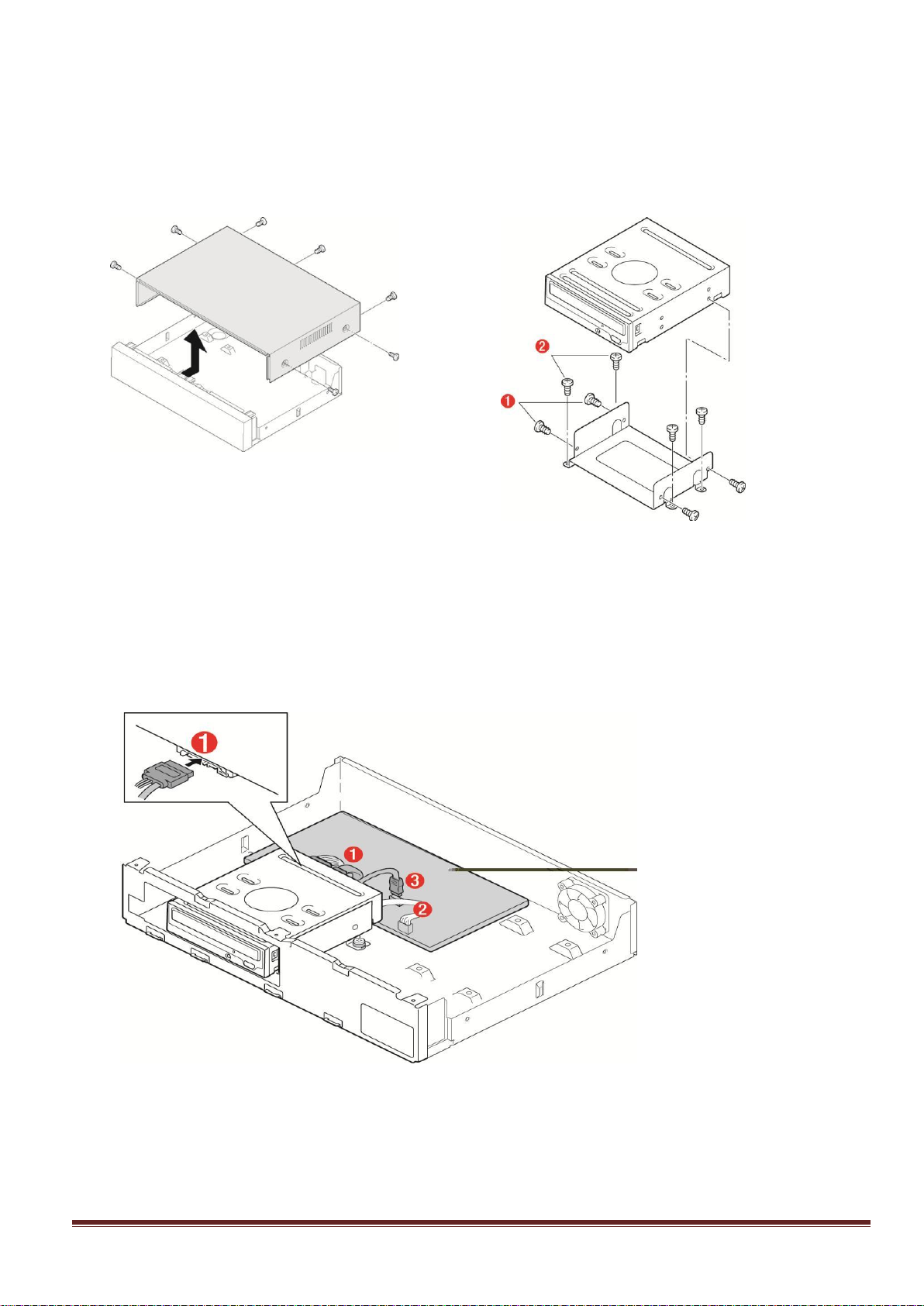

1. Remove the screws and the top cover as
specified below.
3. Connect the DVD-RW Data Power Cable to both the DVD-RW and main board.
2. Install the DVD-RW mounting bracket to the
DVD-RW by using the mounting bracket screws as
specified below.
ChipER Technology Corp. page 18
Page 19

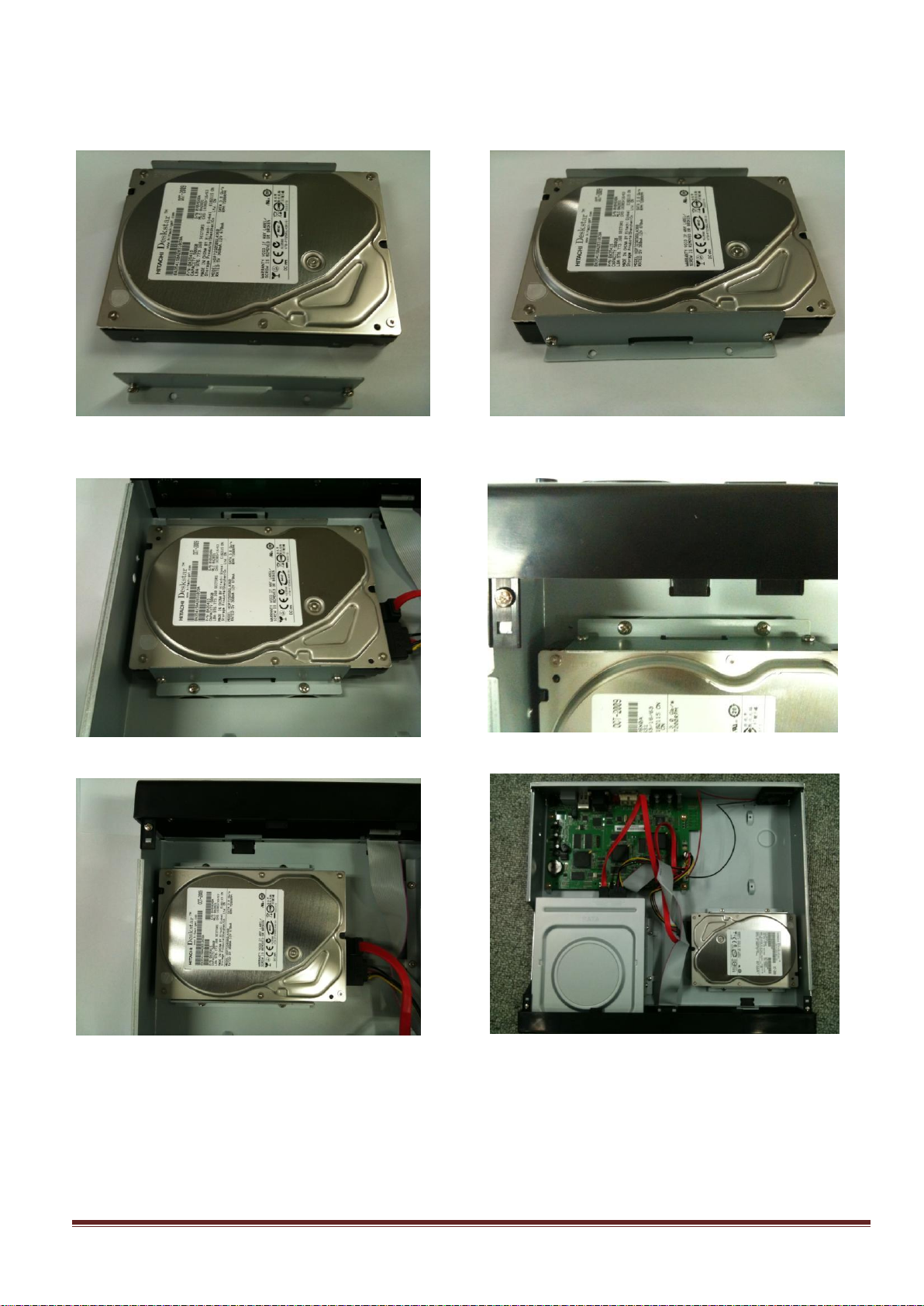

2-2. Hard Drive Installation
1. Before installing bracket and screws onto the
HDD.
2. Install the mounting bracket on the HDD.
3. Installation HDD and Bracket onto base case
(Inside)
5. Connect the Data Power cable to the HDD.
4. Installation HDD and Bracket onto base case
(Outside)
6. Installed HDD and DVD-RW.
ChipER Technology Corp. page 19
Page 20
2-3. Compatible HDD Models
Manufacturer
Model
Capacity
RPM BUFFER
Seagate
ST32000641AS(Barracuda XT)
2 TB
7200 RPM
64 MB
ST31000526SV(Surveillance)
1 TB
7200 RPM
32 MB
ST31000524AS(Barracuda)
1 TB
7200 RPM
32 MB
ST31000340SV(Surveillance)
1 TB
7200 RPM
32 MB
ST31000526SV
1 TB
7200 RPM
32 MB
ST31000528AS(Barracuda)
1 TB
7200 RPM
32 MB ST31000322CS
1 TB
5900 RPM
8 MB
ST31000524AS
1 TB
7200 RPM
32 MB
ST3500411SV(Surveillance)
500 GB
7200 RPM
16 MB
ST3500413AS(Barracuda)
500 GB
7200 RPM
16 MB
ST3500830SCE
500 GB
7200 RPM
8 MB
ST3500418AS(Barracuda)
500 GB
7200 RPM
16 MB
ST3500410AS(Barracuda)
500 GB
7200 RPM
16 MB
ST3500312CS
500 GB
5900 RPM
8 MB
ST500DM002
500 GB
7200 RPM
16 MB
ST3250410AS(Barracuda)
250 GB
7200 RPM
16 MB
ST3250310SV(Surveillance)
250 GB
7200 RPM
8 MB
ST3250318AS(Barracuda)
250 GB
7200 RPM
8 MB
ST3250312CS
250 GB
5900 RPM
8 MB
ST3500312CS
250 GB
5900 RPM
8 MB
ST3160815AS(Barracuda)
160 GB
7200 RPM
8 MB
HITACHI
HDS723020BLA642
2 TB
7200 RPM
64 MB
HDS722020ALA330
2 TB
7200 RPM
32 MB
HDS721010KLA330
1 TB
7200 RPM
32 MB
HDT721010SLA360
1 TB
7200 RPM
16 MB
HDS721010CLA332
1 TB
7200 RPM
32 MB
HDS721050CLA362
500 GB
7200 RPM
16 MB
HDS721032CLA362
320 GB
7200 RPM
16 MB
HDS721025CLA382
250 GB
7200 RPM
8 MB
HDT721025SLA380
250 GB
7200 RPM
8 MB
HDP725025GLA380
250 GB
7200 RPM
8 MB
ChipER Technology Corp. page 20
Page 21
Manufacturer
Model
Capacity
RPM
BUFFER
Western
Digital
WD20EADS
2 TB
7200 RPM
32 MB
WD20EURS
2 TB
7200 RPM
64 MB WD10EVVS
1 TB
7200 RPM
8 MB WD10EACS
1 TB
7200 RPM
16 MB
WD10EURS-630AB1
1 TB
7200 RPM
64 MB
WD10EALX-009BA0
1 TB
7200 RPM
32 MB
WD5000AACS
500 GB
7200 RPM
16 MB
WD5000AAKX-001CA0
500 GB
7200 RPM
16 MB
WD2500AAKX
250 GB
7200 RPM
16 MB
WD2500AVVS
250 GB
7200 RPM
8 MB
WD2500AAKX-001CA0
250 GB
7200 RPM
16 MB
WD2500AAKS
250 GB
7200 RPM
16 MB
NOTICE: The brands and models of all HDD should be the same.
If the brands and models of the HDD are different, the DVR may not
recognize HDD or malfunction.
ChipER Technology Corp. page 21
Page 22

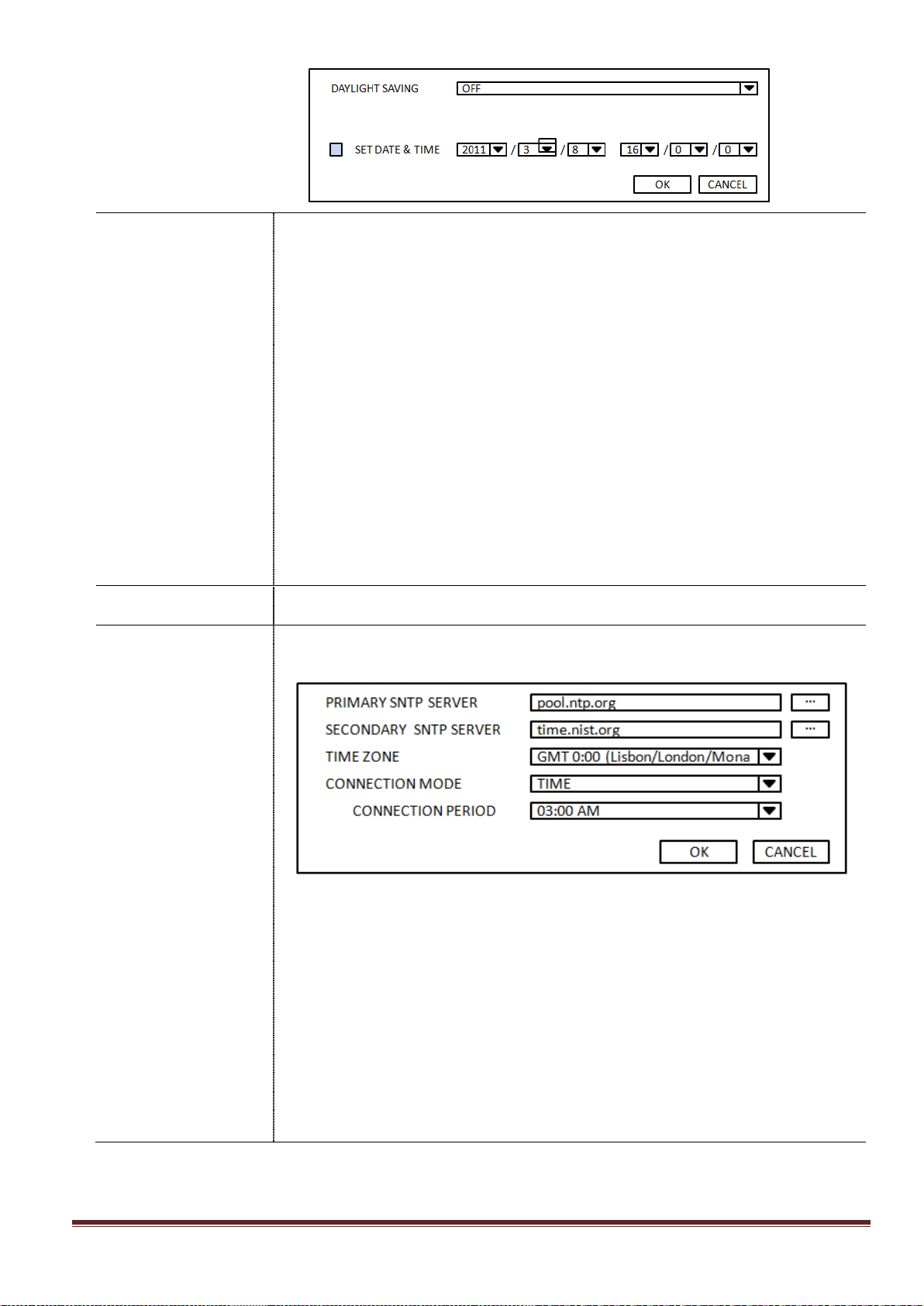

2-4. Setting Daylight Saving Time
If the DVR is to be set Day Light Saving T ime and be synchronized NTP (Network Time Protocol), Take next steps.
1. Click a mouse-right button or SETUP button on the front panel of DVR to enter the SETUP mode. The
default
Password is
“
1111
”
.

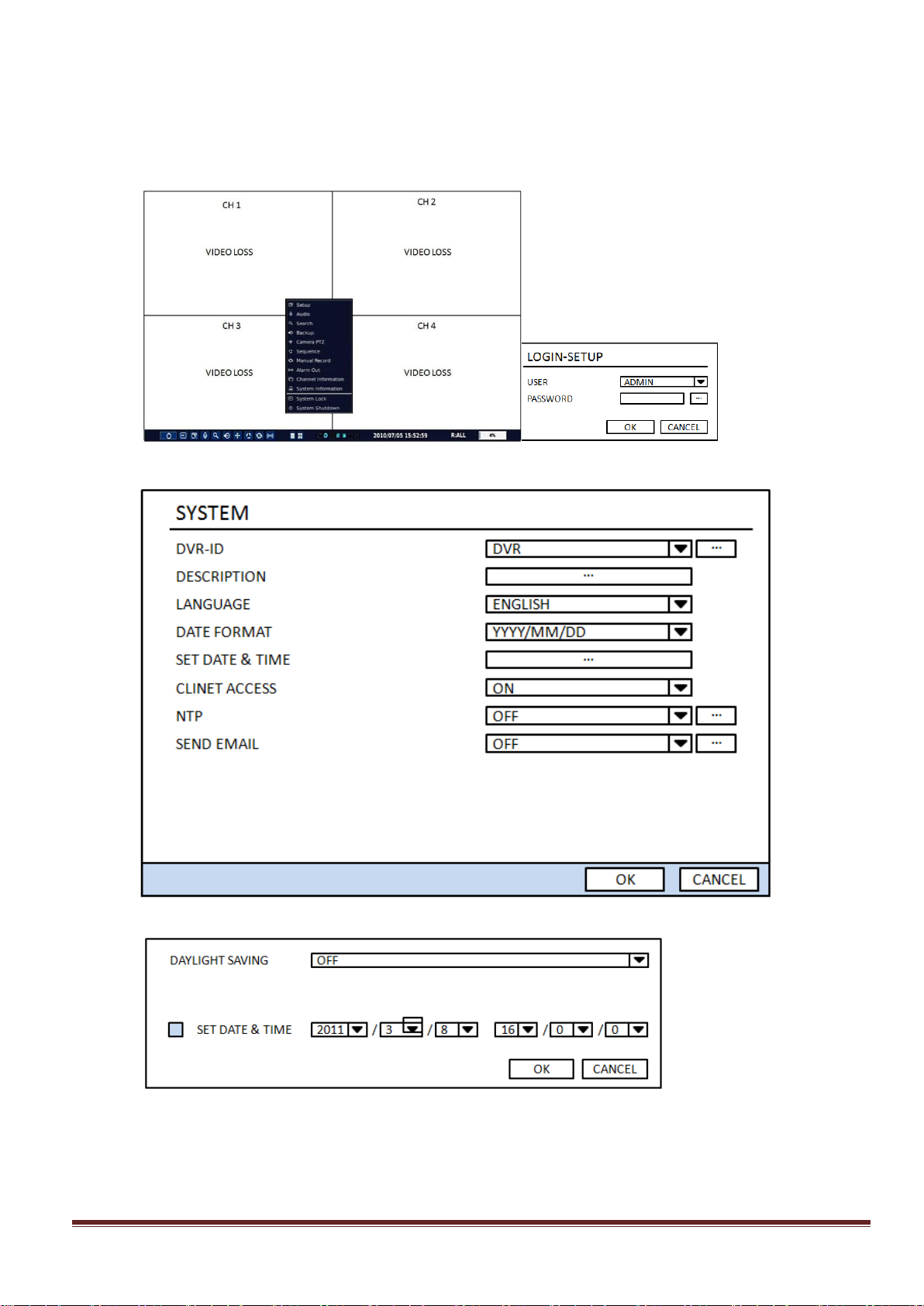

2. Go to SETUP>SYSTEM>SET DATE & TIME
3. Select DAYLIGHT SAVING.
ChipER Technology Corp. page 22
Page 23
2-5. Setting NTP (Network Time Protocol)
State
Standard Time
Daylight-Saving Time
AL
Alabama
GMT-6
GMT-5
AK
Alaska
GMT-9
GMT-8
AK
Alaska (Aleutian Islands)
GMT-10
NA
AZ
Arizona
GMT-7 NA

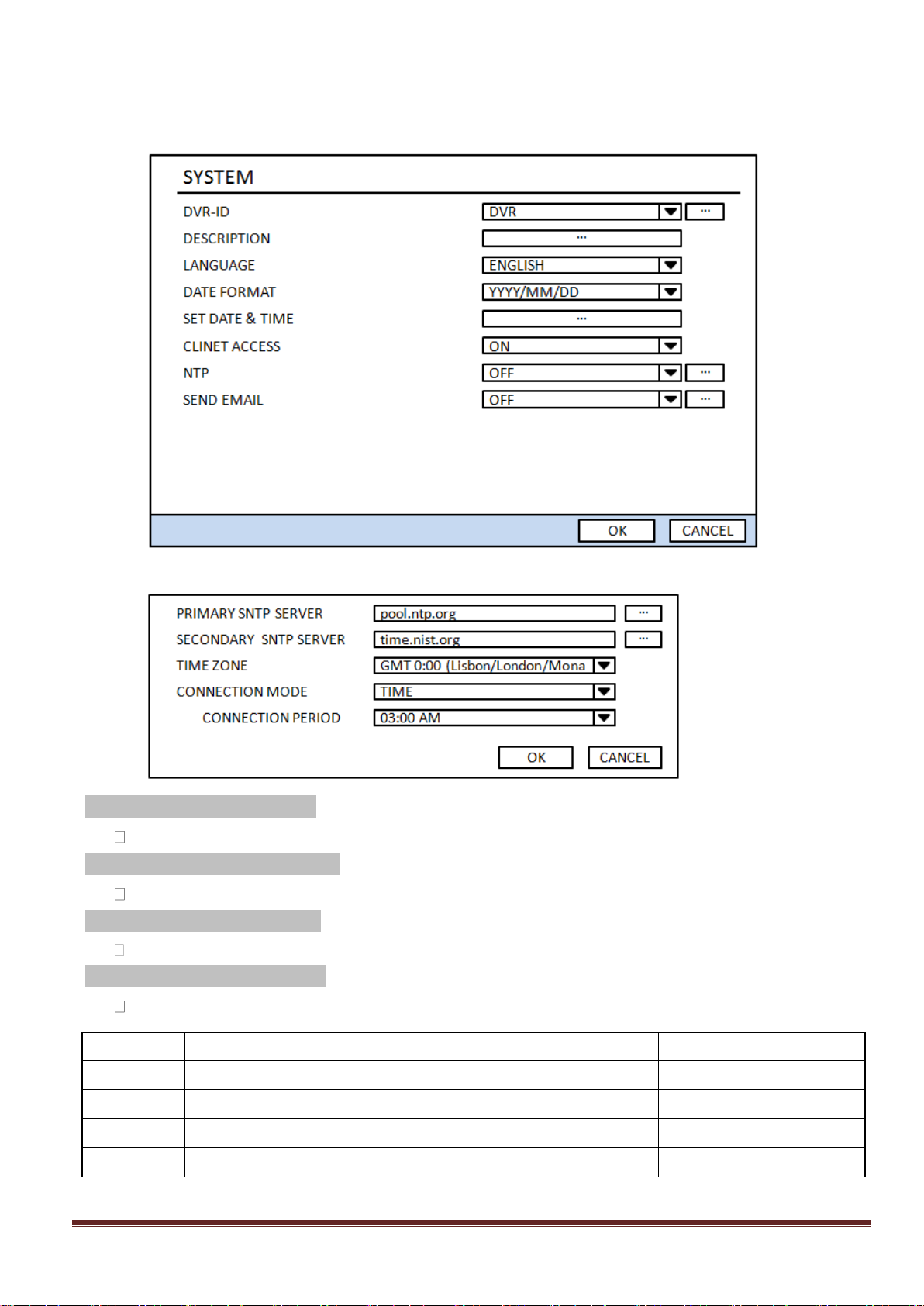

1. When the DVR is connected with internet and the DVR need to be synchronized with NTP (Network
Time Protocol), set SETUP>SYSTEM>NTP ON.
2. Select proper TIME ZONE time.
Pacific Time Zone
Los Angles, CA, USA : GMT - 8:00 for Standard time / GMT - 7:00 for Daylight time
Mountain Time Zone
Denver, CO, USA : GMT - 6:00 for Standard time / GMT - 5:00 for Daylight time
Central Time Zone
Chicago, IL, USA : GMT - 7:00 for Standard time / GMT - 6:00 for Daylight time
Eastern Time Zone
New York, NY, USA : GMT - 5:00 for Standard time / GMT - 4:00 for Daylight time
ChipER Technology Corp. page 23
Page 24
State
Standard Time
Daylight-Saving Time
AZ
Arizona (Navajo)
GMT-7
GMT-6
AR
Arkansas
GMT-6
GMT-5
CA
California
GMT-8
GMT-7
CO
Colorado
GMT-7
GMT-6
CT
Connecticut
GMT-5
GMT-4
DC
District of Columbia
GMT-5
GMT-4
DE
Delaware
GMT-5
GMT-4
FL
Florida
GMT-5
GMT-4
FL
Florida (W)
GMT-6
GMT-5
GA
Georgia
GMT-5
GMT-4
HI
Hawaii
GMT-10
NA
ID
Idaho (N)
GMT-8
GMT-7
ID
Idaho (S)
GMT-7
GMT-6
IL
Illinois
GMT-6
GMT-5
IN
Indiana
GMT-5
GMT-4
IN
Indiana (SW / NW)
GMT-6
GMT-5
IA
Iowa
GMT-6
GMT-5
KS
Kansas
GMT-6
GMT-5
KS
Kansas (W)
GMT-7
GMT-6
KY
Kentucky (E)
GMT-5
GMT-4
KY
Kentucky (W)
GMT-6
GMT-5
LA
Louisiana
GMT-6
GMT-5
ME
Maine
GMT-5
GMT-4
MD
Maryland
GMT-5
GMT-4
MA
Massachusetts
GMT-5
GMT-4
MI
Michigan
GMT-5
GMT-4
MI
Michigan (W)
GMT-6
GMT-5
MN
Minnesota
GMT-6
GMT-5
MS
Mississippi
GMT-6
GMT-5
MO
Missouri
GMT-6
GMT-5
MT
Montana
GMT-7
GMT-6
NE
Nebraska
GMT-6
GMT-5
NE
Nebraska (W)
GMT-7
GMT-6
NV
Nevada
GMT-8
GMT-7
NH
New Hampshire
GMT-5
GMT-4
NJ
New Jersey
GMT-5
GMT-4
ChipER Technology Corp. page 24
Page 25
State
Standard Time
Daylight-Saving Time
NM
New Mexico
GMT-7
GMT-6
NY
New York
GMT-5
GMT-4
NC
North Carolina
GMT-5
GMT-4
ND
North Dakota
GMT-6
GMT-5
ND
North Dakota (W)
GMT-7
GMT-6
OH
Ohio
GMT-5
GMT-4
OK
Oklahoma
GMT-6
GMT-5
OR
Oregon
GMT-8
GMT-7
OR
Oregon (E)
GMT-7
GMT-6
PA
Pennsylvania
GMT-5
GMT-4
RI
Rhode Island
GMT-5
GMT-4
SC
South Carolina
GMT-5
GMT-4
SD
South Dakota (E)
GMT-6
GMT-5
SD
South Dakota (W)
GMT-7
GMT-6
TN
Tennessee (E)
GMT-5
GMT-4
TN
Tennessee (W)
GMT-6
GMT-5
TX
Texas
GMT-6
GMT-5
TX
Texas (W)
GMT-7
GMT-6
UT
Utah
GMT-7
GMT-6
VT
Vermont
GMT-5
GMT-4
VA
Virginia
GMT-5
GMT-4
WA
Washington
GMT-8
GMT-7
WV
West Virginia
GMT-5
GMT-4
WI
Wisconsin
GMT-6
GMT-5
WY
Wyoming
GMT-7
GMT-6
NOTE:
If you want the unit to automatically synchronize the local time, the Time Zone must be
properly set according to your local Time Zone.
ChipER Technology Corp. page 25
Page 26
3. Setting up the DVR
The following sections detail the initial setup of the DVR.
3-1. Setup – Main screen and Menu Tree
To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup
button on the front panel or the remote control.
Figure 3.1.1. Setup Menu Tree

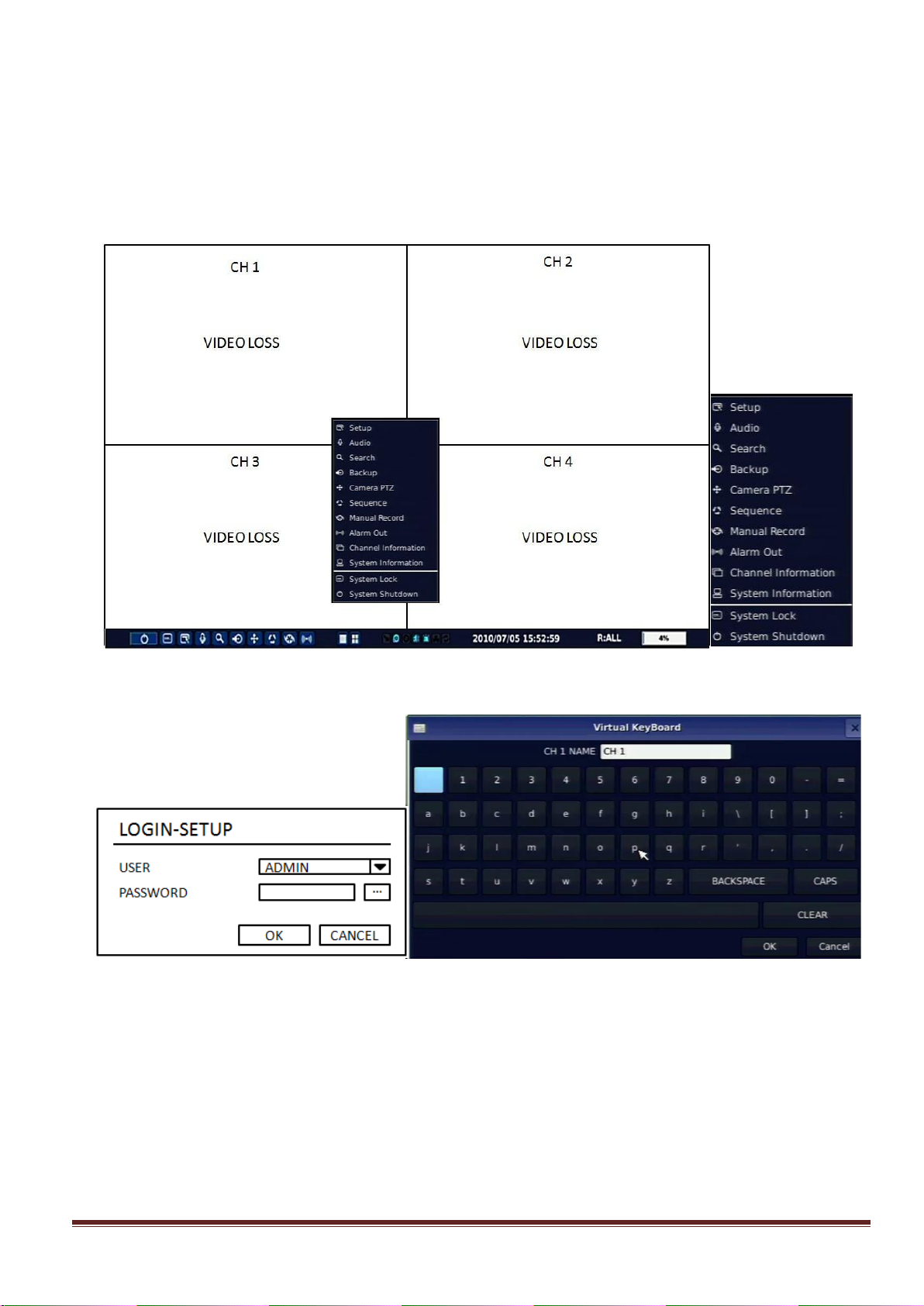

When the DVR prompts the LOG-IN window, enter the PASSWORD using the virtual keyboard, or the front
panel, or the remote control. The factory default password is 1111. It is highly recommended to assign a new
password to protect the system. User can assign a new password in SECURITY setup menu.
ChipER Technology Corp. page 26
Page 27
DISPLAY
– OSD
– OSD CONTRAST
– SEQUENCE
– SEQUENCE DWELL TIME
– CHANNEL
RECORD
– CHANNEL
- NAME
- COVERT
- BRIGHTNESS
- CONTRAST
- HUE
- SATURATION
- VIDEO OUTPUT
- RESOLUTION
- FRAME RATE
- QUALITY
- RECORDING
- SENSOR RECORDING
- PRE RECORD
- POST EVENT RECORD
- AUDIO
- SCHEDULE

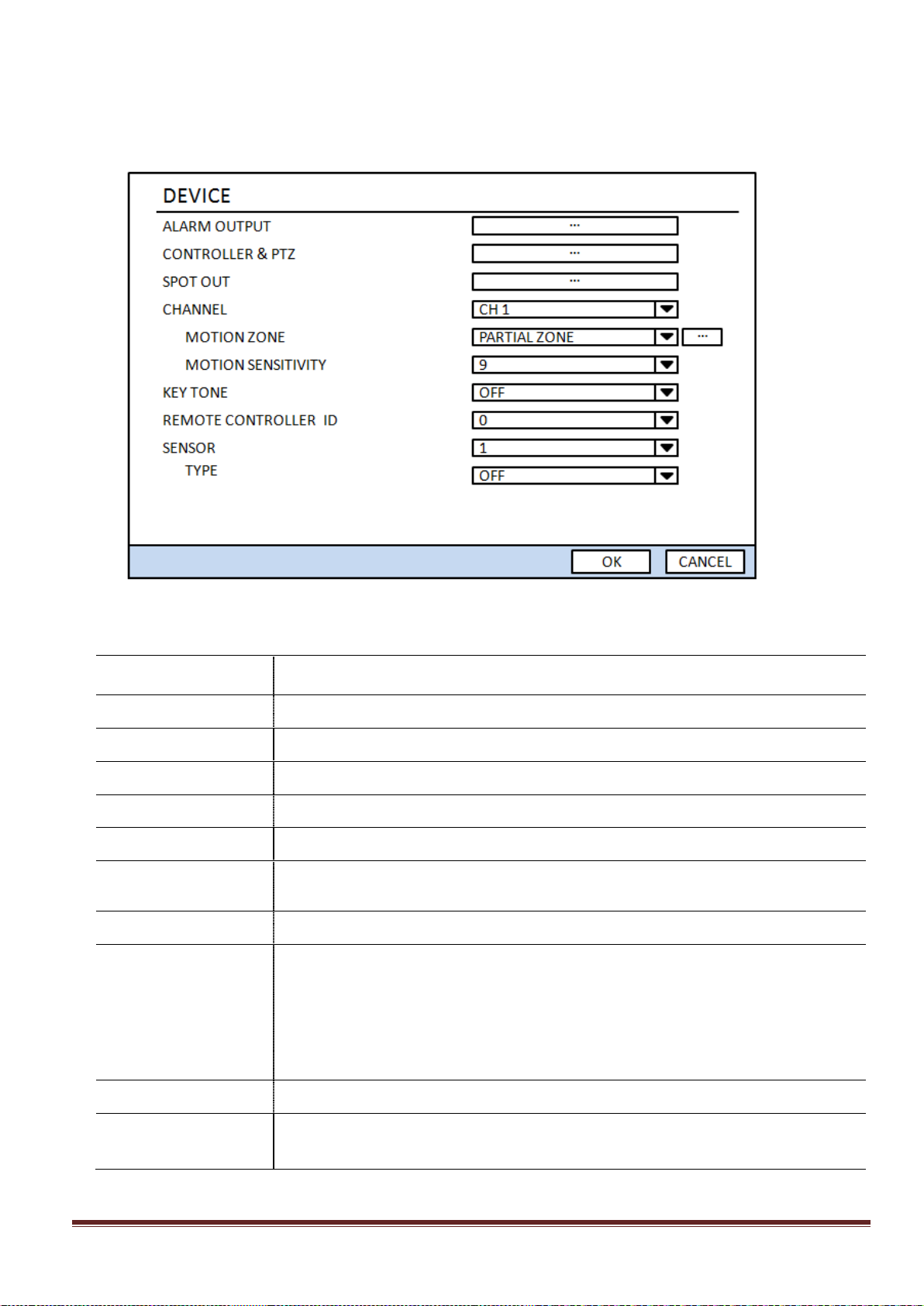

DEVICE
ChipER Technology Corp. page 27
Page 28
– ALARM OUT
- SENSOR IN
- MOTION ON
- VIDEO LOSS ON
- ALARM DURATION
- ERROR ALARM

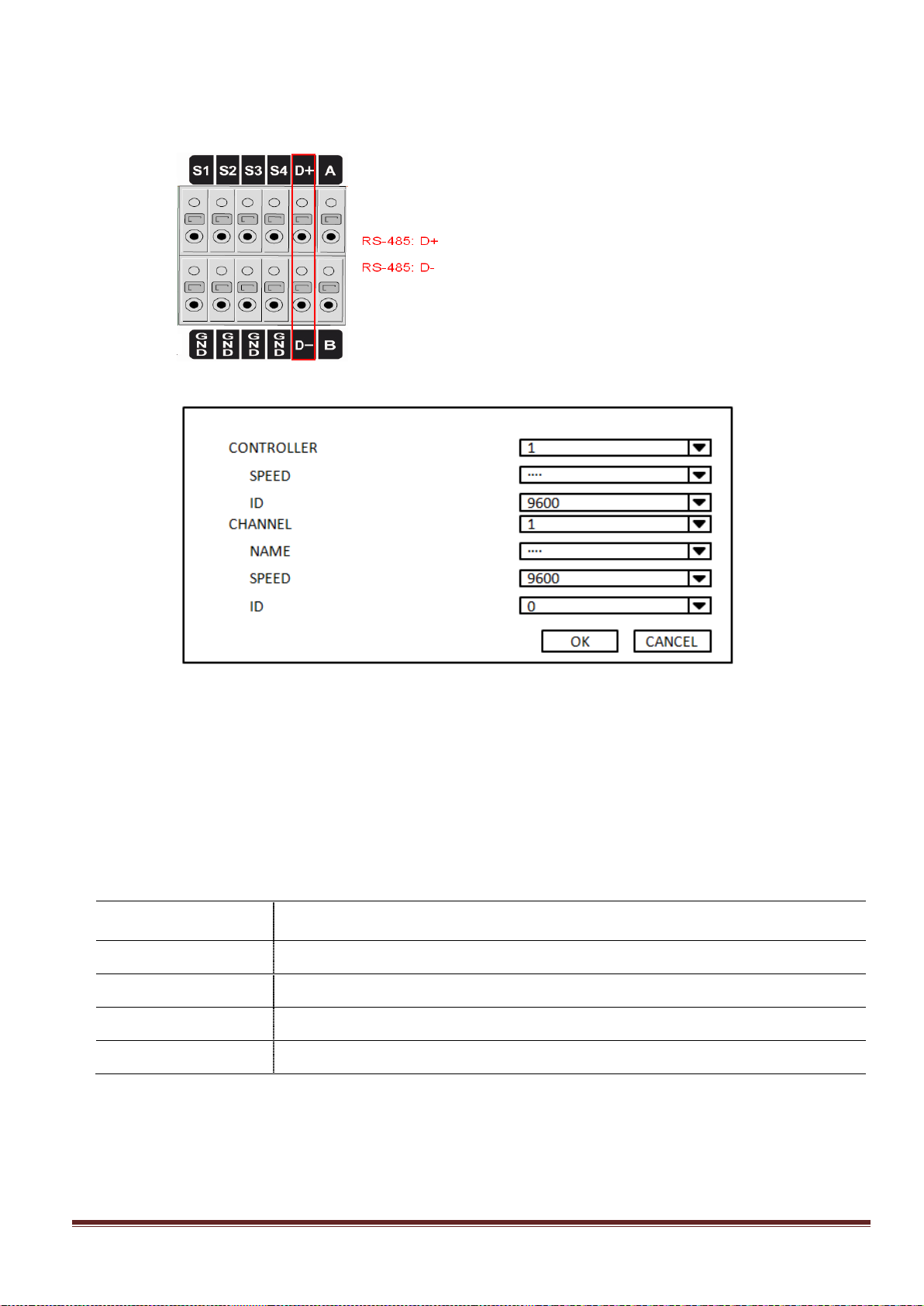

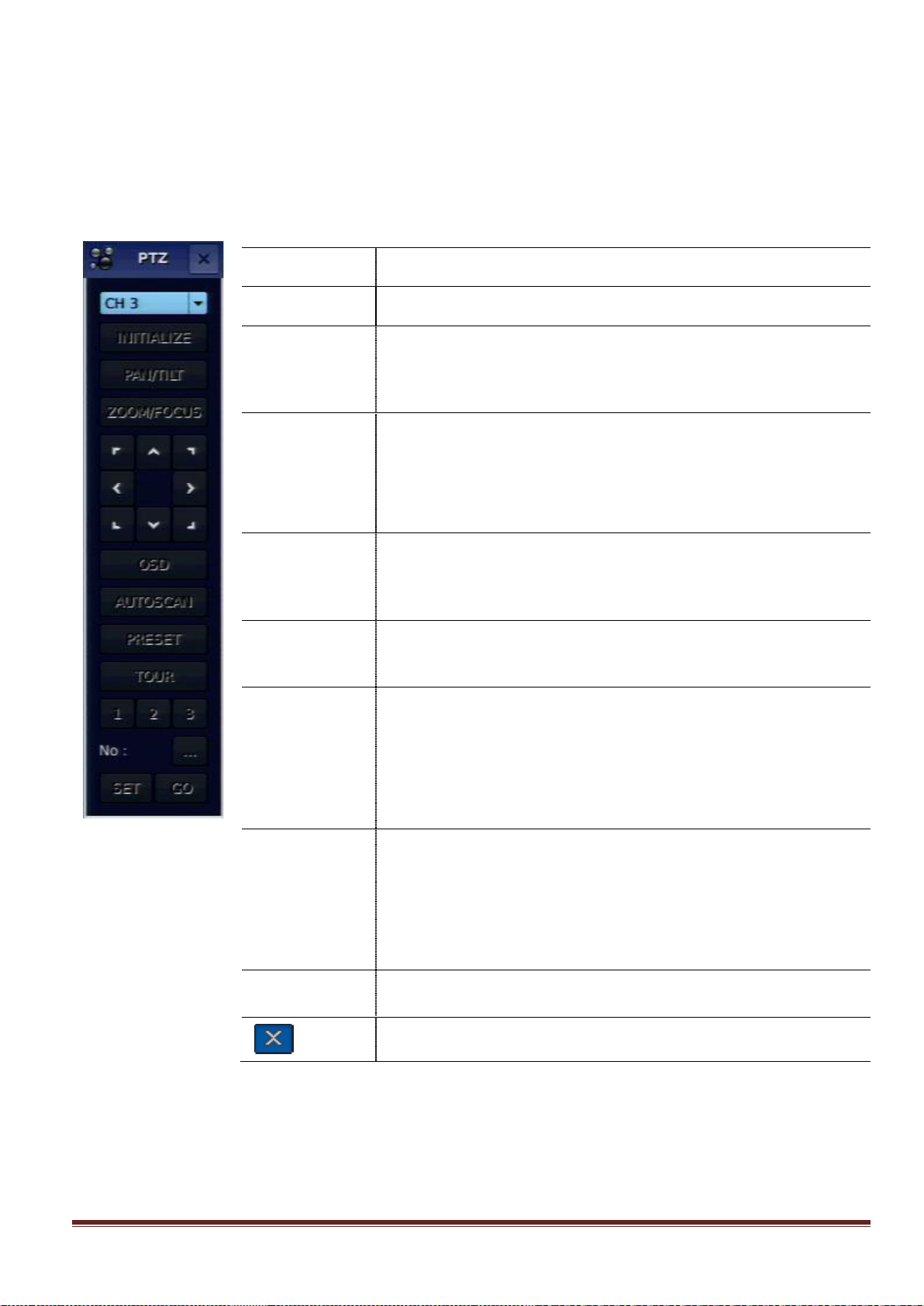

– CONTROLLER & PTZ
- CHANNEL
- NAME
- SPEED
- ID
– SPOT OUT
- SPOT OUT 1
- SPOT OUT 2
– CHANNEL
- MOTION ZONE
- MOTION SENSITIVITY
– KEY TONE
– REMOTE CONTROLLER ID
– SENSOR
- TYPE

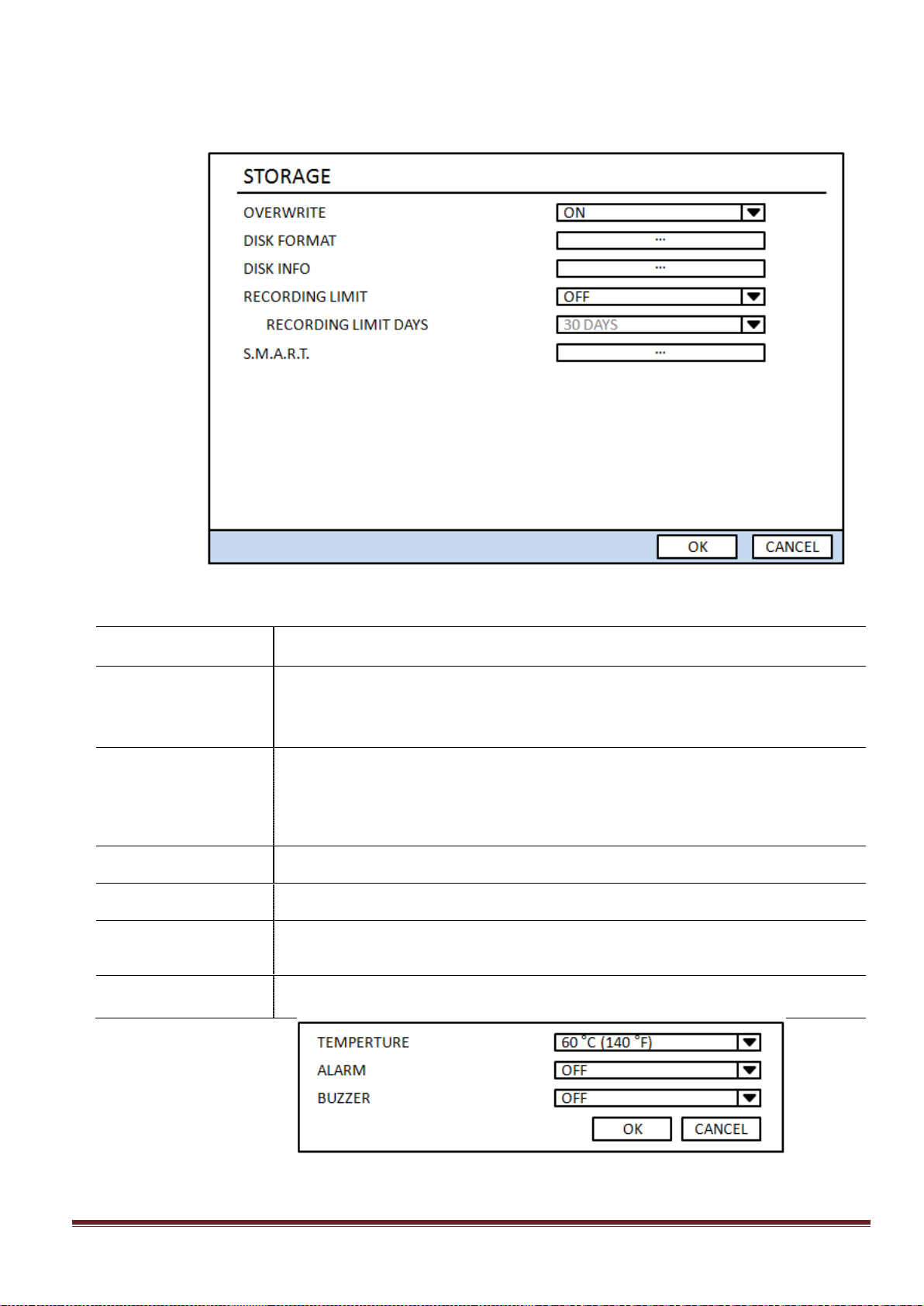

STORAGE
– OVERWRITE
– DISK FORMAT
– DISK INFO
– RECORDING LIMIT
– S.M.A.R.T
SYSTEM
– DVR-ID
– DESCRIPTION
– LANGUAGE
– DATE FORMAT
– SET DATE & TIME
- DAYLIGHT SAVING
- SET DATE & TIME

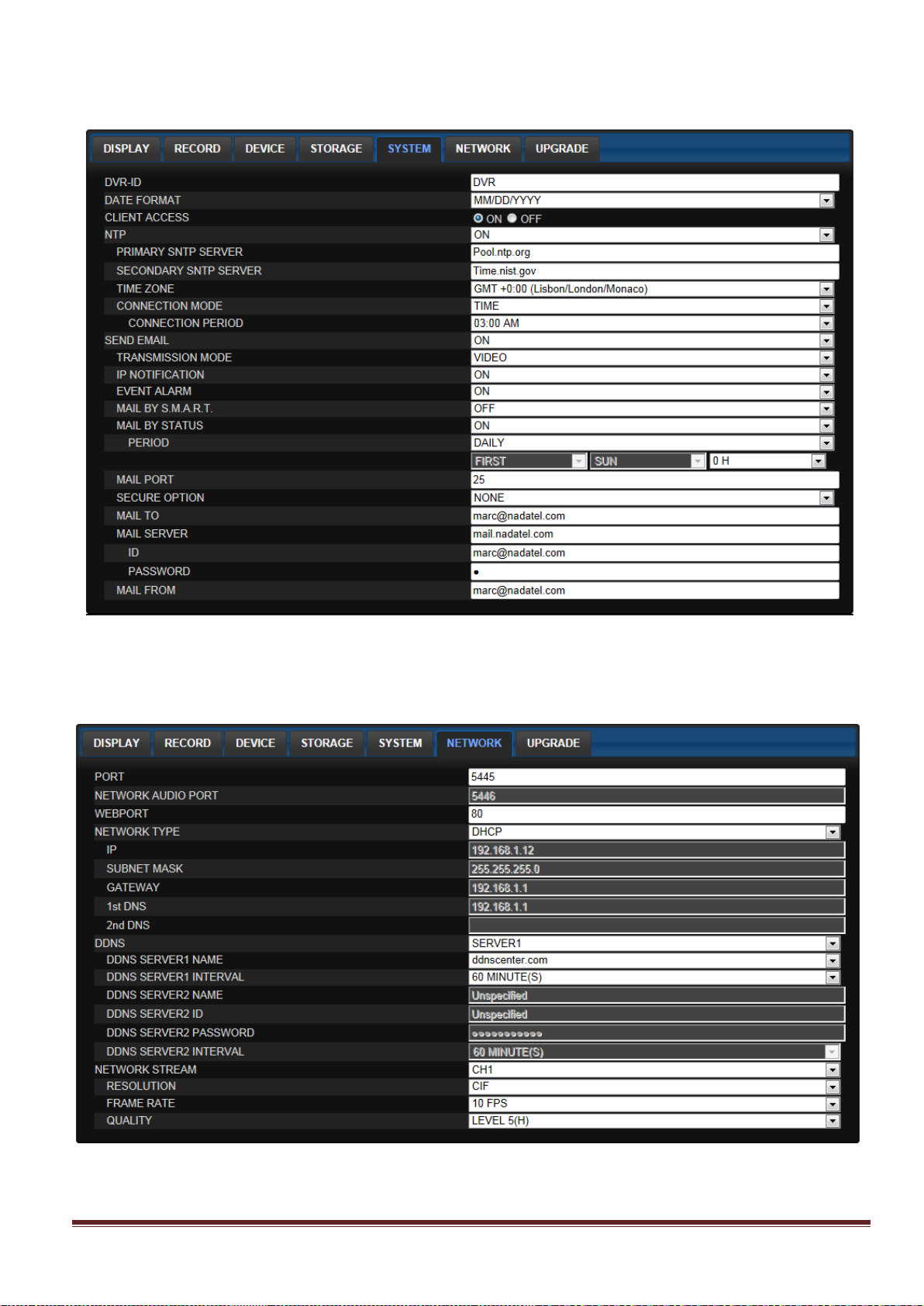

– CLIENT ACCESS
– NTP
– SEND EMAIL
SECURITY
– USER AUTHENTICATION (ADMIN, NETWORK, USER1, USER2, USER3)
– USER PASSOWRD
ChipER Technology Corp. page 28
Page 29
– PLAYBACK AUTHORITY
NETWORK
– PORT
– NETWORK AUDIO PORT
– WEB PORT
– NETWORK TYPE (DHCP, LAN)
– DDNS
– NETWORK STREAM
CONFIG

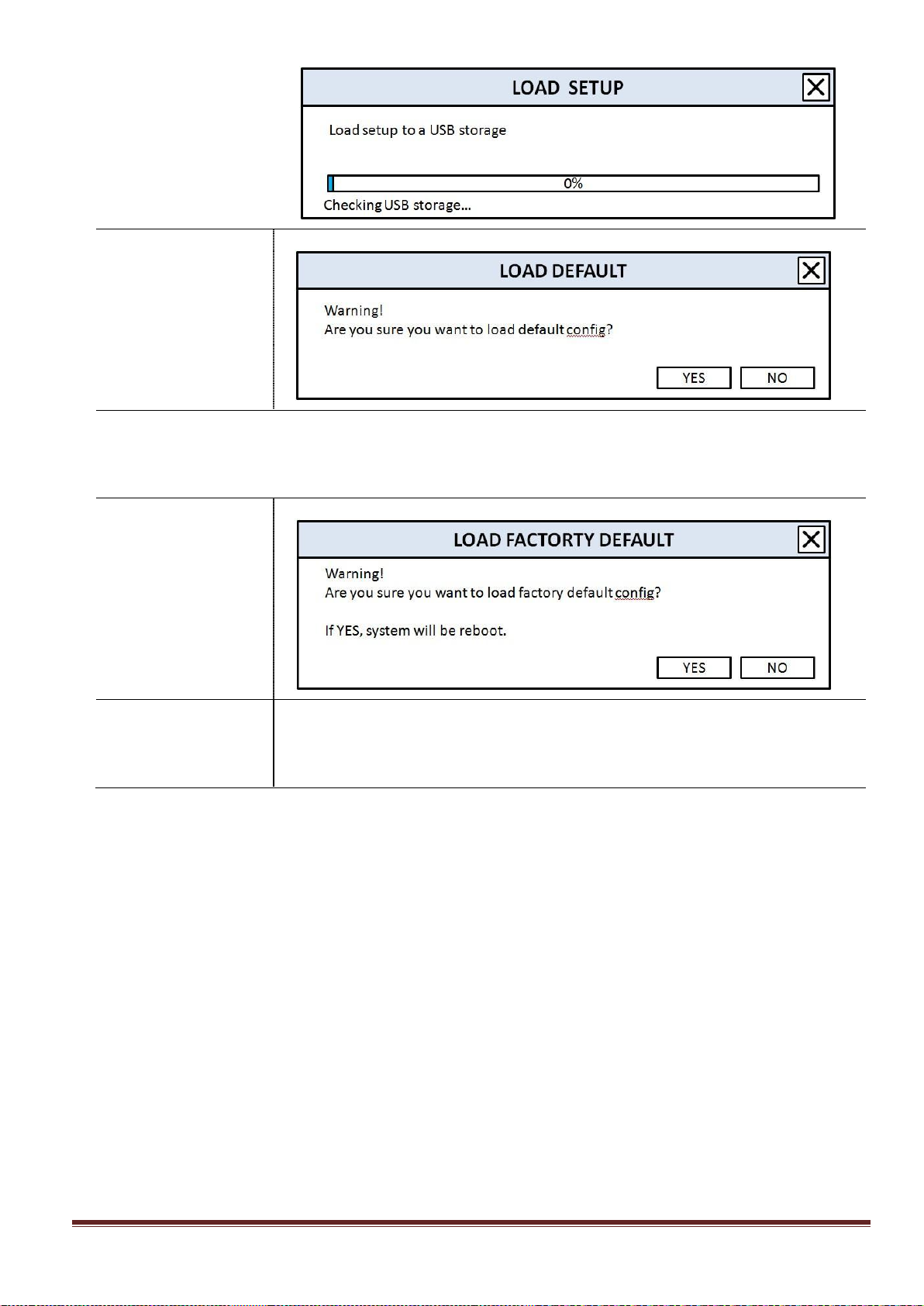

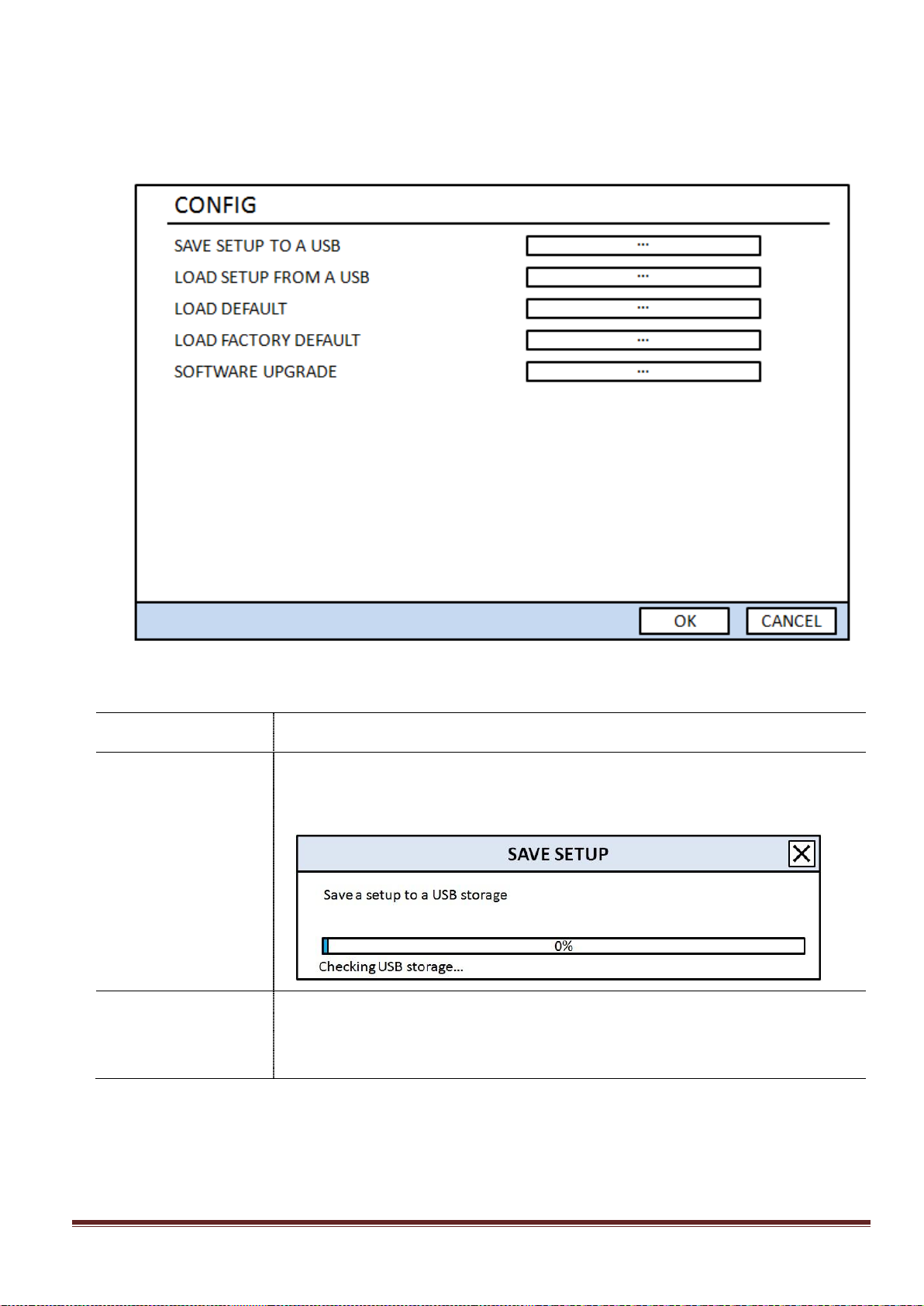

– SAVE SETUP TO A USB
– LOAD SETUP FROM A USB
– LOAD DEFAULT
– LOAD FACTORY DEFAULT
– SOFTWARE UPGRADE

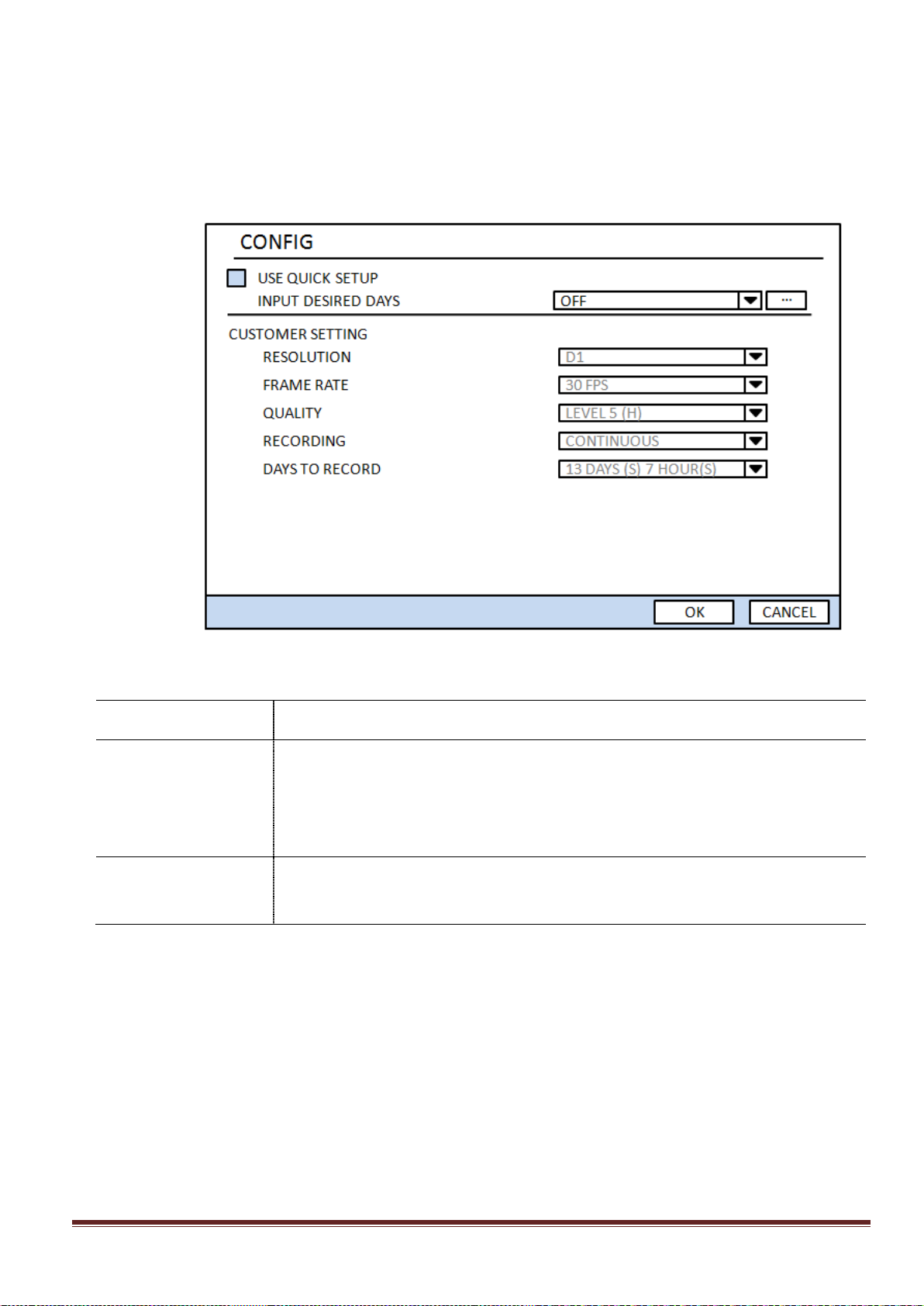

QUICK SETUP
– USE QUICK SETUP
- INPUT DESIRED DAYS
– CUSTOMER SETTINGS
- RESOLUTION
- FRAME RATE
- QUALITY
- RECORDING
- DAYS TO RECORD
ChipER Technology Corp. page 29
Page 30
3-2. Setup – Display Mode
Item
Description
OSD
Enable/disable on-screen-display.
OSD CONTRAST
Set the visibility level of the On Screen Display (OSD) (0~100)
SEQUENCE
Enable/disable sequential display of video in full screen mode.
SEQ-DWELL
TIME
Set the dwell time of each, quad or 9 channels display in sequential display
mode. (3-60seconds)
CHANNEL
Select a channel for applying the following settings using the mouse or control
button on the remote control. Press the right square button to change the
setting value of all channels at once. Press SEL button to change the setting
value of all channels at once. Left click on the mouse to highlight the setting
and double-click if you want to change the value. Once the value has been
changed, select OK to confirm the changes.
(COVERT, BRIGHTNESS,CONTRAST,HUE,SATURATION)
In the SETUP menu, select the DISPLAY tab. Then, the DISPLAY menu is displayed as pictured below. Navigate
through the menu items using the mouse or the control button (
◀
▲
▶
▼) on the remote control and
change the value of the menu item.

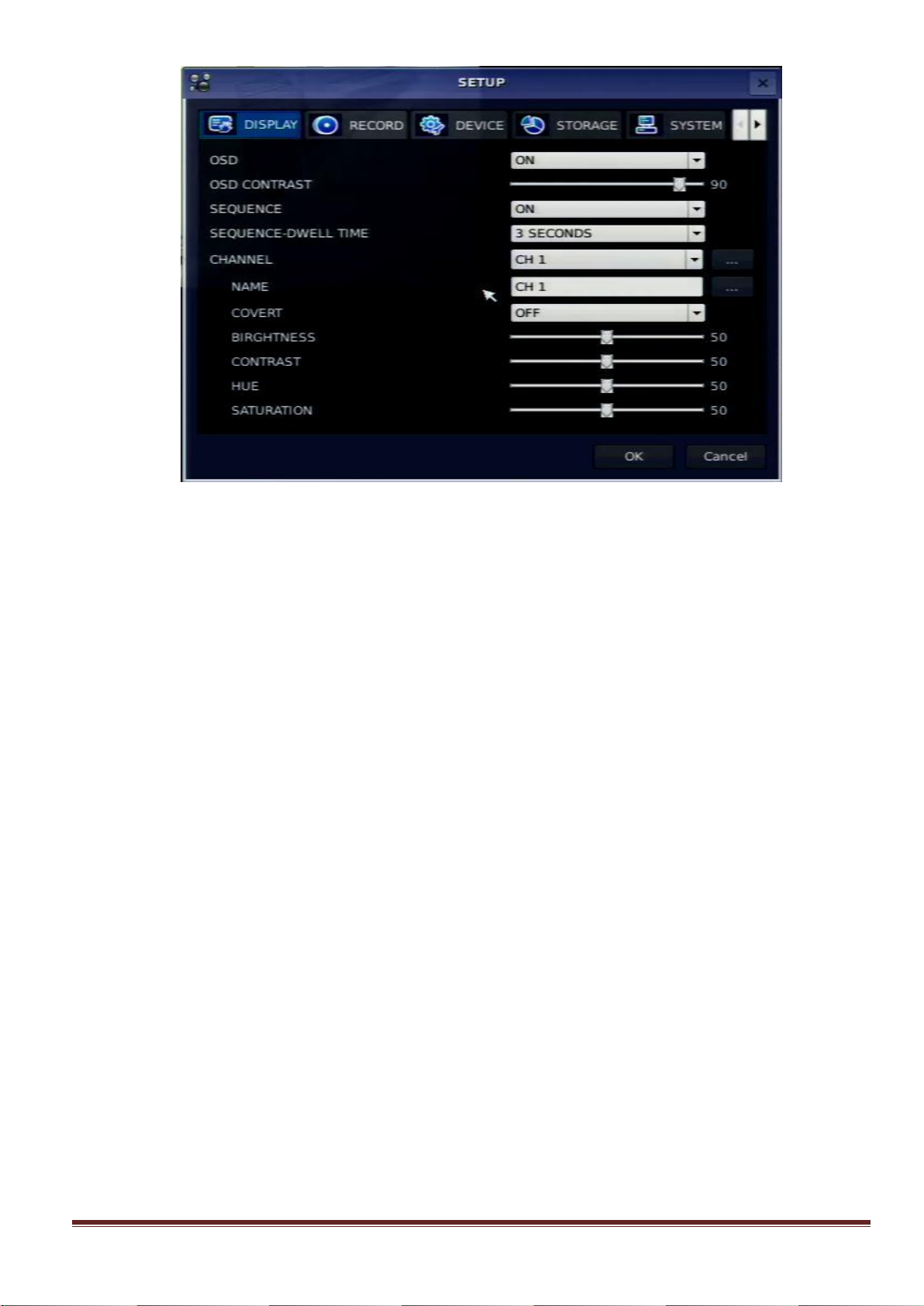

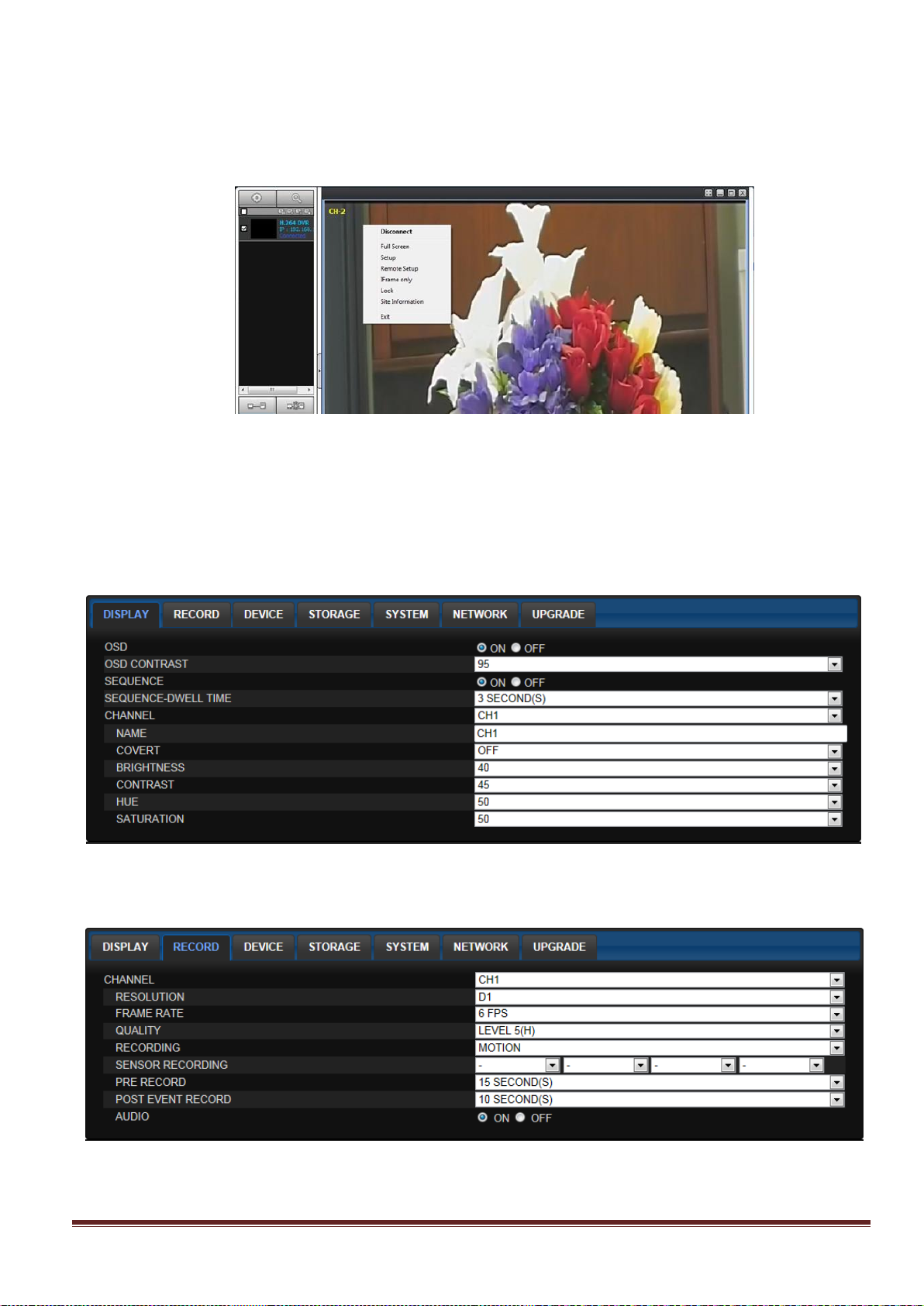

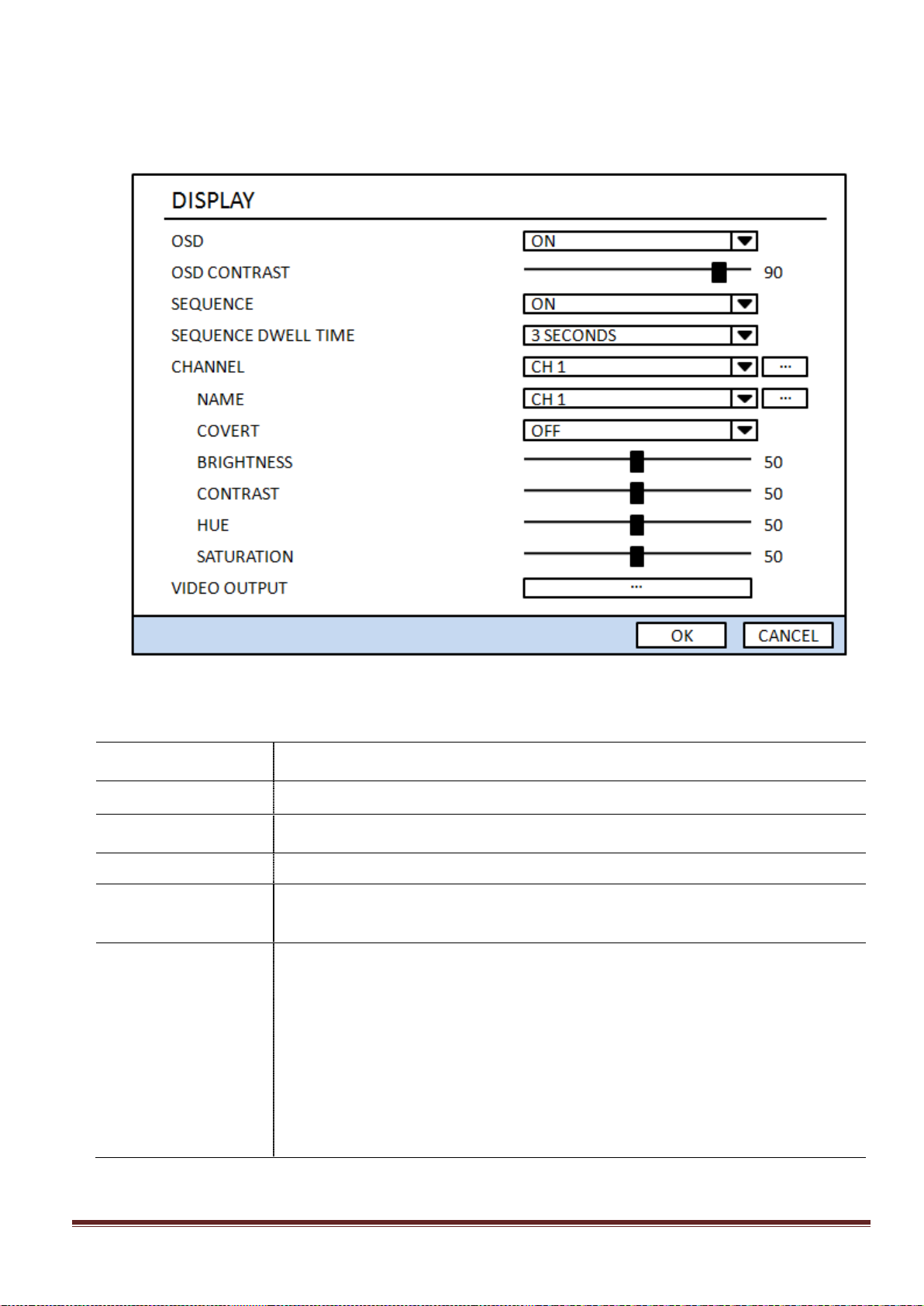

Figure 3.2.1. Display Mode Setup Screen
Table 3.2.1. Menu Items in DISPLAY Mode Setup
ChipER Technology Corp. page 30
Page 31

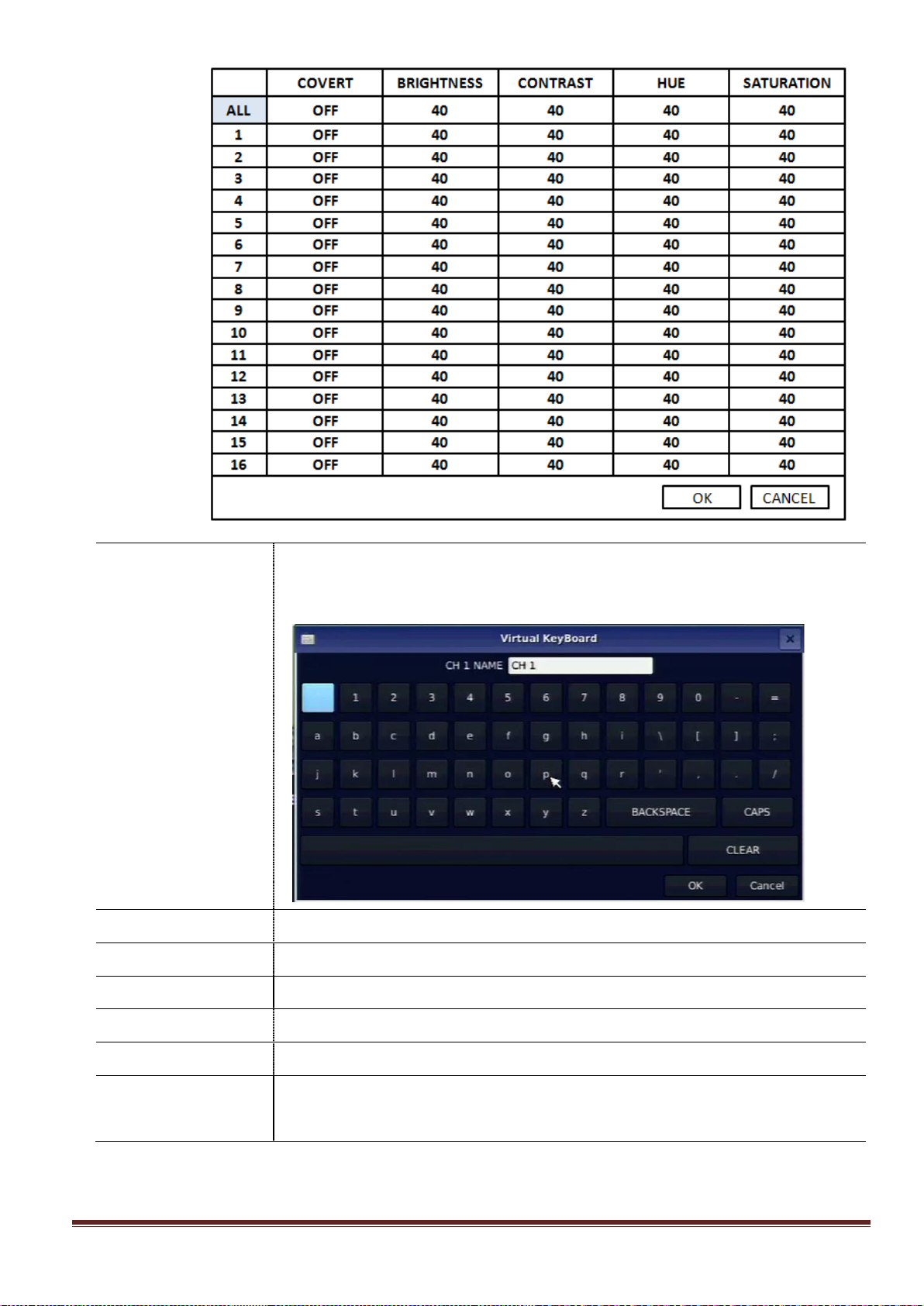

NAME
Set the channel name. Press the right square button and set the channel name
and select OK using the mouse or the control button (
◀
▲
▶
▼) on the
remote control. The name can be made by 10 characters at most.
COVERT
Enable/disable display of the specified video channel in live display mode.
BRIGHTNESS
Change the brightness value of the specified channel. (0~100)
CONTRAST
Change the contrast value of the specified channel. (0~100)
HUE
Change the hue value of the specified channel. (0~100)
SATURATION
Change the saturation value of the specified channel. (0~100)
VIDEO OUTPUT
(HDMI/VGA)
Allows user to set monitor output resolution from
720p 50Hz/60Hz, 1080i 50Hz/60Hz, 1080p 50Hz/60Hz
ChipER Technology Corp. page 31
Page 32
3-3. Setup – Record Mode
Menu Item
Description
CHANNEL
Select a channel for applying the following settings using the mouse or the
control button on the remote control. Press the right square button to change
the setting value of all channels at once. Once you the value has been changed,
select OK to confirm the changes.
(RESOLUTION, FRAME RATE, QUALITY, RECORDING, PRE RECORD and POST EVENT
RECORD)
RESOLUTION
Analog DVR (N-0440MH, N-0840MH, N-1640MH): Select either CIF, Half D1
and
D1 using the mouse or the control button on the remote control.
HD-SDI DVR (HD-0405M, HD-0810M): Select either 640 x 360, 1280 x 720,
1920
x
1080 using the mouse or the control button on the remote control.
FRAME RATE

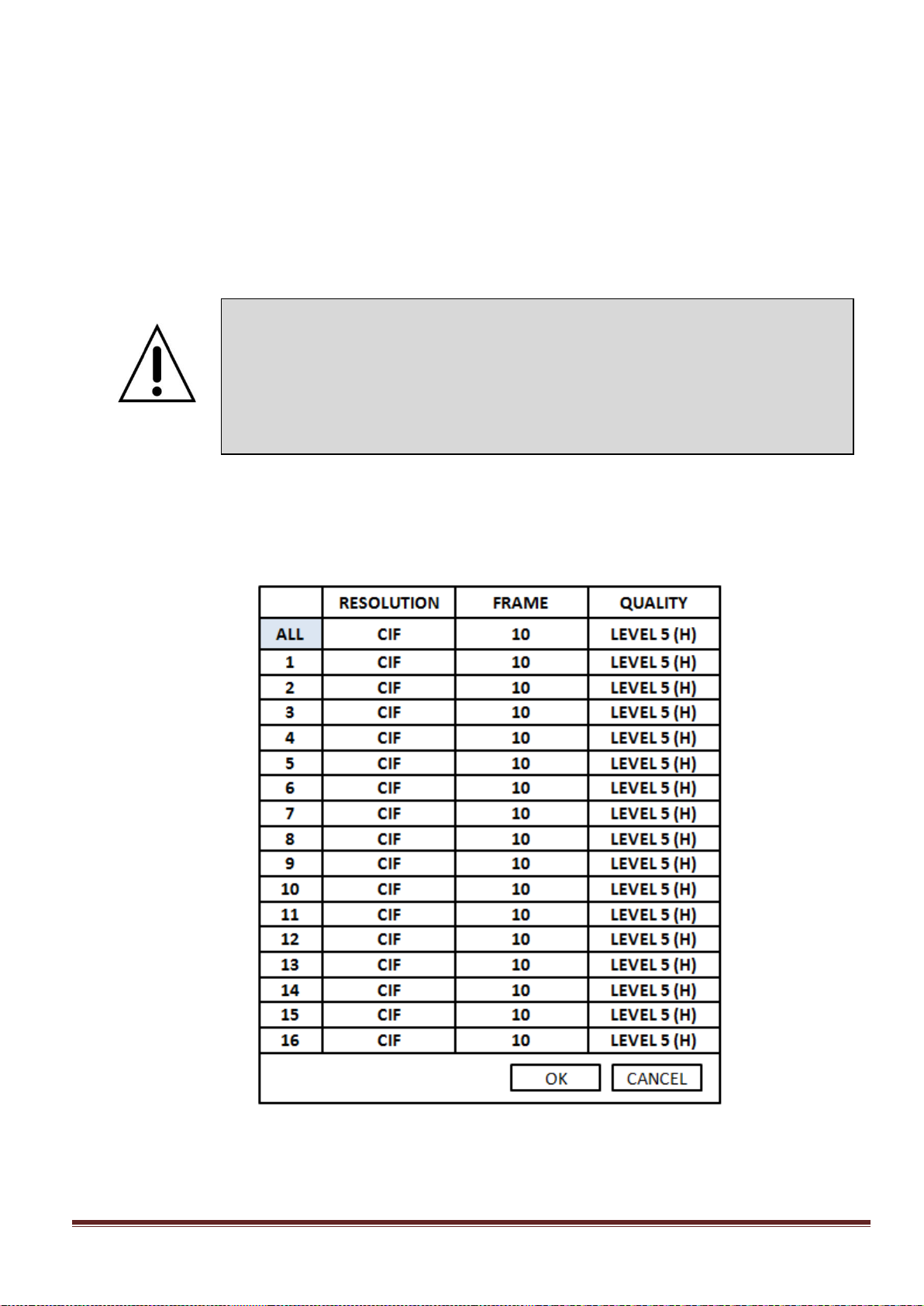

Set the frame rate for the specified channel. The sum of the frame rate values
from each channel cannot exceed the maximum frame rates for a specific
recording resolution.
Typical values of the maximum frame rate for video are as follows.
In the SETUP menu, select the RECORD tab. Then, the RECORD menu is displayed as pictured below.
Navigate through the menu items using the mouse or the control button on the remote control and change
the value of the menu item.

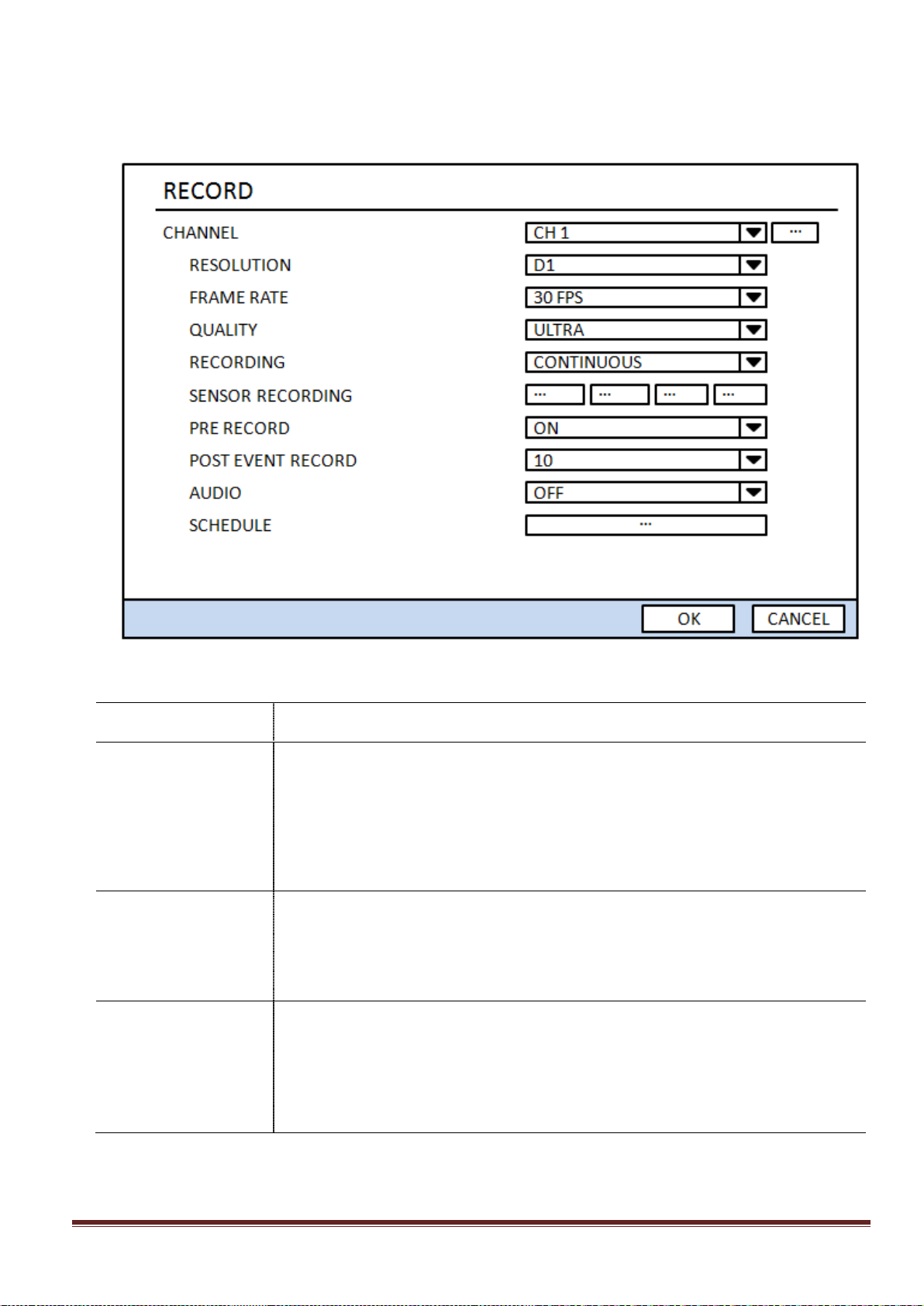

Figure 3.3.1. Recording Mode Setup Screen
Table 3.3.1. Menu Items in Recording Mode Setup
ChipER Technology Corp. page 32
Page 33
Analog DVR
CIF
Half D1
D1
N-0440MH
120fps/4CH
120fps/4CH
120fps/4CH
N-0840MH
240fps/8CH
240fps/8CH
120fps/8CH
N-1640MH
480fps/16CH
240fps/16CH
120fps/16CH
HD-SDI DVR
640 x 360
1280 x 720
1920 x 1080
HD-0405M
120fps/4CH
48fps/4CH
20fps/4CH
HD-0810M
240fps/8CH
96fps/8CH
40fps/8CH
QUALITY
Select the recording quality for the specified channel. LEVEL 1 ~ LEVEL 5 (Allows
the user to change the recording QUALITY of the selected
CHANNEL)
RECORDING
Assign the recording mode for each channel. Options are: Continuous, By Motion,
By Sensor, By Schedule or Disable.
PRE RECORD
Enable/disable pre-event recording. Pre-event recording time is 5 seconds
to 20 Minutes.
POST EVENT RECORD
Set the post event recording time duration for the specified channel. (10~60
seconds)
SENSOR RECORDING
Enable setting up to 4 sensors for the specified channel using the mouse or the
control button of the remote control.
AUDIO
Enable/disable audio recording for the specified channel.
SCHEDULE
Set the recording schedule. Press SEL to enter the schedule setup screen.
ChipER Technology Corp. page 33
Page 34

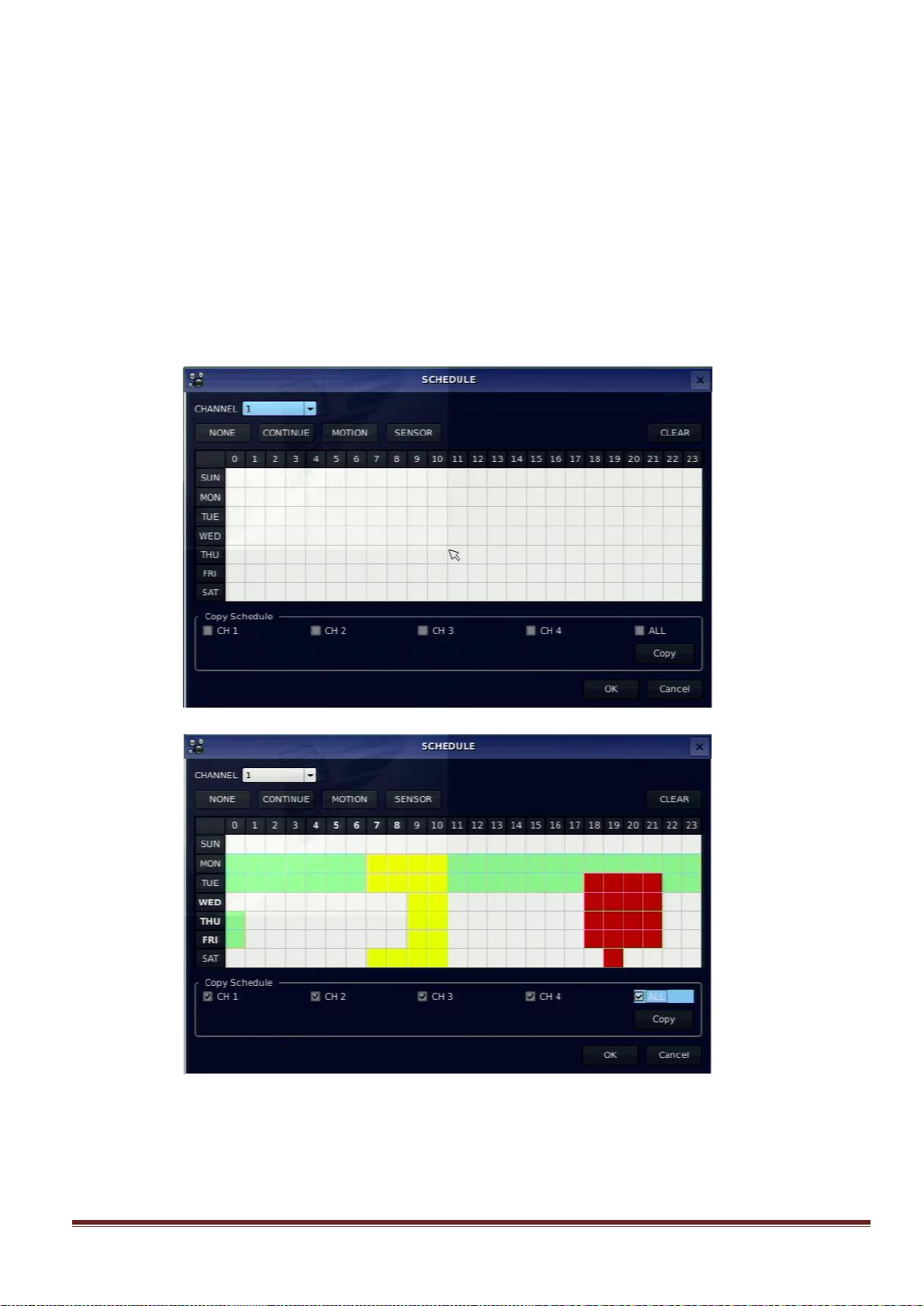

3-3-1. Recording Schedules
To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the menu items
using the mouse or the control button on the remote control.
[Channel]: Select the specific channel.
[Setup]: Set up using the left button of the mouse to section under the specific day and time. It can set the
all section under the specific day or time at a time when pressing the specific day or time. It is also possible
to set up recording modes of various type using a CONTINUOUS (green), Motion (yellow) and Sensor
(red). Left-Click and drag the mouse to change the schedule for more than one timeslot.
[COPY Schedule]: To copy the schedule setup from one channel to another, select the channel to copy
using the mouse or the buttons on the remote control, and select to channel to copy to and press the
select button. Select OK to confirm the changes.
Figure 3.3.2. Schedule Recording Setup Screen
ChipER Technology Corp. page 34
Page 35
3-4. Setup – Device Mode
Item
Description
ALARM OUT
Set the sensor, motion, and video loss for each alarm.
CONTROLLER & PTZ
Set the PTZ baud rate, protocol, and ID.
SPOT-OUT
Set the all details for spot monitoring. It supports 2 spot-outs.
CHANNEL
Select specified channel for motion zone setup.
MOTION ZONE
Select either Full Zone or Partial Zone for motion sensing.
MOTION SENSITIVITY
Set the motion sensitivity for the specified channel.
Control the motion sensitivity from 1 to 9.
KEY TONE
Enable/disable key tone.
REMOTE CONTROL ID
Select an ID of remote control.
1. Select ID number.
2. Press the same number as ID set in DVR on the remote control.
3. An icon will be displayed on the Live Screen that corresponds to the remote
control ID number.0
The options are from 0 to 99
SENSOR
Select sensor NO from 1 to 4
TYPE
Set the type of sensor for the specified channel. Options are: OFF, N/O (normal
open), and N/C (normal closed).
In the SETUP menu, select the DEVICE tab. Then, the device menu is displayed as pictured below.
Navigate through the menu items using the mouse or the control button on the remote control and change
the value of the menu item.
Figure 3.4.1. Device Mode Setup Screen
Table 3.4.1. Menu Items in Device Setup Screen
ChipER Technology Corp. page 35
Page 36
3-4-1. ALARM-OUT
Item
Description
ALARM OUT
Select an Alarm out number. Available No: 4 CH (1)
SENSOR IN
Enable Alarm Out by Sensor up to 4 Inputs.
MOTION ON
Enable Alarm Out by Camera Motion up to 4 cameras.
VIDEO LOSS ON
Enable Alarm Out by Video Loss up to 4 cameras.
ALARM DURATION
Set the alarm dwell time from 5 to 60 seconds.
ERROR ALARM
Set the error type for the alarm activation. The options are
OFF, ALL, HDD ERROR and VIDEO LOSS.
Item
Description
SPOT ON EVENT
Enable/Disable display of the channel when an event is active.
SPOT EVENT
DWELL TIME
Set the dwell time for the display of the event activated channel. (1-10sec)
SEQUENCE
Enable/disable sequential display of spot channel in full screen.
If select ON, spot channel selection screen is displayed.
SEQ-DWEL TIME
Set the dwell time for the spot channel display.(1-10sec)
SPOT CHANNEL
Select a channel for spot monitoring using the mouse or the control button on
the remote control and press OK button.

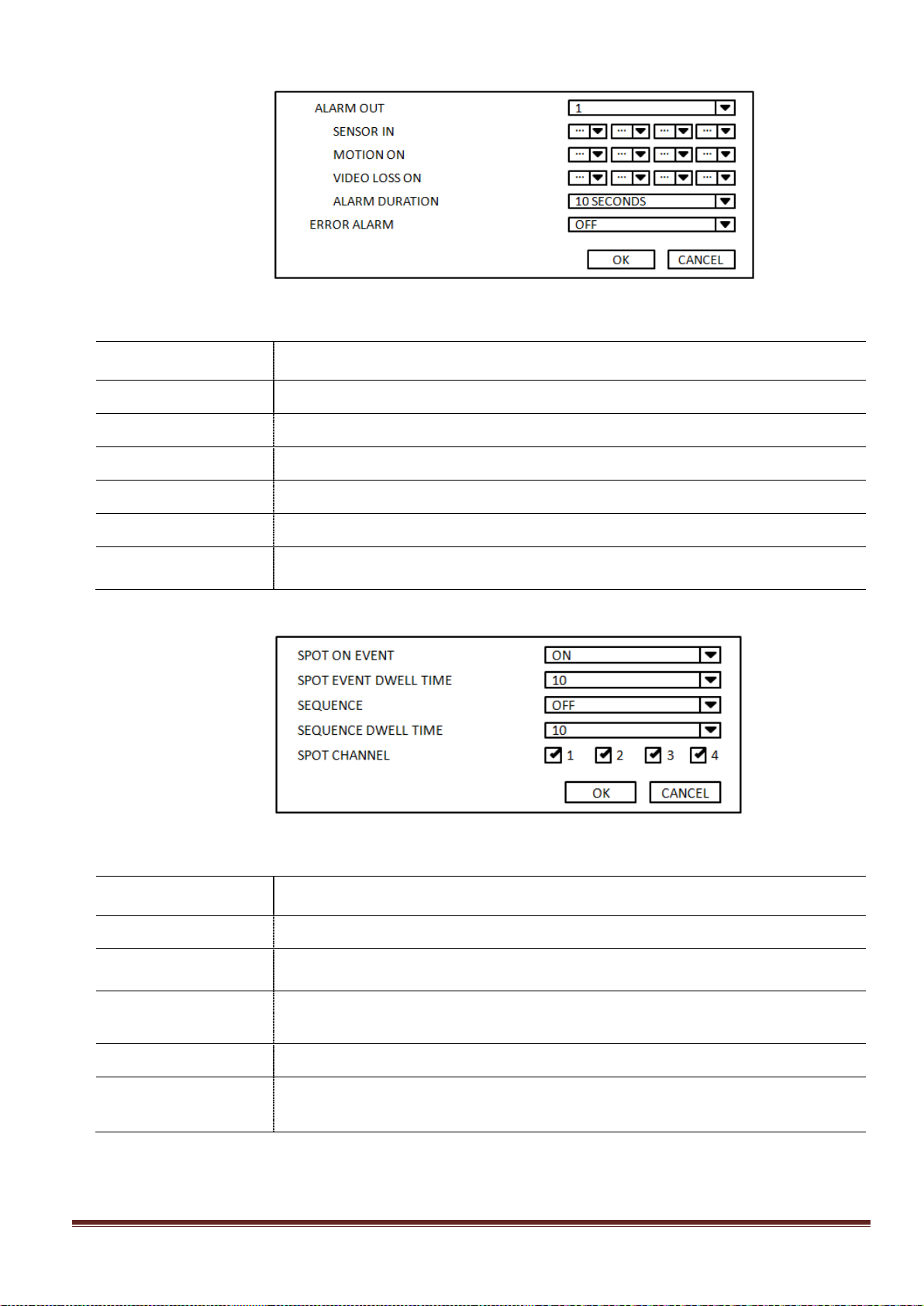

Figure 3.4.2. ALARM-OUT Setup Screen
Table 3.4.2. Menu Item in ALARM-OUT Setup Screen
3-4-2 SPOT-OUT Setup
Figure 3.4.3. SPOT-OUT Setup Screen
Table 3.4.3. Menu item in SPOT-OUT Setup Screen
ChipER Technology Corp. page 36
Page 37
3-4-3CONTROLLER & PTZ Setup
Item
Description
CHANNEL
(Channel number that the PTZ is connected to)
NAME
(Protocol type)
SPEED (Baud Rate)
(19200, 14400, 9600, 4800, 2400)
ID
(0-63)
To control the PTZ functions of the camera, connect a controller to the RS-485 port.
① Connect the RS-485 cables of the PTZ camera to the RS-485 port on the rear panel.
② Press the PTZ menu button. Then PTZ menu screen is displayed as below.
Figure 3.4.4. PTZ Control Setup Screen
Note: For speed dome cameras that support RS-485, connect them directly to the RS-485 port. If the
camera is controlled with RS-232C, use a RS-485 to RS-232C signal converter.
On the PTZ control setup screen, you can select or set the protocol type of the camera that is the same as the
one installed on the site. If the camera has a specific camera ID, select the camera ID using the mouse or the
control button of the remote control.
The following options are available on the PTZ setup screen.
ChipER Technology Corp. page 37
Page 38
3-4-4. Motion Zone
Setup
Select MOTION ZONE using the mouse or the control button on the remote control and select either PARTIAL
ZONE or FULL ZONE using the mouse control. The default value is FULL ZONE.
If FULL ZONE is selected, the motion zone grid screen is not displayed. Only set the level of sensitivity for
MOTION SENSITIVITY.
FULL ZONE: The motion sensor is active on the whole screen.
PARTIAL ZONE: The motion sensor is active in the set detection frame.
Select the motion detection position using the mouse or the control button on the remote control. Then left
click on the mouse or left click and drag the mouse pointer to select or deselect the area. Highlighted area
indicates the partial motion detection zone. Press the ESC button or right click on the mouse to return to the
previous menu.

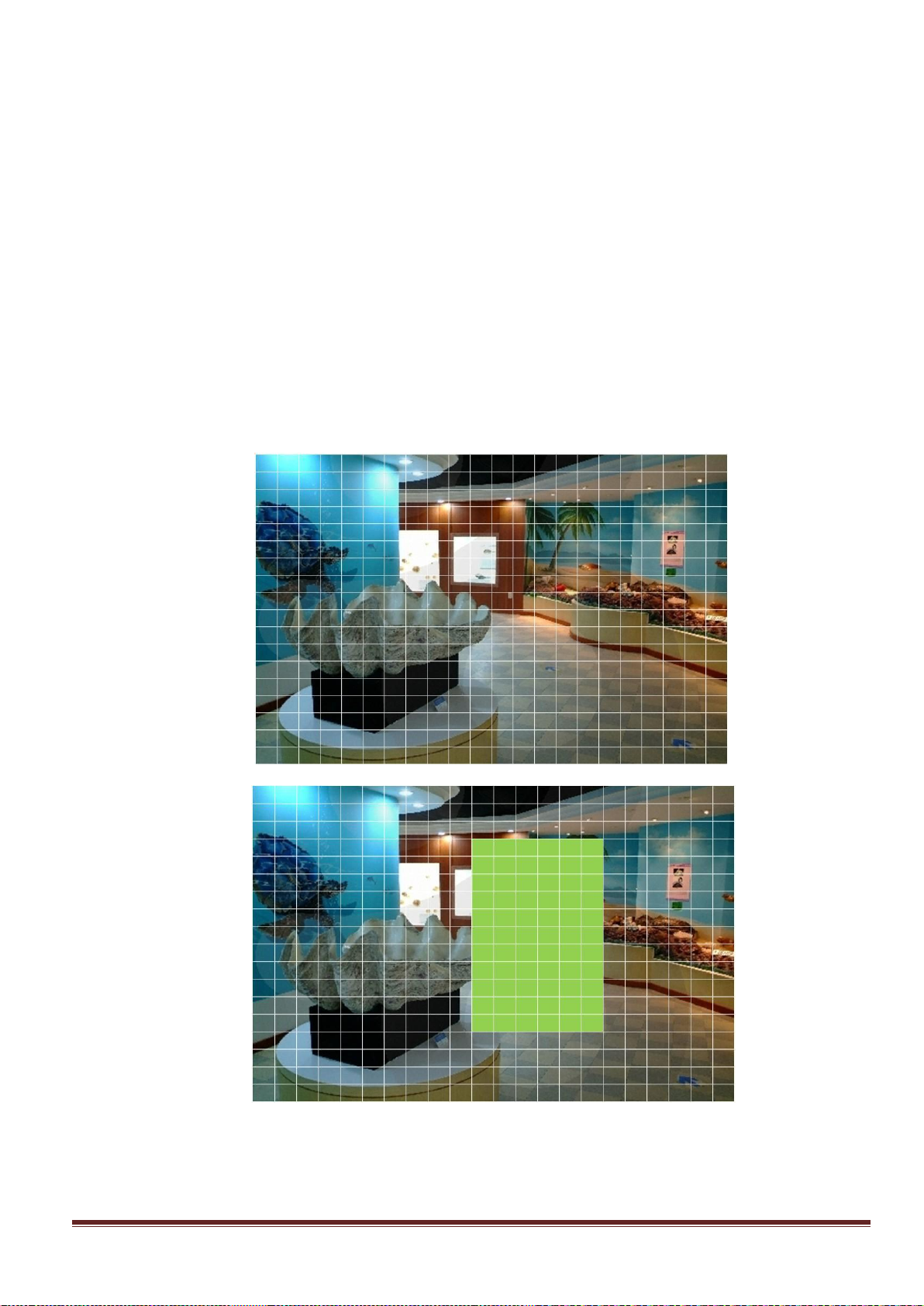

Figure 3.4.5. Motion Zone Grid Screen
ChipER Technology Corp. page 38
Page 39
3-5. Setup – Storage Mode
Item
Description
OVERWRITE
When enabled, the DVR will continue recording and overwrite the oldest
existing recorded data once the hard drive is full. When disabled, recording will
stop once the hard drive is full.
DISK FORMAT
You will have an option YES or NO for the hard drive format.
Caution:
We recommend that you archive any data that you may need in the future
before you format the hard drive.
DISK INFO
Hard drive information. RECORDING.
LIMIT
Enable/disable recording limit. RECORDING LIMIT
DAYS
Set the recording limit days. (1- 90 days)
When setting to 1 day, the data will be removed by the hour.
S.M.A.R.T
Set the alarm and beep by setting HDD temperature limit.
In the SETUP menu, select the STORAGE tab. Then, the STORAGE menu is displayed as pictured below.
Navigate through the menu items using the mouse or the control button on the remote control and change the
value of the menu item.
Figure 3.5.1. STORAGE Setup Screen
Table 3.5.1. Menu Items in STORAGE Setup Screen
ChipER Technology Corp. page 39
Page 40
3-6. Setup – System Mode
Item
Description
DVR ID
Set DVR ID using the mouse or the control button on the remote control. Press
OK to apply the DVR ID.
DESCRIPTION
Press the button to view the system information.
(Hardware version, Software version, Storage size, IP address, MAC address
and DDNS status and Port Forward Status.)
LANGUAGE
Select the display language using the mouse or the control button on the
remote control. Once a language is selected, the display language changes.
DATE FORMAT
Select the date display format using the mouse or the control button on the
remote control. Options are:
(YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY, YYYY-MM-DD, MM-DD-YYYY,
DD-MM-YYYY)
SET DATE&TIME
Select the display date and time using the mouse or the control button on the
remote control and press OK button to set the present date and time.
In the SETUP menu, select the SYSTEM tab. Then, the SYSTEM menu is displayed as pictured below. Navigate
through the menu items using the mouse or the control button on the remote control and change the value of
the menu item.

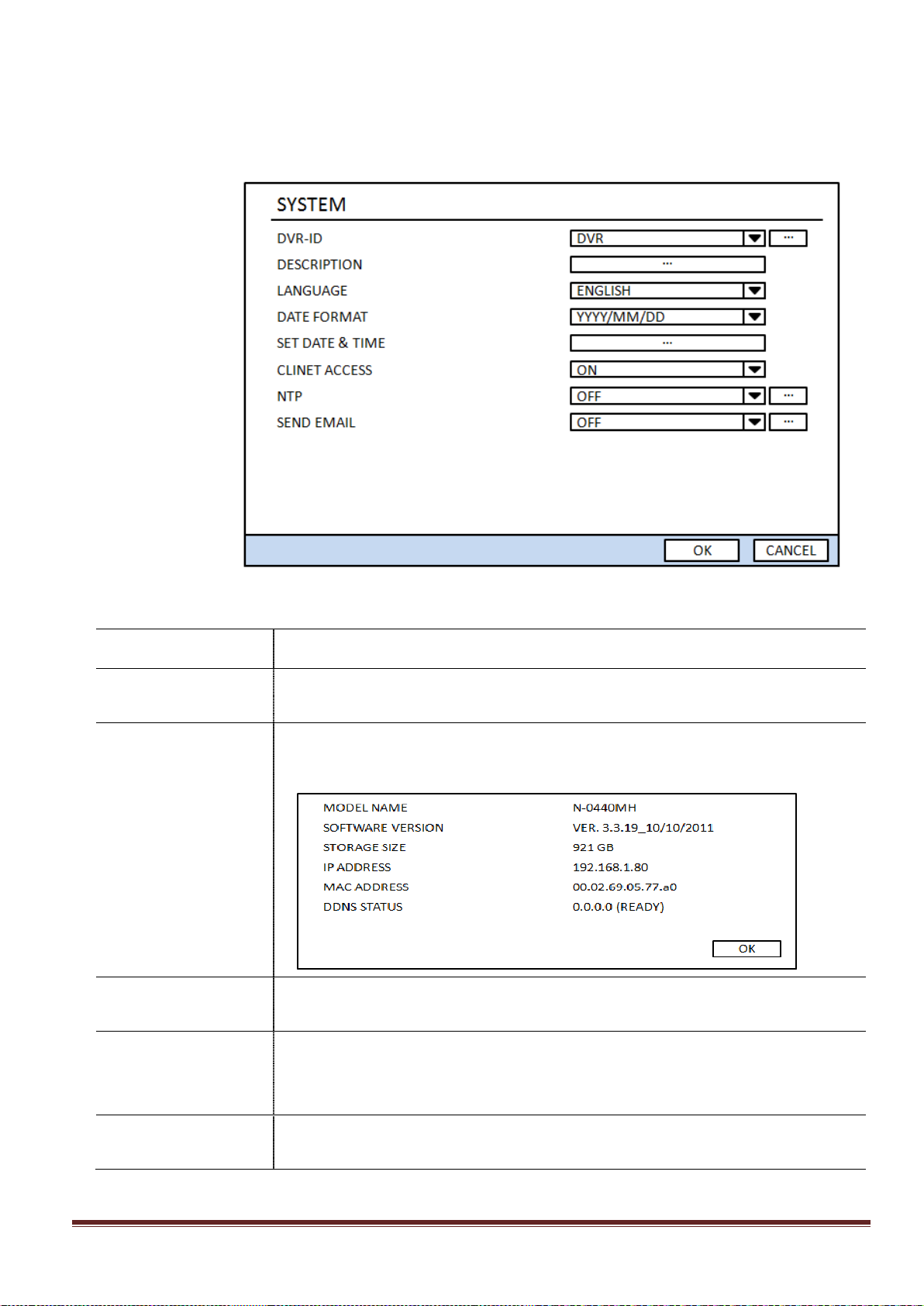

Figure 3.6.1. SYSTEM Setup Screen
Table 3.6.1. Menu Items in SYSTEM Setup Screen
ChipER Technology Corp. page 40
Page 41
DAY LIGHT SAVING
Select DAYLIGHT SAVING using the mouse and the control button on the remote
control and select the appropriate daylight saving time zone.
If choosing EU or OTHERS, set the applicable conditions. The options are:
OFF: Daylight saving is turned off.
USA: Applies the USA daylight saving time.
EU: Applies the EU daylight saving time.
- Select the GMT AREA using the control button.
- Set the time difference with the standard time using the control button.
OTHERS: If the time zone is neither USA nor EU, set the start and end date of
the daylight saving period.
- Select BEGIN or END using the control button and press the SEL button.
- Select the item using the control button, select the setting value using
the control button and press the ESC button to return to SET DATE & TIME
setup menu.
CAUTION:
- Do not set the start time to 23:00 for DLS.
-
DLS
can’t be applied
if the date of BEGIN and END is the same.
CLIENT ACCESS
Enable/Disable remote access through network client software.
NTP
NTP is an abbreviation for Network T ime Protocol, which is for synchronizing the
time of the computer systems over variable-latency data networks.
PRIMARY SNTP SERVER: Input the address of the primary
NTP time server.
SECONDARY SNTP SERVER: Input the address of the secondary
NTP time server.
TIME ZONE: Greenwich Mean Time (GMT) is a term originally referring to mean
solar time at the Royal Observatory, Greenwich, London. Because NTP
synchronizes with Greenwich Mean Time (GMT) regardless of geography, users
must set their own time difference.
CONNECTON MODE: Select NTP time server connection mode.
INTERVAL: Synchronize the clock by hours which is set on the connection period
menu.
ChipER Technology Corp. page 41
Page 42
NTP
TIME: Synchronize the clock at the time daily which is set on the
connection period menu.
CONNECTION PERIOD: 1~24

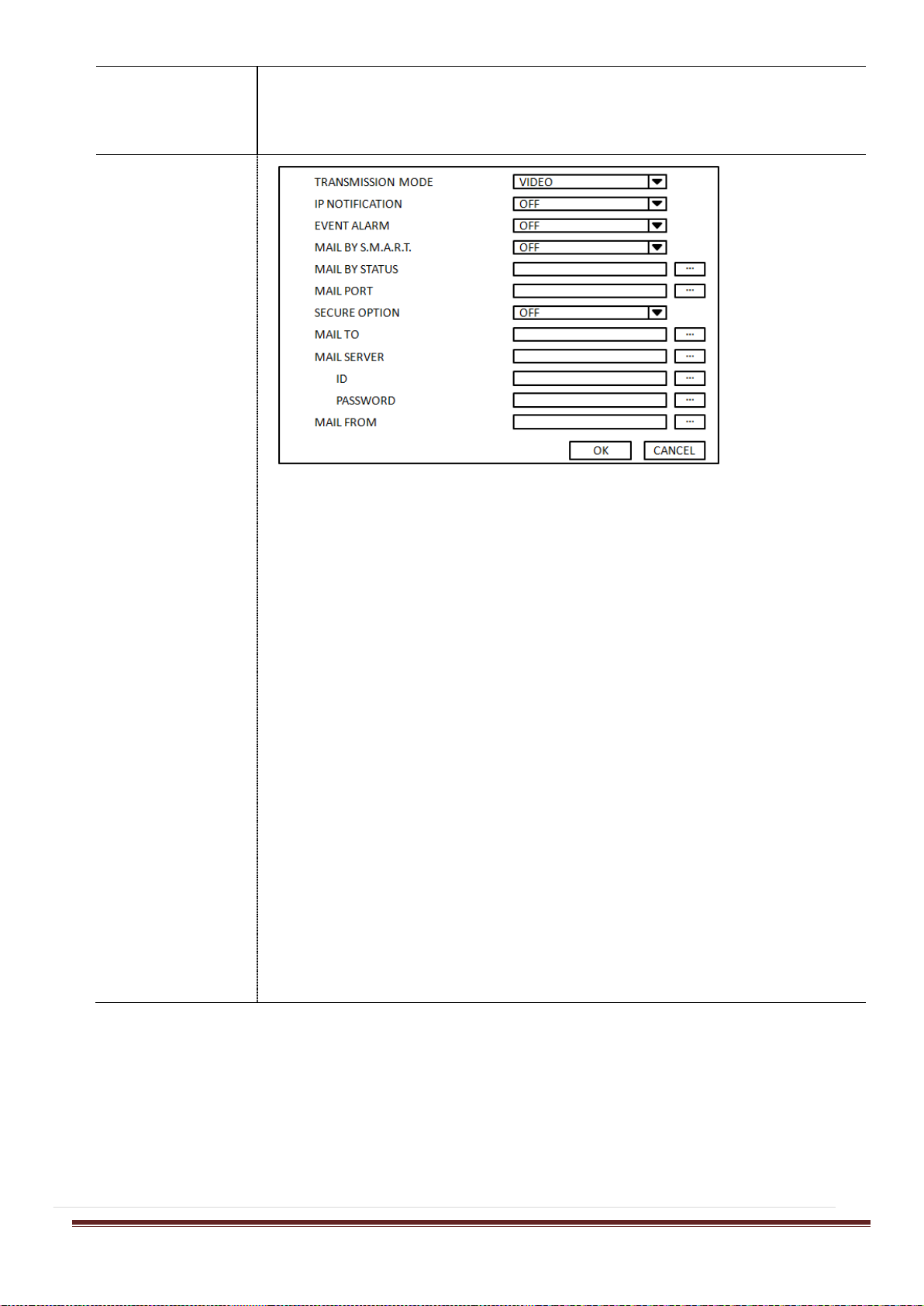

SEND EMAIL
TRANSMISSION MODE: Select e-mail attachment format as an image or a video
clip of the channel that triggered the alarm when an alarm event is triggered.
IP NOTIFICATION: Enable/disable sending e-mail when the IP address of your
DVR is changed.
EVENT ALARM: Enable/disable sending e-mail reports on the channel that
triggered the alarm when an alarm event is triggered.
S.M.A.R.T: Allows the user to set S.M.A.R.T NOTIFICATION ON or OFF
MAIL PORT: Allows the user to set E-MAIL PORT
SECURE OPTION: – NONE, SSL, TLS (Allows the user to select E-MAIL SECURE
OPTION)
MAIL TO: Enter the appropriate email address to enable sending e-mail reports
using a virtual keyboard.
MAIL SERVER: Enter the appropriate mail server information to enable sending
daily e-mail reports using a virtual keyboard.
ID: To set the connection user ID for the mail server using a virtual keyboard.
([email protected])
PASSWORD: To set the connection password for the mail server using a virtual
keyboard.
MAIL FROM: To set the mail address sent to the destination host using a virtual
keyboard.
ChipER Technology Corp. page 42
Page 43
3-7. Setup – Security Mode
Item
Description
USER
AUTHENTICATION
Admin only can access to the menu.
PASSWORD CHECK:
Select either V or nothing for the functions such as
Setup, Playback(PB), PTZ, Record OFF(R/OFF), and Network
Selected Checkbox: The DVR will ask for a password when the
given function is selected for all users.
Blank Checkbox: The DVR will not ask for a password when the given function
is selected for all users.
ADMIN, NETOWRK, USER1, USER2, USER3:
Selected Checkbox: The user can access to the function. Blank Checkbox: The user
can not access to the function
In the SETUP menu, select the SECURITY tab. Then, the SECURITY menu is displayed as pictured below. Navigate
through the menu items using the mouse or the control button on the remote control and change the value of
the menu item.

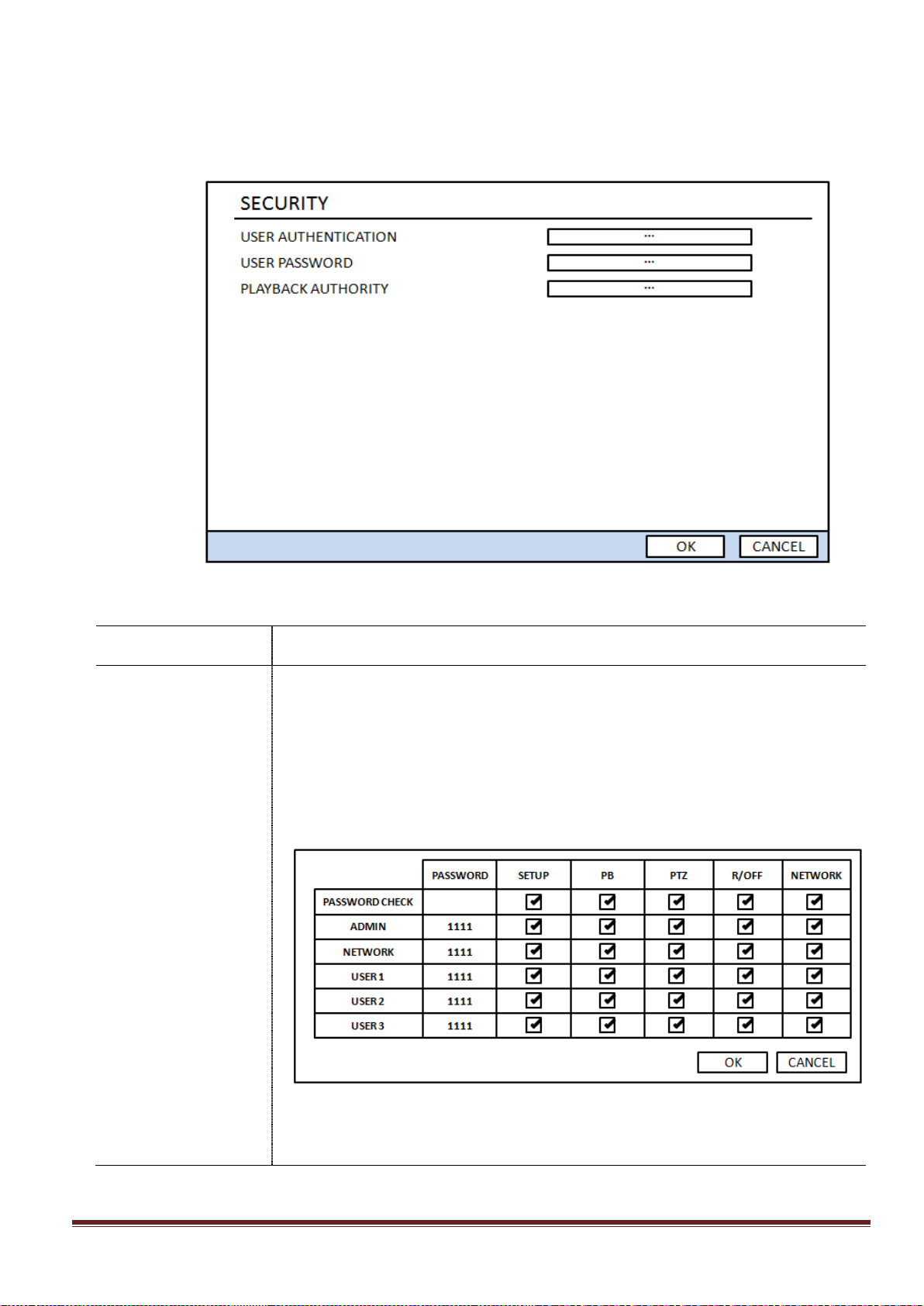

Figure 3.7.1. SECURITY Setup Screen
Table 3.7.1. Menu Items in PASSWRORD Setup Screen
ChipER Technology Corp. page 43
Page 44
USER PASSWORD
Options are ADMIN, NETWORK, USER1, USER2 and USER3.
Select USER PASSWORD using the mouse or the control button on the remote
control and press SEL button. Select user type and enter the current password.
And, enter a new password, enter the same password again to confirm and select
OK. Then the
message “PASSWORD
CHANGED”
is
displayed
The factory default password is 1111.
PLAYBACK
AUTHORITY
Allows specific users AUTHORITY OF PLAYBACK per CHANNEL
When the user set this function, the login window will appear. Then, the user can select one of user
types (ADMIN, USER1, USER2, USER3) using the mouse or the control button on the remote control. The
user can select a password using the mouse or the control button on the remote control. The factory
default password is 1111. It is highly recommended to assign a new password to protect the system.
User can assign a new password in the SECURITY setup menu.
ChipER Technology Corp. page 44
Page 45
3-8. Setup – Network Mode
Item
Description
NETWORK PORT
Set a proper port number for connecting to network.
Port number ( Default: 5445).
NETWORK
AUDIO PORT
Port for audio streaming: NETWORK PORT + 1
WEB PORT
Web Sever Port number (Default: 80)
NETWORK TYPE
Select a type of network connection. Options are: STATIC, DHCP
DHCP: DVR will automatically retrieve an IP address from the network.
LAN: Network information must be manually configured.
DHCP
DVR will automatically retrieve an IP address from the network.
LAN
IP: Register IP address that is assigned for the DVR.
Gateway: Register Gateway that is assigned for the DVR.
Subnet Mask: Register Subnet Mask that is assigned for the DVR.
DDNS
Enable/disable using domain name address through DDNS server.
“ON”
mode, DNS
server name appears
for
domain
registration.
DDNS 1: Select ddnscennter.com from three DDNS server. (If a
different DDNS server is selected, the DVR may not connect
properly)
In the SETUP menu, select the NETWORK tab. Then, the network menu is displayed as pictured below.
Navigate through the menu items using the mouse or the control button on the remote control and change the
value of the menu item

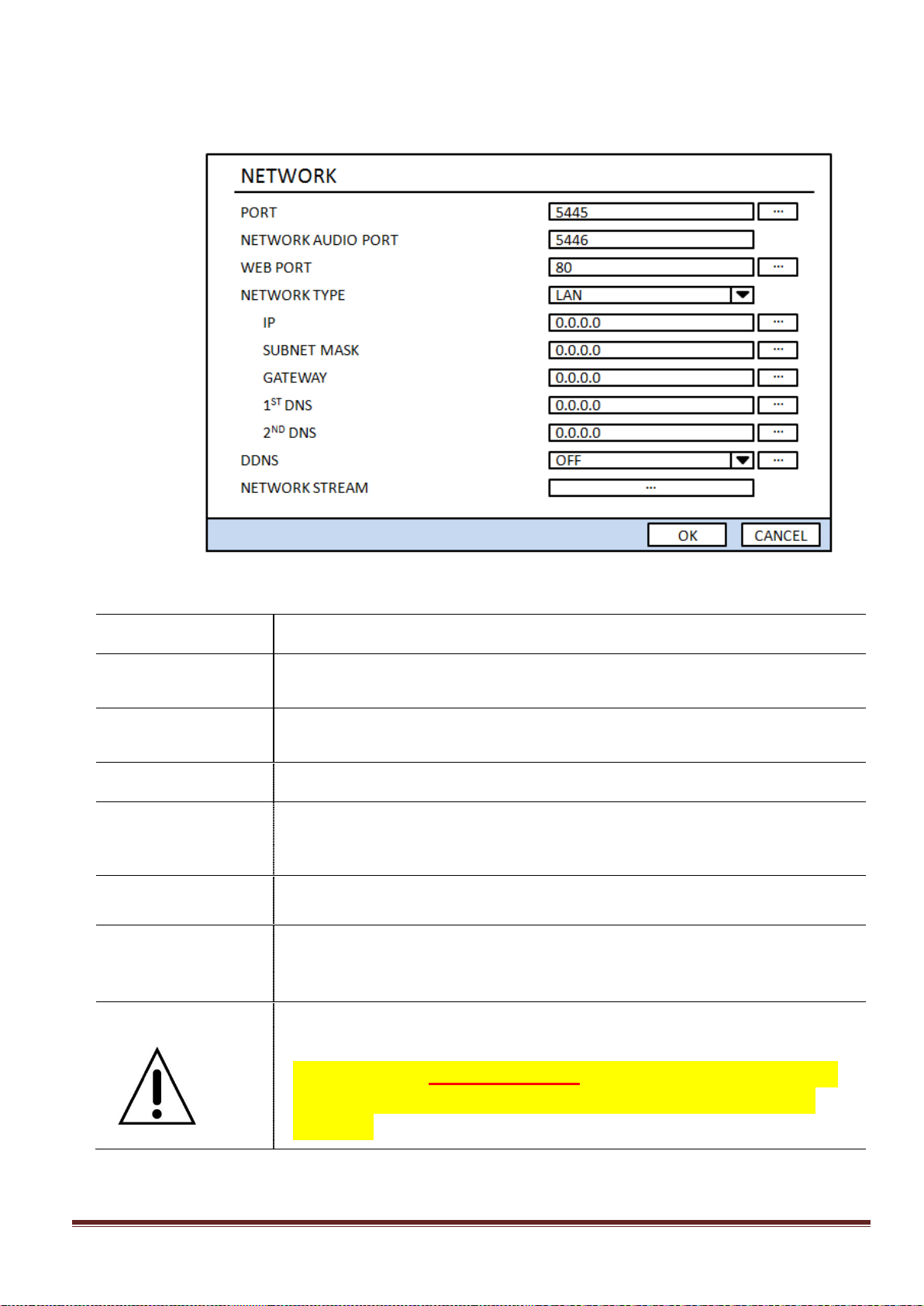

Figure 3.8.1. NETWORK Setup Screen
Table 3.8.1. Menu Items in Network Setup Screen
ChipER Technology Corp. page 45
Page 46

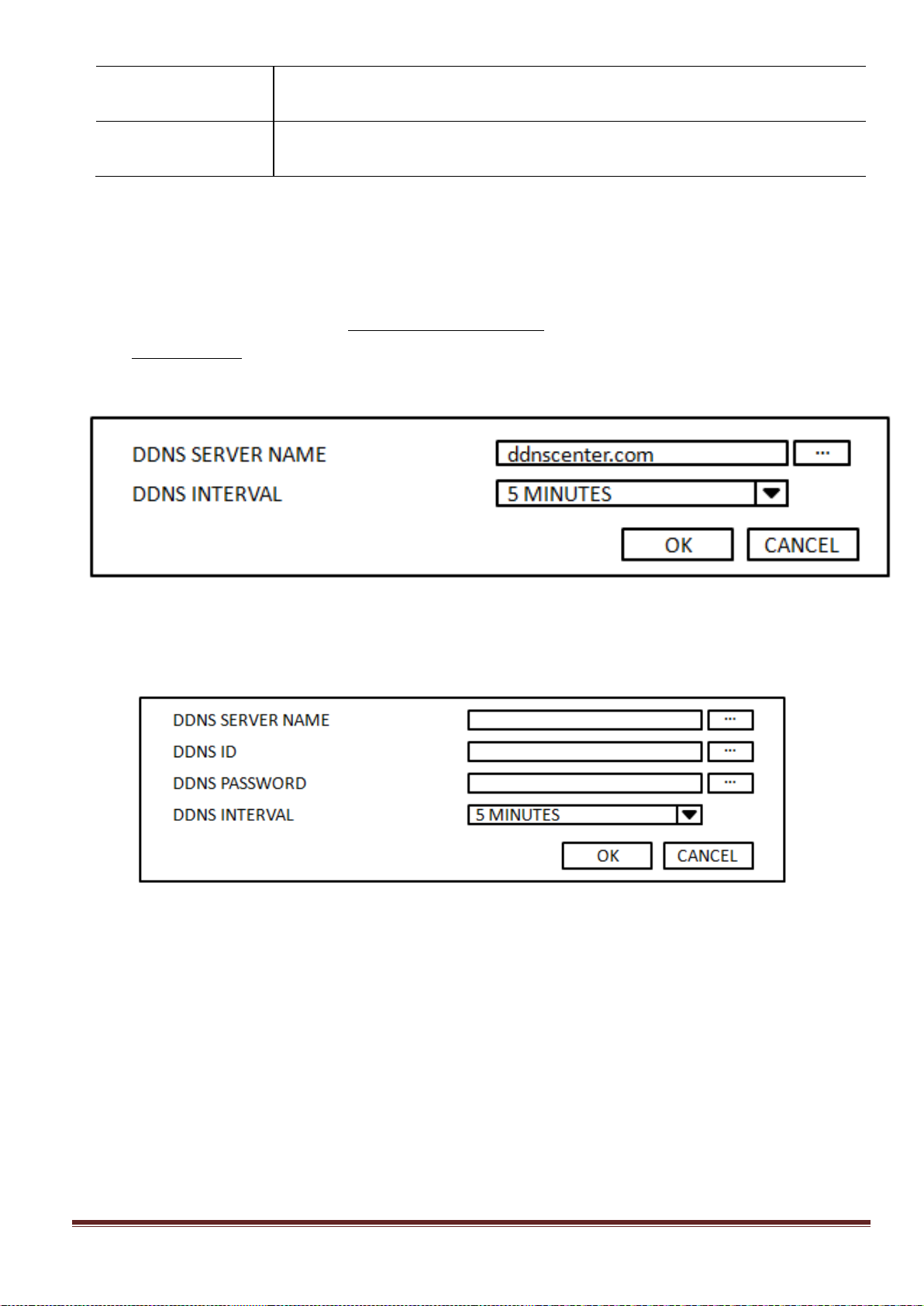

DDNS
DDNS 2: Select this type when wants to use other general-purpose DDNS Server.
DDNS INTERVAL: Set the connection interval (5-60 minutes)
NETWORK STREAM
Set the value for network streaming.
3-8-1. DDNS
User can use the function to connect to a network with a domain name. The user can select one type among
three DDNS Servers which is supported for free service. The DDNS interval can be set from 5 to 60 minutes. To
connect to a network with a domain name, the user must register a MAC address and serial number of the DVR,
and create a unique domain name on http://www.ddnscenter.com.
Select ddnscenter.com from the three DDNS servers. (If you select other DDNS server, the DVR cannot connect
to the DDNS properly.)
Please refer to Appendix: How to connect network section for the detail of the registration.
Figure 3.8.2. Network setup screen – DDNS Server 1
If the user wants to use other general-purpose DDNS Server, select a Sever 2. Then, the user has to input the
server name, ID and password using a virtual keyboard.
Figure 3.8.3. Network Setup Screen – DDNS Server 2
ChipER Technology Corp. page 46
Page 47
3-8-2. Network
Network Access Beyond a Router
In order to access the DVR remotely beyond a router (firewall), the user must
open TCP port for command level, live channels and storage channels. The user
needs to open 3 ports on the router; the DVR port 5445, 5446, and the WEB port
80.
If this port is not opened properly, the user can not access DVR beyond a router.
Ports
When you connect one or more DVRs to a network through an IP sharing device, each device must have a unique
TCP port number for access to each unit from outside the LAN. The IP sharing device must be configured to
forward the assigned port to the specific DVR.
Note: This port number is listed next to the Port menu option in the Network Setup screen. If you plan to
access the
DVR units only from within the same LAN, the TCP port does not have to be
changed.
3-8-3. Network Stream
User can set the frame rate and the bit rate for a network stream for a specific channel. Total frame rate is
CIF 120fps/100fps (NTSC/PAL). The bit rate can be set from 128, 256, 384, 512 and 768.
<Note> The network streaming is possible to set up to the recording frame rate of the channel.
Figure 3.8.4. Network Setup Screen – Network Stream
ChipER Technology Corp. page 47
Page 48
3-9. Setup - CONFIG Mode
Item
Description
SAVE SETUP TO
A USB
User can save the current configuration (Setting values) of the DVR to the USB
flash drive. Plug in the USB flash on the front panel and press the button to start
the saving process.
LOAD SETUP
FROM A USB
User can upload the configuration of the DVR to another DVR using the USB
Flash drive. Plug in the USB flash drive on the front panel and press the button to
start the loading process.
In the SETUP menu, select the CONFIG tab. Then, the configuration menu is displayed as pictured below.
Navigate through the menu items using the mouse or the control button on the remote control and change the
value of the menu item.
Figure 3.9.1. Configuration Setup Screen
Table 3.9.1. Configuration Setup
ChipER Technology Corp. page 48
Page 49
LOAD DEFAULT
Press the button to reset the system to the default settings.
(The following settings such as Language, DVR ID, Security User Authentication, Security User P/W,
Date format, DLS settings, Network settings, HDD overwrite, Limit recording, HDD serial number, and
HDD ERROR time will not be included.)
LOAD FACTORY
DEFAULT
Press the button to reset the system to the factory default settings.
SOFTWARE UPGRADE
Upgrade software to the latest version.
After connecting USB flash drive to USB port on the DVR, click SEARCH. It
will automatically find the upgrade file.
ChipER Technology Corp. page 49
Page 50
3-10. Quick Setup
Item
Description
USE QUICK SETUP
Select the Checkbox to use the Quick Setup.
When user inputs the DESIRED DAYS to record, the system displays a
recommended resolution, frame rate, quality and recording type after calculating
the capacity of the installed HDD. At that time, the priority is followed by the
order of the items; resolution, frame rate, quality and recording type.
CUSTOMER SETTINGS
User can change the setting value such as resolution, frame rate, quality and
recording type. By the setting value, the DAYS TO RECORD will change.
In the MENU, select the QUICK SETUP tab. Then, the QUICK SETUP menu is displayed as pictured below. Navigate
through the menu items using the mouse or the control button on the remote control and change the value of the
menu item.
The QUICK SETUP has high priority than other setting values on RECORDING and NETWORK menu. The QUICK
SETUP also cannot set to classified according to channel.
Figure 3.10.1. Quick Setup Screen
Table 3.10.1. Quick Setup
ChipER Technology Corp. page 50

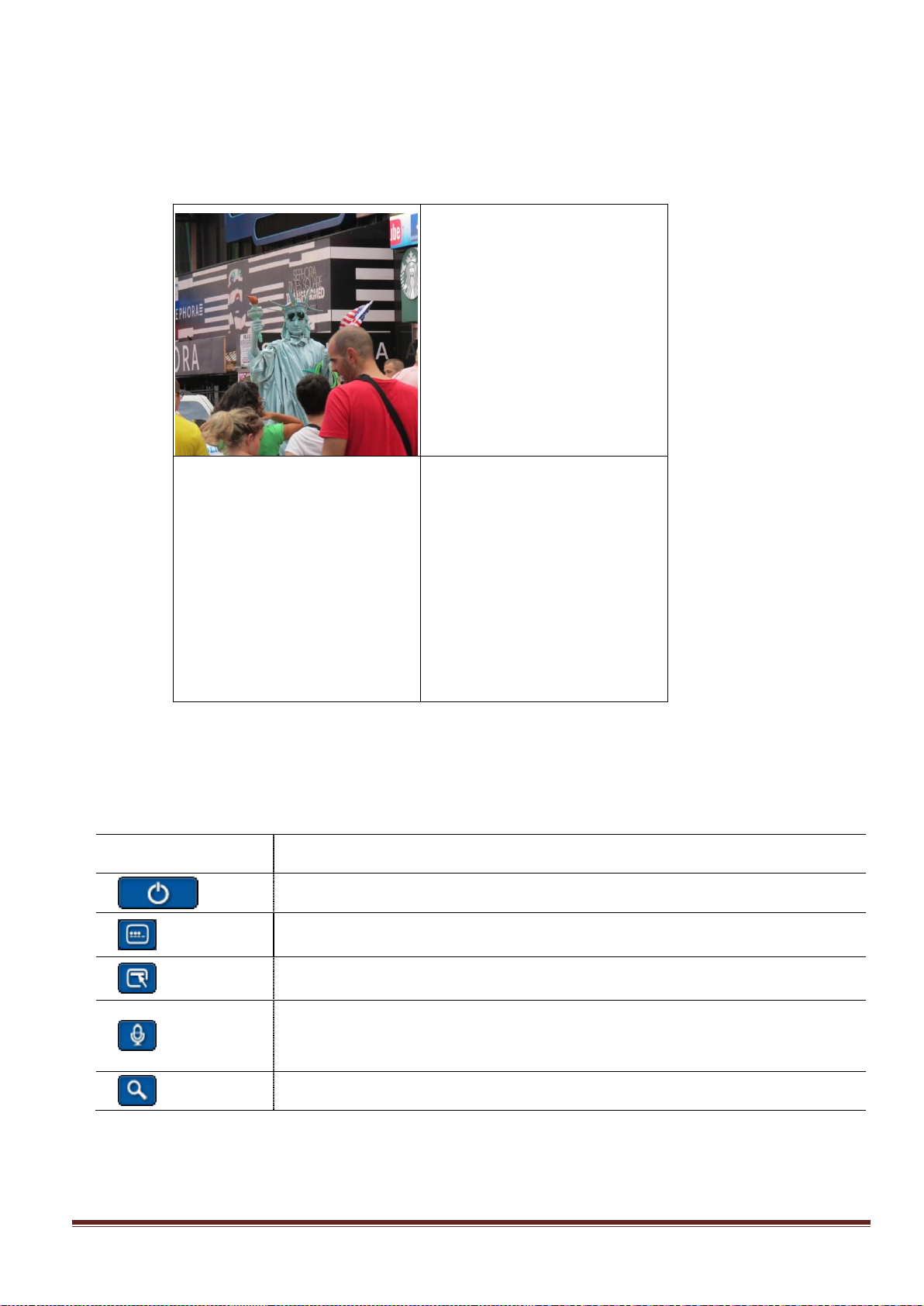

Page 51
4. Live, Search and Playback
CH 2
VIDEO LOSS
CH 3
VIDEO LOSS
CH 4
VIDEO LOSS
Icon
Description
Power On/Off button.
Lock/Unlock Setup button.
Setup button. Click this button to go to a setup menu.
Audio button. Click this button to set an audio reception type; Audio Mute, 1
channel or 4 channels. To set just 1 channel, select a specific channel on the live
screen at first.
Search button. Click this button to enter the search menu.
4-1. Live Viewing Screen
In the Live screen, video inputs from the cameras are displayed as they are configured in the Display
Setup screen. Various On-Screen Display (OSD) symbols, which indicate the status of the DVR, are described
in Table 4.1.1.
The following status bar hides automatically and appears again when putting a mouse pointer to the bar.
Figure 4.1.1. Live Viewing Screen
Table 4.1.1. Status Indicator Icons in Live Viewing Screen
ChipER Technology Corp. page 51
Page 52

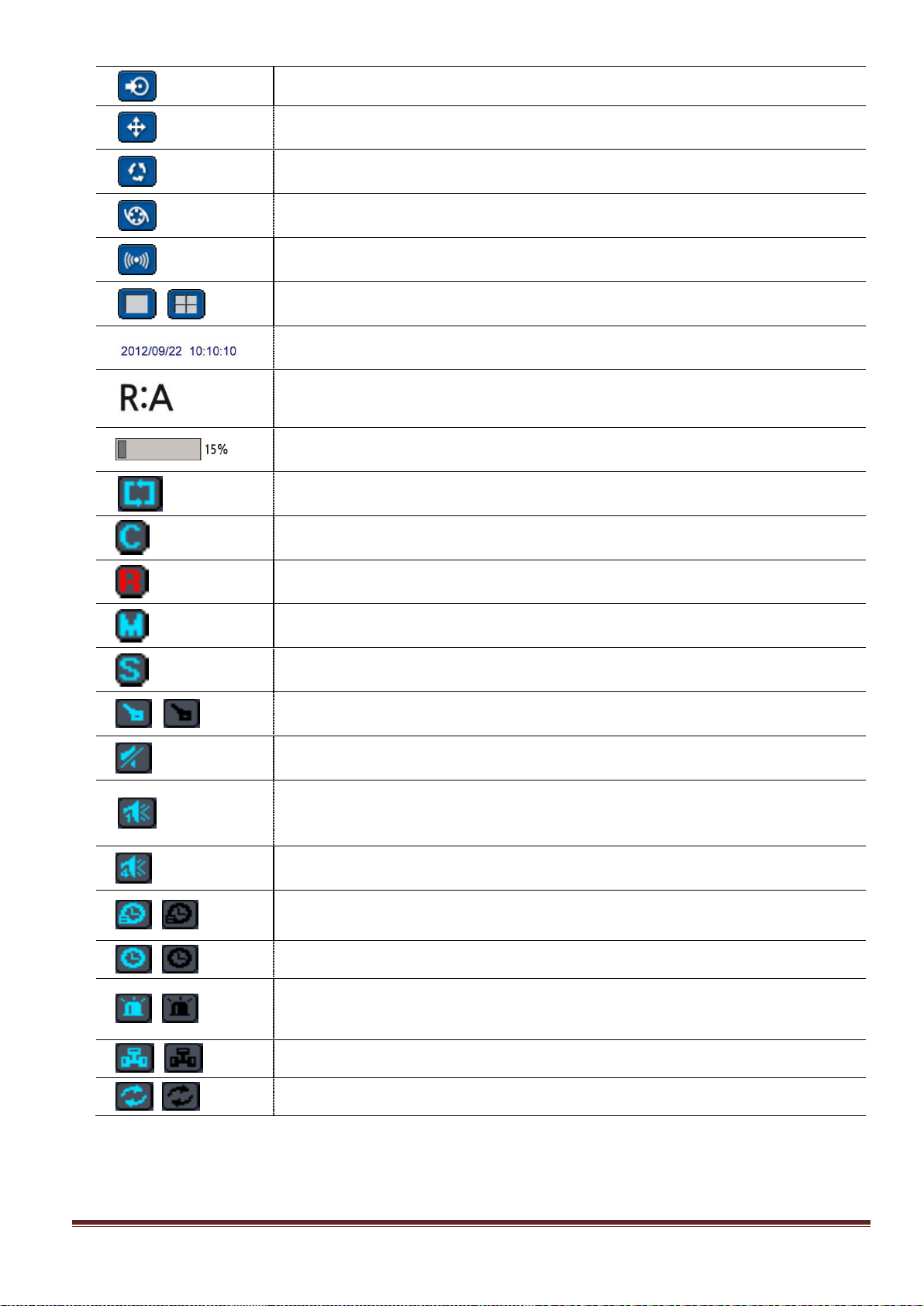

Backup button. Click this button to do a back-up.
PTZ button. Opens the PTZ control menu.
Sequence button. Click this button to use a sequence function.
Manual Record button. Click this button to enable manual recording.
Alarm-out function On/Off button. Select this button to disable the alarm.
Click the split screen icon to change the current split screen mode using the
mouse or SEL button.
Displays the current date and time.
Remote
control ID display. If a remote ID is not set, the
message
“A(all)”
is
Displayed.
Displays the amount of recording on the hard disk from 0-99%.
Indicates that HDD is recycled.
Continuous recording in progress.
Manual recording in progress. To set the Manual recording mode, press the
Record button on the front panel.
Motion alarm recording in progress.
Sensor recording in progress.
Indicates that the lock is set.
Audio mute. To set audio mute, press the Audio button on the front panel.
Single audio display. To set audio single for highlighted channel only, press the
Audio button on the front panel.
To mix audio display, press the Audio button on the left side
Indicates that alarm is set. To set the alarm function, press the Alarm button on
the front panel.
Indicates that alarm output is activated.
Event indicator. When there is an event (motion recording, video loss, HDD fail,
S.M.A.R.T), this icon will be highlighted bright.
Indicates that a network client is connected to the DVR.
Indicates that sequencing mode is enabled
ChipER Technology Corp. page 52
Page 53
4-2. SEARCH Screen
To enter the search screen menu, select SEARCH menu on the screen using the mouse or press SEARCH icon
on live screen.

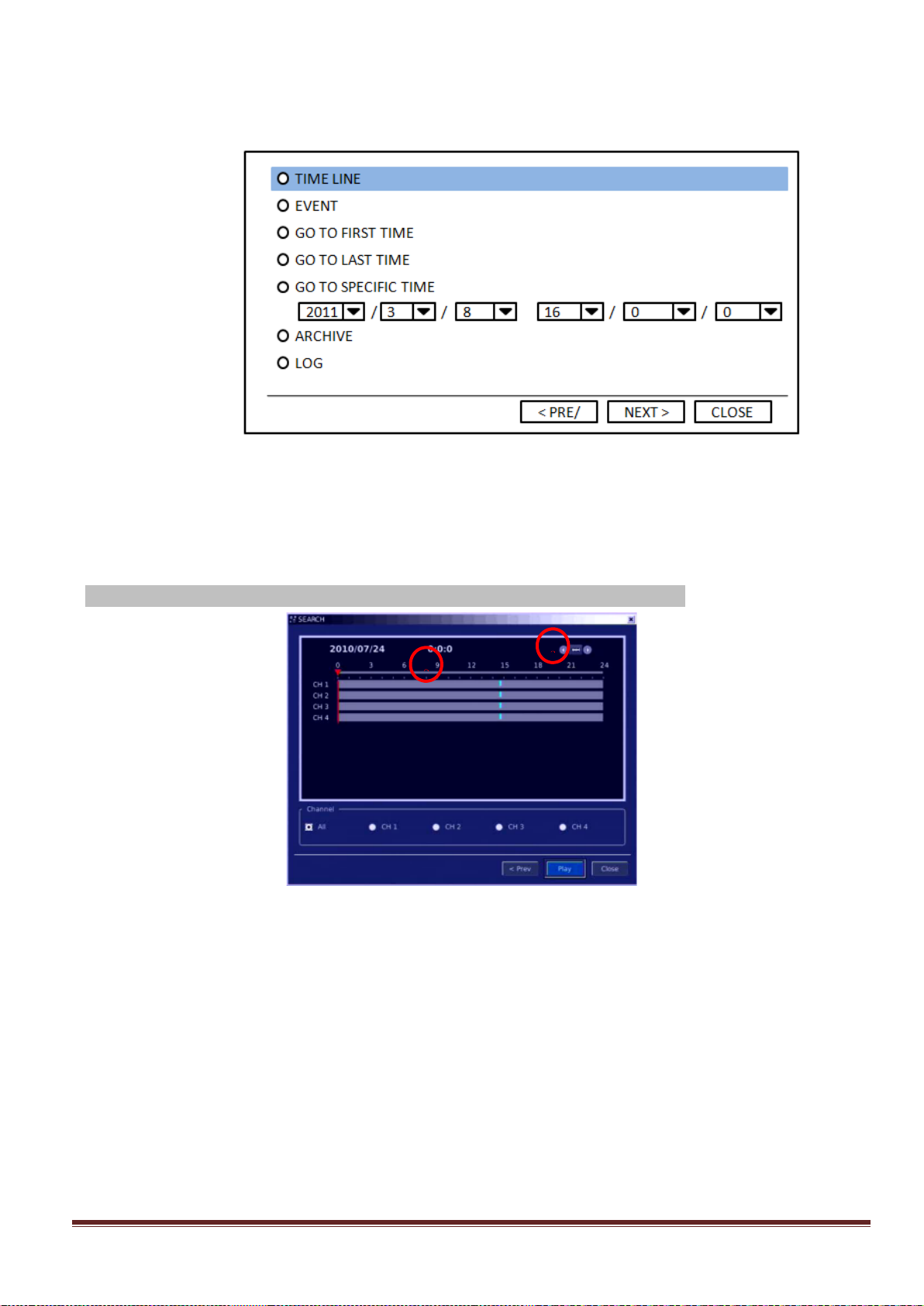

Figure 4.2.1. Search Screen
There are 7 ways of search menu such as TIMELINE, EVENT, GO TO FIRST TIME, GO TO LAST TIME, GO TO
SPECIFIC TIME, ARCHIVE and LOG on the screen.
How to Search Data On the T ime-Line Using the Mouse or Front Key Button
2
1
① 1 hour moving: 1-hour time bar (Mouse)/ F/REW and F/ADV button (Front Key)
② 5 minute moving:
◀
12:00:00 ▶(Mouse)/ control button
◀ ▶
(Front Key)
There are 7 ways of search menu such as TIMELINE, EVENT, GO TO FIRST TIME, GO TO LAST TIME, GO TO
SPECIFIC TIME, ARCHIVE and LOG on the screen.
ChipER Technology Corp. page 53
Page 54

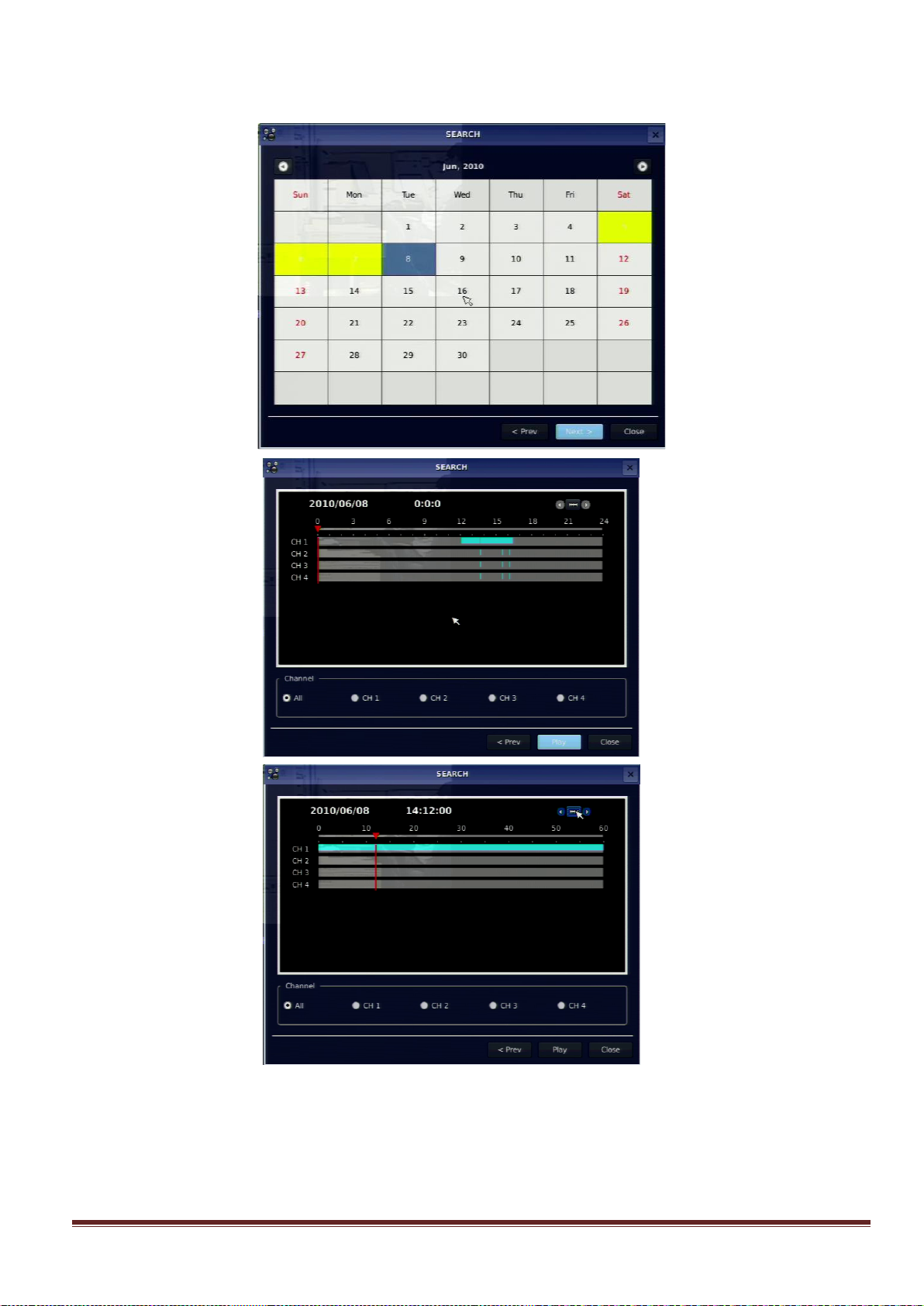

4-2-1. TIME-LINE Search
The TIME-LINE search window is used to find the stored video by using the time line bar.
When the Timeline menu is selected, the user can see a calendar which has the recorded data. Select a specific
date and time. Use a drag-and-drop function of the mouse control. User can select a specific minutes using a
button in the above red box. Press the PLAY button after selecting the specific time. Press the PREV to return
to the SEARCH window.
ChipER Technology Corp. page 54
Page 55
4-2-2. Event Search
The Event Search window is used to find stored video.

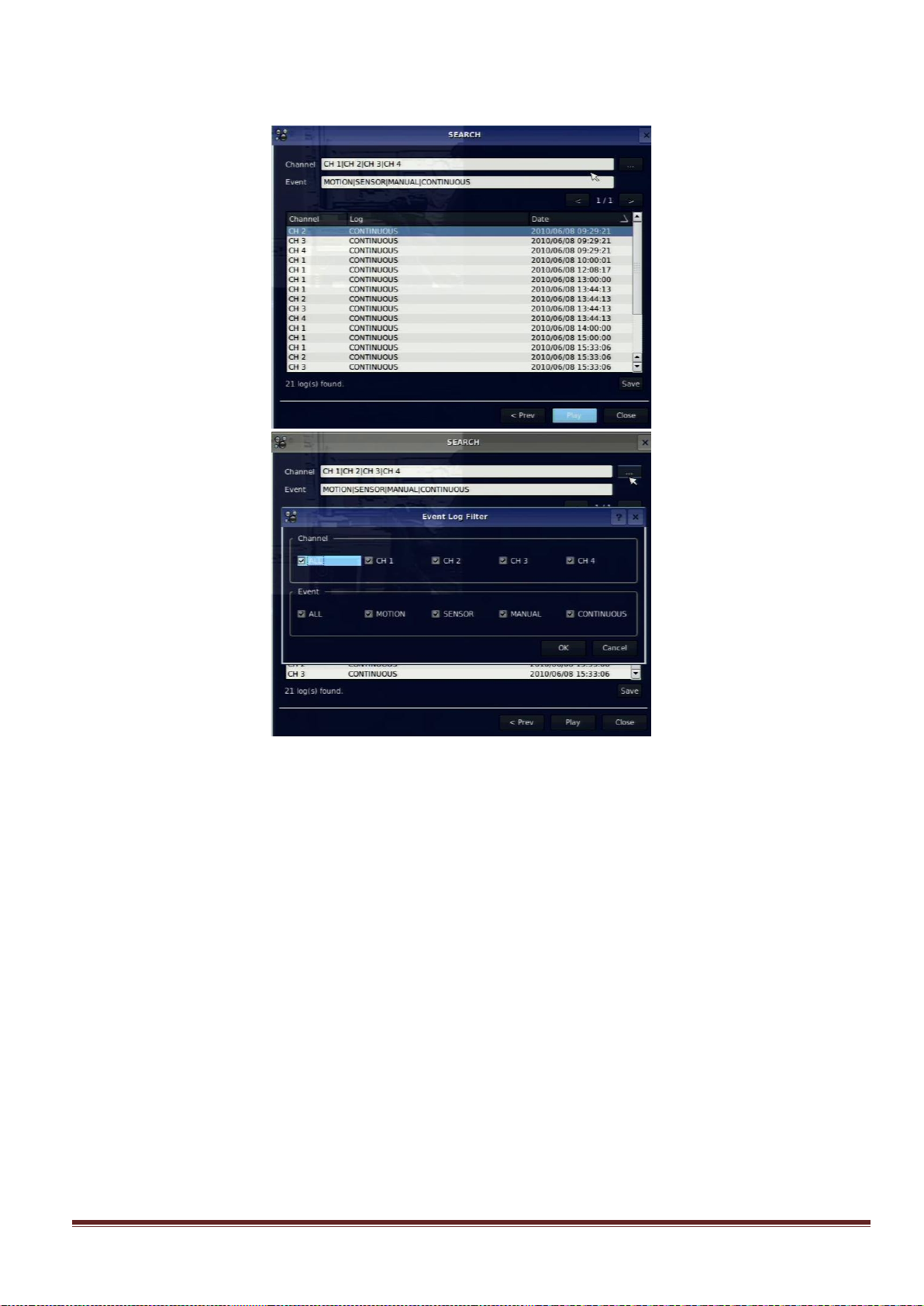

Figure 4.2.2. Event Search
Screen
When the Event menu is selected, the user can see a calendar which has recorded data. Select a specific date
and the event log will be displayed. Press the PLAY button to playback the data or the SAVE button to save the
data after selecting the specific data. User can find a data of the specific channel and event using a button in the
above red box. Press the PREV to return to the SEARCH window.
4-2-3. Go To First Time
You can access from the oldest recorded data on the DVR hard drive by selecting GO TO FIRST TIME on
the SEARCH window. Press the PREV to return to the SEARCH window.
4-2-4. Go To Last Time
You can access from the last minute recorded data on the DVR hard drive by selecting GO TO LAST TME on
the SEARCH window. Press the PREV to return to the SEARCH window
ChipER Technology Corp. page 55
Page 56

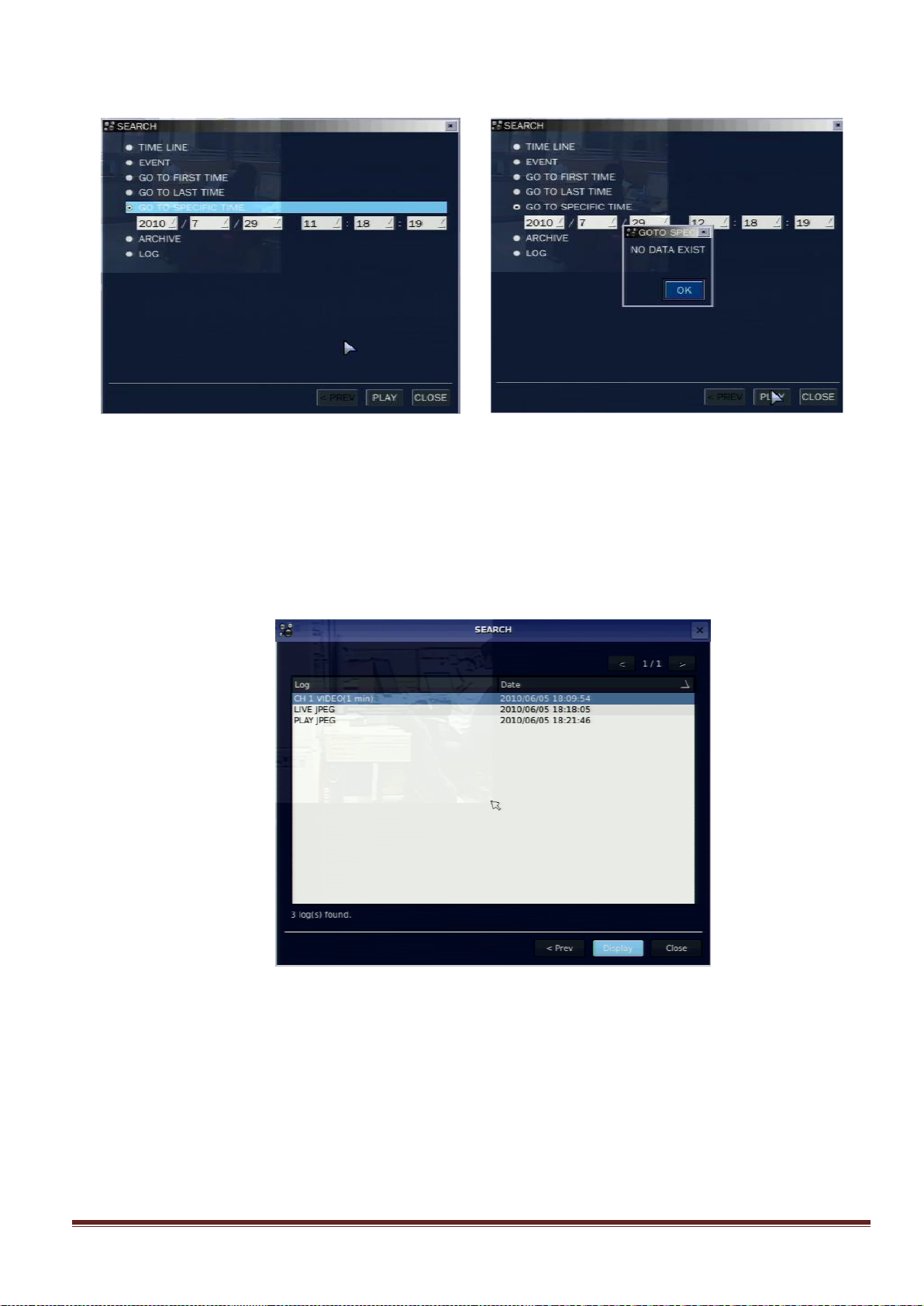

4-2-5. Go To Specific Time
Figure 4.2.3. Go To Specific Time
User can search for video data from a specific instance by setting the date and time in the Go To Specific Time
menu. Use the mouse or the control button on the remote control to change the date and time value and press
the PLAY button after setting. If there are not video data in the set date and time, No Data Exist message displays.
4-2-6. Archive Search
The ARCHIVE Search window is used to find previously stored video or images.
Figure 4.2.4. Archive Search Screen
When the Archive menu is selected, the user can see a calendar which has recording data. Select a specific date
and then the archived data will be displayed. Press the Display button to view the still image or the first frame of
the selected video, then the user can save the selected data.
ChipER Technology Corp. page 56
Page 57
4-2-7. Log Search
You can access the LOG list search screen by selecting LOG on the SEARCH window.

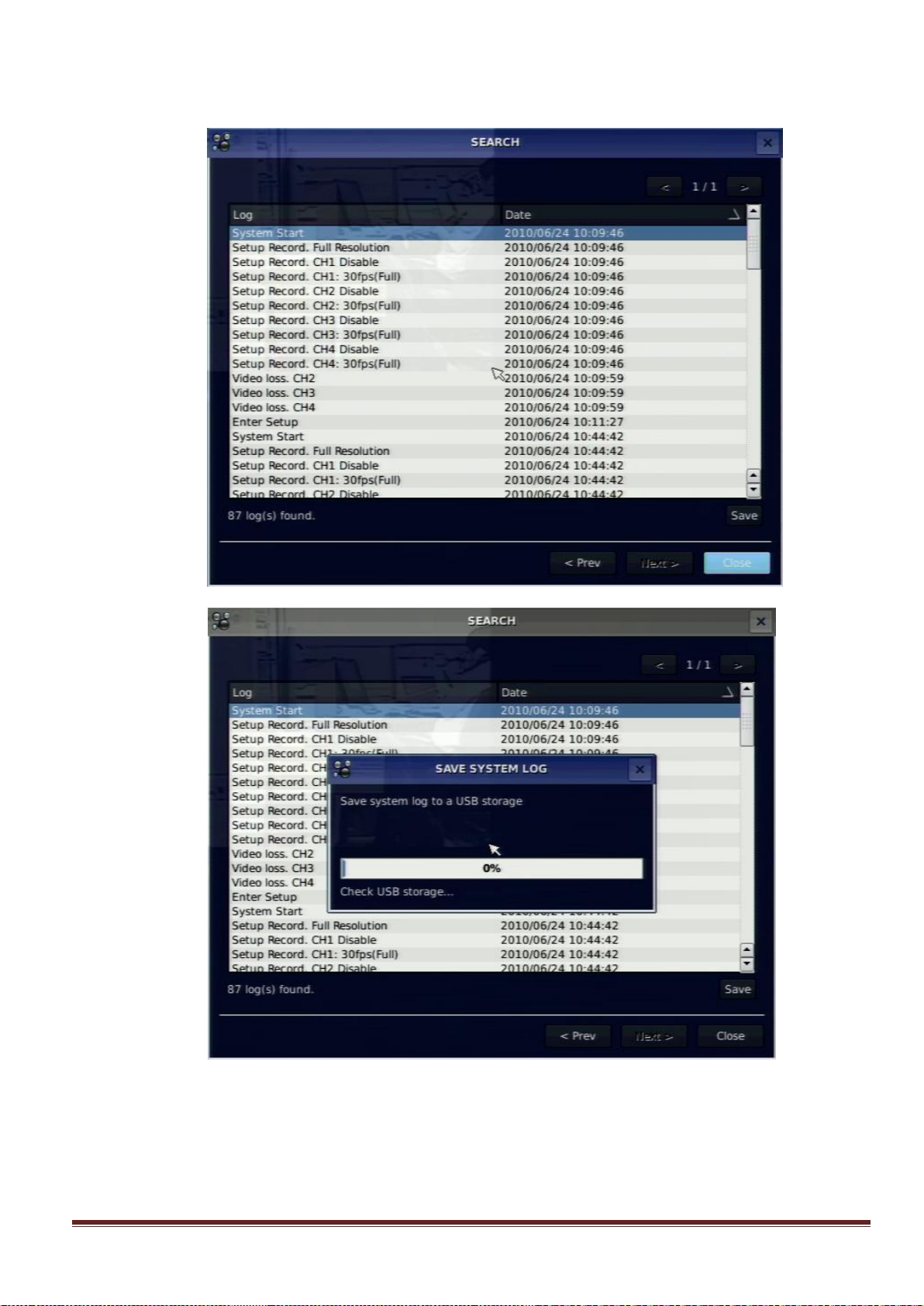

Figure 4.2.5. Log Search Screen
When the Log menu is selected, the user can see a calendar which has recording data. Select a specific date and
press NEXT button, and then the log data will be displayed. Press the SAVE button to save the data and then the
data is saved as a text file format.
ChipER Technology Corp. page 57
Page 58
4-3. Play Mode
Icon
Description
Return to the previous menu screen, search window, or exit from the Menu.
◀◀
Press to rewind the footage at 1x, 2x and 4x speeds. Reverse playback speed is
shown as -1x(normal), -2x (2 times normal) and -4x (4 times normal) at the
bottom right of the screen.
--◀
Jump/Step backward. The playback position moves 60 seconds backward.
▶
/ II
Press to play or pause recorded video.
▶
--
Jump/Step forward. Playback position moves 60 seconds forward.
▶▶
Press to fast forward the footage at 1x, 2x and 4x speeds. Playback speed is
▶▶ indicated as +1x, +2x and +4x for normal, twice and 4 times of the
regular speed at the bottom right of the screen.
Press to backup the video.
During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you may
return to the SEARCH screen by pressing the X button on the status bar or the ESC button of a remote control.

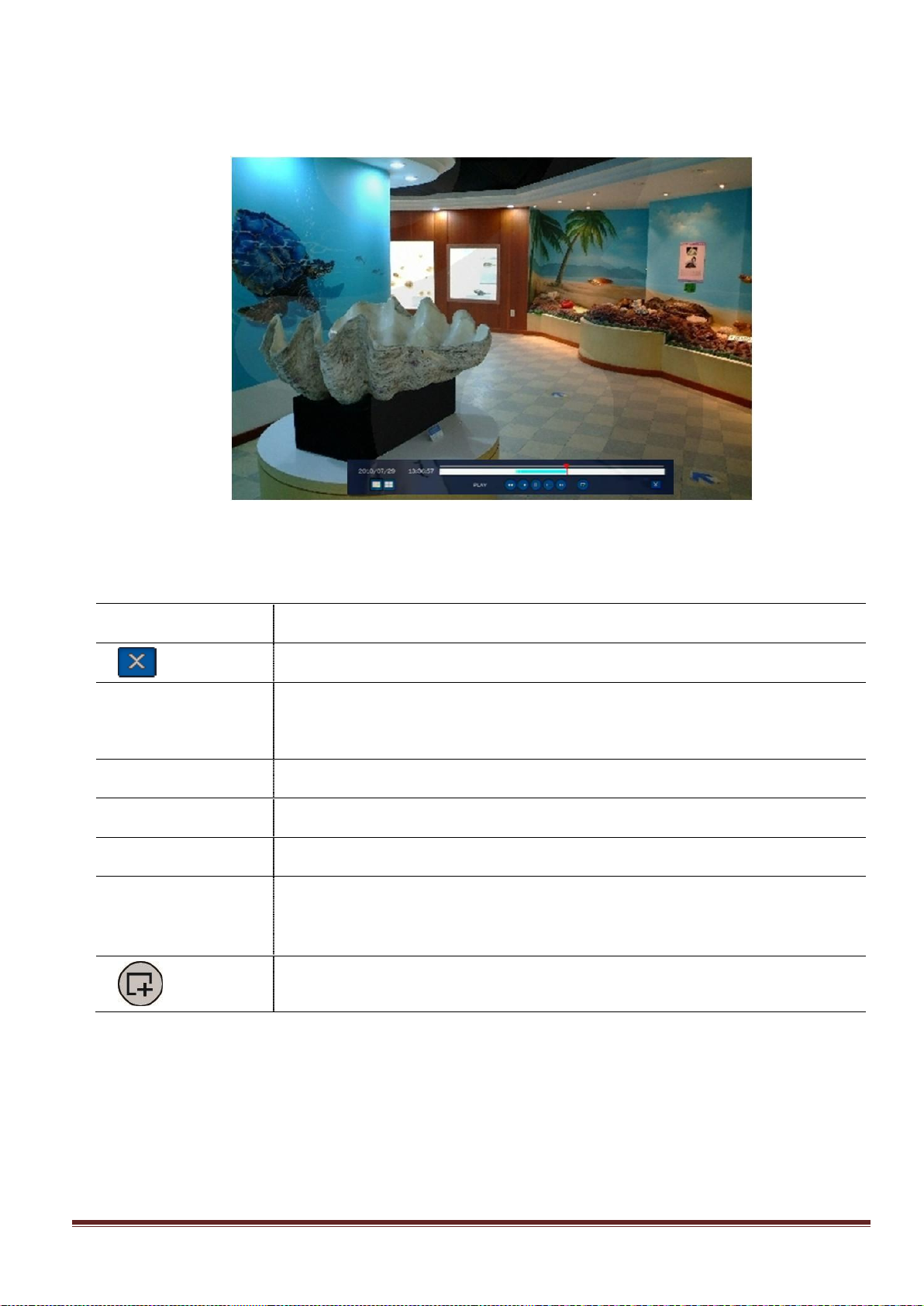

Figure 4.3.1. PLAY Mode Screen
The following status bar hides automatically and appears again when putting a mouse pointer to the bar.
Table 4.3.1. Button Functions in PLAY Mode
ChipER Technology Corp. page 58
Page 59
5. PTZ Control
Item
Description
INITIALIZE
Initialize the PTZ settings of the selected camera.
PAN / TILT
Select PAN/TILT using the mouse or the control button and press SEL
button on the remote control.
Adjust the TILT (UP/DOWN) /PAN (LEFT/RIGHT) position using the mouse or
the control button on the remote control.
ZOOM/FOCUS
Select ZOOM/FOCUS using the mouse or the control button and press SEL
button on the remote control.
Adjust the ZOOM (Mouse Wheel Down or Up/Down button of the remote
control)/FOCUS (Mouse Wheel Up or Left/Right button of the remote
control) position.
OSD
Select the OSD to enter the menu. Control keys are Right, Left, UP,
Down,
Select, Far (REW KEY), and Near (FF KEY). Press the ESC button to return to
the main menu. Press the PTZ button to escape from the OSD menu.
AUTOSCAN
Press the right key (▶) on the control button to start auto scan
Press the left key (◀) on the control button to stop auto scan.
PRESET
Select the PRESET and press the left key (◀) on the control button.
Then, number input window will appear. Set the number (3 digits) using
the number key and press the SEL to set the preset number for the current
position.
Press the right key (▶) on the control button and set the number (3
digits) to go to the preset
number.
TOUR
Select the TOUR and press the right key (▶) on the control button.
Then, number input window will appear. Set the number (1 digit) using the
number key and press SEL to make the group number work.
Press the left key (◀) on the control button to stop tour.
User can set the preset number in the tour group of the OSD menu.
NUMBER
Available only on the TOUR and PRESET menu.
Press the ESC button to return to the main menu.
To control the PTZ functions of the camera, select PTZ menu on the screen using the mouse. Select the item
you wish to control the PTZ camera and control them using the mouse or the control button on the remote
control. Please refer to the table 5.1. for the control.
Table 5.1. Button Functions in PTZ Control
Caution : Preset/ Tour/ OSD/ Auto-scan function are available on the specific model.
ChipER Technology Corp. page 59
Page 60
6. Back Up
NOTICE For a backup using a USB Flash Drive, the file format of the USB flash drive has to be FAT32.
6-1. Still Image Backup onto USB Flash Drive
Still images can be captured and archived onto a USB flash drive or a hard drive in live mode or while playing
back recorded video. In the live mode, press the BACKUP button to launch the archive function or select
BACK UP menu on the screen using the mouse.
1. Select a specific channel which wants to backup on live screen.
2. When you press BACKUP button, the archiving screen will display as Figure 6.1.1.
3. Once you press Backup button, the system will start to archive the data to the selected media.
Figure 6.1.1. Still Image Archiving and Backup Screen
6-2. V ideo Backup onto USB Flash Drive
Video can be captured and archived onto the USB flash drive or a hard drive while playing back the recorded
video. In playback mode, press the BACKUP button to launch the archiving function.
1. When you press BACKUP button, the DVR will ask whether to archive a Still Image or Video Clip.
2. If the user selects VIDEO CLIP, the DVR will ask for the channel, file format and the setting of the
archiving duration. If a Huge Backup is selected, the duration is from 1 hour to 24 hours. If the user sets
the channel, file format and duration, the DVR will ask which media you will take for archiving.
3. Once you select the media, the system will start to archive the data to the selected media.

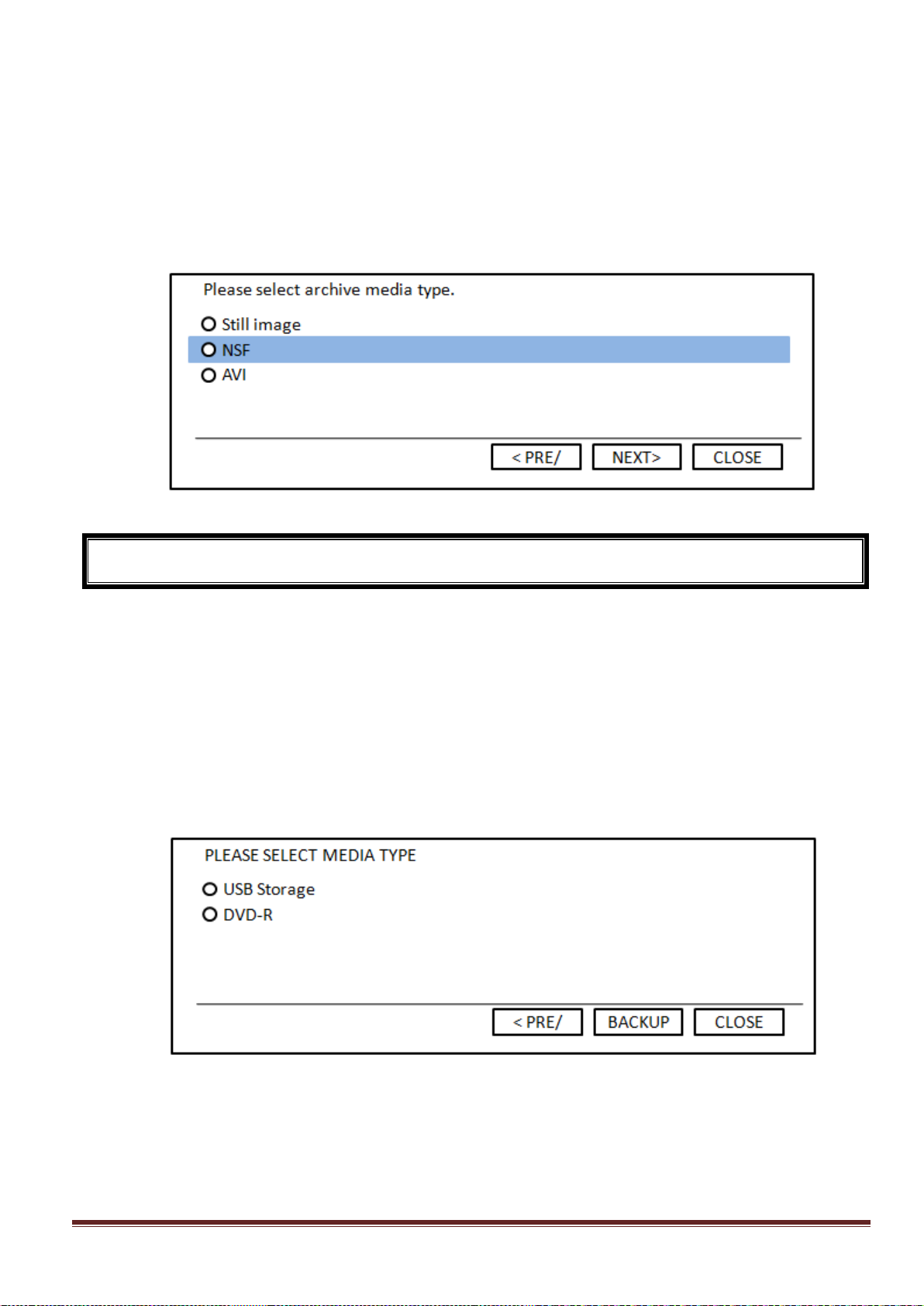

Figure 6.2.1. V ideo Archiving and Backup Screen
The DVR will convert the corresponding portion of the video into an AVI file.
ChipER Technology Corp. page 60
Page 61

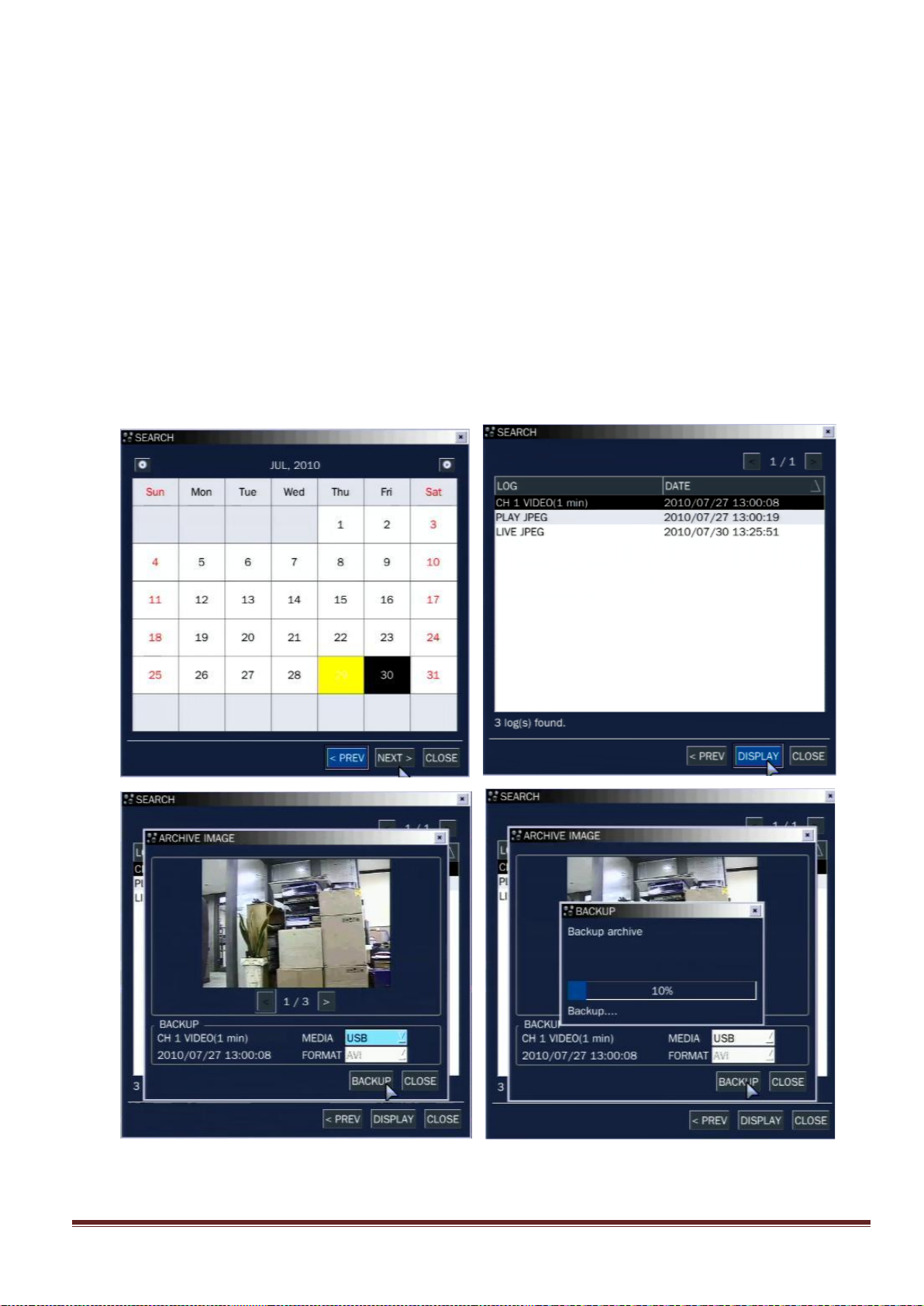

6-3. Transferring Still Images or Video from the ARCHIVE List
The stored data in the hard drive can be found in the ARCHIVE list in the SEARCH
window. User can back up still images or video into the storage device from the
ARCHIVE list.
1. Select the date to begin searching and navigate through the days using the mouse or the control button
on
the remote control.
2. Once you have selected the date, press the NEXT button to open the list of stored data.
3. Use the mouse or the control button on the remote control to scroll through the archive list.
4. Select a list of stored events that happened previous or after the current selection.
5. Once the desired event has been selected, press the DISPLAY button to view the still image or the first
frame of the selected video.
6. Press the BACKUP button to launch the archiving function in playback mode.
7. Press the CLOSE button to return to the SEARCH window.
Figure 6.3.1. Archive Search Screen
ChipER Technology Corp. page 61
Page 62

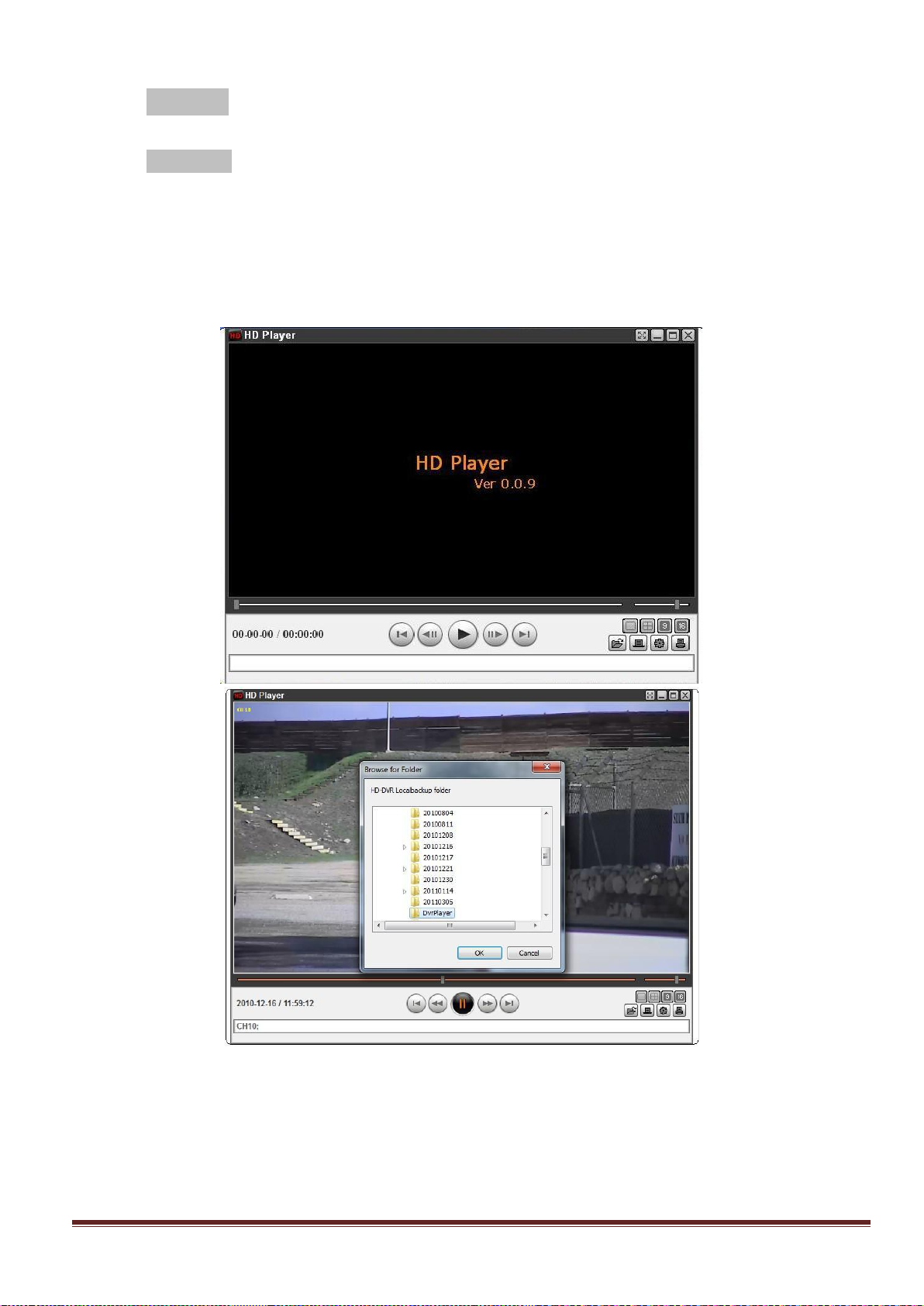

6-4. Playback of Backup V ideo
AVI format: AVI format video can be played back using Window Media Player
that is
NSF format: H.264 format video can be played back using the player (the HD player) that the DVR
copies on USB flash drive with video. This format is only available when the user selects a huge backup.
Three files are copied on USB flash drive.
compatible with AVI format video.
- H.264 file: H.264 format video file.
- INDEX file: T itle file of date and time.
- HD PLAYER: Exclusive video viewer.
™
or other
media player
ChipER Technology Corp. page 62
Page 63
7. Network Access Using the Single Site Network Viewer
CPU
Intel Pentium
Ⅳ
2Ghz
Memory
512MB
VGA
128MB
Resolution
1024x768
Disk Space
1GB
OS
Windows 2000, XP Professional, XP Home, Vista, 7
(NOTE: Not all versions of Vista and 7 are supported)
Network
10/100Base T
Others
Direct X 8.1 or Higher
CPU
Intel Core 2 Duo
1.8Ghz or higher.
Memory
1GB DDR2 or higher.
VGA
512MB or higher.
Resolution
1024x768
Disk Space
1GB
OS
Windows 2000, XP Professional, XP Home, Vista, Windows 7
(NOTE: Not all versions of Vista and Windows 7 are supported)
Network
10/100/1000Base T
Others
Direct X 9.0 or higher.
NOTICE
In a high bandwidth network, a maximum of four users can access one DVR simultaneously. In a low
bandwidth network it is recommended that only one user access the DVR at a time.
The DVR provides a live remote monitoring feature. Remote monitoring requires installation of the network
viewer on your PC.
7-1. PC Requirements
Minimum PC Requirements
Recommended PC requirements
ChipER Technology Corp. page 63
Page 64

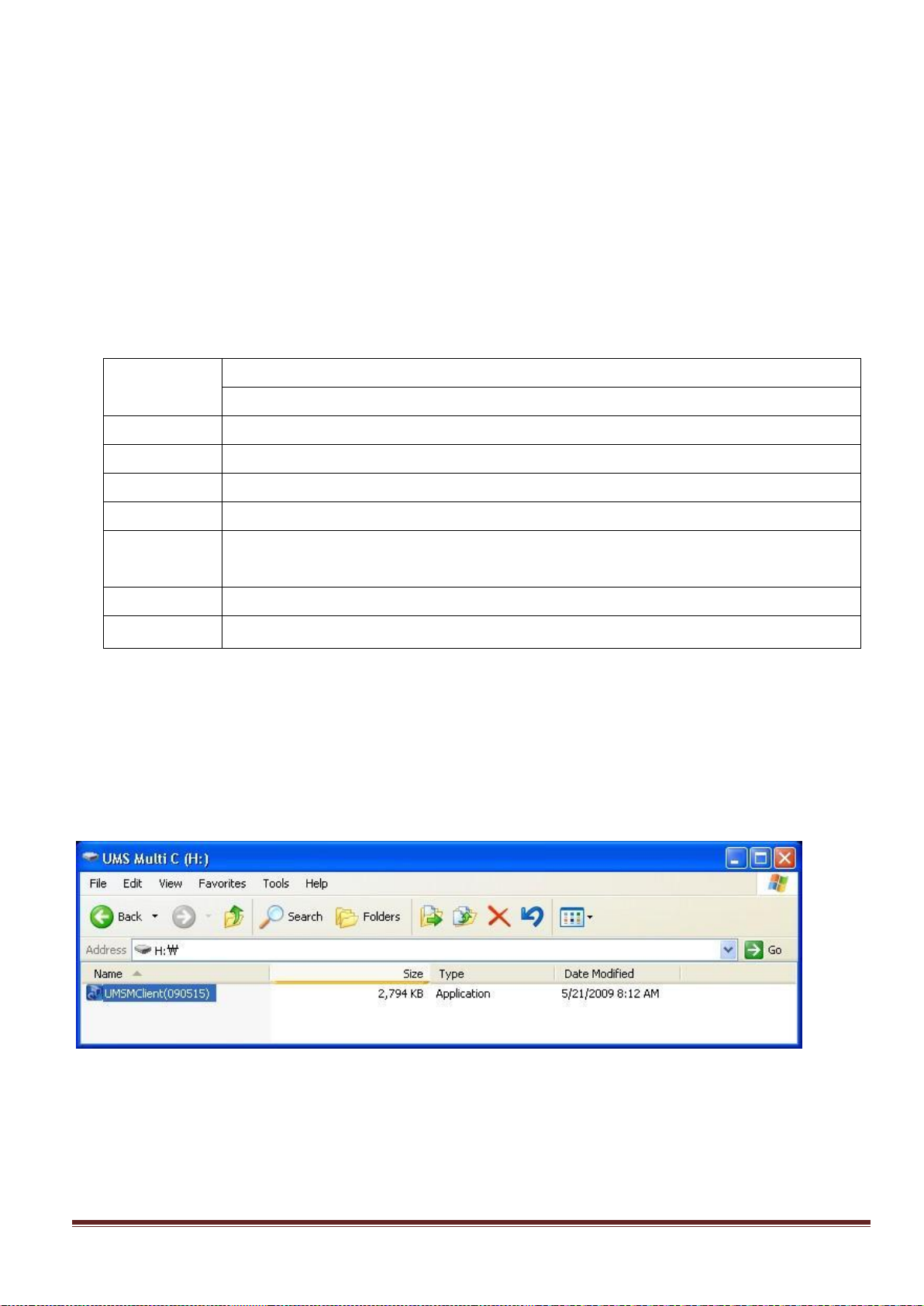

7-2. Installing the Network V iewer

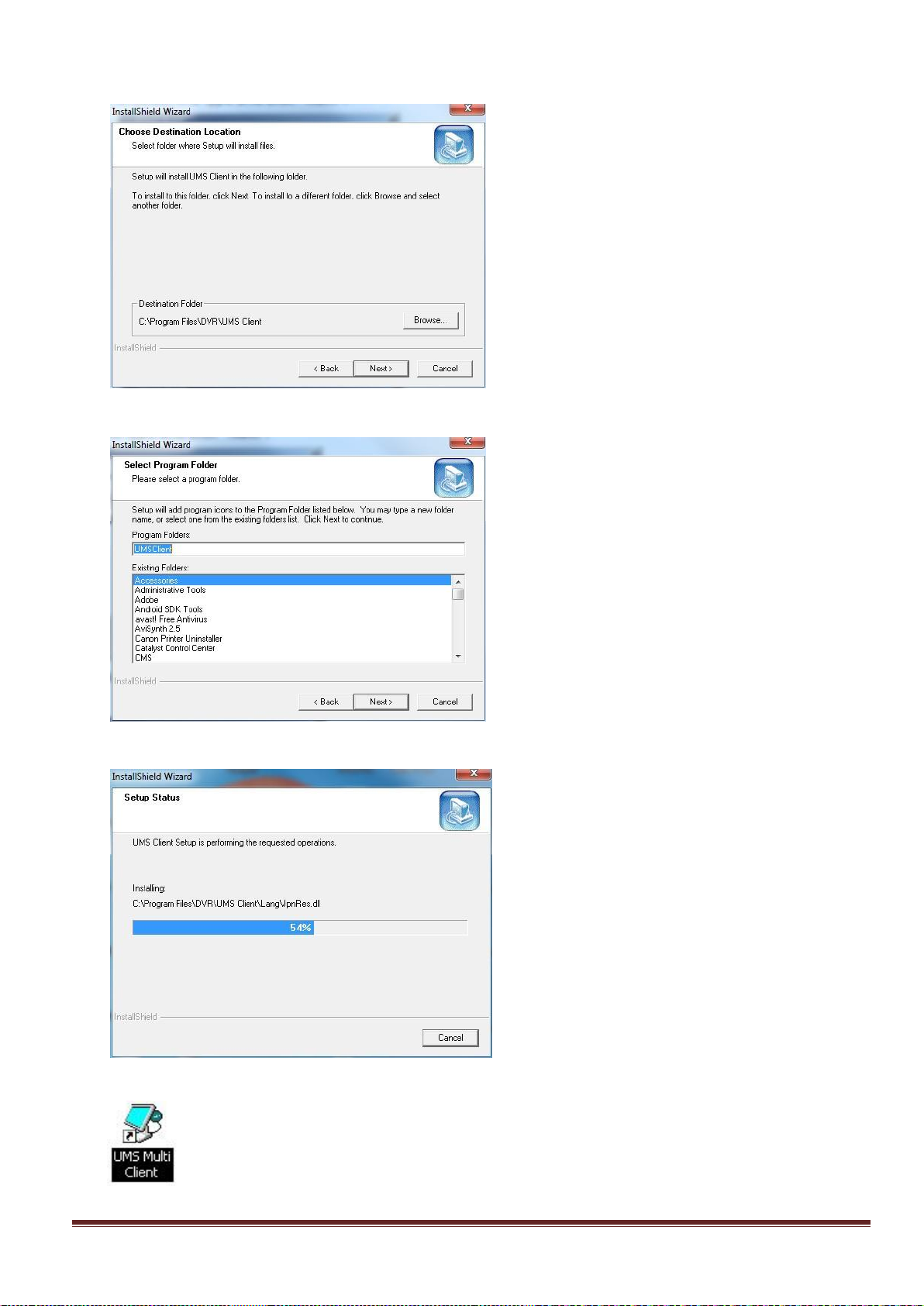

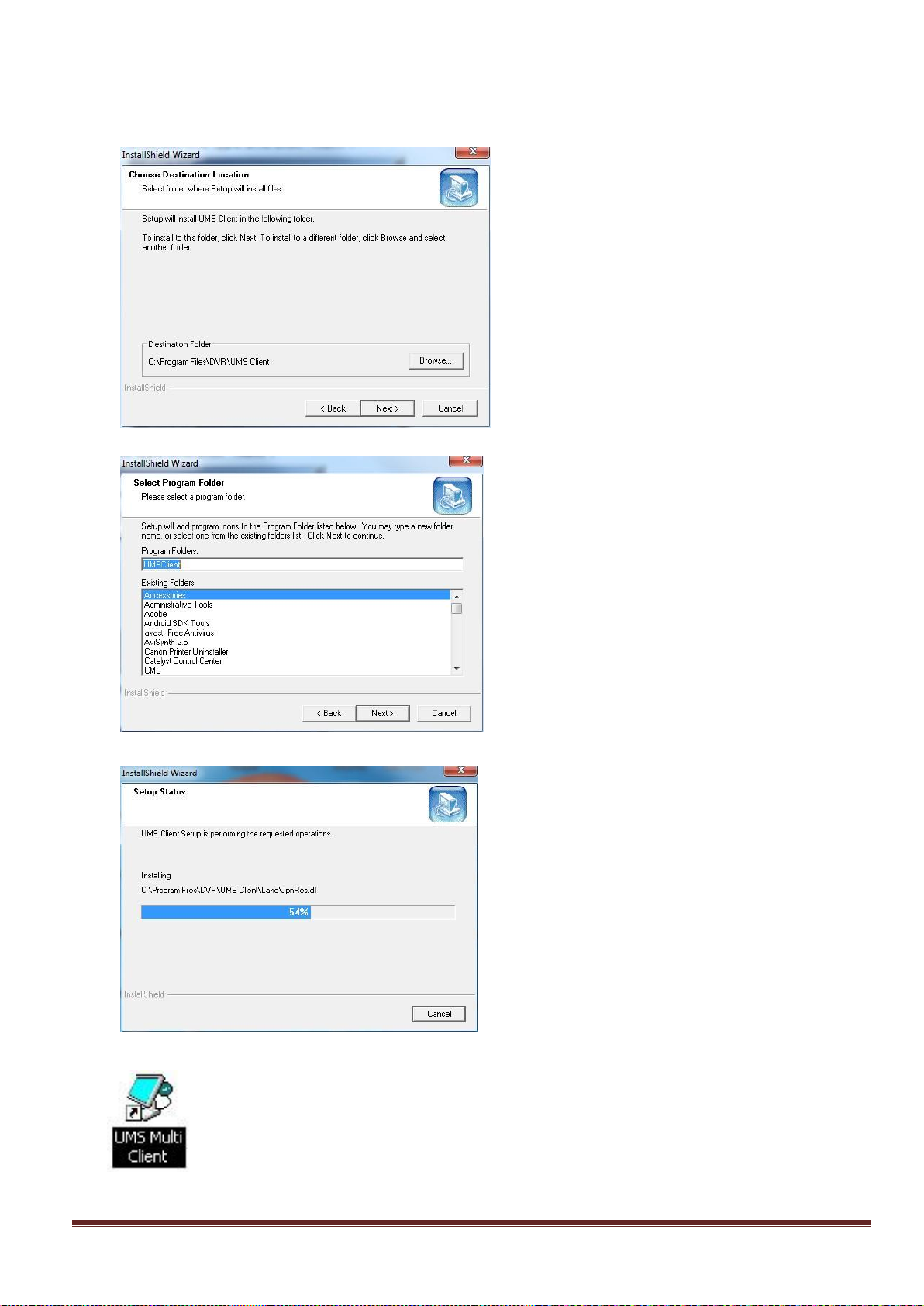

1. Insert the provided CD in the CD drive and double-click “UMSMultiClient (XXXX).exe”
2. Select a destination folder and click “Next”.
3. Select the program folder and click “Next”.
4. The setup status screen is displayed.
5. After the installation is completed, “UMS Multi Client” icon displays on the desktop screen.
ChipER Technology Corp. page 64

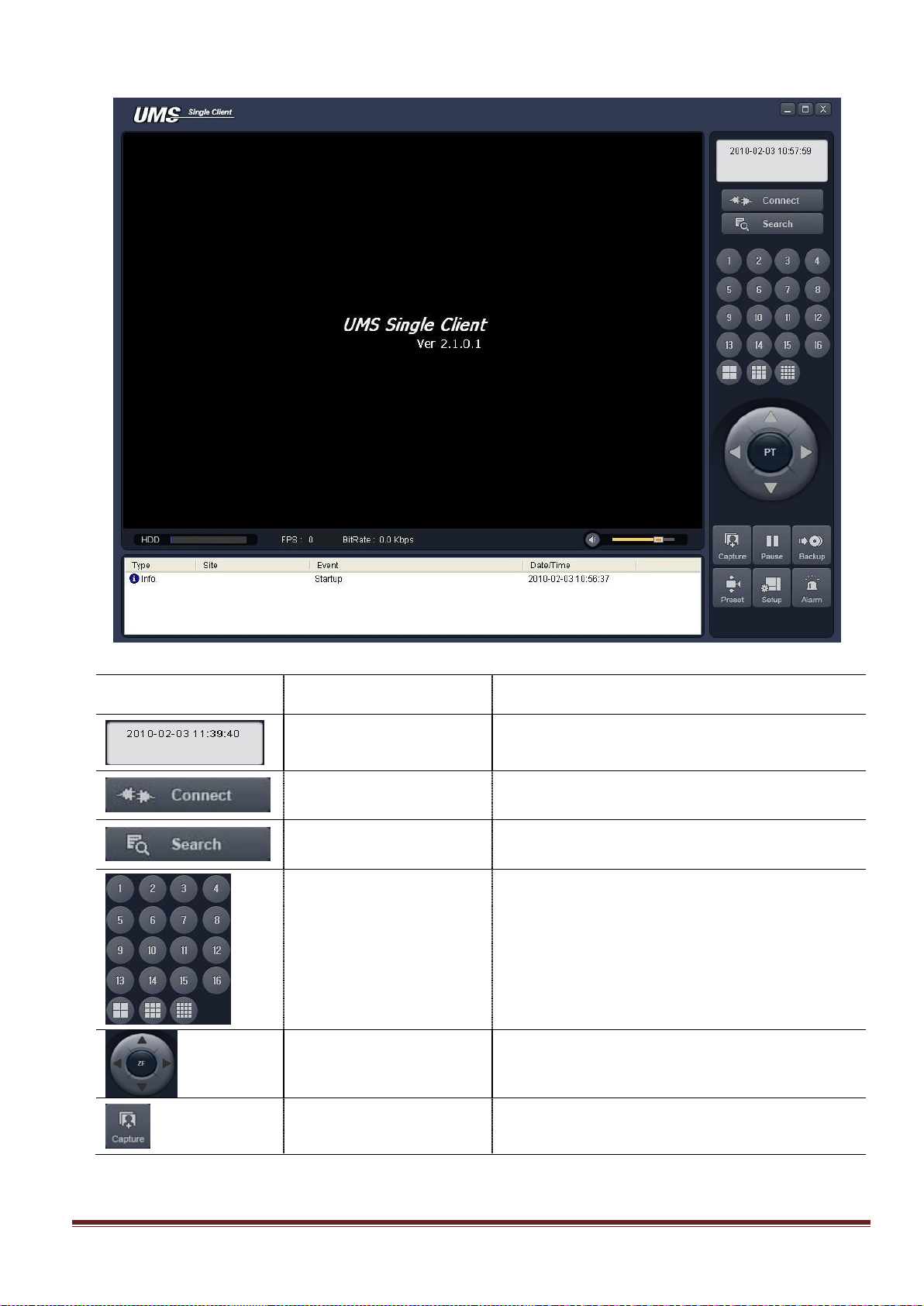

Page 65

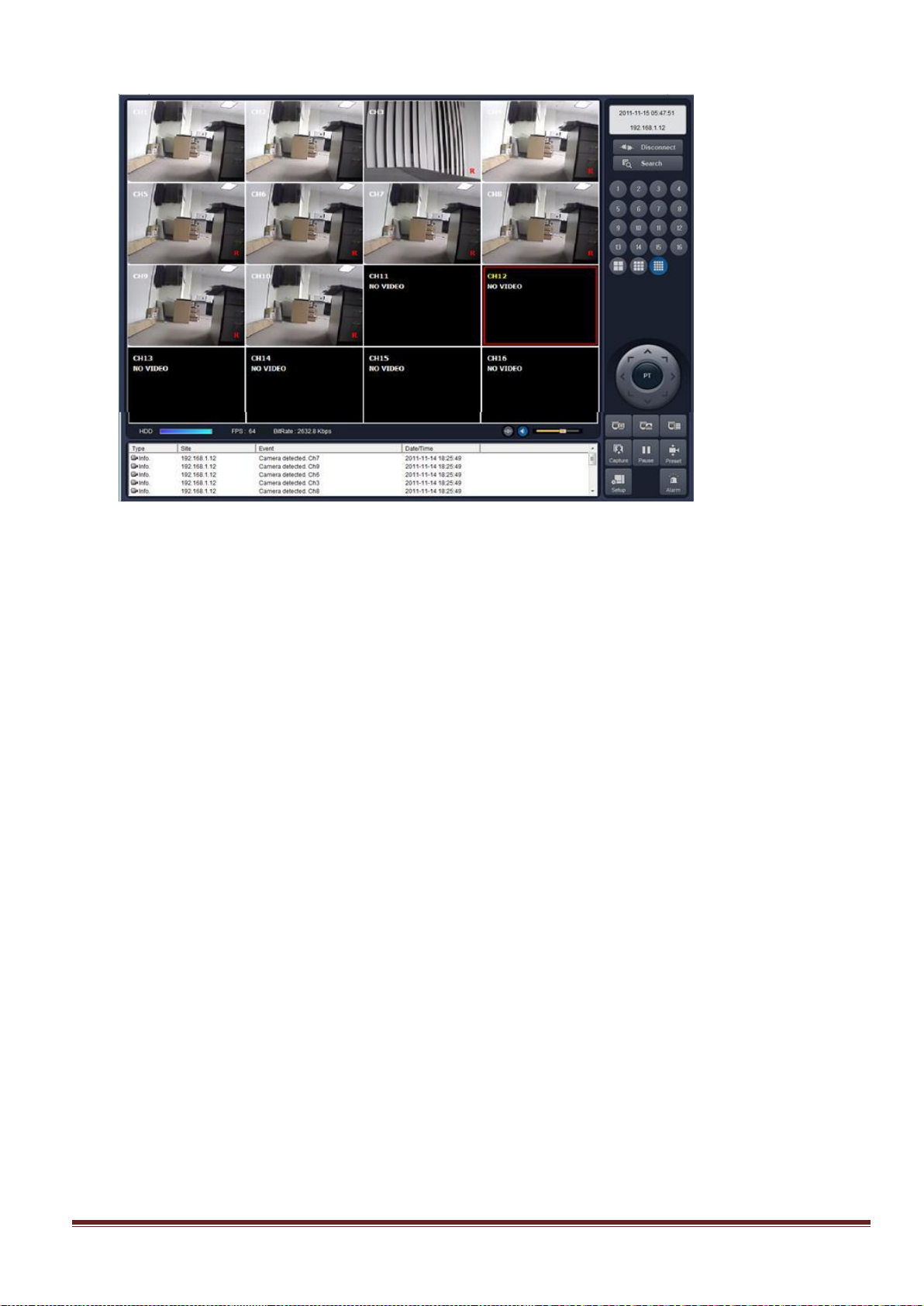

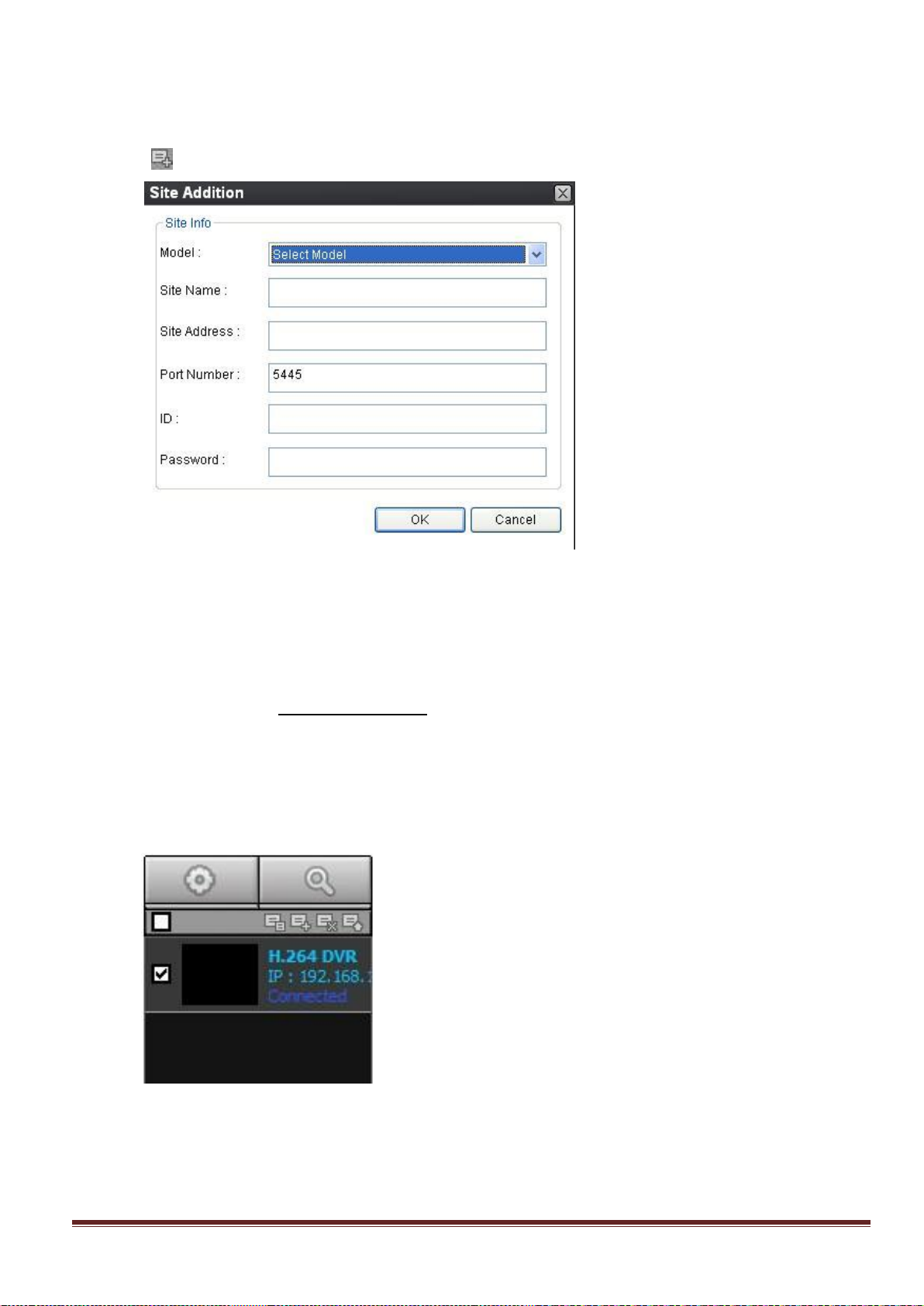

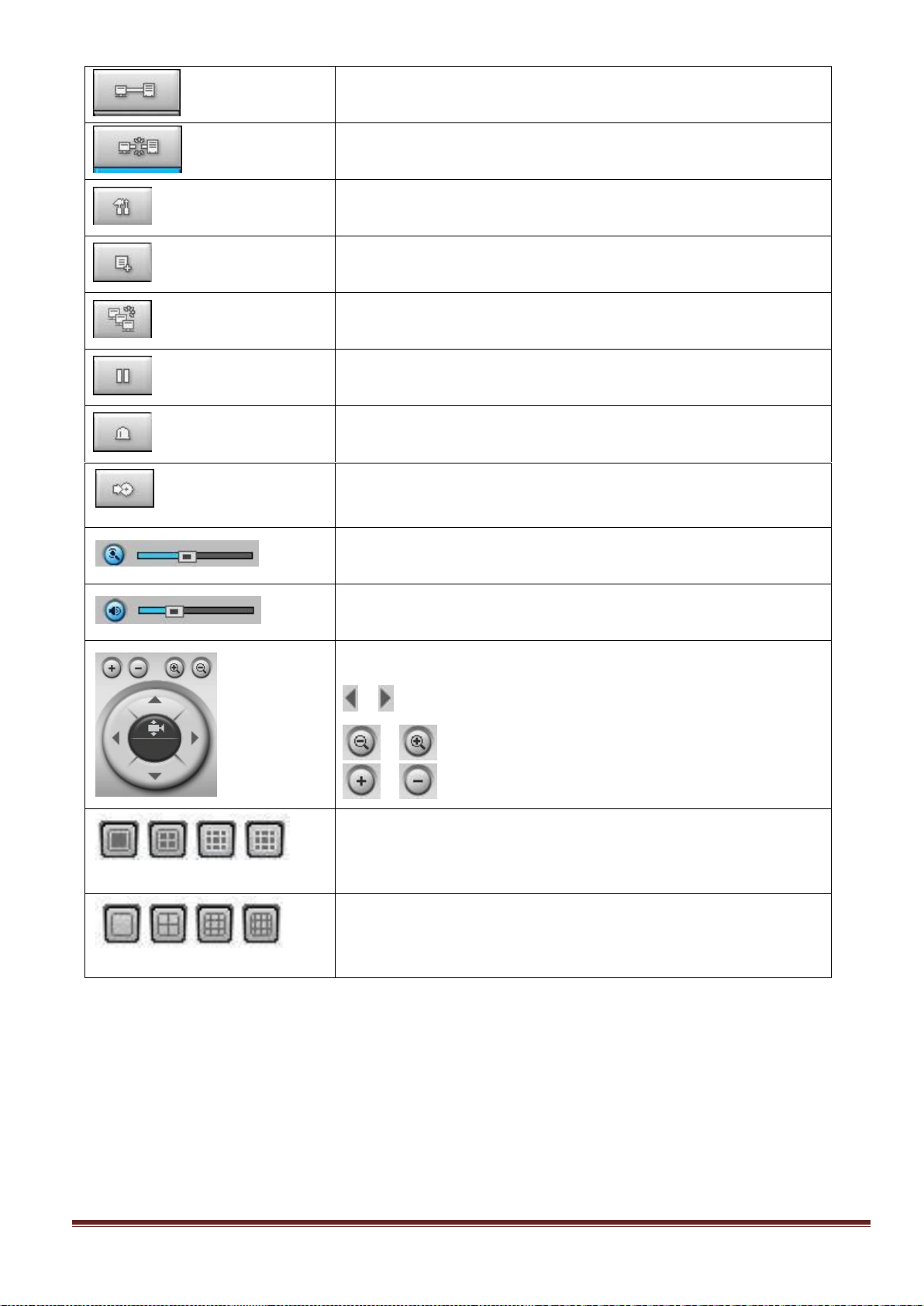

7-3. Live Monitoring Mode and Functions.

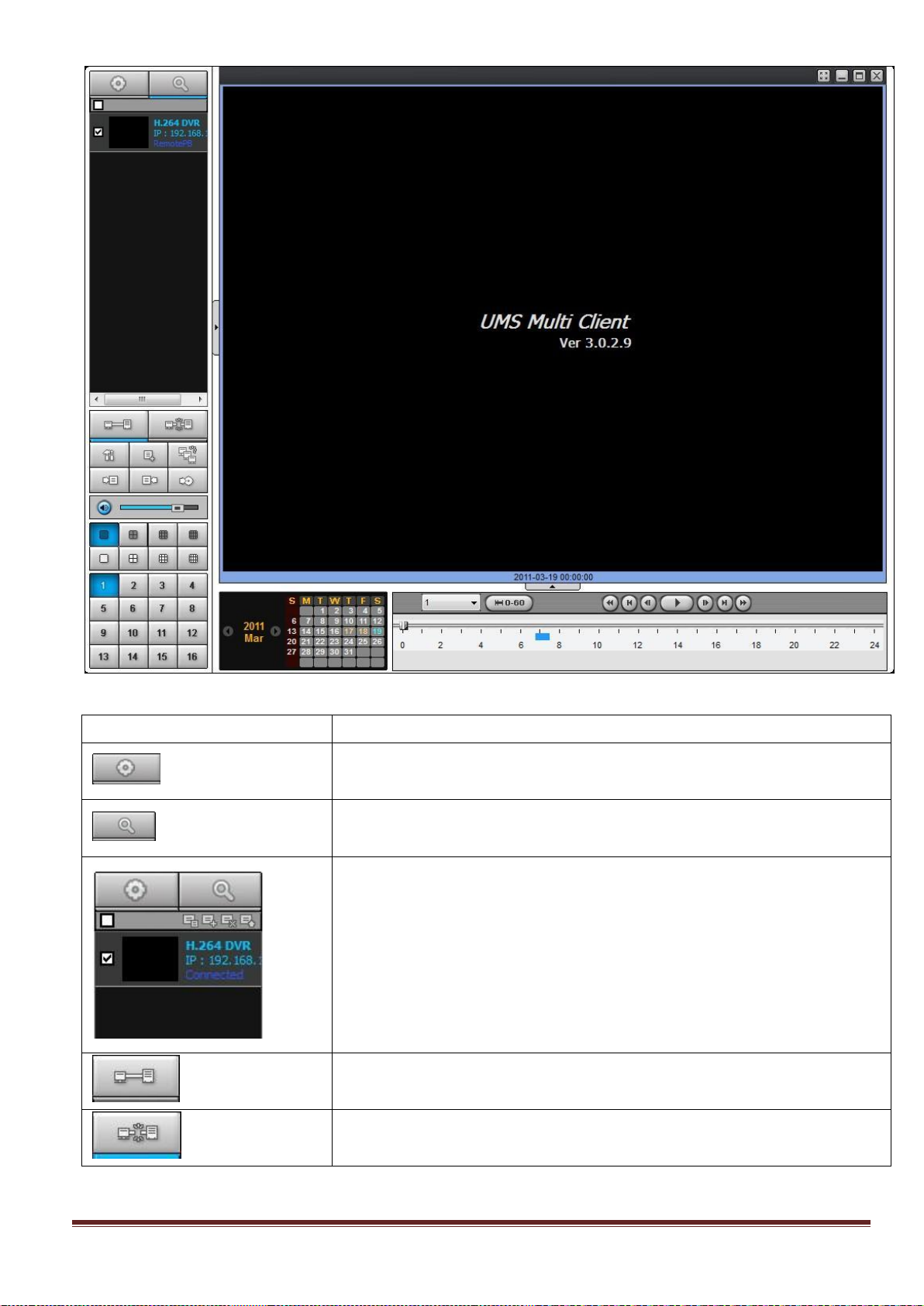

Button
Function
Description
DATE & TIME
Displays the current date and time.
CONNECT/DISCONNECT
Connect/disconnect network connection.
SEARCH
Switches the live mode to search mode.
DISPLAY MODE
Select a channel and screen display mode.
PAN/TILT/ZOOM/FOCUS
Control the PAN/TILT/ZOOM/FOCUS
features on the remote camera.
CAPTURE
Capture a still image from the live screen.
ChipER Technology Corp. page 65
Page 66

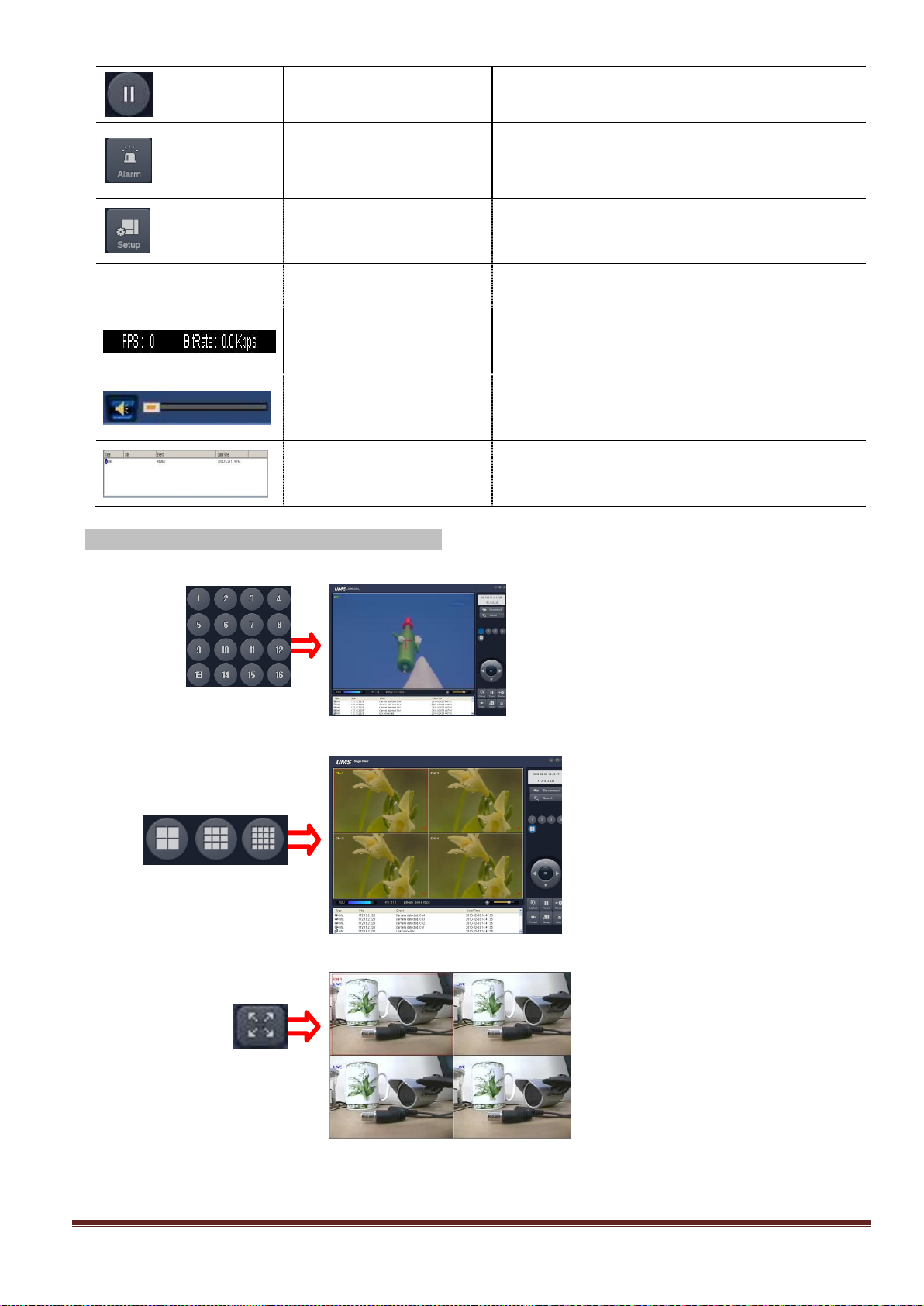

PLAY/PAUSE
Play/pause live video.
ALARM
The ON/OFF button of the alarm output of the
DVR. If the DVR has an alarm output,
the button will be indicated red.
SETUP
Display the setup screen of the network viewer.
HDD USAGE
DVR HDD storage Indicator.
NETWORK BANDWIDTH
Shows the transferred frames and network
bandwidth.
AUDIO
Adjust the volume. The audio can be turned
on or off by clicking the audio icon.
LOG WINDOW
Shows the even log, date, and time.

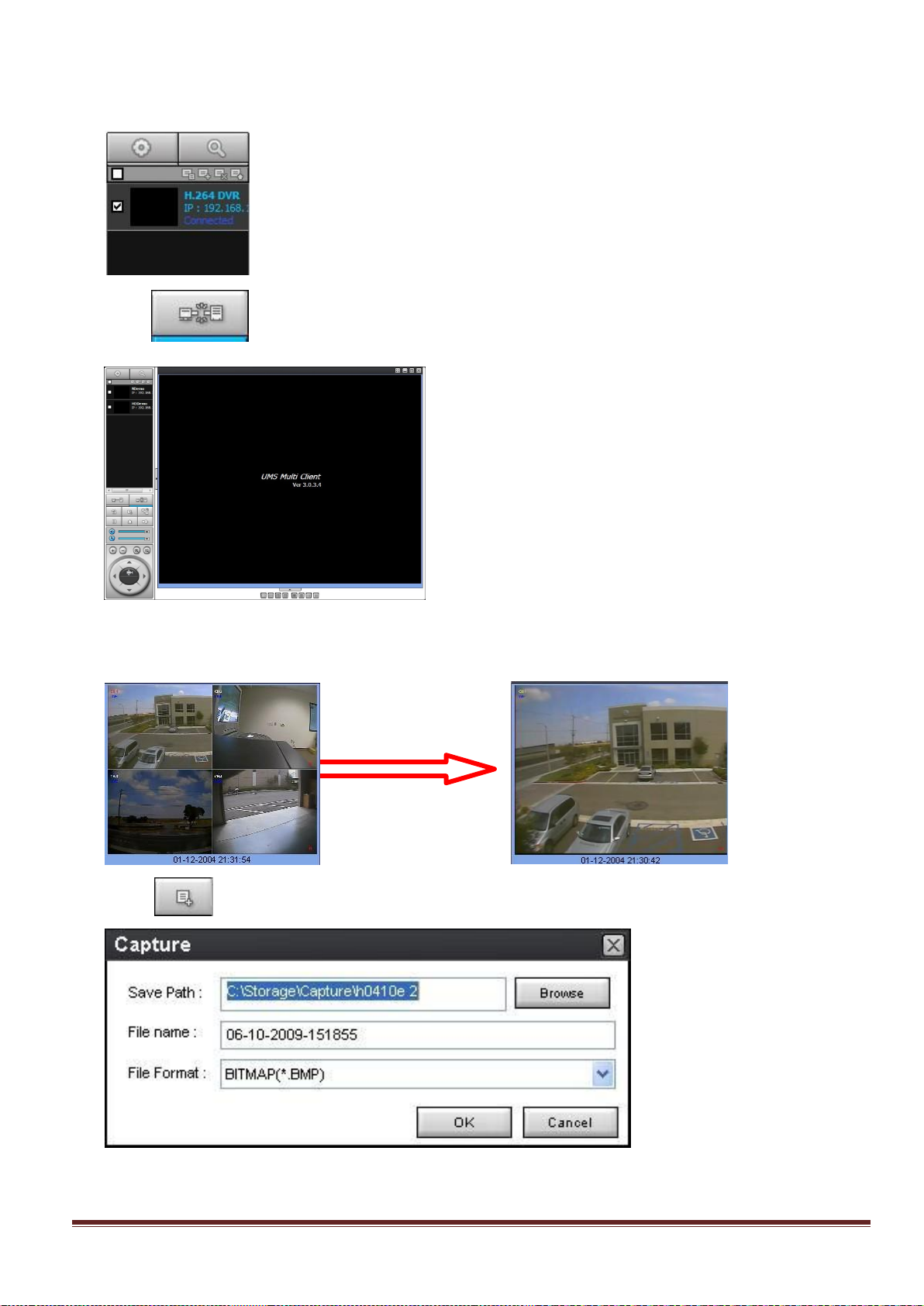

Operations of the display mode of the main screen
Single channel display - Click the one of channel button or double-click the channel screen.
QUAD/-screen display - Click the QUAD button to switch to quad-screen display
Full screen display - Click the maximize button to display only screen and hidden the operation panel.
ChipER Technology Corp. page 66
Page 67

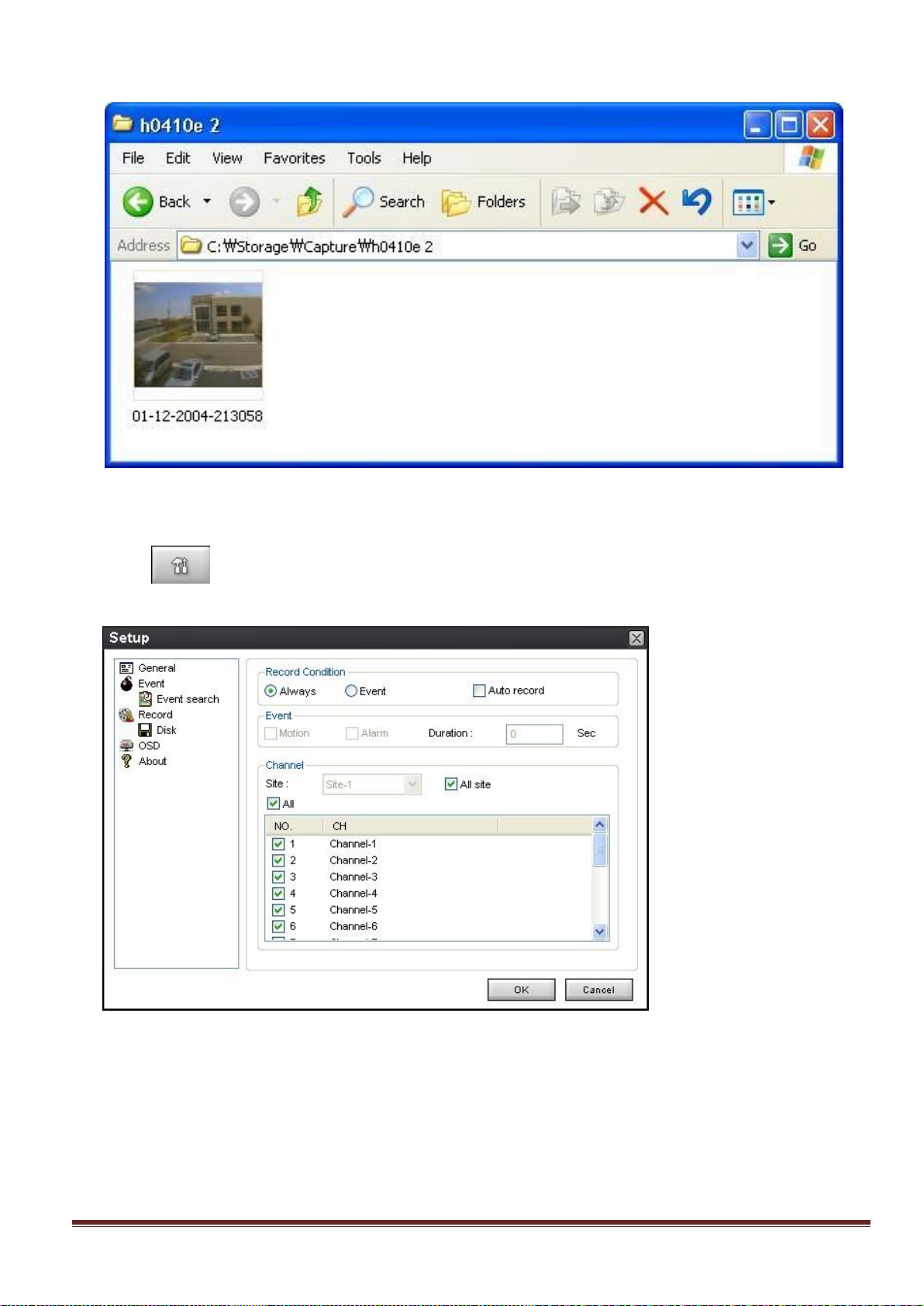

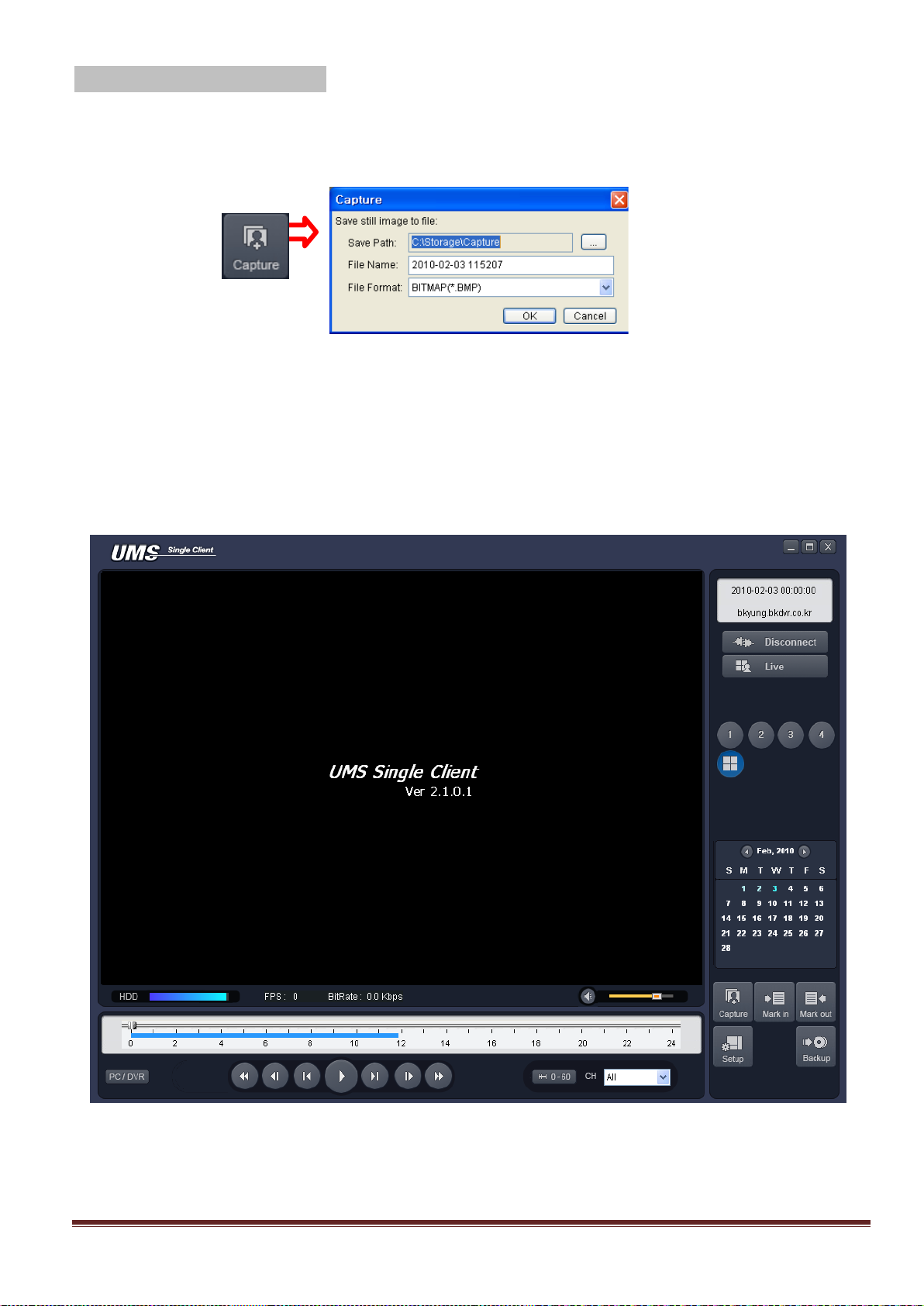

Image capture of live screen
Still-image of live screen can be captured and saved as a BMP or JPEG file.
1. Click the channel to be captured. Then the selected channel will be highlighted red.
2. Click the CAPTURE button. Then the IMAGE CAPTURE dialog is displayed.
3. Set the SAVE PATH, FILE NAME, and FILE FORMAT and click the OK button to save the captured still image.
7-4. Bi-directional Audio
The UMS Client allows for bi-directional audio between the client and the DVR unit. The DVR must have an
audio input connected, and the PC must have an audio output.
7-5. Remote Search Mode and Functions
ChipER Technology Corp. page 67

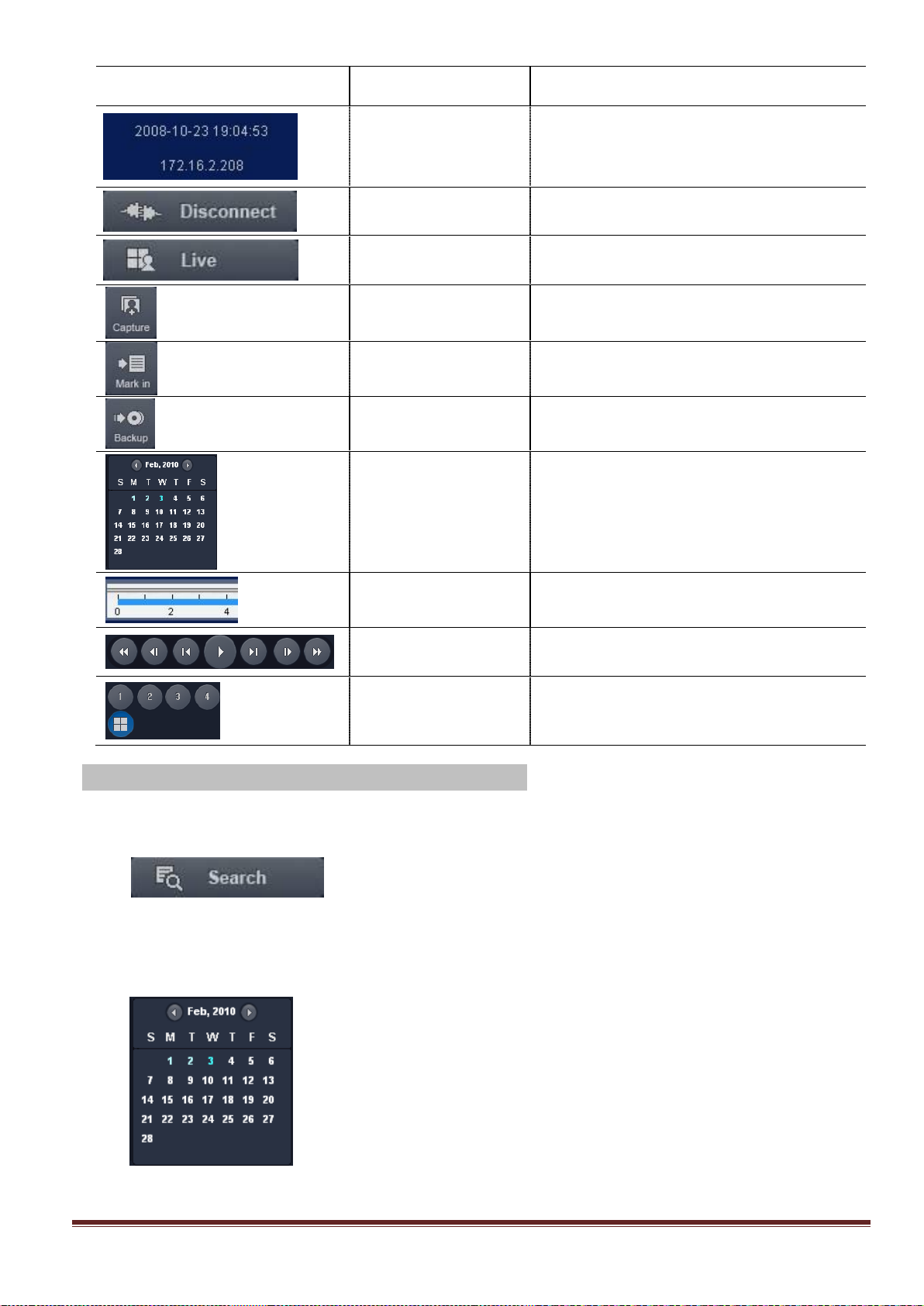

Page 68

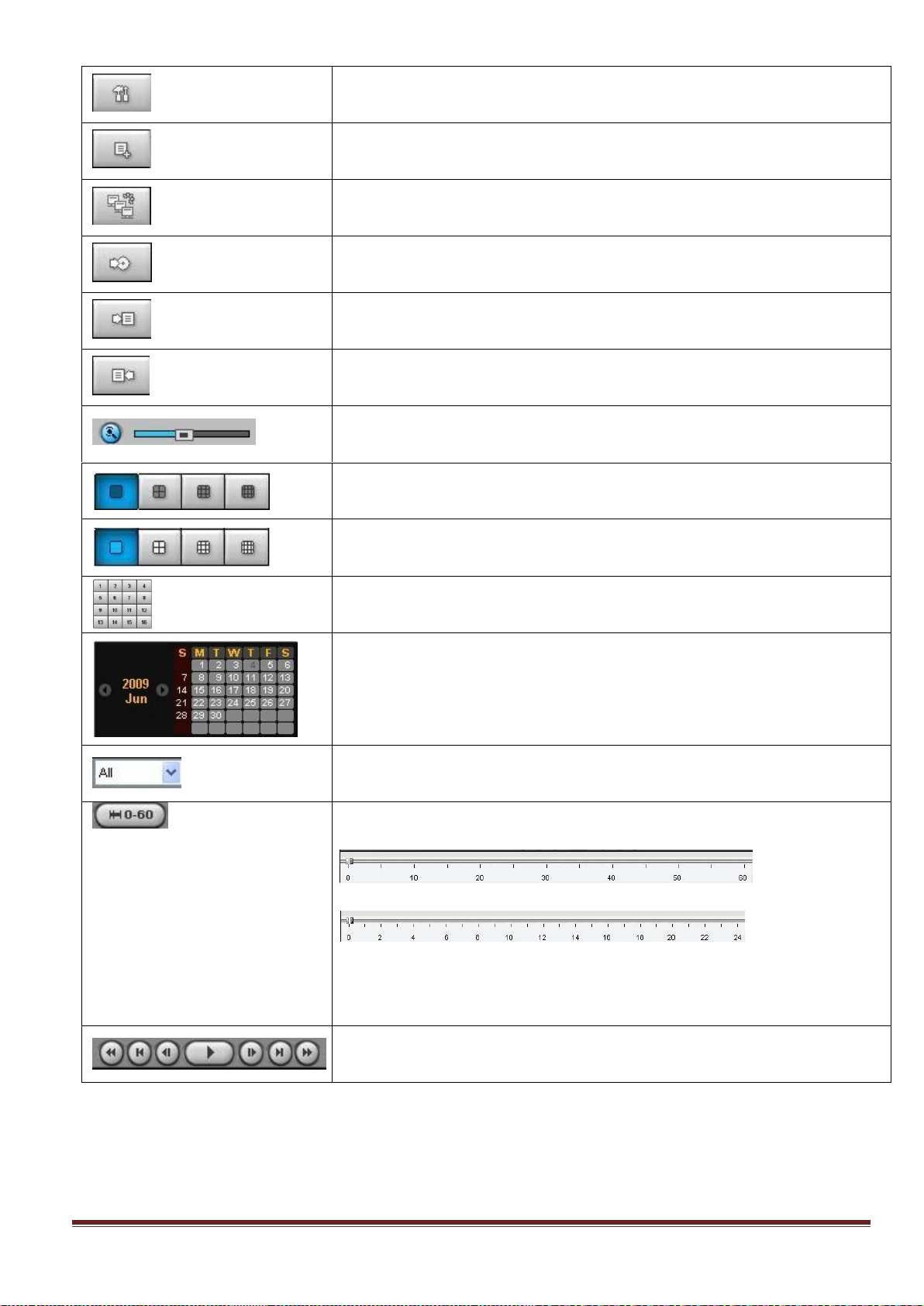

Button
Function
Description
DATE & TIME
Displays the recording time of the data
selected on the time bar at the bottom of the
main user interface.
DISCONNECT
Disconnect network connection.
LIVE
Switches the search mode to live mode.
CAPTURE
Capture a still image from live screen.
MARK IN
Set the start time for video backup.
BACKUP
Backup the selected recorded video as AVI
format.
SEARCH CALENDAR
The calendar shows dates with recorded video
in a light blue and the selected date in dark
blue.
TIMELINE BAR
The timeline shows recorded data in dark blue
on the bar.
PLAYBACK BUTTON
The playback buttons.
DISPLAY MODE
Select a channel and screen display mode.

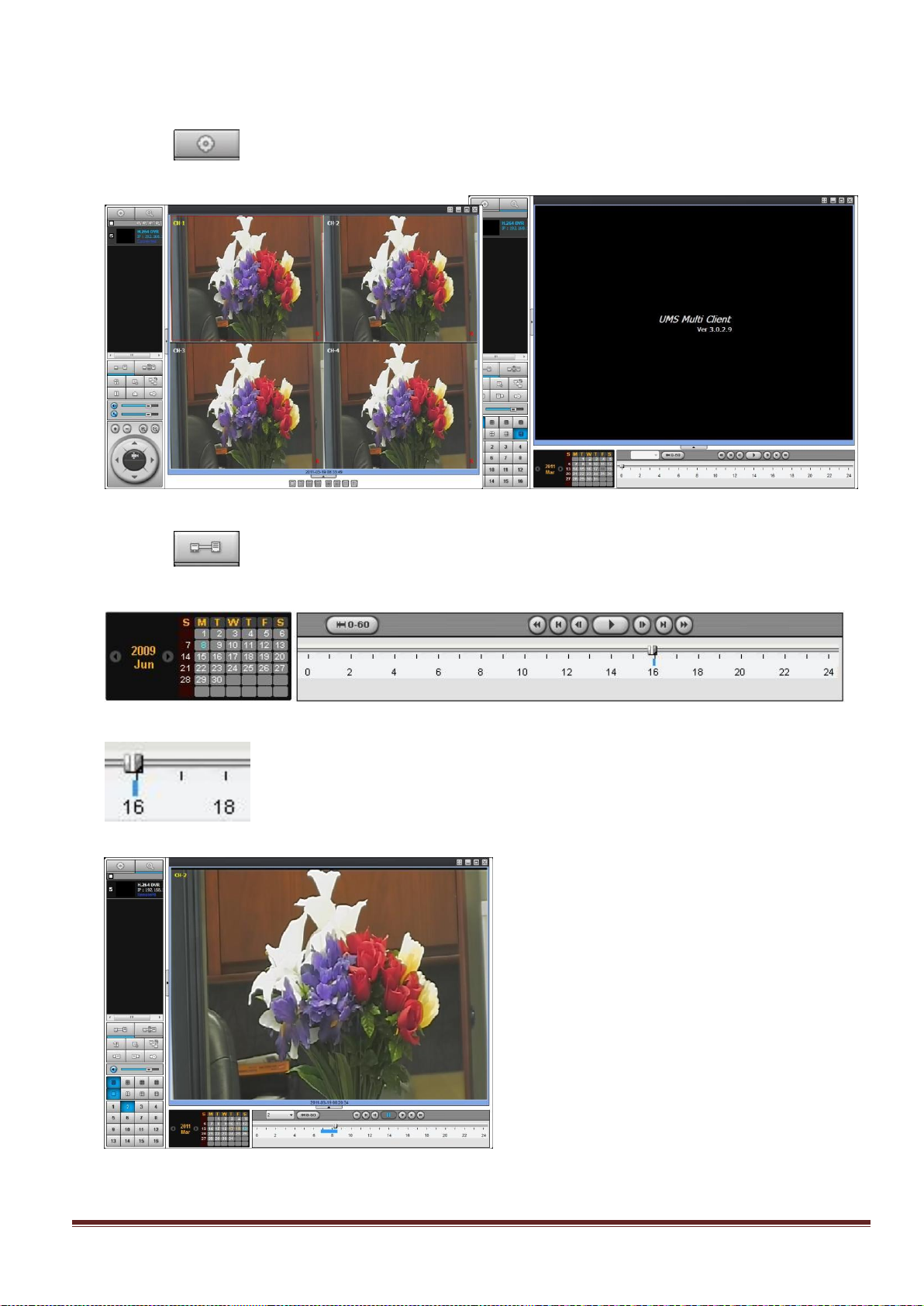

Searching and playing video in the remote DVR
Video recorded in the remote DVR or Video recorded on the PC can be searched and played back.
1. Connect to the remote DVR and press the SEARCH button. The live mode will change to the search mode.
Searching the video recorded in the remote DVR: Connect to the remote DVR.
Searching the video recorded in the PC: Do not connect to the remote DVR.
2. Select the date to search the video. (NOTE: Dates highlighted blue are only available for playback)
ChipER Technology Corp. page 68
Page 69

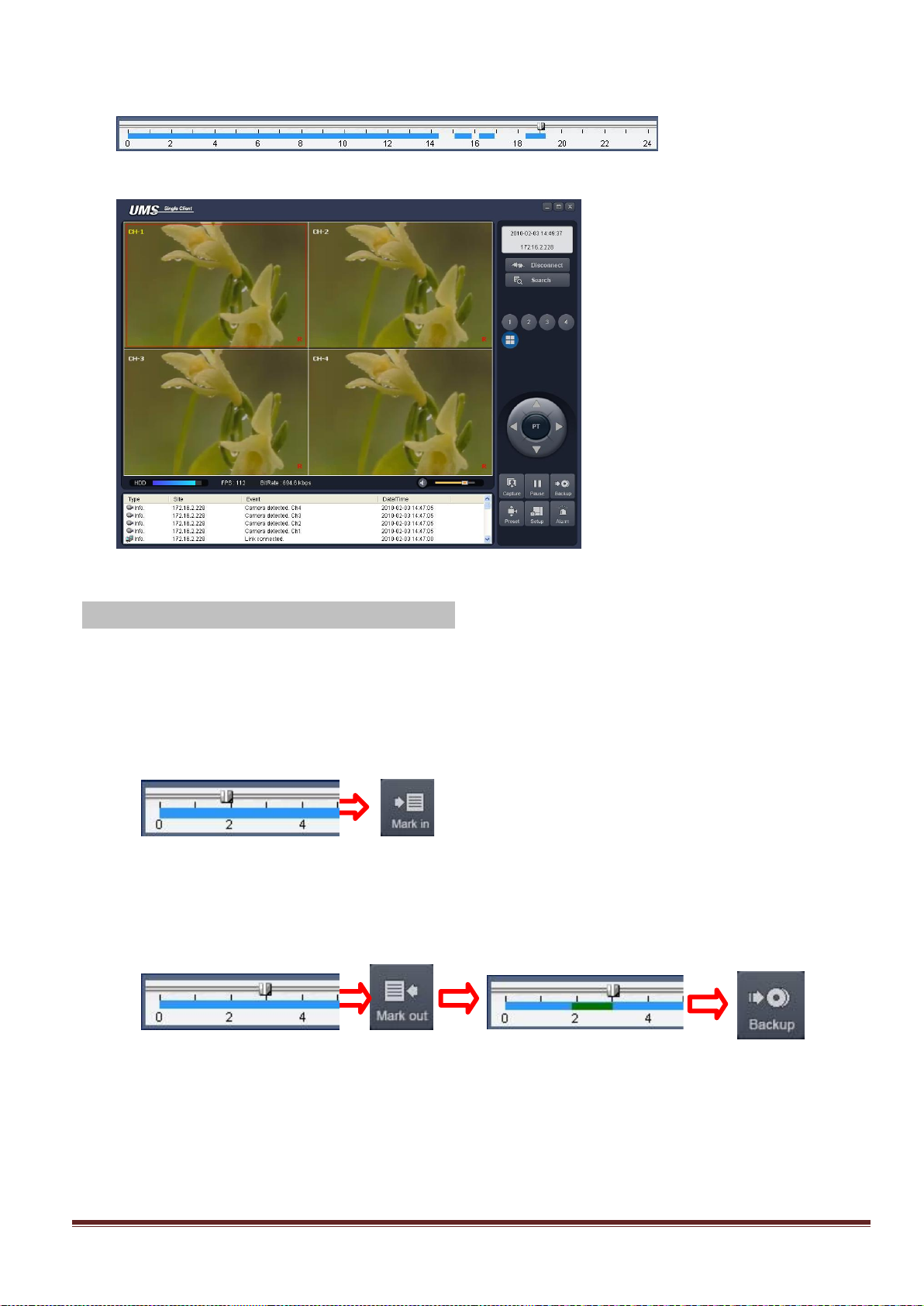

3. Drag the marker on the timeline bar to select the hour. (NOTE: The marker can only be set on the solid
blue bar, which indicates the recorded data)
4. Press the PLAY button to begin playback of the recorded data.
Backing up video from the remote DVR
Video recorded in the remote DVR can be backed up on the PC HDD as an AVI format or NSF format.
1. Connect to the remote DVR and play the video recorded in the remote DVR.
2. Drag the marker on the timeline scale and press the MARK IN button to mark the video backup starting
point.
3. Drag the marker on the timeline scale and press the MARK OUT button to mark the video backup ending
point. Then the selected marked time to backup will be highlighted in green. Press the BACKUP button to
bring up the BACKUP window.
ChipER Technology Corp. page 69
Page 70

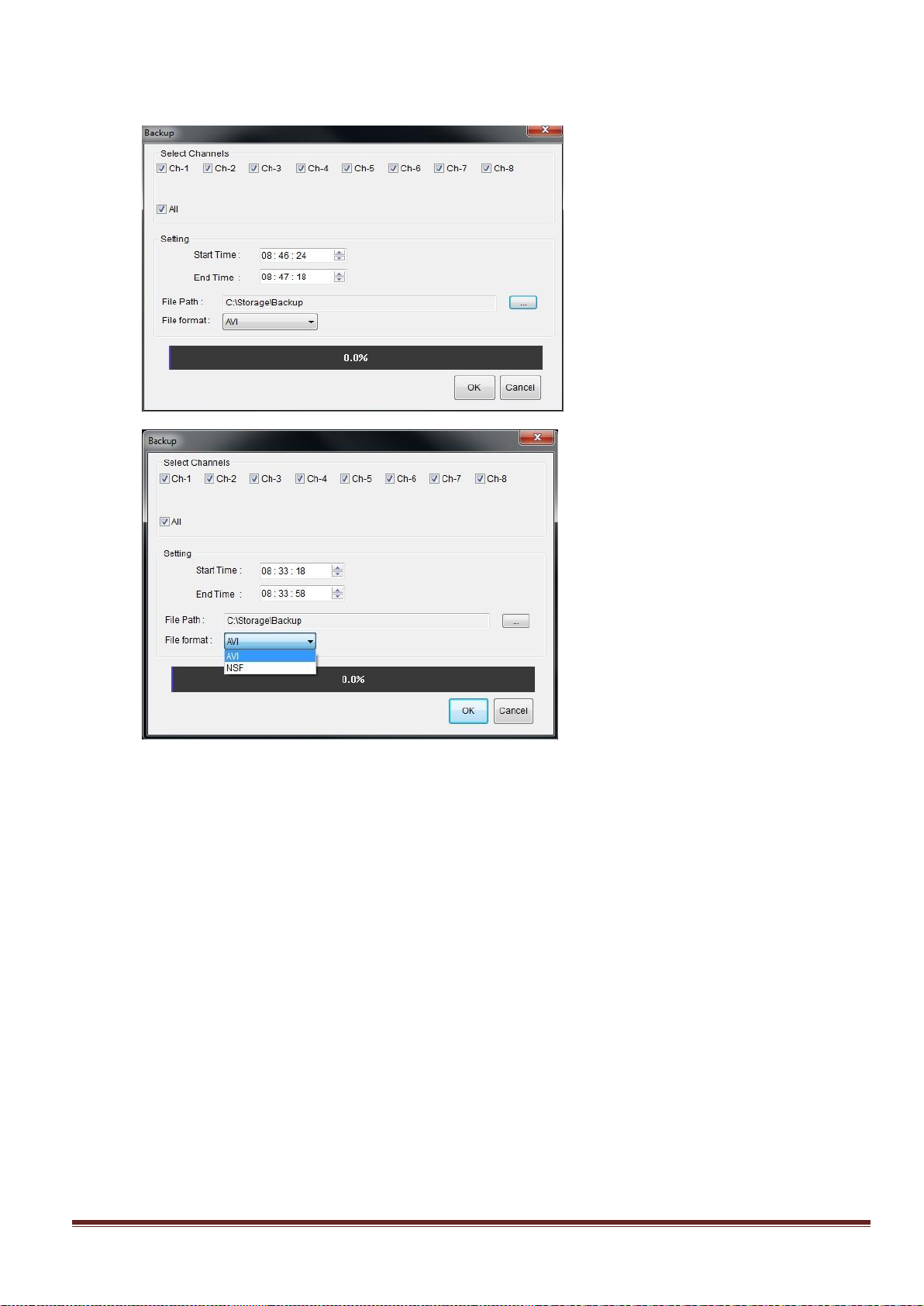

4. In the BACKUP window, select the channels, settings, file path, and the file format. Select the OK button
to start the backup process.
Select Channels: Select channels to backup.
Start T ime / Stop T ime: Backup time can be changed.
File Path: Shows the folder that the backup file is recorded.
File Format: Select backup file format. (NOTE: File format selection may not be available
depending on the firmware version, software version, and the DVR model)
ChipER Technology Corp. page 70
Page 71

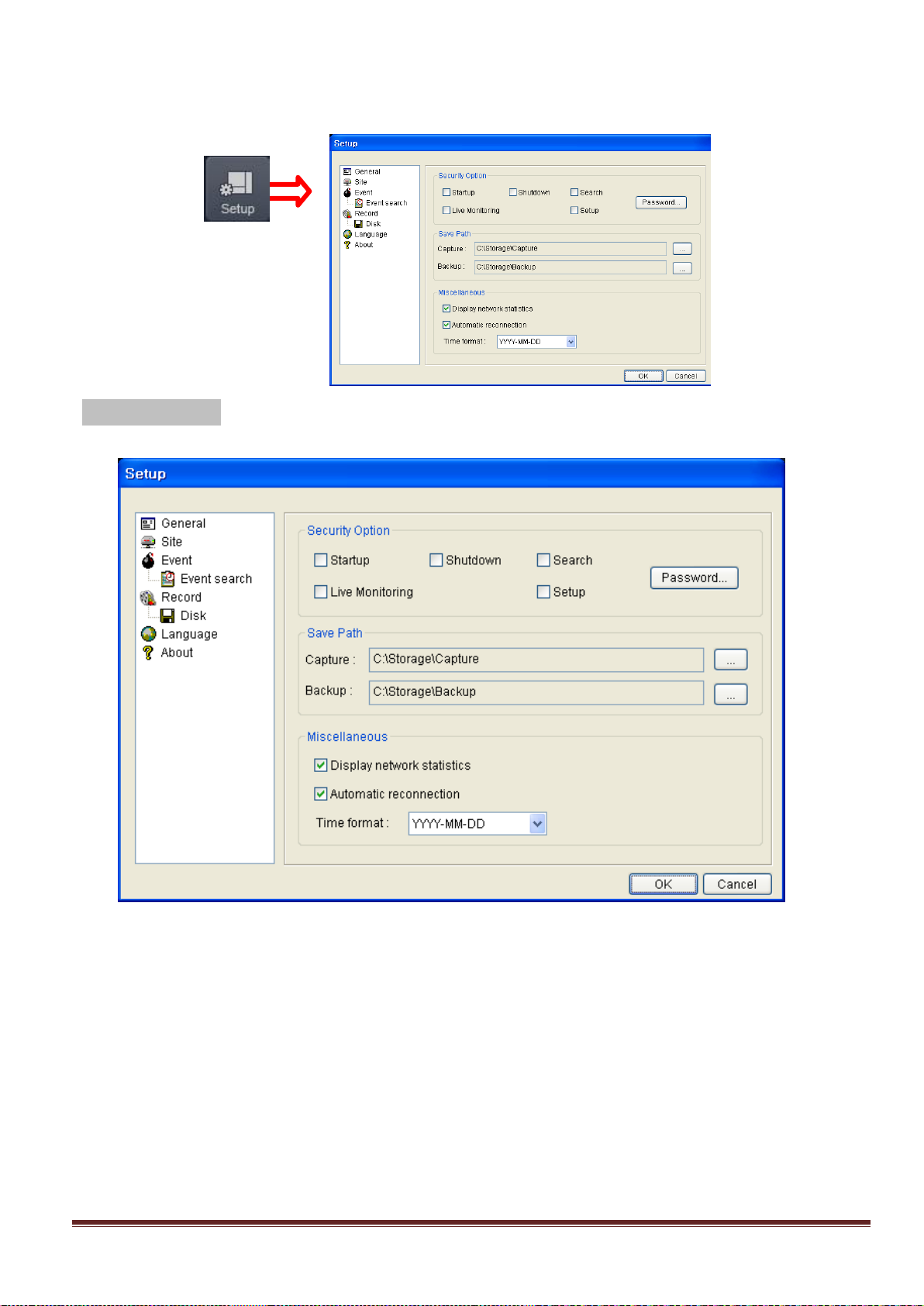

7-6. PC System Configuration
Click the SETUP button. Then the Setup dialog is displayed as below.
Setting General
Set the Security Option, Save Path, and Miscellaneous.
Security Option: Set a password for security options. When you access any of the selected functions,
you will need to enter the password.
Save Path: Specify the location to record for backup and still image capture.
Automatic reconnection: If a user selects this function, the client S/W will automatically try to connect
to the previously connected IP address if the network connection is lost.
Display network statistics: If a user selects this function, the client S/W will display network status, Bit
rate and Frame rate.
T ime Format: Change the mode the Client software displays the time.
ChipER Technology Corp. page 71
Page 72

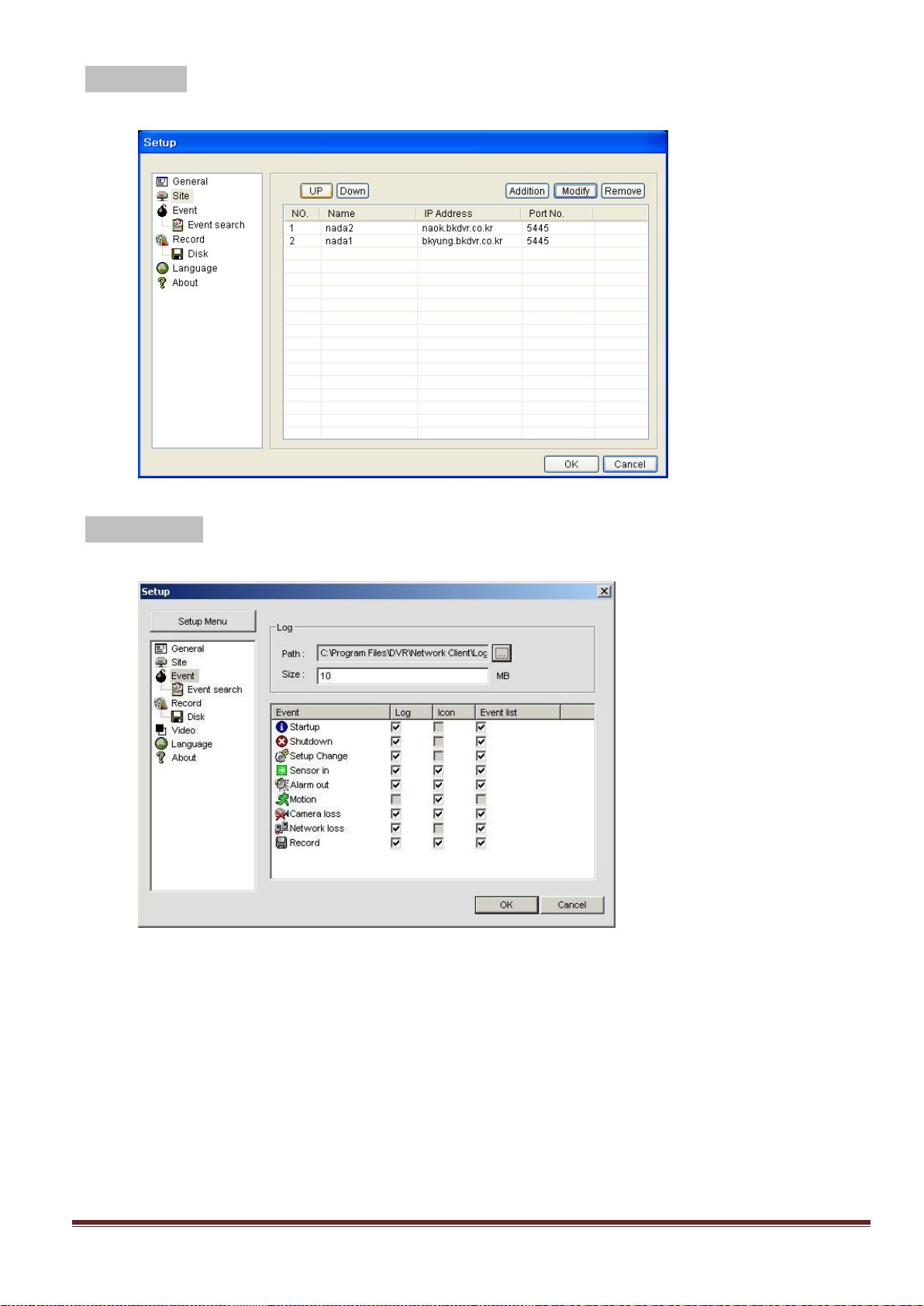

Setting Site
The remote DVRs can be added, modified, and removed.
Setting Event
Set the record path and the size of local disk space for the log files.
LOG –
Select
to
save event
log
into
‘log
file’.
ICON – Select to display the event on live video.
EVENT LIST –
Select
to
show
the event in the ‘Event List” window of live mode.
ChipER Technology Corp. page 72
Page 73

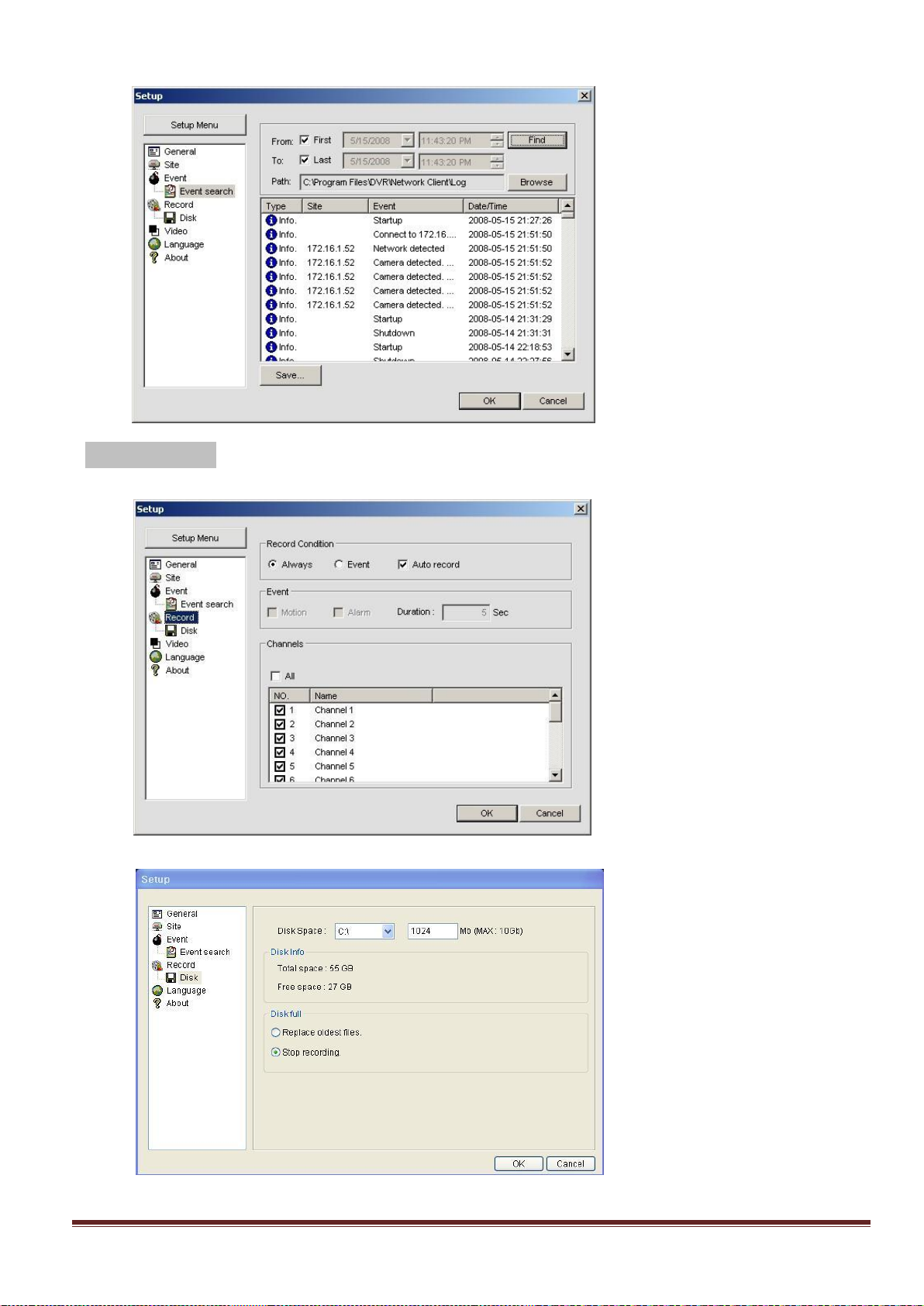

Search and check the recorded log data.
Setting Record
Set the recording conditions and select channels to record.
Select the local disk to use and the amount of disk space you want to allow the program to use for recording.
ChipER Technology Corp. page 73
Page 74
8. Network Access Using the Multi-Sites Network V iewer
CPU
Intel Pentium
Ⅳ
2Ghz
Memory
512MB or Higher is recommended.
VGA
128MB or Higher is recommended.
Resolution
1024x768
Disk space
1GB
OS
Windows 2000, XP Professional, XP Home, Vista (Some versions of Vista has problem in
installation. Please contact your vendor for more information.)
Network
10/100Base T
Others
Direct X 8.1 or Higher
8-1. Overview
The UMS Multi-Client is a multiple site monitoring client software with; video, audio, and alarm signals from
the DVRs over networks. The UMS Multi-Client does not limit the number of DVR units to register.
The program displays to up 256 live videos on one display and even playback videos window on the same or
another display monitor.
On the program, user may control PTZF cameras on the DVRs. By attaching a microphone and speaker
system to devices on site, user may make bi-directional audio communication over the network.
8-2. Minimum PC Requirements
Before installing the program, check the PC specifications. The DVR remote software may not perform correctly if
the PC does not meet the minimum requirements.
8-3. Installation of the Program
1. Insert the provided CD in the CD drive and
double-
click
“
UMSMultiClient (XX
XX).exe
”
ChipER Technology Corp. page 74
Page 75
2. Select a destination
folder and click “Next”.
3. Select
the
program folder and click “Next”.
4. The installation status screen is displayed.
5. After the installation is completed, “UMS Multi Client” icon displays on the desktop screen.
ChipER Technology Corp. page 75
Page 76
8-4. Live Window
Button
Description
LOCAL PLAYBACK
Click this icon to run a playback window to search and play videos
that are recorded in the local PC.
REMOTE PLAYBACK
Click this icon to run a playback window to search and play videos
that are recorded in the remote DVR.
SITE MANAGEMENT
THUMBNAIL REFRESH: Click this icon to refresh and renew
thumbnail image of the connected sites.
SITE
ADDITION: Click
this
icon
to
open
‘Site Addition’
window.
SITE DELETE: Click this icon to delete site from the index
window, after disconnect a site.
NET FINDER: Select the site from the index window and click
this icon to modify the information of specific site.
When installation is completed, double click the “UMS Multi Client” icon on your desktop to start the program.

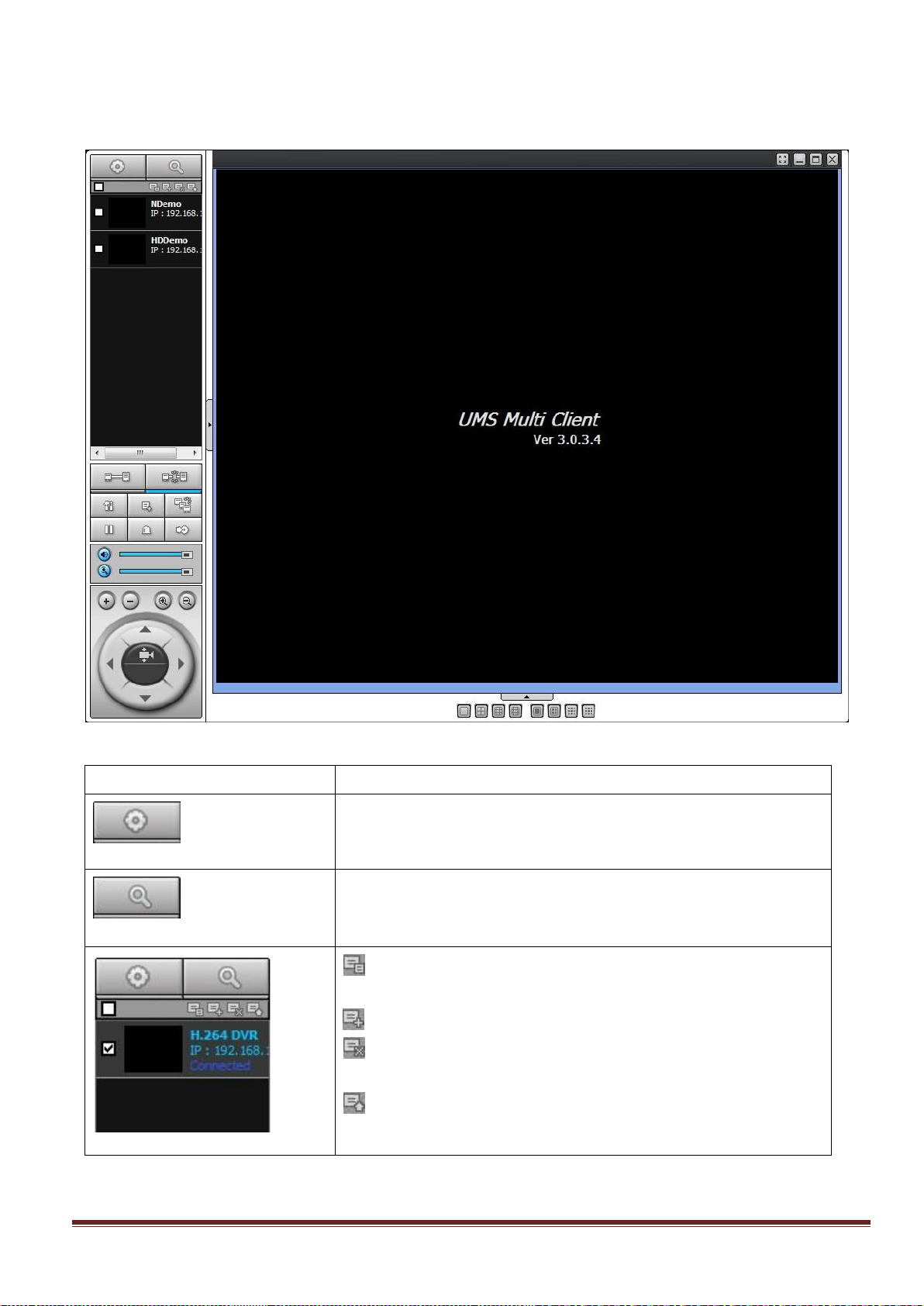

8-4-1. Main User Interface
8-4-2. Control Buttons
ChipER Technology Corp. page 76
Page 77
CONNECT
Click this icon to connect the selected site/sites.
DISCONNECT
Click this icon to disconnect the selected site/sites.
SETUP
Click this icon to setup configuration of UMS MULTI CLIENT.
CAPTURE
Click this icon to capture a still image.
EVENT LIST
Opens list of events logged by the UMS Multi Client.
PAUSE
Click this icon to play/pause live video.
ALARM ON
RECORD ON
Enable or disable recording of live video to local disk which has set in
setup menu.
AUDIO
Use the volume control bar to set the audio level.
MIC
Use the micro phone volume control bar to set the micro phone
level.
User can control PAN/TILT & ZOON/FOCUS.
PAN left /right TILT up/down
ZOOM in/out
FOCUS in/out
CHANNEL SPLIT
To select the numbers of display channel/channels (Single, quad, 9
channels, and 16 channels) of highlighted site.
DVR SITE SPLIT
To select the numbers of DVR/DVRs (1 DVR, 4 DVRs, 9 DVRs, 16
DVRs) on main display screen.
8-5. Search and Playback Window
8-5-1. Main User Interface
You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the upper
left of the Live Window.
ChipER Technology Corp. page 77
Page 78
Button
Description
LOCAL PLAYBACK
Click this icon to run a playback window to search and play videos that are
recorded in the local PC.
REMOTE PLAYBACK
Click this icon to run a playback window to search and play videos that are
recorded in the remote DVR.
Directory window shows site/sites that are pre-registered.
CONNECT
Click this icon to connect the selected site/sites.
DISCONNECT
Click this icon to disconnect the selected site/sites.
8-5-2. Main Control Panel
ChipER Technology Corp. page 78
Page 79
SETUP
Click this icon to setup configuration of UMS MULTI CLIENT.
CAPTURE
Click this icon to capture a still image.
EVENT LIST
Opens list of events logged by the UMS Multi Client.
MARK IN
Click this icon to set the beginning time for backup of the recorded video in
AVI format.
MARK OUT
Click this icon to set the ending time for backup of the recorded video in AVI
format.
BACKUP
Click this icon to backup the recorded video in AVI format.
AUDIO
Use the volume control bar to set the audio level.
To select the numbers of DVR/DVRs (1 DVR, 4 DVRs, 9 DVRs, 16 DVRs) on main
display screen.
To select the numbers of display channel/channels (Single, quad, 9 channels,
and 16 channels) of highlighted site.
To select the channel to playback.
The calendar shows dates with recorded video in color.
To display the recorded data of selected channel or all channels on a time line
scale.
To change a timeline scale from 24 hours to 60 minutes.
The timeline shows recorded data in color on the bar. You can adjust the
timeline scale and move it to the time you wish to playback. Then click the
play icon to display the recorded video.
Playback buttons.
ChipER Technology Corp. page 79
Page 80
8-6. Setup of UMS Multi Client

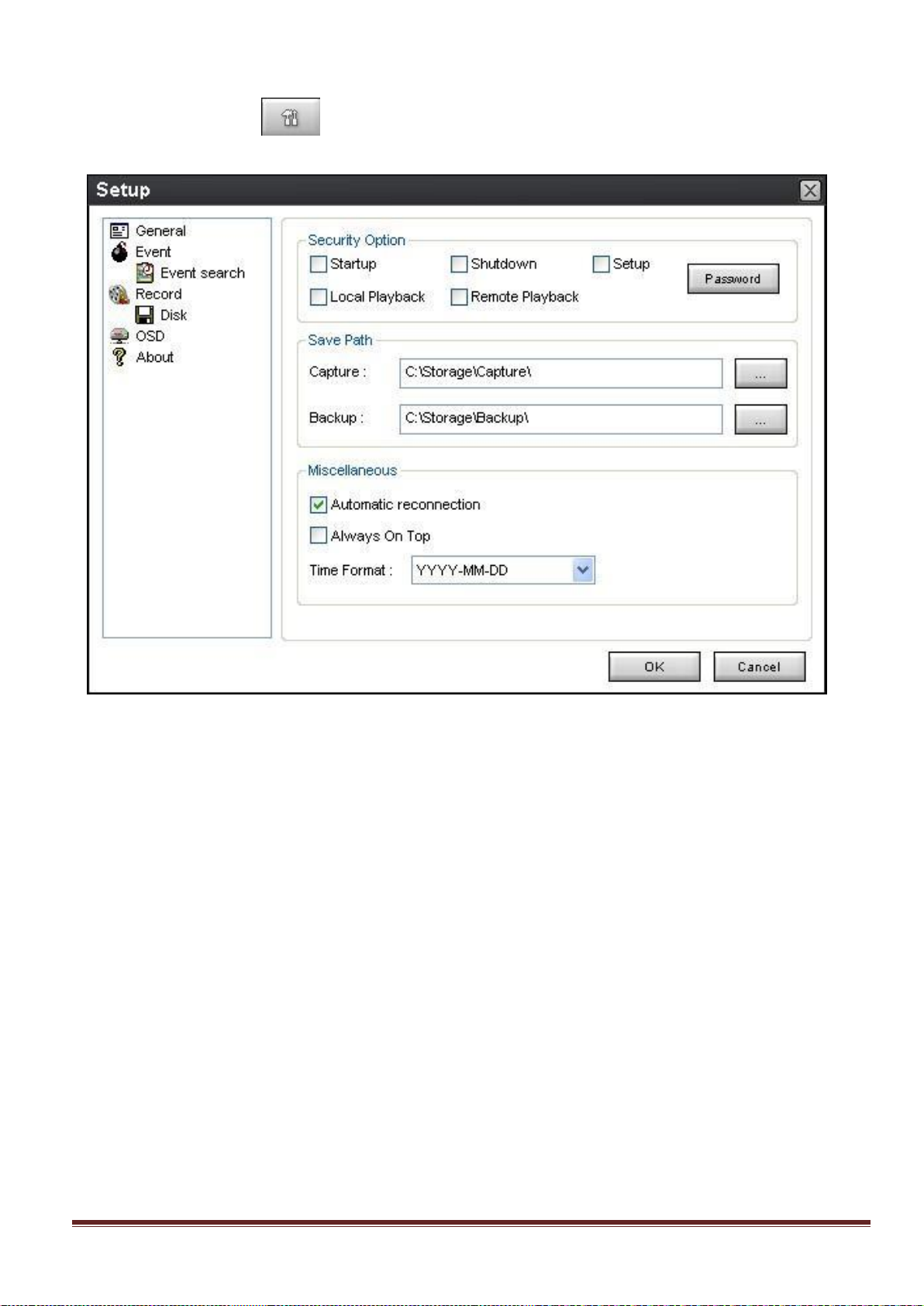

Click the setup icon to setup the configuration of UMS Multi Client software. The SETUP
window is displayed as below.

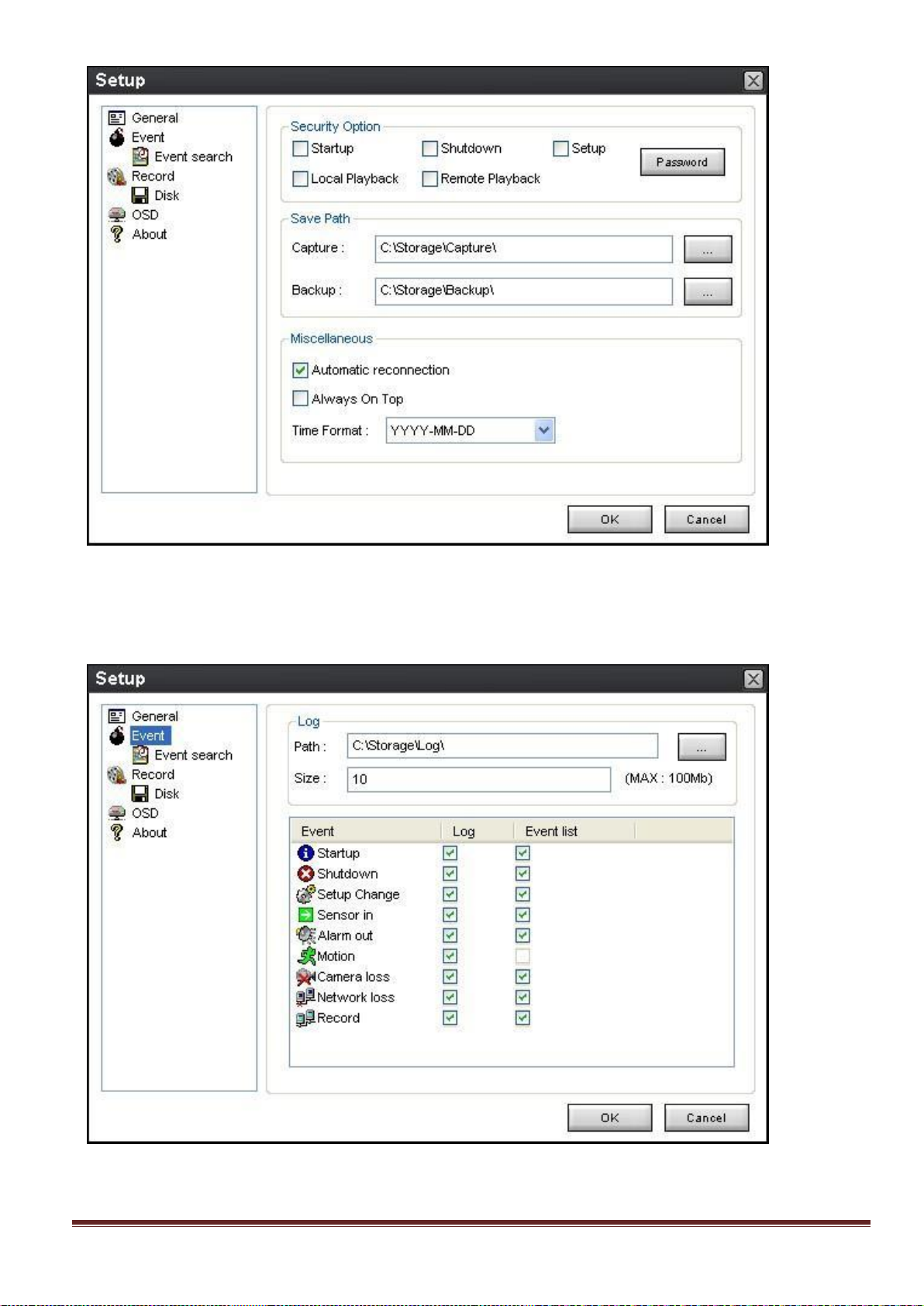

8-6-1. General
8-6-1-1. Security Option: Set a password for security options.
Select security options and set a password.
Then when you access any of selected functions, you need to enter the
password. You can also set the save path for capturing and backup.
8-6-1-2. Save Path: Specify the location to save captured still image for Capture and Backup data.
8-6-1-3. Miscellaneous
Automatic reconnection: If a user selects this function, client S/W will automatically try to connect
the finally connected IP address, after the network is disconnected.
Always On Top: If a user selects this function, client S/W will display continuously at the very front than other
software on the PC.
T
ime Format: Change the way the Client software displays the time.
ChipER Technology Corp. page 80
Page 81
8-6-2. Event
Event log can be archived and searched.
8-6-2-1. Archiving Event Log: Specify the location to save event logs and select event to archive.
ChipER Technology Corp. page 81
Page 82

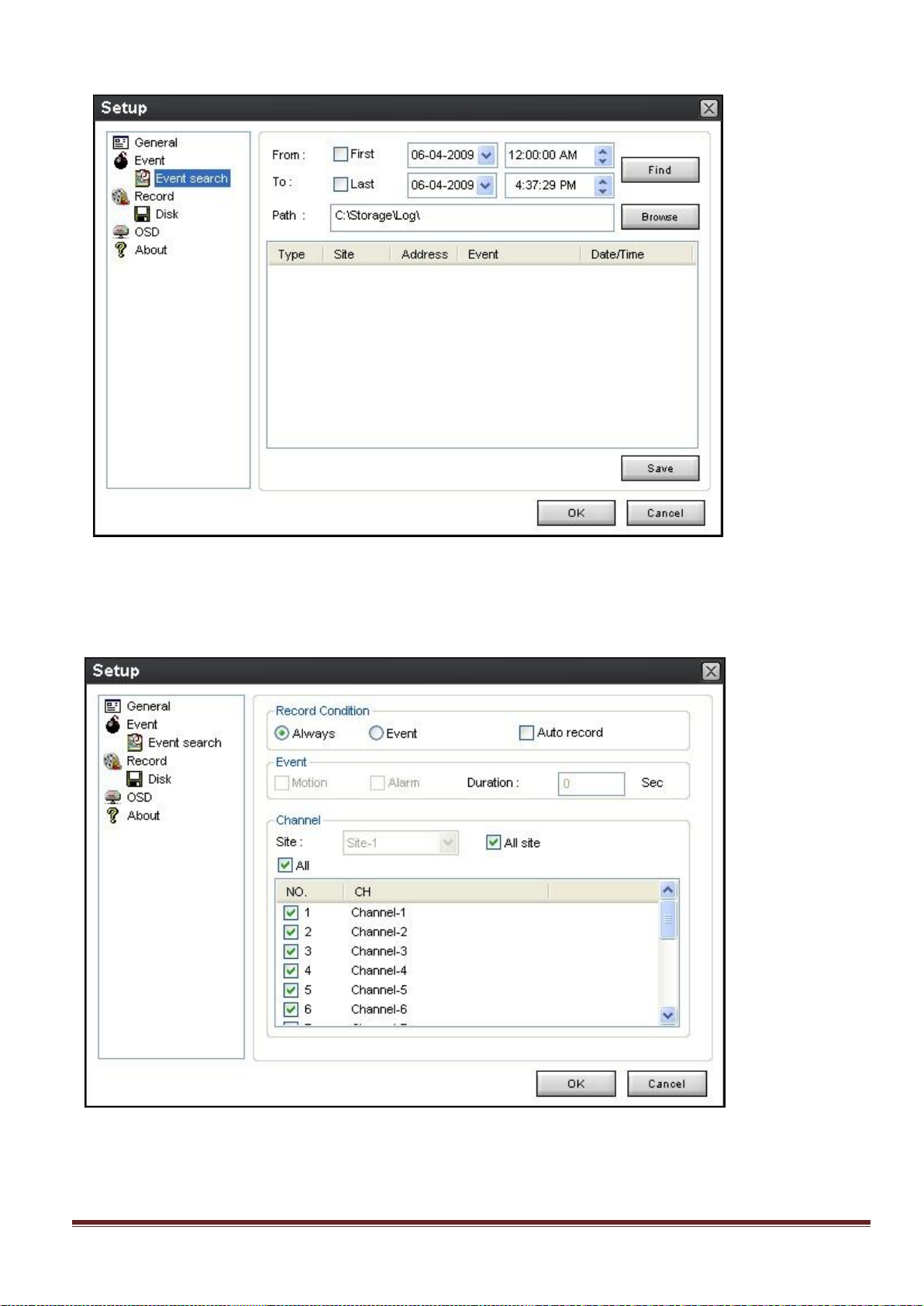

8-6-2-2. Archiving Event Log: Event log can be searched from selected time.
8-6-3. Record
8-6-3-1. Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record.
And you can also select target DVR/DVRs and channel/channels.
When you set the recording condition to event, you can set event for motion or alarm with duration.
ChipER Technology Corp. page 82
Page 83

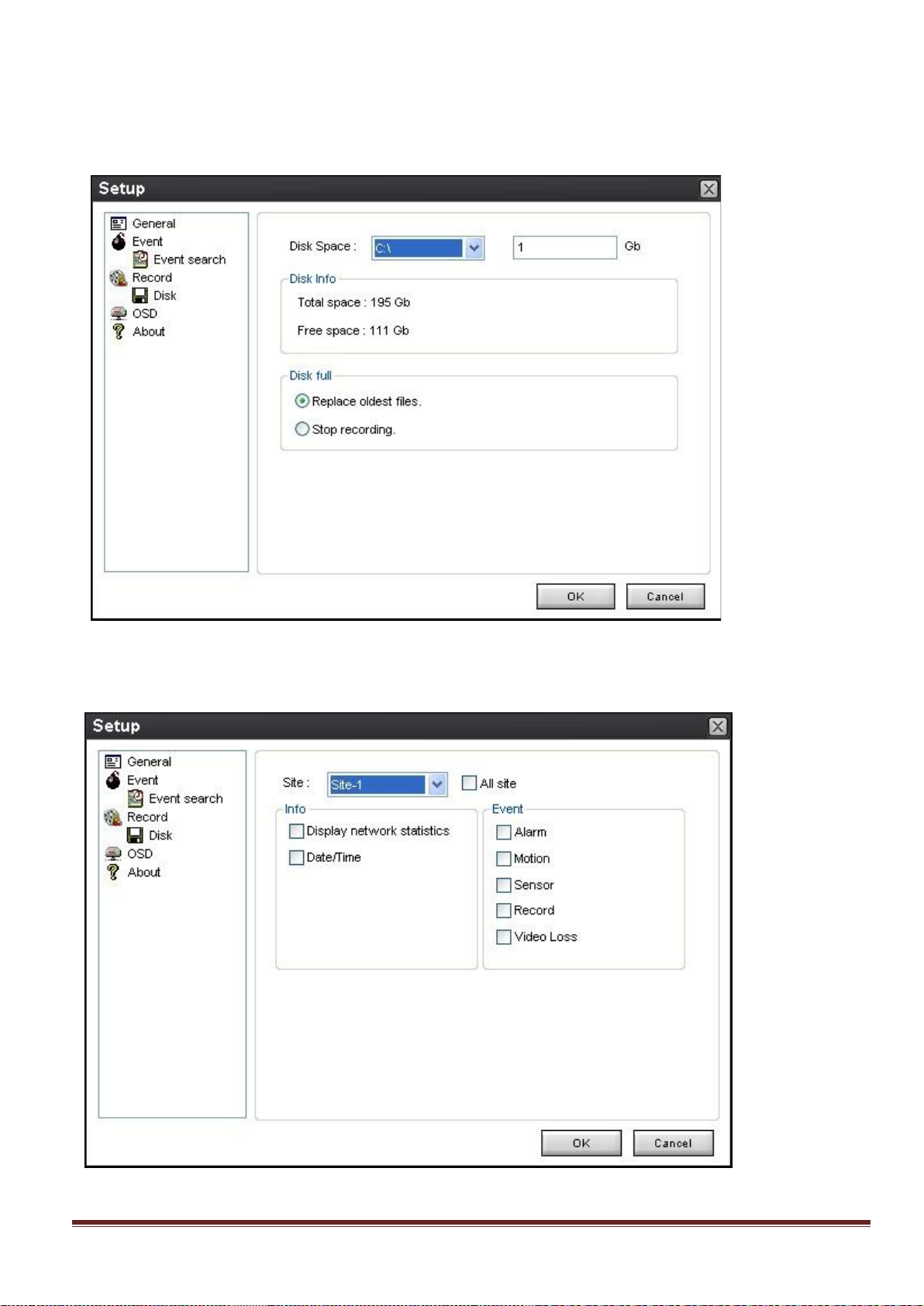

8-6-3-2. Record Local Storage Setup: You can select the local disk to record and the amount of disk space you
want to allow the program to use for recording. You can also select the option to overwrite data or stop
recording when the maximum amount of disk space is full.
8-6-4. OSD
You can select the OSD (On Screen Display) to be displayed.
ChipER Technology Corp. page 83
Page 84

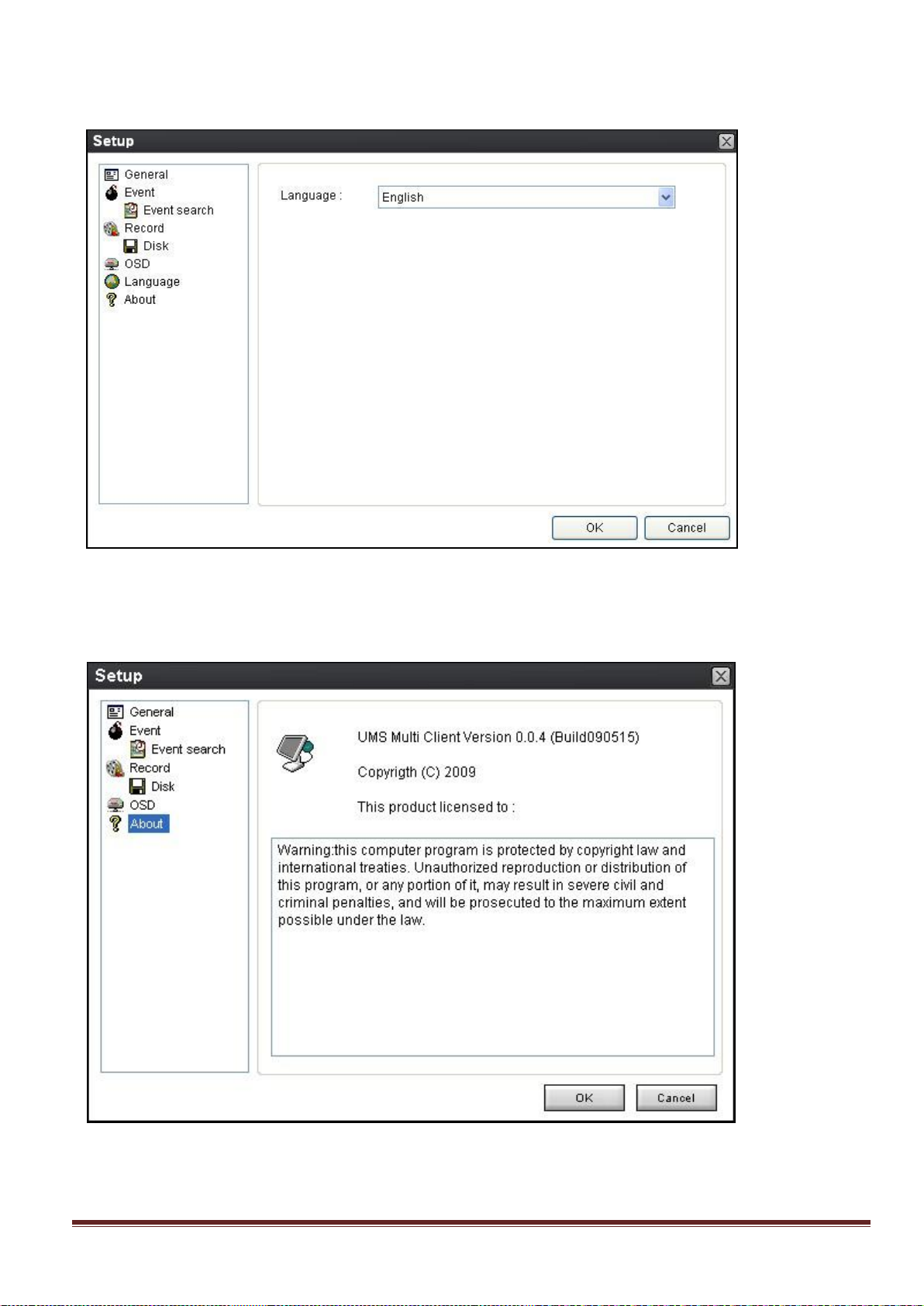

8-6-5. Language
You can select a language to be display.
8-6-6. About
“About”
provides network client
version
information.
ChipER Technology Corp. page 84
Page 85
8-7. Remote Setup
The menu settings for the DVR unit can be set from a PC, via network.
Put the cursor of the mouse on the channel which is connected to the site and press the right. Then the
following window is displayed as below. Select the Remote Setup.
Then the setup window is displayed. The specified menu screen is displayed on the upper left of the screen.
Setting is the same as with the DVR menu setting. Refer to the corresponding pages for details on the setting
items.
8-7-1. Setting the Display
Select Display to set the live video display conditions.
8-7-2. Record
Select Record to set the recording conditions
ChipER Technology Corp. page 85
Page 86

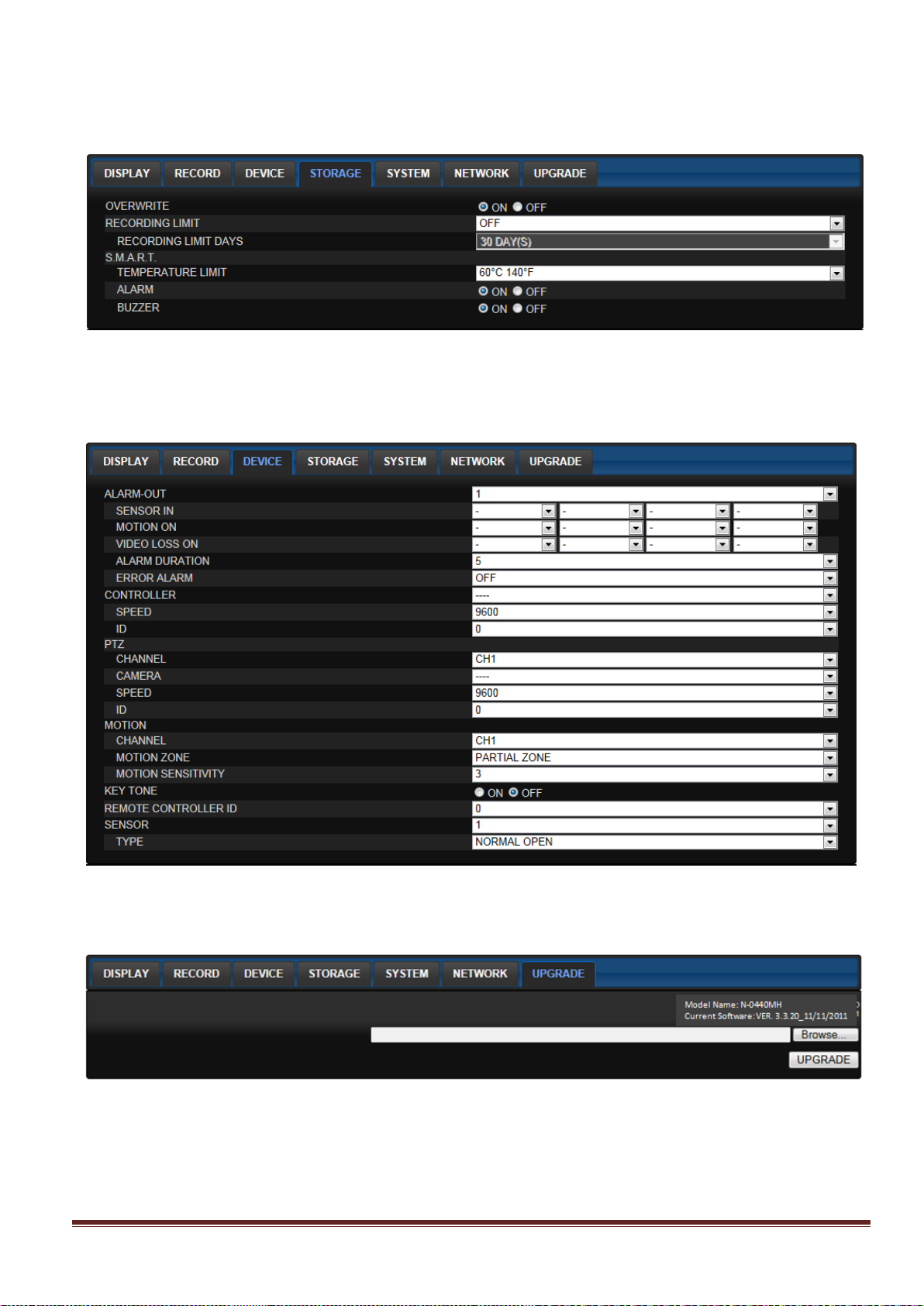

8-7-3. Storage
Select Storage to configure continued recording settings by overwriting the hard disk and the storage period
for the recording data.
8-7-4. Device
Select Device to set the motion zone, sensor input/alarm output conditions, PTZ control and spot setting
conditions.
8-7-5.Upgrade
Select Upgrade for remote firmware upgrade over network.
ChipER Technology Corp. page 86
Page 87
8-7-6. System
Select System to set syst8m and time settings.
8-7-7.Network
Select Network to set information about the DVR network.
ChipER Technology Corp. page 87
Page 88
8-8. Operation
8-8-1. Addition, Delete, and Modify of DVR Sites
8-8-1-1. Addition of Sites
1. Click SITE ADDITION button. And then the following window will be displayed as below.
Model: User has to select the proper DVR model.
SDVR series, H series DVR N series DVR, HD DVR
IP Camera
Site Name: Input a name that properly describes a site.
IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name
that is registered at www.ddnscenter.com
Port No.: Input port number of DVR. Default Port Number is “5445”.
ID: Input ID of DVR. Default ID is “admin”.
Password: Input network password of DVR. Default Password is “1111”.
2. Click OK button. And then the registered site is added on the directory window.
ChipER Technology Corp. page 88
Page 89

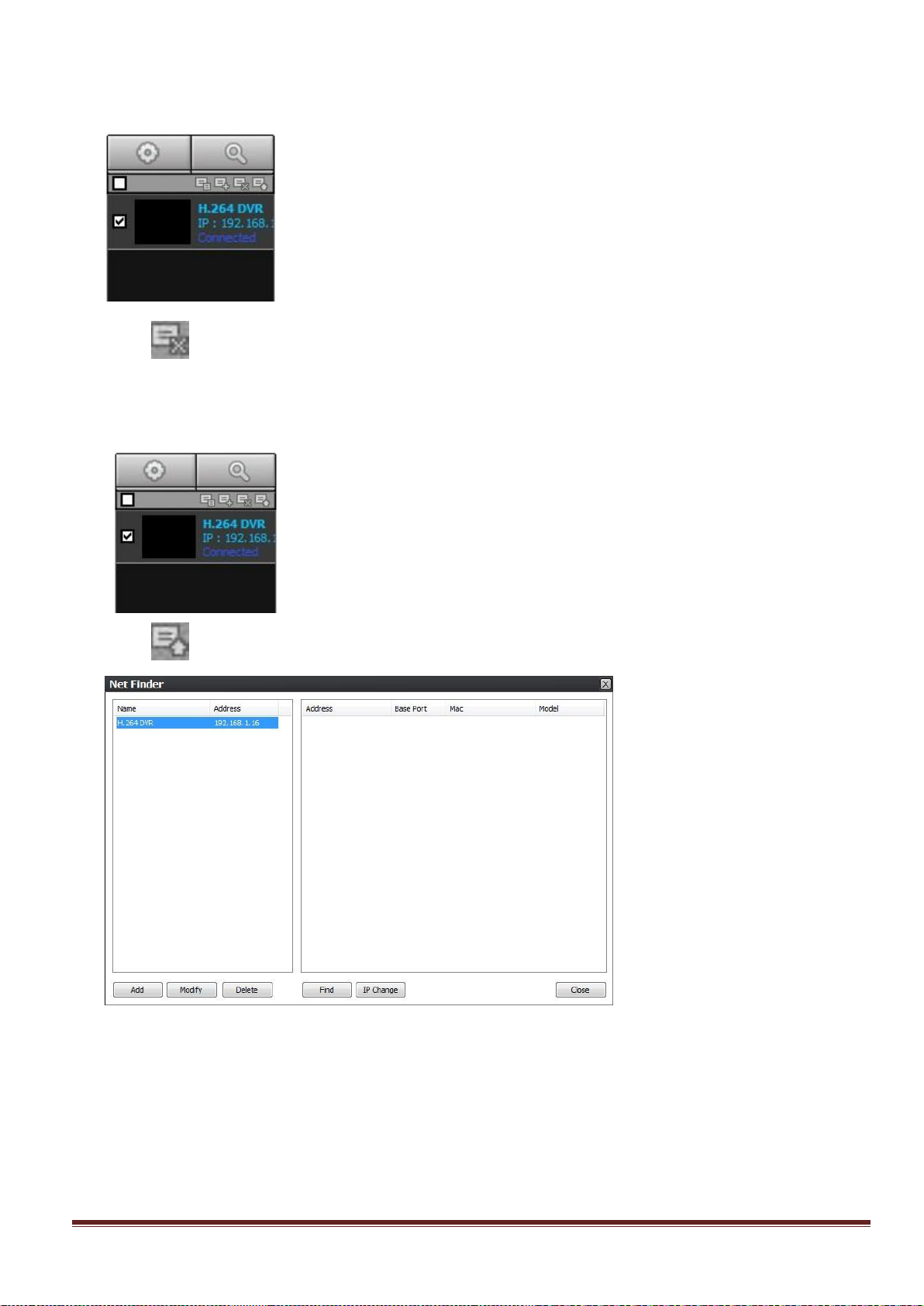

8-8-1-2. Delete of Sites
1. Select the site/sites to delete from the directory window.
2. Click SITE DELETE button. And then the selected site/sites is/are deleted.
8-8-1-3. Modify of Sites
1. Select the site/sites to modify from the directory window.
2. Click NET FINDER button. And then the following window will be displayed as below.

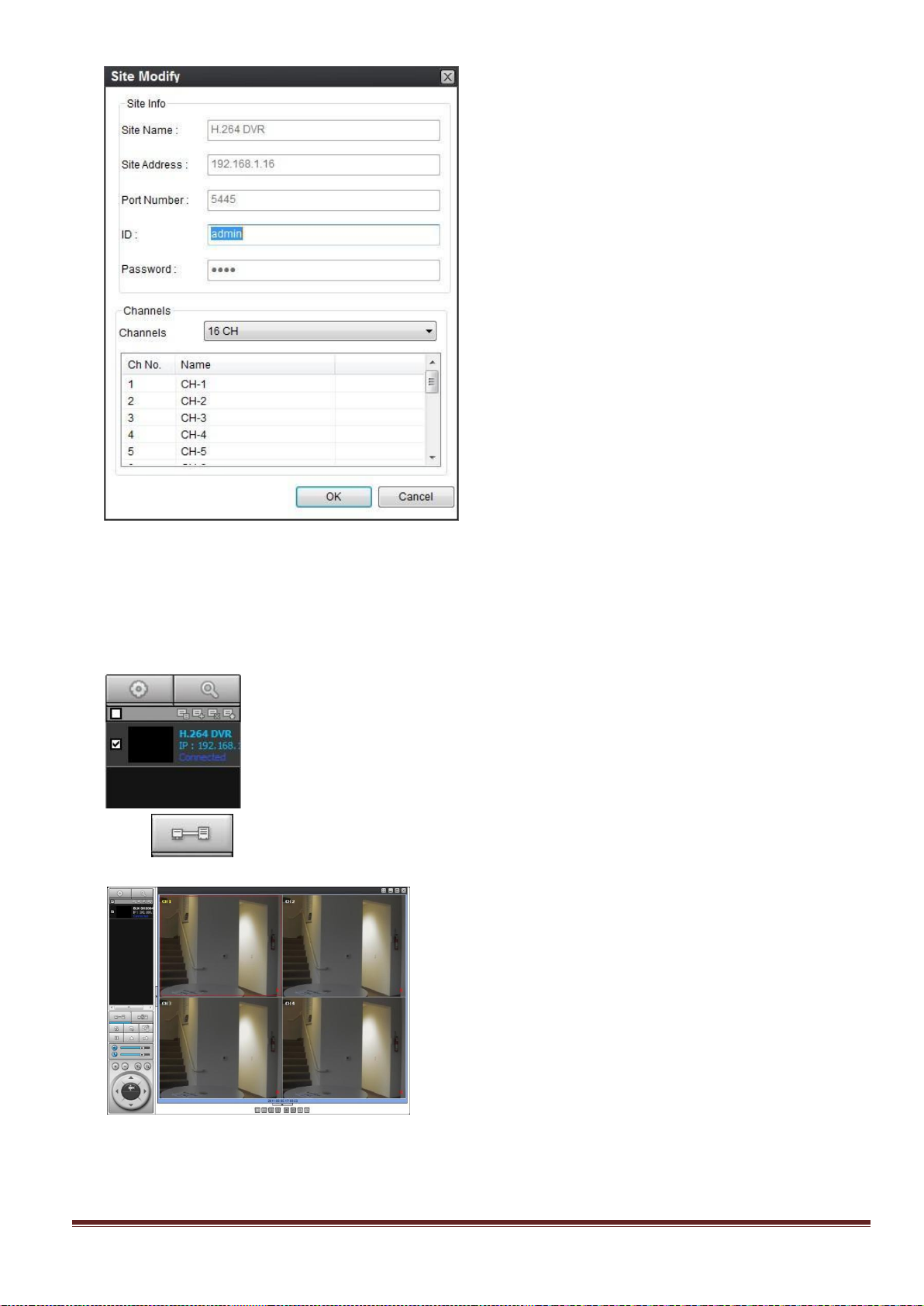

3. Click MODIFY button. And then the modified information is applied.
ChipER Technology Corp. page 89
Page 90
8-8-2. Connect and Disconnect
8-8-2-1. Connect
1. Select site/sites to connect from the directory window.
2. Click CONNECT button, and then site/sites displays/display as connected.
ChipER Technology Corp. page 90
Page 91
8-8-2-2. Disconnect
1. Select site/sites to disconnect from the directory window.
2. Click DISCONNECT button, and then selected site/sites disconnected.
8-8-3. Still-image Capture During Live
1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.).
2. Click CAPTURE button. And then a Capture window will be displayed as below.
3. Set Save path, File Name, and File Format. And then click OK button.
ChipER Technology Corp. page 91
Page 92
4. Still image is saved as set in Capture window.
8-8-4. Recording Video on Local PC during Live
1. Click SETUP button. And then a setup window will be displayed as below.
2. Select Record and set the values.
3. Select Disk and set the values.
ChipER Technology Corp. page 92
Page 93

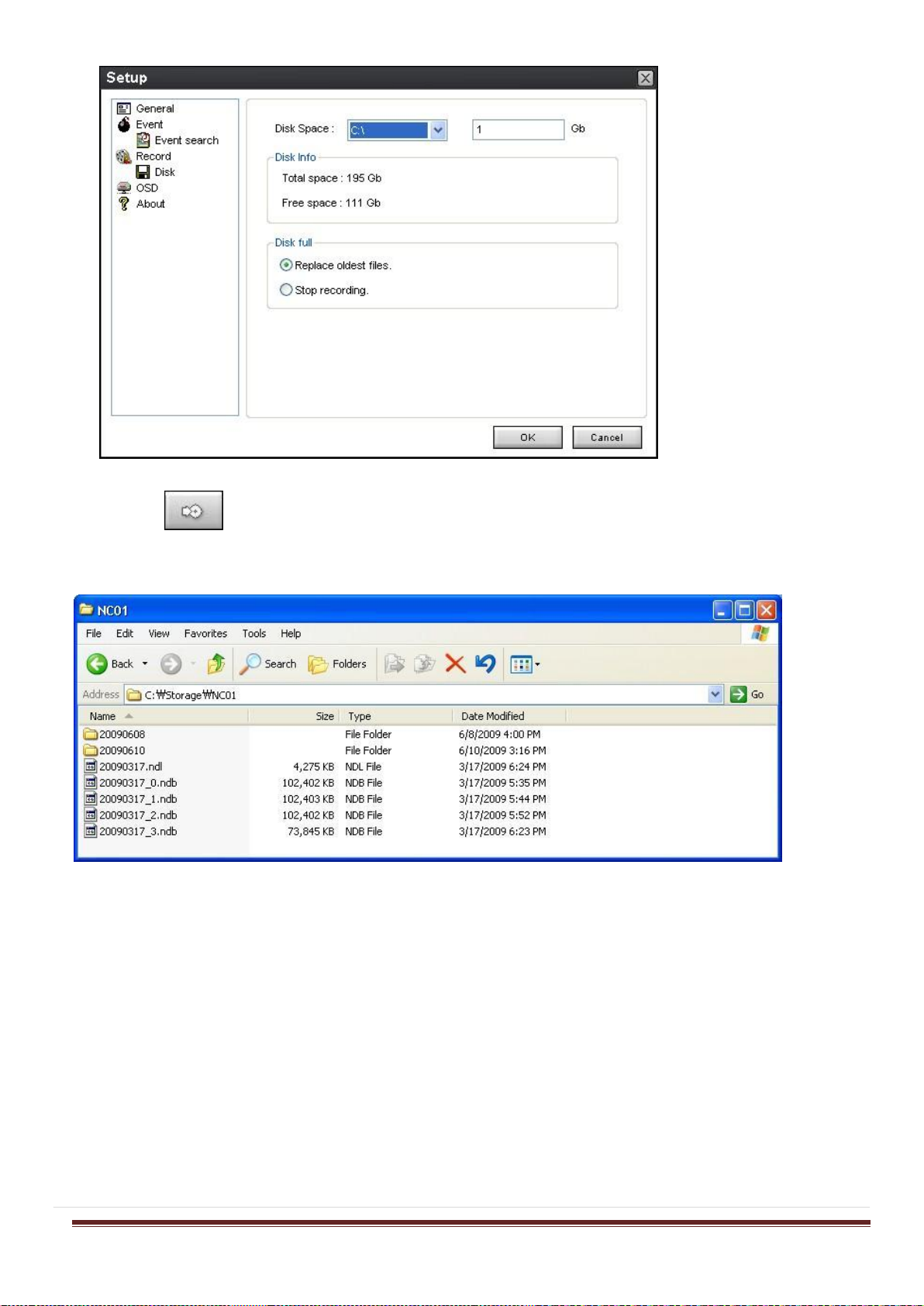

4. Click RECORD ON button. And the color of button is changed.
5. Live video data is recorded as set in Record and Disk setup. These video data can be searched and play-backed
with Local Playback.
ChipER Technology Corp. page 93
Page 94
8-8-5. Local Playback and Remote Playback
8-8-5-1. Playback of recorded video on local PC
1. Click LOCAL PLAYBACK button. And then Playback Window will be displayed over the Live
Window.
2. Select site/sites to connect from the directory window.
3. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale
window.
4. Move the marker on the timeline scale to where there is video data and press the PLAY button.
5. Video data that is recorded on local PC will be play-backed.
ChipER Technology Corp. page 94
Page 95

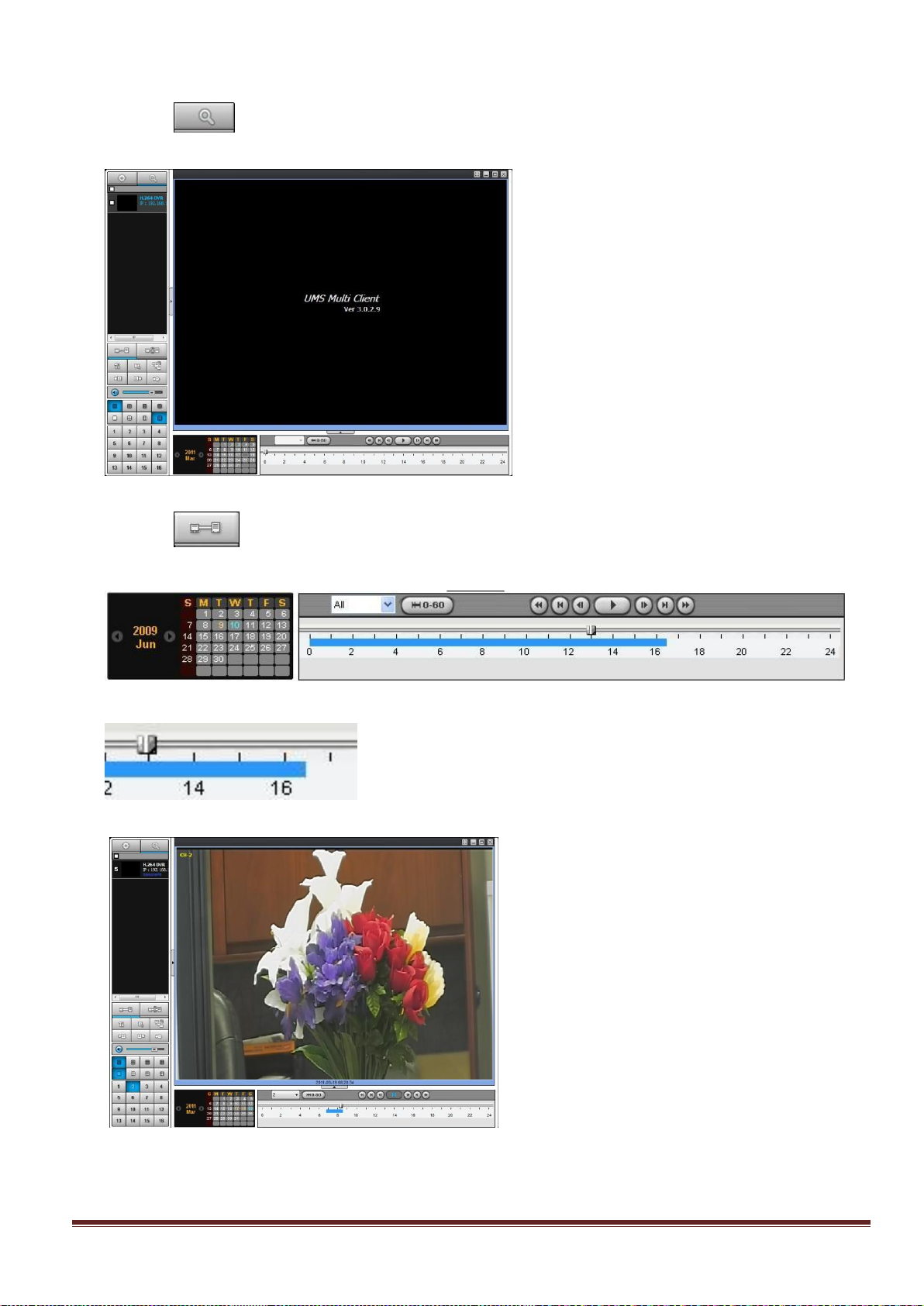

8-8-5-2. Playback of Recorded V ideo on Remote DVR
1. Click REMOTE PLAYBACK button. And then Playback Window will be displayed over the Live W
indow.
2. Select the site to connect from the directory window.
3. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale
window.
4. Move the marker on the timeline scale to where there is video data and press the PLAY button.
5. Video data that is recorded on the remote DVR is play-backed.
ChipER Technology Corp. page 95
Page 96
9-8-6. AVI Backup During Playback
You can back up the recorded videos in AVI format during playback.
1. Double-click the target channel to backup.

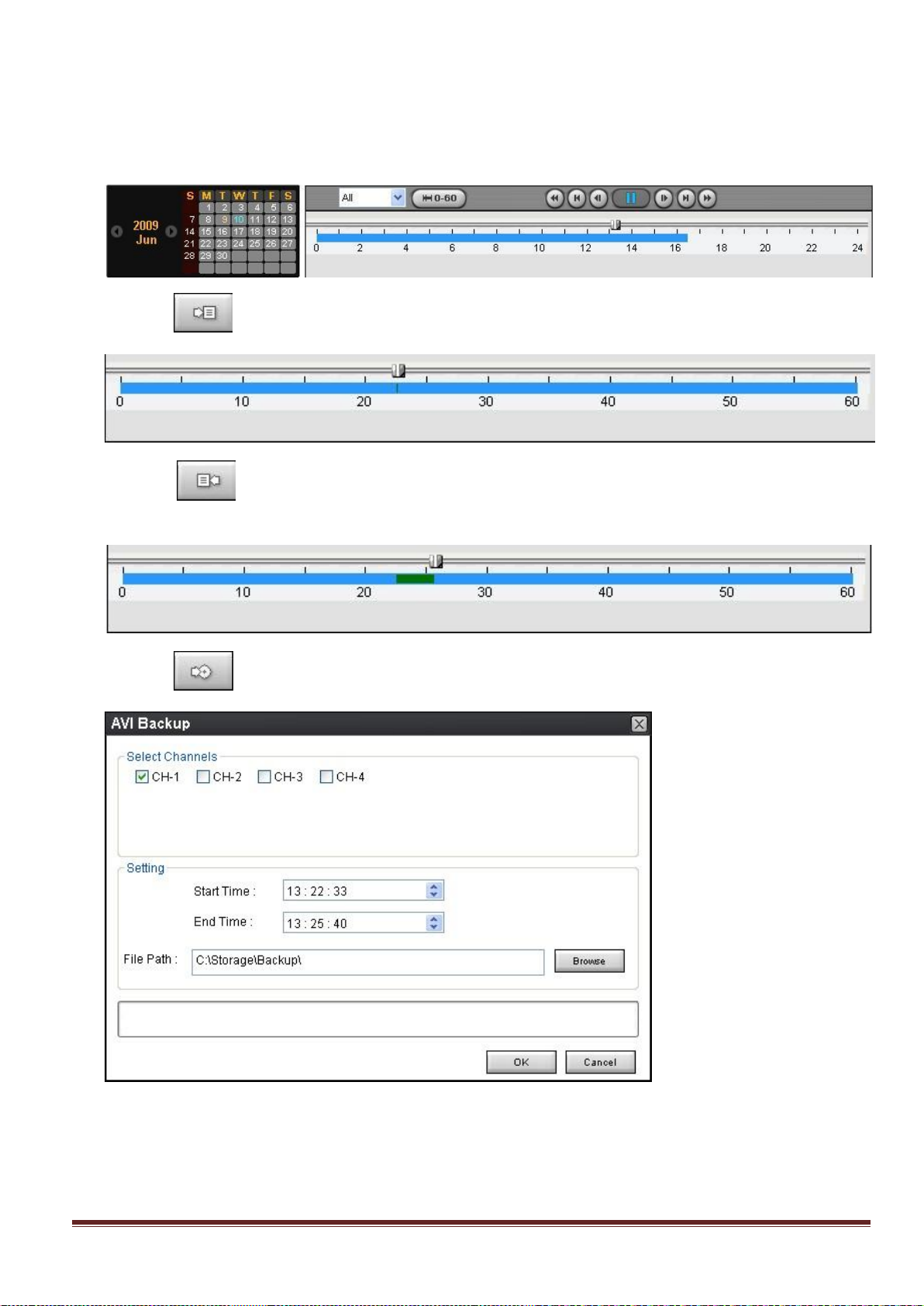

2. Select the beginning time by using the search calendar and timeline scale bar.
3. Click MARK IN button on the timeline scale to select the beginning point of the backup.
4. Click MARK OUT button on the timeline scale to select the ending point of the backup.
Then, the selected starting point and the ending point on the timeline scale bar will be marked in green.
5. Click BACKUP. And then the BACKUP window will be displayed as below.
ChipER Technology Corp. page 96
Page 97

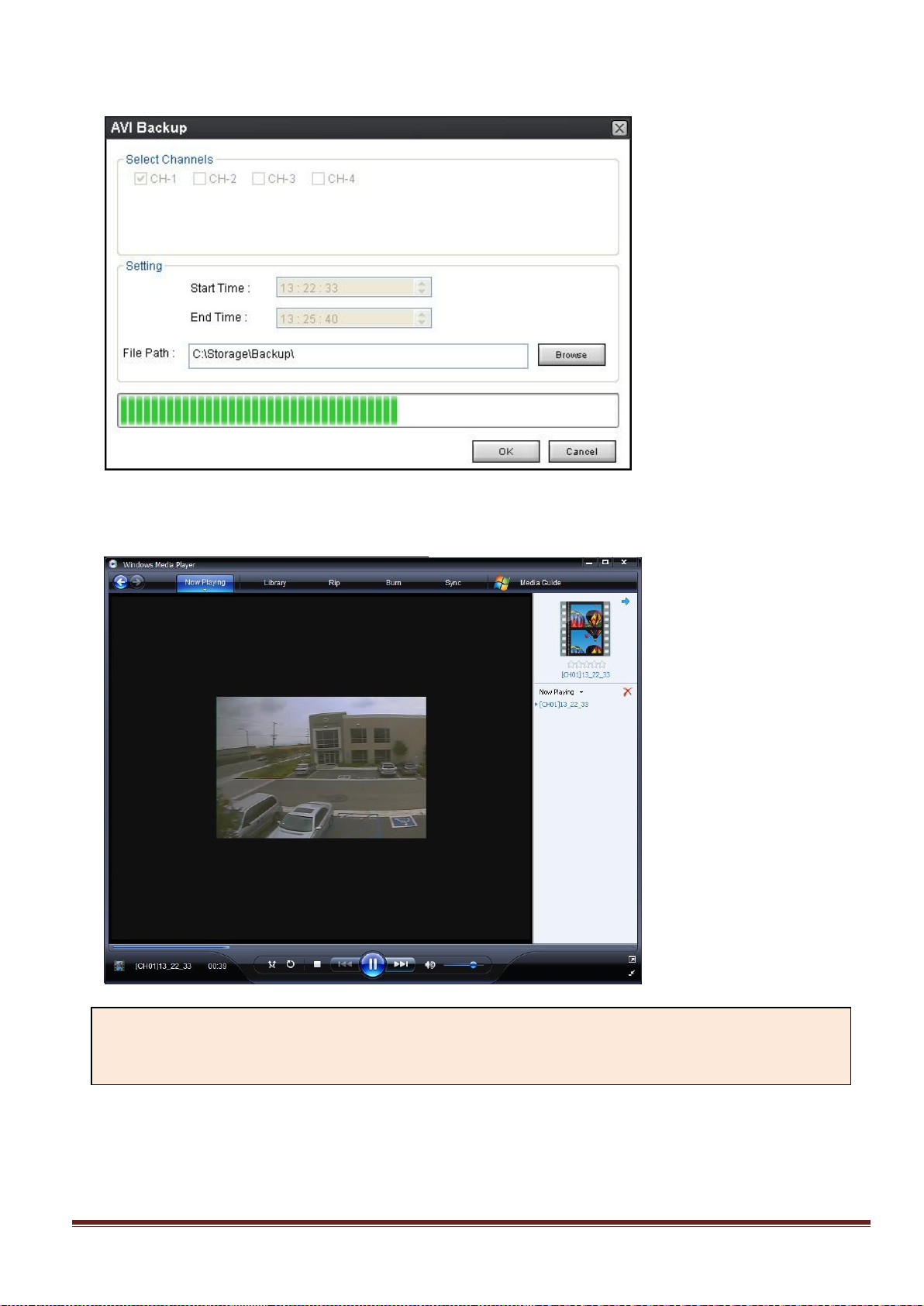

6. You can also set the beginning time and ending time on this window. After selecting a channel for backup,
Notice
When backing up as a NSF format, the user can playback using the DVR Player, which is
downloaded into the USB flash drive or the DVD-R with the backup data.
click the OK button. The backup will begin.
7. AVI video data is recorded as set in AVI Backup window. AVI format video can be played back by Window
Media
Player™
or other
media player
that
is compatible
with
AVI
format video.
ChipER Technology Corp. page 97
Page 98
9. Network – By a Web-Browser V iewer
The DVR provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Brower is only
available for Internet Explorer)

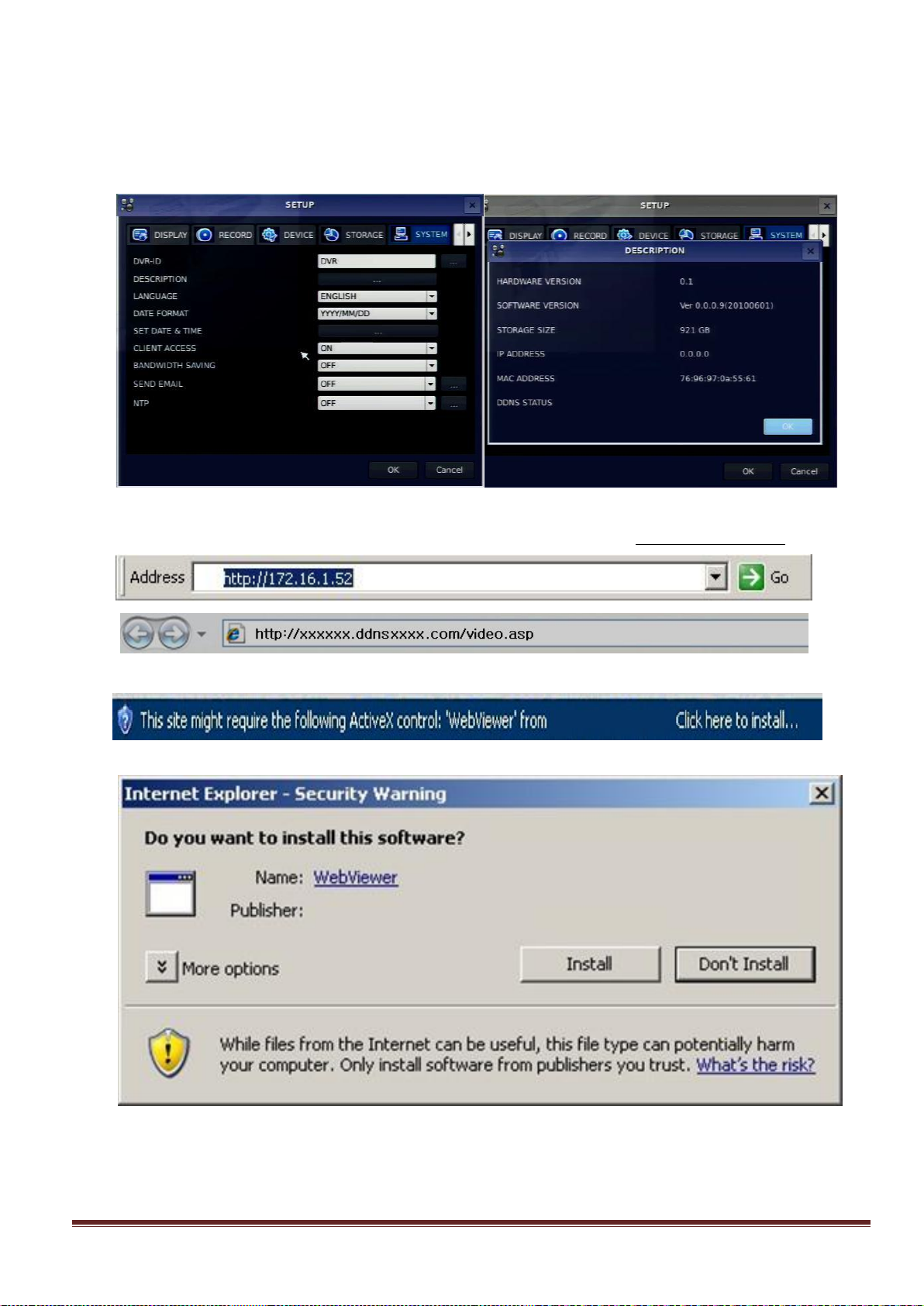

1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS.
2. Input the IP address or Domain name address that you pre-registered on www.ddnscenter.com .
3. Click this bar. Then the dialog box is displayed.
4.
Click “Inst
all” to
download
and install the Active-X control.
ChipER Technology Corp. page 98
Page 99

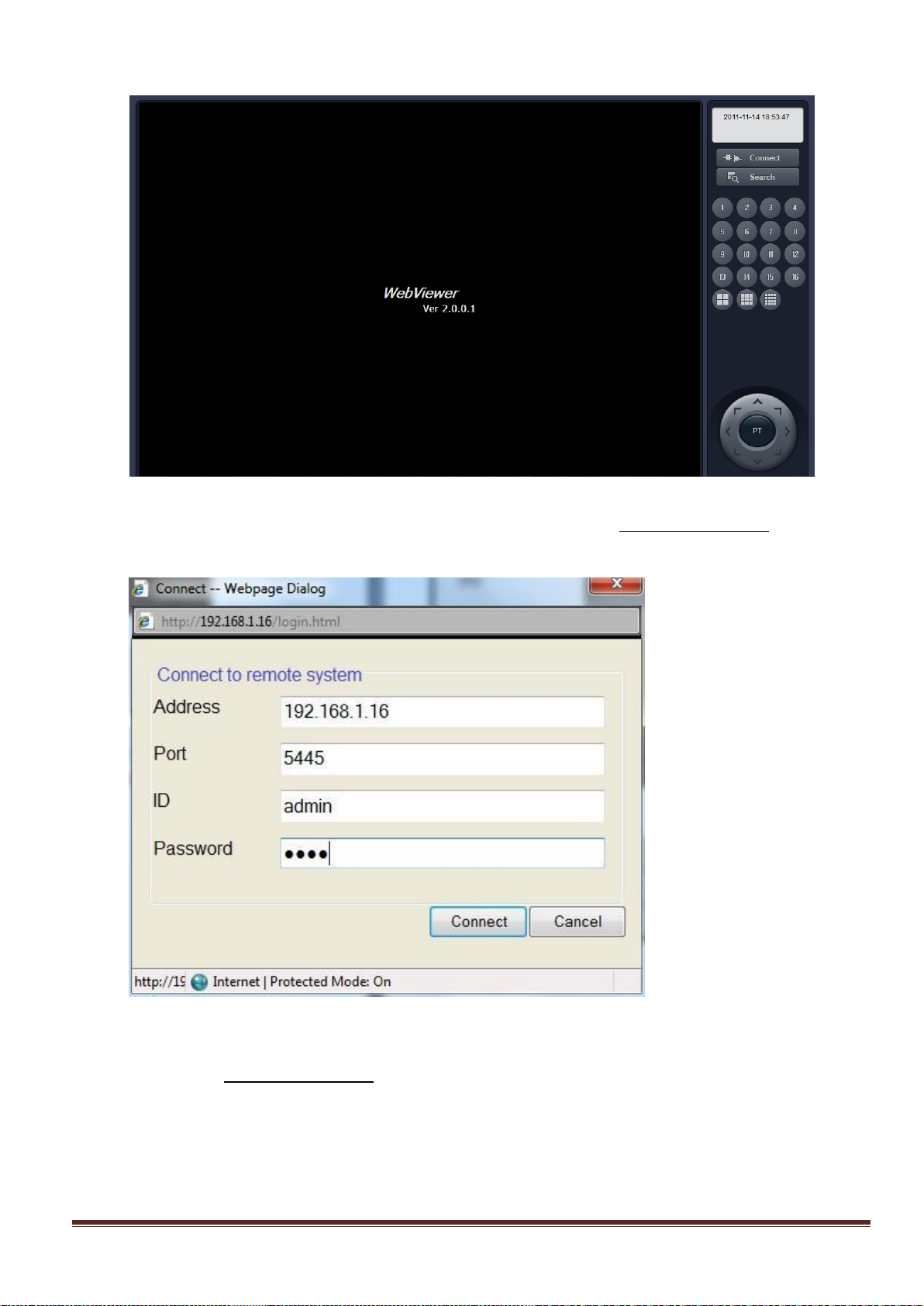

5. The Web Browser Viewer will be displayed as below after the Active-X installation.
6. Click the CONNECT button on the Left upper corner of
Enter IP address (or Domain name address that you pre-registered on www.ddnscenter.com, Port number
web-
viewer. Then “C
onnect”
dialog is displayed.
and
Password and click “C
onnect
”
Site Name: Input a name that properly describes a site.
IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name that
is registered at www.ddnscenter.com
Port No.: Input port number of DVR. Default Port Number is “5445”.
ID: Input ID of DVR. Default ID is “admin”.
Password: Input network password of DVR. Default Password is “1111”.
ChipER Technology Corp. page 99
Page 100
7. Then the cameras connected to the DVR are displayed on the screen.
8. SETUP: The menu settings for the DVR unit can be set from a PC, via network. Refer to the detail of
Remote Setup description of UMS Multi Client.
ChipER Technology Corp. page 100
Loading...
