CHINA ELECTRONICS B04 User Manual

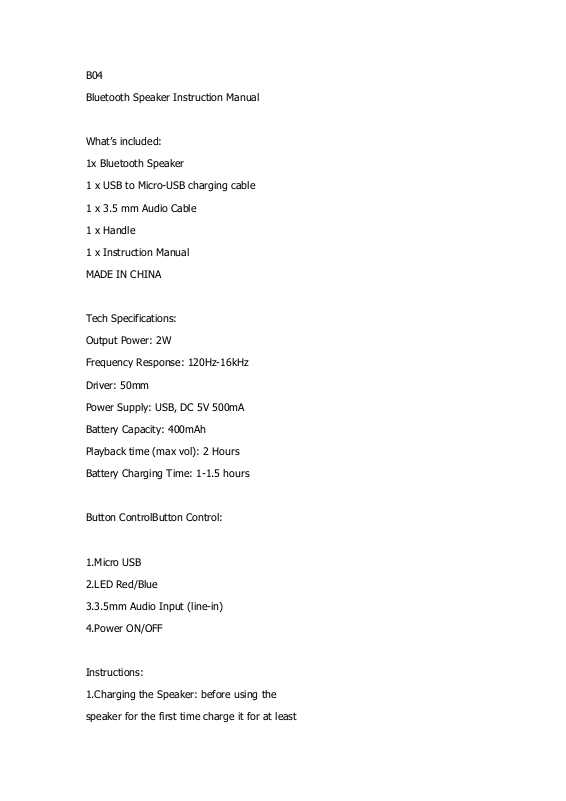

B04

Bluetooth Speaker Instruction Manual

What’s included:

1x Bluetooth Speaker

1 x USB to Micro-USB charging cable

1 x 3.5 mm Audio Cable

1 x Handle

1 x Instruction Manual

MADE IN CHINA

Tech Specifications:

Output Power: 2W

Frequency Response: 120Hz-16kHz

Driver: 50mm

Power Supply: USB, DC 5V 500mA

Battery Capacity: 400mAh

Playback time (max vol): 2 Hours

Battery Charging Time: 1-1.5 hours

Button ControlButton Control:

1.Micro USB

2.LED Red/Blue

3.3.5mm Audio Input (line-in)

4.Power ON/OFF

Instructions:

1.Charging the Speaker: before using the

speaker for the first time charge it for at least

2-4 hours.

1.1.Plug the Micro-USB cable into the input port

of the speaker.

1.2.Plug the opposite USB end into the USB port

of a computer or compatible AC wall adapter.

The red LED turns on to indicate that the unit

is charging.

1.3.Once fully charged, the red LED turns off.

2.Pairing the Device:

2.1.Place speaker within 30ft of the Bluetooth

enabled device.

2.2.Slide the ON/OFF button to ON. The blue LED

flashes 3 times slowly, then flashes quickly to indicate Bluetooth pairing mode.

2.3.Follow the instructions of your device to search for the speaker.

2.4.The speaker is called “B04” If a PIN

is required, enter “0000.”

2.5.Three tones will sound an the blue LED flashes

slowly when pairing is complete.

3.Basic instructions:

To turn the speaker on, slide the ON/OFF

button to ON.

The speaker beeps and a blue LED flashes

slowly.

The blue LED stays on when playing music.

To turn speaker off, slide the ON/OFF button

to OFF.

4.LED indicator

Charging: Red LED on
