CHIMEI INNOLUX N156BGE-E21 Specification

Page 1
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

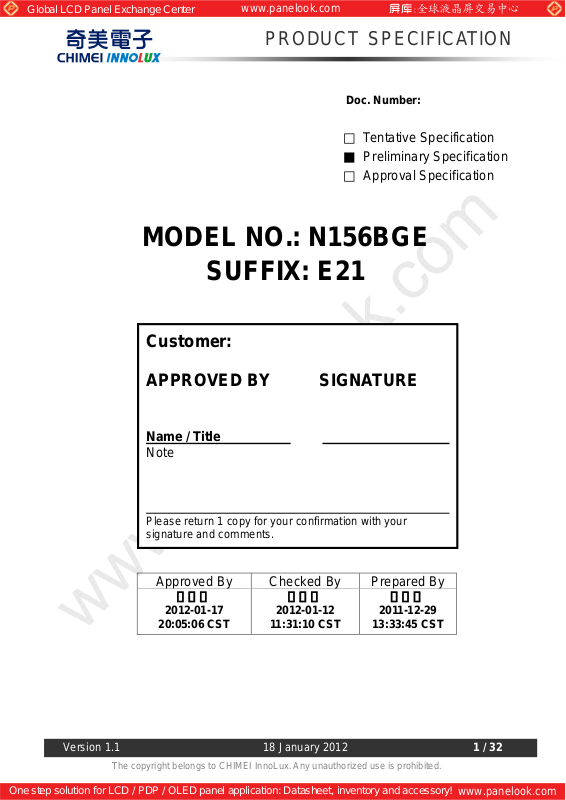

MODEL NO.: N156BGE
PRODUCT SPECIFICATION
Doc. Number:
Tentative Specification
Preliminary Specification Approval Specification
SUFFIX: E21
Customer: APPROVED BY SIGNATURE
Name / Title
Note
Please return 1 copy for your confirmation with your signature and comments.
Approved By Checked By Prepared By
方健穎
2012-01-17
20:05:06 CST
曹文彬
2012-01-12
11:31:10 CST
吳彥儀
2011-12-29
13:33:45 CST
Version 1.1 18 January 2012 1 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 2
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PRODUCT SPECIFICATION
CONTENTS
1. GENERAL DESCRIPTION.........................................................................................................4
1.1 OVERVIEW ................................................................................................................................4
1.2 GENERAL SPECIFICATI0NS ...................................................................................................4
2. MECHANICAL SPECIFICATIONS .............................................................................................4
2.1 CONNECTOR TYPE..................................................................................................................4
3. ABSOLUTE MAXIMUM RATINGS.............................................................................................5
3.1 ABSOLUTE RATINGS OF ENVIRONMENT ..........................................................................5
3.2 ELECTRICAL ABSOLUTE RATINGS......................................................................................5
3.2.1 TFT LCD MODULE ............................................................................................................5
4. ELECTRICAL SPECIFICATIONS...............................................................................................7
4.1 FUNCTION BLOCK DIAGRAM...............................................................................................7
4.2. INTERFACE CONNECTIONS .................................................................................................7
4.3 ELECTRICAL CHARACTERISTICS........................................................................................9
4.3.1 LCD ELETRONICS SPECIFICATION...............................................................................9
4.3.2 LED CONVERTER SPECIFICATION..............................................................................11
4.3.3 BACKLIGHT UNIT...........................................................................................................13

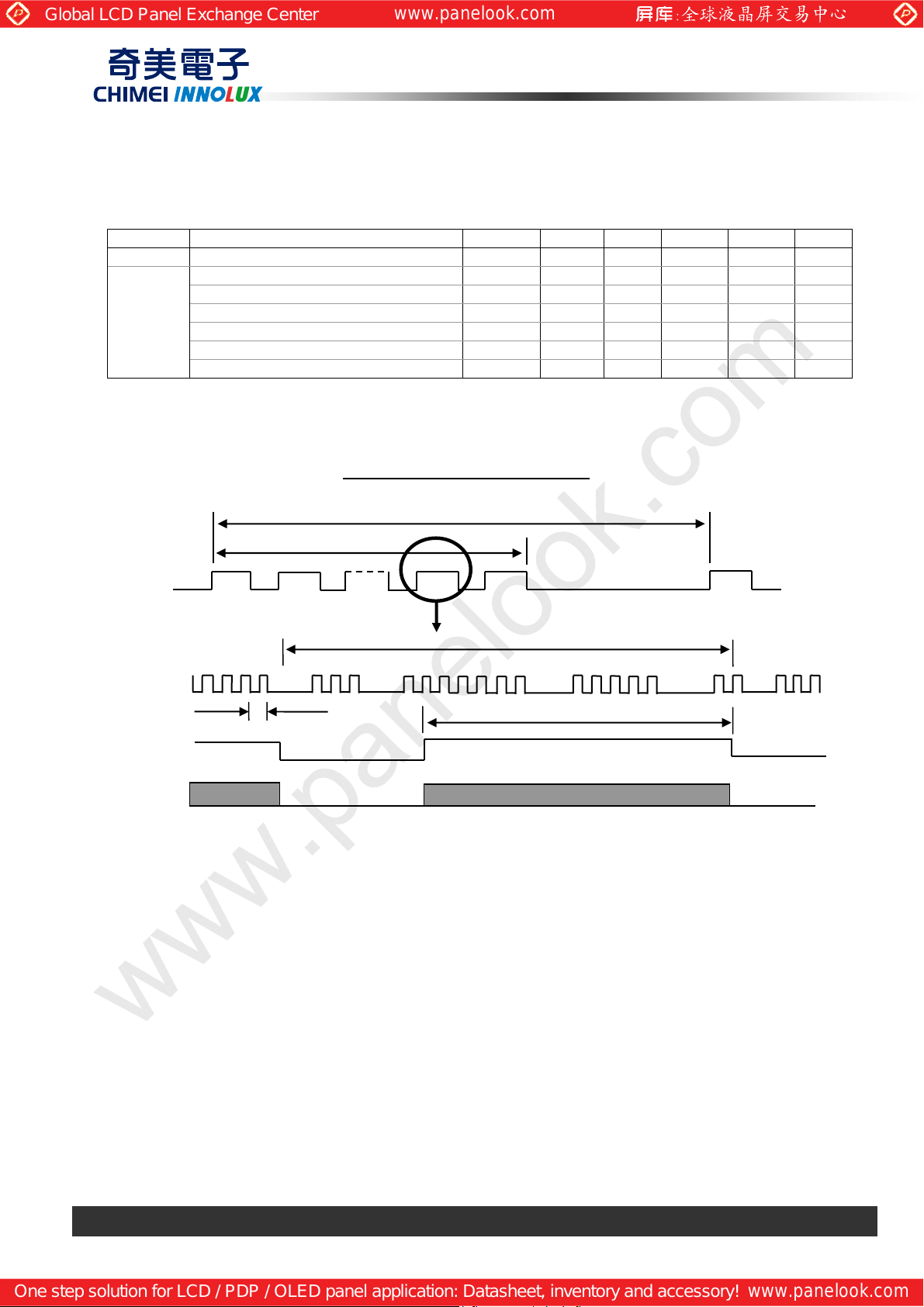

4.4 DISPLAY PORT SIGNAL TIMING SPECIFICATION .........................................................14
4.4.1 DISPLAY PORT INTERFACE ........................................................................................14
4.4.2 COLOR DATA INPUT ASSIGNMENT ...................................... 錯誤! 尚未定義書籤。
4.5 DISPLAY TIMING SPECIFICATIONS ...................................................................................16

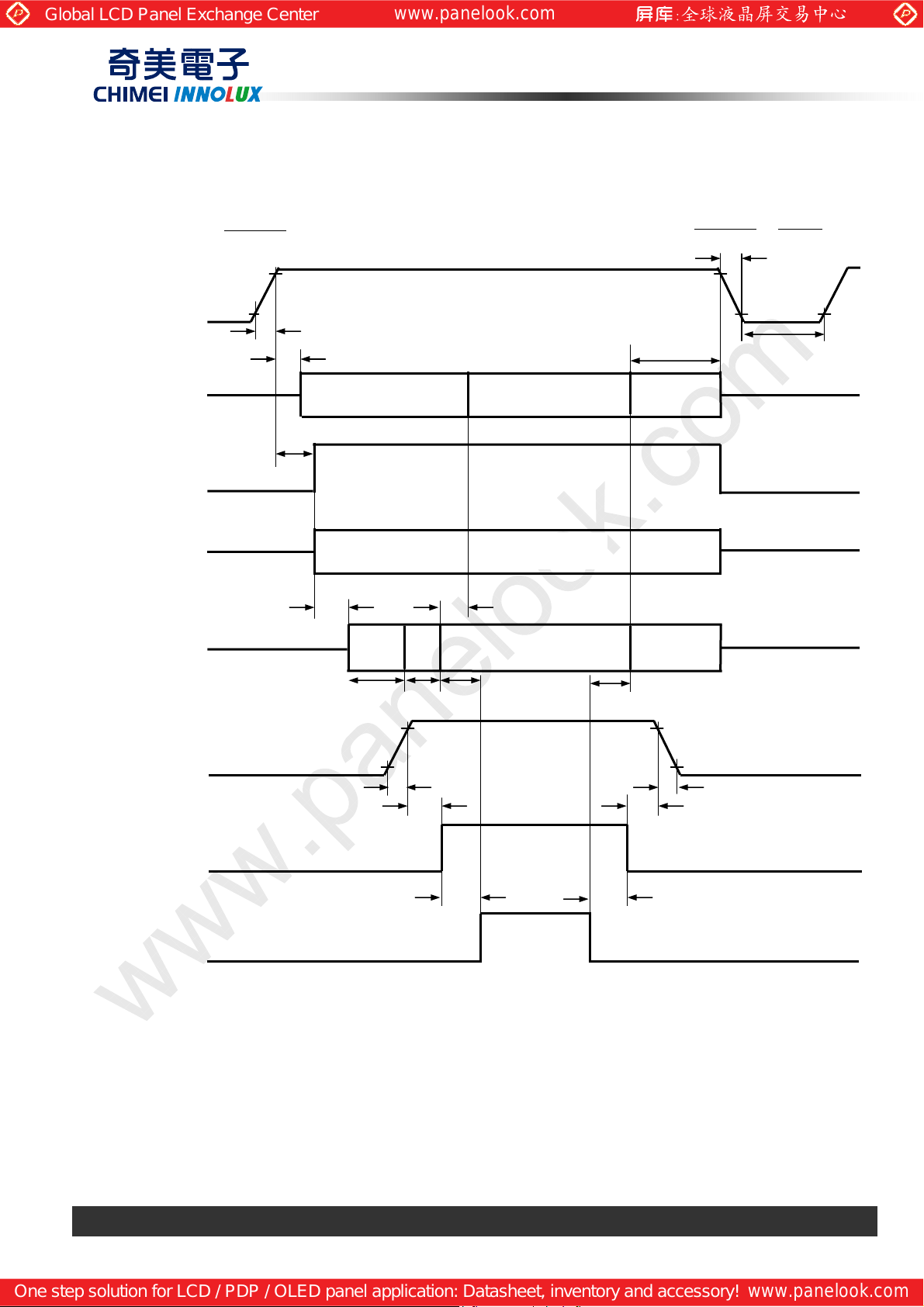

4.6 POWER ON/OFF SEQUENCE ................................................................................................17
5. OPTICAL CHARACTERISTICS ...............................................................................................19
5.1 TEST CONDITIONS.................................................................................................................19

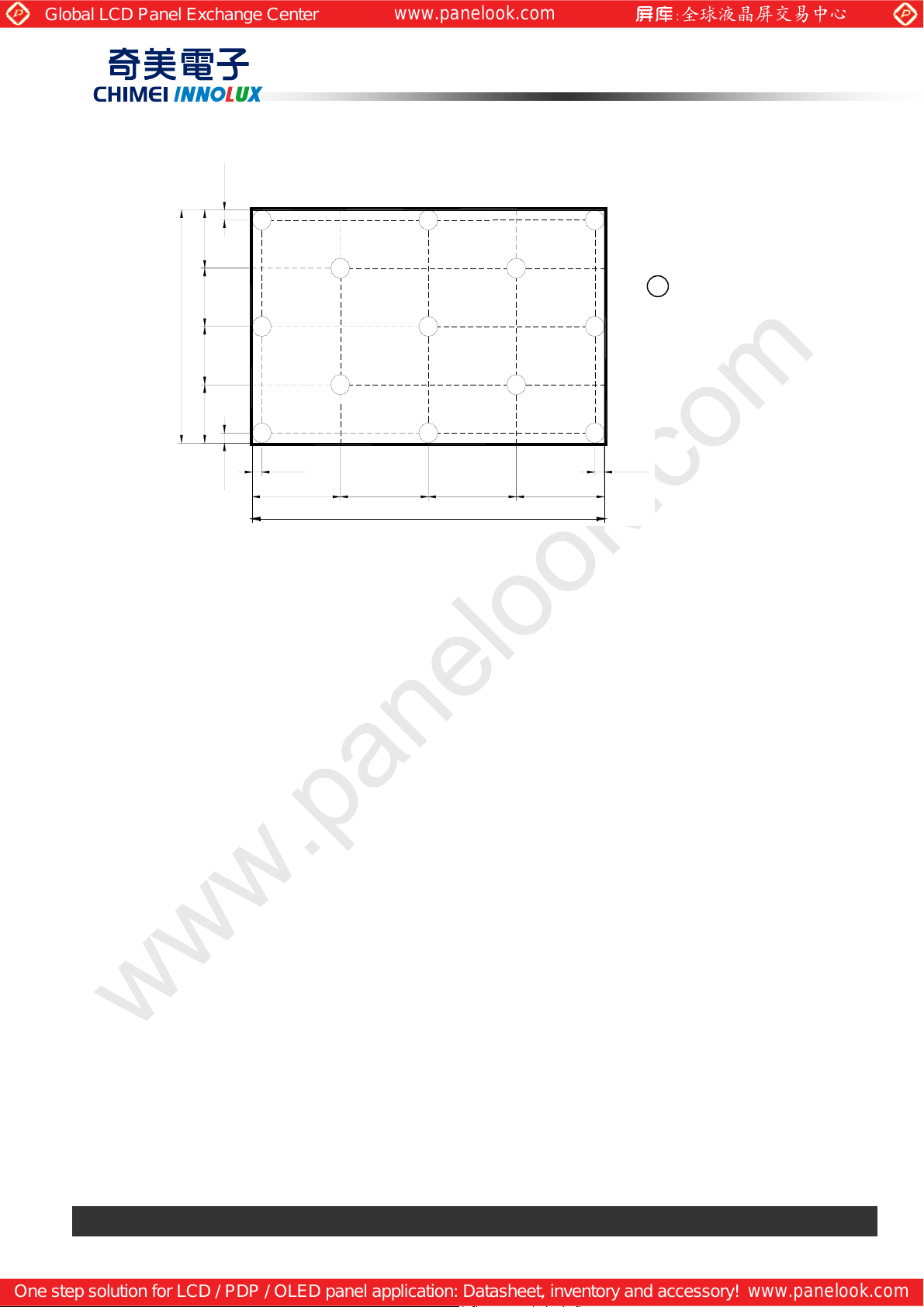

5.2 OPTICAL SPECIFICATIONS ..................................................................................................19
6. RELIABILITY TEST ITEM ........................................................................................................22
7. PACKING..................................................................................................................................24

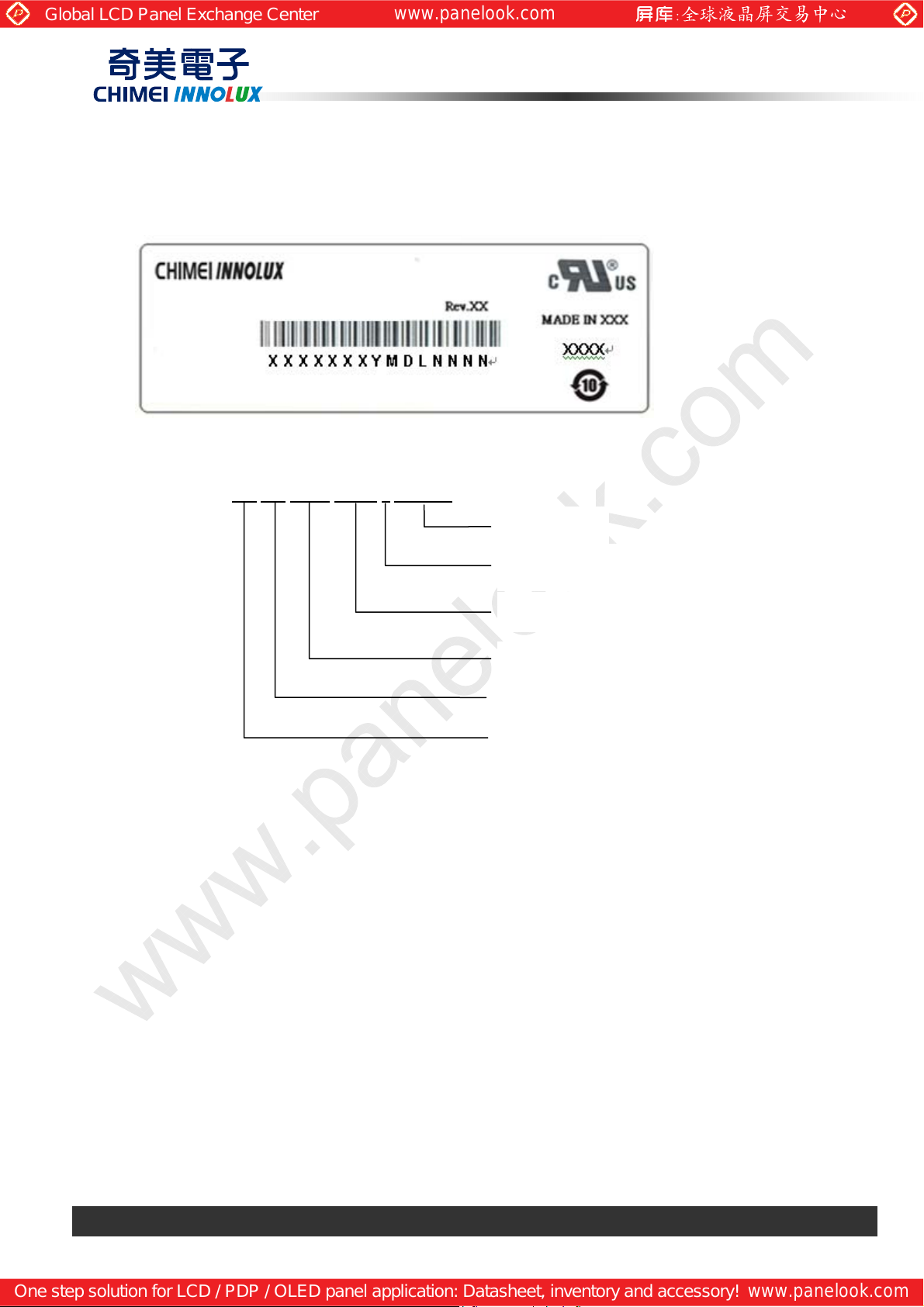

7.1 MODULE LABEL ....................................................................................................................24

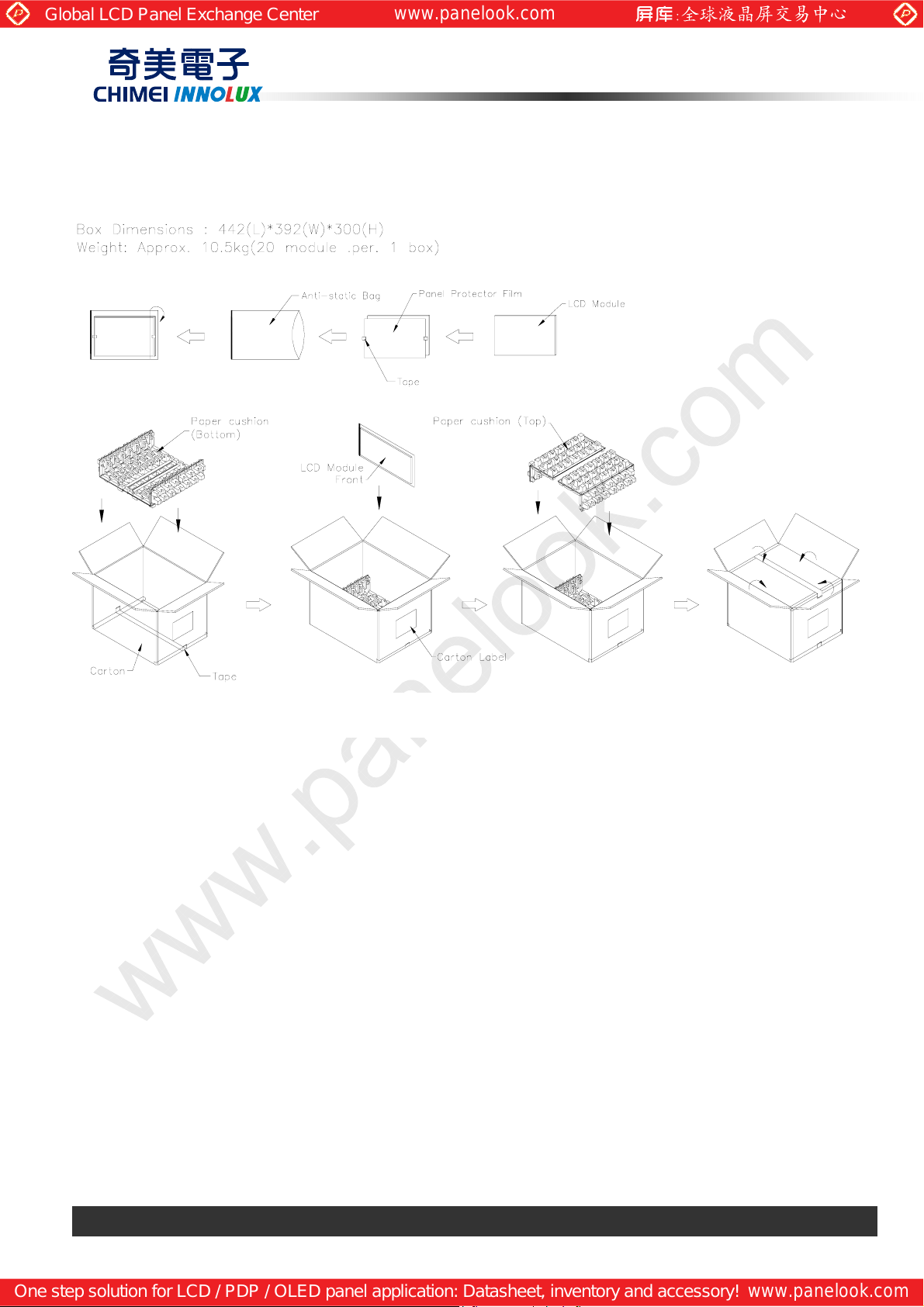

7.2 CARTON...................................................................................................................................25
7.3 PALLET.....................................................................................................................................26
8. PRECAUTIONS........................................................................................................................27
8.1 HANDLING PRECAUTIONS..................................................................................................27
8.2 STORAGE PRECAUTIONS ....................................................................................................27
8.3 OPERATION PRECAUTIONS.................................................................................................27
Appendix. EDID DATA STRUCTURE...........................................................................................28
Appendix. OUTLINE DRAWING..................................................................................................31
Version 1.1 18 January 2012 2 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 3
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
REVISION HISTORY
Version Date Page Description
1.0 Aug.22, 2011 All Spec Ver.1.0 was first issued.
1.1 Dec. 22, 2011 P.5~P.17 Item4.ELECTRICAL SPECIFICATIONS data update
PRODUCT SPECIFICATION
Version 1.1 18 January 2012 3 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 4
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N156BGE-E21 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight
unit and 30 pins eDP interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATI0NS
Item Specification Unit Note Screen Size 15.547 diagonal Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.252 (H) x 0.252 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treat ment Hard coating (3H), Glare - ­Luminance, White 220 Cd/m2 Power Consumption Total 4.824 W (Max.)@cell 0.924 W (Max.), BL 3.900W(Max.) (1)
Note (1) The specified power c onsumption (with converter efficiency) is under the conditions at VCCS =
PRODUCT SPECIFICATION
3.3 V, fv = 60 Hz, LED_VCCS = Typ, fPWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is displayed.
2. MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 358.8 359.3 359.8 mm
Module Size
Bezel Area
Active Area Glass
Thickness
Note (1) Please refer to the attached drawings fo r more information of front and ba ck outline dimensions.
Vertical (V) 209 209.5 210 mm Thickness (T) - 5.2 5.5 mm Horizontal 349.28 349.58 349.88 mm Vertical 197.99 198.29 198.59 mm Horizontal - 344.232 - mm Vertical - 193.536 - mm
CF
TFT 0.45 0.5 0.55 mm
Weight - 430 445 g
0.45 0.5 0.55 mm
2.1 CONNECTOR TYPE
Pin1 Pin30
(1)
Please refer Appendix Outline Drawing for detail design.
Version 1.1 18 January 2012 4 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 5
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Connector Part No.: IPEX-20455-030E-12 or equivalent User’s connector Part No: IPEX-20453-030T-01 or equivalent
3. ABSOLUTE MAXIMUM RATINGS
3.1 ABSOLUTE RATI NGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient T emperature TOP 0 +50 ºC (1), (2) Note (1) (a) 90 %RH Max. (Ta <= 40 ºC). (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation. Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.
PRODUCT SPECIFICATION
Value
Min. Max.
Unit Note
Relative Humidity (%RH)
100
90 80
60
Operating
40
20 10
Storage Range
Temperature (ºC)
80 60 -20 40 0 20 -40
3.2 ELECTRICAL ABSOLUTE RATINGS
3.2.1 TFT LCD MODULE
Item Symbol
Power Supply V oltage VCCS -0.3 +4.0 V
Logic Input Voltage VIN -0.3 +4.0 V
Converter Input Voltage
Converter Control Signal Voltage
Converter Control Signal Voltage
Note (1) Stresses beyond those listed in above “ELECTRICAL ABSOLUTE RATINGS” may cause
LED_VCCS LED_PWM,
LED_EN
Value
Min. Max.
-0.3 24 V (1)
-0.3 5 V 1)
-0.3 5 V (1)
Unit Note
Version 1.1 18 January 2012 5 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
(1)
Page 6
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
permanent damage to the device. Normal operation should be restricted to the conditions described in “ELECTRICAL CHARACTERISTICS”.
PRODUCT SPECIFICATION
Version 1.1 18 January 2012 6 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 7
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4. ELECTRICAL SPECIFICATIONS
4.1 FUNCTION BLOCK DIAGRAM
PRODUCT SPECIFICATION
Display port Signals
VCCS
GND
Converter Input Signals
INPUT CONNECTOR
4.2. INTERFACE CONNECTIONS
PIN ASSIGNMENT
Pin Symbol Description Remark
1 NC No Connection (Reserved for CMI test) 2 NC No Connection (Reserved) 3 NC No Connection (Reserved) 4 NC No Connection (Reserved) 5 H_GND High Speed Ground 6 ML0- Complement Signal-Lane 0 7 ML0+ True Signal-Main Lane 0 8 H_GND High Speed Ground
9 AUX+ True Signal-Auxiliary Channel 10 AUX- Com pleme nt Signal-Auxiliary Channel 11 H_GND High Speed Ground 12 VCCS Power Supply +3.3 V (typical) 13 VCCS Power Supply +3.3 V (typical) 14 NC No Connection (Reserved for CMI test) 15 GND Ground 16 GND Ground 17 HPD Hot Plug Detect 18 BL_GND BL Ground 19 BL_GND BL Ground 20 BL_GND BL Ground 21 BL_GND BL Ground 22 LED_EN BL_Enable Signal of LED Converter
23 LED_PWM 24 NC No Connection (Reserved for CMI test)
25 NC No Connection (Reserved for CMI test)
PWM Dimming Control Signal of LED Converter
DP INPUT /
TIMING CONTROLLER
EDID
EEPROM
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
LED
CONVERTER
SCAN DRIVER IC
TFT LCD PANEL
BACKLIGHT
DATA
Version 1.1 18 January 2012 7 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
26 LED_VCCS BL Power 27 LED_VCCS BL Power 28 LED_VCCS BL Power 29 LED_VCCS BL Power 30 NC No Connection (Reserved for CMI test)
Note (1) The first pixel is odd as shown in the following figure.
1,1
(odd)
2,1 3,1
1,2
(even)
2,2
1,3
(odd)
1,4
(even)
PRODUCT SPECIFICATION
1,Xmax
Pitch
Pitch
Ymax,1
Ymax, Xmax
Version 1.1 18 January 2012 8 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 9
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD ELETRONICS SPECIFICATION
Parameter Symbol
Power Supply V oltage VCCS 3.0 3.3 3.6 V (1)-
PRODUCT SPECIFICATION
Value
Unit Note
Min. Typ. Max.
HPD
High Level 2.25 - 2.75 V
Low Level 0 - 0.4 V Ripple Voltage VRP - 50 - mV (1)­Inrush Current I
- - 1.5 A (1),(2)
RUSH
Mosaic 255 280 mA (3)a
Power Supply Current
Black
lcc
315 350 mA (3)b Note (1) The ambient temperature is Ta = 25 ± 2 ºC. Note (2) I
: the maximum current when VCCS is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
+3.3V
R1
47K
Q1 2SK1475
VCCS
(LCD Module Input)
FUSE
C3 1uF
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
47K
R2
1K
0.01uF
Q2
2SK1470
C2
VCCS rising time is 0.5ms
Version 1.1 18 January 2012 9 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 10
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC
PRODUCT SPECIFICATION
Current and f a. Mosaic Pattern
= 60 Hz, whereas a power dissipation check p attern below is displayed.
v
b. Black Pattern
Active Area
Active Area
Version 1.1 18 January 2012 10 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 11
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4.3.2 LED CONVERTER SPECIFICATION
Parameter Symbol
PRODUCT SPECIFICATION
Value
Unit Note
Min. Typ. Max. Converter Input power supply voltage Converter Inrush Current
LED_Vccs
ILED
RUSH
(6.0) 12.0 21.0 V
- - 1.5 A (1)
Backlight On 2.3 - 5 V
EN Control Level
Backlight Off
0 - 0.5 V
PWM High Level 2.3 - 5 V
PWM Control Level
PWM Low Level
0 - 0.5 V
10 - 100 %
PWM Control Duty Ratio
5 - 100 % (2)
PWM Control Permissive Ripple Voltage
PWM Control Frequency f
VPWM_pp
190 - 2K Hz (3)
PWM
- - 100 mV
LED Power Current LED_VCCS =Typ. ILED 236 301 325 mA (4)
Note (1) ILED ILED
: the maximum current when LED_VCCS is rising,
RUSH
: the maximum current of the first 100ms after power-on,
IS

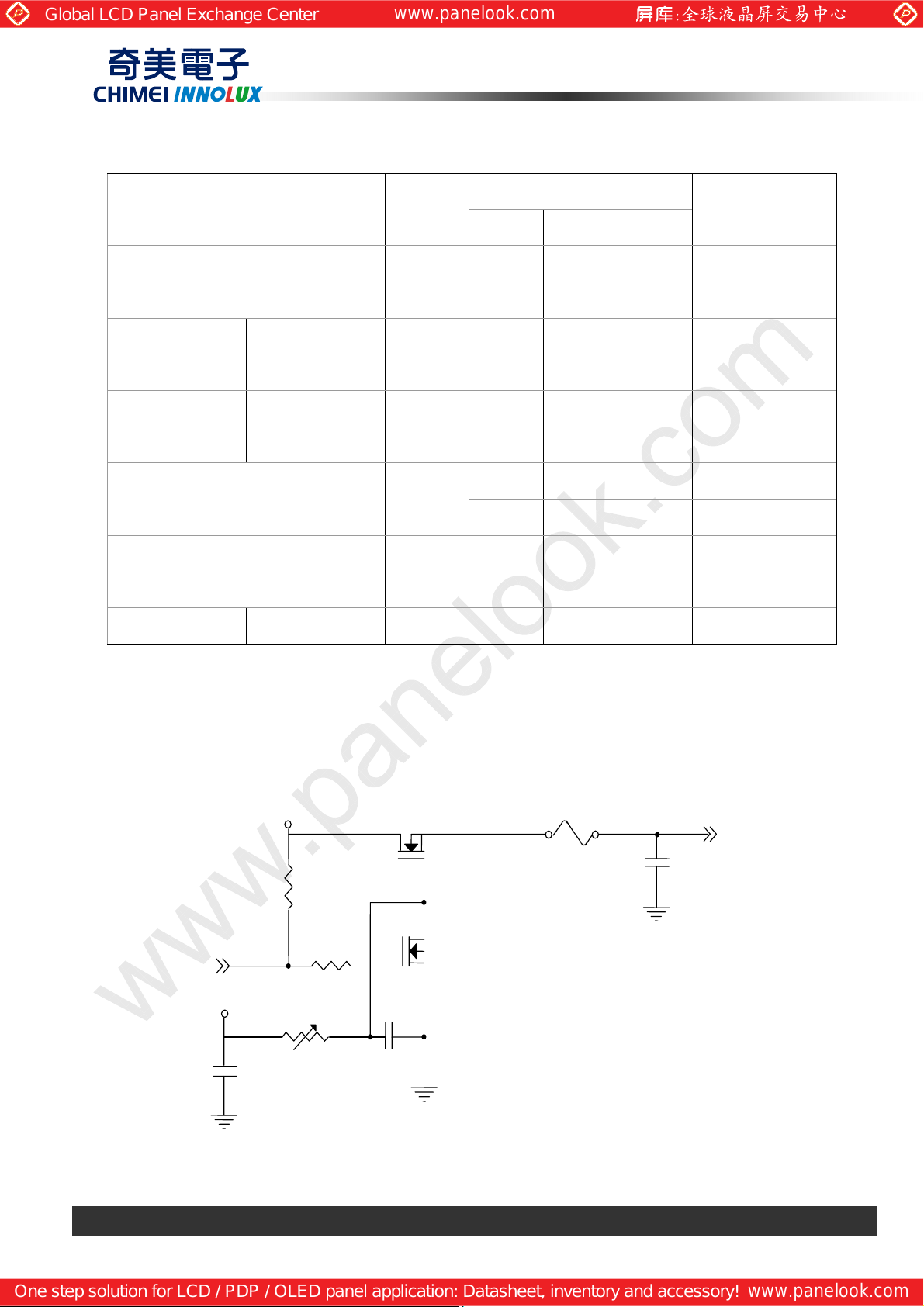

Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f
= 200 Hz, Duty=100%.
PWM
LED_VCCS(Typ)
Q1 IRL3303
VR1
R1
47K
R2
1K
47K
0.01uF
Q2
IRL3303
C2
(High to Low)
(Control Signal)
SW=24V
LED_VCCS(Typ)
C1
1uF
FUSE
C3 1uF
(LED Converter Input)
Version 1.1 18 January 2012 11 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 12
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
∗+≤
PRODUCT SPECIFICATION

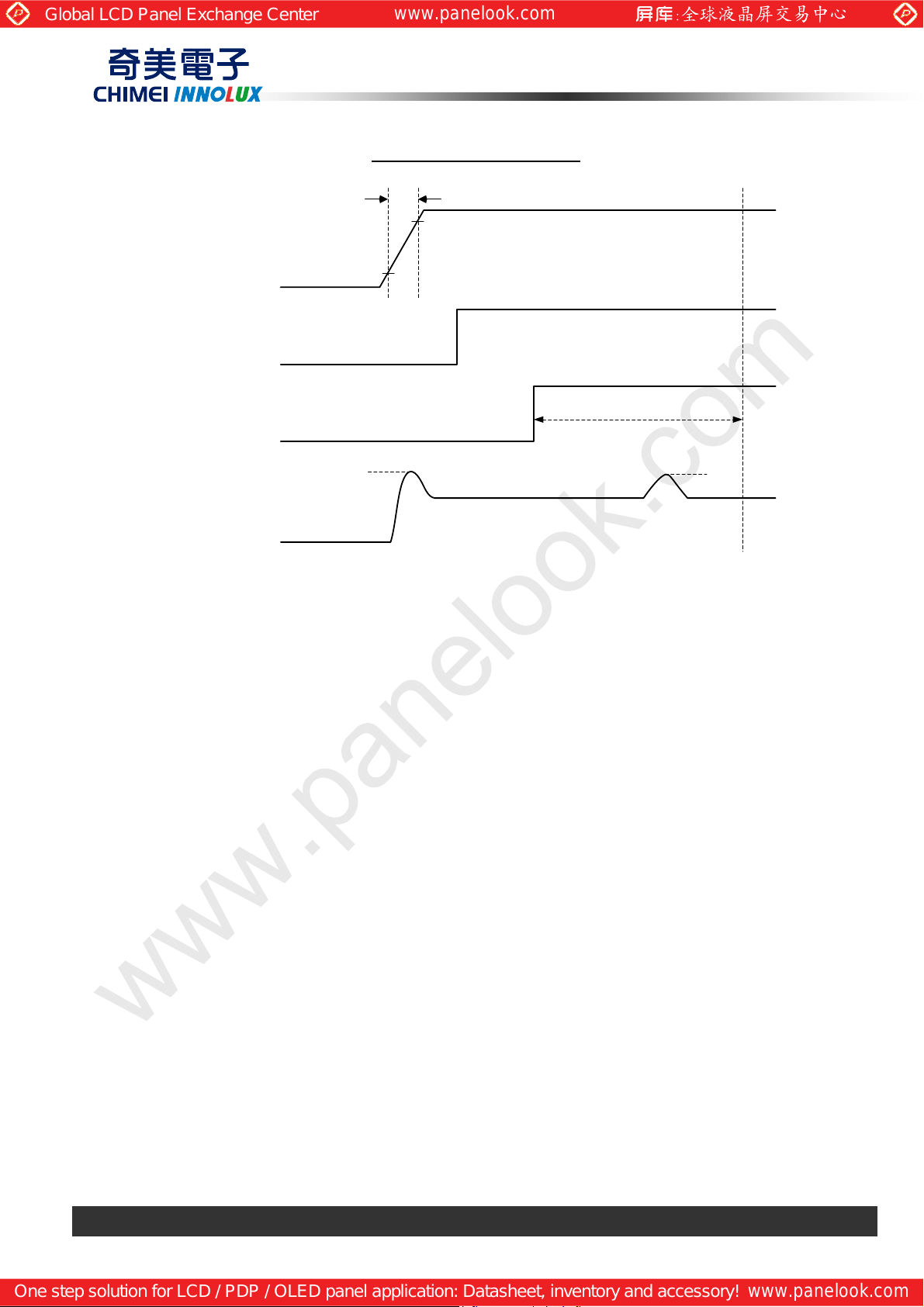

LED_VCC
LED_PWM
LED_EN
ILED
0V
0V
0V
ILED
VLED rising time is 0.5ms
0.5ms 90%
10%
Rush
100ms
ILED
IS
Note (2) If the PWM control duty ratio is less than 10%, there is some possibility that acoustic noise or
backlight flash can be found. And it is also difficult to control the brightness linearity.
Note (3) If PWM control frequency is applied in the range less than 1KHz, the “waterfall” phenomenon on
the screen may be found. To avoid the issue, it’s a suggestion that PWM control frequency should follow the criterion as below.
PWM control frequency f
+ fN )33.0( f
should be in the range
PWM
fN
PWM
)66.0(
N : Integer )3( N
f : Frame rate
Note (4) The specified LED power supply current is under the conditions at “LED_VCCS = Typ.”, Ta = 25
± 2 ºC, f
= 200 Hz, Duty=100%.
PWM
Version 1.1 18 January 2012 12 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 13
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PRODUCT SPECIFICATION
4.3.3 BACKLIGHT UNIT
Ta = 25 ± 2 ºC
Parameter Symbol
LED Light Bar Power Supply Voltage LED Light Bar Power Supply Current Power Consumption PL 2.55 3.07 3.43 W (3) LED Life Time LBL 15000 - - Hrs (4)
Note (1) LED current is measured by utilizing a high frequency current meter as shown below :
L 22.4 25.6 27.2 V
V
L 114 120 126 mA
I
Min. Typ. Max.
Value
Unit Note
(1)(2)(Duty100%)
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter
with current balancing function to drive LED light-bar. Note (3) P Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta =
25 ±2
L
o
C and IL = 24 mA(Per EA) until the brightness becomes 50% of its original value.
Light Bar Feedback Channels
= IL ×VL (Without LED converter transfer efficiency)
V
L, IL
LED Light Bar Parallel: 5 Serial: 8
Version 1.1 18 January 2012 13 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 14
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
|
|

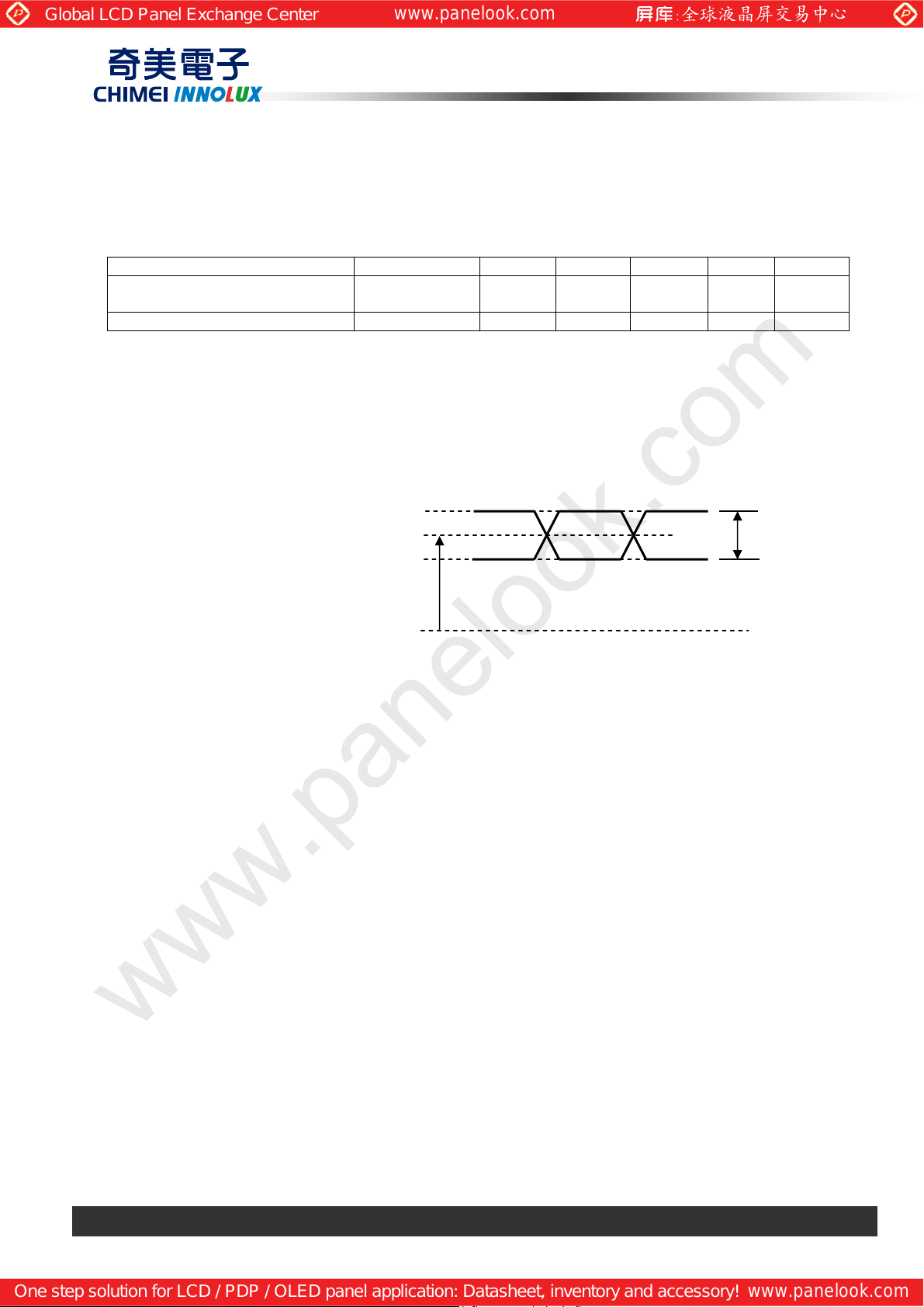

4.4 DISPLAY PORT SIGNAL TIMING SPECIFICATION
4.4.1 DISPLAY PORT INTERFACE
Parameter Symbol Min. Typ. Max. Unit Notes Differential Signal Common Mode Voltage(MainLink and AUX) AUX AC Coupling Capacitor C
Note (1) Display port interface related AC coupled signals should follow VESA DisplayPort Standard
Version1. Revision 1a and VESA Embedded DisplayPort (2) The AUX AC Coupling Capacitor should be placed on Source Devices. (3)The source device should pass the test criteria described in DisplayPortCompliance Test
Specification (CTS) 1.1
PRODUCT SPECIFICATION
VCM 0 2 V (1)(3)
75 200 nF (2)
AUX
TM
Standard Versi on 1.1.
Single Ended
VD+
V
CM
V
D-
0V
VID
Version 1.1 18 January 2012 14 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 15
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4.4.2 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input
for the color. The higher the binary input the brighter the color. The table below provides the assignment of color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green
Basic Colors
Gray Scale Of Red
Gray Scale Of Green
Gray Scale Of Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)
:
: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)
:
: Green(61) Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)
:
: Blue(61) Blue(62) Blue(63)
0 1 0 0 0 1 1 1 0 0 0
:
: 1 1 1 0 0 0
:
: 0 0 0 0 0 0
:
: 0 0 0
PRODUCT SPECIFICATION
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
Version 1.1 18 January 2012 15 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 16
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4.5 DISPLAY TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram. Refresh rate 60Hz
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 65.8 69.3 72.7 MHz -
Vertical Total Time TV 778 788 827 TH -
Vertical Active Display Period TVD 768 768 768 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.
Vertical Active Blanking Period TVB TV-TVD 20 TV-TVD TH -
Horizontal Total Time TH 1438 1466 1539 Tc -
Horizontal Active Display Period THD 1366 1366 1366 Tc -
Horizontal Active Blanking Period THB TH-THB 100 TH-THB Tc -
PRODUCT SPECIFICATION
INPUT SIGNAL TIMING DIAGRAM
DE
DCLK
DE
DATA
TC
HD
T
Version 1.1 18 January 2012 16 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 17
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4.6 POWER ON/OFF SEQUENCE
PRODUCT SPECIFICATION
-Power Supply for LCD, VCCS
-eDP Display
-HPD from Sink
-AUX Channel
-Main Link Data
0V
10%
0V
Power On
90%
t1
t2
t3
Black Video
t4
Link
Training
Video from Source
AUX Channel Operational
t7
Idle
Valid Video Data
Power Off
90%
t10
Black Video
Idle or off
t11
Restart
10%
10%
t12
- Power Supply for LED Converter, LED_VCCS
- LED Converter Dimming Signal, LED_PWM / SM_Bus
- LED Converter Enable Signal, LED_EN
0V
0V
0V
t5 t6
90%
10%
t8 t9
90%
t
A
t
C
t
E
t
D
t
F
10%
t
B
Version 1.1 18 January 2012 17 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 18
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Timing Specifications: Follow VESA Embedded Display Port Standard V ersion 1
Parameter Description
t1 Power rail rise time, 10% to 90% Source 0.5 10 ms ­t2
t3 t4
t5 Link training duration Source - - ms - t6 Link idle Source - - ms -
t7 t8
t9 t10 t11
t12 VCCS Power off time Source 500 - ms -
tA
tB
tC
tD
tE
tF
Note (1) Please don’t plug or unplug the interface cable when system is turned on.
Delay from LCD,VCCS to black video generation Delay from LCD,VCCS to HPD high Delay from HPD high to link training initialization
Delay from valid video data from Source to video on display Delay from valid video data from Source to backlight on Delay from backlight off to end of valid video data Delay from end of valid video data from Source to power off VCCS power rail fall time, 90% to 10%
LED power rail rise time, 10% to 90% LED power rail fall time, 90% to 10% Delay from LED power rising to LED dimming signal Delay from LED dimming signal to LED power falling Delay from LED dimming signal to LED enable signal Delay from LED enable signal to LED dimming signal
PRODUCT SPECIFICATION
Reqd.
By
Sink 0 200 ms ­Sink 0 200 ms -
Source - - ms -
Sink 0 50 ms - Source - - ms - Source - - ms - Source 0 500 ms - Source 0.5 10 ms -
Source 0.5 10 ms - Source 0 10 ms - Source 10 - ms - Source 10 - ms - Source 10 - ms ­Source 10 - ms -
Value
Min Max
Unit Notes
Note (2) Please avoid floating state of the interface signal during signal invalid period. Note (3) It is recommended that the backlight power must be turned on after the power supply for LCD and the
interface signal is valid.
Version 1.1 18 January 2012 18 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 19
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5. OPTICAL CHARACTERISTICS
5.1 TEST CONDITIONS
Item Symbol Value Unit Ambient Temperature T a Ambient Humidity Ha Supply Voltage VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" LED Light Bar Input Current IL 120 mA

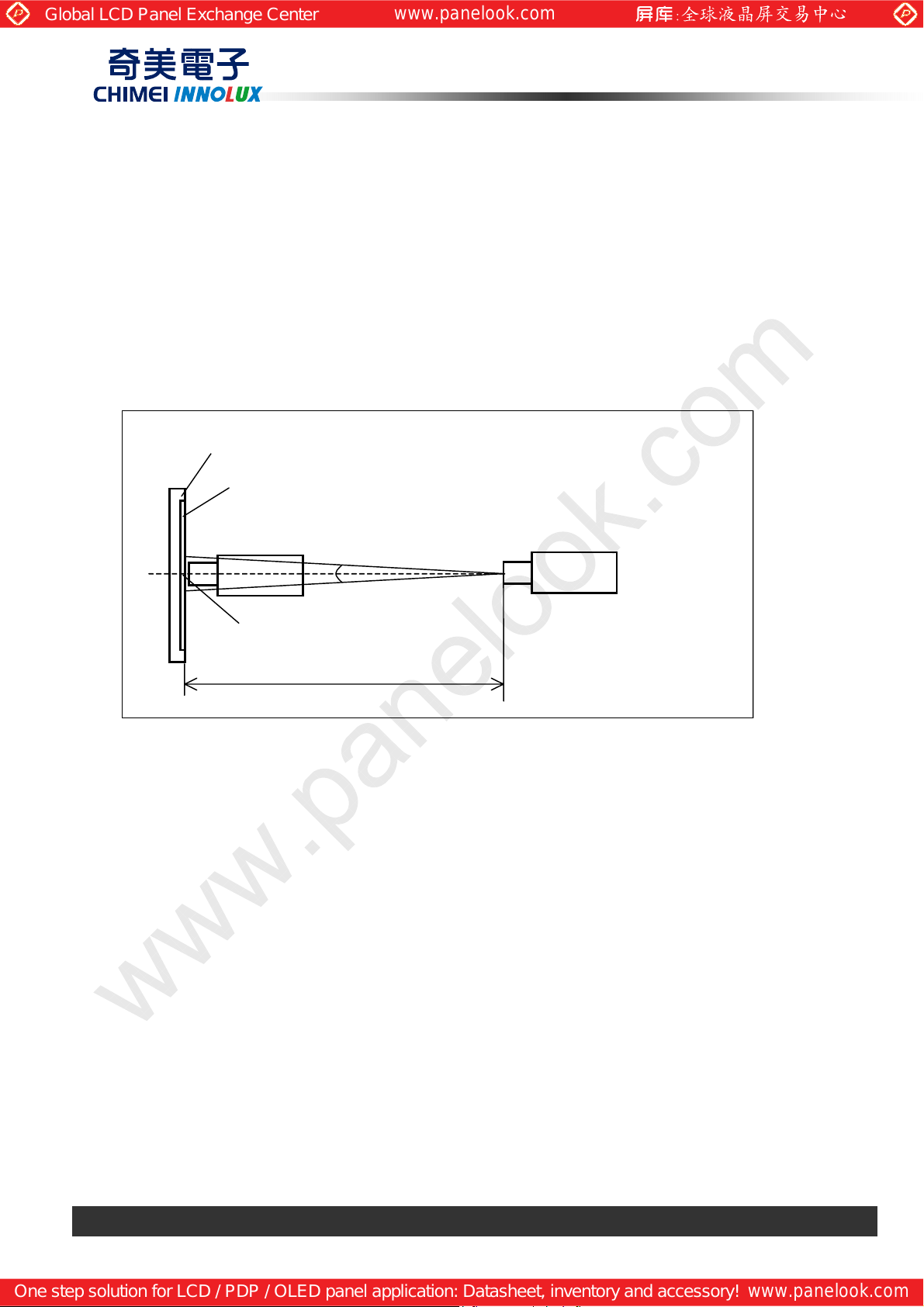

The measurement methods of optical characteristics are shown in Section 5.2. The following items should be measured under the test conditions described in Section 5.1 and stable environment shown in Note (5).
5.2 OPTICAL SPECIFICATIONS
PRODUCT SPECIFICATION
o
25±2
50±10
C
%RH
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 500 650 - -
Response Time
Average Luminance of White
Red
Color Chromaticity
Green
Blue
White
Horizontal
Viewing Angle
Vertical
White Variation of 5 Points
TR - 3 8 ms
- 8 13 ms
T
F
L
AVE
Rx Ry Gx Gy
Bx By
=0°, θY =0°
θ
x
Viewing Normal Angle
187 220 - cd/m
0.617
0.340
0.320
Typ –
0.03
0.598
0.160
0.084 Wx 0.313 ­Wy
θ
θ
θ
θ
δW
+
x
-
x
+
Y
-
Y
5p
CR10
θ
=0°, θY =0°
x
40 45 40 45 ­15 20 ­40 45 -
80 - - %
0.329
Typ +
0.03
-
-
-
-
-
-
-
Deg.
2
(2), (5)
(7) (3), (7) (4), (6)
,(7)
(1),(7)
(1),(5),
(7)
(5),(6),
(7)
Version 1.1 18 January 2012 19 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

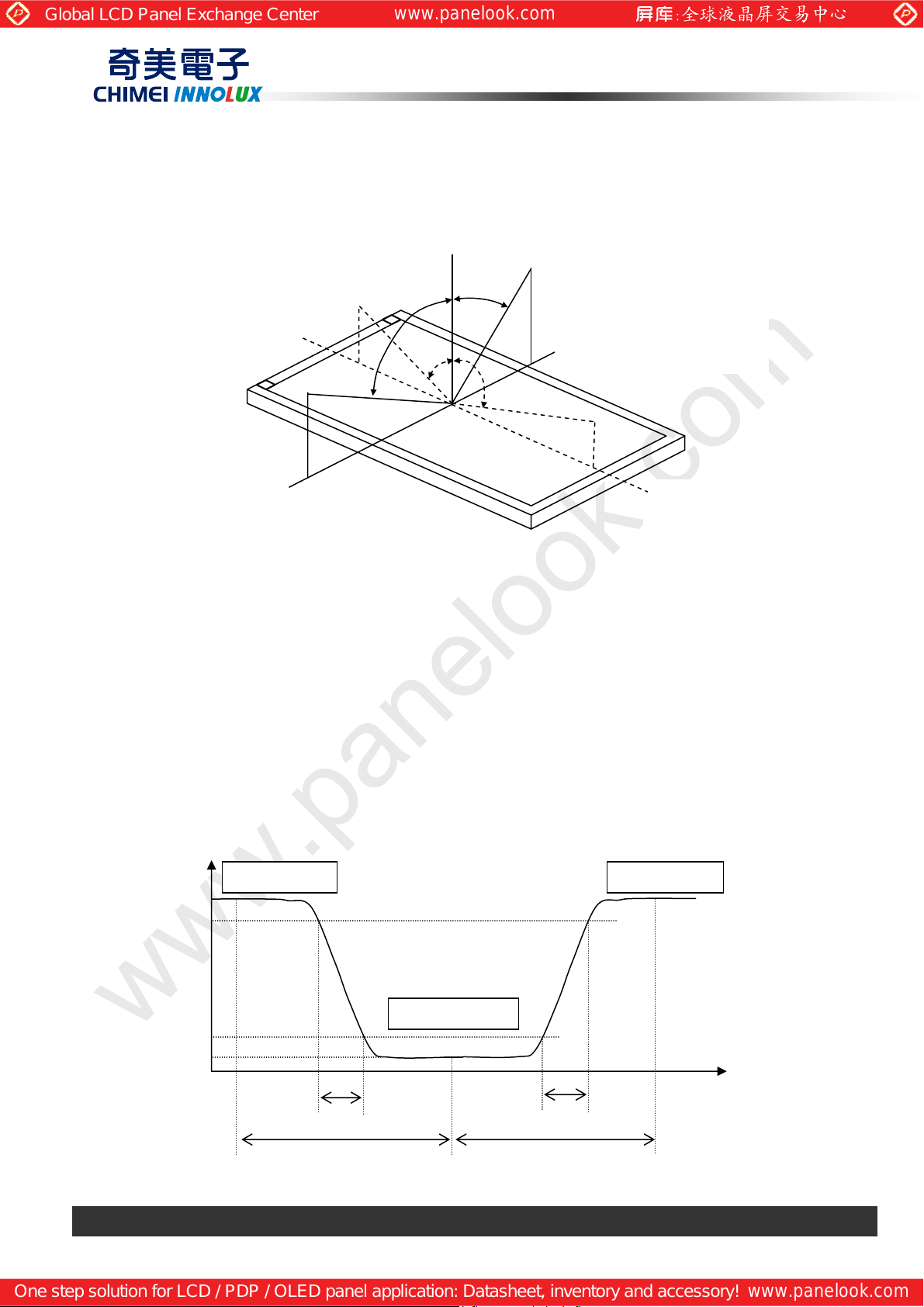

Note (1) Definition of Viewing Angle (θx, θy):
PRODUCT SPECIFICATION
Normal
θx = θy = 0º
θX- = 90º
x-
6 o’clock
θ
y- = 90º
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0 L63: Luminance of gray level 63 L 0: Luminance of gray level 0 CR = CR (1)
θy- θy+
θx
θx+
y+
12 o’clock direction
θ
y+ = 90º
x+
θX+ = 90º
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
R
66.67 ms
, TF):
R
Time
TF
66.67 ms
Version 1.1 18 January 2012 20 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
(
A
)
PRODUCT SPECIFICATION
Note (4) Definition of Average Luminance of Whi t e (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6)
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt temperature change during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 20 minutes in a windless room.
LCD M odule
LCD P anel
USB2000
or equivalent
AVE
):
CS-2000T
or equivalent
Center of the S creen
500 mm
ote (6) Definition of White Variation (δW): Measure the luminance of gray level 63 at 5 points
δW
= {Minimum [L (1)~ L (5)] / Maximum [L (1)~ L (5)]}*100%
5p
δW
= {Minimum [L (1)~ L (13)] / Maximum [L (1)~ L (13)]}*100%
13p
Light Shield Room
mbient Luminance < 2 l u x
Version 1.1 18 January 2012 21 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 22
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
10mm
PRODUCT SPECIFICATION
6
H/4
2
10mm
9
45
11
10mm 10mm
W/4 W/4 W/4 W/4
H
H/4 H/4 H/4
7
3
1
12
W
8
X
: Test Point
10
13
X=1 to 13
Active area
Note (7) The listed optical specifications refer to the initial value of manufacture, but the condition of
the specifications after long-term operation will not be warranted.
Version 1.1 18 January 2012 22 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 23
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
6. RELIABILITY TEST ITEM
Test Item Test Condition Note High Temperature S t orage Test 60ºC, 240 hours Low Temperature Storage Test -20ºC, 240 hours Thermal Shock Storage Test
PRODUCT SPECIFICATION
-20ºC, 0.5hour←→60℃, 0.5hour; 100cycles, 1hour/cycle High Temperature Operation Test 50ºC, 240 hours Low Temperature Operation Test 0ºC, 240 hours
High Temperature & High Humidity Operation Test
ESD Test (Operation)
Shock (Non-Operating)
Vibration (Non-Operating)
Note (1) criteria : Normal display image with no obvious non-uniformity and no line defect. Note (2) Evaluation should be tested after storage at room temperature for more than two hour Note (3) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
so that the module would not be twisted or bent by the fixture.
50ºC, RH 80%, 240hours
150pF, 330Ω, 1sec/cycle Condition 1 : Contact Discharge, ±8KV Condition 2 : Air Discharge, ±15KV
220G, 2ms, half sine wave,1 time for each direction of ±X,±Y,±Z
1.5G / 10-500 Hz, Sine wave, 30 min/cycle, 1cycle for each
X, Y, Z
(1) (2)
(1)
(1)(3)
(1)(3)
Version 1.1 18 January 2012 23 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 24
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PRODUCT SPECIFICATION
7. PACKING
7.1 MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and it s definitions are as following explanation.
N156BGE-E21
(a) Model Name: N156BGE - E21 (b) Revision: Rev. XX, for example: C1, C2 …etc. (c) Serial ID: X X
Serial ID includes the information as below:
(a) Manufactured Date: Year: 0~9, for 2010~2019
Day: 1~9, A~Y, for 1
(b) Revision Code: cover all the change
X X X X X Y M D L N N N N
Month: 1~9, A~C, for Jan. ~ De c.
Serial No. Product Line
Year, Month, Date
CMO Internal Use
Revision
CMI Internal Use
st
to 31st, exclude I , O and U
(c) Serial No.: Manufacturing sequence of product (d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.
Version 1.1 18 January 2012 24 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 25
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
7.2 CARTON
PRODUCT SPECIFICATION
Figure. 7-2 Packing method
Version 1.1 18 January 2012 25 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
7.3 PALLET
PRODUCT SPECIFICATION

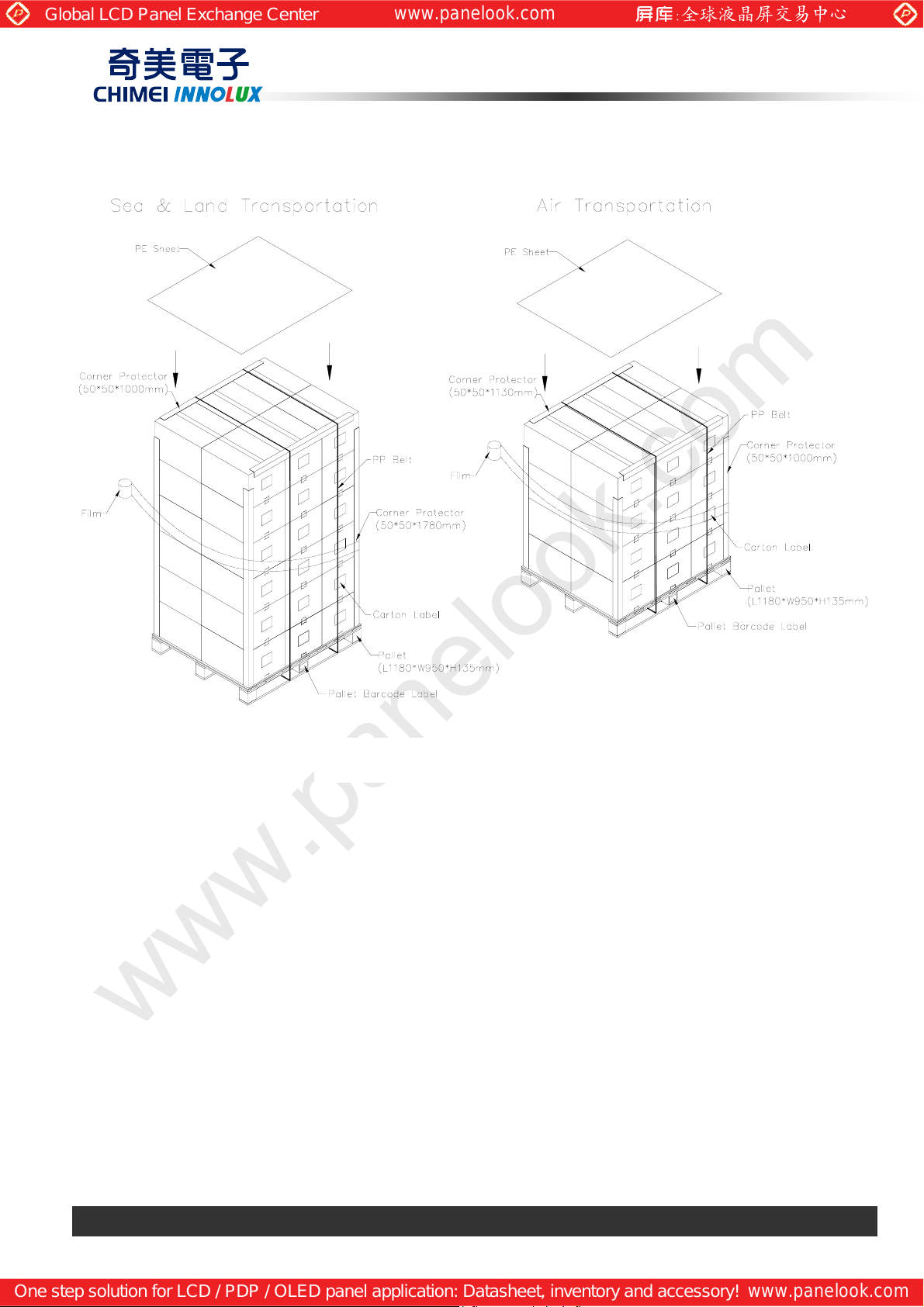

Figure. 7-3 Packing method
Version 1.1 18 January 2012 26 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 27
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful
not to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer
is very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not
PRODUCT SPECIFICATION
use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel
for a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroug hly with soap. (8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC. (9) Do not disassemble the module. (10) Do not pull or fold the LED wire. (11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module
within the specified storage conditions. (2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating. (3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of LED will be higher than the room
temperature.
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating. (2) Always follow the correct power on/off sequence when LCD module is connecting and operating.
This can prevent the CMOS LSI chips from damage during latch-up. (3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with converter . Do not disassemble the module or insert anything into the Backlight unit.
Version 1.1 18 January 2012 27 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 28
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Appendix. EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA Plug & Display and FPDI standards.
Byte #
(decimal)
10 0A 11 0B 12 0C 13 0D 14 0E 15 0F 16 10 17 11 18 12 19 13 20 14 21 15 22 16 23 17 24 18 25 19 26 1A 27 1B 28 1C 29 1D 30 1E 31 1F 32 20 33 21 34 22 35 23 36 24 37 25 38 26 39 27 40 28 41 29
Byte #
(hex) 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
Header Header Header Header Header Header Header Header EISA ID manufacturer name (“CMN”) EISA ID manufacturer name (Compressed ASCII) ID product code (N156BGE-E21) B4 ID product code (hex LSB first; N156BGE-E21) 15 ID S/N (fixed “0”) ID S/N (fixed “0”) ID S/N (fixed “0”) ID S/N (fixed “0”) Week of manufacture Year of manufacture EDID structure version # (“1”) EDID revision # (“4”) Video I/P definition (“digital”) Max H image size (“35cm”) Max V image size (“19cm”) Display Gamma (Gamma = ”2.2”) Feature support (“Active off, RGB Color”) Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 00 Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 25 Rx=0.617 9E Ry=0.34 57 Gx=0.32 52 Gy=0.598 99 Bx=0.16 29 By=0.084 15 Wx=0.313 50 Wy=0.329 54 Established timings 1 Established timings 2 Manufacturer’s reserved timings
Standard timing ID # 1 Standard timing ID # 1 Standard timing ID # 2 Standard timing ID # 2
PRODUCT SPECIFICATION
Field Name and Comments
Value
(hex)
00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111
00 00000000 0D 00001101 AE 10101110
00 00000000
00 00000000
00 00000000
00 00000000
30 00110000
15 00010101
01 00000001
04 00000100
95 10010101
23 00100011
13 00010011
78 01111000 0A 00001010
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
01 00000001
01 00000001
Value
(binary)
10110100 00010101
00000000 00100101
10011110
01010111 01010010 10011001 00101001 00010101 01010000 01010100
Version 1.1 18 January 2012 28 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 29
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PRODUCT SPECIFICATION
42 2A 43 2B
44 2C 45 2D 46 2E 47 2F 48 30 49 31 50 32 51 33 52 34 53 35
54 36 55 37
56 38 57 39 58 3A 59 3B 60 3C 61 3D 62 3E 63 3F 64 40
65 41 66 42
67 43 68 44 69 45 70 46
71 47 72 48
73 49 74 4A
75 4B 76 4C
77 4D 78 4E 79 4F 80 50 81 51 82 52 83 53 84 54 85 55
Standard timing ID # 3 Standard timing ID # 3 Standard timing ID # 4 Standard timing ID # 4 Standard timing ID # 5 Standard timing ID # 5 Standard timing ID # 6 Standard timing ID # 6 Standard timing ID # 7 Standard timing ID # 7 Standard timing ID # 8 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“69.3MHz”, According to VESA CVT Rev1.1)
# 1 Pixel clock (hex LSB first) # 1 H active (“1366”) # 1 H blank (“100”) # 1 H active : H blank (“1366 :100”) # 1 V active (”768”) # 1 V blank (”20”) # 1 V active : V blank (”768 :20”) # 1 H sync offset (”16”) # 1 H sync pulse width ("34”) # 1 V sync offset : V sync pulse width (”2 : 6”)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width (”16: 34 : 2 : 6”)
# 1 H image size (”344 mm”) 58 # 1 V image size (”193 mm”) C1 # 1 H image size : V image size (”344 : 193”) # 1 H boarder (”0”) # 1 V boarder (”0”)
# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives
Detailed timing description # 2 # 2 Flag # 2 Reserved
# 2 FE (hex) defines ASCII string (Mod el Name “N156BGE-E21”, ASCII)
# 2 Flag # 2 1st character of name (“N”) 4E # 2 2nd character of name (“1”) 31 # 2 3rd character of name (“5”) 35 # 2 4th character of name (“6”) 36 # 2 5th character of name (“B”) 42 # 2 6th character of name (“G”) 47 # 2 7th character of name (“E”) 45 # 2 8th character of name (“-”) 2D # 2 9th character of name (“E”)
01 00000001 01 00000001
01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001
14 00010100
1B 00011011
56 01010110 64 01100100 50 01010000 00 00000000 14 00010100 30 00110000 10 00010000 22 00100010 26 00100110
00 00000000
01011000 11000001
10 00010000 00 00000000 00 00000000
18 00011000 00 00000000
00 00000000 00 00000000
FE 11111110
00 00000000
01001110 00110001 00110101
00110110 01000010
01000111 01000101 00101101
45 01000101
Version 1.1 18 January 2012 29 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 30
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PRODUCT SPECIFICATION
86 56 87 57 88 58
89 59 90 5A 91 5B 92 5C 93 5D 94 5E 95 5F 96 60 97 61 98 62
99 63 100 64 101 65 102 66 103 67 104 68 105 69 106 6A 107 6B 108 6C 109 6D 110 6E
111 6F 112 70
113 71 114 72 115 73 116 74 117 75 118 76 119 77 120 78 121 79 122 7A 123 7B 124 7C 125 7D 126 7E 127 7F
# 2 10th character of name (“2”) # 2 11th character of name (“1”)
# 2 New line character indicates end of ASCII string # 2 Padding with “Blank” character Detailed timing description # 3 # 3 Flag # 3 Reserved # 3 FE (hex) defines ASCII string (Vendor “CM N”, ASCII) # 3 Flag # 3 1st character of string (“C”) # 3 2nd character of string (“M”) # 3 3rd character of string (“N”) # 3 New line character indicates end of ASCII string # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character # 3 Padding with “Blank” character Detailed timing description # 4 # 4 Flag # 4 Reserved
# 4 FE (hex) defines ASCII string (Model Name“N156BGE-L21”, ASCII)
# 4 Flag # 4 1st character of name (“N”) 4E # 4 2nd character of name (“1”) 31 # 4 3rd character of name (“5”) 35 # 4 4th character of name (“6”) 36 # 4 5th character of name (“B”) 42 # 4 6th character of name (“G”) 47 # 4 7th character of name (“E”) 45 # 4 8th character of name (“-”) 2D # 4 9th character of name (“E”) # 4 9th character of name (“2”) # 4 Ath character of name (“1”) # 4 New line character indicates end of ASCII string # 4 Padding with “Blank” character Extension flag Checksum
32 00110010 31 00110001
0A 00001010
20 00100000 00 00000000 00 00000000 00 00000000
FE 11111110
00 00000000
43 01000011 4D 01001101 4E 01001110 0A 00001010
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000 FE 11111110
00 00000000
45 01000101
32 00110010
31 00110001 0A 00001010
20 00100000
00 00000000 6E 01101110
01001110 00110001 00110101
00110110 01000010
01000111 01000101 00101101
Version 1.1 18 January 2012 30 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Page 31
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

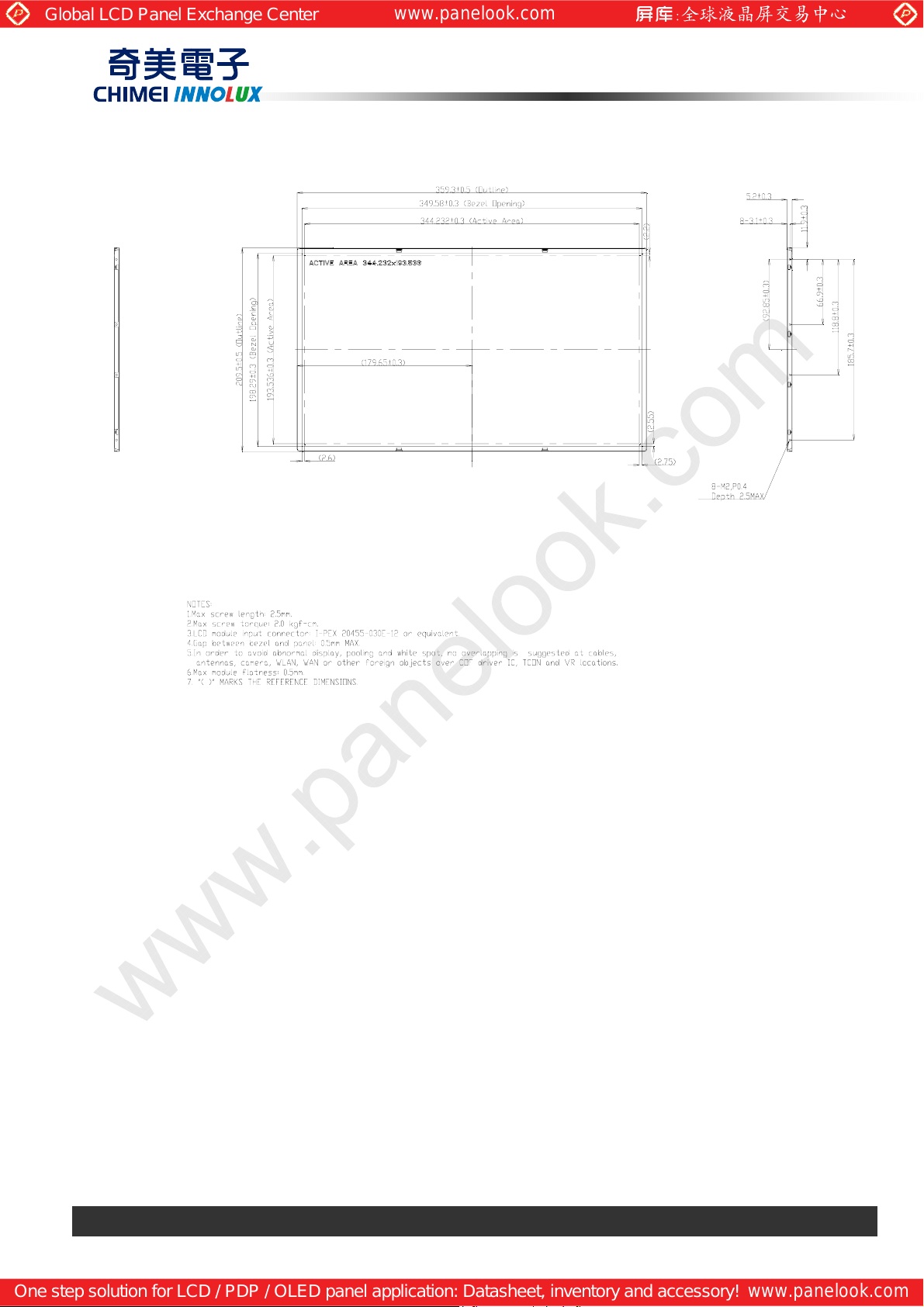

Appendix. OUTLINE DRAWING
PRODUCT SPECIFICATION
Version 1.1 18 January 2012 31 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.

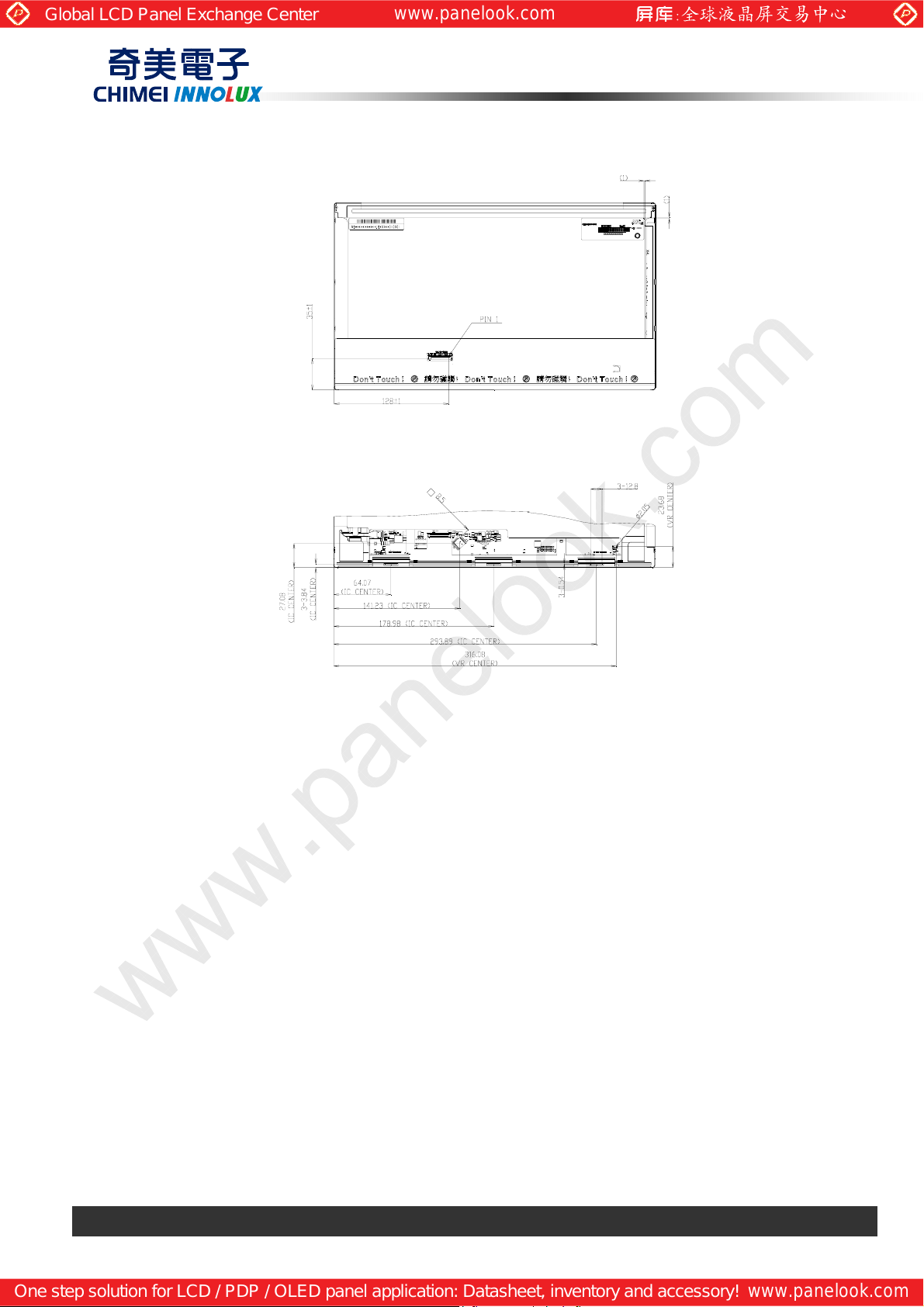

Page 32
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PRODUCT SPECIFICATION
10
Version 1.1 18 January 2012 32 / 32
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Loading...
