TFT LCD Approval Specification
MODEL NO.: N140B6-D11
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Customer : HP
Approved by :
Note :
NB
2010-01-28
16:38:37
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2010.01.28
1 / 31
Director Accept
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 DISPLAY PORT INTERFACE
3.3 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 COLOR DATA INPUT ASSIGNMENT
5.3 EDID DATA STRUCTURE
6. CONVERTER ------------------------------------------------------- 17
6.1 ABSOLUTE MAXIMUM RATINGS
6.2 RECOMMENDED OPERATING RATINGS
7. INTERFACE TIMING ------------------------------------------------------- 19
7.1 DISPLAY SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 22
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 26
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS
10. PACKING ------------------------------------------------------- 27
10.1 CARTON
10.2 PALLET
11. DEFINITION OF LABELS
11.1 CMO MODULE LABEL
11.2 CARTON LABEL
------------------------------------------------------- 29
12. MECHANICAL DRAWING ------------------------------------------------------- 31
2 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
REVISION HISTORY
Version Date
Ver 1.0
Ver 2.0
Ver 3.0
Jul. 30,’09
Dec. 03,’09
Jan. 13,’10
Page
(New)
All
8
9
19
21
22~24
22~25
Section Description
Preliminary specification first issued.
All
3.2
3.3
7.1
7.2
8.2
8.2
Update display port interface
Update backlight unit specification
Update timing specification
Update power on/off sequence
Update optical specification
Update optical specification
3 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N140B6-D11 is a 14.0” TFT Liquid Crystal Display module with LED Backlight unit and 30–pin
DisplayPort interface. This module supports 1366 x 768 Wide-XGA mode and can display 262,144 colors.
The optimum viewing angle is at 6 o’clock direction.
1.2 FEATURES
- HD (1366 x 768 pixels) resolution
- Display port interface
- WLED
- LED converter embedded
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 309.40 (H) x 173.95 (V) (14.0” diagonal) mm
Bezel Opening Area 313.51 (H) x 177.35 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1366 x R.G.B. x 768 pixel Pixel Pitch 0.2265 (H) x 0.2265 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Anti-glare type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 323 323.5 324 mm
Module Size
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 191.5 192 192.5 mm
Thickness(T) - 4.9 5.2 mm
Weight - 340 355 g -
(1)
(1)
4 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 50 ºC max.
Relative Humidity (%RH)
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Value
Min. Max.
- 220/2 G/ms (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
100
90
80
60
Operating Range
40
10
Storage Range
8060-20 40 0 20 -40
Temperature (ºC)
Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.
Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X,Y,Z
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid
enough so that the module would not be twisted or bent by the fixture.
The fixing condition is shown as below:
t Room Temperature
Side Mount Fixing Screw
Gap=2mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VI -0.3 VCCS+0.3 V
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
2.2.2 BACKLIGHT UNIT
Item Symbol
LED Light Bar Power Supply
Voltage
LED Light Bar Power Supply
Current
www.panelook.com
Value
Min. Max.
Value
Min. Max.
-40 28 V
V
L
0 125 mA
I
L
Unit Note
Unit Note
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
(1)
(1), (2)
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function
operation should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for LED (Refer to 3.3 for further information).
6 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage VCCS 3.0 3.3 3.6 V Permissive Ripple Voltage VRP - 50 - mV Rush Current I
- - 1.5 A (2)
RUSH
Initial Stage Current IIS - - 1.0 A (2)
Power Supply Current
Power per EBL WG P
White - 190 230 mA (3)a
Black
Icc
- 1.38 - W (4)
EBL
- 240 280 mA (3)b
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Value
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Unit Note
Note (2) I
: the maximum current when VCCS is rising
RUSH
I
: the maximum current of the first 100ms after power-on
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
(High to Low)
(Control Signal)
SW
+12V
+3.3V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
VCCS
(LCD Module Input)
VCCS rising time is 0.5ms
7 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Current and f
a. White Pattern
= 60 Hz, whereas a power dissipation check pattern below is displayed.
v
b. Black Pattern
Active Area
Active Area
Note (4) The specified power are the sum of LCD panel electronics input power and the converter input
power. Test conditions are as follows.
(a) VCCS = 3.3 V, Ta = 25 ± 2 ºC, f
= 60 Hz,
v
(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file
“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.
(c) Luminance: 60 nits.
3.2 DISPLAY PORT INTERFACE
Parameter Symbol Min. Typ. Max. Unit Notes
MainLink Input Signal Peak-to
-peak Voltage
AUX Differential Input Voltage |VID|
Differential Signal Common Mode
Voltage
AUX AC Coupling Capacitor C
Lane Intra-pair Skew VRX-SKEW-INTRA_PAIR
|VDIFF
P-P|(MainLink)
160 - 680 mV
(AUX)
VCM 0 2 V
75 200 nF
AUX
120 - - mV
40 - - mV
- - 100
ps
- - 300
High bit
rate
Reduced
bit rate
High bit
rate
Reduced
bit rate
8 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
|
|
|
|
Note (1) Display port interface related AC coupled signals are following VESA Display Port Standard V1.1a
Single Ended
Differential
www.panelook.com
V
D+
V
CM
V
D-
0V
0V
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
VID
VDIFF
P-P
3.3 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current
24 25.6 28 V
V
L
76 80 84 mA
I
L
Min. Typ. Max.
Power Consumption PL 1.824 2.048 2.352 W (3), Duty=100%
LED Life Time LBL 15000 - - Hrs (4)
Note (1) LED light bar configuration is shown as below.
VL,I
L
Light Bar Feedback
Channels
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with
Value
LED
Light Bar
Unit Note
(1),(2)
current balancing function to drive LED light-bar.
Note (3) P
= I
L
LVL
Note (4) LED Lifetime was defined as the time when it continues to operate under the conditions at Ta=252
and I
= 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.
L
9 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
o
C
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Display port
Signals
VCCS
GND
Converter
Input Signals
INPUT CONNECTOR
DP INPUT /
TIMING CONTROLLER
EDID
EEPROM
DC/DC CONVERTER &
REFERENCE VOLTAGE
GENERATOR
LED
CONVERTER
SCAN DRIVER IC
TFT LCD PANEL
DATA DRIVER IC
BACKLIGHT UNIT
10 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Symbol Description Remark
1 NC No Connection (Reserved)
2 NC No Connection (Reserved)
3 NC No Connection (Reserved)
4 NC No Connection (Reserved)
5 H_GND High Speed Ground
6 ML0- Complement Signal-Lane 0
7 ML0+ True Signal-Main Lane 0
8 H_GND High Speed Ground
9 AUX+ True Signal-Auxiliary Channel
10 AUX- Complement Signal-Auxiliary Channel
11 H_GND High Speed Ground
12 VCCS Power Supply +3.3 V (typical)
13 VCCS Power Supply +3.3 V (typical)
14 BIST Built-In Self Test (active high)
15 GND Ground
16 GND Ground
17 HPD Hot Plug Detect
18 BL_GND BL Ground
19 BL_GND BL Ground
20 BL_GND BL Ground
21 BL_GND BL Ground
22 LED_EN BL_Enable Signal of LED Converter
23 LED_PWM PWM Dimming Control Signal of LED Converter
24 NC No Connection (CMO Reserved)
25 NC No Connection (CMO Reserved)
26 LED_VCCS BL Power
27 LED_VCCS BL Power
28 LED_VCCS BL Power
29 LED_VCCS BL Power
30 NC No Connection (Reserved)
Note (1) Connector Part No.: I-PEX 20455-030E-12 or equivalent
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Note (2) User’s connector Part No.: I-PEX 20453-030T-11 or equivalent
Note (3) The first pixel is odd as shown in the following figure.
11 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
5.2 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for
the color. The higher the binary input the brighter the color. The table below provides the assignment of
color versus data input.
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green
Basic
Colors
Gray
Scale
Of
Red
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)
:
:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)
:
:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)
:
:
Blue(61)
Blue(62)
Blue(63)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
12 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
5.3 EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte
#(decimal)
0 0 Header
1 1 Header
2 2 Header
3 3 Header
4 4 Header
5 5 Header
6 6 Header
7 7 Header
8 8 EISA ID manufacturer name (“CMO”)
9 9 EISA ID manufacturer name (Compressed ASCII)
10 0A ID product code (N140B6-D11) 56
11 0B ID product code (hex LSB first; N140B6-D11) 14
12 0C ID S/N (fixed “0”)
13 0D ID S/N (fixed “0”)
14 0E ID S/N (fixed “0”)
15 0F ID S/N (fixed “0”)
16 10 Week of manufacture (fixed week code)
17 11 Year of manufacture (fixed year code)
18 12 EDID structure version # (“1”)
19 13 EDID revision # (“4”)
20 14 Video I/P definition (“digital”)
21 15 Active area horizontal 30.94cm
22 16 Active area vertical 17.395cm
23 17 Display Gamma (Gamma = ”2.2”)
24 18 Feature support (“Active off, RGB Color”)
25 19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 59
26 1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 E5
27 1B Rx=0.575 93
28 1C Ry=0.36 5C
29 1D Gx=0.35 59
30 1E Gy=0.575 93
31 1F Bx=0.155 27
32 20 By=0.111 1C
33 21 Wx=0.313 50
34 22 Wy=0.329 54
35 23 Established timings 1
36 24 Established timings 2
37 25 Manufacturer’s reserved timings
38 26 Standard timing ID # 1
39 27 Standard timing ID # 1
Byte
#(hex) Field Name and Comments Value(hex) Value(binary)
Model No.: N140B6-D11
Approval
00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
00 00000000
0D 00001101
AF 10101111
01010110
00010100
00 00000000
00 00000000
00 00000000
00 00000000
29 00101001
13 00010011
01 00000001
04 00000100
95 10010101
1F 00011111
11 00010001
78 01111000
0A 00001010
01011001
11100101
10010011
01011100
01011001
10010011
00100111
00011100
01010000
01010100
00 00000000
00 00000000
00 00000000
01 00000001
01 00000001
13 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
40 28 Standard timing ID # 2
41 29 Standard timing ID # 2
42 2A Standard timing ID # 3
43 2B Standard timing ID # 3
44 2C Standard timing ID # 4
45 2D Standard timing ID # 4
46 2E Standard timing ID # 5
47 2F Standard timing ID # 5
48 30 Standard timing ID # 6
49 31 Standard timing ID # 6
50 32 Standard timing ID # 7
51 33 Standard timing ID # 7
52 34 Standard timing ID # 8
53 35 Standard timing ID # 8
Detailed timing description # 1 Pixel clock (“69.3MHz”, According to
54 36
55 37 # 1 Pixel clock (hex LSB first)
56 38 # 1 H active (“1366”)
57 39 # 1 H blank (“114”)
58 3A # 1 H active : H blank (“1366 : 114”)
59 3B # 1 V active (”768”)
60 3C # 1 V blank (”12”)
61 3D # 1 V active : V blank (”768 :12”)
62 3E # 1 H sync offset (”16”)
63 3F # 1 H sync pulse width ("34”)
64 40 # 1 V sync offset : V sync pulse width (”2 : 6”)
65 41
66 42 # 1 H image size (”309 mm”)
67 43 # 1 V image size (”174 mm”)
68 44 # 1 H image size : V image size (”309 : 174”)
69 45 # 1 H boarder (”0”)
70 46 # 1 V boarder (”0”)
71 47
72 48
73 49 # 1 Pixel clock (hex LSB first)
74 4A # 2 H active (“1366”)
75 4B # 2 H blank (“114”)
76 4C # 2 H active : H blank (“1366 : 114”)
77 4D # 2 V active (”768”)
78 4E # 2 V blank (”12”)
79 4F # 2 V active : V blank (”768 :12”)
80 50 # 2 H sync offset (”16”)
81 51 # 2 H sync pulse width ("34”)
VESA CVT Rev1.1)
# 1 H sync offset : H sync pulse width : V sync offset : V sync width
(”16: 34 : 2 : 6”)
# 1 Non-interlaced ; Normal display, no stereo ; Digital Separate ; V
sync POL is negative
; H sync POL is positive
Detailed timing description # 1 Pixel clock (“46.27MHz”, According to
VESA CVT Rev1.1)
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
12 00010010
1B 00011011
56 01010110
72 01110010
50 01010000
00 00000000
0C 00001100
30 00110000
10 00010000
22 00100010
26 00100110
00 00000000
35 00110101
AE 10101110
10 00010000
00 00000000
00 00000000
1A 00011010
13 00010011
12 00010010
56 01010110
72 01110010
50 01010000
00 00000000
0C 00001100
30 00110000
10 00010000
22 00100010
14 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
82 52 # 2 V sync offset : V sync pulse width (”2 : 6”)
# 2 H sync offset : H sync pulse width : V sync offset : V sync width
83 53
84 54 # 2 H image size (”309 mm”)
85 55 # 2 V image size (”174 mm”)
86 56 # 2 H image size : V image size (”309 : 174”)
87 57 # 2 H boarder (”0”)
88 58 # 2 V boarder (”0”)
89 59
90 5A NA
91 5B NA
92 5C NA
93 5D NA
94 5E NA
95 5F NA
96 60 NA
97 61 NA
98 62 NA
99 63 NA
100 64 NA
101 65 NA
102 66 NA
103 67 NA
104 68 NA
105 69 NA
106 6A NA
107 6B NA
108 6C Detailed Timing Description #4
109 6D Flags
110 6E Reserved
111 6F For Brightness Table and Power Consumption
112 70 Flags
113 71 PWM % [7:0] @ Step 0 = 5 %
114 72 PWM % [7:0] @ Step 5 = 27 %
115 73 PWM % [7:0] @ Step 10 = 95 %
116 74 Nits [7:0] @ Step 0 = 10 nits
117 75 Nits [7:0] @ Step 5 = 60 nits
118 76 Nits [7:0] @ Step 10 = 200 nits
119 77 Panel Electronics Power @32x32 Chess Pattern = 780 mW
120 78 Backlight Power @60 nits = 630 mW
121 79 Backlight Power @Step 10 = 2220 mW
122 7A Nits @ 100% PWM Duty = 210 nits
123 7B Flags
124 7C Flags
125 7D Flags
(”16: 34 : 2 : 6”)
# 2 Non-interlaced ; Normal display, no stereo ; Digital Separate ; V
sync POL is negative
; H sync POL is positive
26 00100110
00 00000000
35 00110101
AE 10101110
10 00010000
00 00000000
00 00000000
1A 00011010
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
02 00000010
00 00000000
0C 00001100
44 01000100
F2 11110010
0A 00001010
3C 00111100
64 01100100
13 00010011
0F 00001111
1B 00011011
69 01101001
00 00000000
00 00000000
00 00000000
15 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
126 7E Extension flag
127 7F Checksum
00 00000000
F0 11110000
16 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
6. CONVERTER
6.1 ABSOLUTE MAXIMUM RATINGS
Symbol Ratings
LED_VCCS -0.3V~25V
LED_PWM -0.3V~5.5V
LED_EN -0.3V~5.5V
6.2 RECOMMENDED OPERATING RATINGS
Parameter Symbol
Converter Input power supply voltage
Converter Rush Current
Converter Initial Stage Current
EN Control Level
PWM Control Level
PWM Control Duty Ratio
PWM Control Permissive Ripple Voltage
PWM Control Frequency f
LED Power Current
Note (1) ILED
ILED
: the maximum current when LED_VCCS is rising,
RUSH
: the maximum current of the first 100ms after power-on,
IS
Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f
200 Hz, Duty=100%.
Backlight On 2.3 - 5.5 V Backlight Off 0 - 0.5 V PWM High Level 2.3 - 5.5 V PWM Low Level 0 - 0.5 V -
LED_VCCS =Min. 405 482 588 mA (4)
LED_VCCS =Typ. 169 201 245 mA (4)
LED_VCCS =Max.
www.panelook.com
Min. Typ. Max.
LED_VCCS
ILED
RUSH
ILED
IS
VPWM_pp
190 - 2K Hz (3)
PWM
ILED
5 12.0 21.0 V -
- - 1.5 A (1)
- - 1.5 A (1)
10 - 100 % -
5 - 100 % (2)
- - 100 mV -
97 115 140 mA (4)
Value
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Unit Note
=
PWM
(High to Low)
(Control Signal)
SW=24V
LED_VCCS(Typ)
LED_VCCS(Typ)
C1
1uF
VR1
R1
47K
R2
1K
47K
Q1 IRL3303
0.01uF
FUSE
Q2
IRL3303
C2
C3
1uF
(LED Converter Input)
17 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
≤∗+
+
≤
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
VLED rising time is 0.5ms
0.5ms
90%
ILED
10%
Rush
100ms
ILED
IS
LED_VCC
LED_PWM
LED_EN
ILED
Note (2) If the PWM control duty ratio is less than 10%, there is some possibility that acoustic noise or
backlight flash can be found. And it is also difficult to control the brightness linearity.
Note (3) If PWM control frequency is applied in the range less than 1KHz, the “waterfall” phenomenon on
0V
0V
0V
the screen may be found. To avoid the issue, it’s a suggestion that PWM control frequency should
follow the criterion as below.
PWM control frequency f
fN )33.0( f
should be in the range
PWM
PWM
)66.0(
fN ∗
N : Integer )3( ≥N
f
: Frame rate
Note (4) The specified LED power supply current is under the conditions at “LED_VCCS = Min., Typ., Max.”,
Ta = 25 ± 2 ºC, f
= 200 Hz, Duty=100%.
PWM
18 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
7. INTERFACE TIMING
7.1 DISPLAY SIGNAL TIMING SPECIFICATIONS
The display signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc 46.2 69.3 76.23 MHz
Vertical Total Time TV 770 780 1170 TH
Vertical Active Display Period TVD 768 768 768 TH
DE
Note (1) Display timing signal should be contained and transferred by Display Port Main Link stream data
packing described in VESA Display Port Standard V1.1a
Vertical Active Blanking Period TVB TV-TVD 12 TV-TVD TH
Horizontal Total Time TH 1450 1480 1510 Tc
Horizontal Active Display Period THD 1366 1366 1366 Tc
Horizontal Active Blanking Period THB
www.panelook.com
TH-THD
114
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
TH-THD
Tc
DE
DCLK
DE
DATA
DISPLAY SIGNAL TIMING DIAGRAM
TC
HD
T
19 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center

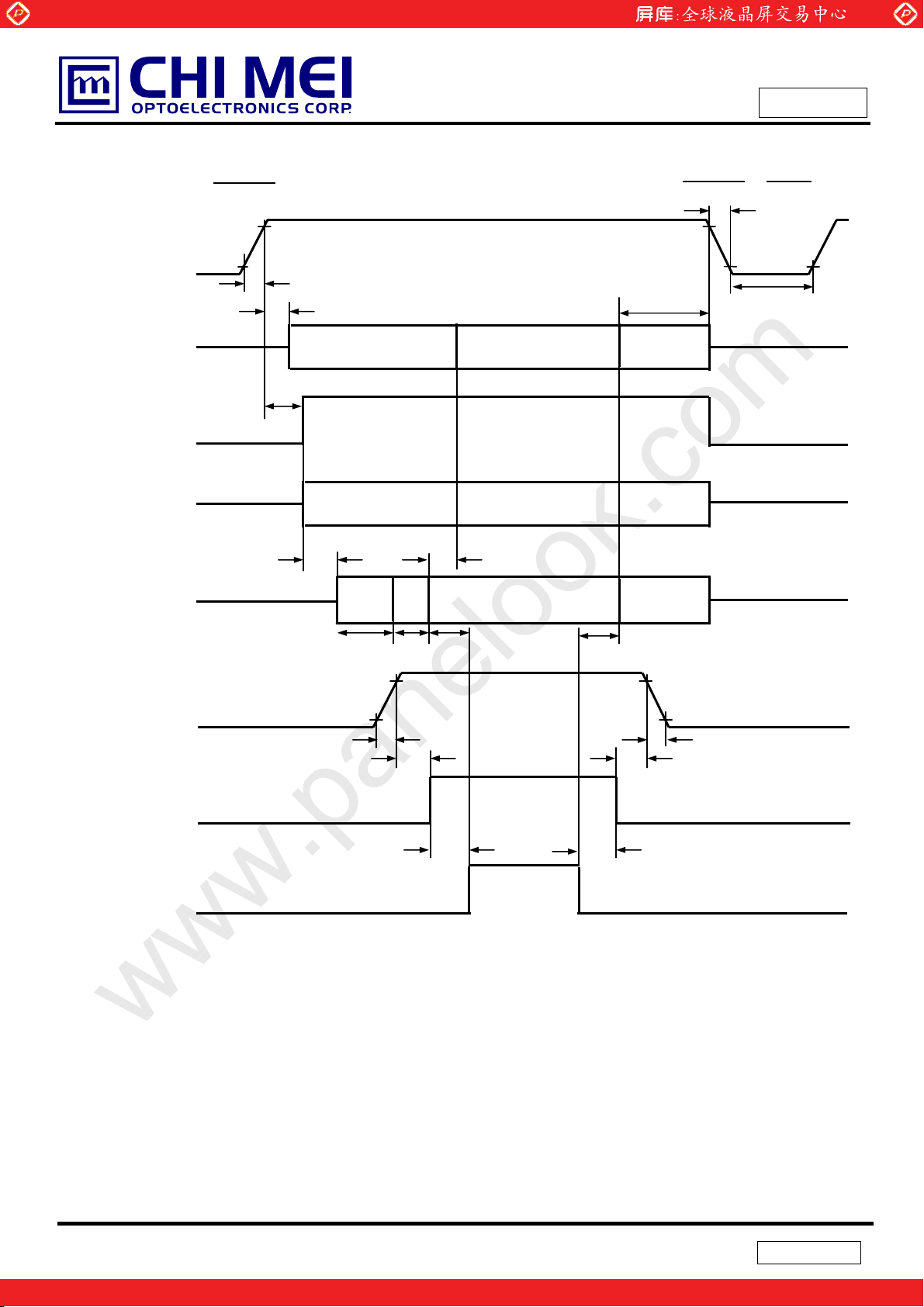

7.2 POWER ON/OFF SEQUENCE
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
-Power Supply
for LCD, VCCS
-eDP Display
-HPD from Sink
-AUX Channel
-Main Link Data
0V
0V
Power On
90%
10%
t1
10%
Restart
10%
t12
Power Off
t11
90%
t2
Black Video
t3
AUX Channel Operational
t4
Link
Training
Idle
Valid Video Data
t10
Black Video Video from Source
Idle or off
- Power Supply for
LED Converter,
LED_VCCS
- LED Converter
Dimming Signal,
LED_PWM
- LED Converter
Enable Signal,
LED_EN
0V
0V
0V
t5 t6t7t8 t9
90%
10%
t
A
t
C
t
E
90%
10%
t
B
t
D
t
F
20 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
Timing Specifications: Follow VESA Embedded Display Port Standard Version 1
Parameter Description
t1 Power rail rise time, 10% to 90% Source 0.5 10 ms -
t2
t3
t4
t5 Link training duration Source - - ms t6 Link idle Source - - ms -
t7
t8
t9
t10
t11
t12 VCCS Power off time Source 500 - ms -
t
A
t
B
t
C
t
D
t
E
t
F
Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might abnormal
Delay from LCD,VCCS to black
video generation
Delay from LCD,VCCS to HPD
high
Delay from HPD high to link
training initialization
Delay from valid video data from
Source to video on display
Delay from valid video data from
Source to backlight on
Delay from backlight off to end of
valid video data
Delay from end of valid video data
from Source to power off
VCCS power rail fall time, 90% to
10%
LED power rail rise time, 10% to
90%
LED power rail fall time, 90% to
10%
Delay from LED power rising to
LED dimming signal
Delay from LED dimming signal to
LED power falling
Delay from LED dimming signal to
LED enable signal
Delay from LED enable signal to
LED dimming signal
www.panelook.com
Reqd.
By
Sink 0 200 ms -
Sink 0 200 ms -
Source - - ms -
Sink 0 50 ms -
Source - - ms -
Source - - ms -
Source 0 500 ms -
Source 0.5 10 ms -
Source 0.5 10 ms -
Source 0 10 ms -
Source 10 - ms -
Source 10 - ms -
Source 10 - ms -
Source 10 - ms -
Value
Min Max
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Unit Notes
display or be damaged.
Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be
sure to pull down the power supply of LCD VCCS to 0 V.
Note (3) The backlight must be turned on after the power supply for the logic and the interface signal is valid. The
backlight must be turned off before the power supply for the logic and the interface signal is invalid.
Note (4) Please follow the LED backlight power sequence as above. If the customer could not follow, it might
cause backlight flash issue during display ON/OFF or damage the LED backlight controller
21 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
8. OPTICAL CHARACTERISTICS
8.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage Vcc 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Converter Current IL 80 mA
The measurement methods of optical characteristics are shown in Section 8.2. The following items
should be measured under the test conditions described in Section 8.1 and stable environment shown in
Note (5).
8.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio CR 300 500 - -
Response Time
Average Luminance of White
Red
Color
Chromaticity
Viewing Angle
White Variation
Green
Blue
White
Horizontal
Vertica l
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
25±2
50±10
TR - 3 8 ms
- 7 12 ms
T
F
L
AVE
Rx
Ry
=0° , θY =0°
θ
x
Viewing Normal Angle
Gx
Gy
Bx
By
Wx 0.313 Wy
θx+ 40 45 -
-
θ
x
θY+ 15 20 -
-
θ
Y
δW
5p
δW
13p
CR≥10
=0° , θY =0°
θ
x
160 200 - cd/m
0.578
0.363
0.344
TYP.
-0.03
0.567
0.151
TYP.
+0.03
0.118
0.329
40 45 -
40 45 -
- - 1.25
- - 1.55
Approval
o
C
%RH
(2), (5),
(7)
(3),(7)
(4),
2
(6),(7)
-
-
-
(1),(7)
-
-
-
-
(1),(5),
(7)
(5),(6),
(7)
Deg.
22 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
s
Note (1) Definition of Viewing Angle (θ x, θy):
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Normal
θx = θy = 0º
θy- θy+
θX- = 90º
6 o’clock
θ
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (1)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
θx−
θx+
y+
12 o’clock direction
θ
y+ = 90º
x+
θX+ = 90º
Note (3) Definition of Response Time (T
100%
90%
Optical
Response
10%
0%
T
66.67 m
, TF):
R
Time
T
R
F
66.67 ms
23 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Note (4) Definition of Average Luminance of White (L
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6).
Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
AVE
):
Note (6) Definition of White Variation (δW):
Measure the luminance of gray level 63 at 5 points
δW
= Maximum [L (1)~L (5)] / Minimum [L (1)~L (5)]
5p
δW
= Maximum [L (1)~L (13)] / Minimum [L (1)~L (13)]
13p
˄˃
ˉ
˛˂ˇ
˅
˄˃
ˌ
ˇˈ
˄˄
˄˃ ˄˃
˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ
˛
˛˂ˇ ˛˂ˇ ˛˂ˇ
ˊ
˄
˄˅
˪
ˋ
ˆ
X
: Test Point
˄˃
˄ˆ
X=1 to 13
Active area
24 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
Note (7) The listed optical specifications refer to the initial value of manufacture, but the condition of the
specifications after long-term operation will not be warranted.
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
25 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
9. PRECAUTIONS
9.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not
to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is
very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use
Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for
a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the LED wire.
(11) Pins of I/F connector should not be touched directly with bare hands.
9.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module within
the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of LED will be higher than the room
temperature.
9.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This
can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.
ʳ
26 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
10. PACKING
10.1 CARTON
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval

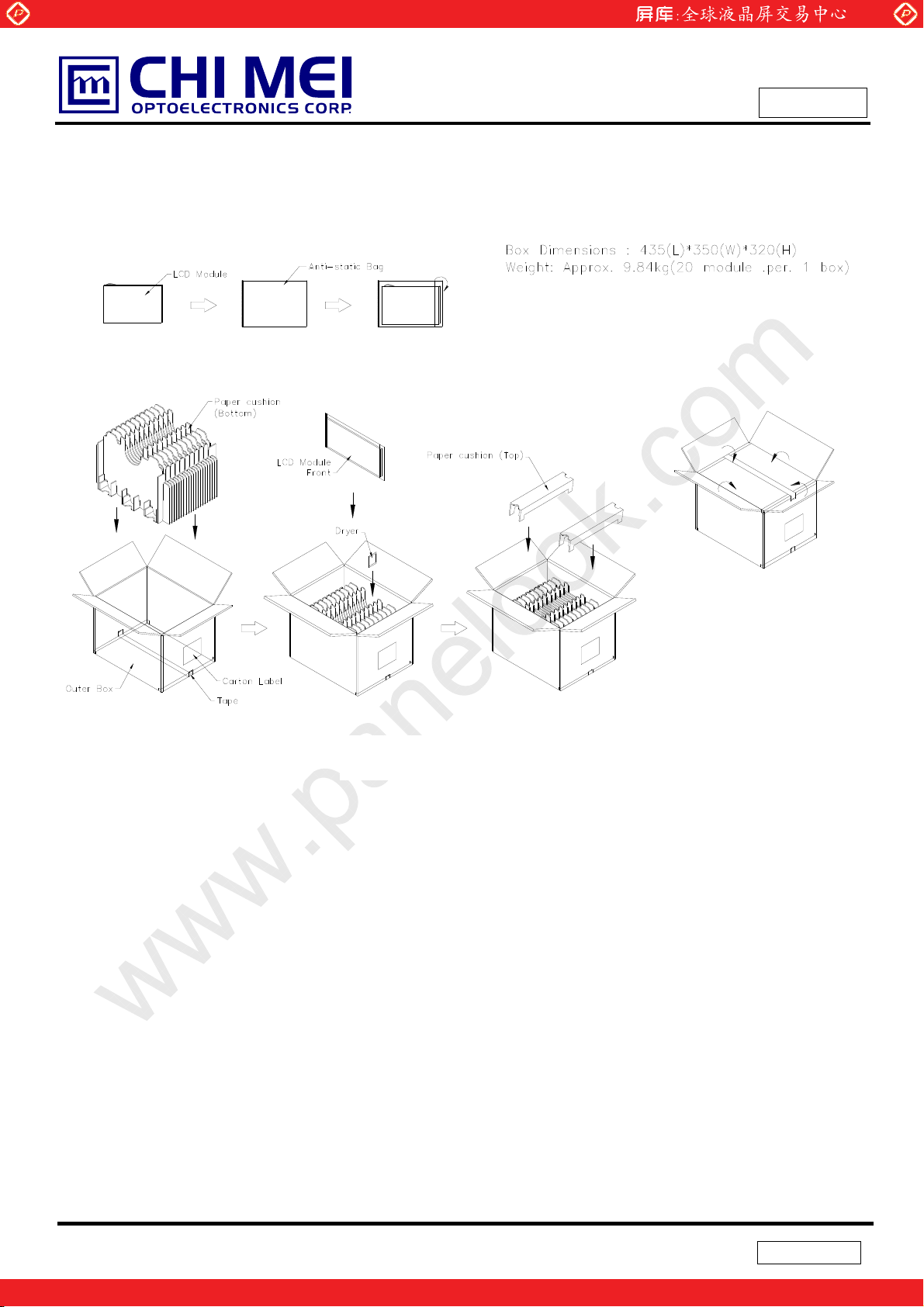

Figure. 10-1 Packing method
27 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
10.2 3$//(7
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Figure. 10-2 Packing method
28 / 31
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
11. DEFINITION OF LABELS
11.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following
explanation.
CT: CATFLXXVRXXXXX
N140B6-D11
(a) Model Name: N140B6 – D11
(b) Revision: Rev. XX, for example: C1, C2 …etc.
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
LEOO
(c) Serial ID: X X
X X X X X Y M D X N N N N
Serial No.
CMO Internal Use
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
(d) Production Location: MADE IN XXXX. XXXX stands for production location.
(e) UL/CB logo: “LEOO” especially stands for panel manufactured by CMO Ningbo satisfying UL/CB
requirement. “LEOO” is the CMO’s UL factory code for Ningbo factory.
Serial ID includes the information as below:
(a) Manufactured Date: Year: 1~9, for 2001~2009
Month: 1~9, A~C, for Jan. ~ Dec.
Day: 1~9, A~Y, for 1
st
to 31st, exclude I , O and U
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of production
CT Label
S/N CT: CATFLXXVRXXXXX
CT:
C
ATFL
XX
VR
XX
XXX
LCD Display Module
Supplier /Site of MFG
Week/Year of MFG
Serial number. From 000000 to 999999
Title
Assembly Code
Revision
29 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
Global LCD Panel Exchange Center
11.2 CARTON LABEL
www.panelook.com
Issued Date: Jan. 13, 2010
Model No.: N140B6-D11
Approval
Made in XXXX
(a) Production location: Made in XXXX.
30 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 3.0
www.panelook.com
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Loading...
