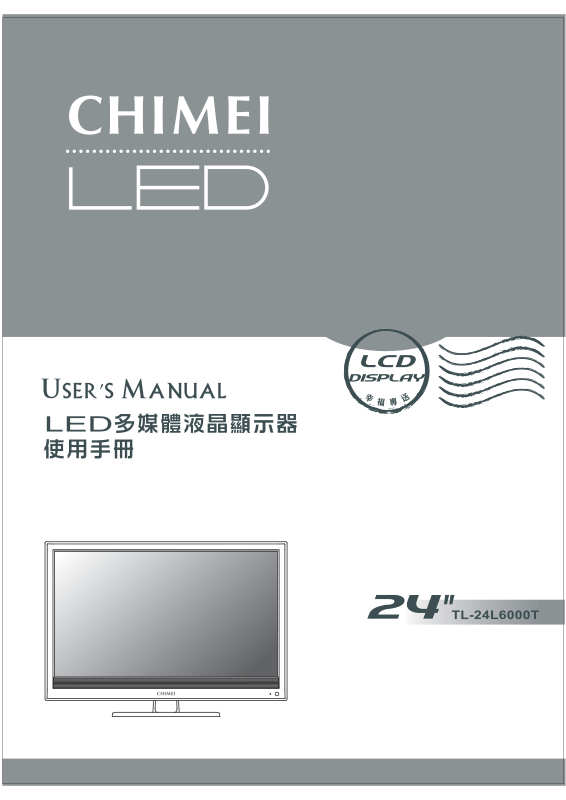

CHIMEI TL-24L6000T User Guide
User’s Manual
Multimedia LCD Display
Content
Important Safety Instructions................................................................................... 02
Cleaning and Maintenance...................................................................................... 04
Repair Service......................................................................................................... 05
Descriptions and accessories.................................................................................. 06
Operation of Multimedia LCD Display
Connectors and sockets.....................................................................................07
Control panel...................................................................................................... 12
Remote Control.................................................................................................. 13
Favorite Channels.............................................................................................. 15
LCD Display Menu
Advanced LCD Display menu ............................................................................ 16
PICTURE............................................................................................................ 17
ADVANCE.......................................................................................................... 18
AUDIO................................................................................................................ 19
TV.......................................................................................................................20
GEOMETRY....................................................................................................... 21
SETUP ............................................................................................................... 22
Other Information
Trouble-shooting ................................................................................................ 23
Specifications..................................................................................................... 24
Important Safety Instructions
Read and comply with all instructions, bear the warnings in mind and keep the manual
properly.
Notice
RISK OF ELECTRIC
SHOCK DO NOT OPEN
This logo indicates that there is un-insulated “dangerous voltage” inside the product
and may incur the risk of electric shock.
[Installation and Usage]
1. Install as per the
2. This device shall be
3. Use only with the cart, stand,
4. When transporting the Multimedia LCD Display,
5. Keep away from objects that may stab the
6. Do not install near any heat
The exclamation point within an equilateral triangle is intended to alert the user to the
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
manufacturer’s instructions.
Only use
attachments/accessories
specified by the
manufacturer.
mounted on a table or wall in
accordance with the
installation instructions. Do
not place the device on an
unstable stand or table as
the device may fall and
cause injuries.
tripod, bracket, or table
specified by the
manufacturer, or supplied
with the apparatus. When a
cart is used, use caution
when moving the
cart/apparatus combination
to avoid injury from tip-over.
be sure to carry it by two people with two hands
to avoid falling and damage.
Multimedia LCD Display to avoid the highvoltage device or the internal parts inside it from
getting damaged.
sources such as radiators,
heat registers, stoves, or
other apparatus that
produce heat.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR
MOISTURE.
7. Do not install
Multimedia LCD Display
near high-temperature
objects or flam sources
(such as lighted
candles).
8.
The apparatus shall not
be exposed to dripping
or splashing and no
objects filled with water,
such as vases, shall be
placed on the
apparatus.
9.
NEVER install the
Multimedia LCD Display
in the bathroom or
shower room; otherwise
there might be risks of
fire or electric shock.
10.
Do not allow the Multimedia Display to lean
tightly against the wall. Ensure appropriate
space for heat dissipation to avoid aging of
the power cord.
11.
Please clean the back of the Multimedia
Display regularly (once a month is
suggested). Avoid the dust and cotton into
the machine which may cause damage.
02 .............................................................................................................................................................
Important Safety Instructions
[Power Supply]
For safety sake, the plug of the Multimedia LCD Display is designed in
such a manner that you can plug into a socket in a certain direction; To
1. Do not defeat the safety purpose of
2. Check the Multimedia LCD Display power
specification shown on the serial No./model tag.
Be sure to use the power according to the
specification. If you are unsure about the power
requirement, please contact your distributor or
local power company.
3. DO NOT overload powers sockets
4. The power cords shall be checked and cleaned
regularly. Check if they are gnawed by pets or
rats. If this occurs, change the power cord
immediately.
[Ventilation]
1. The ventilation openings on the
2. DO NOT place the Multimedia LCD Display on
beds, sofas or carpet, as this may block the vent.
the polarized or grounding type
plug. Polarized type plug has two
flat pins, one wide and the other
narrow. Grounding type plug has
two flat pins and one round
grounding pin. The wider flat pin
and round grounding pin are
designed for safety. If the provided
plug does not fit into your outlet,
consult an electrician for
replacement of the obsolete outlet.
The apparatus must be connected
to a main socket outlet with a
protected earthed connection.
or extension cords. Overloading
poses a risk of electric shock or
fire. Please purchase optional
extension cord that can switch off
automatically upon overloading.
back of Multimedia LCD Display are
provided for ventilation and heat
dissipation and a 10 cm space shall
be provided around them. Do not
block any vent and keep it clear.
protect your device from electrical shock, be sure to plug the cord into the
socket securely. If you have problems plugging into the socket, please
contact your distributor.
5. Prevent the power cord from
being pressed or kinked by a
foreign object. Do not bundle
or roll up the power cord to
avoid dissipation interruption.
Keep your Multimedia LCD
Display away from any place
where the power cord is
easily scuffed. Use only the
correct power cord.
6. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus. If there’s any flaw,
change a new one immediately.
7. In case of thunderstorm or if the device is
not used for a long time, remove the power
plug to prevent damage of the Multimedia
LCD Display due to abnormal surge.
8. DO NOT put the power cord around any
apparatus that generates heat. If the
protective jacket of the power cord is melted
or burnt, there might be risks of fire or
electric shock. Do NOT pile inflammable
things (like paper) near the power cord.
9. The readily operable appliance coupler will
serve as the disconnecting device of this
apparatus.
10. When the product is purchased or used in
different countries, you should use an
appropriate power cord which is compliant
with local laws and regulations.
3. DO NOT use the Multimedia LCD Display in
enclosed or confined spaces such as a
bookshelf, bookcase or LCD Display cabinet.
4. Keep the Multimedia LCD Display from direct
sunlight.
............................................................................................................................................................. 03
Important Safety Instructions
[LCD Display]
1. Due to the liquid-crystal
[CATV]
1. Be sure to acquire due authorization from the broadcaster/CATV service provider/program owner
before using the TV receiver to watch programs through UHF, VHF, or CATV.
2. You’re advised not to use TV signal splitters to avoid inferior signal quality.
characteristics of the LCD panel,
if one watches at a 4:3 picture
aspect ratio or the same picture
stays frozen for a long time, it will
lead to image sticking.
Therefore, you are advised not to
watch TV at a 4:3 picture aspect
ratio for a long time or leave the
picture frozen. Otherwise, any
image sticking or abnormity
cannot be repaired and will not
be covered under warranty.
Cleaning and Maintenance
[Tips for cleaning the Multimedia LCD Display]
z The LCD screen/enclosure/outer frame are fine products that have undergone special surface
treatment and need to be maintained and cleaned regularly. Be sure to read the following
instructions carefully before cleaning. Any damage due to improper or wrong cleaning methods is
not covered by the warranty.
z Before cleaning the LCD screen/enclosure/outer frame, remove the AC power from the AC power
socket.
1. When wiping the dust off the LCD screen or
enclosure, please remove most of the dust
with the blower and then wipe the screen softly
with the ultra-thin fiber cloth for the LCD
Display. If the dust is difficult to remove, wipe
with some special neutral cleanser for LCD
Display. Please follow the instructions of the
cleaning product; moreover, small dust on the
wiping cloth may scratch the surface of the
screen. Please wash the wiping cloth regularly.
Never wipe the LCD screen/enclosure with
thick fiber cloth to avoid damages or scratches.
2. Avoid using any type of alkaline/acidic cleaner,
washing powder, toluene, or volatile solvents
such as alcohol, gasoline, diluter, or pesticide.
Otherwise, the surface of the screen and the
enclosure of the Multimedia LCD Display may
be damaged.
2. The LCD Display panel is manufactured
using high precision technologies. However,
since no manufacture technology that can
ensure the LCD Display panel is 100% free
from bright spots or shadows is available in
the market, we cannot provide guarantee for
the LCD Display panel free from bright spots.
Your understanding will be appreciated.
3. As this model features a self-protection
mechanism, users have to wait about 10
seconds for the screen to appear after power
on.
This equipment is for entertainment use only.
4.
Not recommended for professional image
work.
3. When cleaning the LCD
4. As the structure of the LCD
screen or enclosure, do not
pour or apply large amount of
liquid onto the LCD screen
directly to avoid unexpected
damages to the LCD screen.
In case that the screen is
stained with water droplets,
remove them with a soft cloth
immediately.
screen is delicate, do not
press the screen or touch the
surface with screwdrivers,
pen tips or other sharp
objects to avoid breaking the
screen.
04 .............................................................................................................................................................
Repair Service
[Repair]
Please do not attempt to repair the Multimedia LCD Display by yourself.
1. If any of following occurs, unplug the
Multimedia LCD Display and contact your
distributor or qualified service personnel from
the original manufacturer to repair the
Multimedia LCD Display:
1.1 The power cord or plug is damaged or
2. Refer all servicing to qualified service
[History of Use]
scuffed.
1.2 Liquid enters the Multimedia LCD Display.
1.3 Multimedia LCD Display is damp or wet.
1.4 The enclosure of the Multimedia LCD
Display is damaged.
1.5 Multimedia LCD Display malfunctions.
1.6 Drop from a high place.
1.7 Fume or sparkles occur to cause safety
concerns.
personnel from the original manufacturer.
There are high-voltage components inside the housings of this Multimedia
LCD Display that may cause an electric shock.
Please carefully read and follow all of the warnings and instructions in this manual.
Failure to read and follow them will void the warranty. Modification of the
Multimedia LCD Display without authorization will void the warrant immediately.
3. Do not use parts or components other than
those supplied by qualified service personnel
of the original manufacturer as they may
shorten the life of the product, or result in
electrical abnormality which may affect safety.
4. Safety inspection
When there is a need for checking the safety
during the use of the Multimedia LCD Display
or to repair the display due to faults, please
notify the qualified service personnel of the
original manufacturer for check and repair
services.
5. In case of any fault of the Multimedia LCD
Display after the expiration of the warranty
period, please notify the qualified service
personnel of the original manufacturer for
check and repair services.
6. These servicing instructions are for use by
qualified service personnel only. To reduce the
risk of electric shock, do not perform any
servicing other than that contained in the
operating instructions unless you are qualified
to do so.
1. You can find the serial number and model tag
on the back of the Multimedia LCD Display.
Please tell your distributor or qualified service
personnel the serial number when you contact
them.
[Disposal of Waste Displays]
2. Used or discharged batteries must be properly
disposed of or recycled in compliance with all
applicable laws. For detailed information, please
contact your local solid waste disposal authority.
Please recycle used
batteries.
In accordance with the requirements of the Environmental Protection Administration, waste displays
must be disposed of properly to avoid harmful effects to the environment.
When you want to discard your display, please follow the waste disposal methods:
When purchasing a new display, you can have the discarded one recycled by the distributor.
1.
You can consult the Recycling Fund Management Board for electronic & electrical items. The
2.
service hotline is 0800-085-717.
............................................................................................................................................................. 05
Descriptions and accessories
A
A
A
Top View
Side View
Video Connectors
Front View
Rear View
Wall Mount Hole
ntenna Connector
Speakers
Accessories
1. Remote Control 2. Batteries x 2 3. User Manual
LCD Panel
Control panel
Power
Power Indicator
IR Remote receiver
PC&Rear I/O Connector
nti-tip Auxiliary Screw Hole
(Support Hole)
nti-tip Precaution
In order to prevent this equipment from falling
※
over in case of unexpected natural disasters
or serious accidents, you are advised to use
the anti-tip auxiliary screw holes for secure
fixation.
1. Before your operation, screw installation must be
done on a stable table (recommended size: T4 x
12) (Fig. 1).
2. In the event of failure to fasten the screws on the
table, please use another two bolts
(recommended size: M4 x 16) and fasten them on
the wall mount hole, then fix the LCD Display to
the wall (Fig. 2) with a wire for safety.
4. Power Adapter 5. Power Cord (For TW SP-301 + IS-14 VCTF
1.25/3C)
Installation of batteries
1. Insert two AAA batteries into the
remote control. Make sure positive
electrode and negative electrode are
facing the proper direction.
2. Replace the cover.
If the remote control will not to be used for a long time, remove the batteries to avoid the
damage caused by liquid leaks.
Use the remote control carefully. Please do not drop the remote control on the ground. Avoid
humidity, direct sunlight and heat.
06 .............................................................................................................................................................
(Fig. 1) (Fig. 2)
Operation of Multimedia LCD Display
Bottom I/O Connectors
Connectors and sockets
HDMI Input
Output
DVD Player
Port (Input) Functions
High Definition Multimedia Interface (HDMI):
This port accepts devices with high definition video/audio signal-HDMI
terminal output.
HDMI
VGA terminal
※ For details about the supportive signals, please refer to the specification pages of this User
Manual.
This connection port supports HDTV video signals or PC-DVI signals.
※ The DVI signals come through HDMI input, the DVI connection wire for
HDMI shall be used, and the sound connection shares the VGA-sound
input terminal.
VGA terminal and Audio Input:
Can be connected to devices with VGA (RGB analog signals) terminals and
sound output, for instance, computers and other devices.
※ The sound input terminal is shared by VGA/DVI (HDMI) and the terminal
is 3.5 mm jack.
............................................................................................................................................................. 07
Loading...
