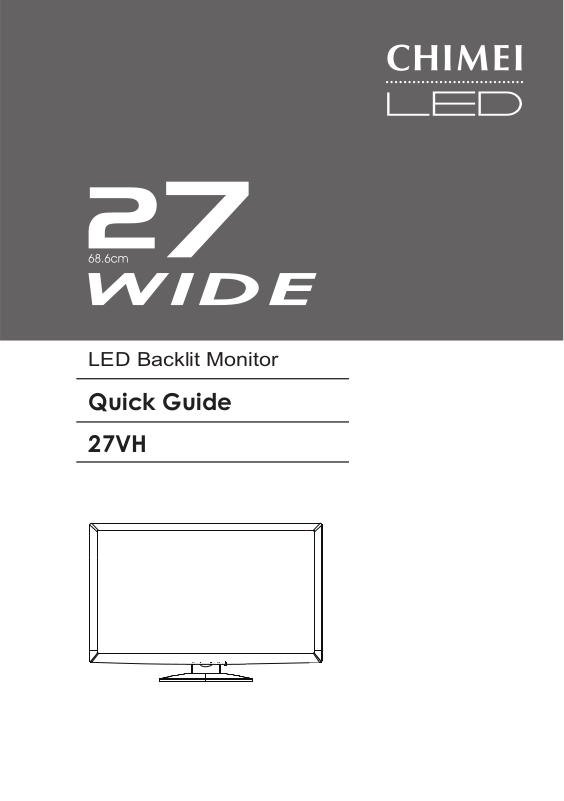

CHIMEI 27VH User Guide

LED Backlit Monitor

Quick Guide

27VH

AUTOMENU

2 3 5

1

AC-IN HDMI DVI D-SUB AUDIO-IN

4

AC-IN

5

1

3

2

4

This LED backlit monitor has been already
approved by safety certification agencies in
right, and you should use it according to the user

manual, please.

本产品的各项性能均已通过右列各项规
范认证，请您依照操作说明安心使用本

产品

。

本產品各項性能均已通過右列各項規範
認證，請您依照操作說明安心使用本產

品。

R3303 7

AC-IN

HDMI DVI

D-Sub

部件名称

铅

(Pb)汞(Hg)镉(Cd)

外壳
液晶显示屏 / 灯管
电路板组件 *
电源线 / 电源适配器
液晶面板
*

：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等

○ ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○

○： 表示该有毒有害物质在该部件所有均质材料中的含量均在

有毒有害物质或元素

六价铬

(Cr6+)

多溴联苯

(PBB)

SJ/T11363-2006

多溴二苯醚

(PBDE)

标准规定

的限量要求以下

×： 表示该有毒有害物质在该部件的某一均质材料中的含量超出

SJ/T11363-2006

标准规

定的限量要求；其含量超出是因为目前业界尚无成熟可替代的技术，但仍然符合欧盟

RoHS

指令的豁外条款允许范围

Package Contents

The LED backlit monitor and the stand.

◆

AUTO MENU

Accessory

All of accessories have been tested and qualied. Do not use any non-qualied accessories with this LED backlit

monitor.

Power Cord.

◆

15-pin D-Sub Signal Cable.

◆

Audio Cable.

◆

DVI Signal Cable. (Optional)

◆

HDMI Cable. (Optional)

◆

User Manual (CD-ROM).

◆

Quick Guide.

◆

Warranty Card. (Optional)

◆

Features

68.6cm ( 27” ) TFT Color LED backlit monitor.

◆

Supports Resolutions up to 1920 x 1080.

◆

Using the CD-ROM

CD-ROM Contents

Insert the CD-ROM into your computer’s CD-ROM drive, and it will display automatically.

User Manual (3 Languages).

◆

Acrobat Reader® Installation.

◆

Note: Some les are shown as the type of Acrobat® PDF.

Safety Precautions

Caution:This LED backlit monitor must be operated with the original accessories.

This set must be operated with the correct power supply.

◆

Do not let children use this LED backlit monitor alone.

◆

Viewing the User Manual for other safety precautions.

◆

Quick Setup

The setup steps are described as following: (Step 2 to 4 are illustrated on the overleaf of the cover.)

1. Shutdown your computer and unplug.

2. Please combine the LED backlit monitor with the stand tightly.

3. Connect the 15-pin D-Sub (or DVI-D, HDMI optional)signal cable and Audio cable to the computer and the LED backlit monitor.

4. Connect the LED backlit monitor power cord to AC power input socket rmly and completely.

5. Use the cable tie to bind up the power cord and the D-sub signal cable/ DVI-D cable/HDMI cable.

6. After installation, please turn on the LED backlit monitor and the computer, respectively.

7. About function adjustment and troubleshooting, please refer to the content of the CD-ROM.

Service

Please contact the following local service telephone:

New Zealand
ZCOM COMPUTERS LTD
Telephone : [phone]
Website : http://www.zcom.co.nz
Heima New Zealand Ltd
Telephone : [phone]

Korea
Erecta Co.LTD

Telephone : [phone]

Malaysia

VISMART SENDIRIAN BERHAD

Telephone : [phone]
Website : http://www.vismart.com.my

Bangladesh
EJU Audio & Video

Telephone : [phone]

Nepal

Company: Sagar InfoSys
Om Bahal, Newroad, Kathmandu, Nepal
Website: http://www.sagar.com.np
Tel No.: [phone]/4245160/4221157
Support Centre: Sagar Customer Care.
Direct Call: [phone]/ 6218898
(10:00am – 6:00pm)

(For European service, please refer to the warranty card.)

Israel
PSDS Enterprises LTD

Telephone : [phone]
Website : http://www.ksp.co.il

BENDA MAGNETIC LTD

Telephone : [phone]
Website : http://www.benda.co.il

Philippines

PC Trends,Inc
Telephone : [phone] ; 727-6
Website : http://www.pctrends.com.ph

Indonesia

PT Bintang Mas Razeki Nusantara
Telephone : [phone]
