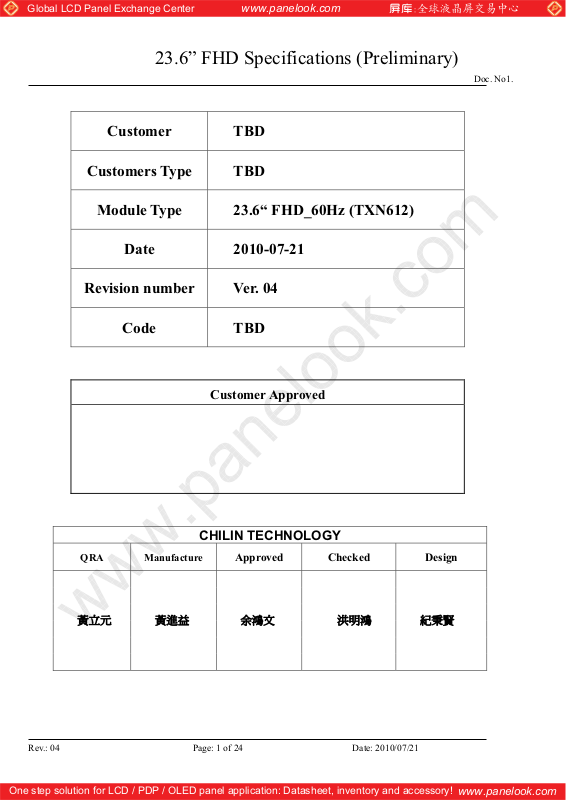

23.6” FHD Specifications (Preliminary)
Customer TBD
Customers Type TBD
Module Type 23.6“ FHD_60Hz (TXN612)
Date 2010-07-21
www.panelook.com
Doc. No1.
Revision number Ver. 04
Code TBD
QRA Manufacture
Customer Approved
CHILIN TECHNOLOGY
Approved Checked Design
ʳ
Rev.: 04 Page: 1 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
Version Date Page Section Description
01 07/01 All All Preliminary Specifications
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No2.
Revision History
13Ε14
03 07/13 15 2.0 Modify “2.0 OPTICAL SPECIFICATIONS”
04 07/21 15 2.0 Modify “2.0 OPTICAL SPECIFICATIONS”
1.4.2 02 07/13
1.4.3
Modify “1.4.2 LED BACKLIGHT MODULE”
Modify “1.4.3 ABSOLUTE MAXIMUM RATING (ELECTRICAL)”
Rev.: 04 Page: 2 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
CONTENTS OF LED MODULE FOR 23.6" LCM
1.0 APPLIED TYPE …………………………………….. PAGE 4
1.1 GENERAL SPECIFICATIONS
1.2 MECHANICAL SPECIFICATIONS
1.3 ABSOLUTE MAXIMUM RATING
1.4 LCM MODULE INTERFACE DEFINITION
1.4.1 CELL INFORMATION
1.4.1.1 REFERENCE TO V236H1-P01 SPECIFICATION
1.4.1.2 LVDS INPUT CONNECTOR PIN ASSIGNMENT
1.4.1.3 CONNECTOR EMECHANICAL SPECIFICATIONS
1.4.1.4 LVDS DATA MAPPING
www.panelook.com
Doc. No3.
1.4.1.5 SIGNAL ELECTRICAL CHARACTERISTICS FOR LVDS RECEIVER
1.4.1.6 COLOR DATA INPUT ASSIGNMENT
1.4.1.7 INPUT SIGNAL TIMING SPECIFICATIONS
1.4.1.8 POWER ON/OFF SEQUENCE
1.4.2 LED BACKLIGHT MODULE
1.4.2.1 LED BACKLIGHT LIGHT ON CONNECTOR PIN DEFINITION AND SCHEMATIC
1.4.2.2 LED BACKLIGHT LED RATING SPECIFICATION
1.4.3 ABSOLUTE MAXIMUM RATING (ELECTRICAL)
1.4.4 PIXEL FORMAT IMAGE
1.5 ABSOLUTE MAXIMUM RATING (ELECTRICAL)
2.0 OPTICAL SPECIFICATIONS ….………………………………. PAGE 15
3.0 RELIABILITY TEST ITEM .………………………………….. PAGE 19
4.0 PACKING ..………………………………… PAGE 20
6.1 PACKING SPECIFICATIONS
6.2 PACKING METHOD
6.3 PACKAGING LABEL
5.0 PRECAUTIONS …………………………………… PAGE 22
7.1 MOUNTING PRECAUTIONS
7.2 OPERATING PRECAUTONS
7.3 ELECTROSTATIC DISCHARGE CONTROL
7.4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
7.5 STORAGE
7.6 HANDLING PRECRCAUTIONS FOR PROTECTION FILM
6.0 LOT NO. GENERATION …………………………………… PAGE 23
7.0 MECHANICAL CHARACTERISTICS …………………………………… PAGE 24
Rev.: 04 Page: 3 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
1.0 APPLIED TYPE
This model adopts: CMI V236H1-P01㧔OPEN CELL㧕
Therefore, please refer to specifications of 23.6” TFT-LCD module for a drive method and an electrical
characteristic of cell.
1.1 GENERAL SPECIFICATIONS
www.panelook.com
Doc. No4.
Item Specification Unit Note
Active Area 521.28(H) x 293.22 (V) mm
Bezel Opening Area 525.22 (H) x 297.22 (V) mm
Driver Element a-si TFT active matrix -
Pixel Number 1,920x R.G.B. x1,080 pixel
Pixel Pitch (Sub Pixel) 0.2715(per one triad) x 0.2715 mm
Pixel Arrangement RGB vertical stripe -
Display Colors 16.7M color
Display Operation Mode Normally White -
Surface Treatment AG/3H -
1.2 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H)
Vertical(V)
Module Size
Depth(U)
544.3 544.8 545.3 mm
320 320.5 321 mm
11.75 12.15 12.55 mm To PCB Mylar
Depth(D)
Weight
7.87 8.27 8.67 mm
2.5 Kg
1.3 ABSOLUTE MAXIMUM RATING
Table 1
Rev.: 04 Page: 4 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No5.
Figure 1
LED Backlight Rating : VL=29.5~34.5V, IL=352mA
1.4 LCM MODULE INTERFACE DEFINITION
Figure 2
Rev.: 04 Page: 5 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
1.4.1 CELL INFORMATION
1.4.1.1 REFERENCE TO CMI V236H1-P01 SPECIFICATION
1.4.1.2 LVDS INPUT CONNECTOR PIN ASSIGNMENT
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No6.
Table 2
1.4.1.3 CONNECTOR EMECHANICAL SPECIFICATIONS
Table 3
Rev.: 04 Page: 6 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
1.4.1.4 LVDS DATA MAPPING
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No7.
Table 4

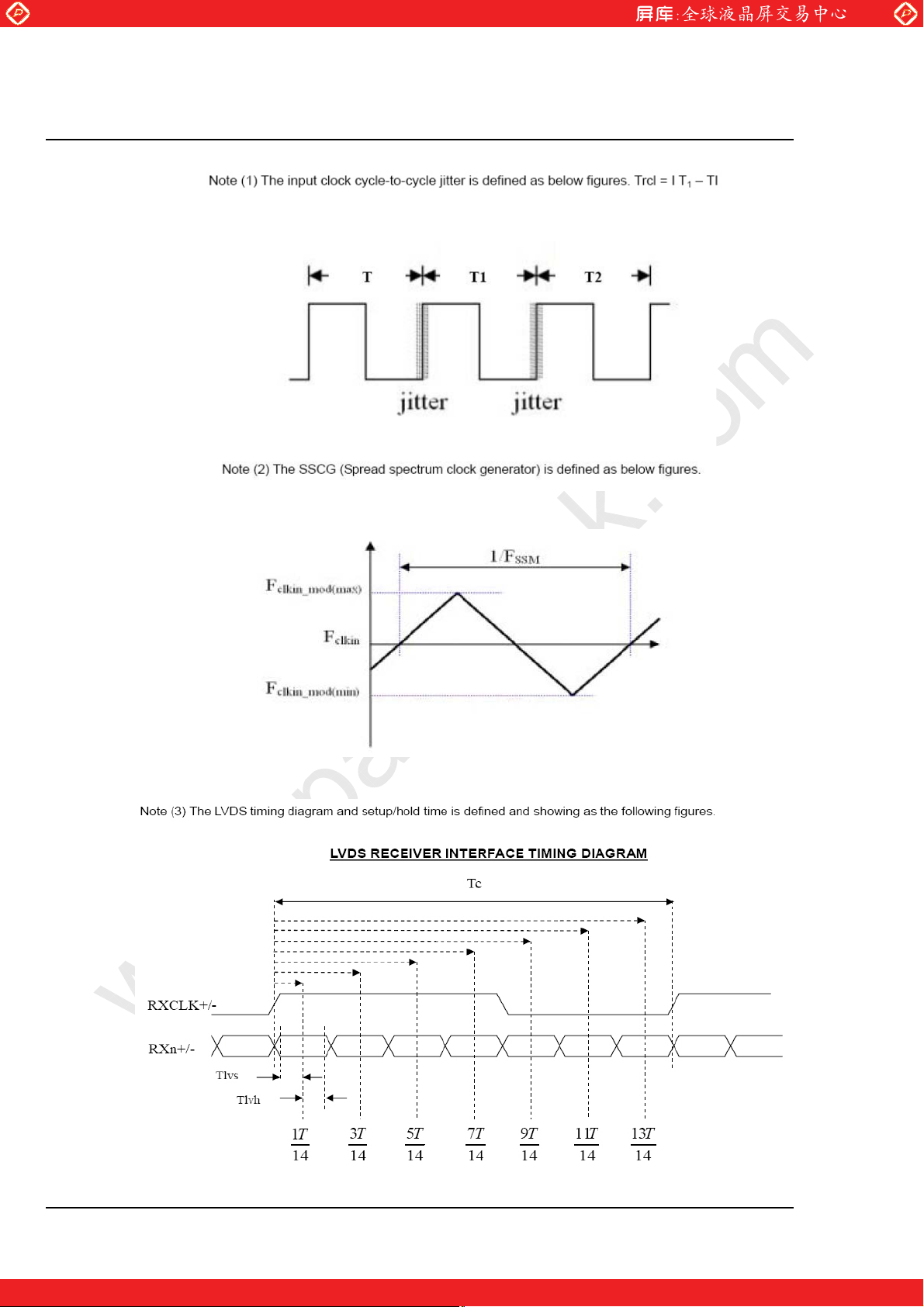

1.4.1.5 SIGNAL ELECTRICAL CHARACTERISTICS FOR LVDS RECEIVER
Table 6 LVDS Receiver Electrical Characteristics
Figure 3
Rev.: 04 Page: 7 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No8.
Figure 4 Vcc Power Dip Condition
Rev.: 04 Page: 8 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center

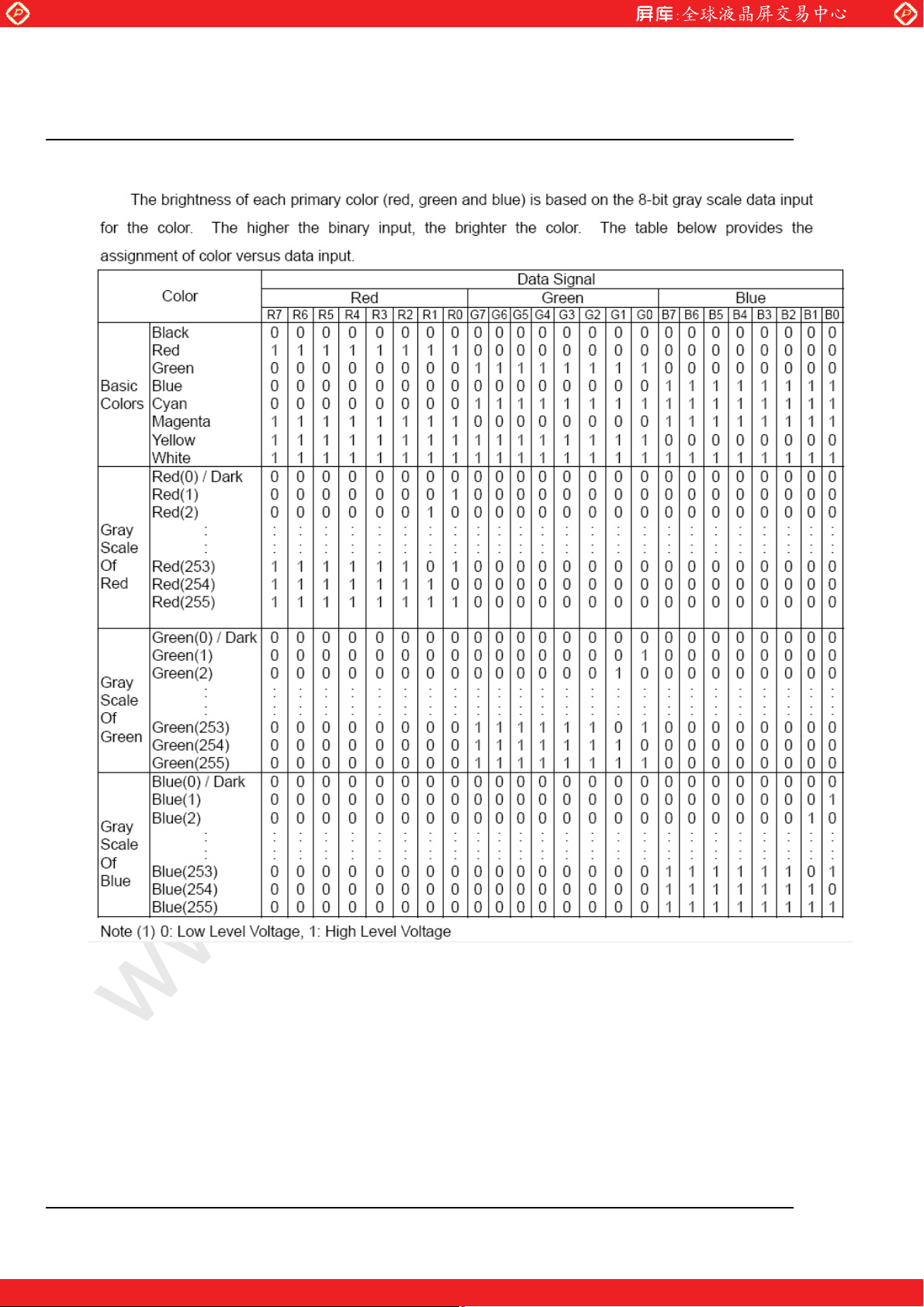

1.4.1.6 COLOR DATA INPUT ASSIGNMENT
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No9.
Rev.: 04 Page: 9 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center

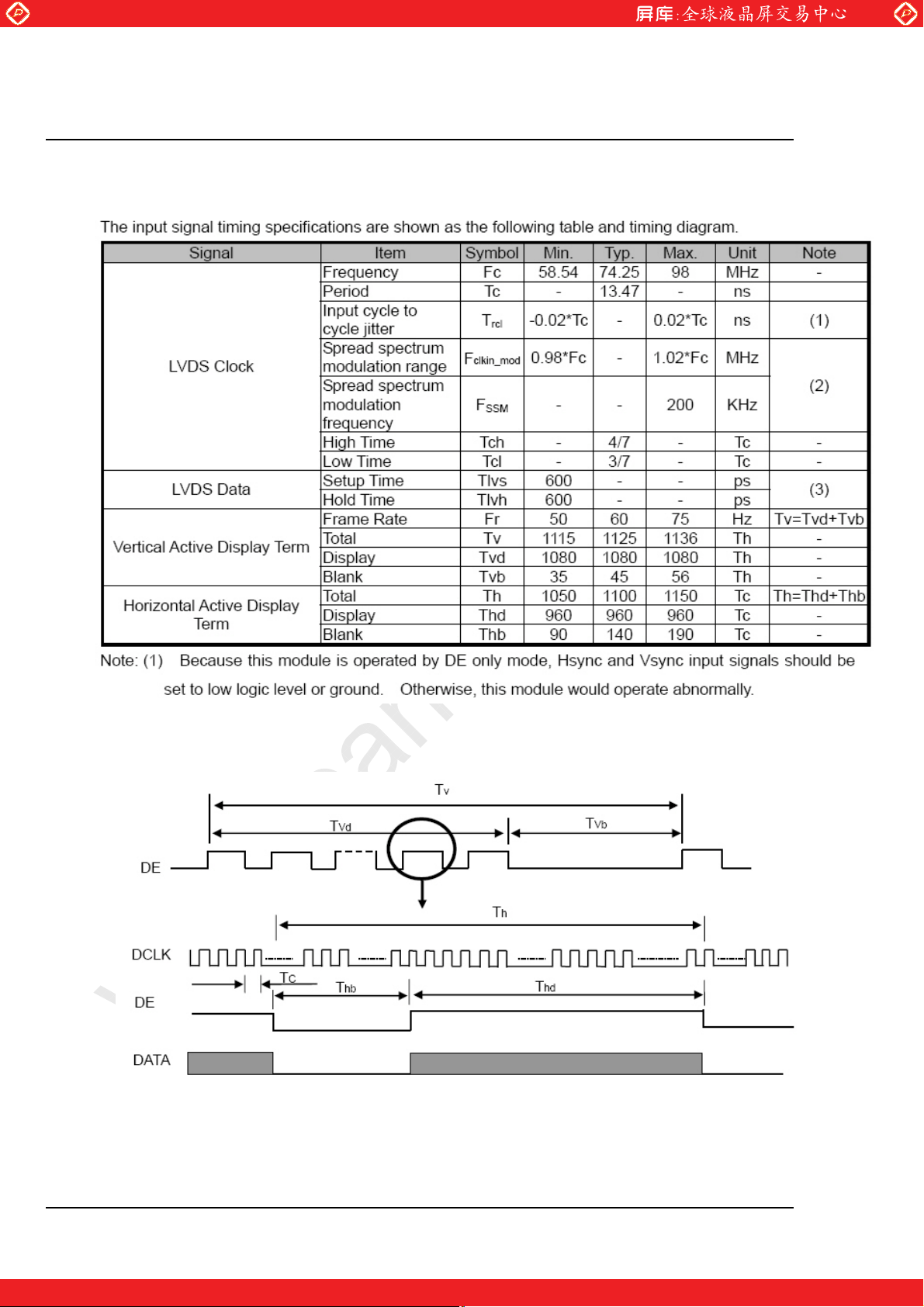

1.4.1.7 INPUT SIGNAL TIMING SPECIFICATIONS
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No10.
Table 7
Figure 5
Rev.: 04 Page: 10 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No11.
Figure 6
Figure 7
Figure 8
Rev.: 04 Page: 11 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center

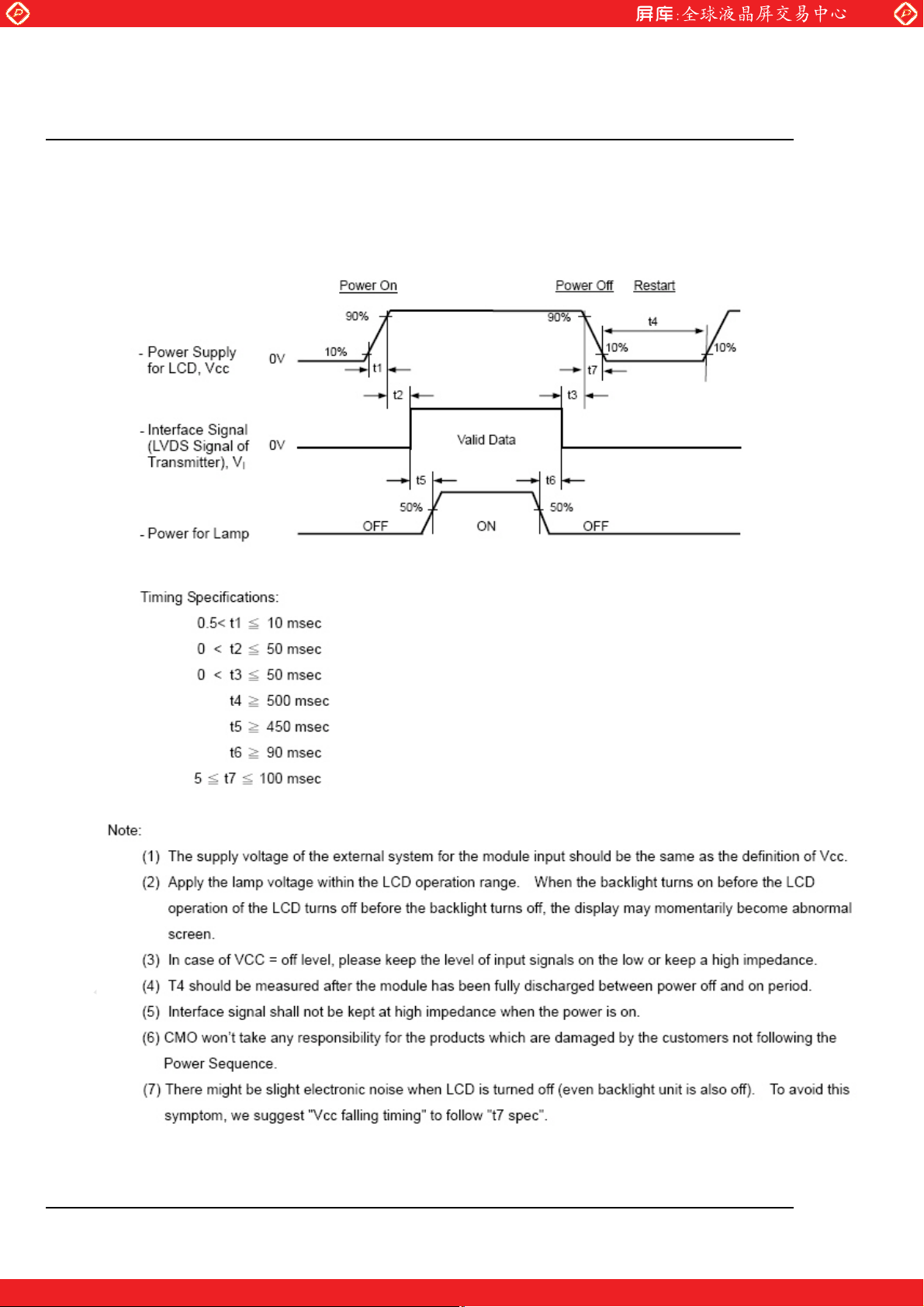

1.4.1.8 POWER ON/OFF SEQUENCE
To prevent a latch-up or DC operation of LCD module, the power on/off sequence should follow the
conditions shown in the following diagram.
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No12.
Figure 9
Rev.: 04 Page: 12 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
1.4.2 LED BACKLIGHT MODULE

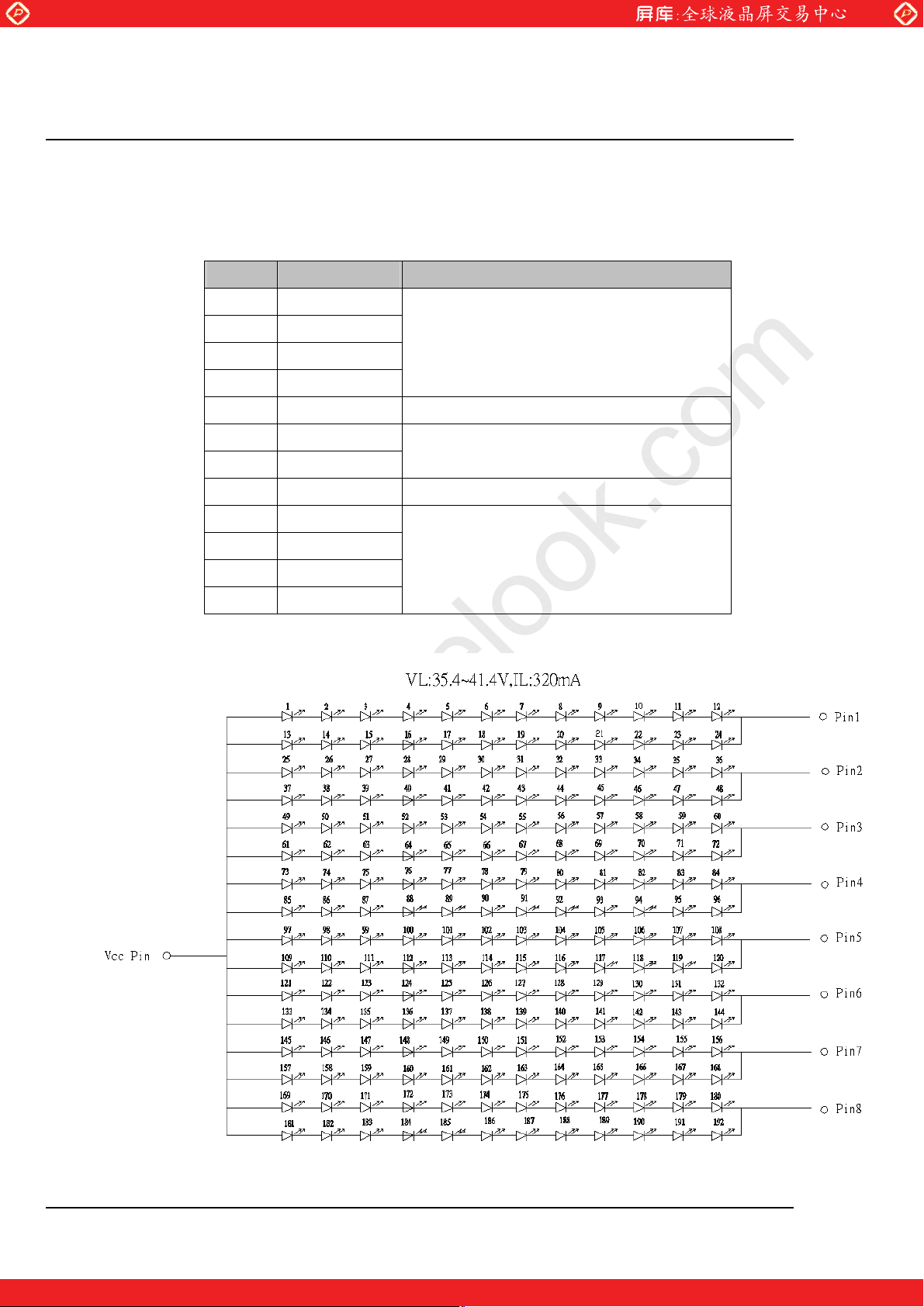

1.4.2.1 LED BACKLIGHT LIGHT ON CONNECTOR PIN DEFINITION AND SCHEMATIC
Pin No. Symbol Feature
1 VLED-
www.panelook.com
Doc. No13.
Connector : ENTERY 7083K-F12N-00L
Table 8
2 VLED-
3 VLED-
4 VLED-
5 NC No Connection
6 VLED+
7 VLED+
8 NC No Connection
9 VLED-
10 VLED-
11 VLED-
12 VLED-
Negative of LED String
Positive of LED String
Negative of LED String
Figure 10
Rev.: 04 Page: 13 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
1.4.2.2 LED BACKLIGHT LED RATING SPECIFICATION
Items Min. Typ. Max. Unit Remark
Input Voltage
www.panelook.com
Table 8
35.4 38.4 41.4 V
Doc. No14.
ۓႝࢬ 320 mA
Input Current (Per Pin)
39 40 41 mA
1.4.3 ABSOLUTE MAXIMUM RATING (ELECTRICAL)
Table 9
Items
LED Forward Voltage
LED Forward Current
LED Reverse Voltage
LED Power Dissipation
ESD(HBM)
ESD(MM)
Note (1) : Static electricity or surge voltage can damage the LEDs. All equipment, machinery and the treatment persons must
be properly grounded. It is recommended to use a wristband or anti-electrostatic glove when handling the LED.
And don’t touch interface pin directly.

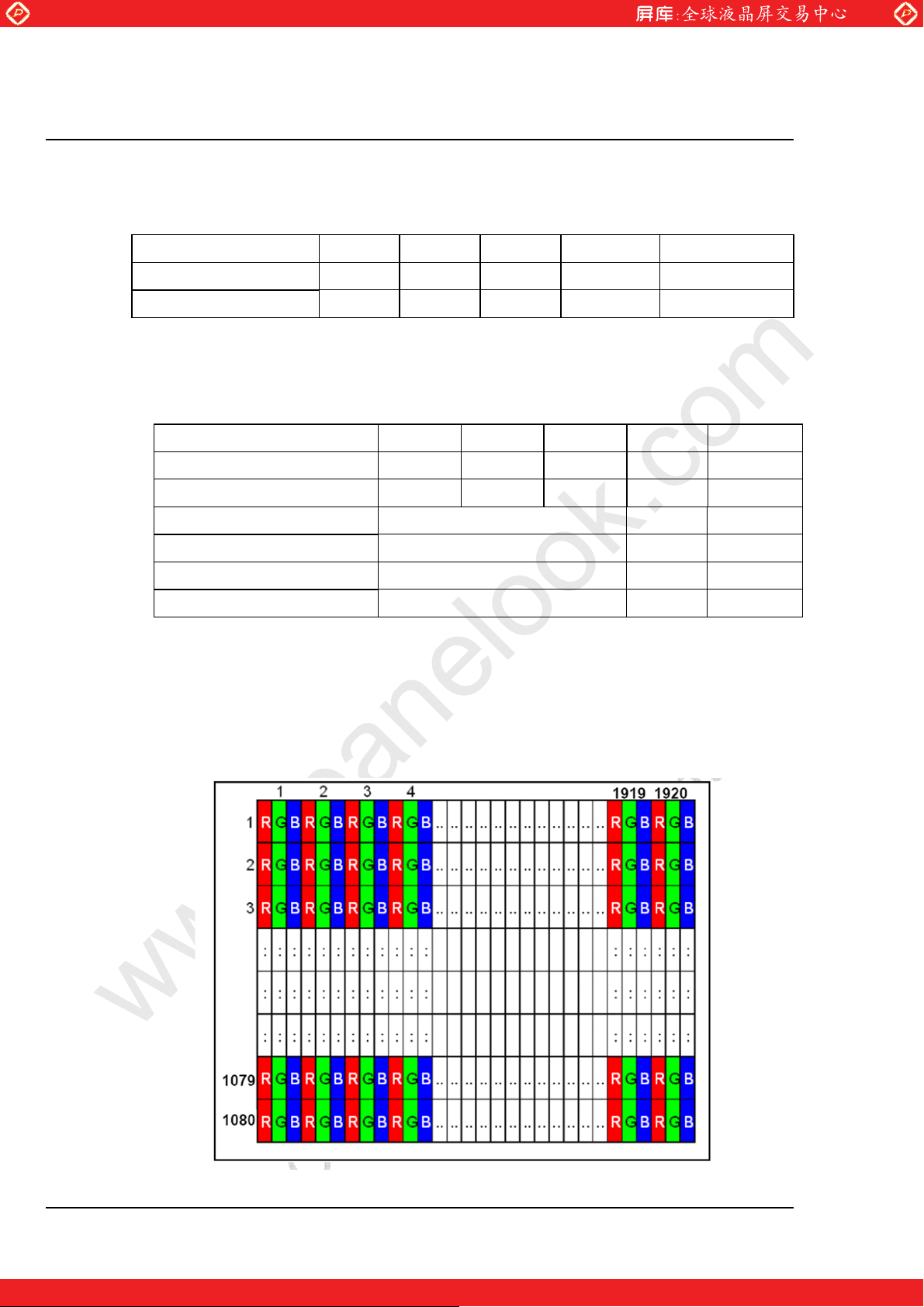

1.4.4 PIXEL FORMAT IMAGE
Figure 11 shows the relationship of the input signals and LCD pixel format image.
Min. Typ. Max. Unit Remark
2.95 3.2 3.45 V
20 30 mA
5 V
100 mW
>1500 V Note(1)
>150 V Note(1)
Figure 11
Rev.: 04 Page: 14 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
Ё
Ё
Ё
Ё
Ё
Ё
Ϧ
Ё
Ё
Ё
Ё
Ё
Ё
Ё
Ё
Ё
Ё
23.6” FHD Specifications (Preliminary)
2.0 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
CR
www.panelook.com
800
Doc. No15.
(1),(2),(7)
Response Time
Brightness
Uniformity
Color
Chromaticity
Viewing Angle
White
Red
Green
Blue
Horizontal
Vertical
Rising
Time(Tr)
Falling
Time(Tf)
B1
B
Wx
Wy
Rx
Ry
Gx
Gy
Bx
By
x+
x-
Y+
Y-
Ӱx=0°,ӰY=0°
Viewing
Normal Angle
1/3
Center Brightness
1.5 3
3.5 5
250 280
70 75
0.313
0.329
0.631
Typ
–0.03
0.347
0.332
0.642
0.146
0.047
45
45
35
35
Typ
+0.03
ms
cd/m2
%
Deg.
(1), (6) ,(7)
(1),(3)
Center pointϤ5 at LCM
(1),(4)
(1),(3) ,
Center pointϤ5 at LCM
(1),(5)
Note (1) Measurement Setup: The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement should be executed
after lighting Backlight for 1 hour in a windless room.
Any outstanding stain (or mura) and/or any outstanding difference of Chromaticity between any parts of the
active area will cause Backlight Assembly and LCM to be rejected.
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L255 / L0
L255: Luminance of gray level 255
L 0: Luminance of gray level 0
CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in Note (4)
Rev.: 04 Page: 15 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center

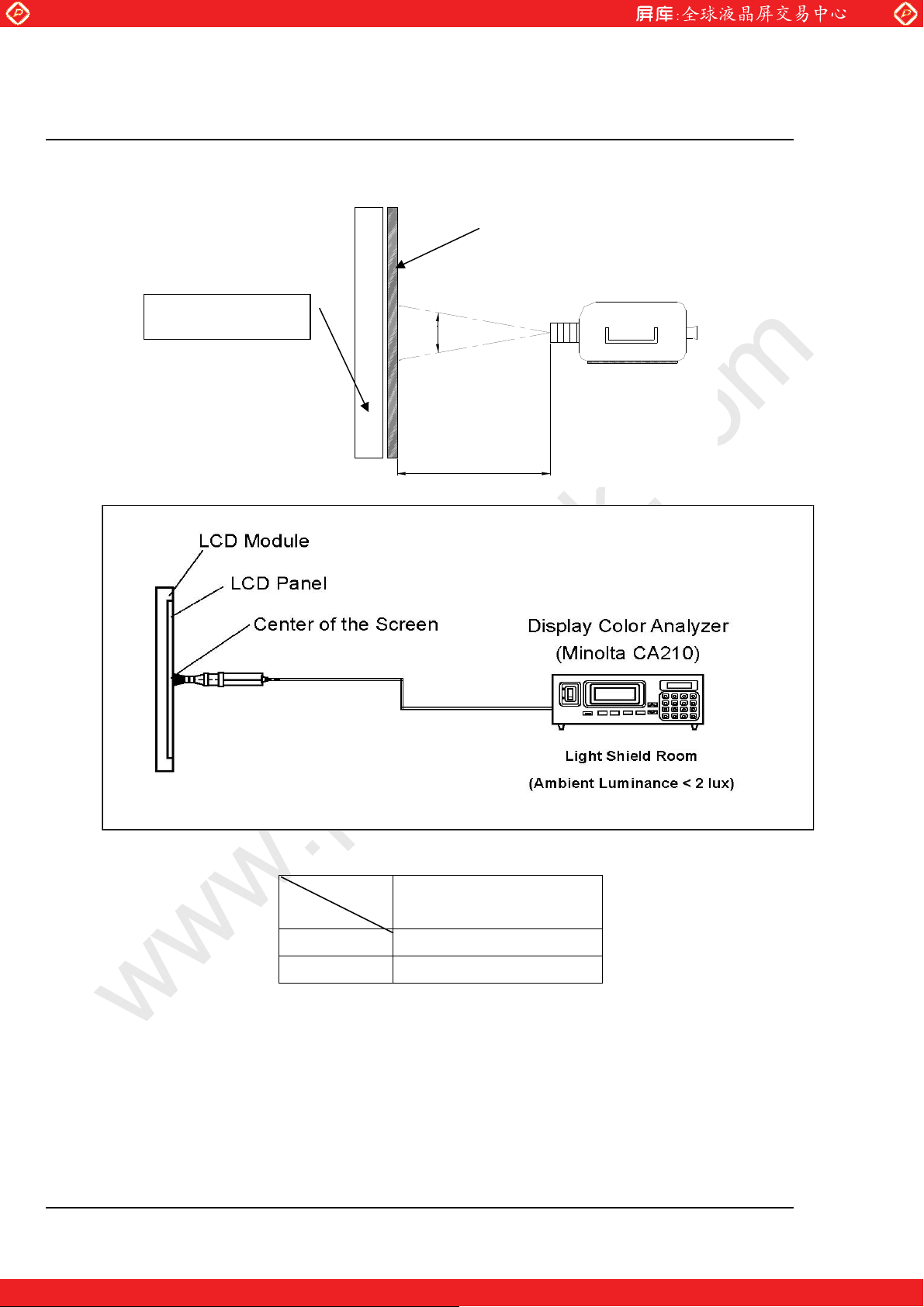

Note㧔3㧕Measurement Method
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No16.
Open Cell
Backlight Unit
L
E
CA210
Item
Angle
2.5
Distance L 3cm

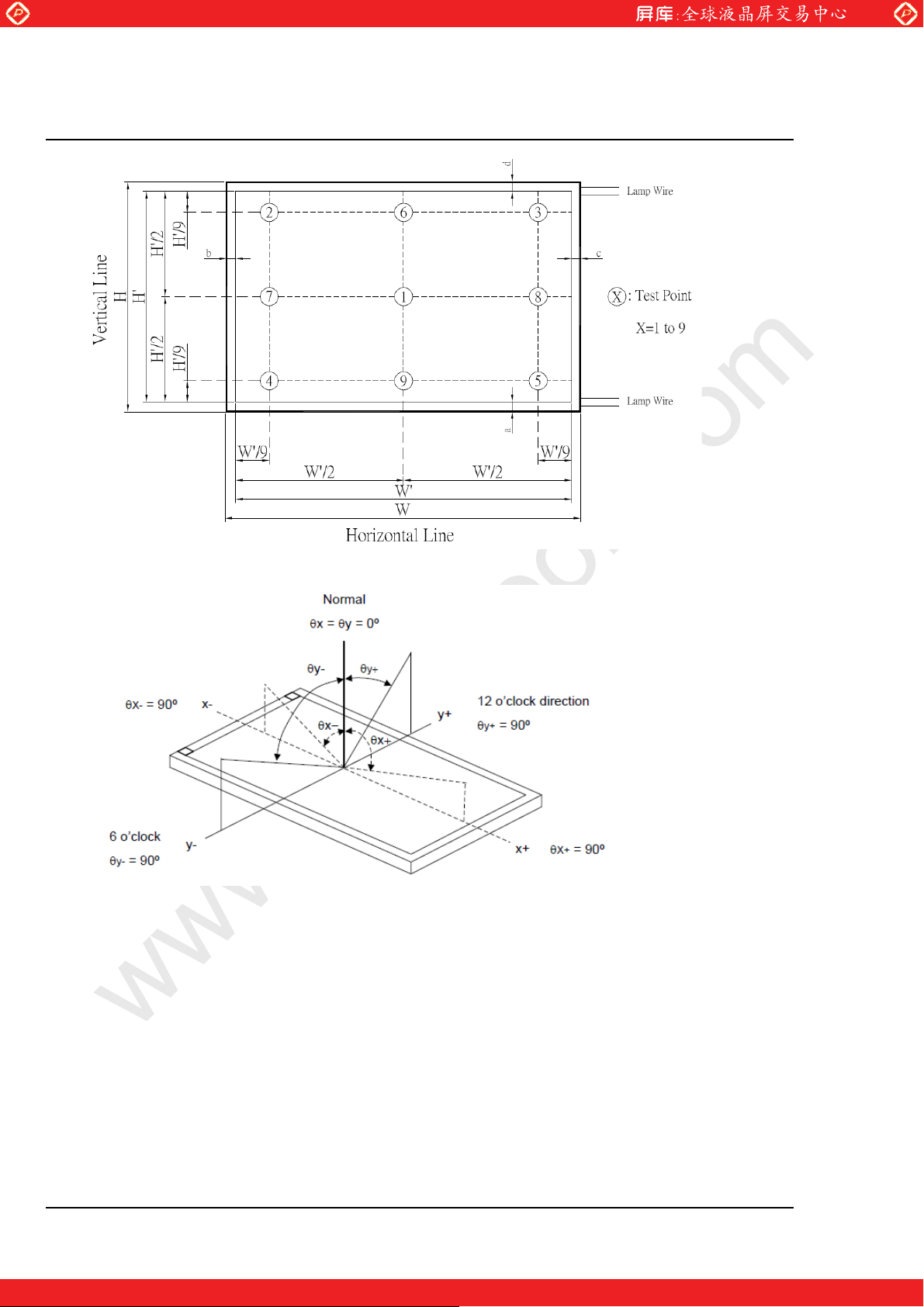

Note (4) Definition of White Uniformity ( B): Ϧ
Measure the brightness of white at 9 points
B = Minimum [B (1) ~ B (9) ] / Maximum [B(1) ~ B (9)] Ϧ
where B (X) is corresponding to the brightness of the point X at the figure below.
Rev.: 04 Page: 16 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No17.
Note㧔5㧕Definition of Viewing Angle㧔x, y㧕:
This measurement method is referred to methods of Part 5.12 SJ/T 11348-2006(measurement for digital
television flat panel displays).
Rev.: 04 Page: 17 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center

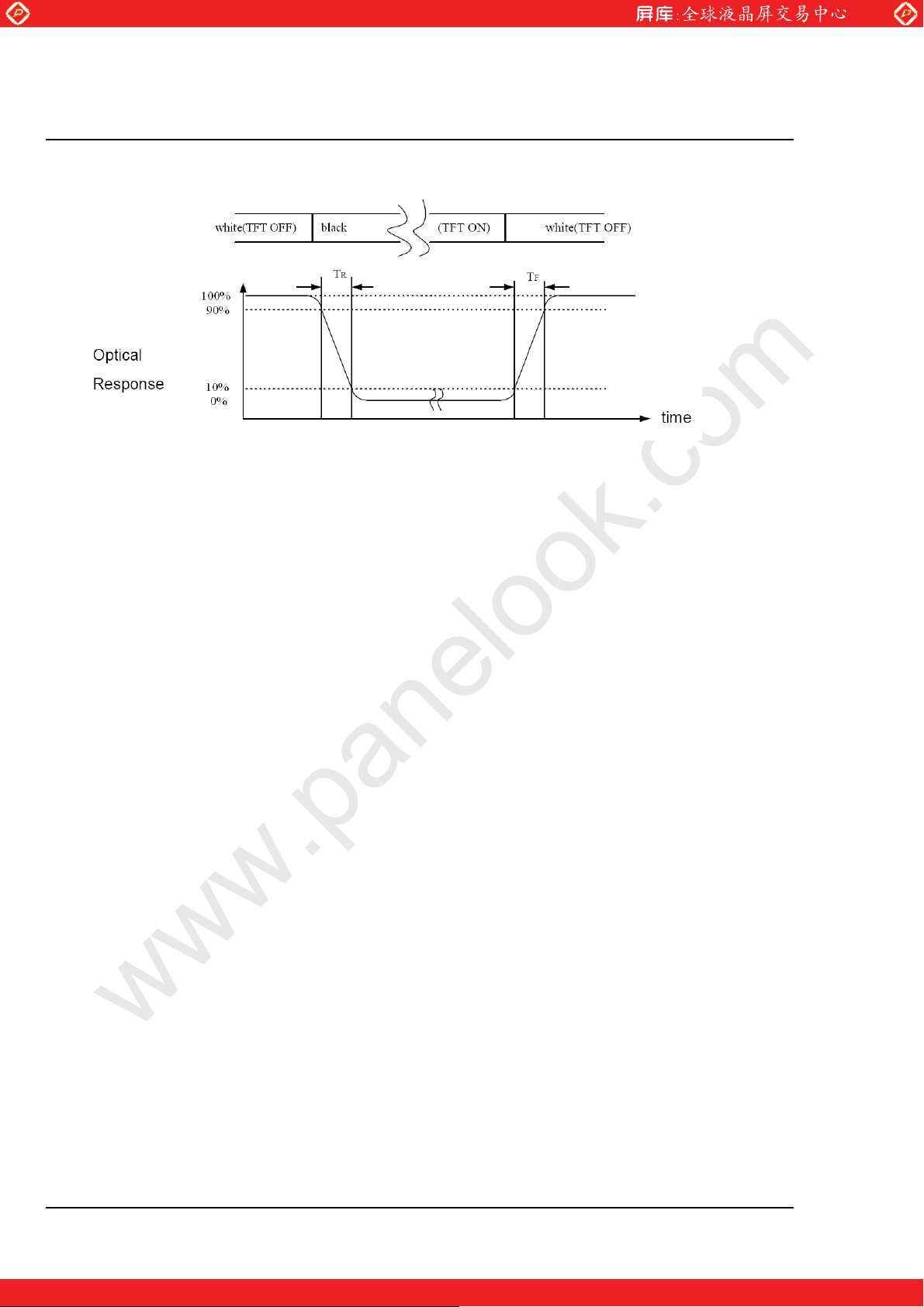

Note (6) Definition of Response Time(TRΔTF)
Note (7)
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No18.
Contrast ratio and response time is corresponding to the original cell specification of V236H1-P01 defined by CMI.
Rev.: 04 Page: 18 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
3.0 RELIABILITY TEST ITEM
Test Items Q’ty Condition
1 High Temperature Operation
23.6” FHD Specifications (Preliminary)
3
www.panelook.com
50кΔ300hrs
Doc. No19.
2 High Temperature And High
Humidity Operation
3 ESD Contact Mode
4 ESD Air Mode
5 Mechanical Shock
(non-operation)
6 Panel Vibration
3
3 +/-8,10KV, 1sec/cycle, class C ,
3 +/-15KV, 1sec/cycle, class C ,
50G, 11ms, half sine wave, 1 times for each direction of ±X,±Y,
3
35G, 11ms, half sine wave, 1 times for each direction of ±Z
3 10-200Hz, 1G, 30mm is Max., 30min/cycle, 1cycles for each X,Y,Z.
50к/ 80%RHΔ300hrs
2hrs
2hrs
Rev.: 04 Page: 19 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
4.0 PACKING
4.1 PACKING SPECIFICATIONS
Carton SPECIFICATIONS
㧔1㧕 6 LCD modules / 1Box
㧔2㧕 Box dimensions : 726㧔L㧕× 380 㧔W㧕× 467㧔H㧕mm
㧔3㧕 Weight : approximately : 20 kg (6 modules per boxΔpackaging materials including pallet)

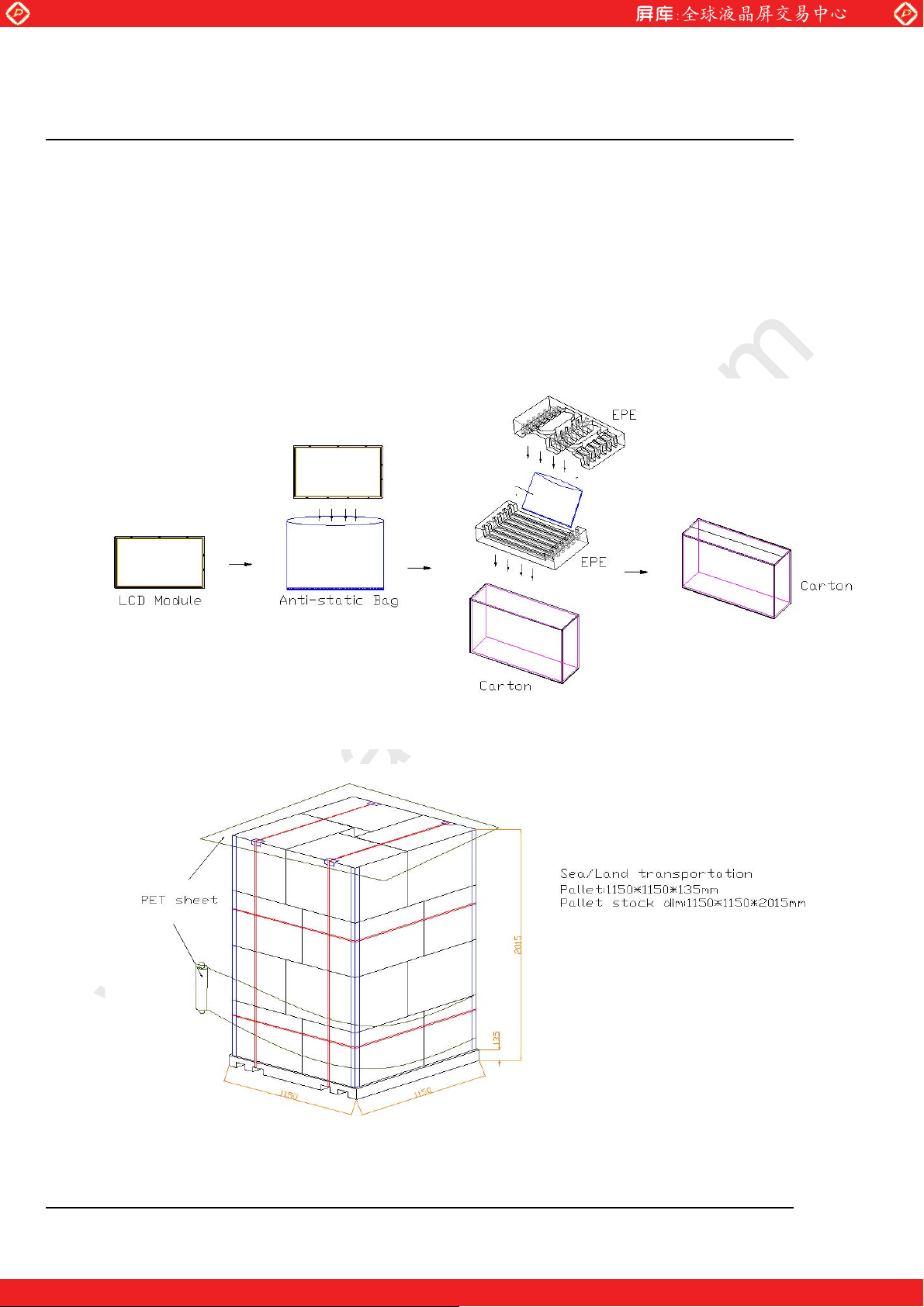

4.2 PACKING METHOD
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No20.
Rev.: 04 Page: 20 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
4.3 PACKAGING LABEL

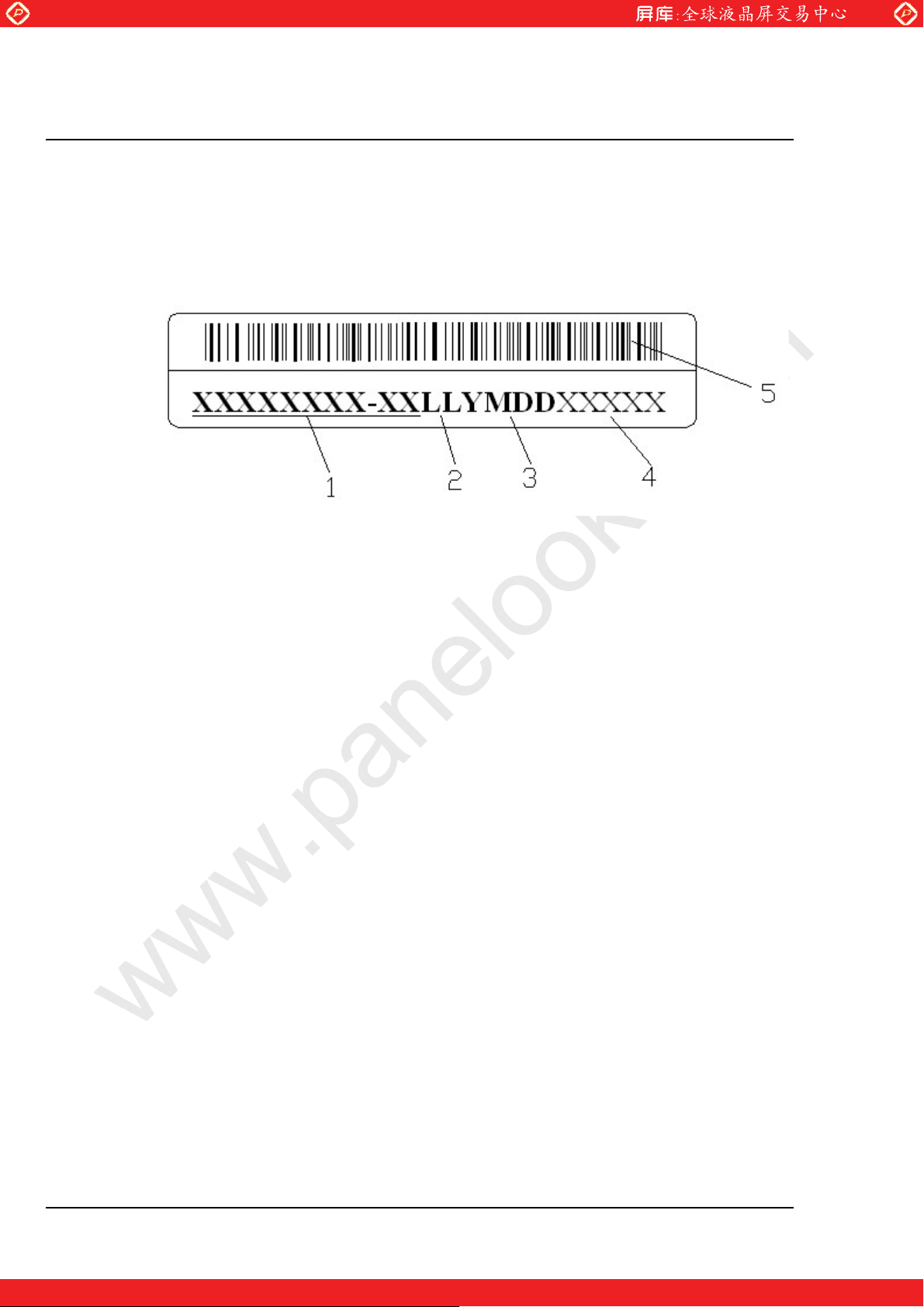

LCM Label
The barcode nameplate is pasted on each backlight as illustration, and its definitions are as following
explanation.
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No21.
1 : LCM Part No : 10190115-A0
2 : Make Spaces: C4
3 : Year 2010 : A, 2011 : B, 2012 : C,…… not include I,O,U,V
Month : 1 2 3 4 5 6 7 8 9 X Y Z
Date : 01 02 03 04 ……30 31
4 : Serial No:00001~99999 (Reset every day)
5 : Barcode Format (CODE 93)
Rev.: 04 Page: 21 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
5.0 PRECAUTIONS

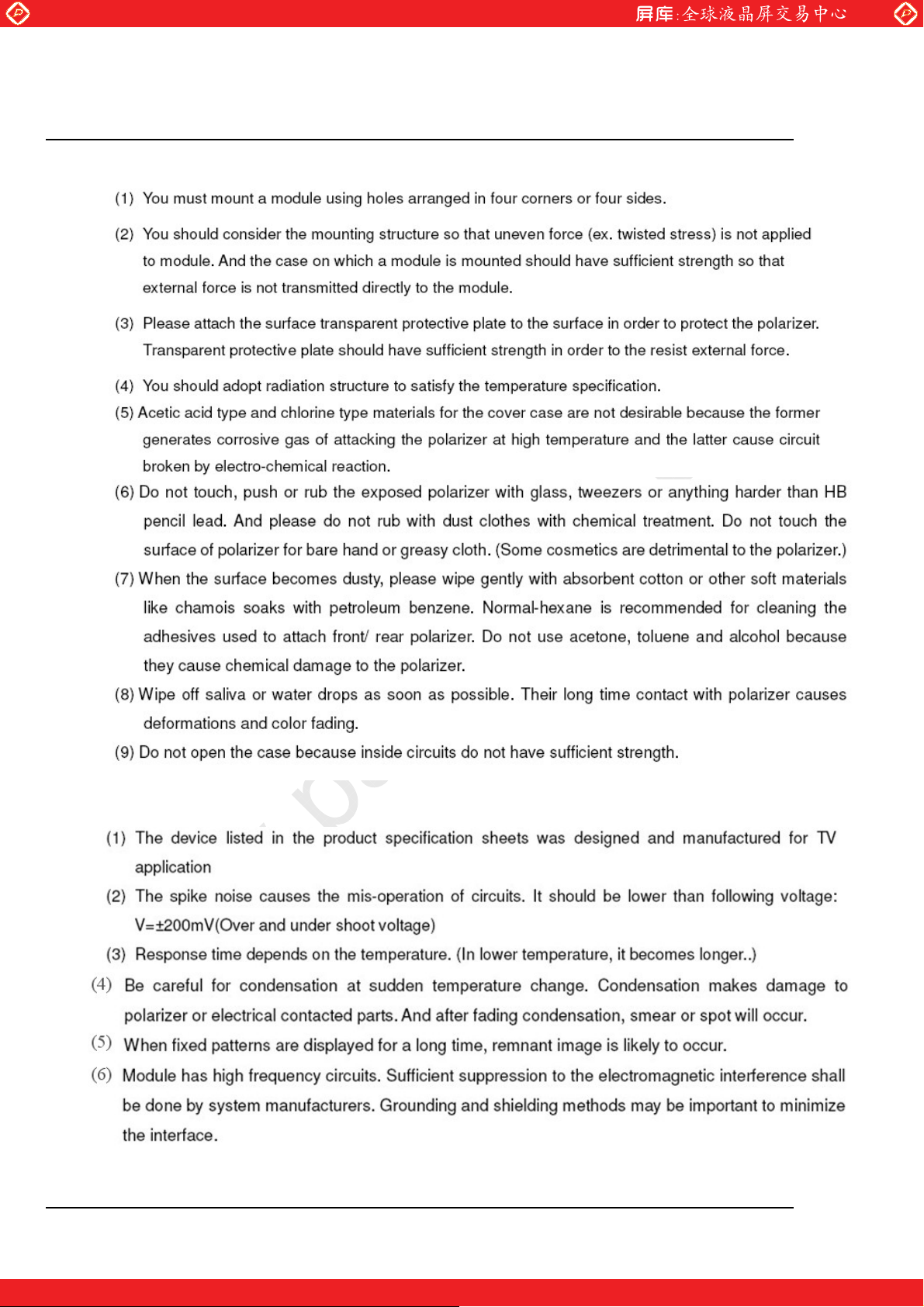

5.1 MOUNTING PRECAUTIONS
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No22.
5.2 OPERATING PRECAUTONS
(4)
Rev.: 04 Page: 22 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
5.3 ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make
certain that treatment persons are connected to ground through wristband etc. And don’t touch interface pin
directly.

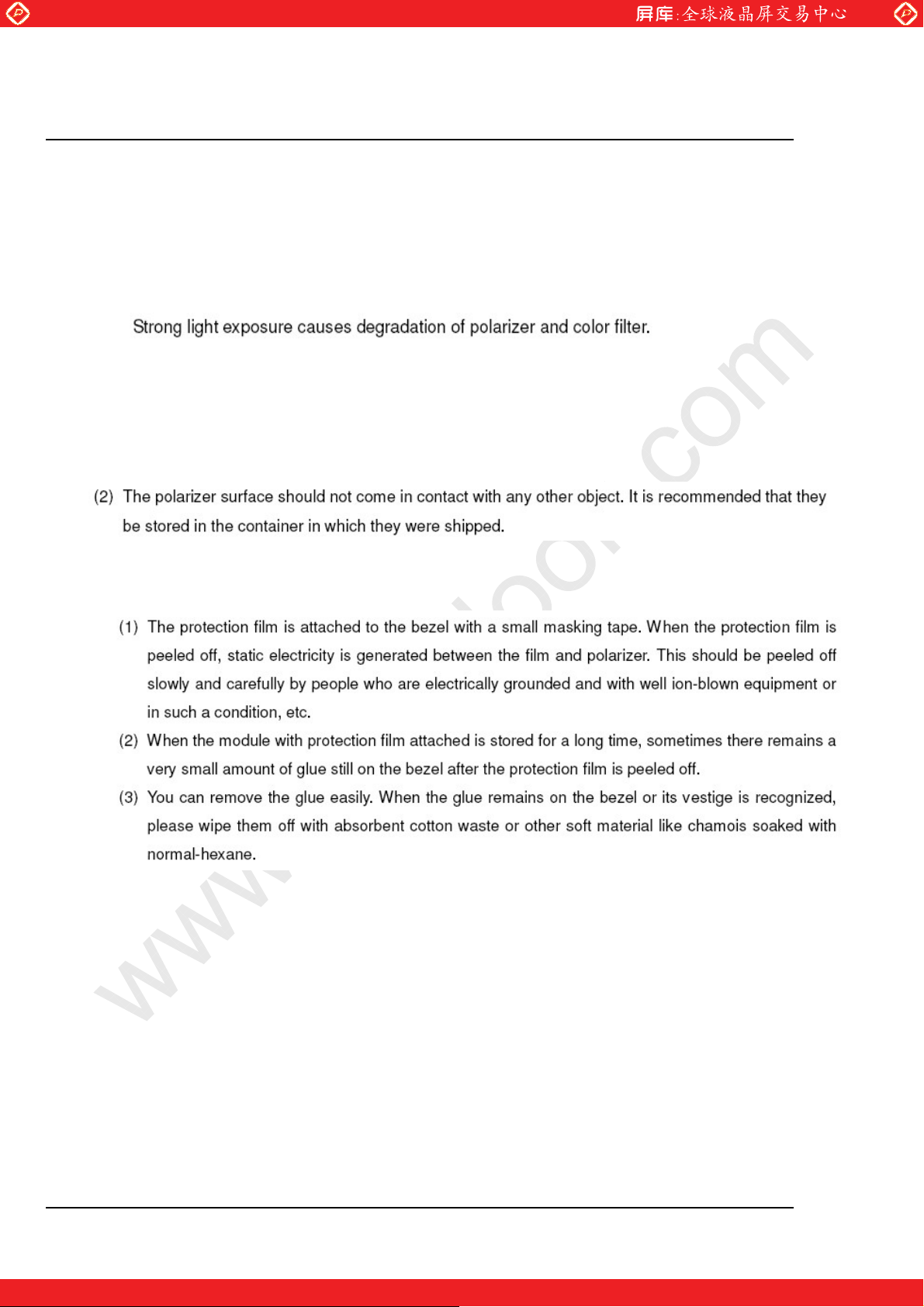

5.4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
5.5 STORAGE
ʳ When Storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 20кand 30к at Humidity between 25% and 75%
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No23.
5.6 HANDLING PRECAUTIONS FOR PROTECTION FILM
6.0 LOT NO. GENERATION
According to the customer supply specification
Rev.: 04 Page: 23 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center

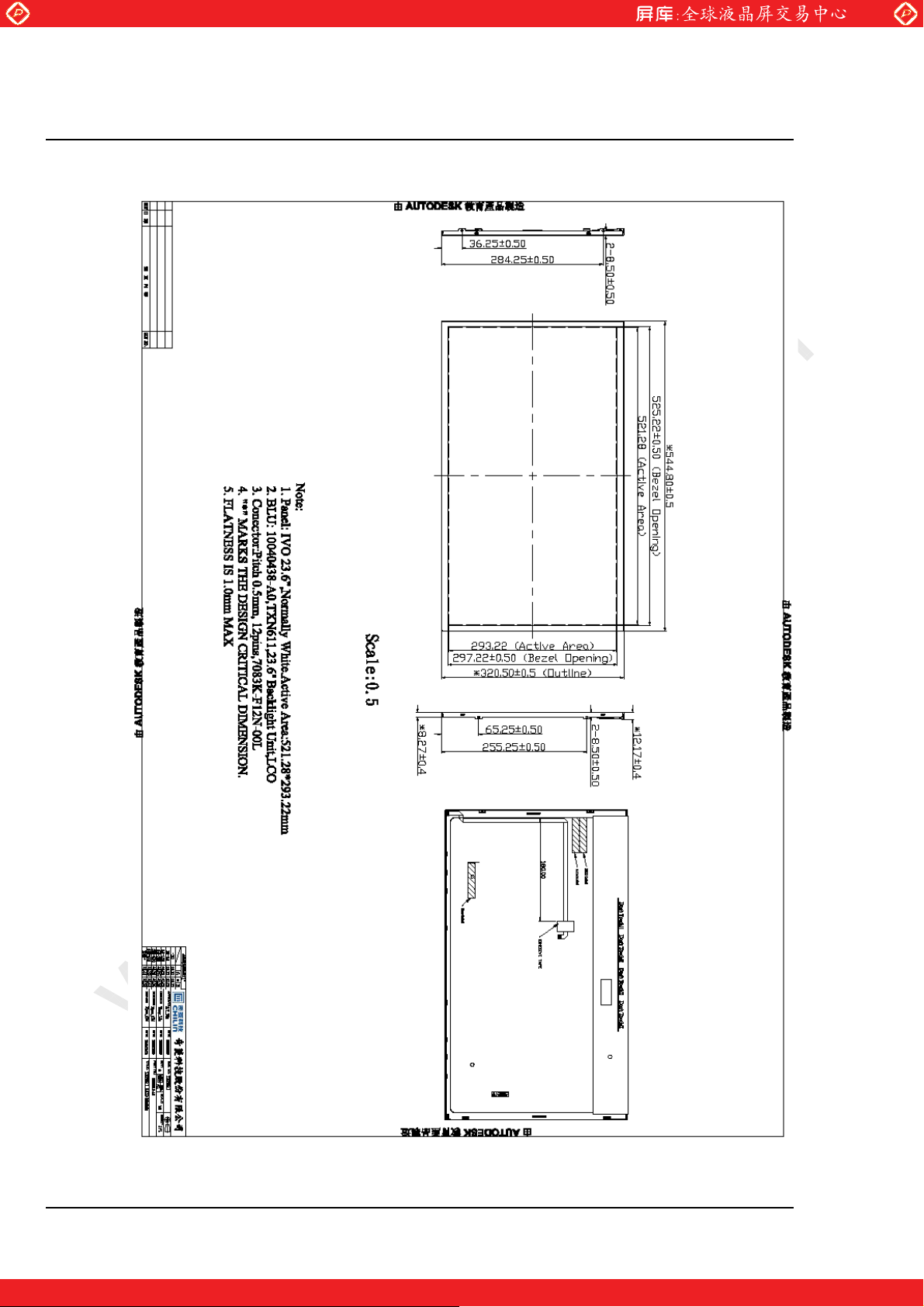

7.0 MECHANICAL CHARACTERISTICS
23.6” FHD Specifications (Preliminary)
www.panelook.com
Doc. No24.
Rev.: 04 Page: 24 of 24 Date: 2010/07/21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
