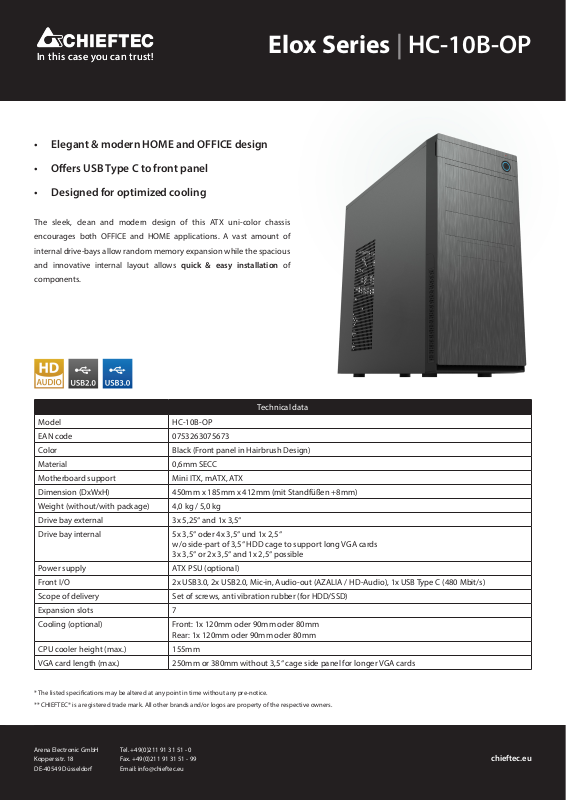

Chieftec HC-10B-OP User Manual

In this case you can trust!

Elox Series | HC-10B-OP

• Elegant & modern HOME and OFFICE design

• Oers USB Type C to front panel

• Designed for optimized cooling

The sleek, clean and modern design of this ATX uni-color chassis

encourages both OFFICE and HOME applications. A vast amount of

internal drive-bays allow random memory expansion while the spacious

and innovative internal layout allows quick & easy installation of

components.

Technical data

Model HC-10B-OP

EAN code 0753263075673

Color Black (Front panel in Hairbrush Design)

Material 0,6mm SECC

Motherboard support Mini ITX, mATX, ATX

Dimension (DxWxH) 450mm x 185mm x 412mm (mit Standfüßen +8mm)

Weight (without/with package) 4,0 kg / 5,0 kg

Drive bay external 3x 5,25“ and 1x 3,5“

Drive bay internal 5x 3,5“ oder 4x 3,5“ und 1x 2,5“

w/o side-part of 3,5“ HDD cage to support long VGA cards 3x 3,5“ or 2x 3,5“ and 1x 2,5“ possible

Power supply ATX PSU (optional)

Front I/O 2x USB3.0, 2x USB2.0, Mic-in, Audio-out (AZALIA / HD-Audio), 1x USB Type C (480 Mbit/s)

Scope of delivery Set of screws, anti vibration rubber (for HDD/SSD)

Expansion slots 7

Cooling (optional) Front: 1x 120mm oder 90mm oder 80mm

Rear: 1x 120mm oder 90mm oder 80mm

CPU cooler height (max.) 155mm

VGA card length (max.) 250mm or 380mm without 3,5“ cage side panel for longer VGA cards

* The listed specications may be altered at any point in time without any pre-notice.

** CHIEFTEC® is a registered trade mark. All other brands and/or logos are property of the respective owners.
