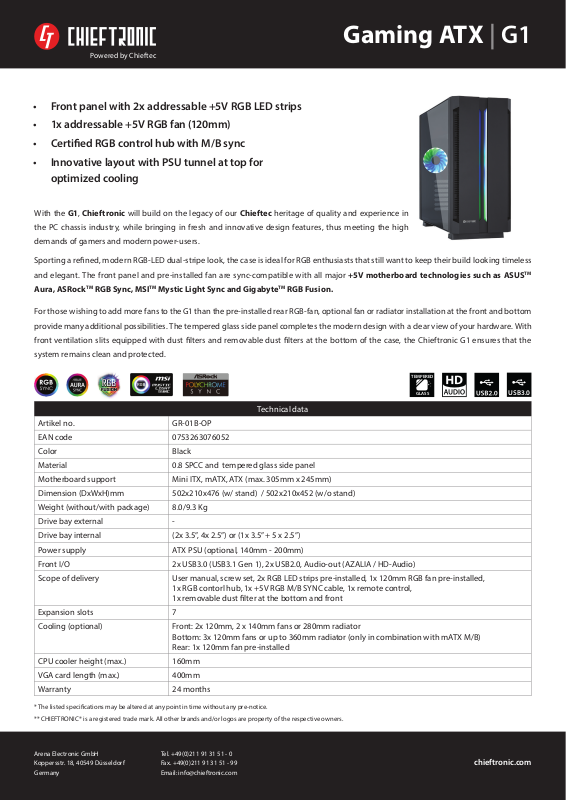

Gaming ATX | G1

GLASS

TEMPERED

USB3.0

• Front panel with 2x addressable +5V RGB LED strips

• 1x addressable +5V RGB fan (120mm)

• Certi ed RGB control hub with M/B sync

• Innovative layout with PSU tunnel at top for optimized cooling

With the G1, Chieftronic will build on the legacy of our Chieftec heritage of quality and experience in

the PC chassis industry, while bringing in fresh and innovative design features, thus meeting the high

demands of gamers and modern power-users.

Sporting a re ned, modern RGB-LED dual-stripe look, the case is ideal for RGB enthusiasts that still want to keep their build looking timeless

and elegant. The front panel and pre-installed fan are sync-compatible with all major +5V motherboard technologies such as ASUS

Aura, ASRock

For those wishing to add more fans to the G1 than the pre-installed rear RGB-fan, optional fan or radiator installation at the front and bottom

provide many additional possibilities. The tempered glass side panel completes the modern design with a clear view of your hardware. With

front ventilation slits equipped with dust  lters and removable dust  lters at the bottom of the case, the Chieftronic G1 ensures that the

system remains clean and protected.

RGB Sync, MSITM Mystic Light Sync and GigabyteTM RGB Fusion.

Technical data

Artikel no. GR-01B-OP

EAN code 0753263076052

Color Black

Material 0.8 SPCC and tempered glass side panel

Motherboard support Mini ITX, mATX, ATX (max. 305mm x 245mm)

Dimension (DxWxH)mm 502x210x476 (w/ stand) / 502x210x452 (w/o stand)

Weight (without/with package) 8.0/9.3 Kg

Drive bay external -

Drive bay internal (2x 3.5”, 4x 2.5”) or (1x 3.5” + 5 x 2.5”)

Power supply ATX PSU (optional, 140mm - 200mm)

Front I/O 2x USB3.0 (USB3.1 Gen 1), 2x USB2.0, Audio-out (AZALIA / HD-Audio)

Scope of delivery User manual, screw set, 2x RGB LED strips pre-installed, 1x 120mm RGB fan pre-installed,

1x RGB contorl hub, 1x +5V RGB M/B SYNC cable, 1x remote control, 1x removable dust  lter at the bottom and front

Expansion slots 7

Cooling (optional) Front: 2x 120mm, 2 x 140mm fans or 280mm radiator

Bottom: 3x 120mm fans or up to 360mm radiator (only in combination with mATX M/B) Rear: 1x 120mm fan pre-installed

CPU cooler height (max.) 160mm

VGA card length (max.) 400mm

Warranty 24 months

* The listed speci cations may be altered at any point in time without any pre-notice.

** CHIEFTRONIC® is a registered trade mark. All other brands and/or logos are property of the respective owners.
