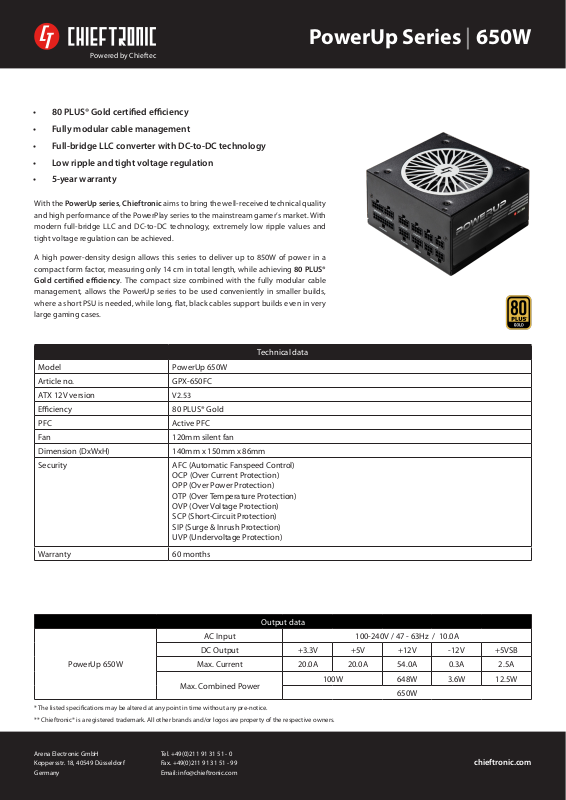

Chieftec GPX-650FC User Manual
PowerUp Series | 650W
Powered by Chieftec
• 80 PLUS® Gold certied eciency
• Fully modular cable management
• Full-bridge LLC converter with DC-to-DC technology
• Low ripple and tight voltage regulation
• 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality
and high performance of the PowerPlay series to the mainstream gamer’s market. With
modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and
tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a
compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS®
Gold certied eciency. The compact size combined with the fully modular cable
management, allows the PowerUp series to be used conveniently in smaller builds,
where a short PSU is needed, while long, at, black cables support builds even in very
large gaming cases.
Technical data
Model PowerUp 650W
Article no. GPX-650FC
ATX 12V version
V2.53
Eciency 80 PLUS® Gold
PFC Active PFC
Fan 120mm silent fan
Dimension (DxWxH) 140mm x 150mm x 86mm
Security AFC (Automatic Fanspeed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
Warranty 60 months
Output data
AC Input 100-240V / 47 - 63Hz / 10.0A
DC Output +3.3V +5V +12V -12V +5VSB
PowerUp 650W
* The listed specications may be altered at any point in time without any pre-notice.
** Chieftronic® is a registered trademark. All other brands and/or logos are property of the respective owners.
Max. Current 20.0A 20.0A 54.0A 0.3A 2.5A
Max. Combined Power
100W 648W 3.6W 12.5W
650W
In
Arena Electronic GmbH
Koppersstr. 18, 40549 Düsseldorf
Germany
Tel. +49(0)211 91 31 51 - 0
Fax. +49(0)211 91 31 51 - 99
Email: info@chieftronic.com
chieftronic.com
Powered by Chieftec
PowerUp Series | 650W
Cable Connectors Length (mm)
24 PIN ATX 1 650
8 PIN PCIe (6+2) 2 2x 500
8 PIN CPU (4+4) 2 650/150
Certication
SATA 9 3x 500/150/150
Molex 3
500/150/150/150
Floppy 1
In
* The listed specications may be altered at any point in time without any pre-notice.
** Chieftronic® is a registered trademark. All other brands and/or logos are property of the respective owners.
Arena Electronic GmbH
Koppersstr. 18, 40549 Düsseldorf
Germany
Tel. +49(0)211 91 31 51 - 0
Fax. +49(0)211 91 31 51 - 99
Email: info@chieftronic.com
Version: 11/2020
chieftronic.com
