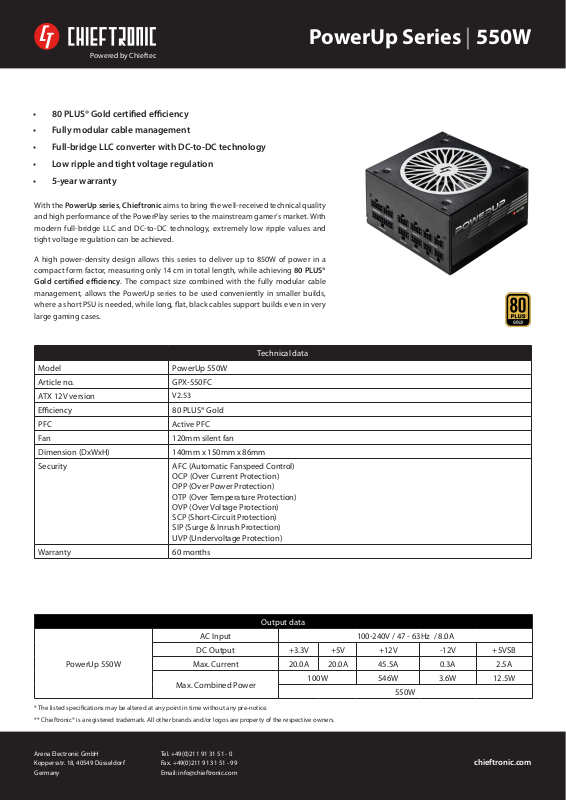

Chieftec GPX-550FC User Manual

PowerUp Series | 550W
Powered by Chieftec
80 PLUS® Gold certied eciency
Fully modular cable management
Full-bridge LLC converter with DC-to-DC technology
Low ripple and tight voltage regulation
5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certied eciency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, at, black cables support builds even in very large gaming cases.
Technical data
Model PowerUp 550W
Article no. GPX-550FC
ATX 12V version
V2.53
Eciency 80 PLUS® Gold
PFC Active PFC
Fan 120mm silent fan
Dimension (DxWxH) 140mm x 150mm x 86mm
Security AFC (Automatic Fanspeed Control)
OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection)
Warranty 60 months
Output data
AC Input 100-240V / 47 - 63Hz / 8.0A
DC Output +3.3V +5V +12V -12V +5VSB
PowerUp 550W
* The listed specications may be altered at any point in time without any pre-notice.
** Chieftronic® is a registered trademark. All other brands and/or logos are property of the respective owners.
Max. Current 20.0A 20.0A 45.5A 0.3A 2.5A
Max. Combined Power
100W 546W 3.6W 12.5W
550W
In
Arena Electronic GmbH Koppersstr. 18, 40549 Düsseldorf Germany
Tel. +49(0)211 91 31 51 - 0 Fax. +49(0)211 91 31 51 - 99 Email: info@chieftronic.com
chieftronic.com
Powered by Chieftec
PowerUp Series | 550W
Cable Connectors Length (mm)
24 PIN ATX 1 650
8 PIN PCIe (6+2) 2 2x 500
8 PIN CPU (4+4) 2 650/150
Certication
SATA 6 2x 500/150/150
Molex 3
500/150/150/150
Floppy 1
In
* The listed specications may be altered at any point in time without any pre-notice.
** Chieftronic® is a registered trademark. All other brands and/or logos are property of the respective owners.
Arena Electronic GmbH Koppersstr. 18, 40549 Düsseldorf Germany
Tel. +49(0)211 91 31 51 - 0 Fax. +49(0)211 91 31 51 - 99 Email: info@chieftronic.com
Version: 11/2020
