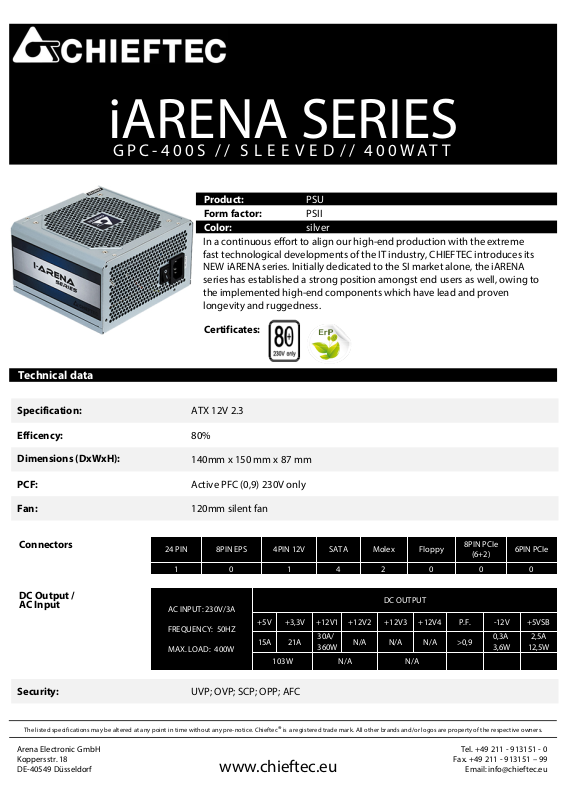

Chieftec GPC-400S User Manual

iARENA SERIES

GPC-400S // S L E E V E D // 400WATT

Technical data

Specification:

Efficency:

Dimensions (DxWxH):

Product:

Form factor:

Color:

In a continuous effort to align our high-end production with the extreme
fast technological developments of the IT industry, CHIEFTEC introduces its
NEW iARENA series. Initially dedicated to the SI market alone, the iARENA
series has established a strong position amongst end users as well, owing to
the implemented high-end components which have lead and proven
longevity and ruggedness.

Certificates:

ATX 12V 2.3

80%

140mm x 150 mm x 87 mm

PSU

PSII

silver

PCF:

Fan:

Connectors

DC Output /
AC Input

Security:

The listed specifications may be altered at any point in time without any pre-notice. Chieftec® is a registered trade mark. All other brands and/or logos are property of the respective owners.

Arena Electronic GmbH
Koppersstr. 18
DE-40549 Düsseldorf

Active PFC (0,9) 230V only

120mm silent fan

24 PIN 8PIN EPS 4PIN 12V SATA Molex Floppy

10 142000

AC INPUT: 230V/3A

FREQUENCY: 50HZ

MAX. LOAD: 400W

UVP; OVP; SCP; OPP; AFC

+5V +3,3V +12V1 +12V2 +12V3 +12V4 P.F. -12V +5VSB

15A 21A

103W N/A N/A

30A/
360W

N/A N/A N/A >0,9

DC OUTPUT

www.chieftec.eu

8PIN PCIe

(6+2)

Tel. +49 211 - 913151 - 0

Fax. +49 211 - 913151 – 99

Email: [e-mail]

6PIN PCIe

0,3A
3,6W

2,5A

12,5W
