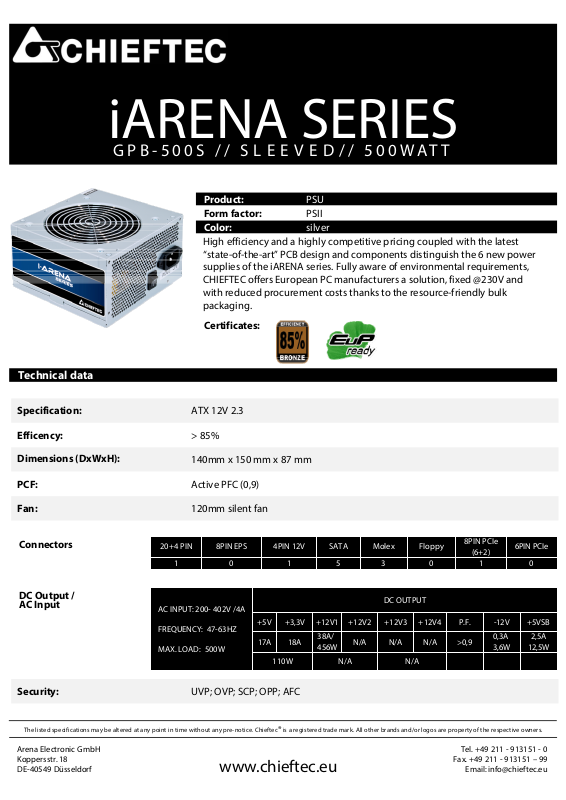

Chieftec GPB-500S User Manual
iARENA SERIES
GPB-500S // S L E E V E D // 500WATT
Technical data
Specification:
Efficency:
Dimensions (DxWxH):
Product:
Form factor:
Color:
High efficiency and a highly competitive pricing coupled with the latest
“state-of-the-art” PCB design and components distinguish the 6 new power
supplies of the iARENA series. Fully aware of environmental requirements,
CHIEFTEC offers European PC manufacturers a solution, fixed @230V and
with reduced procurement costs thanks to the resource-friendly bulk
packaging.
Certificates:
ATX 12V 2.3
> 85%
140mm x 150 mm x 87 mm
PSU
PSII
silver
PCF:
Fan:
Connectors
DC Output /
AC Input
Security:
The listed specifications may be altered at any point in time without any pre-notice. Chieftec® is a registered trade mark. All other brands and/or logos are property of the respective owners.
Arena Electronic GmbH
Koppersstr. 18
DE-40549 Düsseldorf
20+4 PIN 8PIN EPS 4PIN 12V SATA Molex Floppy
AC INPUT: 200- 402V /4A
FREQUENCY: 47-63HZ
MAX. LOAD: 500W
Active PFC (0,9)
120mm silent fan
8PIN PCIe
(6+2)
10 153010
DC OUTPUT
+5V +3,3V +12V1 +12V2 +12V3 +12V4 P.F. -12V +5VSB
17A 18A
110W N/A N/A
UVP; OVP; SCP; OPP; AFC
www.chieftec.eu
38A/
456W
N/A N/A N/A >0,9
Tel. +49 211 - 913151 - 0
Fax. +49 211 - 913151 – 99
Email: info@chieftec.eu
6PIN PCIe
0,3A
3,6W
2,5A
12,5W
