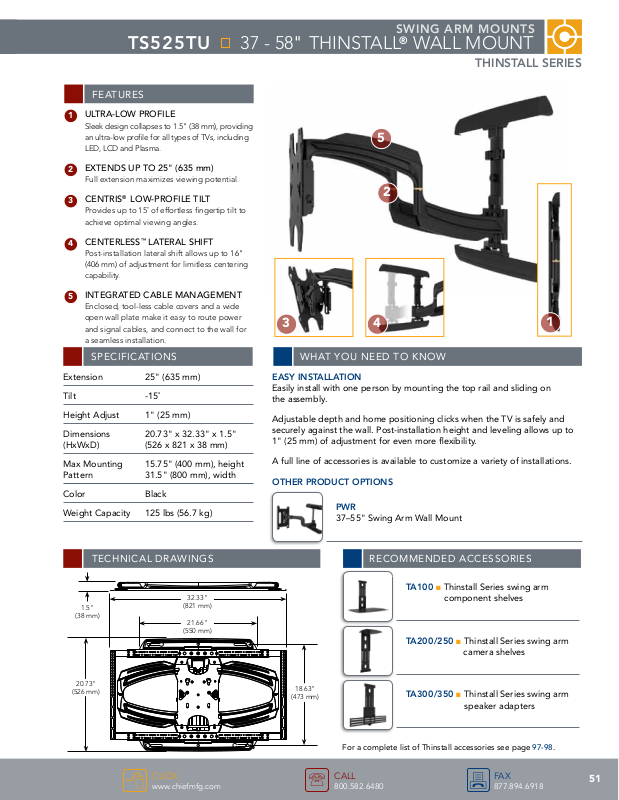

ts525tu 37 - 58" THINSTALL® WALL MOUNT
FEATURES
ultrA-loW proFilE
1
Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
EXtEnds up to 25" (635 mm)
2
Full extension maximizes viewing potential.
CEntris® loW-proFilE tilt
3
Provides up to 15˚ of effortless fingertip tilt to achieve optimal viewing angles.
CEntErlEss™ lAtErAl sHiFt
4
Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability.
intEgrAtEd CAblE MAnAgEMEnt
5
Enclosed, tool-less cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
swing arM Mounts
tHinstall series
5
2
3
4
1
SPECIFICATIONS
Extension 25" (635 mm)
Tilt -15˚
Height Adjust 1" (25 mm)
Dimensions 20.73" x 32.33" x 1.5" (HxWxD) (526 x 821 x 38 mm)
Max Mounting 15.75" (400 mm), height Pattern 31.5" (800 mm), width
Color Black
Weight Capacity 125 lbs (56.7 kg)
TECHNICAL DRAWINGS
32.33"
1.5"
(38 mm)
(821 mm)
21.66"
(550 mm)
easy installation
Easily install with one person by mounting the top rail and sliding on the assembly.
Adjustable depth and home positioning clicks when the TV is safely and securely against the wall. Post-installation height and leveling allows up to 1" (25 mm) of adjustment for even more flexibility.
A full line of accessories is available to customize a variety of installations.
otHer ProDuct oPtions
Pwr
37–55" Swing Arm Wall Mount
RECOMMENDED ACCESSORIES
ta100 n Thinstall Series swing arm
component shelves
ta200/250
camera shelves
n Thinstall Series swing arm
20.73"
(526 mm)
CLICK
www.chiefmfg.com
18.63"
(473 mm)
ta300/350 n Thinstall Series swing arm
speaker adapters
For a complete list of Thinstall accessories see page 97-98.
