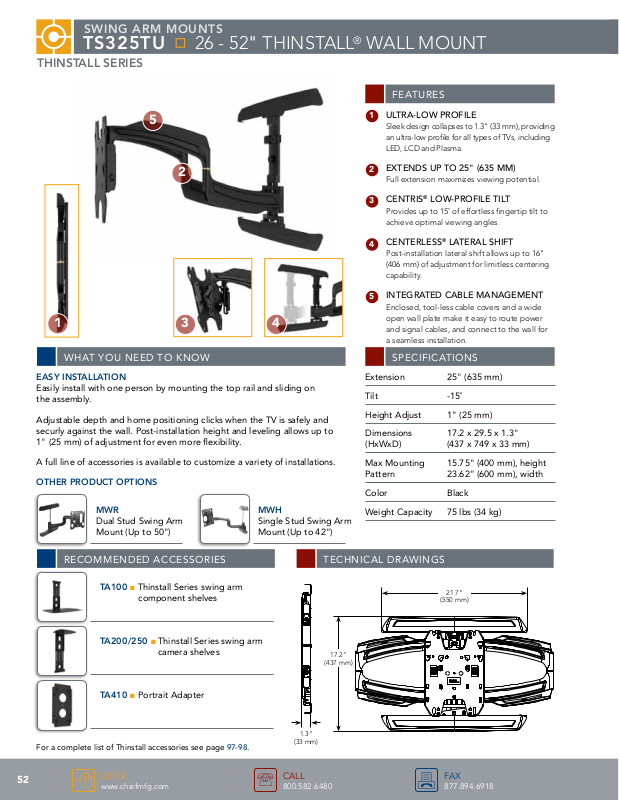

Chief TS325TU Datasheet

swing arM Mounts

ts325tu 26 - 52" THINSTALL® WALL MOUNT

tHinstall series

1

FEATURES

ultrA-loW proFilE

5

2

3

4

1

Sleek design collapses to 1.3" (33 mm), providing
an ultra-low profile for all types of TVs, including
LED, LCD and Plasma.

EXtEnds up to 25" (635 MM)

2

Full extension maximizes viewing potential.

CEntris® loW-proFilE tilt

3

Provides up to 15˚ of effortless fingertip tilt to
achieve optimal viewing angles.

CEntErlEss® lAtErAl sHiFt

4

Post-installation lateral shift allows up to 16"
(406 mm) of adjustment for limitless centering
capability.

intEgrAtEd CAblE MAnAgEMEnt

5

Enclosed, tool-less cable covers and a wide
open wall plate make it easy to route power
and signal cables, and connect to the wall for
a seamless installation.

WHAT YOU NEED TO KNOW

easy installation

Easily install with one person by mounting the top rail and sliding on
the assembly.

Adjustable depth and home positioning clicks when the TV is safely and
securly against the wall. Post-installation height and leveling allows up to
1" (25 mm) of adjustment for even more flexibility.

A full line of accessories is available to customize a variety of installations.

otHer ProDuct oPtions

Mwr

Dual Stud Swing Arm
Mount (Up to 50")

RECOMMENDED ACCESSORIES

ta100 n Thinstall Series swing arm

component shelves

ta200/250

camera shelves

n Thinstall Series swing arm

MwH

Single Stud Swing Arm
Mount (Up to 42")

TECHNICAL DRAWINGS

(437 mm)

17.2"

SPECIFICATIONS

Extension 25" (635 mm)

Tilt -15˚

Height Adjust 1" (25 mm)

Dimensions 17.2 x 29.5 x 1.3"
(HxWxD) (437 x 749 x 33 mm)

Max Mounting 15.75" (400 mm), height
Pattern 23.62" (600 mm), width

Color Black

Weight Capacity 75 lbs (34 kg)

21.7"

(550 mm)

ta410 n Portrait Adapter

For a complete list of Thinstall accessories see page 97-98.
