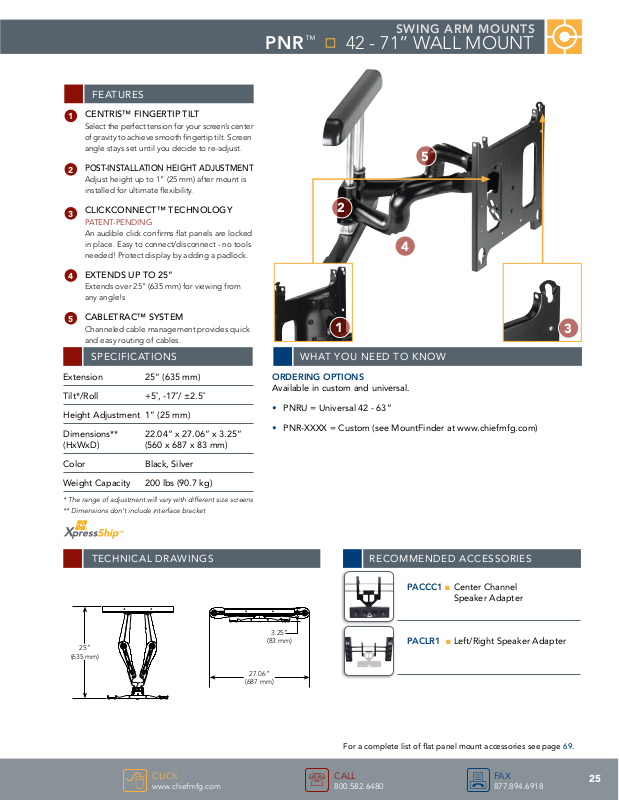

Chief Swing Arm Mounts User Manual

FEATURES

CEntris™ FingErtip tilt

1

Select the perfect tension for your screen’s center
of gravity to achieve smooth fingertip tilt. Screen
angle stays set until you decide to re-adjust.

post-instAllAtion HEigHt AdjustMEnt

2

Adjust height up to 1” (25 mm) after mount is
installed for ultimate flexibility.

sWInG aRm mounts

pnR™ 42 - 71” WALL MOUNT

5

CliCkConnECt™ tECHnologY

3

PATENT-PENDING

An audible click confirms flat panels are locked
in place. Easy to connect/disconnect - no tools
needed! Protect display by adding a padlock.

EXtEnds up to 25”

4

Extends over 25” (635 mm) for viewing from
any angle!s

CAblEtrAC™ sYstEM

5

Channeled cable management provides quick
and easy routing of cables.

SPECIFICATIONS

Extension 25” (635 mm)

Tilt*/Roll +5˚, -17˚/ ±2.5˚

Height Adjustment 1” (25 mm)

Dimensions** 22.04” x 27.06” x 3.25”
(HxWxD) (560 x 687 x 83 mm)

Color Black, Silver

Weight Capacity 200 lbs (90.7 kg)

* The range of adjustment will vary with different size screens

** Dimensions don’t include interface bracket

2

4

1

WHAT YOU NEED TO KNOW

oRDeRInG optIons

Available in custom and universal.

• PNRU = Universal 42 - 63”

• PNR-XXXX = Custom (see MountFinder at www.chiefmfg.com)

3

TECHNICAL DRAWINGS

25”

(635 mm)

CLICK

www.chiefmfg.com

(83 mm)

27.06”

(687 mm)

3.25”

RECOMMENDED ACCESSORIES

paccc1 n Center Channel

Speaker Adapter

paclR1

For a complete list of flat panel mount accessories see page 69.

CALL

800.582.6480

n Left/Right Speaker Adapter

FAX

877.894.6918

25
