Chief SLB093 Users Manual

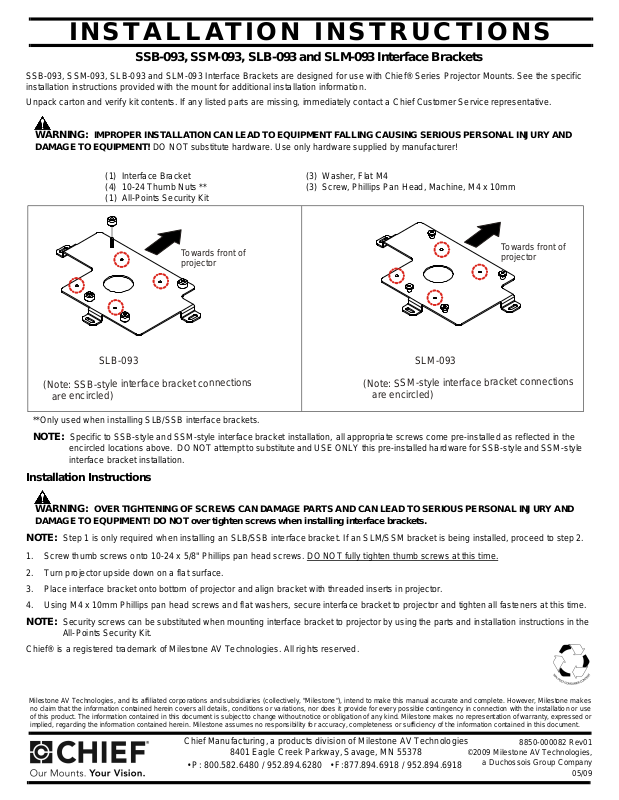

INSTALLATION INSTRUCTIONS
(No
t
e
:
SSM
-
sty
lei
n
t
erf
ace
b
r
a
cke
t
c
o
n
n
e
cti
o
n
s
are
enc
i
rcled
)
(
e
bra
c
k
e
t
c
o
n
n
e
c
tio
n
s
a
r
een
c
ircle
d
)
Towards front of
Towards front of
SSB-093, SSM-093, SLB-093 and SLM-093 Interface Brackets
SSB-093, SSM-093, SLB-093 and SLM-093 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing , immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (3) Washer, Flat M4
(4) 10-24 Thum b Nuts ** (3) Screw, Phillips Pan Head, Machine, M4 x 10mm
(1) All-Points Security Kit
projector
projector
SLB-093 SLM-093
fac
inter
-style
SSB
Note:
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locati ons abov e. DO NOT attempt t o subst itute a nd USE ONLY thi s pre-in stalled hardware for SSB-sty le and SSM-st yle
interface bracket installation.
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place interface bracket onto bottom of projector and align bracket with threaded inserts in projector.
4. Using M4 x 10mm Phillips pan head screws and flat washers, secure interface bracket to projector and tighten all fasteners at this time.
NOTE: Security sc rews can be sub stit uted when mount i ng interfa ce br acket to proj ec tor by using t he parts and inst allat ion in structi ons in th e
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
Milestone AV Technologies, and its affiliated co rpo rat ions a nd s ubs id iaries (collectively, "Milestone"), intend to mak e th is ma nual ac curate and complete. However, Milestone mak es
no claim that the information contained h erein co vers all details, conditions or variations, nor does it provide for every pos sible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
©2009 Milest one AV Techn ologies,
a Duchossois Gr oup Company
8850-0 00 08 2 R ev 01
05/09
