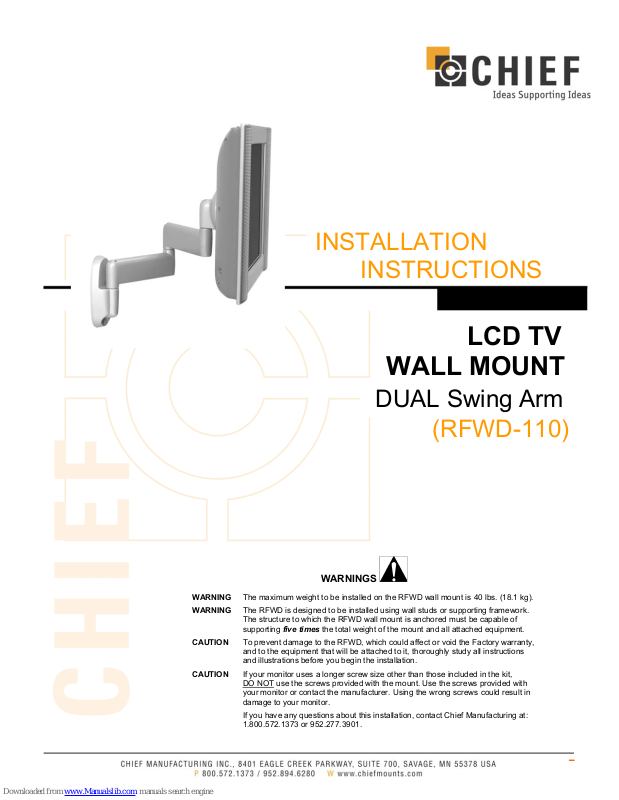

CHIEF RFWD-110 Installation Instructions Manual

V

INSTALLATION

INSTRUCTIONS

LCD T

WALL MOUNT

DUAL Swing Arm

(RFWD-110)

WARNING The maximum weight to be installed on the RFWD wall mount is 40 lbs. (18.1 kg).

WARNING The RFWD is designed to be installed using wall studs or supporting framework.

CAUTION To prevent damage to the RFWD, which could affect or void the Factory warranty,

CAUTION If your monitor uses a longer screw size other than those included in the kit,

If you have any questions about this installation, contact Chief Manufacturing at:

WARNINGS

The structure to which the RFWD wall mount is anchored must be capable of
supporting five times the total weight of the mount and all attached equipment.

and to the equipment that will be attached to it, thoroughly study all instructions
and illustrations before you begin the installation.

DO NOT
your monitor or contact the manufacturer. Using the wrong screws could result in
damage to your monitor.

1.800.572.1373 or 952.277.3901.

use the screws provided with the mount. Use the screws provided with

1

ASSEMBLY DIAGRAM

(op

LCD TV WALL MOUNT DUAL Swing Arm (RFWD-110)

20

40 or 60

tional)

30 or 50 (optional)

10

80

70

100

110

Cable Management Slots

90

120

PART PART NAME QTY NOTES

10 SINGLE SWING ARM 1

F

20 SCREW, PHILLIPS PAN HEAD, M4 X 12MM 4

30 SCREW, PHILLIPS PAN HEAD, M4 X 20MM (USE WITH 40) * 4

40 3/8” SPACER 4

50 SCREW, PHILLIPS PAN HEAD, M4 X 30MM (USE WITH 60) ** 4

60 3/4” SPACER 4

70 WASHER 2

80 SCREW, WOOD 2

90 BRACKET, WALL 1

100 PLATE, COVER, CABLE MANAGEMENT 2

110 SCREW, COVER, CABLE MANAGEMENT 4

120 SCREW, SET 1

LUSH

MOUNT

RECESSED

MOUNT

• *Use M4 x 20mm screws (30) with spacers (40) for recessed applications.

• **Use M4 x 30mm screws (50) with spacers (60) for recessed applications.

2
