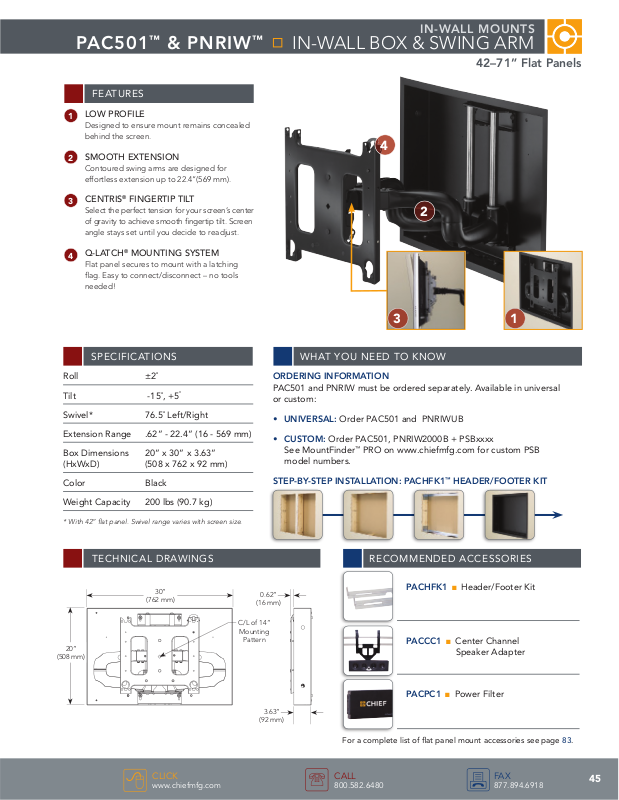

Chief PNRIWU Datasheet

IN-WALL MOUNTS

PAC501™ & PNRIW™ ■ IN-WALL BOX & SWING ARM

42–71” Flat Panels

FEATURES

LOW PROFILE

1

Designed to ensure mount remains concealed
behind the screen.

SMOOTH EXTENSION

2

Contoured swing arms are designed for
effortless extension up to 22.4”(569 mm).

CENTRIS® FINGERTIP TILT

3

Select the perfect tension for your screen’s center
of gravity to achieve smooth fi ngertip tilt. Screen
angle stays set until you decide to readjust.

Q-LATCH® MOUNTING SYSTEM

4

Flat panel secures to mount with a latching
fl ag. Easy to connect/disconnect – no tools
needed!

4

2

SPECIFICATIONS

Roll ±2˚

Tilt -15˚, +5

º

Swivel* 76.5˚ Left/Right

Extension Range .62” - 22.4” (16 - 569 mm)

Box Dimensions 20” x 30” x 3.63”
(HxWxD) (508 x 762 x 92 mm)

Color Black

Weight Capacity 200 lbs (90.7 kg)

* With 42” fl at panel. Swivel range varies with screen size.

TECHNICAL DRAWINGS

30”

(762 mm)

3

1

WHAT YOU NEED TO KNOW

ORDERING INFORMATION

PAC501 and PNRIW must be ordered separately. Available in universal
or custom:

• UNIVERSAL: Order PAC501 and PNRIWUB

• CUSTOM: Order PAC501, PNRIW2000B + PSBxxxx

See MountFinder

™

PRO on www.chiefmfg.com for custom PSB

model numbers.

STEP-BY-STEP INSTALLATION: PACHFK1™ HEADER/FOOTER KIT

RECOMMENDED ACCESSORIES

0.62”

(16 mm)

PACHFK1 ■ Header/Footer Kit

20”

(508 mm)

CLICK

www.chiefmfg.com

C/L of 14”

Mounting

Pattern

(92 mm)

3.63”

PACCC1 ■ Center Channel

Speaker Adapter

PACPC1 ■ Power Filter

For a complete list of fl at panel mount accessories see page 83.

CALL

800.582.6480

FAX

877.894.6918

45
