INSTALLATION INSTRUCTIONS
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Large Flat Panel In-Wall Swing Arm Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PNRIW / PNRIWU
Page 2
PNRIW / PNRIWU Installation Instructions
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cruciforme
DISCLAIMER
CSAV, Inc., and its affiliated corporations and subsidiaries
(collectively, "CSAV"), intend to make this manual accurate and
complete. However, CSAV makes no claim that the information
contained herein covers all details, conditions or variations, nor
does it provide for every possible contingency in connection
with the installation or use of this product. The information
contained in this document is subject to change without notice
or obligation of any kind. CSAV makes no representation of
warranty, expressed or implied, regarding the information
contained herein. CSAV assumes no responsibility for
accuracy, completeness or sufficiency of the information
contained in this document.
WARNING:
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING:
for the installation of this kit can re sul t i n serious personal
injury or damage to equipment! It is the installer’s
responsibility to make sure the structure to which this kit is
attached can support five times the combined weight of all
equipment.
Failure to read, thoroughly understand, and
Failure to provide adequate structural strength
IMPORTANT WARNINGS AND
CAUTIONS!
WARNING:
serious injury or death if you do not follow the instructions.
CAUTION:
damage or destruction of equipment if you do not follow the
corresponding instructions.
A WARNING alerts you to the possibility of
A CAUTION alerts you to the possibility of
LEGEND
WARNING:
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to this accessory does not exceed
200 lbs (90.72 kg).
Exceeding the weight capacity can result in
2
Page 3
Installation Instructions PNRIW / PNRIWU
x1
I/M
(3/16")
K (1)
3/16"
A (1)
G (4)
F (16)
H (1)
M(4)
L (4)
J (1)
B (4)
2 short (SIDES)
2 long
D (4)
5/16"
C (4)
5/16-18 x 5/8"
E (4)
5/16"
TOOLS REQUIRED FOR INSTALLATION AND PARTS
Figure 1
3
Page 4
PNRIW / PNRIWU Installation Instructions
1
1
1
Upper Mounting Bracket
Lower Mounting Bracket
(C) x4
(E) x4
(D) x4
2
(F) x 12
1
(B) x 4
3
2
Installation
The following procedure assumes that a Chief Model PAC501
In-Wall accessory has previously been installed following the
installation instructions provided with the PAC501. If a PAC501
is not installed or there are any other questions regarding the
installation of this accessory, immediately contact a Chief
Customer Service representative by calling 800-582-6480 or by
visiting www.chiefmfg.com.
WARNING:
MOUNT FALLING CAUSING SEVERE PERSONAL INJUR Y
OR DAMAGE TO EQUIPMENT! DO NOT deviate from
installation instructions provided. DO NOT substitute
hardware.

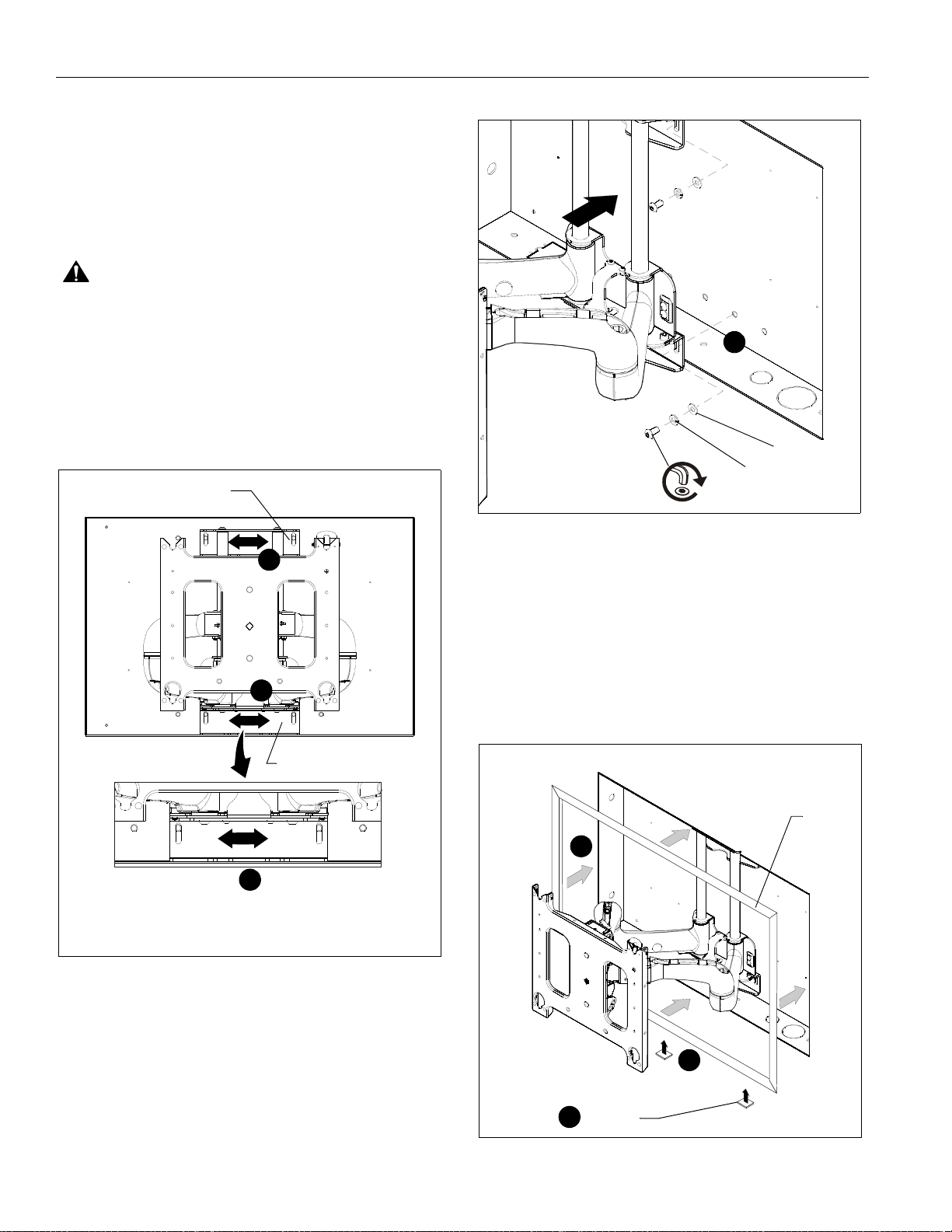

1. Align mounting holes in swing arm UPPER and LOWER
mounting brackets with four mounting holes in PAC501.
(See Figure 2)
IMPROPER INSTALLATION CAN LEAD TO
Figure 3
Trim Installation
To install optional trim;
1. Remove paper covering adhesive and affix three tape
squares (F) to inside lower flange of each trim piece (B).
(See Figure 4)
2. Orient trim pieces (B) as shown in figure below.
(See Figure 4)
3. Remove paper covering adhesive back from tape squares
(F) on trim and press trim (B) against inner wall of box.
(See Figure 4)
Figure 2
2. Secure swing arm to PAC501 using four button head cap
screws (C), four lock washers (D) and four flat washers (E).
(See Figure 3)
4
Figure 4
Page 5
Installation Instructions PNRIW / PNRIWU
1
2
3
3
2
Remove pin
and nuts and
move to lower holes.
A padlock or bolt may
be placed through latch
holes
Display Installation
WARNING:
MOUNT FALLING CAUSING SEVERE PERSONAL INJUR Y
OR DAMAGE TO EQUIPMENT! DO NOT install display in a
manner other than that specified by the manufacturer. Certain
displays may require the use of an interface bracket for
proper installation of the display. If an interface bracket is not
installed or there are any other questions regarding the
installation of the display, immediately contact a Chief
Customer Service representative by calling 800-582-6480 or
by visiting www.chiefmfg.com.
WARNING:
MOUNT FALLING CAUSING SEVERE PERSONAL INJUR Y
OR DAMAGE TO EQUIPMENT. Displays can weigh in
excess of 40 lbs (18.1kg). ALWAYS use two people and
proper lifting techniques when installing display.
WARNING:
MOUNT FALLING CAUSING SEVERE PERSONAL INJUR Y
OR DAMAGE TO EQUIPMENT. Make sure mounting buttons
on display are properly seated in mounting holes in faceplate.
To install display:

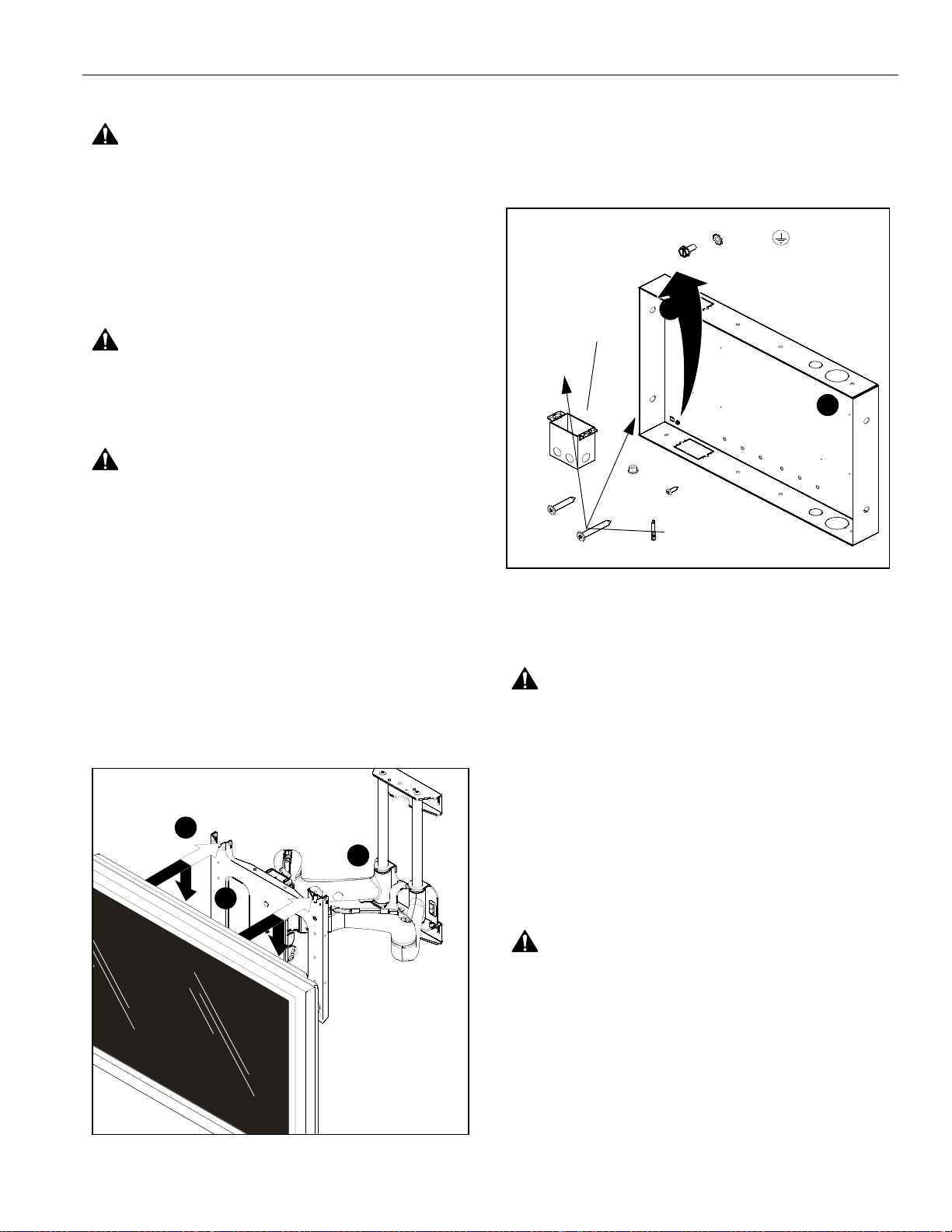

1. Move mount faceplate to extended position by grasping
faceplate and pulling outward away from wall.
(See Figure 5)
2. While supporting both sides of display, align four mounting
buttons on display or interface bracket with four mounting
holes in faceplate. (See Figure 5)
3. Lower display into place listening for audible "click" to
ensure recessed area of mounting buttons are properly
seated in lower area of mounting holes and "click lock"
mechanism has engaged. (See Figure 5) and
(See Figure 6)
IMPROPER INSTALLATION CAN LEAD TO
IMPROPER INSTALLATION CAN LEAD TO
IMPROPER INSTALLATION CAN LEAD TO
NOTE:
Holes are provided in the faceplate for use with a
padlock or similar locking device, if desired. In addition,
the pin and nut may be removed from the upper holes
and moved to the lower holes for use as a more
permanent locking device. (See Figure 6)
Figure 6
Cable Management
CABLE MANAGEMENT
WARNING:
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT! Make sure cables do not run through pinch
points.

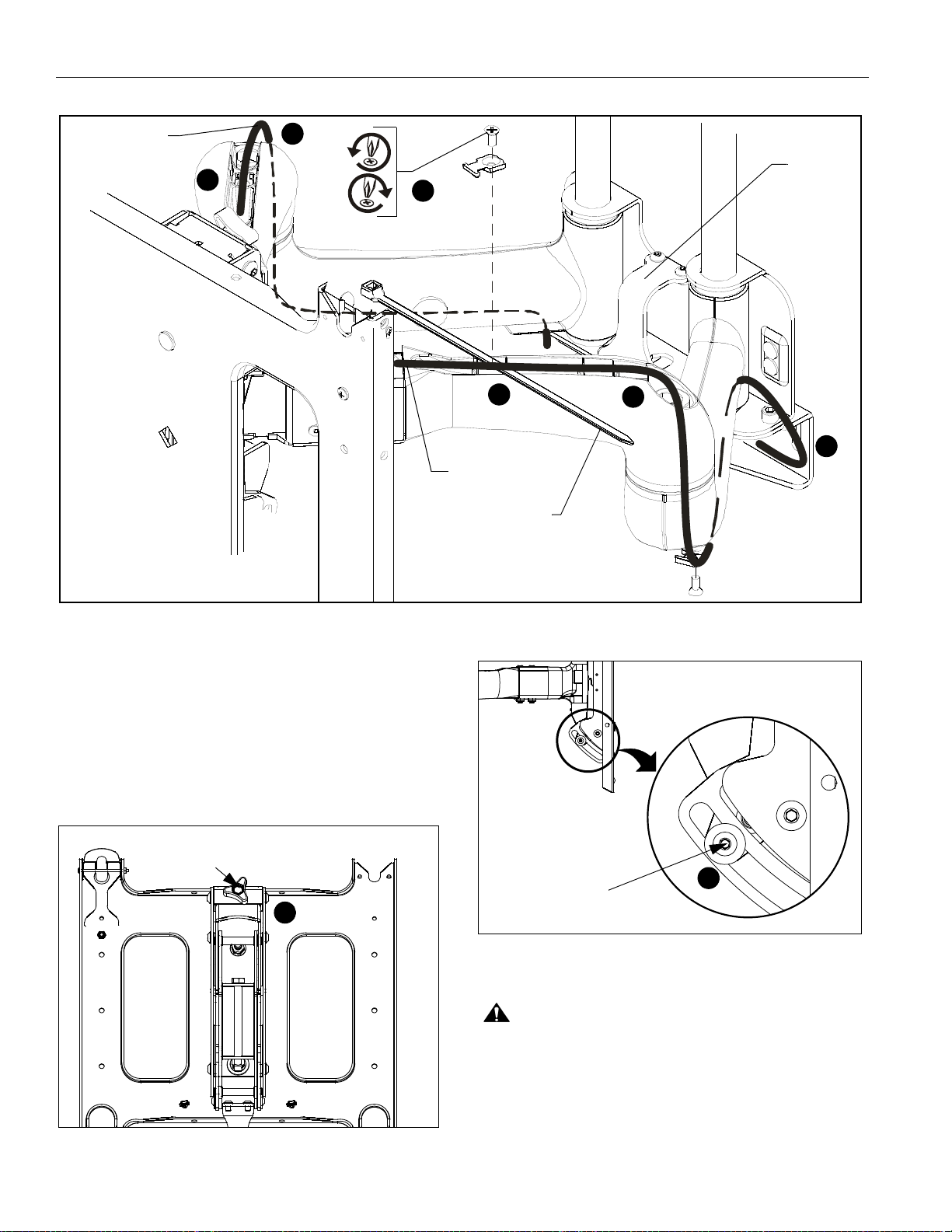

1. Loosen front and rear cable clamps on top arm.
(See Figure 7)
2. Thread cable ties (M) under cable clamps and secure
clamps to top arm. (See Figure 7)
3. Route power/audio/video cables through the cable channel
in top arm (See Figure 7), allowing sufficient slack in cables
for left/Right movement of display and swing arm and also
swing arm extension and retraction.
4. Secure cables to top arm using two cable ties (M).
5. Repeat steps 1 through 4 for lower arm.
IMPROPER INSTALLATION CAN LEAD TO
Figure 5
WARNING:
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT! DO NOT route cables through holes in
faceplate.
IMPROPER INSTALLATION CAN LEAD TO
5
Page 6
PNRIW / PNRIWU Installation Instructions
(M) x 4
x 4
From Display
(A) x 1
From Display
1
2
3
2
4
3
Centris Select
TM
Pitch Adjustment Knob
2
Pitch
Locking Screw
3
Adjustments
TENSION ADJUSTMENTS
Pitch Tension Adjustment
1. With display mounted, check for desired Pitch tension.
2. If required, adjust the Centris Select
desired Pitch tension is obtained. (See Figure 8)
3. To lock the mount at the desired position, tighten the Pitch
locking screw. (See Figure 9)
Figure 8
6
TM
knob right or left until
Figure 7
Figure 9
Roll Tension Adjustment
CAUTION:
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT!Overtightening lateral adjustment will cause
excessive wear and may distort adjustment components.
1. Using a 9/16” wrench (not provided), slightly tighten or
loosen lateral Roll tension adjustment nut. (See Figure 10)
2. Mount the display and check for desired roll tension.
3. Repeat Steps 1 and 2 until desired Roll tension is obtained.
IMPROPER INSTALLATION CAN LEAD TO

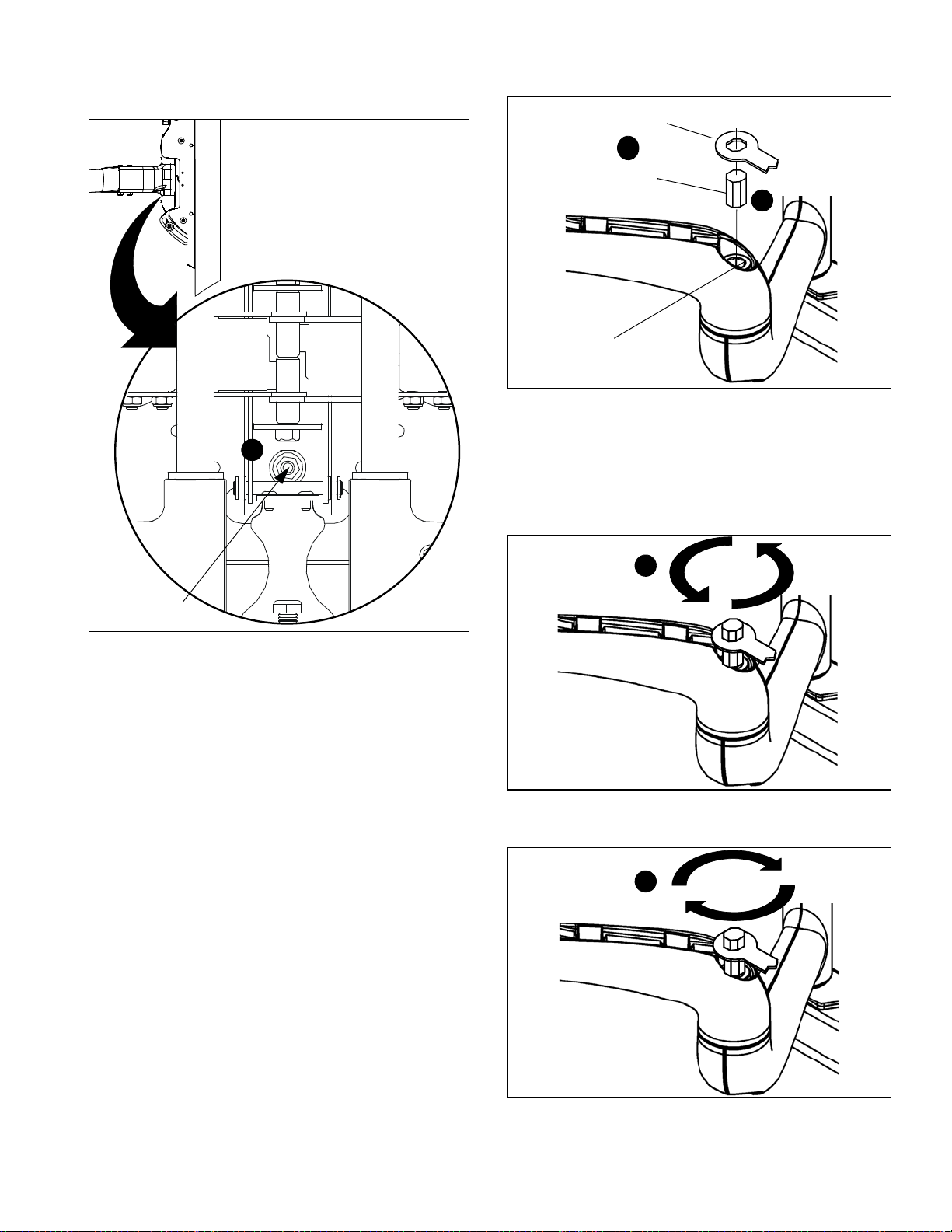

Page 7
Installation Instructions PNRIW / PNRIWU
Roll
Adjustment Nut
1
Socket Head
Capscrew
(K) x 1
(L) x 1
1
2
DECREASE
4
INCREASE
4
Figure 11
4. Using the adjustment wrench (L), turn adjustment bar (K)
clockwise to increase swing arm tension or
counterclockwise to reduce swing arm tension. (Small
adjustments of 1/8 turn or less are typically all that is
required to achieve desired tension.) (See Figure 12) and
(See Figure 13)
Figure 10
Swing Arm Tension Adjustment
Swing arm tension is pre-set at the factory and is adjusted to
accommodate displays with weights near the top of the mounts
capacity.
If smaller displays are used it may be difficult to reposition the
display after mounting. Swing arm tension can be adjusted to
compensate for smaller display by:
The display must be mounted prior to adjusting swing arm
tension.
1. Locate the adjustment bar (K) and adjustment wrench (L).
2. Place adjustment bar (K) into socket head cap screw
located at swing arm pivot point. (See Figure 11)
NOTE: The display may need to be repositioned in order
to gain access to the tension adjustment
screw(s).
3. Check swing arm tension. If desired tension is present,
tension adjustment is complete. If additional tension
adjustment is required, repeat steps 2 thru 4 until desired
tension is achieved.
NOTE: If changing from a smaller display to a la r ge r
display may be necessary to increa se swing ar m
tension.
Figure 12
Figure 13
7
Page 8
PNRIW / PNRIWU Installation Instructions
8805-000242
