CHIEF MWH Installation Instructions Manual

INSTALLATION INSTRUCTIONS

Instrucciones de instalación
Installationsanleitung
Instruções de Instalação

Istruzioni di installazione
Installatie-instructies
Instructions d´installation

Medium Flat Panel Wall Mount

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

MWH

MWH Installation Instructions

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Сожмите Застежку

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Ослабьте Застежку

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

Открытый Рывок

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Приспособьтесь

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Главный ведьмой Рывок

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Отвертка

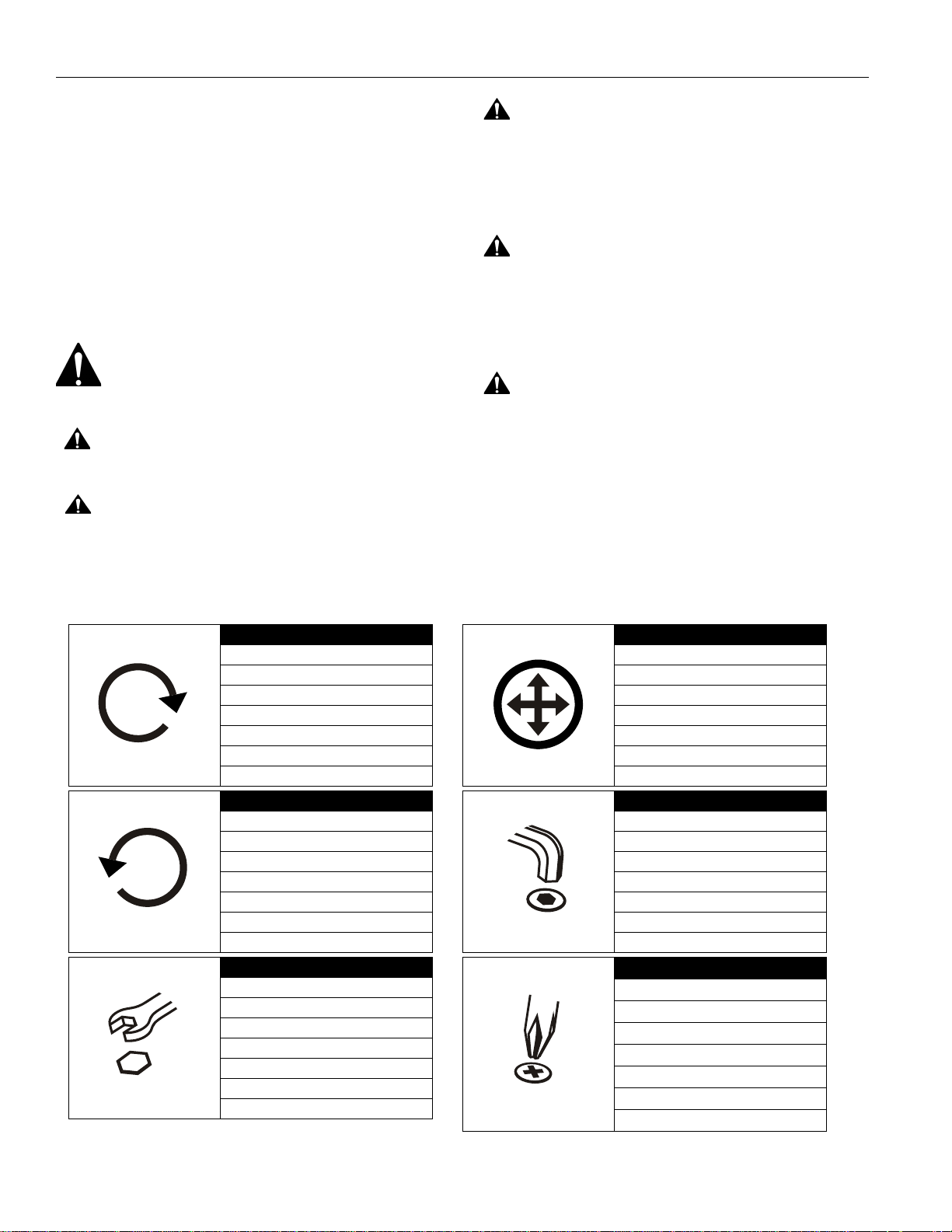

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and
subsidiaries (collectively, "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.

WARNING:

follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.

WARNING:

for the installation of this kit can result in serious personal
injury or damage to equipment! It is the installer’s
responsibility to make sure the structure to which this mount
is attached can support five times the combined weight of all
equipment.

Failure to read, thoroughly understand, and

Failure to provide adequate structural strength

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

serious injury or death if you do not follow the instructions.

A WARNING alerts you to the possibility of

WARNING:

serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to this accessory does not exceed
100 lbs (45.36 kg).

Exceeding the weight capacity can result in

CAUTION:

A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.

LEGEND

2

Chief® and ClickConnect™ are trademarks of Milestone AV
Technologies. All rights reserved.

Installation Instructions MWH

7/32" (Ø 6mm)

x1

I/M

B (2)

F (4)

C (1)

D (1)

A (1)

E (4)

G (4)

H (4)

5/16 x 2-1/2"

5/16"

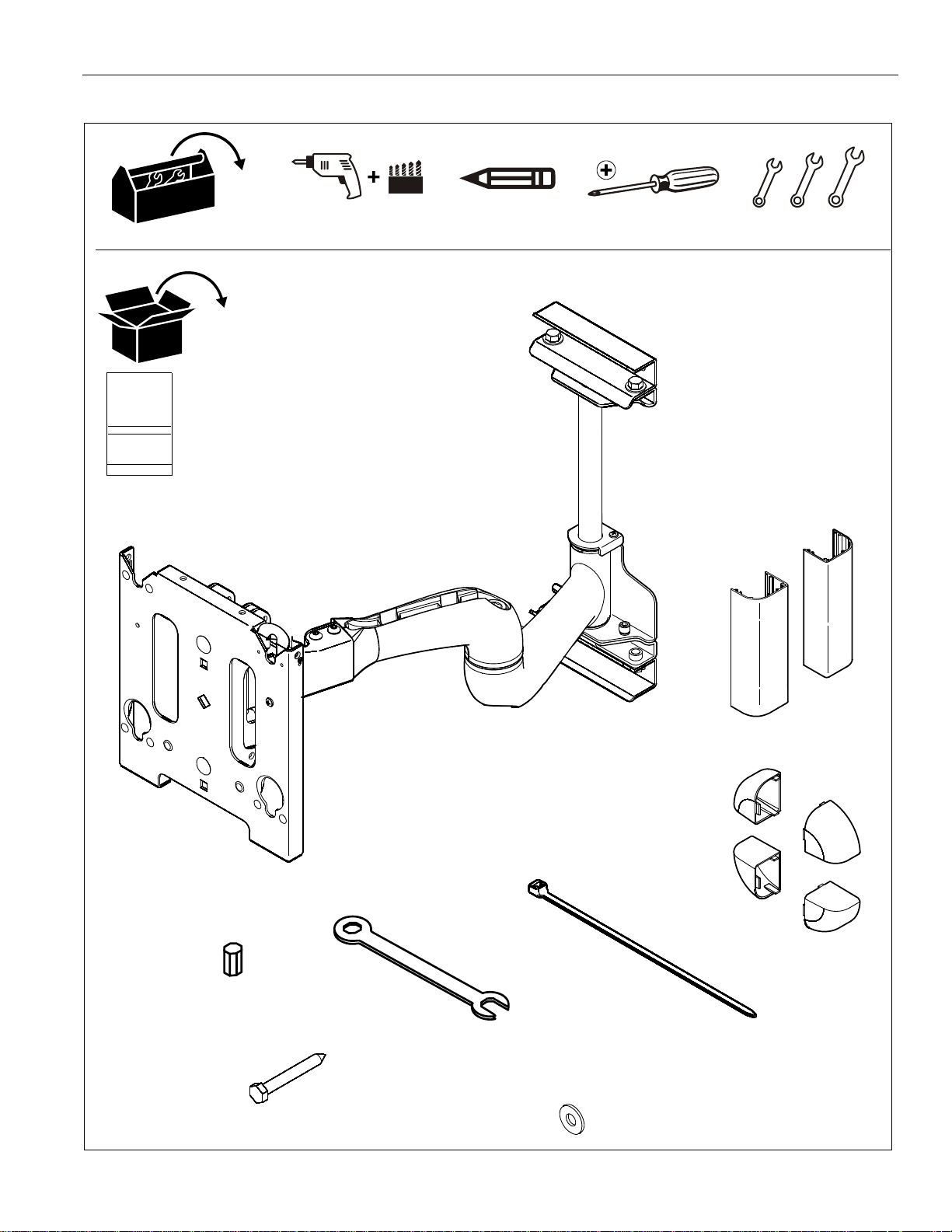

TOOLS REQUIRED FOR INSTALLATION AND PARTS

3

MWH Installation Instructions

24.90

632

3.43

87

18.61

473

B

15°

C

5°

2.5°

Tilted DownTilted Up

Extended

Retracted

Tilt Adjustment

Roll Adjustment

.75

19

4.50

114

2.51

64

2.30

58

15.65

397

.39

10

18.00

457

3.43

87

ALL MEASUREMENTS ARE IN

THE FOLLOWING FORMAT:

[MILLIMETERS]

INCHES

Mounting Pattern

PRODUCT FEATURES

WEIGHT CAPACITY 100 LBS

HEIGHT ADJUSTMENT

,-15

/

2.5 /0

NOTE: CUSTOM INTERFACE BRACKET

NOT SHOWN. THE CUSTOM INTERFACE

BRACKET NEEDED FOR YOUR DISPLAY

WILL ADD BETWEEN 1/2" AND 2" IN DEPTH

AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT.

SEE MSB-XXXX DRAWING ALSO.

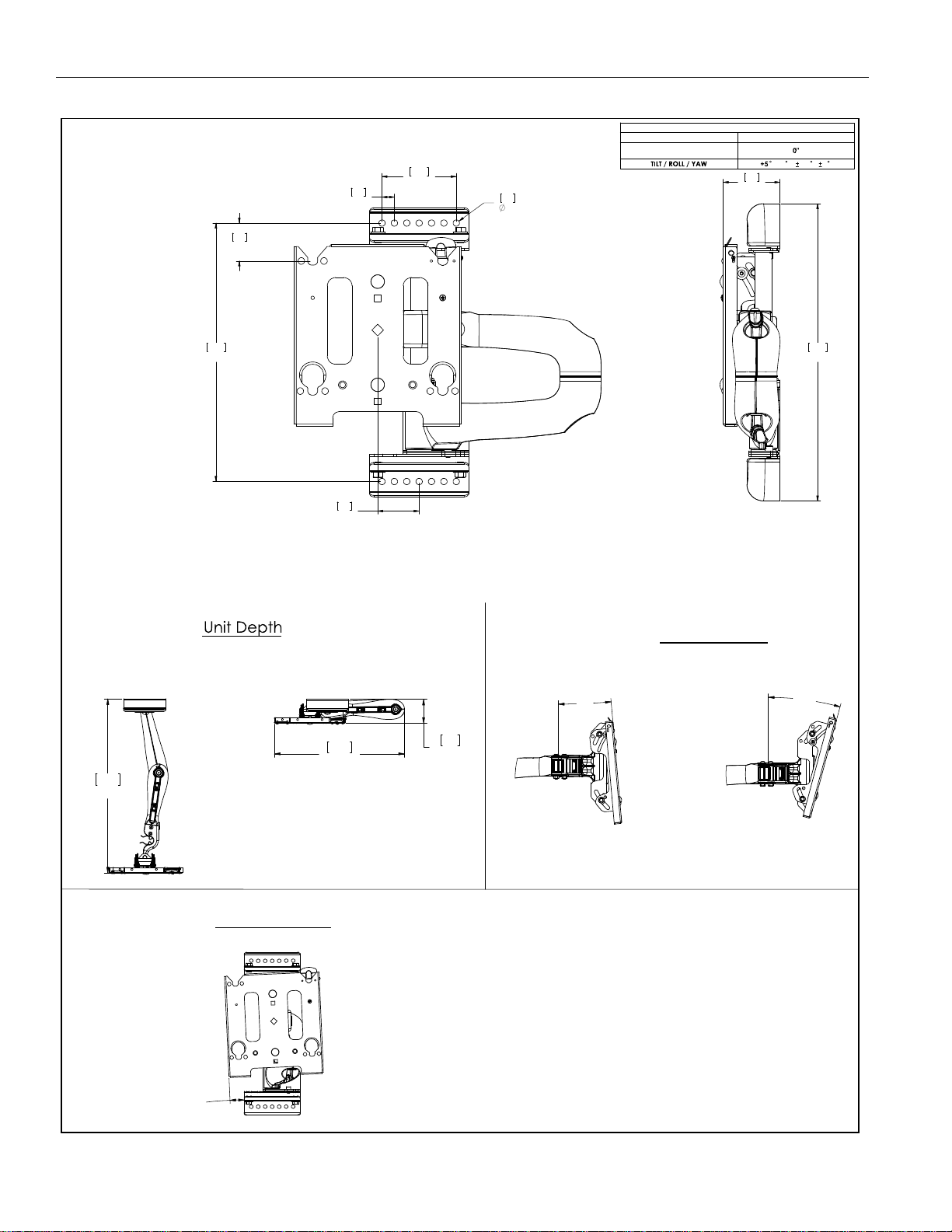

DIMENSIONS

4

Figure 1

Installation Instructions MWH

7/32" (Ø 6mm) x2

Mounting holes
centered on
studs

1

3

4

5

9

(G) X 2

7

(H) X 2

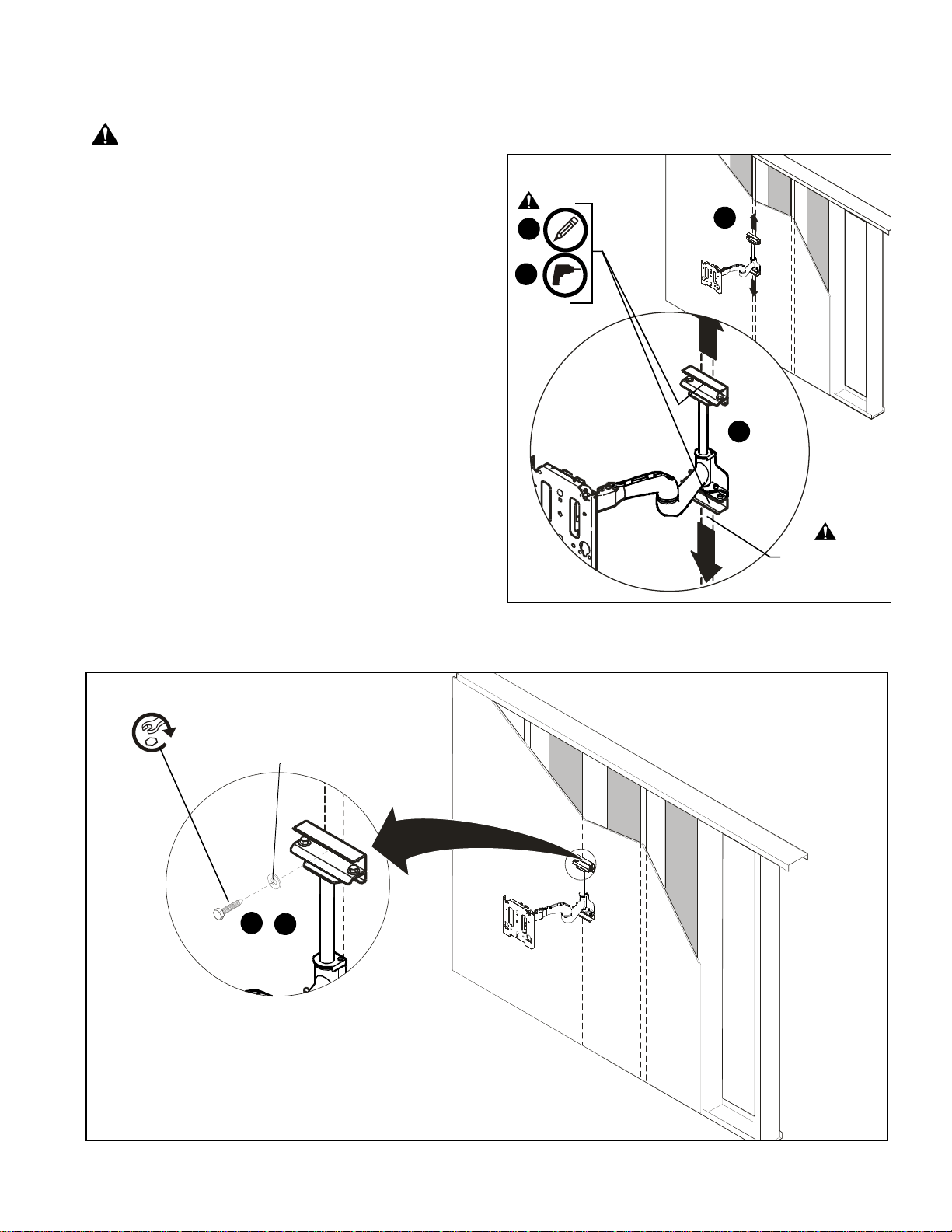

Mount Installation

WARNING:

MOUNT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s
responsibility to make sure the structure to which the MWH is
being installed is capable of supporting five times the
combined weight of the mount and all attachments.

1. Determine mounting location taking into consideration
display size and mount movement.

2. Using a stud sensor locate stud. (See Figure 2)

3. Using two people, place mount against wall and level mount
aligning mounting holes in upper and lower wall channels
with stud. (See Figure 2)

NOTE:

as the upper and lower mounting holes align with one
another on stud.

4. Use a pencil mark two mounting holes making sure
mounting holes are located as close as possible to center of
stud. (See Figure 2)

5. Drill two pilot holes where the mounting holes were marked
using a 7/32” (6mm) drill bit. (See Figure 2)

6. Install one 5/16" x 2-1/2" lag bolt (G) and one 5/16" flat
washer (H), through mounting holes in upper wall channel
and into pilot hole. DO NOT tighten at this time.
(See Figure 3)

7. Using two people place mount against wall aligning
mounting holes in upper wall channel with lag bolt and hang
mount on lag bolt making sure washers are located in front
of mount.

8. Install one 5/16" x 2-1/2" lag bolt (G) and one 5/16" flat
washer (H), through mounting holes in lower wall channel

IMPROPER INSTALLATION CAN LEAD TO

Horizontal location can be adjusted right or left as long

and into pilot hole. (See Figure 3)

9. Tighten all hardware. DO NOT overtighten!

Figure 2

Figure 3

5

MWH Installation Instructions

1

1

3

3

1

2

2

1

1

(B) x 2

(F) x 4

END VIEW

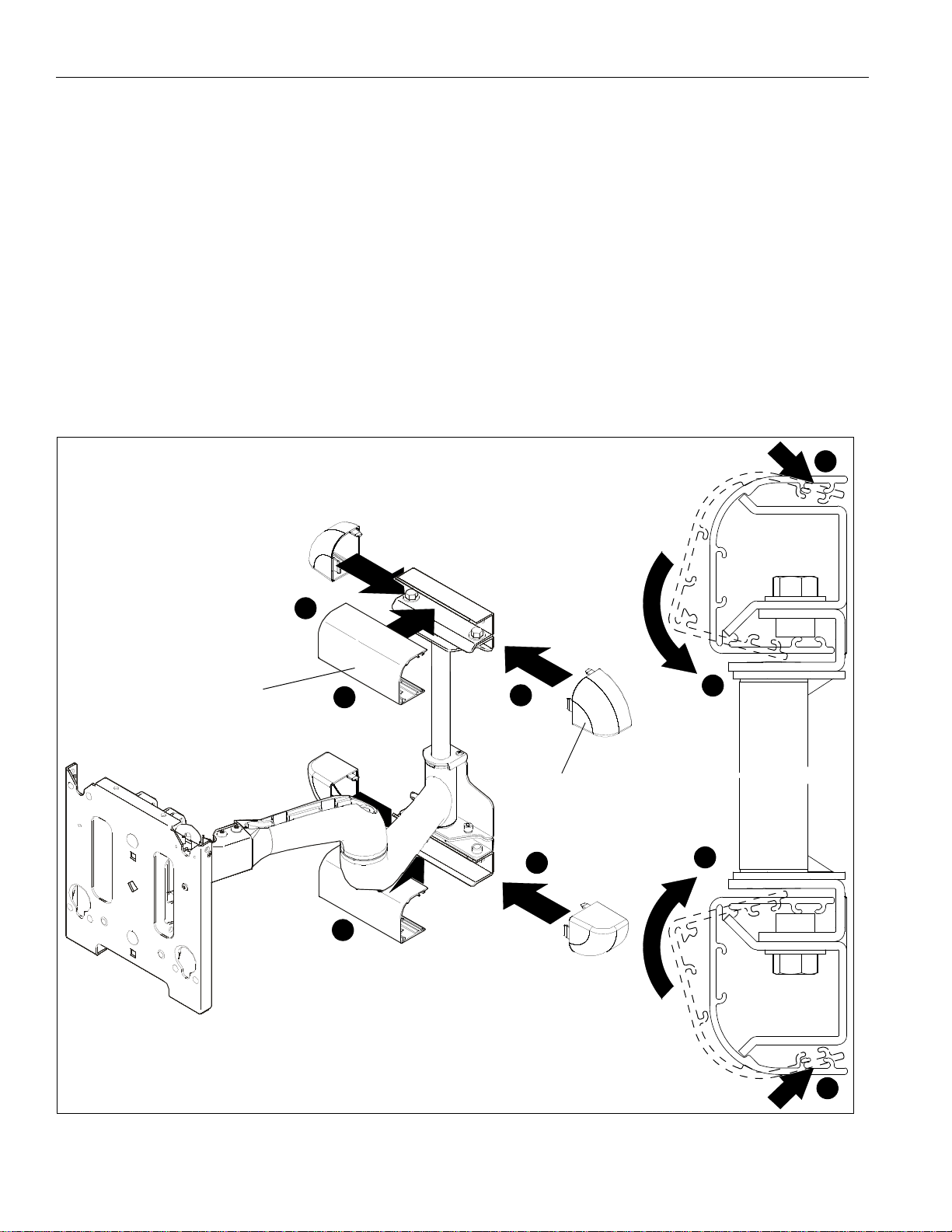

Cover Installation

To install channel covers:

1. Install upper and lower wall channel covers (B) by tipping
cover top down and positioning as shown in end view of
figure below. (See Figure 4)

2. Tap firmly across bottom of channels to lock in place as
shown in figure below. (See Figure 4)

3. Install four R.H. and L.H. end caps (F) by aligning tabs on
end caps (F) with slots in wall channel covers (B) and sliding
tabs in until end caps (F) are flush with wall channel covers
(B). (See Figure 4)

Figure 4

6

Installation Instructions MWH

1

3

4

5

4

Remove pin
and nuts and
move to lower holes.

A padlock or bolt may
be placed through latch
holes

Display Installation

If the mounting pattern of the display being installed is a VESA
standard 200 x 200 pattern the mounting buttons can be
installed directly to the back of the display. If the display has any
other mounting pattern an interface bracket must be obtained
before proceeding. Consult a Chief Customer Service
representative if an interface bracket is required by calling
1-800-582-6480 or visit www.chiefmfg.com.

WARNING:

MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT. Displays can weigh in
excess of 40 lbs (18.1kg). ALWAYS use two people and
proper lifting techniques when installing display.

WARNING:

MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT. Make sure mounting buttons
on display are properly seated in mounting holes in faceplate.

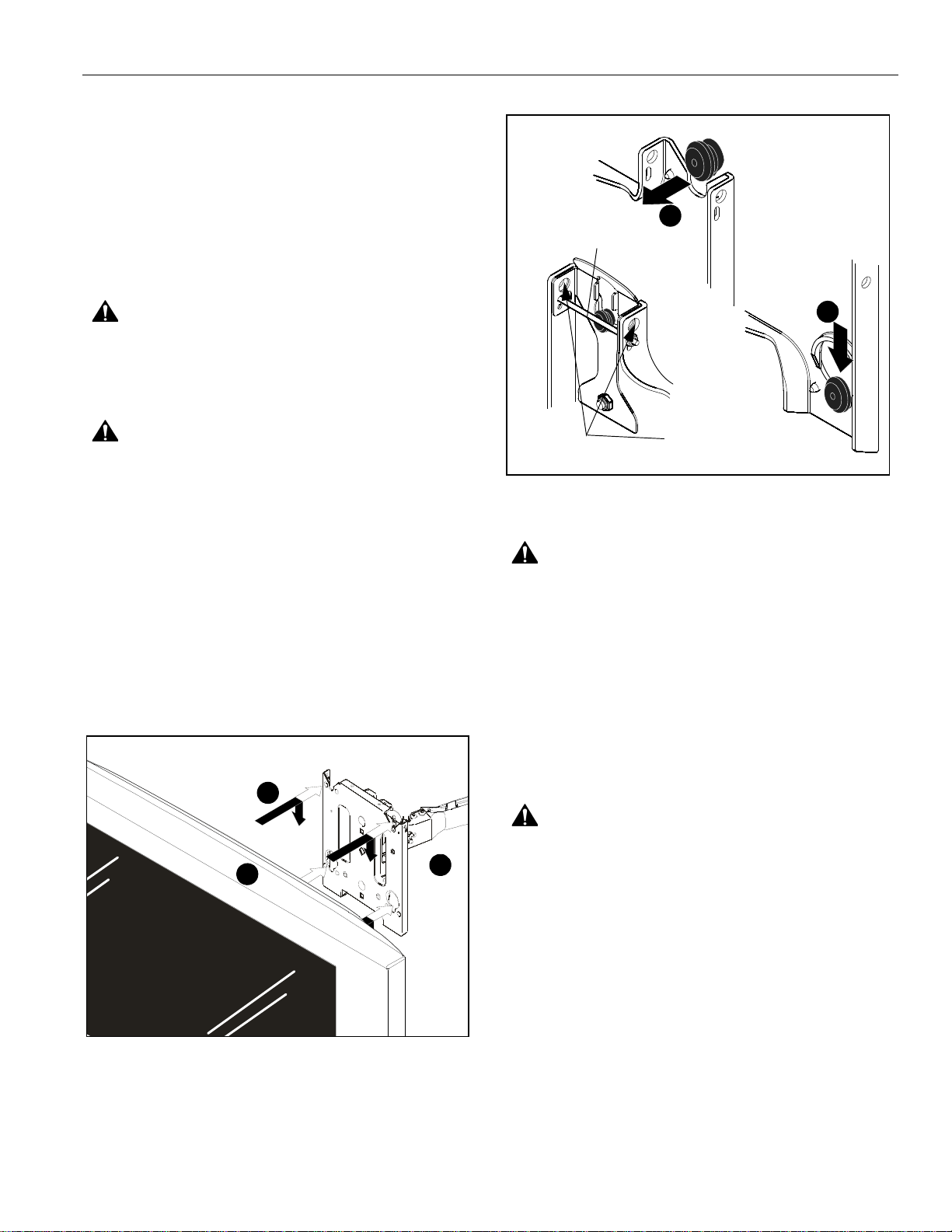

To install display:

1. Move mount faceplate to extended position by grasping

faceplate and pulling outward away from wall.
(See Figure 5)

2. While supporting both sides of display, align four mounting

buttons on display or interface bracket with four mounting
holes in faceplate. (See Figure 5)

3. Lower display into place listening for audible "click" to

ensure recessed area of mounting buttons are properly
seated in lower area of mounting holes and "click lock"
mechanism has engaged. (See Figure 5) and (See Figure

6)

IMPROPER INSTALLATION CAN LEAD TO

IMPROPER INSTALLATION CAN LEAD TO

Figure 6

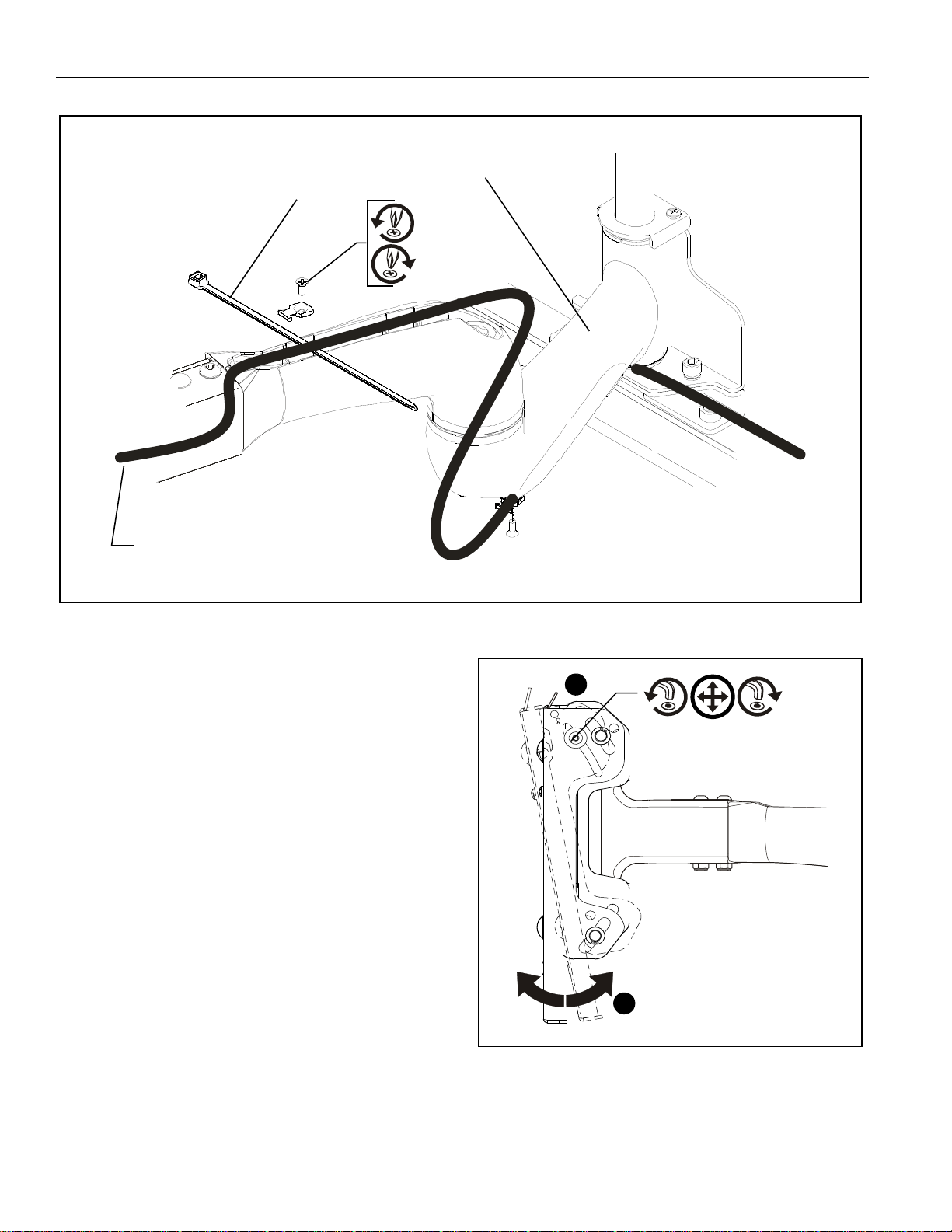

CABLE MANAGEMENT

WARNING:

SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT! Make sure cables do not run through pinch
points.

1. Loosen front and rear cable clamps on top arm.
(See Figure 7)

2. Thread cable ties (E) under cable clamps and secure
clamps to top arm. (See Figure 7)

3. Route power/audio/video cables through the cable channel
in top arm (See Figure 7), allowing sufficient slack in cables
for left/Right movement of display and swing arm and also
swing arm extension and retraction.

4. Secure cables to top arm using two cable ties (E).

5. Repeat steps 1 through 4 for lower arm.

IMPROPER INSTALLATION CAN LEAD TO

NOTE:

Holes are provided in the faceplate for use with a
padlock or similar locking device, if desired. In addition,
the pin and nut may be removed from the upper holes
and moved to the lower holes for use as a more
permanent locking device. (See Figure 6)

Figure 5

WARNING:

SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT! DO NOT route cables through holes in
faceplate.

IMPROPER INSTALLATION CAN LEAD TO

7

MWH Installation Instructions

(E) x 4

x 4

From Display

(A) x 4

X2

2

1

Figure 7

ADJUSTMENTS

Pitch Tension Adjustment

To adjust display pitch tension:

1. With display installed, tighten or loosen two screws, one on
each side, using the 5/32” hex wrench. (See Figure 8)

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Figure 8

8

Installation Instructions MWH

2

1

3

Socket Head
Capscrew

(C) x 1

(D) x 1

DECREASE

INCREASE

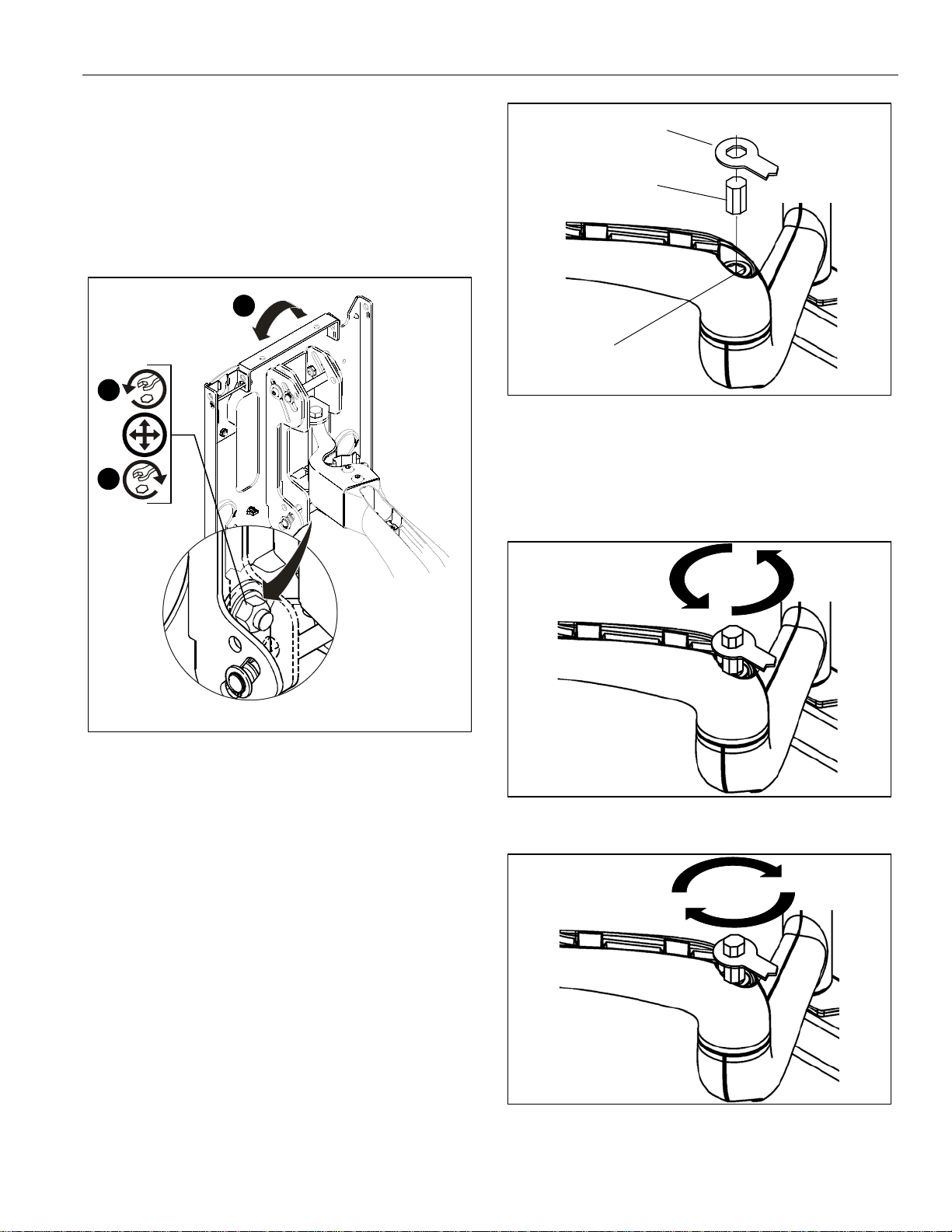

Roll Adjustment

The MWH allows for the horizontal alignment (Roll)of the
display to be adjusted up to 2 deg. right or left to level the
display after installing.

To adjust Roll:

1. Loosen the roll tensions adjustment nut located on the back
side of the faceplate assembly. (See Figure 9)

2. Level display.

3. Tighten roll tension adjustment nut. (See Figure 9)

Figure 10

4. Using the adjustment wrench (D), turn adjustment bar (C)
clockwise to increase swing arm tension or
counterclockwise to reduce swing arm tension. (Small
adjustments of 1/8 turn or less are typically all that is
required to achieve desired tension.) (See Figure 11) and
(See Figure 12)

Figure 9

Swing Arm Tension Adjustment

Swing arm tension is pre-set at the factory and is adjusted to
accommodate displays with weights near the top of the mounts
capacity.

If smaller displays are used it may be difficult to reposition the
display after mounting. Swing arm tension can be adjusted to
compensate for smaller display by:

The display must be mounted prior to adjusting swing arm
tension.

1. Locate the adjustment bar (H) and adjustment wrench (J).

2. Place adjustment bar (H) into socket head cap screw

NOTE:

3. Check swing arm tension. If desired tension is present,

NOTE:

located at swing arm pivot point. (See Figure 10)

The display may need to be repositioned in order to

tension adjustment is complete. If additional tension
adjustment is required, repeat steps 2 thru 4 until desired
tension is achieved.

gain access to the tension adjustment screw(s).

may be necessary to increase swing arm tension.

If changing from a smaller display to a larger display

Figure 11

Figure 12

9

MWH Installation Instructions

10

Installation Instructions MWH

11

MWH Installation Instructions

Chief Manufacturing, a division of
Milestone AV Technologies

8831-000009 RevI
©2008 Milestone AV Technologies

www.chiefmfg.com

07/08

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P 800.582.6480 / 952.894.6280
F 877.894.6918 / 952.894.6918

Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands

P [phone]
F [phone]

Asia Pacific A Room 24F, Block D, Lily YinDu International Building

LuoGang, BuJi Town, Shenzhen, CHINA.

P [phone]
F [phone]
