Chief MSP-DCCMD User Manual

Page 1

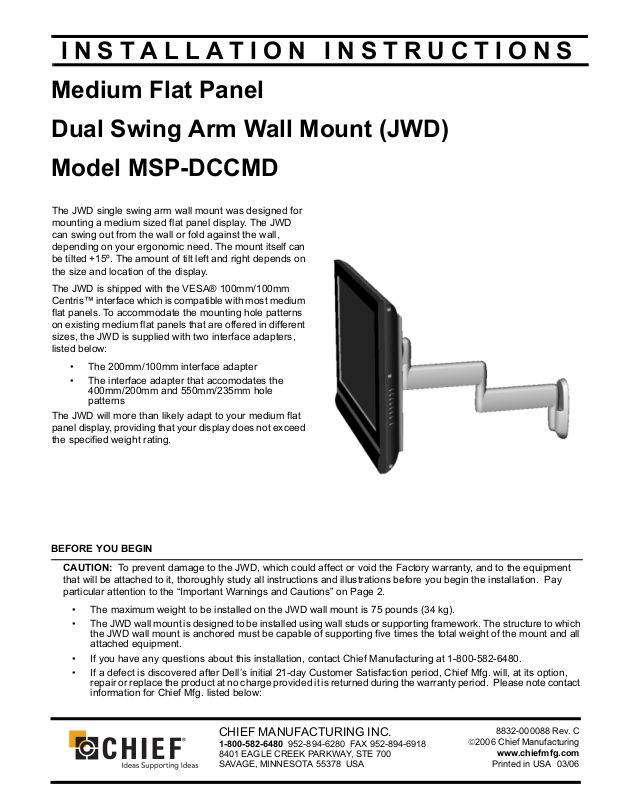

INSTALLATION INSTRUCTIONS

Medium Flat Panel

Dual Swing Arm Wall Mount (JWD)

Model MSP-DCCMD

The JWD single swing arm wall mount was designed for mounting a medium sized flat panel display. The JWD can swing out from the wall or fold against the wall, depending on your ergonomic need. The mount itself can be tilted +15º. The amount of tilt left and right depends on the size and location of the display.

The JWD is shipped with the VESA® 100mm/100mm Centris™ interface which is compatible with most medium flat panels. To accommodate the mounting hole patterns on existing medium flat panels that are offered in different sizes, the JWD is supplied with two interface adapters, listed below:

• The 200mm/100mm interface adapter

• The interface adapter that accomodates the 400mm/200mm and 550mm/235mm hole patterns

The JWD will more than likely adapt to your medium flat panel display, providing that your display does not exceed the specified weight rating.

BEFORE YOU BEGIN

CAUTION: To prevent damage to the JWD, which could affect or void the Factory warranty, and to the equipment

that will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particular attention to the “Important Warnings and Cautions” on Page 2.

• The maximum weight to be installed on the JWD wall mount is 75 pounds (34 kg).

• The JWD wall mount is designed to be installed using wall studs or supporting framework. The structure to which the JWD wall mount is anchored must be capable of supporting five times the total weight of the mount and all attached equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

• If a defect is discovered after Dell’s initial 21-day Customer Satisfaction period, Chief Mfg. will, at its option, repair or replace the product at no charge provided it is returned during the warranty period. Please note contact information for Chief Mfg. listed below:

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918 8401 EAGLE CREEK PARKWAY, STE 700 SAVAGE, MINNESOTA 55378 USA

8832-000088 Rev. C

www.chiefmfg.com

Printed in USA 03/06

Page 2

Model MSP-DCCMD Installation Instructions

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can support a redundant weight factor five times the total weight of the equipment. If not, reinforce the structure before installing the JWD.

WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

WARNING: The installer is responsible for verifying that the wall to which the JWD is anchored will safely support

the combined load of all attached components or other equipment.

WARNING: The weight of the display placed on the JWD must not exceed 75 lbs. (34 kg), the maximum load capacity of the JWD.

WARNING: Watch for pinch points. Do not put your fingers between movable parts.

WARNING: Make sure the mount and brackets are correctly oriented.

CAUTION: Check the unit for shipping damage before you begin the installation.

DIMENSIONS

Front View

Rear View

Page 3

Installation Instructions Model MSP-DCCMD

CONTENTS

IMPORTANT WARNINGS AND CAUTIONS! .......... 2

DIMENSIONS .......................................................... 2

TOOLS REQUIRED FOR INSTALLATION ............. 3

Inspect The Unit Before Installing ............................ 3

SPECIFICATIONS ................................................... 3

INTRODUCTION ..................................................... 3

PARTS (Continued) ................................................. 5

WALL BRACKET INSTALLATION .......................... 6

Secure Wall Bracket ......................................6

Attach Mount to Wall Bracket .........................6

INSTALLATION (100mm x 100mm) ..............7

Flush Mount Centris Bracket to Display ............7

Recess Mount Centris Bracket to Display ........7

INSTALLATION (200mm x 100MM) ......................... 8

Attach Interface Adapter to Display ...............8

Attach Display to Centris Bracket ..................8

INSTALLATION

(400mm x 200MM and 550mm x 235MM) ............... 9

Attach 400mm x 200mm Interface Adapter ...9

Attach 550mm x 235mm Interface Adapter ...9

Attach Display to Centris Bracket ..................9

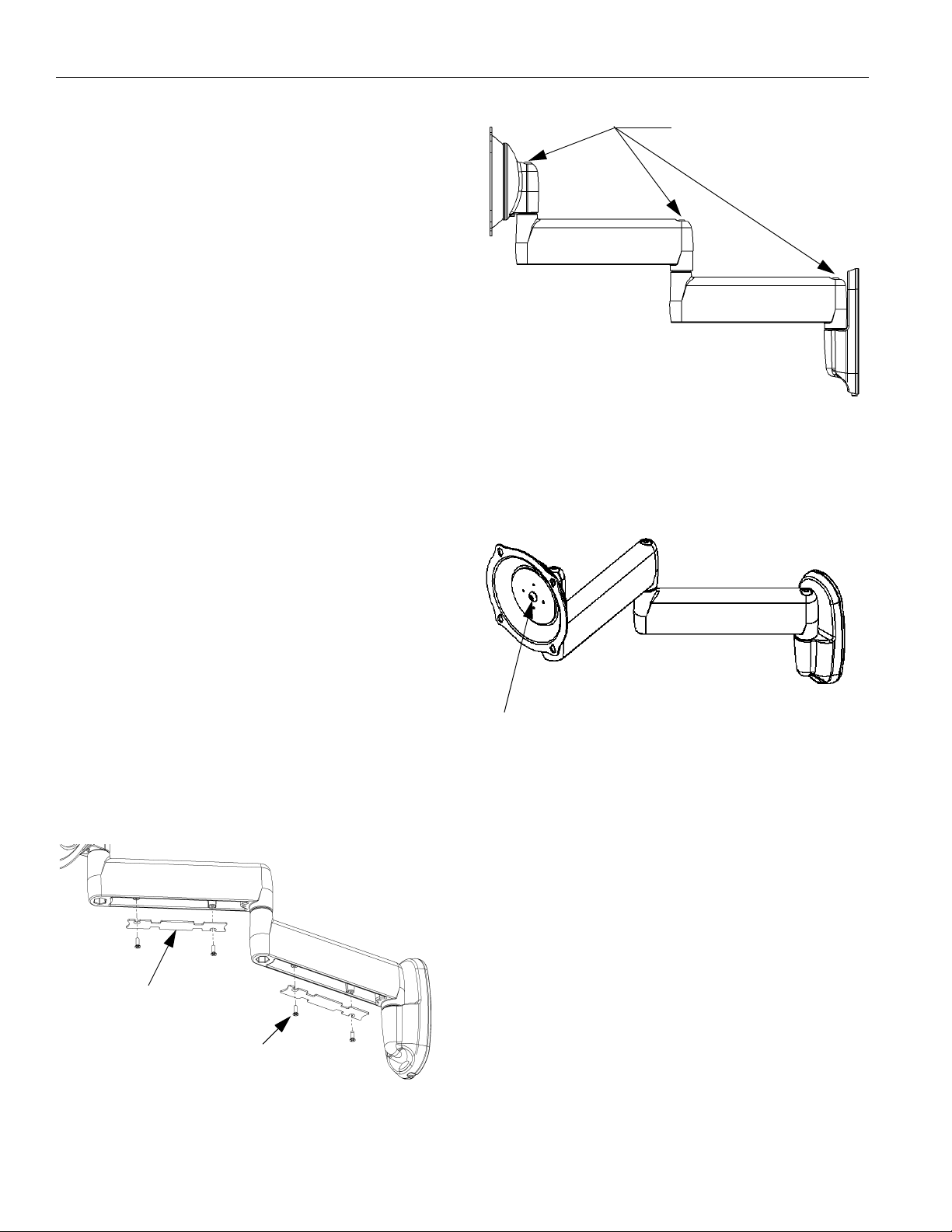

CABLE MANAGEMENT .......................................... 10

ADJUSTMENTS ...................................................... 10

LATERAL TENSION ADJUSTMENT .............10

PITCH ADJUSTMENT ...................................10

Inspect The Unit Before Installing

WARNING: Watch for pinch points. Do not put your

fingers between movable parts.

1. Carefully inspect the mount for shipping damage. If any damage is apparent, call your carrier claims agent and do not continue with the installation until the carrier has reviewed the damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts before proceeding (see JWD drawing on page 4).

SPECIFICATIONS

Table 1 below provides the JWD specifications.

Table 1: JWD Speifications

Depth from Wall

Maximum Extension

Dimensions W x H x D

2-11/16” (68mm)

20-3/8” (51.8cm)

13-1/8” x 14-11/16” x 2-11/16” (308 x 373 x 68mm)

TOOLS REQUIRED FOR INSTALLATION

• Electric drill and bit set

• Hex wrench set

• Phillips screwdriver

• Level

NOTE: Other tools may be required depending on the

mounting surface and method of installation.

Weight Capacity

75 lbs (34kg)

INTRODUCTION

The installation process involves three key steps, as follows:

• Select mounting configuration

• 100mm x 100mm Centris mounting (flush and recessed)

• 200mm x 100mm Centris mounting with interface adapter

• the interface adapter that accommodates two mounting hole patterns: 400mm x 200mm and 550 x 235mm

• Connect cables

• Make adjustments

Page 4

Model MSP-DCCMD Installation Instructions

PARTS

Centris Interface (see notes)

Set Screw (see notes)

130

140

150

160

100

110

120

170 180

190

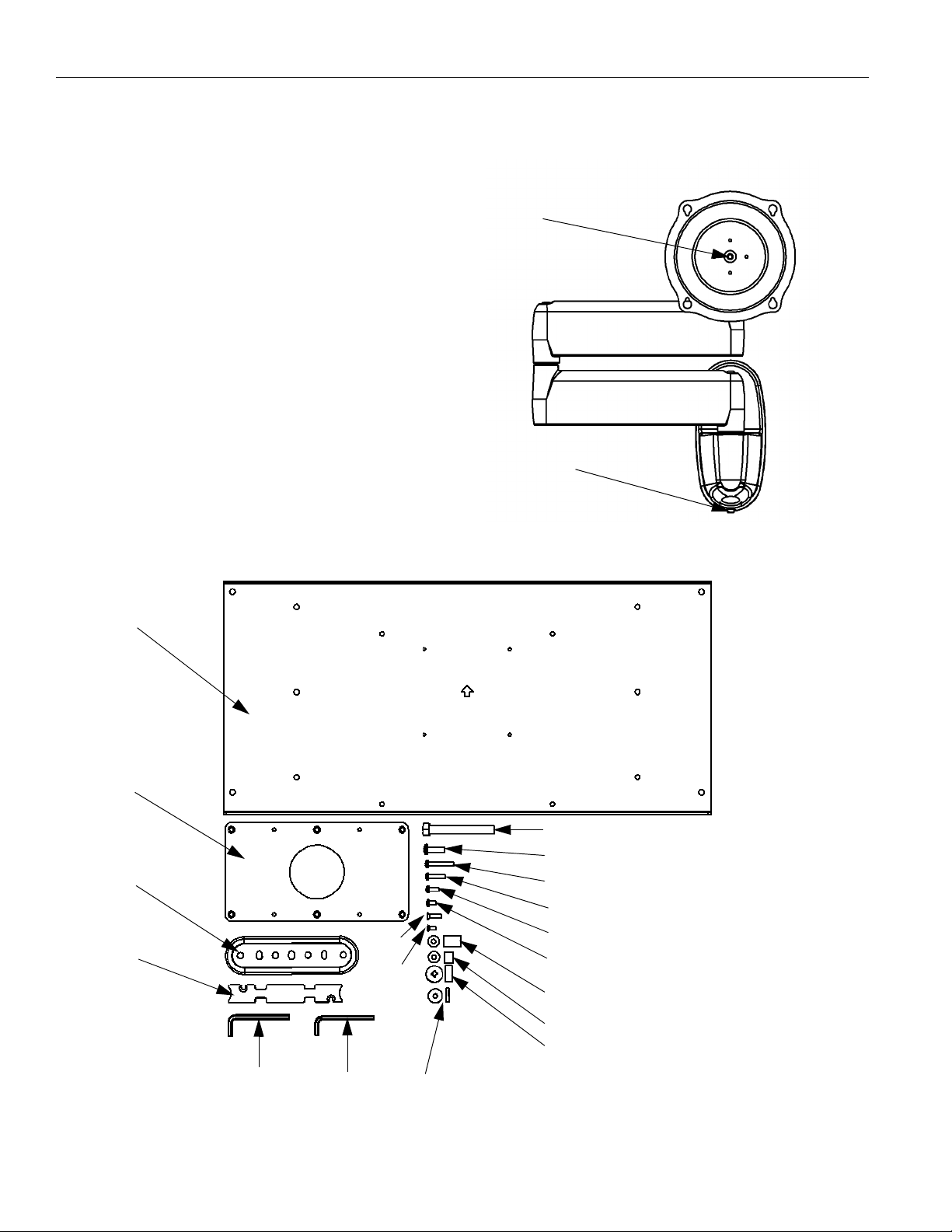

Figure 1: JWD PARTS

Page 5

Installation Instructions Model MSP-DCCMD

PARTS (Continued)

Table 2 below provides a list of the JWD parts.

Table 2: JWD Parts

ITEM NUMBER

10 JWD MOUNT 1

20 3/8” x 3” LAG SCREWS 2 USE WITH 150

30 PHILLIPS PAN HEAD MACHINE SCREW, M6 x 20mm 6 USE WITH 110 AND 120£

40 PHILLIPS PAN HEAD MACHINE SCREW, M4 x 30mm 4 USE WITH 100*

50 PHILLIPS PAN HEAD MACHINE SCREW, M4 x 20mm 4 USE WITH 110**

60 PHILLIPS PAN HEAD MACHINE SCREW, M4 x 12mm 4 USE WITH

70 PHILLIPS PAN HEAD MACHINE SCREW, M4 x 8mm 4 USE WITH 140

80 PHILLIPS FLAT HEAD MACHINE SCREW, M4 x 16mm 6 USE WITH 140***

90 PHILLIPS FLAT HEAD MACHINE SCREW, 8-32 x 3/8” 4 USE WITH 160

100 3/4” THICK NYLON SPACER 4 USE WITH 40*

110 3/8” THICK NYLON SPACER 4 USE WITH 50**

120 5/16” THICK NYLON RETAINING SPACER

130 INTERFACE ADAPTER (400mm x 200mm and

140 200mm x 100mm INTERFACE ADAPTER 1 USE WITH 70 AND 80

150 WALL BRACKET 1 USE WITH 20

160 COVER PLATE 2 USE WITH 90

170 3/16” HEX KEY 1 FOR JOINTS

180 5/32” HEX KEY 1 FOR SET SCREW

190 1/8” NYLON SPACER 6 USE WITH 80

DESCRIPTION QTY USED WITH NOTES

CENTRIS INTERFACE‡

6 USE WITH 30

(.75 Outside Diameter)

1 USE WITH 30 AND 120

550mm x 235mm

NOTES:

‡The M4 x 12mm screws (60) are used on the Centris interface for flush mount applications.

*The M4 x 30mm screws (40) with spacers (100) are for recessed mount applications.

**M4 x 20mm screws (50) with spacers (110) are for recessed mount applications.

***The six M4 x 16mm screws (80) and six spacers (190) are used to attach the interface adapter (140) to the display.

£The M6 x 20mm screws (30) are used with spacers (120) and the interface adapter (130).

‡The M4 x 8mm screws (70) are also used to attach the Centris interface to the interface adapter (140).

Page 6

Model MSP-DCCMD Installation Instructions

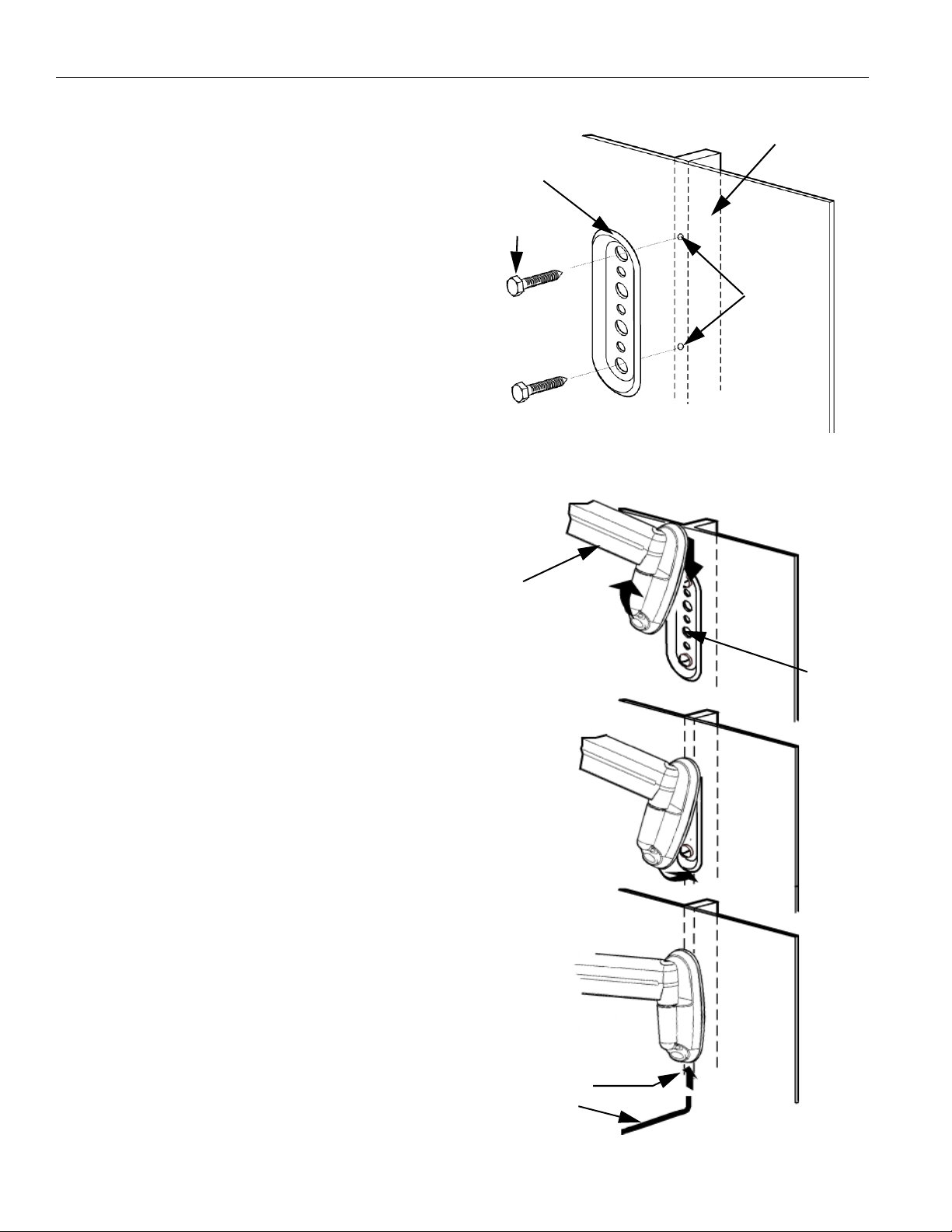

WALL BRACKET INSTALLATION

Secure Wall Bracket

WARNING: It is the responsibility of the installer to

verify that the surface to which the mount is anchored will safely support the combined load of all attached components and equipment.

To install the mount:

1. Determine the exact mounting location prior to installation, considering the unit’s swing and extension radius.

2. Using the wall bracket (150) as a template, mark the two pilot holes for mounting the wall bracket. (see figure 2)

3. Drill two 1/4” pilot holes a minimum depth of 2” into the wood stud.

150

Wood

Stud

1/4" Pilot Holes

NOTE: Make sure the wall bracket is level before

installing the lag bolts.

4. Using a 9/16” socket wrench, install two lag bolts (20) to secure the wall bracket (150) to the wall. Do not overtighten the lag bolts.

IMPORTANT ! : Overtightening lag bolts may cause bracket to compress into soft wall surface, resulting in difficult mount installation or improper engaging of set screw in step 2 below. If this occurs, remove bracket, install 3/8" steel washers as required between bracket and wall surface, and reinstall bracket.

NOTE:

• For a flush mount application, perform the “Attach

Mount to Wall Bracket” on page 6 and then perform the “Flush Mount Centris Bracket to Display” on page 7.

• For a recessed mounting application, omit the

procedure to “Attach Mount to Wall Bracket” on page 6 and proceed to the “Recess Mount Centris Bracket to Display” on page 7.

Attach Mount to Wall Bracket

1. Align the top of the mount (10) with the top of the wall bracket (150). Push the bottom of the mount against the bottom of the wall bracket until the mount fits snugly in place (see Figure 3).

Figure 2: Secure Wall Bracket

150

2. Using the 5/32” hex wrench (180), secure the mount to the wall bracket by tightening the set screw (see figure 3). Ensure set screw engages back side of bracket to properly secure mount.

Set Screw

180

Figure 3: Attach Mount to Wall Bracket

Page 7

Installation Instructions Model MSP-DCCMD

INSTALLATION (100mm x 100mm)

Flush Mount Centris Bracket to Display

1. Install two M4 x 12mm screws (60) into the top

mounting holes (not shown) on the display .

2. Align the mounting holes on the Centris bracket with

the screws installed on the display. Hang the display on the Centris bracket. (see figure 4)

3. Install two remaining M4 x 12mm screws (60) into the

bottom mounting holes on the display.

Recess Mount Centris Bracket to Display

Use one of the following screw and spacer combinations: (40 with 100) or (50 with 110).

CAUTION: If your display uses a screw size other thanM4 x 20mm or M4 x 30mm, DO NOT use the M4 x 20mm or M4 x 30mm screws. Using the wrong screws could result in damage to your display.

1. Select four M4 screws (40 or 50) and four retaining

spacers (100 or 110) from parts bag.

2. Place display face down on a clean dry surface.

3. Install four M4 screws (40 or 50) into the four

mounting holes on centris bracket.(see figure 6)

Display

Centris Bracket

Figure 4: Flush Mount Centris Bracket to Display

40 or 50

4. Slide 4 retaining spacers (100 or 110) onto four M4

screws (40 or 50).

5. Align centris bracket, with screws (40 or 50) and

spacers (100 or 110), with mounting holes in display back.

6. Tighten all screws.

100 or 110

Figure 5: Recess Mount Centris Bracket to Display

Page 8

Model MSP-DCCMD Installation Instructions

INSTALLATION (200mm x 100MM)

Attach Interface Adapter to Display

1. Select six M4 screws (80) and six spacers (190) from parts bag.

2. Place display face down on a clean dry surface.

3. Install six M4 screws (80) into the six mounting holes on the interface bracket (140). (see figure 8)

4. Slide six retaining spacers (190) onto six M4 screws (80).

NOTE: The arrow on the interface bracket (140) must

point toward the top of the display.

5. Align interface bracket (140), with screws (80) and spacers (190), with mounting holes in display back.

6. Tighten all screws.

Attach Display to Centris Bracket

1. Start two M4 x 8mm Phillips pan head screws (70) into the top two mounting holes of the previously attached interface bracket. (see figure 7)

2. Hang the mount from the two screws started in Step 1.

140

Figure 6: Attach Interface Breacket to Display

190

Centris Bracket

3. Install the remaining two M4 x 8mm Phillips pan head screws (70) into the bottom two mounting holes of the display.

4. Secure the display to the mount (Centris bracket) by tightening all four M4 x 8mm Phillips pan head screws (70). (see figure 7)

Display

Figure 7: Attach Diaplay to Centris Bracket

Page 9

Installation Instructions Model MSP-DCCMD

INSTALLATION (400mm x 200MM and 550mm x 235MM)

Attach 400mm x 200mm Interface Adapter

NOTE: Used for 400mm x 200mm hole patterns.

1. Select six M6 screws (30) and six spacers (120) from

parts bag.

Arrow must

point to top of

display

130

2. Place display face down on a clean dry surface.

3. Install six M6 screws (30) into the six mounting holes

on the interface bracket (130). (see figure 8)

4. Slide six retaining spacers (120) onto six M6 screws

(90).

NOTE: The arrow on the interface bracket (130) must

point toward the top of the display.

5. Align interface bracket (130), with screws (30) and

spacers (120), with mounting holes in display back.

6. Tighten all screws.

Attach 550mm x 235mm Interface Adapter

NOTE: Used for 550mm x 235mm hole patterns.

1. Select four M6 screws (30) and four spacers (120)

from parts bag.

2. Place display face down on a clean dry surface.

3. Install four M6 screws (30) into the four mounting

holes on the interface bracket (130). (see figure 9)

4. Slide 4 retaining spacers (120) onto four M6 screws

(30).

120

Figure 8: Attach 400mm x 200mm Interface Adapter

Arrow must

point to top of

display

120

130

NOTE: The arrow on the interface bracket (80) must

point toward the top of the display.

5. Align interface bracket (130), with screws (30) and

spacers (120), with mounting holes in display back.

6. Tighten all screws.

Attach Display to Centris Bracket

1. Start two M4 x 5mm Phillips pan head screws (70) into

the top two mounting holes of the previously attached interface bracket. (see figure 10)

2. Hang the mount from the two screws started in Step 1.

3. Install the remaining two M4 x 5mm Phillips pan head

screws (70) into the bottom mounting holes of the display.

4. Secure the display to the mount (Centris bracket) by

tightening all four M4 x 5mm Phillips pan head screws (70). (see figure 10)

Display

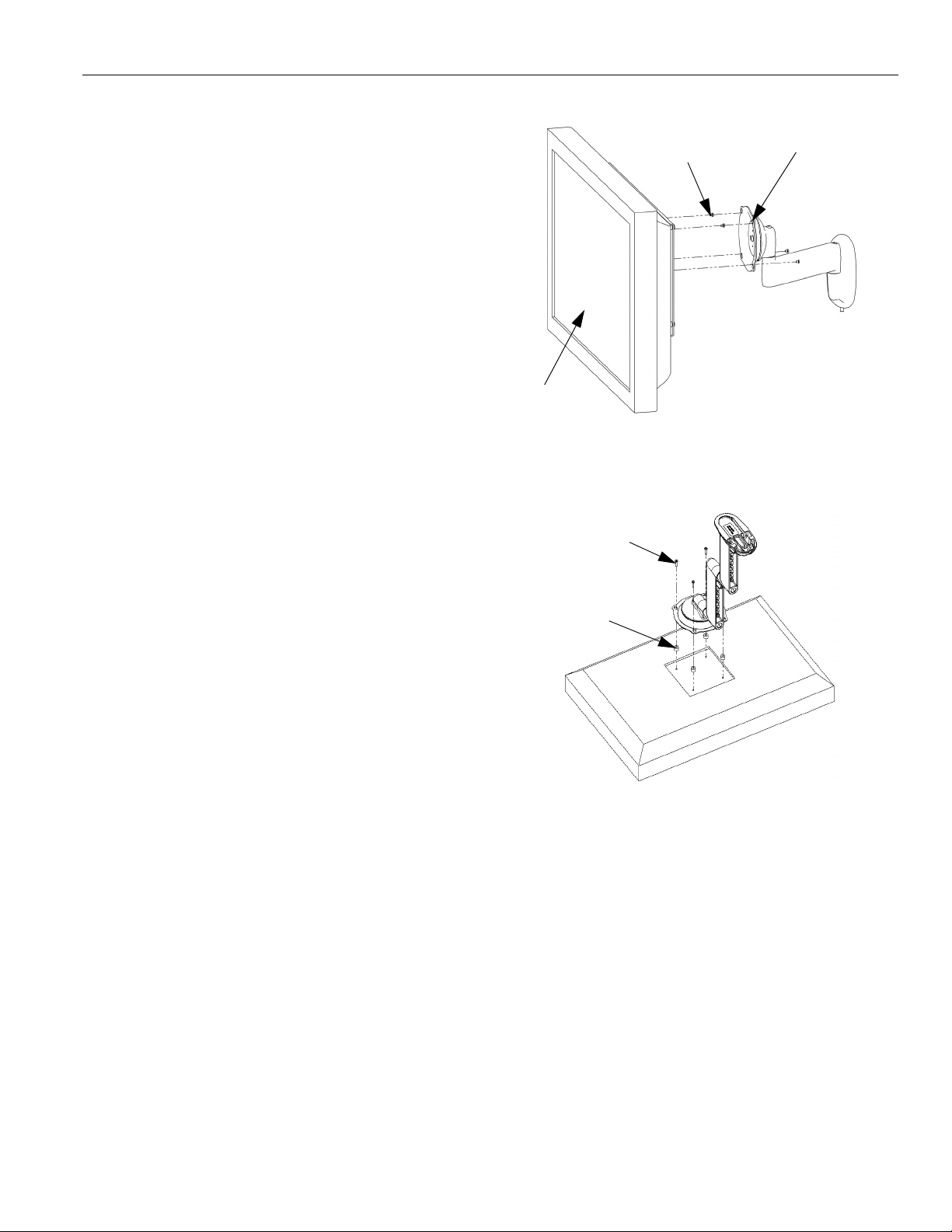

Figure 9: Attach 550mm x 235mm Interface Adapter

Display

Figure 10: Attach Display to Centris Bracket

Centris Bracket

Page 10

Model MSP-DCCMD Installation Instructions

CABLE MANAGEMENT

WARNING: Make sure your cables do not run through

a pinch point.

1. Connect and secure power/audio/video cables, making sure to leave sufficient slack to allow for movement of the display.

2. Route power/audio/video cables under each arm, allowing sufficient slack in cables for extension and avoiding pinch points.

3. Secure cables using two cover plates (160) and four screws (90). (see figure 11)

Lateral Tension Adjustment Bolts

ADJUSTMENTS

LATERAL TENSION ADJUSTMENT

CAUTION: Overtightening adjustment will cause

excessive wear.

1. Using a 3/16” hex wrench (170), slightly tighten or loosen lateral tension adjustment bolts. (see figure 12)

Figure 12: Adjust Lateral Tension

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

PITCH ADJUSTMENT

CAUTION: Overtightening adjustment screw will

cause excessive wear.

NOTE: Remove display to make pitch adjustment.

1. Check adjustment screw on the Centris interface to ensure that the screw is tight. (see figure 13)

2. If needed, use a 3/16” hex wrench (170) to tighten the screw.

Pitch Tension Adjustment Screw

Figure 13: Pitch Adjustment

160

Figure 11: Cable Management
