CHIEF MSP-BBSP Installation Instructions Manual

Installation Instructions MSP-BBSP

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

• WARNING:Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment: if not, reinforce the struc­ture before installing the mount.

• WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

• WARNING:The installer is responsible for verifying that the wall to which the mount is anchored will safely support
the combined load of all attached components or other equipment.

• WARNING:The weight of the display placed on the mountmust not exceed 40 lbs. (18.1 kg), the maximum load capac-
ity of the mount.

• WARNING:Watch for pinch points. Do not put your fingers between movable parts.

• WARNING:Make sure the mount and brackets are correctly oriented.

• CAUTION: Check the unit for shipping damage before you begin the installation.

CONTENTS

SPECIFICATIONS ....................................................1

TOOLS REQUIRED FOR INSTALLATION ..............1

DRAWINGS .............................................................. 2

INSPECT THE UNIT BEFORE INSTALLING ...........3

iC-SP-TP1-01 INSTALLATION .................................3

ADJUSTMENTS .......................................................5

ADJUSTMENTS .......................................................5

SPECIFICATIONS

This mount accommodates all VESA® 75mm/100mm compli­ant displays. Table 1 provides mount specifications.

Depth from Wall

Dimensions (WxHxD)

Tilt +/-15 degrees
Pivot 180 degrees
Weight Capacity 40 lbs. (18.2 kg)

TOOLS REQUIRED FOR

INSTALLATION

Table 1: Specifications

3.34” (84.74mm)deep in the closed
position

2-3/8”x 5-11/16” x 1-13/16”
(61 x 145 x 46 mm)

• Electric drill and bit set

• Phillips Screwdriver

• Level

NOTE: Other tools may be required depending on the

mounting surface and method of installation.

1

Installation Instructions MSP-BBSP

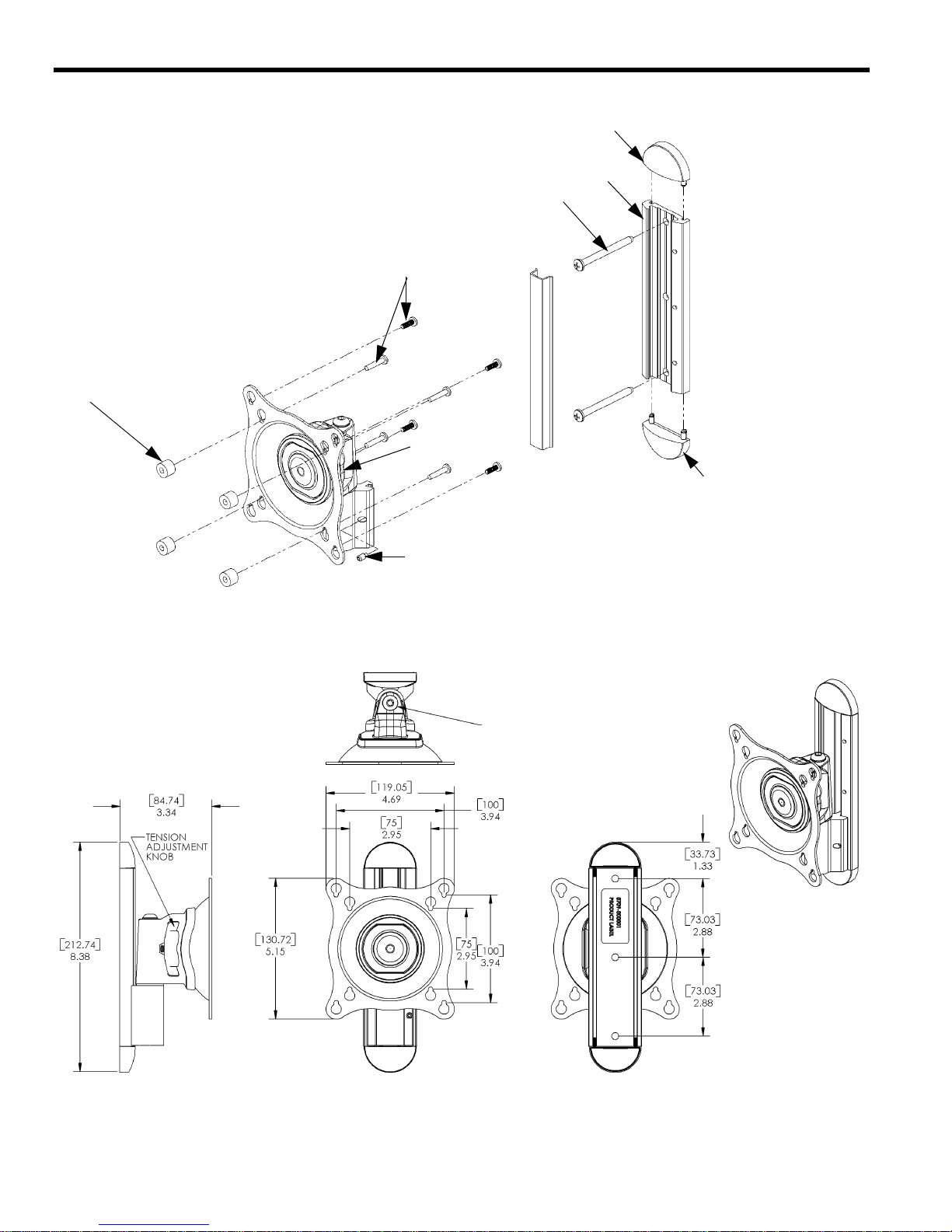

DRAWINGS

End Cap

Wall Plate

#10 Wood Screws

M4 X 8mm, 12mm, 16mm, 20mm or 30mm Phillips pan head screws

1/8” Spacers

(optional)

Adjustment Knob

End Cap

Set Screw

Tension Adjustment Bolt

2

Installation Instructions MSP-BBSP

INSPECT THE UNIT BEFORE INSTALLING

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Carefully inspect the mount for shipping damage. If any dam­age is apparent, call your carrier claims agent and do not con­tinue with the installation until the carrier has reviewed the
damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts
before proceeding (see drawing on page 2).

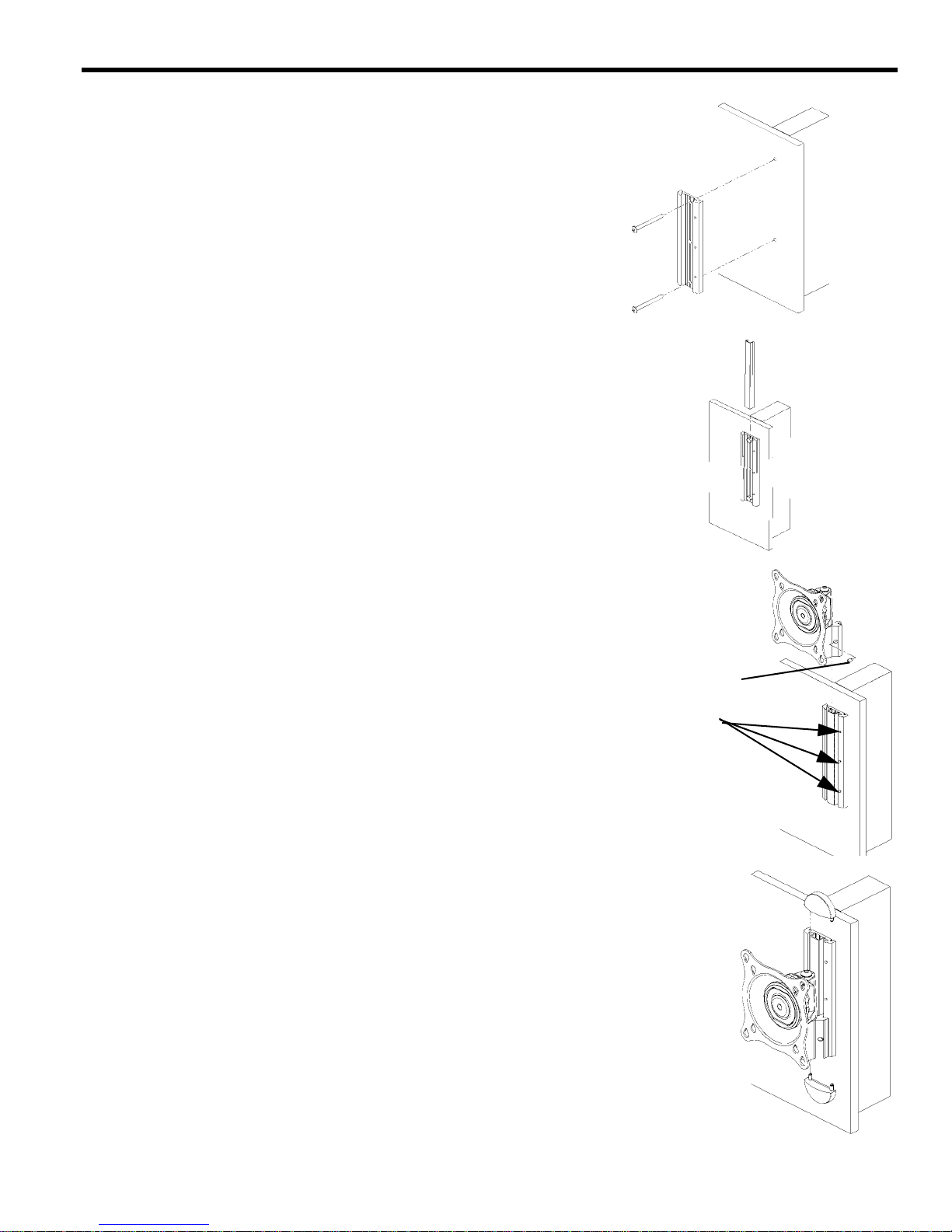

Figure 1. Secure Wall Plate

INSTALLATION

WARNING: It is the responsibility of the installer to verify that

the structure to which the mount is anchored will
safety support five times the combined load of all
attached components and equipment.

1. Determine the exact mounting location prior to installation,
considering the unit’s swing radius.

2. Using the wall plate as a template, drill two 3/32” pilot holes to
a minimum depth of 1 1/2” into wall stud.

3. Using two Phillips head #10 wood screws (supplied), secure
the wall plate (see Figure 1).

4. Install screw cover (see Figure 2).

5. Check mount to insure it is level and adjust to level if neces­sary.

6. Determine if you are installing a VESA compliant flush mount
display, VESA compliant recessed mount display or a non­VESA compliant display and follow the appropriate instruc­tions.

VESA Compliant Flush Mounting

A. Install the mount on the wall plate, set to desired height at

one of the fixed height settings and secure by tightening
the set screw (see Figure 3).

B. Install the end caps on the wall plate (see Figure 4).

CAUTION: If monitor uses a screw size other than M4, DO NOT

use the M4 screws provided. Using the wrong screws
could result in damage to your display.

Figure 2. Install Screw Cover

Set Screw

Fixed Height Settings

Figure 3. Install iC-SP-TP1

and Tighten

Set Screw

C. Start two M4 X 12mm Phillips pan head screws in the top

mounting holes of your display.

D. Matching the hole pattern on your display with the hole

pattern on the mount (see Figure 5), hang the mount from
the two screws started in Step A.

Figure 4. Install End Caps

3

Installation Instructions MSP-BBSP

E. Install two remaining Phillips pan head screws through the

mount and into the mounting holes of your display.

F. Secure your display to the mount by tightening the four

Phillips pan head screws.

WARNING: Make sure your cables do not run through a pinch

point.

G. Connect and secure power/audio/video cables, making

sure to leave sufficient slack to allow for movement of the
display.

VESA Compliant Recessed Mounting

A. Place four 1/2” X 3/8” Nylon spacers or four 1/2” X 3/4”

Nylon spacers, as necessary, over the mounting holes of
your display (see Figure 6).

B. Place the mount over the Nylon spacers, matching the hole

pattern on your display (75mm or 100mm) with the hole
pattern on the mount.

C. Using four M4 X 20mm Phillips pan head screws for 1/2”

X 3/8” Nylon spacer installation or four M4 X .7 X 30mm
Phillips pan head screws for the 1/2” X 3/4” Nylon spacer
installation, secure the mount to your display.

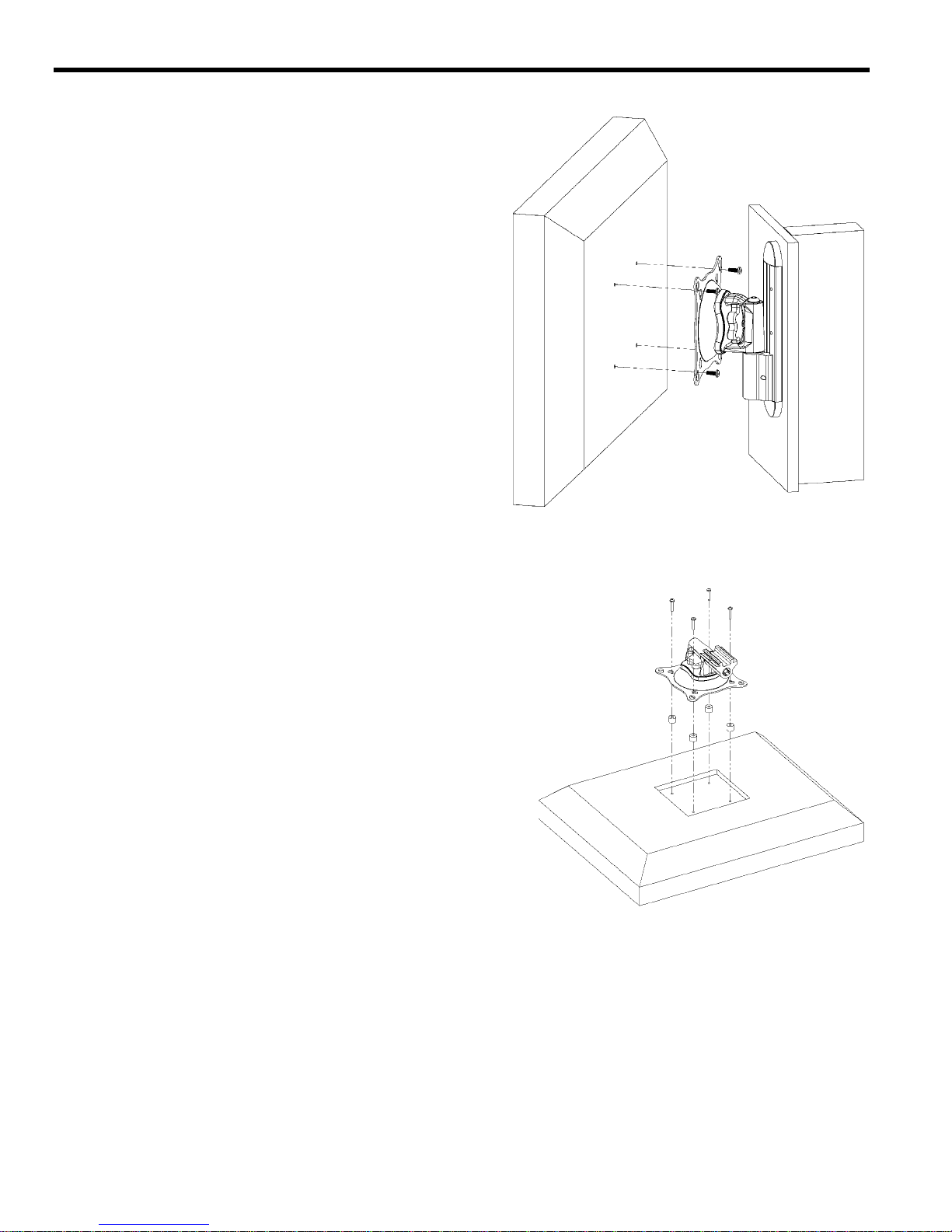

Figure 5. Flush Mounting

H. Install the mount on the wall plate, set to desired height at

one of the fixed height settings and secure by tightening
the set screw (see Figure 3).

J. Install the end caps on the wall plate (see Figure 4).

WARNING: Make sure your cables do not run through a pinch

point.

K. Connect and secure power/audio/video cables, making

sure to leave sufficient slack to allow for movement of the
display.

Non-VESA Compliant Mounts

A. Contact Chief Manufacturing for custom interface brack-

ets.

Figure 6. Recessed Mounting

4

Installation Instructions MSP-BBSP

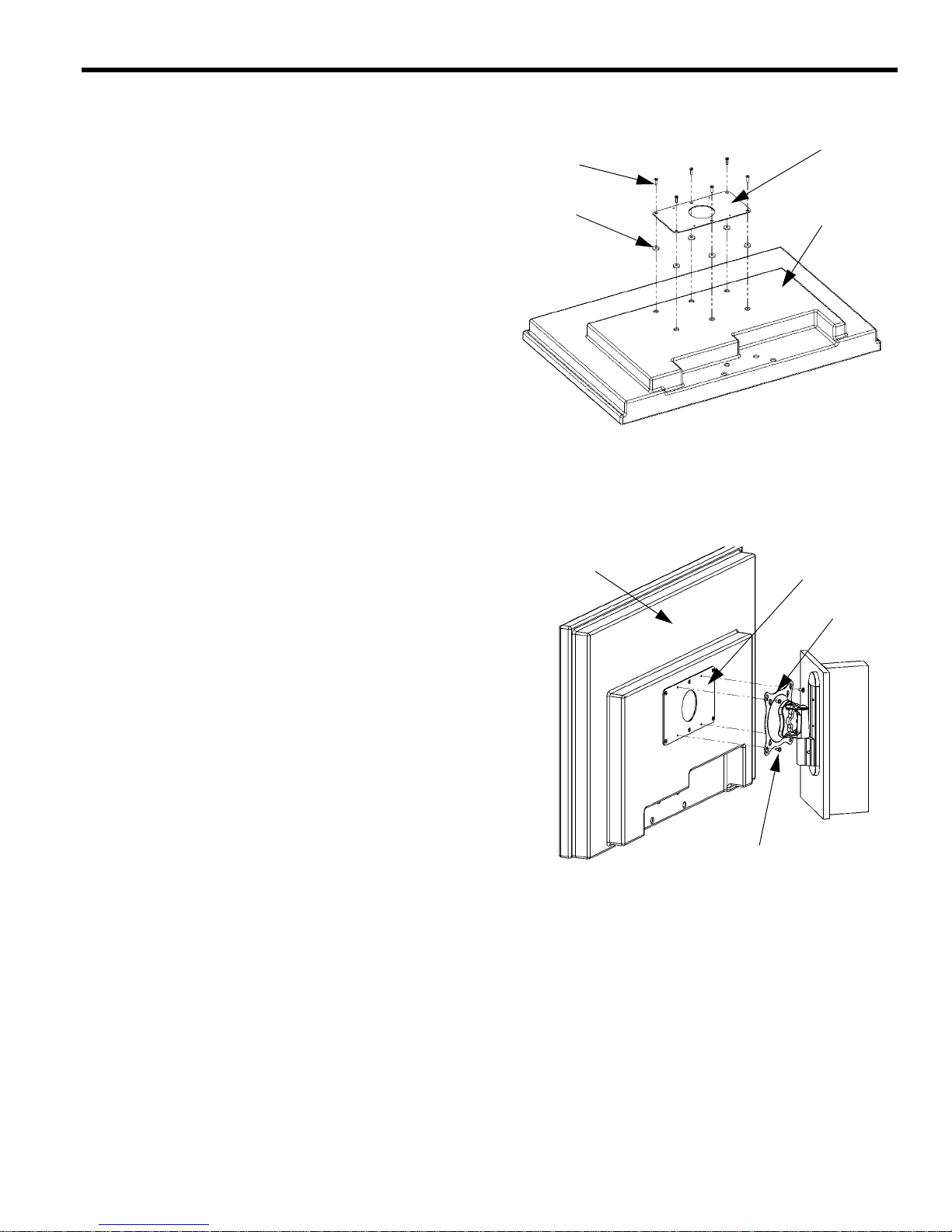

INSTALLATION (200mm x 100MM)

M4 X 16mm
Phillips Flat Head Screws (6)

Attach Interface Adapter to Display

Interface Bracket

1. Select six M4 X 16mm Phillips flat head screws and six
1/8” nylon retaining spacers.

2. Place display face down on a clean dry surface.

3. Align six 1/8” nylon spacers over mounting holes in dis­play back (see Figure 7).

4. Align interface bracket mounting holes with 1/8” nylon
spacers.

5. Install six M4 X 16mm Phillips flat head screws through
six mounting holes in interface bracket, spacers and into
display (see figure 7).

6. Tighten six M4 X 16mm Phillips flat head screws

.

Attach Centris Bracket to Display

1. Start two M4 x 8mm Phillips pan head screws into the top
two mounting holes of interface bracket (see figure 8).

2. Hang mount from two screws.

3. Install the remaining two M4 x 8mm Phillips pan head
screws into the bottom two mounting holes of interface
bracket.

4. Secure the display to the mount (Centris bracket) by tight­ening four M4 x 8mm Phillips pan head screws.

1/8” Nylon Spacers (6)

Figure 7. Install Interface Bracket

Display

Display

Interface Bracket

Centris Bracket

M4 X 8mm
Phillips Pan Head Screws (4)

Figure 8. Attach Centris Bracket to Display

5

Installation Instructions MSP-BBSP

ADJUSTMENTS

CAUTION: Overtightening adjustment will cause excessive wear.

Rotational Tilt, Pitch, and Roll Adjustment

1. If necessary , use a Phillips screwdriver to tighten or loosen
the Phillips pan head screw (see DRAWINGS).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Lateral Tension Adjustment

1. Using a 3/16” hex wrench (provided), slightly tighten or
loosen lateral tension adjustment bolt (see DRAWINGS).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

6
