Page 1
INSTALLATION INSTRUCTIONS
Single Ceiling Mount
MCS6000 Series
Page 2
MCS6000 Series Installation Instructions
DISCLAIMER
CSAV, Inc., and its affiliated corporations and subsidiaries
(collectively, "CSAV"), intend to make this manual accurate and
complete. However, CSAV makes no claim that the information
contained herein covers all details, conditions or variations, nor
does it provide for every possible contingency in connection
with the installation or use of this product. The information
contained in this document is subject to change without notice
or obligation of any kind. CSAV makes no representation of
warranty, expressed or implied, regarding the information
contained herein. CSAV assumes no responsibility for
accuracy, completeness or sufficiency of the information
contained in this document.
WARNING:
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING:
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
Failure to read, thoroughly understand, and
Failure to provide adequate structural strength
IMPORTANT WARNINGS AND
CAUTIONS!
WARNING:
serious injury or death if you do not follow the instructions.
CAUTION:
damage or destruction of equipment if you do not follow the
corresponding instructions.
A WARNING alerts you to the possibility of
A CAUTION alerts you to the possibility of
DIMENSIONS
WARNING:
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components located between the supporting structure and
MCS does not exceed 125 lbs (57 kg).
• The weight capacity of the MCS may be LIMITED to the
lowest capacity of any other component located
between the MCS and the supporting structure!
Exceeding the weight capacity can result in
2
Page 3
Installation Instructions MCS6000 Series
LEGEND
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Pencil Mark
Marcar con lápiz
Stiftmarkierung
Marcar com lápis
Segno a matita
Potloodmerkteken
Marquage au crayon
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cru ci fo r me
Open-Ended Wrench
Llave de boca
Gabelschlüssel
Chave de bocas
Chiave a punte aperte
Steeksleutel
Clé à fourche
Drill Hole
Perforar
Bohrloch
Fazer furo
Praticare un foro
Gat boren
Percez un trou
Adjust
Ajustar
Einstellen
Ajustar
Regolare
Afstellen
Ajuster
Remove
Quitar
Entfernen
Remover
Rimuovere
Verwijderen
Retirez
By Hand
A mano
Von Hand
Com a mão
A mano
Met de hand
À la main
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Optional
Opcional
Optional
Opcional
Opzionale
Optie
En option
Security Wrench
Llave de seguridad
Sicherheitsschlüssel
Chave de segurança
Chiave di sicurezza
Veiligheidssleutel
Clé de sécurité
3
Page 4
MCS6000 Series Installation Instructions

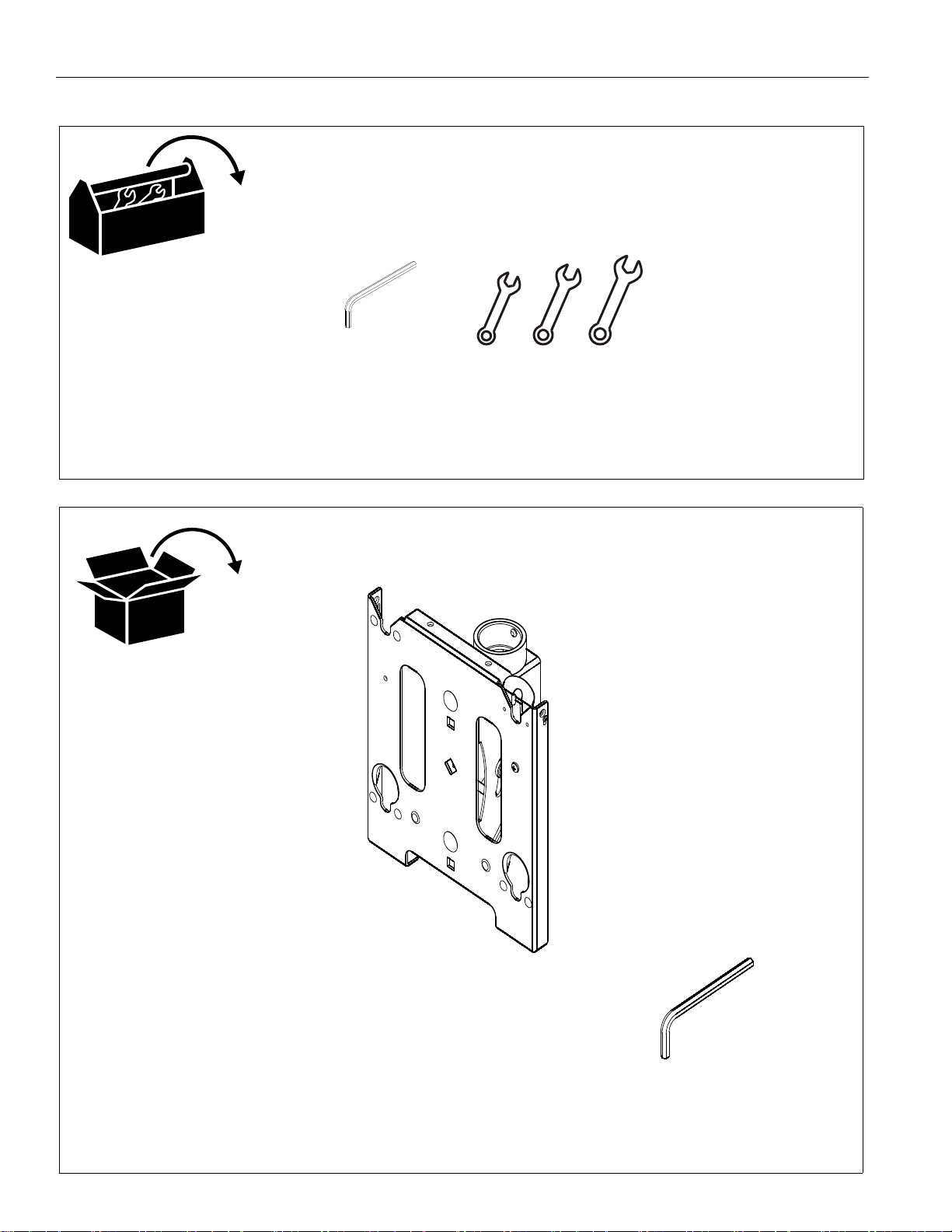

PARTS
TOOLS REQUIRED FOR INSTALLATION
A (1)
B (1)
5/32"
5/32"
(Provided)
4
Page 5
Installation Instructions MCS6000 Series
Set
Screw
(A)
NPT
Pipe
2
1
(A)
Display
(A)
Back
of Display
Interface Bracket
(will vary in
appearance)
INSTALLATION
WARNING:
STRUCTURAL STRENGTH FOR THIS COMPONENT CAN
RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE
TO EQUIPMENT! It is the installer’s responsibility to make
sure the structure to which this component is attached can
support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
FAILURE TO PROVIDE ADEQUATE

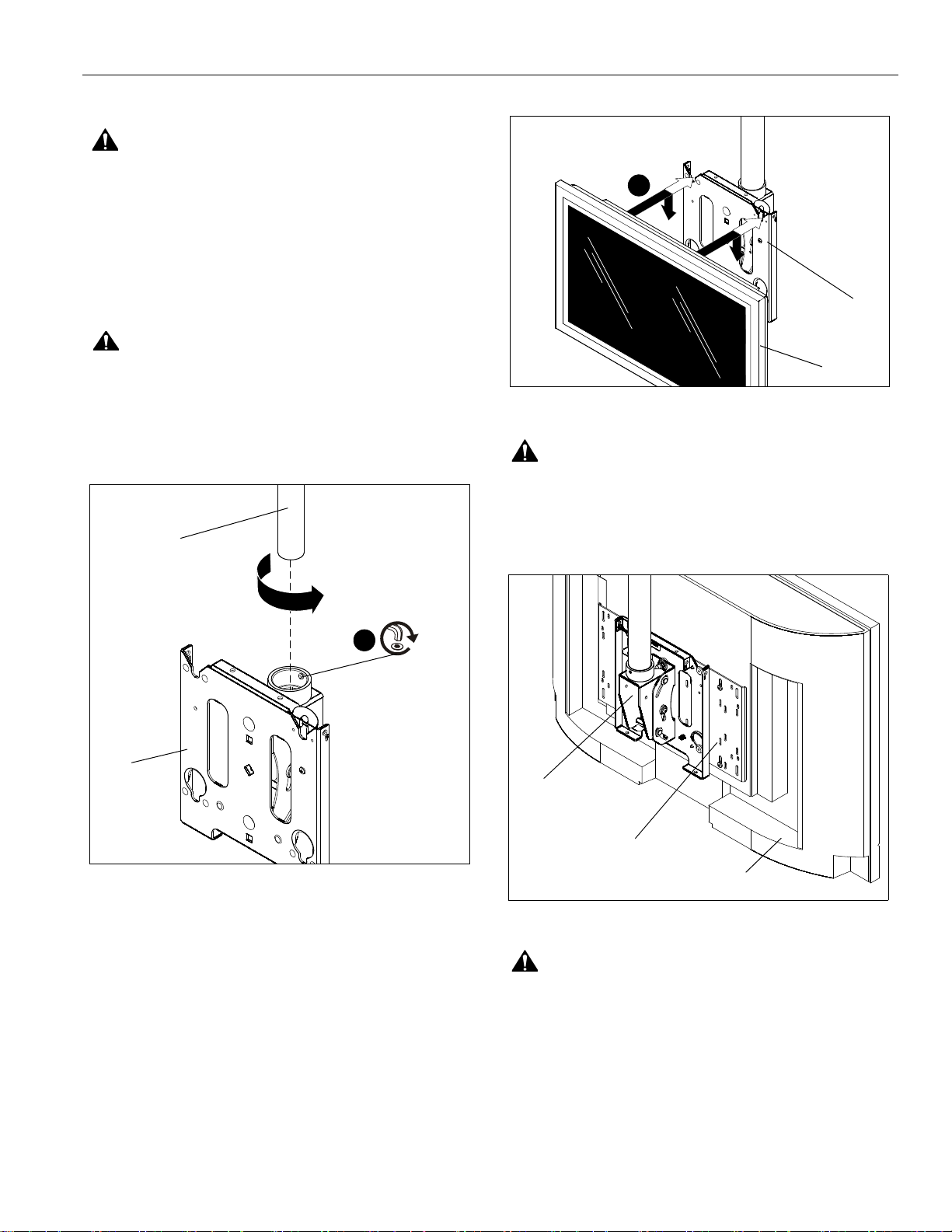

Attaching MCS to NPT Pipe
CAUTION:
between moveable parts.
1. Thread the MCS (A) onto the existing 1-1/2" NPT pipe until
tight. (See Figure 1)
2. Using the hex head wrench (B) tighten the set screw into the
MCS threaded collar to prevent movement of the mount.
(See Figure 1)
Watch for pinch points. Do not place fingers
Figure 2
WARNING:
LBS! Always use two people and proper lifting techniques
when installing or positioning display on MCS.
2. Lower display into place listening for audible "click" to
ensure recessed area of mounting buttons are properly
seated in lower area of mounting holes. (See Fig. 2, 3 and 4)
DISPLAY MAY WEIGH IN EXCESS OF 40
Figure 1
Attaching Interface Bracket to Display
1. Attach interface bracket to display following instructions
included with interface bracket kit.
Attaching Displays to MCS
1. While supporting both sides of display, align four mounting
buttons on display or interface bracket with four mounting
holes in MCS. (See Figures 2, 3 and 4)
Figure 3
WARNING:
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Ensure mounting
buttons are completely engaged in mounting holes.
NOTE:
IMPROPER INSTALLATION CAN LEAD TO
Holes are provided in the faceplate for use with a
padlock or similar locking device, if desired. In addition,
the pin and nut may be removed from the upper holes
and moved to the lower holes for use as a more
permanent locking device. (See Figure 4).
5
Page 6
MCS6000 Series Installation Instructions
4
5
May remove
pin and nut and
move to lower holes
A padlock or bolt
may be placed
through latch holes
2
1
Remove bolt
or padlock
if used
Pin in
"Open"
position -
Pin in
"Closed"
position -
4
move to
"Open"
position to
move to
"Closed"
position
remove
display
after display
is removed.

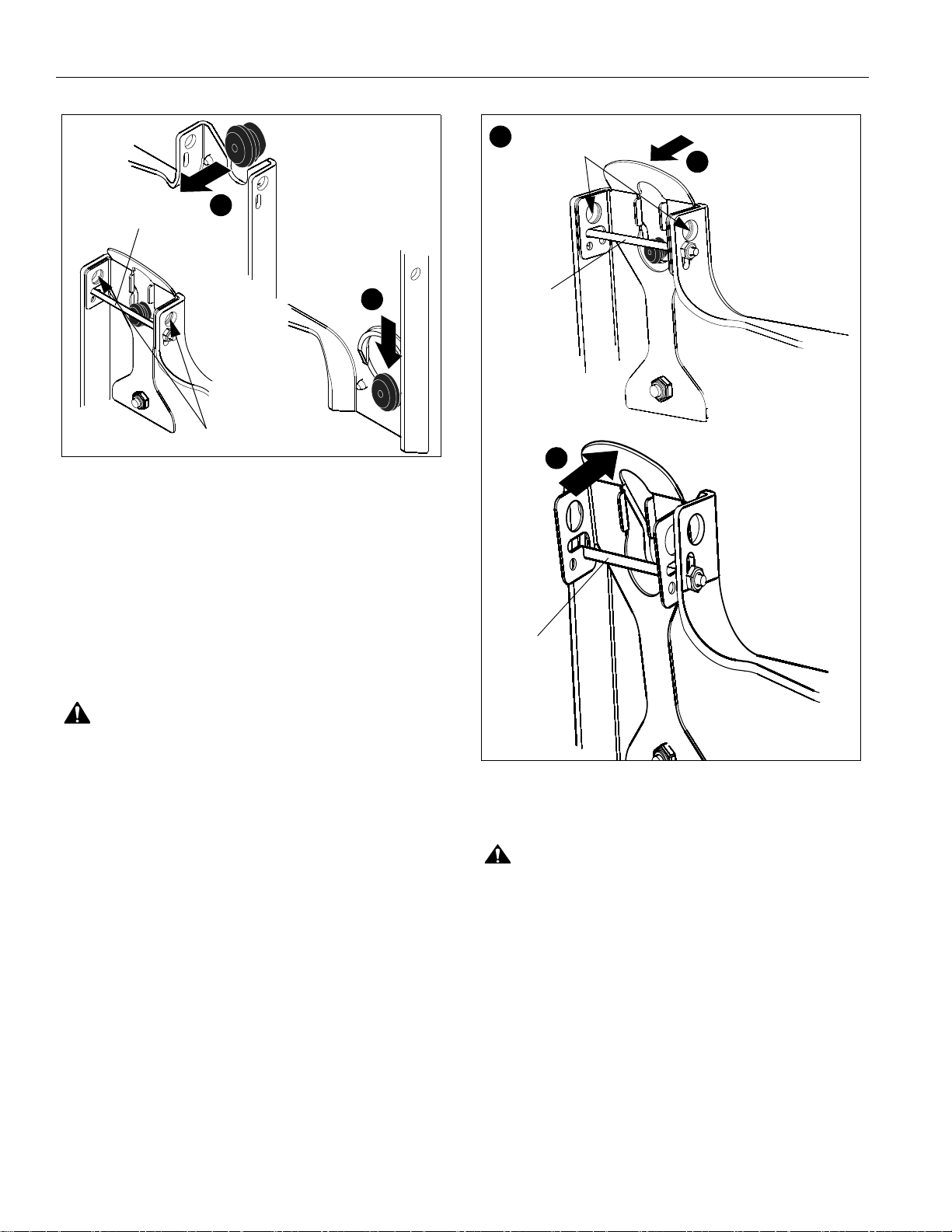

Figure 4
Removing Display from MCS
1. Disconnect all power/audio/video cables.
2. Remove bolt or padlock from faceplate (if used).
(See Figure 5)
NOTE:
3. Pull back on flag on upper mounting hole and press pin
4. Carefully lift display from MCS.
5. Lift up on pin and place flag back against faceplate to return
The pin may have been used as a more permanent
locking device. If so, remove nut and pin and move
from the lower holes to the upper holes.
down into "Open" position. (See Figure 5)
WARNING:
40 LBS EACH! Always use two people and proper lifting
techniques when installing or positioning display on MCS.
it to "Closed" position. (See Figure 5)
THE DISPLAY MAY WEIGH IN EXCESS OF
Figure 5
Adjusting Display
CAUTION:
between moveable parts.
Adjusting Roll
1. Using a 9/16" wrench, loosen the Nylock roll adjustment nut
on back of mounting plate. (See Figure 6)
2. Tilt the faceplate left or right as required.
3. TIghten nut.
NOTE:
Watch for pinch points. Do not place fingers
Do NOT overtighten fasteners.
6
Adjusting Pitch
1. Adjust display to the desired pitch.
2. Using the 5/32" hex head wrench (B), tighten the pitch
adjustment screw to hold mount in position. (See Figure 6)
Page 7
Installation Instructions MCS6000 Series

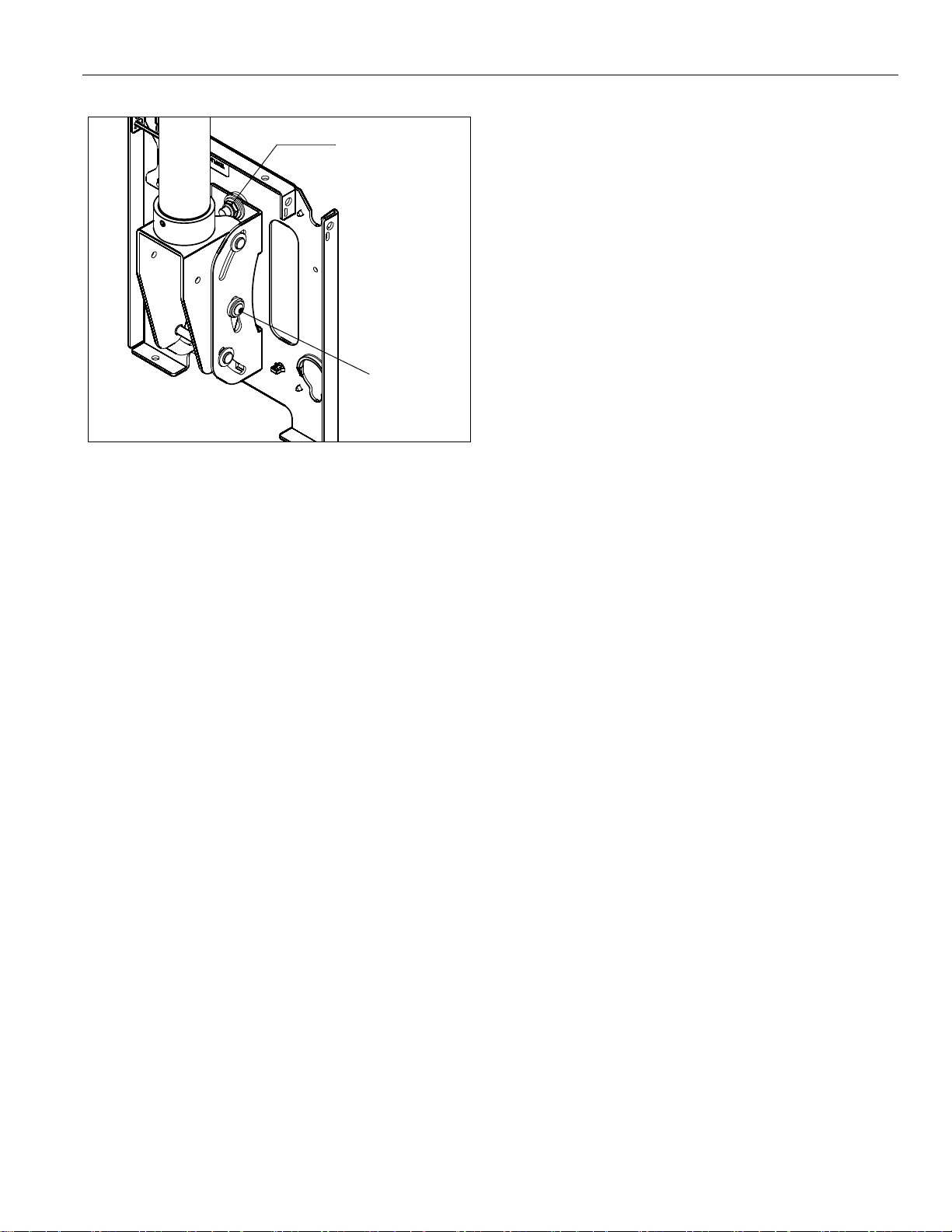

Roll
Adjustment
Nut
Pitch
Adjustment
Screw
Figure 6
7
Page 8
MCS6000 Series Installation Instructions
8805-000144 Rev. E
©2007 Chief Manufacturing
www.chiefmfg.com
10/07
USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378
P 800.582.6480 / 952.894.6280
F 877.894.6918 / 952.894.6918
Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands
P +31 (0)40 2668620
F +31 (0)40 2668615
Asia Pacific A Room 30I, Block D, Lily YinDu International Building
LuoGang, BuJi Town, Shenzhen, CHINA. Post Code: 518112
P +86-755-8996 92 26 ; 8996 9236 ; 8996 9220
F +86-755-8996 9217
