Page 1
INSTALLATION INSTRUCTIONS
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
J-Series Steel Stud Installation Kit
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
MAC118
Page 2
MAC118 Installation Instructions
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cruciforme
DISCLAIMER
Milestone AV Technologies, Inc., and its affiliated corporations
and subsidiaries (collectively, "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief is a trademark of Milestone AV Technologies. All rights
reserved.
WARNING:
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING:
for the installation of this kit can result in serious personal
injury or damage to equipment! It is the installer’s
responsibility to make sure the structure to which this kit is
attached can support five times the combined weight of all
equipment.
Failure to read, thoroughly understand, and
Failure to provide adequate structural strength
IMPORTANT WARNINGS AND
CAUTIONS!
WARNING:
serious injury or death if you do not follow the instructions.
CAUTION:
damage or destruction of equipment if you do not follow the
corresponding instructions.
A WARNING alerts you to the possibility of
A CAUTION alerts you to the possibility of
LEGEND
WARNING:
JWD and JWS Swing Arm Wall mounts.
WARNING:
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to this accessory does not exceed
75 lbs (34.1 kg).
This kit is intended for use only with Chief
Exceeding the weight capacity can result in
2
Page 3
Installation Instructions MAC118
T
O
G
G
L
E
R
Ă
x1
I/M
J (4)
A (1)
D (1)
G (1)
C (1)
E (1)
(3/16")
B (1)
K (4)
F (1)
L (4)
H (1)
N (1)
(1/4"-20)
M (4)
(1/4"-20)
(1/4"-20 x 1 3/4")
1/2" (Ø13mm)
(3/16")
(1/4"-20 SNAPTOGGLE BB)
TOOLS REQUIRED FOR INSTALLATION AND PARTS
3
Page 4
MAC118 Installation Instructions
16" or 24" (on center) Studs
Drywall
1/2" minimum
Drywall Thickness
Display Mount Installation Location
FRONT
(Both Sides of Stud)
(Must be centered on studs)
There must be a minimum of
1 7/8" (48mm) clearance
behind wall
If back side of wall is unfinished, drywall must be installed
to a minimum of one stud left and right of the stud(s)
being used to install the mount. Drywall must be
secured to studs with screws 12" on center
Steel Stud (2 x 4 / 25ga minimum)
Stud type and structural strength must conform to the North American
Specification for the Design of Cold-Formed Steel Structural Members.
[362 S 125 18, C-Shaped, S-Stud Section]

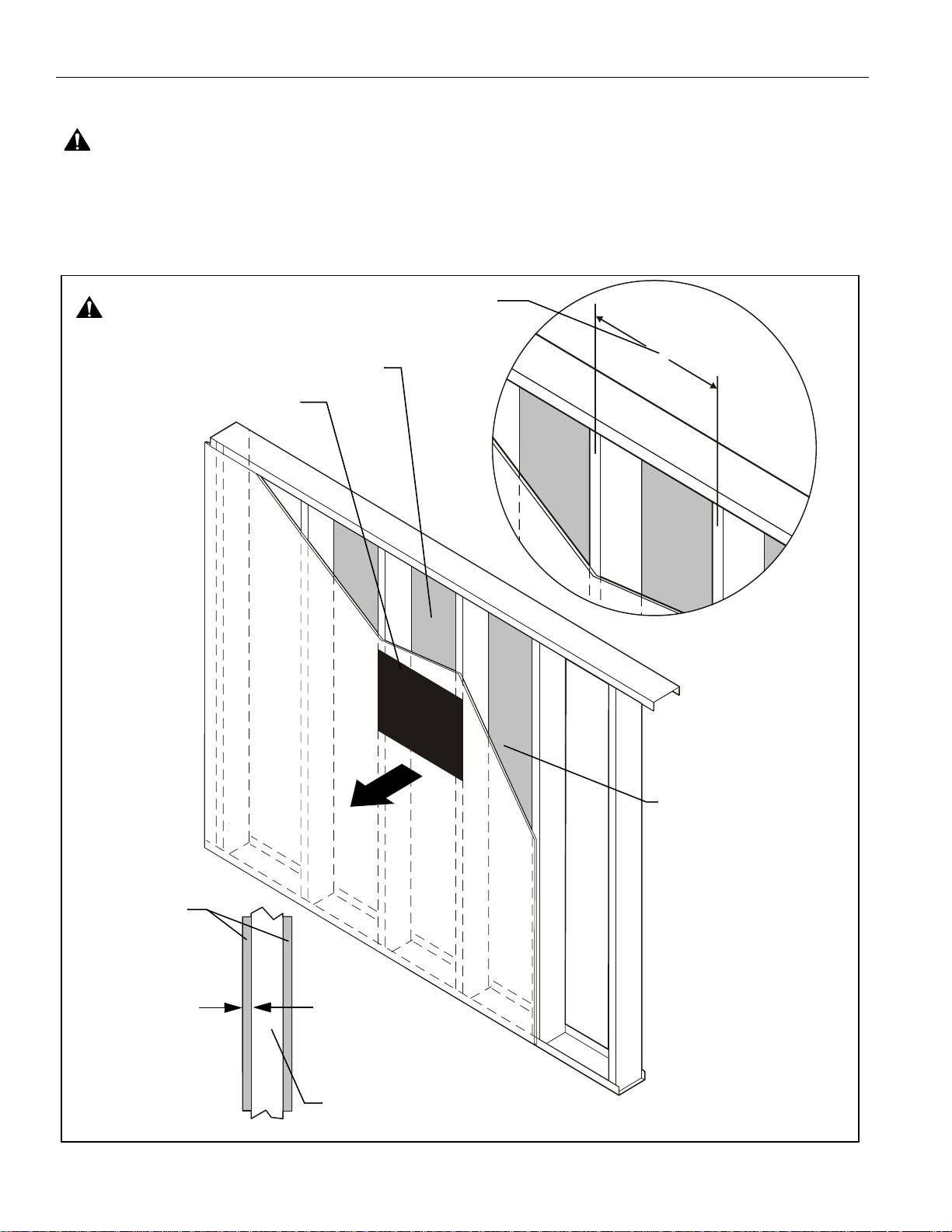

Site Requirements
WARNING:
OR DAMAGE TO EQUIPMENT! The figure below identifies the minimum reguirements for installation of display mounts onto a
steel stud structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific
instructions before attempting installation. It should also be noted that no other equipment should be mounted to the same stud.
IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY
4
Figure 1
Page 5
Installation Instructions MAC118
Swing Arm
Existing Wall Plate
Screw
Washers
Spacer
Locknut
Pivot Pin
Swing Arm
(B) x1
(D) x1
(E) x1
(F) x1
(C) x1
(H) x1
(G) x1
(A) x1

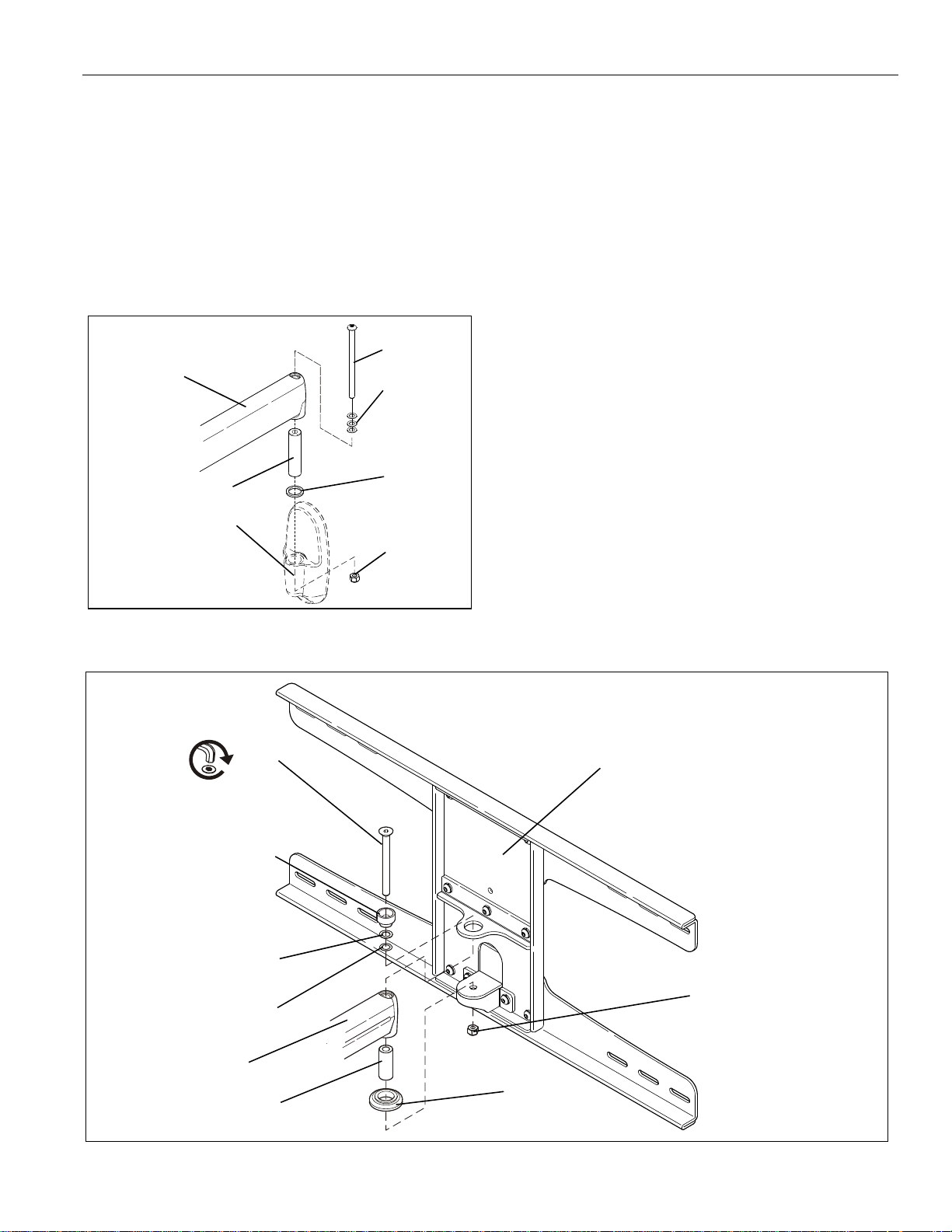

Preparation of Existing Mount
If mount has previously been installed:
1. Remove display from mount following instructions provided
with mount.
2. Remove mount from wall following instructions provided
with mount.
3. Proceed to step 4.
If mount has not previously been installed:
4. Remove mount wall plate from swing arm assembly by
removing screw, washers and spacers, pivot pin and
locknut. (See Figure 2)
NOTE: Wall plate and hardware removed is not required
for steel stud installation. It may be discarded or
kept for future use in a non-steel stud application.
Assemble Swing Arm to Steel Stud Wall Plate
To assemble the mount:
1. Orient swing arm so that it is positioned in front of mounting
tabs on wall plate (A). (See Figure 3)
2. Slide inner stud (C) up into bottom of swing arm.
3. Place spacer (G) up against bottom of swing arm and hold
spacer (G)and inner stud (C) in place.
4. Slide swingarm with inner stud (C) and spacer (G) between
mounting tabs in wall plate (A).
5. Slide stepped spacer(D), spacer (E) and washer (F) onto
flat head cap screw (B).
6. Slide flat head capscrew (B) with spacers (E) and washer
(F) down into swing arm and through inner stud (C) and
lower spacer (G).
7. Secure swing arm to mount using Nylock nut (H).
Figure 2
Figure 3
5
Page 6
MAC118 Installation Instructions
1/2" (Ø13mm) x4
Mounting holes
centered on
studs
5
(A) x1
(M) x4
Drywall
Plastic Straps
Plastic Cap
Steel Stud
Drywall
Anchor Metal Channel
SIDE VIEW
(M) x4

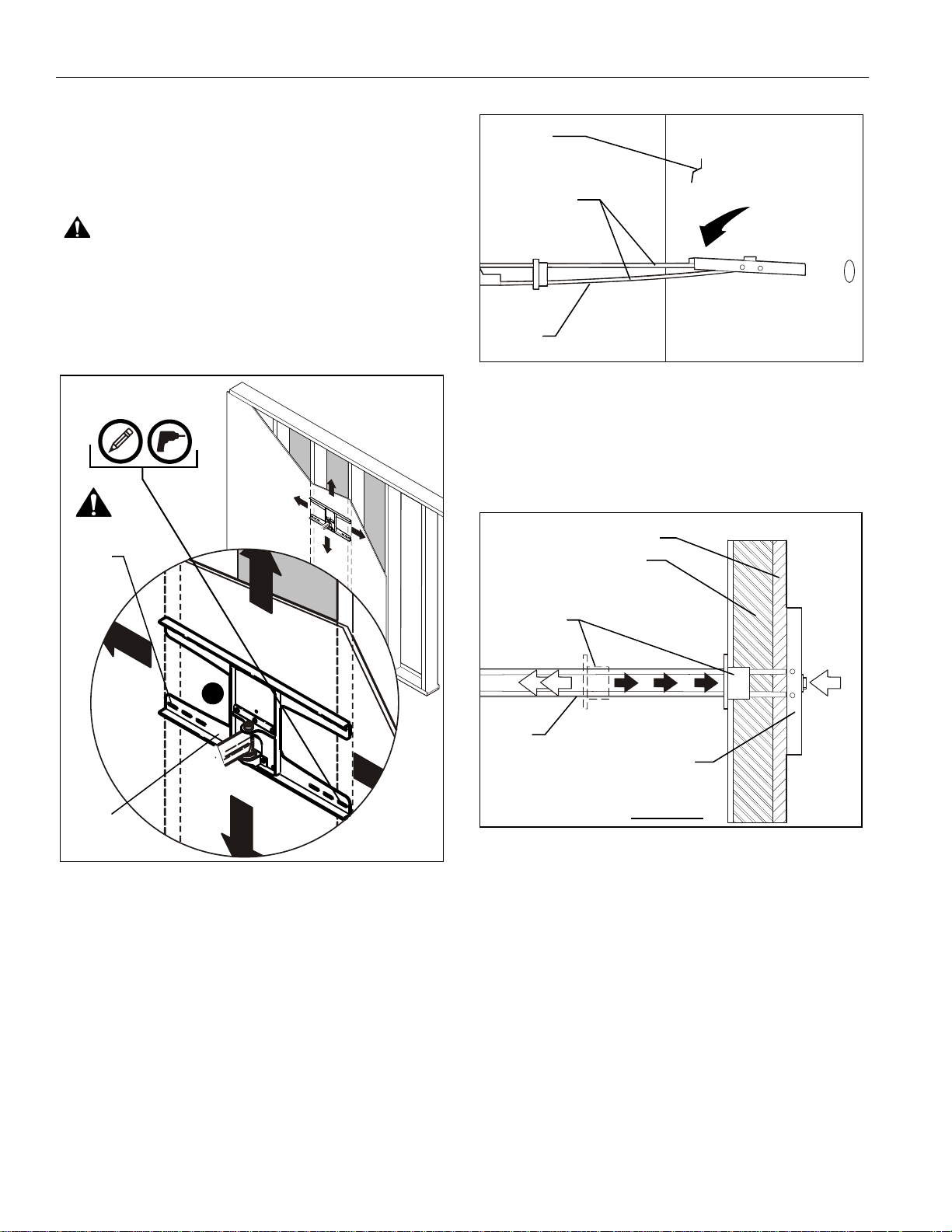

Mount Installation
After determining the site meets the installation requirements:
1. Identify desired mounting location on wall.
2. Using a stud finder or similar method locate studs.
3. Align mounting holes in mount with studs making sure
mounting holes are centered on studs.
WARNING:
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Make sure
mounting holes are used on both sides!
4. Mark location of four mounting holes on wall.
5. Drill four 1/2" (Ø13mm) holes.
IMPROPER INSTALLATION CAN LEAD TO
Figure 5
7. Holding plastic straps on anchor (M), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud as show in
figues below.
8. Slide plastic cap on anchor (M) towards wall until flange of
cap is flush with wall.
Figure 4
6. Hold metal channel on anchor (M) flat alongside plastic
s tr a p s a n d s li d e c h an ne l t hr ou gh ho le .
6
Figure 6

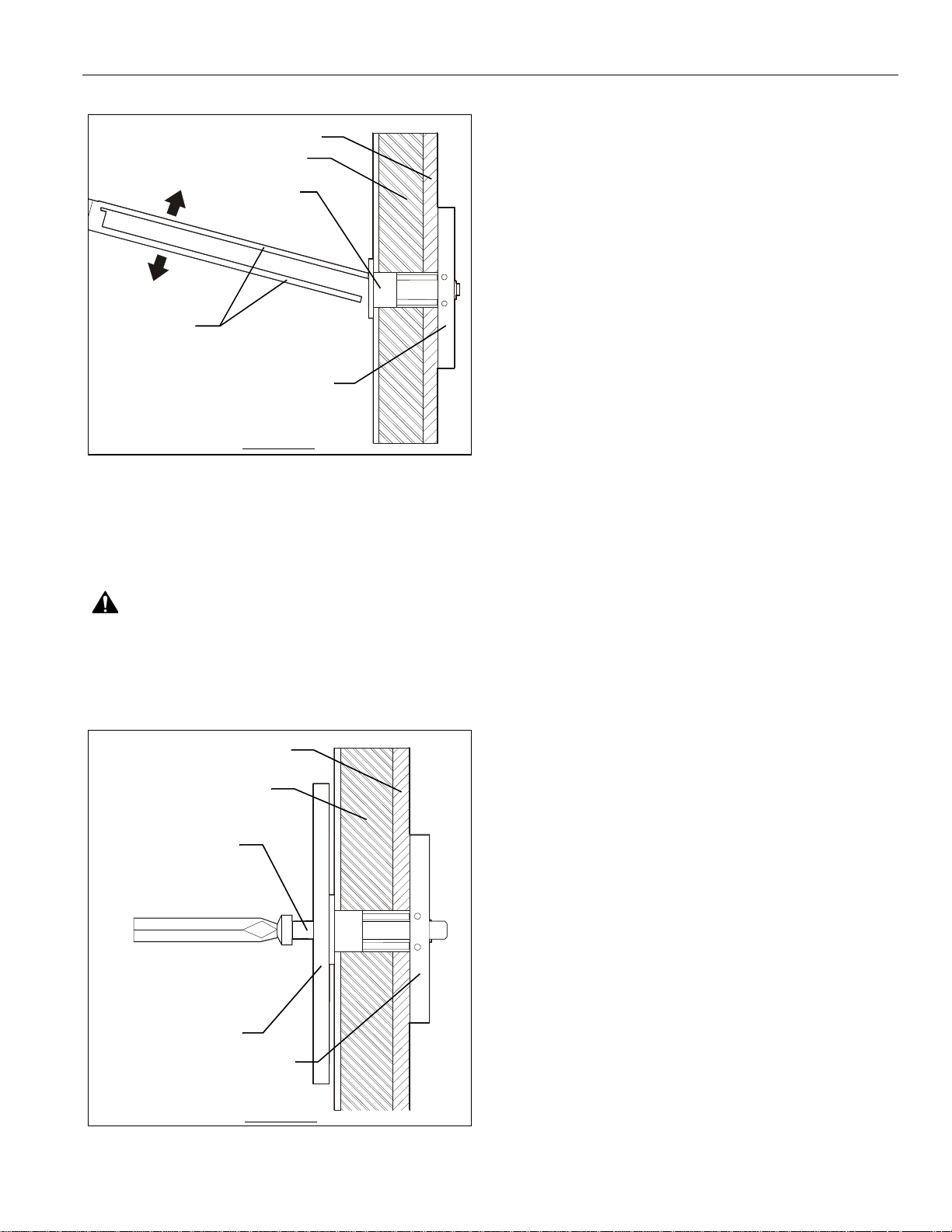

9. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
10. Repeat steps 6 through 9 for each mounting hole.
Page 7
Installation Instructions MAC118
Plastic Straps
Steel Stud
Drywall
Anchor Metal Channel
Plastic Cap
SIDE VIEW
Steel Stud
Drywall
Anchor Metal Channel
Display Mount
SIDE VIEW
(K) x 4
(L) x 4
Figure 7
11. Place mount over anchors and align mounting holes in
display mount with holes in anchors.
12. Place flat washer (K) onto button head capscrew (L).
13. Insert Phillips pan head capscrews (L) with flat washer (K)
through mounting hole in display mount and into anchor (M)
and tighten until flush against mount. DO NOT overtighten!
WARNING:
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Overtightening of
mounting hardware can damage the steel studs. DO NOT
overtighten mounting hardware!
IMPROPER INSTALLATION CAN LEAD TO
Figure 8
7
Page 8
MAC118 Installation Instructions
Chief Manufacturing, a division of
Milestone AV Technologies
8804-000344 RevD
©2008 Milestone AV Technologies
www.chiefmfg.com
06/08
USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378
P 800.582.6480 / 952.894.6280
F 877.894.6918 / 952.894.6918
Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands
P +31 (0)40 2668620
F +31 (0)40 2668615
Asia Pacific A Room 24F, Block D, Lily YinDu International Building
LuoGang, BuJi Town, Shenzhen, CHINA.
P +86-755-8996 9226
F +86-755-8996 9217
