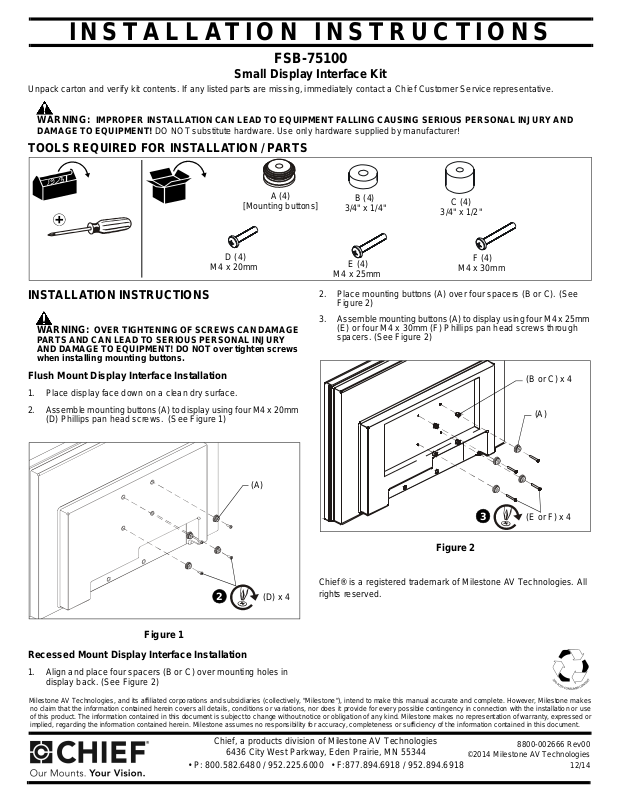

INSTALLATION INSTRUCTIONS
FSB-75100
Small Display Interface Kit
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
TOOLS REQUIRED FOR INSTALLATION / PARTS
A (4)
[Mounting buttons]
D (4)
M4 x 20mm
INSTALLATION INSTRUCTIONS
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE
PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY
AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws
when installing mounting buttons.
Flush Mount Display Inter fa ce Installation
1. Place display face down on a clean dry surface.
2. Assemble mounting buttons (A) to display usi ng four M4 x 20mm
(D) Phillips pan head screws. (See Figure 1)
(A)
B (4)
3/4" x 1/4"
E (4)
M4 x 25mm
2. Place mounting buttons (A) over four spacers (B or C). (See
Figure 2)
3. Assemble mounting buttons (A) to displ ay using four M4 x 25mm
(E) or four M4 x 30mm (F) Phillips pan head screws through
spacers. (See Figure 2)
C (4)
3/4" x 1/2"
F (4)
M4 x 30mm
(B or C) x 4
(A)
3
(E or F) x 4
Figure 2
Chief® is a registered trademark of Milestone AV Technologies. All
2
(D) x 4
rights reserved.
Figure 1
Recessed Mount Display Interface Installation
1. Align and place four spacers (B or C) over mounting holes in
display back. (See Figure 2)
Milestone AV Technologies, and its affiliated co rpo rat ions a nd s ubs id iaries (collectively, "Milestone"), intend to mak e th is ma nual ac curate and complete. However, Milestone mak es
no claim that the information contained h erein co vers all details, conditions or variations, nor does it provide for every pos sible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief, a products division of Milestone AV Technologies
6436 City West Par kway, Eden Prairie, MN 553 44
• P: 800.582.6480 / 952.225.6000 • F:877.894.6918 / 952.894.6918
©2014 Milestone AV Technologies
8800-0 02 66 6 R ev 00
12/14
