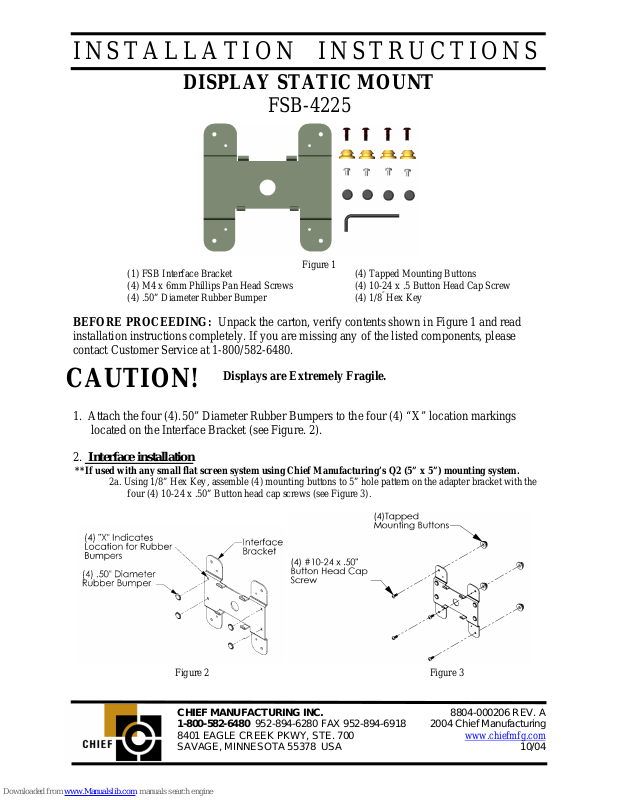

INSTALLATION INSTRUCTIONS
DISPLAY STATIC MOUNT
FSB-4225
(1) FSB Interface Bracket (4) Tapped Mounting Buttons
(4) M4 x 6mm Phillips Pan Head Screws (4) 10-24 x .5 Button Head Cap Screw
(4) .50” Diameter Rubber Bumper (4) 1/8
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
Figure 1
”
Hex Key
CAUTION!
Displays are Extremely Fragile.
1. Attach the four (4).50” Diameter Rubber Bumpers to the four (4) “X” location markings
located on the Interface Bracket (see Figure. 2).
2. Interface installation
**If used with any small flat screen system using Chief Manufacturing’s Q2 (5” x 5”) mounting system.
2a. Using 1/8” Hex Key, assemble (4) mounting buttons to 5” hole pattern on the adapter bracket with the
four (4) 10-24 x .50” Button head cap screws (see Figure 3).
Figure 2 Figure 3
CHIEF MANUFACTURING INC. 8804-000206 REV. A
1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing
8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com
SAVAGE, MINNESOTA 55378 USA 10/04
Page 2
**Optional VESA Mounting
2b. Attach Interface bracket to Display Screen (see Figure 4).
2c. Using four inside tapped holes of interface bracket and M4 x 6mm Phillips Screws (provided), secure
adapter bracket to any mounting device using a 100mm x 100mm VESA pattern.
Figure 4
