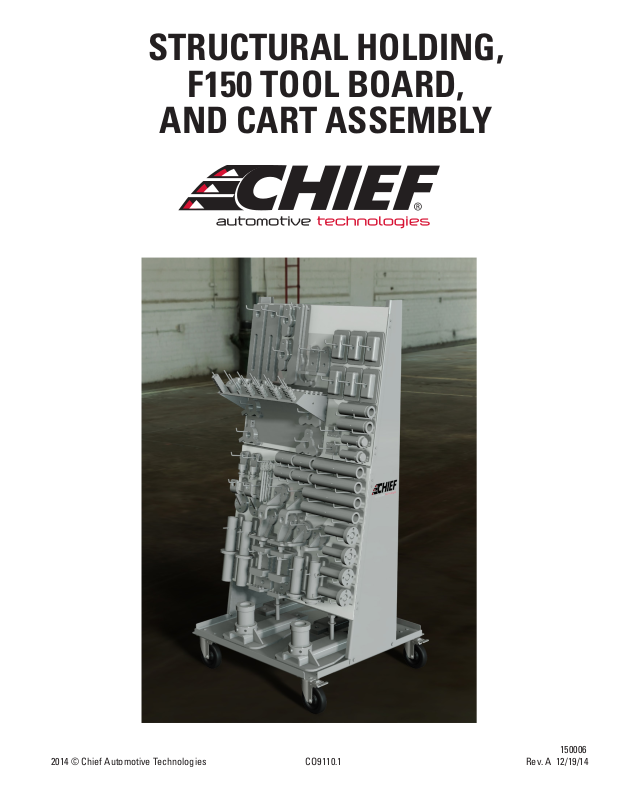

Page 1
STRUCTURAL HOLDING,
F150 TOOL BOARD,
AND CART ASSEMBLY
150006
2014 © Chief Automotive Technologies CO9110.1 Rev. A 12/19/14
Page 2
F150 Structural Holding Tool Board Cart
Step 1: Caster Assembly.
A.) Assemble 5”Casters using (4) M8 x 1.25 x 16mm
Lg. HHCS and (4) M8 x 1.25 Hex Lock Nuts.
5” Total Locking Casters
#788981
M8 x 1.25 Hex Lock Nut
#41541
5” Directional Lock Casters
#788980
M8 x 1.25 x 16mm Lg. HHCS
#41479
Step 2: Cart Tower Assembly.
A.) Assemble the Left and Right Cart Tower
Assembly supports using (2) M8 x 1.25 x 16mm Lg.
HHCS and (2) M8 x 1.25 Hex Lock Nuts.
Right Cart Tower
Assembly
#619282
Left Cart Tower
Assembly
#619281
M8 x 1.25 Hex Lock Nut
#41541
M8 x 1.25 x 16mm Lg. HHCS
#41479
2
Page 3
Step 3: Rear Cart Support Assembly.
A.) Assemble the Rear Cart Support using (4) M8 x
1.25 x 16mm Lg. HHCS and (4) M8 x 1.25 Hex Lock
Nuts.
Step 4: Cart Disk and Hairpin Cotter Pin.
A.) Install the (2) Cart Disk followed by (2) Hairpin
Cotter Pins.
M8 x 1.25 Hex Lock Nut
#41541
Rear Cart Support
#619285
Hairpin Cotter Pin
#41171
M8 x 1.25 x 16mm Lg. HHCS
#41479
Cart Disk
#619288
Board Assembly “A”
Phillips Pancake Head
Self Drilling Screw
#619294
Step 5: Board Assembly “A”.
A.) Assemble Board Assembly “A” to the Cart
Tower Supports using (8) Phillips Pancake Head
Self Drilling Screws. For driving screws, use #2
Square Drive Power Bit, 619295 provided (Do Not
attempt using Phillips Drive).
3
Page 4
Step 6: Board Assembly “B”.
A.) Assemble Board Assembly “B” to the Cart
Tower Supports using (8) Phillips Pancake Head
Self Drilling Screws. For driving screws, use #2
Square Drive Power Bit, 619295 provided (Do Not
attempt using Phillips Drive).
Board Assembly “B”
Phillips Pancake Head
Self Drilling Screw
#619294
Step 7: Attaching Board Assemblies.
A.) Attach Anchor Board “A” and Anchor Board
“B” together using (1) M8 x 1.25 x 16mm Lg. HHCS
and (1) M8 x 1.25 Hex Lock Nut.
M8 x 1.25 x 16mm Lg. HHCS
#41479
M8 x 1.25 Hex Lock Nut
#41541
4
Page 5
Step 8: Board Assembly “C”.
A.) Assemble Board Assembly “C” to the Cart Tower
Supports using (8) Phillips Pancake Head Self
Drilling Screws. For driving screws, use #2 Square
Drive Power Bit, 619295 provided (Do Not attempt
using Phillips Drive).
Board Assembly “C”
Phillips Pancake Head
Self Drilling Screw
#619294
5
Page 6

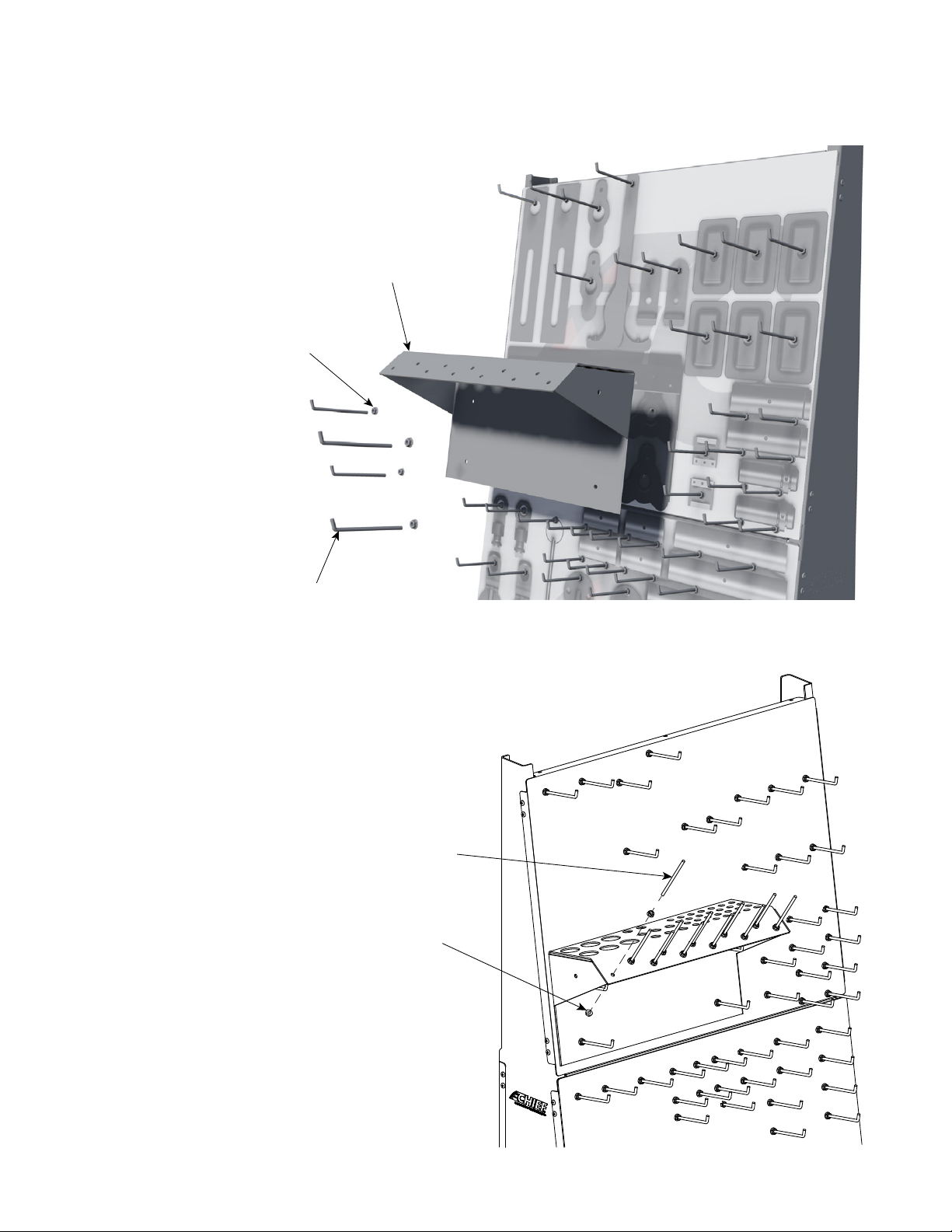

Step 9: Bolt Tray and Long Tool Board Hangers (Tool
Board “A”).
A.) Attach the Bolt Tray using (4) Long Tool Board
Hangers and (8) 1/4”-20NC Hex Lock Nuts.
B.) Assemble the remaining Long Tool Board
Hangers using (2) 1/4”-20NC Hex Lock Nuts.
Bolt Tray
#502062
1/4”-20NC Hex Lock Nut
(2) Per Hanger
#40643
Long Tool Board
Hanger
#619297
Step 10: Bolt Tray Hangers (Tool Board “A”).
A.) Assemble the Straight Tool Board Hangers to the
Bolt Tray using (2) 1/4”-20NC Hex Lock Nuts.
Straight Tool Board
Hanger
#619296
1/4”-20NC Hex Lock Nut
(2) Per Hanger
#40643
6
Page 7

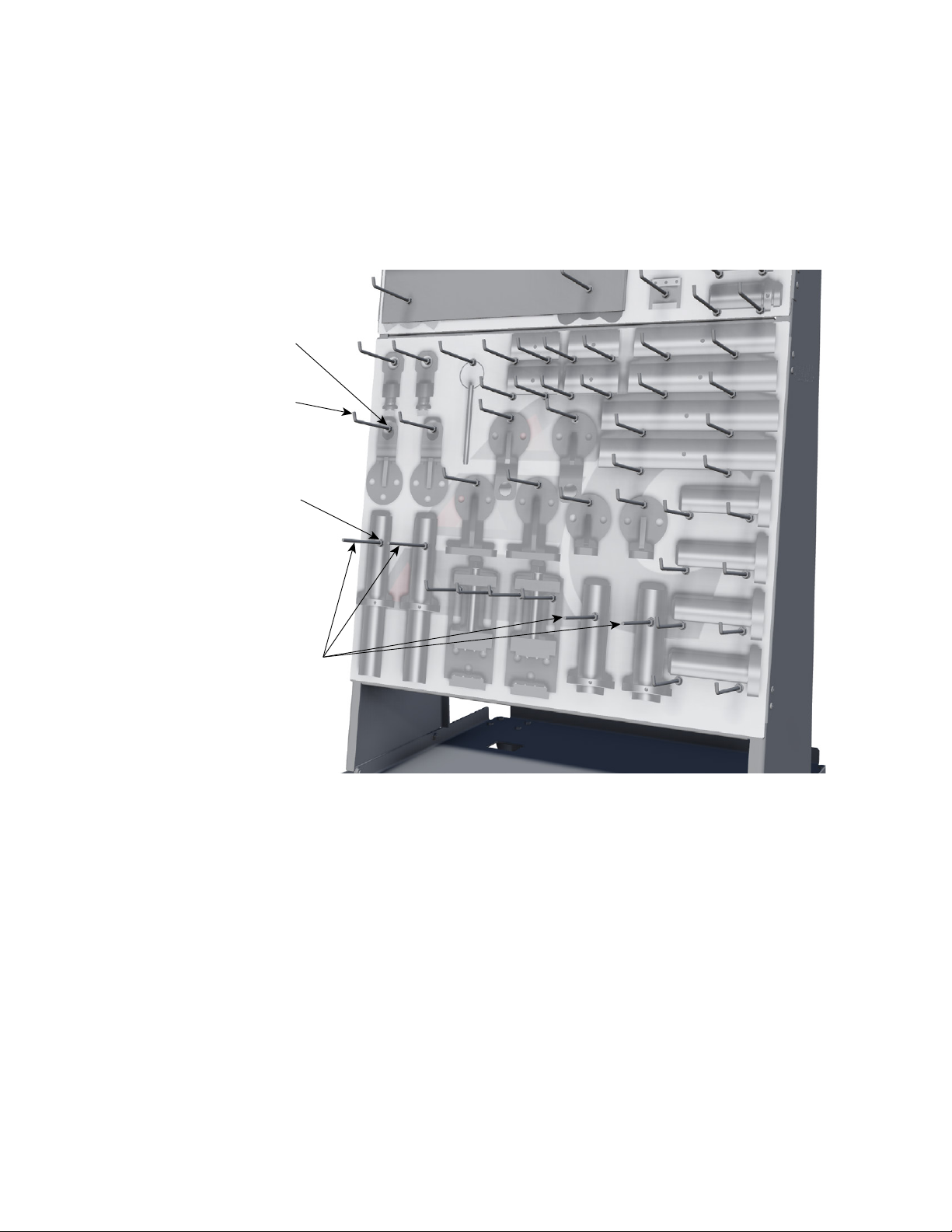

Step 11: Tool Board Hangers (Tool Board “B”).
A.) Assemble (4) Straight Tool Board Hangers to
Tool Board “B” using (8) 1/4”-20NC Hex Lock Nuts.
B.) Assemble the remaining Long Tool Board
Hangers to Tool Board “B” using 1/4”-20NC Hex
Lock Nuts.
1/4”-20NC Hex Lock Nut
(2) Per Hanger
#40643
Long Tool Board
Hanger
#619297
1/4”-20NC Hex Lock Nut
(2) Per Hanger
#40643
Straight Tool Board
Hanger
#619296
7
Page 8

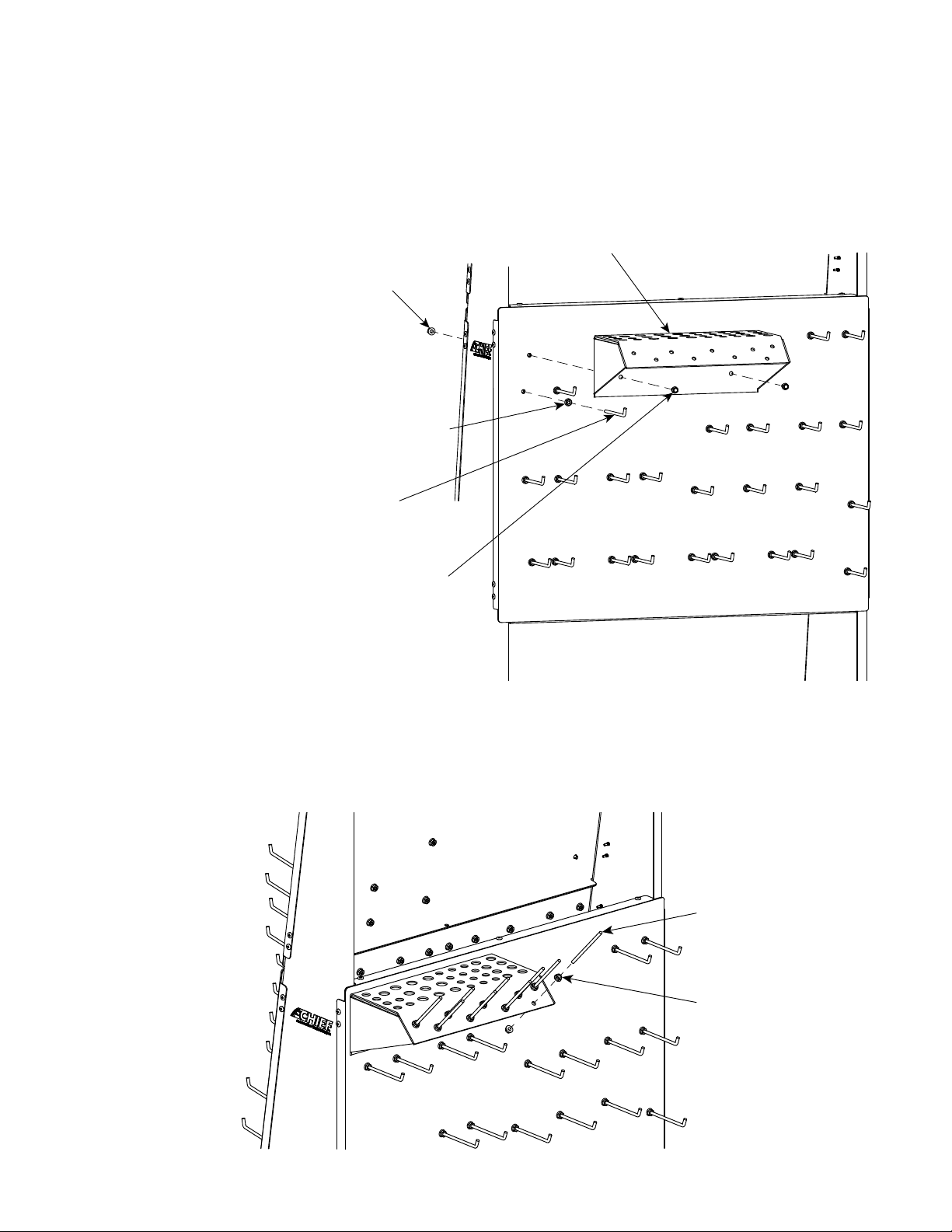

Step 12: Bolt Tray and Long Tool Board Hangers (Tool
Board “C”).
A.) Attach the Bolt Tray to Tool Board “C” using (2)
1/4”-20NC x 1/2” Lg. Hex Head Bolts and (2)
1/4”-20NC Hex Lock Nuts.
B.) Assemble the remaining Long Tool Board
Hangers using (2) 1/4”-20NC Hex Lock Nuts.
1/4”-20NC Hex Lock Nut
(1) Per Bolt
#40643
1/4”-20NC Hex Lock Nut
(2) Per Hanger
#40643
Bolt Tray
#502070
Long Tool Board
Hanger
#619297
(2) 1/4”-20NC x 1/2” Lg.
Hex Head Bolt
#40078
Step 13: Bolt Tray Hangers (Tool Board “C”).
A.) Assemble the Straight Tool Board Hangers to the
Bolt Tray using (2) 1/4”-20NC Hex Lock Nuts.
Straight Tool Board
Hanger
#619296
1/4”-20NC Hex Lock Nut
(2) Per Hanger
#40643
8
Page 9

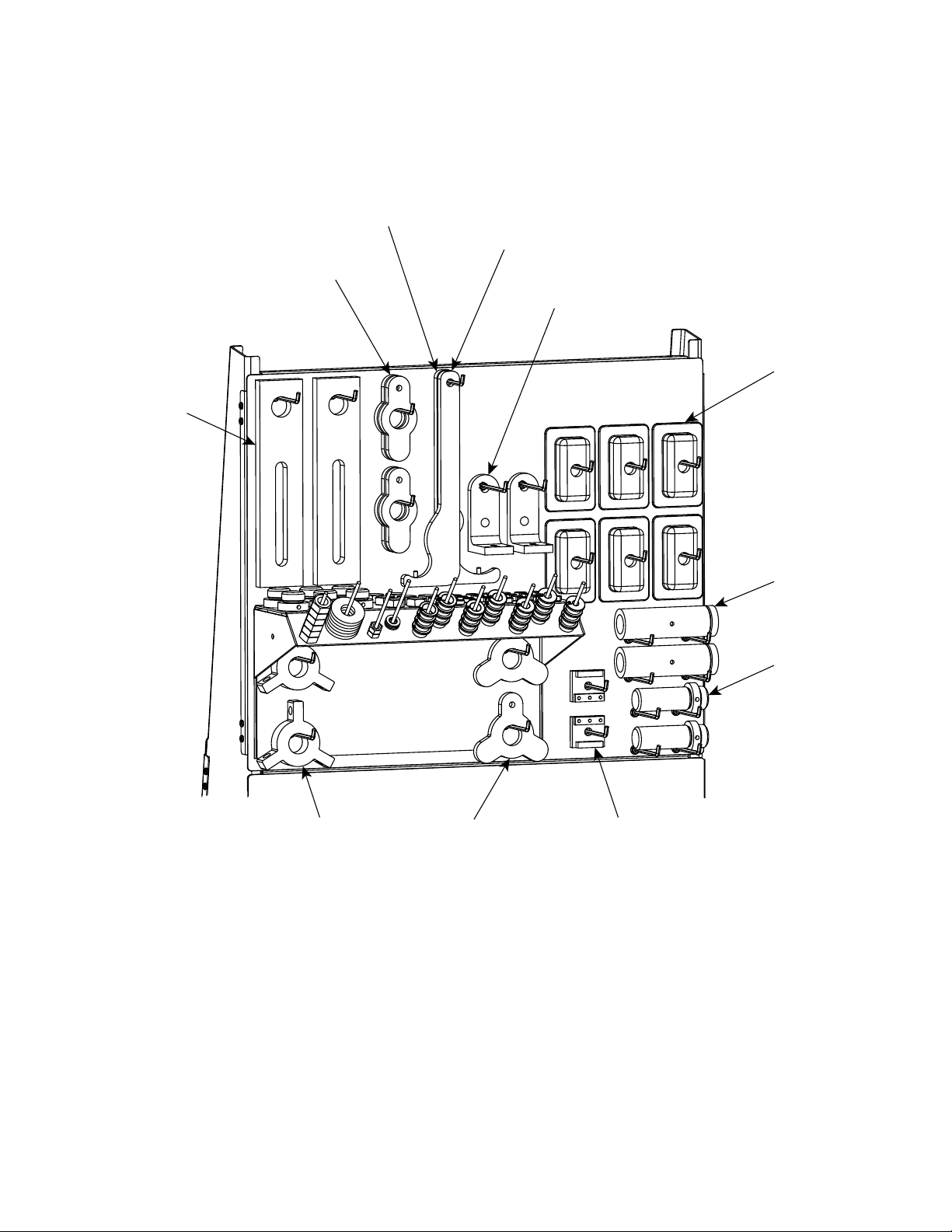

Step 14: Tool Board “A”.
A.) Assemble Tools to Long Tool Board Hangers.
Spanner Wrench, Large
#502067
RH Wing Nut
#502015
Base Plate
#502031
Spanner Wrench, Small
#502068
Wrist Block
#502060
Fastener Plate
#607371
Rigging Nut
#502038
LH Wing Nut
#502014
Turn Buckle
Center Tube
#502034
Lower Adapter
#502033
Jaw Clamp
Assembly
#638133
9
Page 10

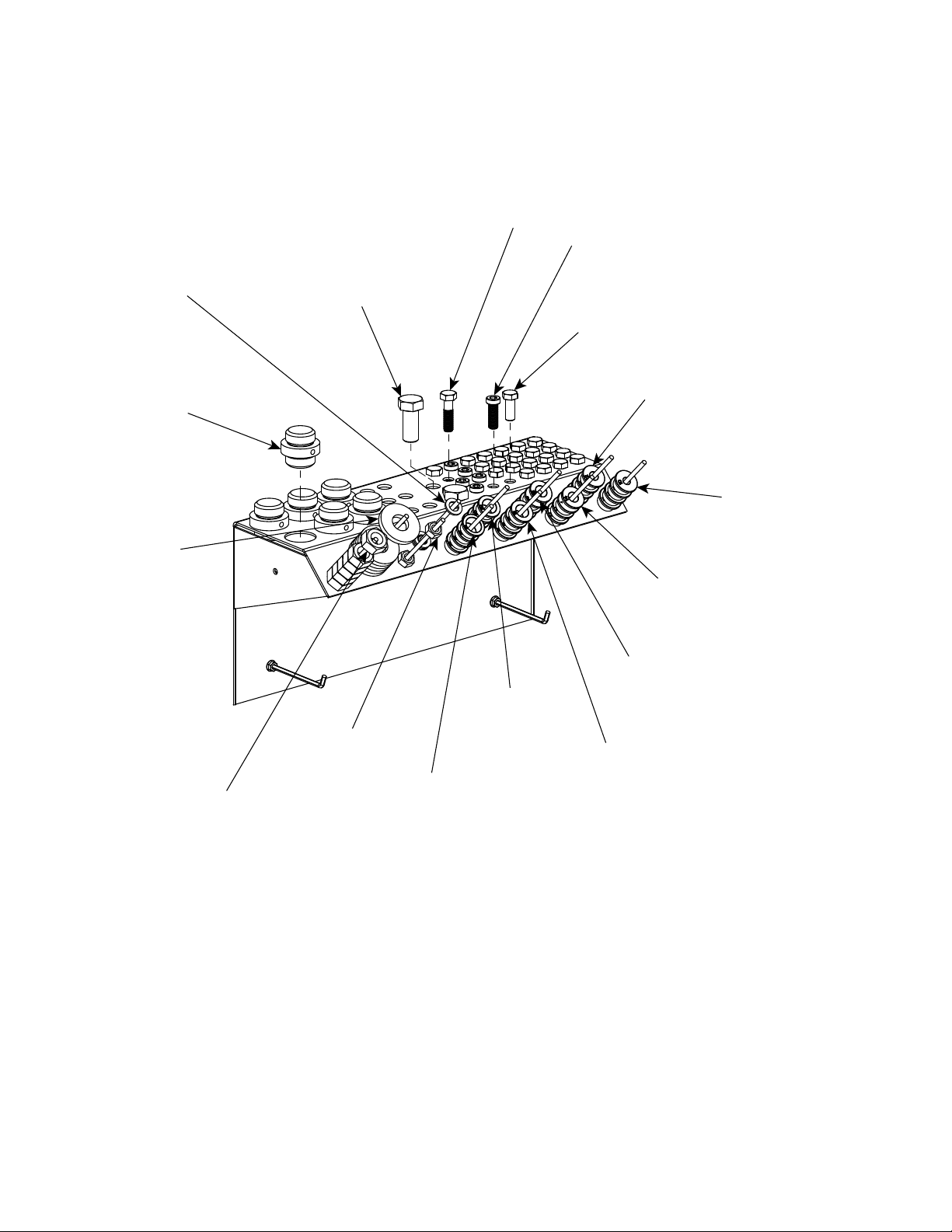

Step 15: Tool Tray (Tool Board “A”).
A.) Assemble Hardware to Straight Tool Board
Hangers.
M20 x 2.5 x 160mm Lg.
M12 Flat Washer
#41520
Hex Head Cap Screw
#539012
Adapter Extension Tube
#502032
M12 x 1.75 x 45mm Lg.
Hex Head Cap Screw
#539021
M12 x 1.75 x 35mm Lg.
Socket Low Head Cap Screw
#502045
M12 x 1.75 x 30mm Lg.
Hex Head Cap Screw
#41684
12mm Pilot
Bushing
#502028
7/8” Flat
Washer
#41019
M20 x 2.5 Hex Nut
#539016
M12 Hex Nut
#41519
22mm Pilot
Bushing
#502037
20mm Pilot
Bushing
#502036
10mm Pilot
Bushing
#502027
14mm Pilot
Bushing
#502029
16mm Pilot
Bushing
#502030
18mm Pilot
Bushing
#502035
10
Page 11

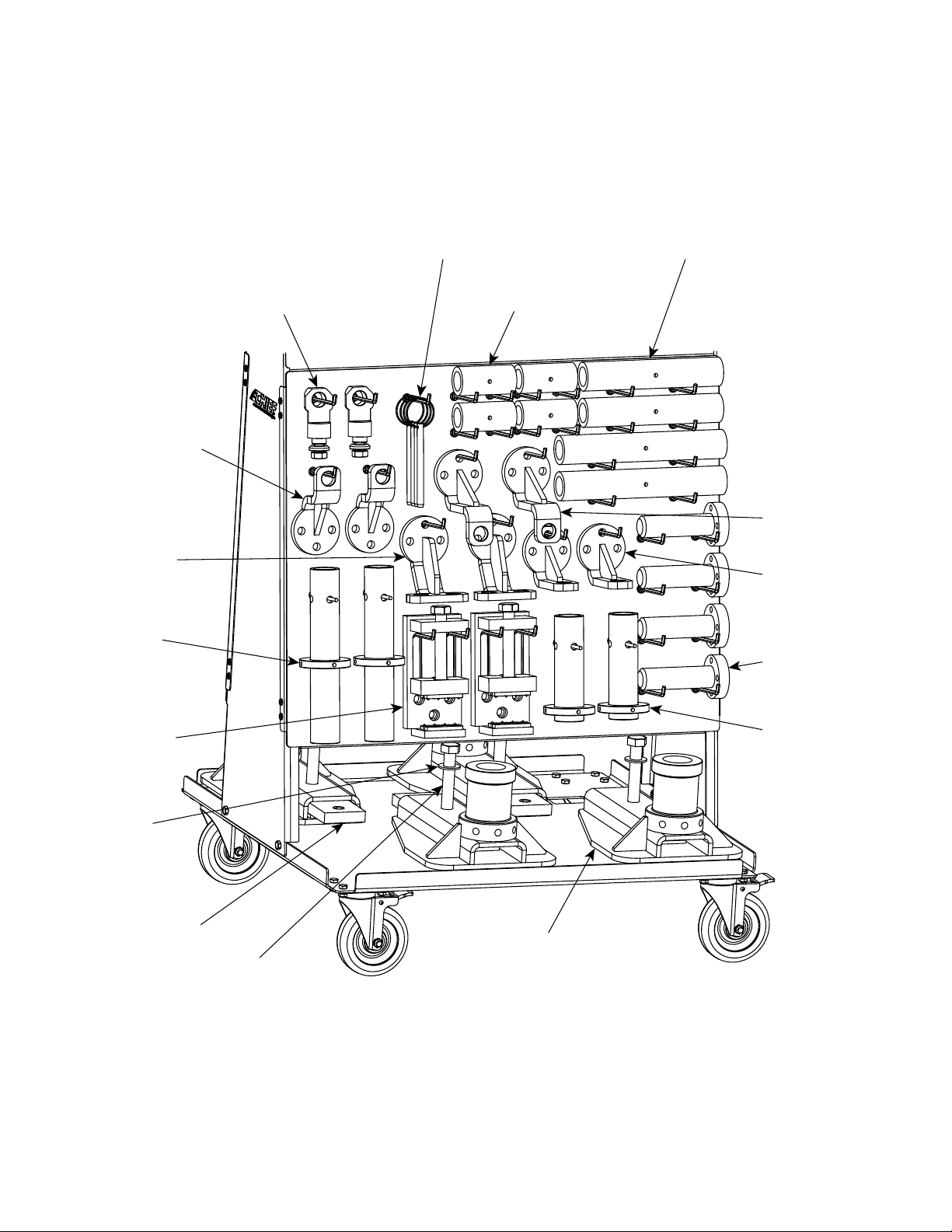

Step 16: Tool Board “B”.
Tall Vertical Fixture
A.) Assemble Tools to Long Tool Board Hangers.
B.) Assemble Tools to Straight Tool Board Hangers.
Short Vertical
Fixture
#502000
Large Horizontal
Fixture
#502005
Tall Tube
Base Stand
#502063
Angle Adapter Clamp
#502026
Release Pin
#502058
4” Extension Tube
#502016
10” Extension Tube
#502061
#502008
Tall Horizontal
Fixture
#502019
Adapter
#502039
Base Plate
#502042
3/4” Flat
Washer
#41021
Fastening Bar
#606860
M20 x 2.5 x 140mm
Hex Bolt
#539008
Short Tube
Base Stand
#502055
Structural Holding Base
#502047
11
Page 12
#682953

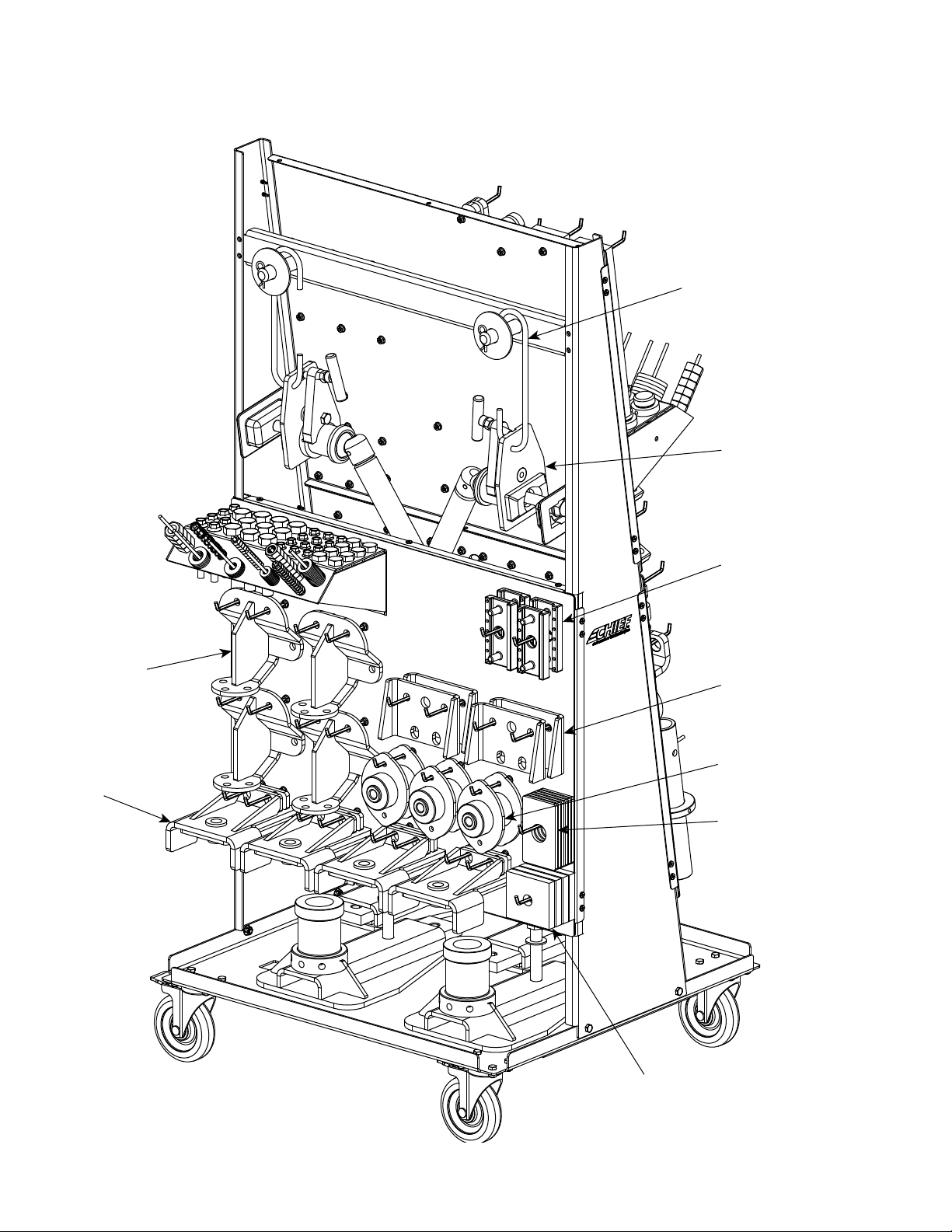

Step 17: Tool Board “C”.
A.) Assemble Tools to Long Tool Board Hangers.
C Hanger
#619008
Parts Holding
Attachment
#611311Y
F150 Running
Board Bracket
#640114
F150 Pinchweld
Base
#640004
Pinch Jaw
w/Nails
#498110
F150 Vertical
Clamp
#640076
F150 Cab Mount
#640120
F150 Cab Mount
Support Plate
#640100
12
EZ-Liner Tie
Bolt Plate
Page 13

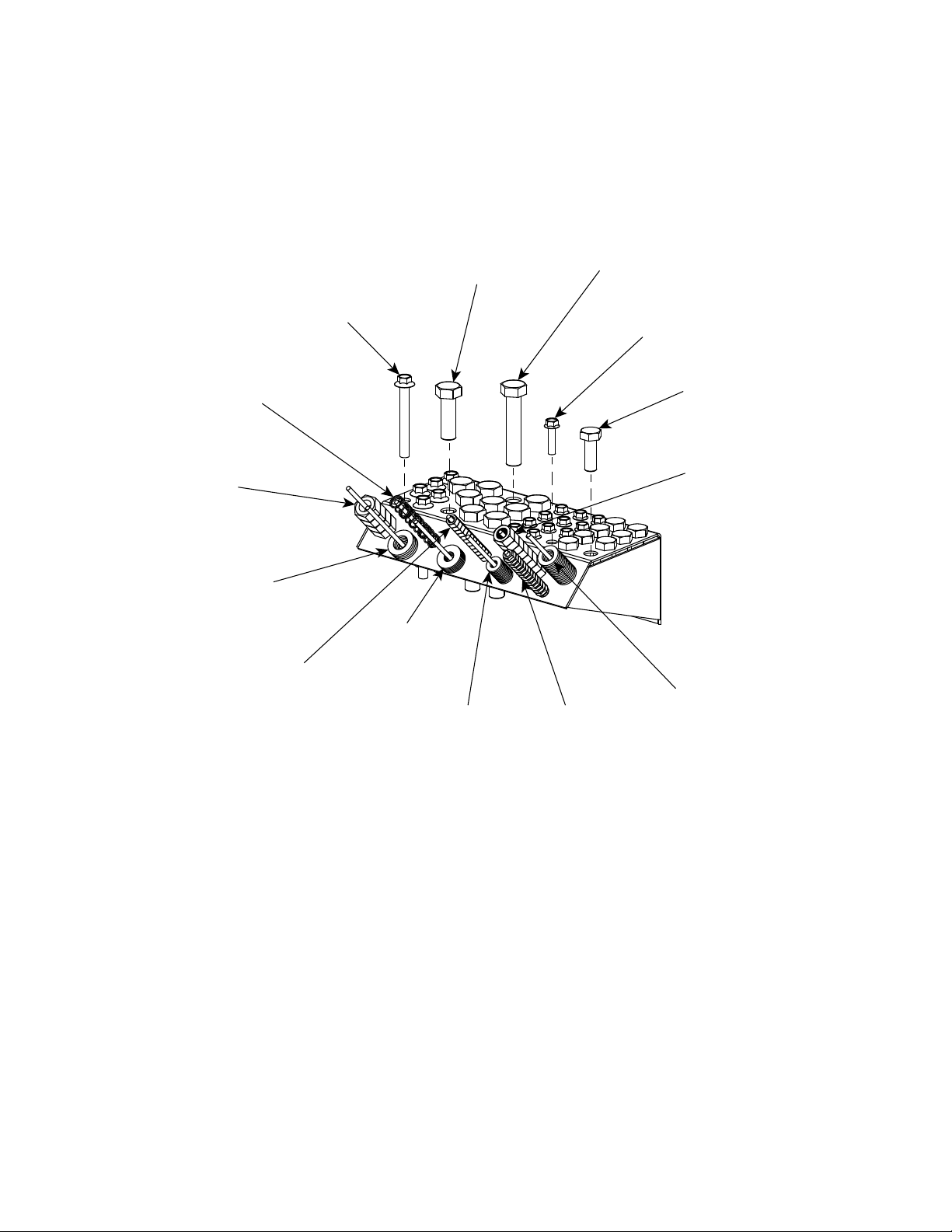

Step 18: Tool Tray (Tool Board “C”).
A.) Assemble Hardware to Straight Tool Board
Hangers.
M12 x 1.75 x 100mm Lg.
Hex Head Flange Bolt
#640103
Compression Spring
#092110
M20 x 2.5
Hex Nut
#539016
3/4” Flat
Washer
#601738
3/8”-16NC
Hex Nut
#620744
1/2” Flat
Washer
#40940
M20 x 2.5 x 60mm
Hex Head Bolt
#539006
3/8” Flat
Washer
#638064
M8 x 1.25
Hex Flanged
Lock Nut
#41541
M20 x 2.5 x 110mm
Hex Head Bolt
#539015
3/8”-16NC x 1/2” Lg.
Hex Head Flange Bolt
#40196
M16 x 2.0 x 45mm
Hex Head Bolt
#539017
M16 x 2.0
Hex Nut
#638123
M16 Flat Washer
#640041
13
Page 14
NOTES:15NOTES:
14
Page 15
Page 16
966 Industrial Dr.
Madison, IN 47250
Phone: 800.445.9262
Fax: 866.275.0173
www.chiefautomotive.com
Chief reserves the right to alter product specifications and/or package components without notice.
