Page 1
1
D
2
.34
3
13.75
4
6X
.44
7.186.50
5
6
7
8
LCD-2C
D
.37
C
RPA ATTACHMENT
B
6.50
13.00
C
2.00
3.00
25.72
B
Warning!
Installations using a column longer than the 24 inches column
supplied, require the use of a CMA340 Support Cable accessory.
(Not included)
8401 EAGLE CREEK PKY
A
THE INFORMATION AND DESIGNS CONTAINED
IN THIS DRAWING ARE CONFIDENTIAL AND THE
PROPRIETARY PROPERTY OF CHIEF MFG., INC.
CHIEF MANUFACTURING INC.
ORDER NUMBER IS LCD-2C
PHONE: 1-800-582-6480
NEITHER THIS DESIGN NOR ANY INFORMATION
CONTAINED IN THIS DRAWING MAY BE
REPRODUCED OR DISCLOSED TO OTHERS
WITHOUT THE EXPRESS WRITTEN CONSENT OF
CHIEF MFG., INC.
1
2
3
4
5
6
7

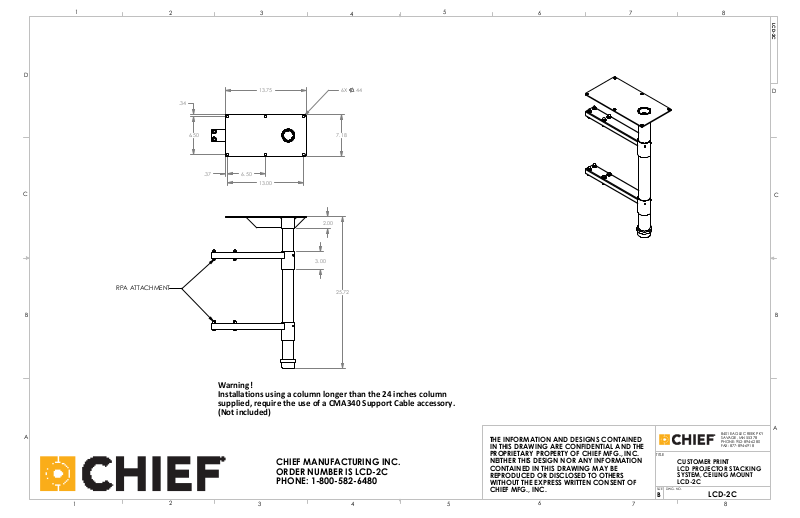

TITLE
CUSTOMER PRINT
LCD PROJECTOR STACKING
SYSTEM, CEILING MOUNT
LCD-2C
SIZE DWG. NO.
B
SAVAGE, MN 55378
PHONE: 952-894-6280
FAX: 877-894-6918
LCD-2C
8
A
