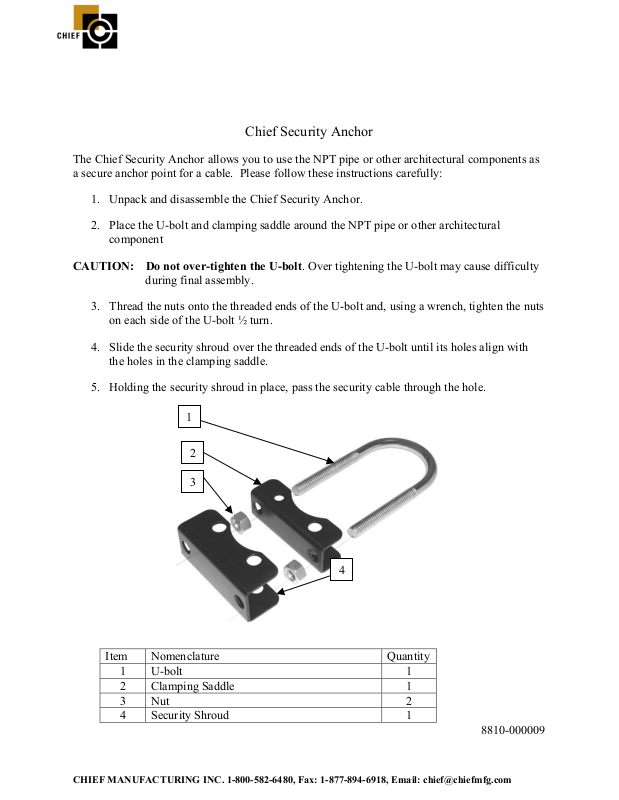

Chief Security Anchor
The Chief Security Anchor allows you to use the NPT pipe or other architectural components as
a secure anchor point for a cable. Please follow these instructions carefully:
1. Unpack and disassemble the Chief Security Anchor.
2. Place the U-bolt and clamping saddle around the NPT pipe or other architectural
component
CAUTION: Do not over-tighten the U-bolt. Over tightening the U-bolt may cause difficulty
during final assembly.
3. Thread the nuts onto the threaded ends of the U-bolt and, using a wrench, tighten the nuts
on each side of the U-bolt ½ turn.
4. Slide the security shroud over the threaded ends of the U-bolt until its holes align with
the holes in the clamping saddle.
5. Holding the security shroud in place, pass the security cable through the hole.

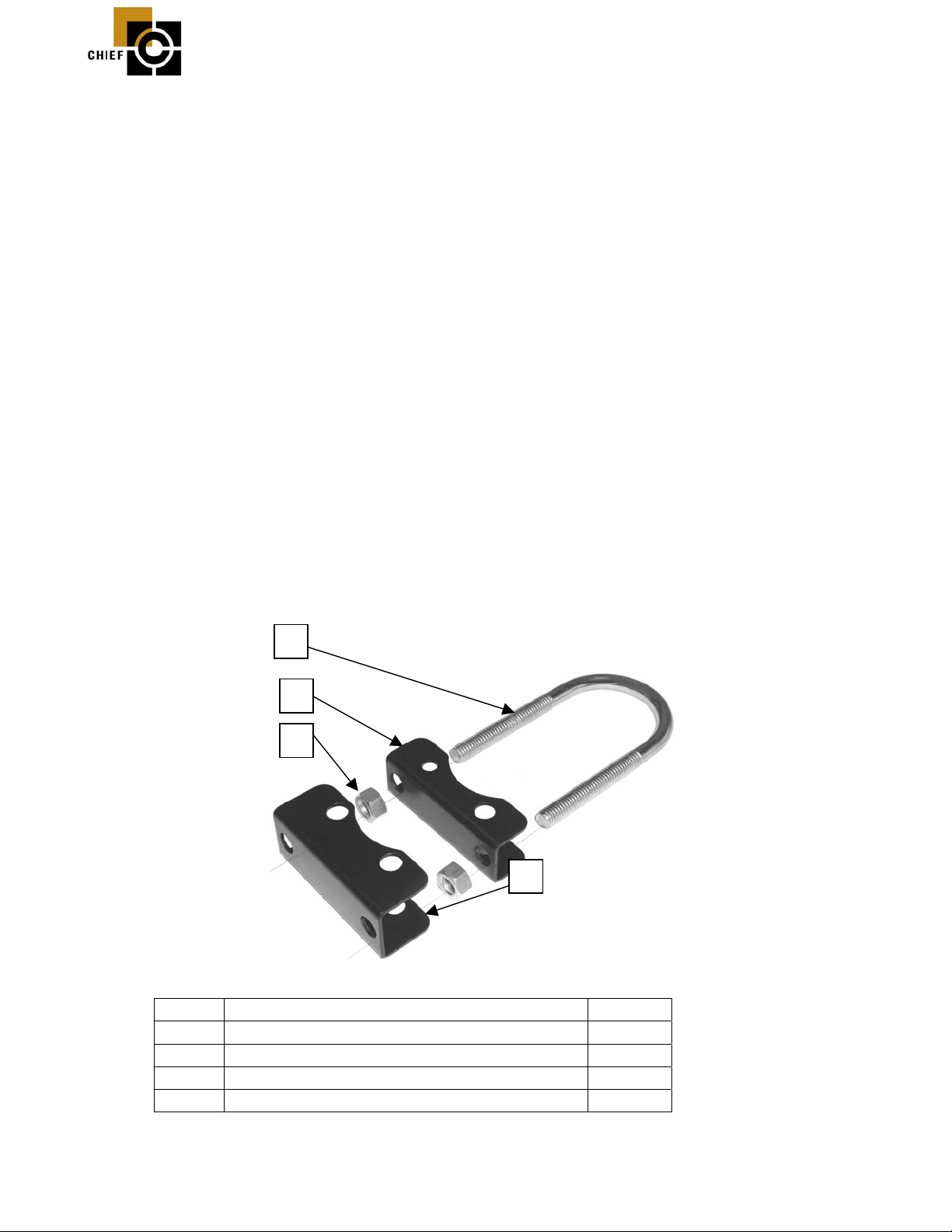

1
2
3
4
Item Nomenclature Quantity
1 U-bolt 1
2 Clamping Saddle 1
3 Nut 2
4 Security Shroud 1
8810-000009
