Page 1
1
2
3
4
5
STATUS:
6
7
8
TECH-000002
SEF 10/24/2012 - RELEASED ON ECO: 500006701
6.50
165.1
3.25
82.6
D
D
4.00
101.6
3.41
86.5
6.50
165.1
C
C
ACCEPTS 1.5" NPT THREADS
4.00
101.6
R0.22
B
8.00
5.6
203.2
2.63
66.9
A
1
2
3
4
0.31
7.9
8.00
B
203.2
Weight Capacity: 500 lbs (226.8 kg)
THE INFORMATION AND DESIGNS CONTAINED IN
THIS DRAWING ARE CONFIDENTIAL AND THE
PROPRIETARY PROPERTY OF MILESTONE AV
TECHNOLOGIES NEITHER THIS DESIGN NOR ANY
INFORMATION CONTAINED IN THIS DRAWING
MAY BE REPRODUCED OR DISCLOSED TO OTHERS
WITHOUT THE EXPRESS WRITTEN CONSENT OF
MILESTONE AV TECHNOLOGIES.
5
6
CAD GENERATED DRAWING,
DO NOT MANUALLY UPDATE.
DRAWN BY
ENG APPROVAL
MFG APPROVAL
QA APPROVAL
SHEET 1 OF 1
SEF
SEF
12/15/2011
10/24/2012
SCALE
1:2
7
6436 CITY WEST PKWY
EDEN PRAIRIE MN, 55344
PHONE: 866-977-3901
FAX: 877-894-6918
DESCRIPTION

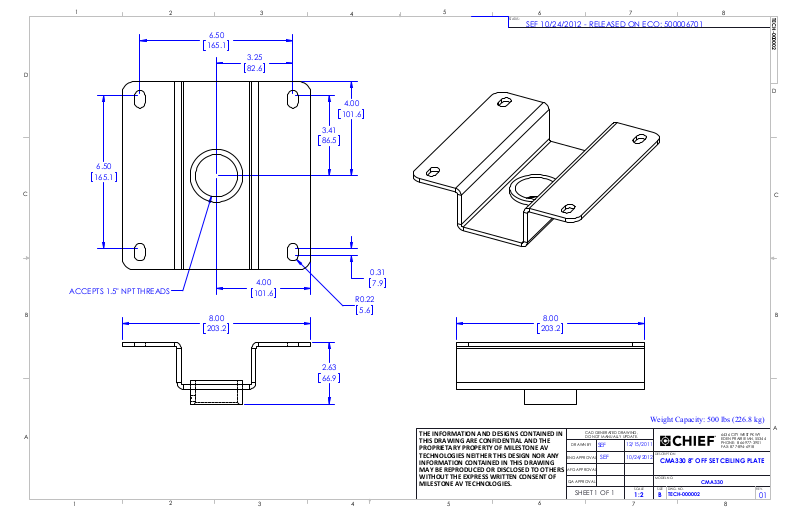

CMA330 8" OFF SET CEILING PLATE
MODEL NO.
DWG. NO.
SIZE
TECH-000002
B
CMA330
8
A
REV.
01
