The copy is according to the product information provided by engineers
Nov. 2,
Writer
DATE
2005
.
Vera
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
R & D Engineer
5/23/2006 12:09 PM
Vera Tsai
.
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
TOTAL
PAGE VERSION
11
R & D Director
001

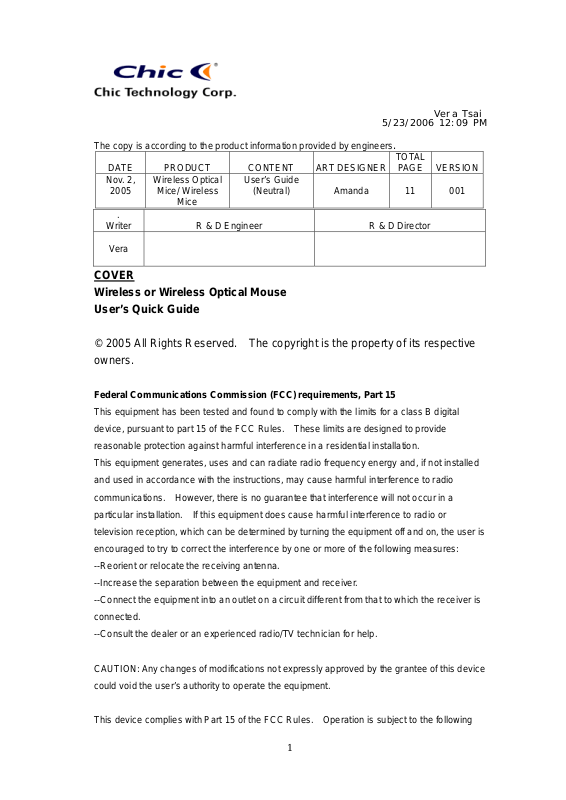

COVER
Wireless or Wireless Optical Mouse
User’s Quick Guide
© 2005 All Rights Reserved. The copyright is the property of its respective
owners.
Federal Communications Commission (FCC) requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential inst allation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to ra dio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes of modifications not expressl y approved by the grantee of this device
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
1
The copy is according to the product information provided by engineers
DATE
Nov. 2,
2005
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
CE Declaration Of Conformity
Hereby, the manufacturer, declares that this Wireless Optical Mouse or Wireless Mouse is in
compliance with the essential requirements and other relevant p rovi sion s of Directive
1999/5/EC.
Essential requirements - Article 3
Protection requirements for health and safety - Article 3.1a
--Testing for electric safety according to EN 60950 has been conducted. These are
considered relevant and sufficient.
Protection requirements for electromagnetic compatibility -Article 3.1b
--Testing for electromagnetic compatibility according t o EN 301 489-1 and EN 301 489-03 has
been conducted. These are considered relevant and suf f icient.
Effective use of the radio spectrum -Article 3.2
--Testing for radio test suites according to EN 300 220-3 has been conducted. These are
considered relevant and sufficient.
CAUTION: The batteries may explode or leak if they are improperly recharged, inserted,
disposed in fire or mixed with used or different battery types.
Congratulations on your purchase of this Wireless Optical Mouse
or Wireless Mouse. Please carefully read the User’s Quick Guide
2
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
to learn about the installation and the powerful functions of your
new Optical Mouse.
Contents of the Package
Wireless Optical Mouse or Wireless Mouse
Receiver (PS/2, USB or UP Combo)
User’s Quick Guide
Battery: 2 * AA or AAA
Battery Type: Alkaline or Ni-MH
Optional Parts
(The optional parts may be different due to various mouse
shapes.)
Mouse Driver Disk or CD-ROM
USB to PS/2 Adapter
AC to DC Adapter
USB to DC Cable
CAUTION:
- The batteries may explode or leak if they are improperly recharged, inserted,
disposed in fire or mixed with used or different battery types.
- Risk of explosion will be caused if battery is replaced by an incorrect type.
- Dispose of used batteries according to the instructions.
- It
＇
s important that batteries should be recycled in a proper way for green
environment.
Install Hardware
Note:
- If you are running Windows 98 and plug the connector into the
3
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
.
TOTAL
PAGE VERSION
11
computer, you may find a pop-up window that requires to insert
the Windows 98 CD-ROM. Please follow the window instruction
to install the required driver or set the driver path as
"Windows\system" or the other path that the driver located.
- Please link the devices within the effective distance.
- The linkage period is 15 seconds. Once press the receiver’s
Link Button, please complete the mouse linkage process within
the linage period.
- There may be a power switch located at the back of mice for
Vera Tsai
001
some models. Please select “On” before linking the mouse
with the receiver.
Install Receiver
1) PS/2 Version: Please turn off the computer. Plug the PS/2
connector of the receiver to the computer.
2) USB Version: You may turn on the computer. Plug the USB
connector of the receiver to the computer.
3) USB to PS/2 Version: Turn off the computer. Plug the adapter
of the USB to PS/2 to the receiver USB connector and then
connect to the computer.
Select Mouse Channel
Note:
- Please skip this section if the mouse is the one-channel
version.
The two-channel switch is located at the back of the mouse or inside
the battery case. Select Channel “1” or “2”.
Link Mouse with Receiver
4
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
1) Place the batteries into the device and turn on the computer.
2) Press the ID Link Button on the receiver. There are 15 seconds
for the mouse linkage.
3) Press the ID Link Button of the mouse.
4) The mouse is linked with the receiver and the receiver’s LED
indicator is off.
5) The product designs with the unique Smart Link function. Once
the linkage process is complete, you don’t have to re-link the
mouse even if you change batteries or restart the computer.
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
6) If the mouse does not link with the receiver, please repeat Step
2~3.
7) There are 256 changeable IDs for each channel. If the selected
channel or ID is interfered by other wireless-mouse users nearby,
please change the Link ID by changing the channel or re-linkage
the device immediately.
Install Software (Option)
Note:
- The driver supports Windows 98/ 2000/ ME/ XP.
- When you change the interface port, please reinstall the
driver.
Install Driver
1) Insert the driver CD-ROM to your computer. The PC system
may automatically install the driver through selecting the PC
auto-install function.
2) If the PC system does not set the auto-install function, please
double click the file “Setup.exe” and follow the setup instructions
to complete the driver installation.
3) Restart the computer. A Mouse Setting icon will appear on the
5
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
task bar of Windows after you successfully finish the installation.
Set Mouse Functions
1) Double left click or right click the Mouse Setting icon.
2) Follow the instructions of the selection items to set the mouse
properties.
Uninstall Driver
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
Mouse Software can be removed from Windows by clicking the Add/Remove
Programs icon in the Control Panel or clicking the "Uninstall" icon in the folder
that “Setup.exe” created in "Programs" of "Start". Select Mouse Software
installed and click the "Remove" button.
Charge Mode (Option)
Note:
- Please skip this section if your mouse is not rechargeable.
- Some mice may have only one charge mode.
- Please use rechargeable batteries for the chargeable mouse.
At the first time of usage, please charge the AAA batteries at
least 6 to 8 hours and 10 to 12 hours for AA batteries.
1) Charge from Cradle: The receiver cradle must be connected with the
required AC-to-DC adapter in advance and then place the mouse on
the cradle precisely.
2) Charge through the USB-to-DC Cable: Connect the cable with the
mouse and then plug the USB connector of the cable to the PC.
3) Charge through the AC-to-DC Adapter: Connect the adapter’s DC
6
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
jack to the mouse for charging.
Power Saving Function (Option)
You may continuously press the link button and then press the scroll button to
turn off the optical sensor.
Notification
This equipment is intended for use in the following countries.
28 European Countries:
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Hungary, Germany, Greece, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Slovak Republic, Slovenia, Spain, Sweden, Switzerland and United
Kingdom.
Please do not change the frequency, features and functions of wireless
mice from the original design.
The optical technology can precisely detect the mouse motion on most
surfaces. Please avoid using the optical mouse on any reflective,
transparent, metallic or complex-pattern surface.
Please do not use the mouse during charge periods.
The LED indicator or the scroll wheel on the mouse will light while the
mouse is low battery. Please recharge or change the batteries
immediately.
Scroll the wheel to wake up the mouse while the mouse is in the sleeping
mode.
Please avoid using the mice under the following conditions.
- Direct sunlight
- Extreme hot, cold, dusty or magnetic environment
7
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
- Near by fax machine, television, radio, mobile phone or any
wireless device
- Metal surface
If the product is malfunction, please change or recharge the batteries, or
move the receiver away from the computer and the monitor.
Trouble Shooting
Question 1: No mouse movement.
Solution:
1) Make sure the software that you are using supports a mouse.
2) Check that mouse is plugged into the relevant port at the back of
computer.
3) Ensure that mouse driver is installed into system.
Question 2: The cursor on the screen remains at one spot or moves
erratically.
Solution:
1) Check the mouse cable for any breaks or sharp twists. Examine the cable
closely where it connects to the mouse.
Question 3: The cursor movement stops at a corner and no longer responds
to the mouse movement.
Solution:
1) Run the mouse driver to check which mode the mouse is operating in.
2) If the mouse is wireless, please check the battery power or re-link the
mouse.
Question 4: Mouse movement does not produce corresponding cursor
8
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
movement or there is a brief pause during movement.
Solution:
1) Check the connecter or the cables of the mouse and the receiver if there is
any break or tangled.
2) Check the distance between the mouse and the receiver.
Question 5: Displayed error number -115 on screen when install mouse
driver software.
Solution:
1) The error usually occurs because a virus-checking program is being used
on the System to prevent files from being renamed. Please shutdown any
virus checking software running on the system and then run the setup
again.
Question 6: Detection problems of the mouse
Solution:
If your mouse is connected to the mouse port and is not detected by the
system, attempt the following step(s):
1) Please check the mouse port setting from the computer.
2) If you have a mouse with a mouse port adapter, please connect the mouse
to the computer through the mouse port adapter. Restart the computer and
check if the mouse is detected properly.
3) If the problem persists, please check for a possible computer BIOS ROM
upgrade from your computer manufacturer.
4) Some notebook systems, such as IBM Thinkpad, have both an external
Mouse Port and an integrated Pointing Stick, which is connected to the
Mouse Port. If your mouse is having diffic ulty running on the Mouse Port
of this type of system, please other ports.
Question 7: Conflicts with other Devices
9
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
5/23/2006 12:09 PM
Vera Tsai
.
TOTAL
PAGE VERSION
11
001
Solution:
1) Some softwares, provided by other manufacturers, include mouse
functions, which may conflict with the mouse. We recommend you to
remove the software installed previously and then install the mouse software.
Question 8: Too much interference to the wireless mouse
Solution:
1) Change the location of the receiver.
2) Please remain a certain distance from other high-voltage or wireless
devices.
Question 9: Problems of operating the wheel
Solution:
1) Verify that the "Browser Mouse" or "Mouse Control Panel" application is
installed properly. If you do not find the "Browser Mouse" or "Mouse
Control Panel" icon in the system tray, you need to reinstall mouse
software.
2) Please install the mouse driver while the OS is under Windows 98.
3) Some other applications with mouse scrolling function may conflict with
this mouse function. Remove these applications before install the Office
mouse software.
Wireless Mouse Patents
- Wireless Mouse and Stand Body: Taiwan 078386, China 01360042.7, Germany
401 06 575.8, and USA Pending
- Improved Structure of Wireless Mouse System: Taiwan 89222812, China
01100419.3, Germany 201 12 178.6 and USA Pending
- Wireless Mouse Recharge System: Taiwan 90104125, China 01109443.5,
Germany 20112177.8, USA Pending
10
5/23/2006 12:09 PM
The copy is according to the product information provided by engineers
Nov. 2,
DATE
2005
Wireless Optical
Mice/ Wireless
PRODUCT
Mice
CONTENT ART DESIGNER
User’s Guide
(Neutral)
Amanda
.
TOTAL
PAGE VERSION
11
- Multiple Recharge System: Taiwan 90115187, China 01120050.2, Germany
20201110.0, USA Pending
Vera Tsai
001
11
Loading...
