MIDI-Disk Tools
for Windows
Windows MIDI and Disk Utility Software for the
EPS, 16-Plus, & ASR-10/88 Samplers
Copyright ©1994-2012 Rubber Chicken
Software Co. All Rights Reserved
Copyright ©1994-2012 Rubber Chicken Software Co. All Rights Reserved
Glossary Table of Contents
.WAV les
A standard incorporated my Microsoft for sound within an PC/Windows system. They can be 8-bit, 16-bit, mono, or stereo. They are used for system sounds within a PC/Windows, but also for any hard disk recording schemes
and other PC/Windows sound-related items. .Wav les cannot be looped, nor
do they contain multiple wavesamples.
WAVE OVERVIEW
A function where you can view the entire waveform, as opposed to just a part of it.
WAVESAMPLE
A unit on the EPS/ASR that holds a set of parameters affecting sound, and also either the actual sample data or pointers to another wavesample that actually holds the data.
COPYRIGHT NOTICE AND DISCLAIMER
Ensoniq MIDI-Disk Tools for Windows is the sole property of Rub­ber Chicken Software Co. You are granted a license to use Ensoniq MIDI-Disk Tools for Windows for your own personal use but YOU MAY NOT COPY OR DISTRIBUTE any version of Ensoniq MIDI-Disk Tools for Windows. All rights reserved. Unauthorized use, duplication, or distribution is prohibited by law.
Introduction Page 2 Installation Instructions Page 3 List of Files Page 4 Brief Overview and History Page 4 Important Concepts Page 5 Screens Page 7 Main Screen Page 8 Instrument Controls Page 9 Control Buttons Page 9 Instrument/Layer Screen Page 11 Layer Panel Page 12 Effects Panel Page 13 Wavesample Screen Page 14 Envelopes Page 15 Loading EPS/ASR File via MIDI Page 16 Loading File Images Page 16 Menus Page 18 Global Parameter Screen Page 19 Sample Editing - SampleVue Page 21 Screen Commands Page 22 Going Deeper - Wavesample Data Editing Page 23 Truncating and Normalizing Page 23 Advanced Low-Level Commands Page 23 Looping Page 24 Basic Low-Level Commands Page 24 Preferences Page 25 Utilities Page 26 MIDI Keyboard Page 26 MIDI Tester Page 27 WaveMapper Page 28 Normalizer Page 28 Naming Wizard Page 28 Ensoniq Disk Tools Page 29 Ensoniq File Analyzer Page 30 MIDI Monitor Page 31 Setup Screen page 32 Sequencer Screens page 36 Sequencer Control Board Page 36 Sequence Parameter Editing Page 37 Troubleshooting Page 39 Personal Support Page 42 Update Policy Page 44 Shortcut Quick Reference Page 45 Final Notes Page 46 Thank You's and Legal Notices Page 47 Glossary Page 48
Table of Contents
Page 49 Page 1
Introduction Glossary
FILE IMAGE
Introduction
Ensoniq MIDI-Disk Tools for Windows is a full-featured sample editor and remote parameter editor for the Ensoniq line of samplers. It’s purpose is to
Replace the 22-character display on the EPS/ASR and provide a more
versatile user-interface with a computer screen
To assist the EPS/ASR with many tools programming and editing to
make the complex job of working with the EPS/ASR easier, and
Provide a computer link to the EPS/ASR that will prove truly indis-
pensable to the function and operation of the EPS/ASR
A le saved to your hard drive that stores all the parameters of an Instrument.
See Disk File.
GIEBLER FILE FORMAT
This is a PC le format standard introduced by Giebler Enterprises in their Disk Manager series. It is essentially the binary data of an Ensoniq le, with Hex200 header. Using these, you can manipulate Ensoniq les on a PC.
INSTRUMENT
A unit on the EPS/ASR that contains up to 8 Layers and up to 127 wavesa­mples.
Hopefully, you are excited to install the software and see how it works, and work with it. Before we dig in, here’s some features of the program:
1. The ability to view and edit sound parameters (instrument-level, layer­level, wavesample-level, envelope-level, sample-level, effect-level, sequence- and track-level for the instruments in the EPS/ASR.
2. Global Parameter viewing and editing.
3. Effect view and editing.
4. Sequence and track viewing and editing.
5. A handy MIDI keyboard to remotely play the EPS/ASR keyboard from the computer.
6. Many programming short cuts.
7. Built-in MIDI Monitor with Sys-Ex programming
8. Remote Load File via MIDI
9. Naming Wizard
If you are a registered owner, you are qualied for free updates for the life of
the program, which will be sent to you automatically from Rubber Chicken Software Co. There are many things we intend to add to this program to make it more versatile for you to use. New versions are never far away!
JEFFERY RICHTER
The original author of EPS SENSE. He now is famous with Microsoft, writing
two books (Advanced Windows and A Windows 95 Developers Guide). He
also consults at a number of big name companies.
LAYER
A unit on the EPS/ASR that holds wavesamples across one keymap of the keyboard. You can have up to 8 layers in an INSTRUMENT.
PATCH SELECT
A Ensoniq innovation that selects a pre-programmed group of layers from a pair of momentary onboard buttons.
RUBBER CHICKEN SOFTWARE CO.
The makers, developers, sole distributors or Ensoniq MIDI-Disk Tools for Windows. They also make samples for the EPS/ASR series, and other items,
specically for Ensoniq samplers.
SAMPLER NAME
This area tells you what kind of sampler the computer is expecting. Once you
read the EPS/ASR through MIDI, the computer nds out for itself and changes
this automatically.
SYS-EX (or, more properly, System Exclusive)
A MIDI standard that communicate specic messages to specic instruments.
Ensoniq MIDI-Disk Tools uses this to changes just about any parameter in the EPS/ASR.
TOOLBAR LIGHTS
These lights tell you (from the left) if the MIDI is turned on so the computer can
receive MIDI signals, if MIDI is coming into the computer, and if MIDI is trans­mitting out of the computer.
Page 2 Page 48
Thank You's and Legal Notices Installation Instructions
Thanks to Piet Crombach and Mike De Laat for their patient overseas commu­nication and sharing of ideas about the EPS/ASR sys-ex spec.
Thanks to Arthur Edstrom of Artic Software, and James Shields and Ruth James of Mabry Software, for their MIDICoolTools/MIDIPack, which is used in this product. Thanks for their personal gift of support.
Thanks also to James Erwin, Michael Love Graves, Mark Pulvar, Timo Kuit­tenten, Ed Buchmayer, Dennis Chesanek, Gregg Lentz, James Olsen, Michael Bahr, Patrick Howell, Ron Williams, Jesper Gummeson, George Kalarant, Le­roy Coleman and Michael Baker (for the MIDI Keyboard improvements), and
several other people that took their time and helped us along our way. This program wouldn’t be without you!
Installation Instructions
1. Take your installation CD-ROM, and insert it into your CD-ROM Drive.
2. The Setup program should automatically start up (if Auto-Insert Notication
is turned on in your PC). If it does not, click Start-Run and type d:\setup (where "d" is your CD-ROM Drive letter). From there follow the prompts (it should be self-explanatory).
3. After SETUP is nished, connect your EPS/ASR to your MIDI interface.
Both IN and OUT must be connected. Turn on your EPS/ASR and be sure
to either have the OS oppy inserted or the hard drive selected with the OS,
for the program may access the OS for an overlay during its operation.
Legal Notices
ENSONIQ, EPS, EPS-16 PLUS, TS-10, TS-12, ASR-X, ASR-88, and ASR-10 are trademarks of ENSONIQ Corp.
GIEBLER is a trademark of Giebler Enterprises.
Ensoniq MIDI-Disk Tools for Windows was compiled using Visual Basic 5.0
Professional Version, Microsoft Word 5.0/7.0, and the indefatigable Ensoniq ASR-10, EPS 16-Plus, and Original EPS keyboards and racks.
Glossary
DISK FILE
A le saved to your hard drive that stores all the parameters of an instrument
read by Tools. See File Image.
EFFECTS
The Ensoniq 16-Plus and ASR-10/88 have a built-in effects chip, which you can assign parameters per instrument and bank.
4. Turn SYS-EX=ON on the EPS/ASR. This is required for use with the MIDI engine. Double-cluck on the Chicken icon, and you are ready to roll! Please follow the start-up screen by typing in your name to personalize the pro­gram, and set your MIDI In and MIDI Out drivers, what MIDI channel you want the computer to communicate to the EPS/ASR from, the place where
you want your Disk Files to go, and the type of sampler you will be using. If
the program has problems at any point, don’t hesitate to call or write Rub­ber Chicken Software Co.
After this, you’re set! We have tested this program on many PC’s and many sound-cards, but in this world of incontinuity and incompatibility, perhaps there
are conicts and machine errors that will cause problems. Again, please call
us toll-free and discuss your problems - we have many possible solutions
(please see Troubleshooting as well).
Here is your Registration Name and Number
EPS SENSE
A DOS program developed by Jeffrey Richter (now at MicroSoft) and Donna
Murray that controlled the Original EPS via MIDI.
Page 47 Page 3
Please type in the NAME AND NUMBER exactly as shown. Please pay attention to upper-case
vs. lower-case, or capital i's (I) and ones (1), zero's (0) and O's, etc. Again, the registration is
case sensitive - they must be entered into MIDI-Disk Tools EXACTLY as shown.
Note to European users: if you have problems with your registration number, substitute a comma for the periods that the registration number might contain.
List of Files - Brief Overview and History Final Notes
List of Files
Program Files (in application folder)
mt32.exe Program File rcsfx.efx Effects Information eps249os.efe EPS OS eps13os.efe 16-Plus OS asros353.efa ASR OS
Text/Help Files (in application folder)
mdtools.hlp MIDI-Disk Help disktool.hlp Disk ToolsHelp rcsctlg.doc RCS Catalog readme.txt Read Me dtreadme.txt Disk Tools Read Me revlist.txt Version History
ActiveX Controls (in system folder)
hslide32.ocx aspi.ocx midiio32.ocx comctl32.ocx tabctl32.ocx comct232.ocx threed32.ocx vslide32.ocx msghoo32.ocx
Dynamic Link Libraries (in system folder)
msvbvm50.dll msvbvm60.dll esd32.dll (app dir) xtool16.dll (app dir) aspi.dll
If the program has problems at any point, don’t hesitate to e-mail, call, or fax us at our contact addresses.
Final Notes
A couple of things to keep in mind. Please report any alleged bugs that you might come in contact with. Also, if you have any ideas about how to make Ensoniq MIDI-Disk Tools for Windows better or easier to use, let us know. Here are a few numbers to keep in mind.
Emu-Ensoniq Corp.
155 Great Valley Parkway
Malvern, PA 19355
Customer Service (610)-647-3930
www.ensoniq.com - www.emu-ensoniq.com
They are not making keyboards anymore, but they still answer questions
EPS/ASR/TS Internet Mailing List
epsasrts@soundcentral.com See subscription info at: www.soundcentral.com/keyboard/ensoniq/mailinfo.html Essential for in-depth EPS/ASR/TS probing
Transoniq Hacker
1402 SW Upland Dr.
Portland, OR 97221
(503)227-6848
Brief Overview and History
Ensoniq MIDI-Disk Tools for Windows is the pursuit of Rubber Chicken Soft­ware Co. to congure a full-edged computer support vehicle for the Ensoniq
line of samplers. It’s ideological genesis was a small program by Jeffery Richter and Donna Murray called EPS-SENSE, which was written in 1989 to support the Original EPS. It feature parameter editing and a waveform form where you could see the wave (unfortunately, Ensoniq had a bug in their OS that prevented
this - it didn’t get xed until 2.49, long after the Original EPS passed it’s hey-day).
We had been selling that program, until we entered an agreement with Jeffrey Richter to obtain the source and modify it to work with the 16-Plus and ASR-10.
Well, we had so many ideas for a great program that we abandoned the shell of his DOS program and made our own, which you see the results of today. The idea of this program is to get your hands of the EPS/ASR with it’s button pushing and on a house and a keyboard and a monitor, where you can see everything. All the screens necessary are provided, along with a sequencer control and a
special MIDIKeyboard controllable from a mouse or computer keyboard, so you
don’t even have to have a keyboard nearby!
Page 4 Page 46
whatever@transoniq.com
They are out of publication, but still a great back order resource
Thank You's and Legal Notices
Thanks to everyone who gave their comments and help, especially on the Ensoniq Internet Mailing List epsasrts@soundcentral.com.
Thanks to John Bodenstein, brilliant developer of the Ensoniq Sampler Driver. Thanks for your patience and commitment.
Thanks also to Tony Ferrera and Bert Nuskirk of Ensoniq, whom we've always counted on for assistance and friendship, and Eric Geislinger and Jane Talis-
man of the Transoniq Hacker, whom it only seems days ago when we had a
Mirage and we picked up our rst Hacker and read it cover to cover.
Shortcut Quick Reference Important Concepts
Shortcut Quick Reference
Control Key
A MIDI -ReadAll B MIDI Tester
C (Copy)
D Write to Disk Image E MIDI - Read Single
F Format Floppy G Global Parameters Screen H Auto-Load Function I Ensoniq File Analyzer
J SampleVue Screen
K MIDI Keyboard L Load Remote File
M MIDI Monitor N Naming Wizard
O Read Floppy to Disk Image P (Print Parameters)
Q Exit Program
R Read File Image
S Setup Screen T Ensoniq Disk Tools
U (Sequencer Track Control) V (Paste) W Write File Image X (Cut) Y (Sequencer Control Board)
Z Normalizer
Alt Key
F - R Read File Image W Write File Image
X Exit D - R Read Disk Image W Write Disk Image
F Format Floppy
M - A MIDI - Read All S MIDI - Read Single M MIDI-Tester U - Z Normalizer N Naming Wizrd A Auto-Load T Ensoniq Disk Tools I, L or W - R Create C Copy D Delete L Locate P - M Main Page
G Global Parameters K MIDI Keyboard B (Seq Control Board)
Q (Sequencer Track Con-
trol)
V SampleVue
Z Ensoniq File Analyzer
I MIDI Monitor S Setup Screen I - C Cascade Windows T Tile Windows A Arrange Windows H - C Contents H How to Order T Trouble Shooting R Revision History U Update Policy A About
Important Concepts
Ensoniq MIDI-Disk is an easy program to use; however, there are two special concepts that are important to keep in mind. These concepts are the framework of the program.
In a perfect world, a keyboard manufacturer would make their musical instrument quickly accessible to the best user interface possible. Roland comes close by providing a direct monitor output on their keyboards, and programming software that shows exactly what is loaded into the machine. Ensoniq does not come as close, but does make many aspects of the instrument available.
Concept 1: MIDI Parameter Reading
Ensoniq MIDI-Disk Tools can query the EPS/ASR for the current contents of the
sounds and sequences loaded into RAM. It stores that information in a le that is identical to the Ensoniq le format; in fact, you can load the newly made le into your EPS/ASR via oppy or SCSI and it would be work identically (with two important exceptions).
Ensoniq MIDI-Disk Tools can then take the Instrument parameters and change any parameter within that Instrument, just as you would do on the front panel of the EPS/ASR. It then goes even goes further, by batch certain functions together
to make more efcient operation. At the same time, MIDI-Disk Tools updates the stored le, keeping it current with the Instrument in the EPS/ASR memory.
There are a couple signicant shortcomings of the EPS/ASR MIDI implementation:
1. You cannot nd out what Effect is stored within the instrument, however,
you can read a subset (nine) of the parameters via MIDI.
2. Certain parameters are not available; e.g., Pitch Tables, etc.
3. MIDI is a VERY slow data transmission format. Reading the parameters of
an Instrument take a bit of time, but the majority of an Instrument's data is
the wavesample data. Getting this information from the EPS/ASR via MIDI, given a 500 block instrument, takes about 3-4 minutes. That's too long!
Ensoniq MIDI-Disk Tools attempts to rectify these concerns by establishing the next concept:
Concept 2: Storage Device Reading
Ensoniq MIDI-Disk Tools can also query an actual Ensoniq le on oppy or SCSI
Device for the same information; parameters, effects information, wavedata;
Page 45 Page 5
Important Concepts Update Policy
the works. It's MUCH faster than MIDI, and it can get ALL the information. The
disadvantage is that you can't audition your changes (nd out what a certain change will sound like) immediately, since the info isn't in the samplers memory.
So, Ensoniq MIDI-Disk Tools attempts to merge these to methods of getting the EPS/ASR information into an acceptable work format. Let's look at an optimum setup for working with sounds, using a sound called MR BRASS for example:
EPS/ASR MIDI OUT to Computer MIDI In
Computer MIDI OUT to EPS/ASR MIDI In
Computer running
MIDI-Disk Tools,
with a Sound Card
and a Sample Editor
SCSI Cable
EPS/ASR
SCSI Drive
SCSI Cable
1. Using the EPS/ASR, load MR BRASS from the SCSI Drive.
2. Using MIDI-Disk Tools, save MR BRASS as a File Image in the computer.
3. Click the READ ALL button on the MIDI-Disk Tool Main Screen; this will query
the EPS/ASR for the contents of the memory.
(Sound Forge, etc.)
Update Policy
Starting with updates after Version 3.5, Revision/Build 22, Ensoniq MIDI-Disk Tools updates are available again on our Web Site. They are in the form of
"Patches", les you download to update your currently installed program.
You will need at least Version 3.5, Revision/Build 22 to use this system. You will simply click
the Tools On The Web/Update menu option under Help in the program - that will bring up your browser, dial the Internet, and take you to a Web page that will inform you on the avail­ability of an update. If there is one, it will display a link for you to download it.
You will not need to incrementally update. Your only concern is to update your version to the
current one displayed.
These "Patches" ARE NOT COMPLETE PROGRAMS. They only update your current installa-
tion. If you need another complete version, it will need to be snail-mailed to you at a $5.00
($8.00 international) charge.
You can always be fully updated; that is, get all the les needed for a full instal-
lation, by following these steps:
Download the MIDI-Disk Tools Setup File and install it on your computer. Make sure you note
the directory you installed it in.
4. The EPS/ASR will tell MIDI-Disk Tools that MR BRASS is loaded; MIDI-Disk
Tools will nd the MR BRASS File Image in the computer, and ask you if you want to load from MIDI, or from the File Image. Choose File Image.
5. You will have full access to most of the parameters within MR BRASS.
Editing Common Parameters
Example: editing the release time of the wavesamples of Layer 1. Go to
the ENV3, and use the graphical envelopes to edit the release time. The parameters will be updated via MIDI to the EPS/ASR, so you can paly the
Start the MIDI-Disk Tools program le, named mt32.exe (it must be version 3.5 revision 22 or
later) from within the directory you specied when installing the MIDI-Disk Tools Setup File.
IF YOU CAN CONNECT TO THE INTERNET FROM THIS COMPUTER: Click the Tools on
the Web/Update menu option, and follow the prompts from the web page that it dials.
IF YOU CANNOT CONNECT TO THE INTERNET FROM THIS COMPUTER: Click Help, and
go to the About box. Note the Version number and the Revision number (such as 1.4.13).
When you can connect to the Internet, use this syntax to get to the correct web page:
www.chickensys.com/cgibin/update.cgi?type=MIDI-Disk%20Tools&maj=[major ver]&min=[minor ver]&rev=[build number]
Major Version Number, Minor Version Number, and Build number MUST BE two digits!
EPS/ASR to see when the release time is just right. The File Image in the
computer will be updated as well.
Editing Effects
These parameters cannot be changed via MIDI, so they are only changed
For example, if you have Version 3.6, Revision/Build 9, you would type:
Save your update le to oppy disk or other backup medium.
www.chickensys.com/cgibin/update.cgi?type=MIDI-Disk%20Tools&maj=03&min=06&rev=09
to the File Image. The only way to audition these is to reload the File Image
to the SCSI Drive, and then load that into the EPS/ASR.
Editing the Wavedata
Ensoniq MIDI-Disk Tools remotely works the Looping and other data-editing
functions via MIDI; however, only some of them update the File Image. You
are able to auditon these directly. Another method is to use your favorite
computer editor (Sound Forge, etc.) to edit the File Image wavedata. Of
Start your program by going to the Start button, go to Programs, go to the Ensoniq MIDI-Disk
Tools Program Group, and click on Ensoniq MIDI-Disk Tools selection.
Updates, full versions, registration numbers, and/or printed manuals sent
through snail-mail or e-mail carry a charge of $5.00 ($8.00 international) for
each item. You can order these at the Rubber Chicken Software Order Page. No programs will be transmitted via e-mail - they must be sent snail-mail.
course, this will not update your EPS/ASR via MIDI, so you will have to reload the Instrument to hear the total edit. But immediately, you can hear the wavedata with the sound card while you edit it in the sample editor.
Page 6 Page 44
Personal Support Screens
c) If you have MIDI problems, you must use the MIDITester before
you call in. It is under the MIDI menu, and please tell us which tests passed or failed.
d) You must have available the following information before calling in:
Program revision of Ensoniq MIDI-Disk Tools, and the date of tools32.exe
PC platform (Win95 or Win 3.x)
(MIDI problems only) MIDITester results, brand of MIDI in­terface, date, version and name of the drivers. This can be obtained (in Win95) within the Control Panel/System/Device Manager/Sound, Video, and Game Controllers.
e) If the program “crashes”, please be specic - does the computer
freeze, or do you get an error dialog? What does the dialog say?
Contact Information
Rubber Chicken Software Co. 714 5th Street SE Willmar, MN 56201 USA Technical Support Line: 1-320-235-9798 e-mail: support@chickensys.com Web Page: http://www.chickensys.com
Screens
Main Page: A model of the EPS/ASR display screens
Instrument/Layer Screen: Contains Instrument param-
eters, Layer Parameters, a Wave list, Effect Parameters, and a Layer Control area for you to select/deselect Layers.
WaveSample Screen: All Wavesample parameters, and jump points for the envelope pages and SampleVue screen.

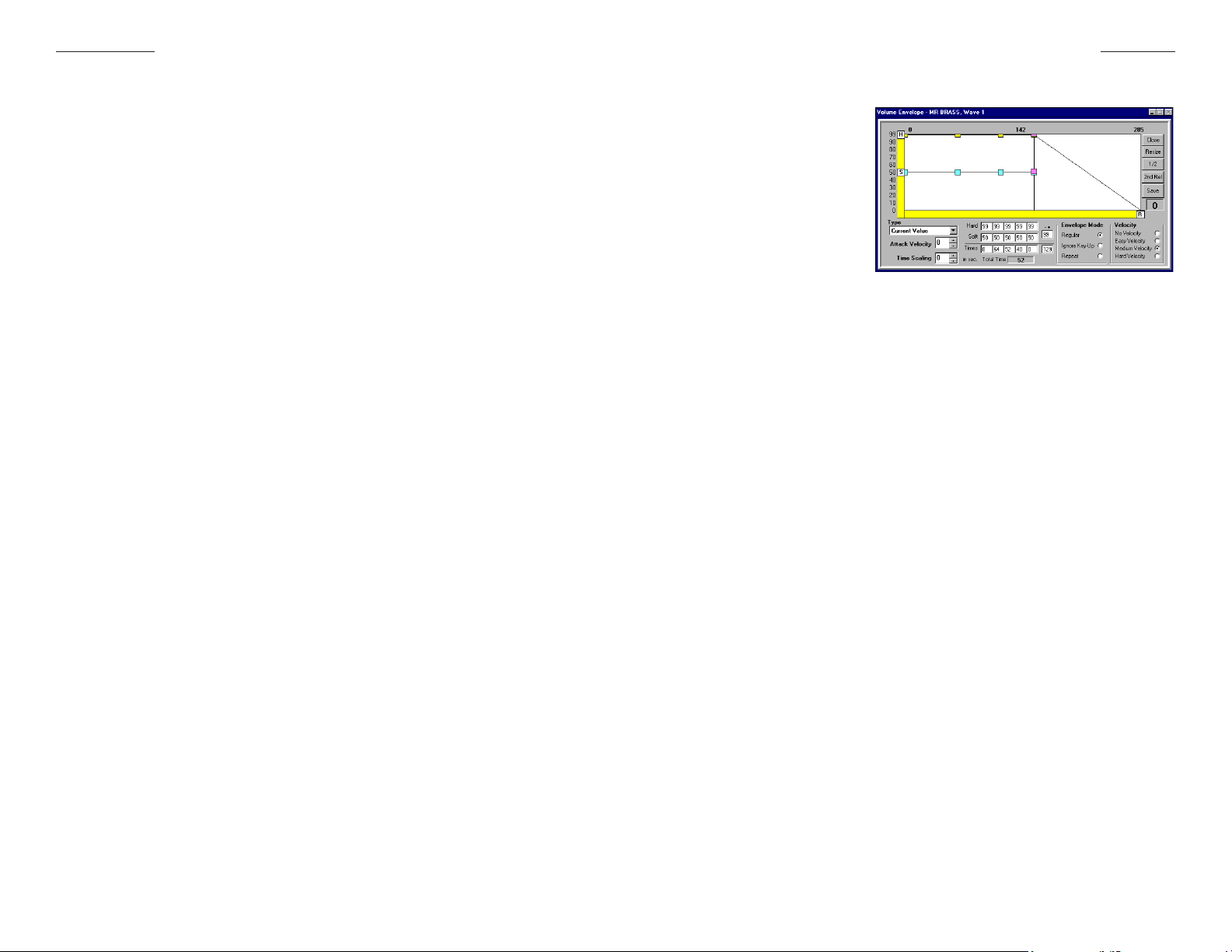

Envelope Screen: Contains all the Envelope parameters plus a working controllable drawing of the Envelope.
SampleVue Screen: A waveform displayer which will allow you to see all the changes you make in visual form, as well as all the sample editing features you’ve come to know and
love in the EPS/ASR. Specic Sample and Loop parameters,
plus the percentage pointers and the Loop Position feature.
Sequencer Control Board: Little display that has transport controls plus a tempo setting box; provides jumping off point for the Sequencer Parameter Screen.
Sequencer Parameter Screen: Contains all the Sequence and Track Parameters, including the Track Mute/Solo/Play select screen.
Global Parameters Screen: Contains Global parameters.
MIDI Keyboard: Contains all the notes of a 76-note key-
board, including Octave select, MIDI channel select, Instru­ment Slot Select, and Chord features.
MIDI Monitor: Shows the MIDI information coming from your EPS/ASR. Simply press a couple buttons on the EPS/ASR and see the sys-ex information come in. Is able to transmit custom and pre-programmed Sys-Ex as well.
Naming Wizard: Gives you instant access to all the In- strument, layer, and Wavesamples for editing.
Setup Screen: Contains all the startup parameters and the user-programmable features you decide to customize into your program.
Page 43 Page 7
Main Screen Personal Support
Main Screen
This is the basic and rst
screen of the program The upper Toolbar, Status indica­tor, menu options, and MIDI lights are available wherever you are in the program. The Instrument Controls are jumping-off points for the rest of the program.
Ensoniq MIDI-Disk Tools for Windows shows the
same hierarchy as the EPS/ASR does: There are 3 Envelopes per WaveSample; there are up to 127 Wavesamples that reside in Layers; in which there are up to 8 Layers, and 1 Effect, in a master unit, call an Instrument.
Tool Bar Buttons
READ Parameters
Cluck on READ ALL Command Button to start the process of reading everything that is in the EPS/ASR through MIDI or by loading in a pre-
loaded Disk File, or the Single button to read only selected instruments. Be prepared - for lots of wavesamples, this can take a while! For all functions,
watch the upper right of the ToolBar - it will show you the status of what’s happening. When you read all the parameters, it shows your progress.
Personal Support
At Rubber Chicken we pride ourselves for the personal support we can give, because we believe the only important problem to you is your own problem!
But before you call/write in for support, please read below:
1) If you downloaded our les from the Internet, we hope you read all the
directions on the Web Page, concerning which les to download for what system, etc. There is the main setup program (mtv**.exe), the Acces­sories le, and the new revision les (mtv**r**.exe). Note: The Accessory
le needs to be run rst!
2) Please check the size of the les against what the Web page says they
should be. That should tell you if there was a corruption.
3) Our latest Revision has gone through pretty extensive tests, and we are
more condent on this revision that it can run on most persons machines
without some error. However, since we do post frequent revisions, we’d like to here if an occasional bug got slipped in.
4) We are interested in seeing how the program works with MIDI Commu-
nication with various MIDI interfaces. Some MIDI Drivers don’t work as they should. The commands Tools uses go far beyond what other MIDI
programs (such as Cakewalk, Cubase, etc.) do; it uses heavy system-
exclusive code, whereas standard programs only deal with note data and
controller data (easy stuff). If you have MIDI problems, it is most likely
due to a older driver - these problems can be remedied by obtaining the latest driver from your MIDI interface manufacturer.
Load File
By clucking on this, you can remotely load a le into the EPS/ASR’s RAM.
Load Disk File
By clucking on this, you can select a Disk File you load.
Read Global Parameters
Displays the Global Screen.
MIDI Keyboard
Displays the MIDI Keyboard. This will stay on top of your screen until closed.
Sequencer Controls
Control displays the Sequencer Control Board. Track displays the Sequenc­er Track Screen.
Page 8 Page 42
5) We do ask you of some things if you do need to call/write for support.
a) Please describe the problem specically (what screens come up, what
do they say VERBATIM, any repeatable steps we can describe so we
can duplicate the error here). If you say “it doesn’t work”, we’re sorry, that
just isn’t enough for us to go on. IT IS VITAL THAT WE CAN REPLICATE THE ERROR. We need to know what is the difference in your PC that is
causing the conict.
b) It is VERY HELPFUL, in case of errors in reading or writing parameters
to Disk Files, to send us the File Image le that your are reading/writing. Zip the le up using WinZip or related program (it will compress to a very small size) and attach it in an e-mail message to us. These are very help-
ful in determining what the problem is.
Troubleshooting Main Screen
PROBLEM: I have a hard time programming, and I don’t have a manual. What can I do?
SOLUTION: First thing is to get a manual. Call Ensoniq at 1-610-647-3930
and order one. Another thing to do is to -subscribe to the Transoniq Hacker
(MASTERCARD or VISA, 1-503-227-6848), a super users-mag that helps with
programming questions. Third, just try programming and not know what you’re doing. Alter some parameters and see what they do. Maybe you could learn more this way. Or call us - we’ll get you started.
PROBLEM: I don’t really understand how to use this program to my benet.
SOLUTION: In the labs of Rubber Chicken, we use it exclusively to program
sounds. You just have to get use to working with it. We know that some of the functions aren’t available yet, but certainly the truncation for silent space before the wavesample is valuable, along with the Truncate/Normalize opera­tions. Next version we’ll have a tutorial which will help you with the applica­tions.
PROBLEM: I get a Out-of-Memory error, or Out of Stack Space message, and the program crashes.
SOLUTION: You either have too many windows/programs open, or the pro­gram has given you unstable performance and you need to reboot Windows/ computer.
SampleVue Screen
Cluck on SampleVue Command Button on the ToolBar. This will page you to the SampleVue screen for you to select the proper wavesample to view.
MIDI Monitor
Cluck on Monitor Command Button. This brings up the MIDI Monitor screen, enabling you to send custom/automatic Sys-Ex messages, and to monitor incoming messages.
Setup Screen
Displays the Setup dialog.
Instrument Controls
The Instrument Control resides on the Main Page. It consists of a display box with four display spots, and two buttons underneath. When a Instrument
resides in a slot (just like on the EPS/ASR), you will see in the display box the
number of Layers it has, the number of Wavesamples, the block size, and the name of the Instrument. To select the Instrument, cluck on the selection but­ton, numbered 1-8. At this point you will see the display box turn white. Please notice that only one instrument can be selected at a time. If you select another
Instrument, the previously selected Instrument will deselect (turn gray), and
the new Instrument will turn white. To see the instrument parameters, cluck the
Read Parameters button of the selected instrument.
Control Buttons
PROBLEM: I edited a parameter, and I got a Program Error screen. Why?
SOLUTION: The display boxes where you enter text will accept only the ac-
ceptable range of values. It will also reject most other things, such as symbols or letters, but if you put something really weird in there, it might cause an error.
Page 41 Page 9
The Control Buttons are the Command buttons below the Instrument Controls. You’ll notice that they have identical functions in the Menu Bar; however, they work slightly differently. The Main Page Controls (Create, Copy, and Delete
Instrument) only apply to the Instrument selected, whereas you are given a
choice with the functions on the Menu Bar.
Create Instrument
A prompt will appear, asking you if you would like to create an instrument in ?
slot. Type in your request, and cluck OK. An instrument with that name will be created to that location on screen (as well as on the EPS/ASR) and selected.
Copy Instrument
This automatically copies the selected instrument into the next available
instrument slot. For a specic copy function, use the Menu Bar function under
INSTRUMENT called Copy.
Main Screen Troubleshooting
Delete Instrument
If Conrmation in the Setup window is selected. a prompt will appear, asking you if you would like to delete the selected instrument. Cluck OK if desired. If Conrmation in the Setup Screen is not selected, it will automatically delete
the Selected Instument.
Save Instrument
This is a helpful feature, but must be used with caution. There is no response, asking you to DELETE OLD VERSION? as with the EPS/ASR display. It will
always overwrite what is in the current directory. If conrmation in the Setup
Screen is checked, a prompt will appear, asking you if you like to save Instru-
ment x. Cluck OK if desired.
Create Preset
Instantly creates a Performance Preset based on the present conguration of
the EPS/ASR at the moment.
WaveSample Access
You’ll nd a list box on the right hand side of the Main Page. This lists all the wavesamples available in that layer, and the Key
Ranges in which they occupy. Double cluck on any of these to jump to the WaveSample Screen for that Wavesample.
- Exit the program, exit Windows to reset the driver, restart Windows, restart the program, and try it again.
-Make sure your MIDI Drivers, as selected in Setup, are the correct ones.
- It is possible that you do not have the latest drivers for your MIDI interface. Many less expensive MIDI interfaces do not support system-exclusive calls properly, and many mainstream MIDI interfaces did not support them until later revisions of their driver. Please contact your MIDI interface manufac­turer for the availability of their latest drivers. If that doesn’t work, call us
- you will need to have the date and the version numbers of your MIDI
interface ready. For Windows95, these are available in the Control Pane/
System/Device Manager.
PROBLEM: I got a MIDI Communication Error, or Read/Write Error. What is that, and how do I correct that?
SOLUTION: This simply indicates something was wrong with MIDI commu-
nication or disk writing, and the program got something it didn’t like. Keep clucking on OK until it goes away. It also maybe that the Disk File is corrupted
- try deleting it under the Disk File dialog. Concerning MIDI, perhaps you were
touching the EPS/ASR while you were using this program. We don’t recom­mend that.
PROBLEM: The disk drive light on my ASR keeps coming on while Ensoniq MIDI-Disk Tools for Windows is reading it. Sometimes that seems to cause
an error, sometimes it just seems to slow the READ down. And always after-
wards, when I try to manually manipulate the ASR, I either get a DISK NOT FORMATTED message, even though I know for sure the disk is formatted, or File Operation Error, hanging the program. Once I turn the ASR off and on
again, this goes sway. Why?
SOLUTION: There are some problems when your Storage Device is set to
Floppy. Our program usually recties the problem, but sometimes it appears.
The Sys-Ex messages that the Tools program uses seem to interfere with the
ASR, and make it difcult to work with. Our suggestion is to always boot off a
hard drive when using the Tools program, and make sure to have the Stor-
age Device set to SCSI = XXX, not Floppy. If you have to keep it on Floppy,
because you don’t have a hard drive or SCSI, we have worked our program to deal with it as best it can.
Page 10 Page 40
Troubleshooting Instrument/Layer Screen
Troubleshooting
PROBLEM: My EPS/ASR doesn’t respond at all when I cluck ALL or Single - it doesn’t blink or do anything.
SOLUTIONS: There could be several problems. Try any of these solutions:
- Check if your MIDI SYS-EX=OFF on your EPS/ASR (available via CMD­SYSTEM/MIDI). If it is OFF, turn it ON.
- Make sure your MIDI Drivers, as selected in Setup, are the correct ones.
- Check your physical MIDI connections. You must have a MIDI Loop run­ning - the MIDI OUT of the computer must result into the MIDI IN of the EPS/ASR; and the MIDI OUT of the EPS/ASR must result into the MIDI IN of the computer.
- Use the MIDITester (under the menu option MIDI) to check your MIDI
connections. YOU MUST HAVE THE RESULTS OF THESE BEFORE YOU CALL IN FOR SUPPORT.
- Exit the program, exit Windows to reset the driver, restart Windows, restart the program, and try it again.
- It is possible that you do not have the latest drivers for your MIDI interface. Many less expensive MIDI interfaces do not support system-exclusive calls properly, and many mainstream MIDI interfaces did not support them until later revisions of their driver. Please contact your MIDI interface manufac­turer for the availability of their latest drivers. If that doesn’t work, call us
- you will need to have the date and the version numbers of your MIDI
interface ready. For Windows95, these are available in the Control Pane/ System/Device Manager.
Instrument/Layer Screen
This is where you can edit Instrument, Layer, and Ef­fect Parameters, as well as control your Patch selects, Pitch Tables, and Layer control.
Instrument Name
Place the Text bar over the Name, type in Name, Hit Enter, program will take rst
fourteen characters and rename the Instrument
Instrument Block Size
Read-Only - shows the block size of the selected Instrument
Key Range
Cluck on each Command arrow and you will see the list of key ranges. Cluck on the appropriate one.
Transpose
Cluck on the arrow, and drag it to the appropriate location. NOTE: Ensoniq MIDI-Disk Tools can transpose the EPS/ASR more vastly and easily than you can using the built-in interface.
Available Layers/Patch Selects
Cluck on the “OO”, “OX”, etc. and you will change the appropriate patch
select. Cluck right on top of the layer number in Patch Select Boxes and it will toggle between - and the Layer number.
MIDI Status
Cluck on Command arrow and you will see your list of choices.
PROBLEM: When I cluck on ALL or Single in the Main Page, it doesn’t get past the Reading Instrument 1 Parameters prompt. Either that or it only gets to Effect 1, and then times out.
or, PROBLEM: Often, I get errors when I do a MIDI Read of my EPS/ASR.
SOLUTIONS: There could be several problems. Try any of these solutions:
- Go into Preferences and increase the Single HS Delay by 1 or 2, or the Time Out Length parameter by several seconds. Reading at too quick a
delay can introduced errors into the File Image le produced.
Page 39 Page 11
Pressure Mode
Cluck on Command arrow and you will see your list of choices.
MIDI Out Channel and Program Number
Place the Text bar over the display box, type number, hit Enter
Buttons for Selecting Layers
Cluck on button to switch the lower panel to display the proper Layer Screen. Only the Layers that are in the current Patch Select may be selected.
Layer Panel Sequence Paramter Editing
Layer Panel
When you cluck on a Layer But­ton on an Instrument Screen, the Layer Panel appears below in place of the Effects Screen.
Sequence Count-Off
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Record Mode
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Layer Name
Place the Text bar over the Name, type in Name, Hit Enter, program will take
rst twelve characters and rename the Layer
Glide Mode
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Glide Time, Legato Layer, Restrike Decay Time, and Delay Mod
Place the Text bar over the display box, type number, hit Enter
Pitch Table
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one. (Note: as of this time, Ensoniq has not implemented access to this function. In future versions of this program, you’ll see more uses for
this.)
Layer Velocity Range Lo and Hi
Place the Text bar over the display box, type number, hit Enter.
KeyRange Fix
This is a fun one. Ensoniq samplers have an odd peculiarity of having key
ranges overlap within a layer (such as Wave A0-C8, Wave 2 A0-C4). There
is no pattern on which plays - it’s not really supposed to happen, but it does. Anyway, clucking on this button makes separate unique ranges for all the wavesamples. This is a special function of Ensoniq MIDI-Disk Tools for
Windows!
Record Source
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Track Mix
Place the Text bar over the display box, type number. The parameter will auto­matically adjust for you, or you may press Enter to enact the change.
Track Pan
Place the Text bar over the display box, type number. The parameter will au­tomatically adjust for you, or you may press Enter to enact the change. (Note:
for default to WaveSample, enter WS)
Track Out
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Effect Control
Cluck check box to toggle between “On” and “Off”
MIDI In Controls
This set of buttons set the Multi-In MIDI channels, and the MIDI Status (Local,
Both, MIDI, or External) of each track.
MIDI Out Controls
This set of control determines the MIDI Output channel of each track, and the
Output Bus (Bus1, Bus2, Bus3, Aux1-3)..
Wave List Box
This shows you all the Wavesamples within the noted Layer, and the Key
Ranges associated with them. Double-clucking on the selection will take you to the WaveSample Screen.
Layer Link
(ASR only) This joins Layer 1 with Layer 2, Layer 3 with Layer 4, and so on -
depending on which layer you have selected.
Page 12 Page 38
Track Status Bar
Please note the Mute/Play/Solo track bar - this you will nd very helpful when auditioning tracks. Cluck to toggle between M (Mute), P (Play, and S (Solo).
Again, like on the other pages, the display boxes where you enter text will ac­cept only the acceptable range of values. It will also reject most other things, such as symbols or letters, but if you put something really weird in there, it might cause an error.
Sequence Paramter Editing Effects Panel
Sequence Parameter Editing
This screen contains all the available sequence parameters and track pa­rameters.
Tempo
Place the Text bar over the display box, type number. The parameter will auto­matically adjust for you, or you may press Enter to enact the change.
Loop Enable
Cluck check box to toggle
between “On” and “Off”
MIDI Clock Status
Cluck “Internal” or “MIDI” radio button (you might nd this usually set to MIDI because of the auto-change by the Sequencer Control Box)
Click
Cluck check box to toggle between “On”, “Off” and Record”
Note Values
Cluck to toggle between acceptable note values; wraps around
Cluck Volume
Place the Text bar over the display box, type number. The parameter will auto­matically adjust for you, or you may press Enter to enact the change.
Click Pan
Place the Text bar over the display box, type number. The parameter will auto­matically adjust for you, or you may press Enter to enact the change.
Click Out
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
The Effects Panel
You can edit the Effects pa­rameters with this page. Place the Text bar over the display box, type number, hit Enter, or Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
IMPORTANT NOTE: The EPS/ASR, in it’s present Sys-Ex abilities, doesn’t communicate what effect algorithm is attached to an instrument. Our work­around for this is for you to manually select the algorithm and the top of the page, and the labels for the display boxes will change accordingly. The param­eter values shown are correct; the algorithm just has to be changed manually.
The Disk File will reect that change.
Also importantly noted, Ensoniq only allows 9 parameters (randomly selected by them) to be edited remotely. This is why you see many N/A on other pa­rameters. Some nasty deletions include BusMix3 and MIXMOD AMT with the basic HALL REVERB. We’re seeking to work with Ensoniq to allow greater access.
Effects Algorithm Names
There are 13 effects loaded into the 16-Plus, and 50 loaded into the ASR­10/88. Cluck on this to pick one.
Effects Variations
Pick one of four preset variations of the effect. In future versions you will be able to save your own.
Active Effect Controls
This is an active effect control you can edit. Type into the text box or use the spin control to the right.
Inactive Effect Controls
You cannot alter this control; however, we have noted what the parameter name it.
Click Mode
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Page 37 Page 13
Wavesample Screen Sequencer Screens - Sequencer Control Board
WaveSample Screen
Here’s where you will edit all your Wavesam­ples. SPECIAL NOTE: It doesn’t matter whether the wave you edit is in the
default patch (OO). When
you enter the screen, the program will either switch the Patch Select for you or edit the present one to include it.
This is where you’ll probably do the vast majority of your work, if you are like us. There are many parameters on this page; we won’t go through them one by one, but we’ll give you basic guidelines on operation. Note that the current
edit context (Instrument, Layer, and Wavesample Numbers) is displayed next
to the Wavesample Name, and Copy Status (whether it is a Copied Instrument
or not) is displayed under that. Note also the Envelope Access buttons and the
Sample Close-Up button. Like on the other pages, the display boxes where you enter text will accept only the acceptable range of values.
WaveSample Name
Place the Text bar over the Name, type in Name, Hit Enter, program will take
rst fourteen characters and rename the Layer
“Combo” Boxes
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
Display Boxes
Place the Text bar over the display box, type number, hit Enter
A couple of exceptions: The Boost parameter is a check box, and the Volume,
Pan, and Root Keys are modied by sliding bars.
The Sequencer Screens
Another great feature of Ensoniq MIDI-Disk Tools is the ability to control the sequencer remotely. This could be the best way of using the onboard Ensoniq
sequencer while getting the most out of your computer (and it’s free!)
Sequencer Control Board
This is accessed through the Main Menus. This will look familiar; common transport functions (Play, Stop, Continue,
- Record will be implemented in a future
version), along with a tempo control
and a jump-off point for the Sequencer parameter page.
To work, simply cluck on Play, and you’ll hear the loaded sequence inside the EPS/ASR RAM start to play. To stop, cluck on Stop. At that point, to continue, cluck on Continue, or to restart from the beginning, cluck on Play again. You can either input a different tempo or use the Up/Down arrow to change it.
You’ll nd this changes in real time.
A word about tempo: Ensoniq’s innite wisdom tells us that their instruments will not accept a MIDI Start command when the MIDI CLOCK status is INTERNAL.
What this means is that we can’t start the sequencer from Ensoniq MIDI-Disk Tools for Windows unless we provide the timing clock as well. For our implemen­tation, when you display the Sequencer Control Box, it automatically changes
the MIDI CLOCK Status to MIDI, and takes the current tempo and interpolates
that with the programs own clock. One persistent bug, and one that delayed some releases of this program, is this programs inability to provide a consistent
clock. You might nd that the displayed tempo may be a touch fast or slow, and you’ll denitely nd that the clock has little “jumps” in it. We are working on this.
Page 14 Page 36
Setup Screen Envelopes
ReRead Prompt
This will provide a prompt for you during the READ operation, offering you a choice between reading the Instrument through MIDI again, or reading the Disk File. This parameter is dis-enabled when the Read from File box is un­checked, since it does not apply.
Read Effects
This enables the reading of the 16-Plus and ASR’s effects during a READ operation. The reason for this is to avoid possible crashing of the EPS/ASR if
you do not have an effect load into the instrument. For Original EPS users, this
control is dis-enabled.
Auto Load MIDI Keyboard
This will automatically load the MIDI Keyboard upon startup of the program.
Sampler Type
Click this to choose which Ensoniq sampler you are reading from.
Disk File Path
Use these to select where your Disk Files will be stored on your computer.
Beep on MIDI Input
Select this to beep through the PC speaker whenever MIDI information comes into your MIDI Input.
Tool Tips
Select this to show small reminder messages on the tool bar.
Envelopes
There are three envelopes available on the EPS/ASR, somewhat hardwired into the
Pitch (Env1), Filter (Env2), and Volume (Env3) operations.
These are accessed by each envelope button. Only one envelope is accessible at one time (this should change next
version).
We are particularly proud of the these envelope controls - they are dynamically controllable. You can edit any portion of the envelope, and the rest adjusts for you. As far as basic operation, the same rules for the wavesample parameters apply to these pages. You’ll notice the big box above the parameters; this contains the envelope drawing. You are able with the mouse to point-and-cluck your envelope points. Again, like on the other pages, the display boxes where you enter text will accept only the acceptable range of values. It will also reject most other things, such as symbols or letters, but if you put something really weird in there, it might cause an error. To close, cluck on the Close button or hit ESC.
Resize
Clucking on this button resizes the entire envelope for it to t on the screen.
Note the top numbers change as well
Diagnostics
Selecting this creates a box overlaying the Main Screen, which gives you some idea on what bytes are coming into your computer. Unchecking it re­moves it.
Page 35 Page 15
1/2
This Shrinks the screen in half, giving you more room to work.
Label
This notes how far you moved the Label. Helpful for redos.
Future versions of MIDI-Disk Tools will feature user-saved envelopes. You
will able to add to the list of Ensoniq factory envelopes with your own custom entries.
Remote File Load - Load Images Setup Screen
Loading Files Into the EPS/ASR memo­ry via MIDI commands
This enables you to remote­ly load a le off a disk con­nected to or part of the EPS/ ASR into the RAM contents
of the EPS/ASR. For the
option to work, it temporarily turns the MIDI-IN Mode to Multi, and the Program Change option to ON. It will turn the parameters back to
what they were (if they were different) when the dialog box closes.
The one thing to remember is that Tools is “blind” to what is going on in the RAM
of the EPS/ASR. You must watch the EPS/ASR 22-character display to make
sure the File numbers match up with what is going on in the screen.
Also, please note the In directory and Out Directory buttons, and the Load and System-MIDI buttons. These simulate the actual buttons on the EPS/ASR, and will help you navigate your way through the directories.
Loading a le off of the EPS/ASR is also dependent on what you have the MULTI-
OUT’s selected to. On the Original EPS’s, they are consecutive numbers after the Base Channel; but on the 16-Plus and the ASR-10 they can be changed. Cluck on the MULTI-IN button to changes these.
Performance
This is the number that can speed up or slow down the READ operation if need be. We have optimized it at 0 - to slow it down, set at higher number (up to 10,
say), to speed it up, try -1 to -10. 0 should be right for most computers.
Time Out Length
This determines the amount of the time for the program times out, waiting for a response from the EPS/ASR. a higher number for this is better. Default is 5 seconds.
Default Instrument Name
This will automatically name your New Instruments with this personal Name when you create an instrument, and set the Auto-name function in the Naming Wizard.
Default Layer Name
This will automatically name your New Layers with this personal Name when you create a layer, and set the Auto-name function in the Naming Wizard.
Default WaveSample Name
This will automatically Name your New WaveSamples with this personal Name when you create a wavesample, and set the Auto-name function in the Nam­ing Wizard.
Auto Name
This turns on the Personal names section
Loading from File Images
Not only are you able to locate Instruments by reading the EPS/ASR memory using the READ commands, you can also load sounds into MIDI-Disk
Tools from File Images.
During the READ procedure, Tools reads the parameters from the EPS/ASR and stores
them to a Disk File. Using this function enables you to load Disk Files from disk without having to read them
again from the EPS/ASR.
Page 16 Page 34
Conrmation
This puts Conrmations on most of the important edits you do
Read Only Selected Instruments
This will prompt a screen asking you which wavesample you want to read.
Display Error Messages
This enables prompting of MIDI communication errors when then come in. If you need to troubleshoot something this will be of value; otherwise, since the
program relies on the “errors” to give it proper information on the Ensoniq, it
will hinder operation.
Error Protection
Always keep this selected - this enables all the error handles within the pro­gram to be activated. If it is not selected, any error will crash the program.
Read from File
Enables reading from a Disk File during a READ operation.
Setup Screen Loading Images
Frame. Hex format, not decimal. There will be a switch to change this on a
later version. Please use a space between every byte to separate them. Use the SEND button to transmit the contents of the box to your Ensoniq.
Parameter Combo Box
Click on this to see the different parameters, based on what you selected in the Category Frame. Click on one and the appropriate sys-ex string will ap­pear in the Manual Edit box below, ready to send.
Parameter Value Box
This automatically will send the value you choose to the parameter you select.
Clear
Clears the screen.
You have the option of choosing which slot it goes into. Note that they are
translated from the actual le name, with the extension .efe or .efa (for exam­ple, the instrument CHILDLIKE will be stored in the le childlik.efe. The actual le name is shown at the top box. You also may delete a disk le by pressing
DEL on the keyboard.
Instrument List
This is a list of actual instrument names that you have saved as a result of reading them from this program. Double-cluck to load in the Slot Occupied slot.
Slot Occupied
This is the slot which the Disk File will go into. It automatically adjust to the
next unoccupied slot; however, you can change to any slot.
Close (or ESC)
Closes the window.
Setup Screen
This enables you to set your global preferences, which are saved after you close the program. You can input what kind of sampler you are using. This gets you started with the program. Under the Special bar of the Tool Bar, you
will nd a Setup screen. Cluck, and below we’ll briey describe the op-
tions.
Personal Name
This is your personal Name that will identify your program
MIDI Input - MIDI Output
These are the Drivers you have installed in the Drivers section of the Windows Control Panel, and allow you to select which are to be used by the program.
File Name
This is the actual DOS le name in which the le is stored under.
MIDI Channel
This is the MIDI channel that your EPS/ASR is set to (base channel)
SampleVue Size
This sets the Window size of the SampleVue screen.
Page 32 Page 17
Menus MIDI Monitor
Menus
File Disk MIDI Utilities Pages Windows Help Read Read Floppy Read All Normalizer Main Screen Cascade Contents Write Write Floppy Read Single Naming Wizard Global Tile About Exit Format Floppy MIDI Tester Disk Tools MIDI Keyboard Arrage Icons SampleVue File Analyzer MIDI Monitor Setup
File
Read
Loads a File into MIDI-Disk Tools from a
File Image.
Write
Write a File Image or Disk Image to an
Ensoniq volume from your computer.
Exit
Closes the program.
Disk
Read Floppy
Reads a Disk Image of an Ensoniq oppy
to your computer.
Write Floppy
Write a File or Disk Image to an Ensoniq
volume from your computer.
Format Floppy
Formats a oppy write a File Image or
Disk Image to an Ensoniq volume from your computer.
MIDI
Read All
Queries the EPS/ASR on all the Instru-
ments loaded in memory.
Read Single
Queries the EPS/ASR on a select Instru-
ment in memory.
MIDI Tester Opens the MIDI Tester. See Page 27
Utilities
Normalizer Opens the Normalizer. See Page 28 Naming Wizard Opens the Naming Wizard. See Page 28 Ensoniq Disk Tools
Opens Ensoniq Disk Tools. See the En­soniq Disk Tools manual.
Pages
Main Screen Opens the Main Screen. See Page 8 Global Paramters
Open the Global Parameters screen.
See Page 19 MIDI Keyboard Open the MIDI Keyboard. See Page 26 SampleVue Opens SampleVue. See Page 21 File Analyer Opens Ensoniq File Analyzer. See Page 30 MIDI Monitor Opens the MIDI Monitor. See Page 31 Setup Opens the Setup dialog. See Page 32
Windows
Cascade
Cascades open Windows on the screen.
Tile
Tiles all open Windows on screen
Arrange Icons
Lines up all minimized Icons on bottom
of screen.
Help
Contents
Opens the Help le; Table of Contents
About
Opens the About program dialog.
MIDI Monitor
This used to be mostly a diagnos­tic tool - it shows all the Sys-Ex information coming in. But now we’ve got it reved up to send almost any Sys-Ex message the EPS/ASR will receive!
Message Screen
Push a few buttons on the EPS/ ASR while this screen is up ­you see all the information come in. You’ll notice the input setup right next to it - this will be fully functional next version.
Instrument and Layer Option buttons
Select the instrument or layer.
Wave Combo Box
Ensoniq MIDI-Disk Tools will automatically load the wavesamples that exist in that particular layer/instrument, If the Instrument has not been read from the EPS/ASR as yet, the Combo Box will reset to include all wavesamples.
Request Type Frame
There are four different types of transmissions:
Request: You may request from the EPS/ASR a parameter; i.e., nd out
what it’s value is.
Update: Change a parameters value. ACK: Send an Acknowledgment. This is useful if you are sending a block
command. You won’t use this often, if at all.
Manual: This disables all appropriate buttons/boxes and enables you to
edit directly the output string displayed below.
You probably will need to refer to the External Command Specication by Ensoniq. Call Ensoniq at 1-610-647-3930 for a copy.
Category of Message Frame
This selects every parameter in the EPS/ASR to edit. Notice the Combo box resets with each button push.
Manual EDIT Box
This either displays the output sys-ex string to be outputted, or allows you to internally edit the values, depending on your selection in All values are in Type
Page 18 Page 31
Ensoniq File Analyzer Global Paramter Screen
Ensoniq File Analyzer
This is a very versatile
File Analyzer, which view Ensoniq le byte con-
tents, and allows you to edit them as well.
Select
Select a le to view.
Look
Enter in a byte pattern, either in Hex or Decimal,
to look for in the le.
Edit
Allows you to specify a
byte number in the le, and edit it in Hex or Decimal.
Info
This registers specic le information.
File Name
This is the le name that is being viewed.
Read Block
Click this to refresh the view screen with the desired range and area.
View Slider
Adjust this to read any area of the le. Once you release the mouse, the area
will appear in the View area.
Range
This determines how large of an area will be read and viewed. It is adjustable
between 512 bytes (1 block) and 4096 bytes (8 blocks).
Contents
Shows you the object contents of the le. By double-clucking on the desired
object, the view screen will move to that area.
Global Parameter Screen
This is accessible through the Main Menu; either through the spe-
cic Command button
or the Toolbar menu. This will reveal all the
Global parameters.
When opened, you will
view the special Global le stored in the computer, rather than seeing what is
actually in the sampler. You may READ the global parameters by clucking on the READ command button. This will read the sampler, and save the settings.
Master Tune
Use the handy slider to change the tuning.
Global Bend Range
Place the Text bar over the display box, type number, hit Enter
Touch/All Notes Off
Due to a weird Ensoniq idiosyncrasy, this is not available to be read or changed.
Maybe next ASR version. (Why did we put this in here?)
Foot Pedal
Cluck on Command arrow and you will see your list of choices. (EPS only)
Sustain Pedal
Cluck on Command arrow and you will see your list of choices.
Aux Pedal (LftFtswtch on ASR)
Cluck on Command arrow and you will see your list of choices. Cluck on the appropriate one.
MIDI Base Channel
Place the Text bar over the display box, type number, hit Enter
View
Greater than 512 byte view of a les contents. The le position numbers are
on the right, followed by the Hex byte numbers to the right, followed by the Ascii equivalents.
Close
Well, you know what this is.
Page 30
Transmit
Cluck on Command arrow and you will see your list of choices. Cluck on the
appropriate one. (ASR 3.2 bug prevents this from working. Maybe next version.)
BaseChannel Pressure Mode - FXSendBus3
(EPS/16-Plus only - on ASR-10 this works properly.) This is a strange one.
Due to another strange Ensoniq idiosyncrasy, Ensoniq MIDI-Disk Tools for
Page 19
Global Parameters Screen Ensoniq Disk Tools
Windows will read the Basechannel Pressure Mode, but you cannot change
it for the screen. However, it will not read FXSend Bus3 properly (it will al­ways read “On”), but will nd you change it from this screen. Cluck to toggle between “On” and “Off” for FXSend3. (Why is this? Ensoniq accidentally switched the access numbers between these two.)
MIDI IN Mode
Cluck on Command arrow and you will see your list of choices.
MIDI Sys-Ex
Check to turn on CAUTION: Once you change this, you will be cut-off from communication. Don’t tell us we didn’t tell you so...
MIDI Program Change, MIDI Song Select, MIDI Controllers, Auto-Loop Finding, Multi-Controllers
Check to turn on or off
MIDI External Control Number
Place the Text bar over the display box, type number, hit Enter
Enter Plays Note
Use the Command button to make your selection
You may use the TAB key to move around the Naming Wizard. The eld will
update (through MIDI and on the Disk
File either when you press Enter or you leave the eld.
Auto-Name Frame
This enables you to automatically name all your Instruments, Layers, and WaveSamples. Use the check boxes at the side of the Default names to enable this in the Auto-Name function.
By clucking on the Auto-Name button, this start the naming process. You will see this on the screen as it happens. As an option, you can auto-number the names as well (by checking that respec­tive check box). This puts the appropriate Instrument/Layer/WaveSample num­ber at the end of the name. If the name is too many characters, it will truncate your default name to make room.
Ensoniq Disk Tools
Read / Close
READ instructs the Tools program to reread the Global parameters of the EPS/ASR. If you are using the program for the rst time this is mandatory.
Close exits the screen.
Page 20 Page 29
This option takes you into the En­soniq Disk Tools area. Ensoniq Disk Tools is sold as a separate program; however, it is tightly integrated into MIDI-Disk Tools It’s purpose is to do
all the external disk functions (oppy and SCSI) that the Ensoniq’s can do.
You will notice that there are some other places with Ensoniq MIDI-Disk
Tools that these can be done. There is a separate Help le for this - use the
Help within that screen.
For more information, please refer to the Ensoniq Disk Tools manual.
WaveMapper - Normalizer - Naming Wizard Sample Editing
Dual Handshake Test: The computer sends out a request for all the pa-
rameters within the rst instrument of the EPS/ASR. (You must have one loaded in.) The computer then waits for a conrmation of the message from
the EPS/ASR. Once this is received, the computer sends out another re­quest for the information. The computer then waits for the EPS/ASR to send back the information. The test completes when it has received the second batch of information.
Sample Editing - SampleVue Screen
Of course, you want to be able to see Waves­amples - that’s what the SampleVue screen is for.
The WaveMapper
As the screen comes
The WaveMapper is a handy device that:
a) combines different wavesamples to-
gether into one instrument,
b) maps wavesamples into certain format
maps, such as General MIDI, or a different manufacturers format,
such as Roland, Akai, etc.
c) names wavesamples in a drum/percussion kit.
Note: This is not available in the current version. Look for it soon!
up, the Wavesample is read, and then displays on the screen. There is a couple of things to consider, though:
Reading Sample data over MIDI tends to be extremely slow. For this reason, Ensoniq MIDI-Disk Tools only does a partial read when you enter the Sample View screen. The Wavesample is divided into 512 parts, and the sample with the highest amplitude is read. Thus you get a very general look at the wavesa­mple, but it is accurate. More importantly, you see where the loop points are.
Since one of the major tenets of MIDI-Disk Tools is to work with MIDI and the
The Normalizer
Ever wonder why your Instrument sounds so quiet? Maybe your wavesamples haven’t been normalized to their highest level, insuring the best signal-to-noise ratio.
Cluck on this feature and a prompt will display all the wavesamples as they are being normalized. There is no Audition prompt for there is never anything wrong with normalized a wavesample - if it is noisier, you can always turn it down.
Naming Wizard
Wow - you can name anything you want! This was a cool feature of the original EPS-SENSE program. Only this is better.
Cluck on the instrument radio button to select the Instrument. This will change
all the layers and wave name elds to the proper names.
Page 28 Page 21
Ensoniq Disk itself, we make it easy on you if the data is already in the Disk
File. If so, we read the data immediately off the le, and not through MIDI. This
speeds up the process.
On the top of the screen there is the WaveSample View area, with moveable
arrows for Sample Start, End, and Loop parameters. Below are areas for le information, and Play button for playing the le, Radio buttons for viewing
either the entire wavesample or just a section of it, List Boxes showing the present contents of your EPS/ASR, and of course the Close button.
All the sample-editing commands (loops, truncate, and low-level editing com­mands) are accessed using a right-click on the WaveScreen. Note: we don’t want to repeat what’s already mentioned in the EPS/ASR manual here. In fact, if you haven’t read throughout the manual, we strongly suggest you do so. It is informative and clear about the different functions that the EPS/ASR is capa­ble of. It will also make this screen a little clearer to understand too.
SampleVue MIDI Tester
Ensoniq MIDI-Disk Tools has two modes of wavesample viewing:
Full
This shows you the entire wavesample, from beginning to end.
Zoom
This shows you a 30K portion of the wavesample. If the wavesample is less than 30K, only a portion of the wavesample will show. If the wavesample is larger than 30K, there will be a scroll bar listed under the view screen. You
can move this around to view different portions of the wavesample.
When you go into the SampleVue screen, the program will automatically at­tempt to read the selected Wavesample. Ensoniq MIDI-Disk Tools will check
rst if the portion of the wavesample has already been written to disk. If it has,
it will read that portion and write it to the screen - very fast. If it has not, it will attempt to read the Wavesample portion via MIDI, which is slower.
Remember, all the data is being written to a authentic Ensoniq le in the PC, so you can always download it using the Disk Tools utility to oppy disk or
SCSI.
MIDI Channel
Acceptable range 1-16, Place the Text bar over the display box, type number, hit Enter, or use the Spin button
Wavesample List Box
When you cluck on a key on the keyboard, this will tell you which Waves and in which Layers are being played. Double-Clucking on one of these will jump you to the respective Wavesample Screen.
Root Key and KeyRange displays
This will tell you the Root Key and the KeyRanges of the selected WaveSa­mple in the Wavesample List box.
Wavesample Name Combo Box
This enables you to change the name of the WaveSample selected in the Wavesample List Box. You may also scroll down and choose one of the default
names (mostly drum sounds now - will be expanded in the future).
Close
Closes the MIDI Keyboard and returns you to the current screen.
SampleVue Screen Comands
Play
Clicking on this will play the viewed wavesample. It will be looped, but not according to the loop positions.
Instrument Box; Wavesample Box
Select the desired instrument, and selects the desired wavesample within the Instrument selected.
Full - Zoom
Described above.
Loop
Selects the Loop Type of the selected Wavesample.
View
This area shows you the range of the viewed wavesample, along with the percentages as well.
Range Slider (underneath View Screen)
Visible when you are using the Zoom position. Selects the area in the wavesample viewed.
Loop Markers
Drag these to position new loop points.
Close SampleVue
Cluck on this close the SampleVue screen.
Page 22 Page 27
MIDI Tester
This will help you test the MIDI Commu­nication between the computer and your
Ensoniq. Four tests are implemented,
designed to imitate the type of communi­cation the program will have.
Try all the tests. If any of them fail, explore the options the program gives you. If you are still stumped, please call us at the numbers displayed. We recommend that you be in front of your computer when you call.
Send Test: The computer sends out a Virtual Button Press (Sys-Ex). The
EPS/ASR should blink when this is received.
Receive Test: The computer waits for a Sys-Ex message to be sent from the EPS/ASR. Once it is received, the test completes.
Single Handshake Test: The computer sends out a request for the Master Tune parameter. The computer then waits for a Sys-Ex message to come back. The test completes when the sys-ex message is received.
Utilities - MIDI Keyboard Wavesample Data Editing
Utilities
Ensoniq MIDI-Disk Tools offers many utilities for working with Ensoniq Instru-
ments and other types of les. The following sections show you these.
The MIDI Keyboard
WARNING: This is not your ordinary MIDI Keyboard! Not only can you play
the notes on the EPS/ ASR just as you would the actual keyboard, you can also jump to a particular note's pa-
rameters. Keeping this
window open at all times is helpful. The window always stays on top, for easy
access. This is accessible through the Main Menu; either through the specic
Command button or the Toolbar menu.
Keyboard
When opened, you’ll nd a wide keyboard display with 76-notes. To use the MIDI Keyboard, simply cluck on any key you want to sound. If you want to hold
notes, use the Hold button.
Hold Button
Cluck to indenitely hold notes after clucking.
Instrument Name
Select which instrument you want played.
Note Played
This indicates what note of the keyboard you have played.
Panic/All Notes Off
This will cut-off all sounding notes. First note: you might have to cluck this twice to be sure. Second Note: this does not send the specic AllNotes Off Command,
it rather sends Notes Off to all notes of the key range.
Octave
Changes the octave, acceptable positive or negative
Velocity
Changes the velocity the note that is clicked on the MIDI Keyboard.
Going Deeper ­Wavesample Data Editing
Ensoniq MIDI-Disk Tools can operate the EPS/ ASR's data editing features via MIDI commands. Right-clucking on the Wavesample screen brings up the menu dialog shown on the right. This is your access point for all of the low-level data-editing functions available.
Truncating and Normalizing
Truncate Wavesample
This automatically truncates the Wavesample, based on the parameters you have changed in the windows and especially with the arrows below the Viewing area. Remember, this is updated through
MIDI and on the Disk File.
Ensoniq MIDI-Disk Tools for Windows offers truncation of the Wavesample whether you have copies of the wavesample or not. If there are copies, a prompt will notify you, and asks you if the program can automatically adjust the Sample Start and Sample Ends of the copies. (If the wavesample is a
copy, you’ll get the same prompt.). This is much handier than truncating every
wavesample by hand. Only with the Tools!
Normalize Gain
This normalizes the Gain of the present WaveSample you are viewing. If it
is a copy, Tools will give you the option of normalizing the copy and mak­ing it it’s own separate wavesample, or to Normalize the original. (only with
Tools...)
Truncate/Normalize
This simply adds the Normalize Gain function at the end of the truncation to
allow the greatest possible dynamic range.
Advanced Low-Level Commands
Volume Smoothing
Accesses the Volume Smoothing algorithm of the EPS/ASR.
Page 26 Page 23
Wavesample Data Editing SampleVue Preferences
Copy-Add Wavesamples
This invokes the Merge, Mix, or Splice Wavesamples feature. Accesses the mixing, merging, or splicing algorithms of the EPS/ASR.
Looping
All of Ensoniq’s looping functions are available with Ensoniq MIDI-Disk Tools. With the Preferences page, you can either display the advanced options, or just have the program perform the loop. Loops available are:
Cross-Fade Loop Bi-Directional CrossFade Reverse Cross Fade Bowtie Cross Fade Lengthen Loop Synthesized Loop
Basic Low-Level Commands
Scale Data
Scales any part of your wavesample.
Clear Data
Erases any part of the sample data.
Copy Data
Copies data from one wavesample and copies it to another part.
Add Data
Adds data from another wavesample.
Preferences
This takes you to the Sample Preferences dialog, where you can select your draw colors, set the Vision Window parameter, and choose other par­ticular options.
SampleVue Preferences
This is where you set your options for the Sam­pleVue screen.
Vision Window
This gives you the option of how many samples you want to view. Default is 10240
bytes, but you can lower it to 256. Remember, the more samples you want to view, the longer the reads are.
Draw Color - BackColor
The Draw Color is the color of the wave itself, the Back Color is the background. Don’t make them the same color!
Read Entire Wave - Prompt First
This causes the SampleVue functions to read the Entire wave, sample for sample.
Always Read via MIDI
This cause the SampleVue functions to always read via MIDI, not from the disk.
Replicate Data
Takes wavedata and copies it consecutively to the end of the wavesample.
Reverse Data
Reverses (pays backward) a section of wavedata..
Invert Data
Takes the sample range and changes the positive waves to negative waves and vis-versa. This really has no effect on the sound, but it can help with phase-cancellation problems.
Fade In/Fade Out
Accesses the pre-fade or post-fade functions of the EPS/ASR.
Import .WAV Files
This will take the whole Wavesample and convert it into a .WAV le.
Page 24 Page 25
Loading...
