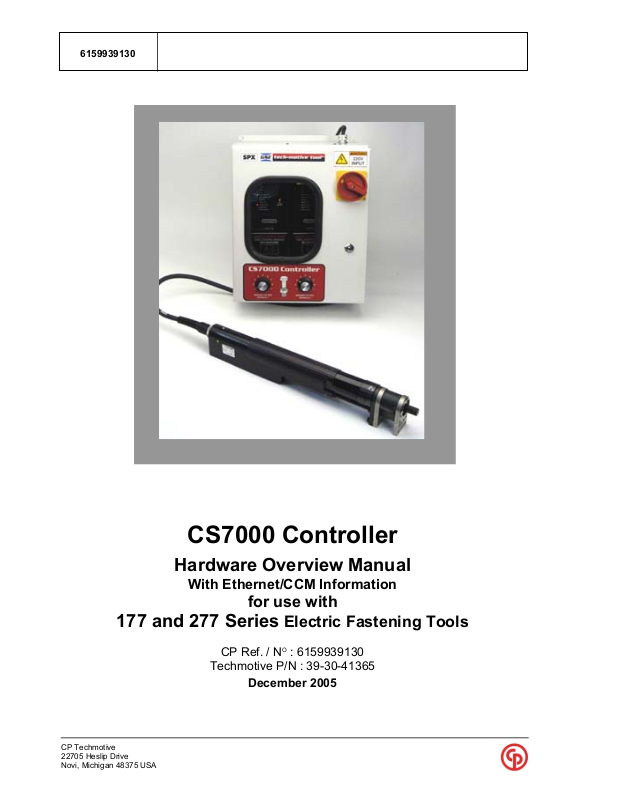

Chicago Pneumatic CS7000 User Manual
6159939130
CS7000 Controller
Hardware Overview Manual
With Ethernet/CCM Information
for use with
177 and 277 Series Electric Fastening Tools
CP Ref. / NO : 6159939130
Techmotive P/N : 39-30-41365
December 2005
December 2005 i
CP Techmotive
22705 Heslip Drive
Novi, Michigan 48375 USA
24-Hour
Technical Support
Toll Free in the U.S. and Canada:
1-877-224-7377
All other countries:
(001) 248-348-6280
between 8 a.m. and 5 p.m.
Eastern Standard Time (EST)
NOTE: Chicago Pneumatic Tool Company (CP) in
2005 acquired and changed the name of GSE
tech-motive tool to CP Techmotive. Product
Information may be found on www.cp.com.
NOTE: The part number for the Visual Supervisor
(VS) software program is 464000-03330 (CP
part number 6150040915)
NOTE: A variety of related technical manuals in .pdf
format may be downloaded from
www.cp.com. Click on the Technical Info
link on the left column. Select Technical
Documentation. Scroll through the list to find
the title of the product you require, and click!
CP Techmotivemanufactures products under the CP, CP Techmotive, and tech-motive tool® brand names
Information and technical diagrams in this manual are subject to change without notice. techmotive tool is a
registered trademark. Products and services referred to in this book may be either trademarks and/or registered
trademarks of their respective owners.
December 2005 ii
LIMITED WARRANTY
CP Techmotive warrants its PRODUCTS to be free from defects in materials and workmanship for the lesser of (1)
one year from the date of shipment from the manufacturing facility in Michigan, U.S.A. OR
(2) one-million cycles except for the products noted below:
CP Techmotive crowfoot, tubenut and hold & drive heads
rd
-party crowfoot, tubenut, hold-and-drive torque multiplier or other heads manufacturer’s warranty
3
56 and 116 Series nutrunners 500,000 cycles
PRODUCTS include CP Techmotive brand fastening tools, controllers and cables, GSE brand sensors and
instruments, and anti-lock brake testing systems. Fuses and batteries are not covered under warranty.
For PRODUCTS verified as defective at CP Techmotive’s manufacturing facility, CP Techmotive shall have the
option, in its sole discretion, to repair or replace the products or components. CP Techmotive shall not be liable for
any installation charges, expenses of the Buyer for repairs or replacement, damages from delay or loss of use, or
other indirect or consequential damages of any kind. The warranty does not cover any product that has been
modified without the approval of CP Techmotive, used for a purpose other than that for which it was intended, used
in a manner inconsistent with any instructions, subjected to unusual physical stress, environmental or electrical
conditions, or whose original identification marks have been removed or altered.
Whenever the PRODUCTS are to be incorporated in a system, the design of which originated with the Buyer,
CP Techmotive only that the PRODUCTS shall be free of defects in materials and workmanship and offers no other
warranty.
In the event that a product is repaired or replaced under the terms of the warranty, the warranty period for the
repaired or replacement product shall be limited to the remaining portion of the original warranty.
Any warranty extended by the original manufacturer of peripheral equipment, such as printers, recorders, plotters,
etc., included with a CP Techmotive product or system shall be extended to the Buyer and shall be the only warranty
offered.
Transportation charges for materials shipped to the manufacturing facility for warranty repair are to be paid by the
Buyer. CP Techmotive will pay for shipping to return items repaired or replaced under warranty.
THIS LIMITED WARRANTY IS EXCLUSIVE, AND CP Techmotive MAKES NO OTHER WARRANTY OF ANY KIND
WHATSOEVER, WHETHER EXPRESSED, IMPLIED OR STATUTORY, WITH RESPECT TO THE PRODUCTS OR
PARTS MANUFACTURED BY IT, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR ANY OTHER MATTER OR WARRANTY OF ANY KIND. No agent, employee or representative of
CP Techmotive has the authority to bind CP Techmotive in any affirmation, representation, or warranty concerning
the Products or parts except as stated herein.
250,000 cycles
THIS REMEDY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE FOR ANY NONCONFORMITIES IN
MATERIALS OR WORKMANSHIP, OR FOR ANY DAMAGES RESULTING FROM ANY OTHER CAUSE
WHATSOEVER. CP Techmotive SHALL NOT, IN ANY EVENT, BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, NATURE OR DESCRIPTION, WHETHER FOR
NONCONFORMITIES IN MATERIALS OR WORKMANSHIP UNDER ANY WARRANTY, IN CONTRACT, TORT,
NEGLIGENCE, STRICT LIABILITY, OR FOR ANY OTHER REASON.
December 2005 i
6159939130 CS7000 Controller Hardware Overview Manual
CUSTOMER SATISFACTION
Please Read This!
As a valued customer, your opinion and satisfaction are important to CP Techmotive. Please let
us know what you think of our product(s).
Write the part number and serial number of the product(s) you have purchased before you begin
our brief online survey. The numbers are located on a sticker affixed to the handle of the
nutrunner or screwdriver, and exterior or interior of the controller.
Tool Label
Part Number
Serial Number
Controller Label
Part Number
Serial Number
To complete the survey:
1. Visit our website www.cp.com and click www.gsetechmotive.com
2. Click the Customer Satisfaction Survey link located below the gray buttons in the red, left-
hand frame.
3. Fill in the fields and click the appropriate choices.
4. Click the Submit to GSE tech-motive tool button
____________________________________________________________________________________________
Page ii 39-30-41365
Preface
Preface
The CS7000 Controller manufactured by CP techmotive is a component of one of the most powerful
DC electric nutrunner fastening control systems available. The system uses 100% digital technology
to ensure accurate and reliable fastening and data acquisition. Microprocessors in both the fastening
tool and the controller s tool control module (TCM) enable the system to perform to levels of
accuracy while providing easy set-up and operation previously unattainable.
With Intelligent tool technology you no longer need to enter tool identification, calibration, angle
counts, speed and other information. You simply plug in the tool, power on the system, program the
desired tightening specifications and begin production.
A complete nutrunner fastening control system is made up of the CS7000 Controller, a cable and a
CP techmotive 177 or 277 Series nutrunner. The powerful CP techmotive Visual Supervisor software
program is used for system setup, fastening, data collection, and diagnostics.
Who Should Use This Manual
This manual is written for the engineers, technicians and users who will set-up and/or operate the
CS7000 Controller with any of the Intelligent (177 and 277 Series) nutrunners.
How to Use This Manual
This manual provides installation, maintenance and technical information about the CS7000
Controllers.
This Preface provides conventions and abbreviations used throughout this manual.
If you have never used a CS7000 Controller, read this manual entirely. The first two chapters will
help you become familiar with safety requirements, the location of components, software and
features.
If you are already familiar with the CS7000 Controller, look over Chapter 3. Installing the CS7000
Controller and Chapter 4. Technical Information, which describe the power requirements, details of
the I/O wiring and connectors, replacement parts and fuses.
December 2005 i
6159939130 CS7000 Controller Hardware Overview Manual
i
Conventions
The following conventions are used throughout this manual for the safety of personnel, equipment,
software, and data. The conventions include warnings, cautions and notes, as follows:
WARNING!
!!
!!
CAUTION! There may be damage to equipment, and loss of software
NOTE:
??
??
It can be dangerous to personnel and/or machine systems,
if operating instructions are not followed. The information
appears in a box in italicized boldface type.
and data, if operating instructions are not followed. The
information is indented and in italicized boldface type.
Information that adds to your knowledge of the equipment
and/or software. The information is indented and italicized.
____________________________________________________________________________________________
Page ii 39-30-41365
Preface
Abbreviations
Some of the most common abbreviations used throughout this manual include the following:
API application program interface
ESD electro-static discharge
GFCI ground fault circuit interrupter
I/O input/output
IEC International Electrotechnical Commission
IEEE Institute of Electrical and Electronic Engineers
IP internet protocol
kbps kilo-bits per second
kVA kilovolt-ampere
LAN local area network
LED light emitting diode
mbps million bits per second
PCI peripheral component interconnect
TCM tool control module
TCP/IP transmission control protocol/internet protocol
RAM random access memory
SDLC synchronous data link control
STM standard test method
TINI tiny i
V volts
VS Visual Supervisor is the setup, fastening, data collection, and diagnostics software
nternet interface
program designed by CP techmotive
____________________________________________________________________________________________
December 2005 Page iii
6159939130 CS7000 Controller Hardware Overview Manual
(This page is left blank intentionally.)
____________________________________________________________________________________________
Page iv 39-30-41365
Contents
Contents
Who Should Use This Manual............................................................................................... i
How to Use This Manual........................................................................................................i
Conventions ...........................................................................................................................ii
Abbreviations........................................................................................................................iii
Contents..................................................................................................................................v
Figures ..................................................................................................................................vii
Tables ....................................................................................................................................vii
1. Think Safety First! ..............................................................................................................1-1
General Machine Safety ................................................................................................1-1
Electrical Safety .............................................................................................................1-3
2. Identifying the Components..............................................................................................2-1
Front Panel ..........................................................................................................................2-2
Latch ........................................................................................................................2-3
Rotary Actuator .......................................................................................................2-3
Parameter Select Switch ........................................................................................2-3
LED Display.............................................................................................................2-3
Top Panel .............................................................................................................................2-4
Bottom Panel.......................................................................................................................2-4
Tool Connector........................................................................................................2-5
Input AC Power .......................................................................................................2-5
Printer/Barcode Connector .....................................................................................2-5
RS-232 Connector (VS Setup) ...............................................................................2-5
SDLC/485 I/O Network Connector (Optional)........................................................2-5
Ethernet (10Base-T) and 9-pin D (Communications/Diag) Setup ........................2-5
I/O Connector..........................................................................................................2-6
Enclosure Interior...............................................................................................................2-6
Gen2 Tool Control Module (TCM).................................................................................2-8
Servo Amplifier........................................................................................................2-9
Gen2 Device Control Module (DCM) .....................................................................2-9
Communications Control Module (CCM) “Optional”........................................... 2-10
Backplane.................................................................................................................... 2-11
Backplane Fuses.................................................................................................. 2-11
DIP Switch Settings ............................................................................................. 2-12
Power Supply .............................................................................................................. 2-12
Ground Fault Circuit Interrupter (GFCI) ..................................................................... 2-12
Disconnect Switch....................................................................................................... 2-13
Circuit Breaker/Fuses ................................................................................................. 2-13
3. Installing the CS7000 Controller ......................................................................................3-1
Mounting the CS7000 Controller ......................................................................................3-1
Emissions and Susceptibility ...........................................................................................3-2
Meeting the AC Input Power Requirements ...................................................................3-3
Input Power Protection ......................................................................................................3-3
December 2005 v
6159939130 CS7000 Controller Hardware Overview Manual
Grounding ........................................................................................................................... 3-4
I/O Wiring ............................................................................................................................ 3-4
Connector Pinout Definitions........................................................................................... 3-8
Tool Connector “26 pin” (Metal SMC) – Front View .................................................... 3-8
I/O Connector – Front View .......................................................................................... 3-9
TCM (IN and OUT) Network Connectors – Front View ............................................... 3-9
RS-232 Connector – Front View .................................................................................. 3-9
Printer/Computer/Diagnostics (RS-232) Connector – Front View ............................ 3-10
Programming the CS7000 Controller (In General) ...................................................... 3-10
Programming the CS7000 with Ethernet (CCM) .......................................................... 3-10
4. Technical Information ....................................................................................................... 4-1
Replacement Parts............................................................................................................. 4-1
Cleaning the Enclosure Window .....................................................................................4-1
Assembly Drawings........................................................................................................... 4-1
Contact Information........................................................................................................... 4-2
5. Index .................................................................................................................................... 5-1
____________________________________________________________________________________________
Page vi 39-30-41365
Figures
Figure 2-1. Front Panel View ..................................................................................................2-2
Figure 2-2. Turning the Rotary Actuator to the ON Position .................................................2-3
Figure 2-3. Top Panel View ....................................................................................................2-4
Figure 2-4. Bottom Panel View...............................................................................................2-4
Figure 2-5. Components Inside the Enclosure of the CS7000 Controller ............................2-7
Figure 2-6. Front View of the TCM .........................................................................................2-8
Figure 2-7. Communications Control Module (CCM) ......................................................... 2-10
Figure 2-8. CS7000 Controller Backplane .......................................................................... 2-11
Figure 2-9. Ground Fault Circuit Interrupter........................................................................ 2-12
Figure 3-1. CS7000 Controller Dimensions of the Front and Bottom Panel.........................3-2
Figure 3-2. Remote Input Circuit Schematics ........................................................................3-7
Tables
Table 3-1. 19-Position Remote I/O Connector Pinout Signal Names and Descriptions.....3-4
Table 3-2. Guidelines for Proper Operation of the Controller I/O Signals...........................3-7
Table 4-1. Replacement Parts...............................................................................................4-1
Contents
____________________________________________________________________________________________
December 2005 Page vii
6159939130 CS7000 Controller Hardware Overview Manual
(This page is left blank intentionally.)
____________________________________________________________________________________________
Page viii 39-30-41365
Chapter 1. Think Safety First!
1. Think Safety First!
Working with fastening tools can be dangerous if safe and proper procedures are not followed. As
with all machinery, certain hazards can be involved with the operation of the product. Using these
tools with respect and caution will considerably lessen the possibility of personal injury. If, however,
safety precautions are overlooked or ignored personal injury to the operator can result.
Always use common sense and exercise caution when using these tools. They can produce high
torque that, unless properly compensated for, could cause personal injury. Remember, your personal
safety is your responsibility.
If you are an operator or CP techmotive-qualified service technician, you should become familiar with
the contents of this manual before operating, servicing, or maintaining any part of the CS7000
Controller. Familiarization with all components of the system can minimize the possibility that an
accident or injury might occur.
CP techmotive assumes no responsibility for personal injury or damage to equipment resulting from
misuse of these tools. After reviewing this manual you should also review all safety procedures
provided by your company and the equipment installer.
WARNING!
!!
!!
Failure to follow these steps can result in serious personal
injury.
General Machine Safety
• FOR YOUR OWN SAFETY READ THE INSTRUCTION MANUAL THOROUGHLY
PRIOR TO OPERATING THE TOOL.
• DO NOT WORK IN A DANGEROUS ENVIRONMENT. Do not use power tools in a
damp or wet location or explosive atmosphere, or expose them to rain, oils, or corrosive
fluids.
• KNOW THE LOCATION OF POWER DISCONNECTS AND EMERGENCY STOP
BUTTONS PRIOR TO OPERATING THIS EQUIPMENT.
• KEEP ALL ELECTRICAL PANELS CLOSED DURING OPERATION. High voltage
present inside enclosure panels can result in personal injury. Do NOT bypass or defeat
electrical safety devices. Turn the power actuator to the OFF position prior to any
servicing or maintenance of the controller.
• Observe all government and/or company power lockout standards.
• NEVER OPERATE SOLENOID VALVES, LIMIT SWITCHES OR RELAYS
MANUALLY as this practice can create dangerous, unexpected machine movements.
December 2005 1-1
6159939130 CS7000 Controller Hardware Overview Manual
• SECURE THE TOOL. Tools that develop torque can produce hazardous torque
reactions. Always be sure that the tool is properly fixtured to absorb reaction as a
fastener is tightened. Never operate a tool capable of high torque without proper
fixturing.
• SECURE WORK. Avoid situations where the part being fastened breaks loose and can
cause damage.
• NEVER TOUCH OR ATTEMPT TO STOP MOVING MACHINERY OR PARTS
WITH YOUR HANDS, OTHER PARTS OF YOUR BODY, OR MAKESHIFT
DEVICES.
• DO NOT OPERATE THE TOOL WHILE UNDER THE INFLUENCE OF ALCOHOL,
DRUGS OR MEDICATION THAT CAN IMPAIR YOUR JUDGMENT.
• REPORT ALL UNSAFE WORKING CONDITIONS OR PRACTICES TO YOUR
SUPERVISOR AND / OR SAFETY DEPARTMENT FOR CORRECTION.
• WEAR APPROVED SAFETY GLASSES AT ALL TIMES.
• DO NOT WEAR JEWELRY, especially bracelets and rings, while operating the
fastening tools. Keep hands and fingers away from all rotating parts and avoid situations
where clothing can become tangled in the tool. Secure loose fitting clothing, neckties,
and long hair. Wear medical alert identification cautiously.
• DO NOT OVERREACH. Keep proper footing and balance at all times.
• KEEP YOUR WORK AREA CLEAN. Do not work on or near slippery floors or
surfaces. Avoid situations where the tool reacts against unexpected obstacles. Do not
operate electrical equipment while standing on a wet floor.
• MAINTAIN TOOLS IN TOP CONDITION. Keep tools properly lubricated and clean.
If any wires become frayed or exposed, replace them immediately. Prevent dirt, grease
or contaminants from getting into the tool.
• REDUCE THE RISK OF UNINTENTIONAL STARTING. Be careful how the tool is
left unattended. Avoid resting it on its throttle lever to prevent false starts.
• CONTROL THE DIRECTION OF ROTATION. The reaction torque changes direction
when going from forward to reverse. Always be aware in which direction the tool will
rotate prior to using it. If the tool is not fixtured this will allow you to brace for the
proper direction of torque reaction.
• CHECK DAMAGED PARTS. Before further use of a tool, any part of the tool that is
damaged should be carefully checked to ensure that it will operate properly and perform
its intended function. Check for alignment of moving parts, breakage of parts, mounting,
and any other conditions that may affect its operation. Never operate a tool that has
damaged or exposed wires. Never operate a tool that has any part of the powertrain,
other than the output spindle, exposed.
____________________________________________________________________________________________
Page 1-2 39-30-41365
Loading...
